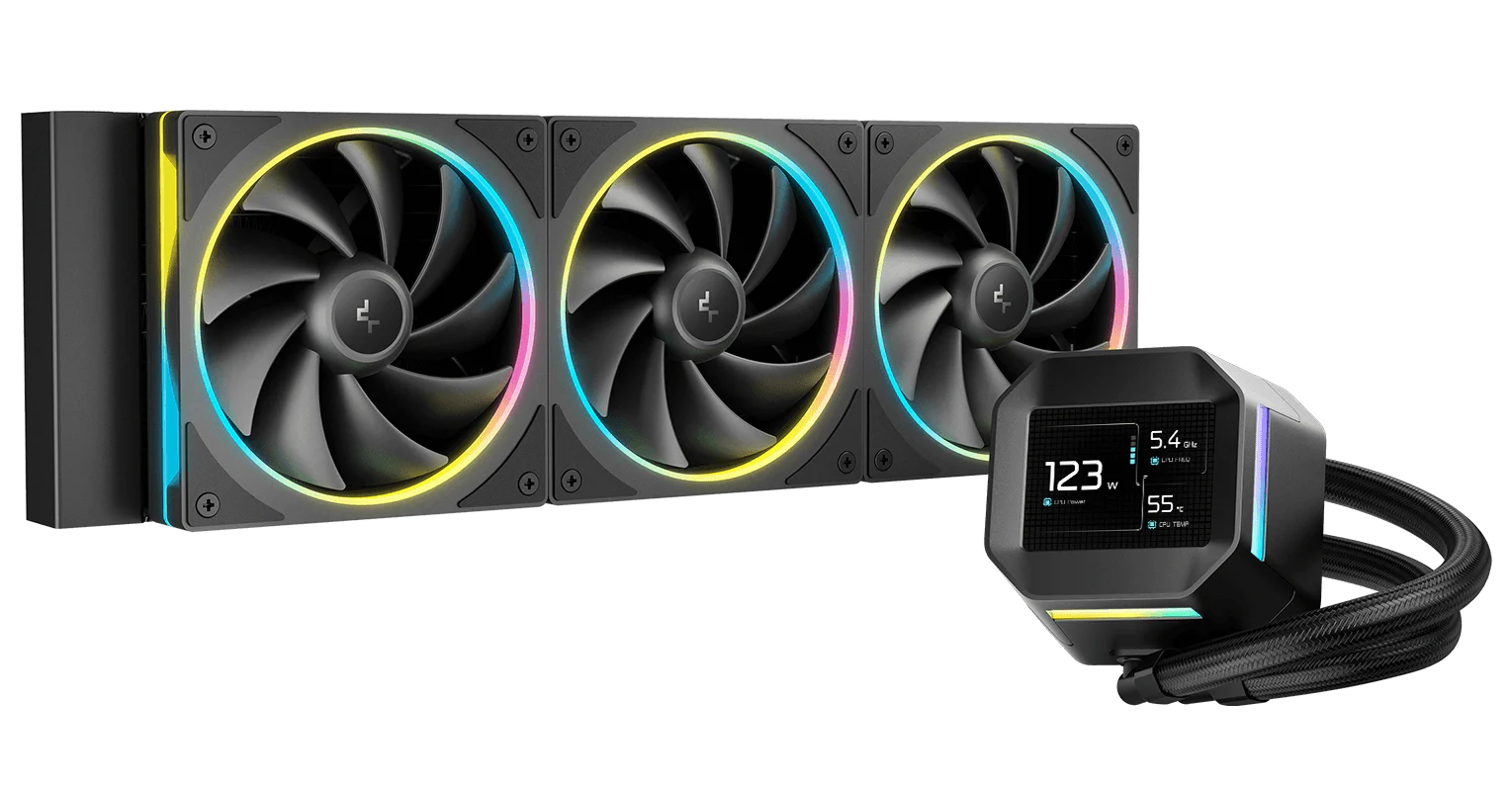

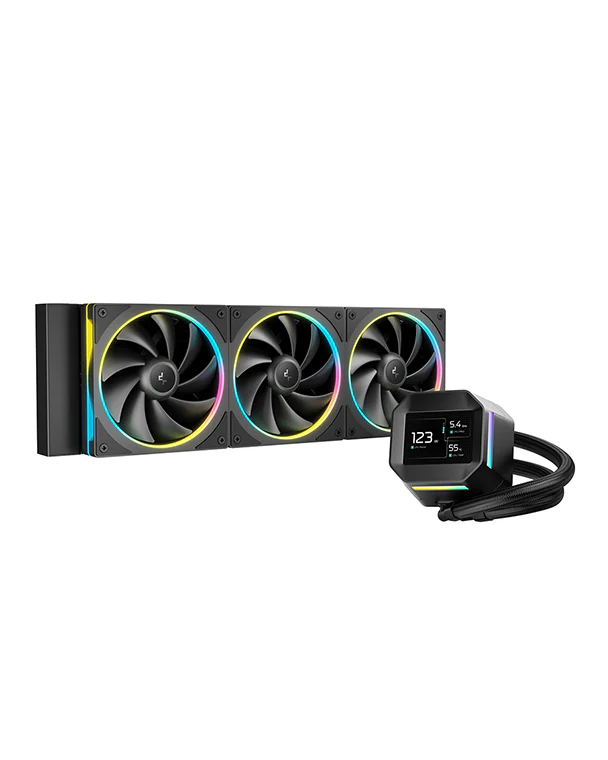

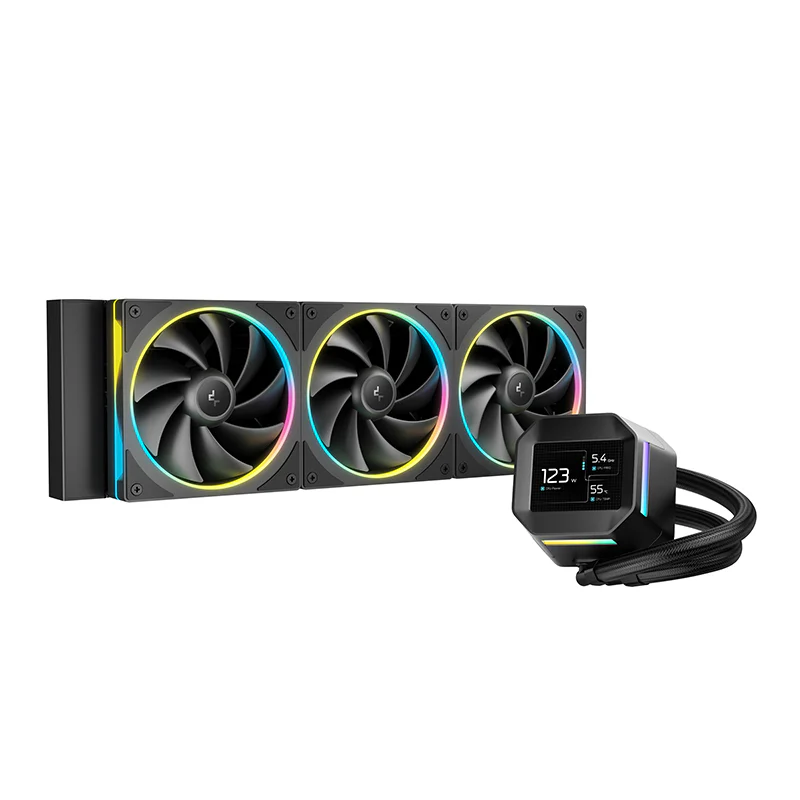

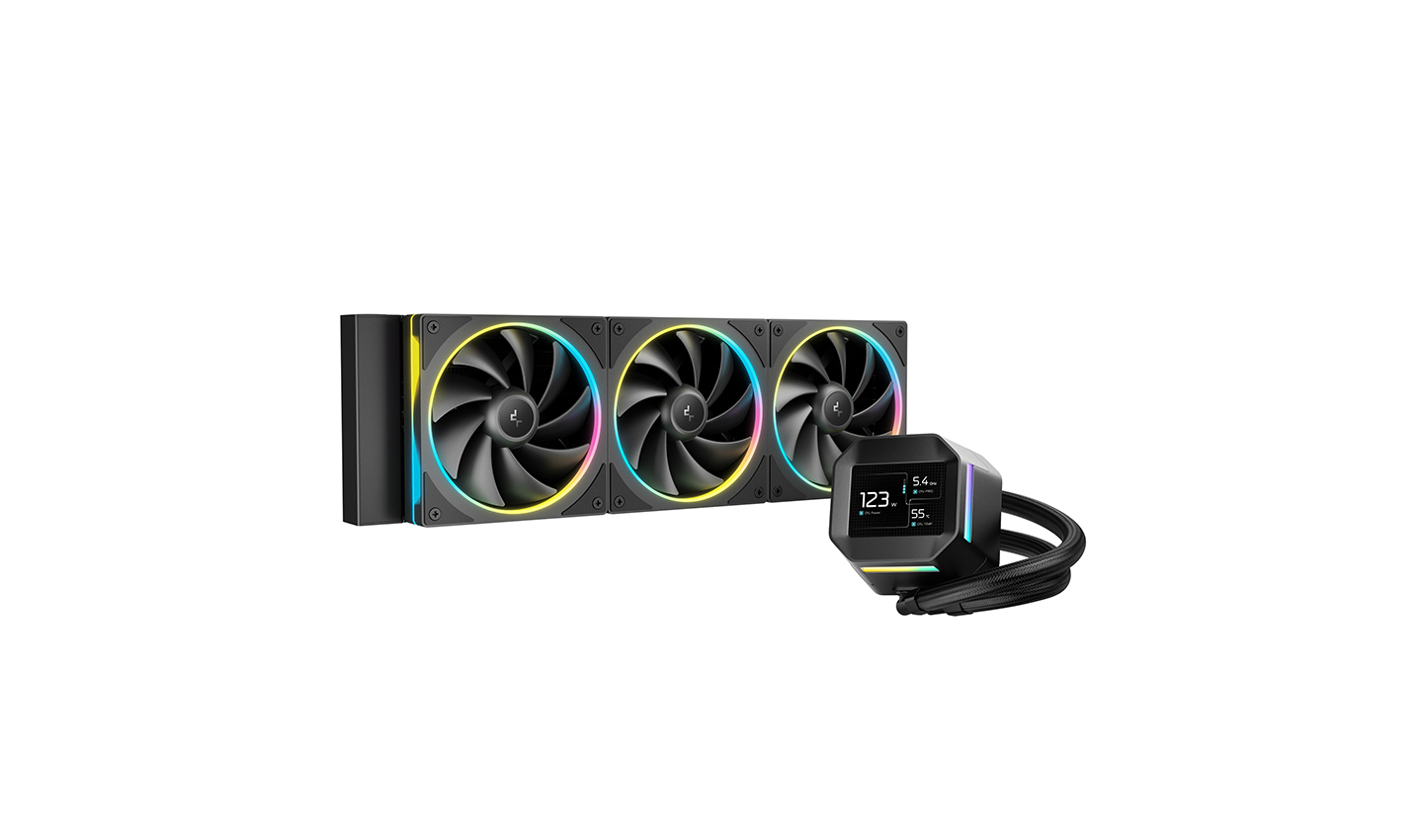

LM360

FOCUSED DISPLAY EXPERIENCE

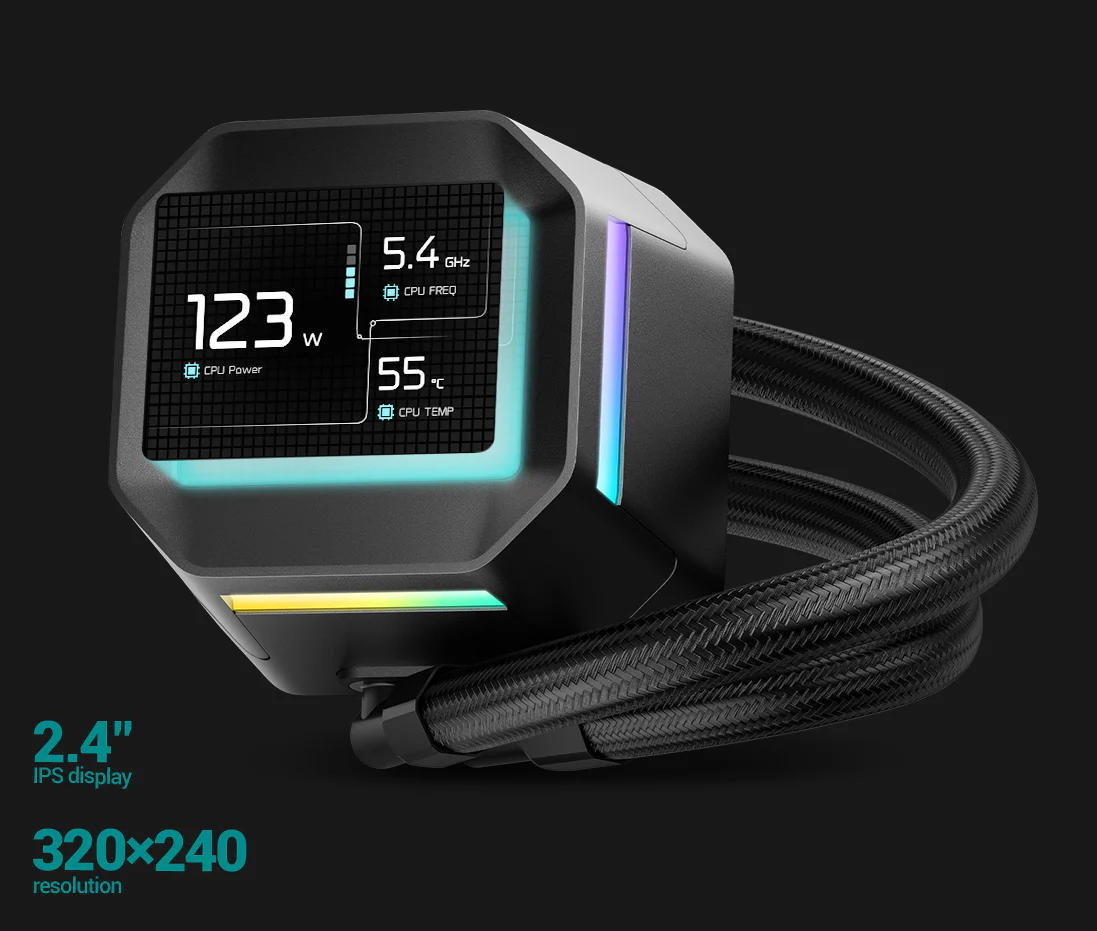

CLEANLY FOCUSED 2.4" LCD

See more from any angle with the 2.4" IPS display. A 320×240 resolution ensures crisp visuals, while enhanced color accuracy and screen stability deliver consistent clarity throughout. The soft perimeter lighting adding structured contrast to the minimal design.

DeepCreative: THE CONTROL CENTER

Take full control of your LM cooler with DeepCreative software. Monitor essential system information in real time, personalize the screen display, or switch to Zen Mode for a distraction-free experience when performance matters most. Screen brightness and display orientation can also be adjusted to suit your setup.

Real-Time Monitoring

Media Mode

Zen Mode

CPU Monitoring

GPU Monitoring

Power Monitoring

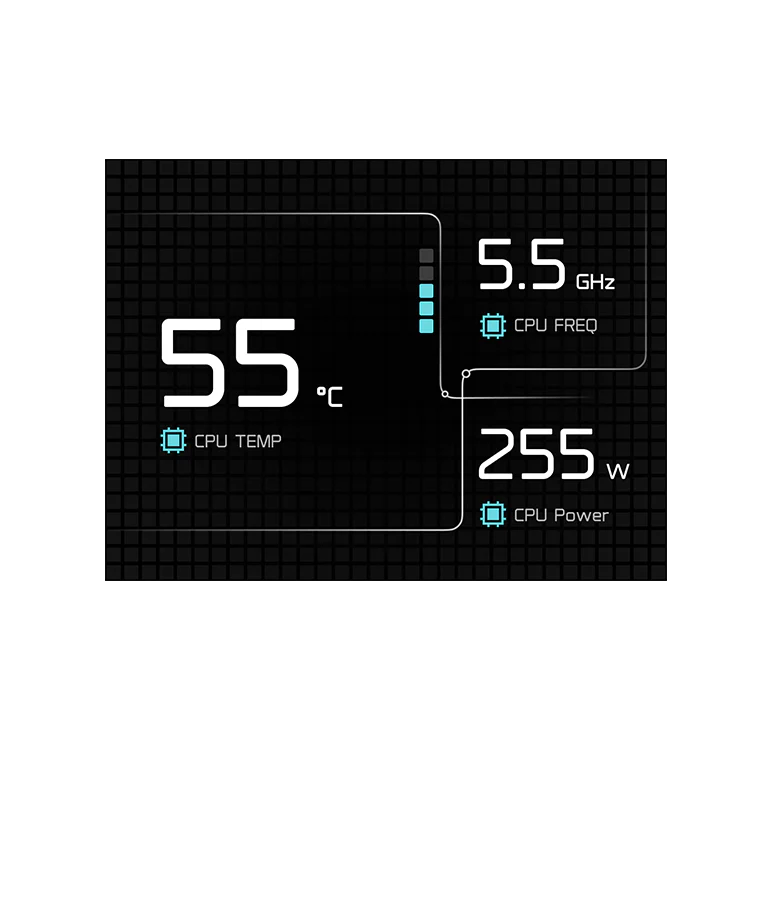

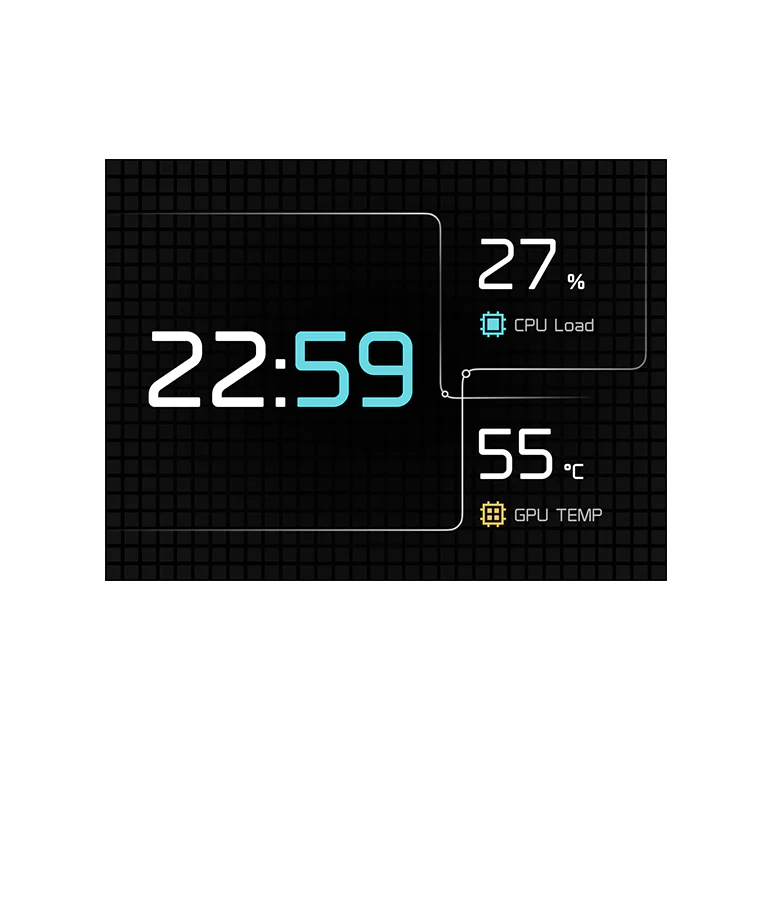

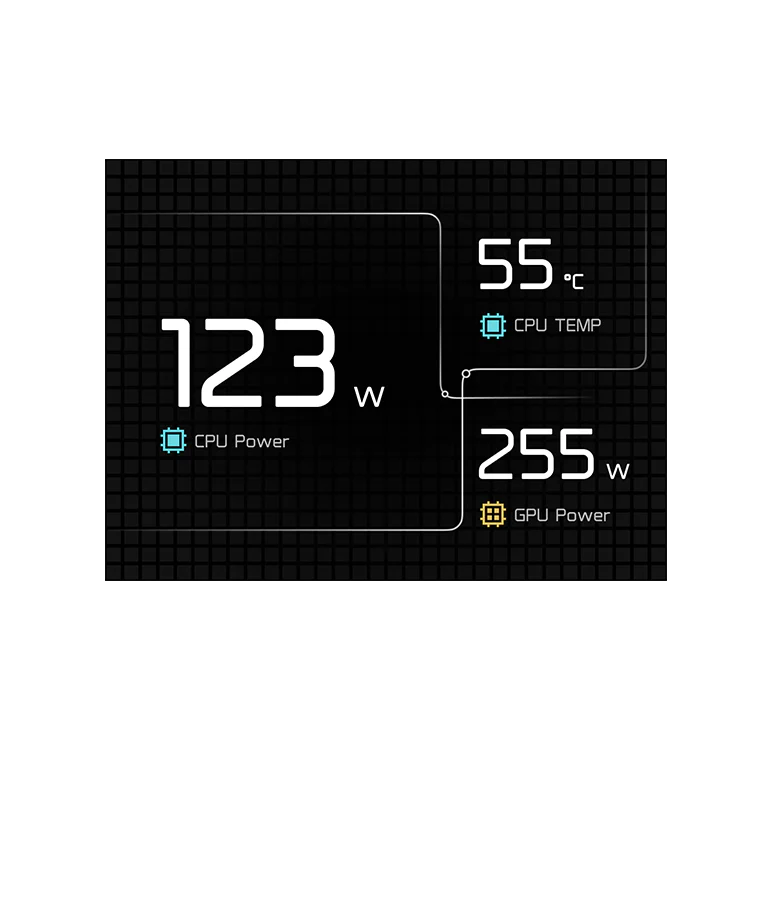

View essential system information with a structured layout. Highlight key stats like CPU temperature, power consumption, or time in the primary display area, while secondary areas show additional metrics like GPU status and memory usage.

Personalize your build with custom images, GIFs, or video loops for a unique visual touch.

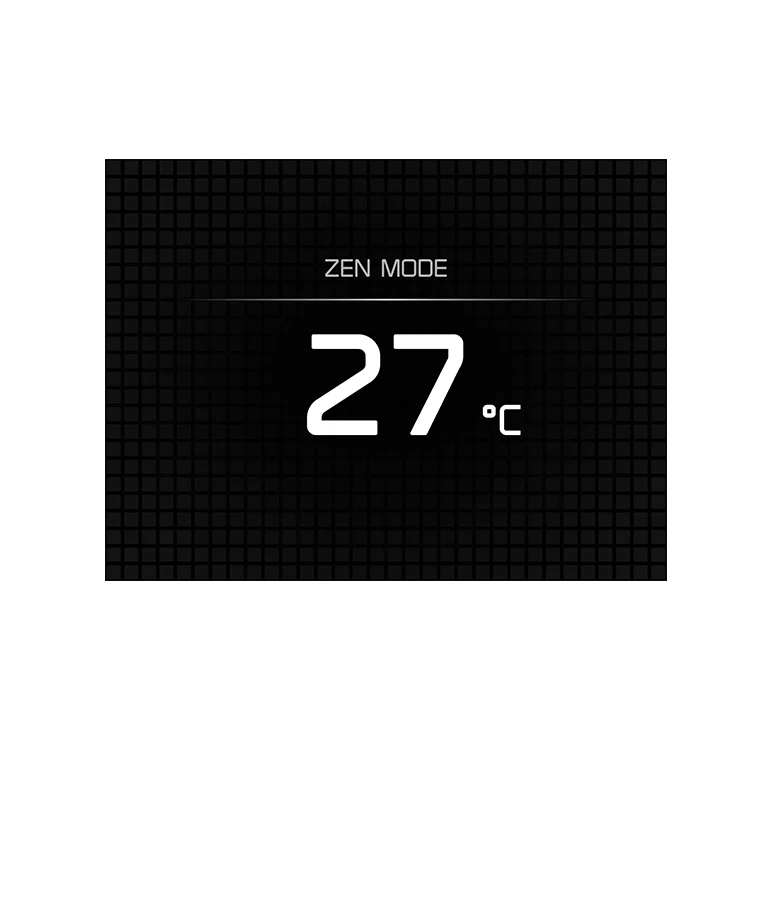

Automatically reduces update frequency under high system loads to minimize resource usage and help you stay focused.

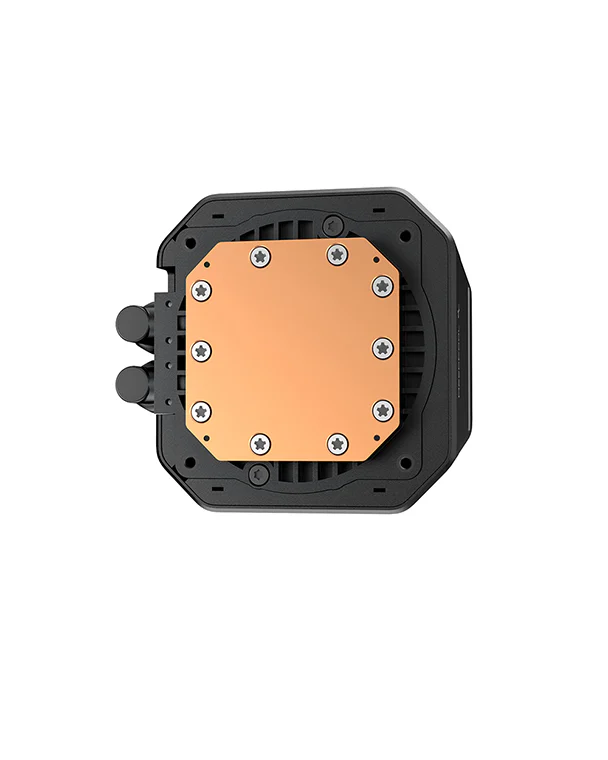

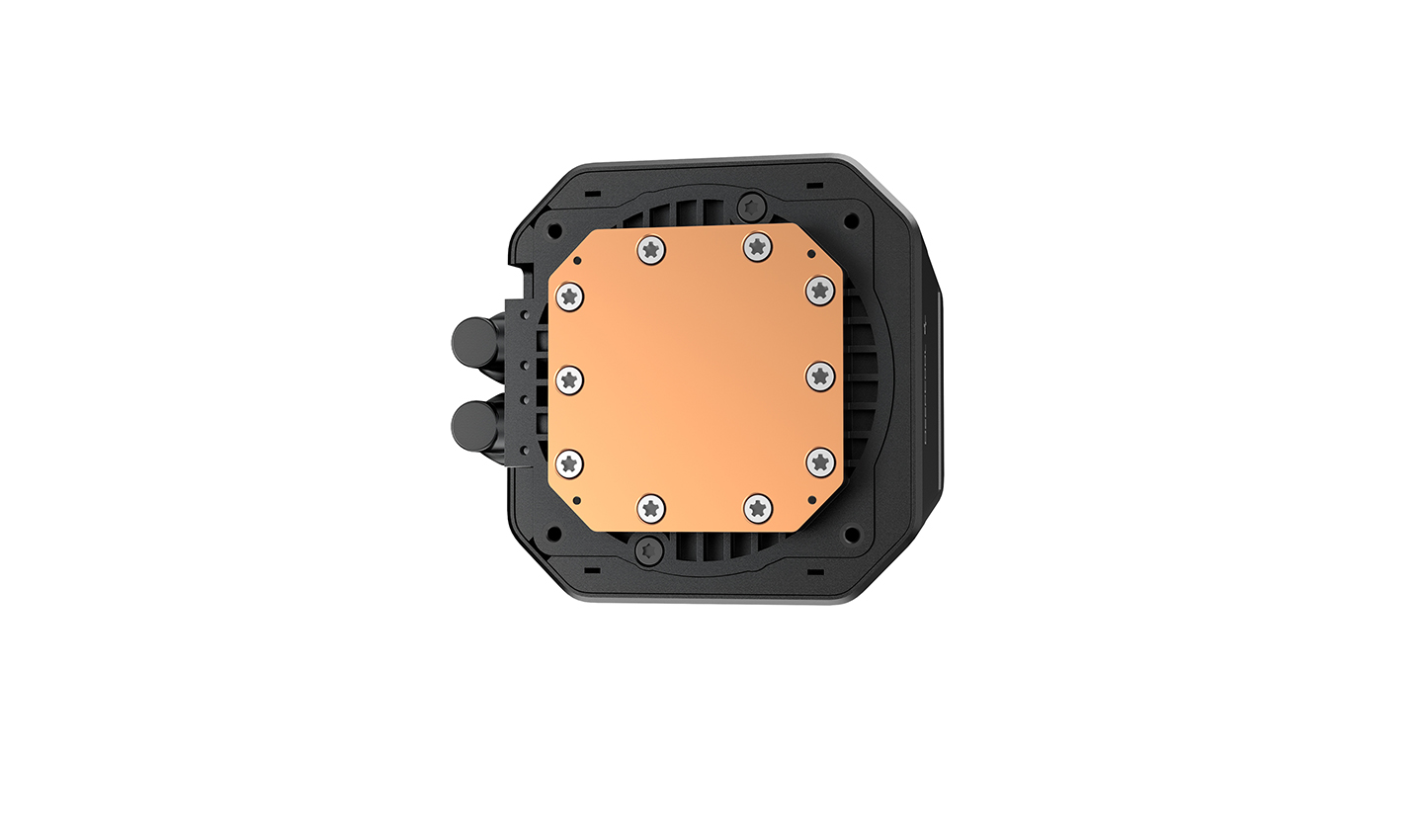

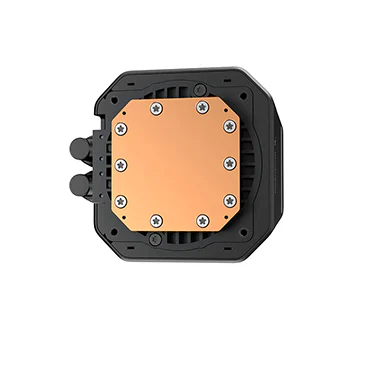

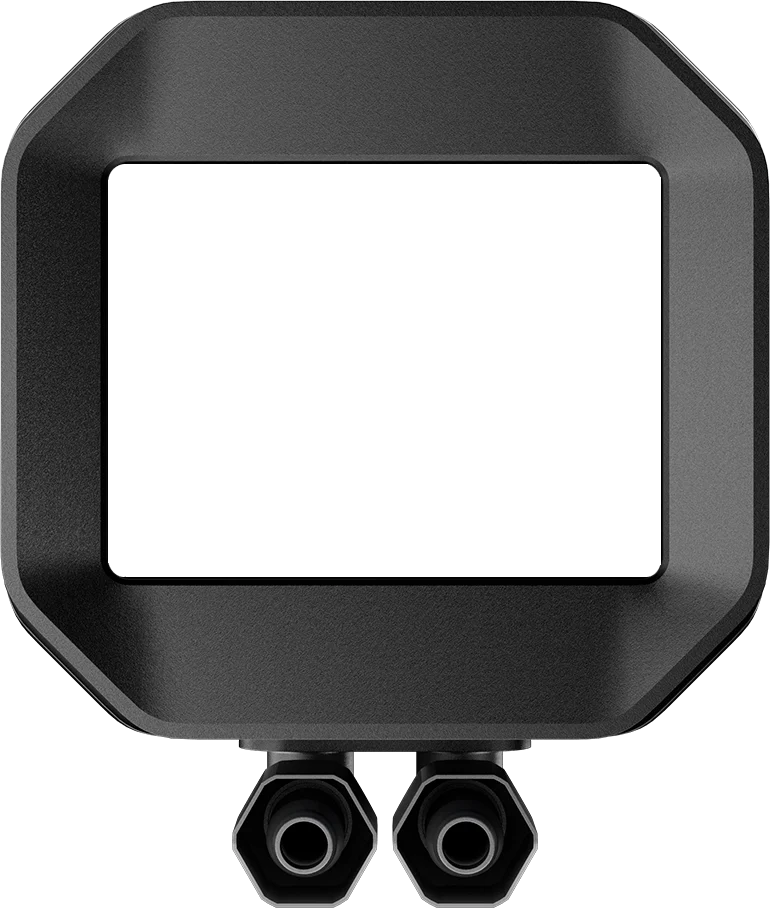

GEN 6 WATER PUMP WITH PWM CONTROL

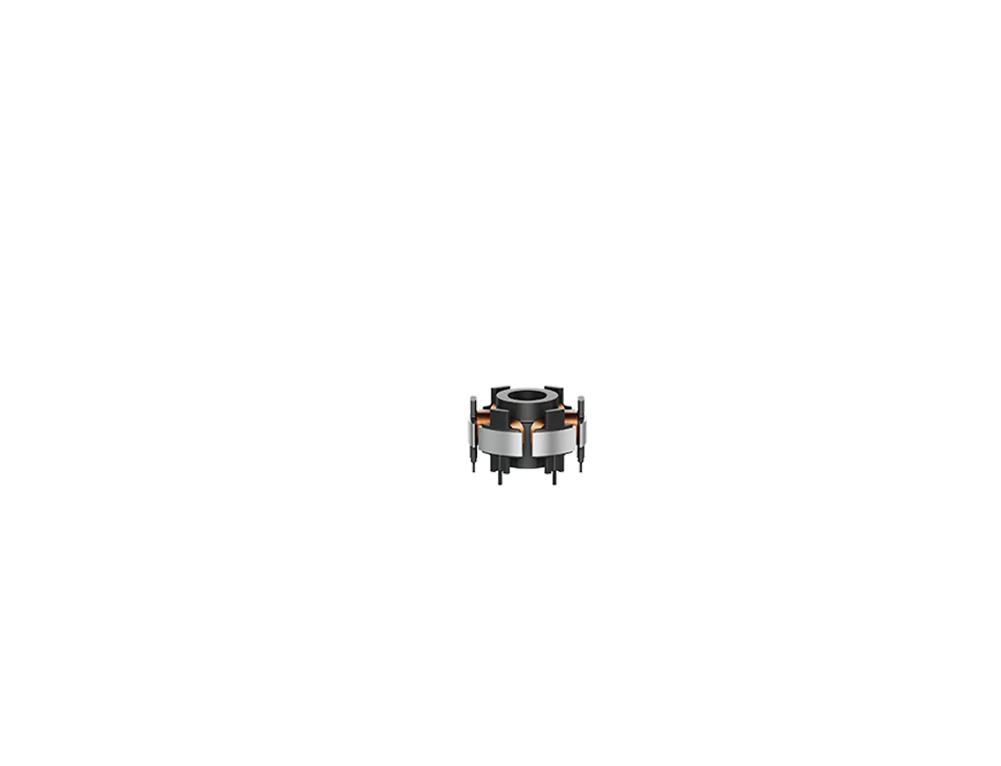

The LM360 features DeepCool's newly developed 6th-generation pump, engineered for greater thermal efficiency and quieter performance on today's high-end CPUs. A 3-phase, 6-slot, 4-pole motor with FOC control powers the pump from 2,500 to 3,600 RPM with precision and stability.

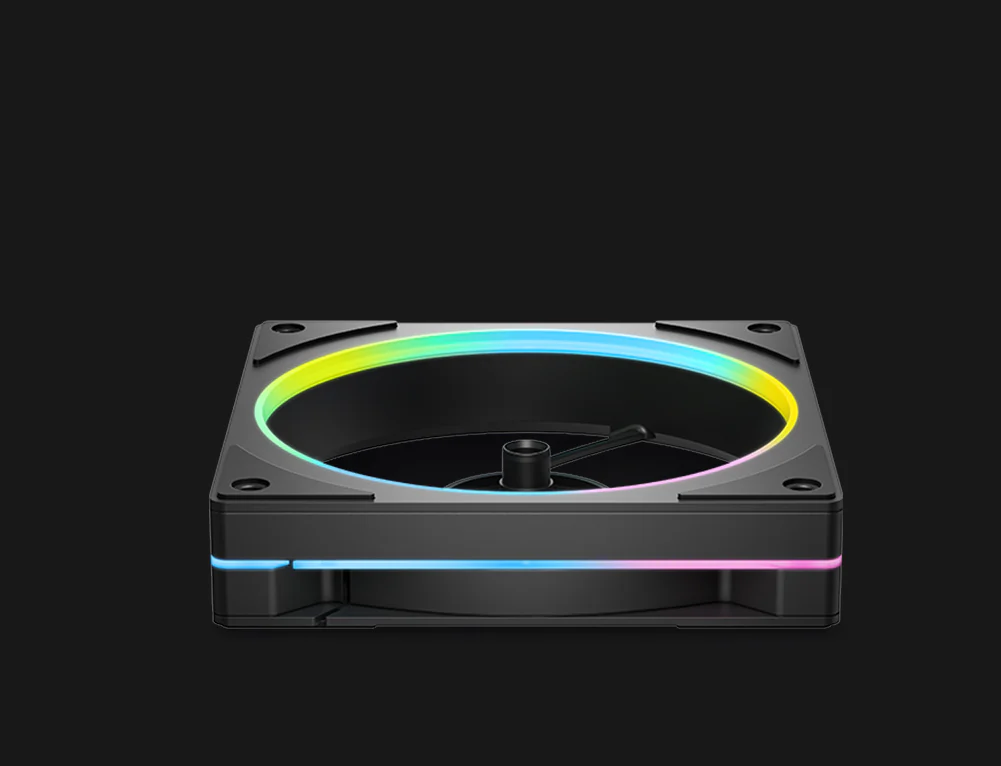

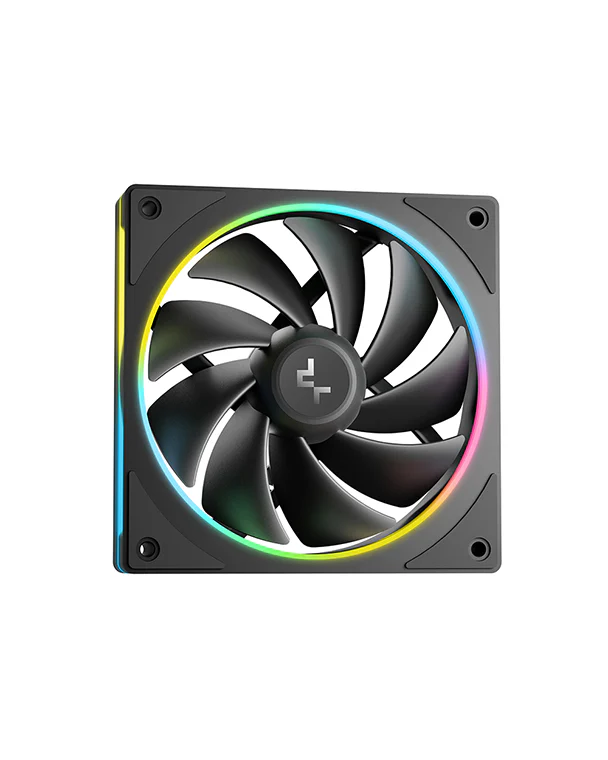

EFFICIENCY IN MOTION

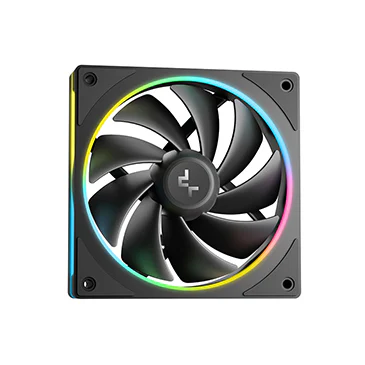

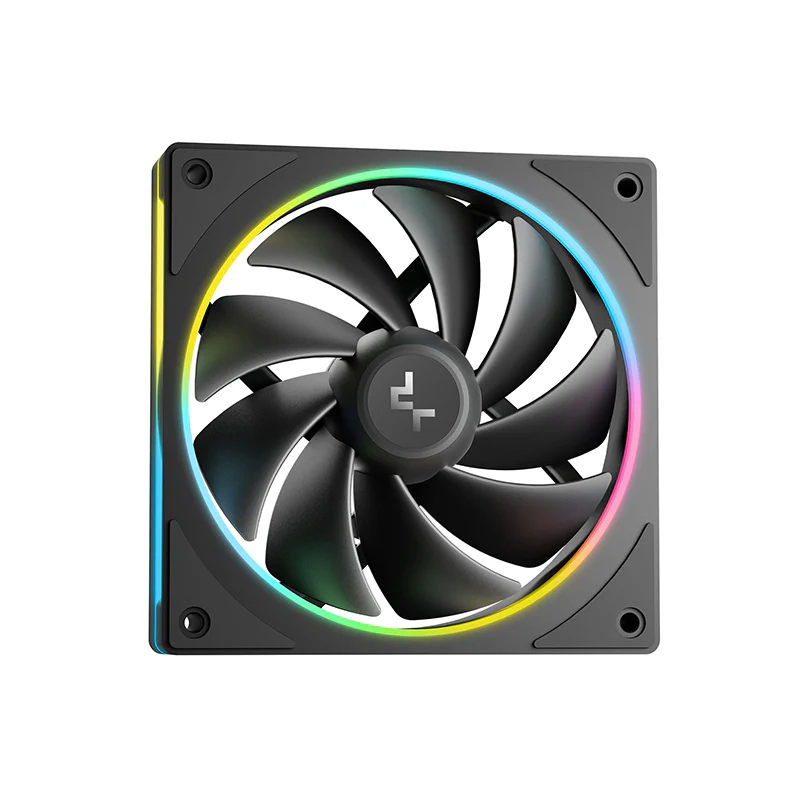

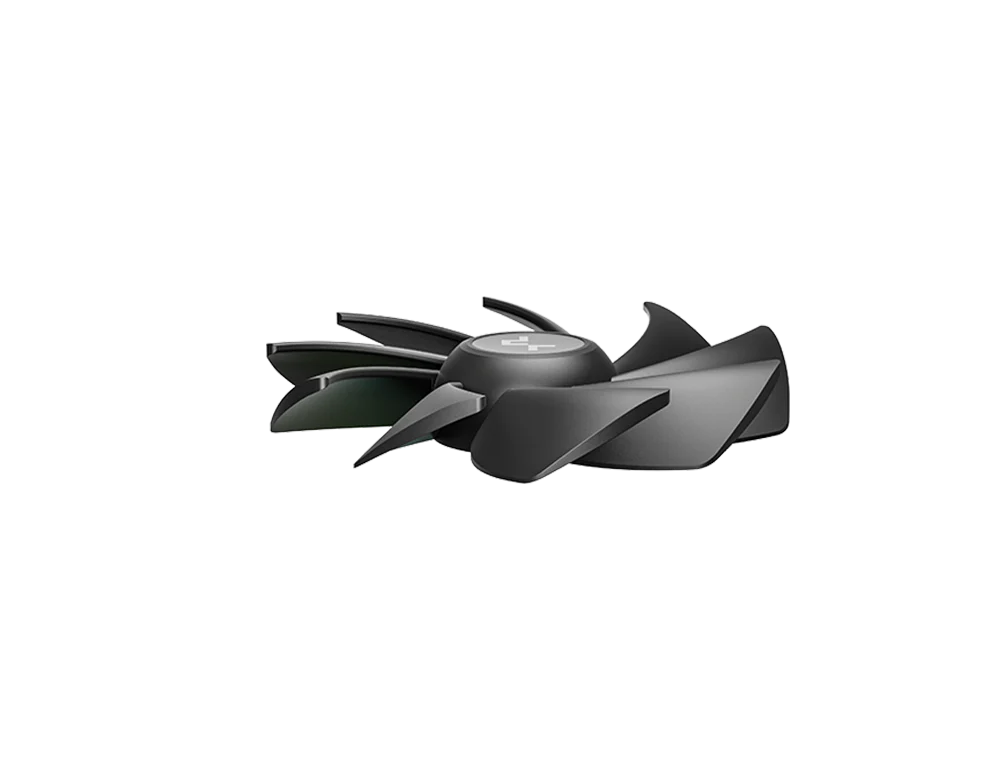

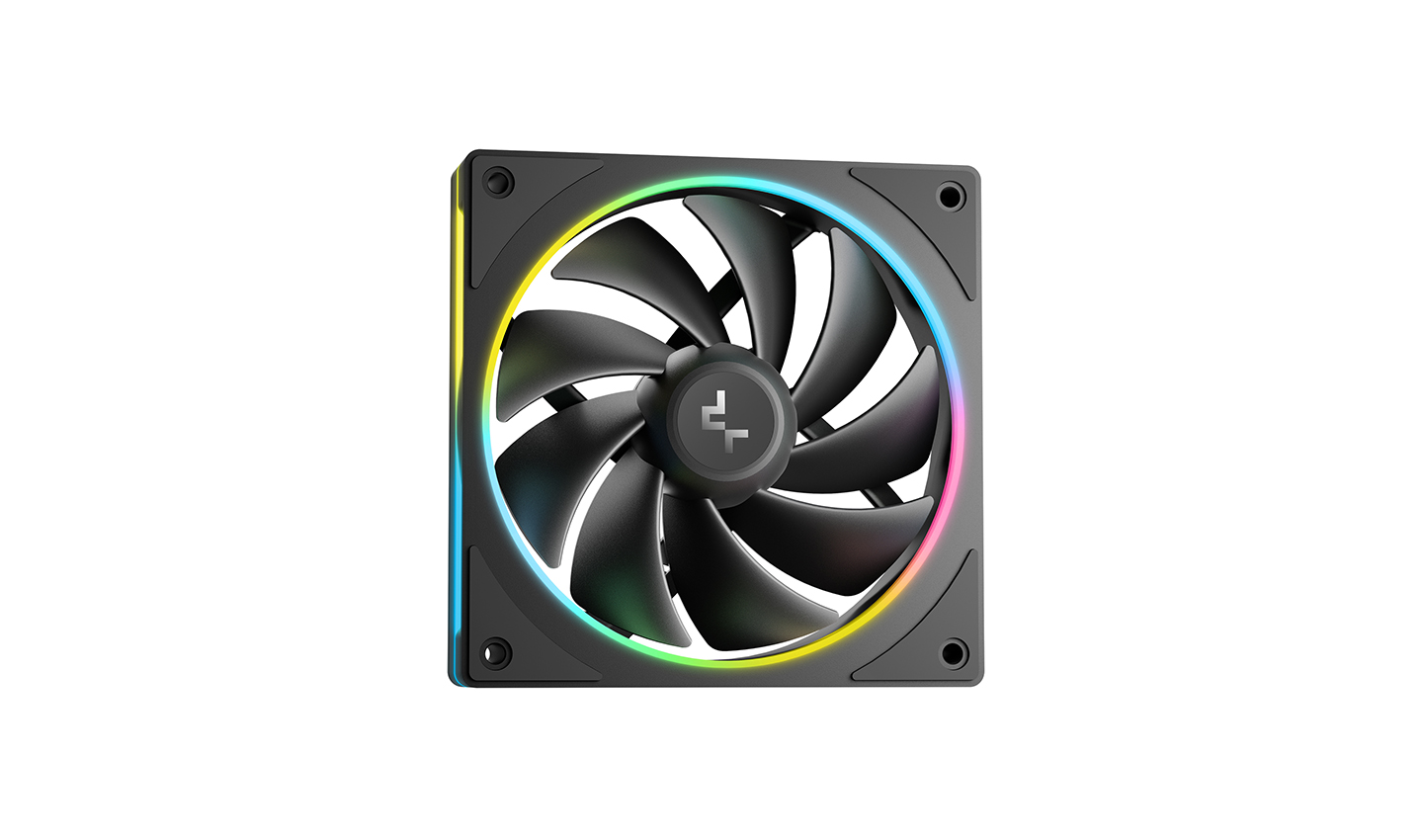

Equipped with a long-life hydraulic bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.

400~2400 RPM ±10%

Fan Speed

66.23 CFM

Airflow

3.27 mmAq

Static Pressure

≤36.07 dB(A)

Fan Noise

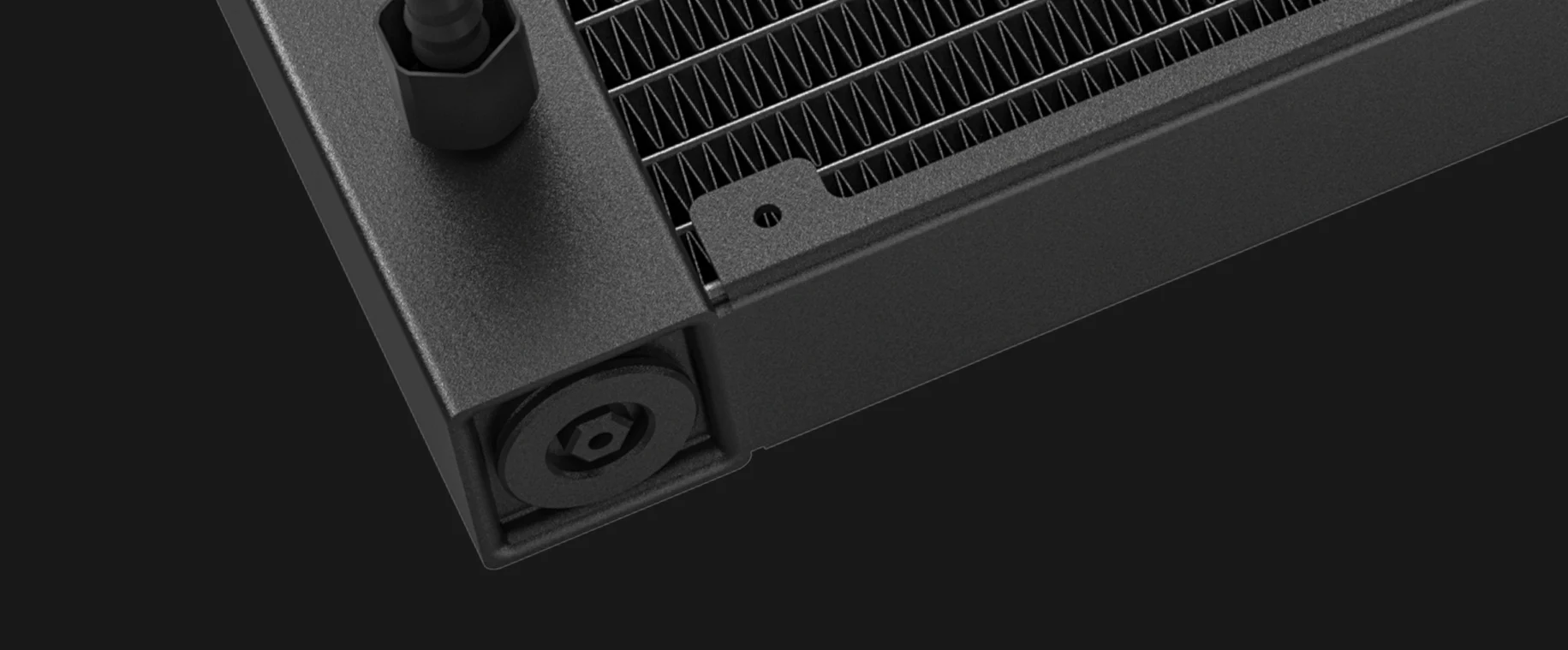

ANTI-LEAK TECHNOLOGY

DeepCool’s patented Anti-Leak Technology helps maintain internal pressure balance within the liquid cooling system. A built-in valve releases excess pressure once it exceeds ambient levels, reducing the risk of leakage and improving long-term operational stability.

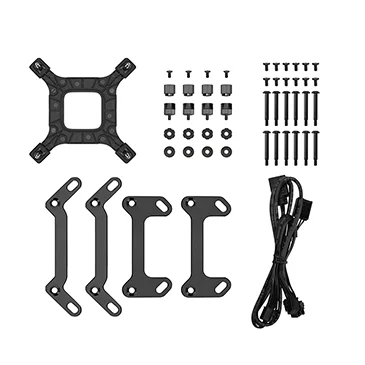

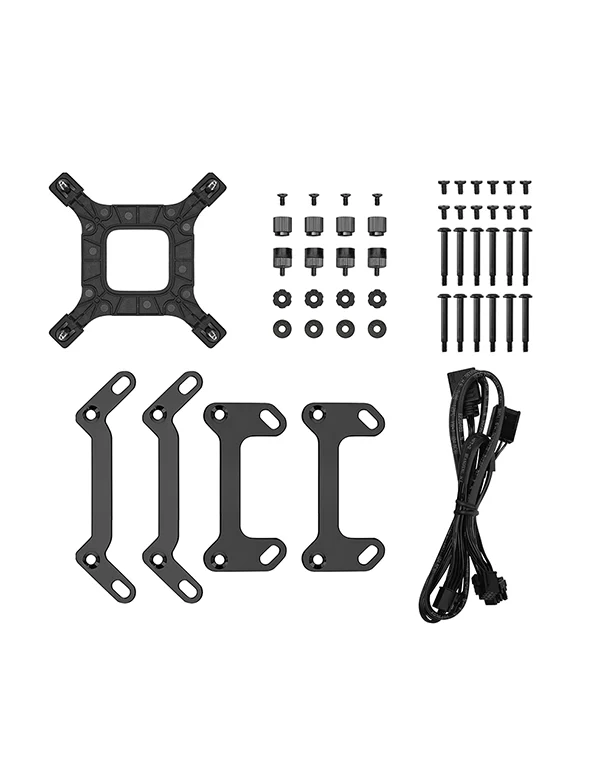

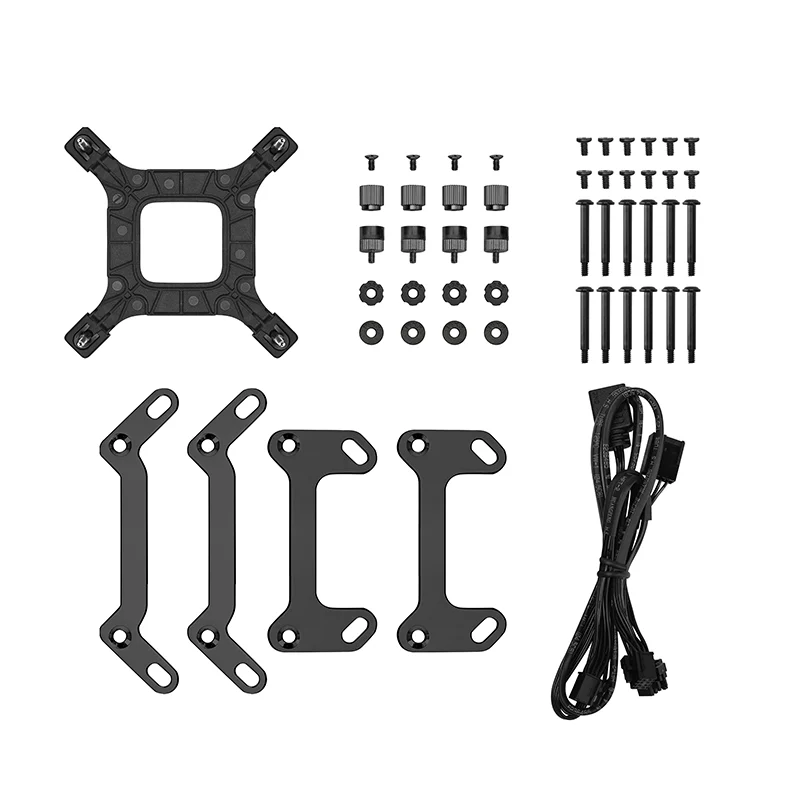

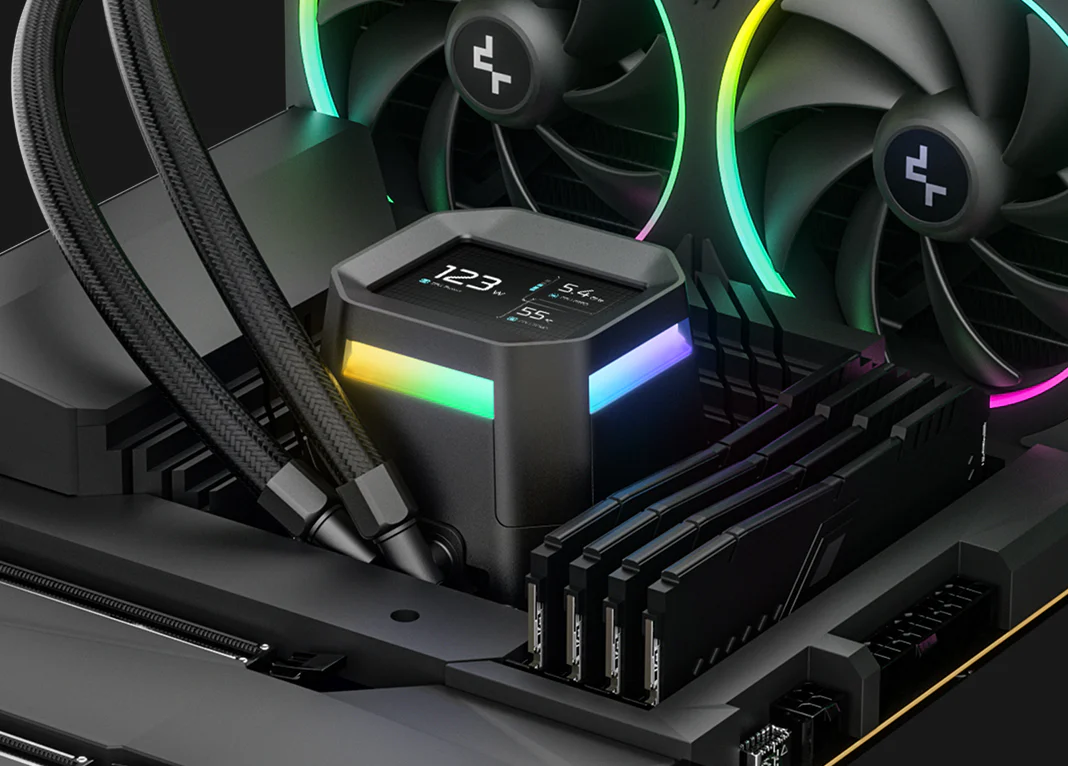

SIMPLIFIED INSTALLATION

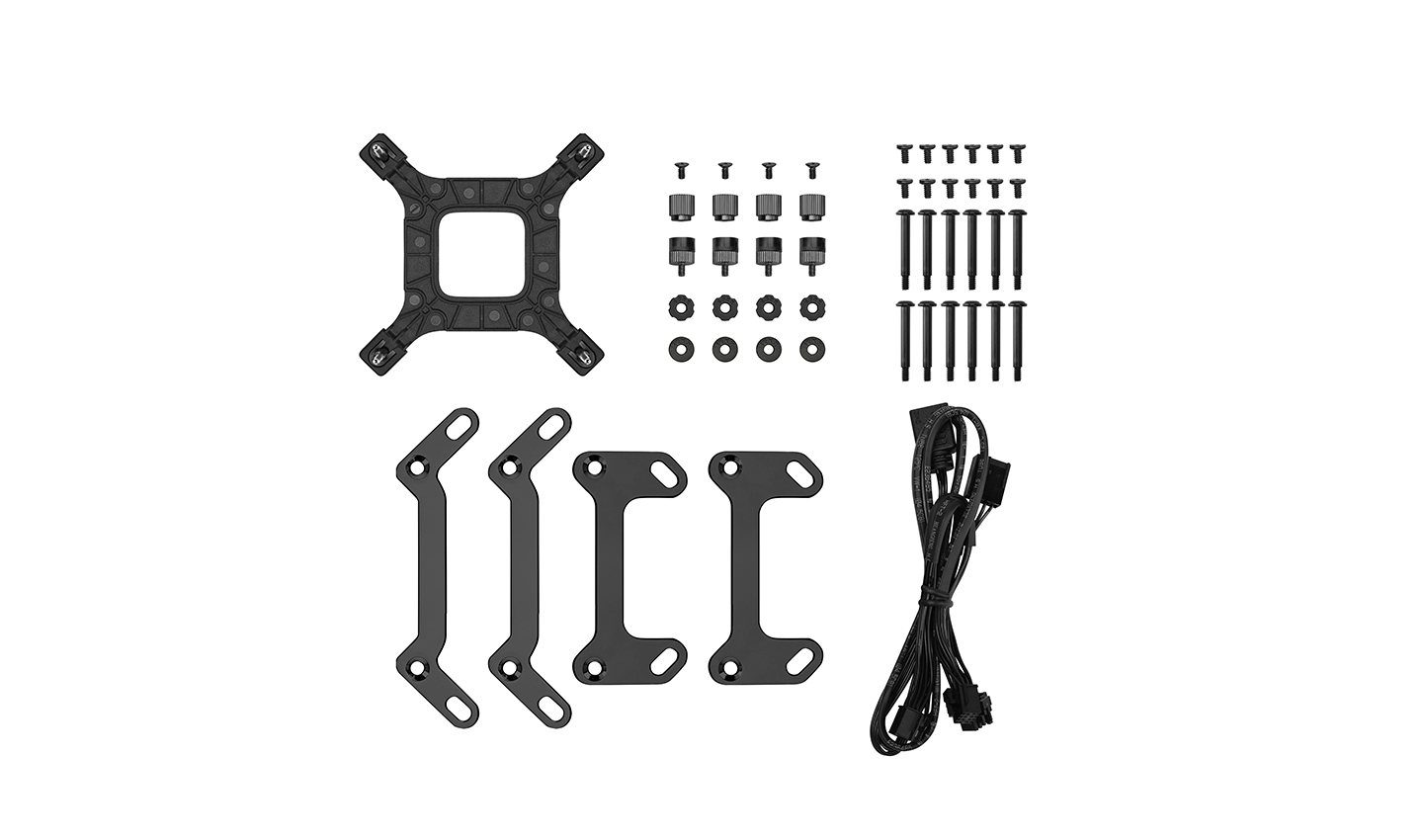

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LM360 to the latest mainstream CPUs is included in the box, so you are ready to go.

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1729 g

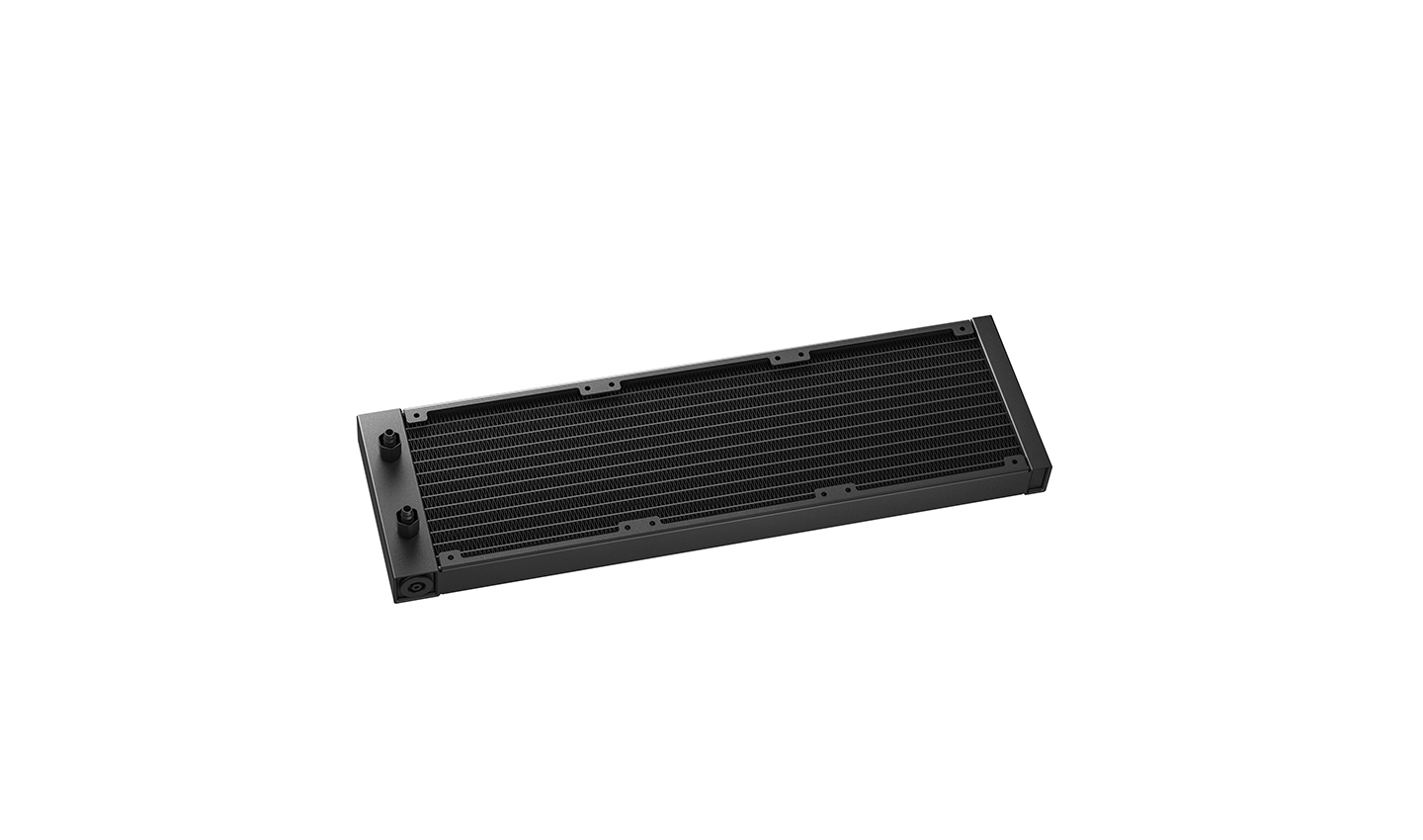

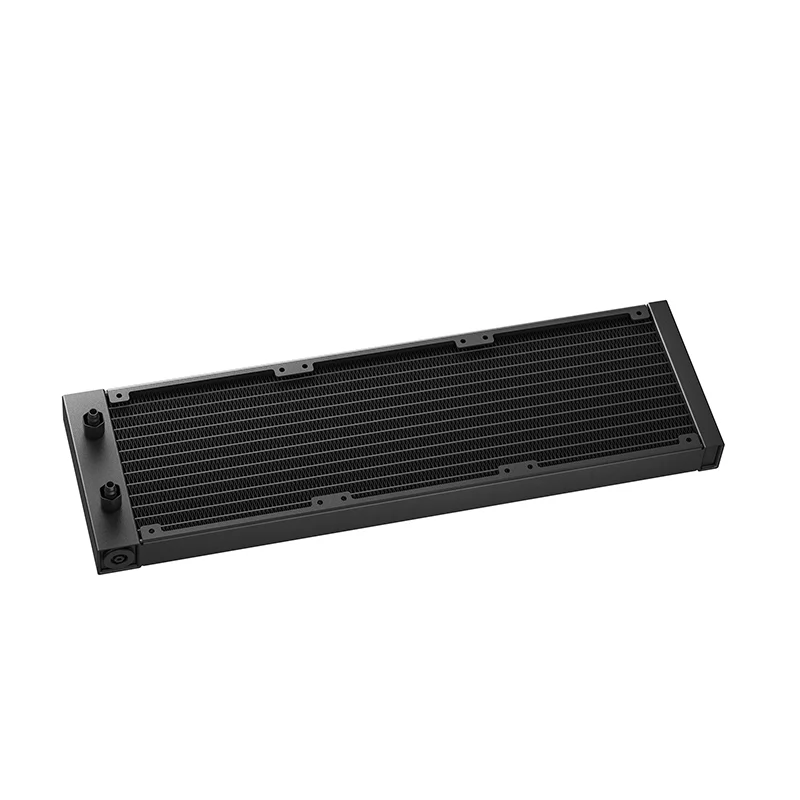

Radiator Dimensions	402×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm(L×W×H)
Pump Dimensions	90×80×63 mm(L×W×H)
Pump Speed	2500～3600 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.34 A
Pump Power Consumption	4.08 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	400~2400 RPM±10%
Fan Airflow	66.23 CFM
Fan Air Pressure	3.27 mmAq
Fan Noise	≤36.07 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.18 A
Fan Power Consumption	2.16 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	1.5 W（PUMP）/ 3.5 W（FAN×3）
EAN	6933412729471
P/N	R-LM360-BKDMMC-1
