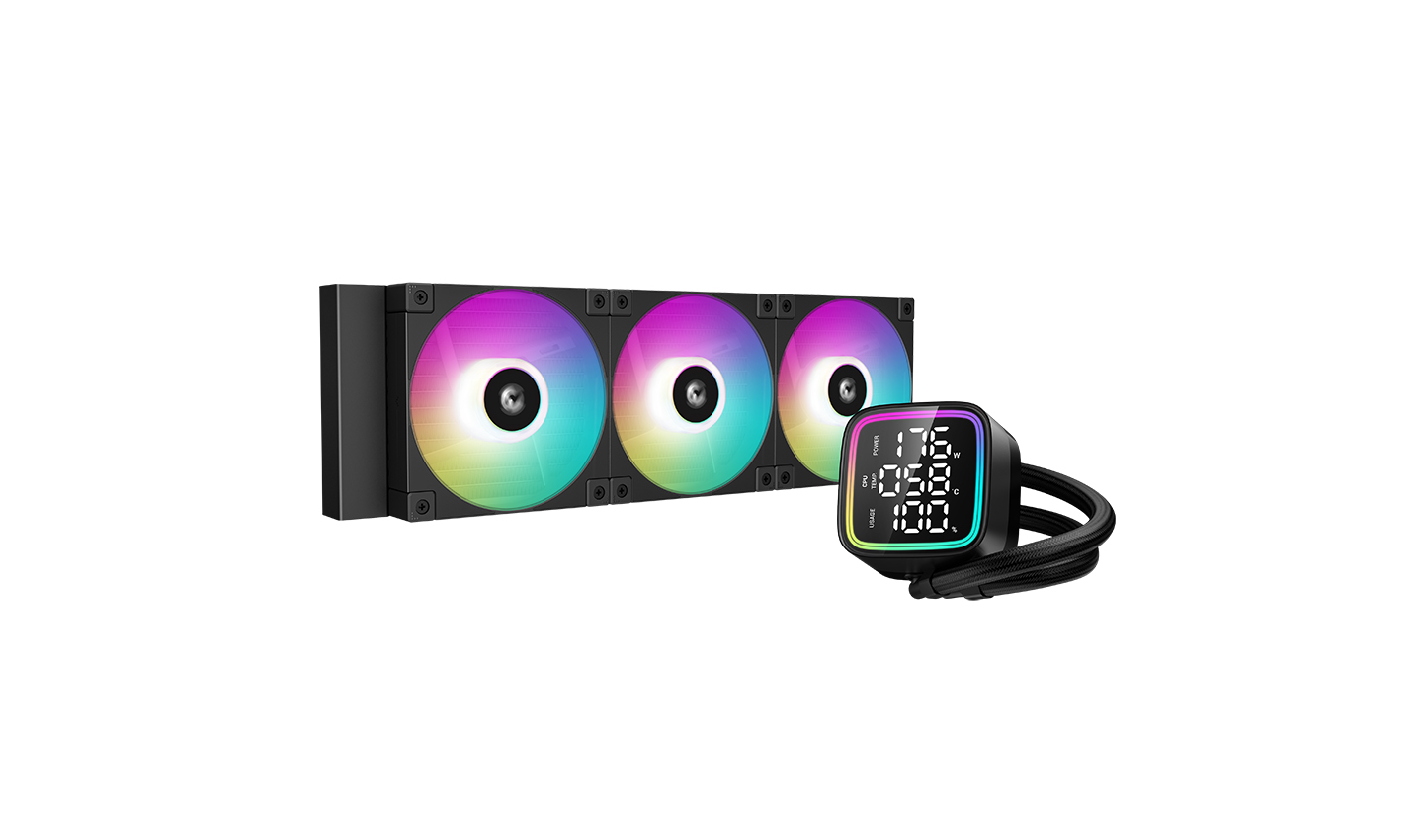

LD360
The new LD360 is a jump into the next evolution of DeepCool liquid coolers. Everything you love from DeepCool AIOs of the previous generation, but with the inclusion of a multi-line CPU status screen and a brand new GEN 5 PRO pump! Clear up precious room on your desktop by moving the CPU monitoring software off your screen and onto the pump in your computer tower.
COLOR
black
MODEL
LD360
OPTIMIZED LIQUID COOLING
REAL-TIME CPU STATUS SCREEN
The status screen displays the power consumption, temperature, and usage of your system's CPU in real time. A high temperature warning indicator will flash when the CPU temperature exceeds the 85°C mark.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

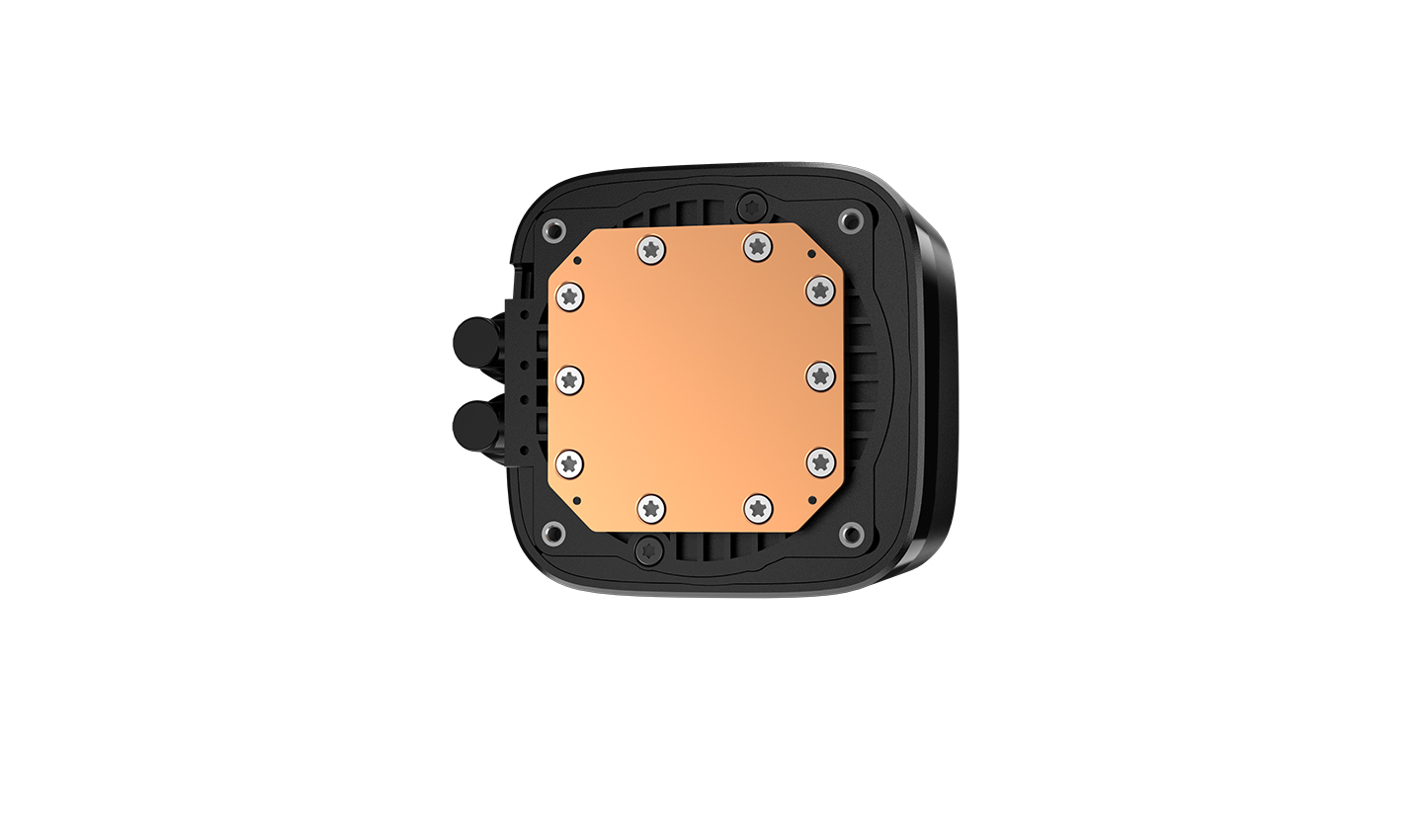

5 PRO GENERATION PUMP
Built on DeepCool's optimized 5 PRO generation high-performance water pump, the LD360 brings cooling modern power-hungry CPUs to the next level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.
LARGE DISPLAY WITH ARGB HALOS
The large multiple data points display of the LD series is unmistakable, but the LD coolers also utilize a bright gradient ARGB double halo effect that encapsulates the premium aesthetics of the LD pump design: beautifully bright as well as being functional. The ARGB of the entire cooler can be easily synced to ARGB headers on compatible motherboards.

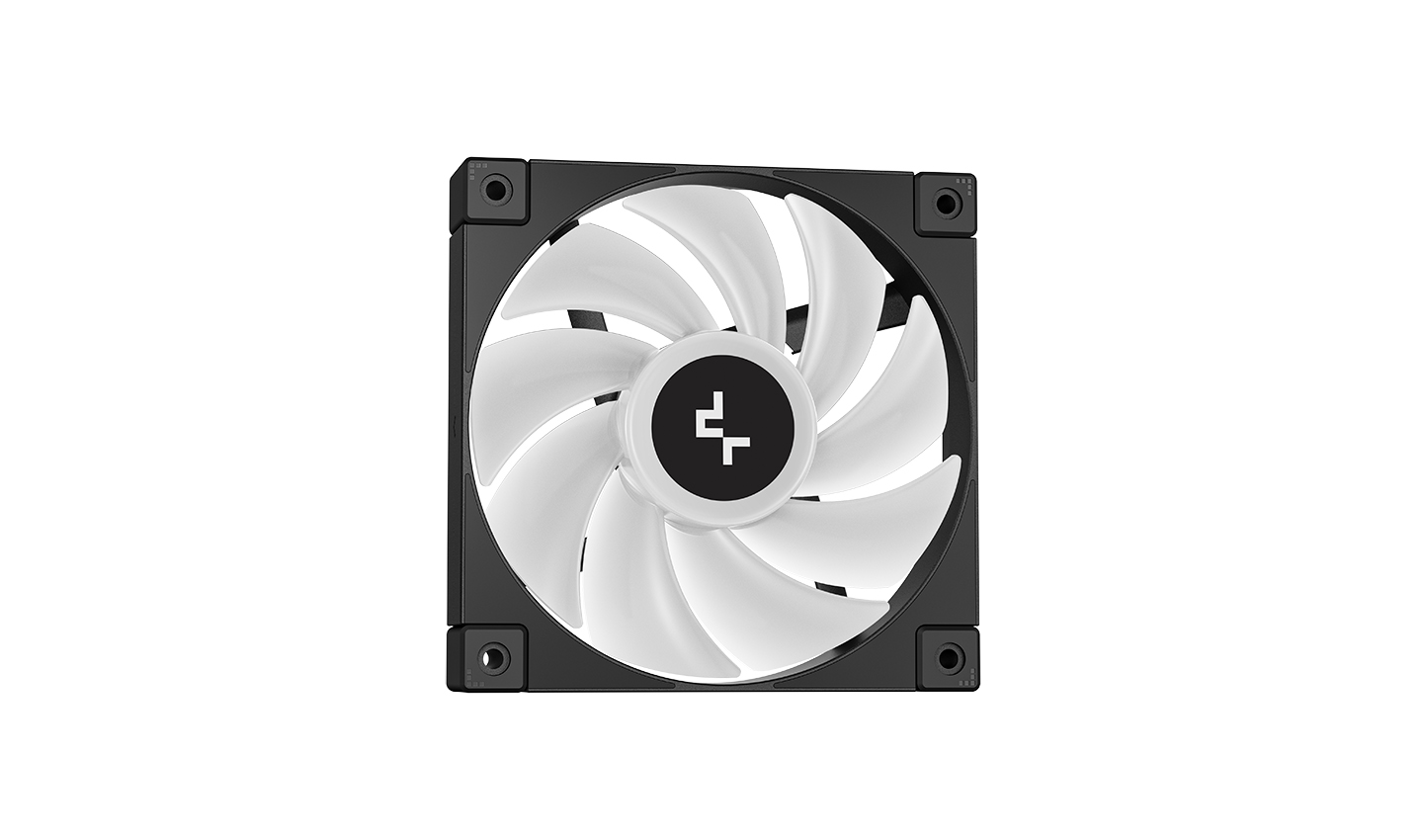

FINE TUNED FD12 ARGB FANS
Optimized FD12 ARGB PWM fans are included with the LD360 and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The LD360 includes two of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.
KEEPING IT SIMPLE
Full control of the real-time status screen is provided via a simple-to-use application. Once installed, the entire application is found in the Notification Center of the taskbar, where you can switch between languages and choose between Celsius and Fahrenheit. The only interface that will be required is a connection to a USB 2.0 header on the motherboard.
DeepCool-DIGITAL Setup
SLEEK, CLEAN, AND STRONG
The large glass status screen, gradient ARGB halos, and a satin black finish add the finishing touch.
ANTI-LEAK TECHNOLOGY
The LD liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
QUICK AND EASY

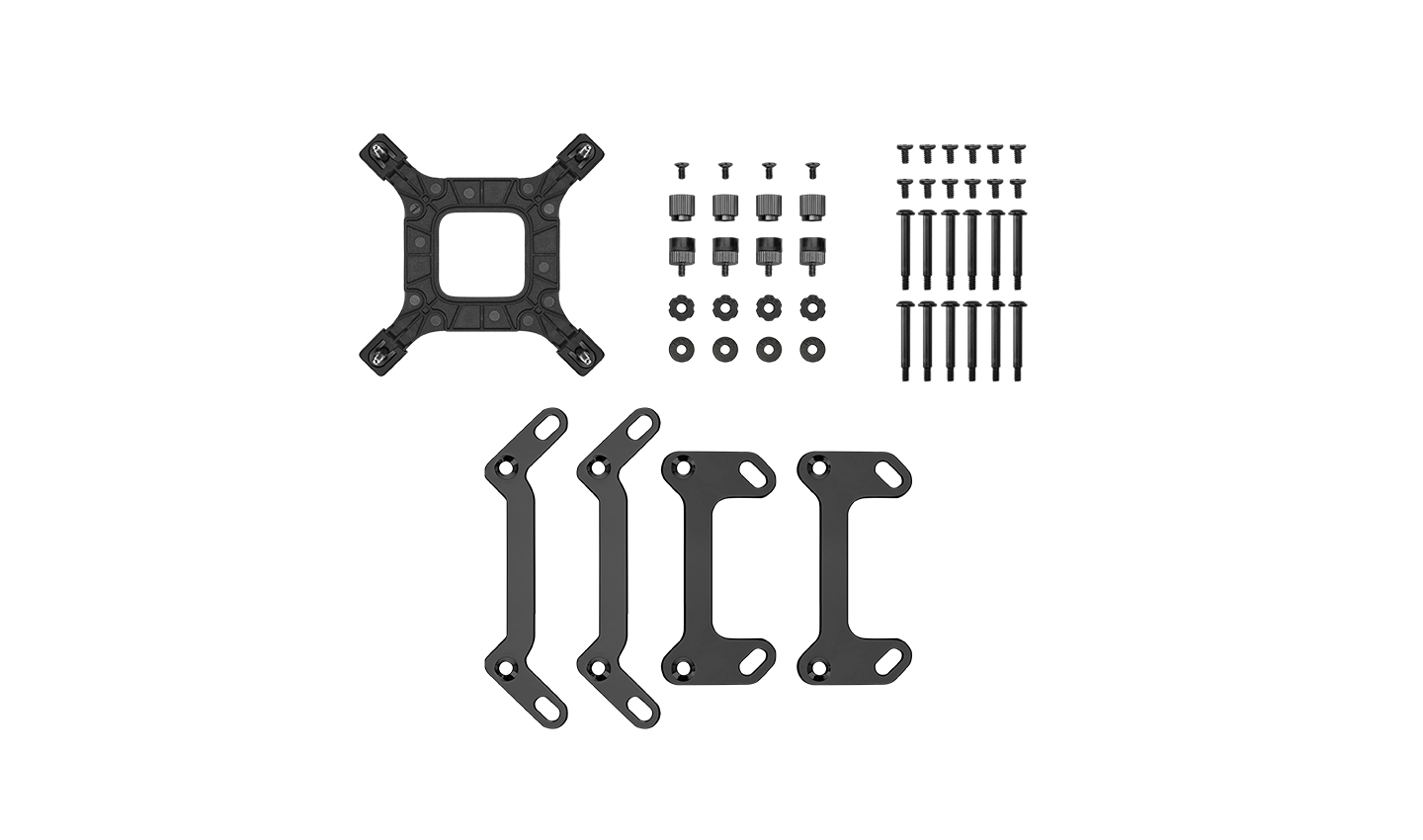

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LD to the latest mainstream CPUs is included in the box, so you are ready to go.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1786 g

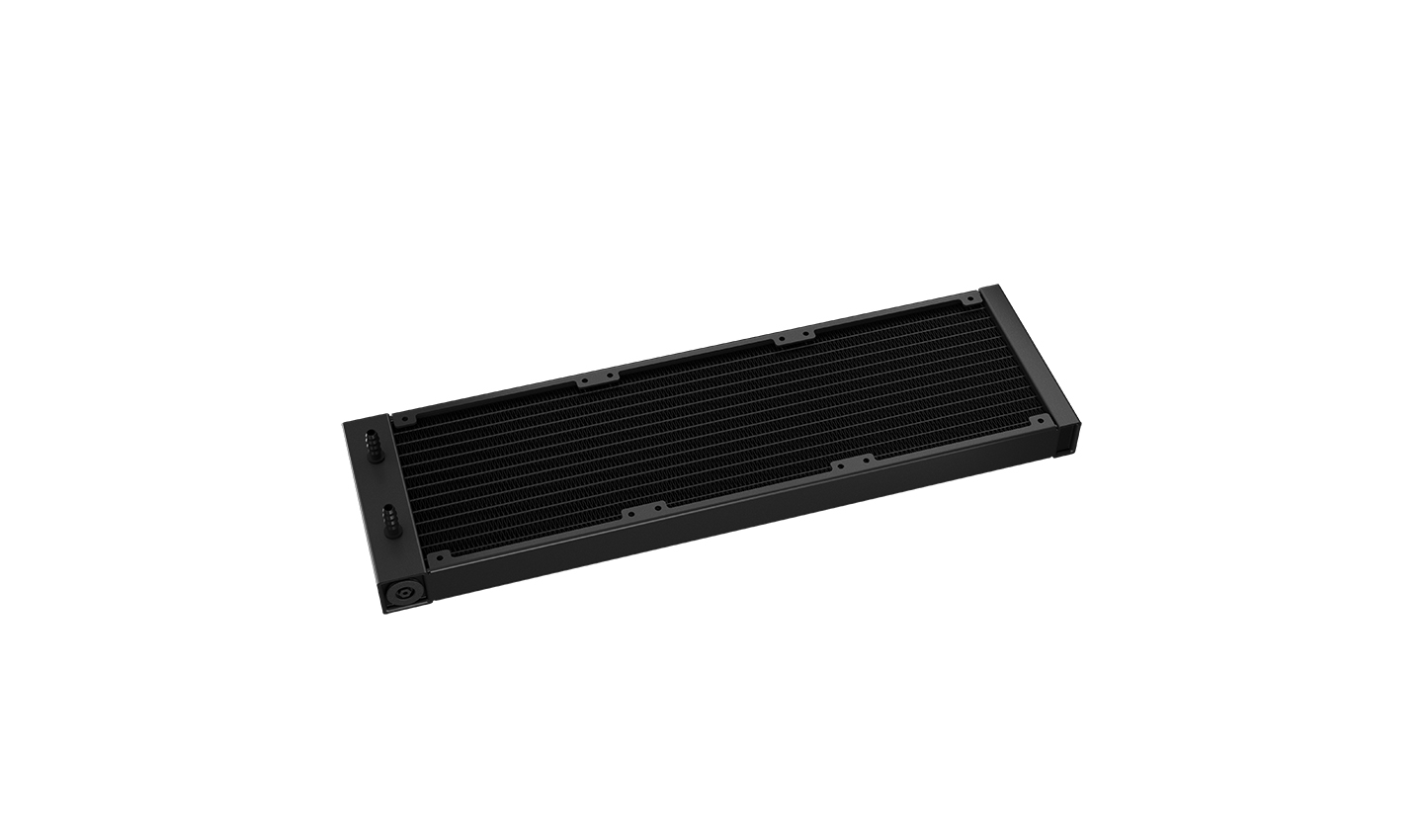

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm
Pump Dimensions89×78×53 mm(L×W×H)
Pump Speed3400 RPM±10%
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.35 A
Pump Power Consumption4.2 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed600~2400 RPM±10%
Fan Airflow72.04 CFM
Fan Air Pressure3.48 mmAq
Fan Noise≤38.71 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.55 W(PUMP)/ 3.15 W(FAN×3)
Display TypeLED Digital Display
EAN6933412728726
P/NR-LD360-BKMSN-G-1
Product Dimension
