CASTLE 360EX WHITE
The CASTLE 360EX WHITE AIO liquid CPU cooler features Anti-leak tech to help keep systems safe and cool including a redesigned pump, 240mm radiator and RGB lighting support in a white enclosure.
COLOR
white
MODEL
CASTLE 360EX WHITE
RBLIABLE LIQUID COOLING
Protect what’s yours
Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.
Powerful and quiet
A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
Efficient cooling

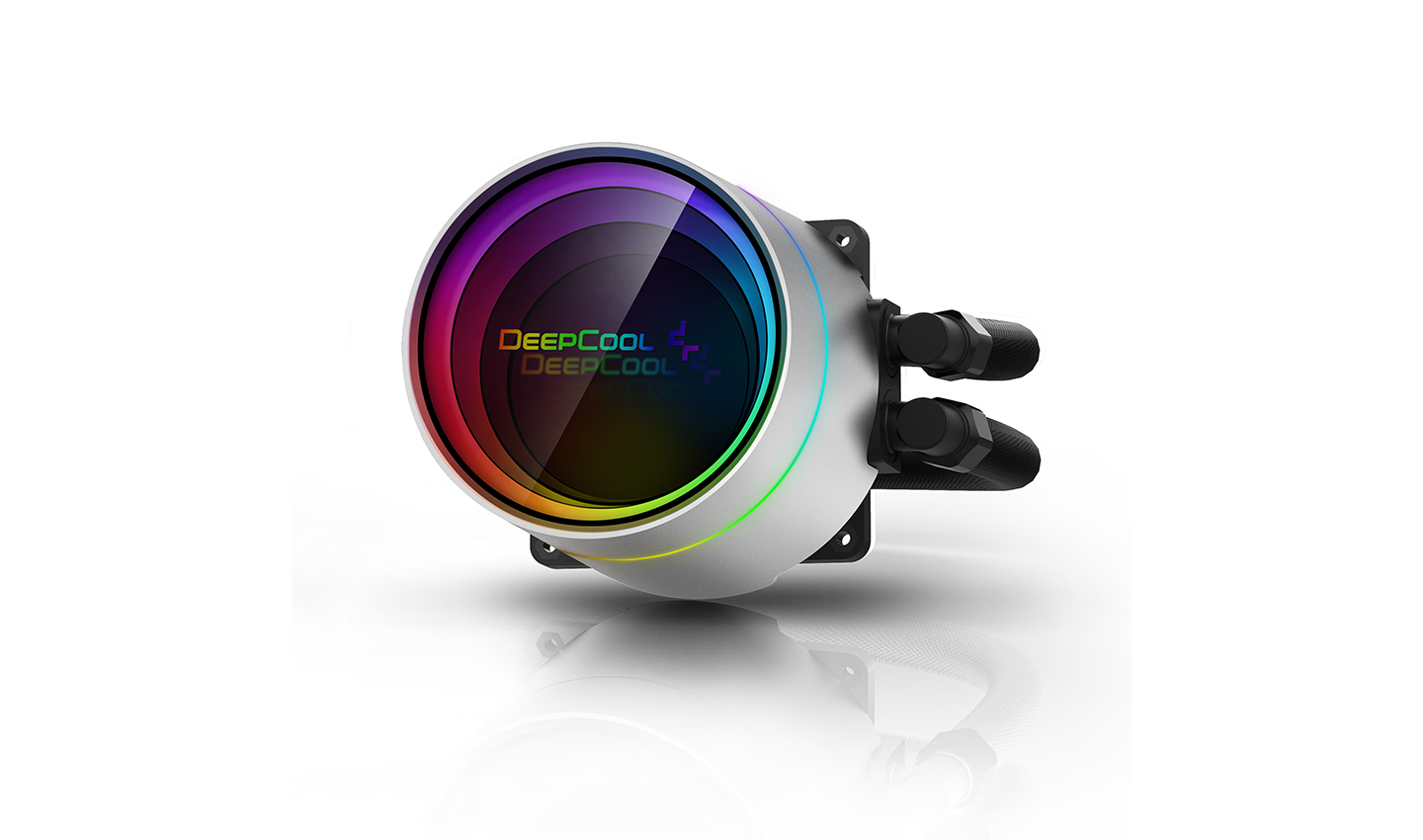

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
More surface area
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
Performance tuned

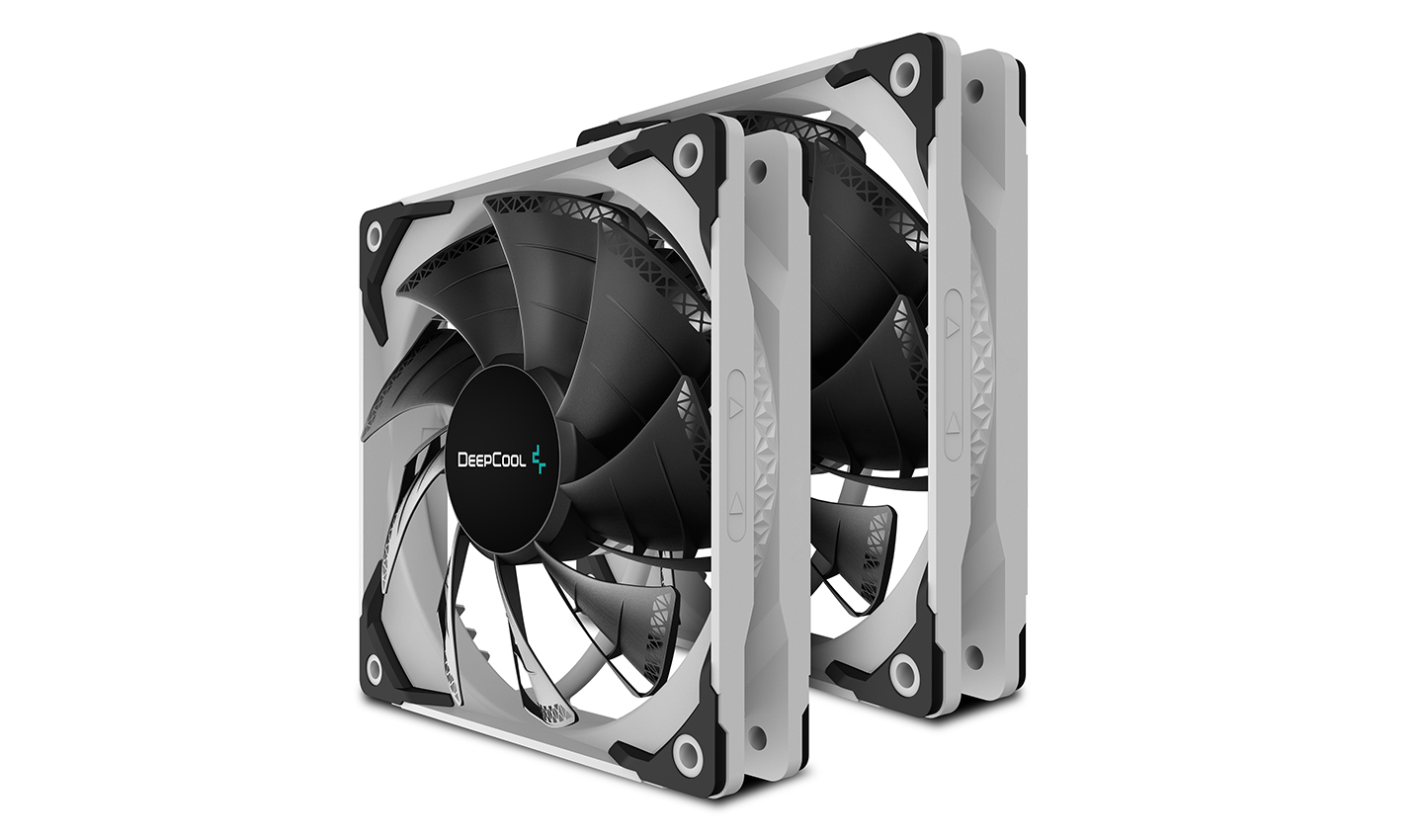

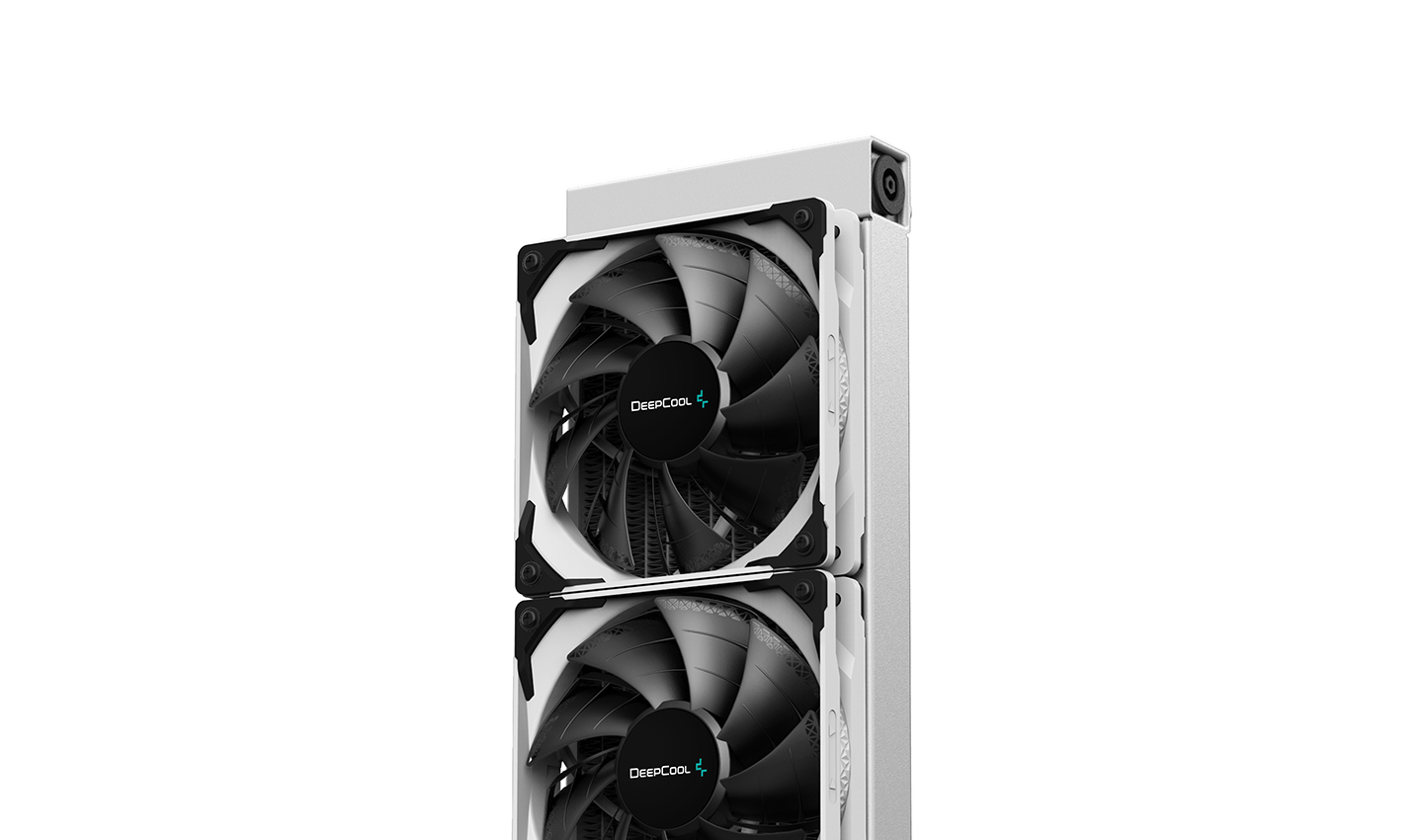

Specially tuned DeepCool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.
Customize your look
Change orientation by twisting off the pump face to adjust the logo.
Mode+
Speed (Hold for 3 seconds to switch on/off)
Mode-
Choose your style
Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
Dynamic
Static
Breathing
Comet
Fashion Collision

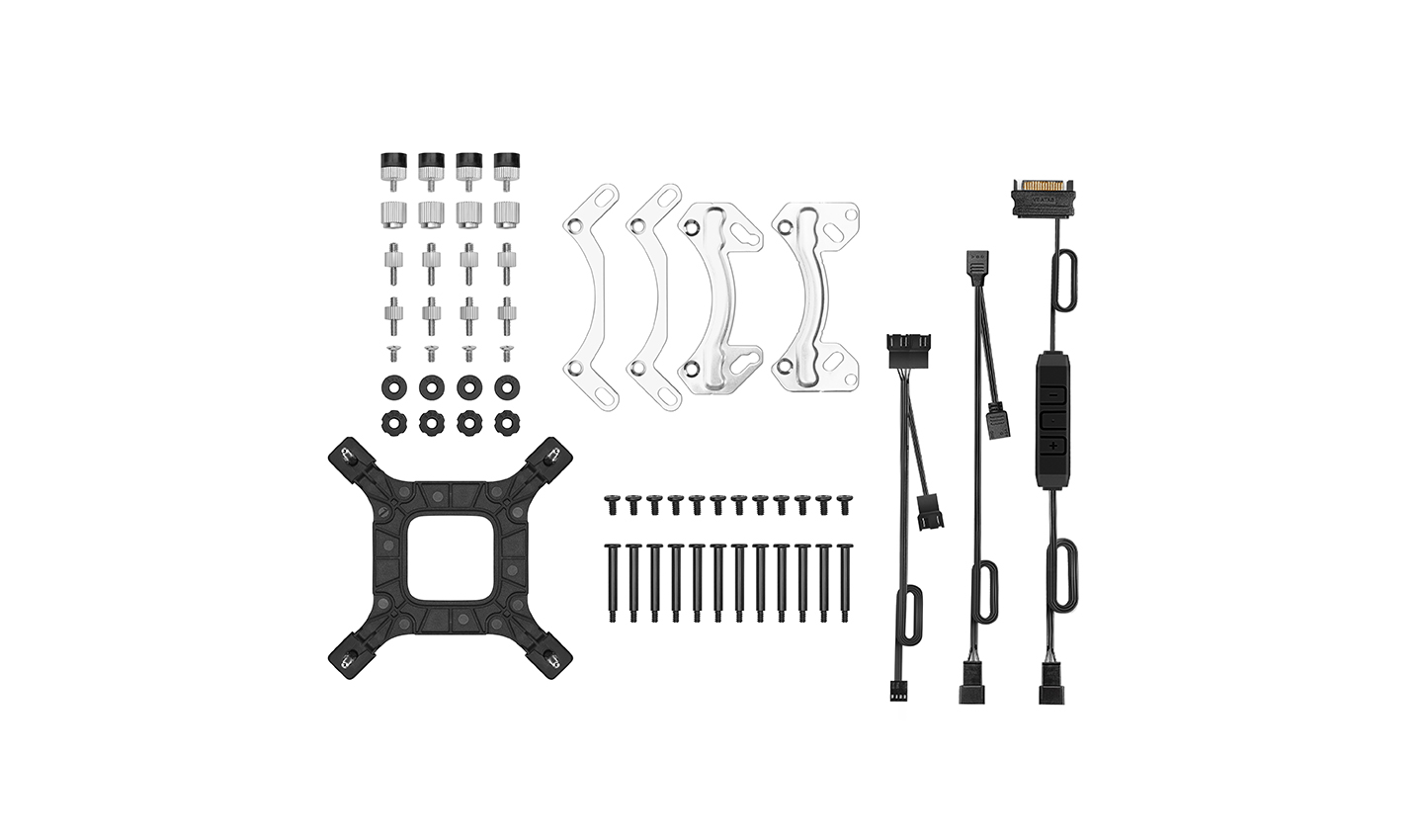

Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM4
Technical Spec
Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Net Weight1705 g
Tube length465 mm(L×W×H)
Pump Dimensions86×75×71 mm(L×W×H)
Pump Speed2550 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.2 A
Pump Power Consumption2.4 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1800 RPM±10%
Fan Airflow64.4 CFM
Fan Air Pressure2.33 mmAq
Fan Noise≤32.1 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.15 A
Fan Power Consumption1.8 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W(PUMP)
EAN6933412726869
P/NDP-GS-H12W-CSL360EXWH
Product Dimension
