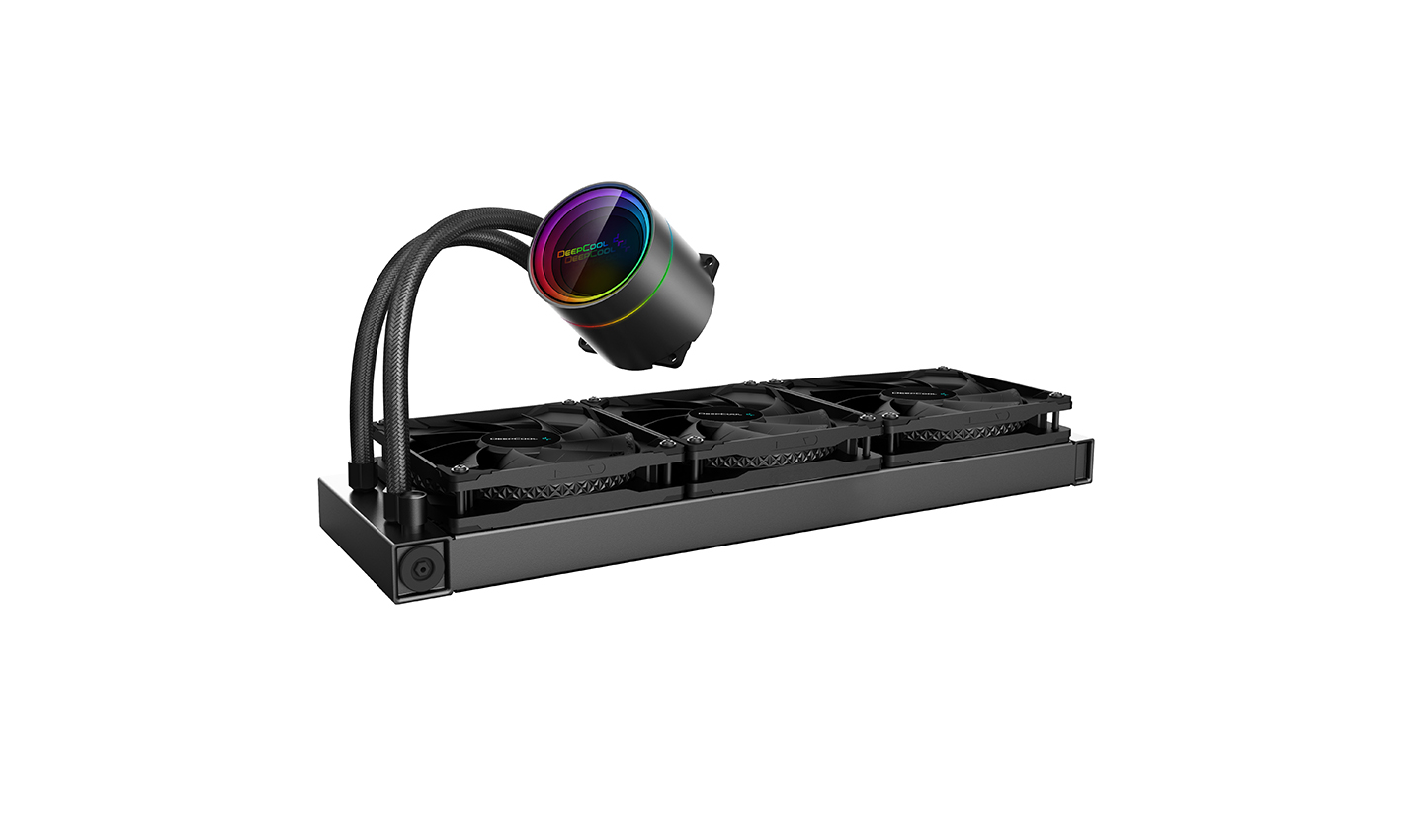

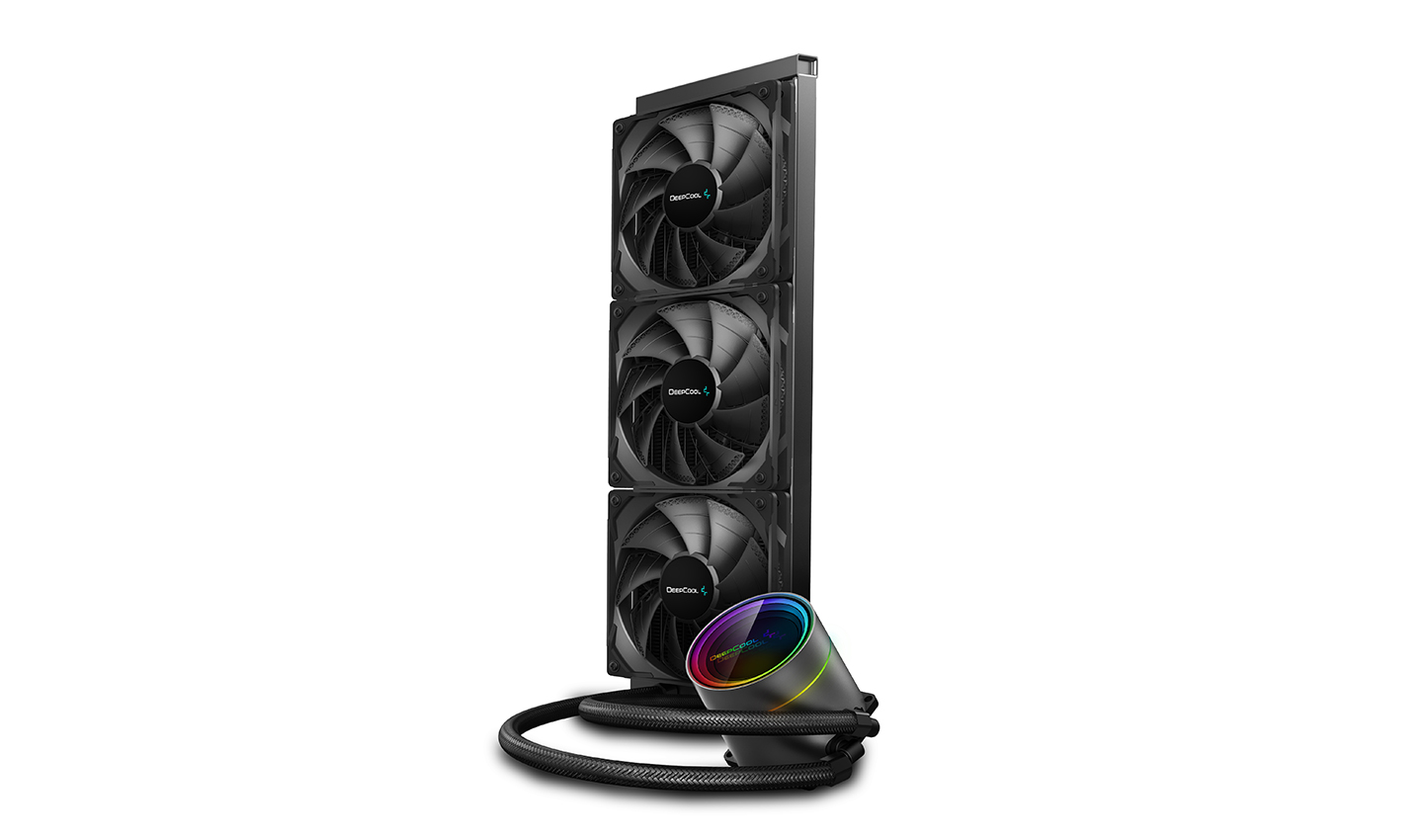

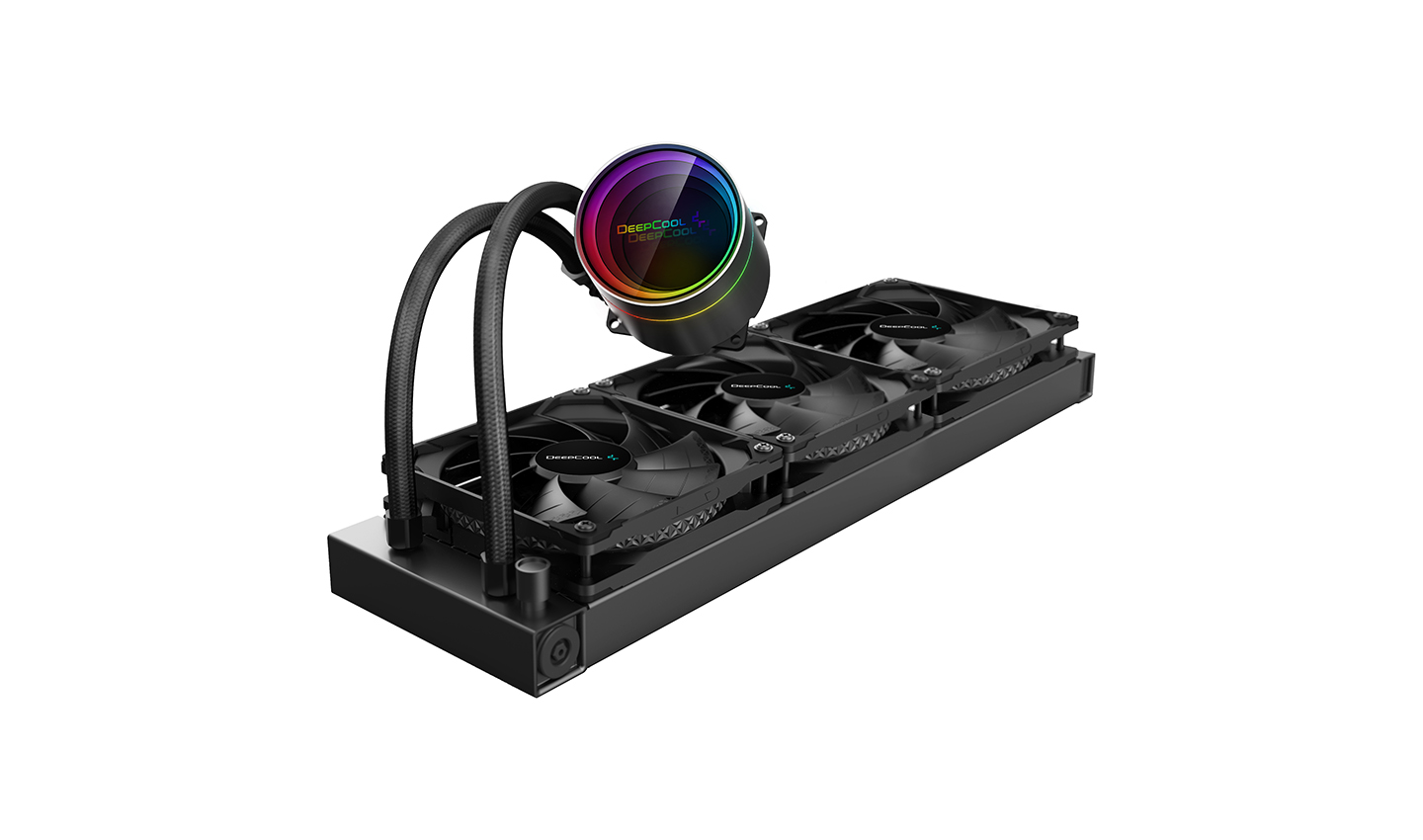

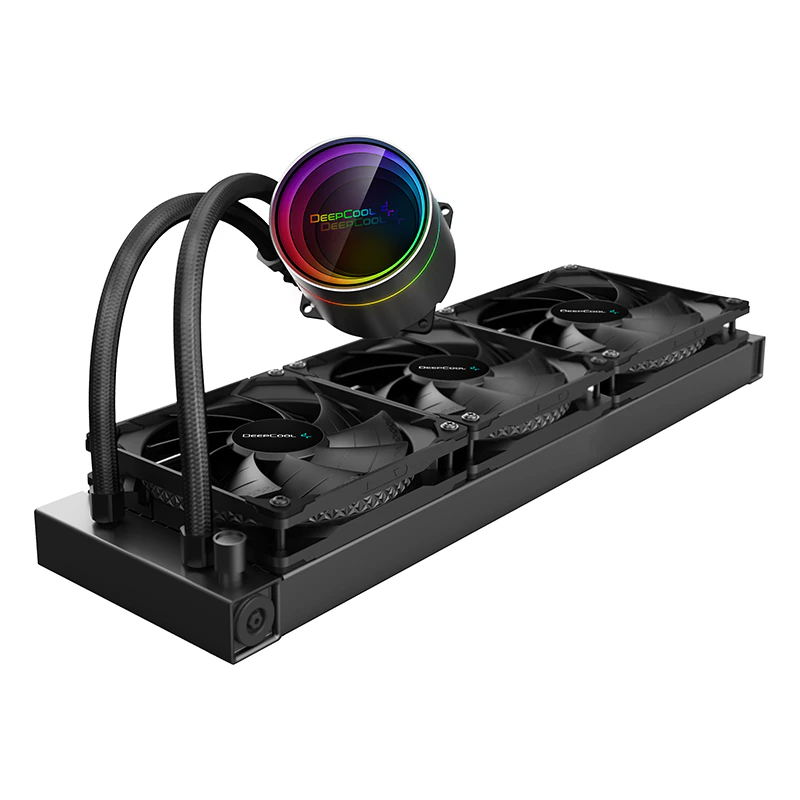

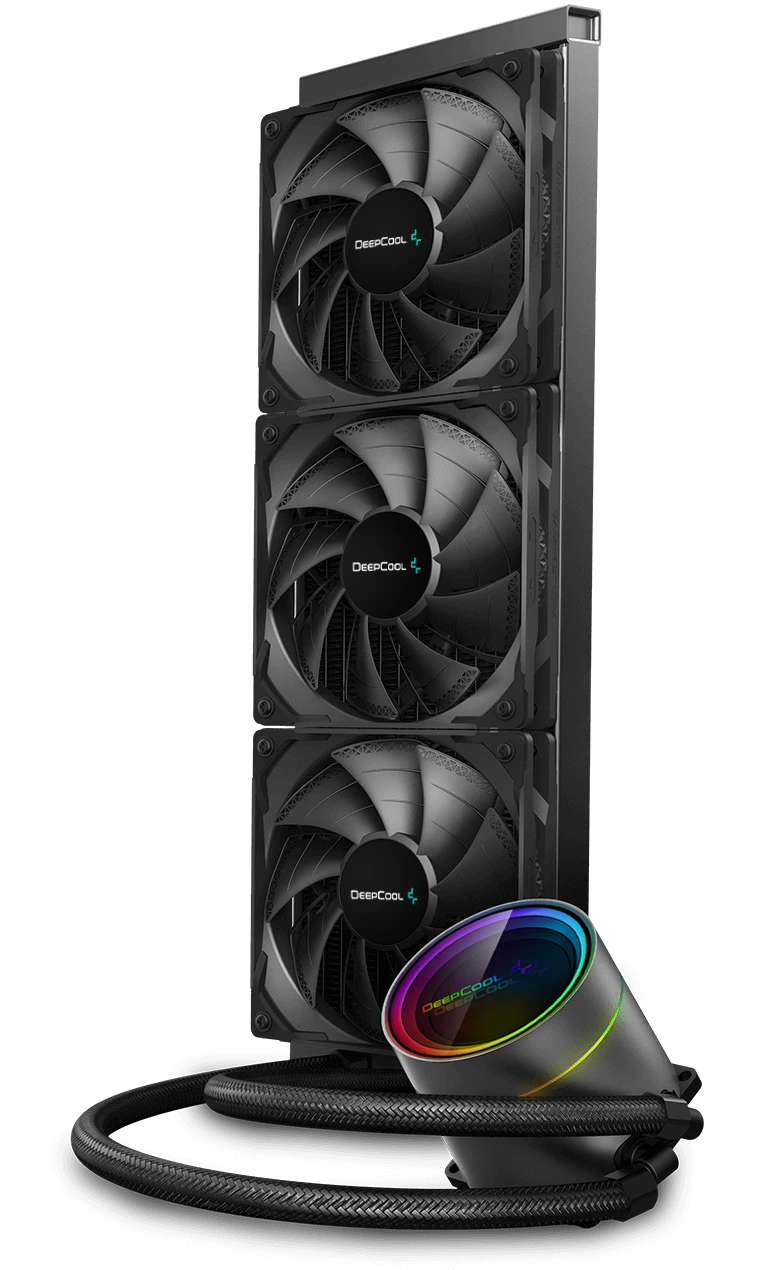

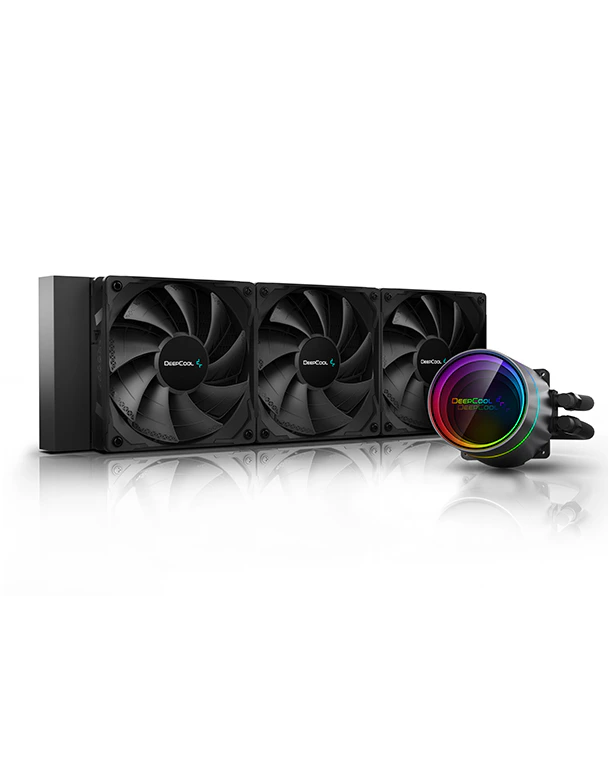

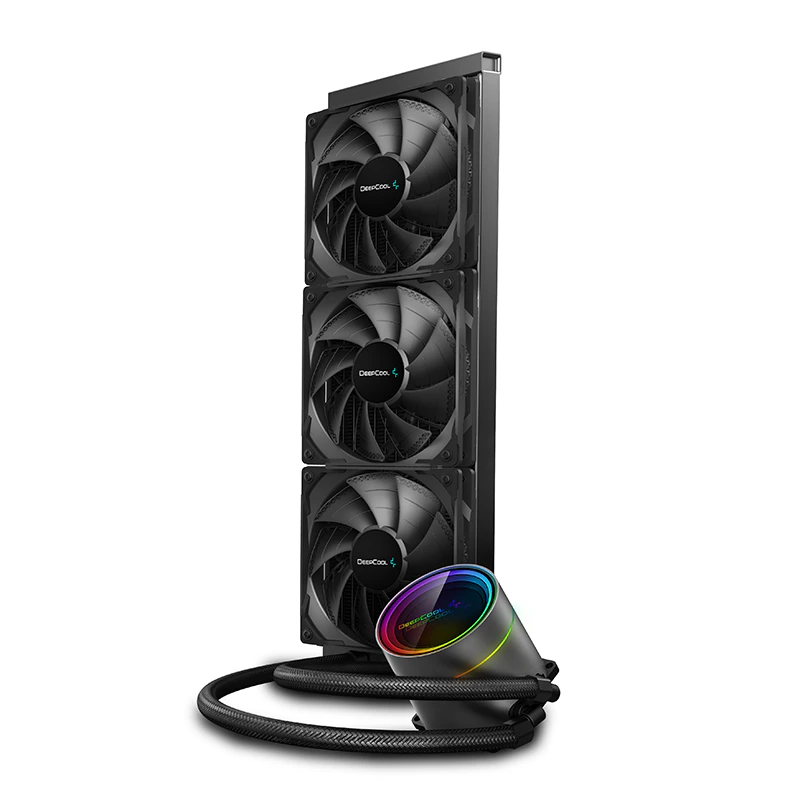

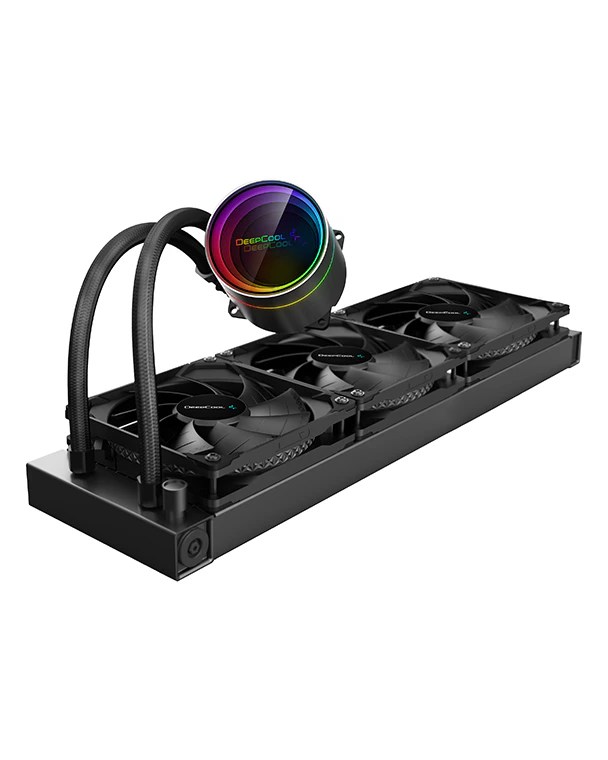

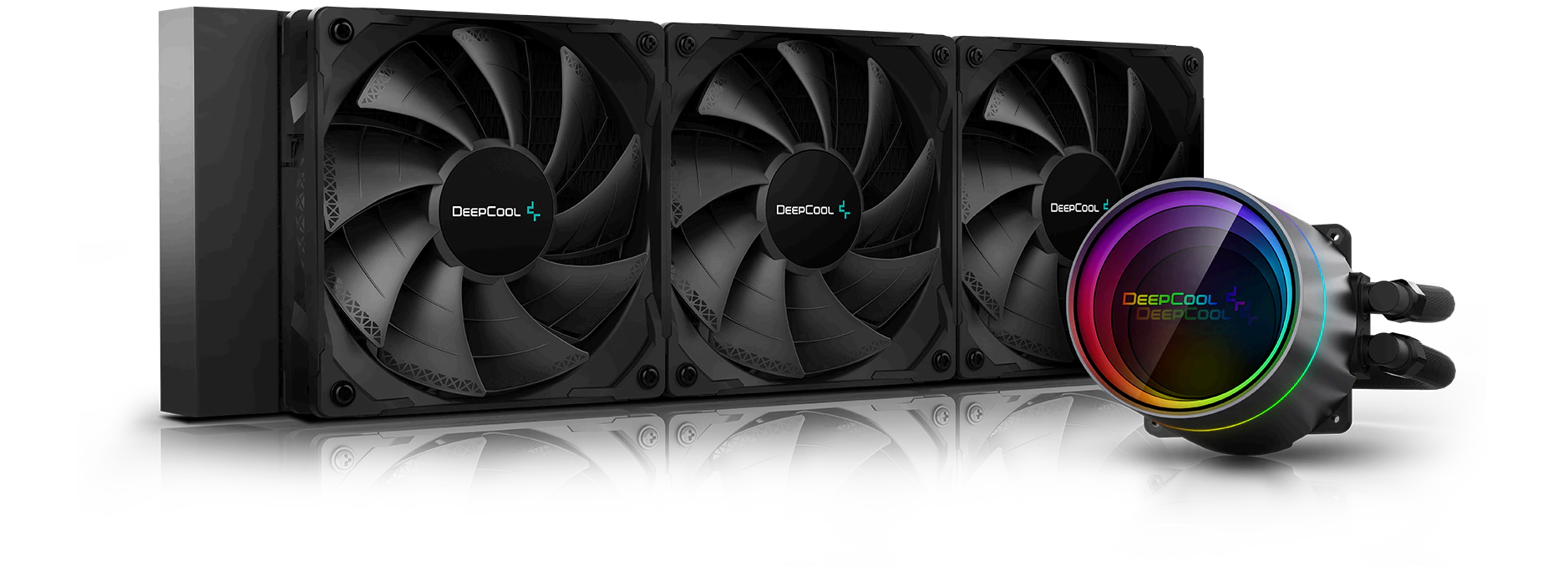

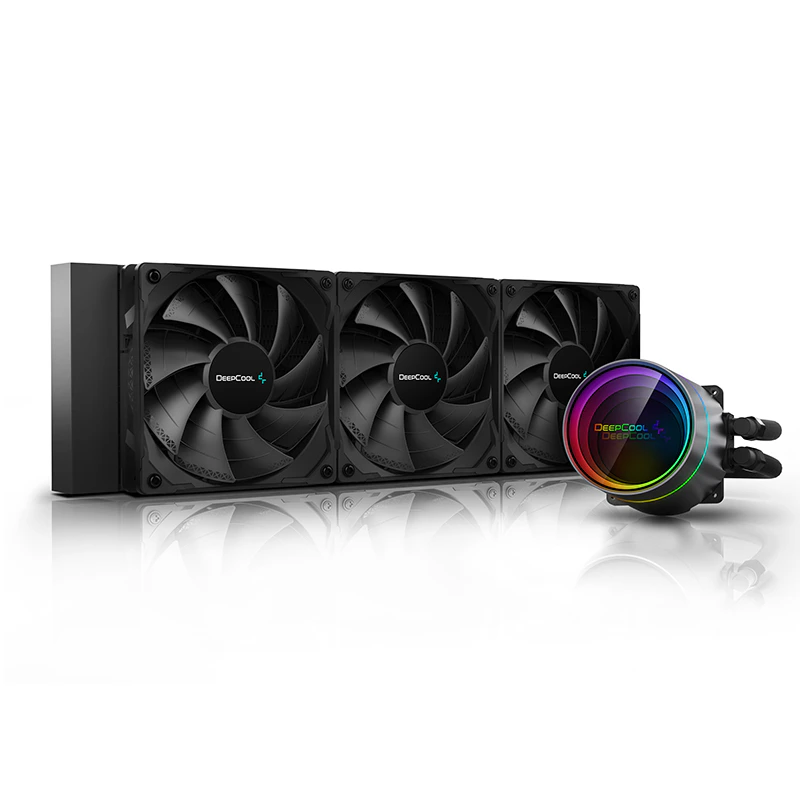

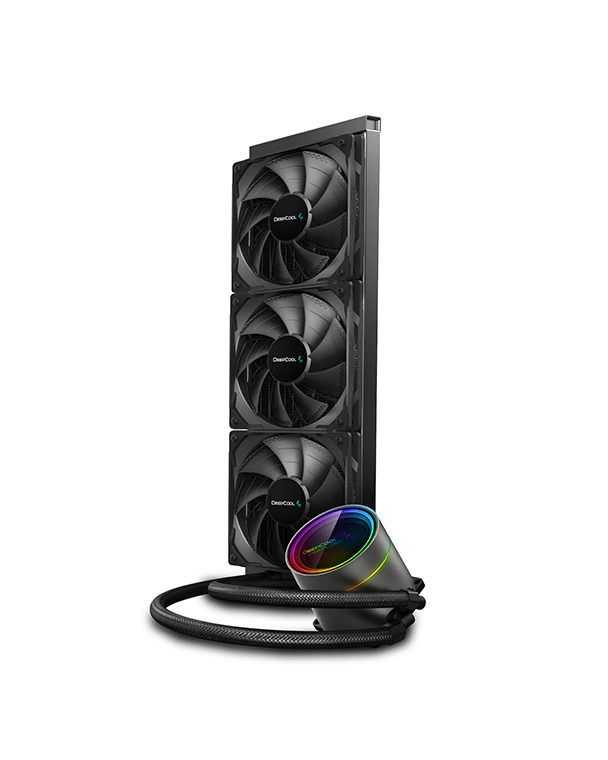

CASTLE 360EX

Fortified Cooling

Protect what’s yours

Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.

Powerful and quiet

―

A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

Efficient cooling

―

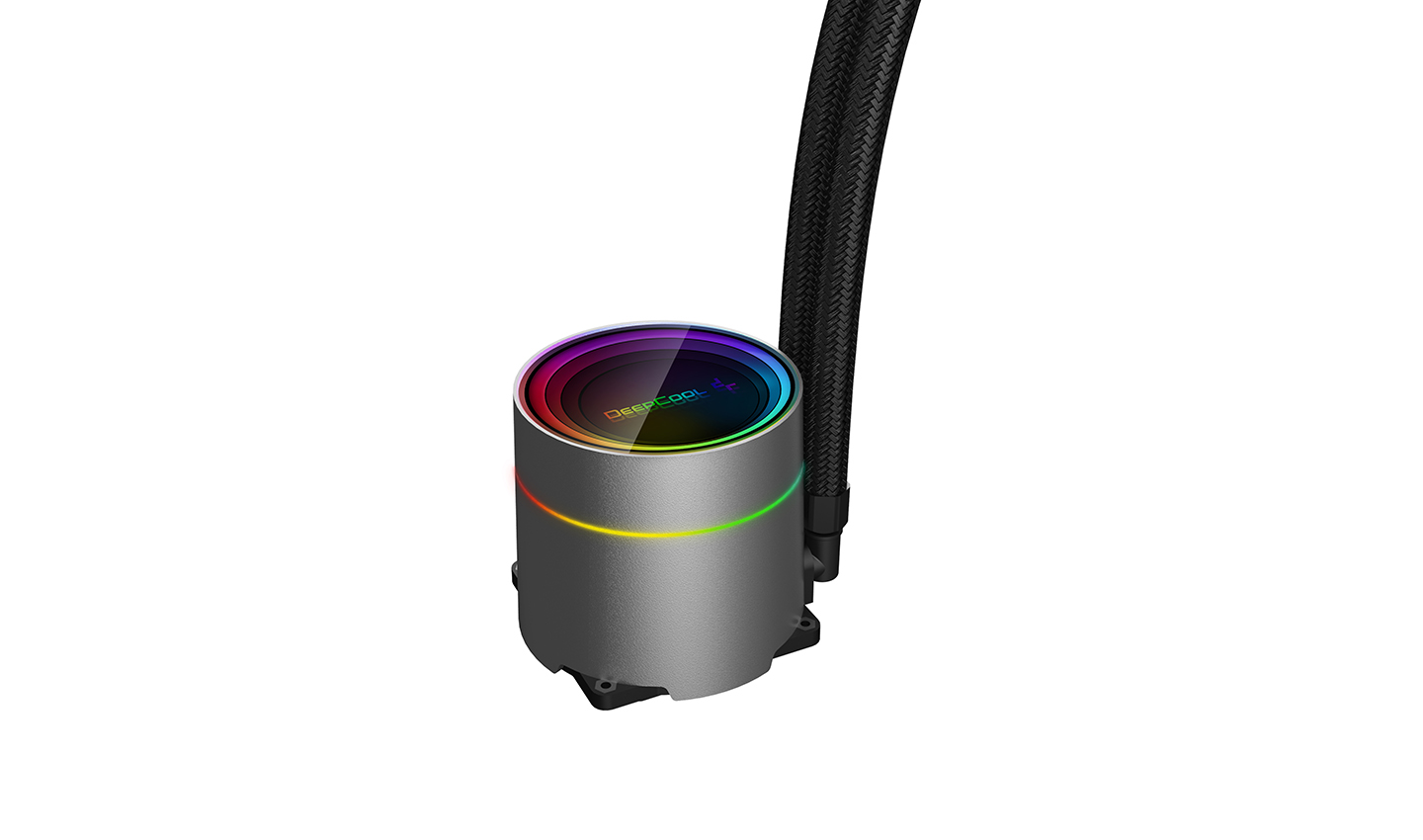

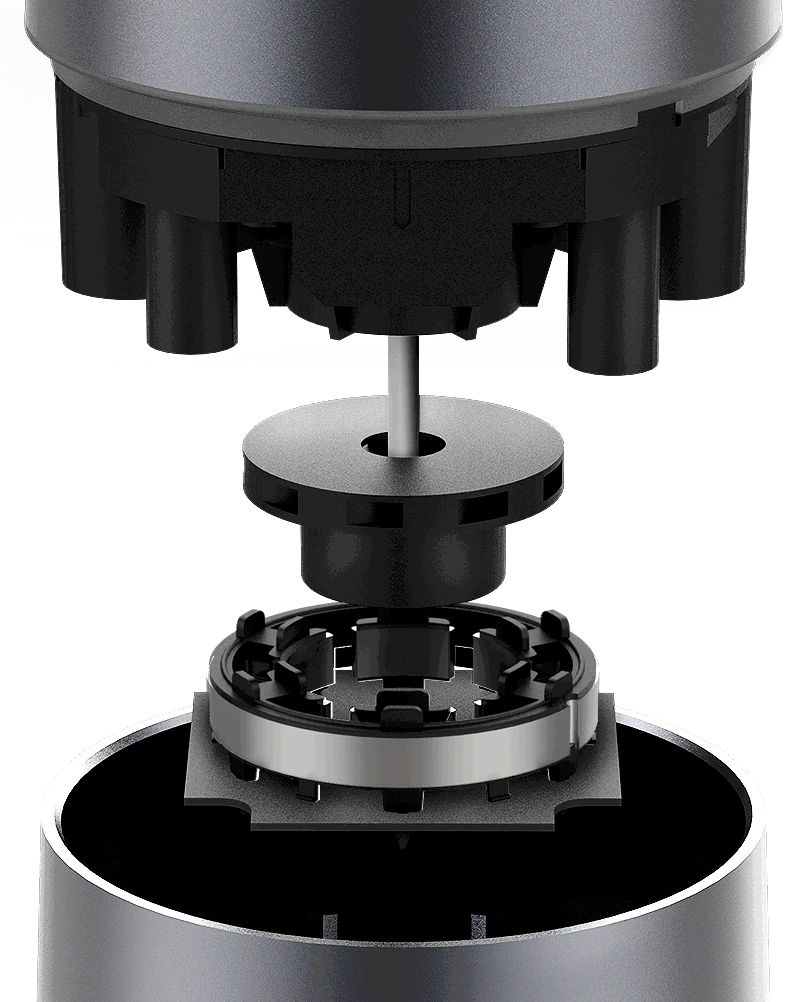

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

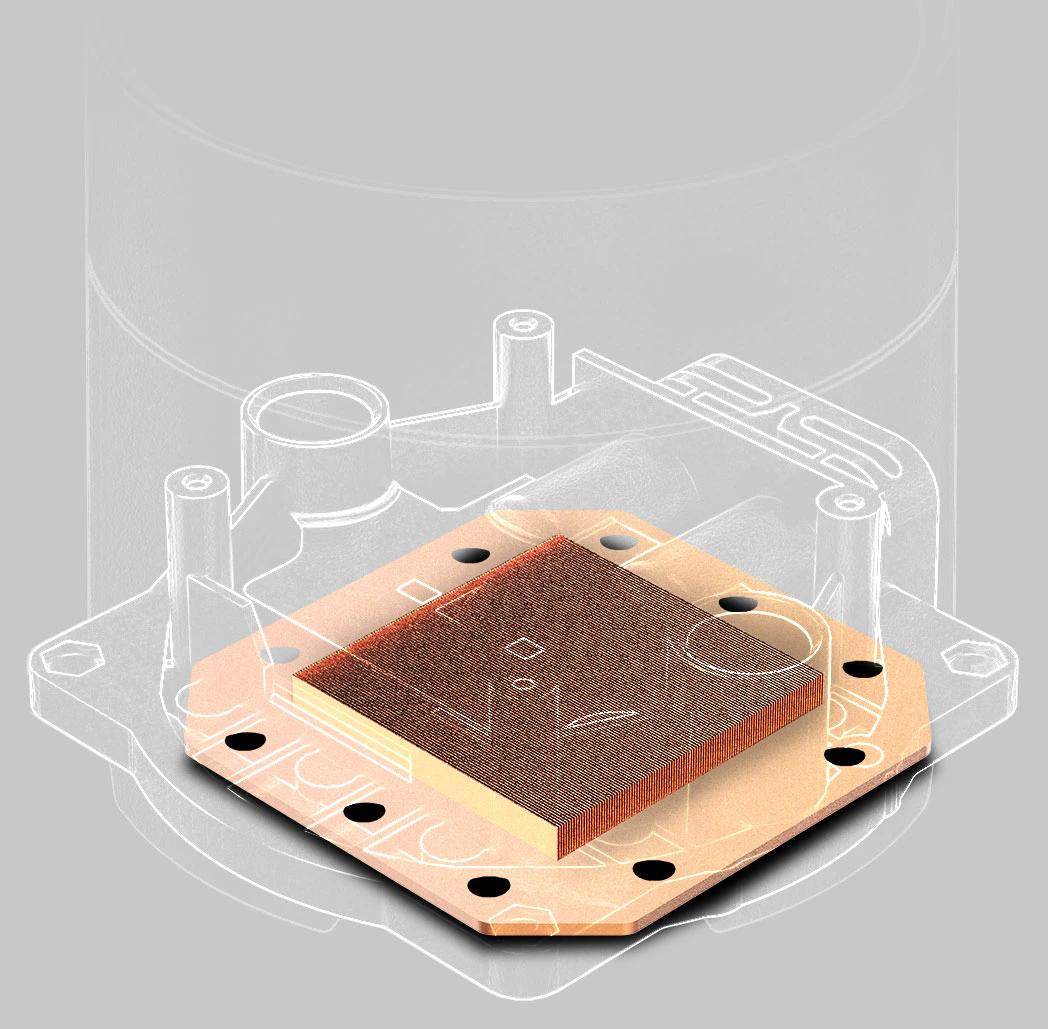

More surface area

―

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

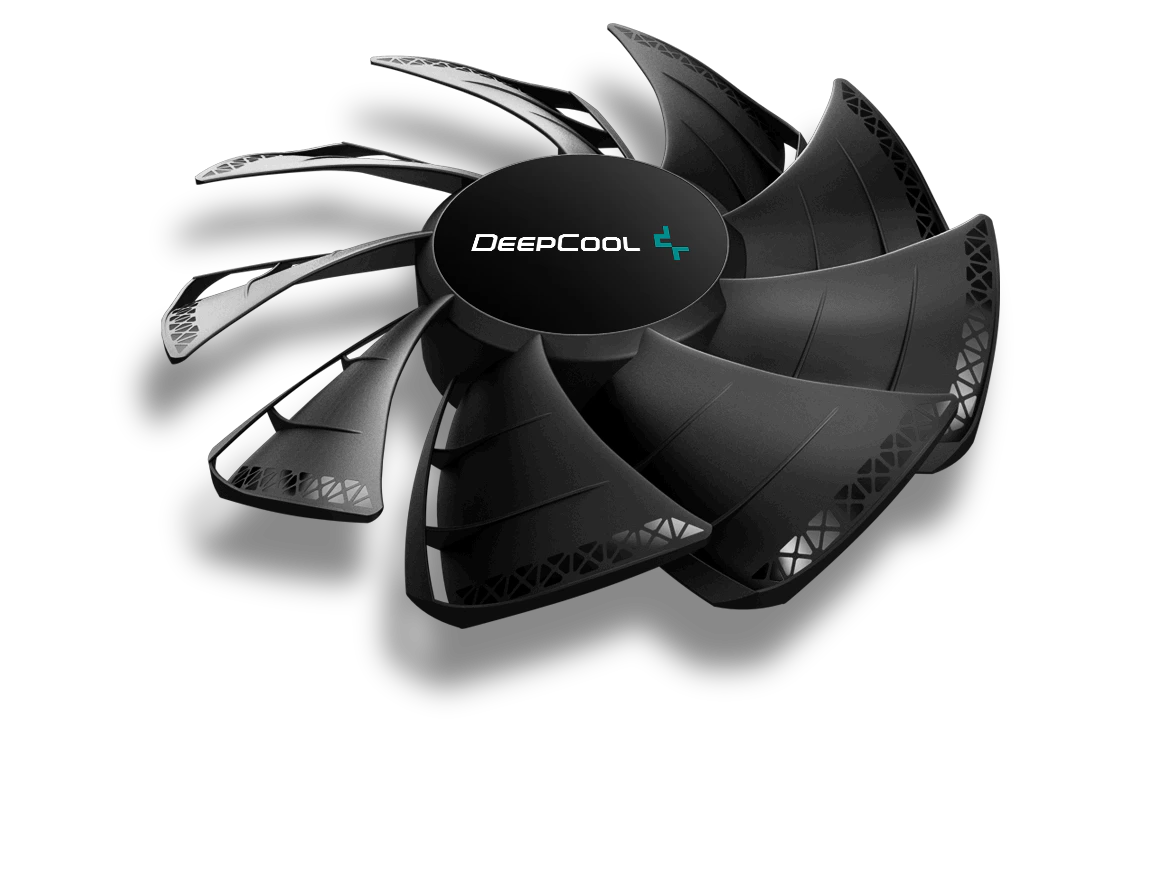

Performance tuned

―

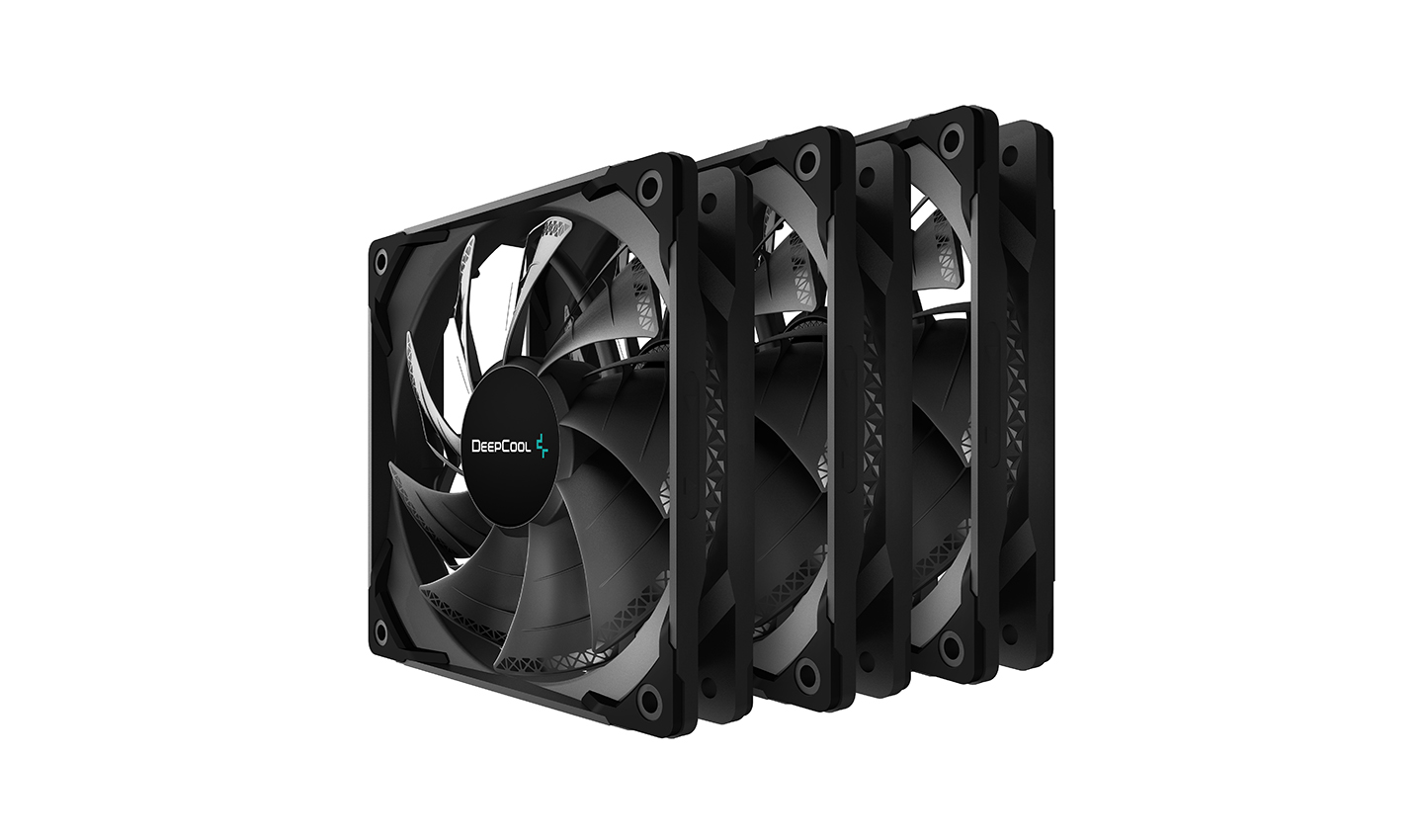

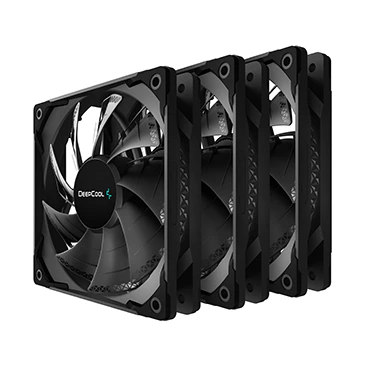

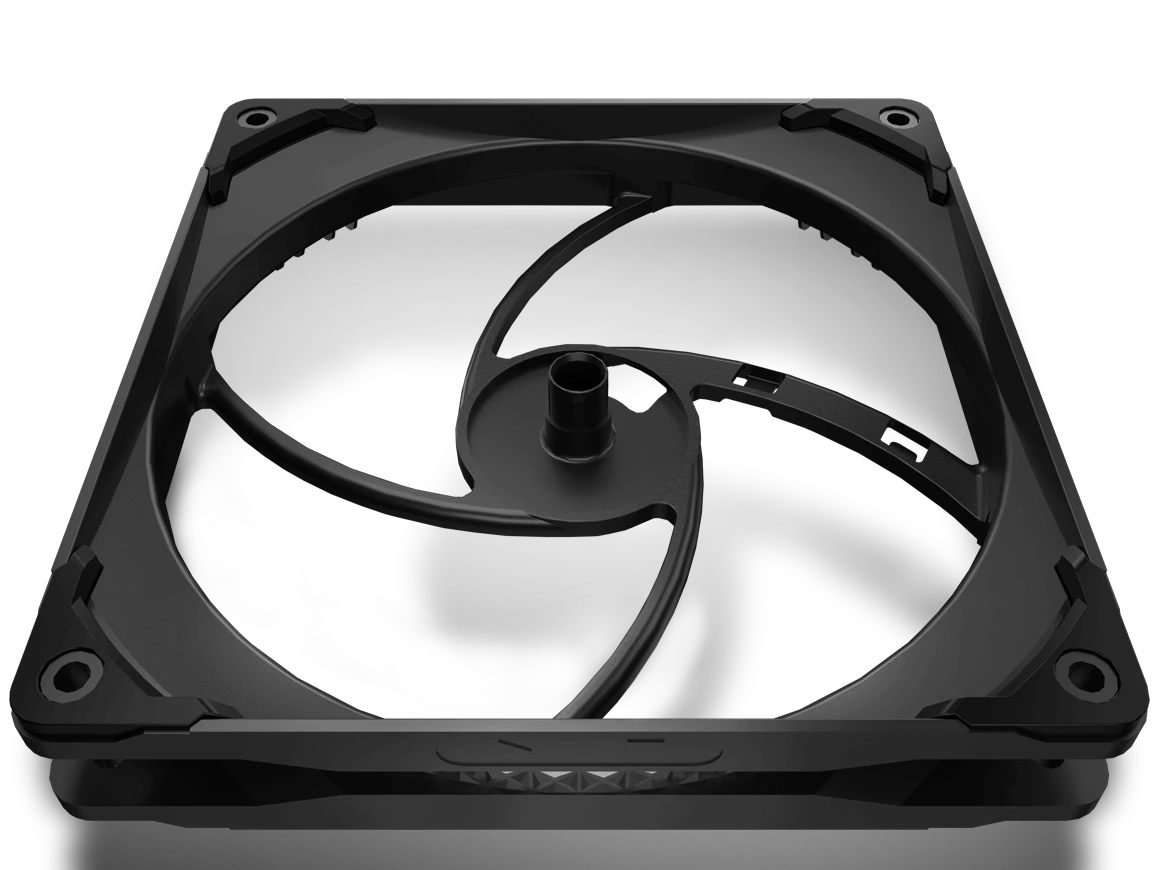

Specially tuned DeepCool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.

Customize your look

―

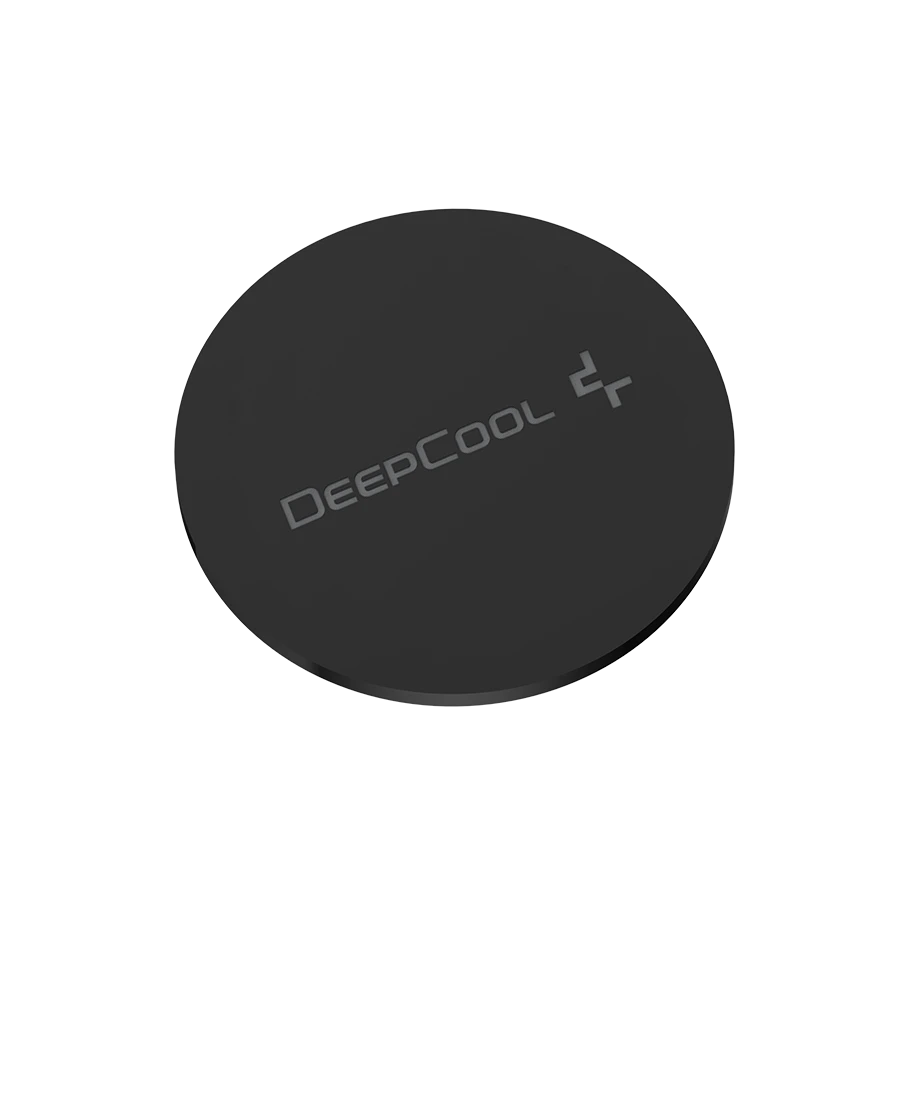

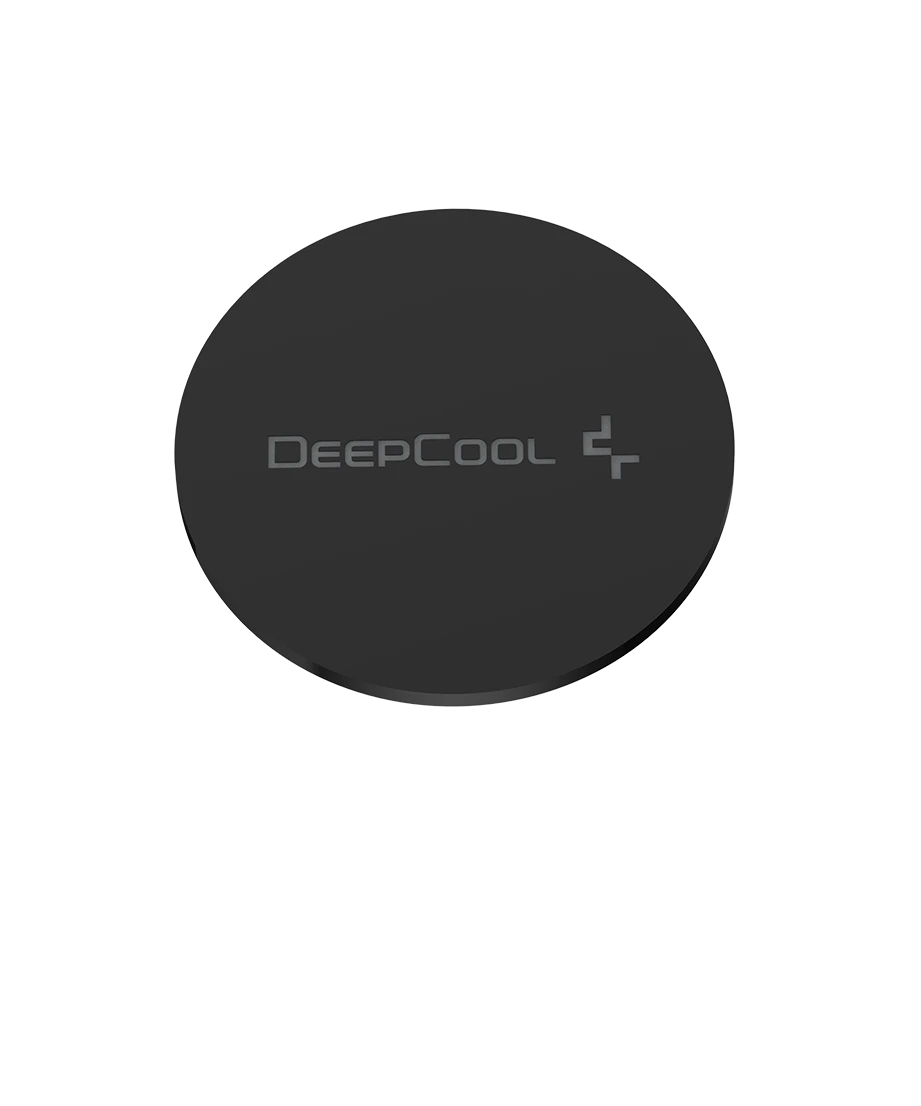

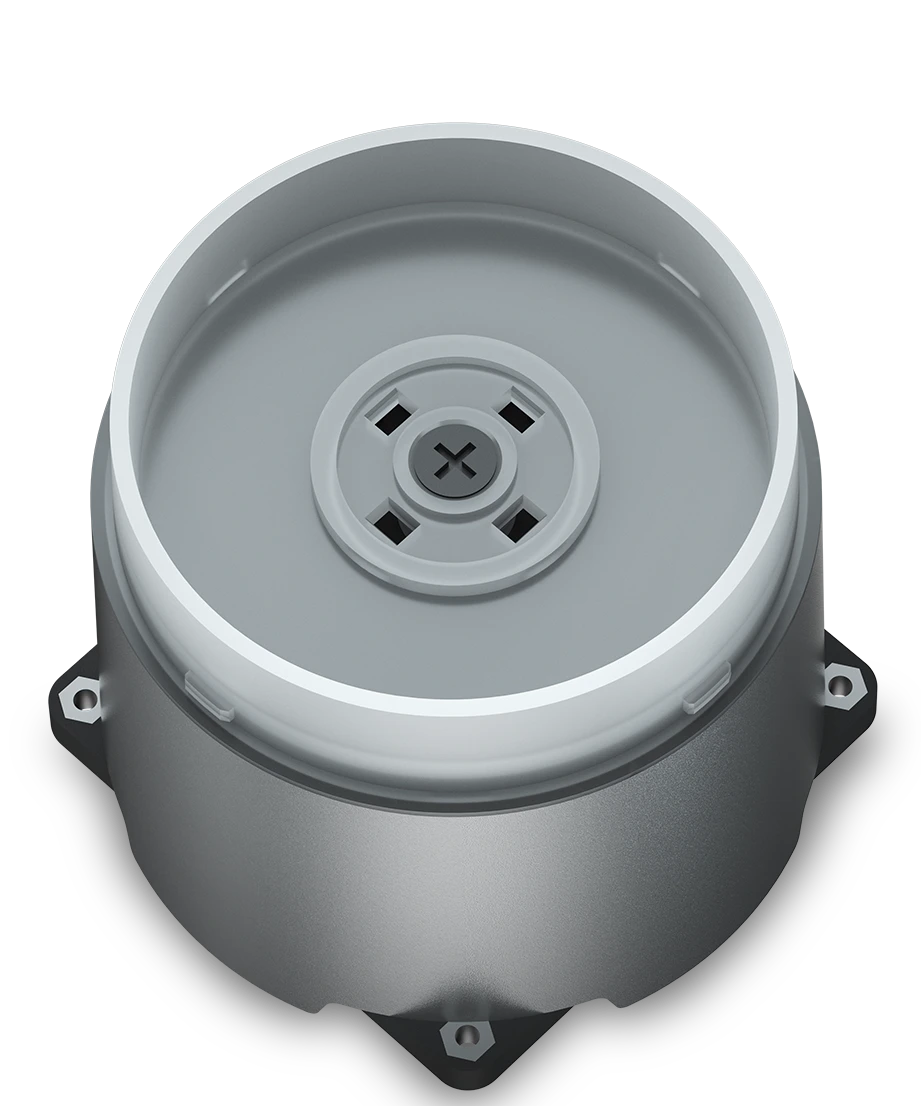

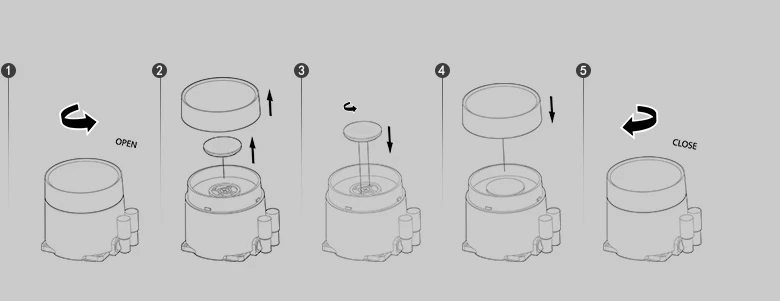

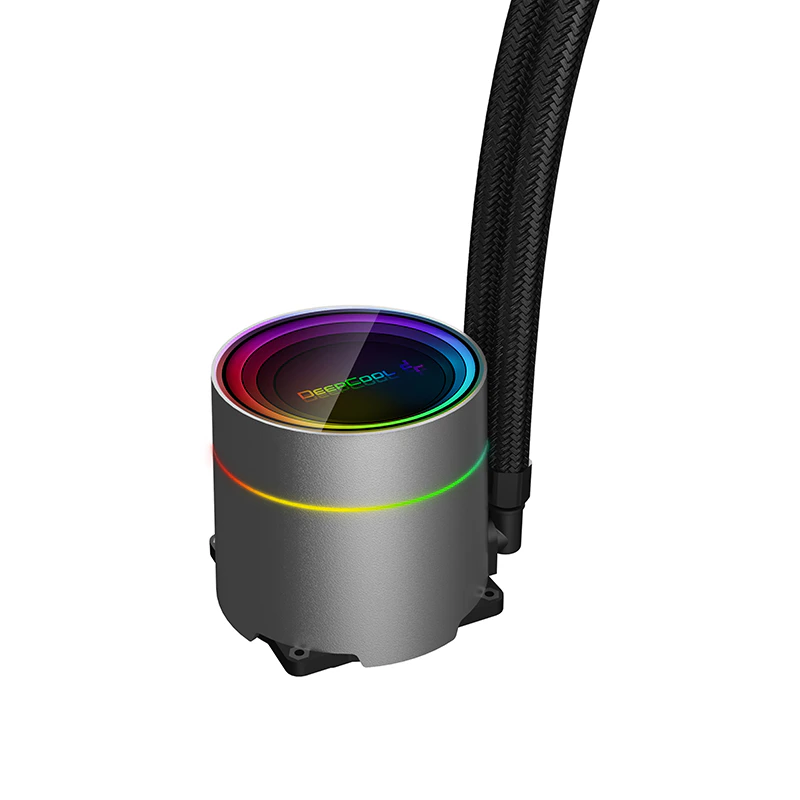

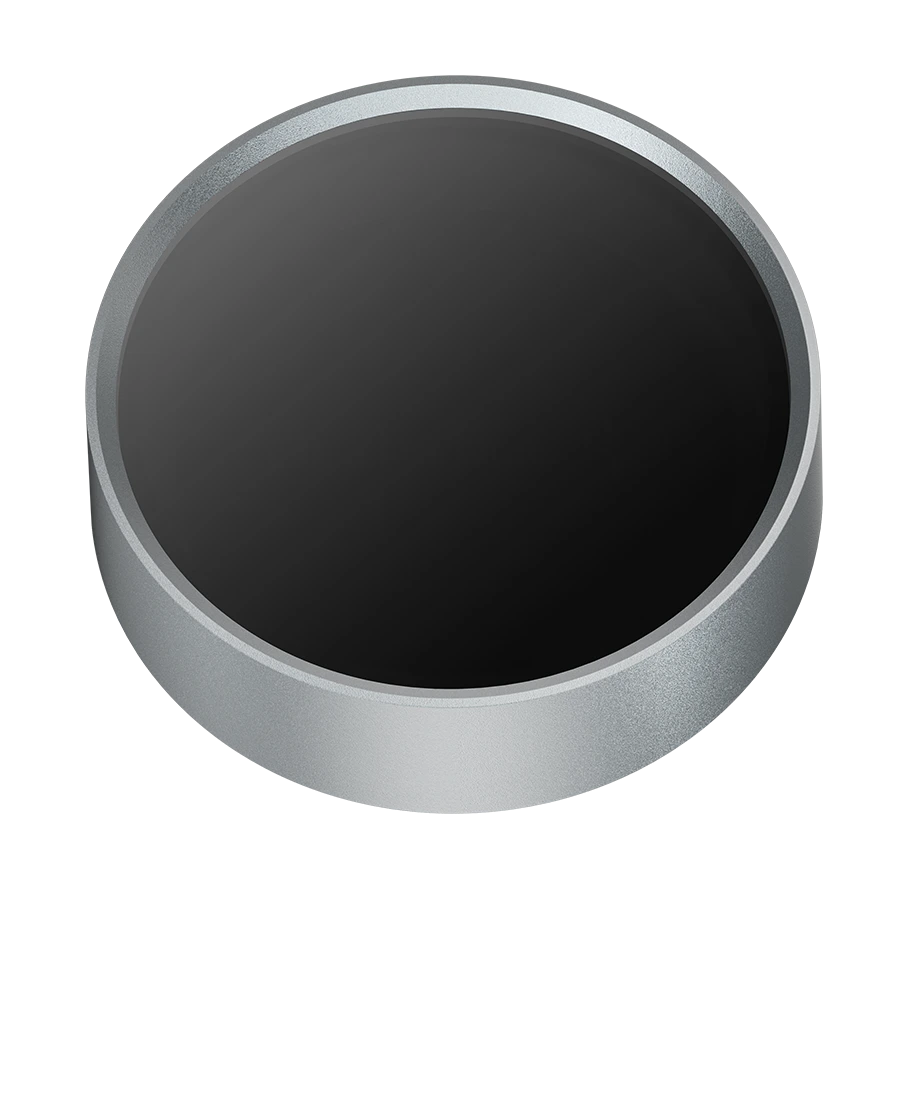

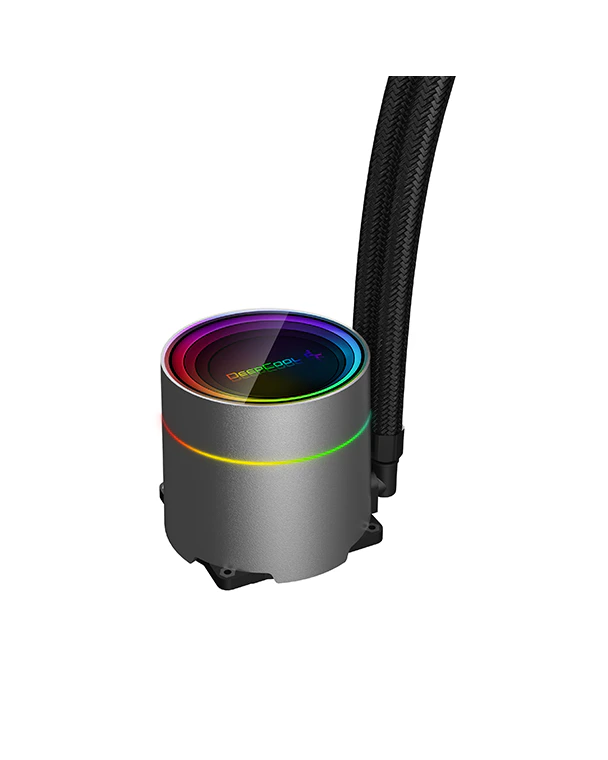

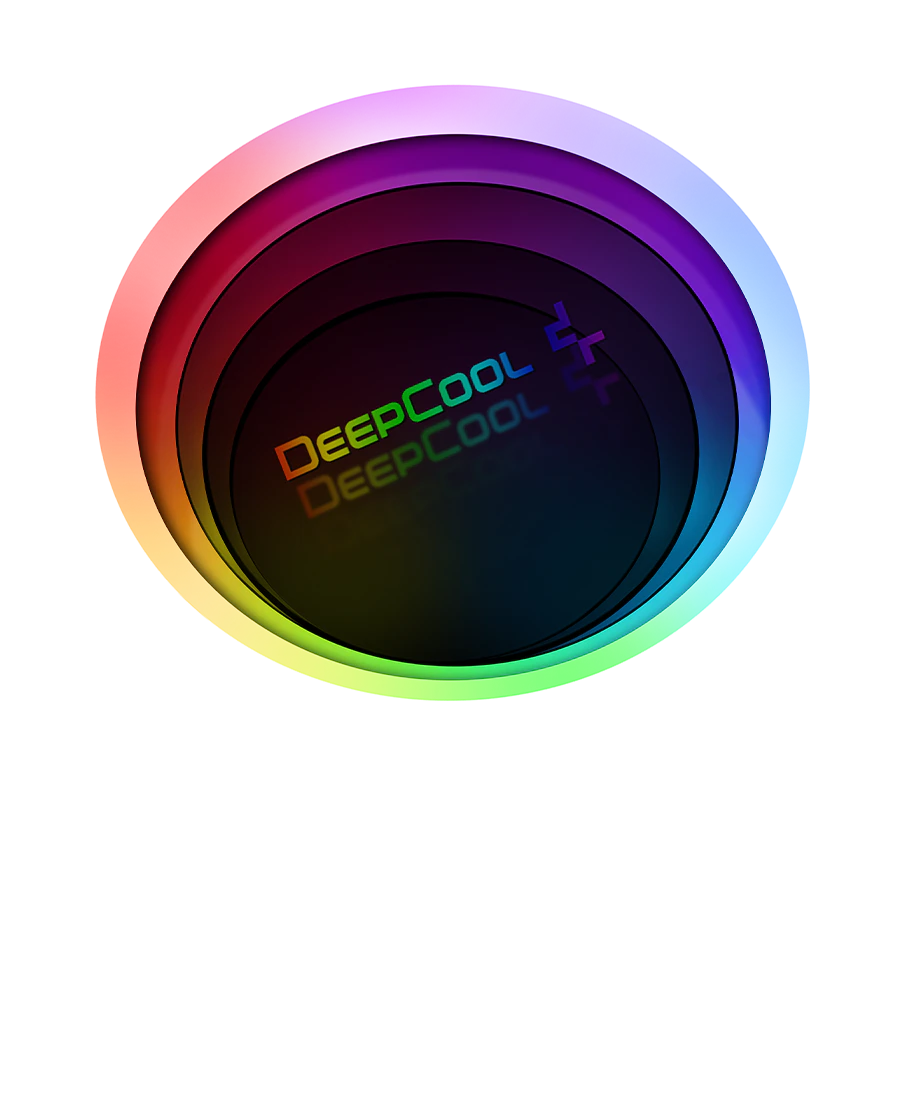

Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.

Mode+

Speed （Hold for 3 seconds to switch on/off）

Mode-

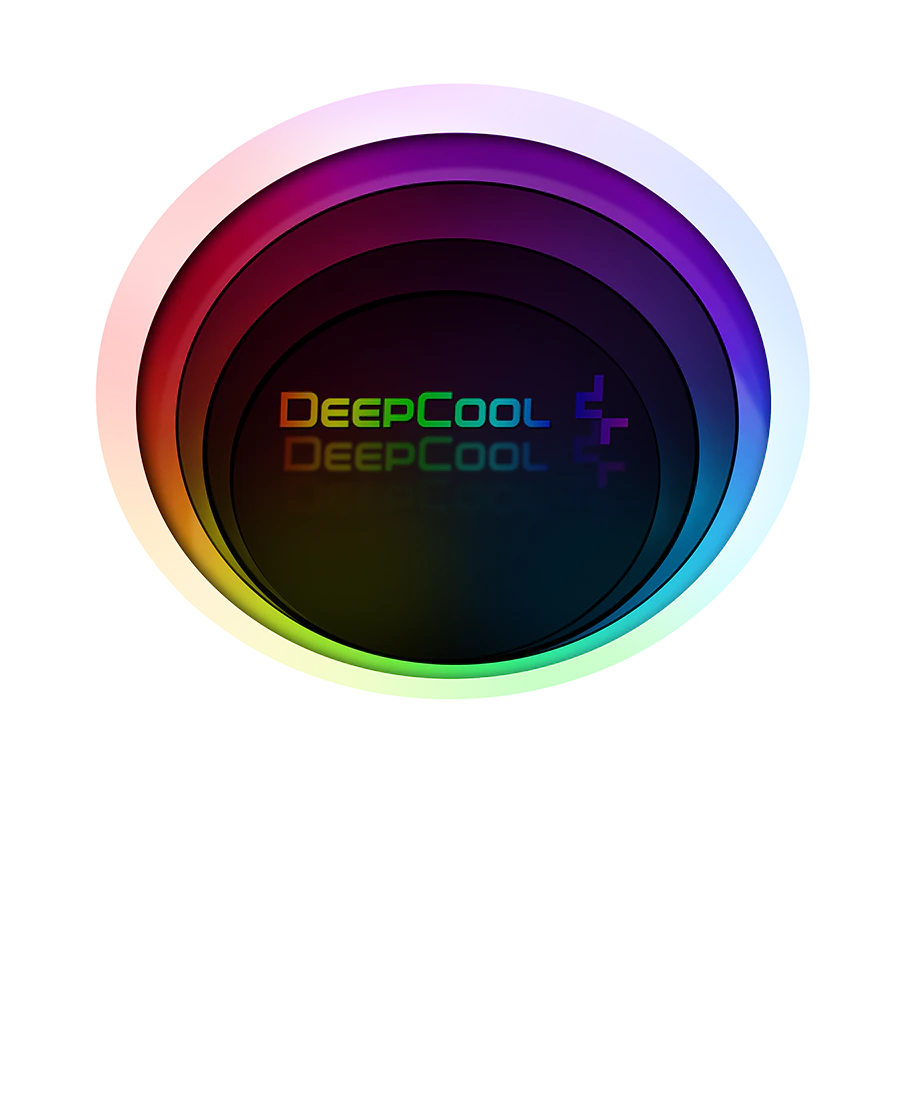

Choose your style

―

Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

Dynamic

Static

Breathing

Comet

Fashion Collision

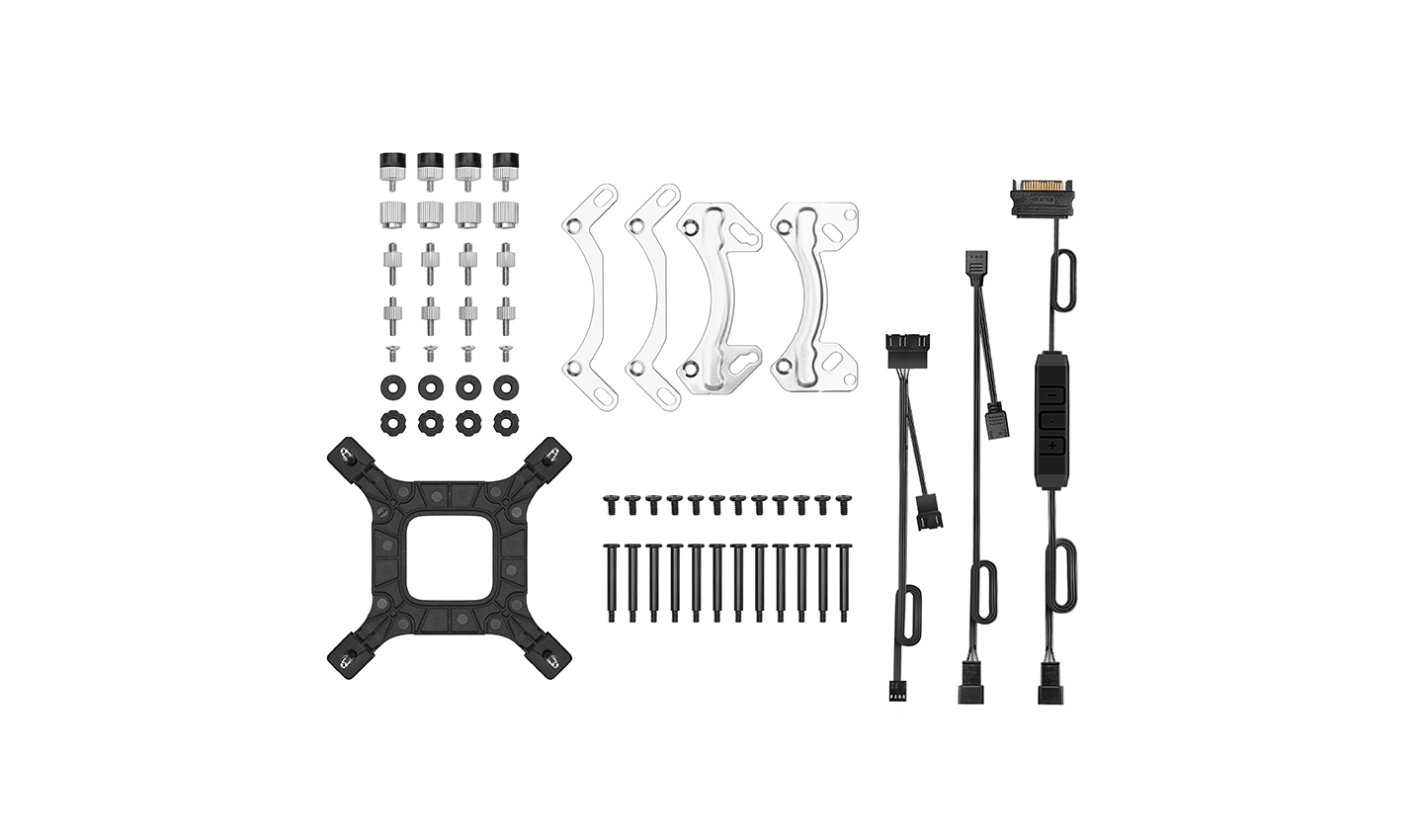

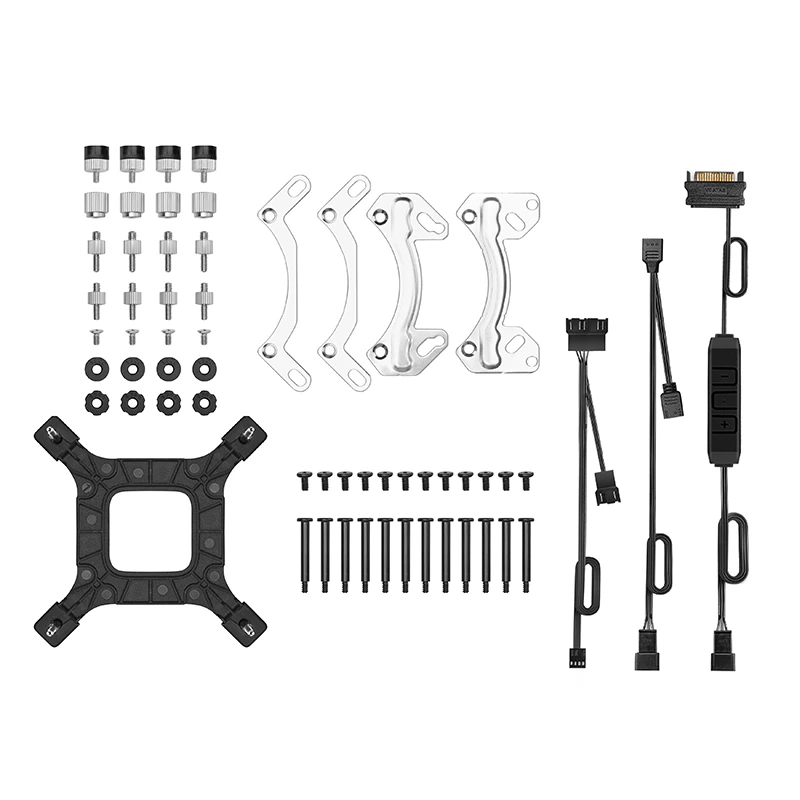

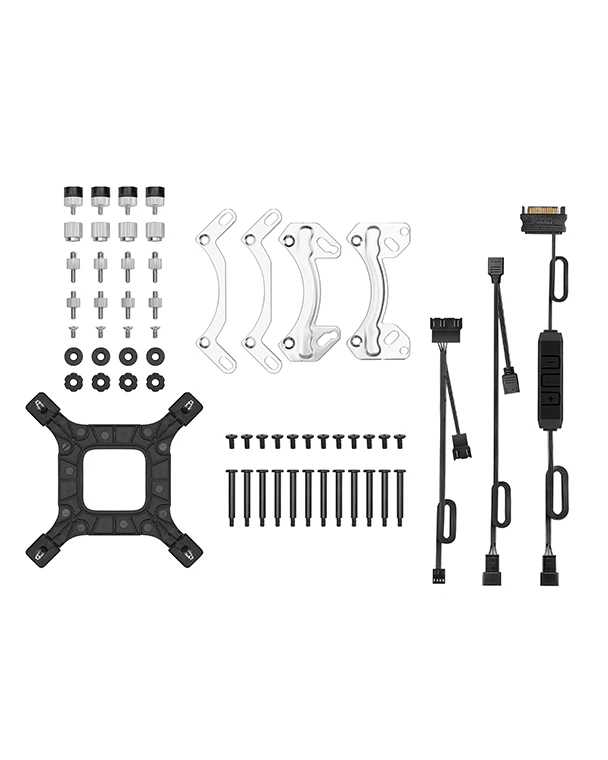

Application For

Intel

LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

sTRX4/sTR4/AM4

Technical Spec

Radiator Dimensions	402×120×27 mm(L×W×H)
Radiator Material	Aluminum
Net Weight	1706 g
Tube length	465 mm
Pump Dimensions	86×75×71 mm(L×W×H)
Pump Speed	2550 RPM±10%
Pump Noise	17.8 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.2 A
Pump Power Consumption	2.4 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1800 RPM±10%
Fan Airflow	64.4 CFM
Fan Air Pressure	2.33 mmAq
Fan Noise	≤32.1 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.15 A
Fan Power Consumption	1.8 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.25 W（PUMP）
EAN	6933412726760
P/N	DP-GS-H12-CSL360EX

Product Dimension

ARGB Razer Chroma Liquid Cooler - CASTLE 360EX

DeepCool Castle 360EX AIO Liquis Cooler has beautiful A-RGB LED lighting, brilliant cooling performance with anti-leak tech, a customizable centre logo and much more! All at an AFFORDABLE price.

View More

Which 360mm all in one liquid cooler is best?

Timmy Joe PC Tech made head to head battle between NZXT Kraken x72 and the DeepCool Castle 360EX on the 9900k @ 5ghz 1.3V to test which of these high-end liquid coolers is best. Let's see the final result in this video.

View More

Download

CASTLE 360EX Manual.pdf
