CG590 MESH 2F

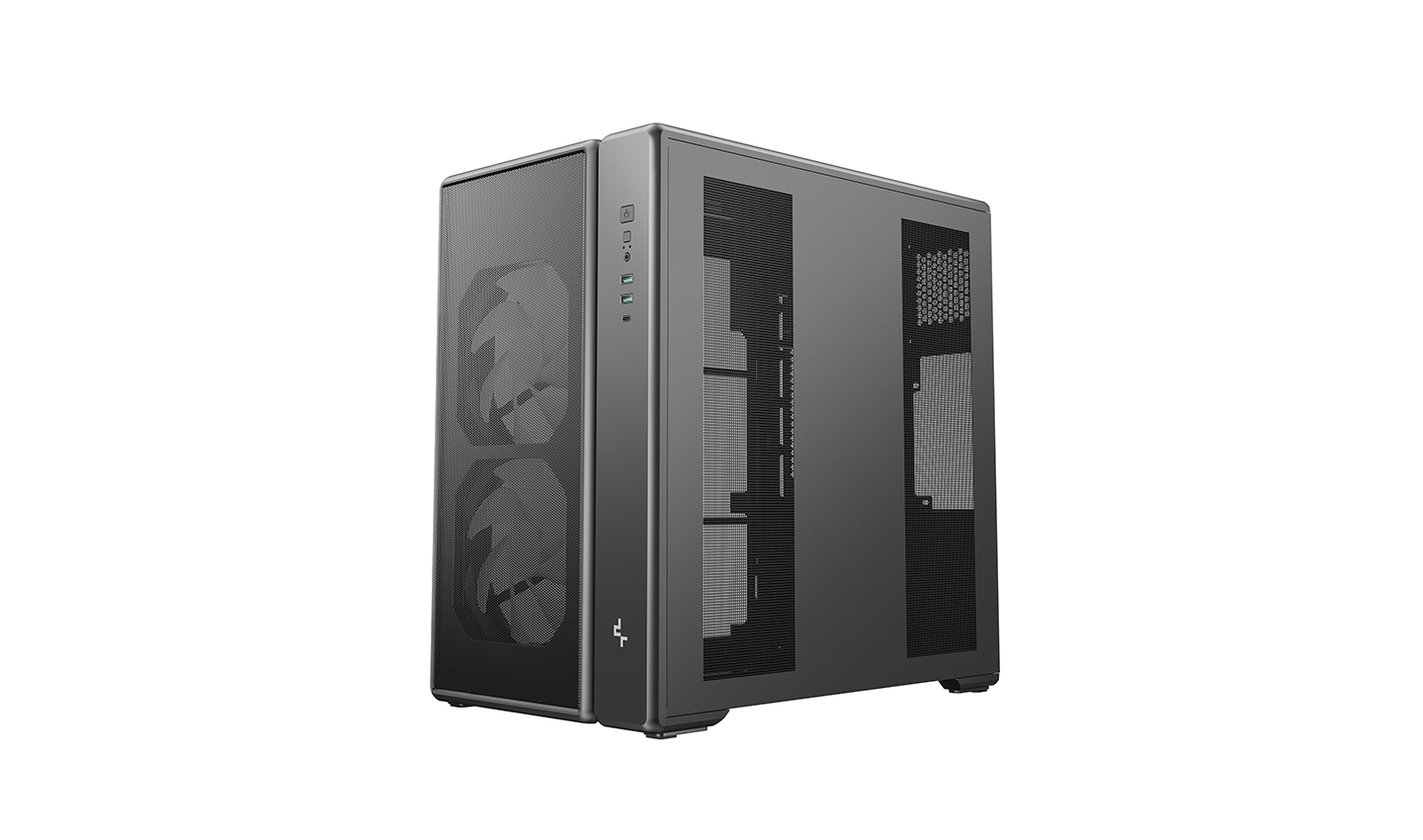

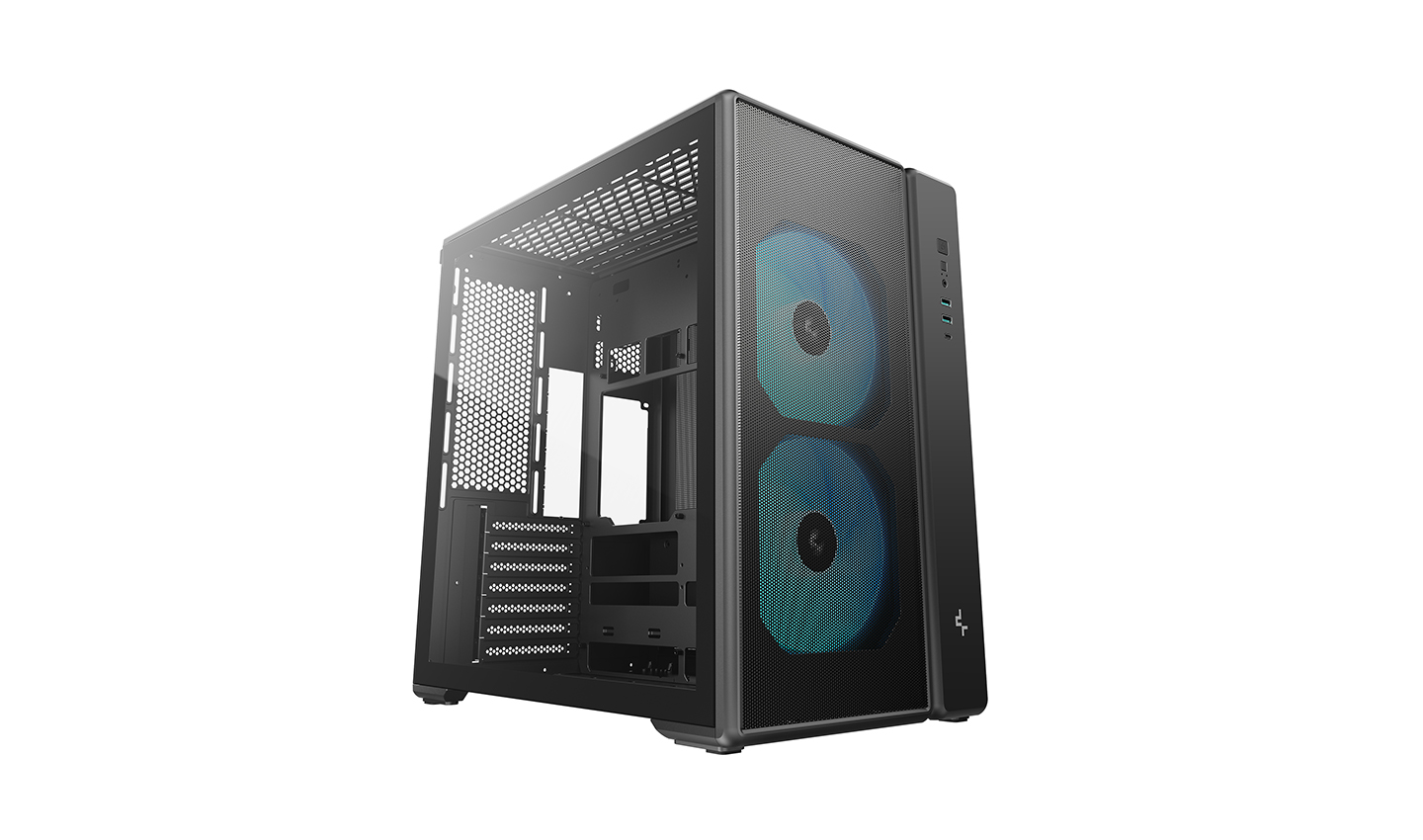

The CG590 MESH 2F is a well-ventilated dual-chamber ATX case featuring two pre-installed 160mm ARGB front fans.
COLOR
black
MODEL
CG590 MESH 2F
GO BIG ON AIRFLOW
LARGE FANS, BIG IMPACT

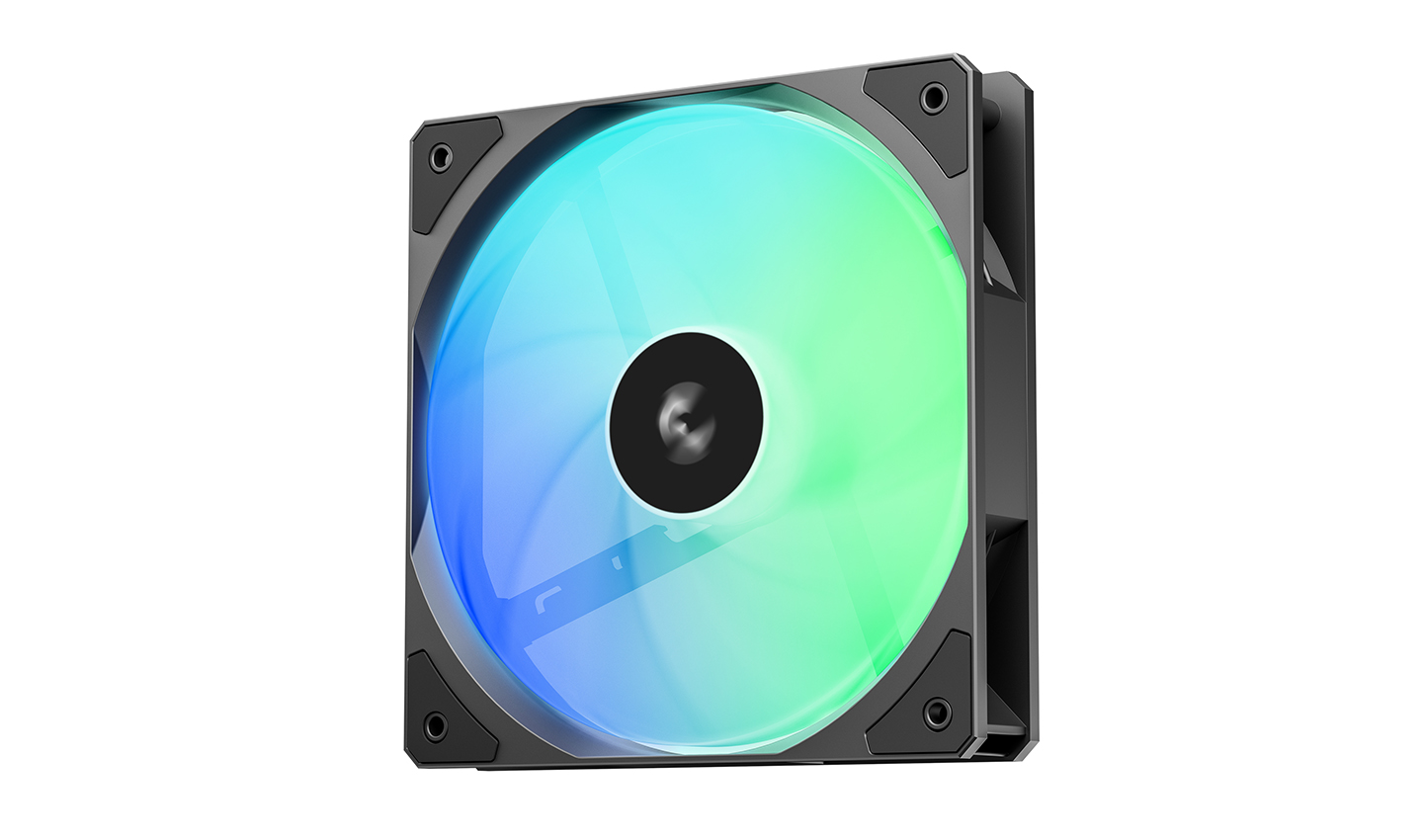

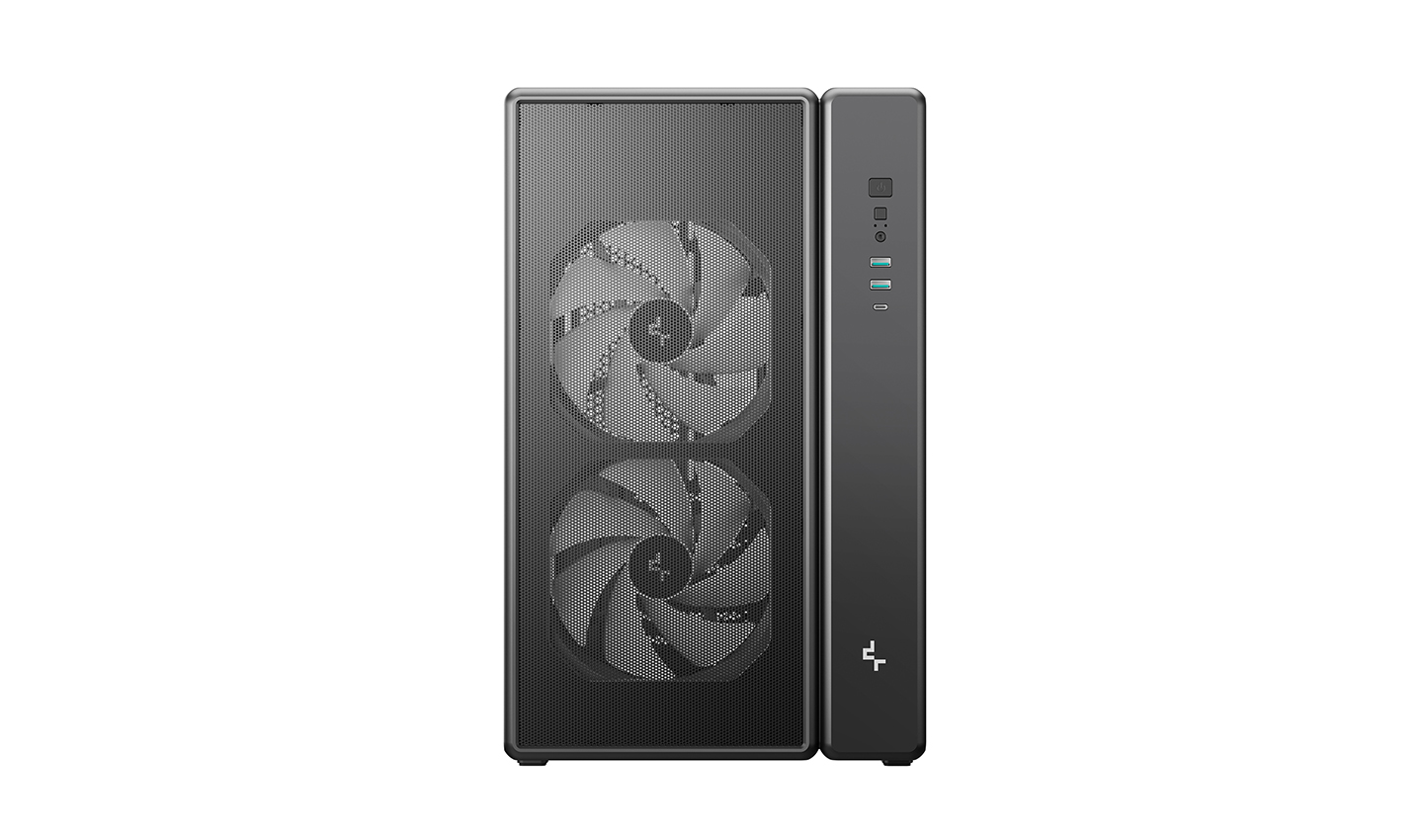

Two 160mm ARGB fans come pre-installed at the front of the case, with the large fan size delivering strong airflow while creating a bold visual centerpiece.
EFFICIENT VENTILATION

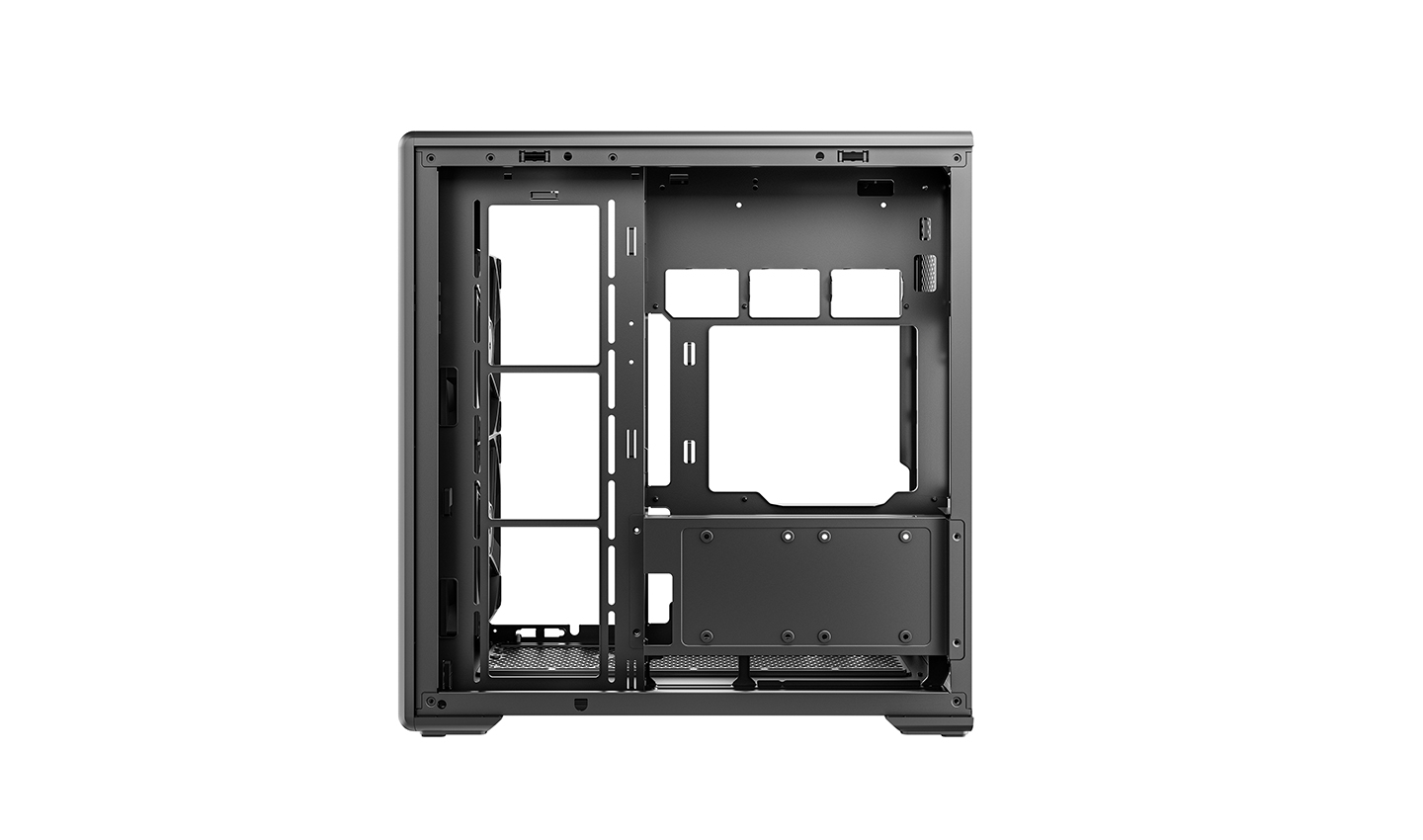

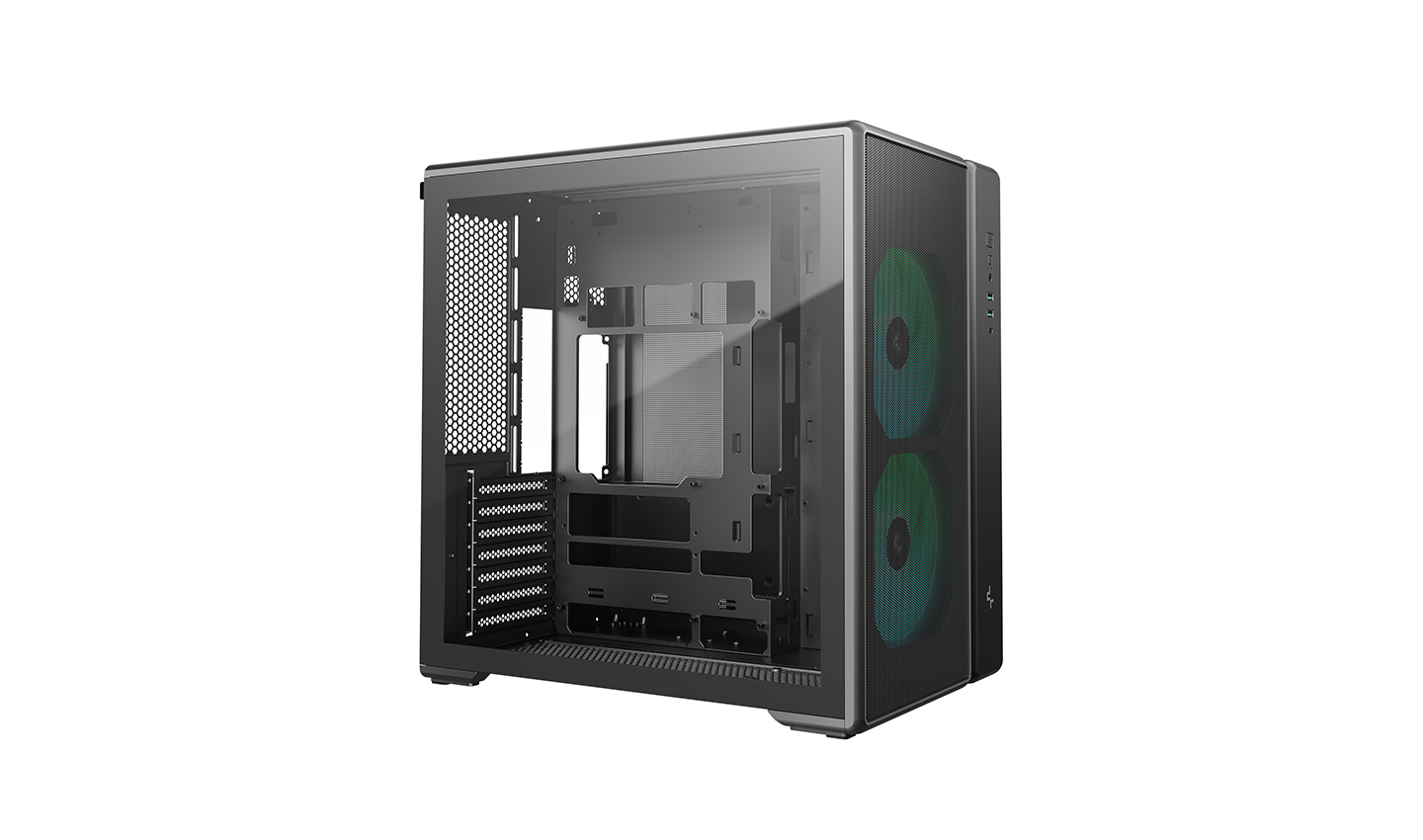

The dual-chamber layout separates the power supply and drives into their own cooling zone, keeping the GPU’s intake path clear. Large ventilated panels on the front and top enhance airflow throughout the case.
FLEXIBLE COOLING OPTIONS
The CG590 MESH 2F provides versatile cooling options with support for a 360mm radiator on the top, side, or bottom. In full air-cooling mode, it can house up to 13 fans for strong airflow.
  • Radiators
  • 120mm Fans
  • 140mm Fans
  • 160mm Fans
Radiator Support:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Bottom: 120/240/360mm
Rear: 120mm
Fan Support:
Top: 3×120mm / 2×140mm
Front: 2×160mm
Side: 3×120mm
Rear: 2×120mm
Bottom: 3×120mm
BROAD HARDWARE SUPPORT

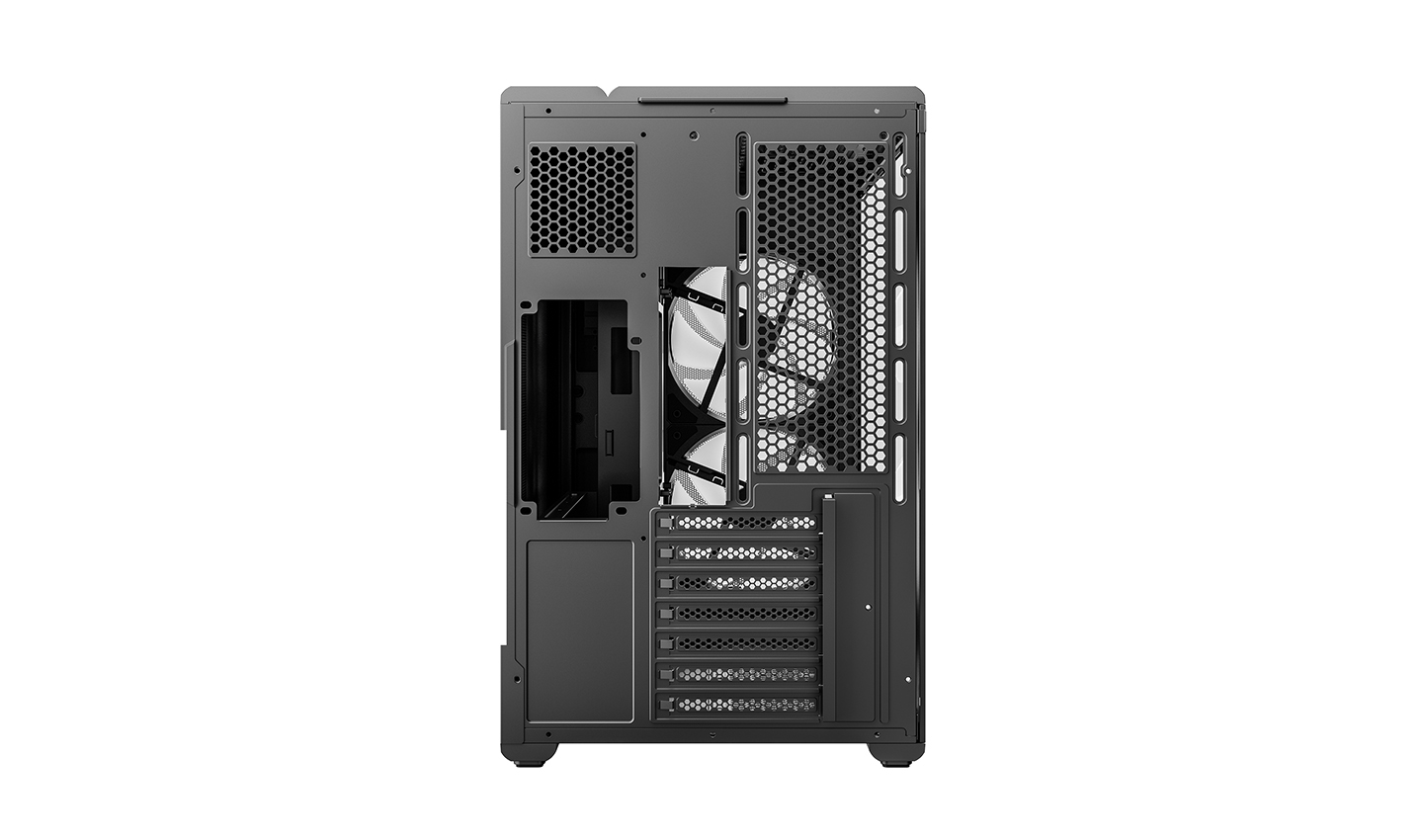

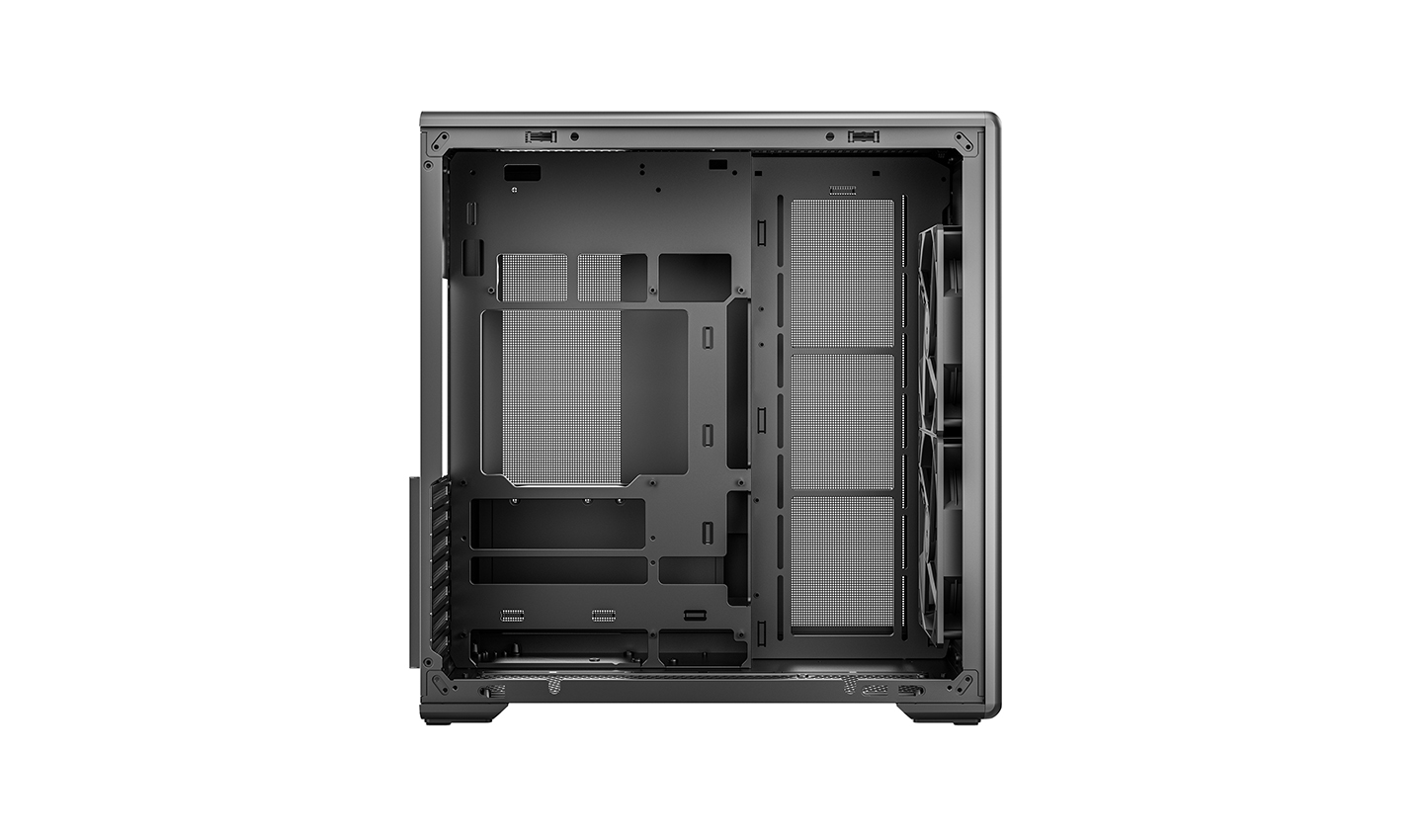

The spacious interior provides ample room for high-end components, supporting CPU coolers up to 160mm tall, GPUs up to 410mm long, and ATX PSUs up to 210mm. With 7 PCIe slots and storage support for up to 2× 3.5”” HDDs and 3× 2.5” SSDs, it gives you the flexibility to configure storage to suit your build.
DETAILS THAT MATTER
Supports M-ATX and ATX reverse connector motherboards
45mm clearance for cable management

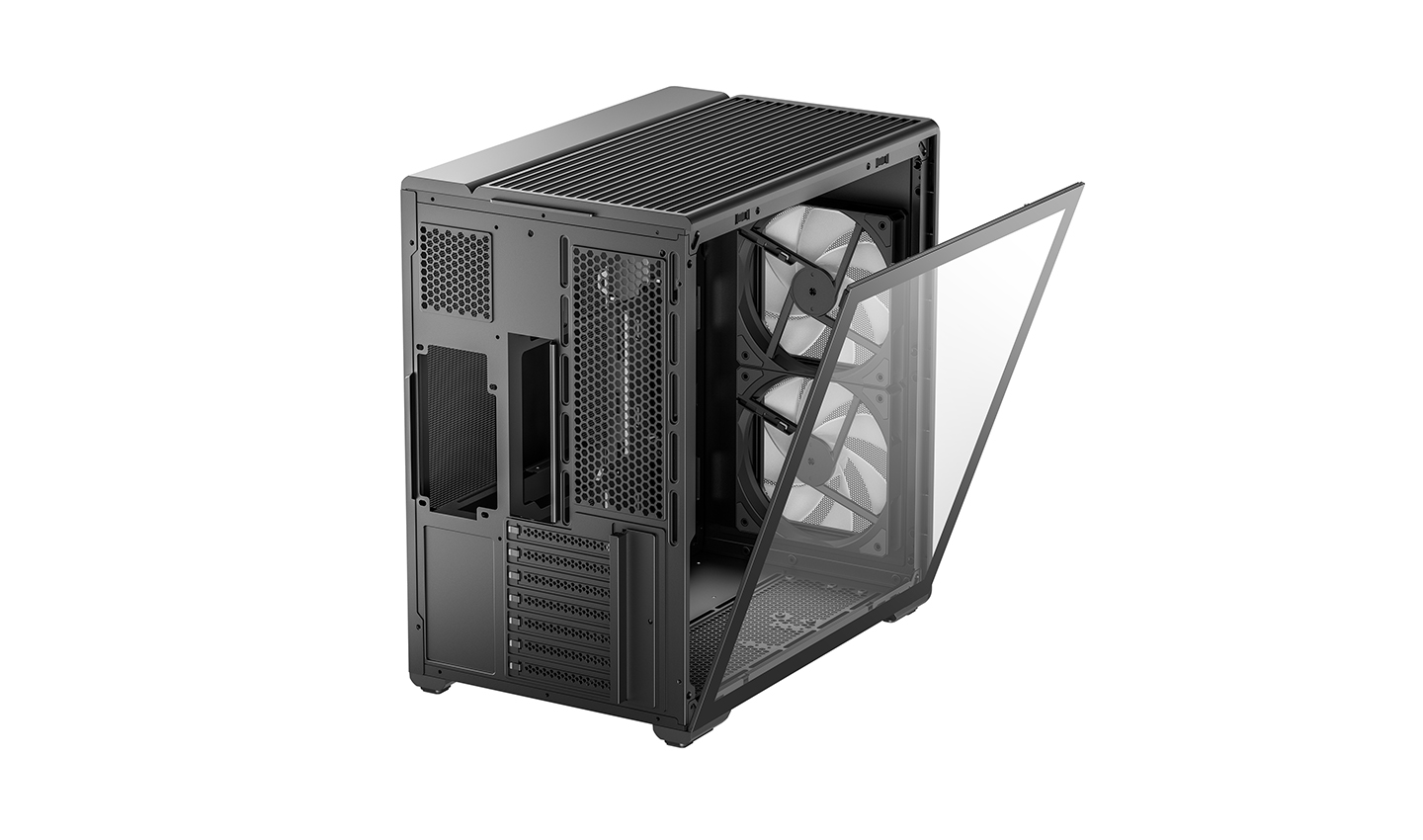

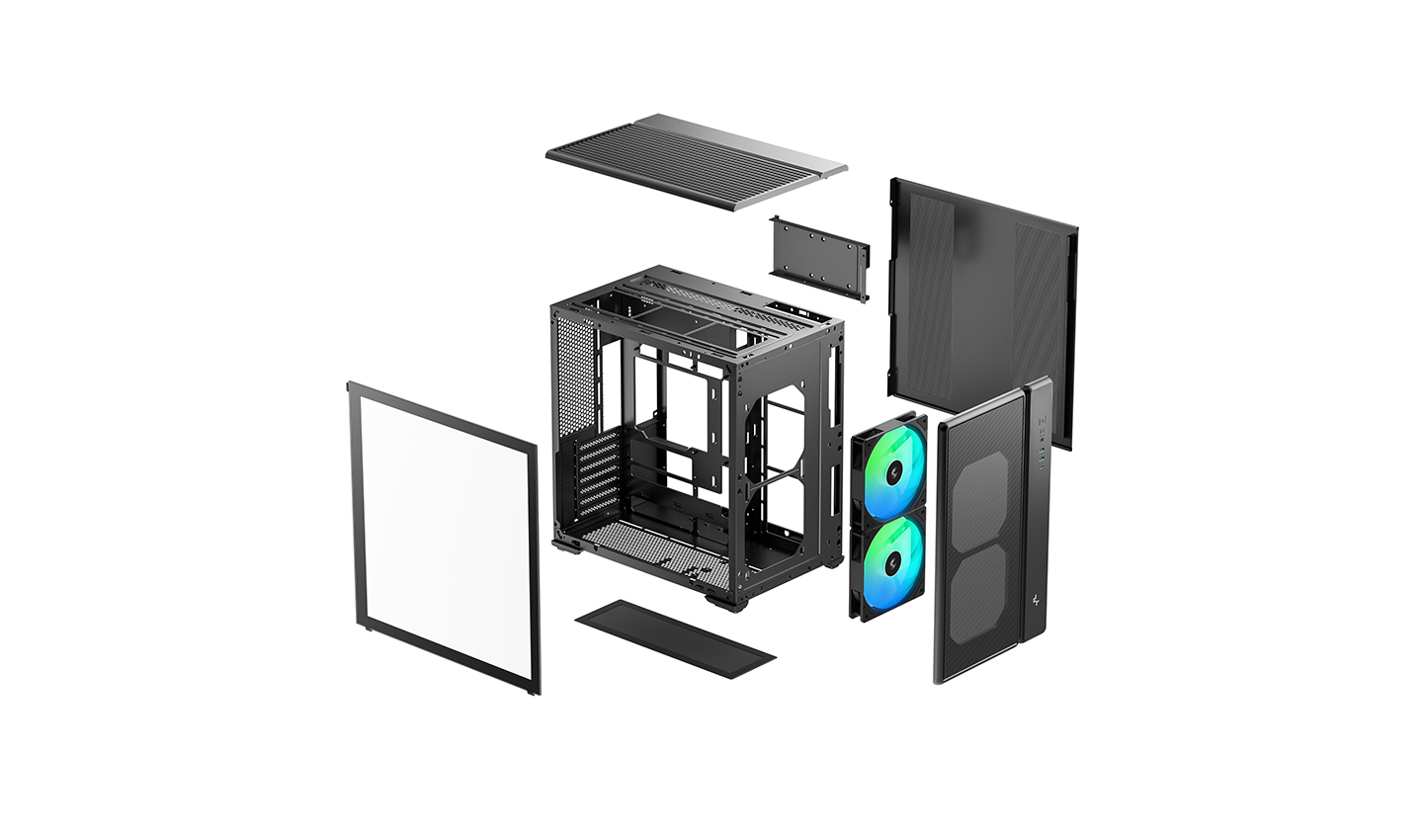

Quick-release top panel for easier access
Removable drive cage for flexible storage setup
EASY I/O ACCESS

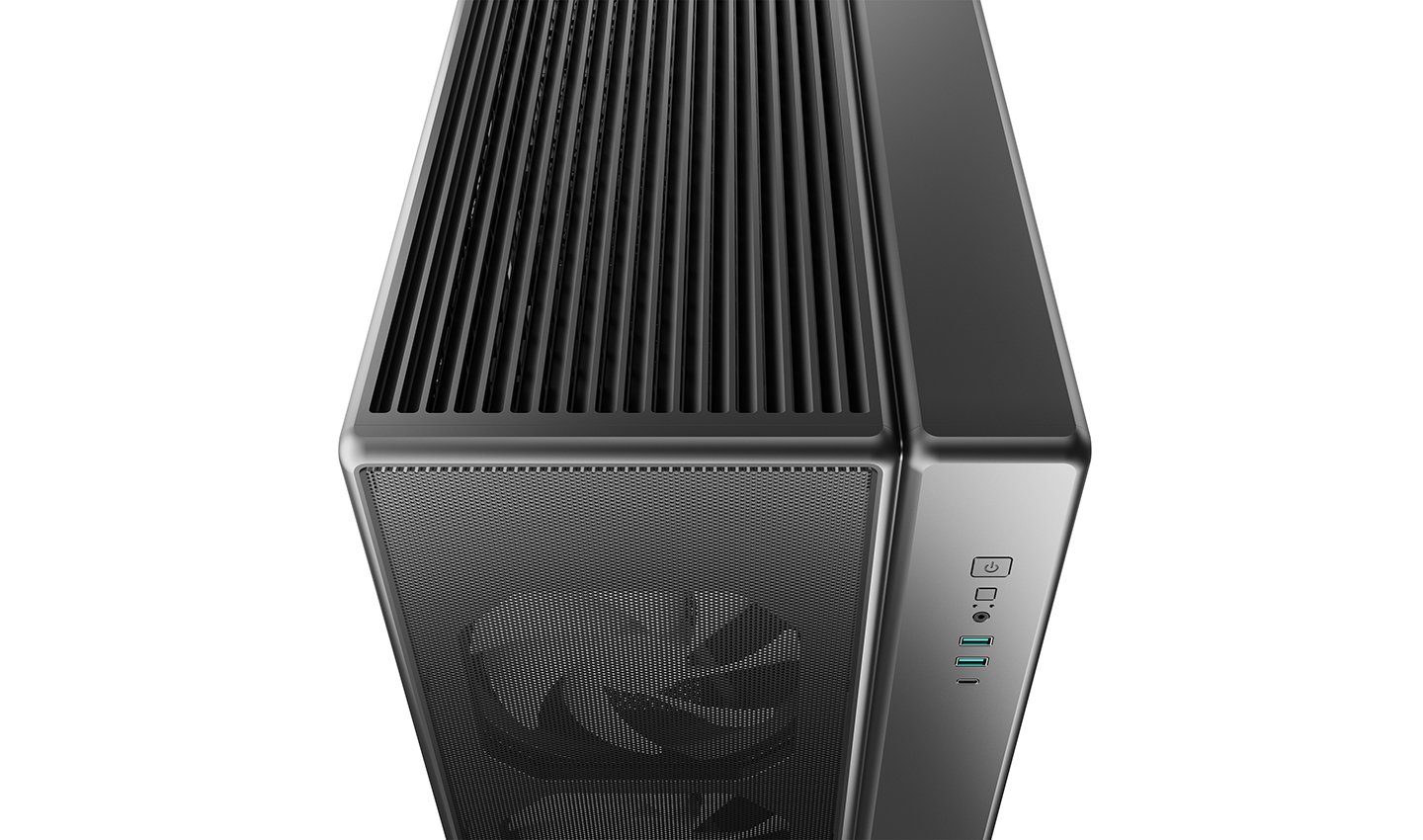

The front I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.
Technical Spec
Product Dimensions450x285x458mm(L×W×H)
Net Weight6.8kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0 x2,Gen2 Type-C x1,HD Audio x1
3.5" Drive Bays1+1
2.5" Drive Bays2+1
Expansion Slots7 Slots
Pre-Installed FansFront：2x160mm
Fan SupportTop: 3×120/2x140mm
Front:2x160mm
Side: 3x120mm
Rear: 2×120mm
Bottom: 3×120mm
Radiator SupportTop: 120/140/240/280/360mm
Side: 120/240/360mm
Bottom:120/240/360mm
Rear: 120mm
CPU Cooler Height Limit160mm
GPU Length Limit410mm
Power Supply Type210mm
EAN6933412765783
P/NR-CG590MESH-BKANA2-G
Download
CG590 MESH 2F Manual.pdf
