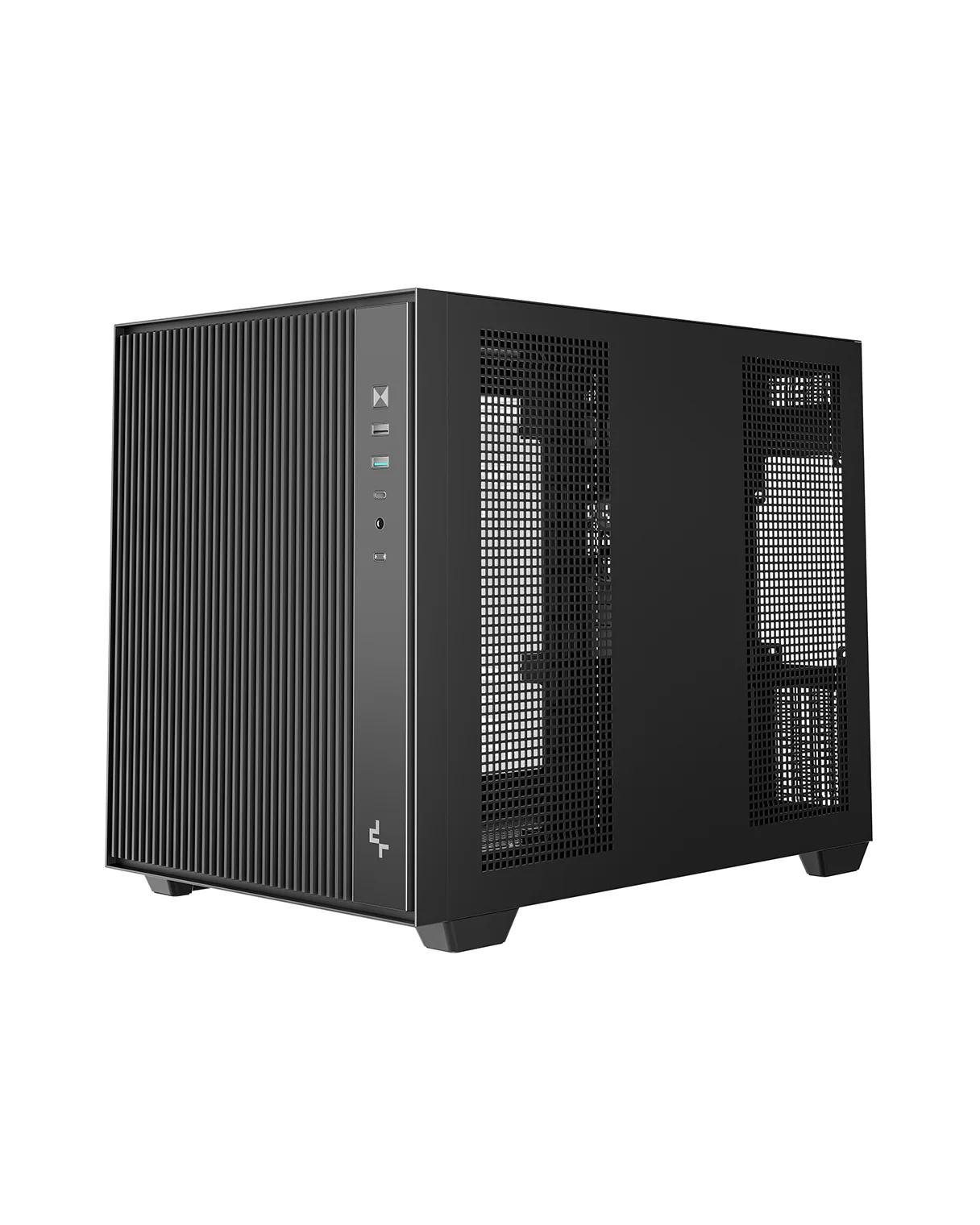

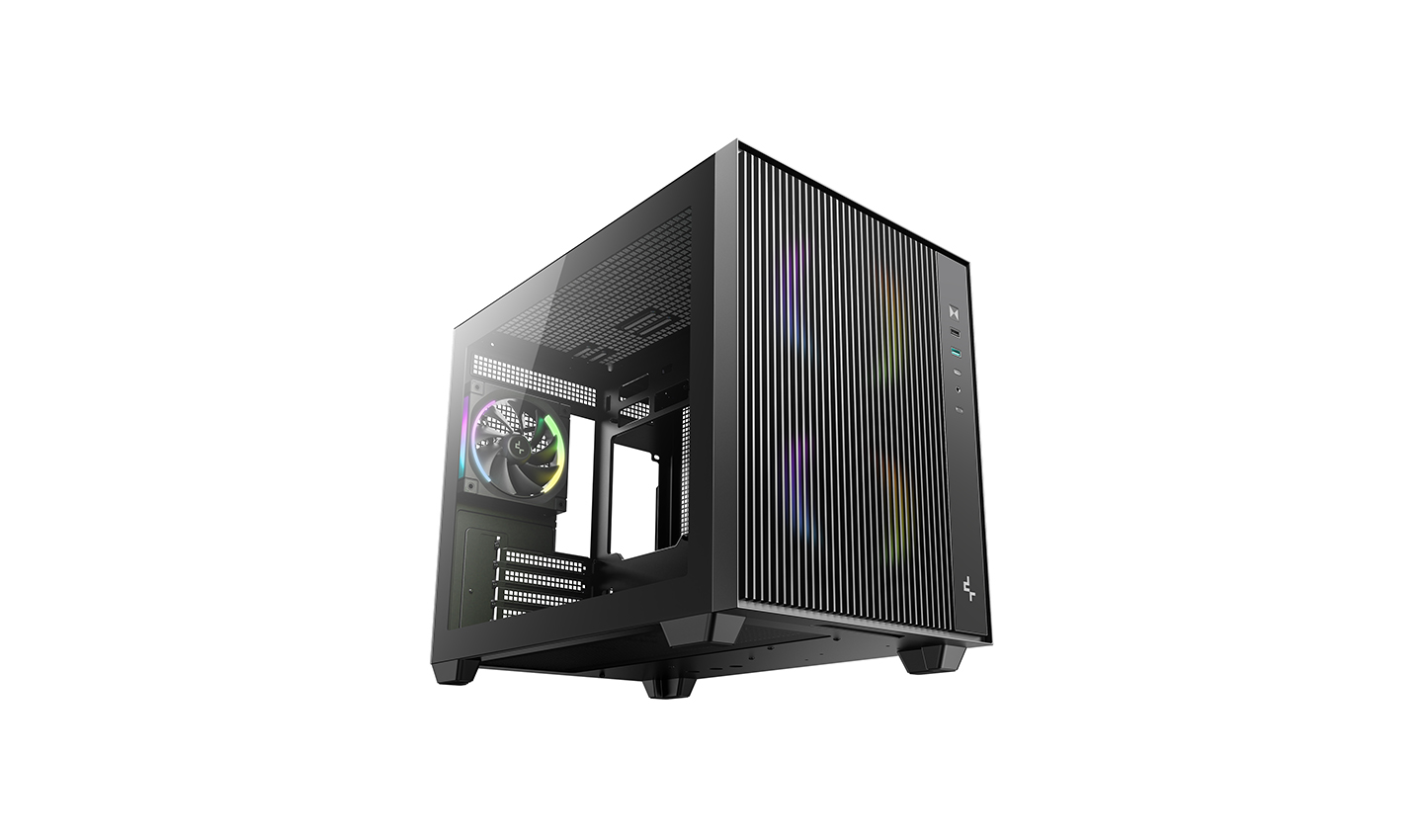

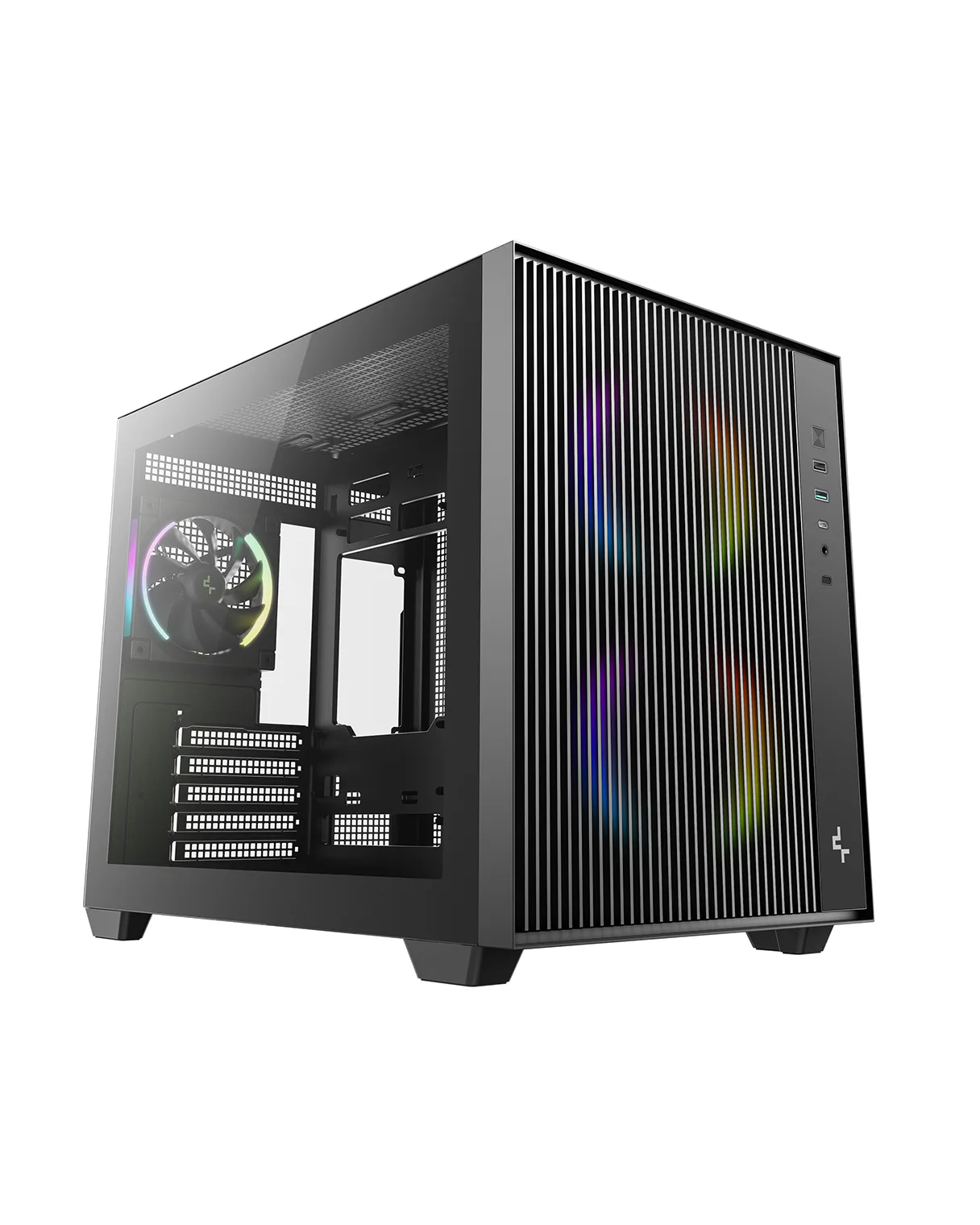

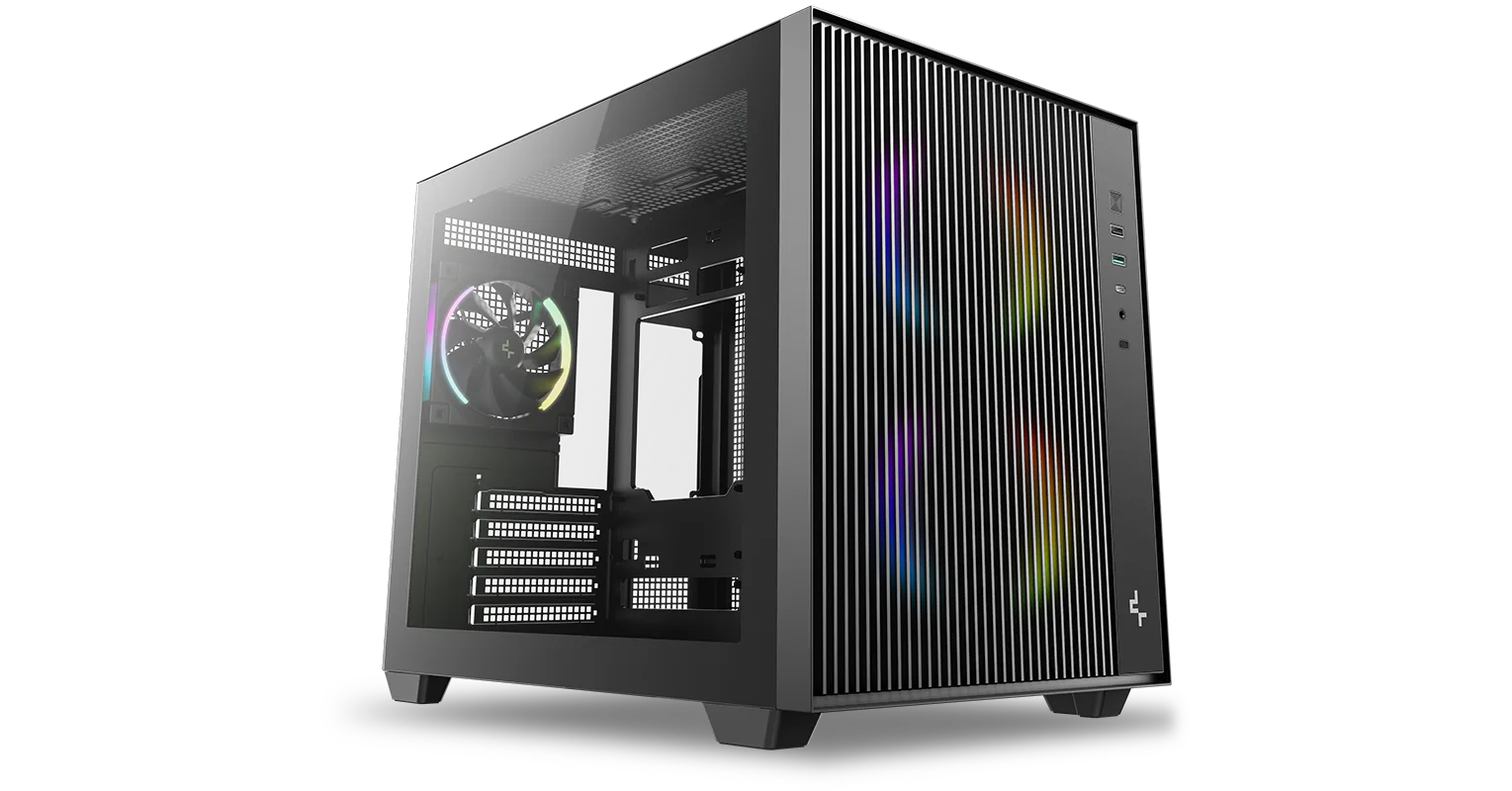

CG330 MESH 3F

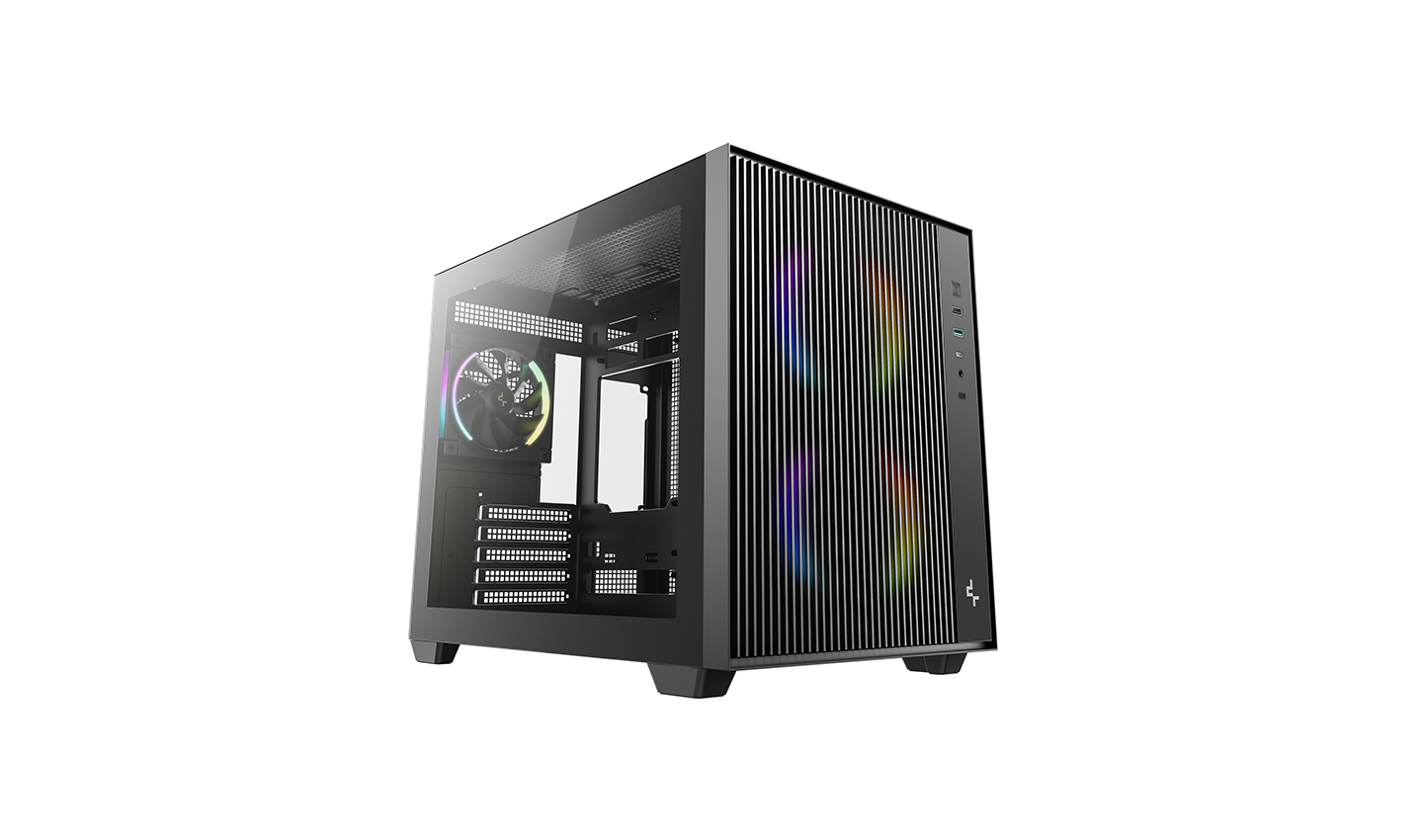

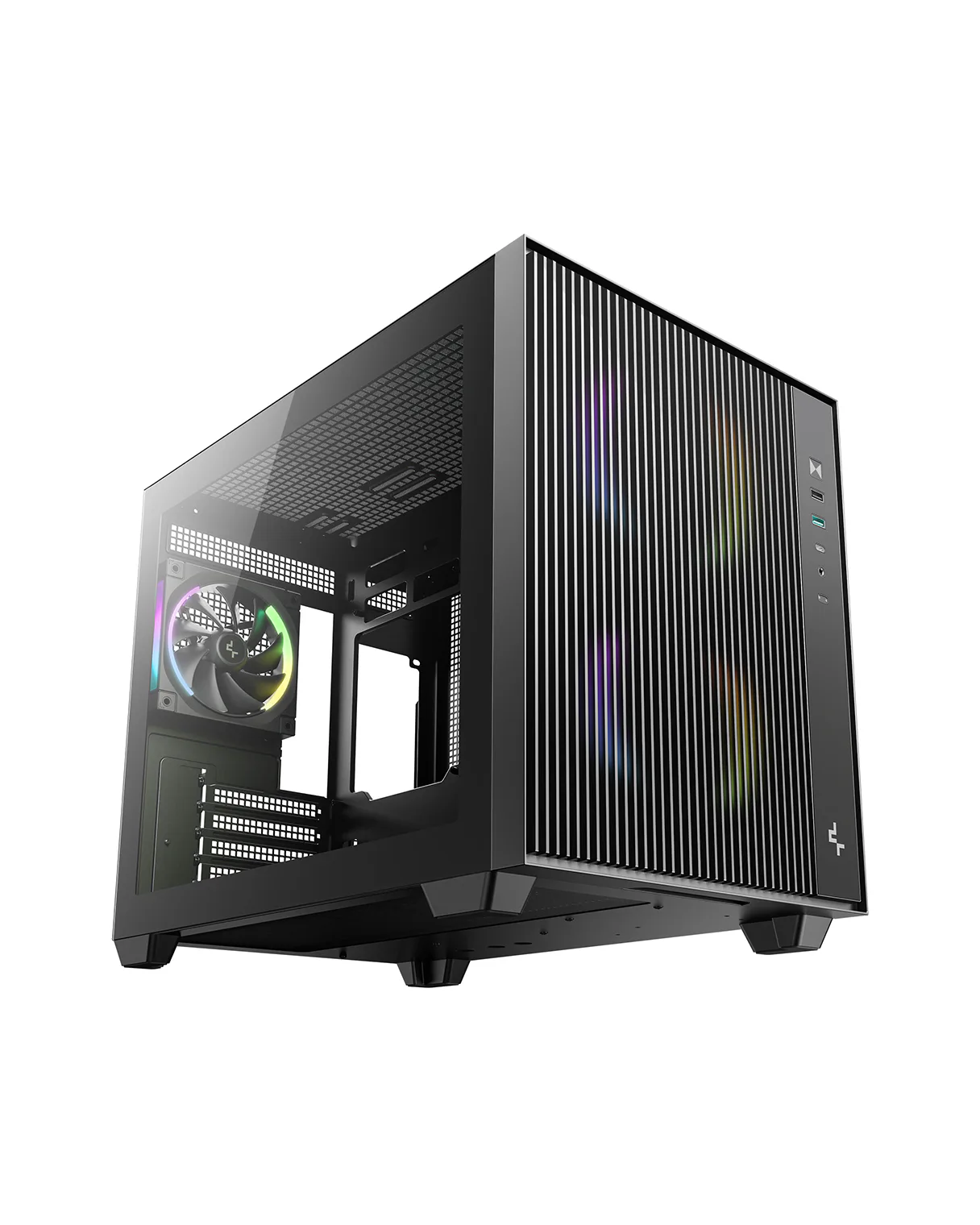

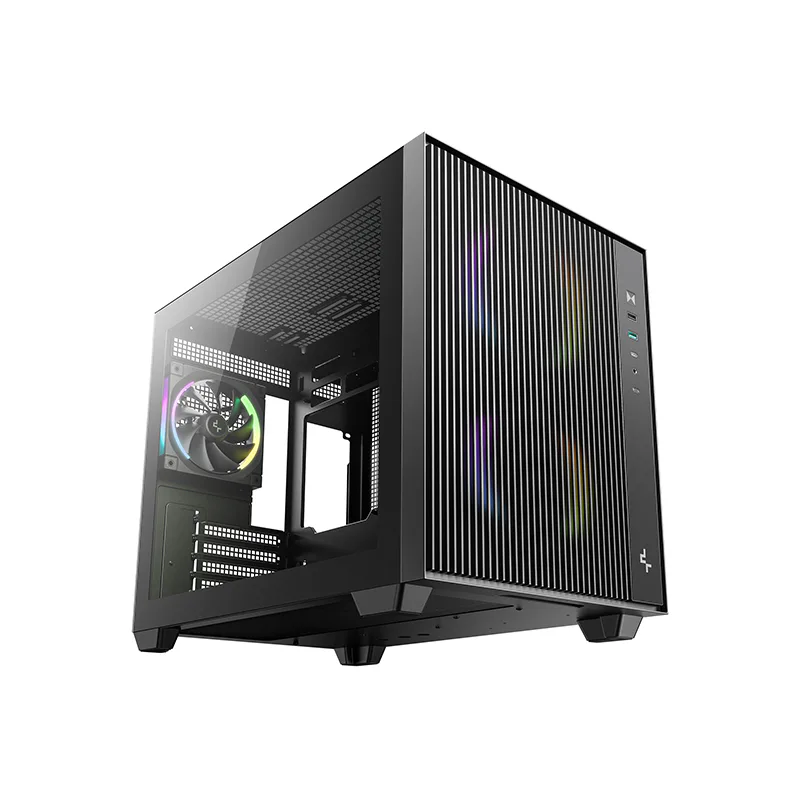

The CG330 MESH 3F is a well-ventilated Micro-ATX dual-chamber case, equipped with two 140mm front ARGB fans and a 120mm rear ARGB fan that deliver ample airflow alongside cleaning lighting effect.
COLOR
black
MODEL
CG330 MESH 3F
HIGH-AIRFLOW MICRO-ATX CASE
DESIGNED TO BREATHE

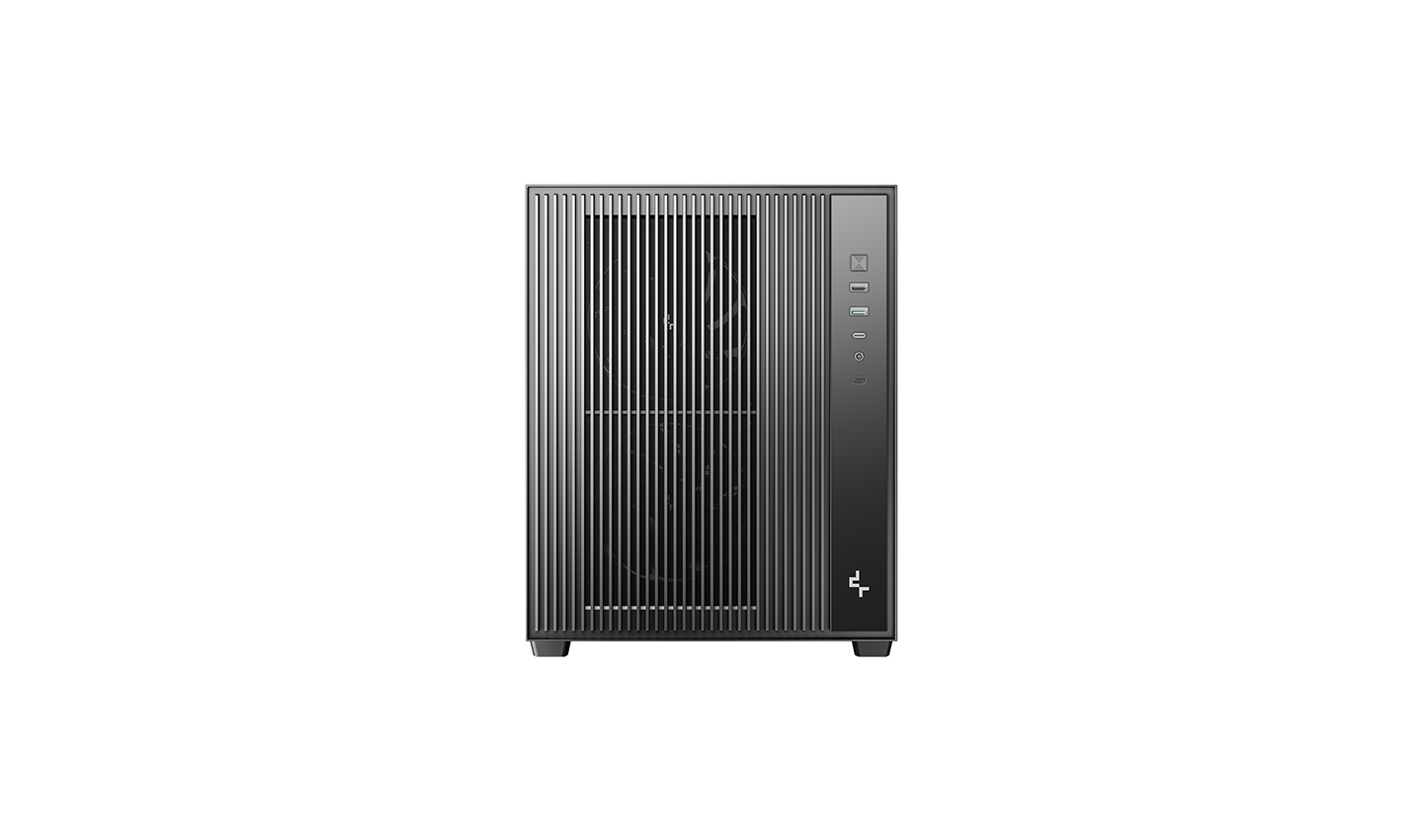

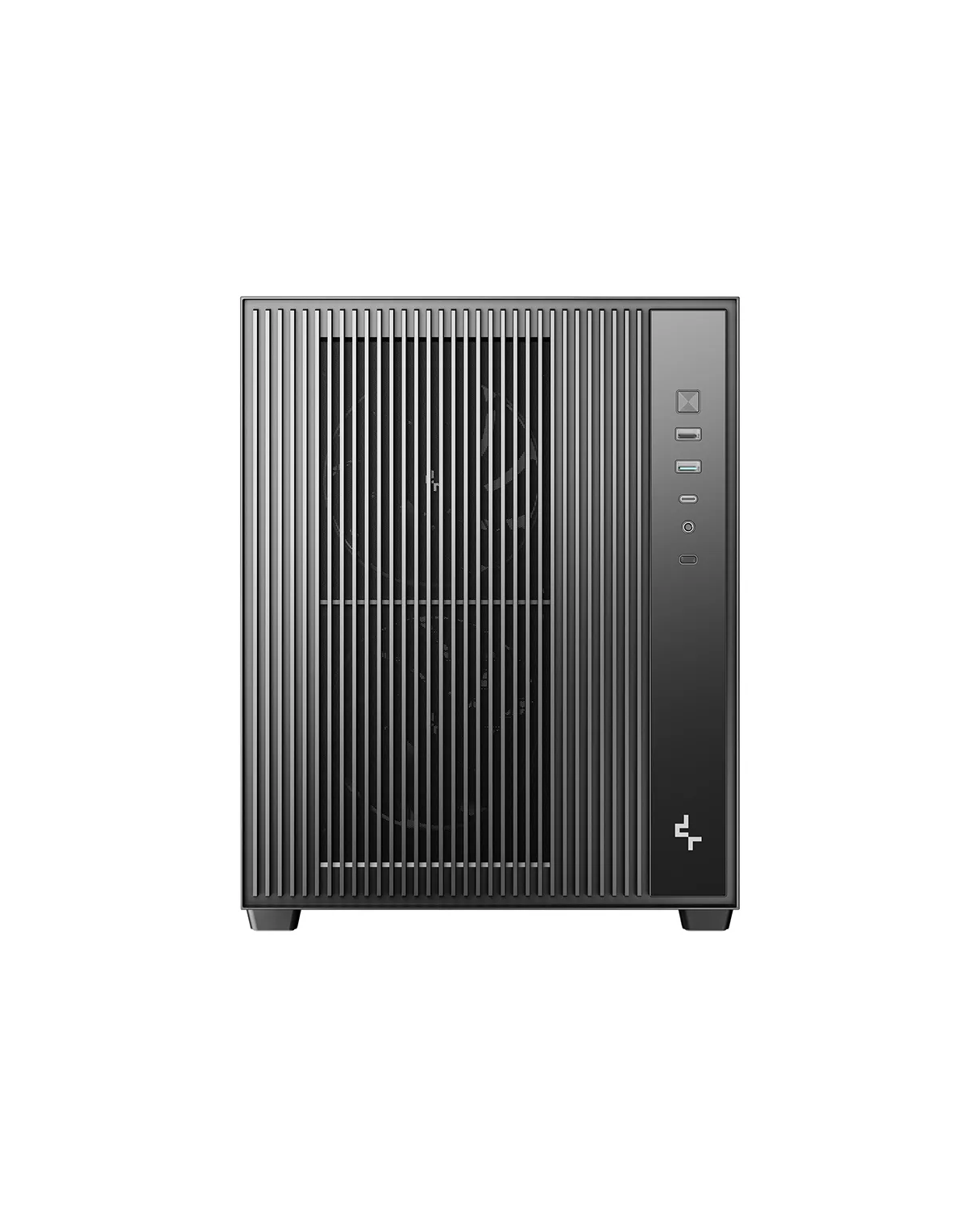

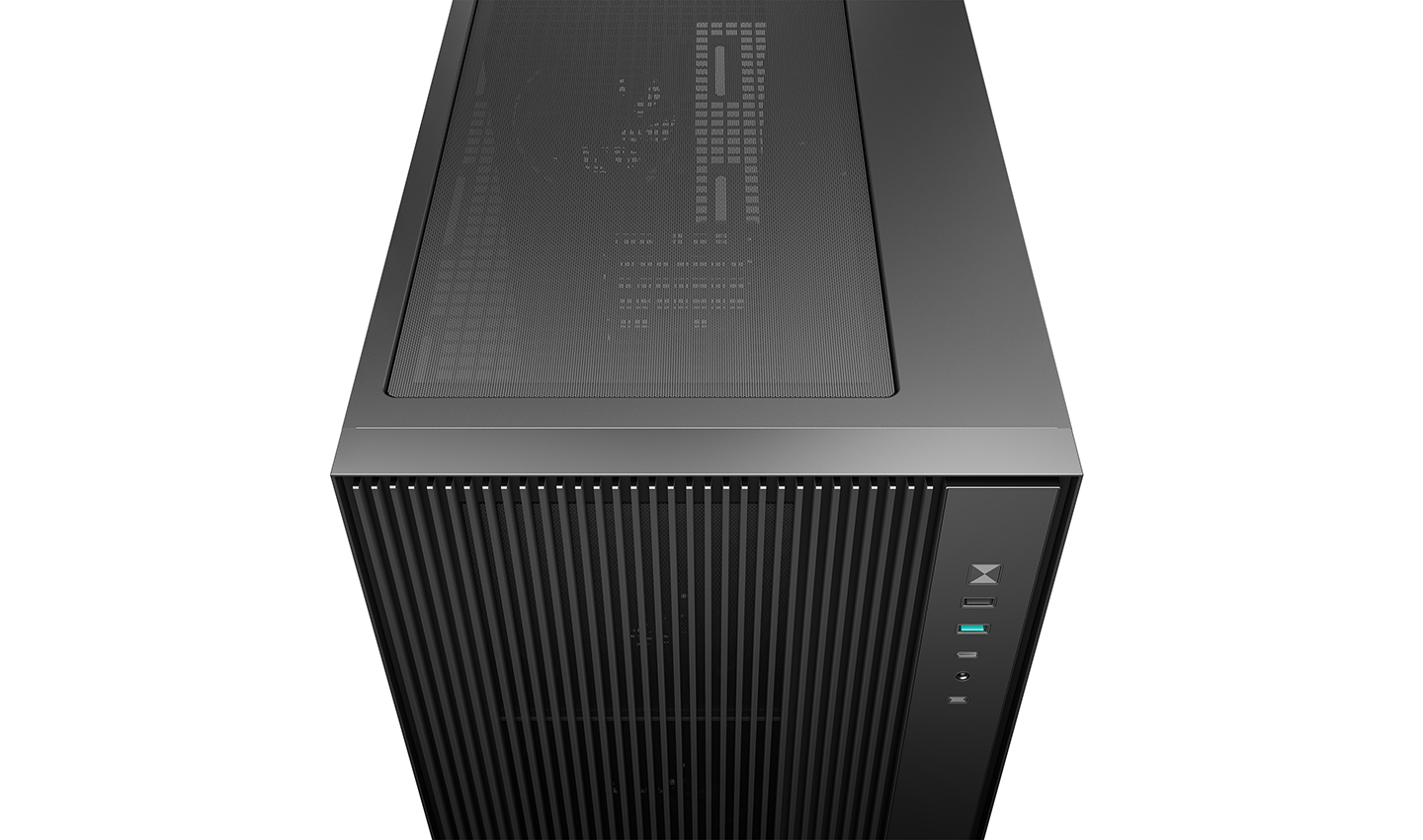

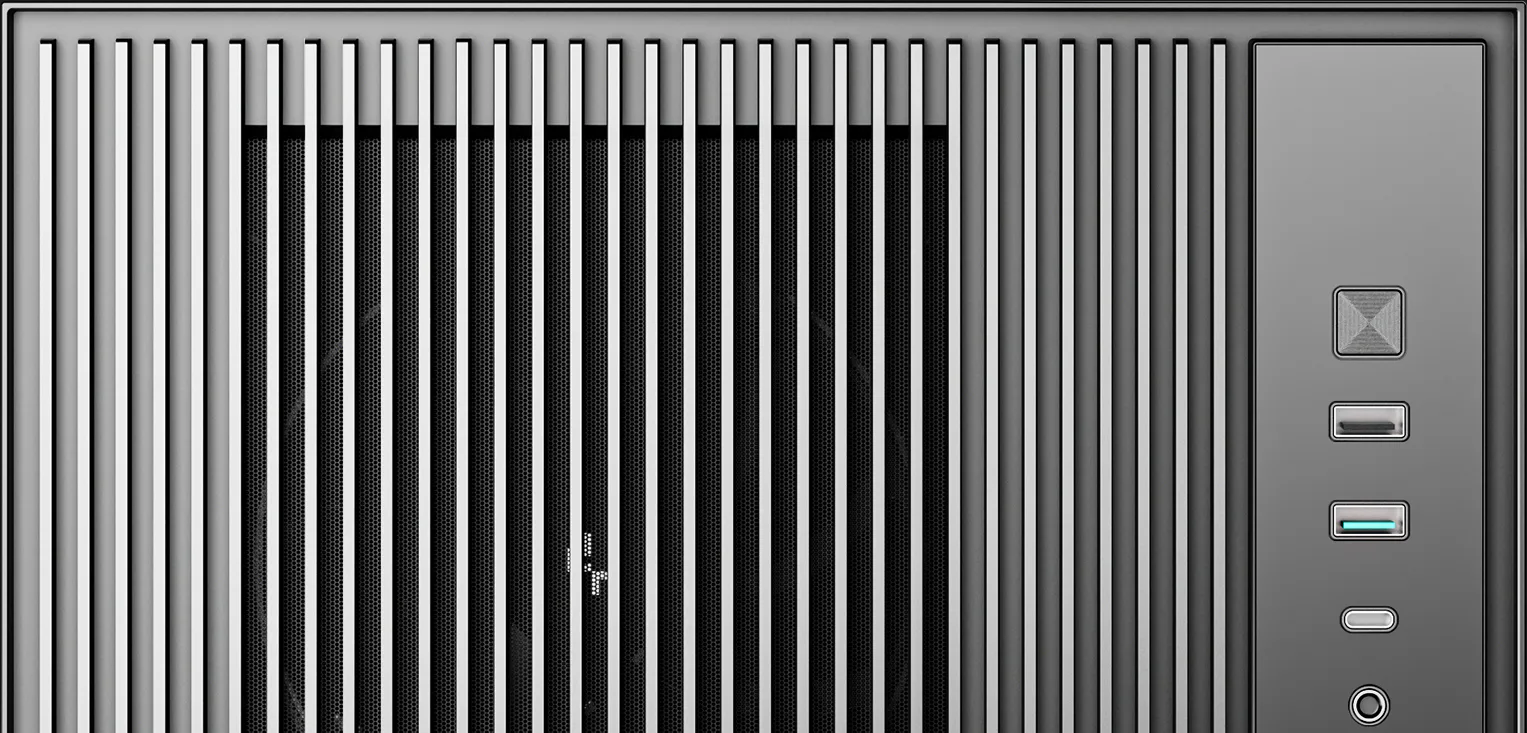

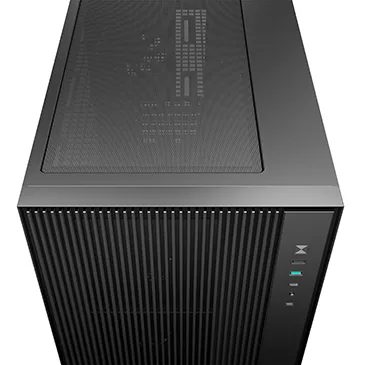

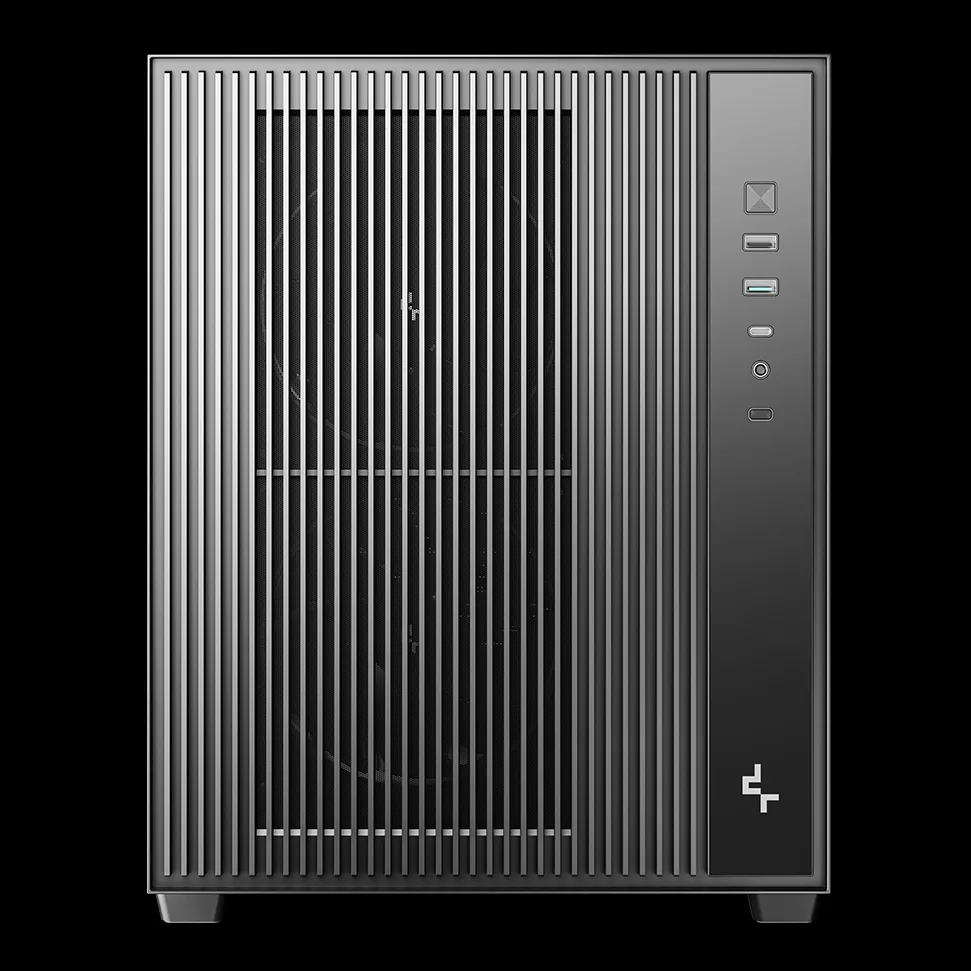

A grille-style front panel introduces ample ventilation for improved cooling performance, with a fine internal dust filter to help keep dust concerns in check.
SMART SEPARATION, CLEAN EXECUTION

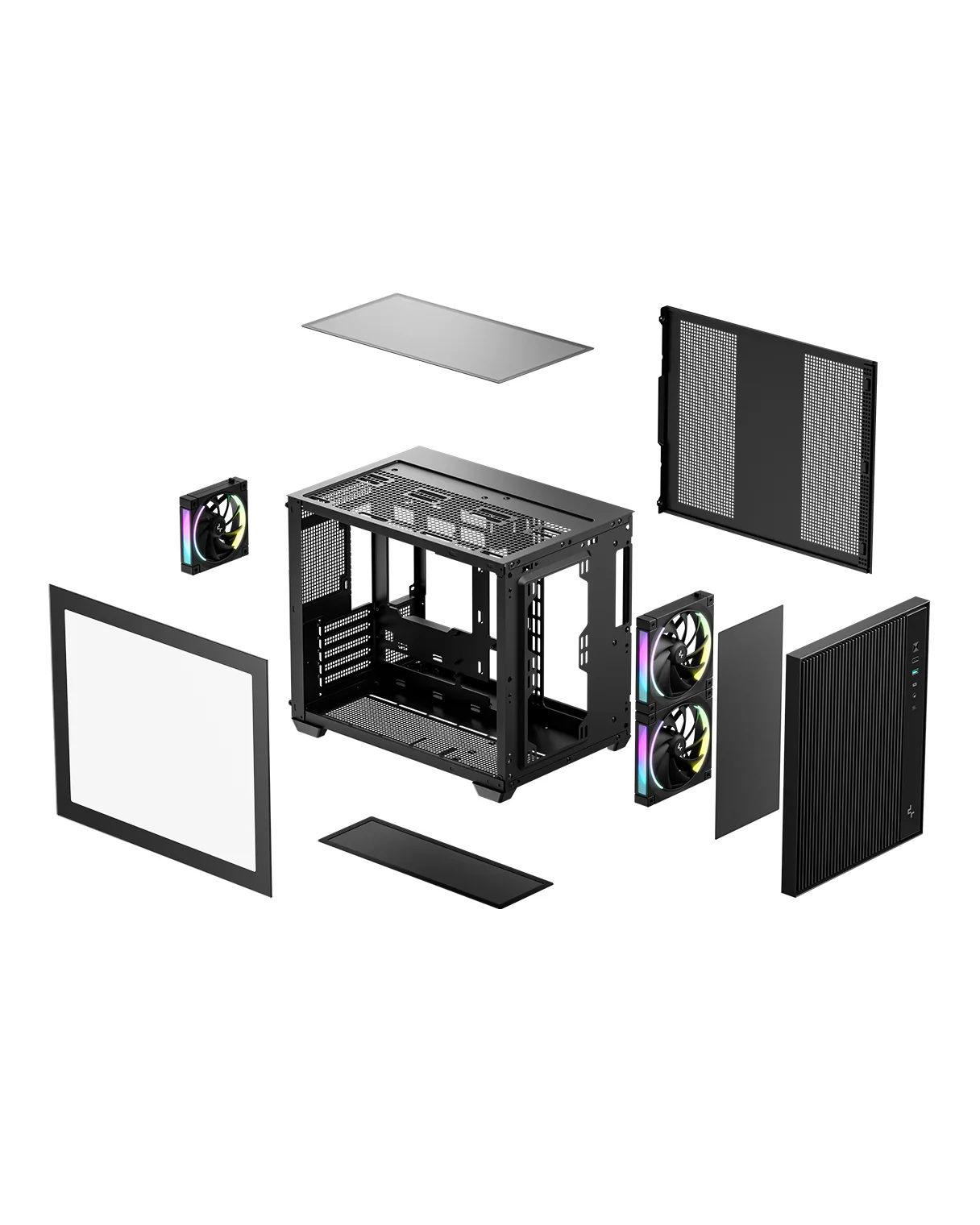

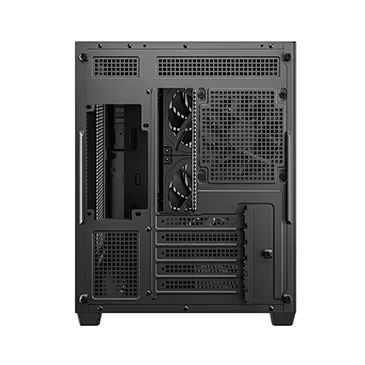

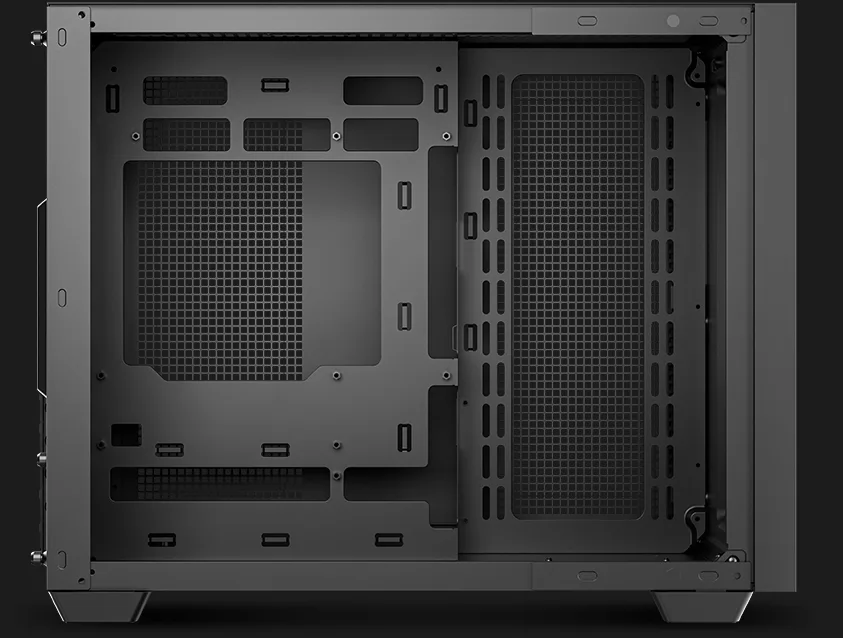

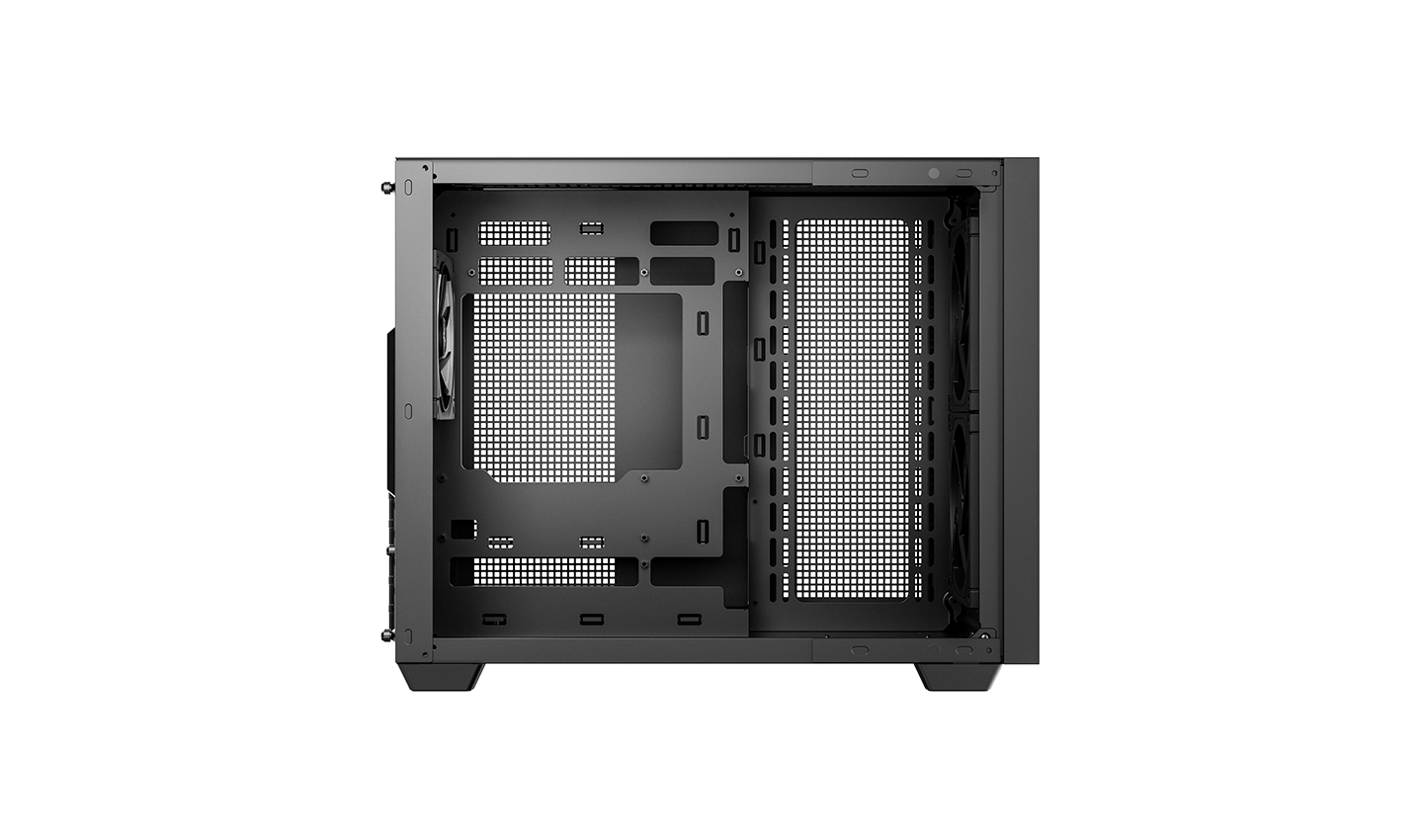

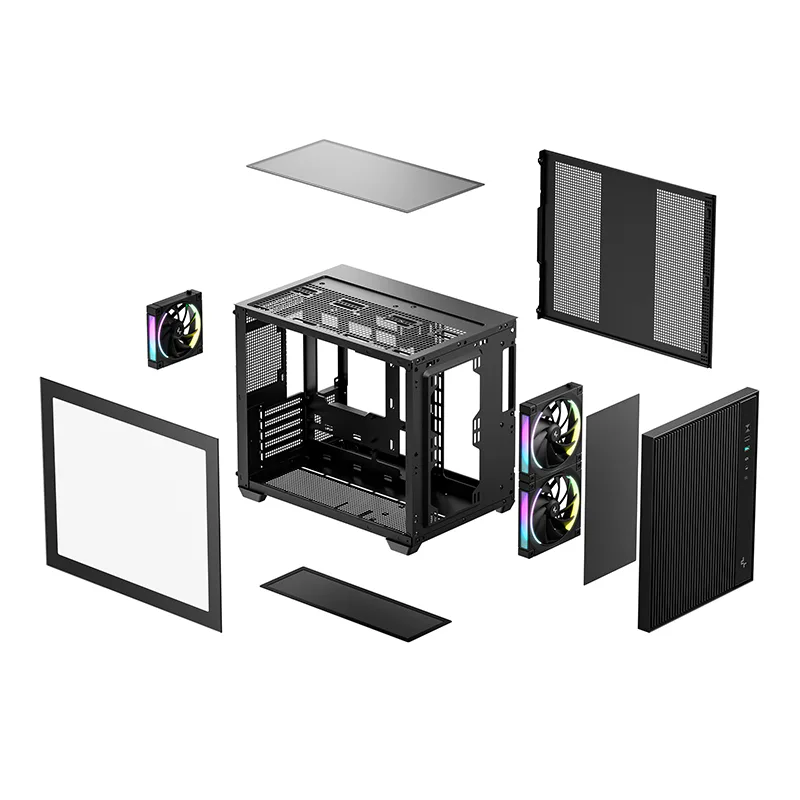

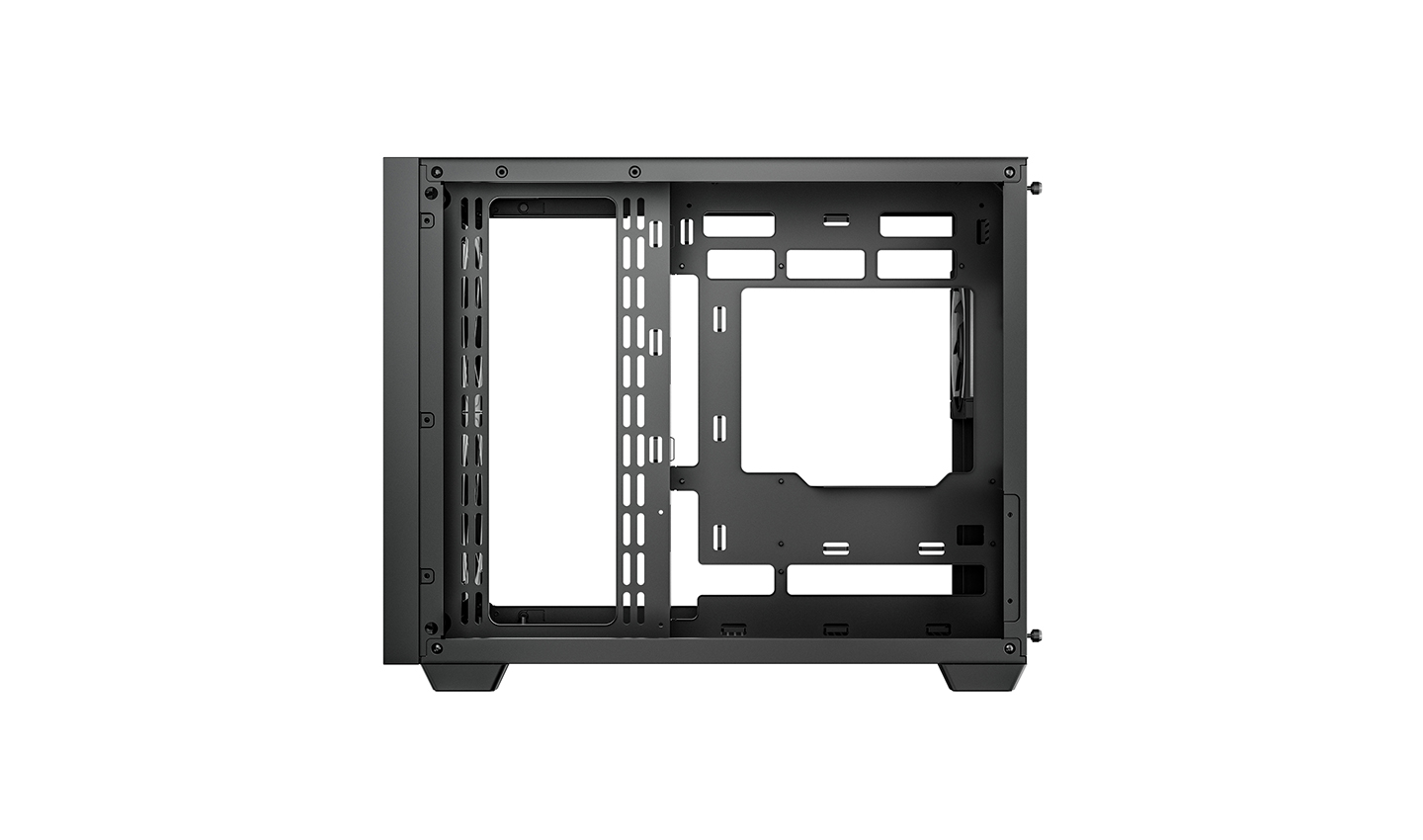

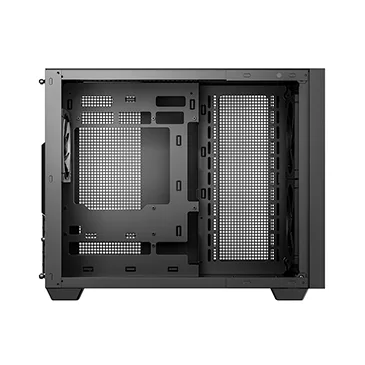

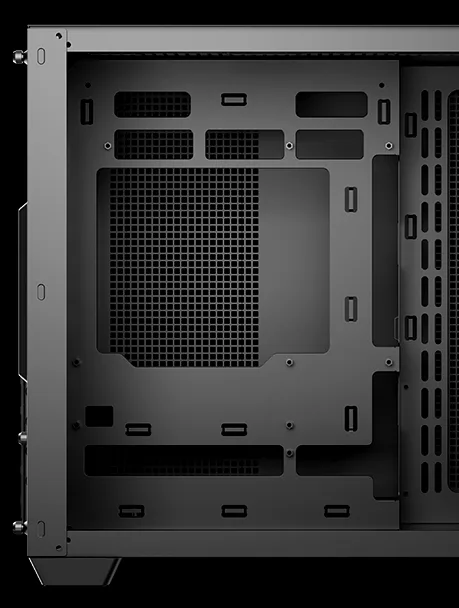

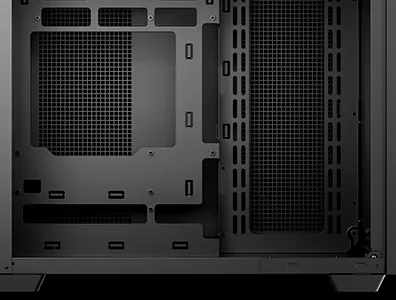

Start a clean build with a dual-chamber layout that isolates power and storage components from the main airflow path. This improves cooling efficiency and makes better use of internal space.
BIGGER, BRIGHTER, COOLER

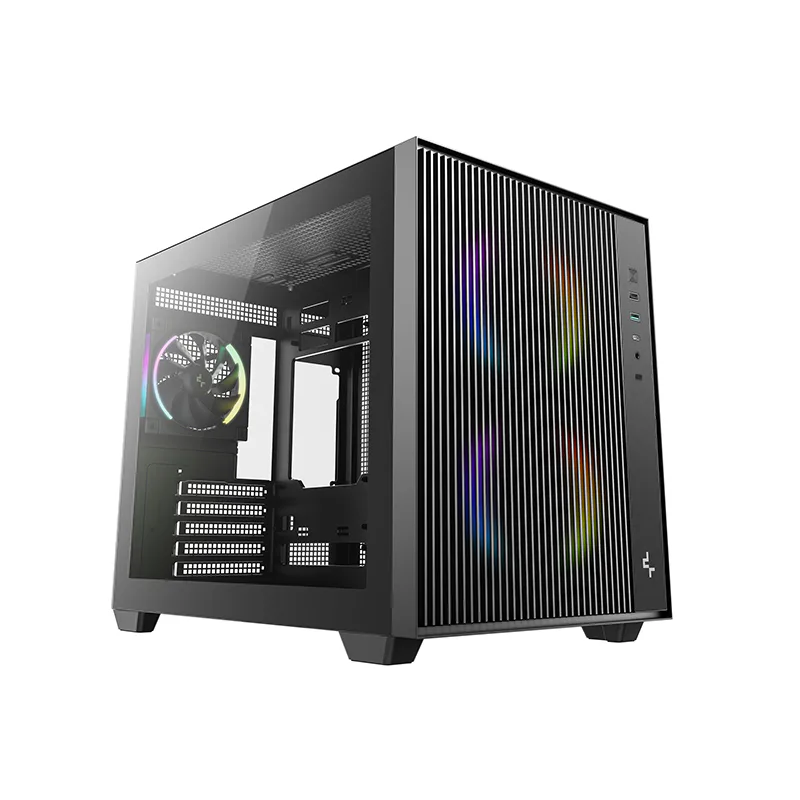

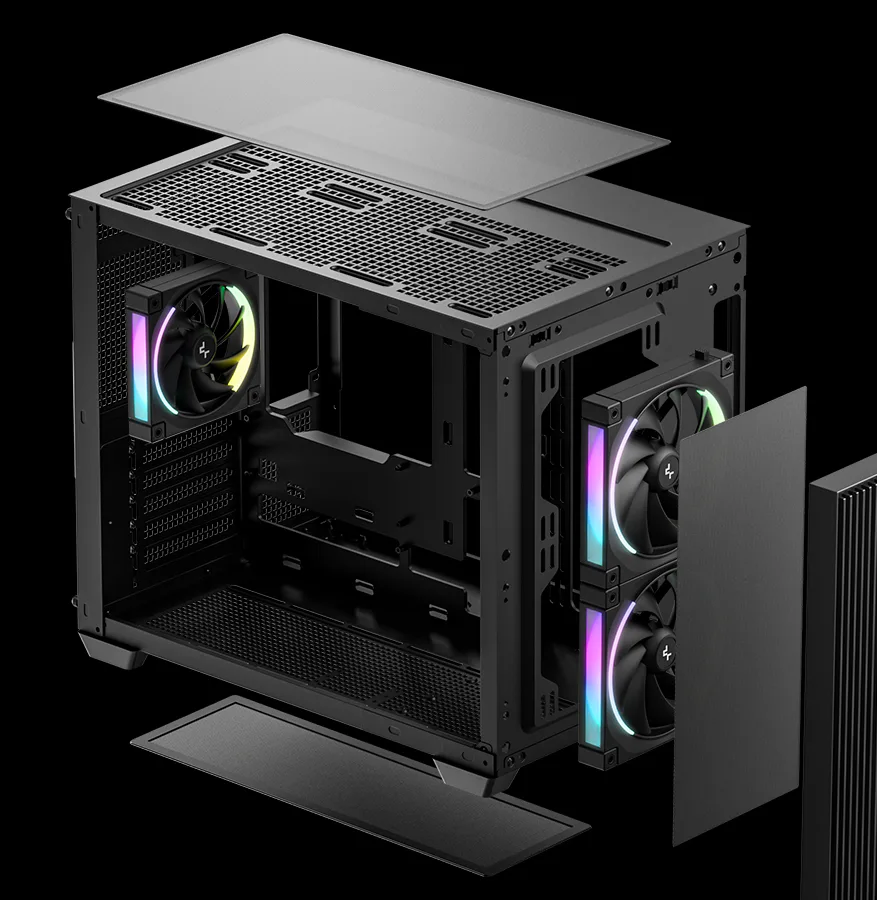

Two 140mm ARGB intake fans come pre-installed on the front, delivering an abundant flow of fresh air into the case, paired with a 120mm ARGB rear exhaust fan to efficiently expel internal heat. This front-to-back airflow layout provides effective cooling performance right out of the box.
WIDE HARDWARE SUPPORT
Compact in size yet generous in compatibility, the CG330 MESH 3F supports GPUs up to 410mm, ATX PSUs up to 200mm, and CPU coolers up to 164mm. With 5 PCIe slots, it accommodates most modern graphics and expansion cards, while storage options include up to 1× 3.5” HDDs and 2× 2.5” SSDs, giving you flexibility to balance capacity and speed.
COOLING FROM ALL SIDES

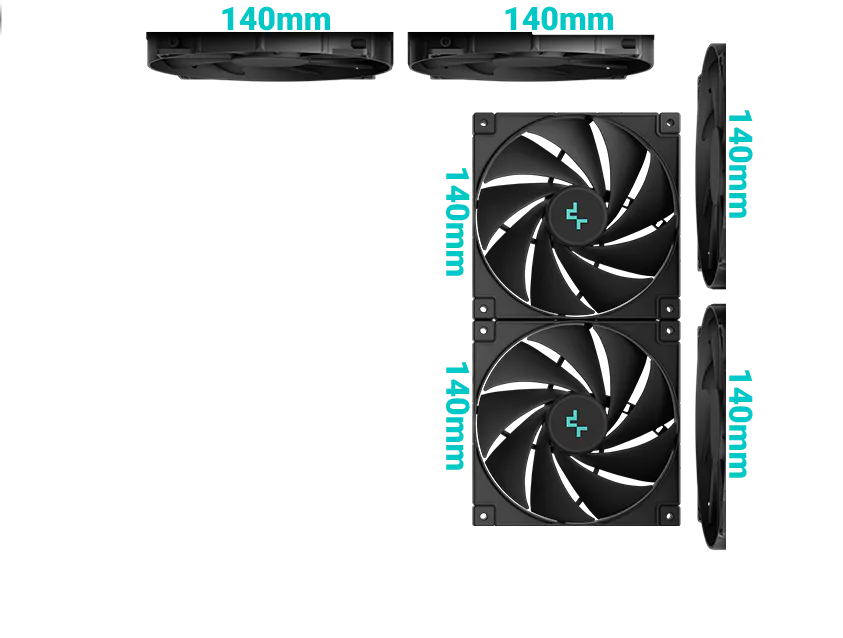

Never fear the heat with CG330 MESH 3F’s exceptional cooling flexibility. Install up to eleven 120mm fans throughout the case to maximize airflow, while radiator support includes up to 360mm on the top or bottom, and up to 280mm on the side.

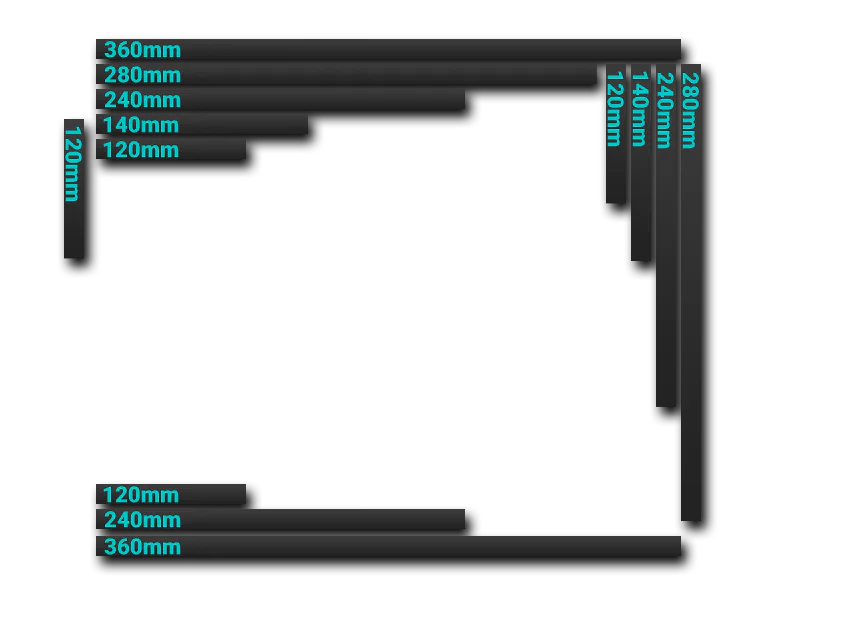

Radiator Support
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
Rear: 120mm

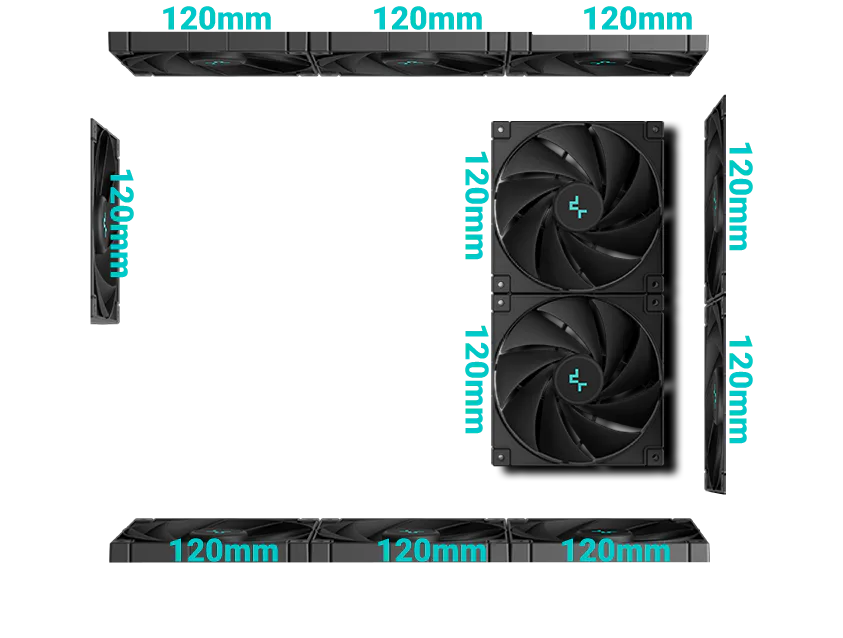

Fan Support
Top: 3×120 / 2×140mm
Front: 2×120 / 2×140mm
Side: 2×120 / 2×140mm
Bottom: 3×120mm
Rear: 1×120mm
DETAILS THAT MATTER

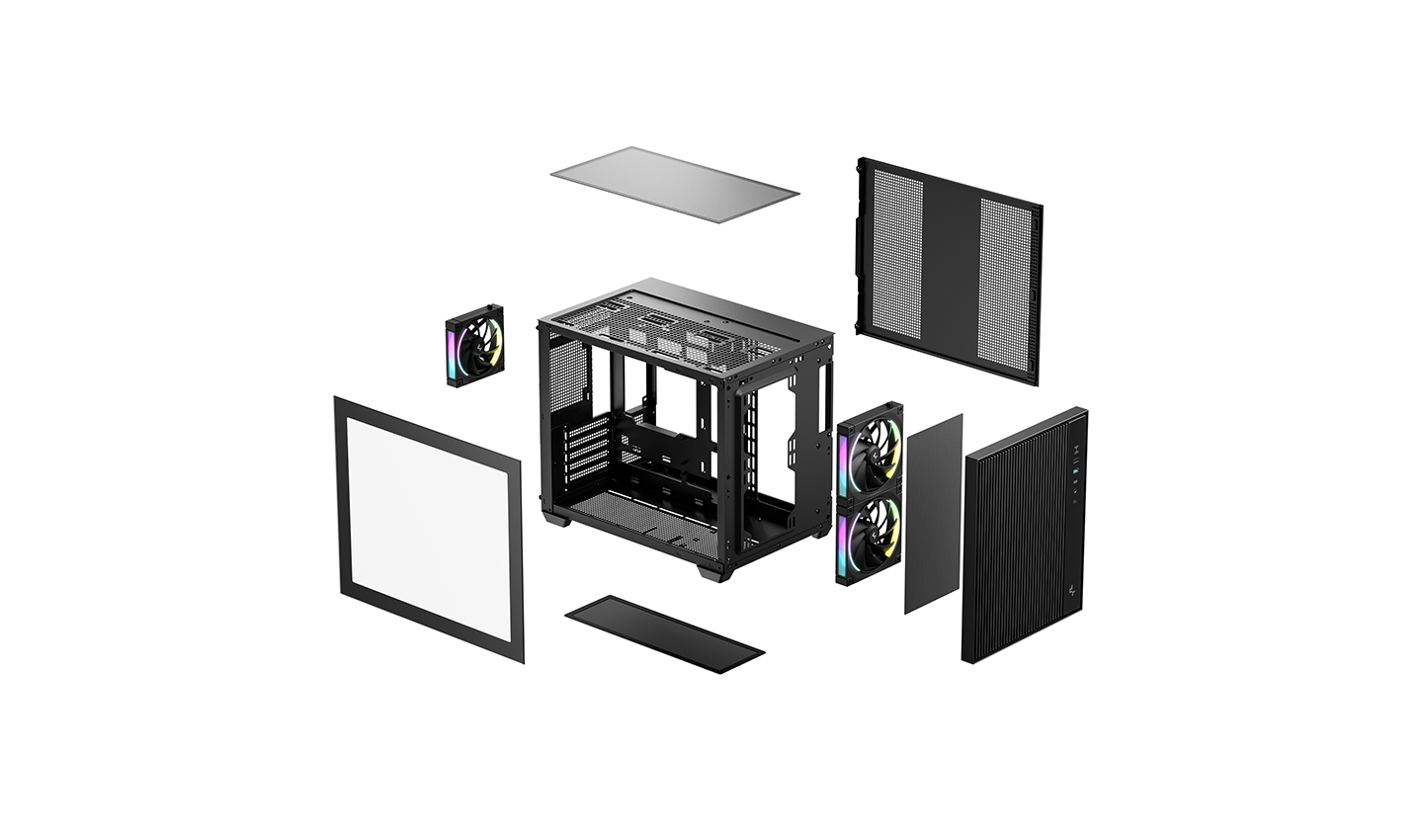

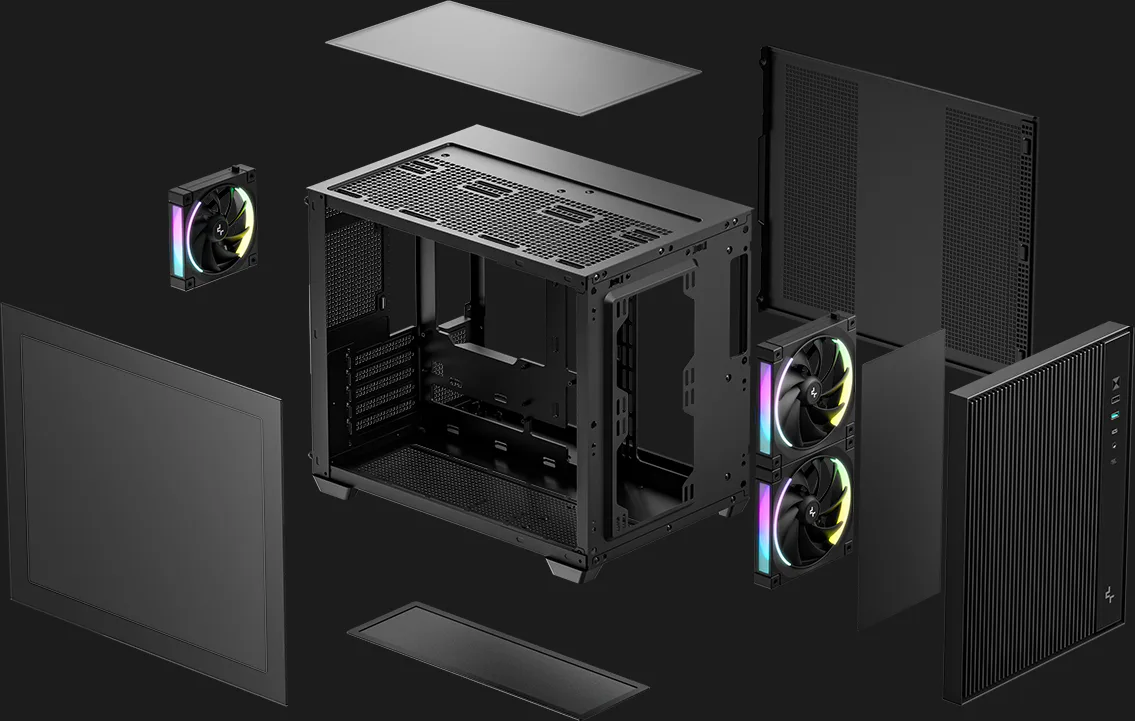

Three dust filters on the top, front, and bottom significantly reduce buildup and make cleaning easier.

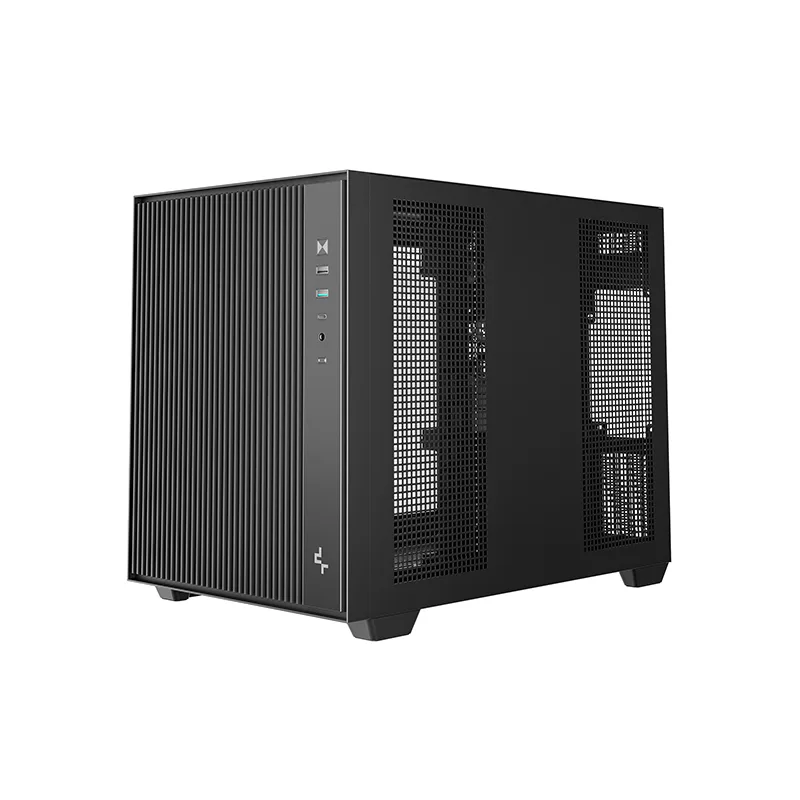

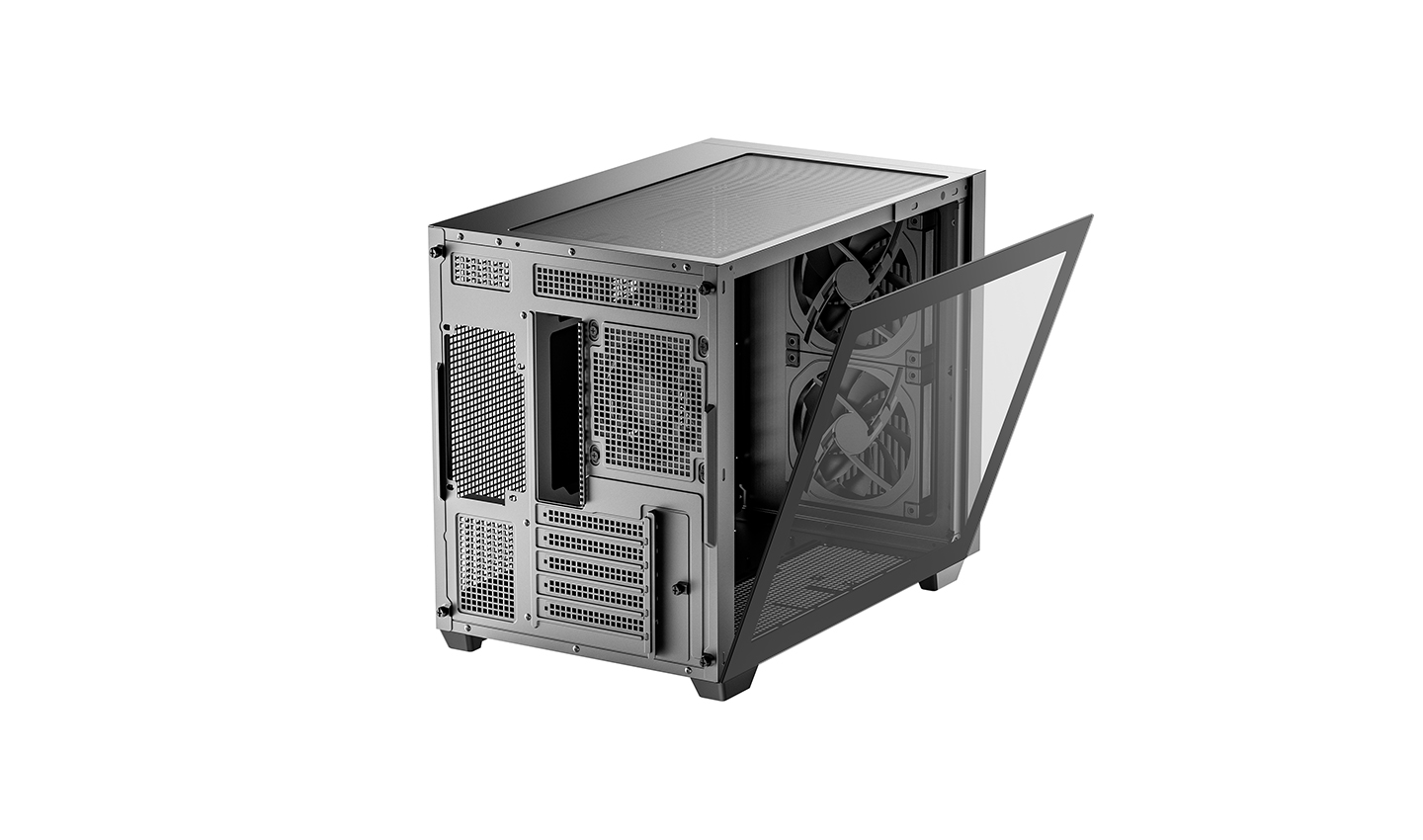

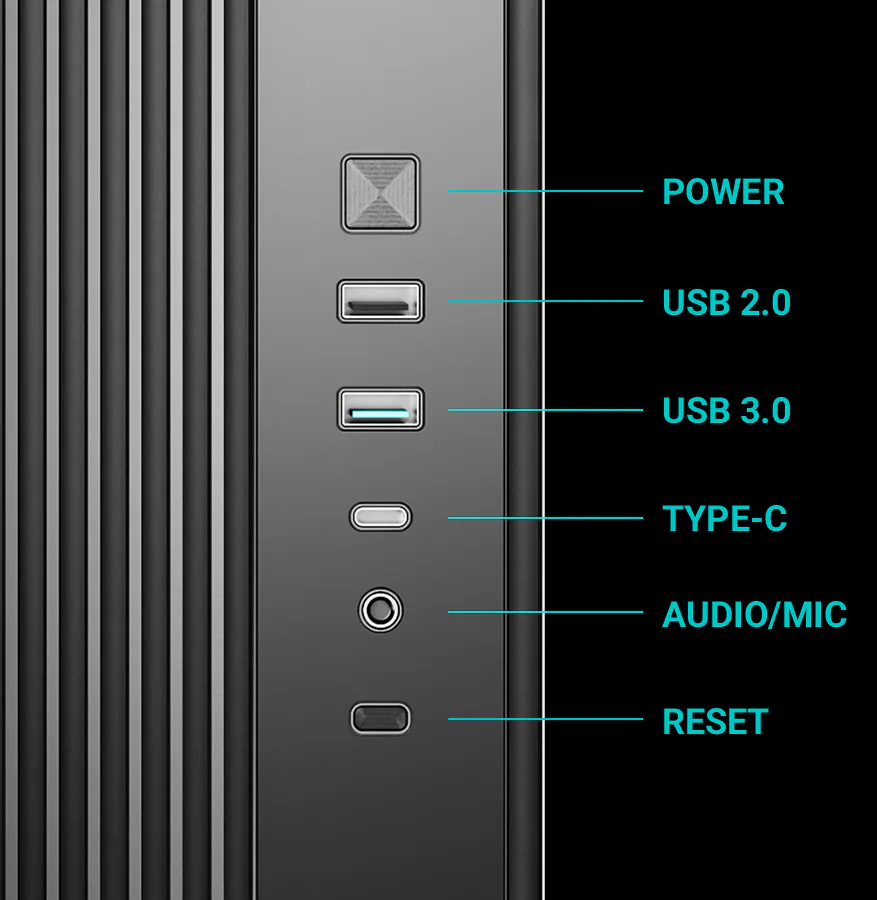

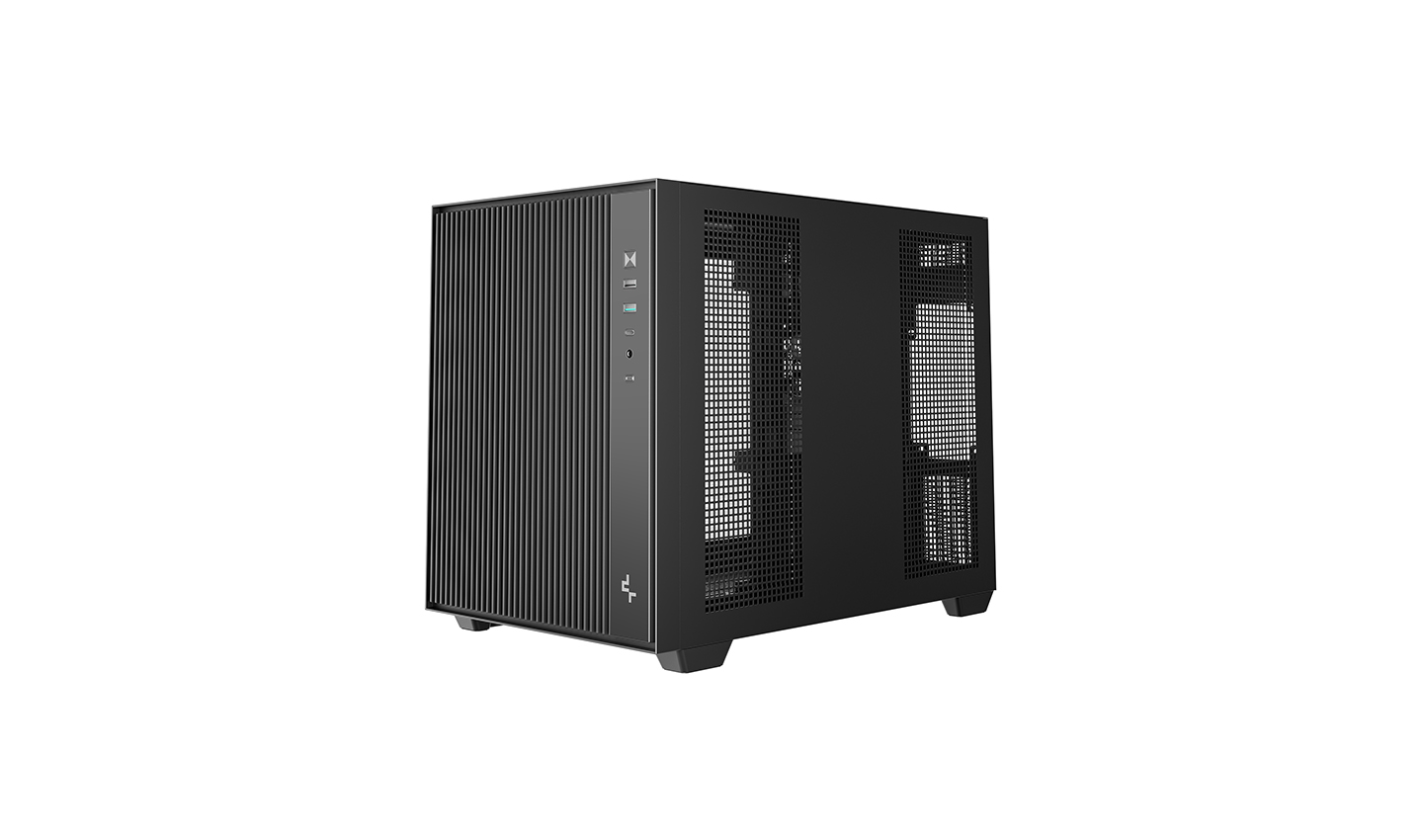

Access ports quickly with a side I/O panel featuring USB 3.0, USB 2.0, a Type-C port and an audio jack.

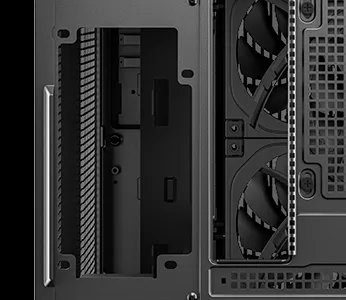

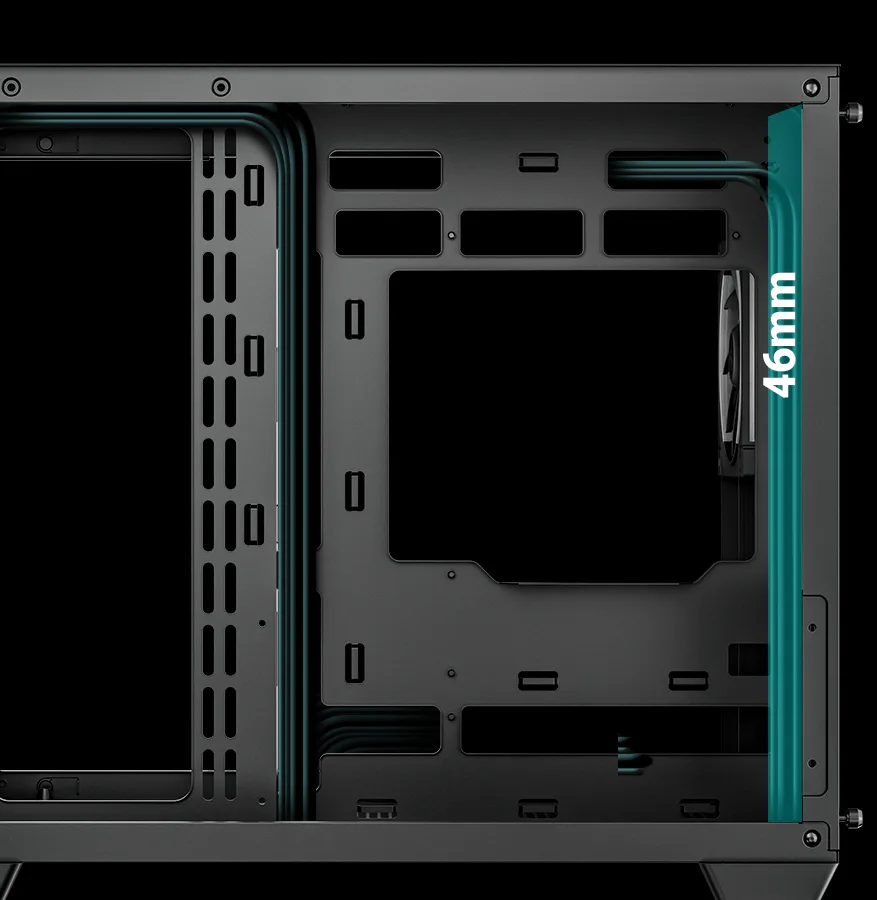

A spacious 46mm cable management area makes it easy to route and organize your cables.
Technical Spec
Product Dimensions457x285x368mm(L×W×H)
Net Weight5.7kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0 x1,USB2.0 x1,Type-C x1,Audio x1
3.5" Drive Bays1
2.5" Drive Bays2
Expansion Slots5 Slots
Pre-Installed FansFront: 2×140mm
Rear: 1×120mm
Fan SupportTop:3×120 / 2×140mm
Front:2x120/2x140mm
Side:2×120 / 2×140mm
Bottom:3×120mm
Rear: 1×120mm
Radiator SupportTop: 120/140/240/280/360mm
Side:120/140/240/280mm
Bottom:120/240/360mm
Rear: 120 mm
CPU Cooler Height Limit164mm
GPU Length Limit410mm
Power Supply TypeATX PS2(maximum length:200mm)/SFX/SFX-L
EAN6933412765745
P/NR-CG330MESH-BKANM3-G
Download
CG330 MESH 3F Manual.pdf
