CC560 Limited V2

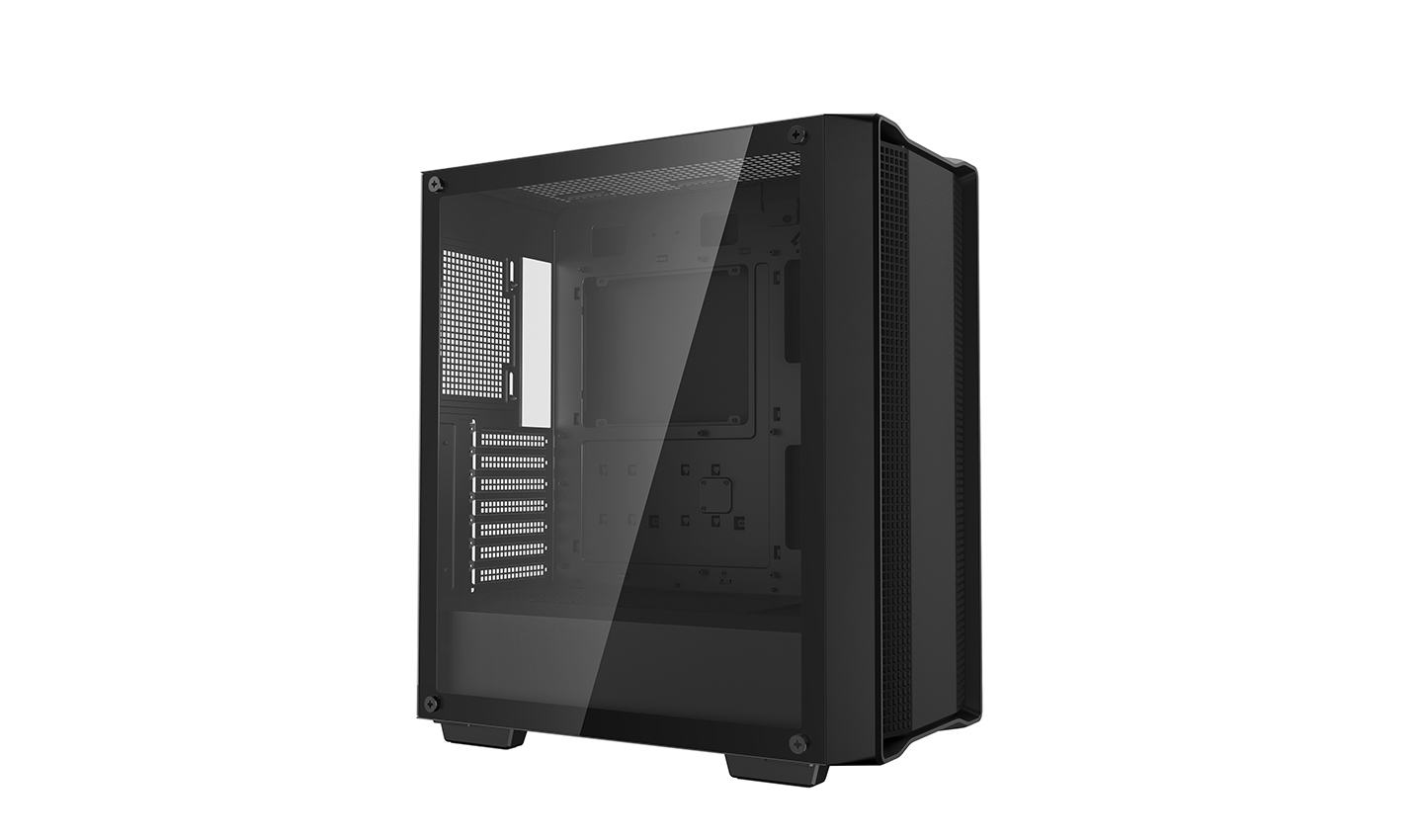

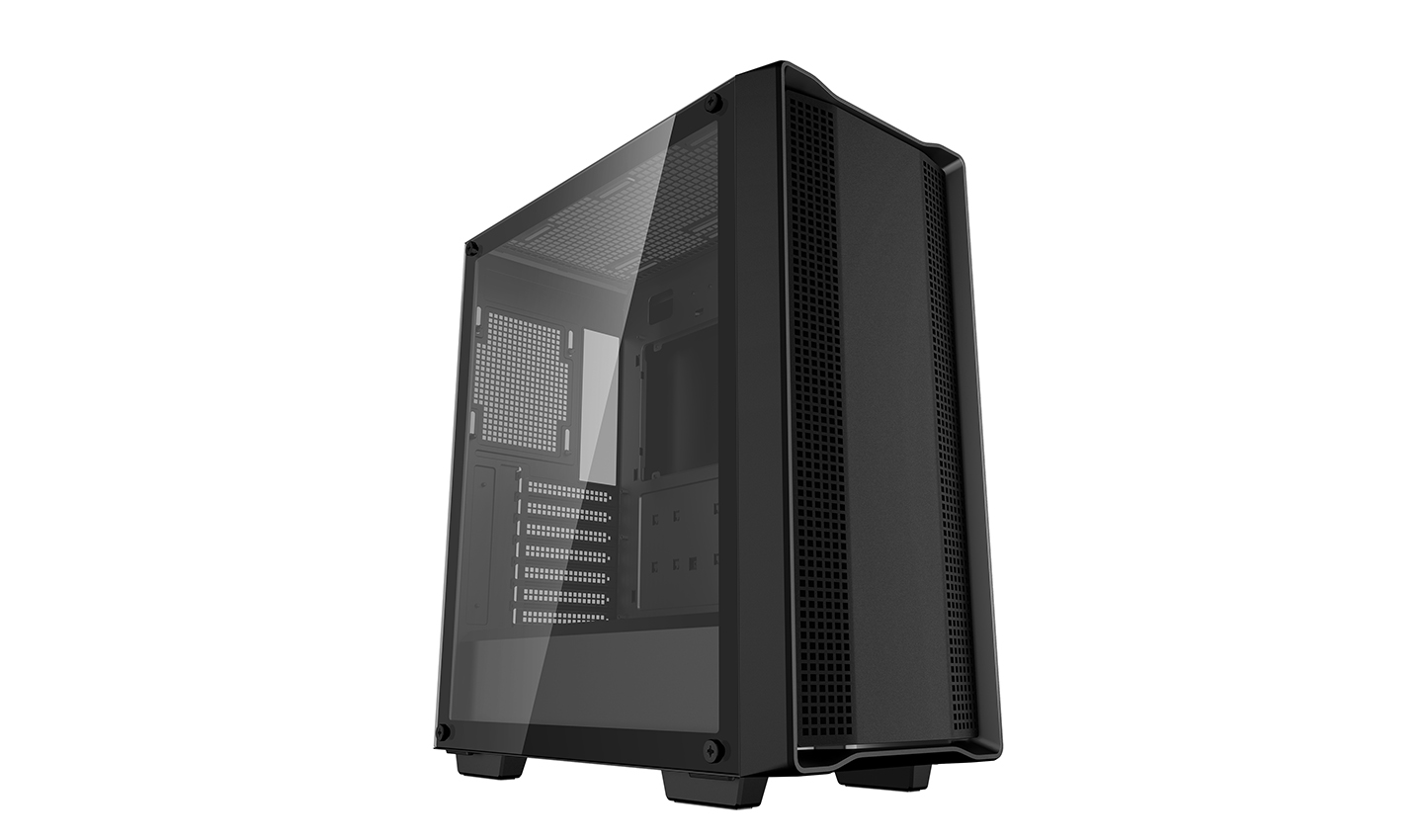

The DeepCool CC560 Limited V2 mid-tower case offers great value with spacious component compatibility and a full-sized tempered glass window. This fanless model is an excellent starting point for any system build. The V2 models build upon the success of the previous generation and raise the bar.

COLOR

black

MODEL

CC560 Limited V2

REFINED AIRFLOW CASE

ABUNDANT
AIRFLOW PERFORMANCE

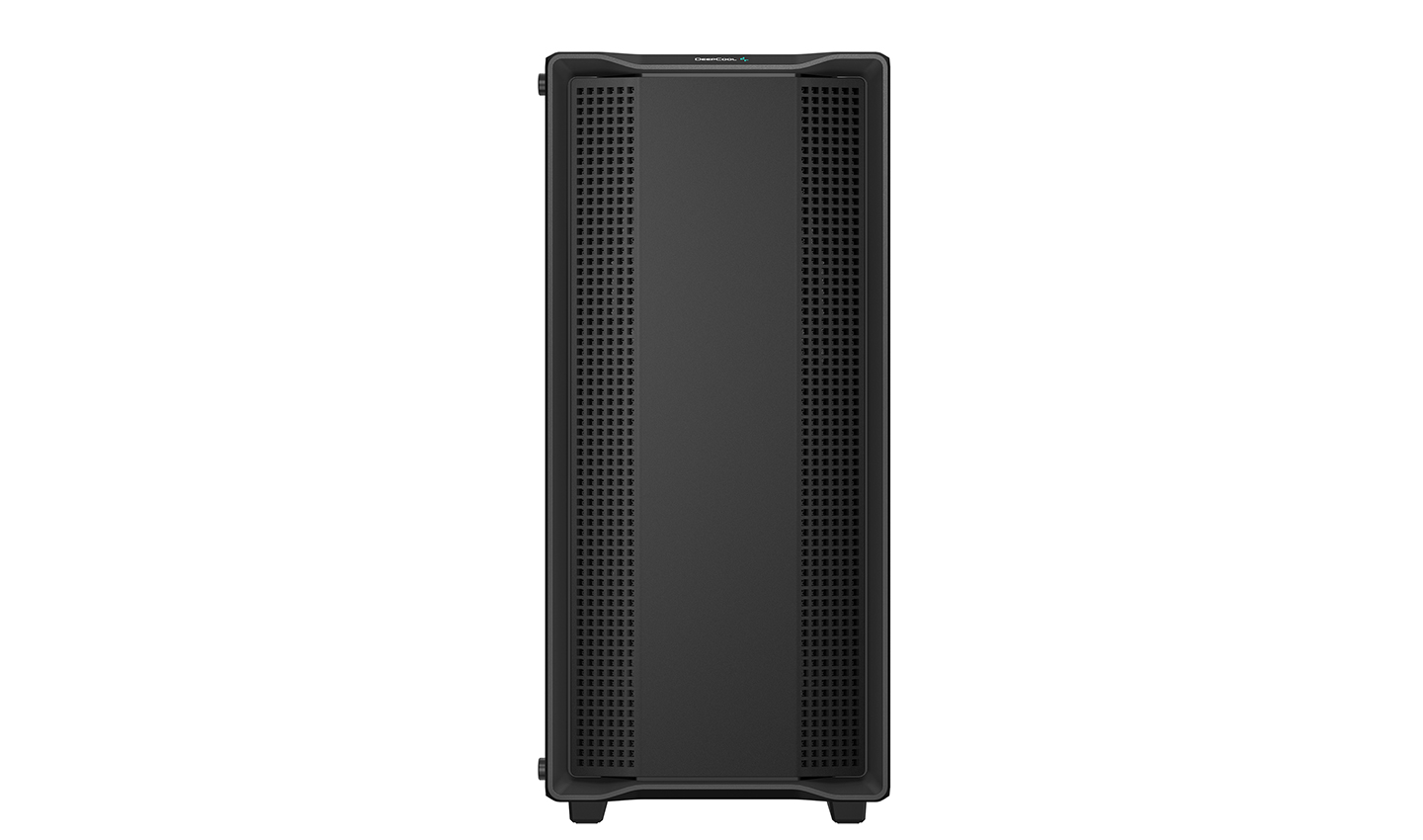

Well ventilated throughout the entire chassis, the CC560 Limited V2 sports an airflow front panel, support for fans on the PSU shroud, and a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY

This fanless model is a great option for enthusiasts who want to use their favorite fans and is an excellent starting point for any system build.

WIDE COOLING SUPPORT

There is enough space to support high-performance AIO liquid coolers, with room for a 360mm radiator in front or 240mm on top. Cooling fan support for up to 8x120mm or 5x140mm fans. The PSU shroud can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!

8 120mm

5 140mm

FANS

1 360mm

1 280mm

2 240mm

2 140mm

3 120mm

RADIATOR

COMPATIBILITY

With the ability to support up to E-ATX motherboards, 165mm tall CPU coolers, 370mm GPUs, and 170mm PSUs; the CC560 Limited V2 can be configured with a wide range of high end components.

STORAGE SOLUTIONS

Support for 2x 2.5” SSDs and 2x 3.5” HDDs. One of the HDD bays can be utilized for a third 2.5"" drive if the need arises.

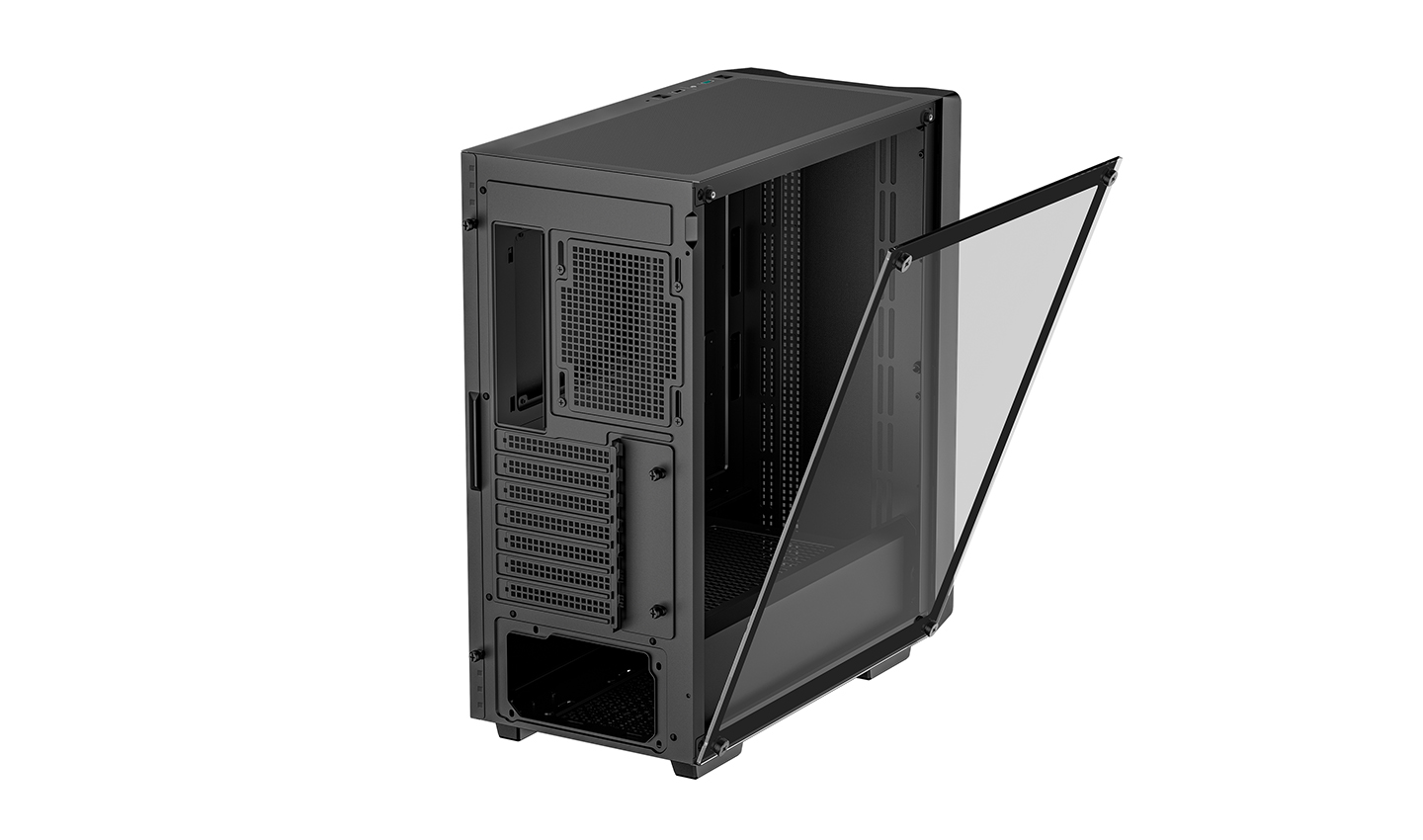

REINFORCED AND CONVENIENT

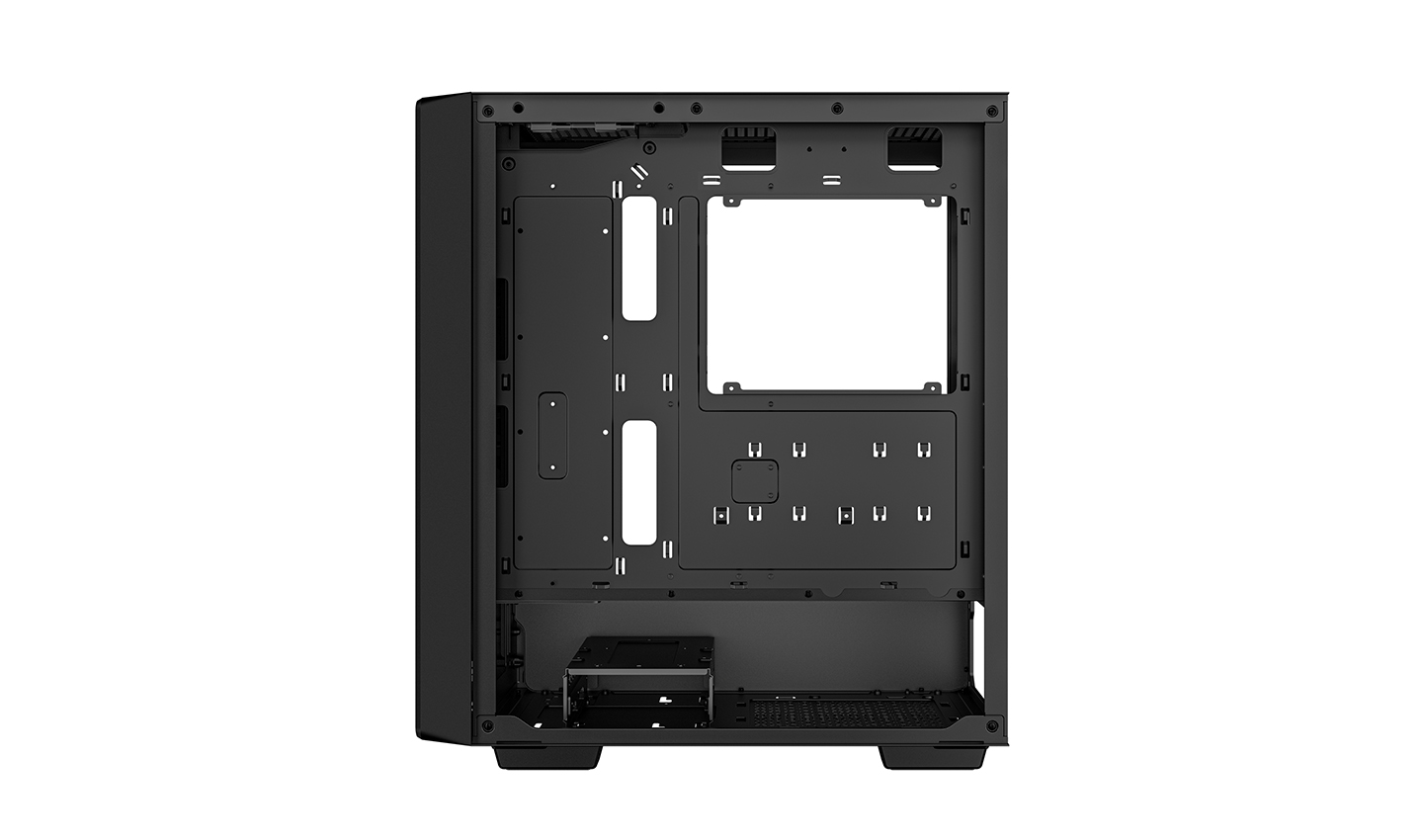

The chassis and side glass panel have been upgraded and reinforced for extra durability, and the magnetic top dust filter makes cleaning a breeze. The 20mm of cable management space behind the motherboard tray provides adequate space to arrange all your wires.

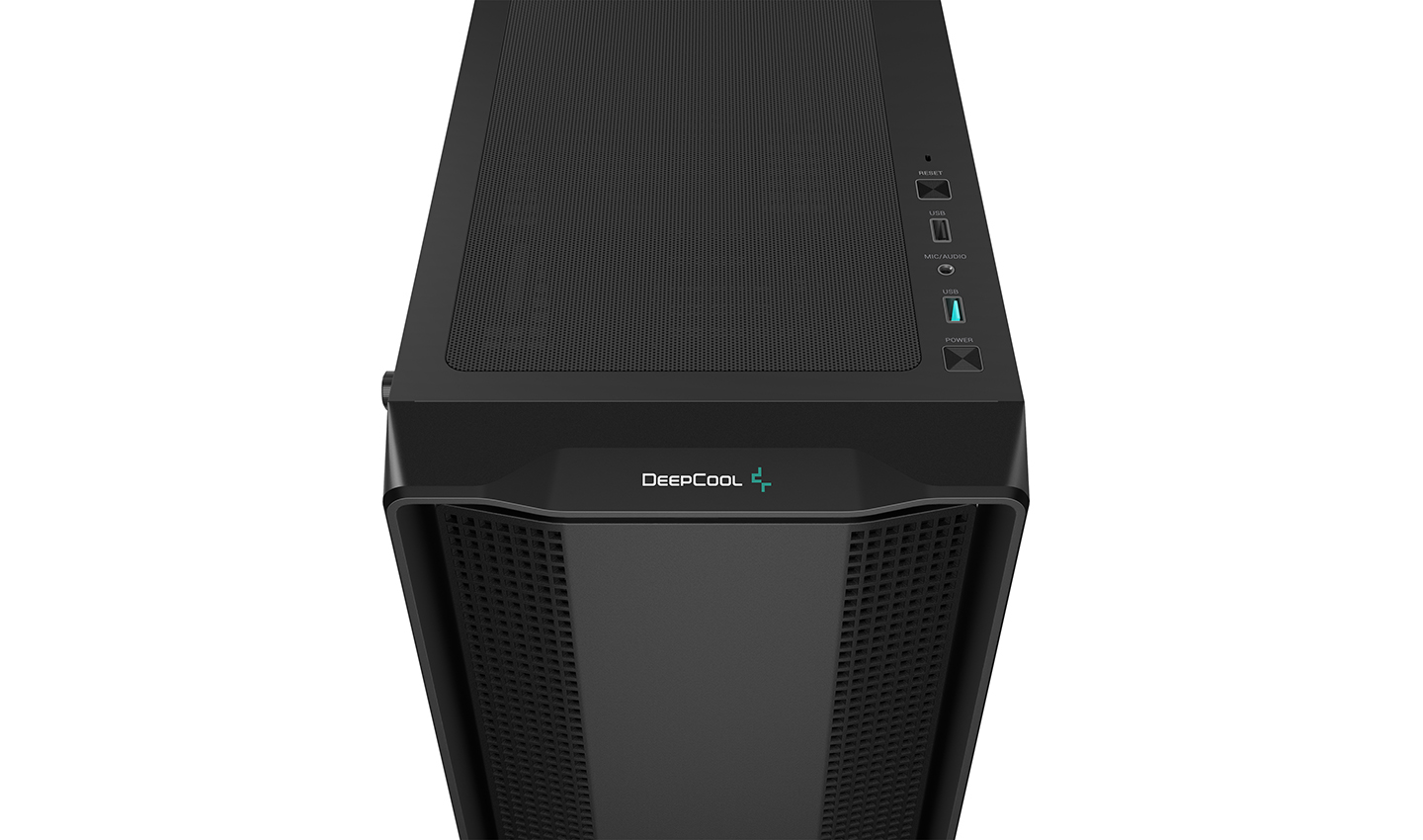

TOP I/O PANEL

Features an easily accessible USB 3.0 port, a USB 2.0 port, and a combo audio jack.

Technical Spec

Product Dimensions	432×215×483mm(L×W×H)
Net Weight	7Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX
Front I/O Ports	USB3.0×1 / USB2.0×1 / Audio×1
3.5" Drive Bays	2
2.5" Drive Bays	2+1
Expansion Slots	7 Slots
Pre-Installed Fans	None

Fan Support	Front: 3×120 / 3×140mm Top: 2×120 / 2×140mm Rear: 1×120mm PSU Shrouded: 2×120mm
Radiator Support	Front: 120/140/240/280/360mm Top: 120/140/240mm Rear: 120mm
CPU Cooler Height Limit	165mm
GPU Length Limit	370mm
Power Supply Type	ATX PS2 （maximum length: 170mm）
EAN	6933412774594
P/N	R-CC560-BKNAA0-G-2
