CC550 4F

HIGH-AIRFLOW MID-TOWER CASE

AMPLE AIRFLOW

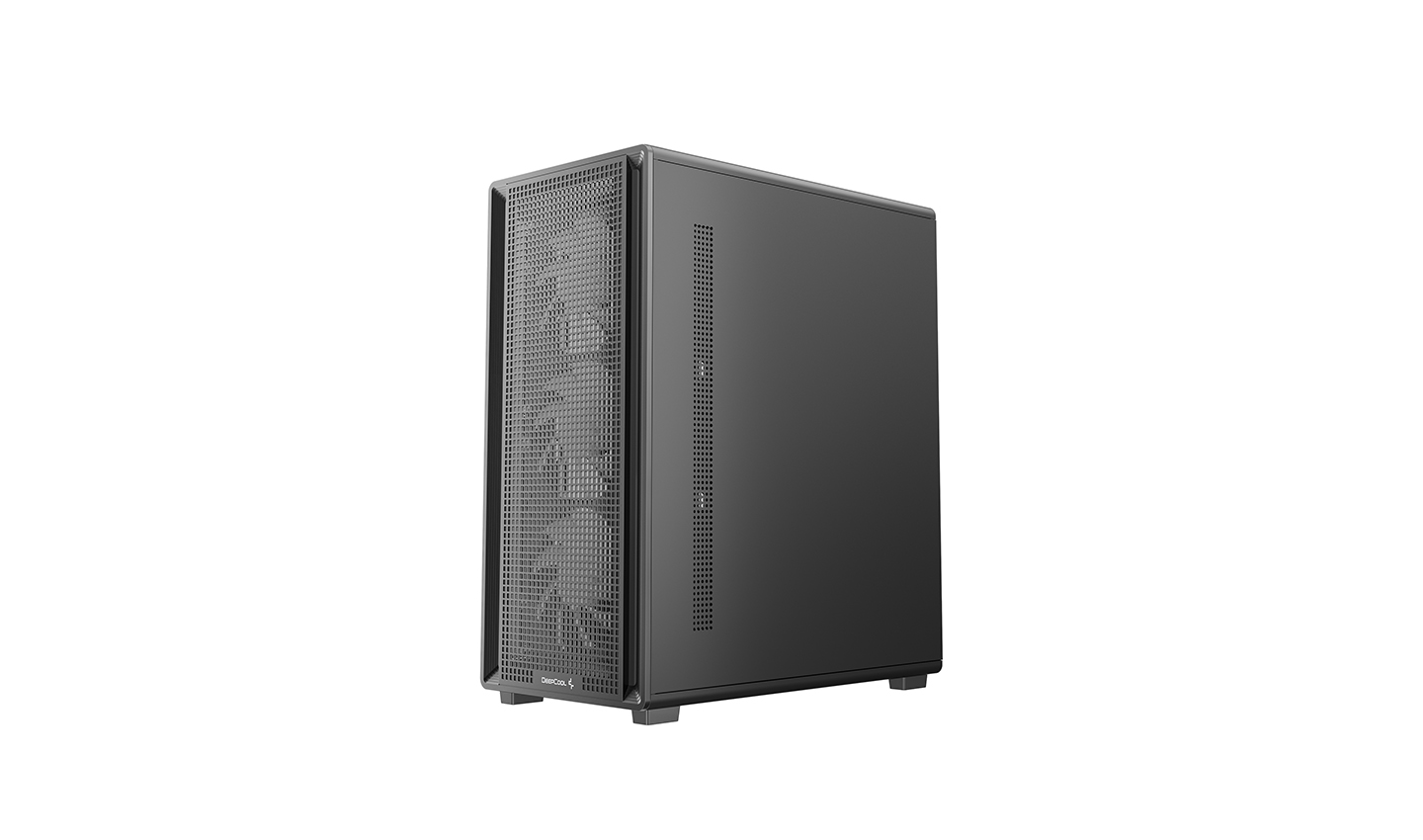

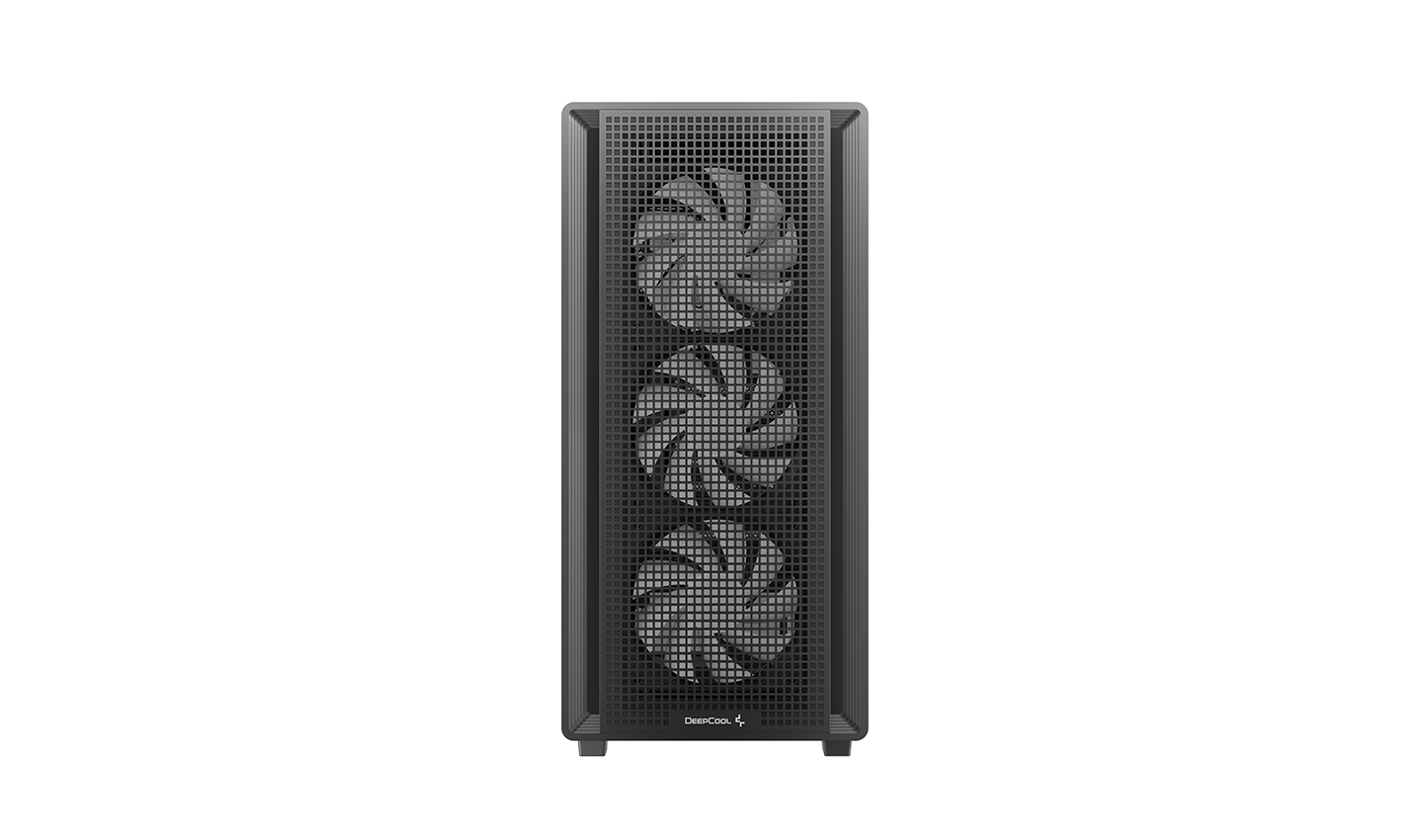

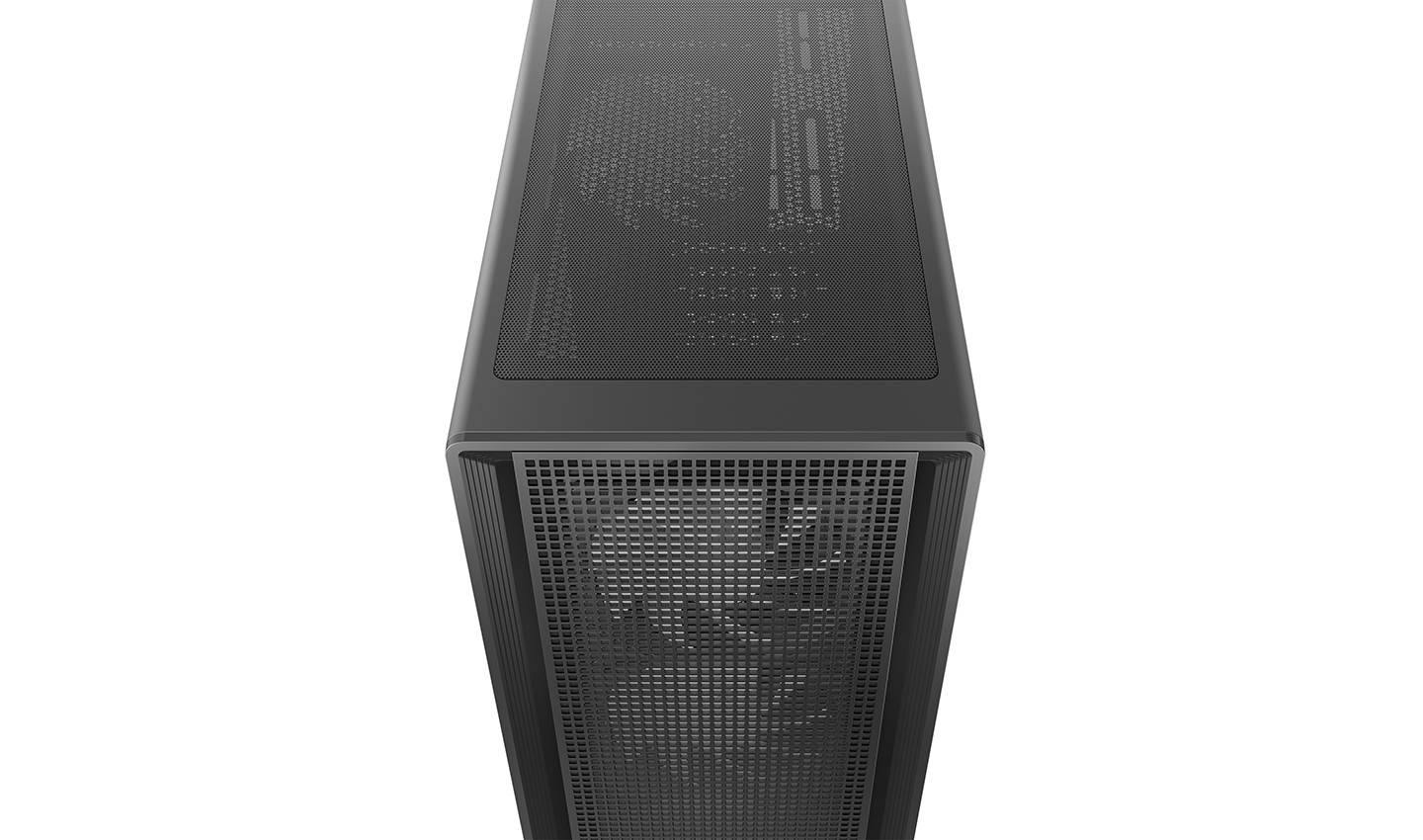

Multiple large mesh panels enable continuous airflow throughout the case, improving thermal efficiency and supporting stable system performance.

PRIMED AND READY

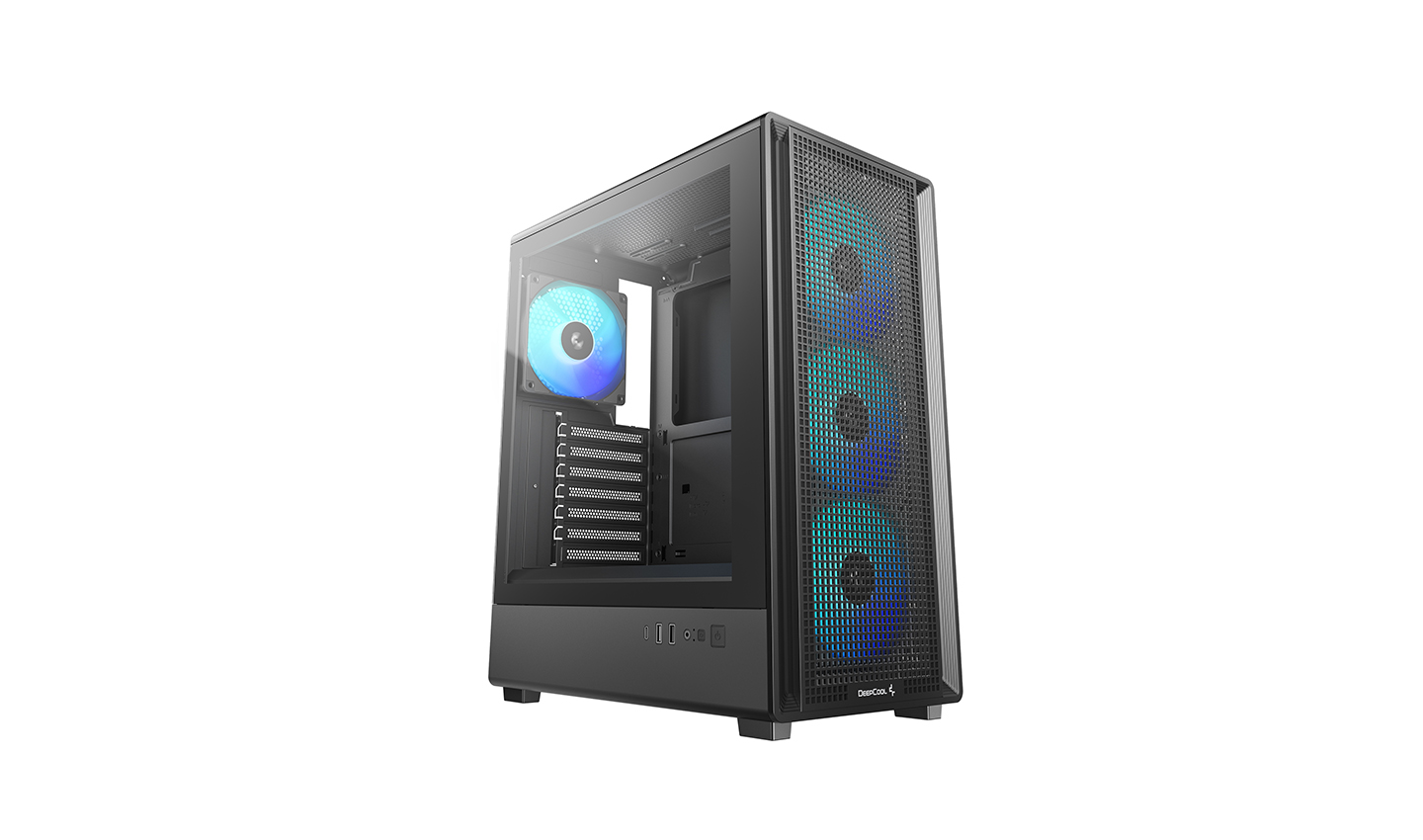

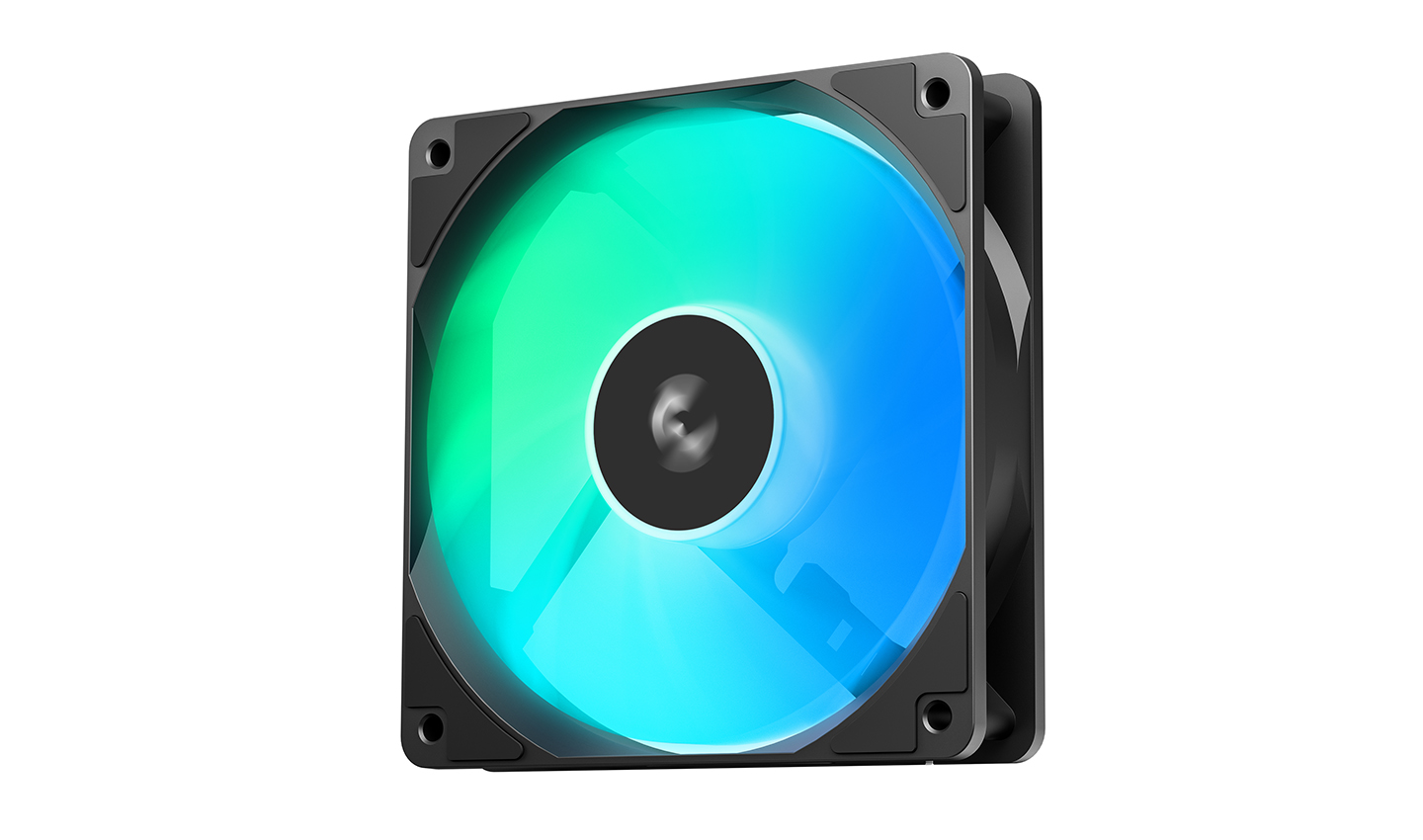

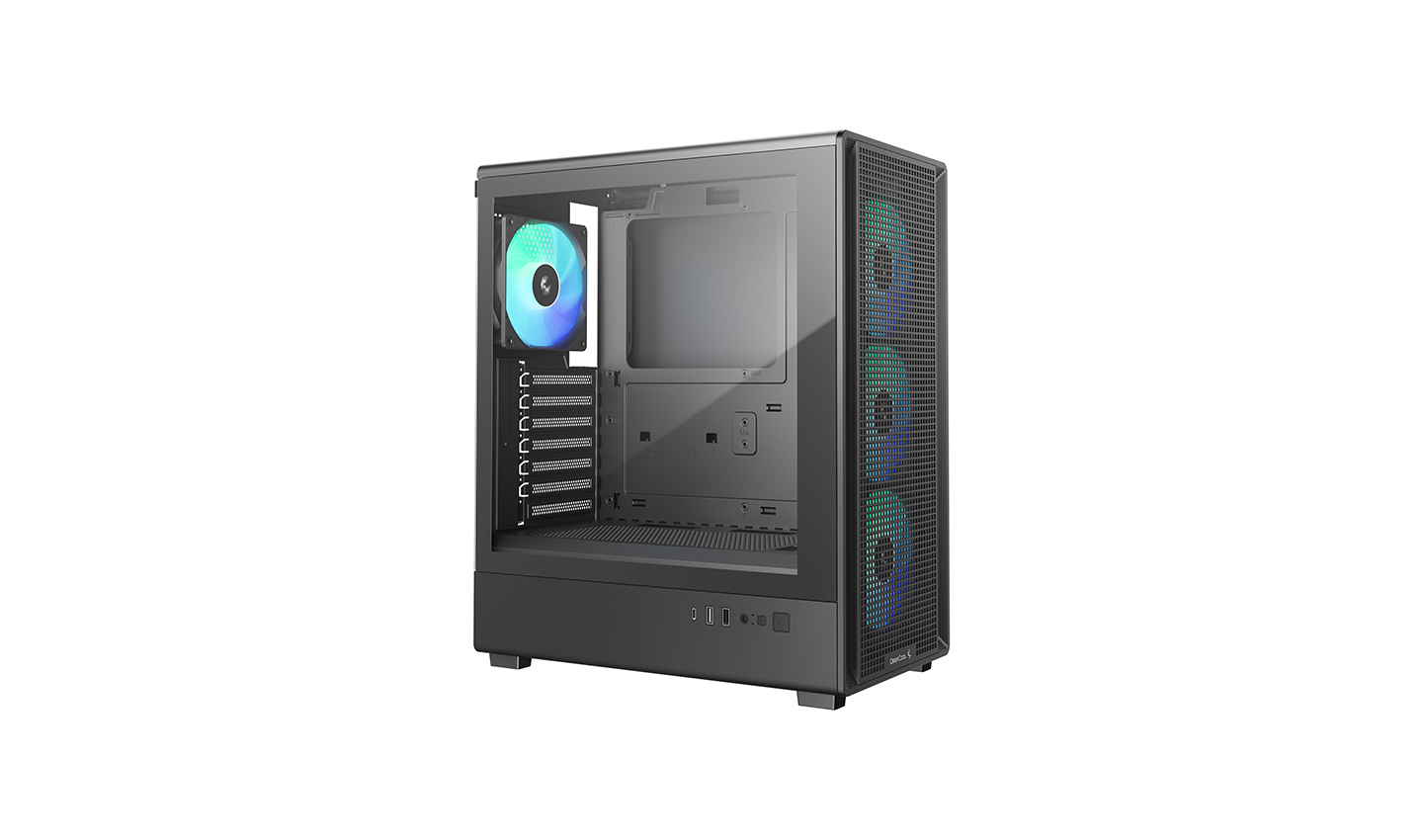

Four 120mm ARGB fans come pre-installed to deliver effective cooling and vivid illumination from the start.

Radiator Support:

Top: 120/240mm

Fan Support:

Top: 2×120 / 2×140mm

Front: 3×120mm

Bottom: 2×120mm

Rear: 1×120mm

COOLING CONFIGURATION

Support for up to eight fans allows you to tailor airflow to your needs. Two 120mm fan mounts on the PSU shroud help deliver fresh airflow directly to the GPU. A 240mm radiator is supported at the top.

Radiators
120mm Fans
140mm Fans

BROAD HARDWARE COMPATIBILITY

With support for ATX motherboards, CPU air coolers up to 163mm tall, GPUs up to 317mm, and PSUs up to 180mm, the CC550 4F accommodates a wide range of high-end components.

DETAILS THAT MATTER

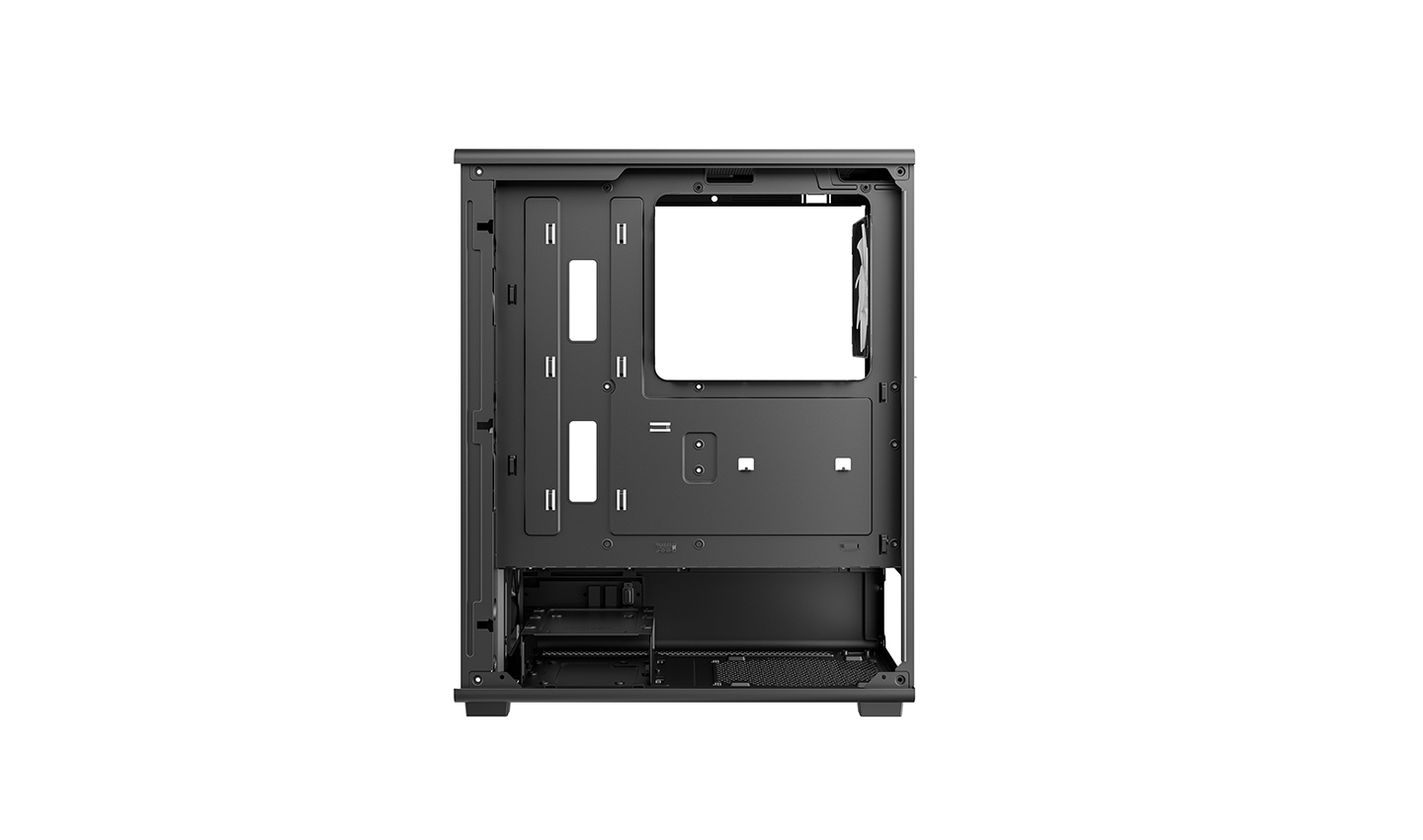

● 22mm Clearance for Clean Cable Management

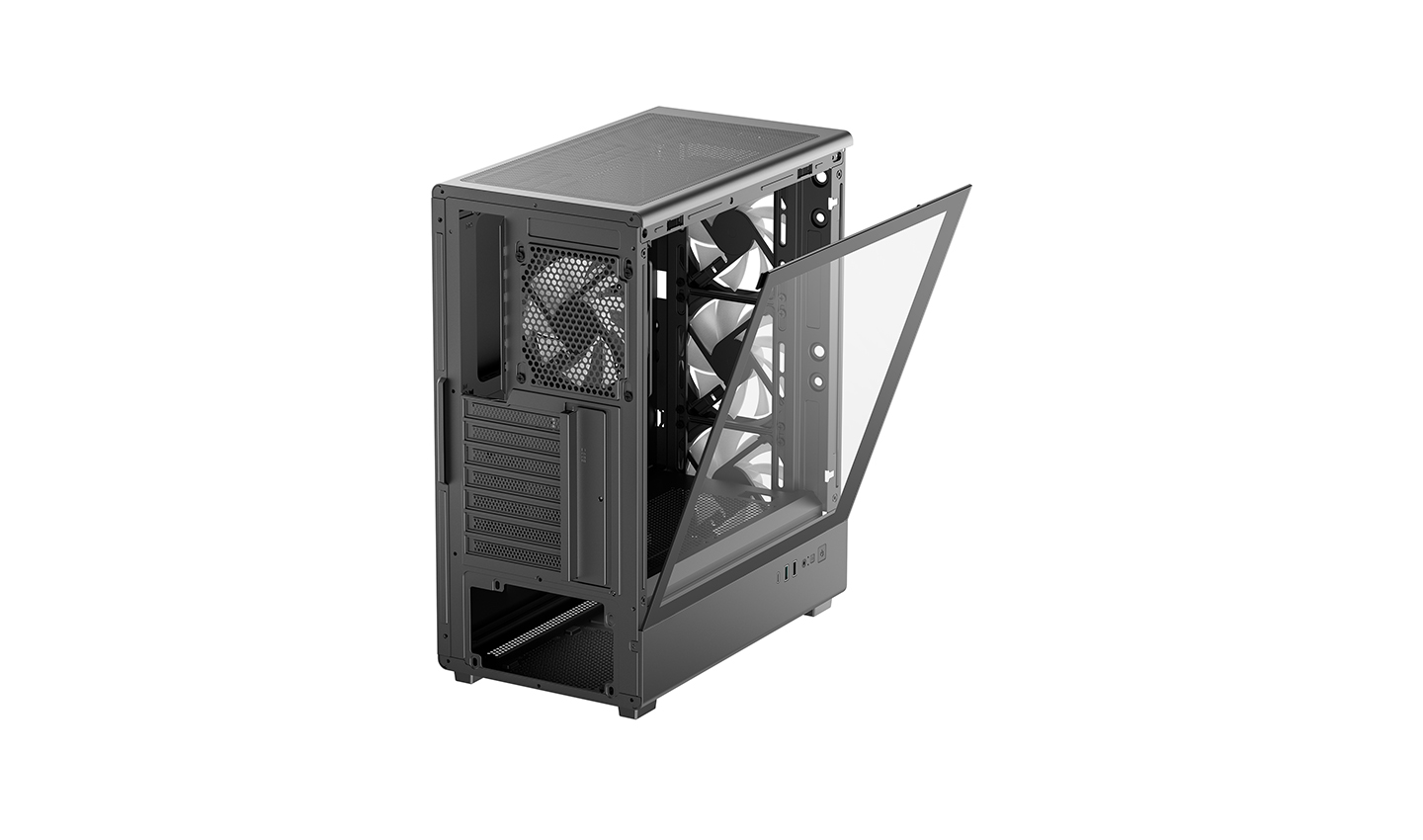

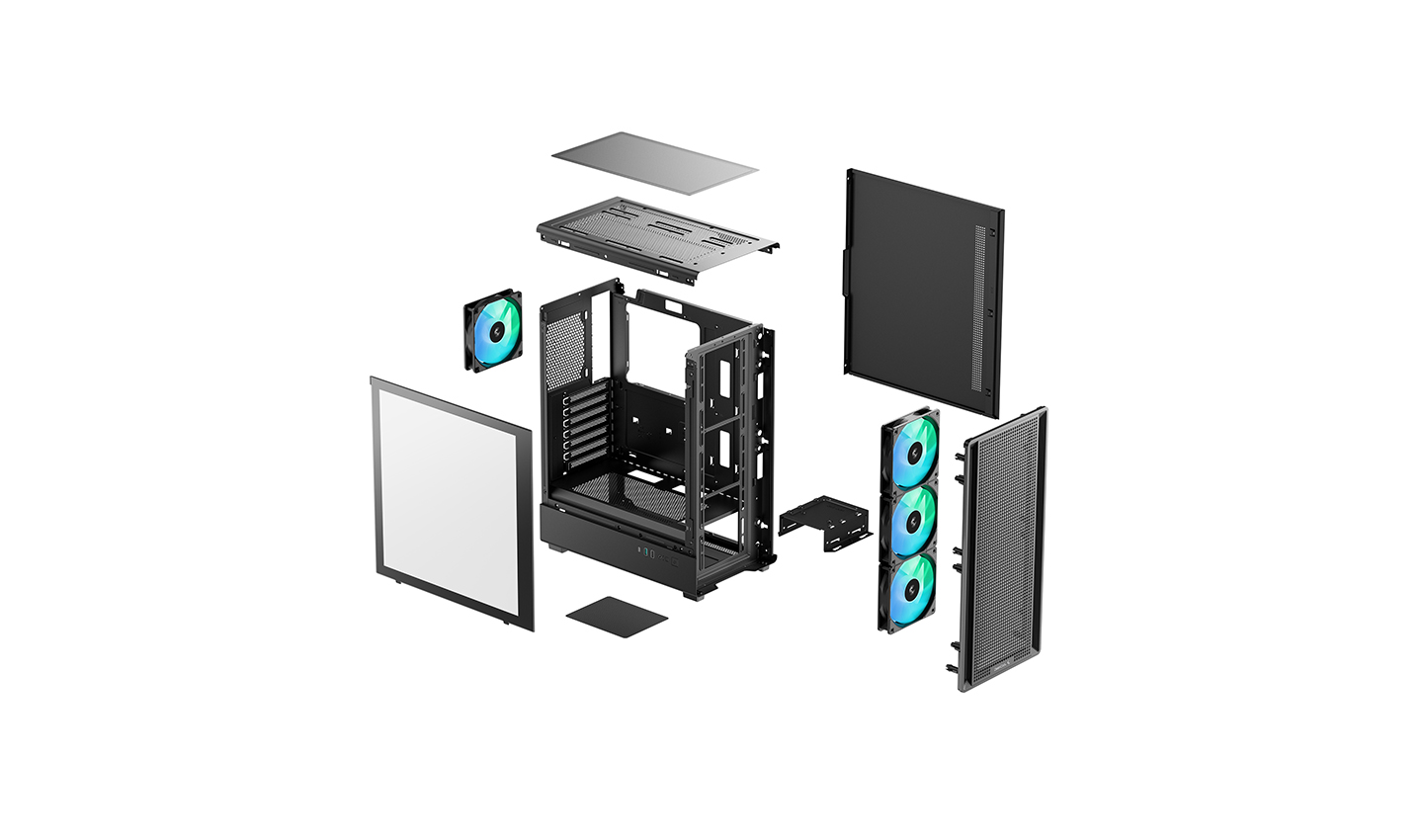

● Tool-Free Removable Panels for Easy Access

EASY I/O ACCESS

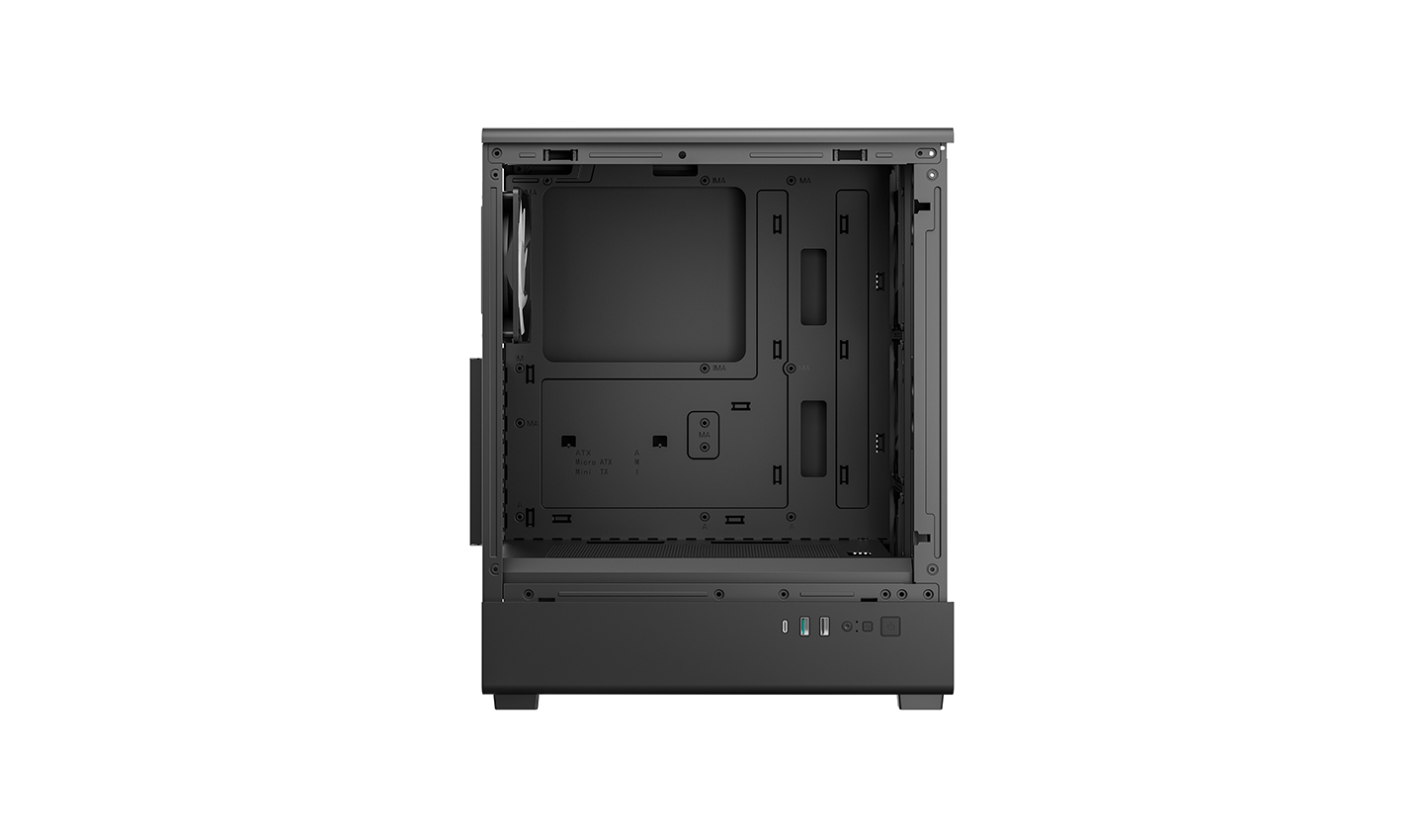

The I/O panel provides convenient access to a USB 3.0 port, a USB 2.0 port, a USB 3.2 Gen 1 Type-C port and a combined audio/mic jack.

Technical Spec

Product Dimensions	379x208x446mm(L×W×H)
Net Weight	4.03Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX
Front I/O Ports	USB3.0 x1,USB2.0 x1,Type-C x1,Audio x1
3.5" Drive Bays	0+1
2.5" Drive Bays	1+1

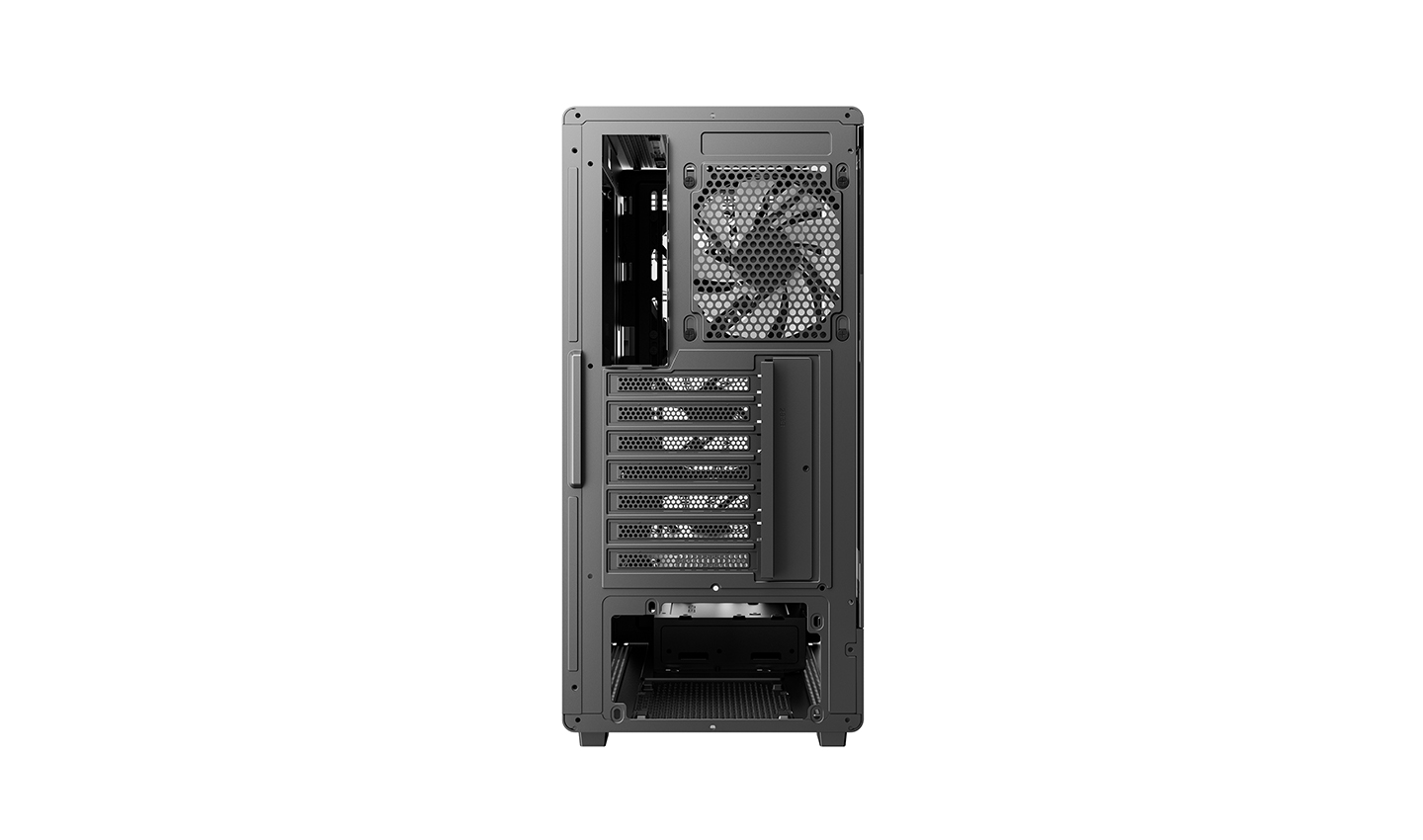

Expansion Slots	7 Slots
Pre-Installed Fans	Front: 3×120mm Argb Rear: 1×120mm Argb
Fan Support	Top:2×120 / 2×140mm Front:3x120mm Bottom:2×120 mm Rear: 1×120mm
Radiator Support	Top: 120/240mm
CPU Cooler Height Limit	163mm
GPU Length Limit	317mm
Power Supply Type	ATX PS2 （maximum length: 180mm）
EAN	6933412765837
P/N	R-CC550BKANA4-G

Download

CC550 4F Manual.pdf
