PN650M - DeepCool

PN650M

NATIVE ATX3.1

FUTURE PROOF

With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN650M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650M can keep the hold-up time to ≥ 16 ms under a high load of 80%.

◀

▶

12V-2x6
CABLE

PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN650M provides up to 450W for modern GPUs.

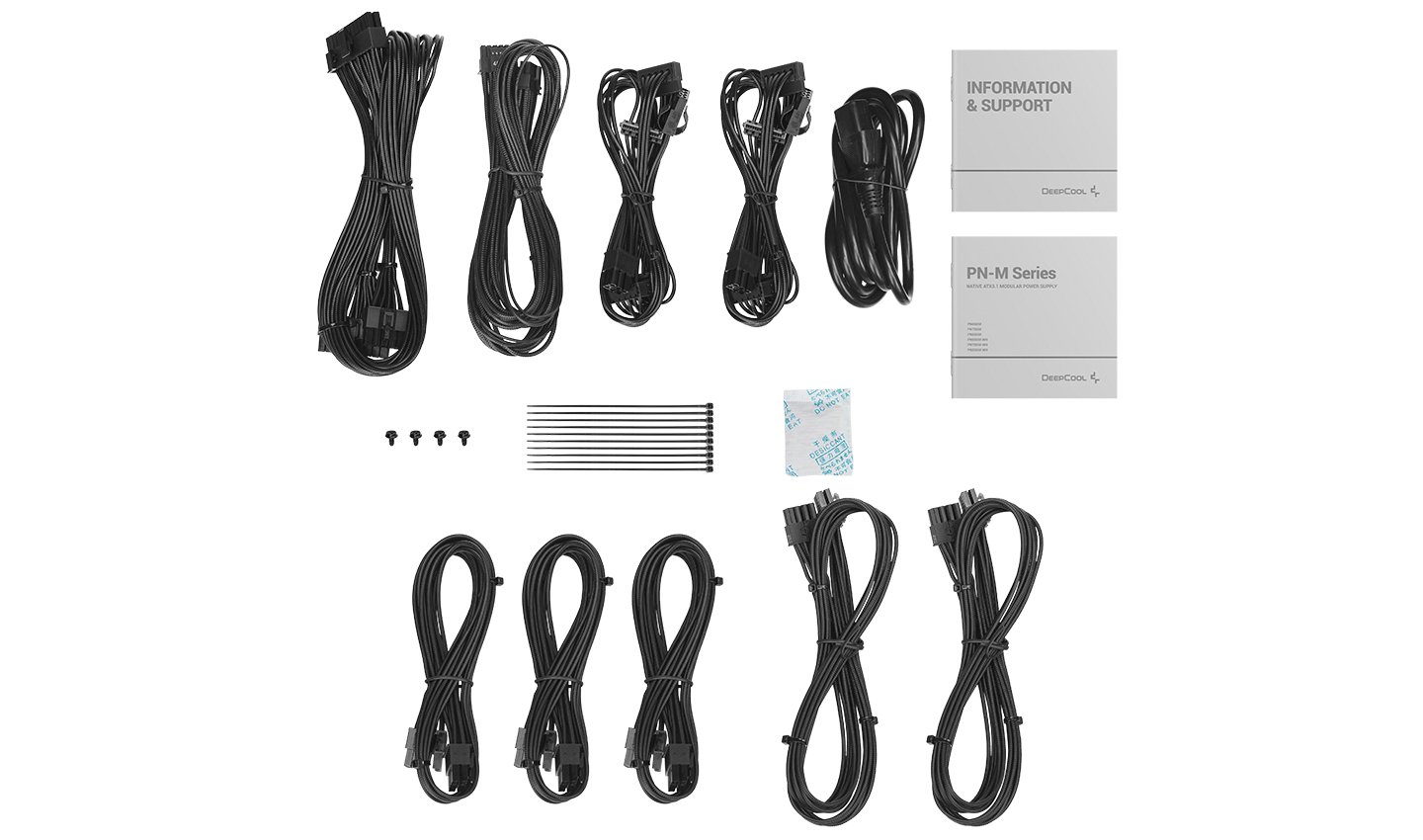

SLEEVED CABLES

The PN650M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

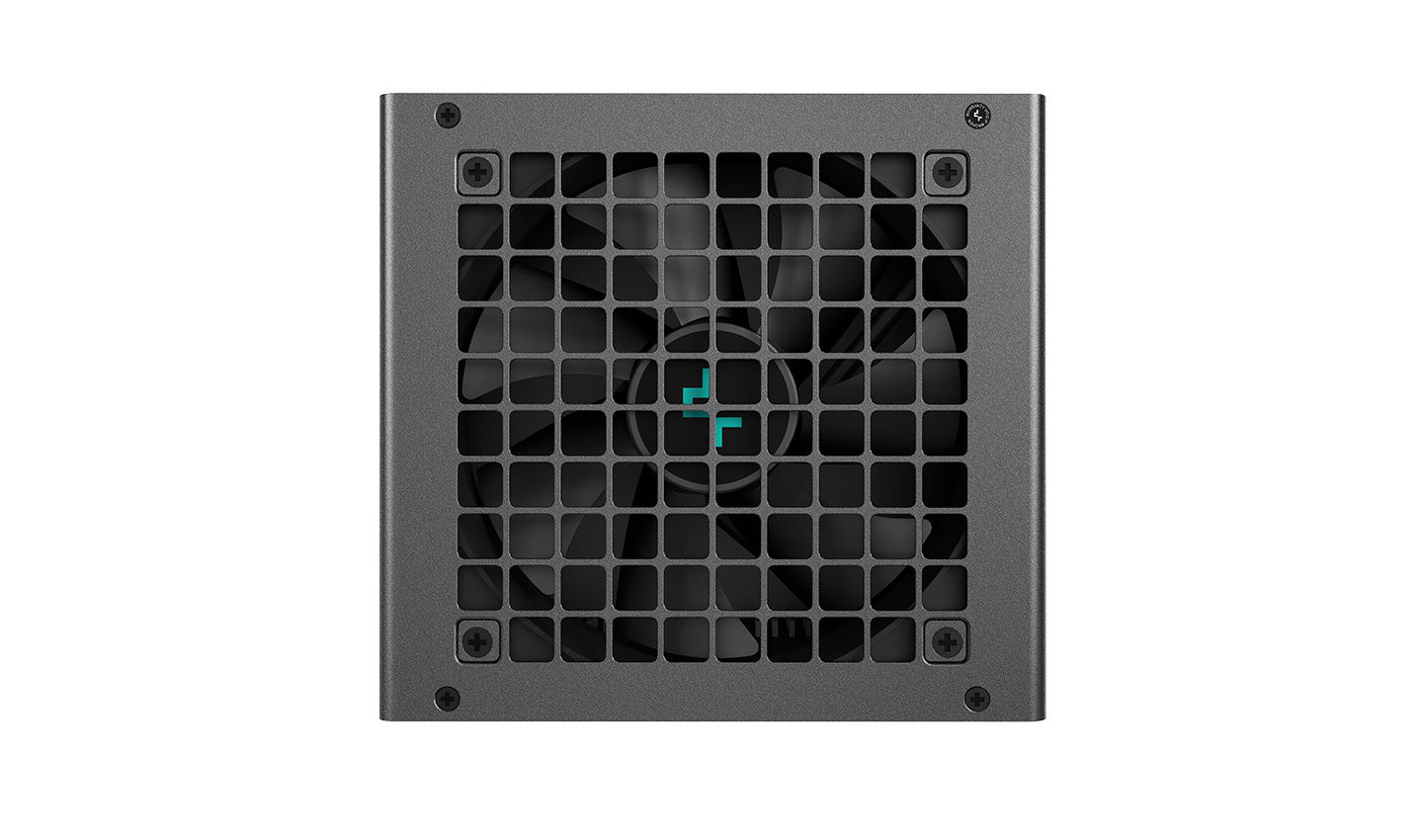

DYNAMIC FDB FAN

The PN650M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

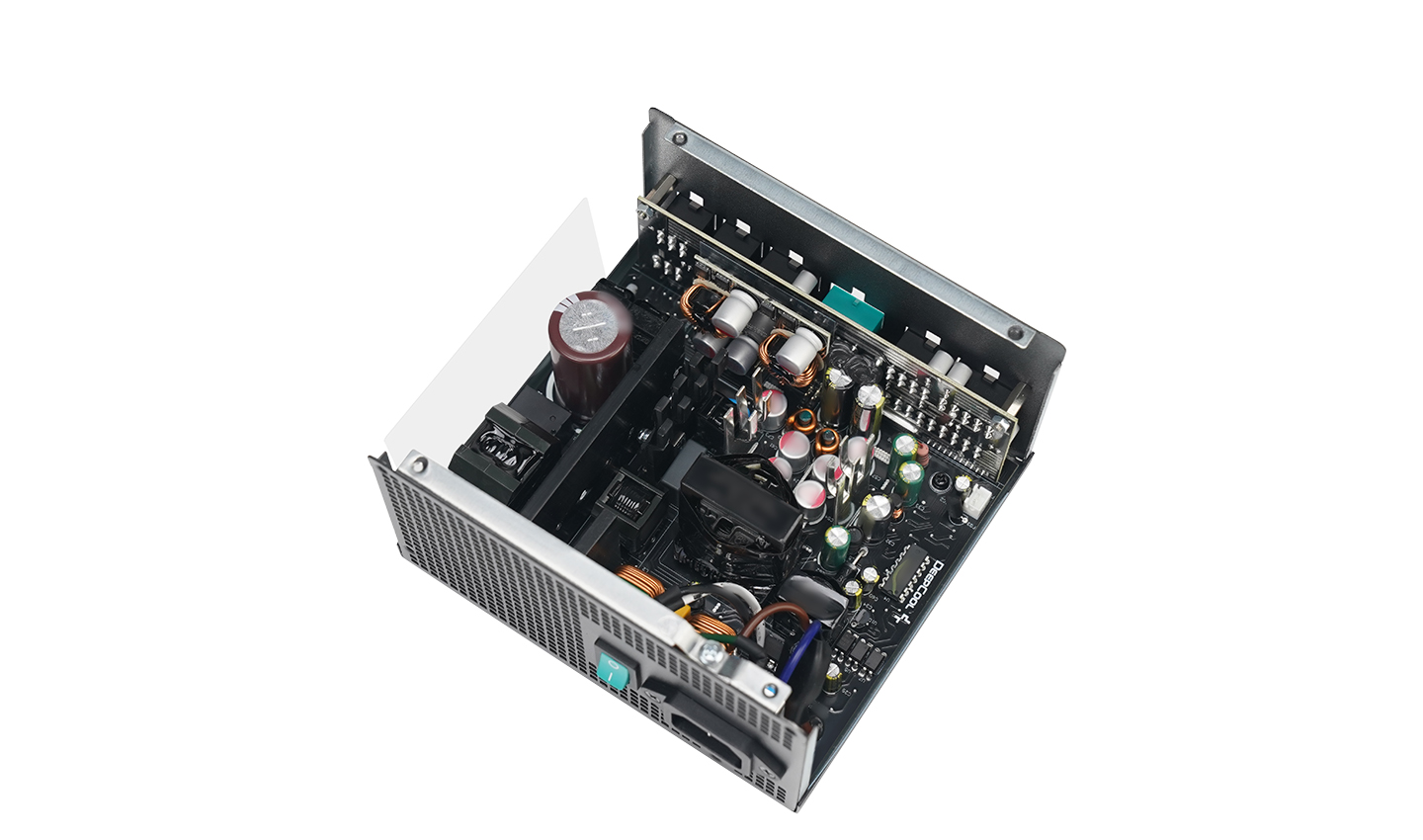

HIGH QUALITY BUILD

Due to the high quality of the parts utilized, the PN650M will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND

The PN650M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

No Load Operation

Surge & Inrush Protection

EXCELLENT COVERAGE

The PN650M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

EXCELLENT COVERAGE

The PN650M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

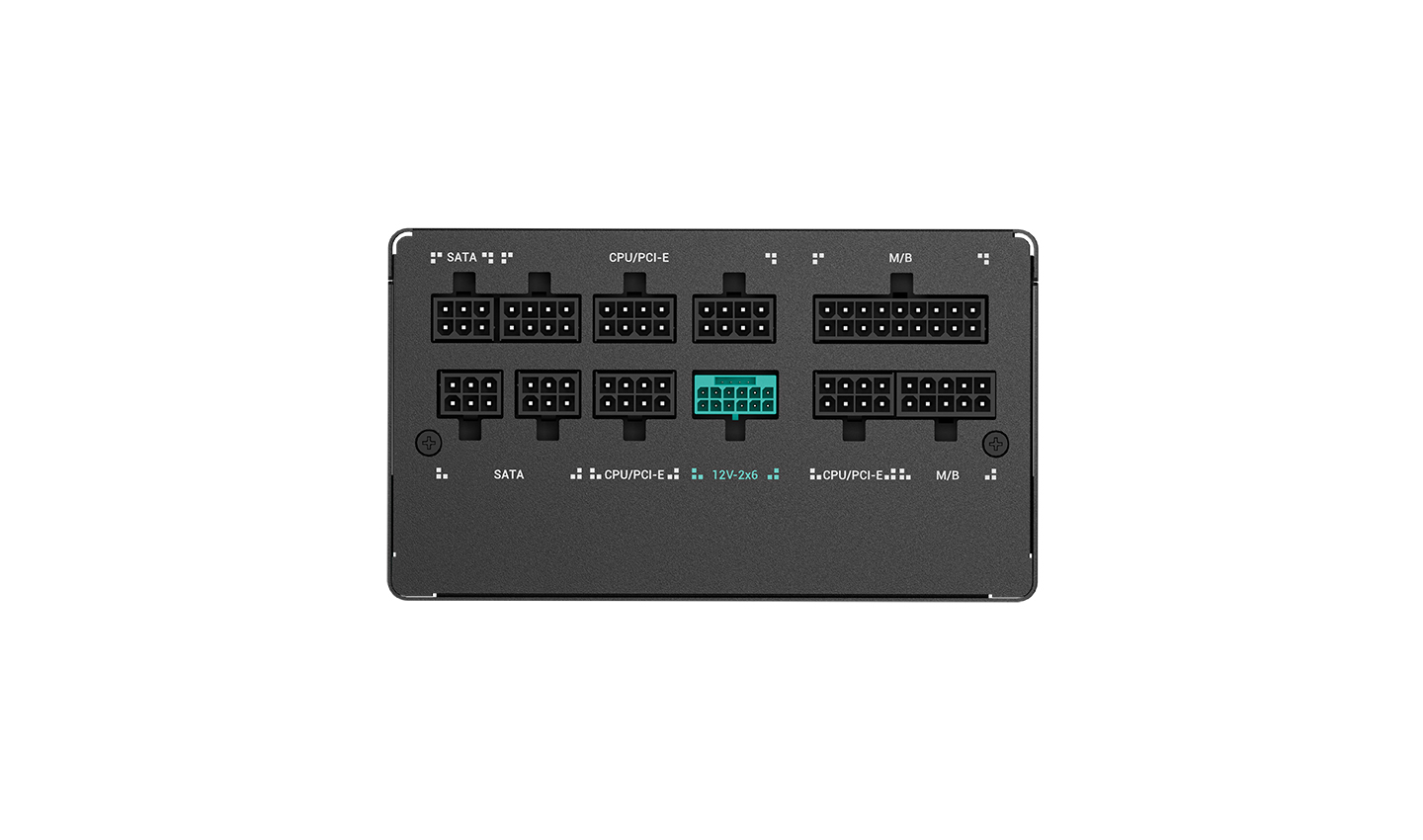

Main Power Connector (20+4)Pin x 1

CPU(4+4)Pin x 1

PCI-E(6+2)Pin x 1

12V-2x6(16Pin) x 1

SATA x 4 + 4Pin Peripheral x 1

Technical Spec

Type	ATX12V V3.1
Product Dimensions	150×140×86mm (W x L x H)
Efficiency certification	80Plus Gold
Fan Size	120mm
Fan Bearing	FDB (Fluid Dynamic Bearing)
Topology	Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors	Japanese Bulk Capacitor
Power Good Signal	100-150ms
Hold Up Time	≥16ms(80% Load)

Efficiency	≥90% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature	0 - 40℃
Regulatory	CE/FCC/CCC/cTUVus/RCM/EAC/TUV-RH
Erp Regulation	ErP 2014
Environment Protection	WEEE/中国 RoHS/Triman/P65
MTBF	100,000 Hours
EAN P/N	6933412719212 R-PN650M-FC0B-CN 6933412719229 R-PN650M-FC0B-AU 6933412719236 R-PN650M-FC0B-EU 6933412719243 R-PN650M-FC0B-JP 6933412719250 R-PN650M-FC0B-UK 6933412719267 R-PN650M-FC0B-US 6933412719274 R-PN650M-FC0B-WO 6933412719281 R-PN650M-FC0B-BP

Download

PN650M Manual.pdf

Download

PRODUCT ALBUM

Download

Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
