DE500

Excellent performance-to-noise ratio

DE500

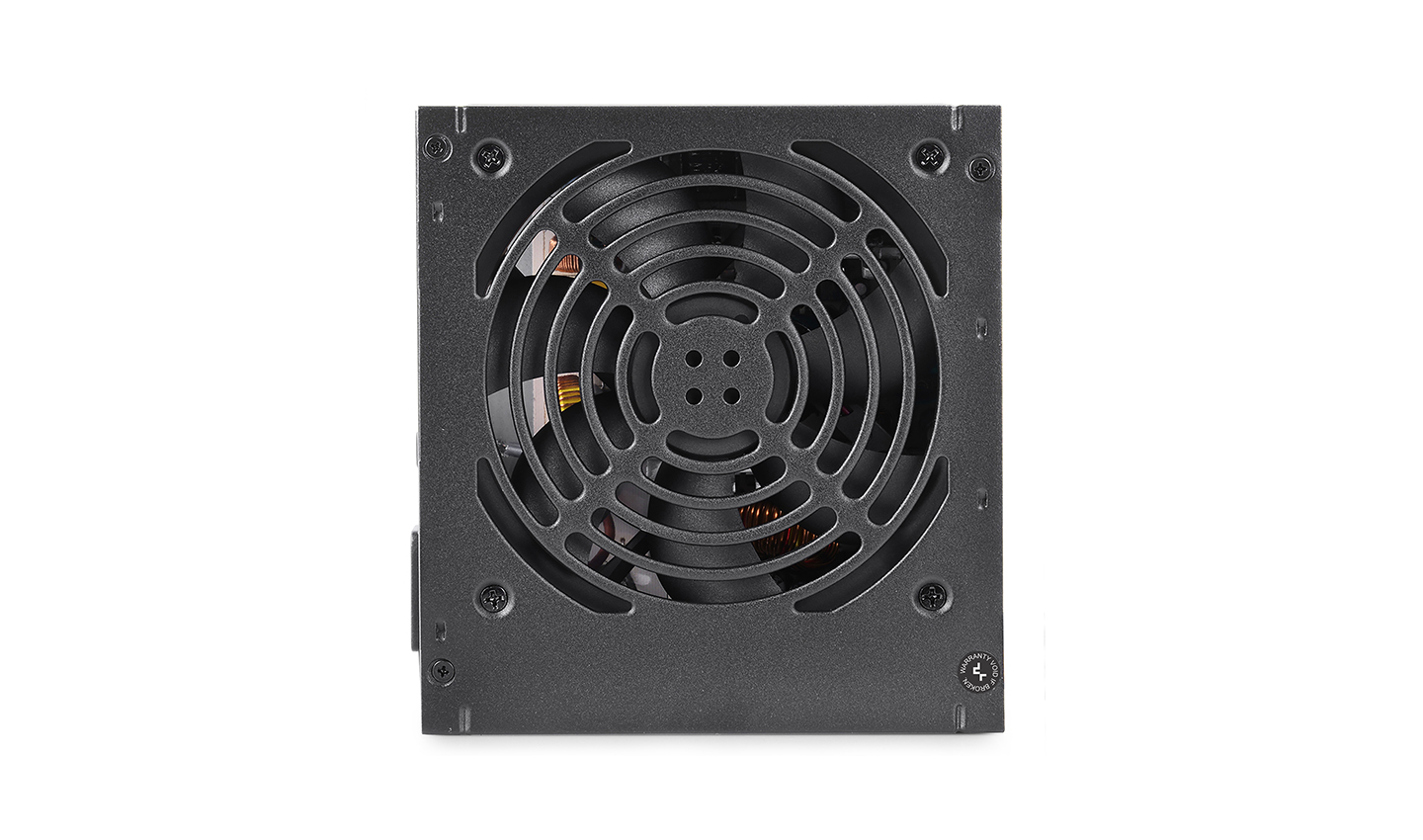

120 mm Smart fan

Excellent performance-to-noise ratio.

Safe and durable with long service life

Multiple protective measures for up to 100,000 hours of use

*This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

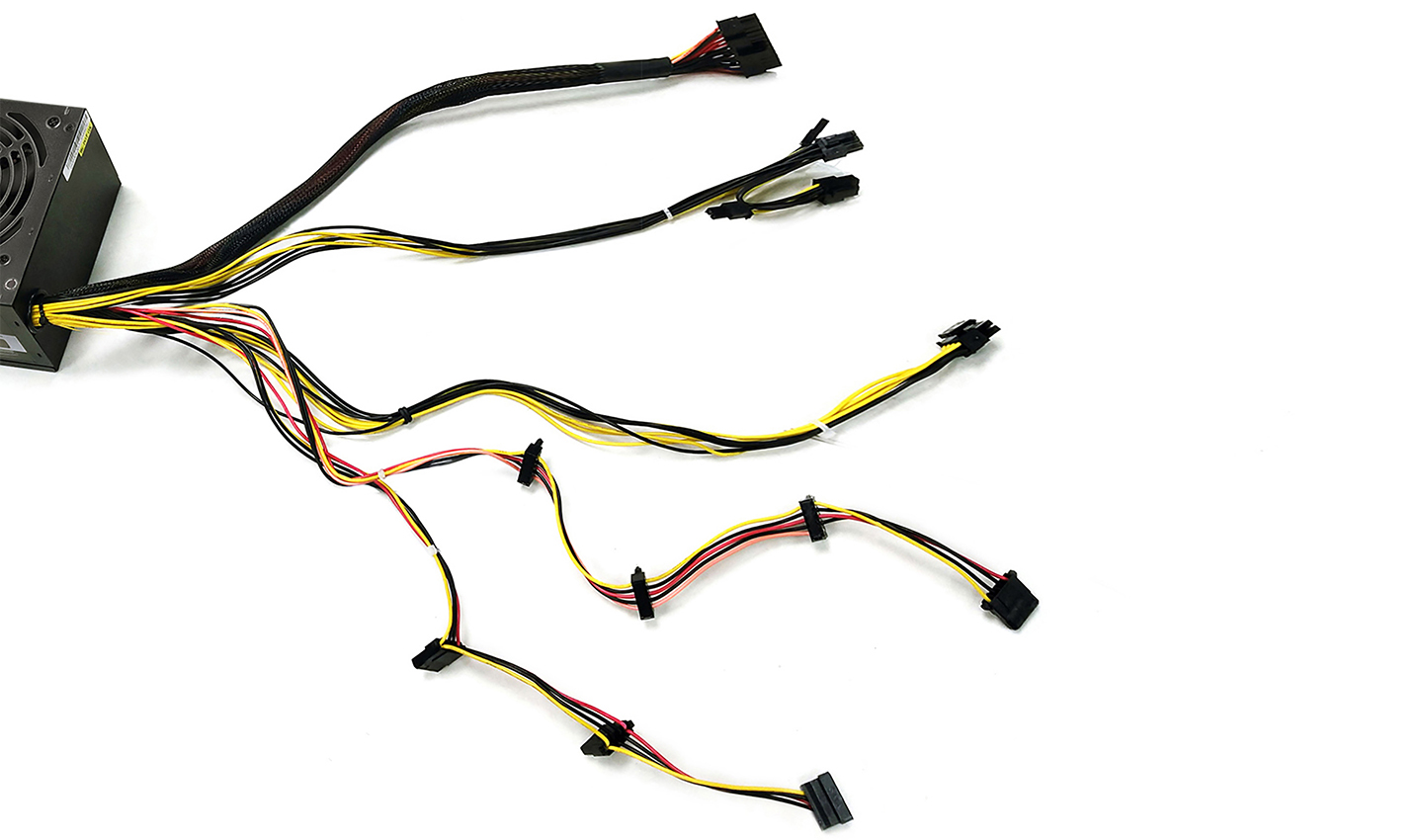

Main Power Connector (20+4)Pin x 1

CPU(4+4)Pin x 1

PCI-E(6+2)Pin x 1

SATA×3+4pin Peripheral×1

4pin Peripheral×2+SATA×1

Technical Spec

Model	DE500
Type	ATX 12V V2.4
Dimension	150×140×86mm (W x L x H)
Output Capacity	350W
Input Voltage	230Vac
Input Voltage Range	160~240V
Input Current	4.0A
Input Frequency Range	47~63Hz
Fan Size	120mm silent fan

Power Good Signal	100-500ms
Hold Up Time	>16ms
Protection	OVP / UVP / SCP / OPP
Operation Temperature	0~40°C
Regulatory	CE/UKCA/EAC
MTBF	100,000 Hours
EAN	6933412798897
P/N	DP-DE500US-PH

Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
