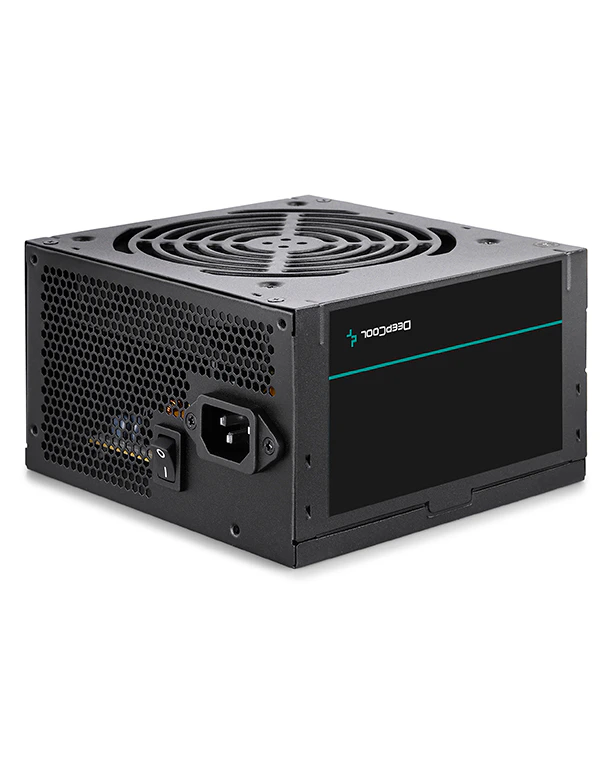

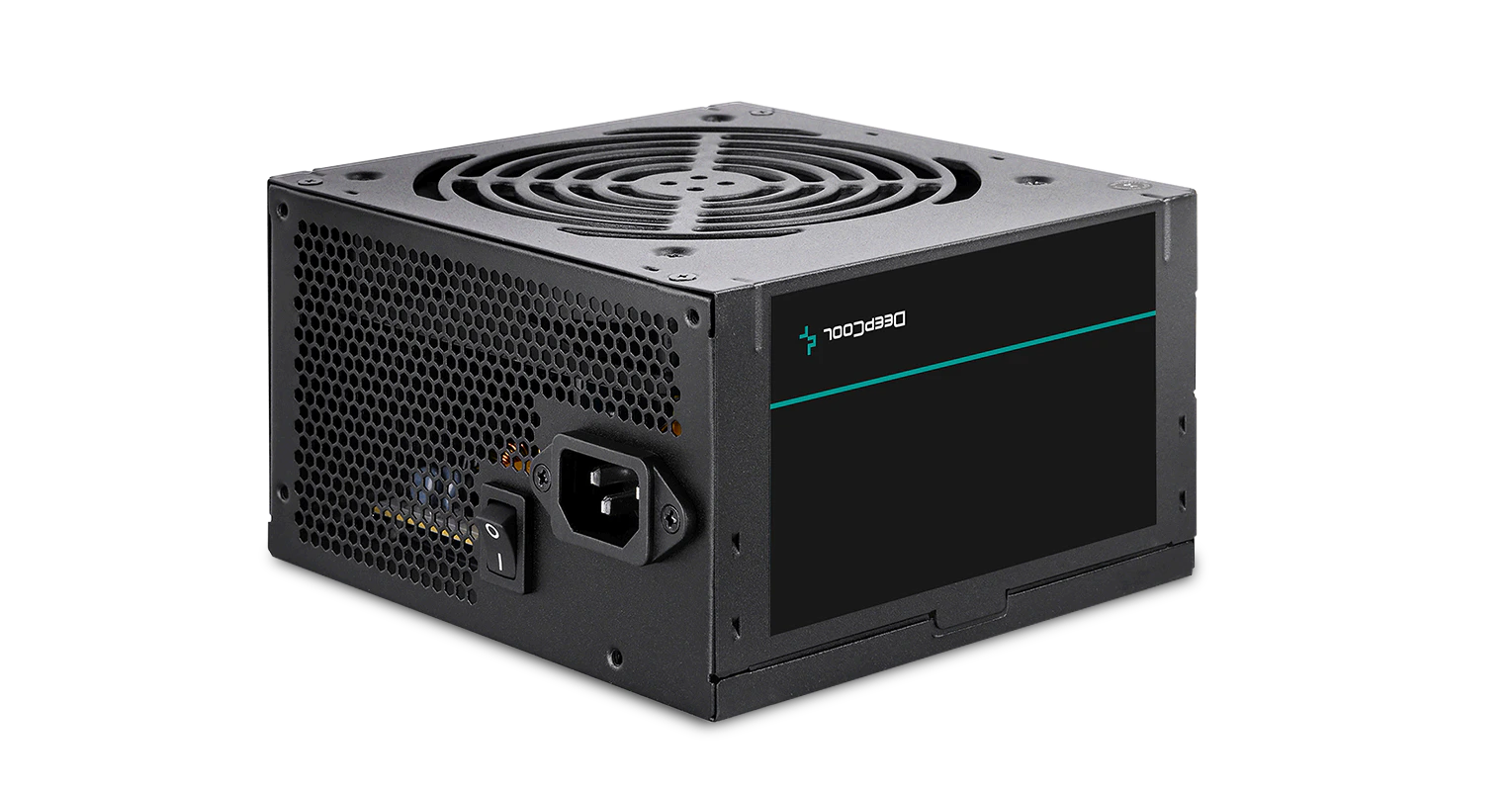

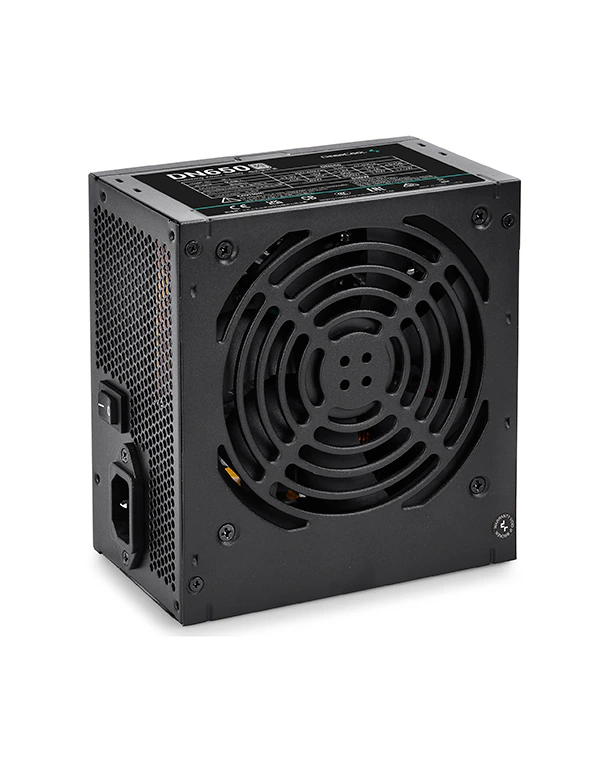

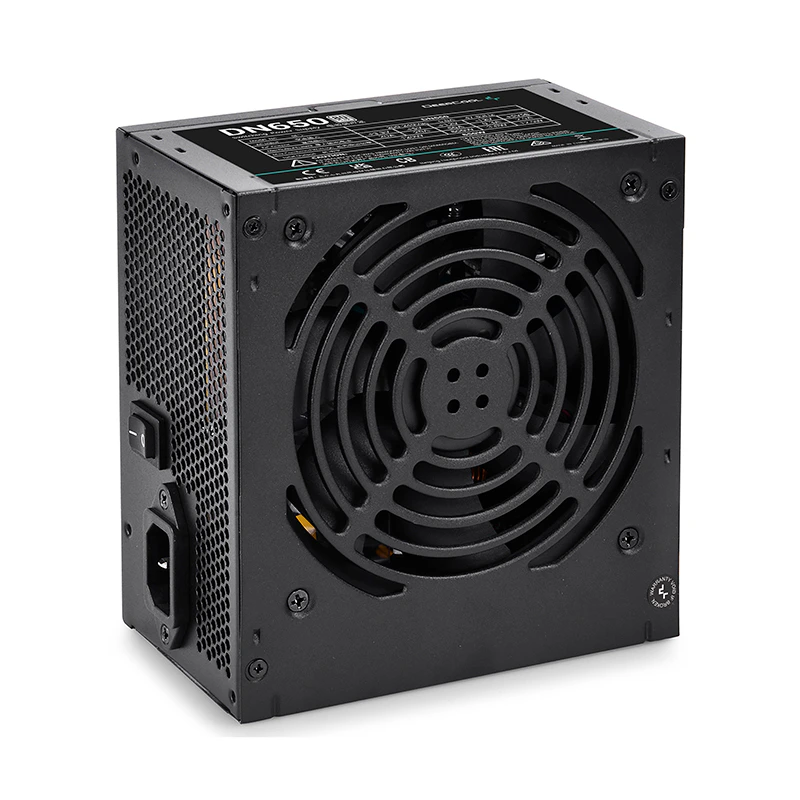

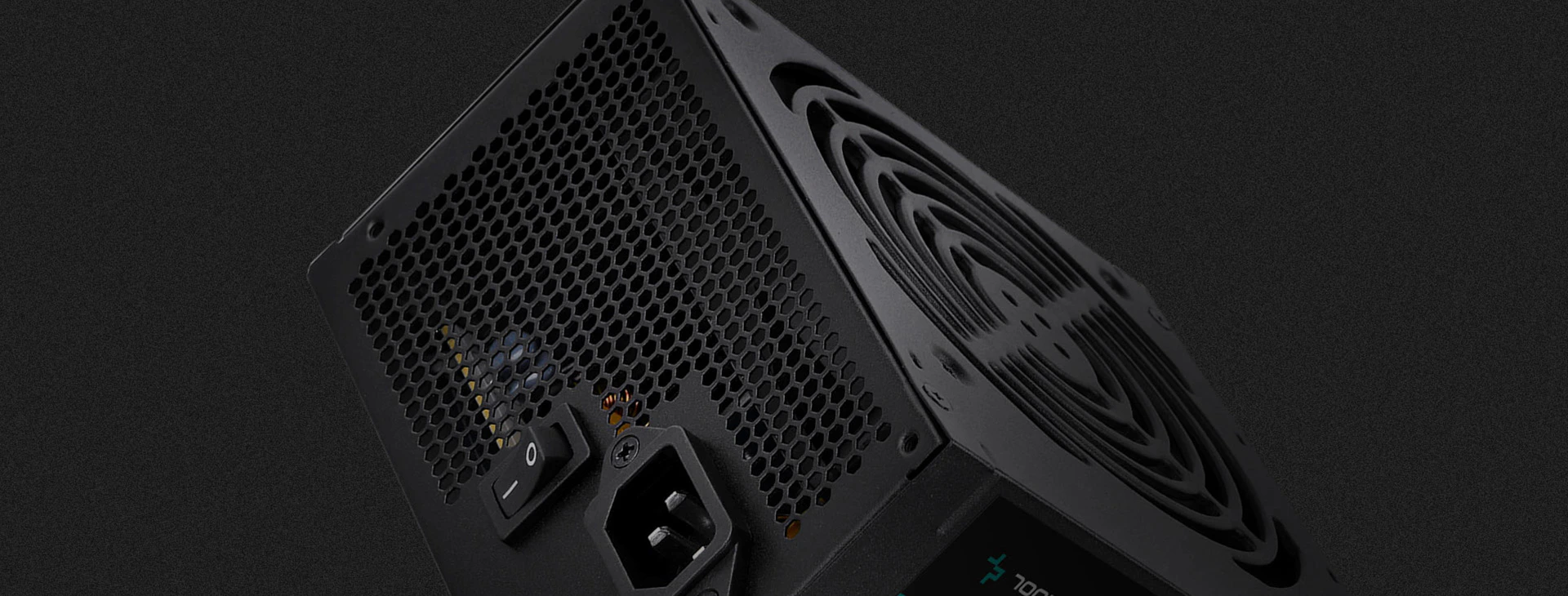

DN650
COLOR
black
MODEL
DN650
650W rated power with 80 PLUS® 230V EU certified up to 85% efficiency
Description
DN650 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.
80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency up to 85%. Click here  to  view the certification.

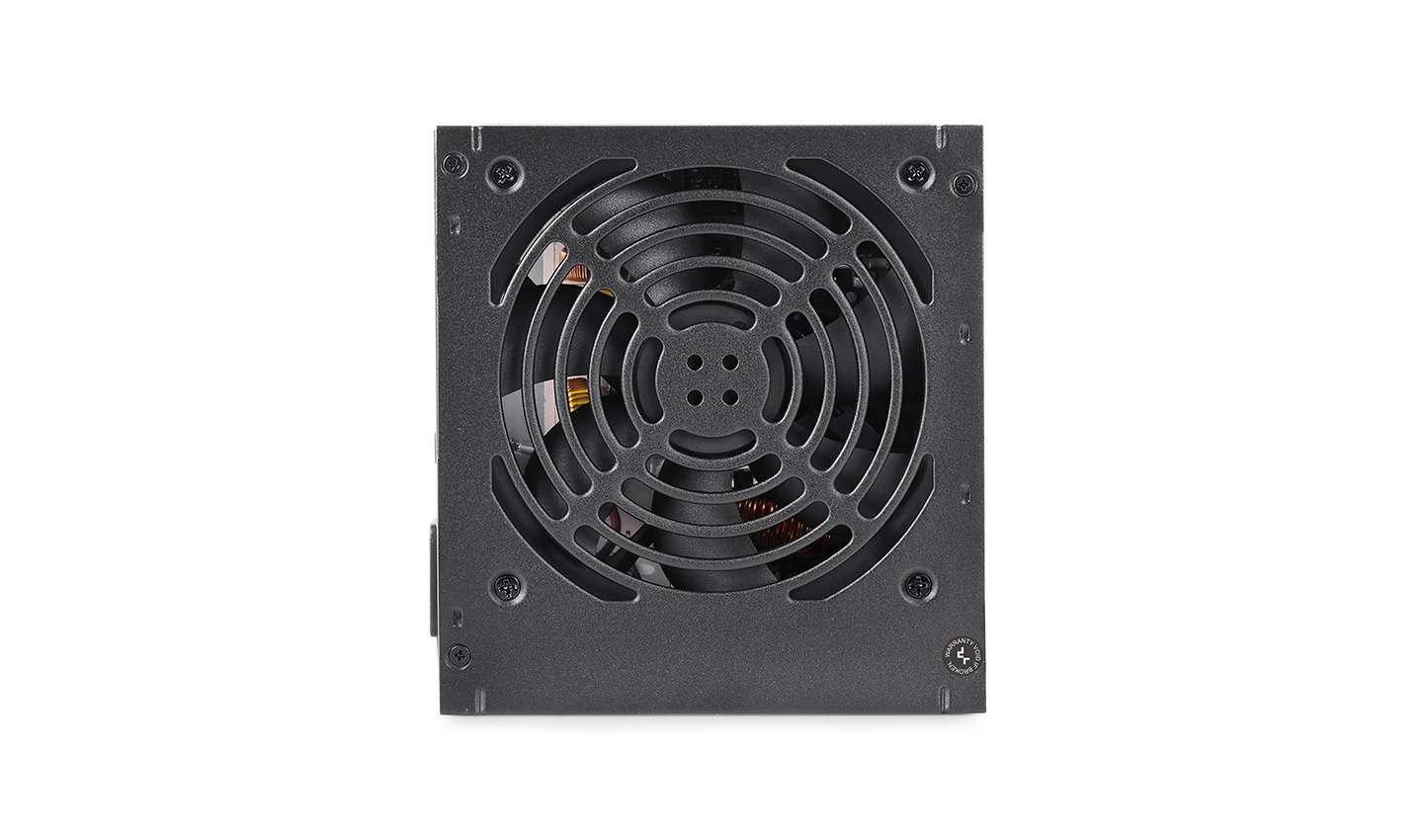

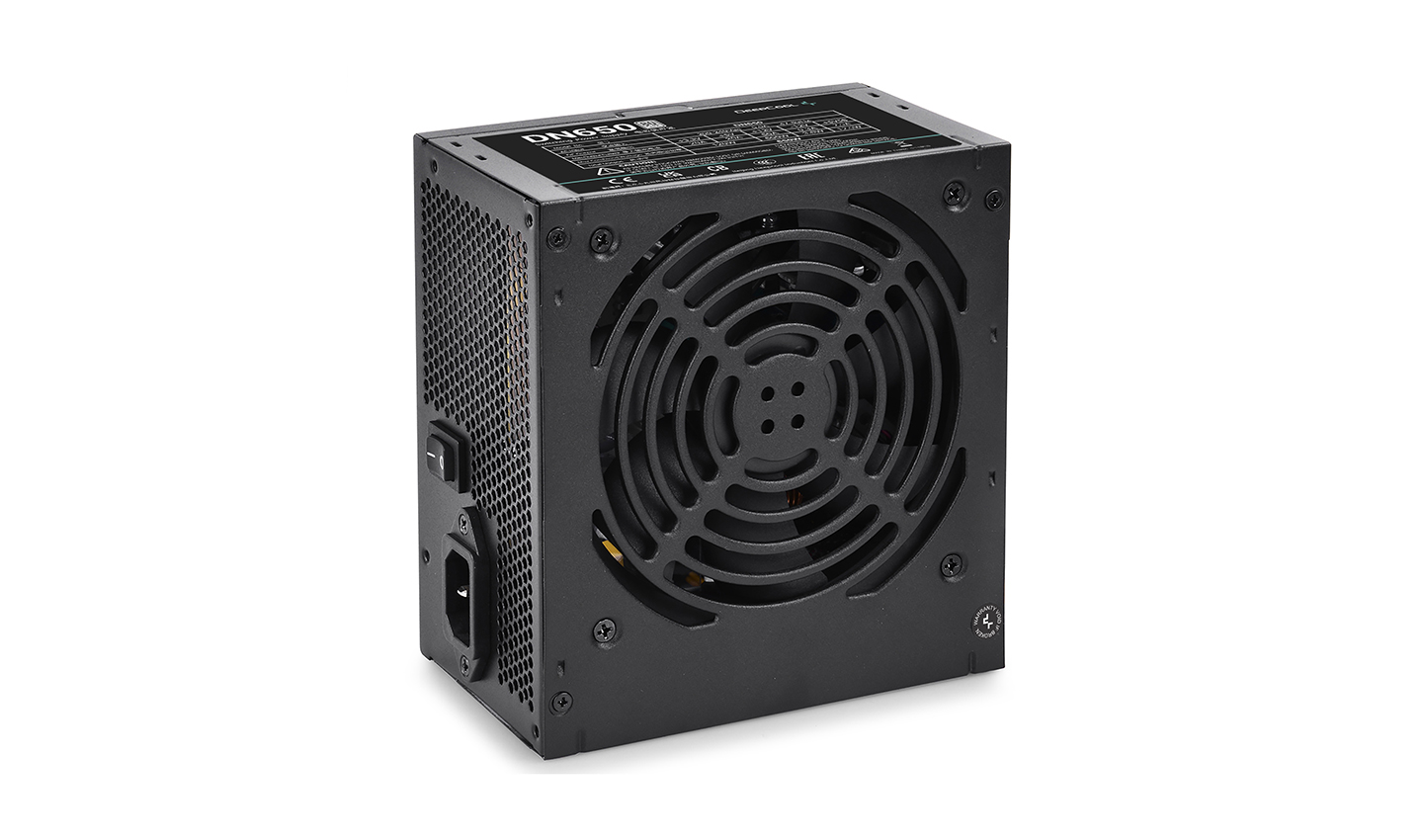

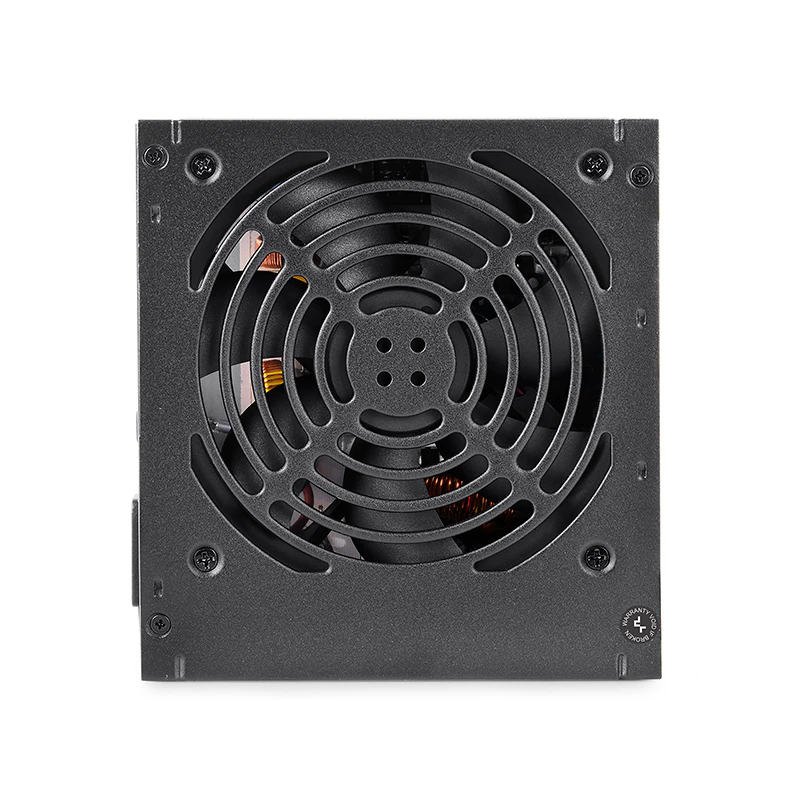

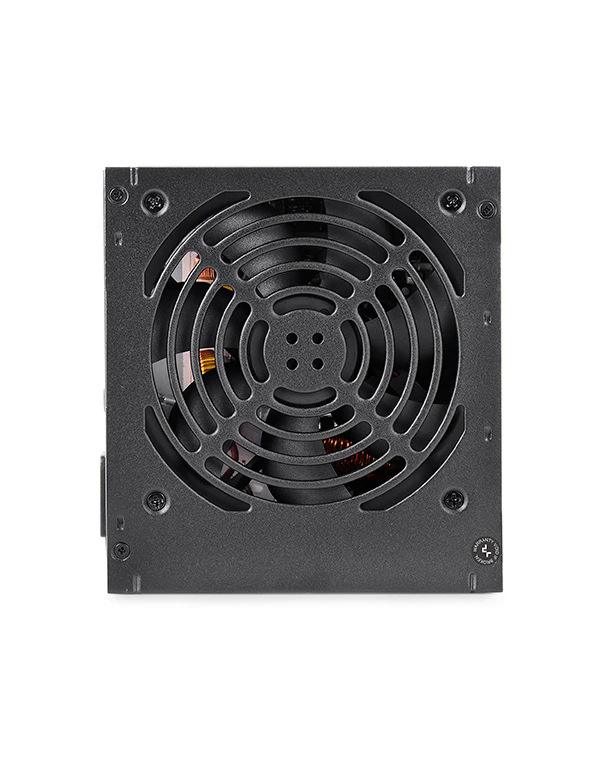

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.

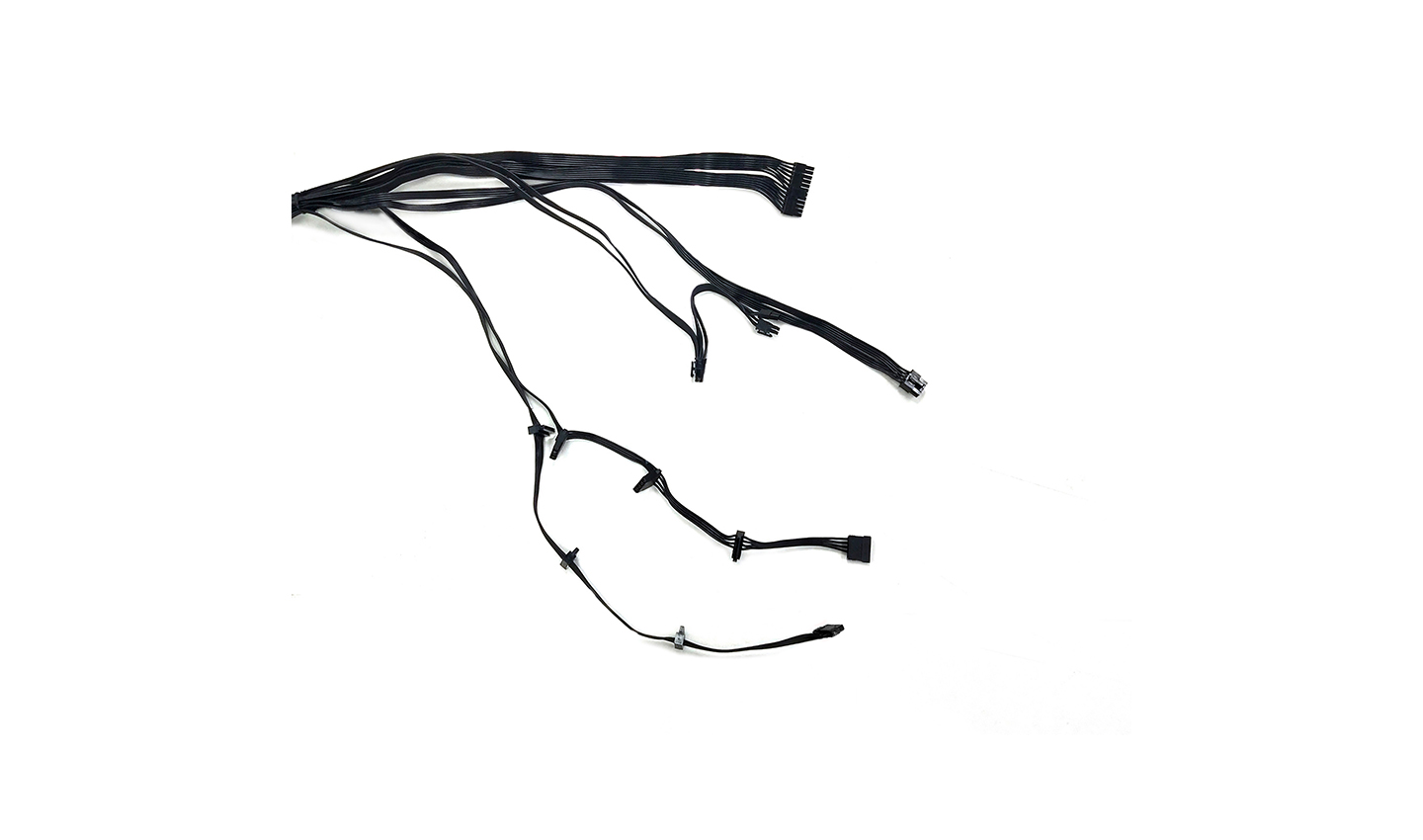

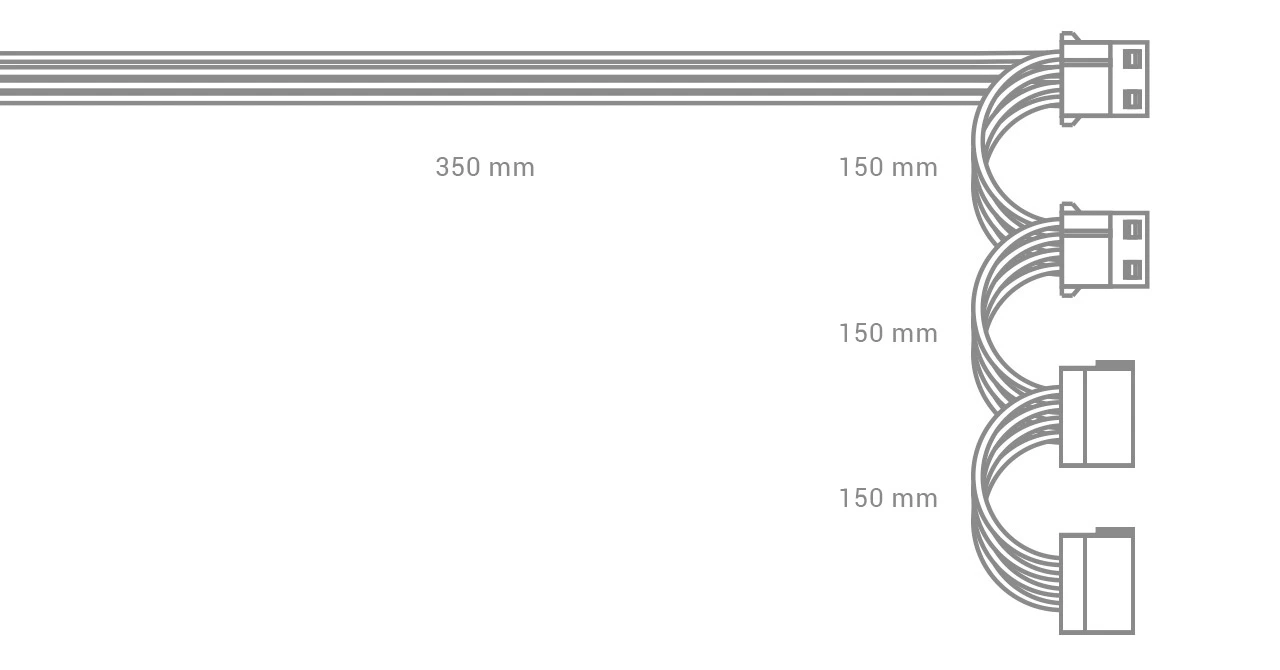

Longer Cable Design
Longer black flat cable design for enhancing cable management.
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATAx3+4pin Peripheralx1
X1
4pin Peripheralx2+ SATAx2
X1

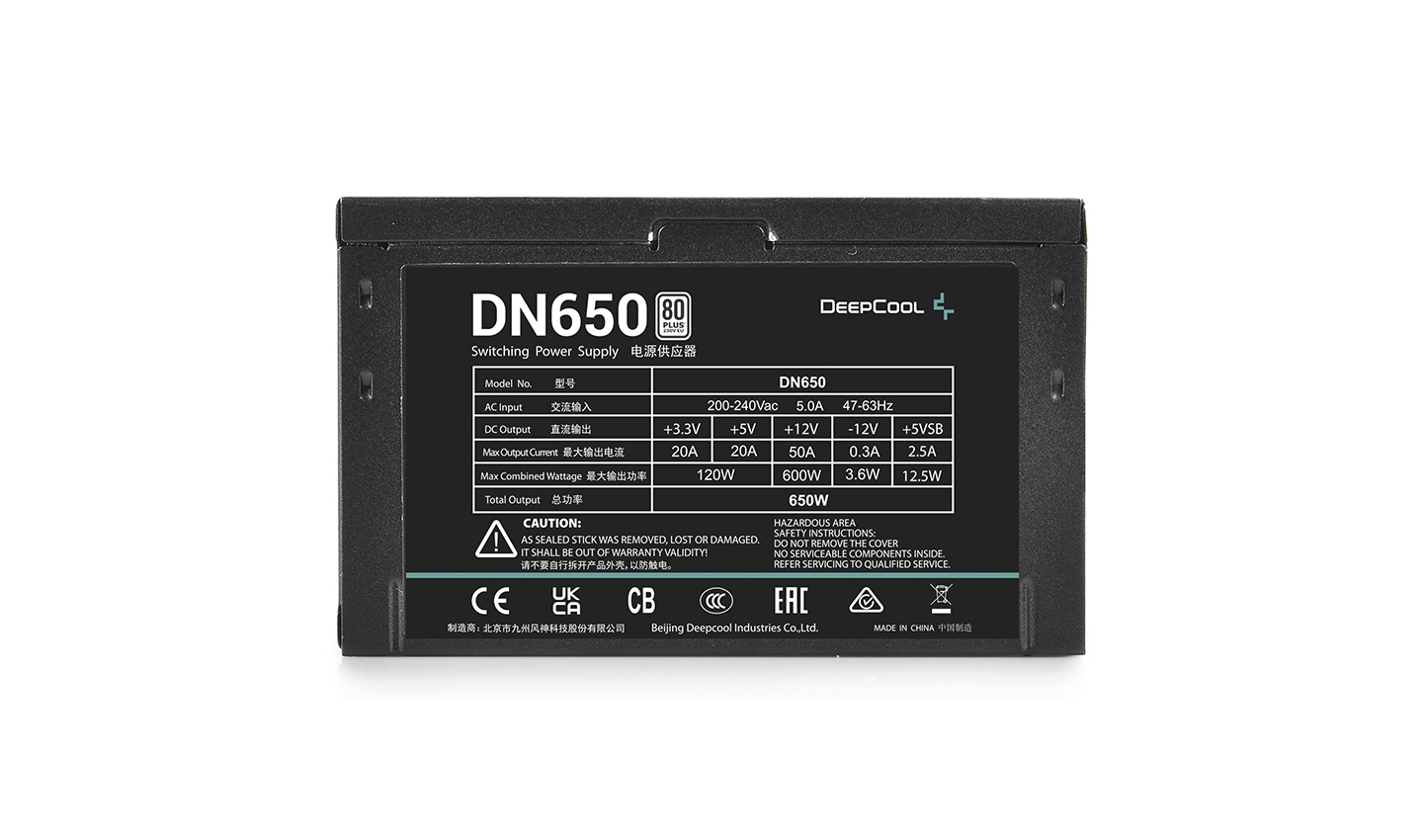

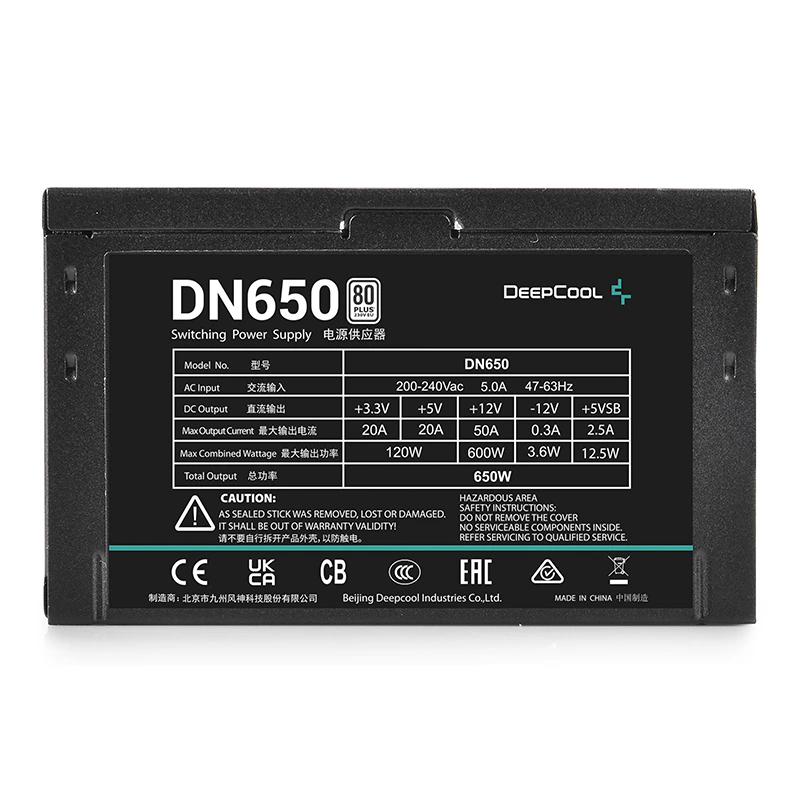

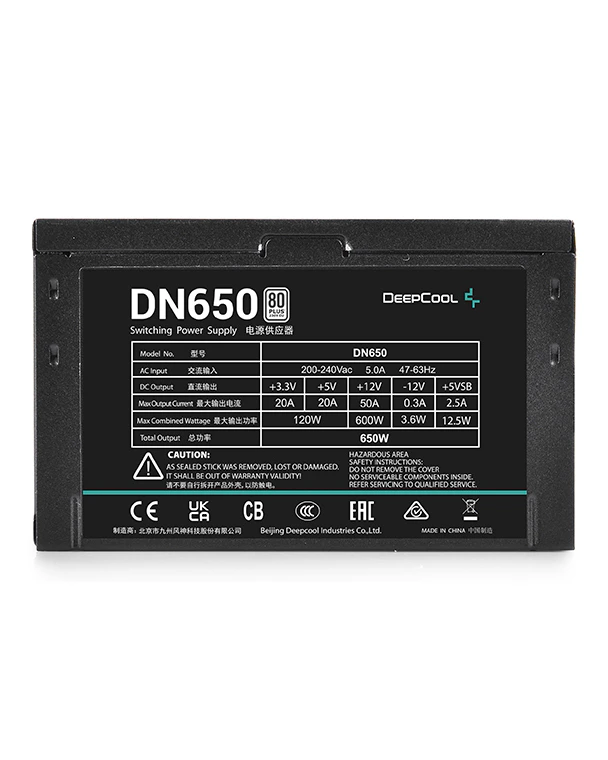

Technical Spec
ModelDN650
TypeATX 12V V2.4
Total Output650W
Input Voltage200-240V
Input Current5.0A
Input Frequency Range47~63Hz
Fan Size120mm
PFCActive PFC (>0.99)
Power Good Signal100-500ms
Hold Up Time>16ms
Efficiency85% Under Typical Load
ProtectionOVP/UVP/SCP/OPP
Operation Temperature0~40°C
RegulatoryCB/CE/EAC/UKCA/RCM
MTBF100,000 Hours
EAN6933412798842
P/NDP-230EU-DN650
