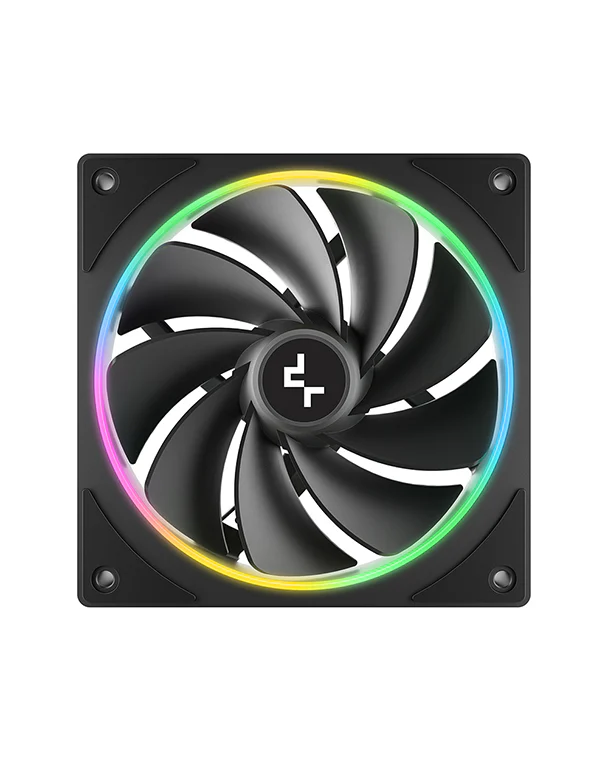

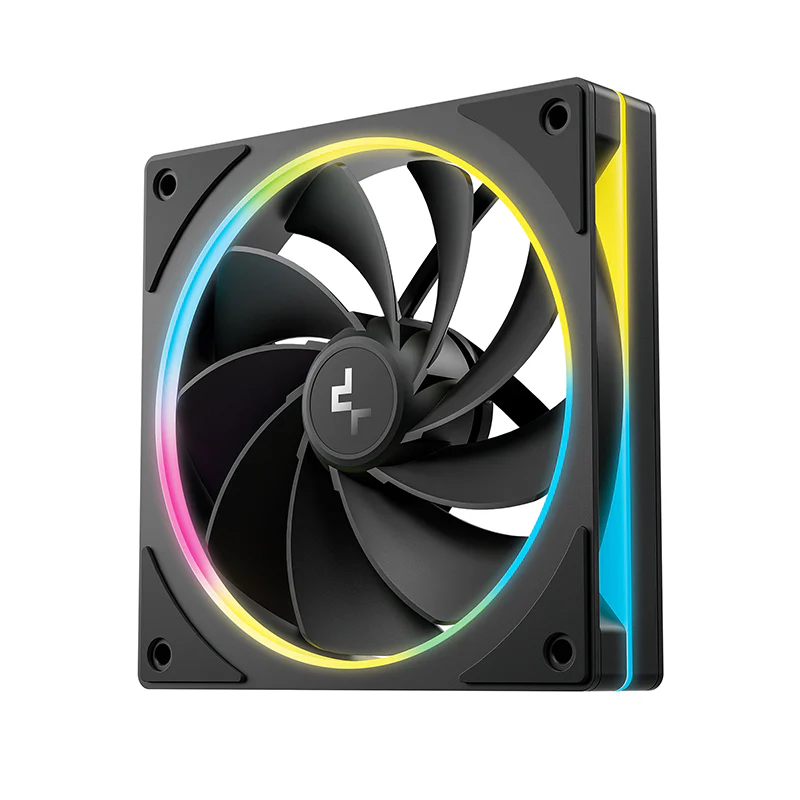

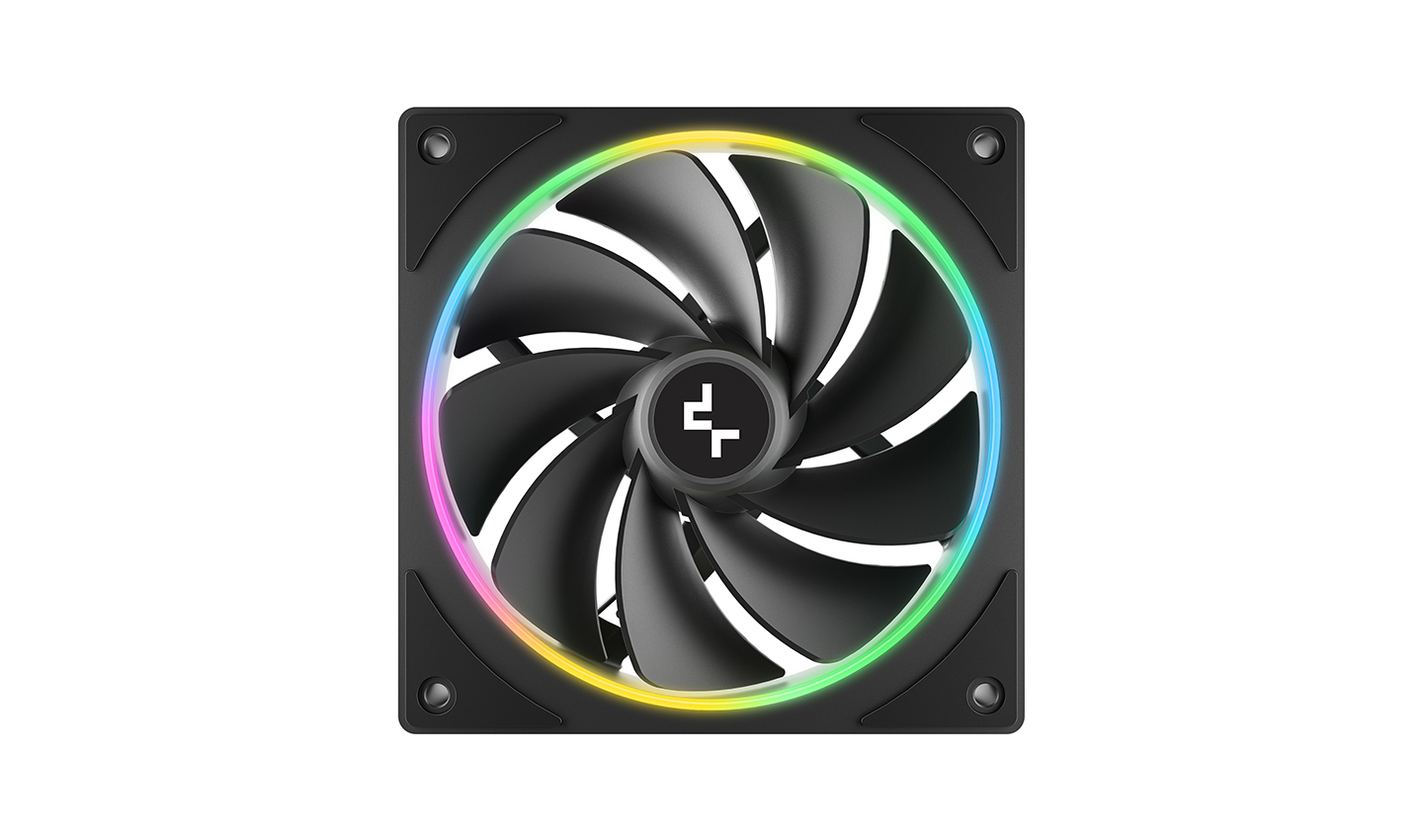

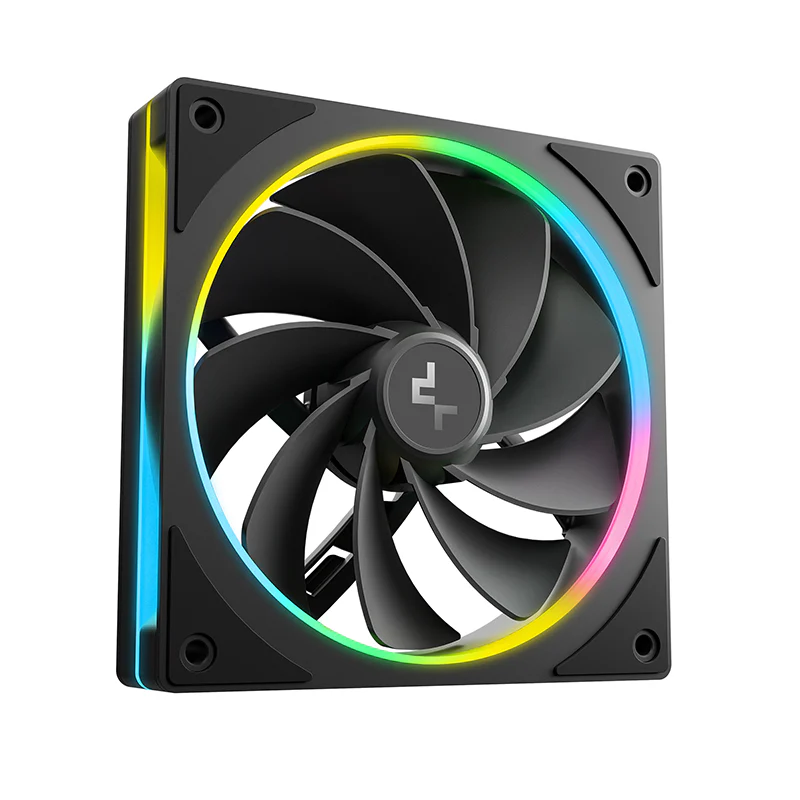

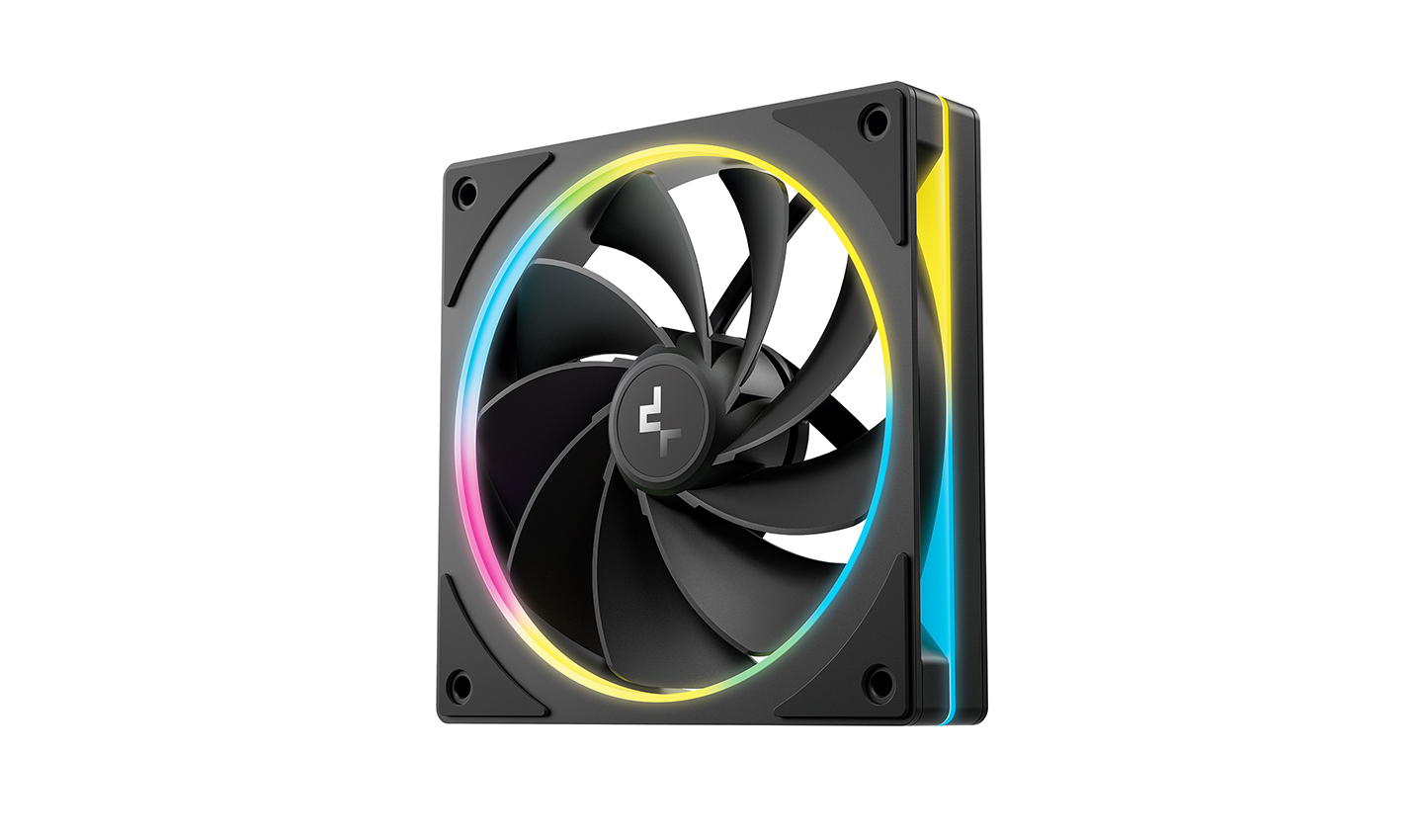

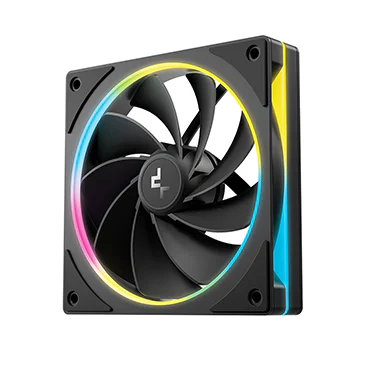

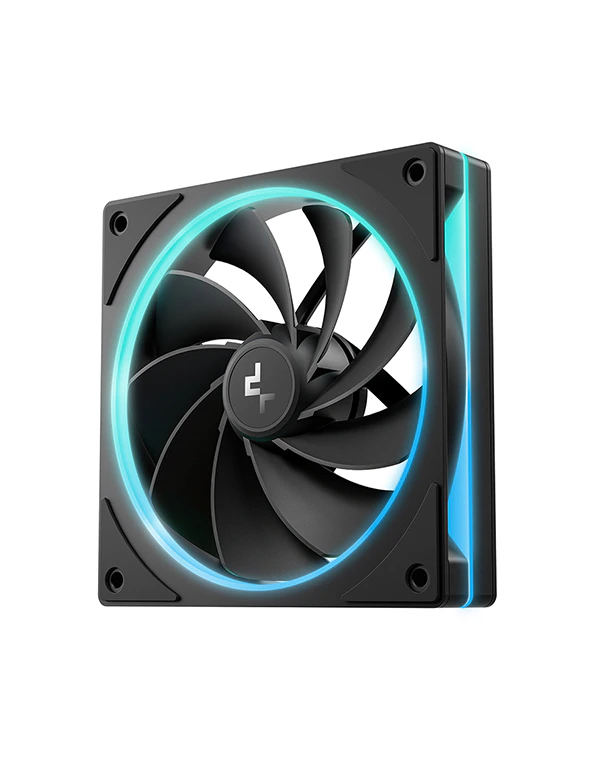

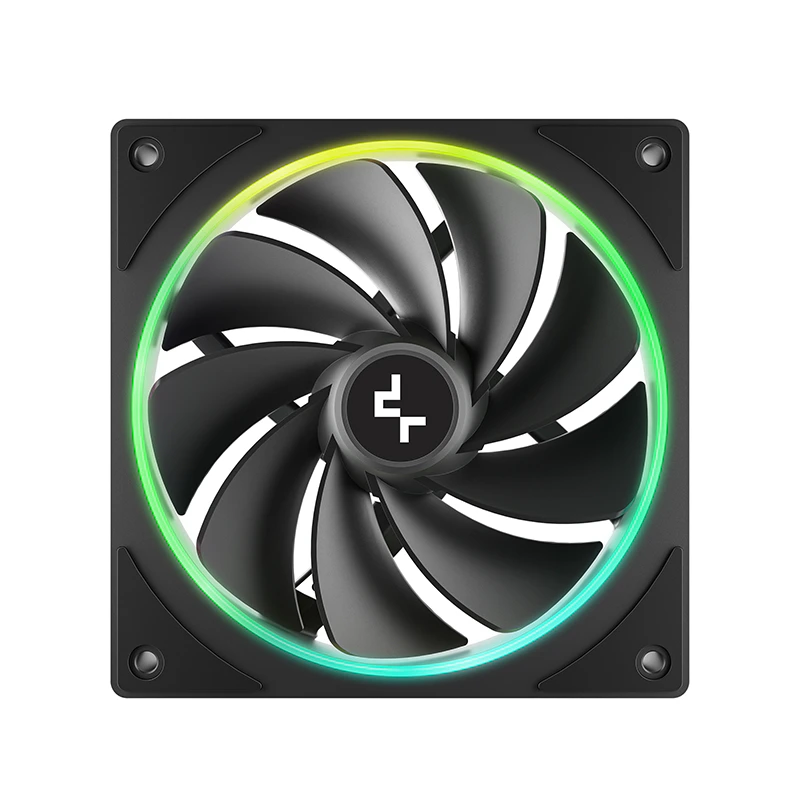

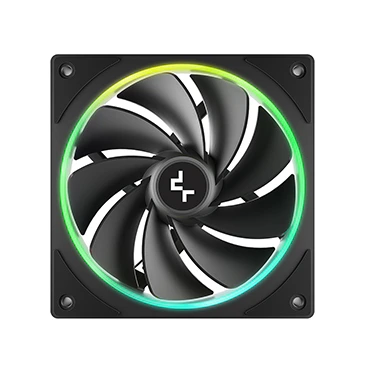

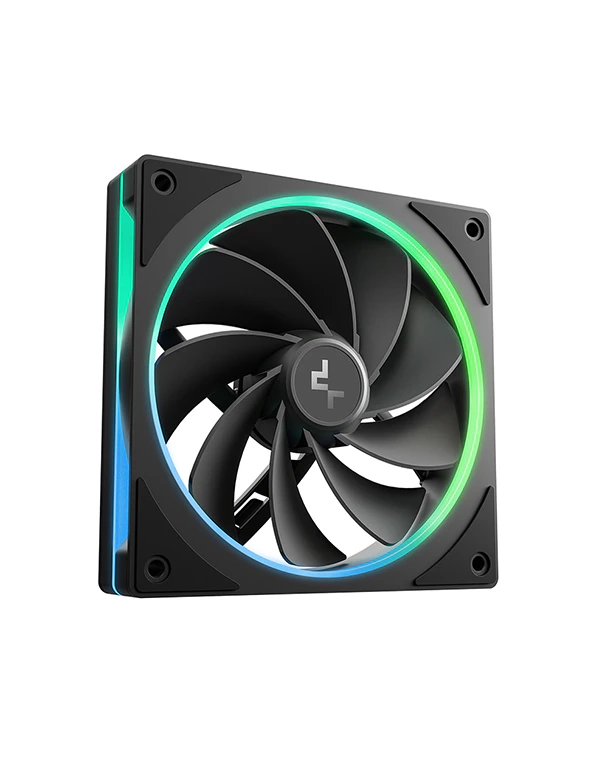

FL12R SE

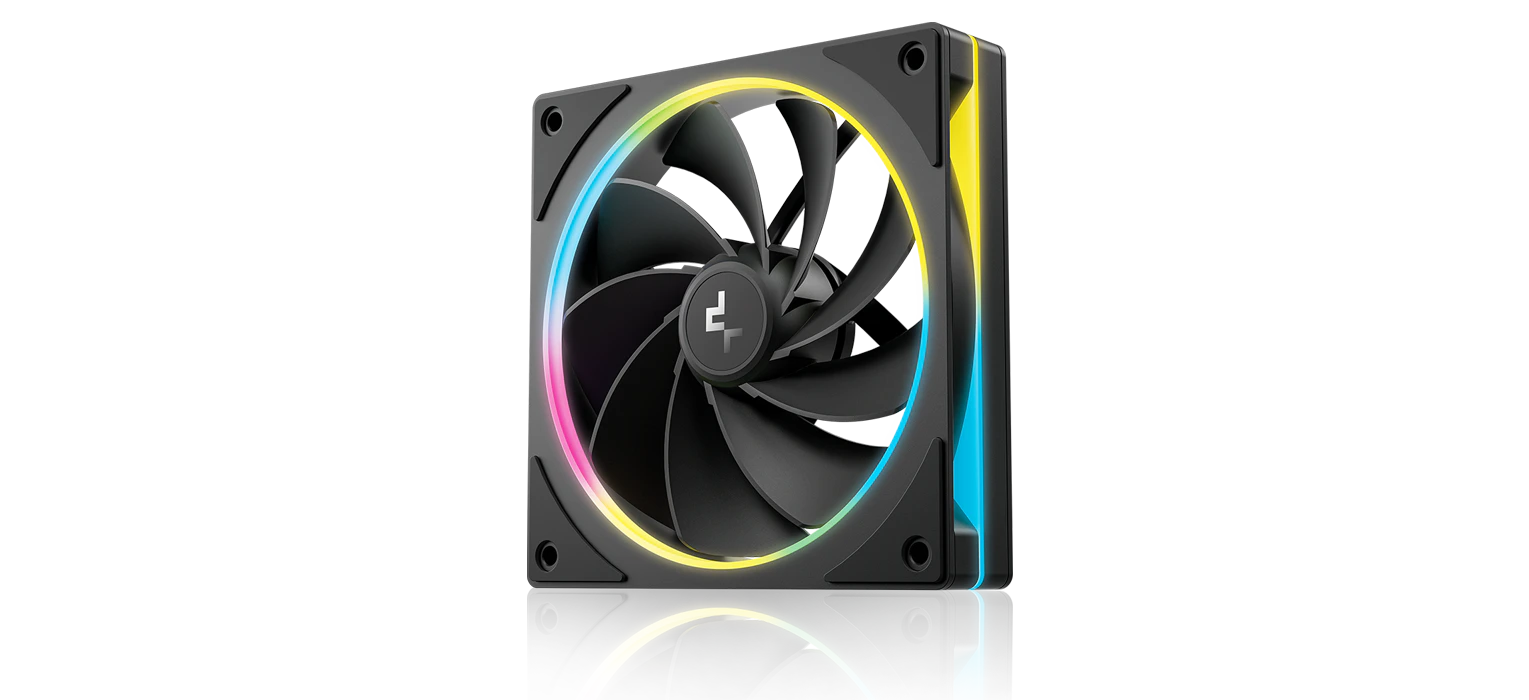

BRING ON THE LIGHT

LIGHT UP YOUR BUILD

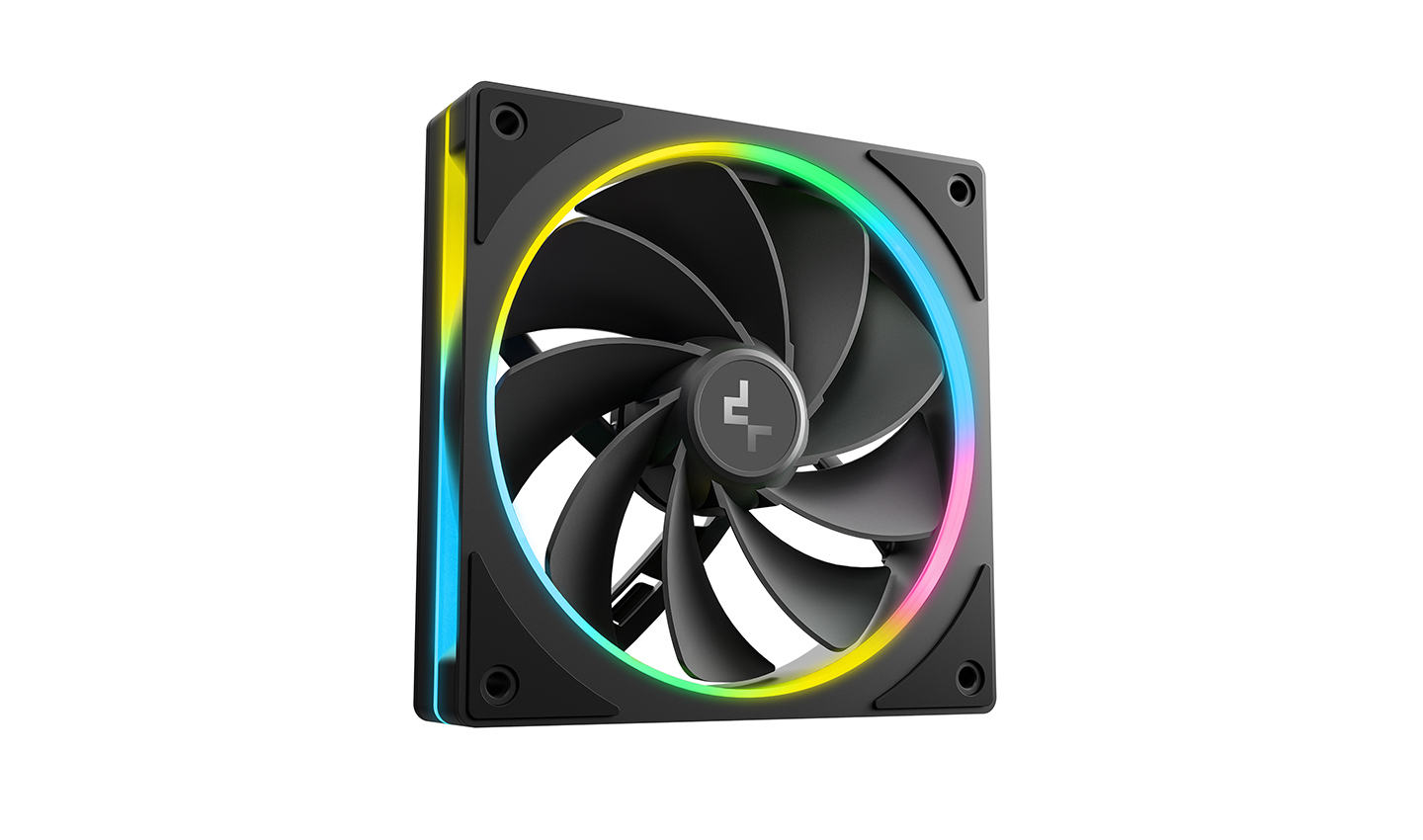

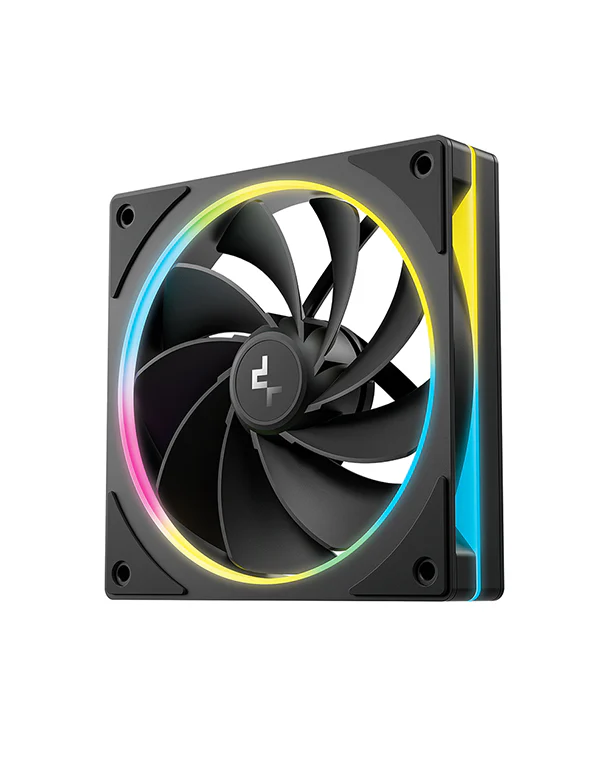

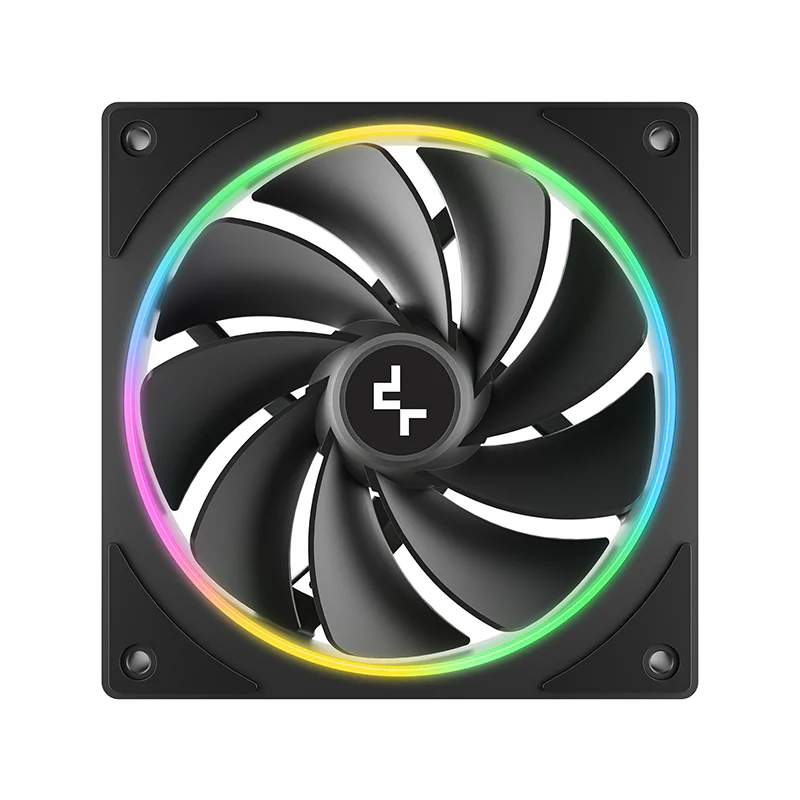

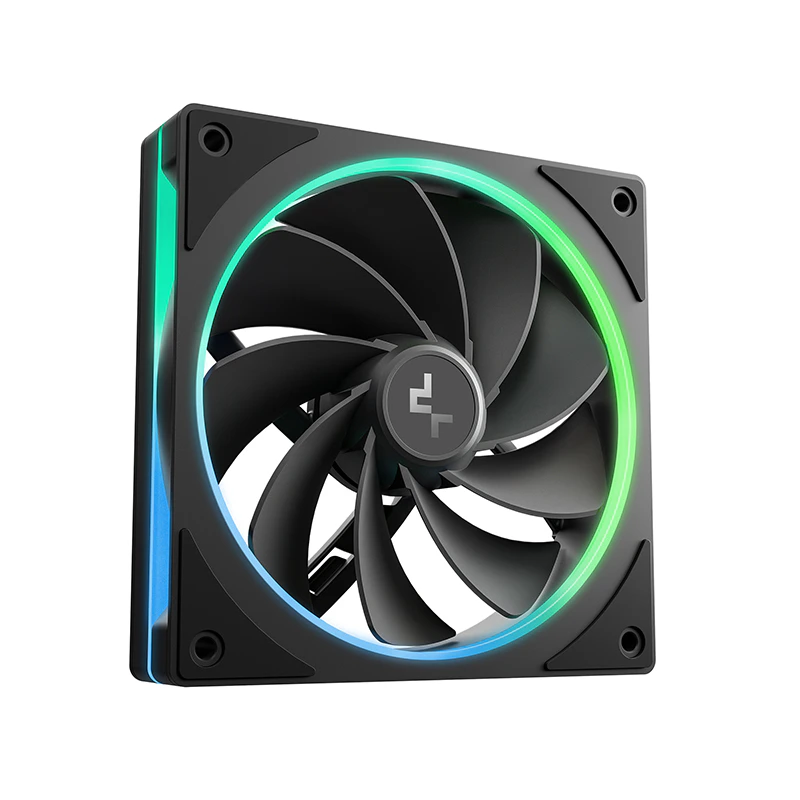

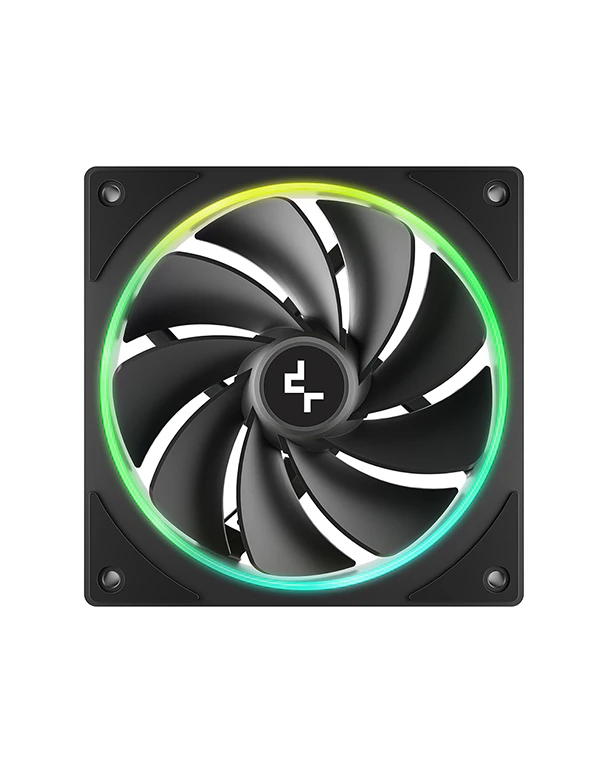

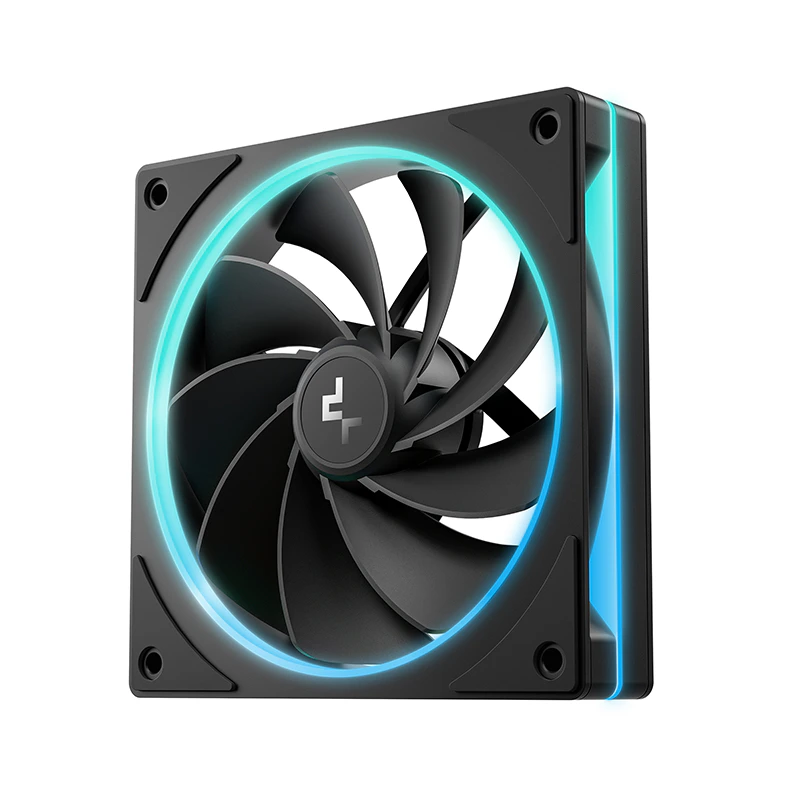

Utilize 20 individual addressable RGB LEDs, FL12R SE elevates its design aesthetics to a whole new level.

For full system A-RGB harmony, easily coordinate with other components through supported motherboard A-RGB software control.

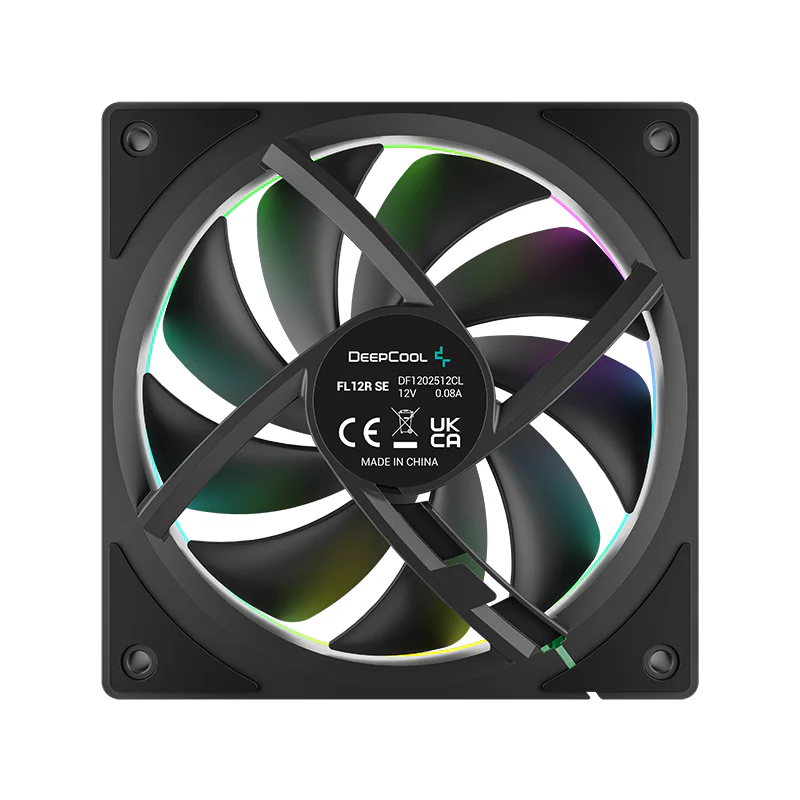

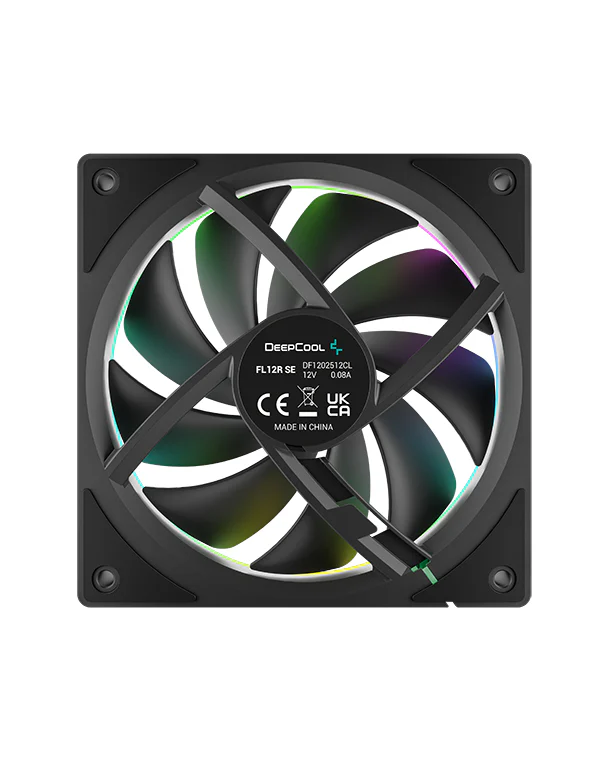

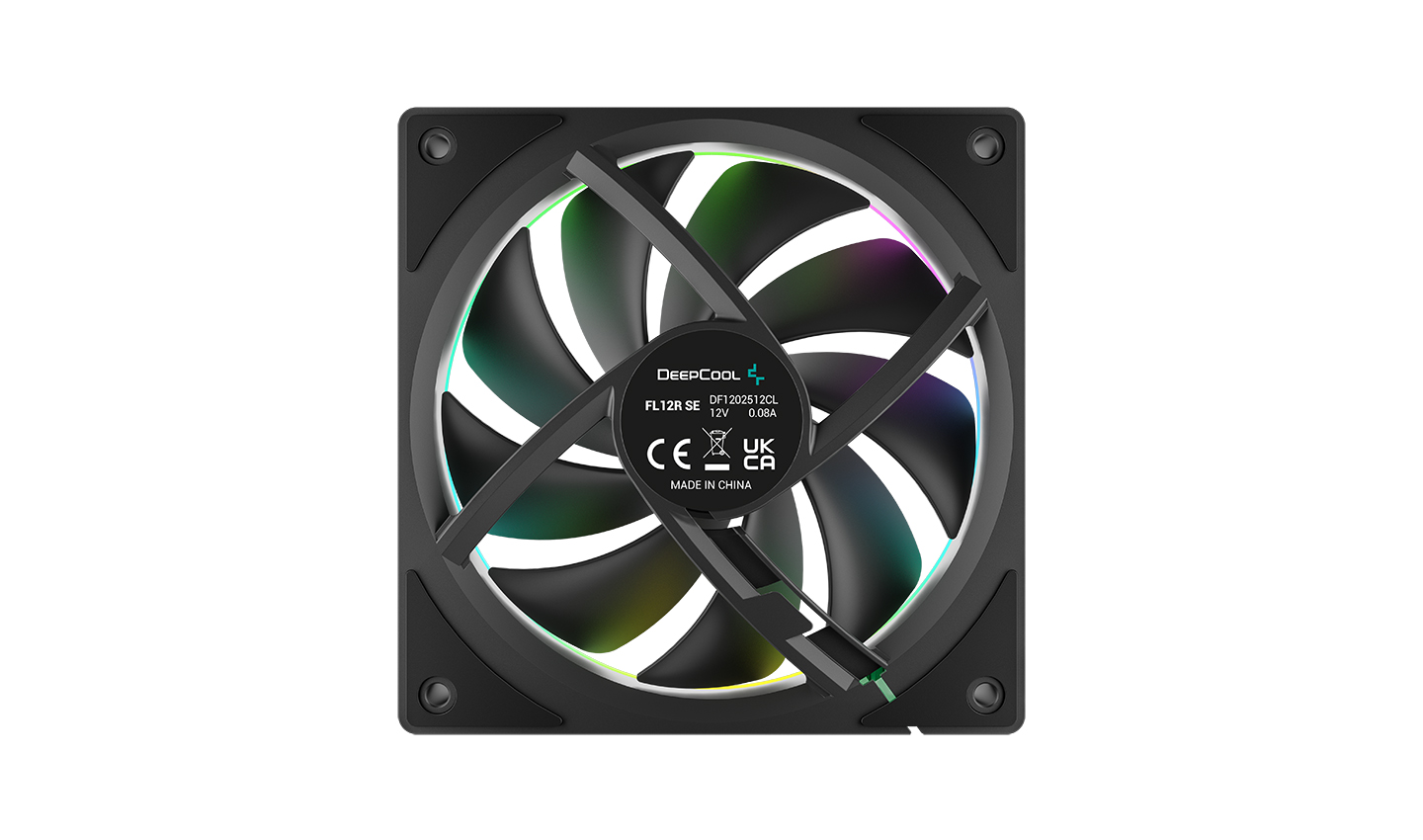

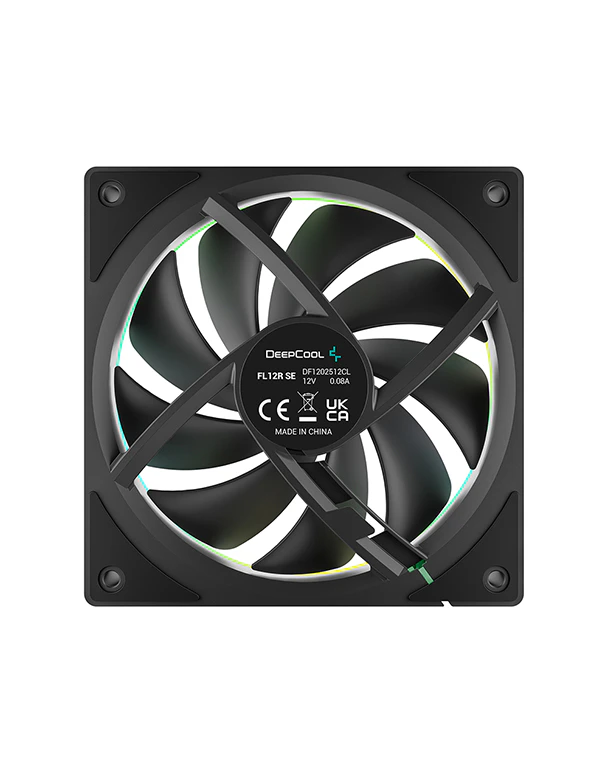

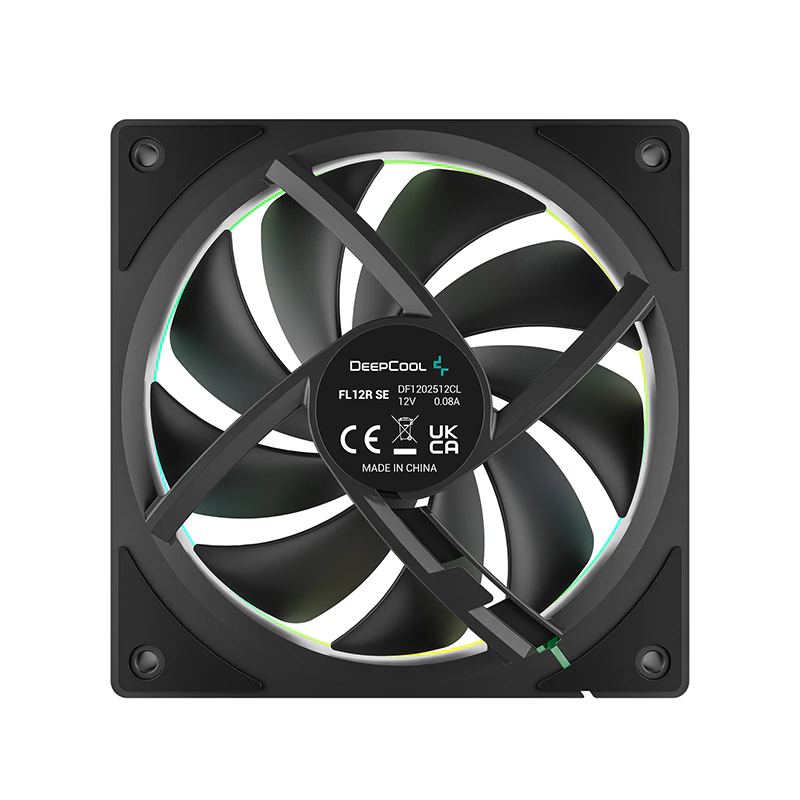

REVERSE FAN BLADE

Say goodbye to the “cross” on the other side - now you can use the fan as an intake fan and enjoy uninterrupted RGB fan look on both intake and exhaust.

COOLING YOU CAN TRUST

Equipped with a long-life hydraulic bearing. The FL12R SE PWM fans boast exceptional cooling specs while remaining relatively quiet.

400-1500 RPM ±10%

41.14 CFM

0.83 mmAq

≤25.79 dB(A)

DURABLE MATERIALS

The entire structure and dynamic balance are further strengthened by using an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades.

REDUCED VIBRATIONS

Eight anti-vibration pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

Technical Spec

Fan Dimensions	120×120×25 mm(L×W×H)
Net Weight	168g
Fan Speed	400~1500 RPM±10%
Fan Airflow	41.14 CFM
Fan Air Pressure	0.83 mmAq
Fan Noise	≤25.79 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.08 A
Fan Power Consumption	0.96 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	3.5 W
EAN	6933412785347
P/N	R-FL12RSE-BKAPN1-G
