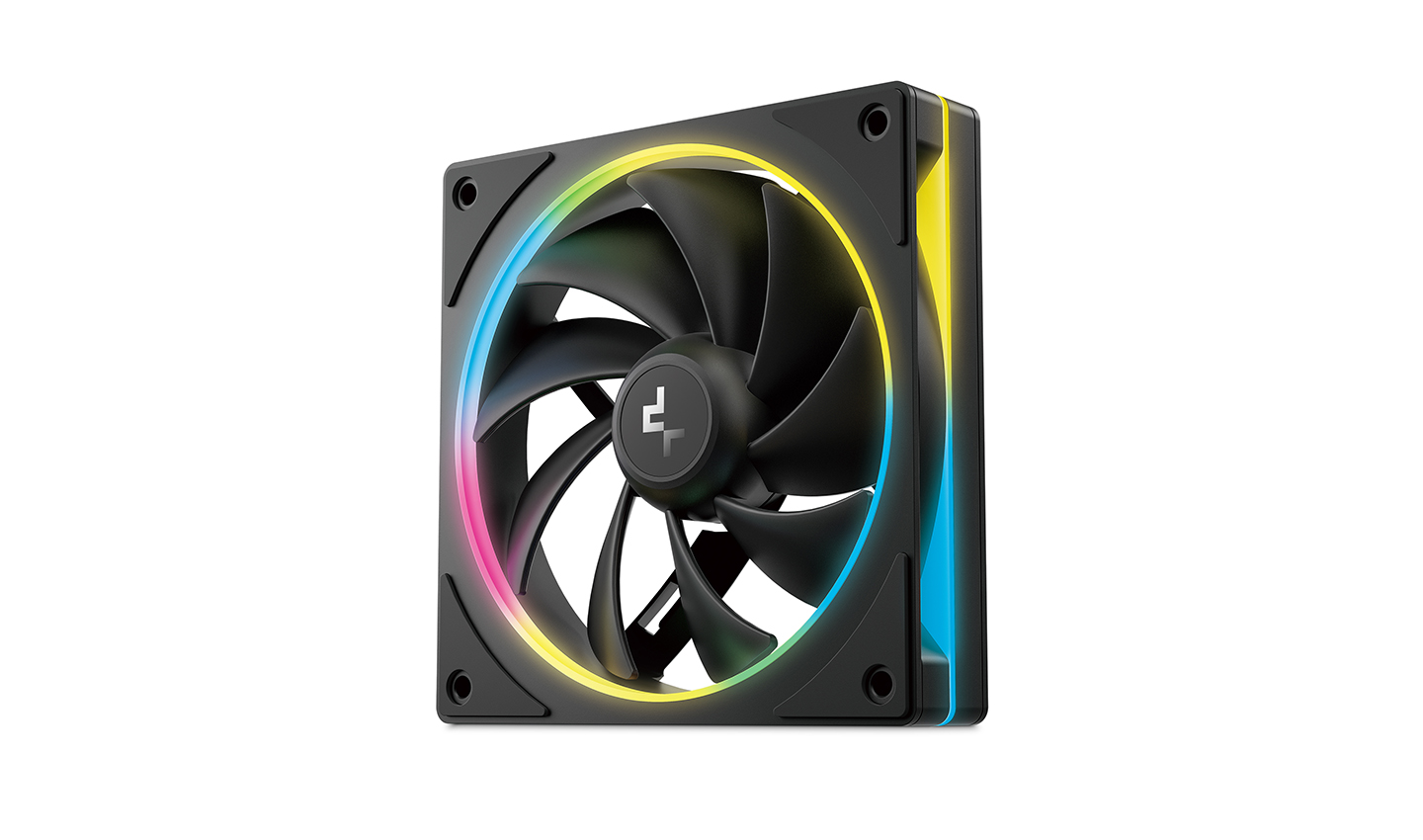

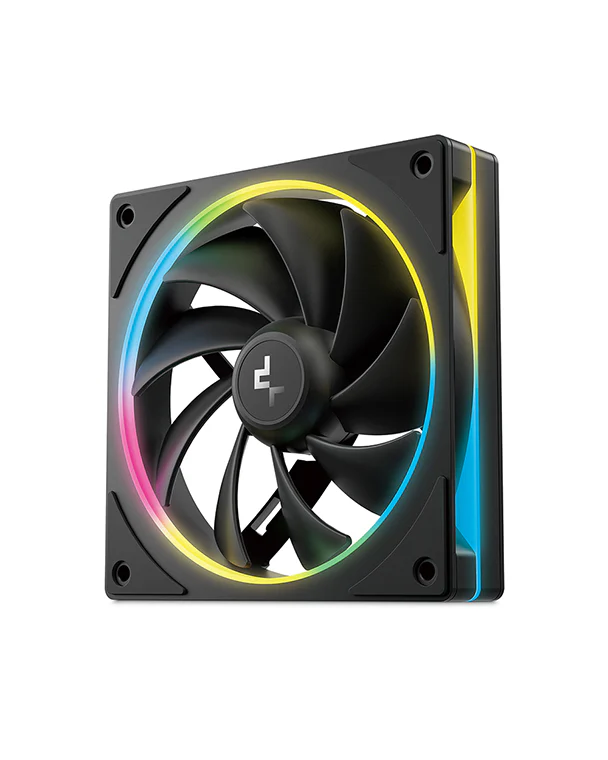

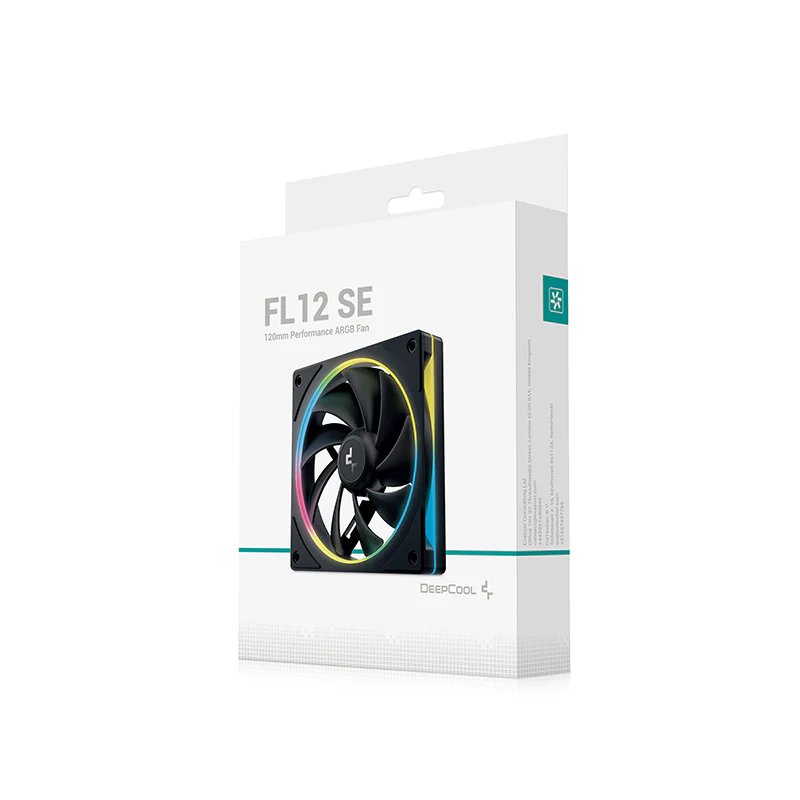

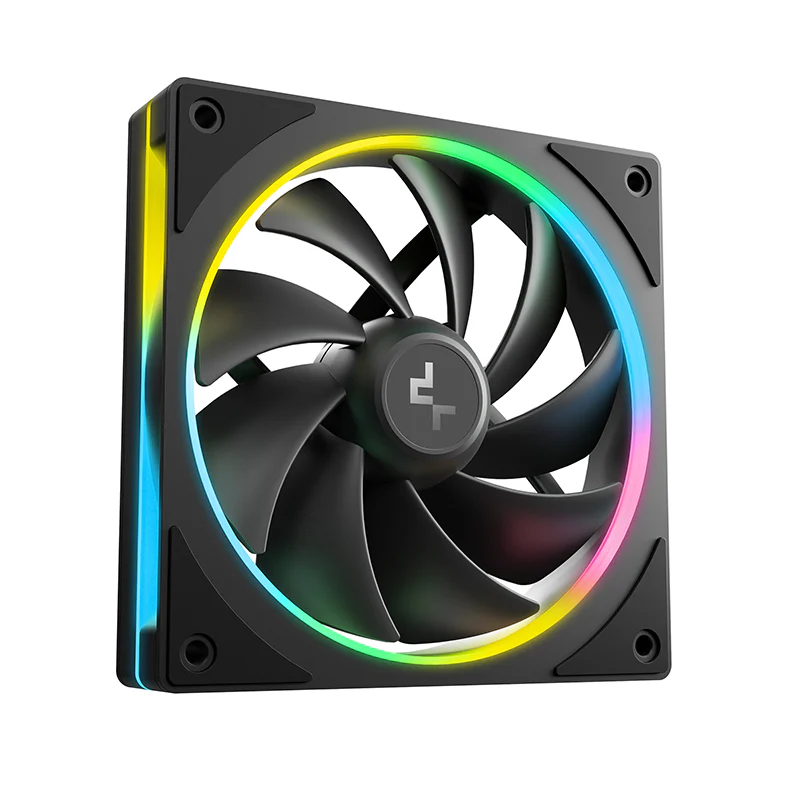

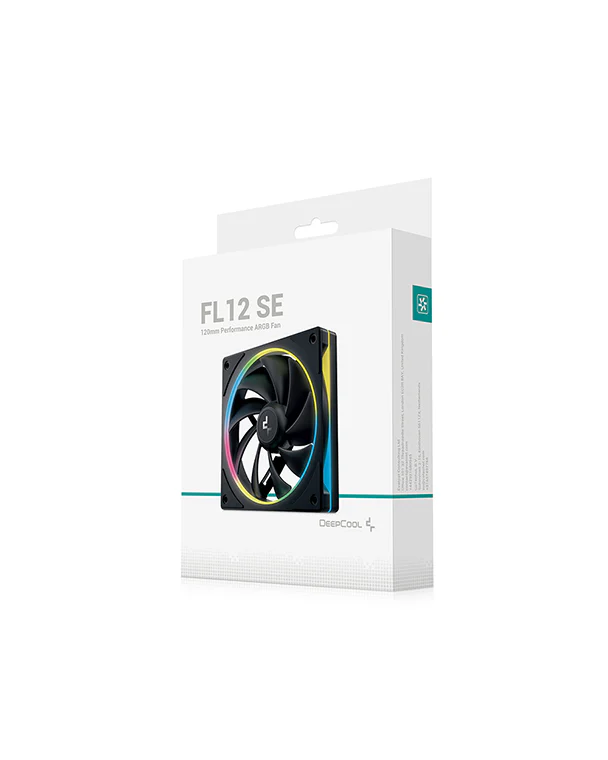

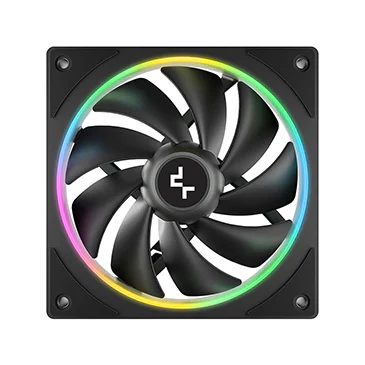

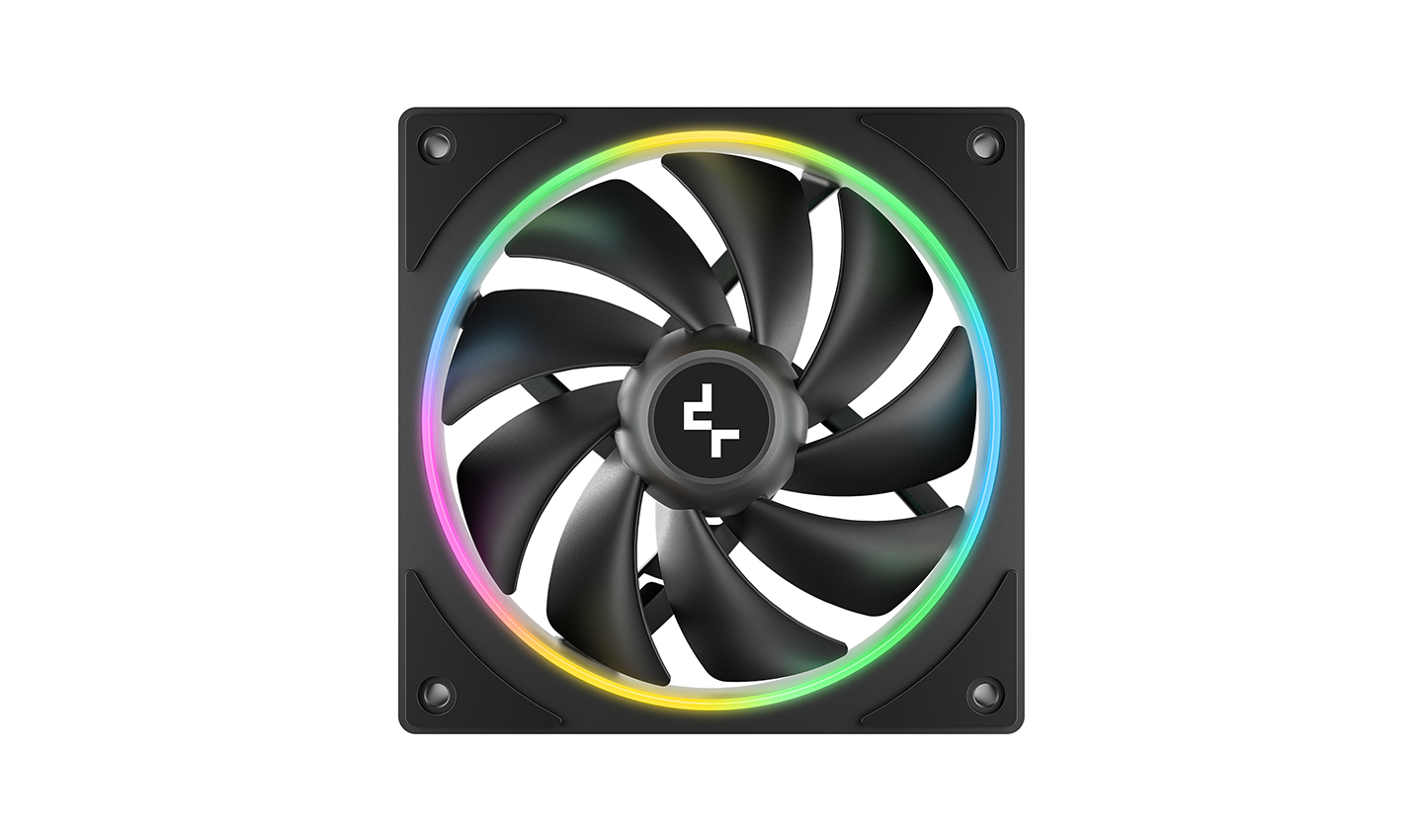

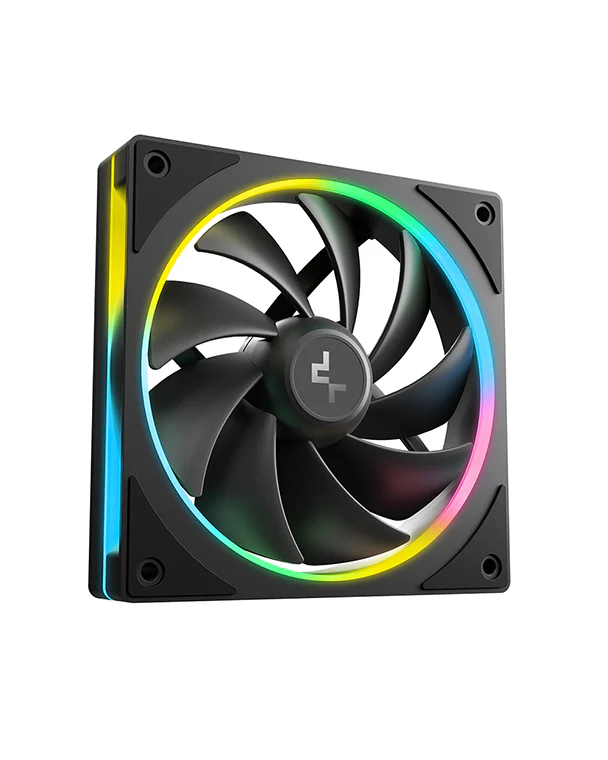

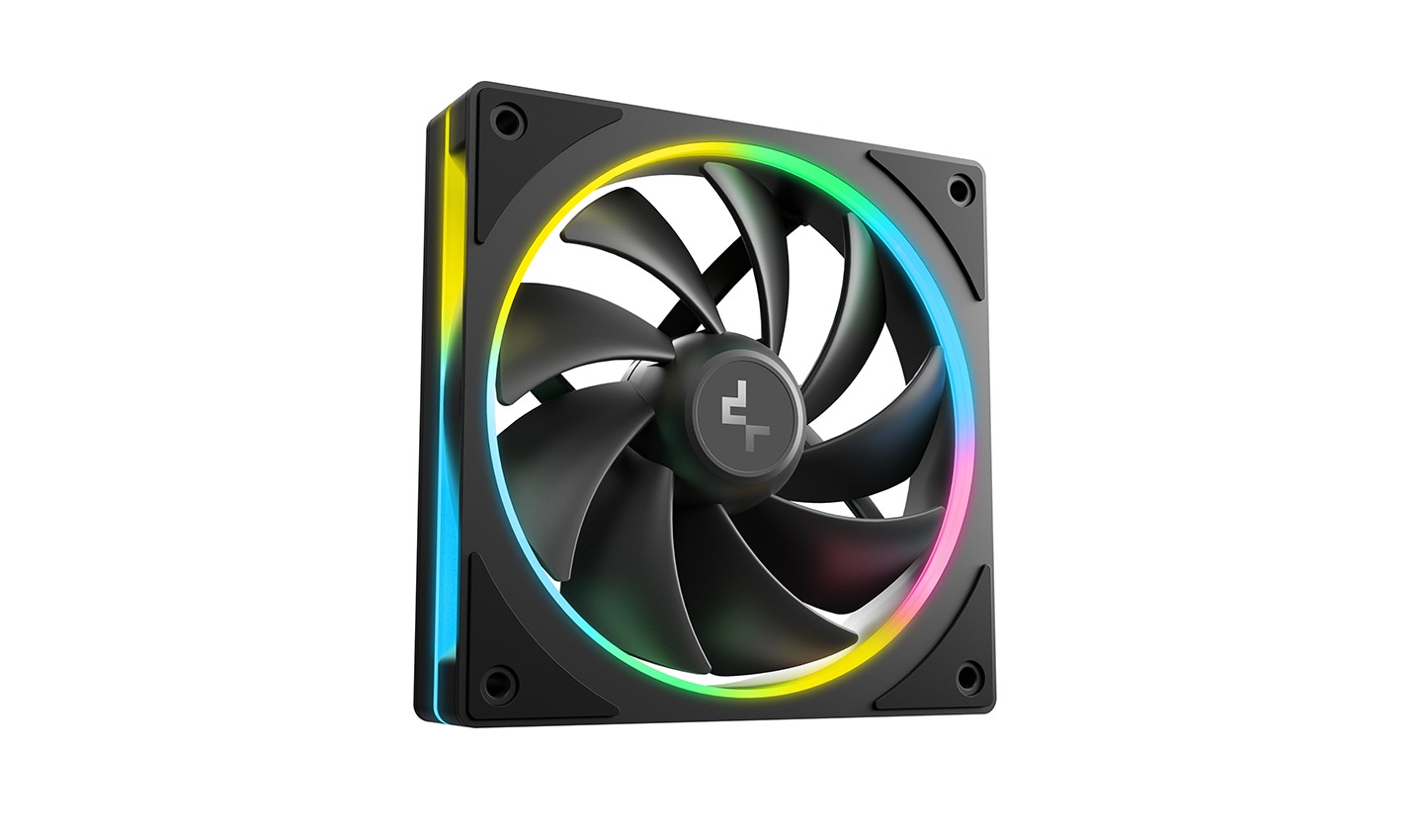

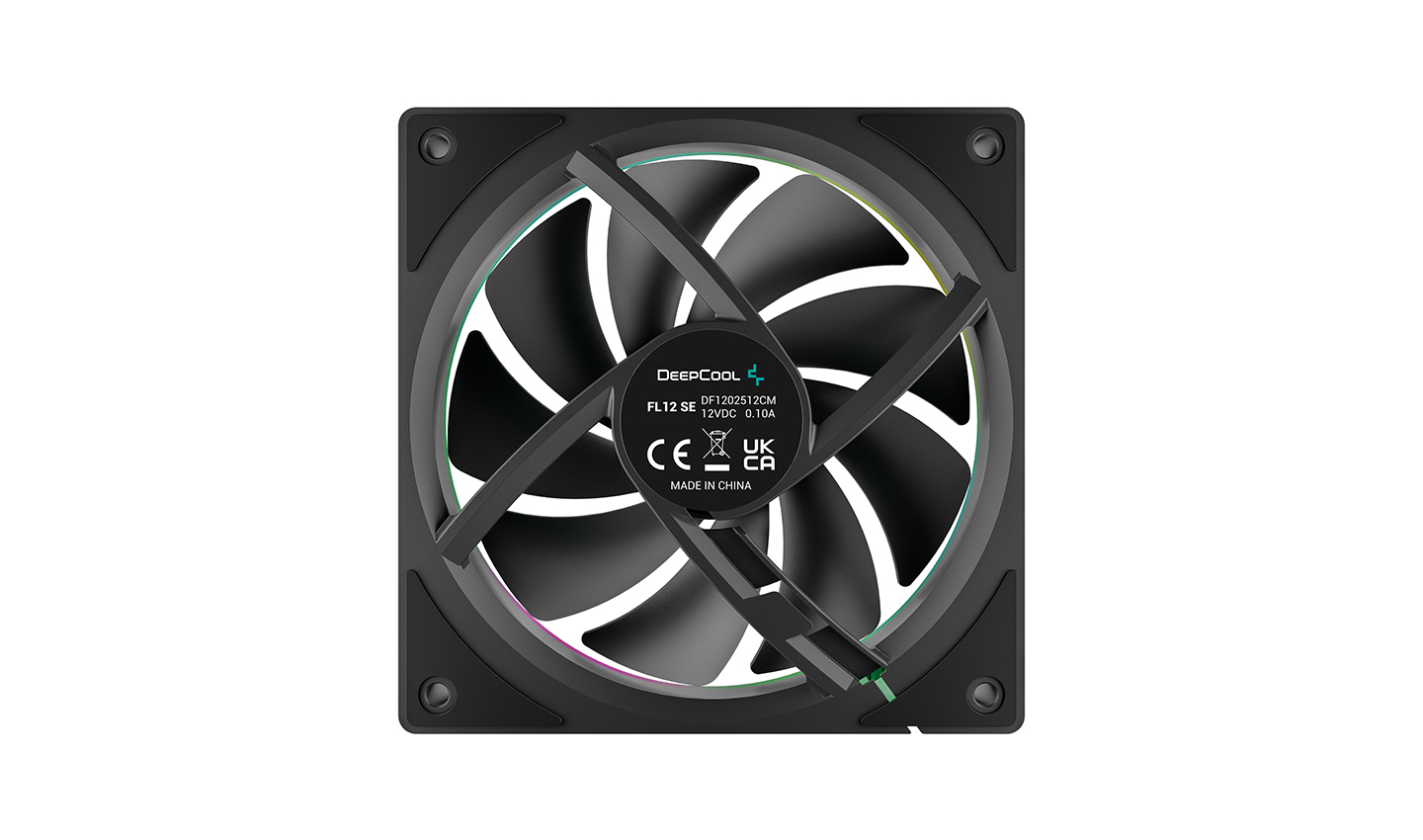

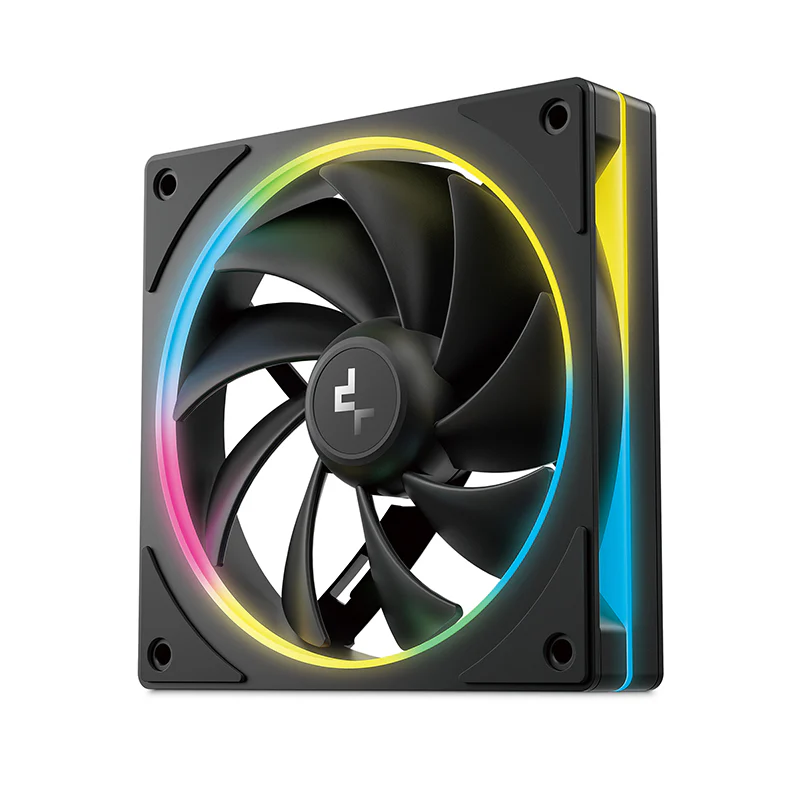

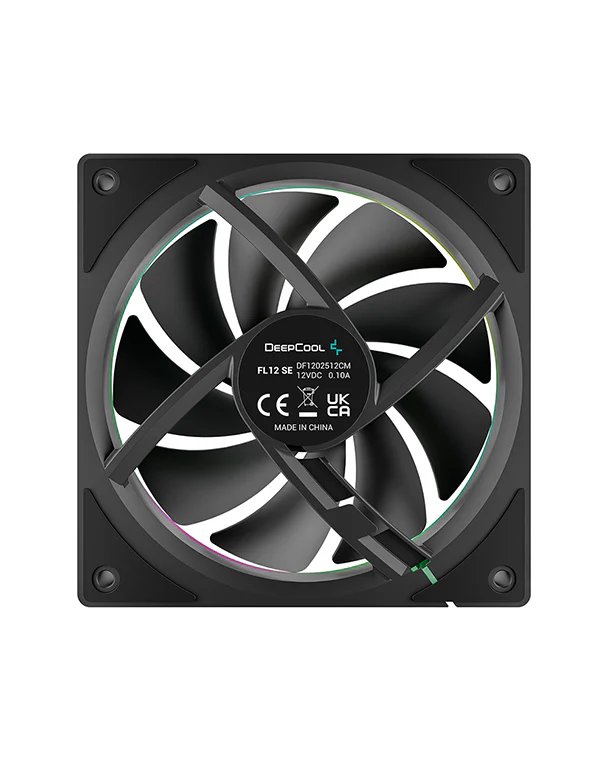

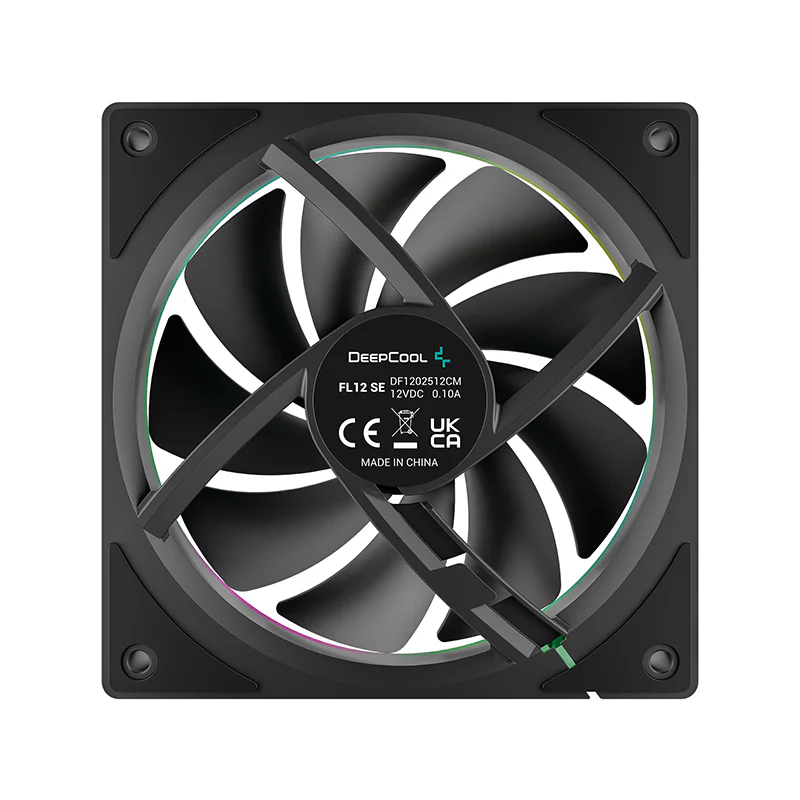

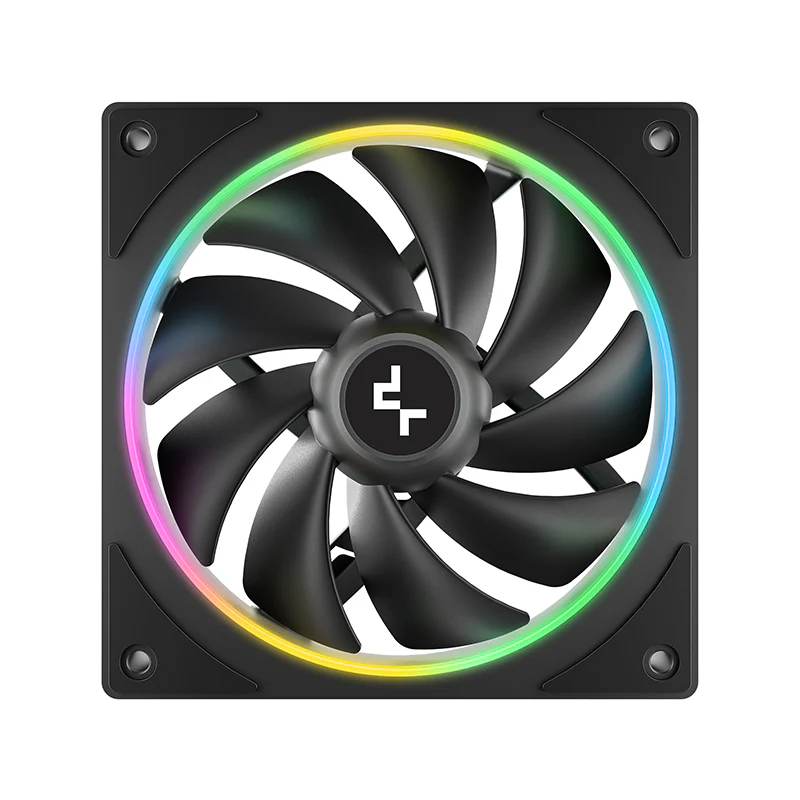

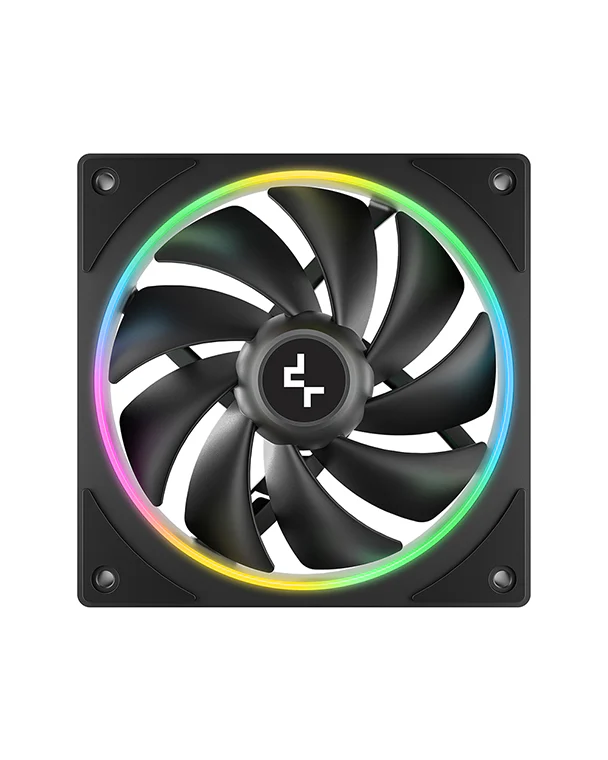

FL12 SE
The DeepCool FL12 SE delivers stunning lighting effects with 20 individually addressable RGB LEDs, combining vibrant colors with exceptional cooling performance.
COLOR
black
MODEL
FL12 SE
BRING ON THE LIGHT
LIGHT UP YOUR BUILD
Utilize 20 individual addressable RGB LEDs, FL12 SE elevates its design aesthetics to a whole new level.
For full system A-RGB harmony, easily coordinate with other components through supported motherboard A-RGB software control.
COOLING YOU CAN TRUST
Equipped with a long-life hydraulic bearing. The FL12 SE PWM fans boast exceptional cooling specs while remaining relatively quiet.
400-1900 RPM ±10%
50.74 CFM
2.04 mmAq
≤28.67 dB(A)
DURABLE MATERIALS
The entire structure and dynamic balance are further strengthened by using an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades.
REDUCED VIBRATIONS
Eight anti-vibration pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
Technical Spec
Fan Dimensions120×120×25 mm(L×W×H)
Net Weight172g
Fan Speed400~1900 RPM±10%
Fan Airflow50.74 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤28.67 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.10 A
Fan Power Consumption1.2 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption3.5 W
EAN6933412785309
P/NR-FL12SE-BKAPN1-G
Download
FL12 SE Manual.pdf
