FK120-3 IN 1 - DeepCool

The Beast mode for your AK620

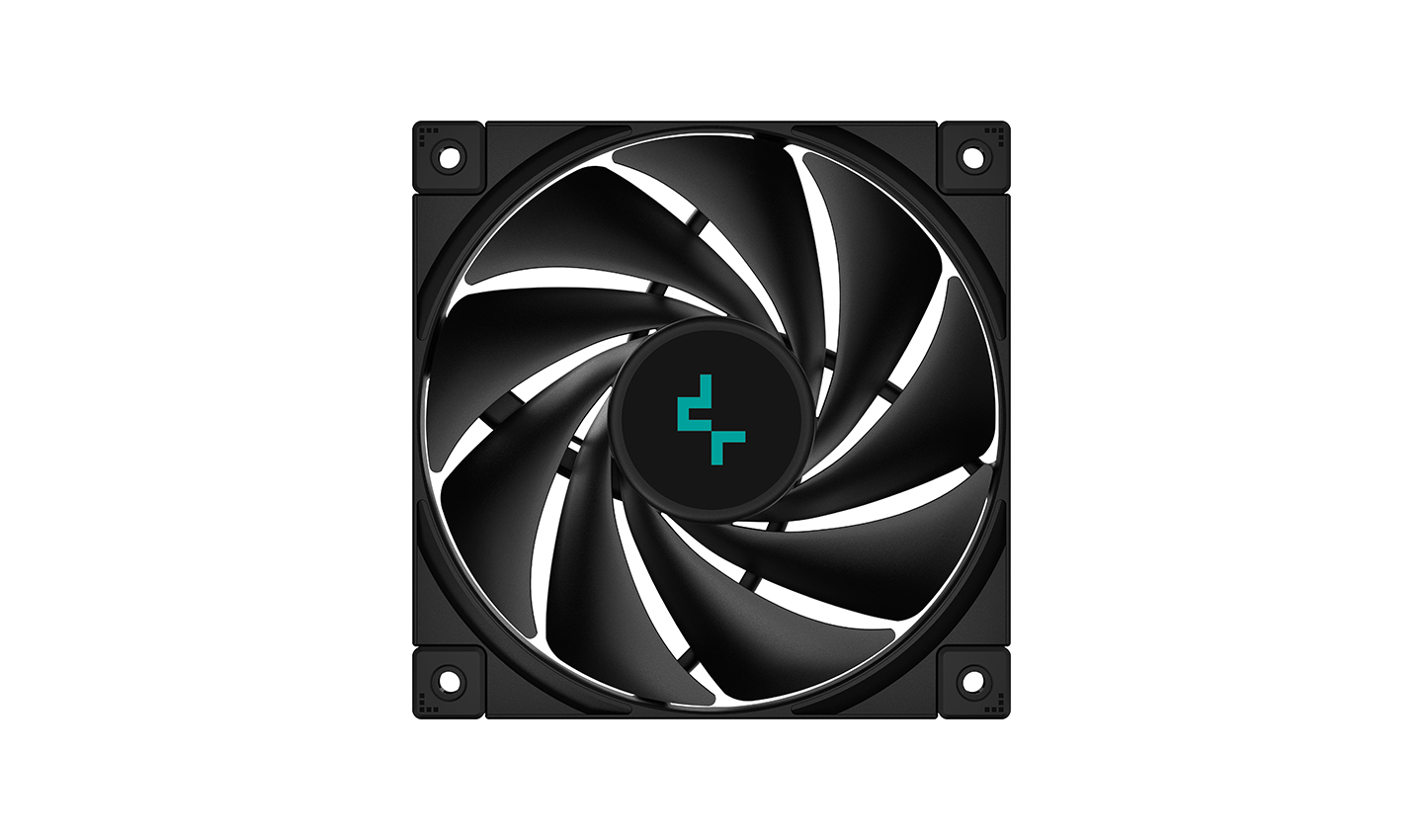

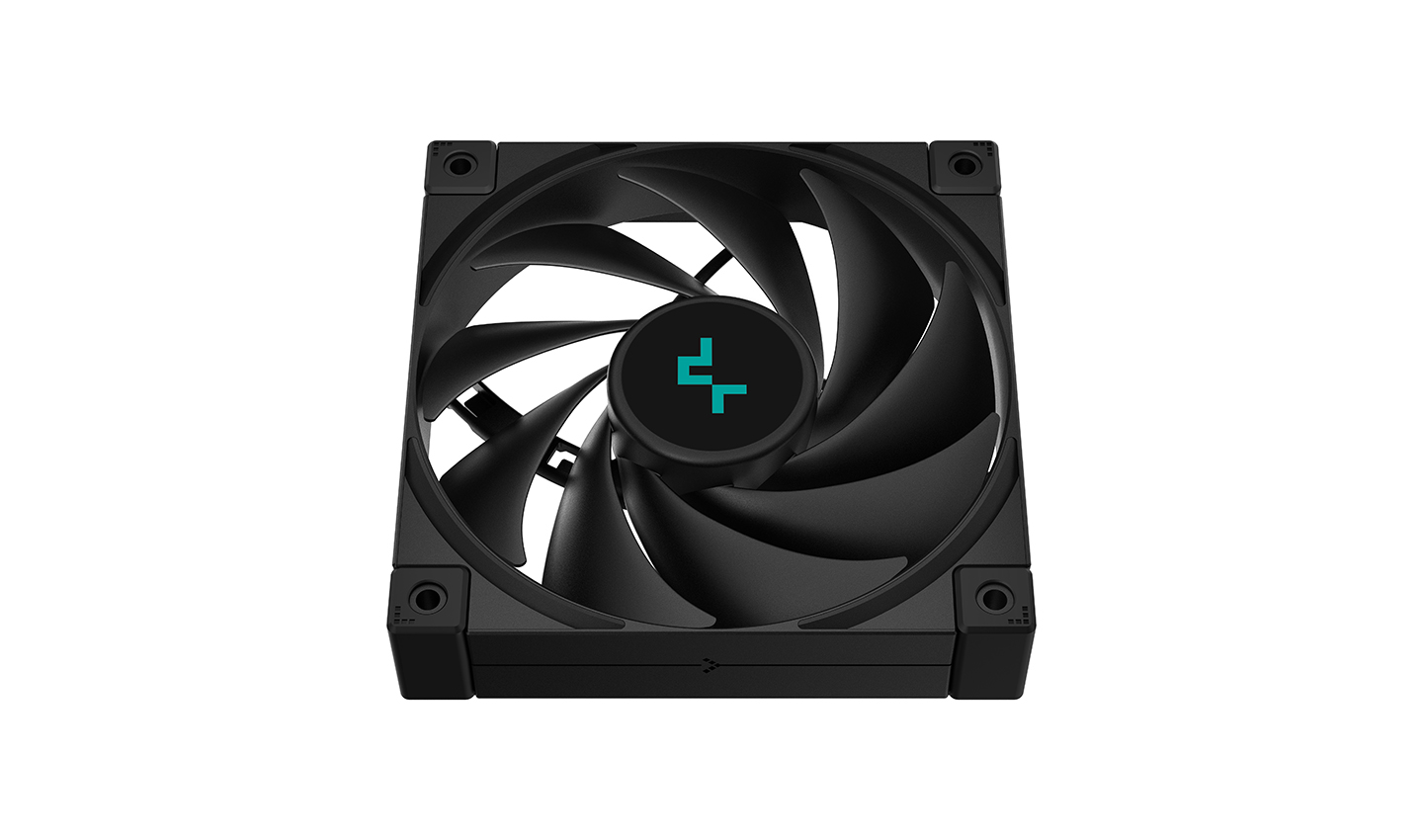

FK120-3 IN 1

High-Performance PWM Fan

Designed With Precision

Carefully constructed and tested to enhance static pressure and concentrate airflow for outstanding cooling performance on any mounting application including cooler heat sinks, radiators, and case fan configurations. The narrow frame bezel and wide fan blade provides increased surface area to deliver higher efficiency.

Elite Cooling

Extremely efficient with a PWM range up to 1850RPM that maximizes air pressure and airflow for impressive cooling results while offering dynamic balance between high performance and low-noise operation.

500-1850 RPM

Dynamic PWM Range

2.19 mmAq

Max Static Pressure

68.99 CFM

Max Airflow

Super Silent

Maxing out at just 28dbA under full load, the extremely silent FK120 fan is exceptionally designed for quiet noise levels. The fluid dynamic bearing provides superior performance and reliable long-term stability.

Outstanding Details

High-quality polybutylene terephthalate (PBT) material is used to ensure increased durability and wear resistance, allowing the fan blades to maintain high tensile strength. Shock-absorbing rubber pads shield the screw mounts to reduce unnecessary vibrations for stable operation.

Technical Spec

Fan Dimensions	120×120×25 mm
Net Weight	527 g
Fan Speed	500~1850 RPM±10%
Fan Airflow	68.99 CFM
Fan Air Pressure	2.19 mmAq
Fan Noise	≤28 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.12 A
Fan Power Consumption	1.44 W
EAN	6933412710615
P/N	R-FK120-BKNPF3-G-1
