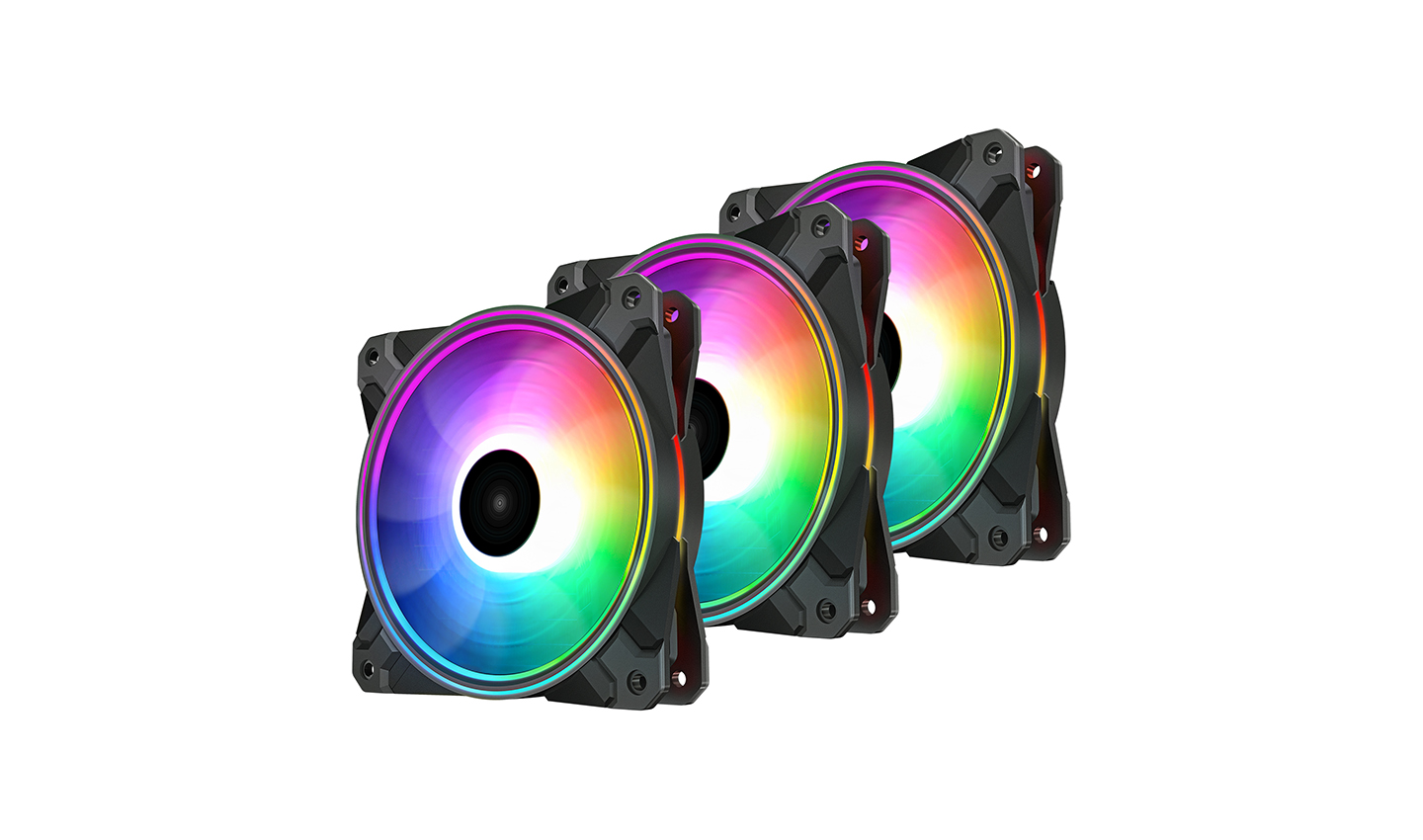

CF120 PLUS-3 IN 1

Overflowing Light

LIGHT UP YOUR BUILD

The CF120 PLUS case fan fits 18 individual addressable RGB LEDs across the fan blades and housing to create vibrant lighting effects in a layered design.

RGB CONTROLLER

Easily switch between 6 preset lighting effects with the included RGB controller. Customize to fit with your color settings.

Double Click to Switch
-Full RGB/ Halo Only

Hold for 3 seconds to Switch
-RGB ON/Off

MOTHERBOARD RGB SYNC

Sync with your motherboard for direct control using RGB software, including Chroma.

MOTHERBOARD RGB SYNC

Sync with your motherboard for direct control using RGB software, including Chroma.

KEEPING THINGS COOL

Maximize cooling efficiency with powerful fan speeds and PWM fan control to quickly lower system temperatures when needed and staying quiet under light loads.

500~1800 RPM±10%

Wide Speed Range

52.5 CFM

Ultra Airflow

≤28.8 dB(A)

Super Silent

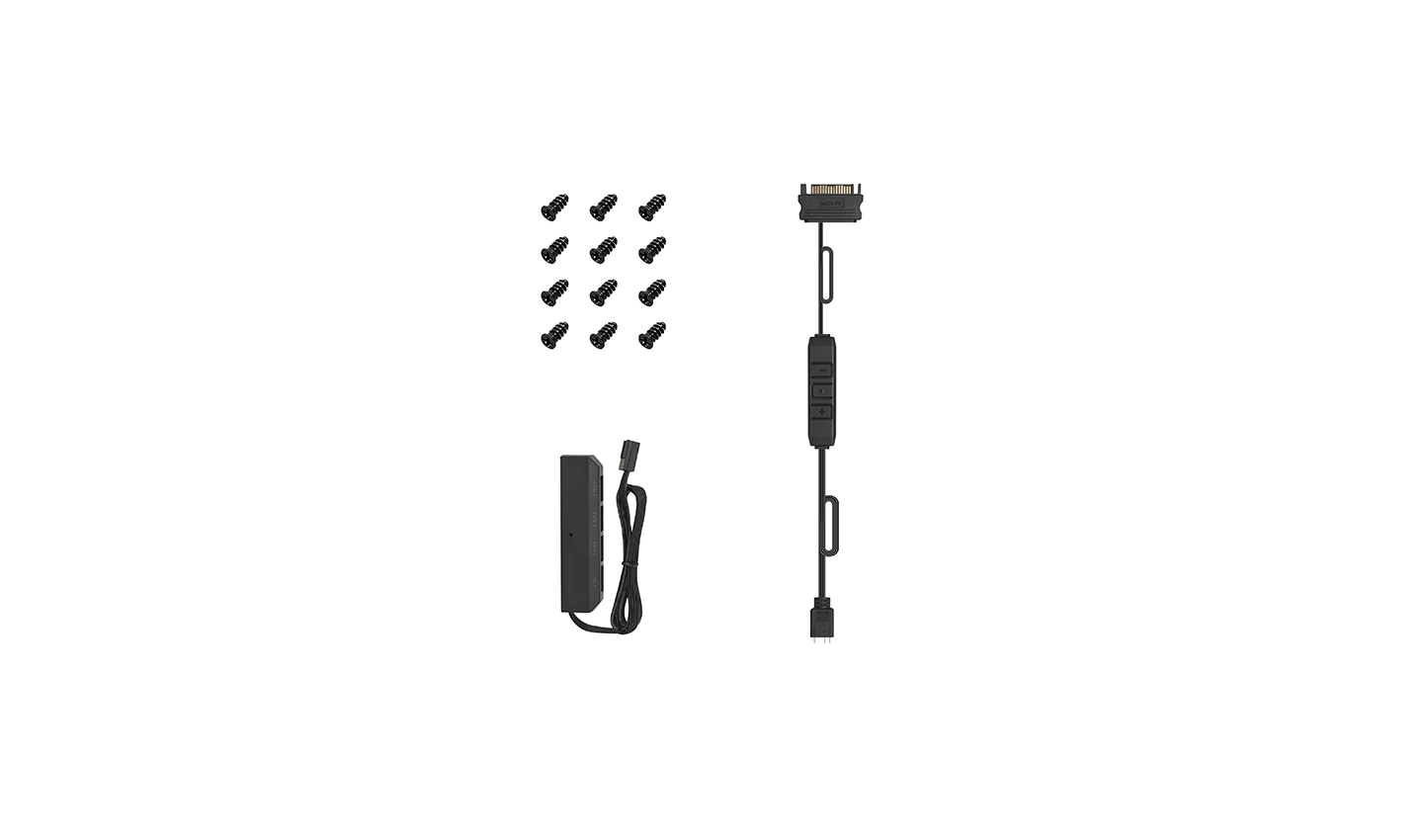

WHATS IN THE BOX

5V A-RGB Wire Controller
4 Ports PWM Hub
Screws

Technical Spec

Fan Dimension	120×120×26.5 mm(L×W×H)
Net Weight	569g
FAN Speed	500~1800 RPM±10%
Fan Air Flow	52.5 CFM
Fan Air Pressure	2.08 mmAq
Fan Noise Level	≤28.8 dB(A)
Fan Connector	4-Pin PWM
FAN Rated Voltage	12VDC
FAN Rated Current	0.18A

FAN Power Consumption	2.16W
LED Type	Addressable RGB LED
LED Rated Voltage	5VDC
LED Rated Current	0.63A
LED Rated Power	3.15W
LED Connector	3-pin（+5V-D-G）
EAN	6933412710509
P/N	DP-F12-AR-CF120P-3P

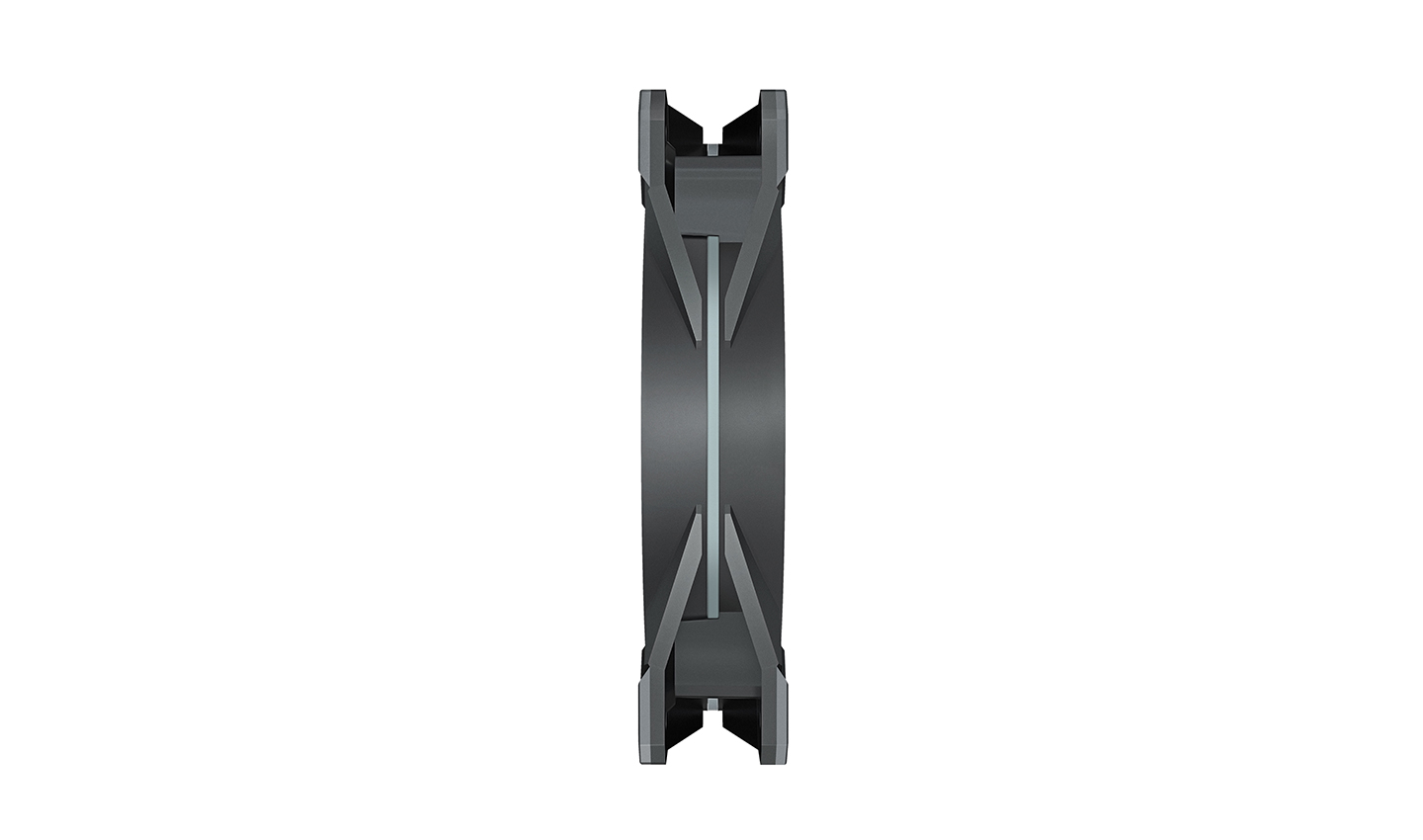

Product Dimension

Download

CF120 PLUS-3 IN 1 Manual.pdf

Download

5V A-RGB Wire Controller

4 Ports PWM Hub

Screws
