TF120W
As the latest high-end case fan of DeepCool, the TF 120 series features the unique patented 2-layer blade design to deliver a powerful air pressure. Scientific air channel design within the frame helps reduce noise caused by turbulent flow, while the semi-hermetic Fluid Dynamic Bearing (FDB) solution provides the fan with an astounding 100,000-hour MTBF. The advanced detachable blade designs of TF120 provide additional color options, all of which come with Dust-, Water-, and Oil leakage-proof functions to satisfy DIY enthusiasts aiming to build the best-looking rig there is.
COLOR
white
MODEL
TF120W
Turbo Series Case Fan.
Description
As the latest high-end case fan of DeepCool, the TF 120 series features the unique patented 2-layer blade design to deliver a powerful air pressure. Scientific air channel design within the frame helps reduce noise caused by turbulent flow, while the semi-hermetic Fluid Dynamic Bearing (FDB) solution provides the fan with an astounding 100,000-hour MTBF. The advanced detachable blade designs of TF120 provide additional color options, all of which come with Dust-, Water-, and Oil leakage-proof functions to satisfy DIY enthusiasts aiming to build the best-looking rig there is.

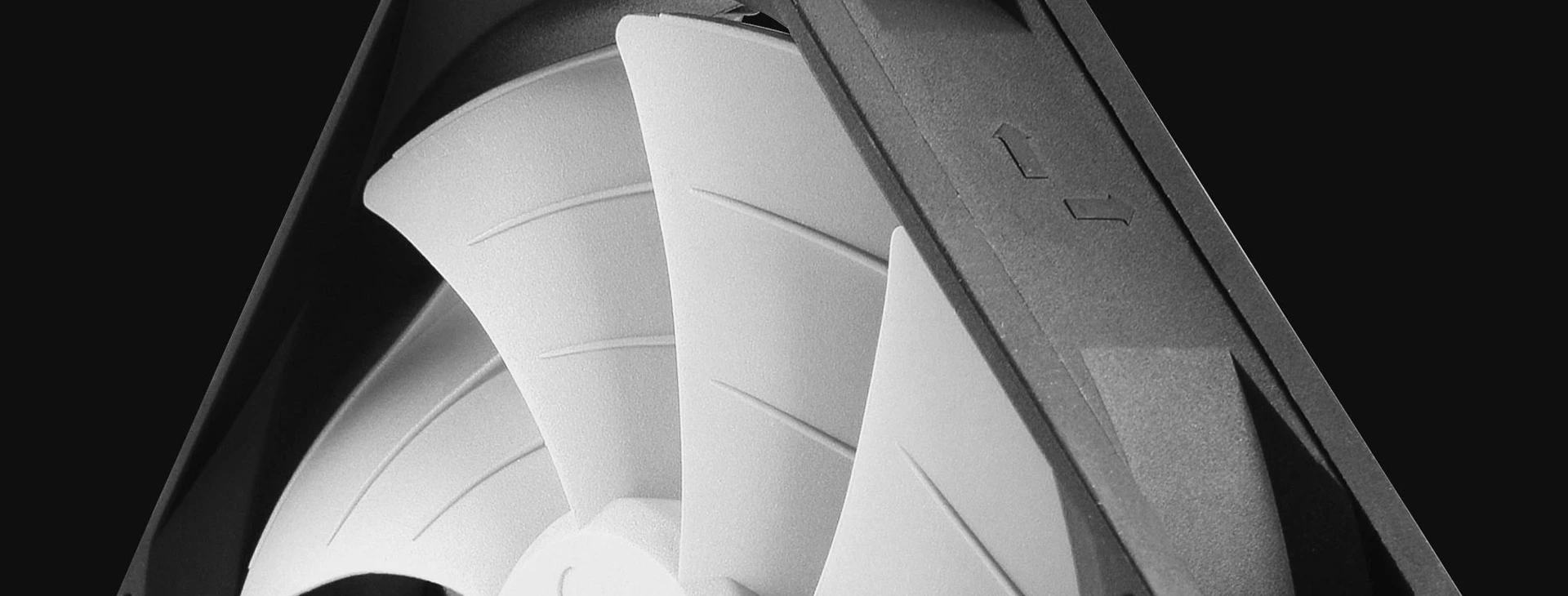

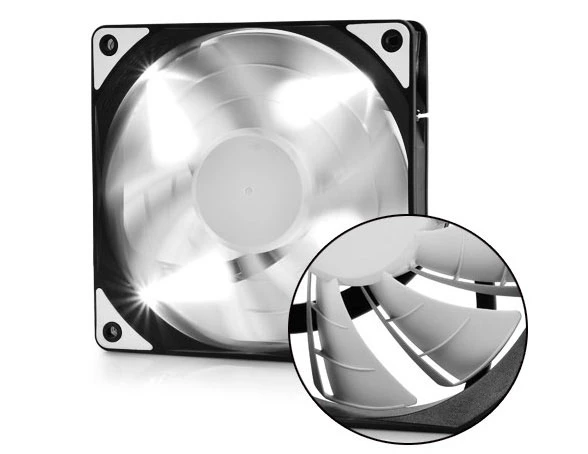

2-Layer Blade Design:

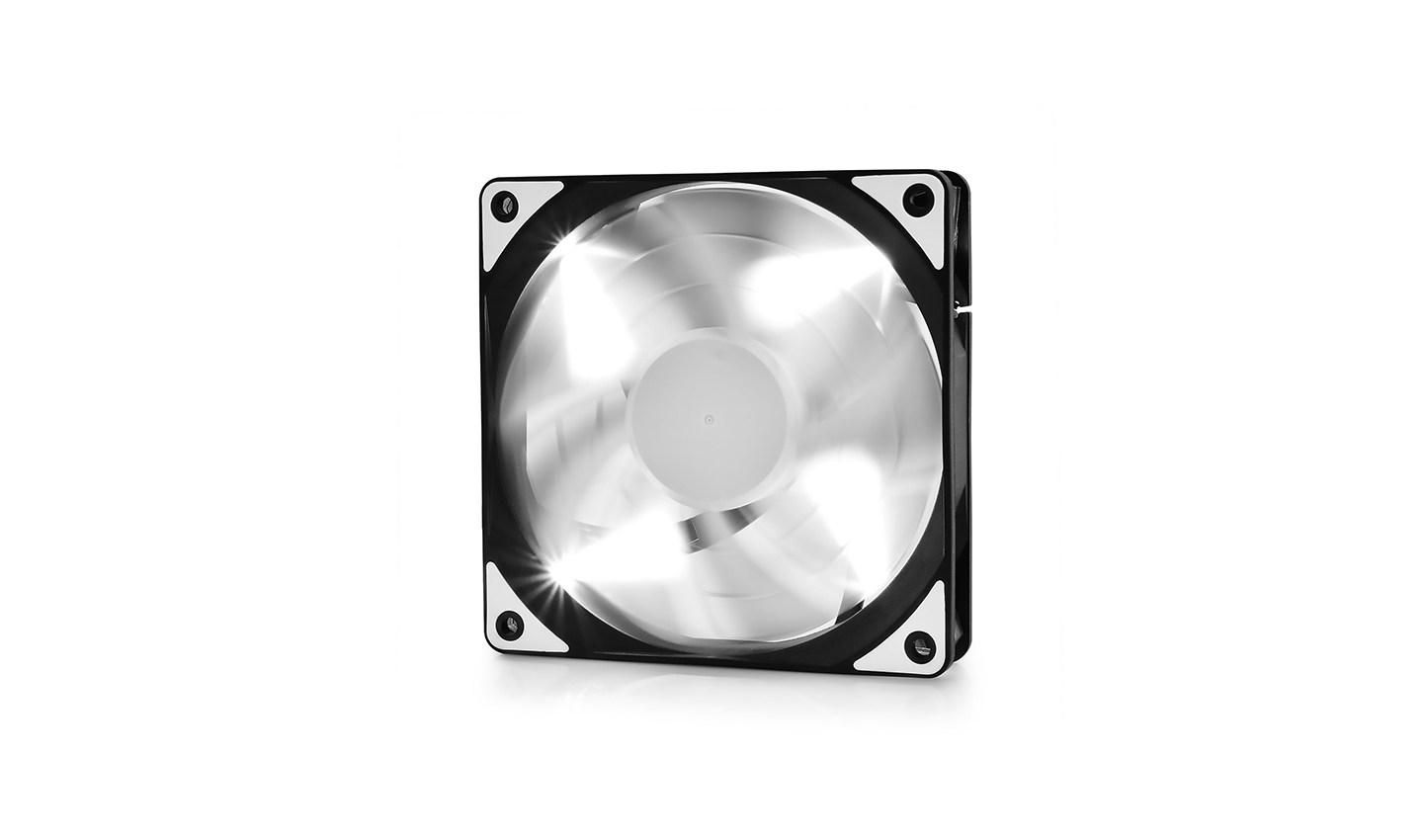

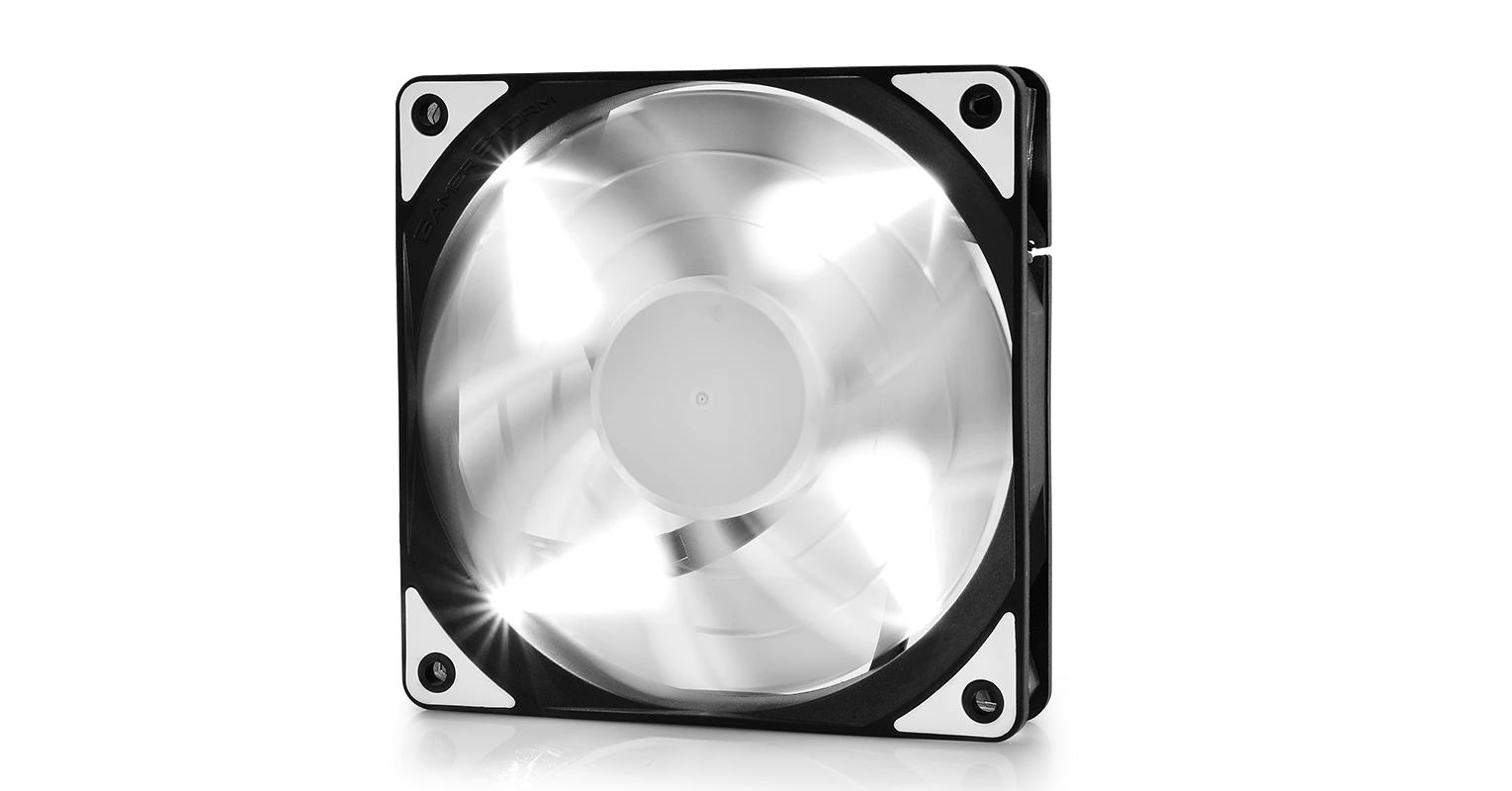

Unique patented 2-layer blade design that provides amazing visuals that perfectly match the cycling LED lighting effects.

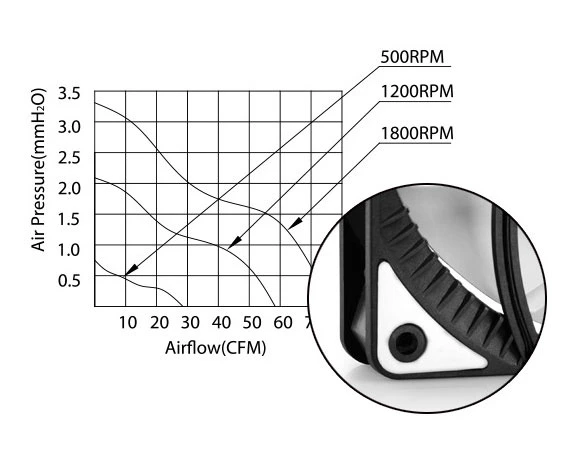

Dual Functions:
The unique blade configuration offers a powerful air pressure.
Scientific air channel design in the frame reduces noise caused by airflow turbulence.
Double Performance:

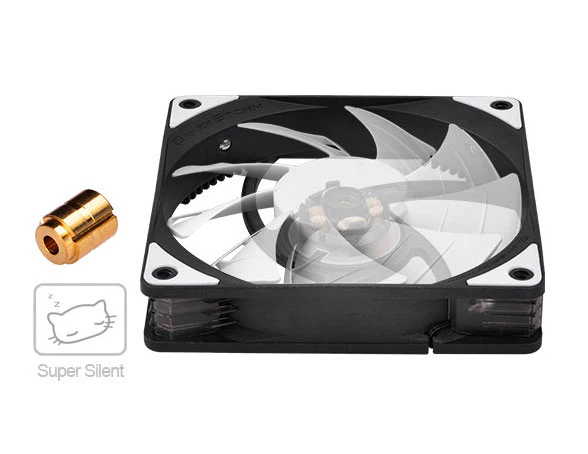

Semi-hermetic Fluid Dynamic Bearing (FDB) solution to achieve an astounding 100,000-hour MTBF.
Eliminates interference from electromagnetic (EM) noise as well as audible noise caused by mechanical friction.

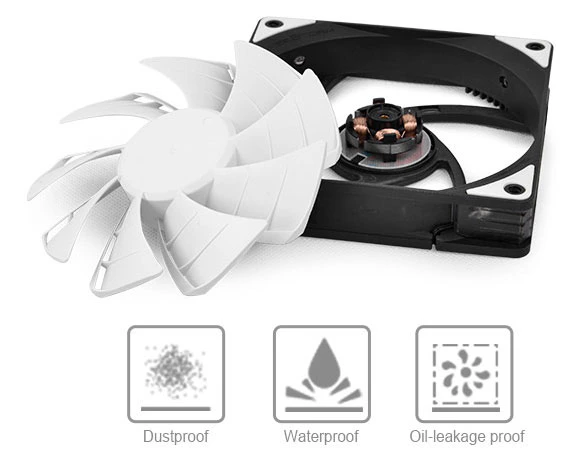

DIY Solution:
Detachable blade provides additional color options and triple-proof features: Dust-, Water-, Oil-leakage proof.
Technical Spec
Overall Dimension120×120×26 mm(L×W×H)
Net Weight 204g
Bearing Type Fluid Dynamic Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.18±10%A(MAX)
Power Input 2.16W
Fan Speed 500±200 -1800±10%RPM
Fan Connectors 4-pin for motherboard & 4-pin for PSU
Max. Air Flow 76.52CFM(12V)/ 58.39CFM(7V)
Noise 17.6~31.3dB(A)
EAN 6933412712763
P/N DPGS-FTF-TF120WW
