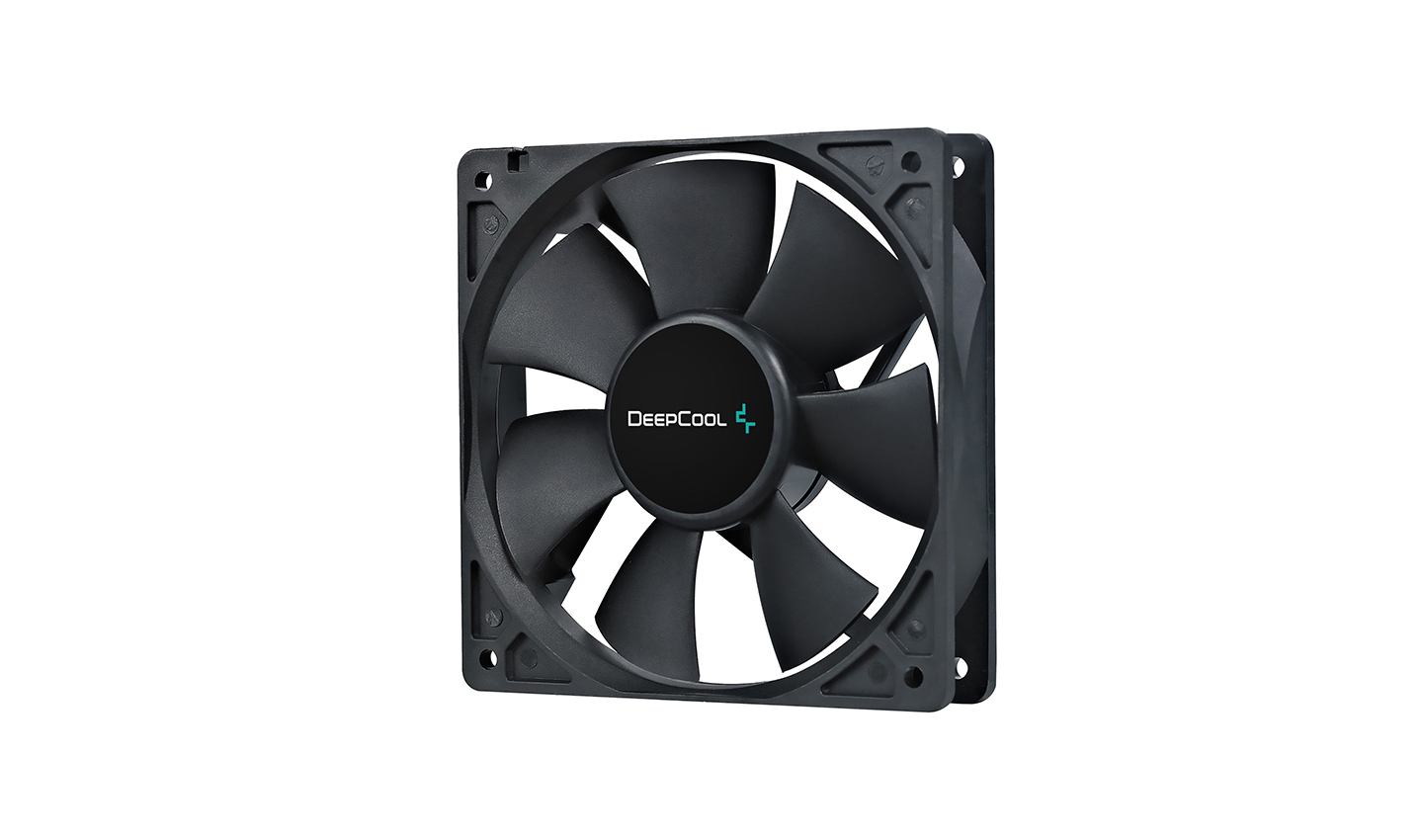

XFAN 120
High quality 120-mm black fan.
COLOR
black
MODEL
High quality black material fan structure.
Low RPM for quiet operations.
Technical Spec
Overall Dimension120X120X25 mm(L×W×H)
Fan Dimension120X120X25 mm(L×W×H)
Net Weight 180g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.07±10%A
Power Input 0.84W
Fan Speed 1300±10%RPM
Max. Air Flow 43.56CFM
Noise 23.7dB(A)
EAN 6933412703624
P/N DP-FDC-XF120
