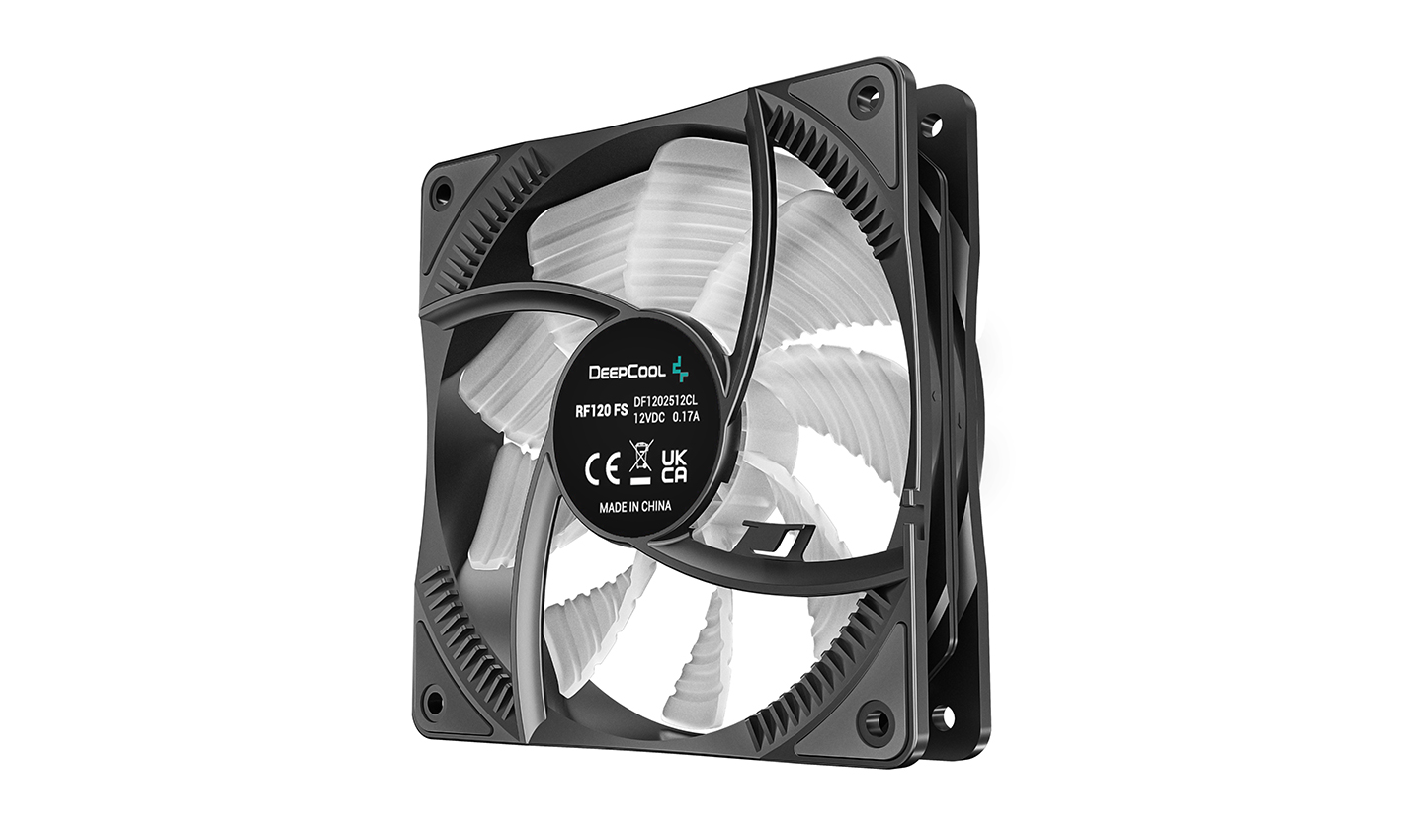

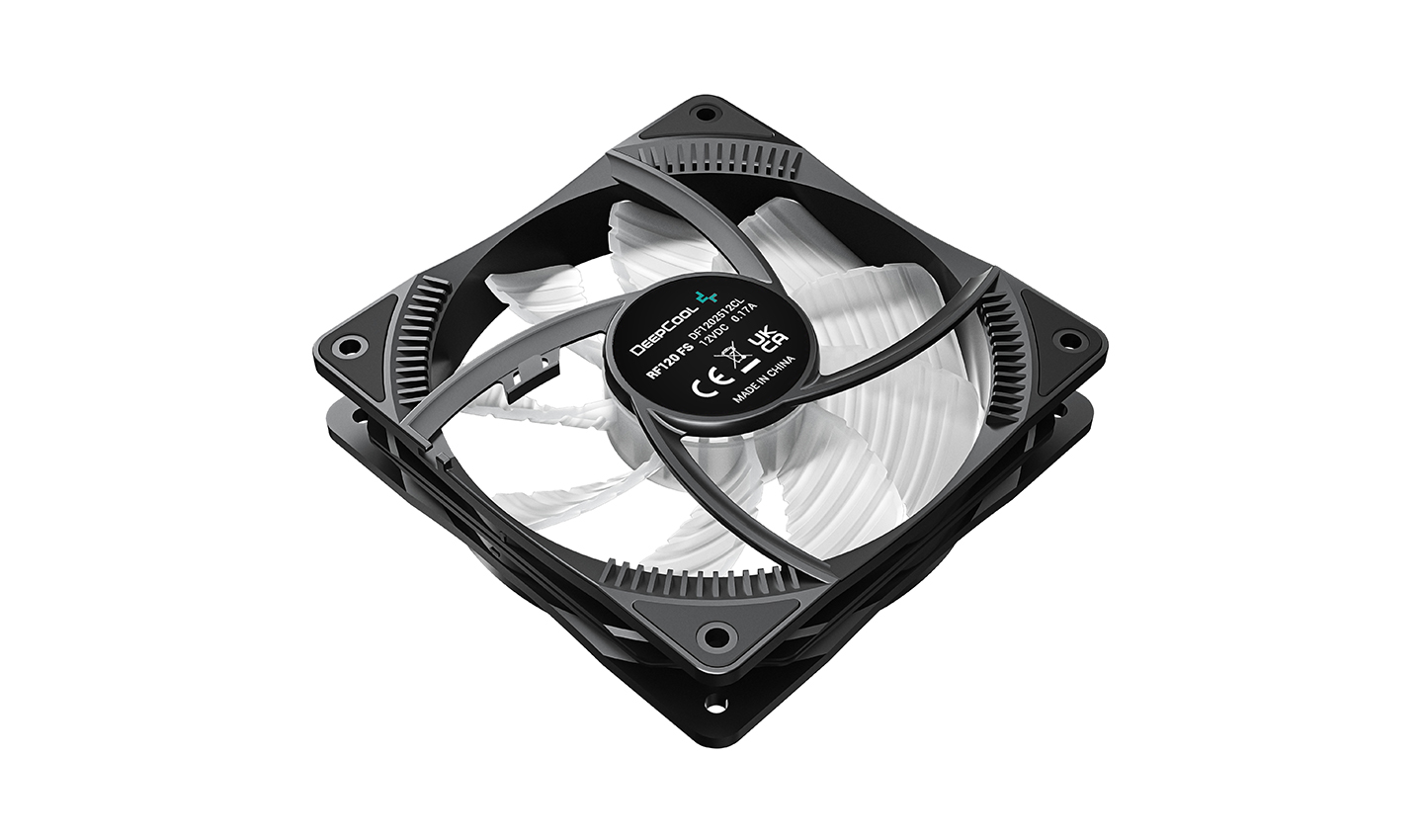

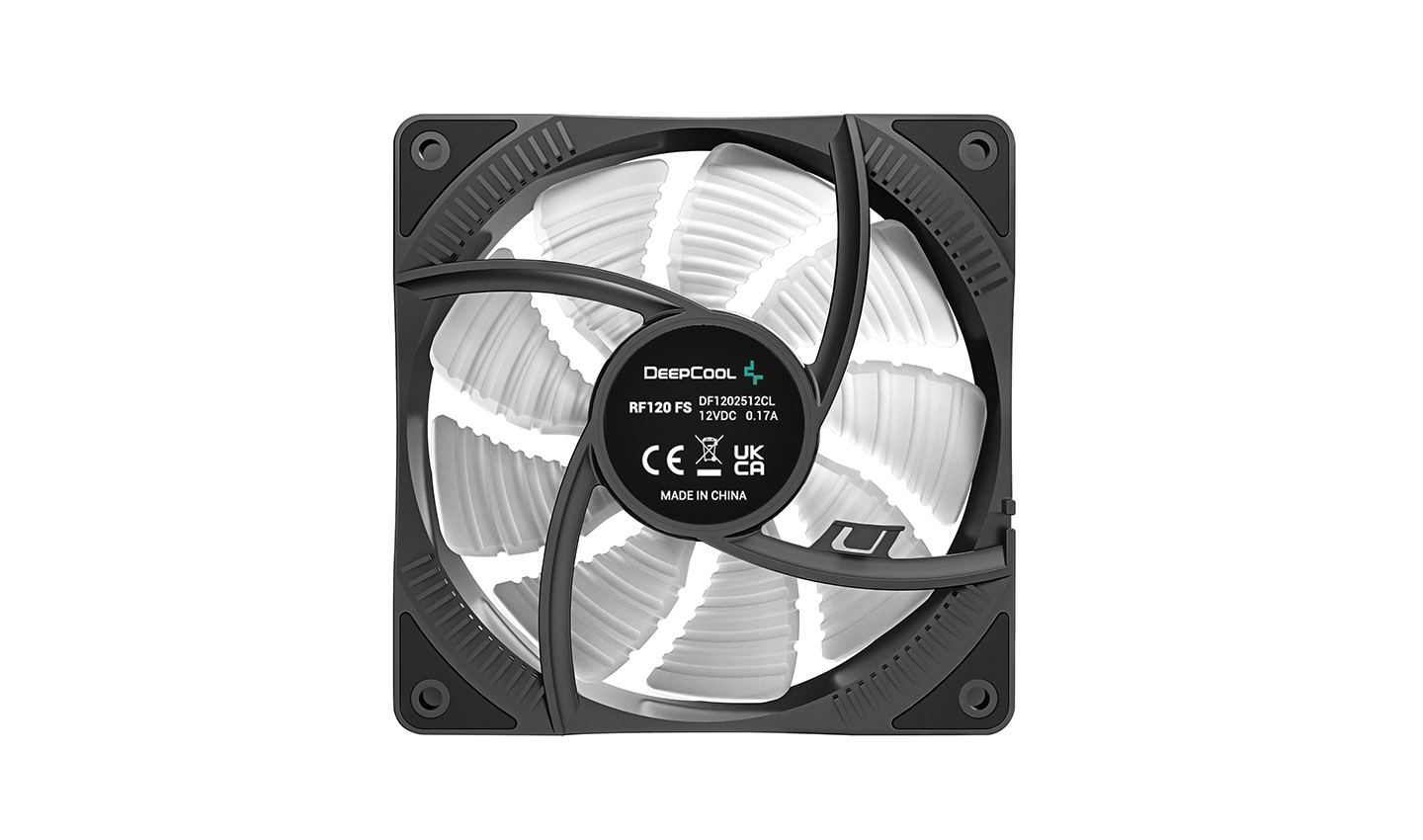

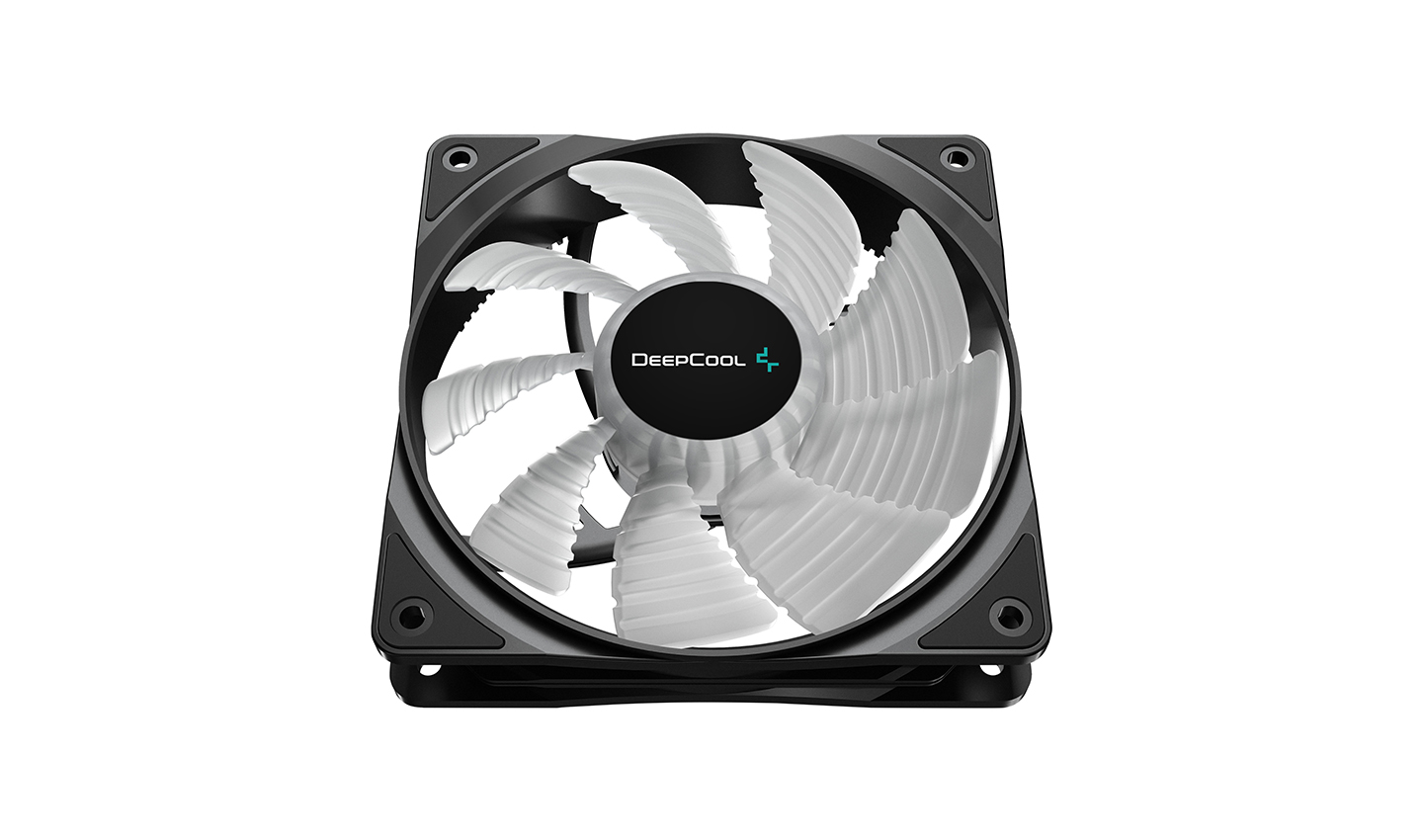

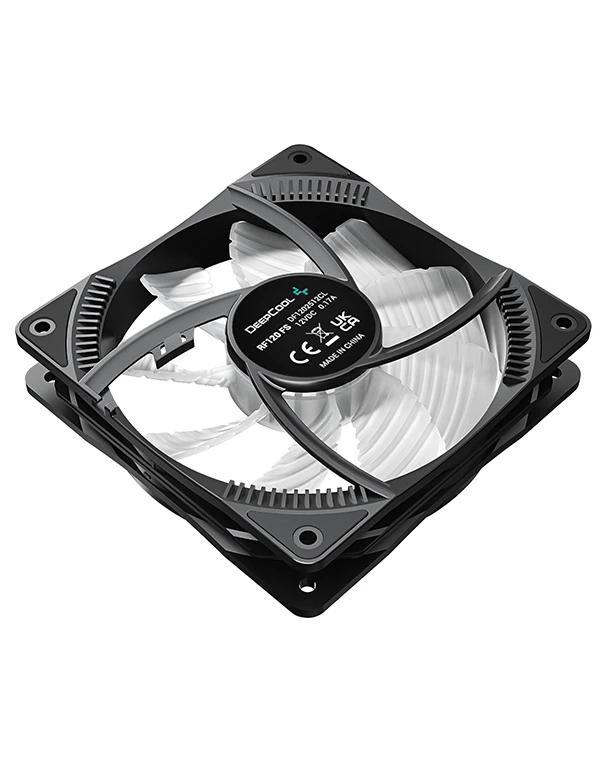

RF120 FS
COLOR
black
MODEL
RF120 FS

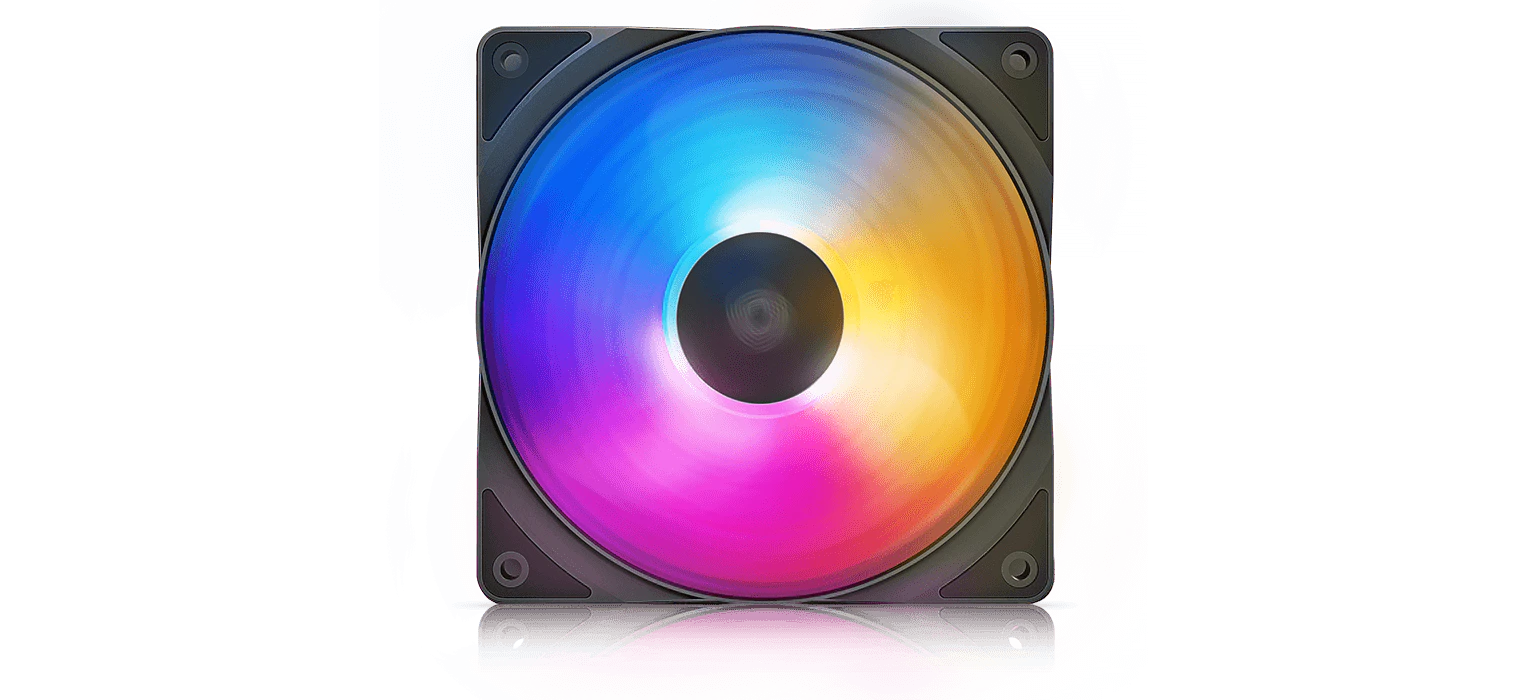

SILENTLY POWERFUL, SIMPLY COLORFUL

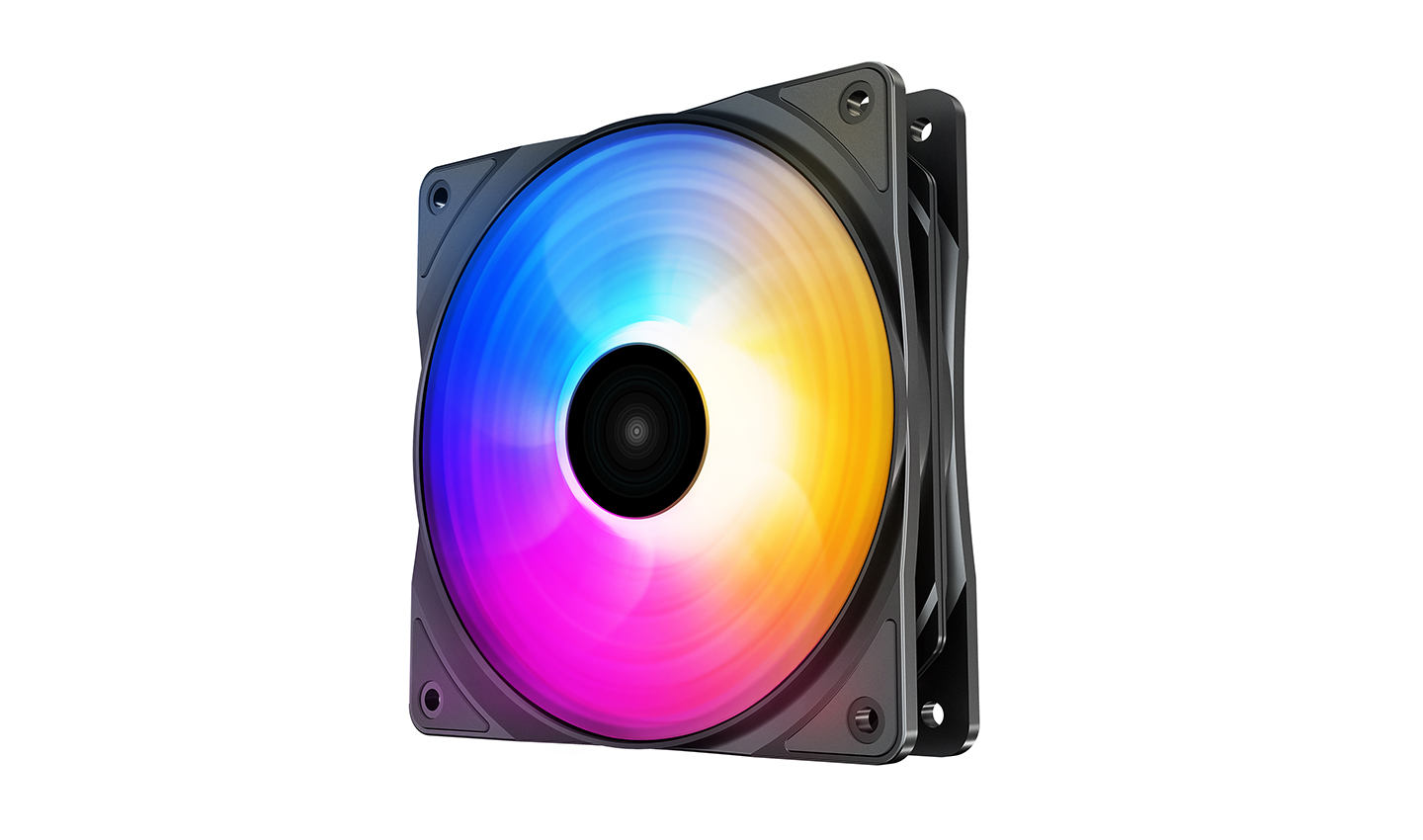

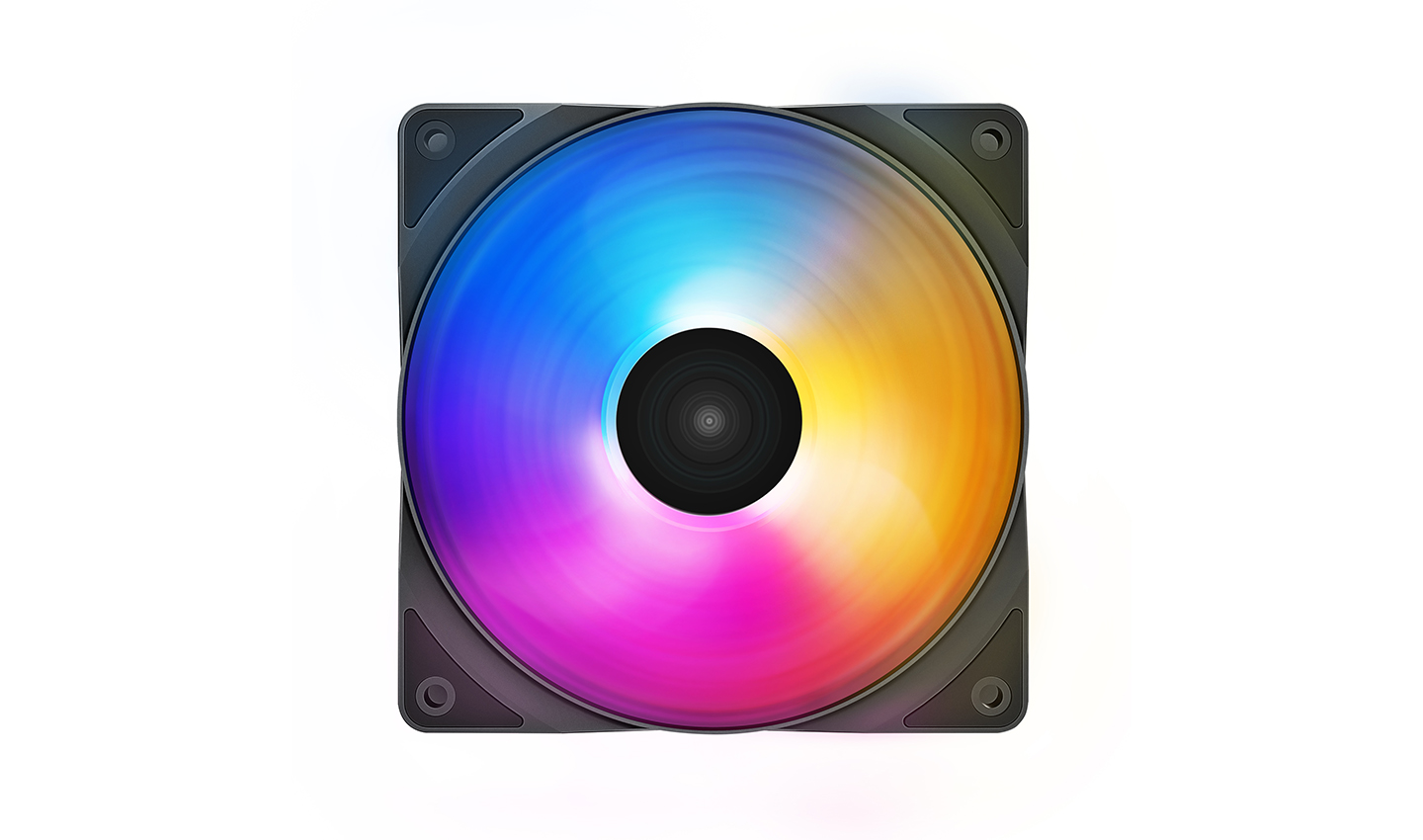

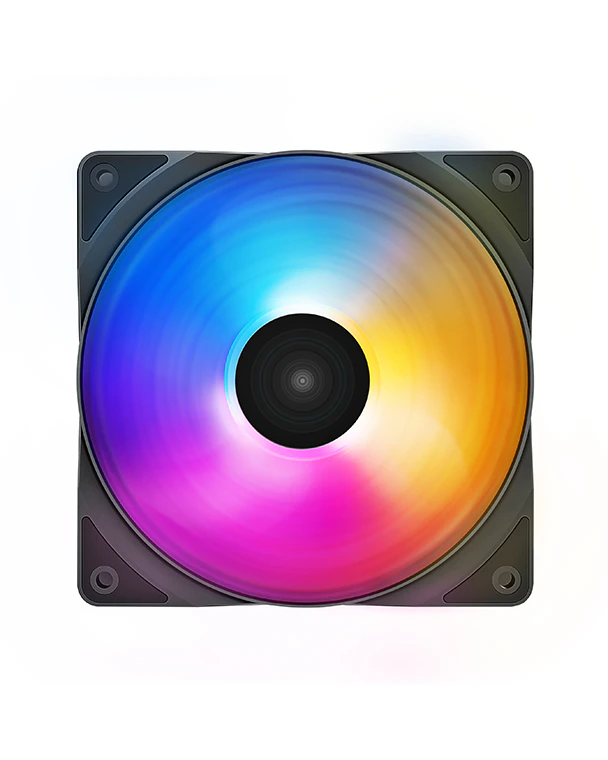

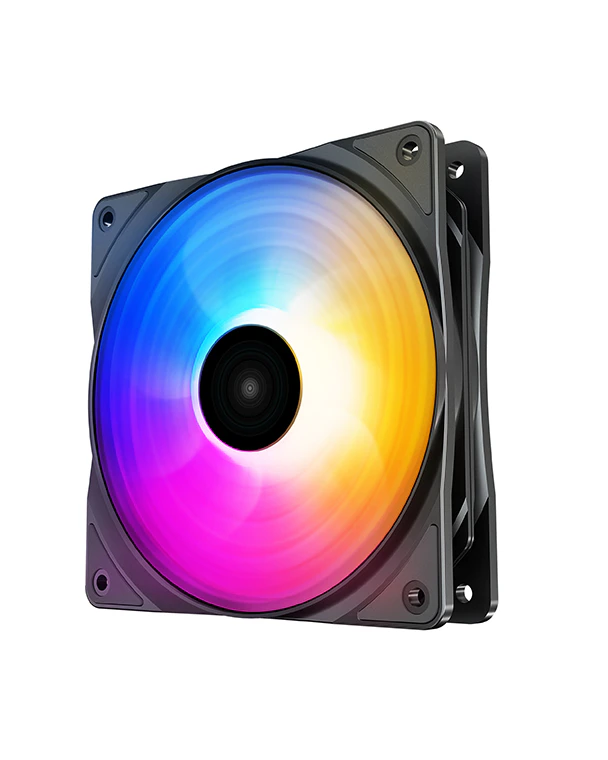

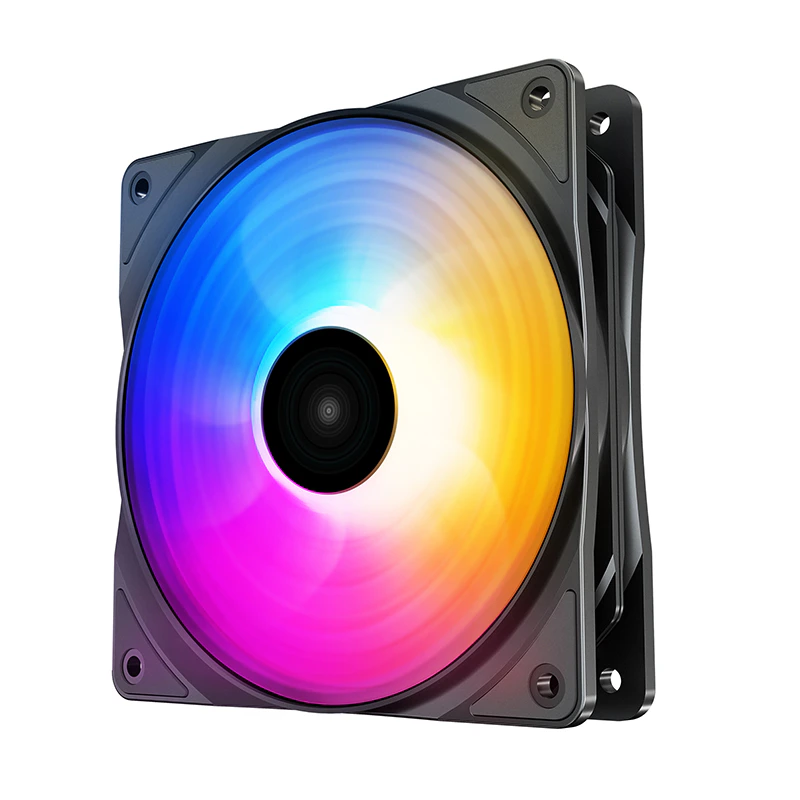

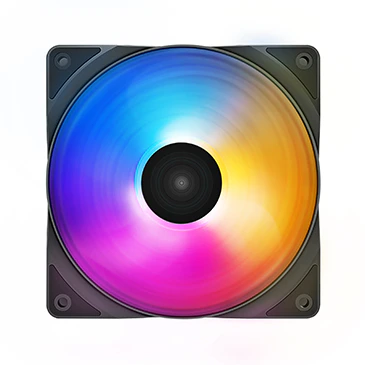

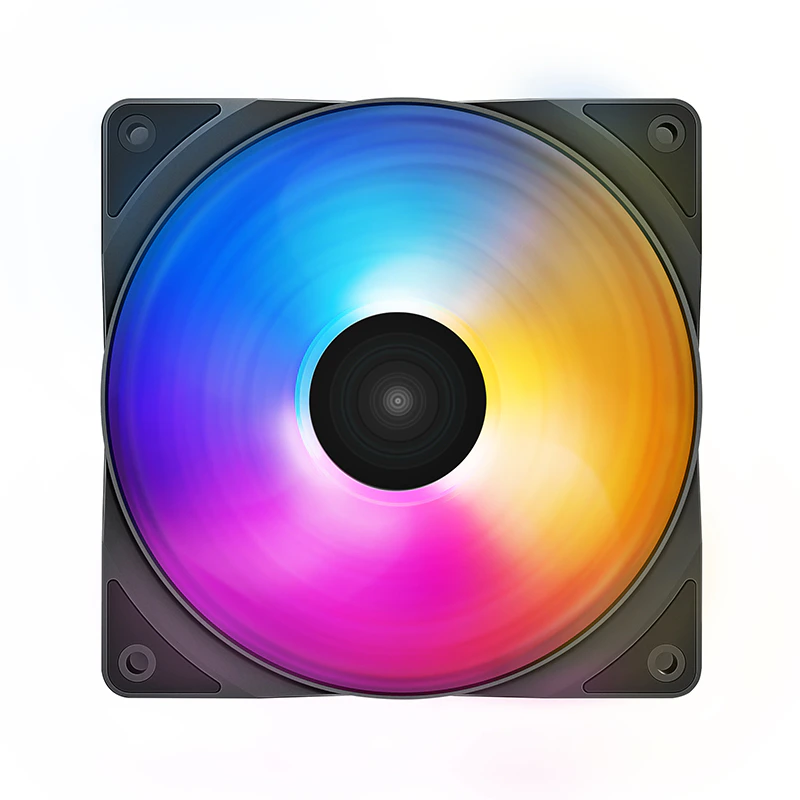

Convenient Lighting
6 built-in high brightness LEDs. With the all-new purple/blue/orange lighting combination, you won’t need complicated control settings. Simply plug in the power on and enjoy the mesmerizing visual experience.
PWM Control
PWM smart adjustment allows precise speed control. Equipped with shock pads, the fan undergoes optimal operation, effectively reducing noise generation.
PWM Control
PWM smart adjustment allows precise speed control. Equipped with shock pads, the fan undergoes optimal operation, effectively reducing noise generation.

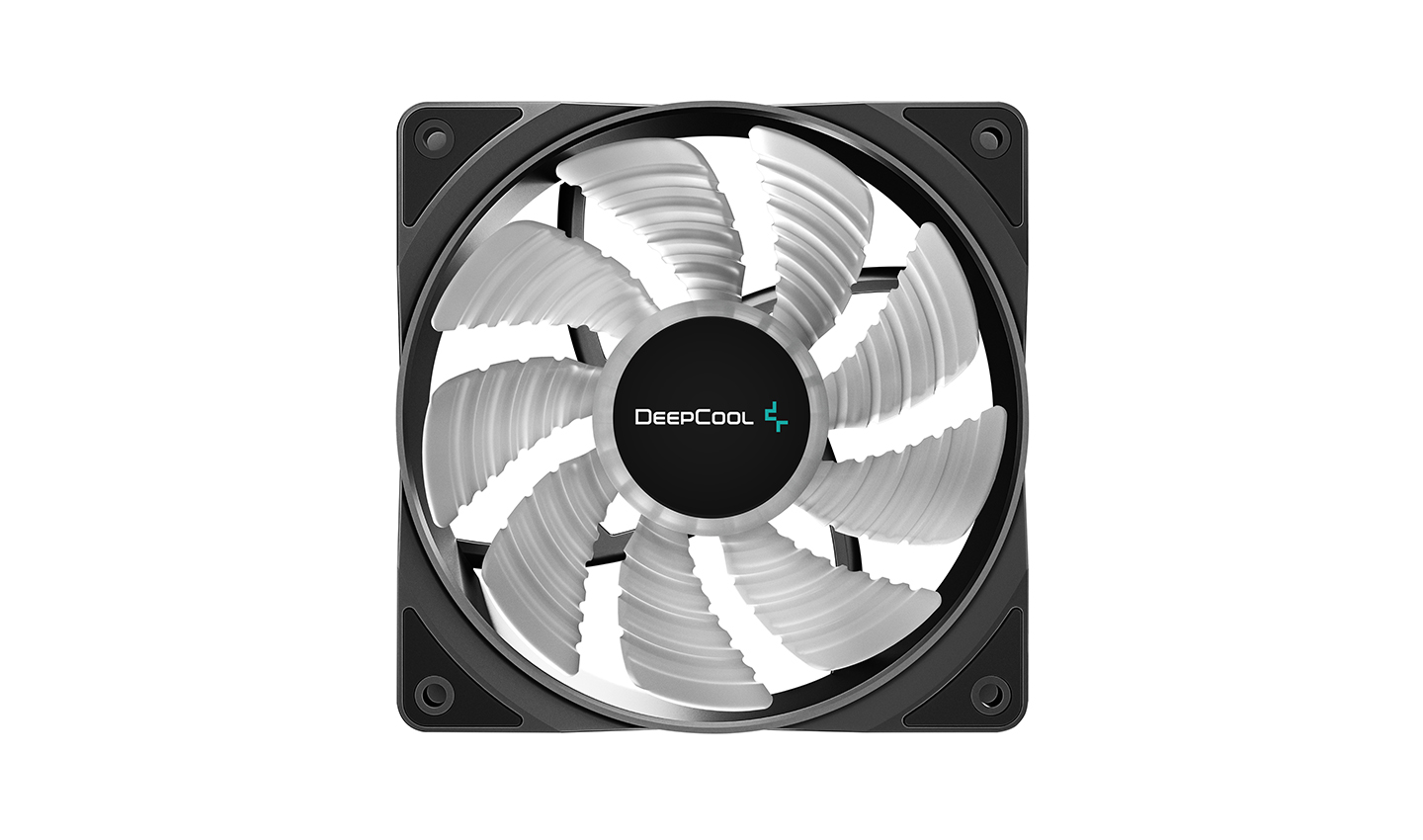

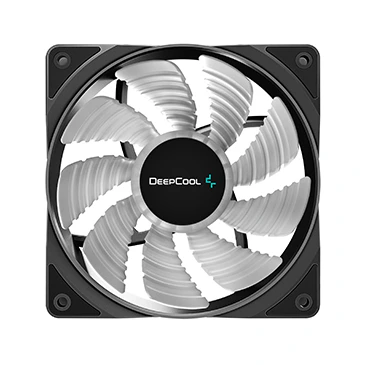

Powerful Performance

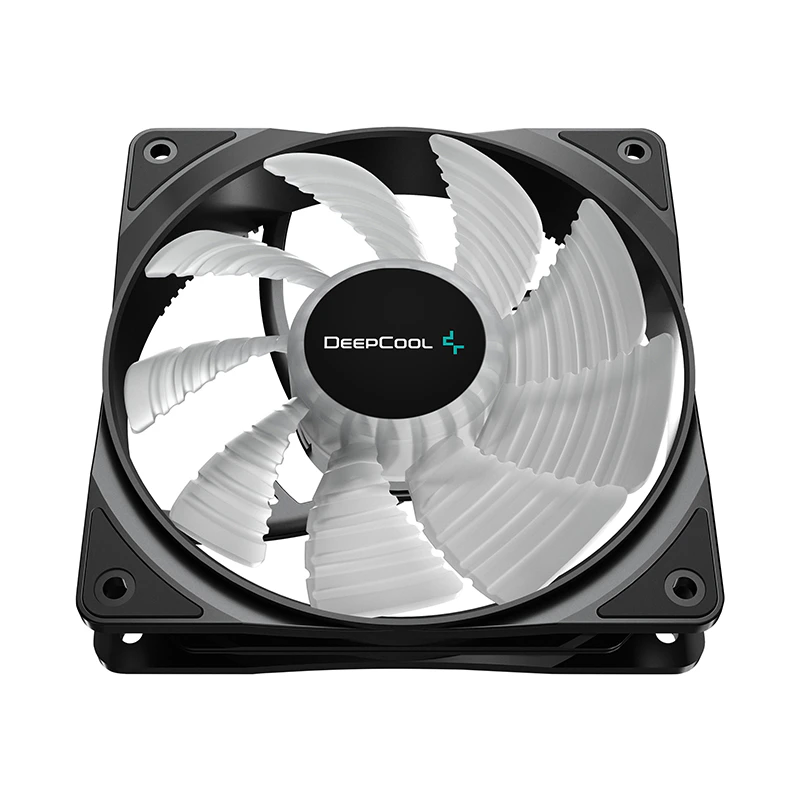

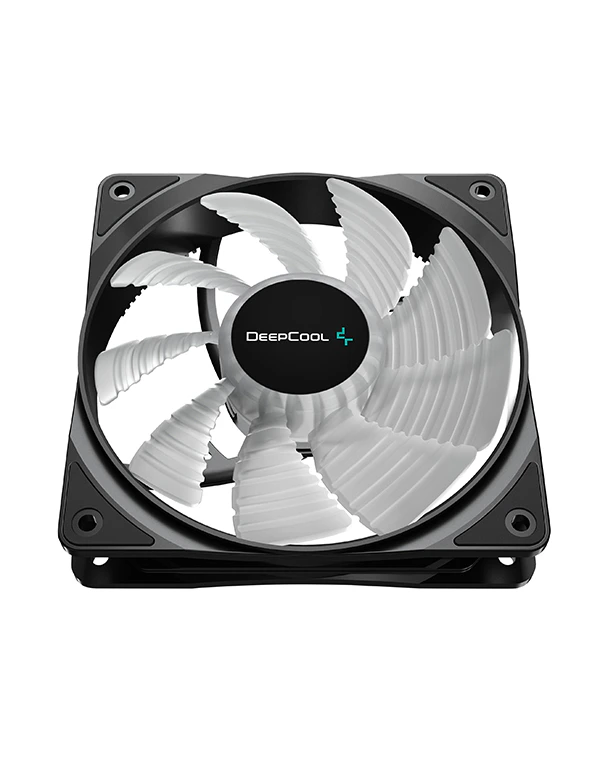

Optimized 9 fan blades design, balancing air flow and wind pressure, providing strong cooling performance.
Long-lasting Bearing
Adopts hydraulic self-oiling bearing, long lasting and low-noise.

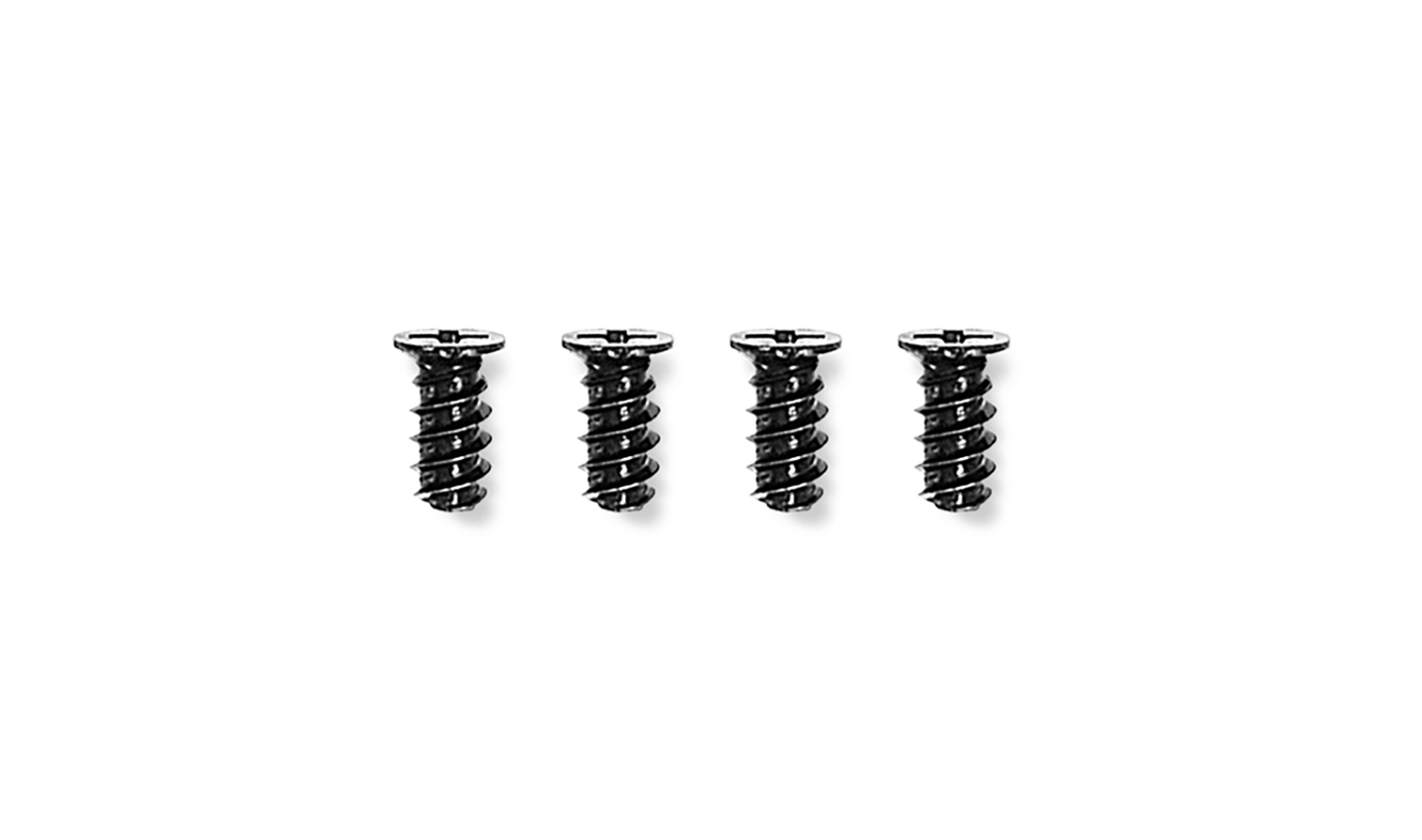

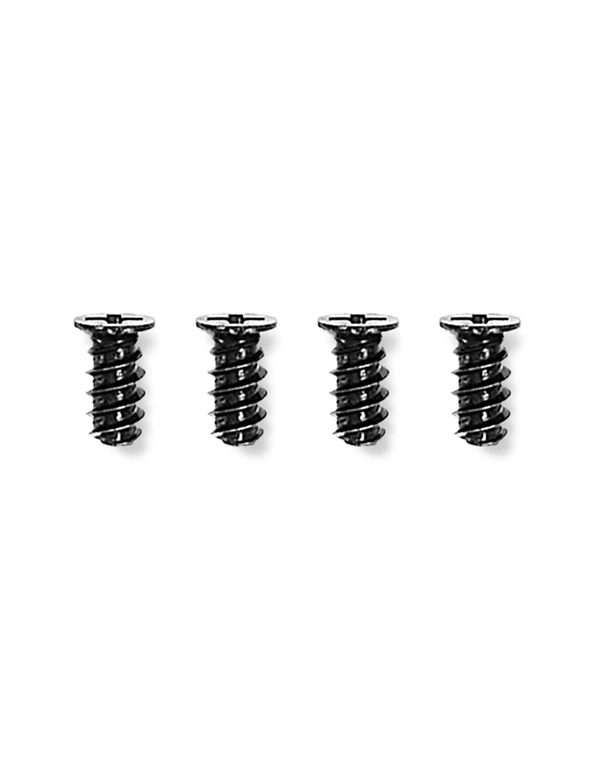

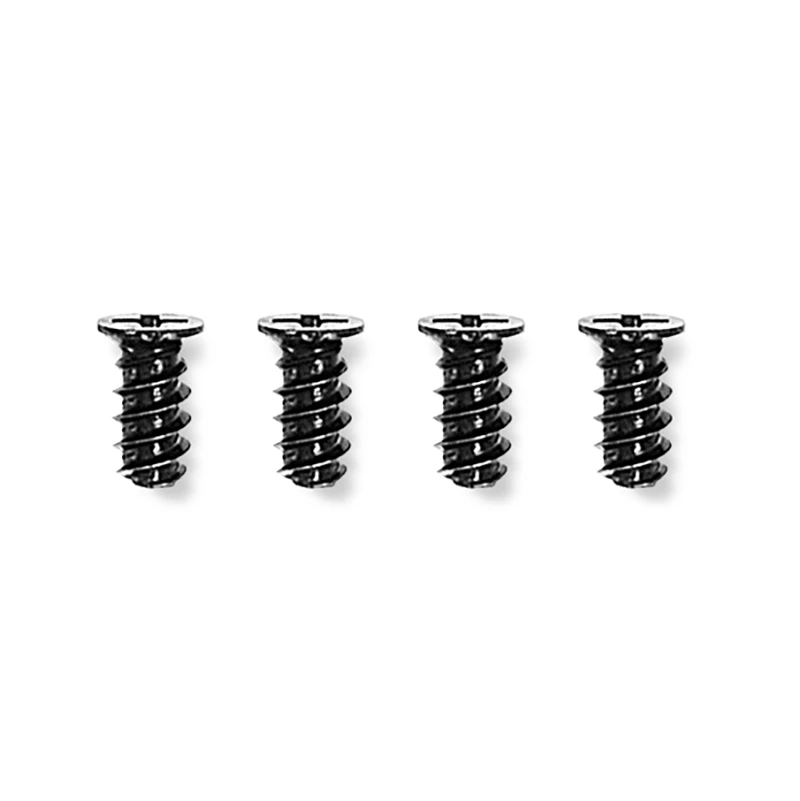

Convenient Installation
Standard screw sizes, fuss-free convenient installation.
4-pin Connector
Adopts mainstream 4-pin power interface, offers continuous and effective output.
Technical Spec
Specification RF120 FS
Overall Dimensions120X120X25 mm(L×W×H)
Net Weight 143g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Rated Current 0.17 A
Power Input 2.04 W
Fan Speed 500~1500 RPM±10%
Max. Air Flow 56.5 CFM
Fan Air Pressure 1.66 mmAq
Noise ≤27 dB(A)
Fan Connector 4-pin PWM
LED Type LED
EAN 6933412710516
P/N DP-FLED3-RF120-FS

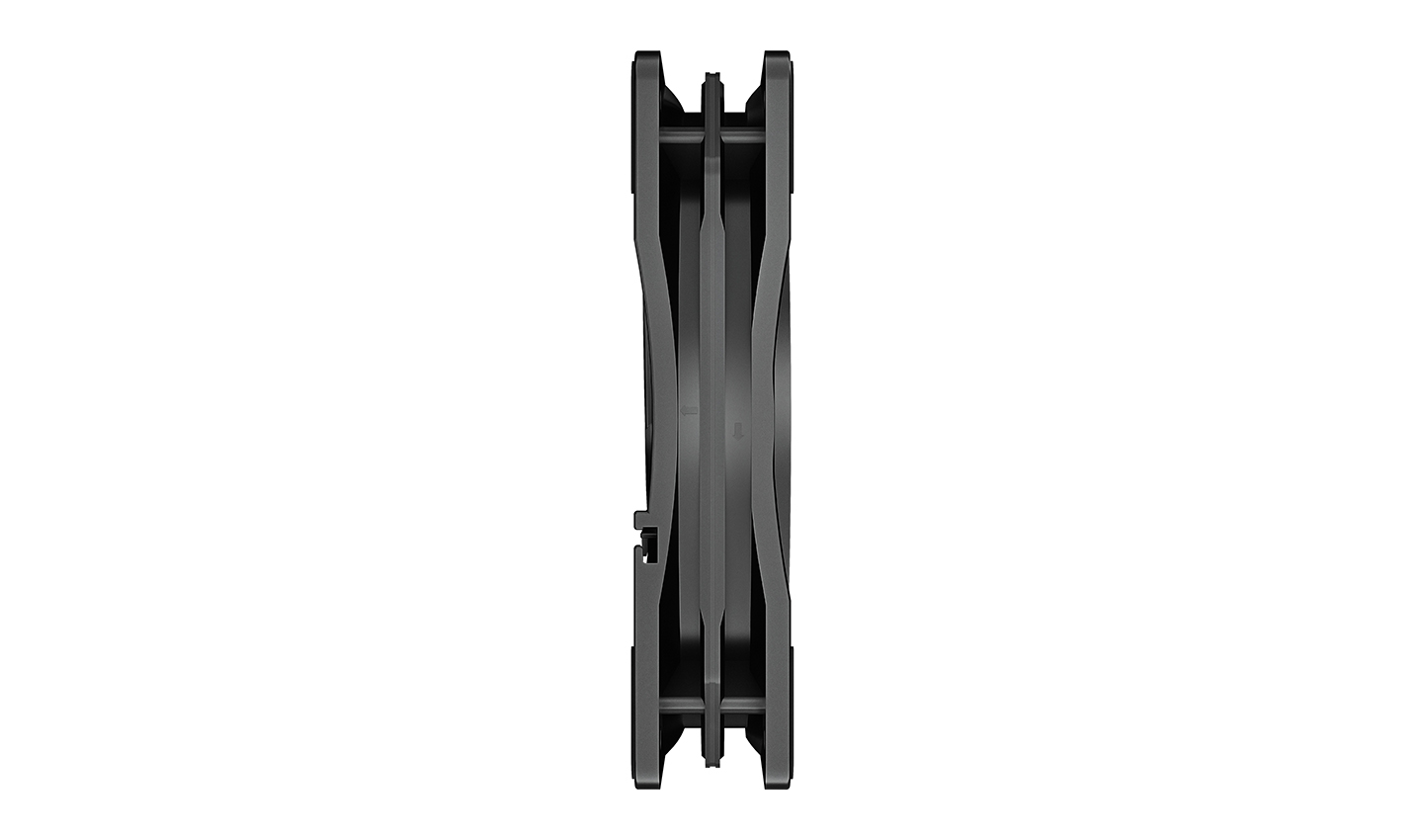

Product Dimension
Download
RF120 FS Manual.pdf
