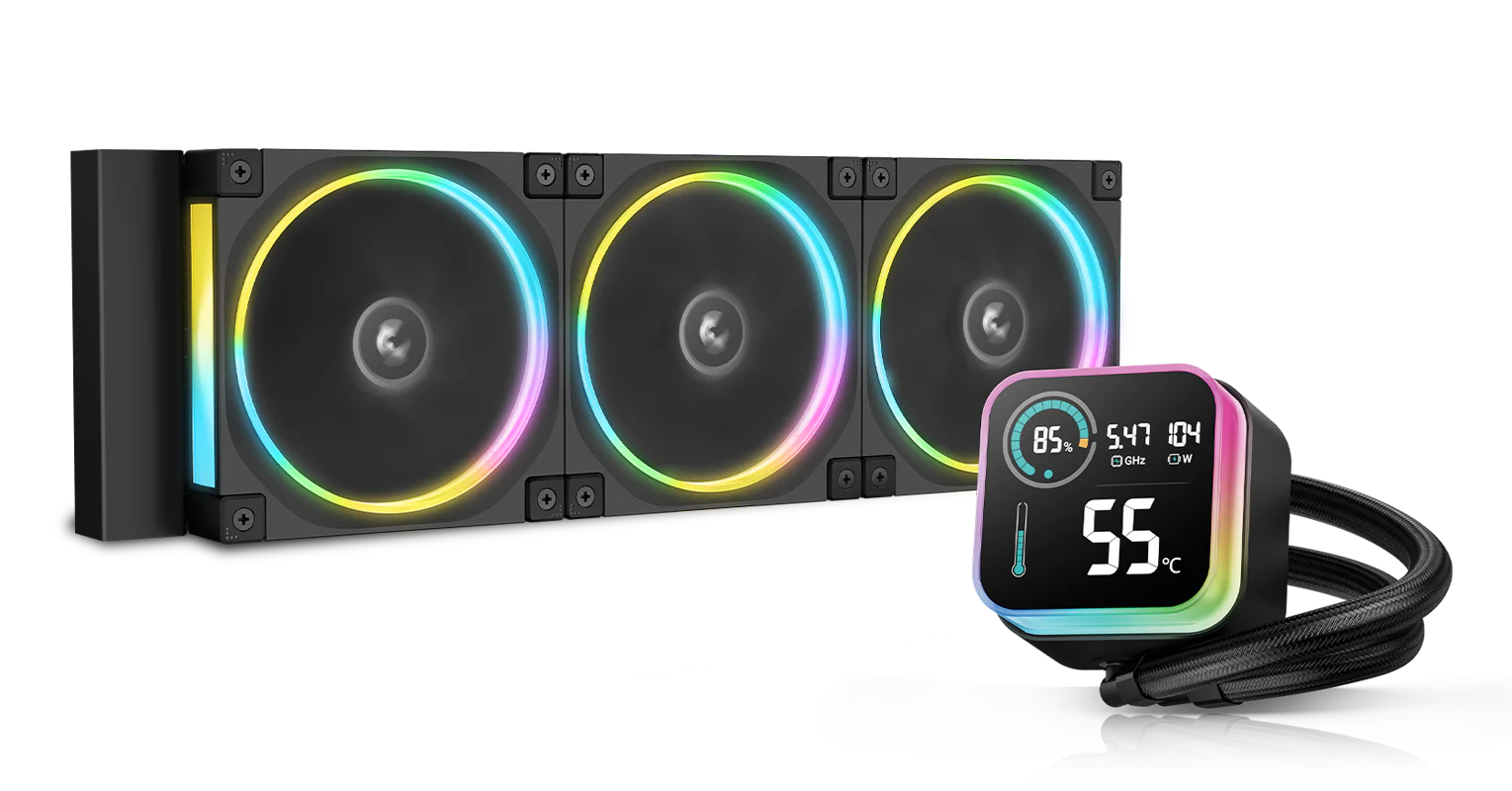

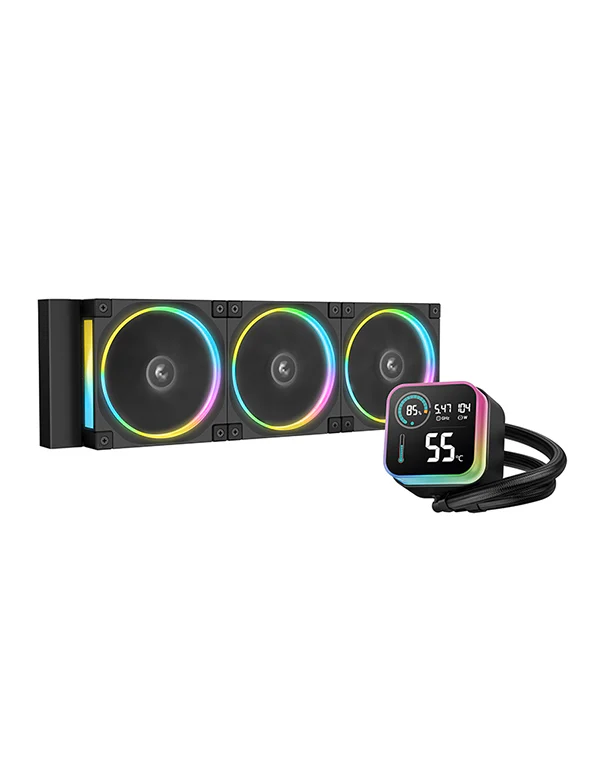

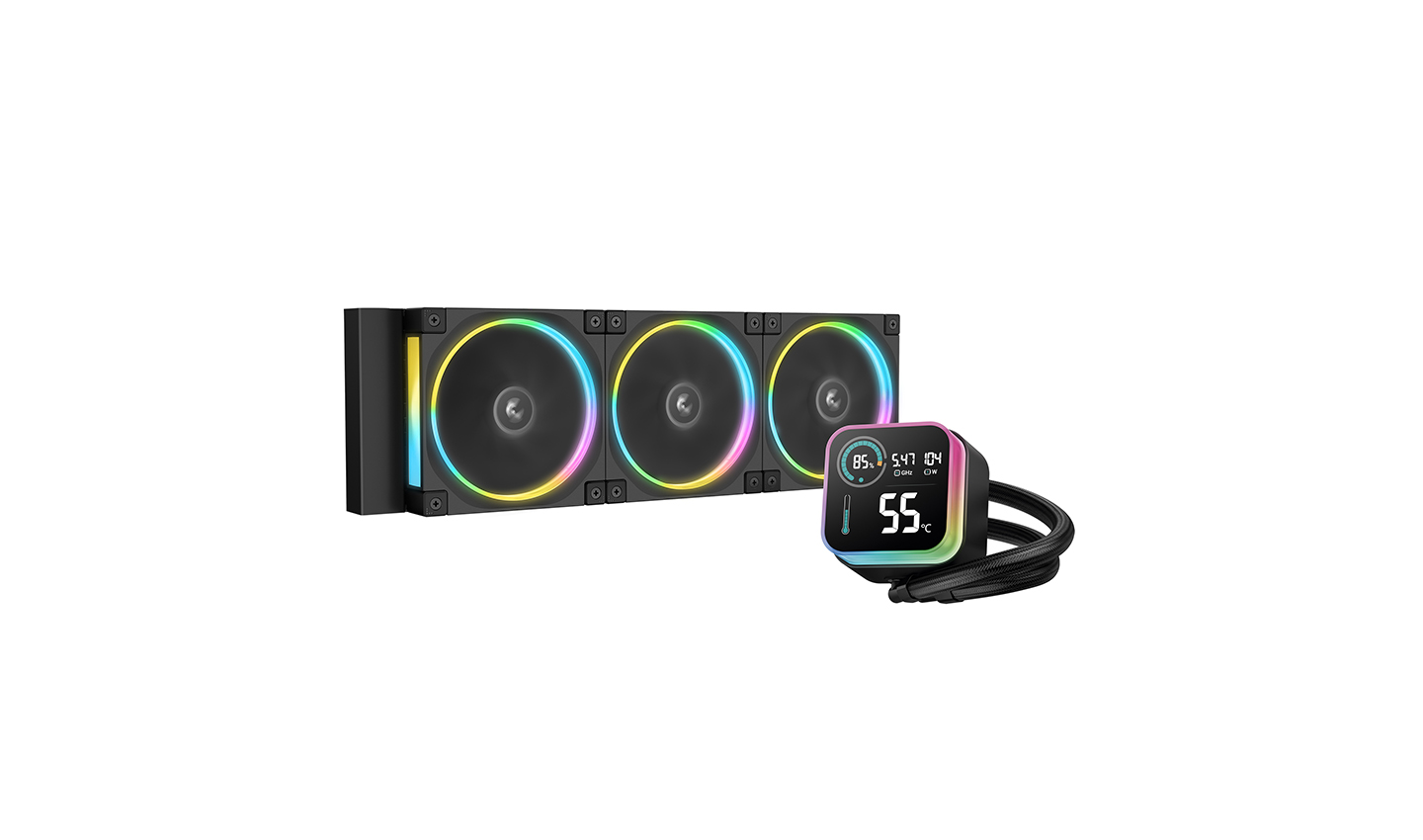

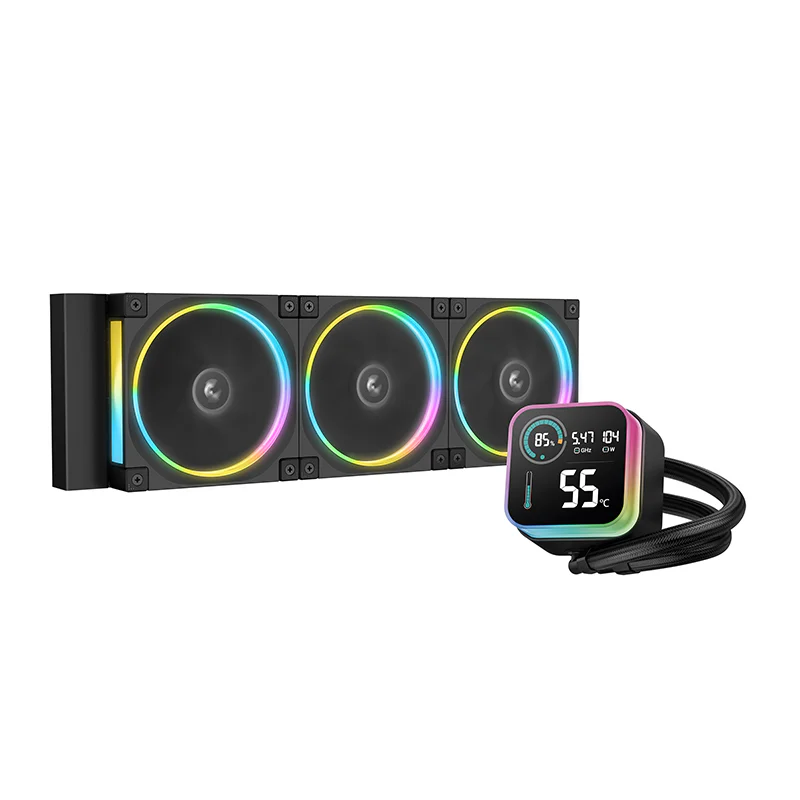

LQ360 ULTRA ARGB

SIGNATURE STYLE WITH UPGRADED CORE

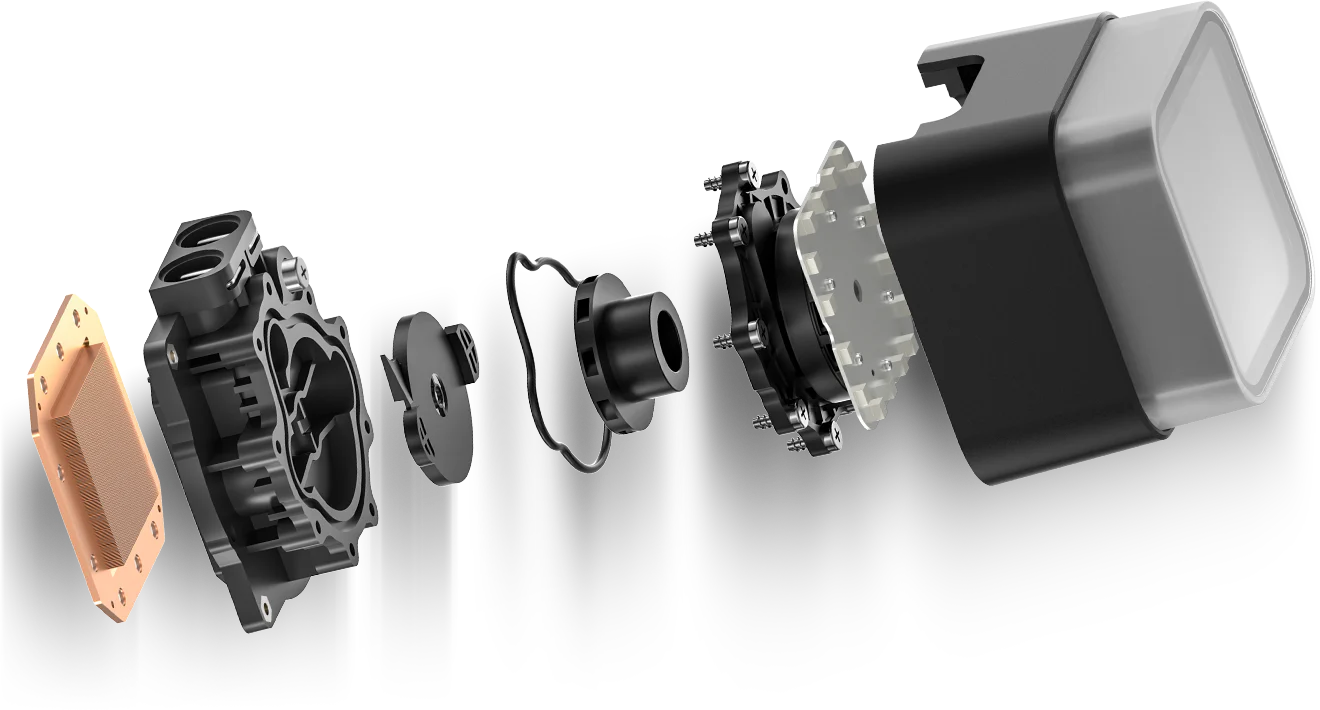

DRIVEN BY THE GEN 6 PUMP

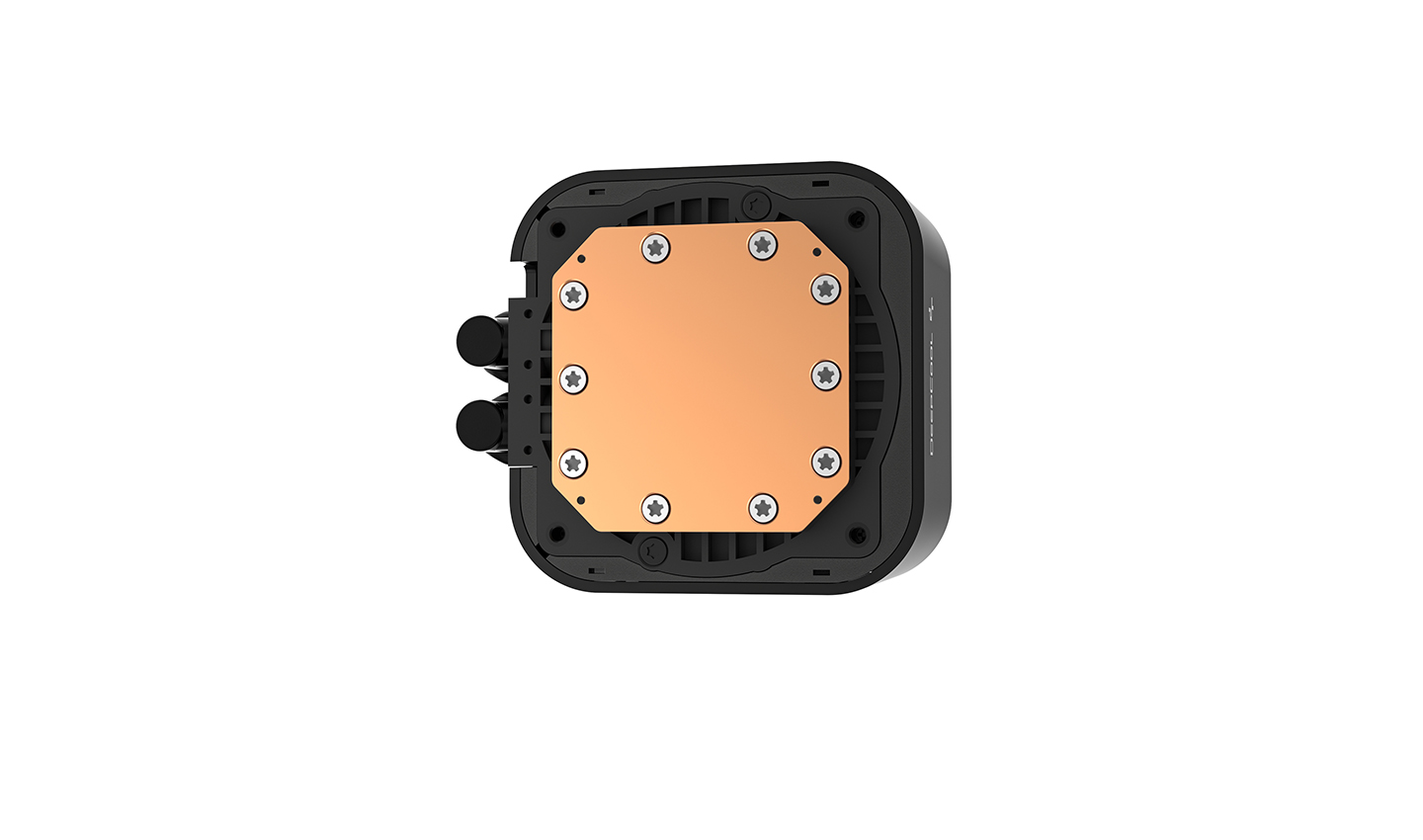

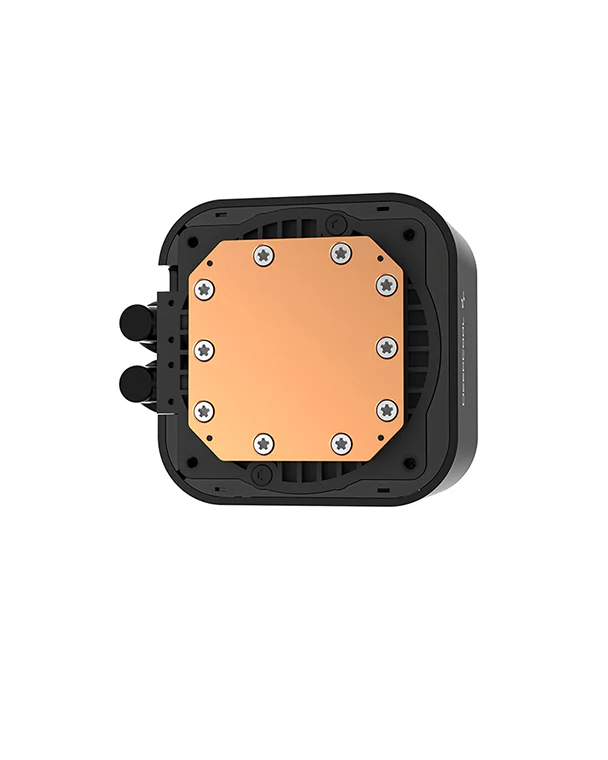

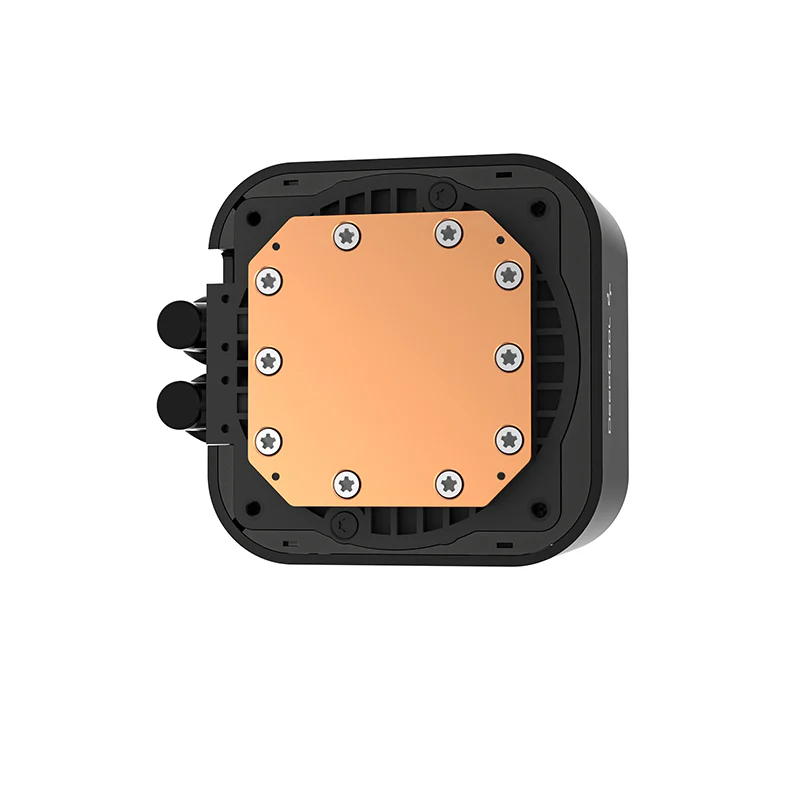

Powered by a 3-phase, 6-slot, 4-pole motor with FOC control, the 6th-generation water pump delivers more efficient, quieter operation across a PWM range of 2,500 to 3,400 RPM. An expanded copper base and fine-tuned microfin geometry help maximize thermal transfer for high-performance cooling.

DeepCreative: THE CONTROL CENTER

Bring all of the great features of the LQ ULTRA ARGB coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have Halo ARGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

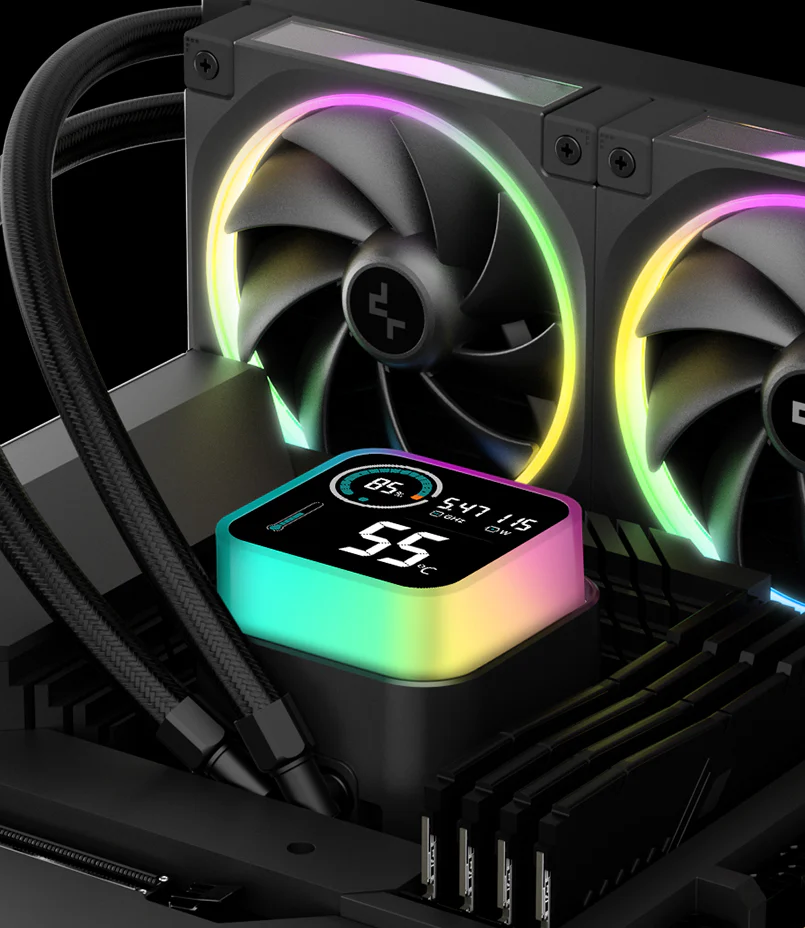

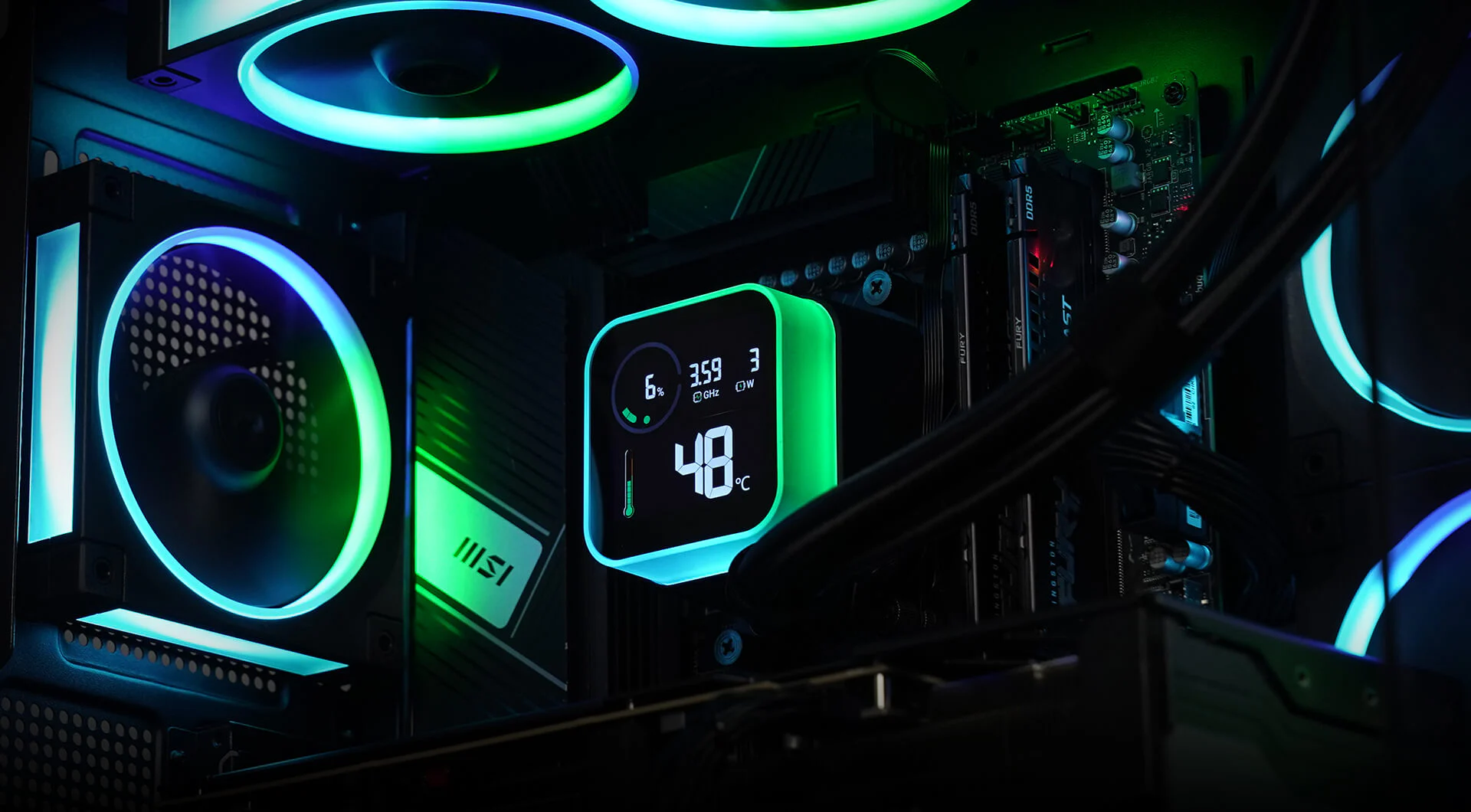

CPU Usage + Multi Color Circular Status Panel

CPU Frequency GHz

CPU TDP Wattage

CPU Temperature Status with Color Indicator in ℃/℉

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

LET IT ROTATE

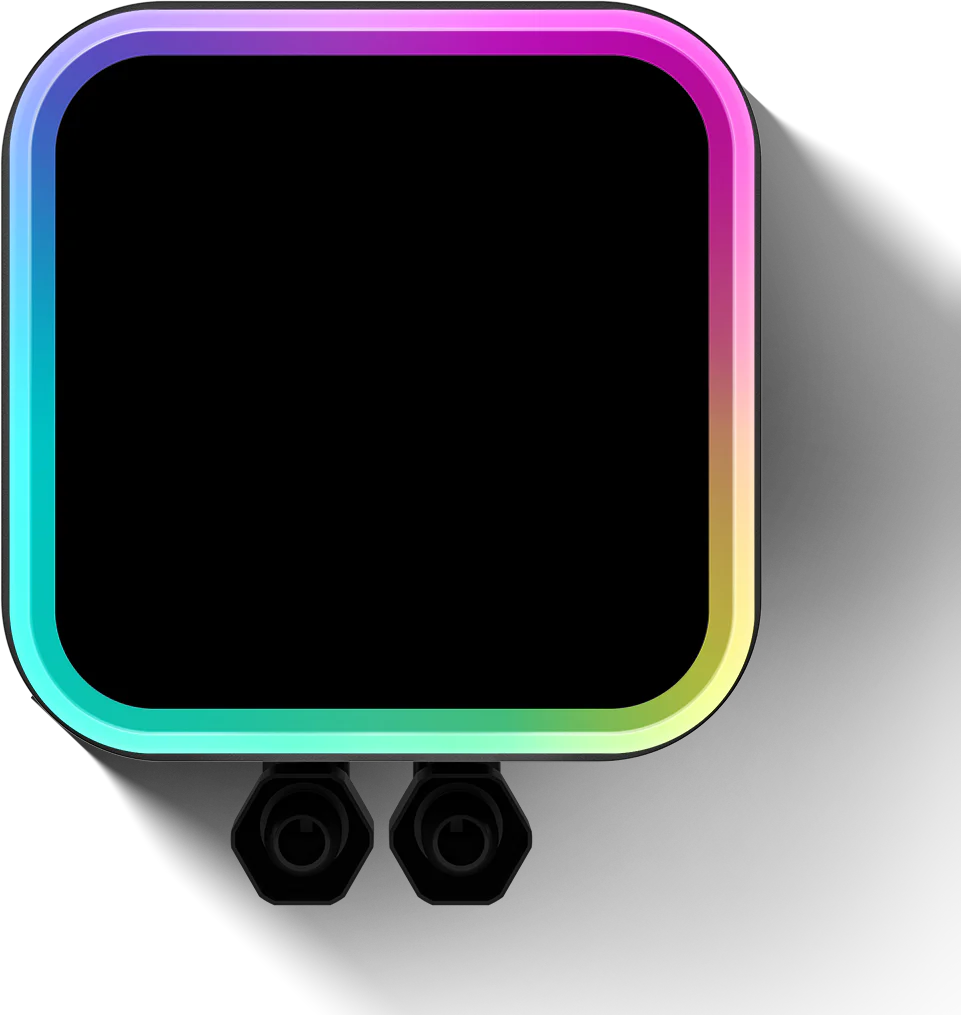

The magnetic pump cover introduces quick detachment and tool-free adjustments, with 360° rotation for perfect alignment in any build. Its precision-engineered pogo pin contact ensures secure and reliable connection, redefining convenience in liquid cooling.

PERFORMANCE IN EVERY GLOW

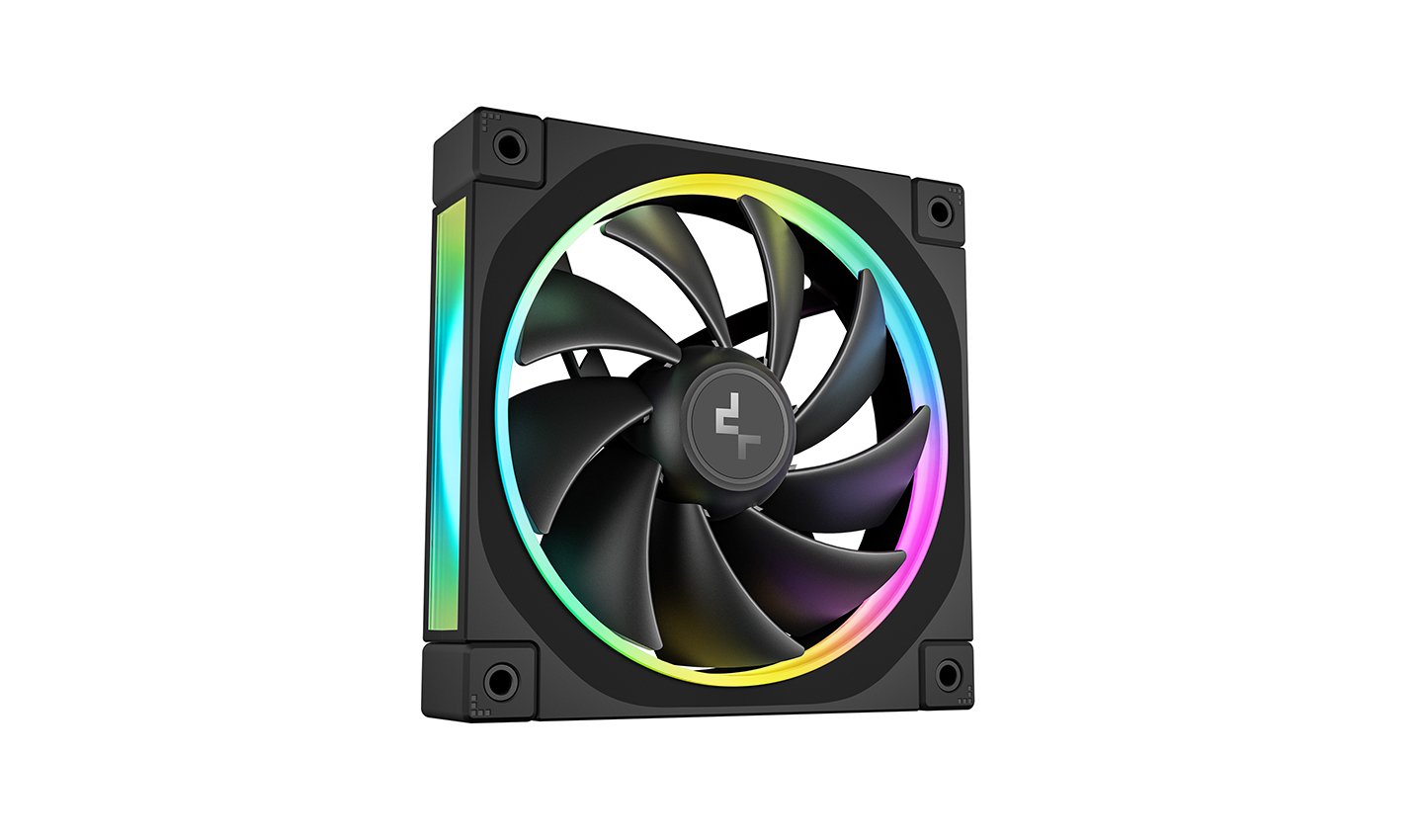

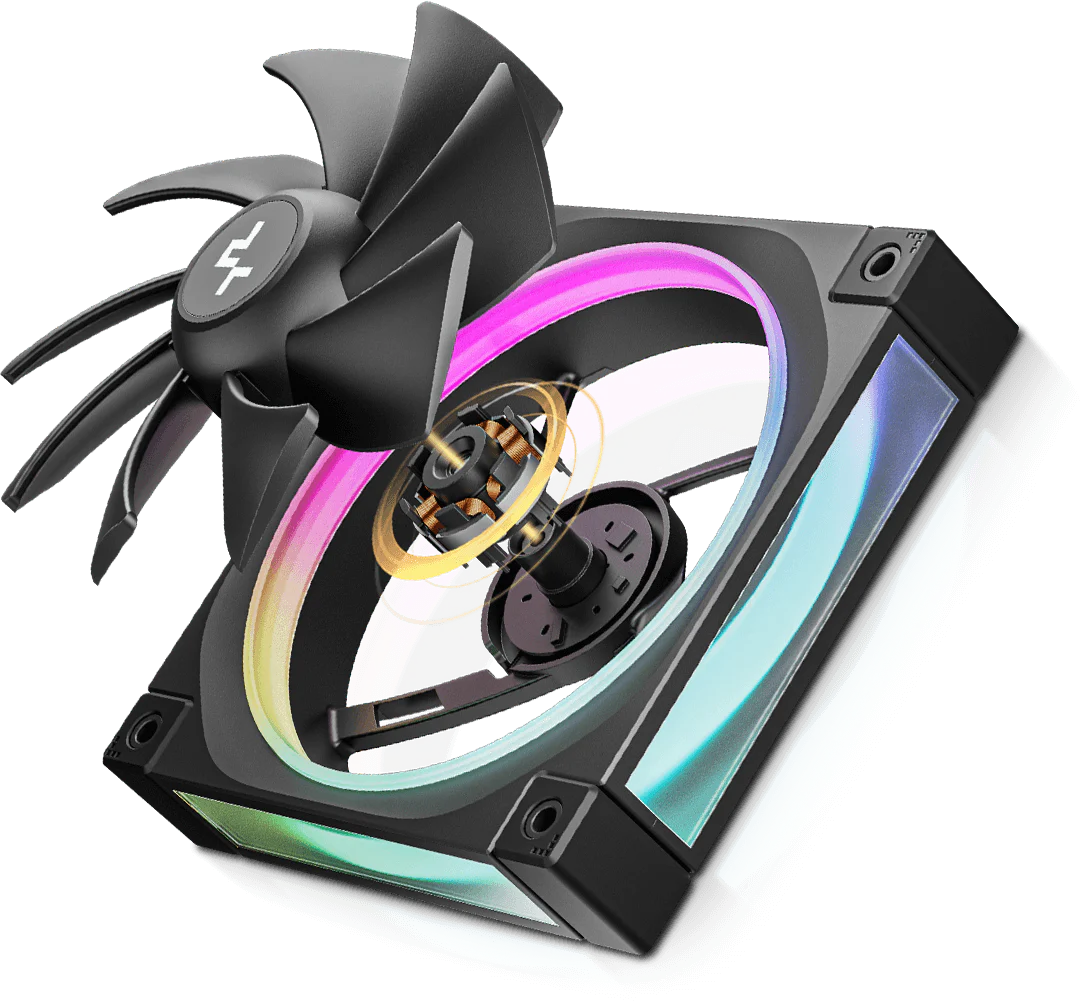

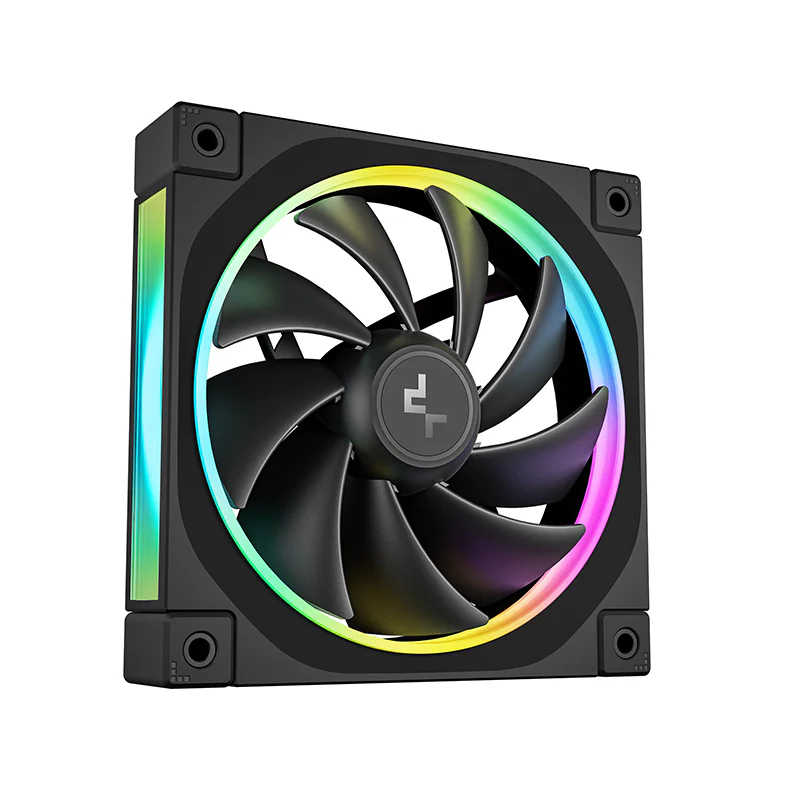

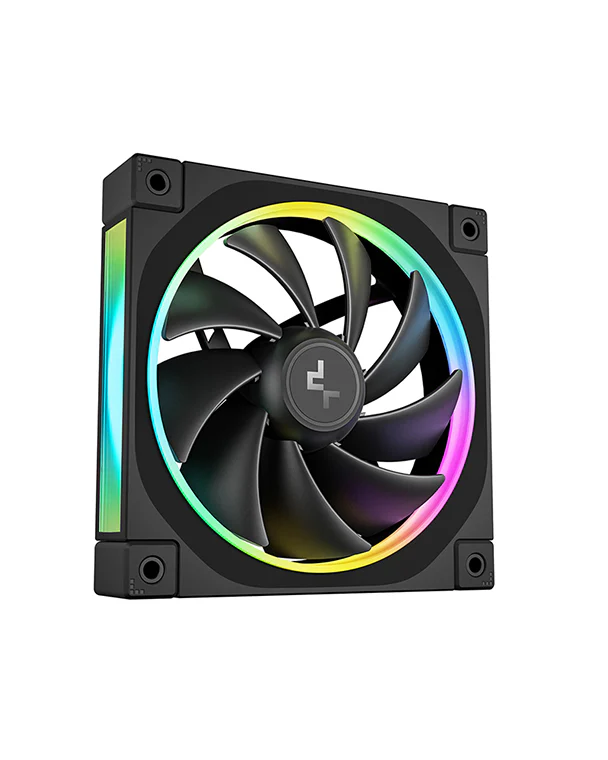

The FL12 fans frame the radiator with vivid ARGB halos, flowing in perfect sync with the pump head to create unified lighting. Built with Fluid Dynamic Bearings, they help ensure quiet, consistent operation for long-term use.

500-2150 RPM ±10%

Fan Speed

55 CFM

Airflow

2.82 mmAq

Static Pressure

≤32 dB(A)

Fan Noise

ANTI-LEAK TECHNOLOGY

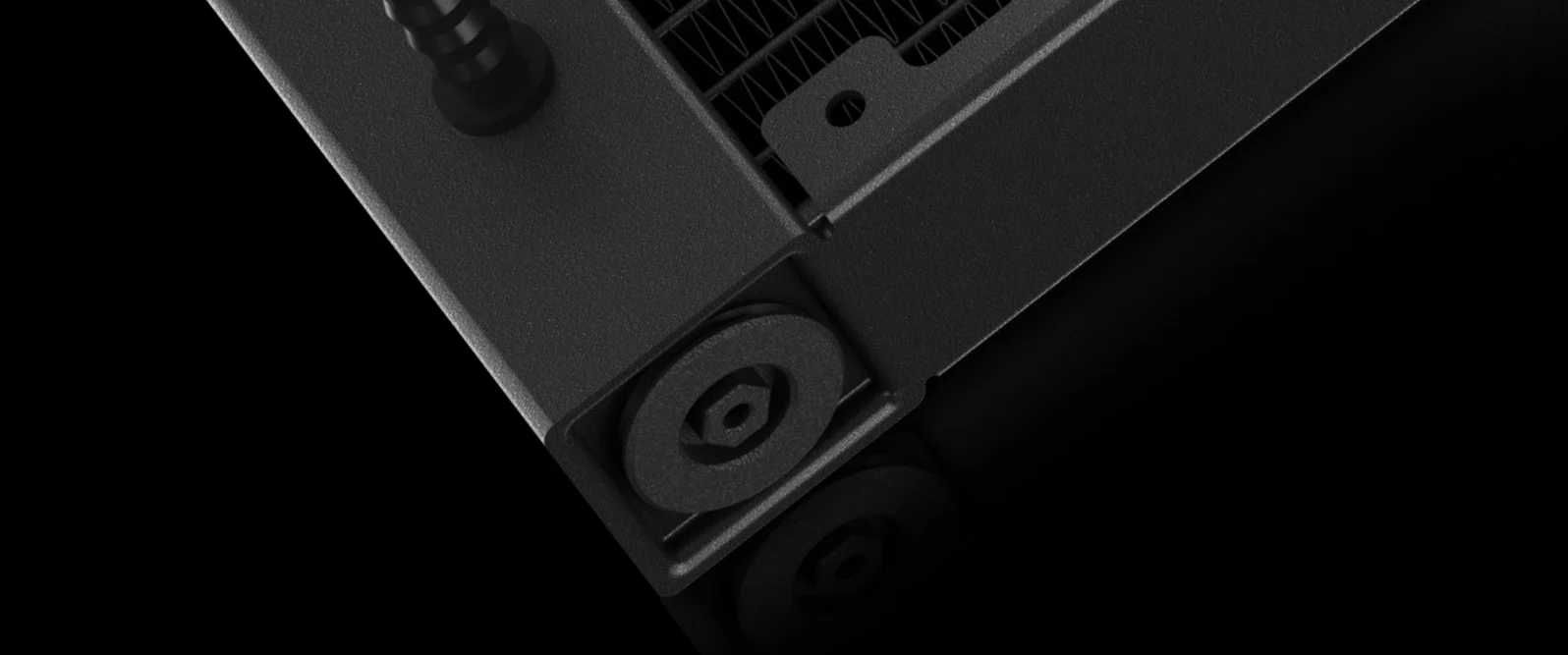

The LQ ULTRA ARGB liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and purges it when internal pressure exceeds atmospheric pressure, extending the cooler's lifespan and reducing the risk of leaks.

SIMPLIFIED INSTALLATION

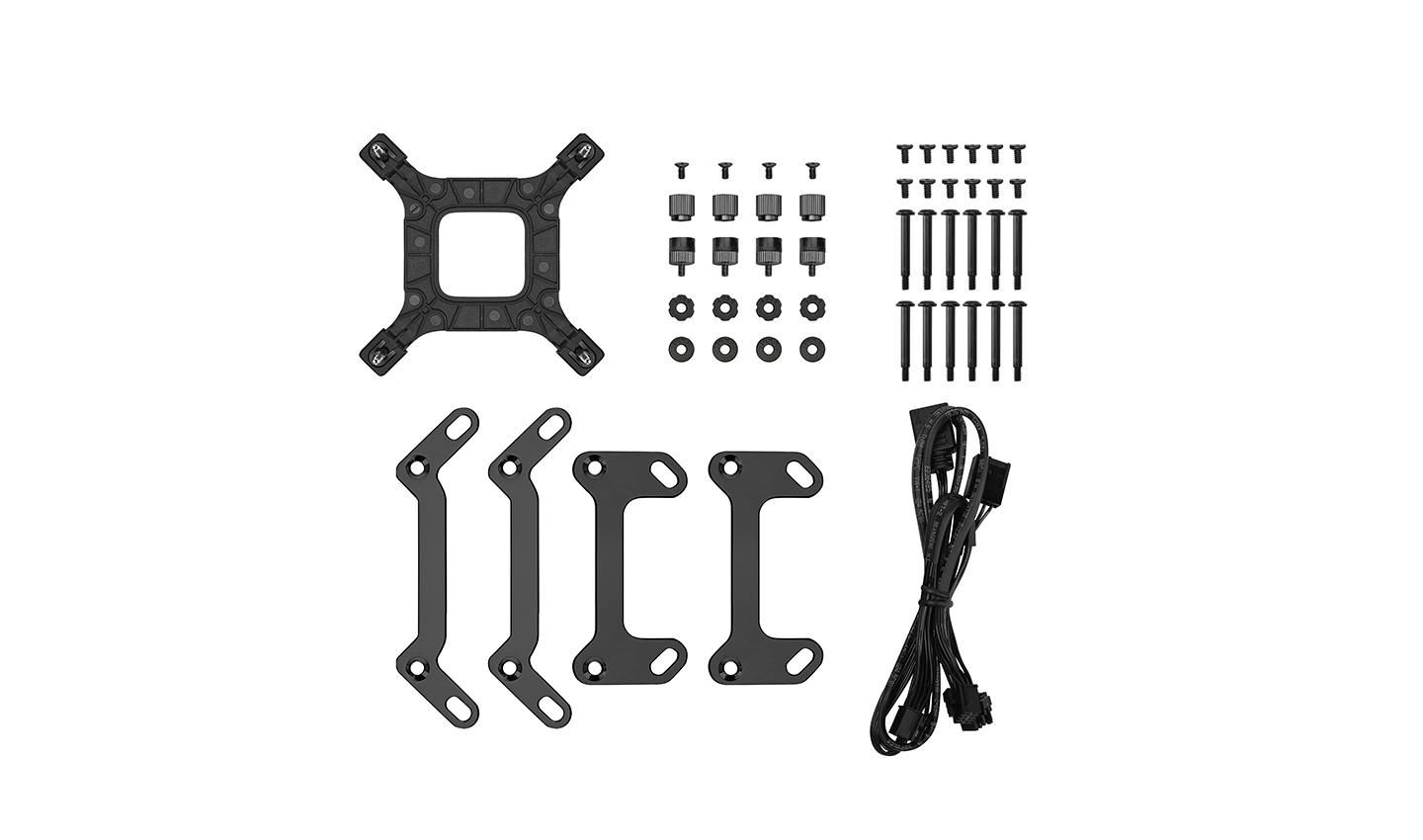

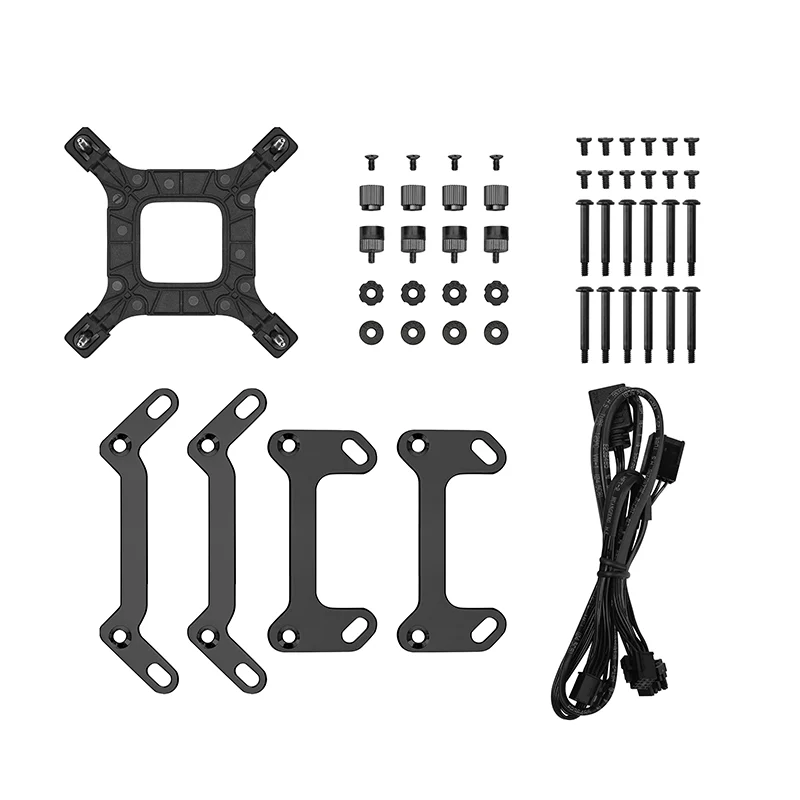

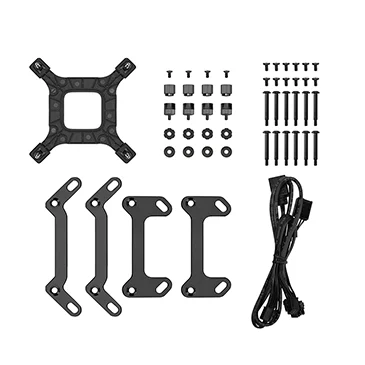

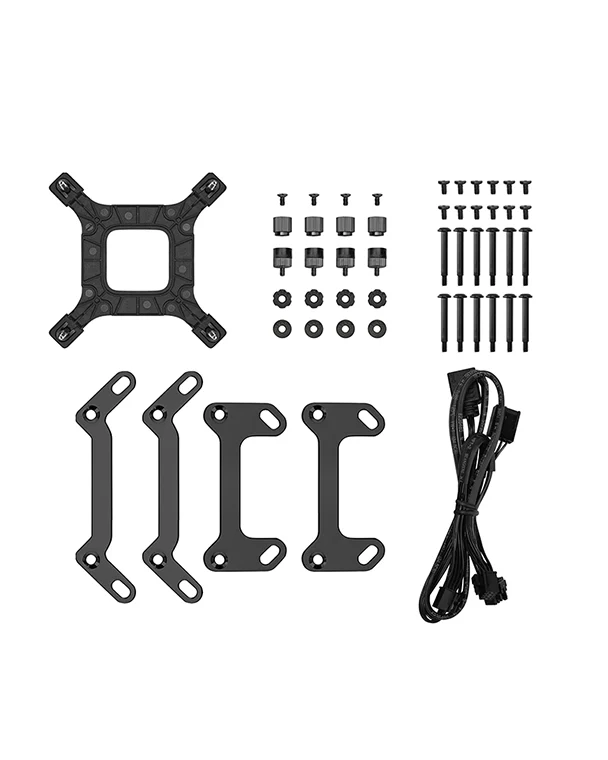

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LQ360 ULTRA ARGB to the latest mainstream CPUs is included in the box, so you are ready to go.

Intel LGA1851/1700/1200/115X
AMD AM5/AM4

Application For

Intel

LGA1851/1700/1200/115X

AMD

AM5/AM4

Technical Spec

Net Weight	1900 g

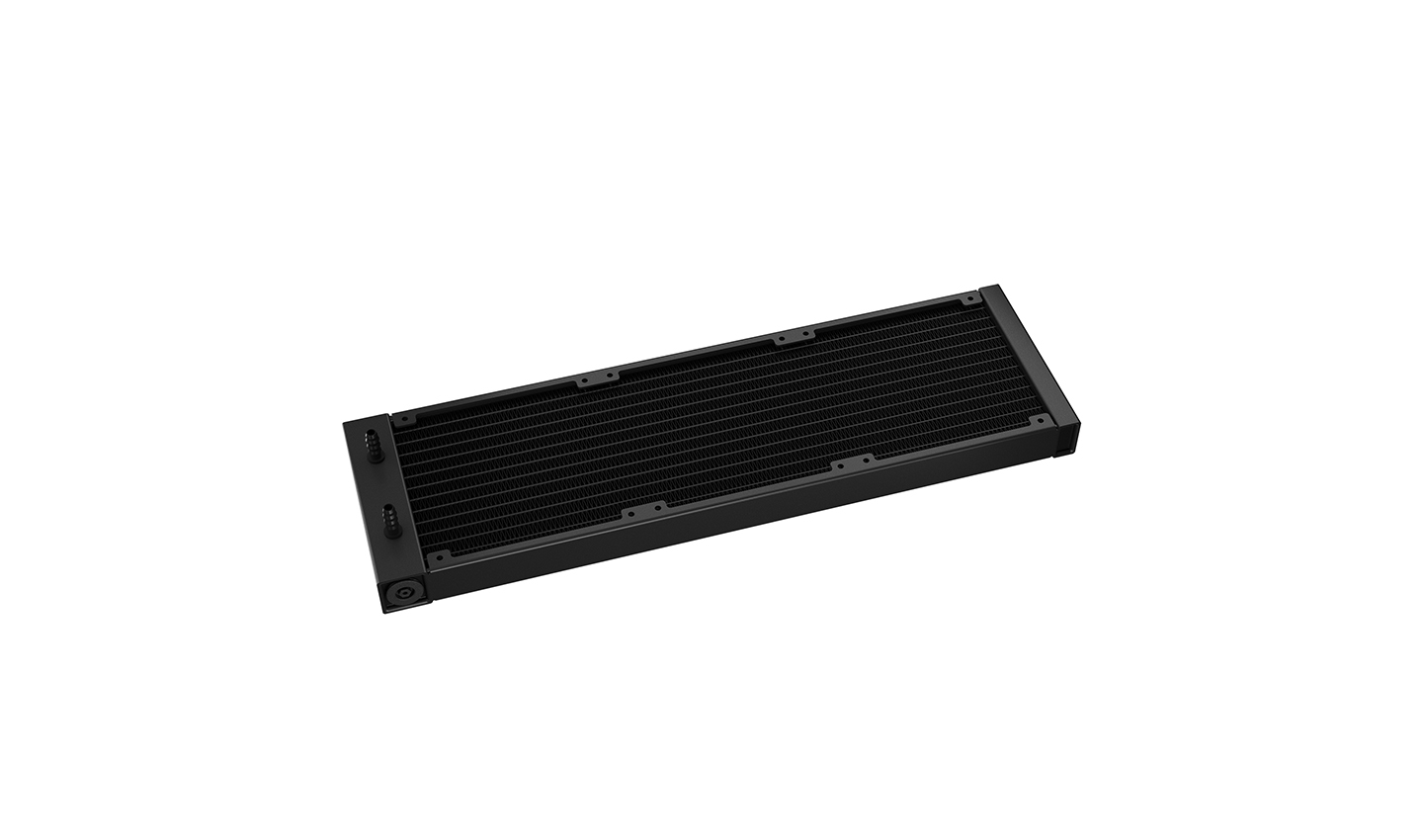

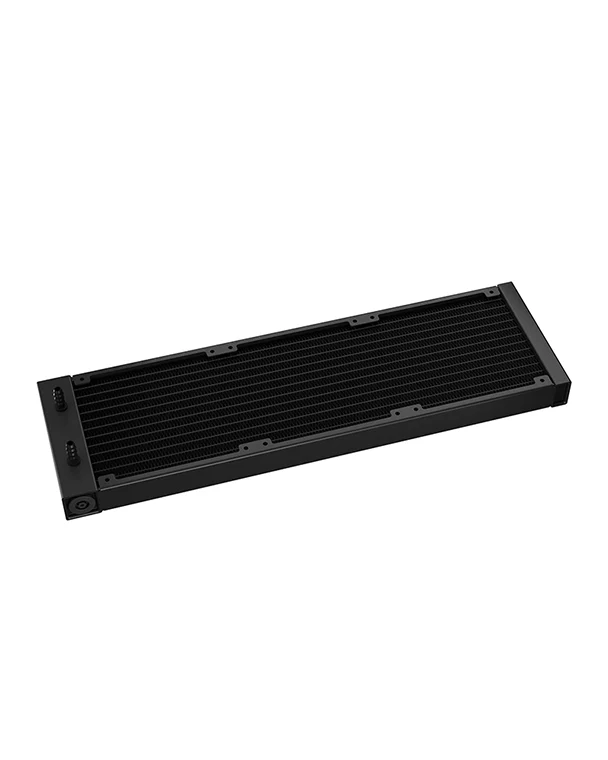

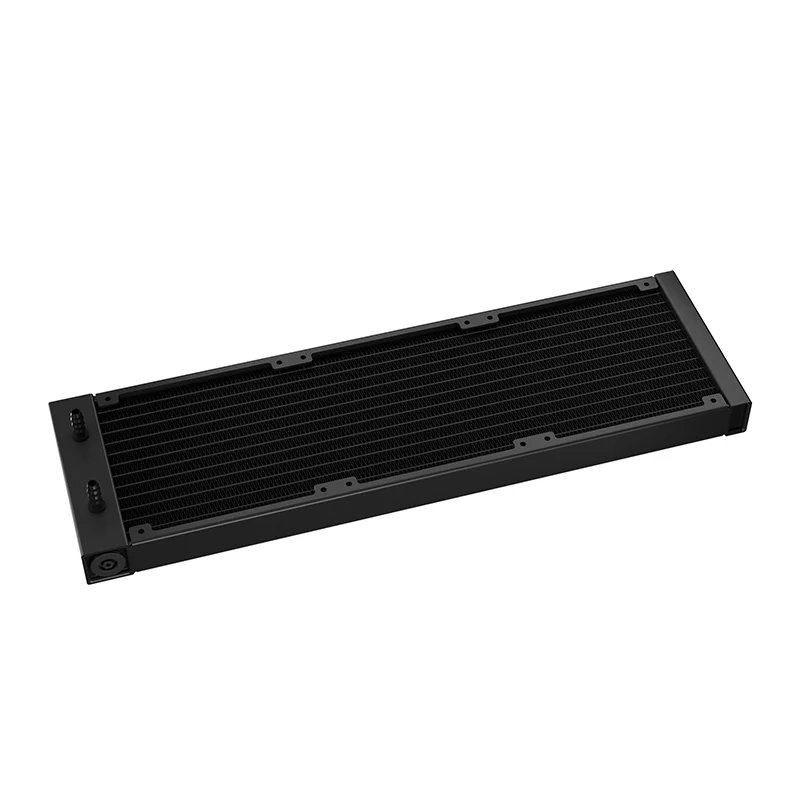

Radiator Dimensions	402×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm
Pump Dimensions	89×76×64 mm(L×W×H)
Pump Speed	2500~3400 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2150 RPM±10%
Fan Airflow	55 CFM
Fan Air Pressure	2.82 mmAq
Fan Noise	≤32 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.15 A
Fan Power Consumption	1.8 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.4 W（PUMP）/ 8.25 W（FAN×3）
Display Type	LED Digital Display
Display Module Rated Current	0.08 A±10%
Display Module Rated Voltage	5 VDC
Display Module Power Consumption	0.4 W
Display Area	53.9×49.15 mm
EAN	6933412729808
P/N	R-LQ360-BKASMC-G-1
