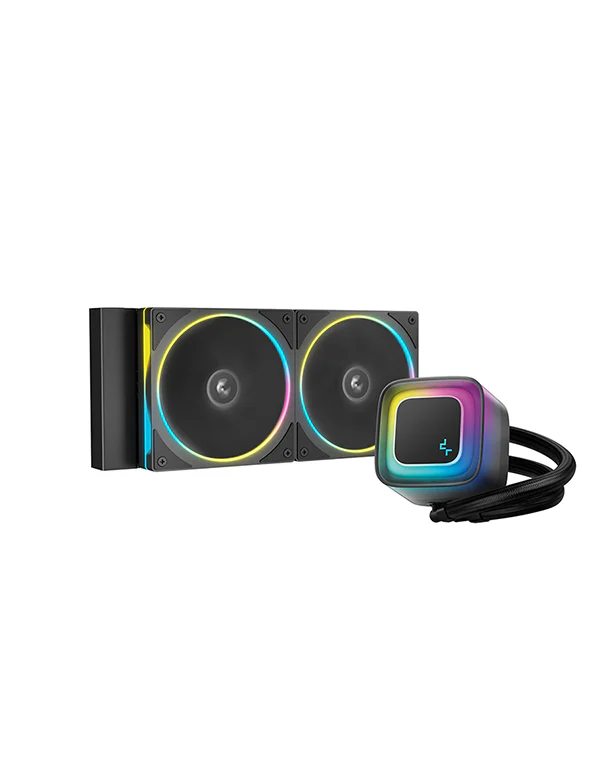

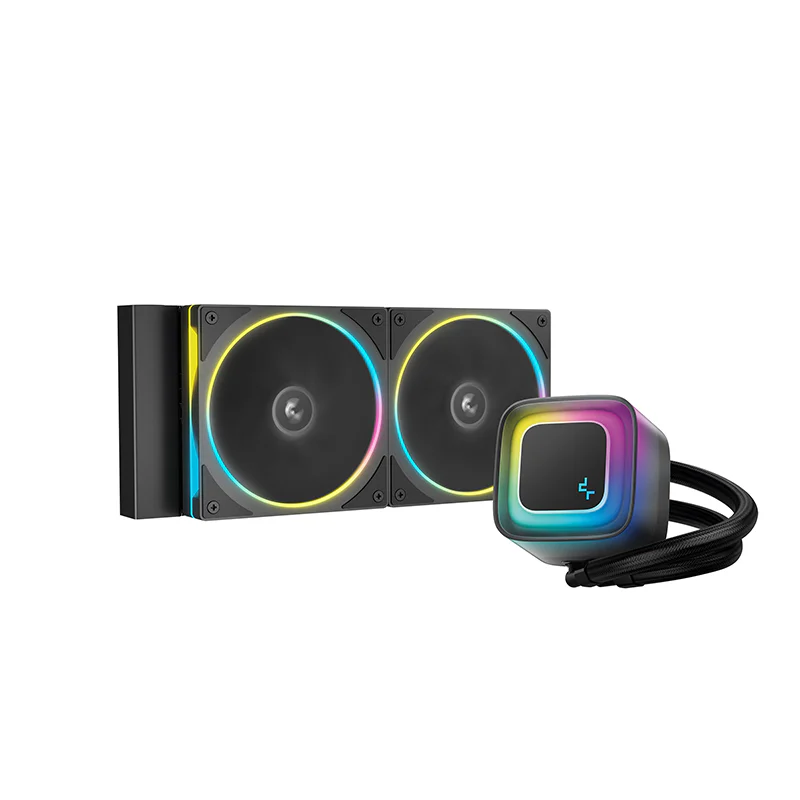

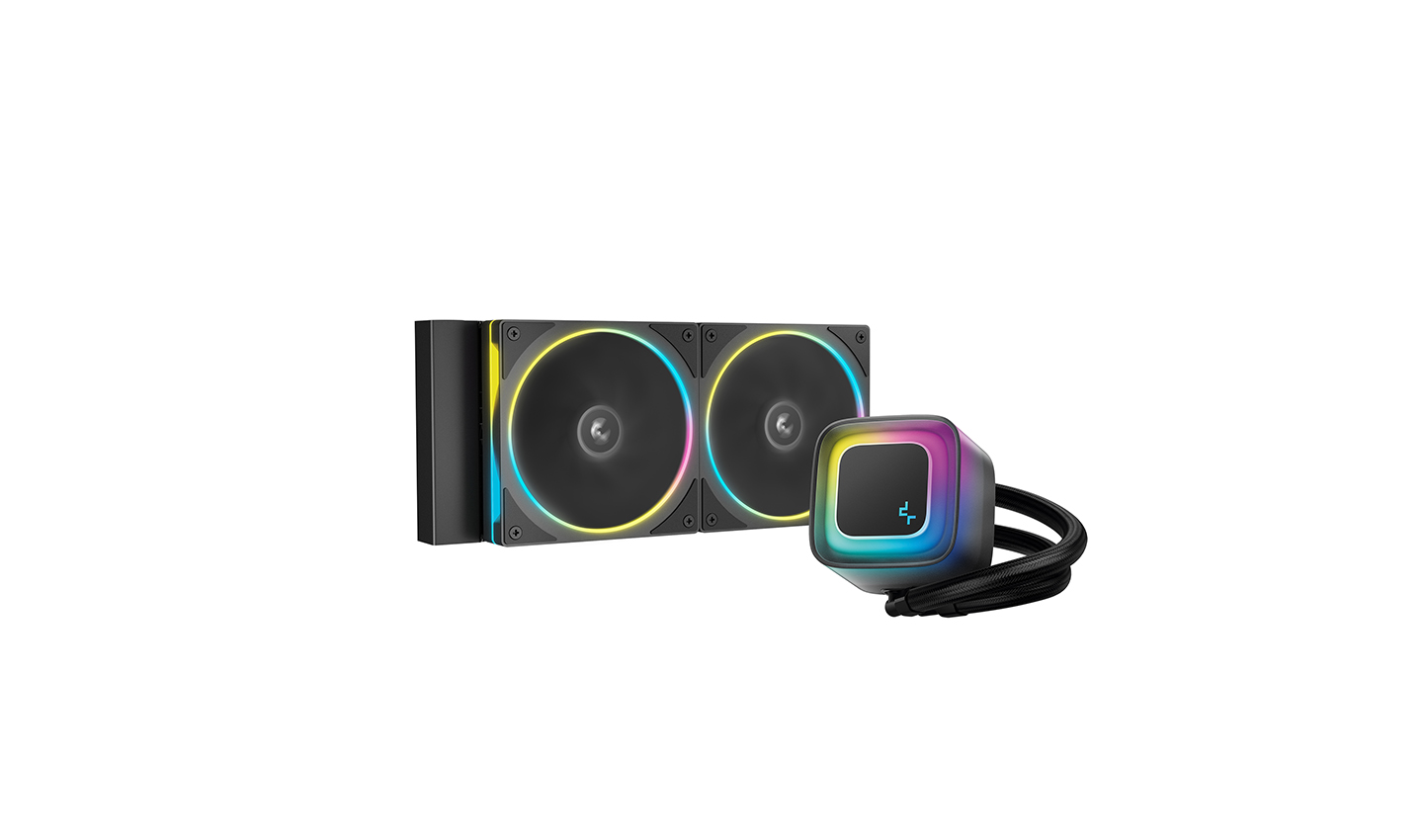

LE240 PRO

ELEVATED ENTRY-LEVEL

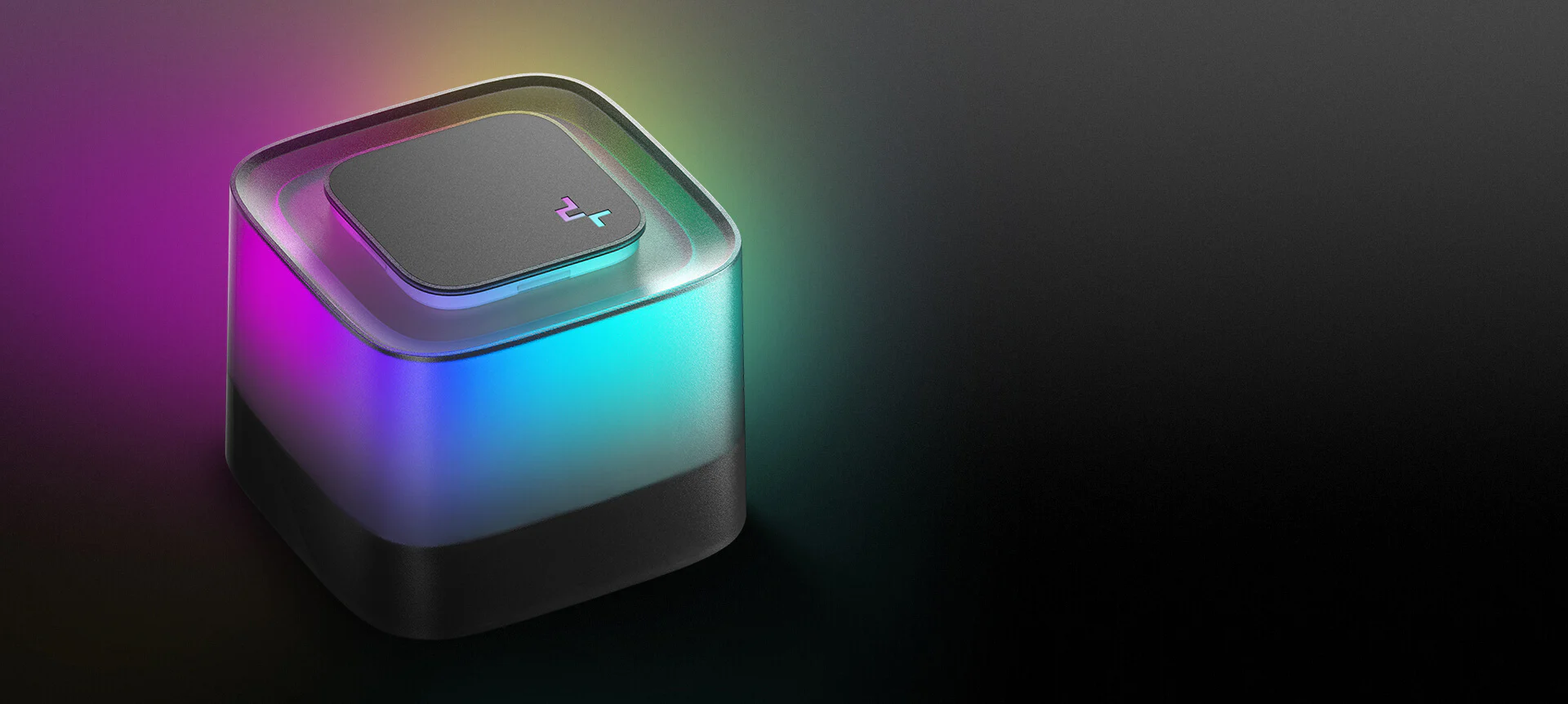

FROSTED ELEGANCE

The frosted pump head design creates a soft, diffused glow for an elegant visual effect, blending seamlessly into any build. The logo plate features a minimalist design that can be customized or left blank to suit your personal style.

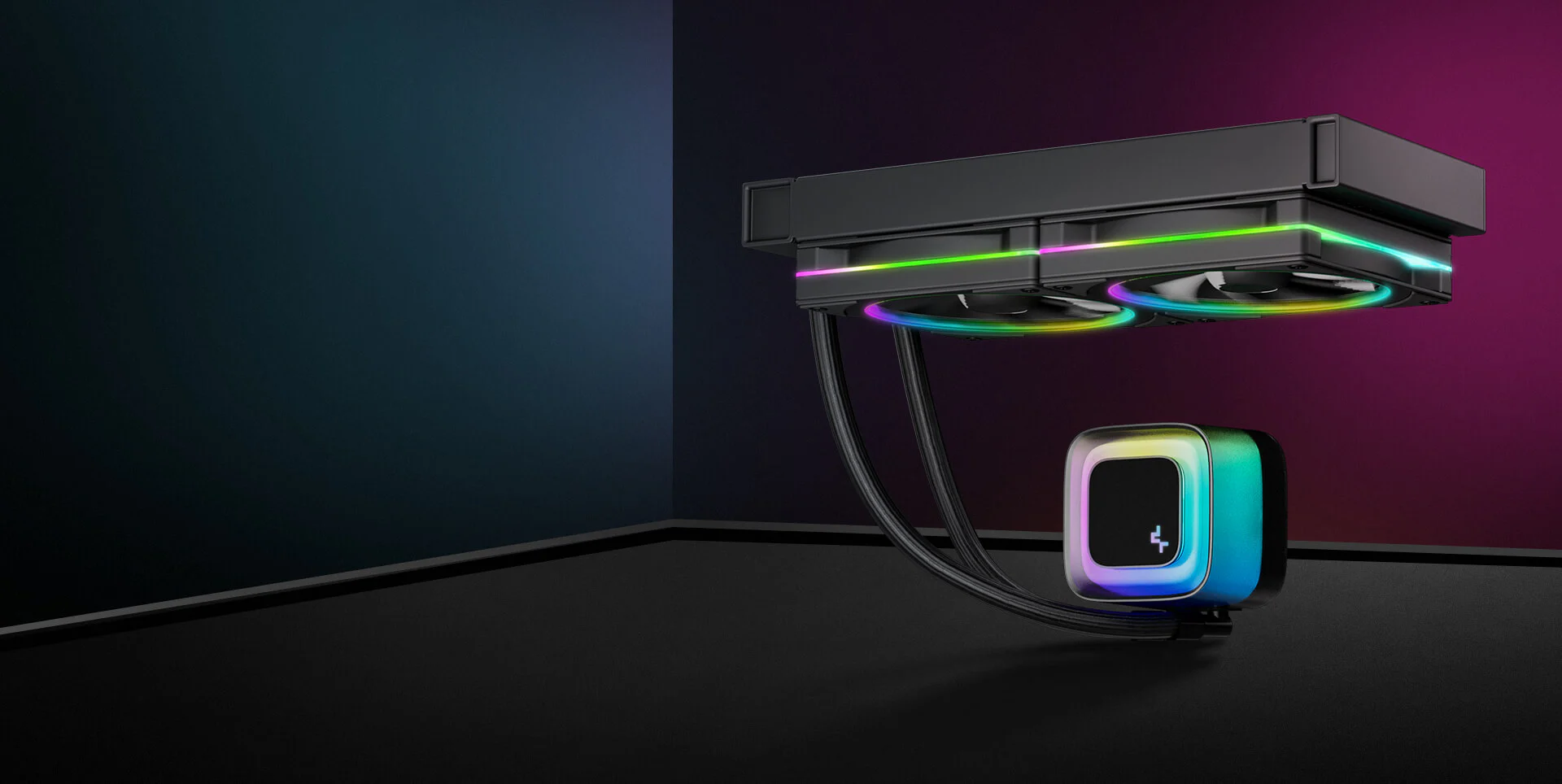

TAILORED FOR COMPACT BUILDS

The LE240 PRO features a revised tube configuration tailored for compact cases. With 230mm and 260mm tube lengths, it avoids cable excess and improves internal layout in ITX and mATX builds. The shorter thermal path enhances heat transfer efficiency for better cooling.

Pair it with the CH160 PLUS for a perfect build

COOL AND QUIET

The LE PRO series features an advanced water pump designed for efficient and quiet performance, powered by a 3-phase, 6-slot, 4-pole motor that rotates up to 3400 RPM.

With PWM intelligent speed control via a 4-PIN cable, users can now easily adjust pump speed for further reduce noise while maintaining reliable cooling.

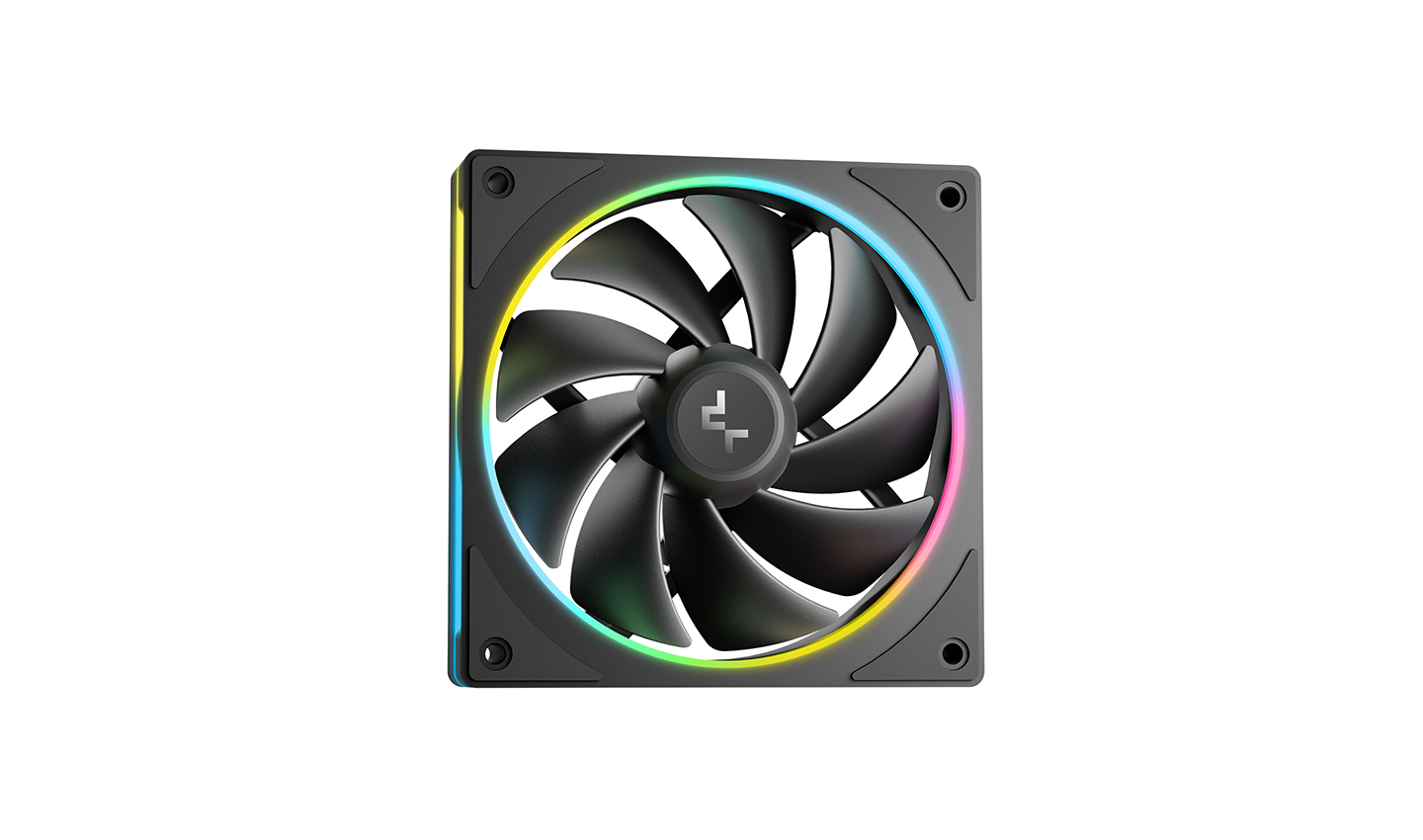

EFFICIENCY IN MOTION

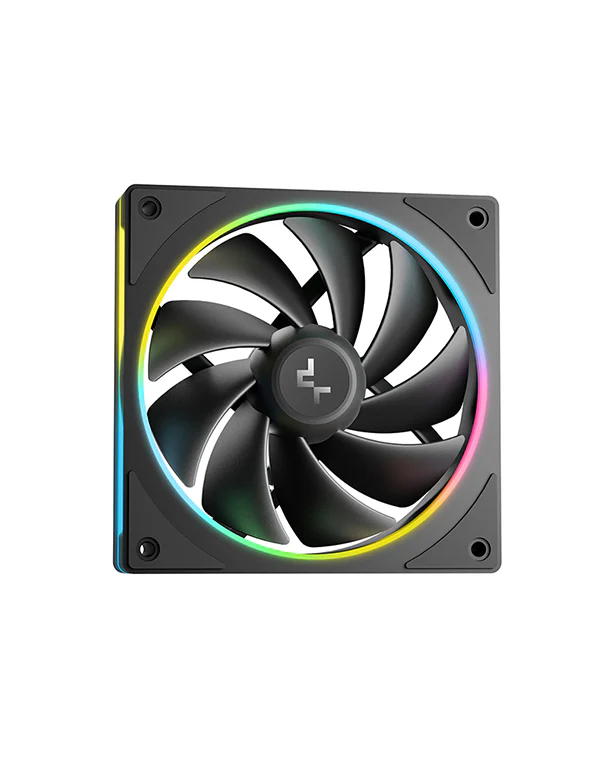

Equipped with a long-life hydraulic bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.

400-2400 RPM ±10%

Fan Speed

66.23 CFM

Airflow

3.27mmAq

Static Pressure

≤36.07 dB(A)

Fan Noise

ANTI-LEAK TECHNOLOGY

The LE PRO liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and purges it when internal pressure exceeds atmospheric pressure, extending the cooler's lifespan and reducing the risk of leaks.

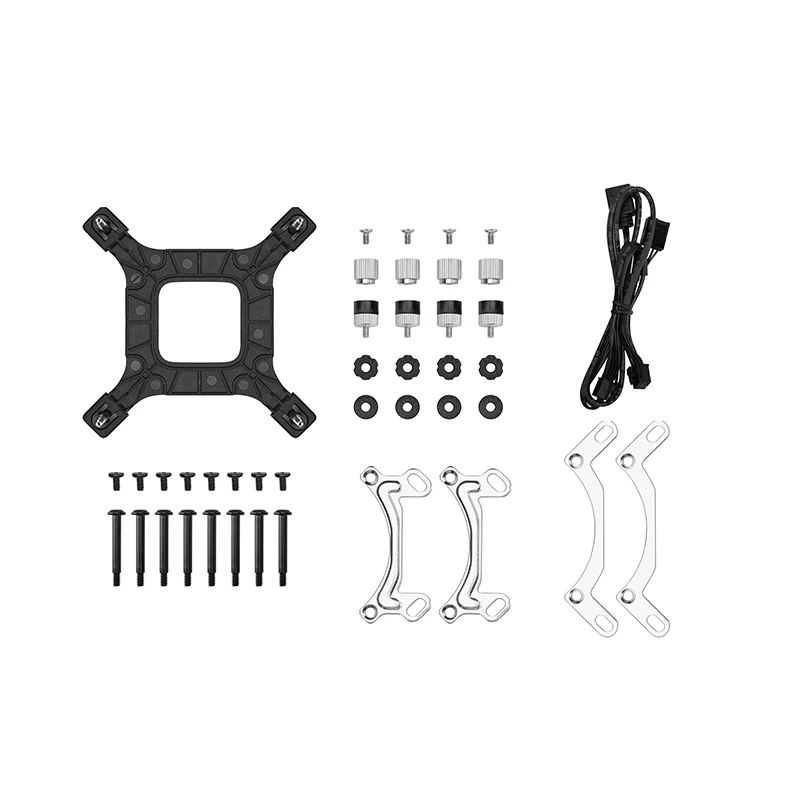

SIMPLIFIED INSTALLATION

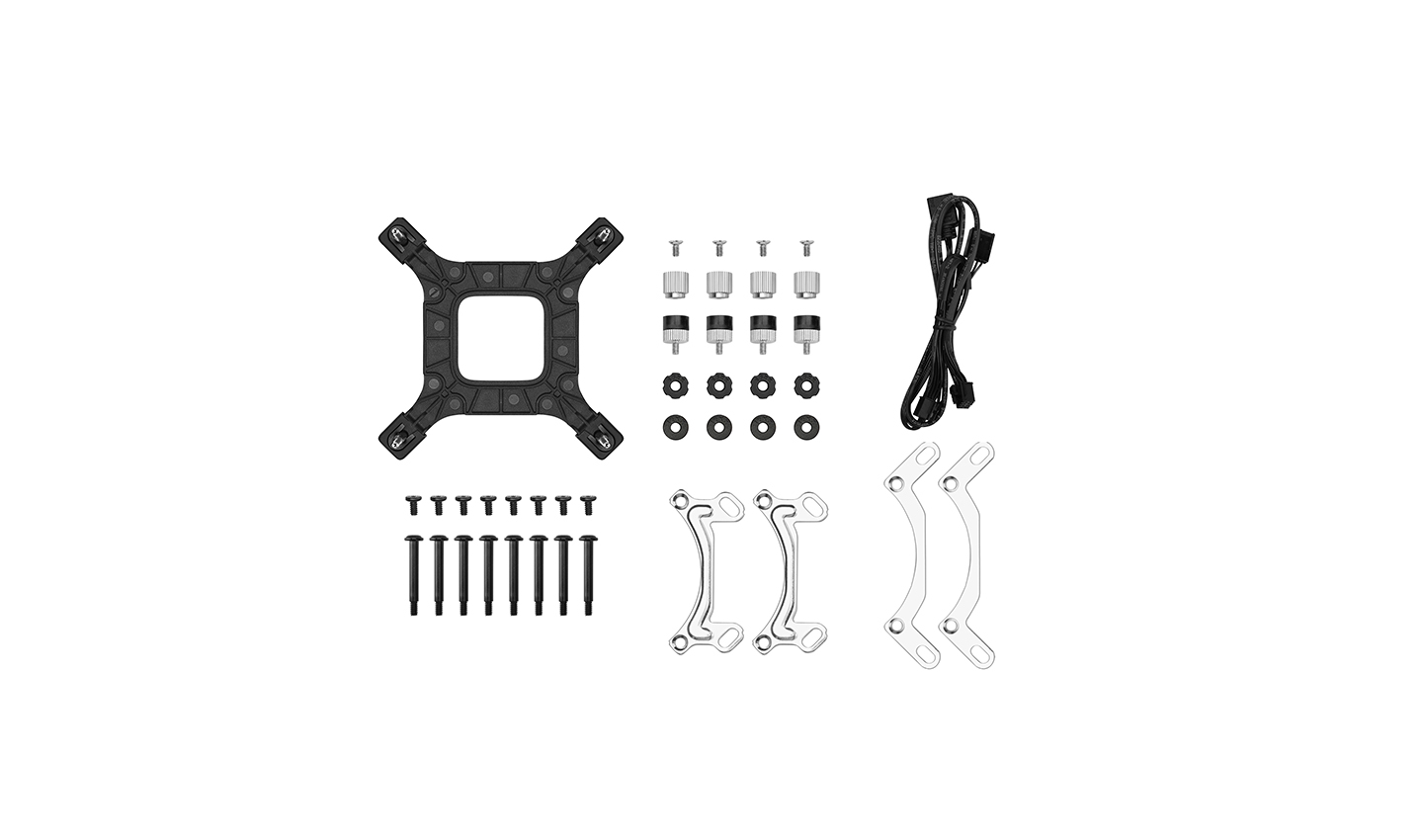

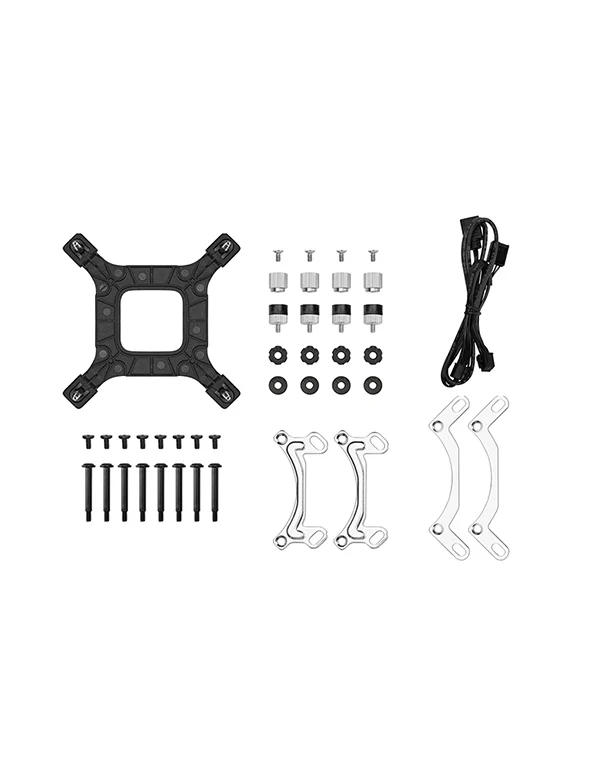

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LE240 PRO to the latest mainstream CPUs is included in the box, so you are ready to go.

Application For

Intel

LGA1851/1700/1200/115X

AMD

AM5/AM4

Technical Spec

Net Weight	1347 g

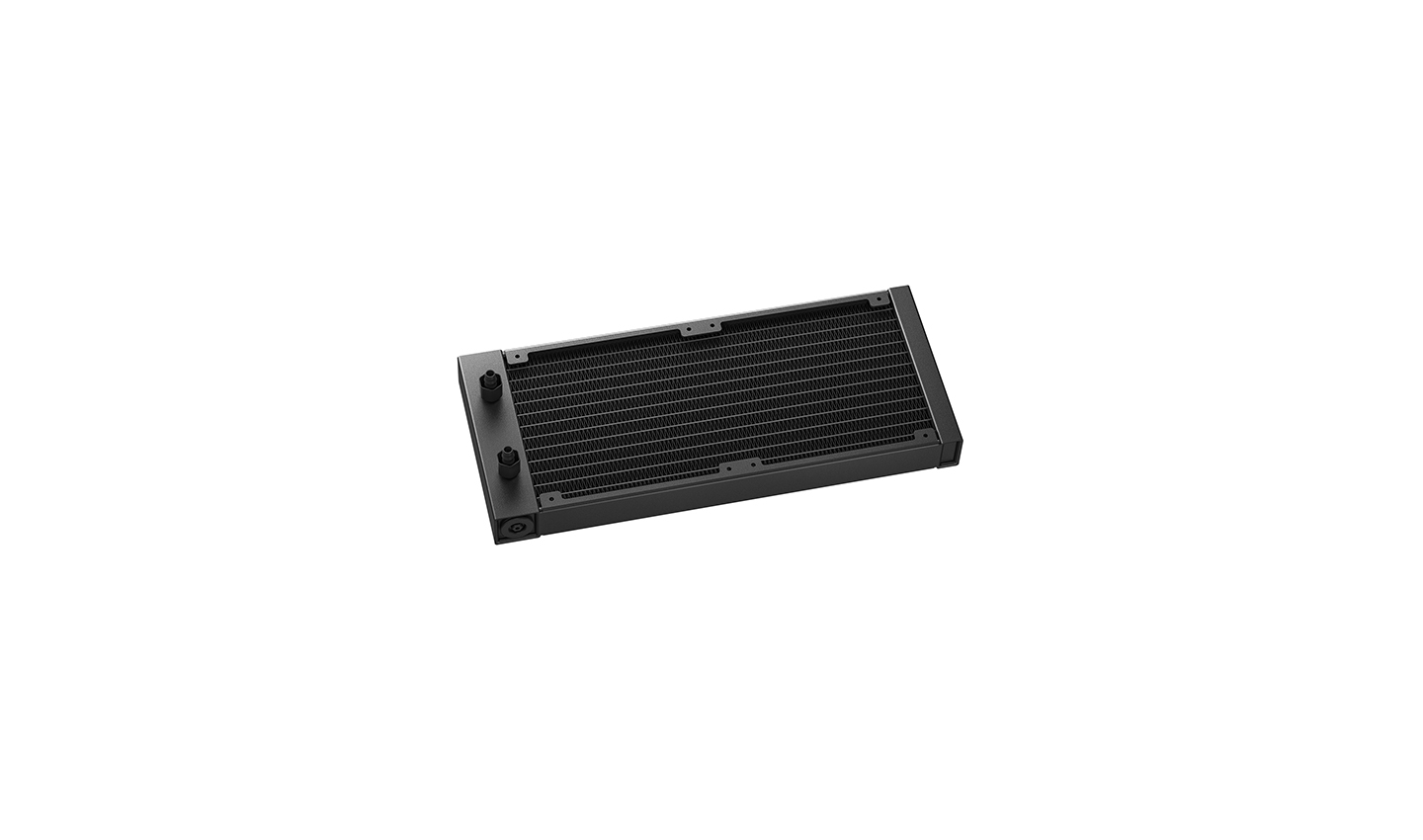

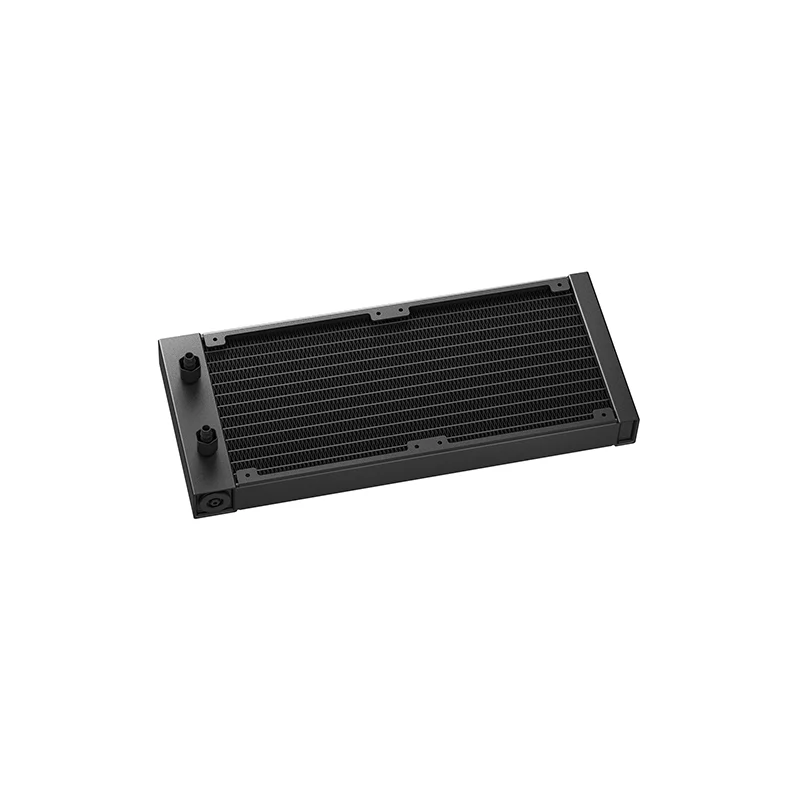

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	230mm/260mm

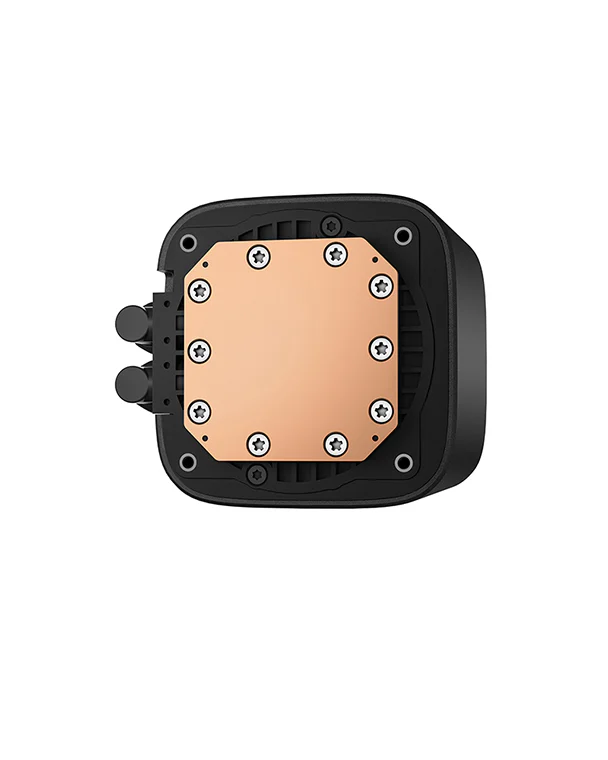

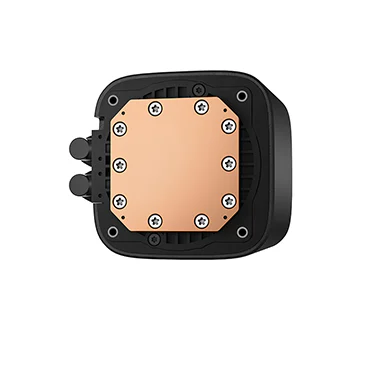

Pump Dimensions	91×78×65 mm(L×W×H)
Pump Speed	2500~3400 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	400~2400 RPM±10%
Fan Airflow	66.23 CFM
Fan Air Pressure	3.27 mmAq
Fan Noise	≤36.07 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.18 A
Fan Power Consumption	2.16 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.8 W（PUMP）/ 7.0 W（FAN×2）
EAN	6933412729822
P/N	R-LE240PRO-BKAMMC-G-1
