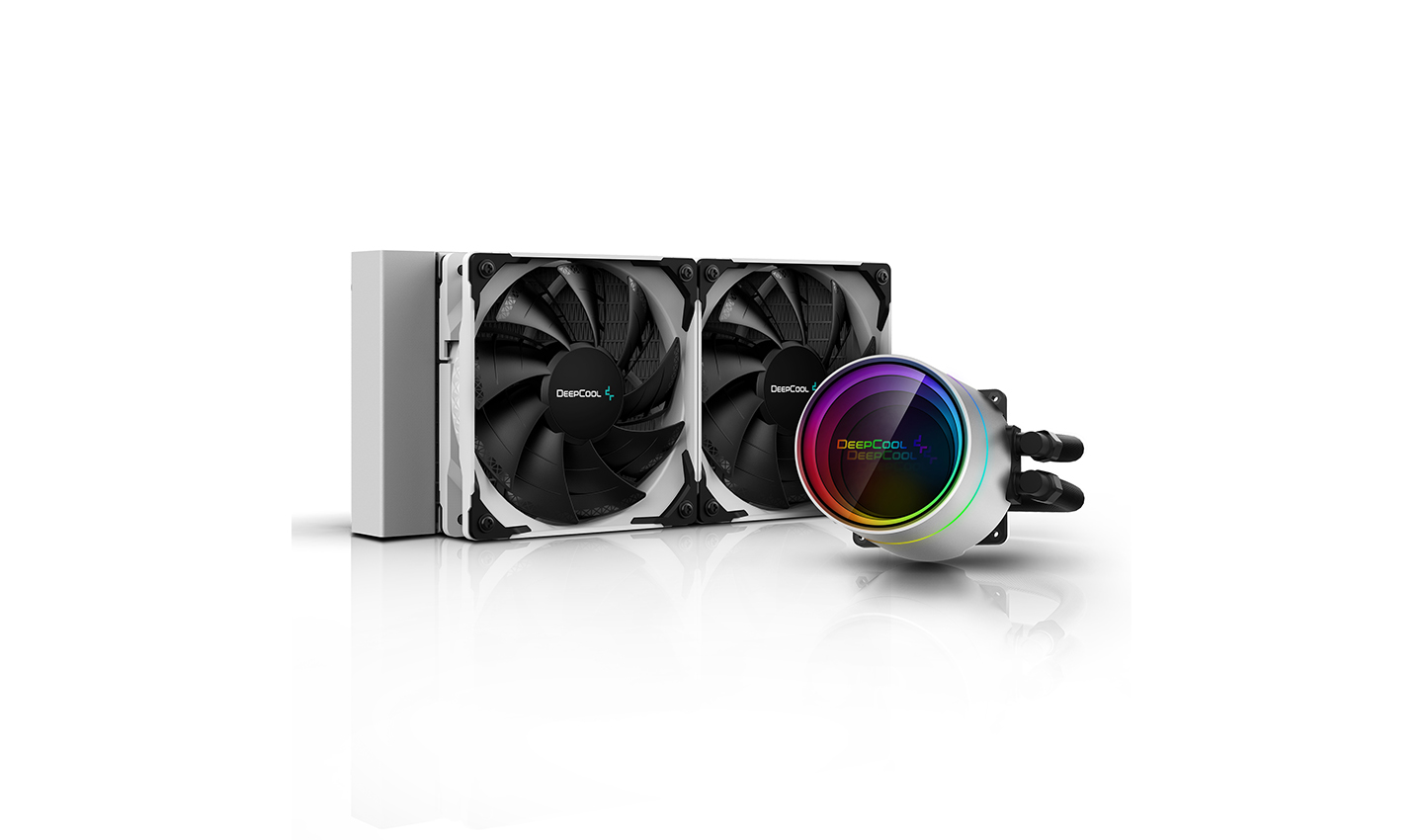

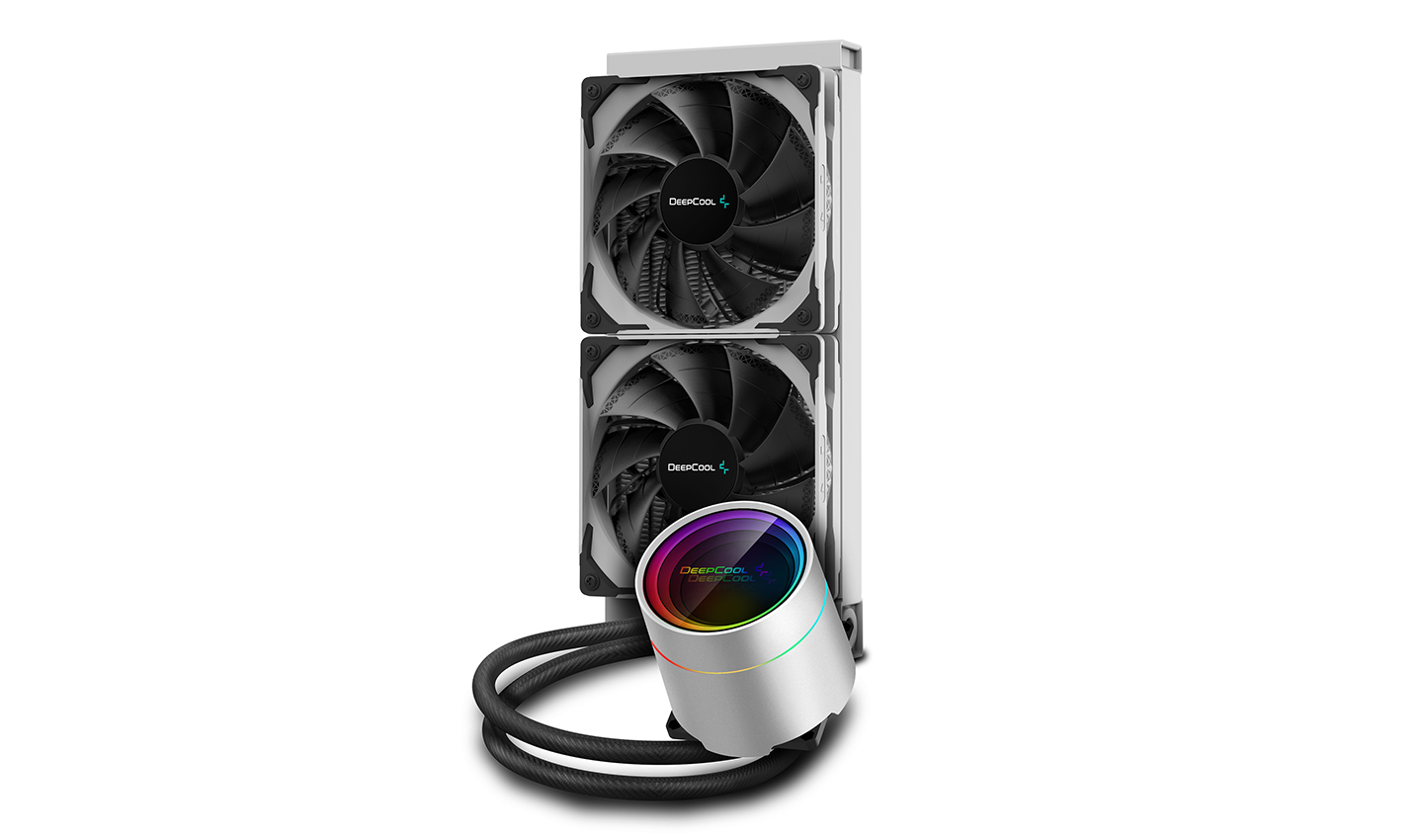

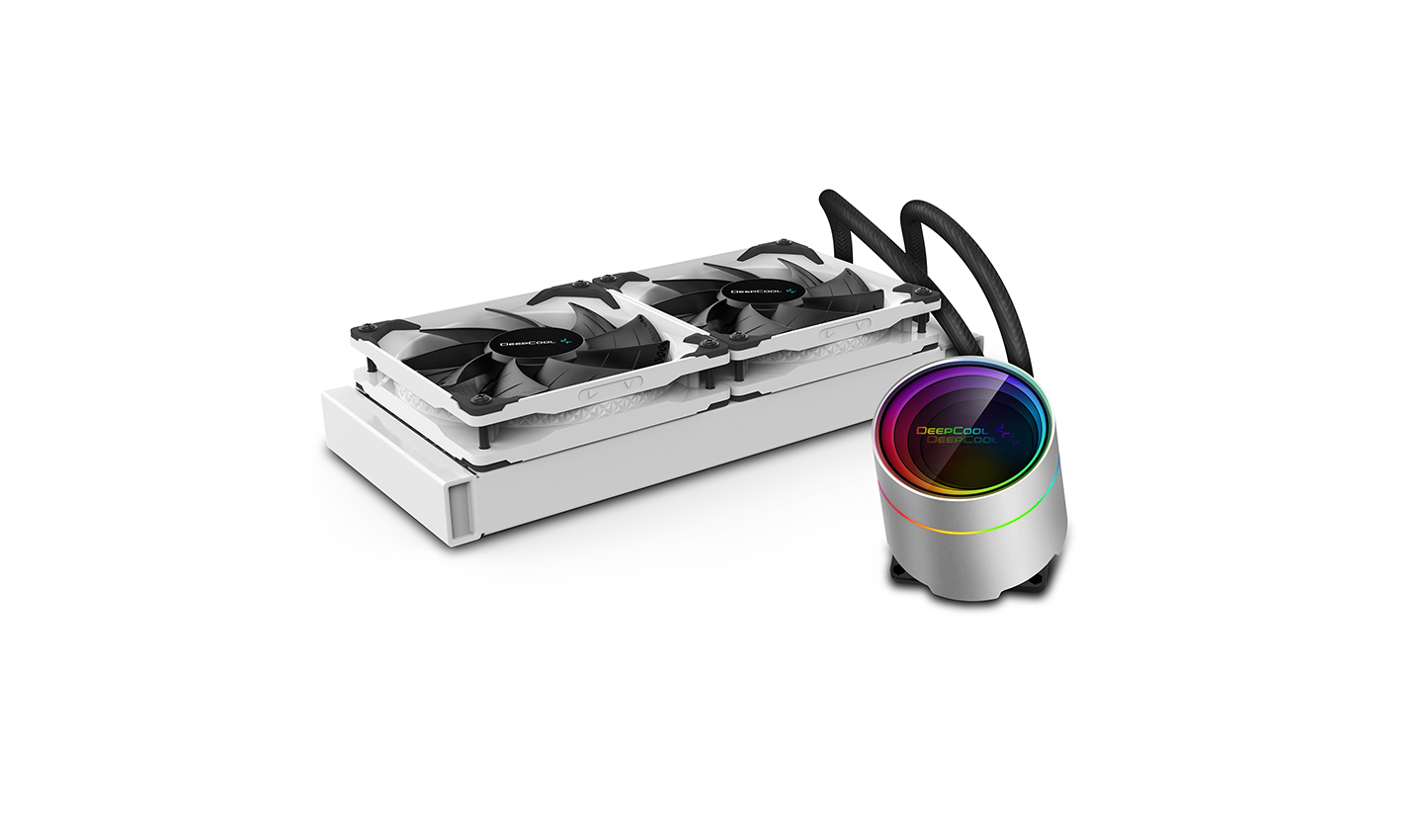

CASTLE 240EX WHITE

Fortified Cooling

Protect what’s yours

Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.

Powerful and quiet

―

A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

Efficient cooling

―

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

MORE EFFICIENT FLOW

―

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

Performance tuned

―

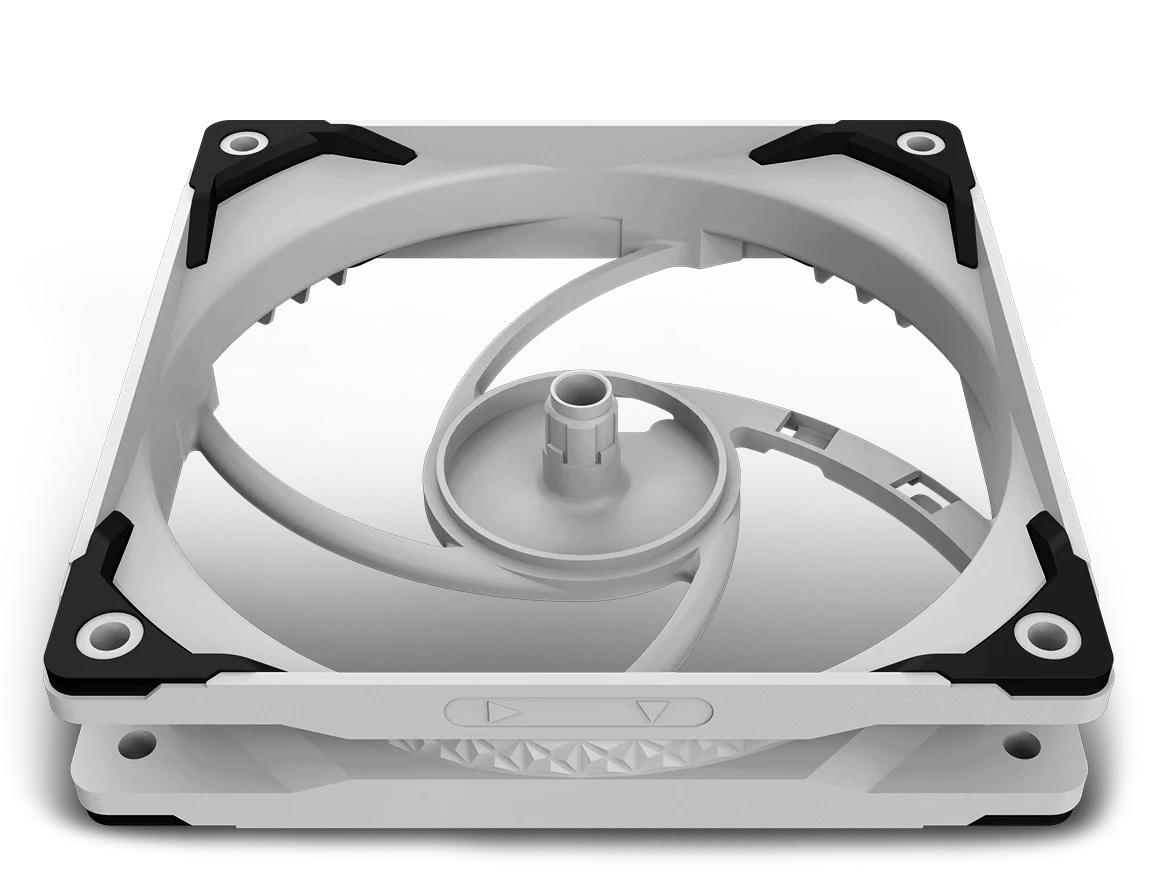

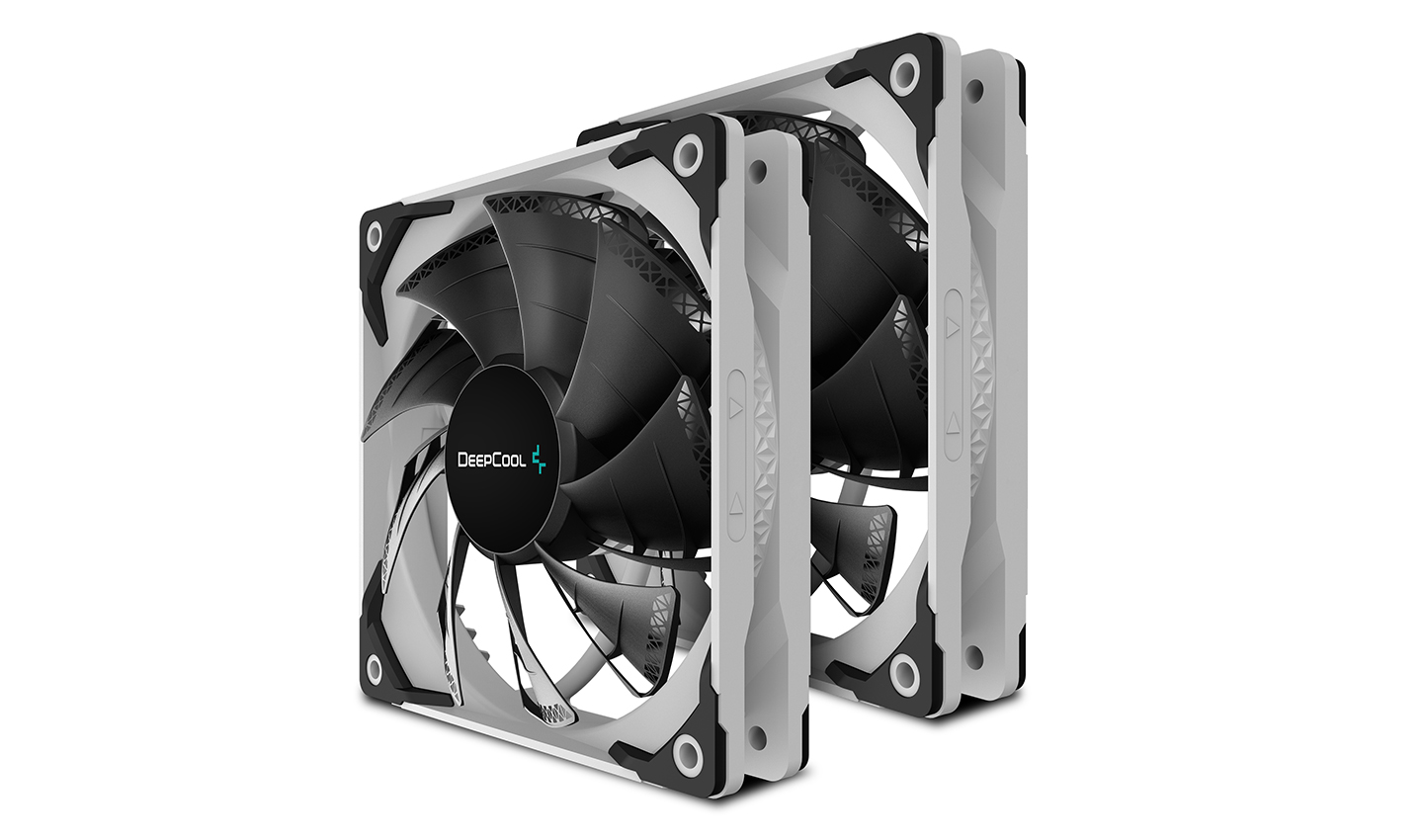

Specially tuned DeepCool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.

Customize your look

―

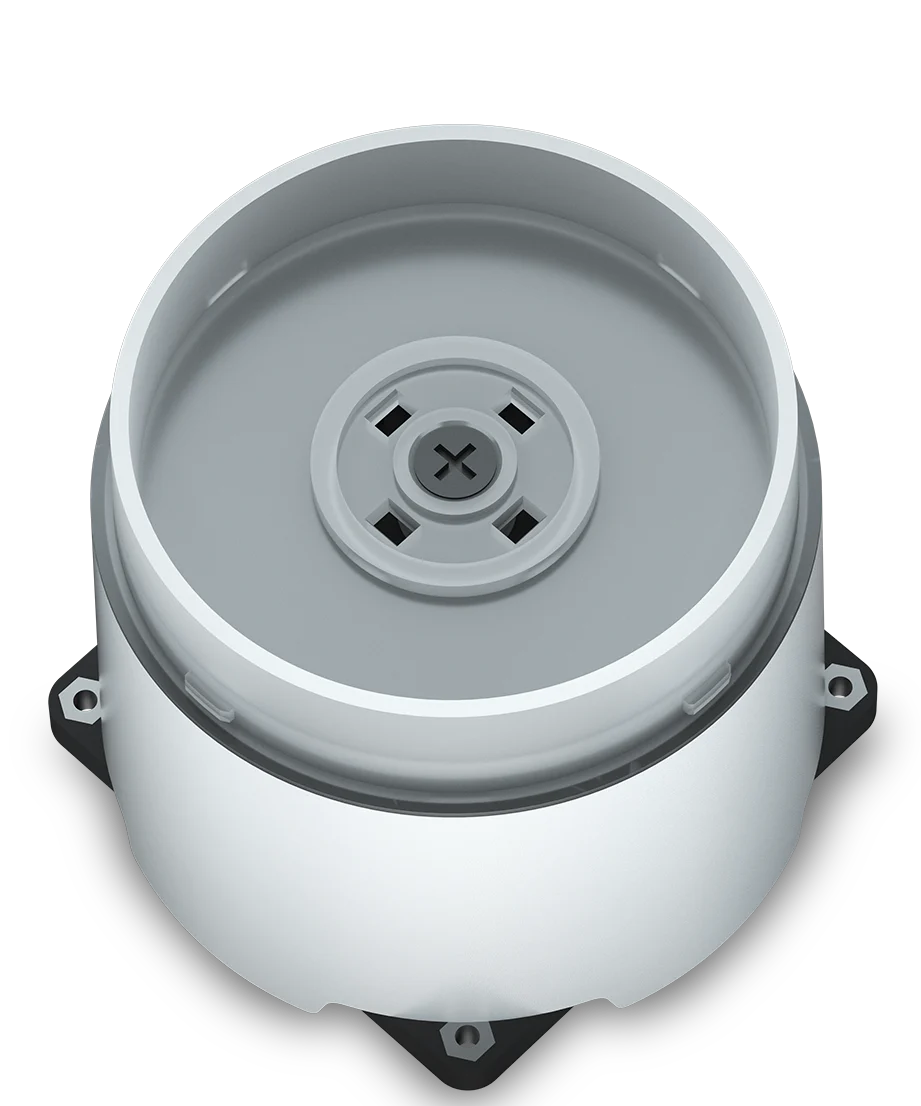

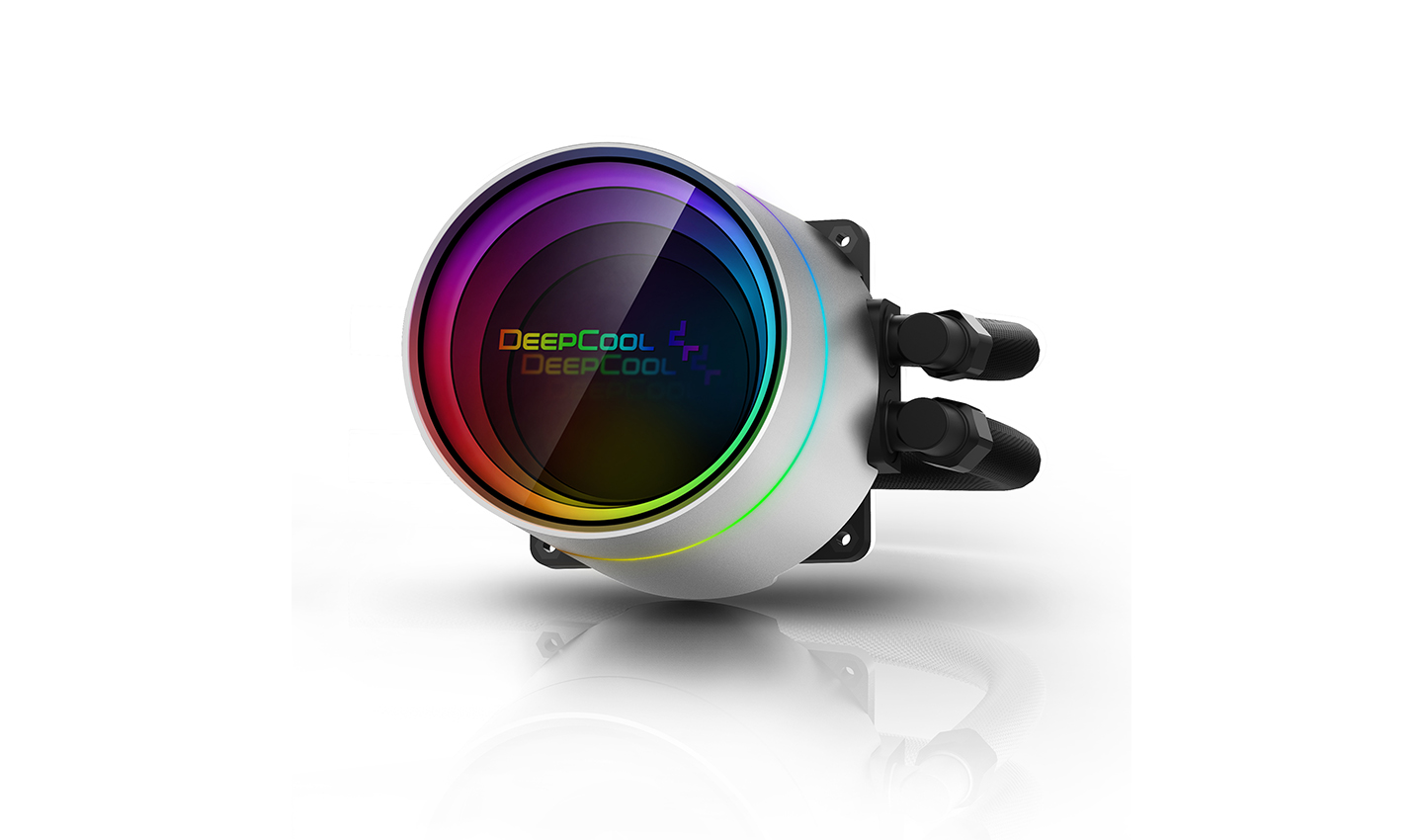

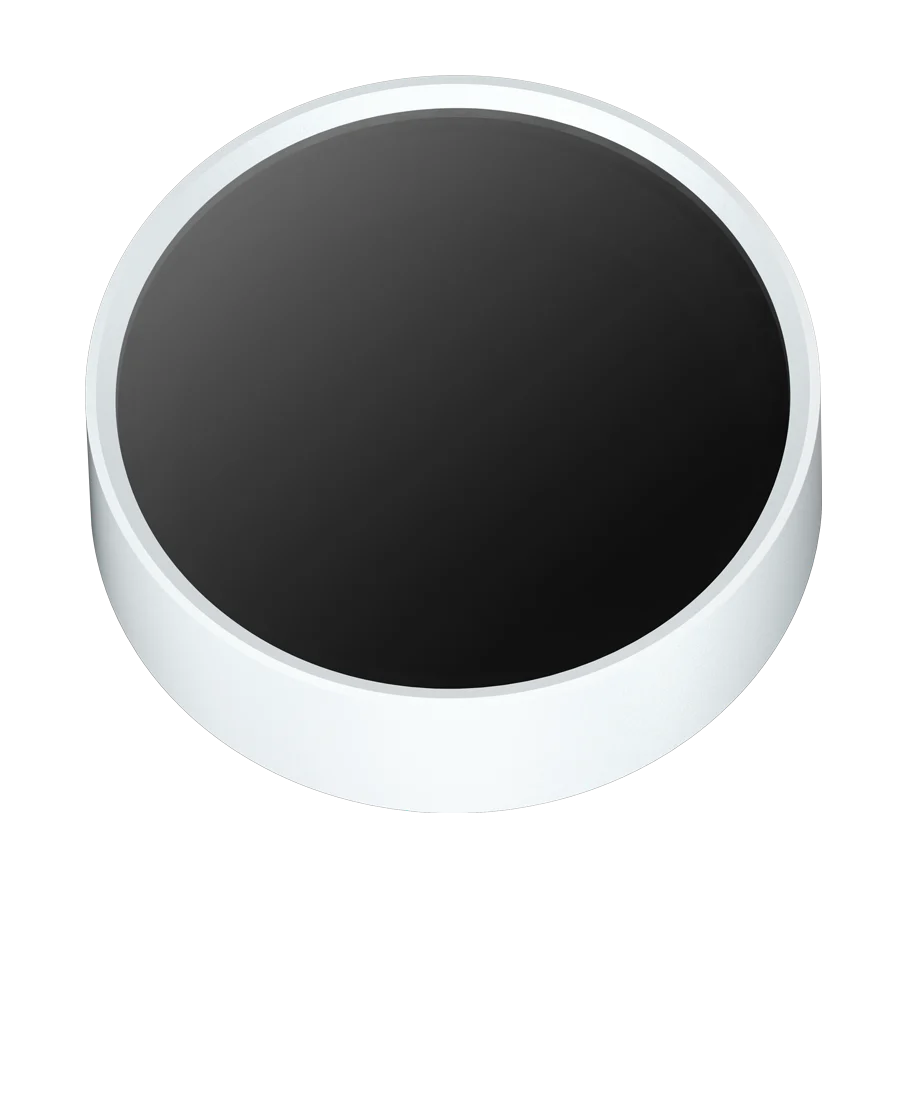

Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.

Mode+

Speed （Hold for 3 seconds to switch on/off）

Mode-

Choose your style

―

Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

Dynamic

Static

Breathing

Comet

Fashion Collision

Application For

Intel

LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

sTRX4/sTR4/AM4

Technical Spec

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Net Weight	1421 g
Tube length	380 mm(L×W×H)
Pump Dimensions	86×75×71 mm(L×W×H)
Pump Speed	2550 RPM±10%
Pump Noise	17.8 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.2 A
Pump Power Consumption	2.4 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1800 RPM±10%
Fan Airflow	64.4 CFM

Fan Air Pressure	2.33 mmAq
Fan Noise	≤32.1 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.15 A
Fan Power Consumption	1.8 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.25 W（PUMP）
EAN	6933412726852
P/N	DP-GS-H12W-CSL240EXWH

Product Dimension

Download

CASTLE 240EX WHITE Manual.pdf
