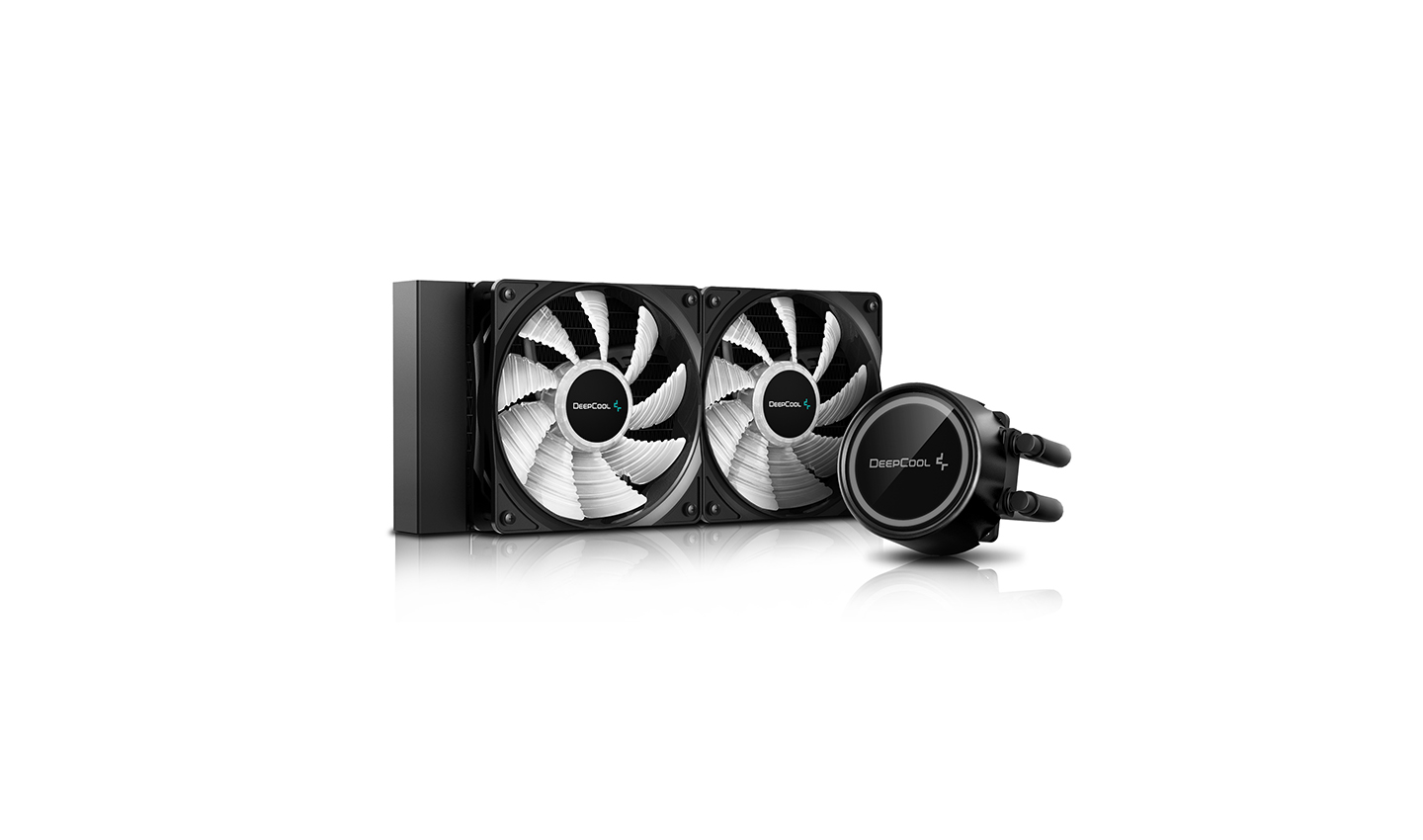

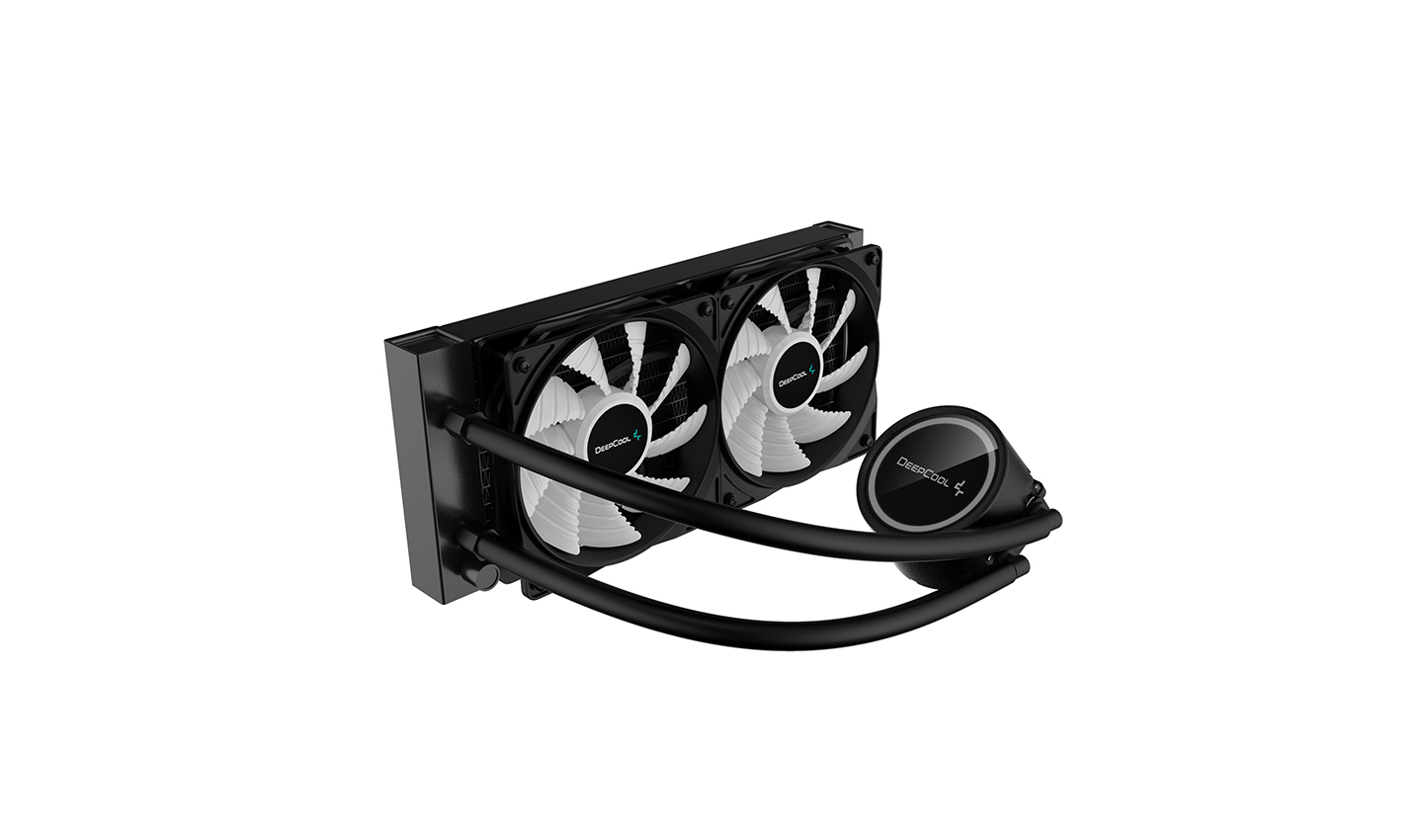

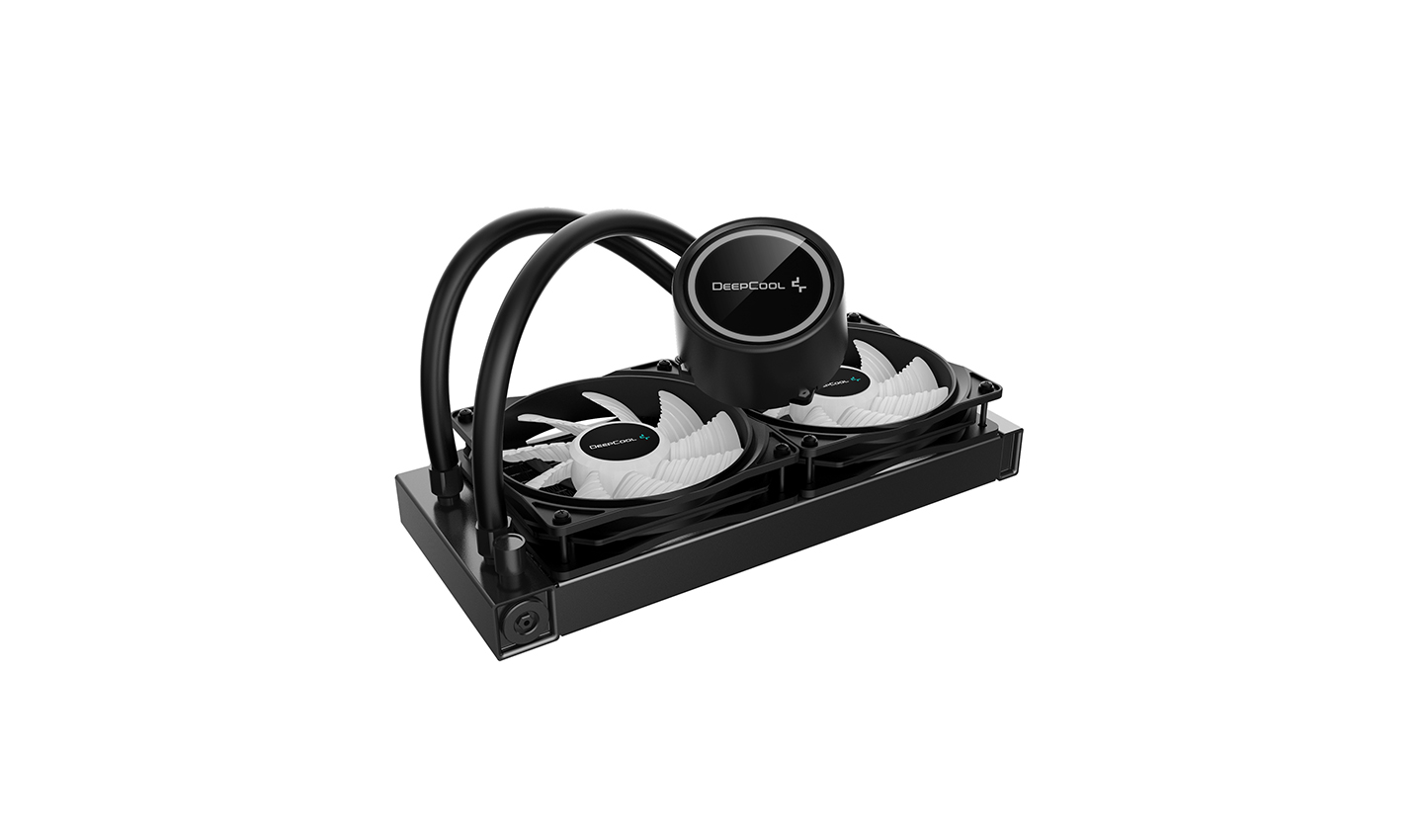

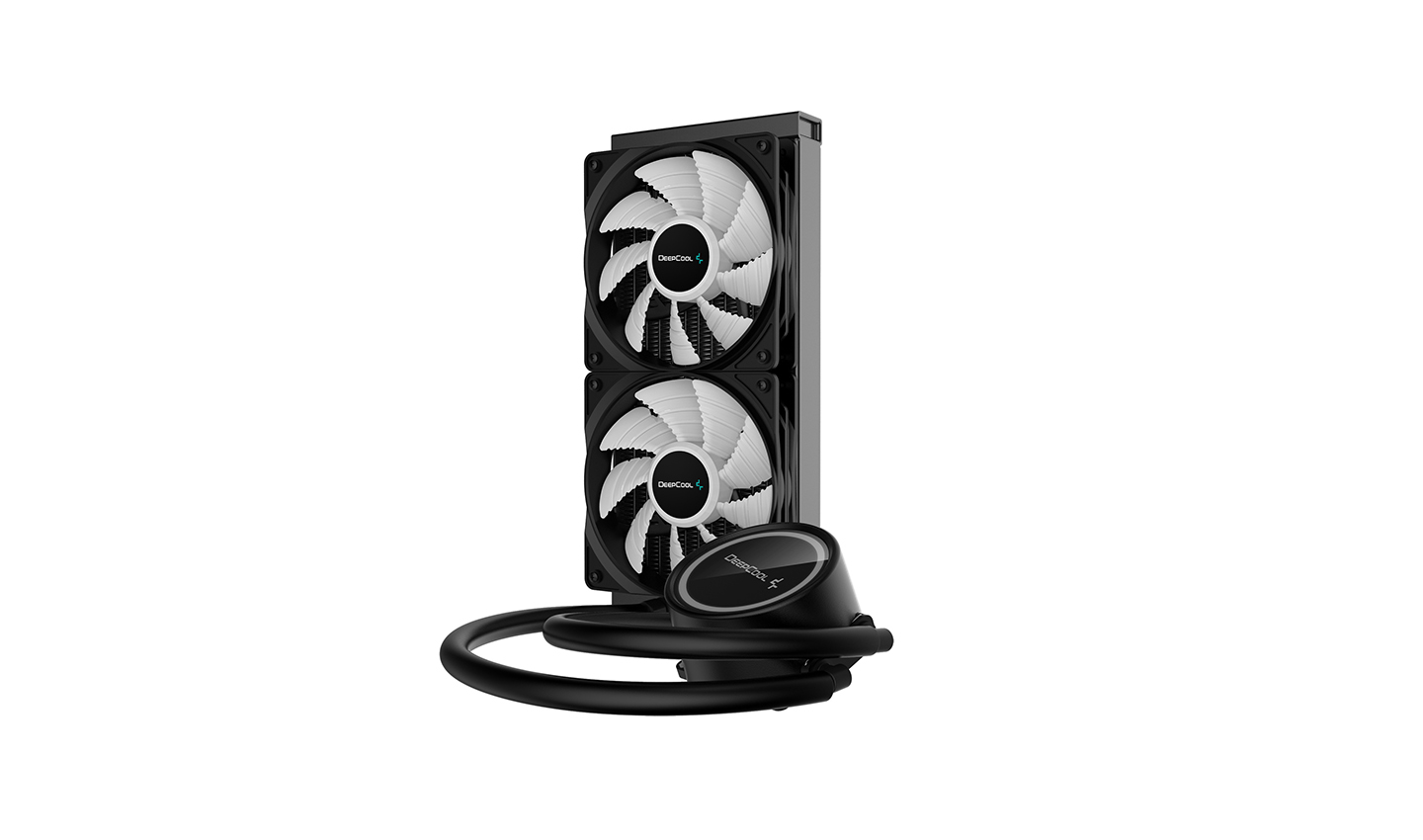

GAMMAXX L240T WHITE
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L240T upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
COLOR
white
MODEL
GAMMAXX L240T WHITE
Reliable & Viable

GAMMAXX L240T WHITE
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L240T upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.

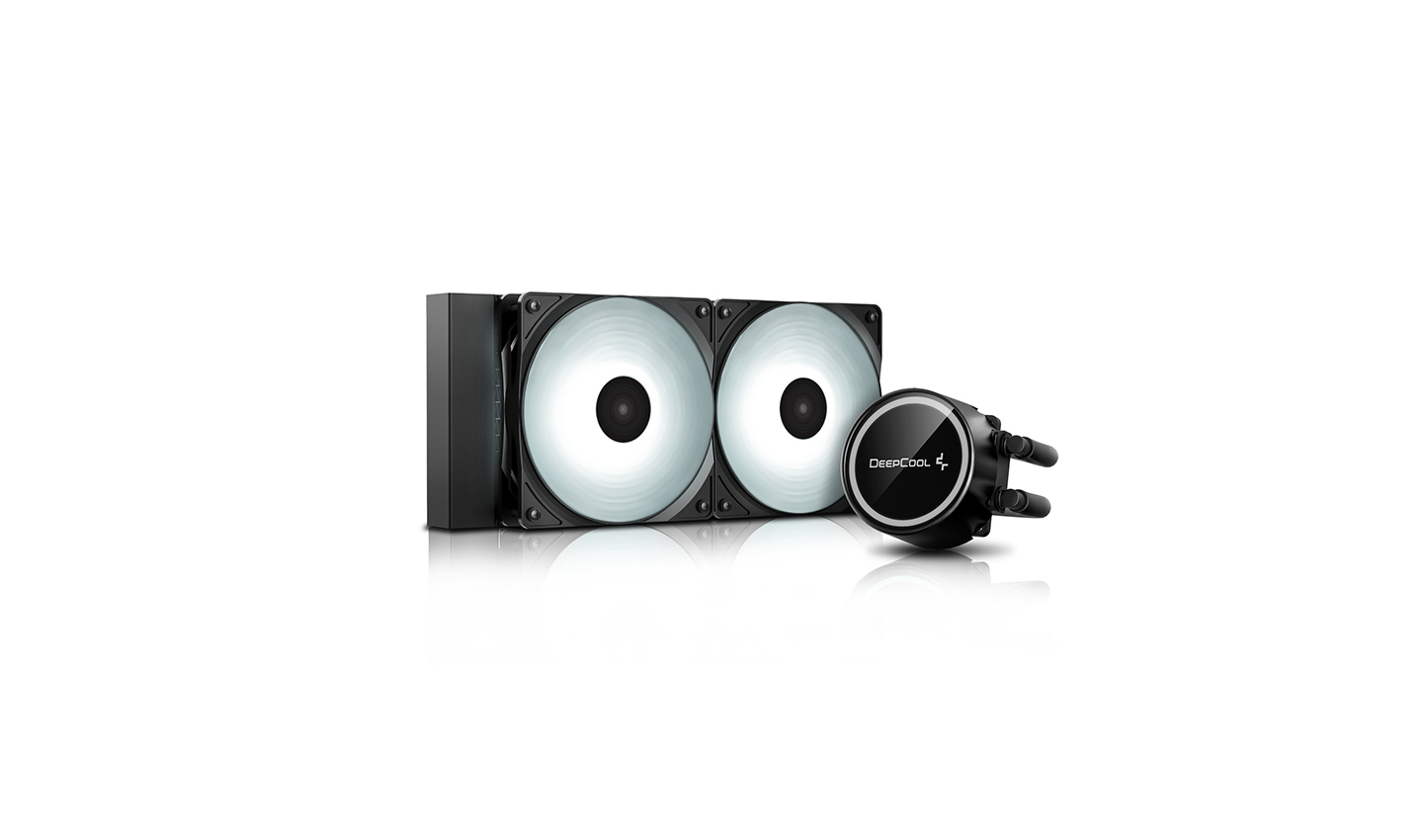

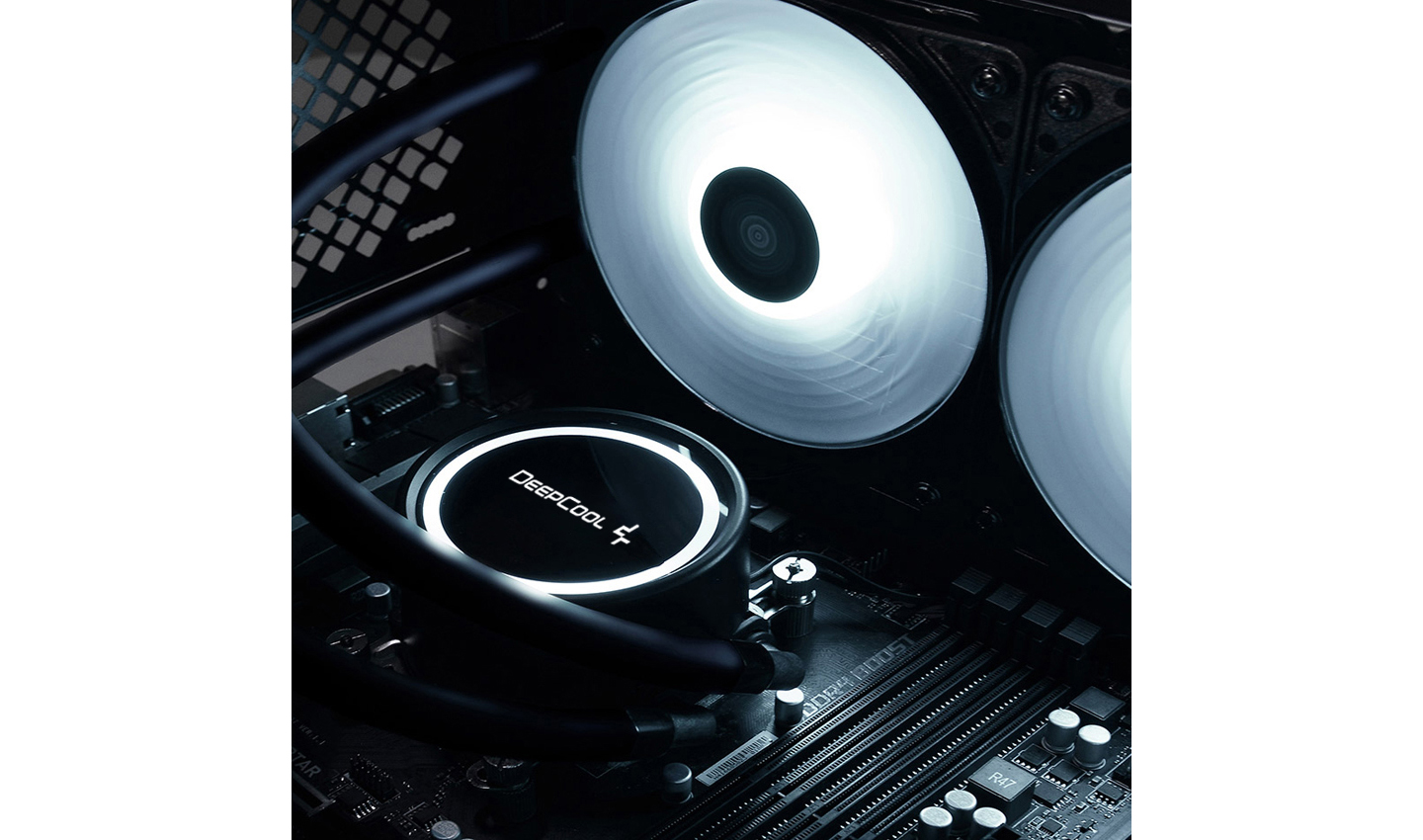

White LED Lighting
The brand new water block and fans are illuminated by static white LEDs that powered by a 4pin PWM header.
Support Mainstream Intel & AMD Socket

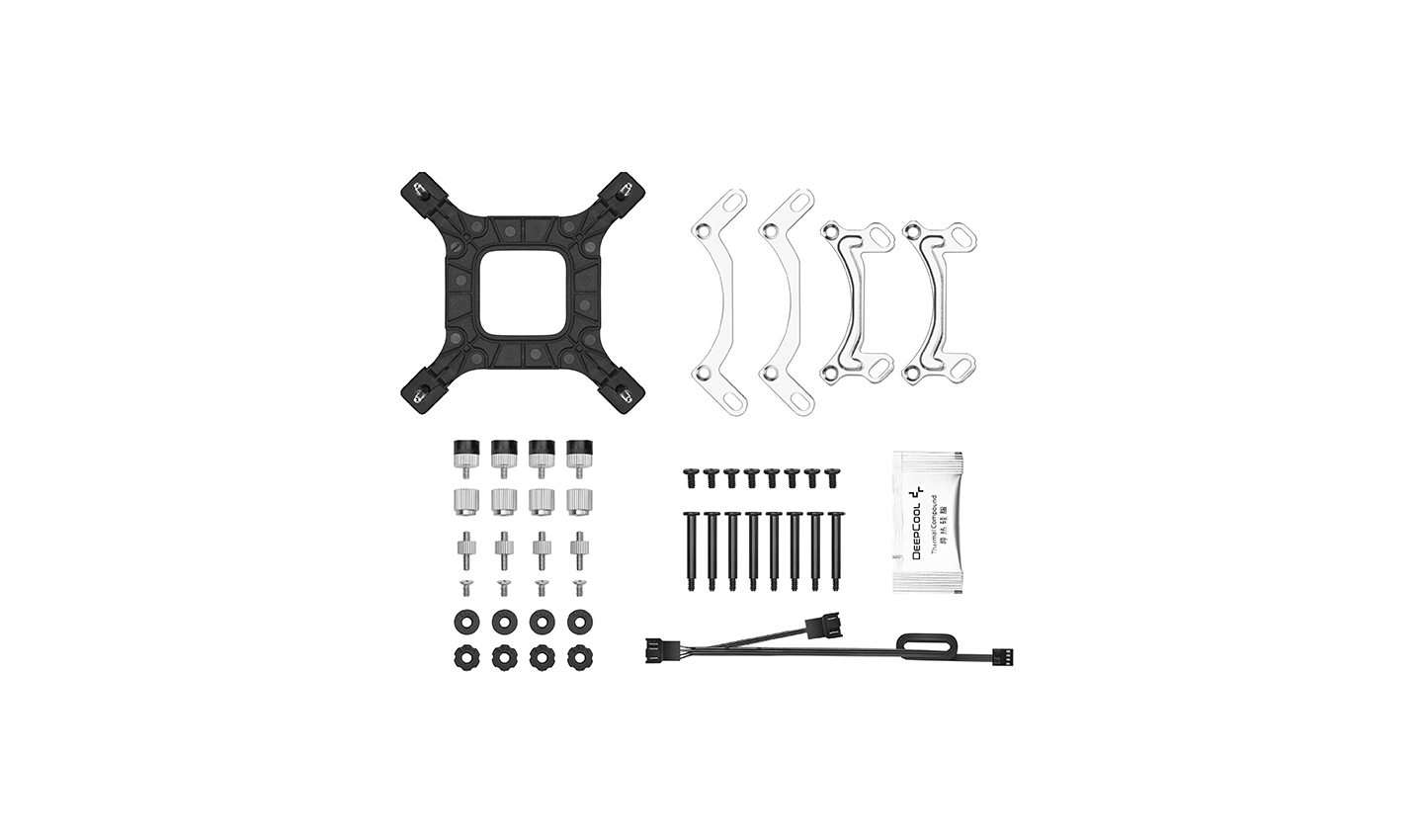

Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.

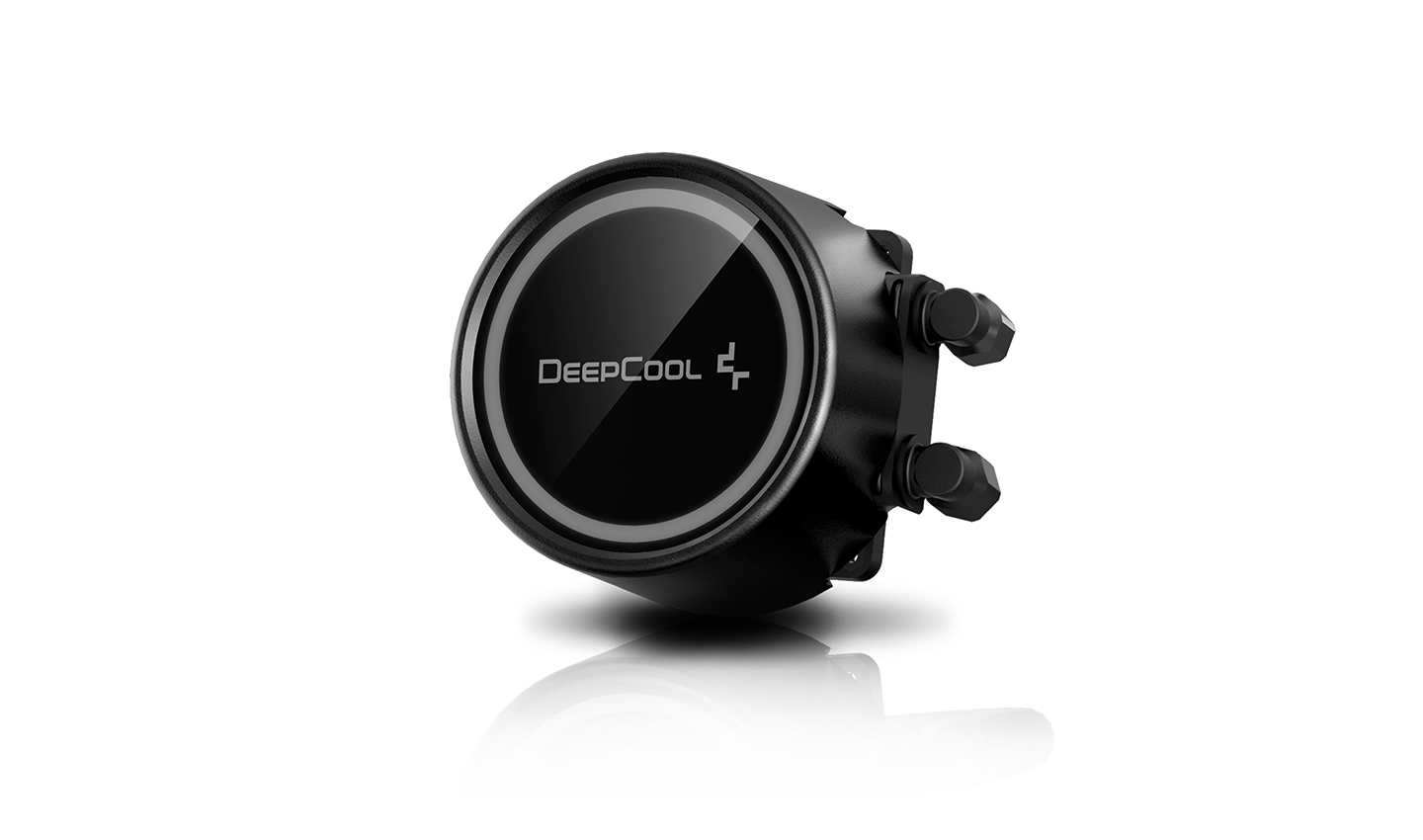

1Motor: High efficient induction motors deliver stronger liquid flow and pressure
2Impeller: Closed impellers are designed to enhance liquid pressure
1Motor: High efficient induction motors deliver stronger liquid flow and pressure
2Impeller: Closed impellers are designed to enhance liquid pressure
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size

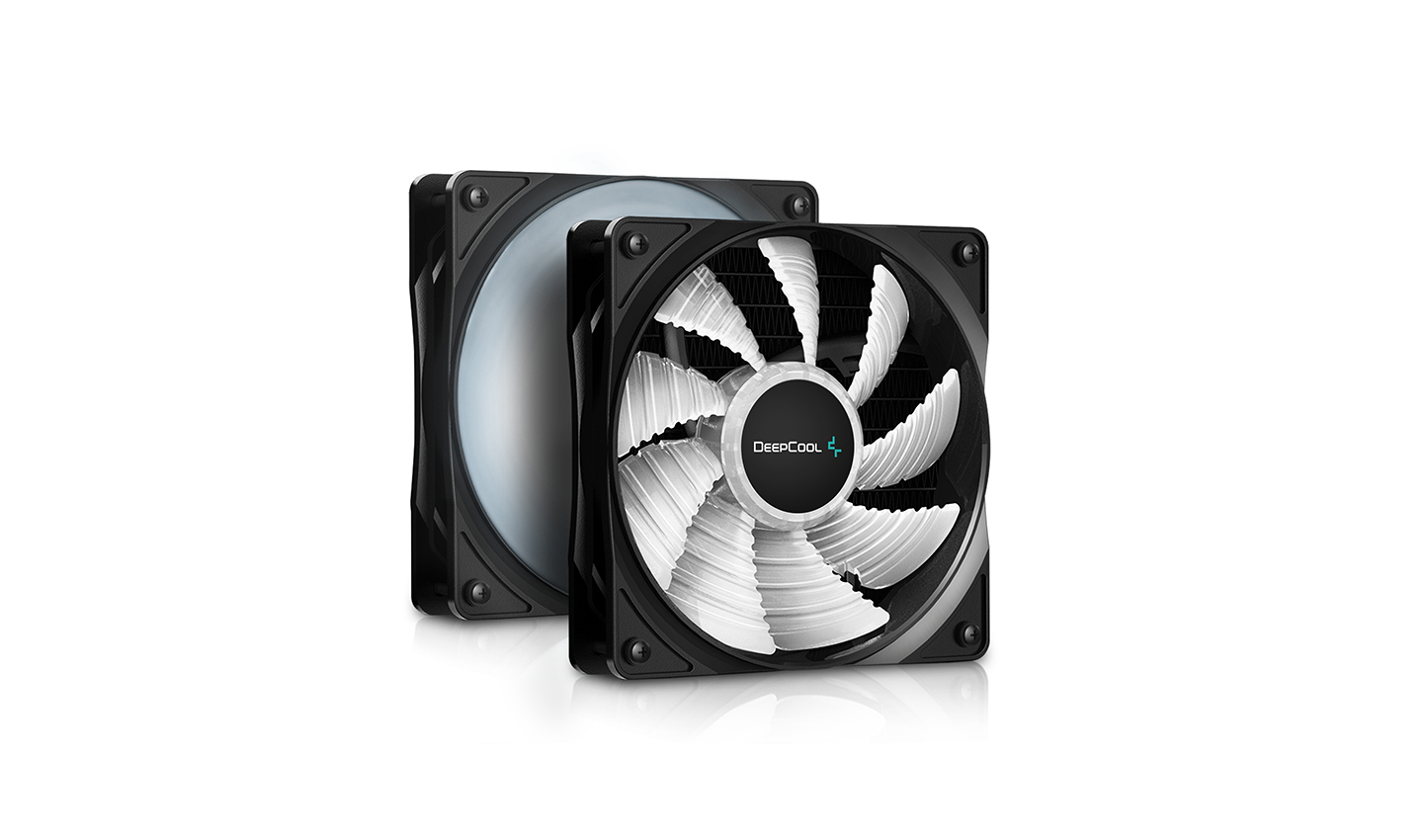

Two 120mm PWM fans with powerful performance and low noise level are included.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM4
Technical Spec
Net Weight1238 g

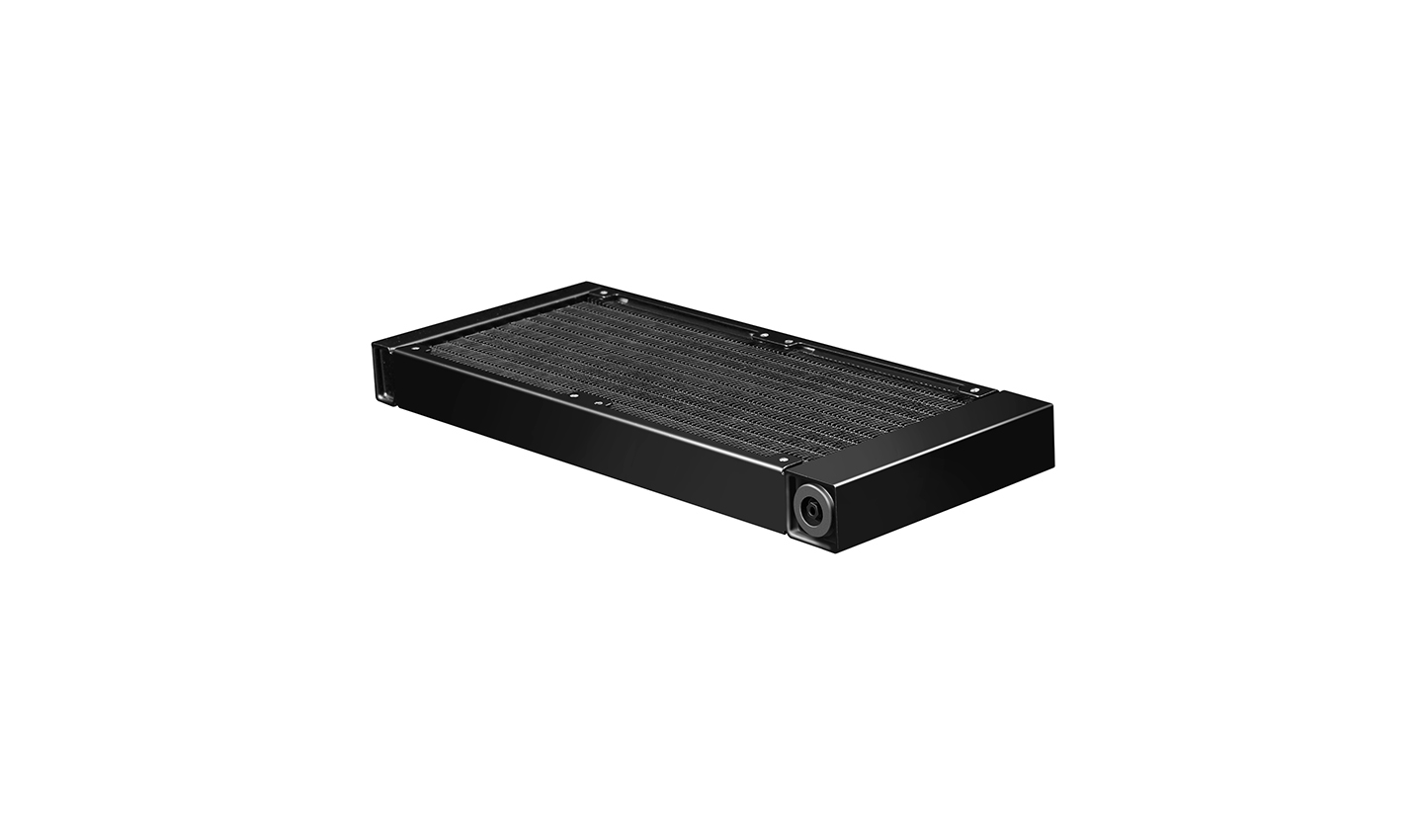

Radiator Dimensions282×120×27 mm
Radiator MaterialAluminum
Tube Length385 mm
Pump Dimensions91×79×47 mm
Pump Speed2400 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.21 A
Pump Power Consumption2.52 W
Fan Dimension120×120×25 mm
Fan Speed500-1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.3 A
Fan Power Consumption3.6 W
LED TypeWHITE LED
EAN6933412726784
P/NDP-H12RF-GL240TW
Product Dimension
Download
GAMMAXX L240T WHITE Manual.pdf
