UL551 1700

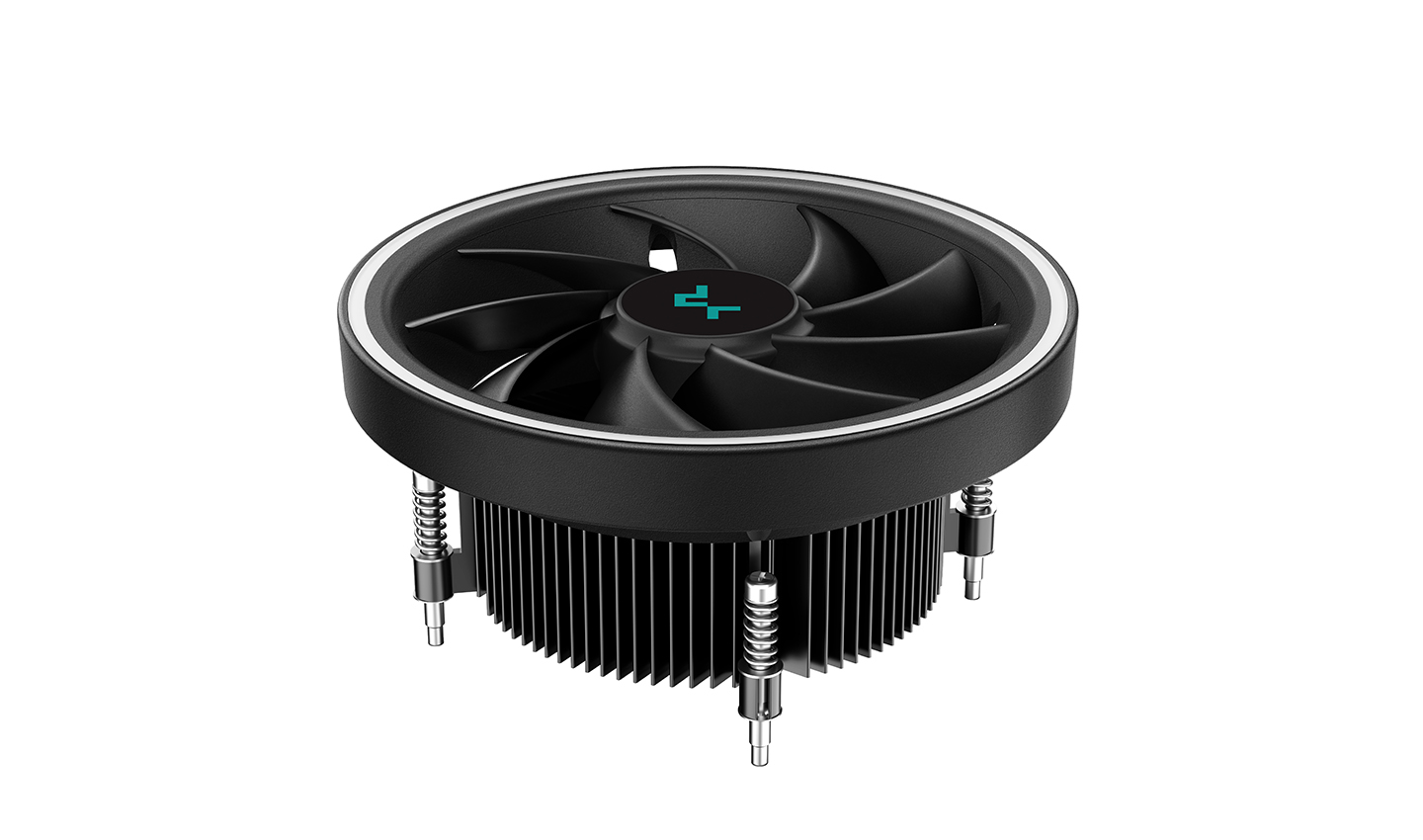

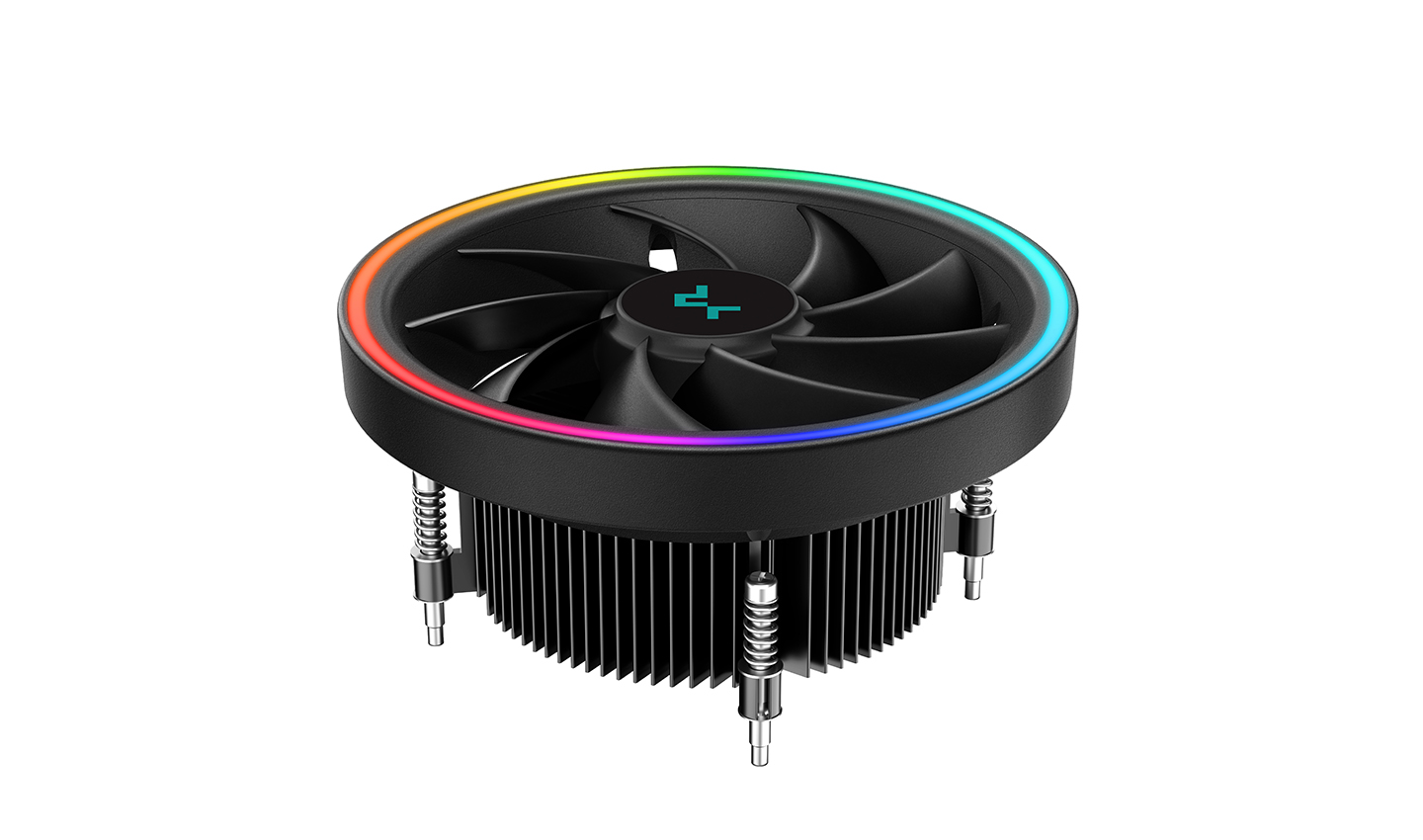

The DeepCool UL551 1700 ARGB CPU Cooler is an efficient top flow cooling solution for INTEL sockets equipped with a high performance 136mm fan and an ARGB LED ring with motherboard sync support.

MODEL

UL551 1700

ARGB CPU Cooler

Top Flow Design

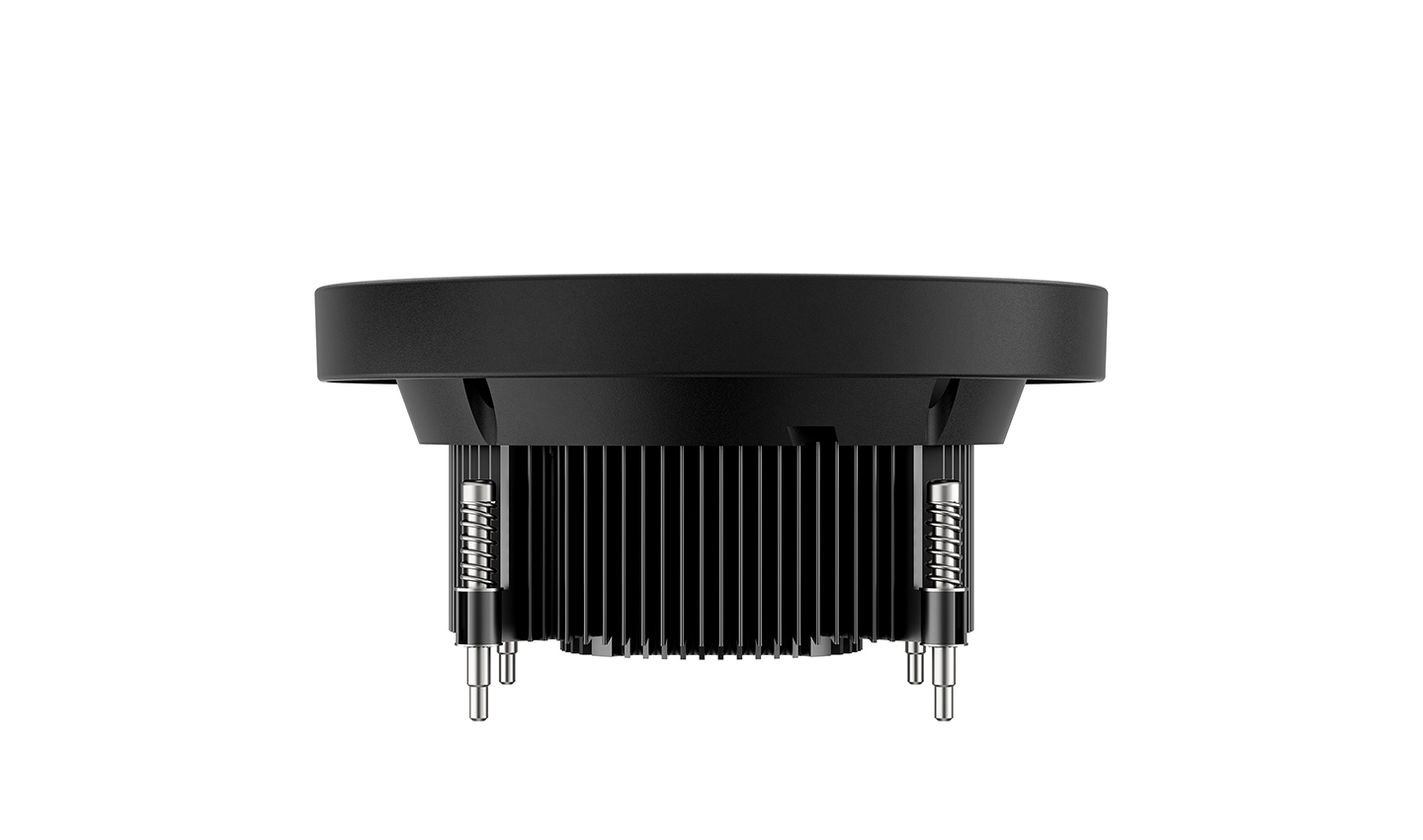

Cooling with a fan mounted top-down quickly dissipates heat directly over the heat sink covering the CPU which also introduces additional airflow over motherboard components surrounding the socket such as the VRM and RAM.

Best Matching Fan

Optimal in performance and noise, the 136mm PWM cooling fan balances the best of both worlds to ensure your system is at its best.

(fan specs)

500-1800 RPM

44.31 CFM

≤26.8 dB(A)

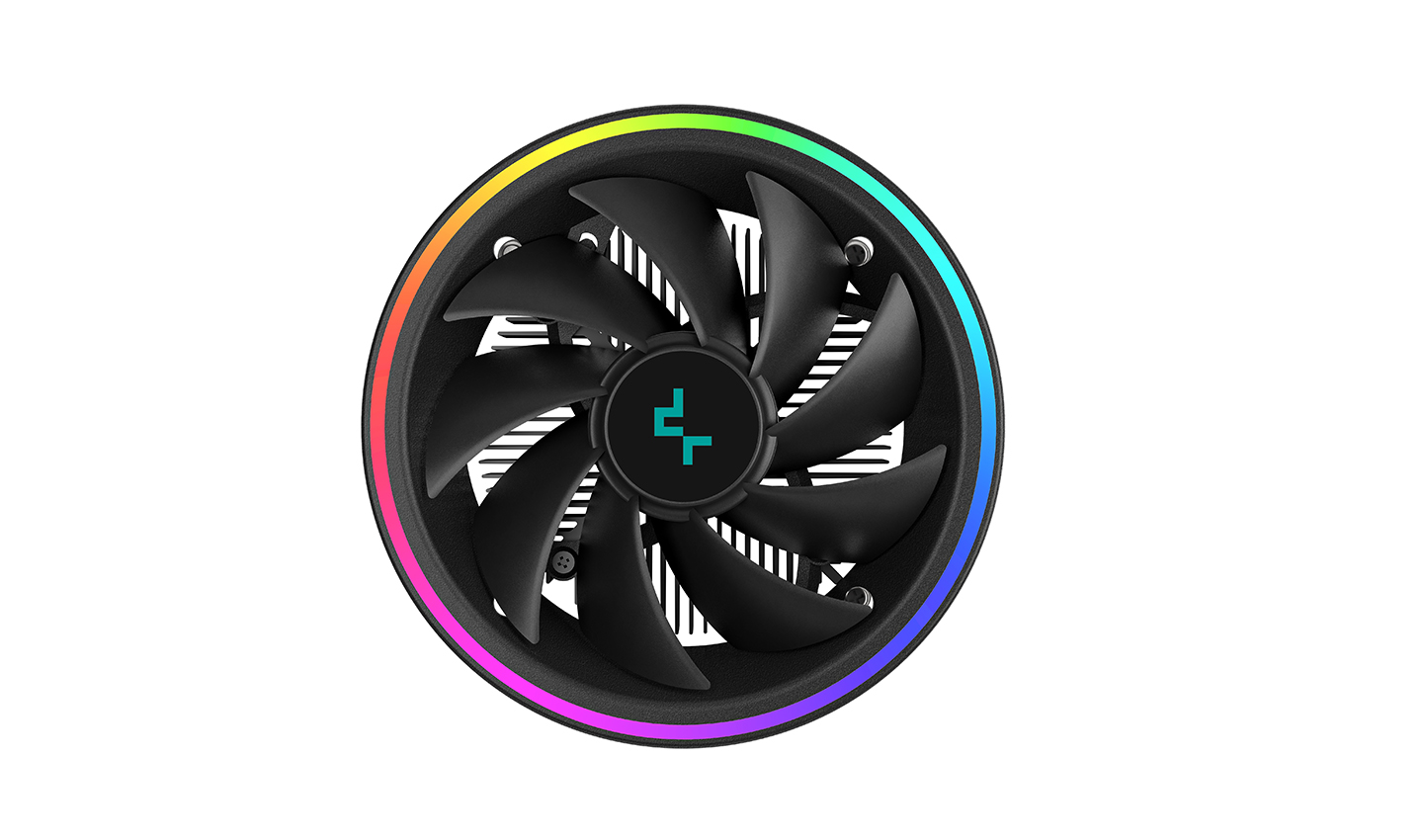

Glamourous Ring Light

Customize and control the addressable RGB LEDs with 16.8 million color options that best fit your style and setup. Fine tune your settings and synchronize with supported motherboard software through the 3-pin 5V ARGB connector. Enjoy a colorful cooling combination in this classic form factor.

Quick Install

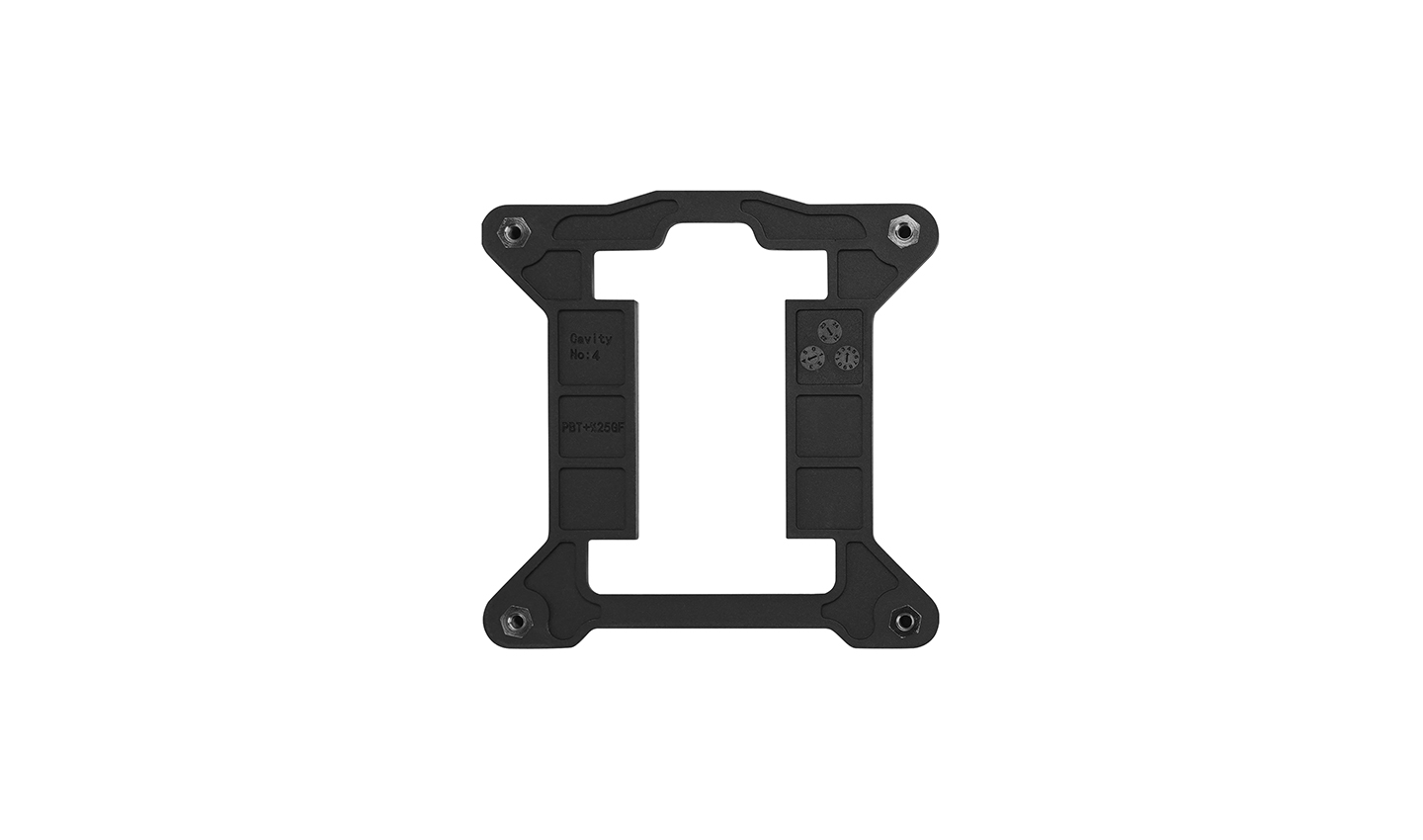

An easy-to-use mounting process makes setup and installation quick and hassle-free.

*The UL551 1700 is designed for Intel sockets only. For AMD socket mount, a corresponding UL551 1700 model is available.

Application For

Intel

LGA1700

Technical Spec

Product Dimensions	136×136×71 mm(L×W×H)

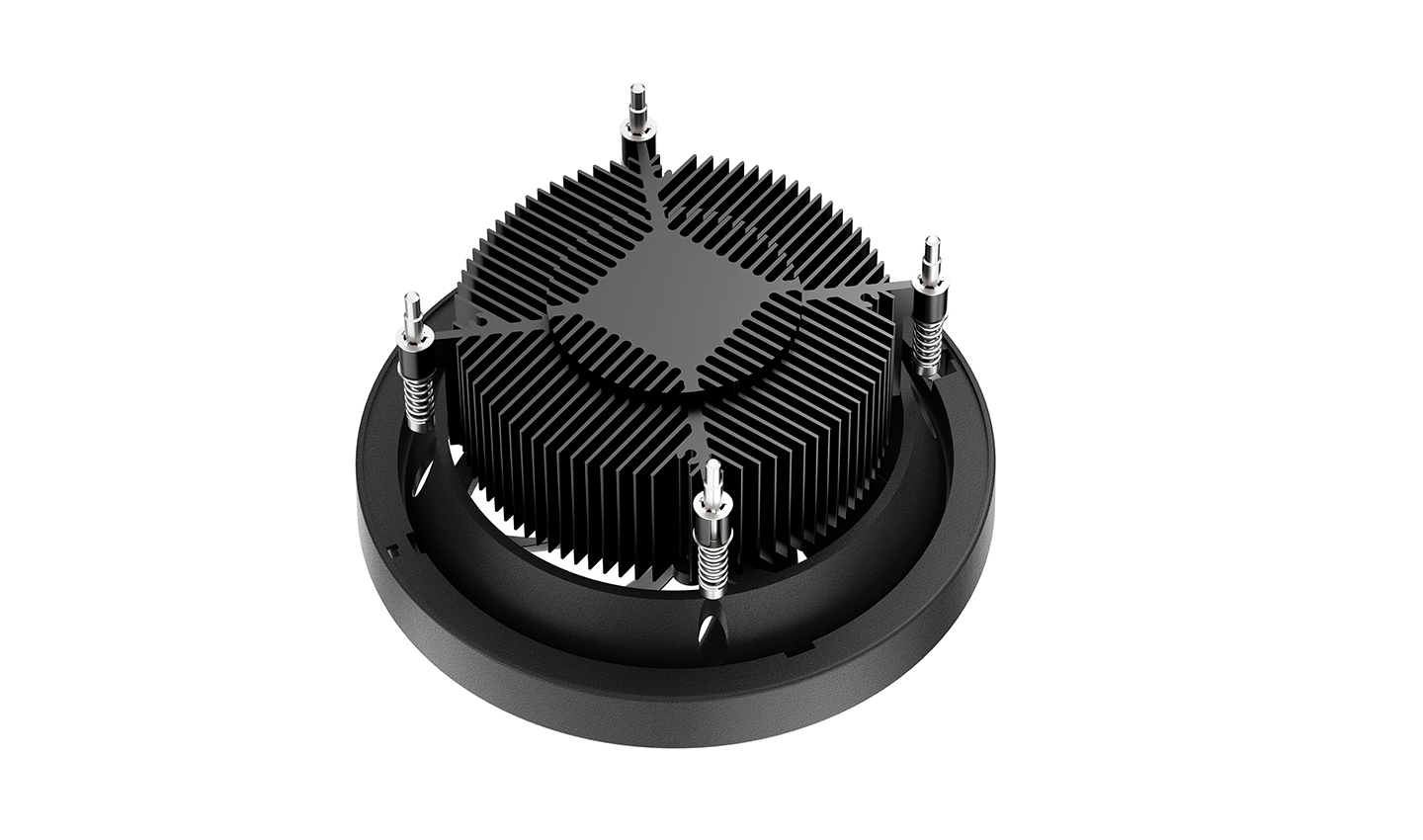

Heatsink Dimensions	90×90×36 mm(L×W×H)
Net Weight	412 g
Fan Dimensions	Φ 136×27 mm
Fan Speed	500~1800 RPM±10%
Fan Airflow	44.31 CFM
Fan Air Pressure	1.65 mmAq
Fan Noise	≤26.8 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing

Fan Rated Voltage	12 VDC
Fan Rated Current	0.1 A
Fan Power Consumption	1.2 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.2 W
EAN	6933412727729
P/N	R-UL551-BKAMAB-G-17
