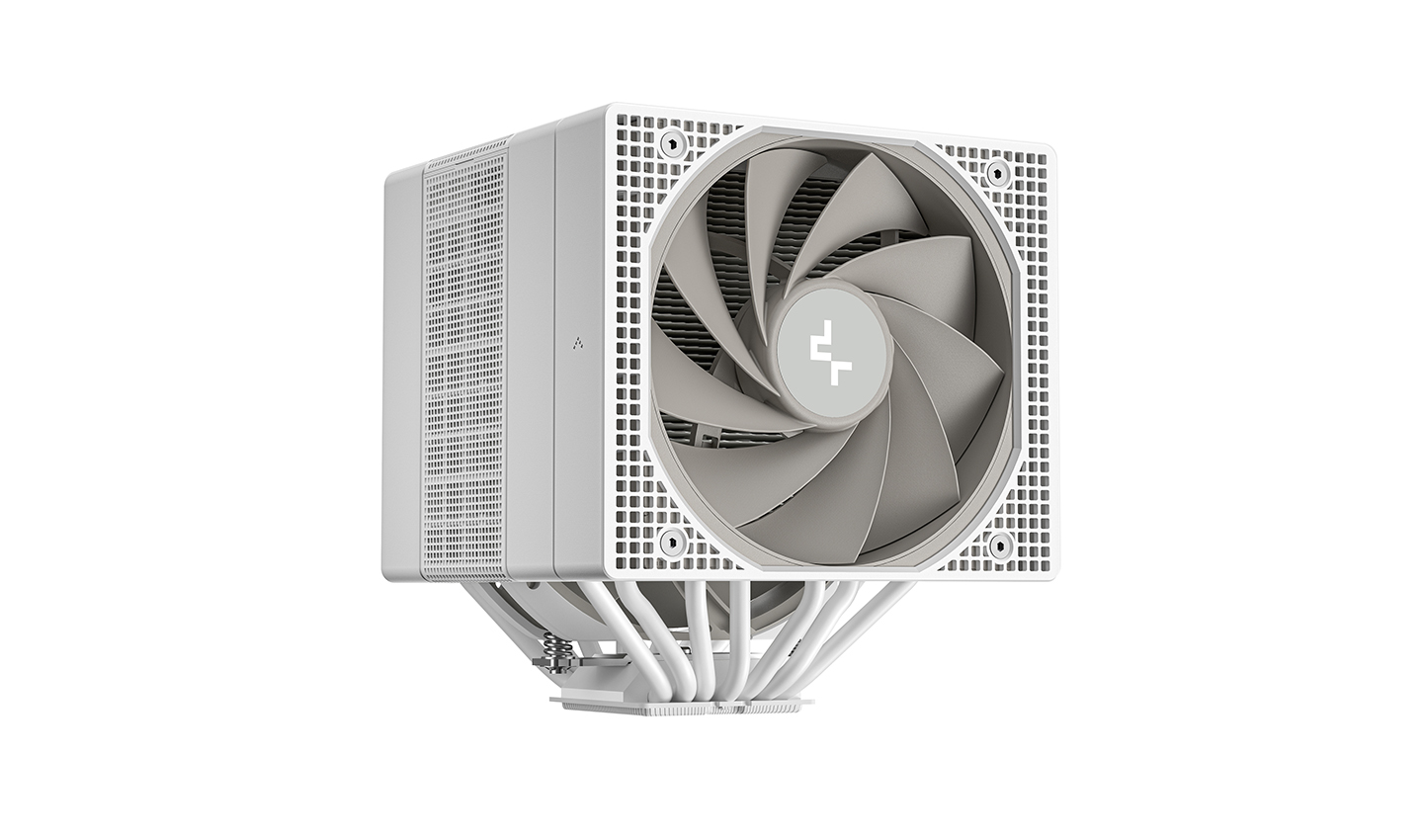

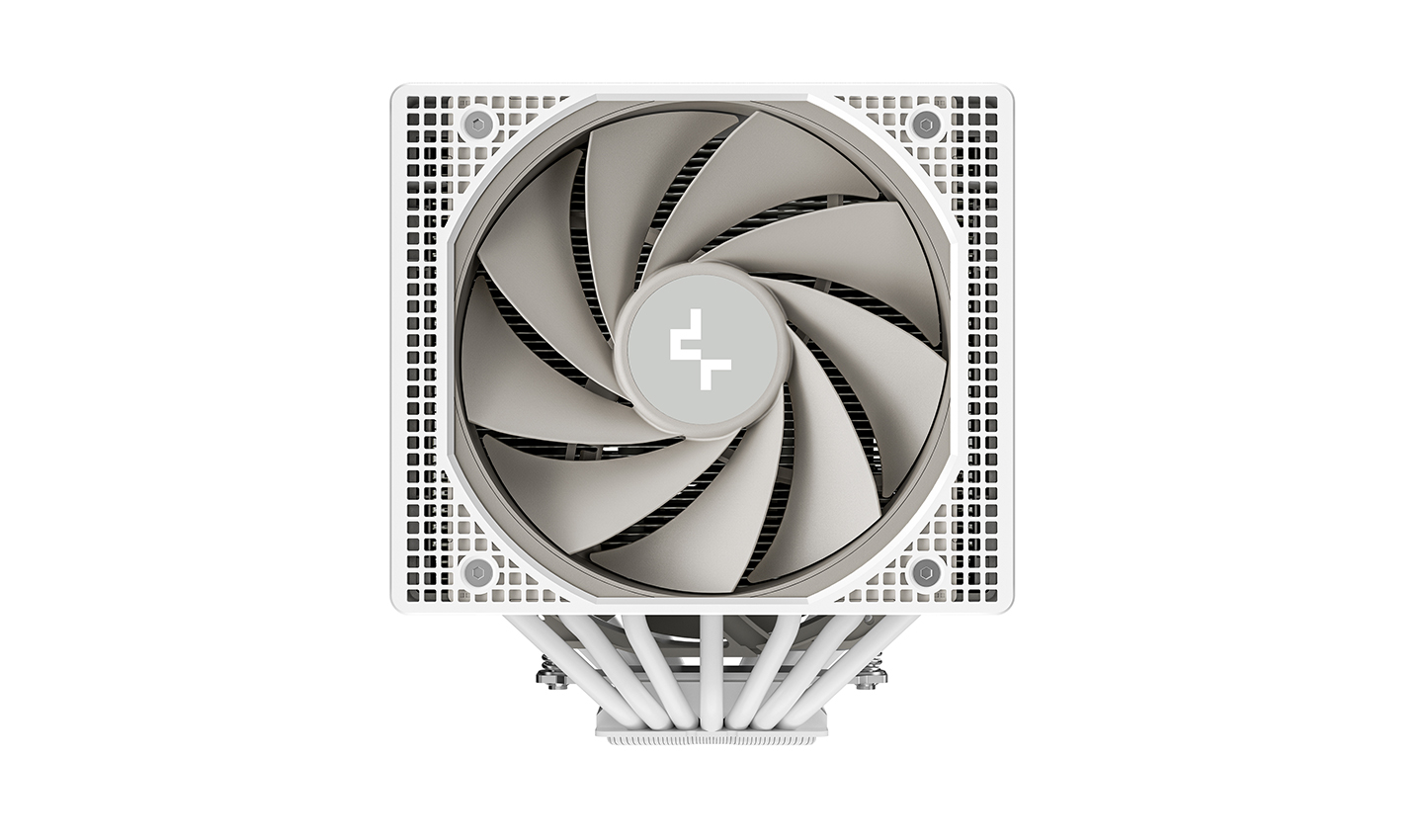

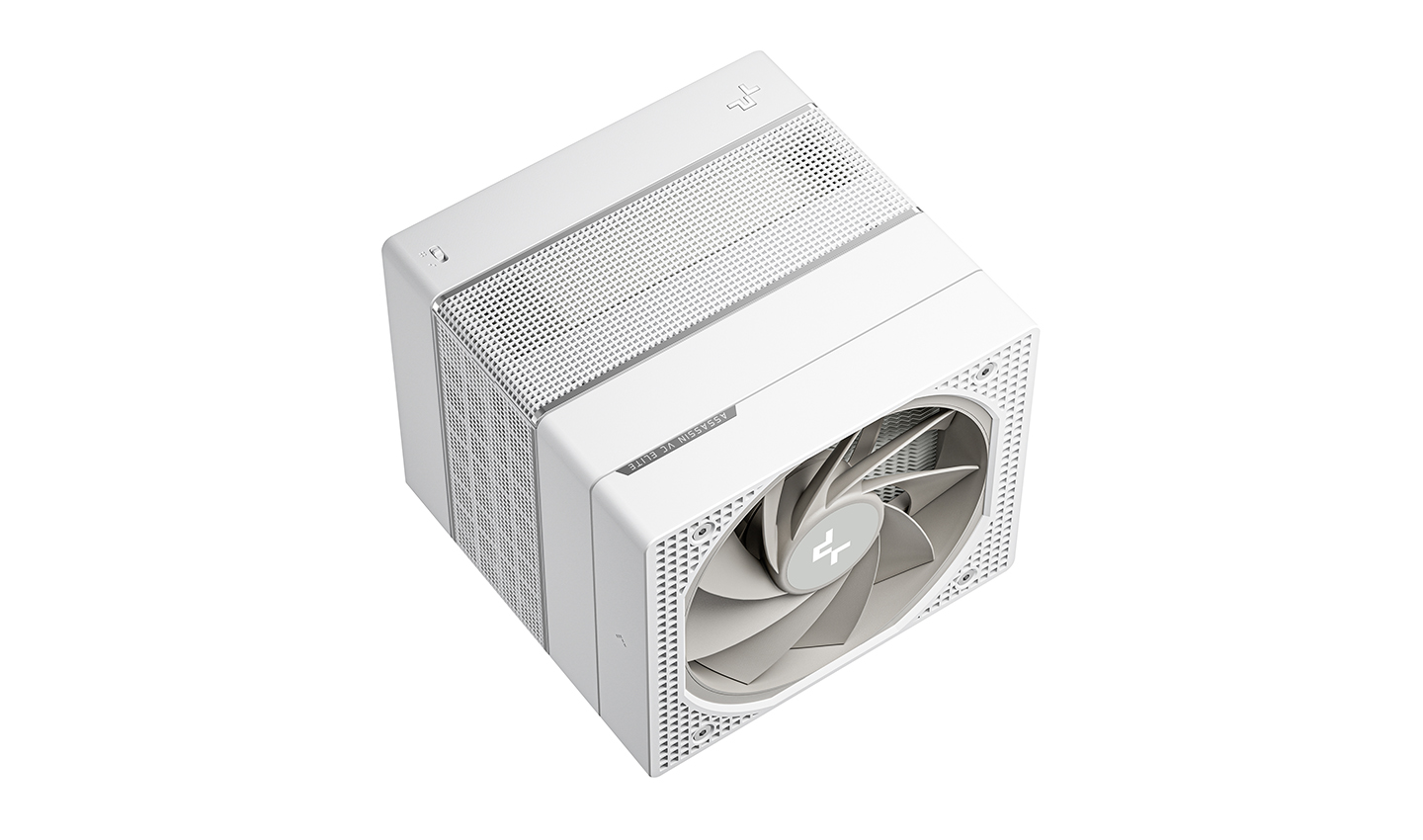

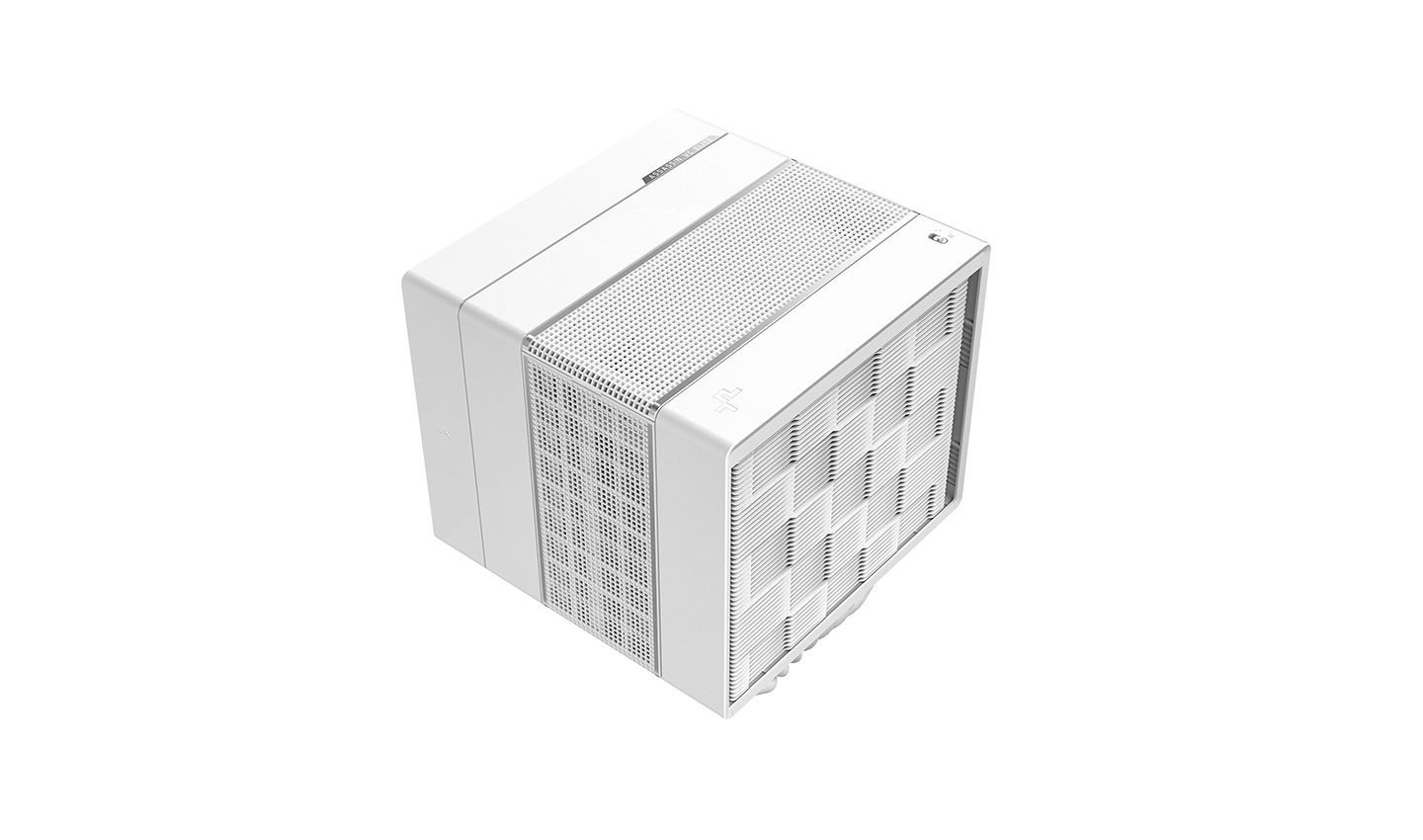

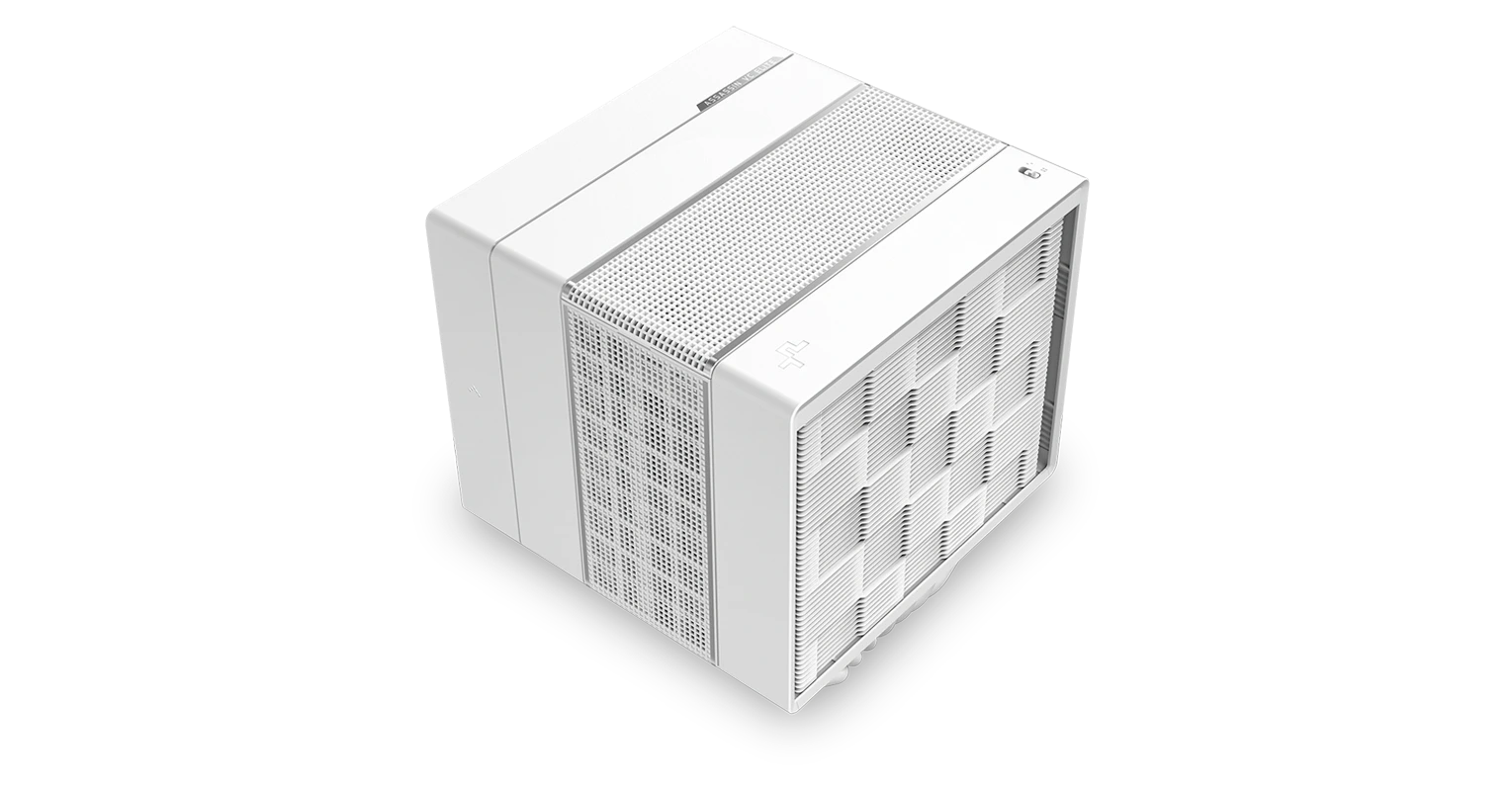

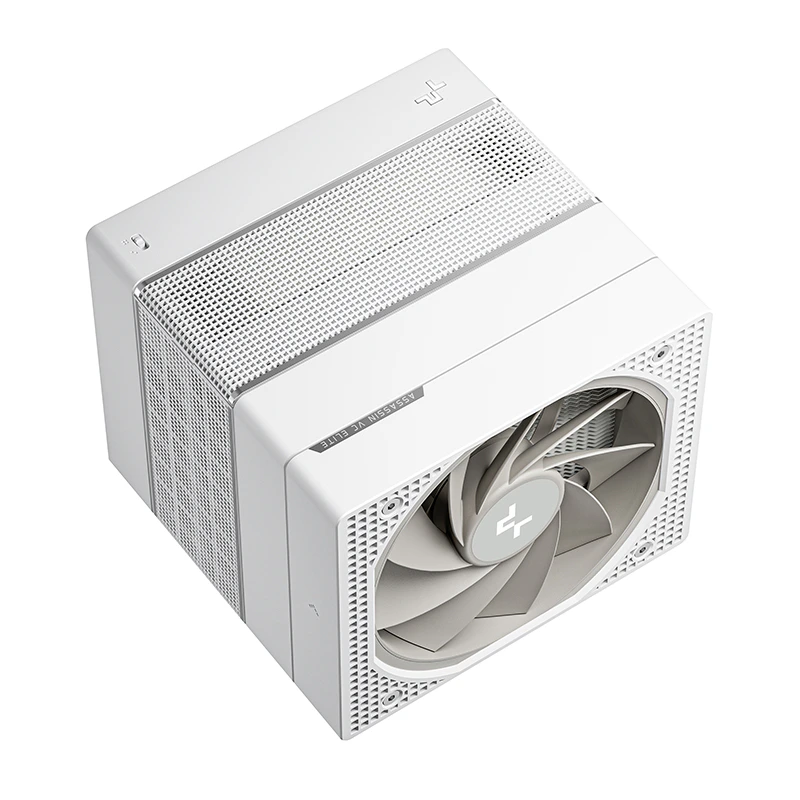

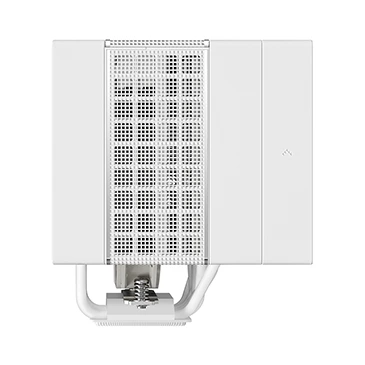

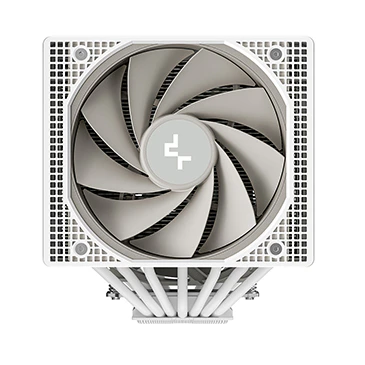

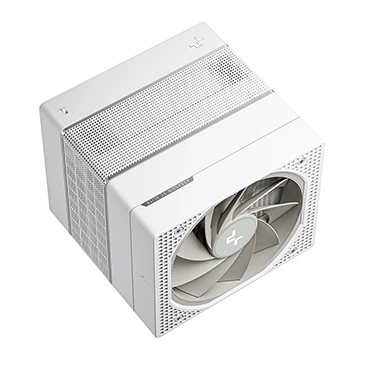

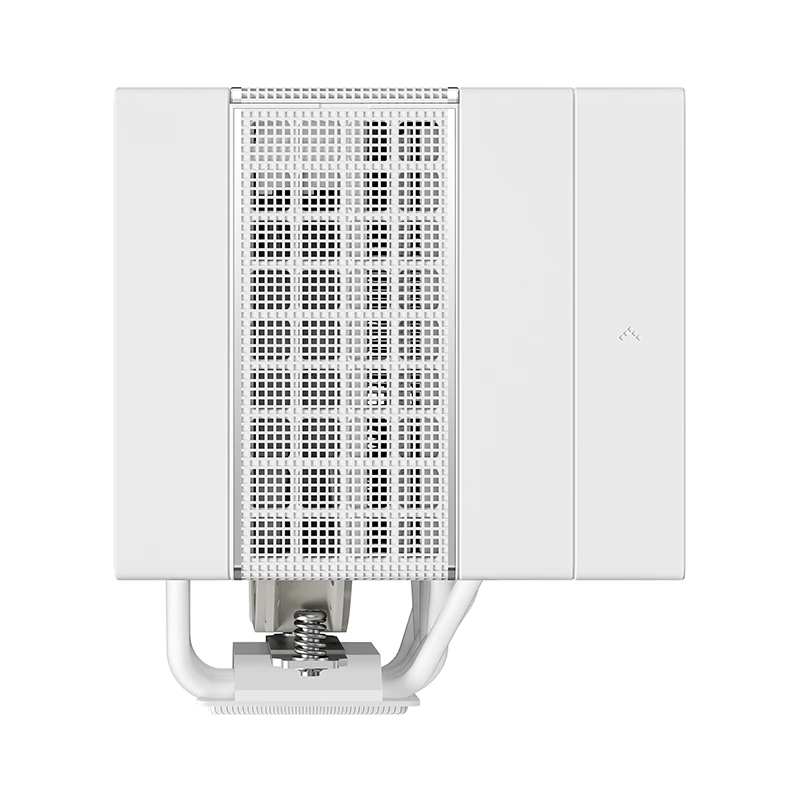

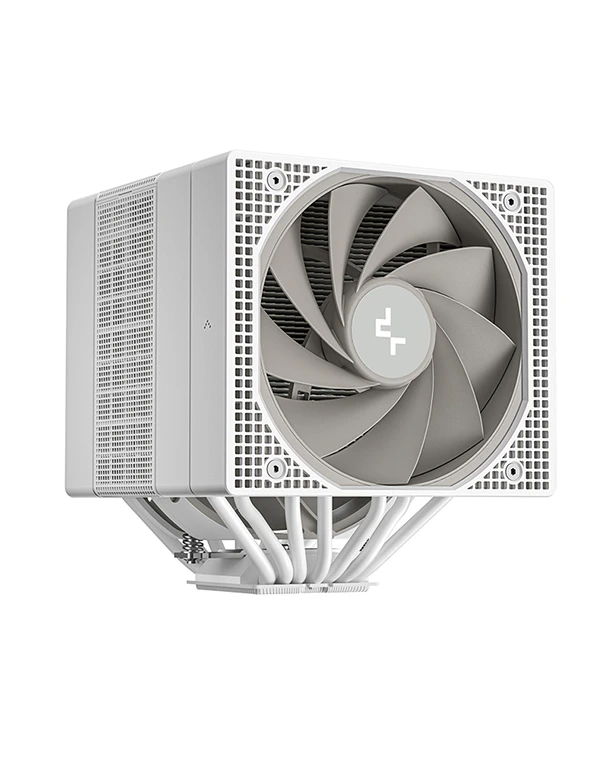

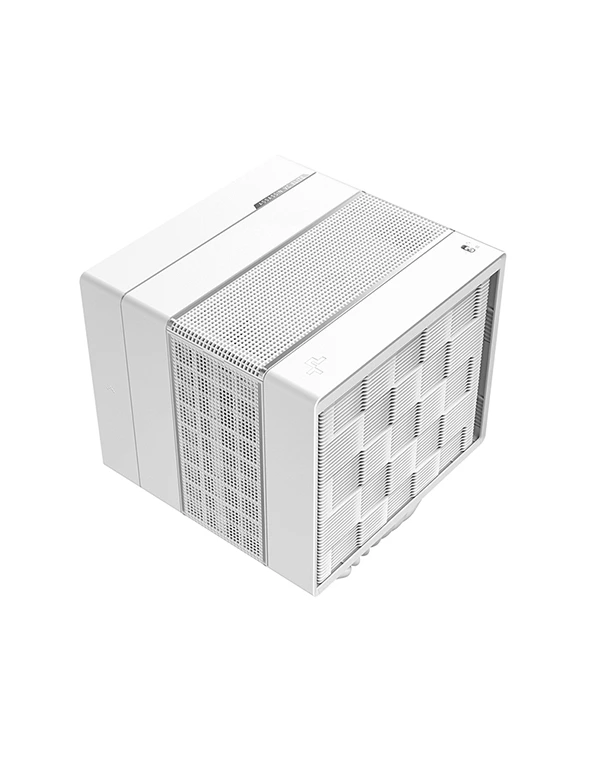

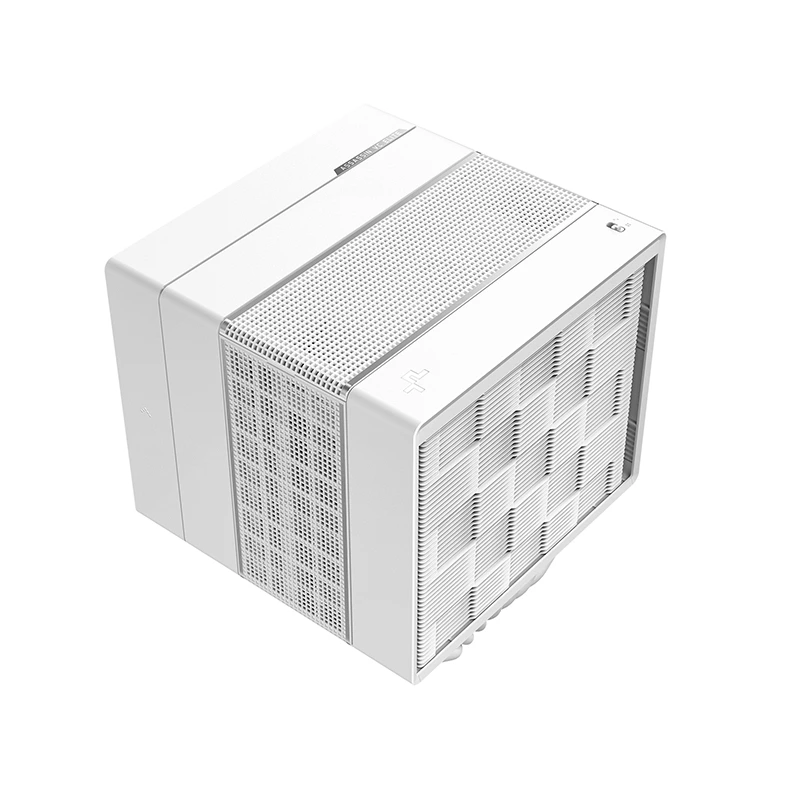

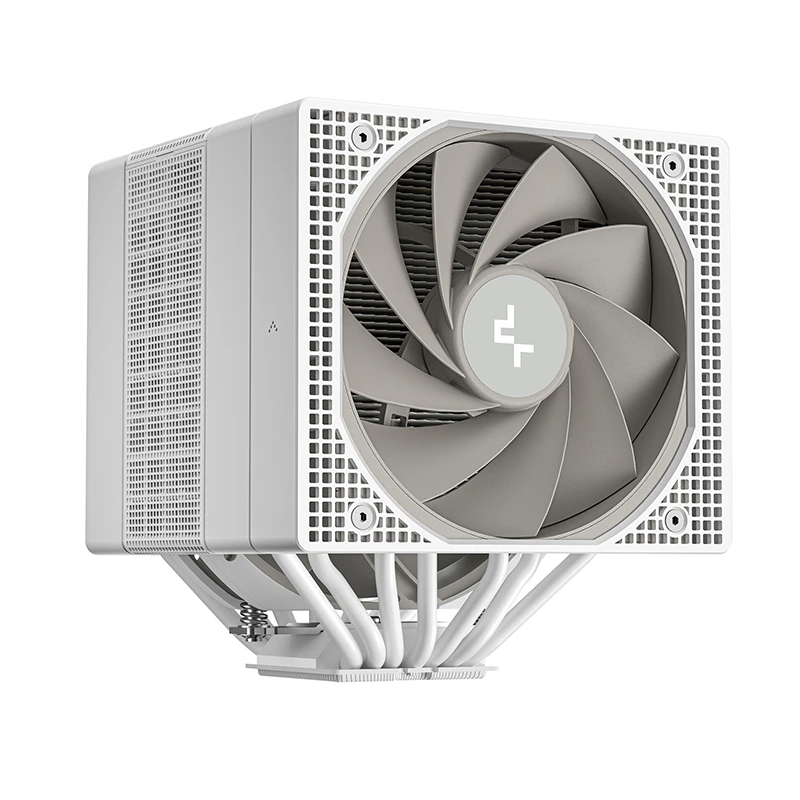

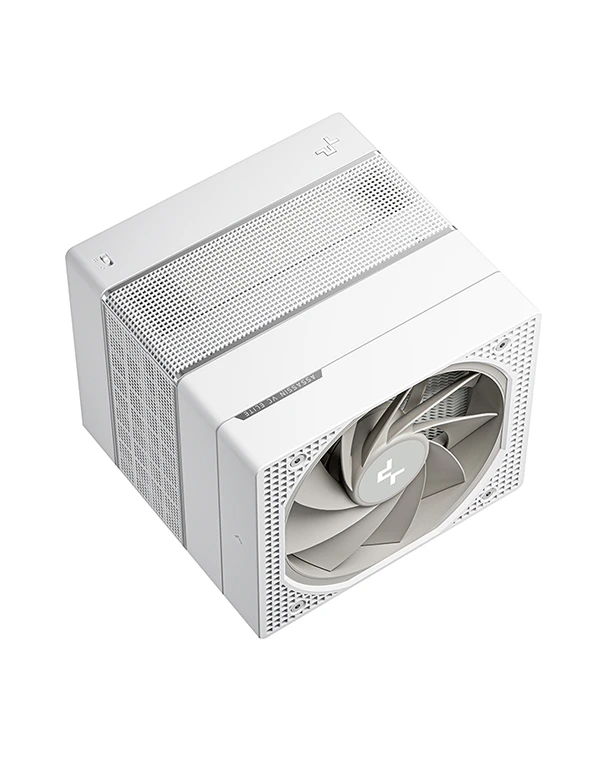

ASSASSIN VC ELITE WH
The ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE WH. With the new white aesthetic, the ASSASSIN VC ELITE WH includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!
MODEL
ASSASSIN VC ELITE WH
EMBRACE THE SUPREME

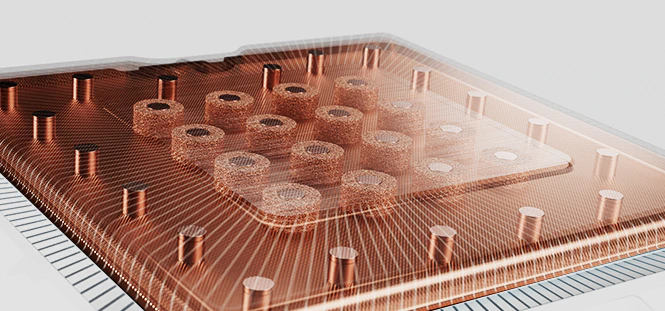

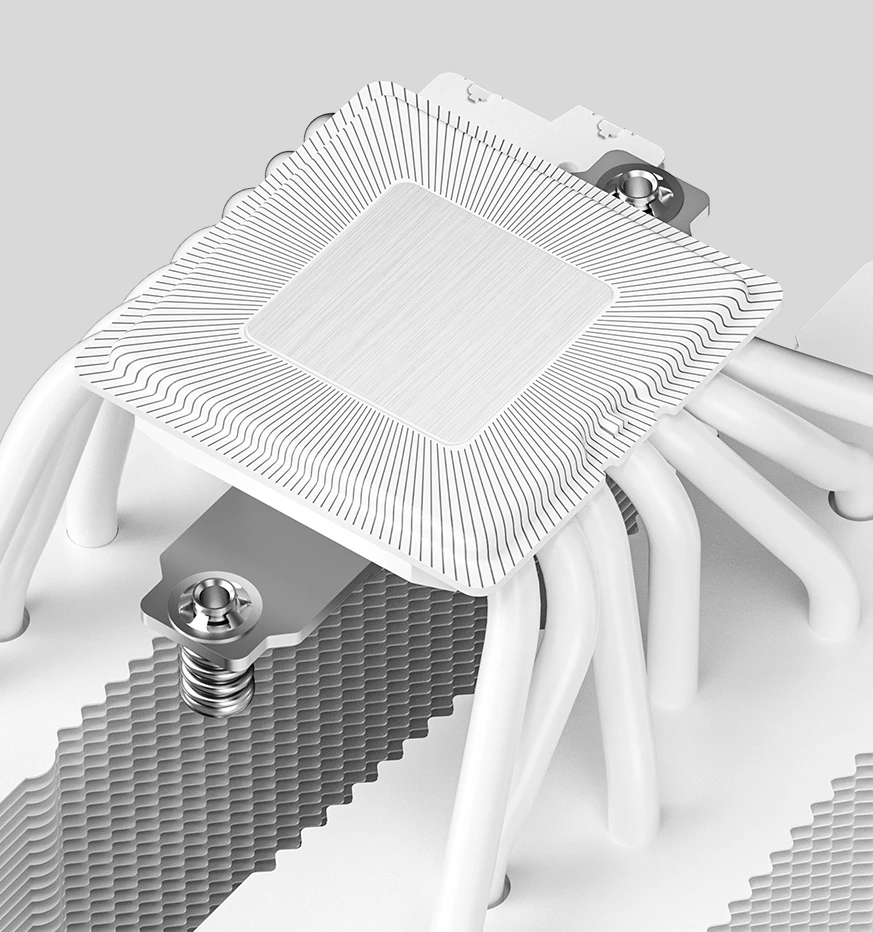

VAPOR CHAMBER-ENHANCED
Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

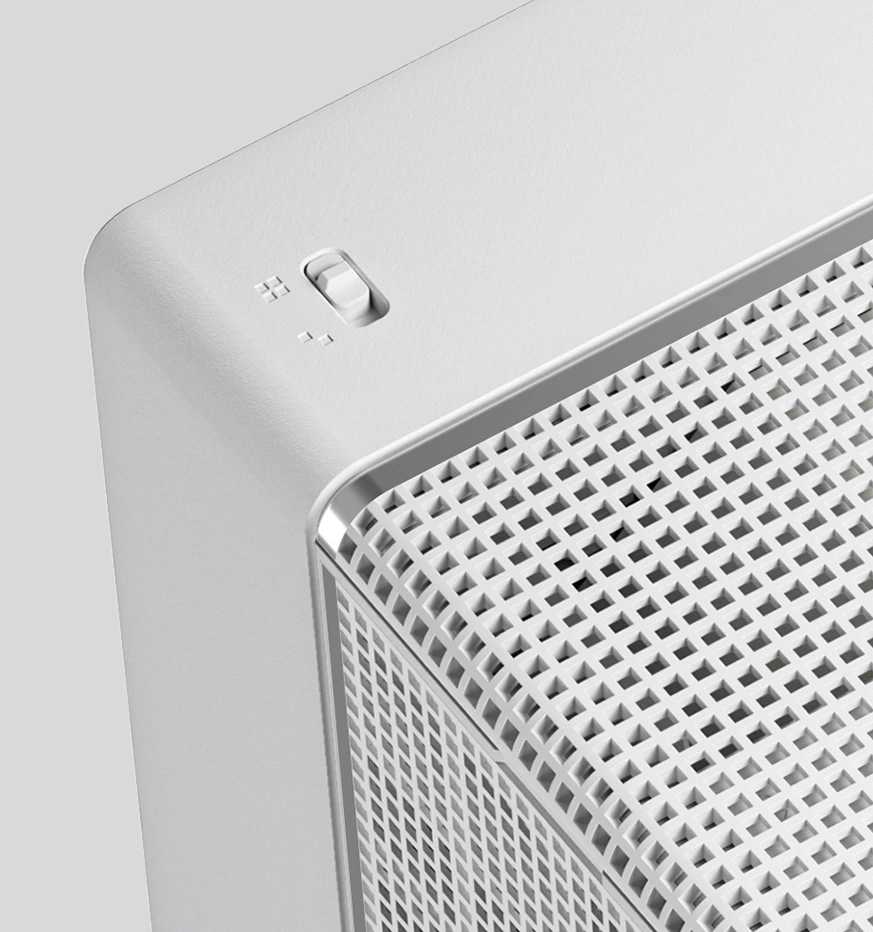

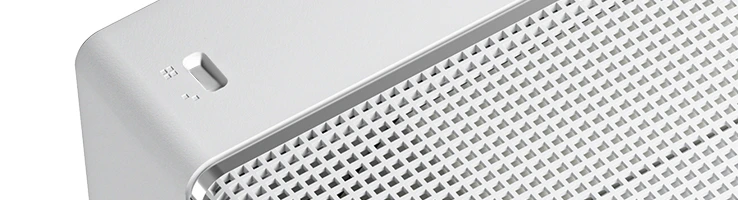

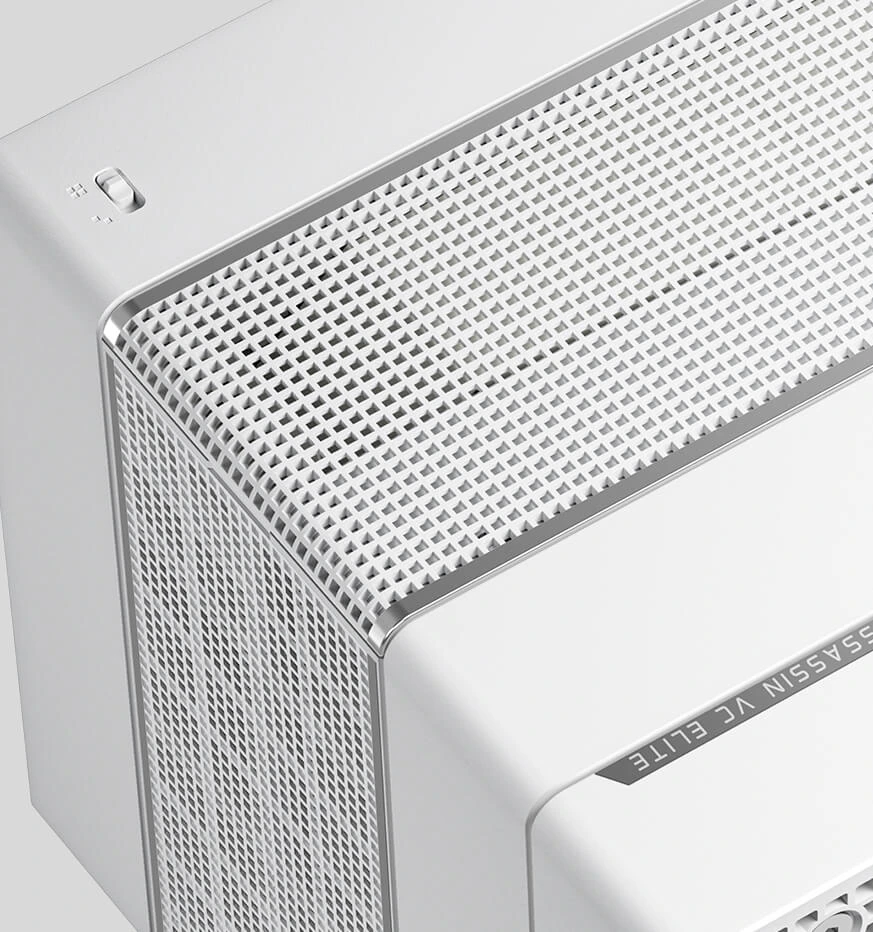

IN QUIET OR
PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN VC ELITE WH can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.

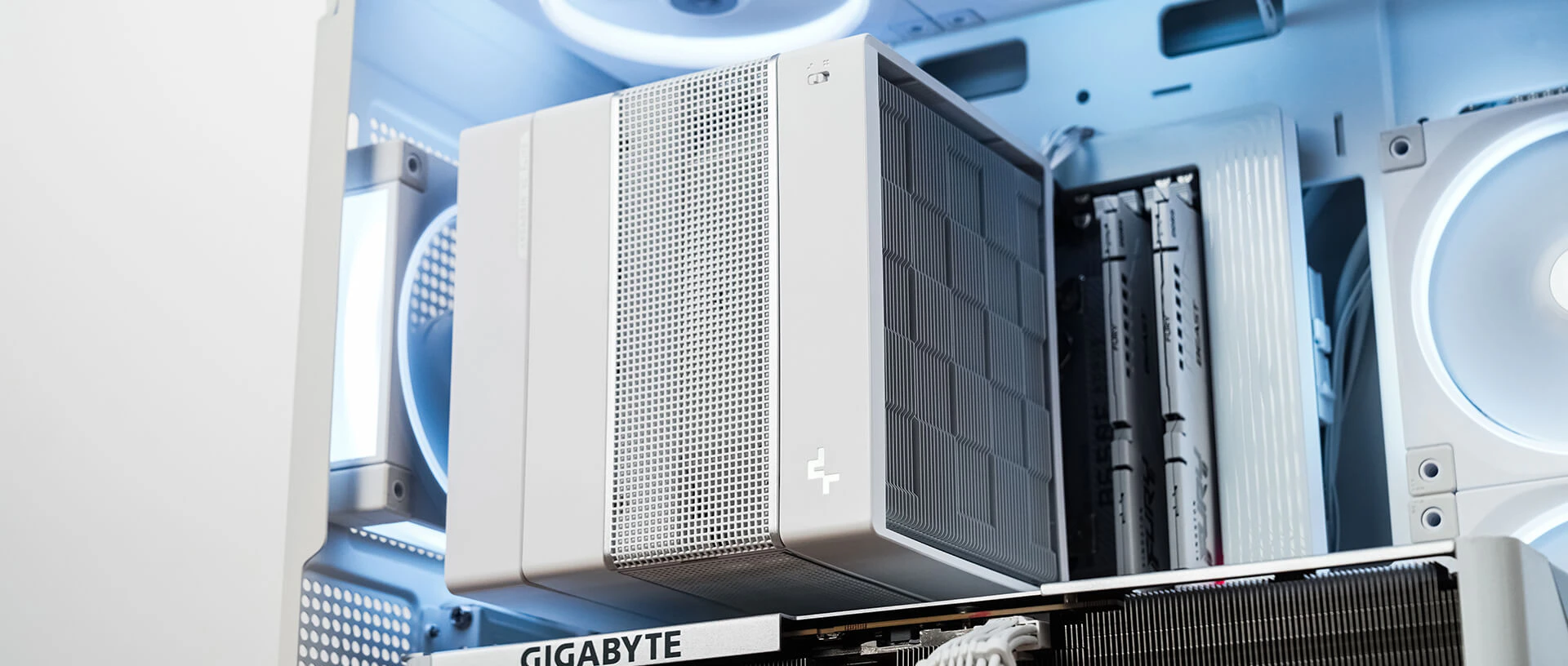

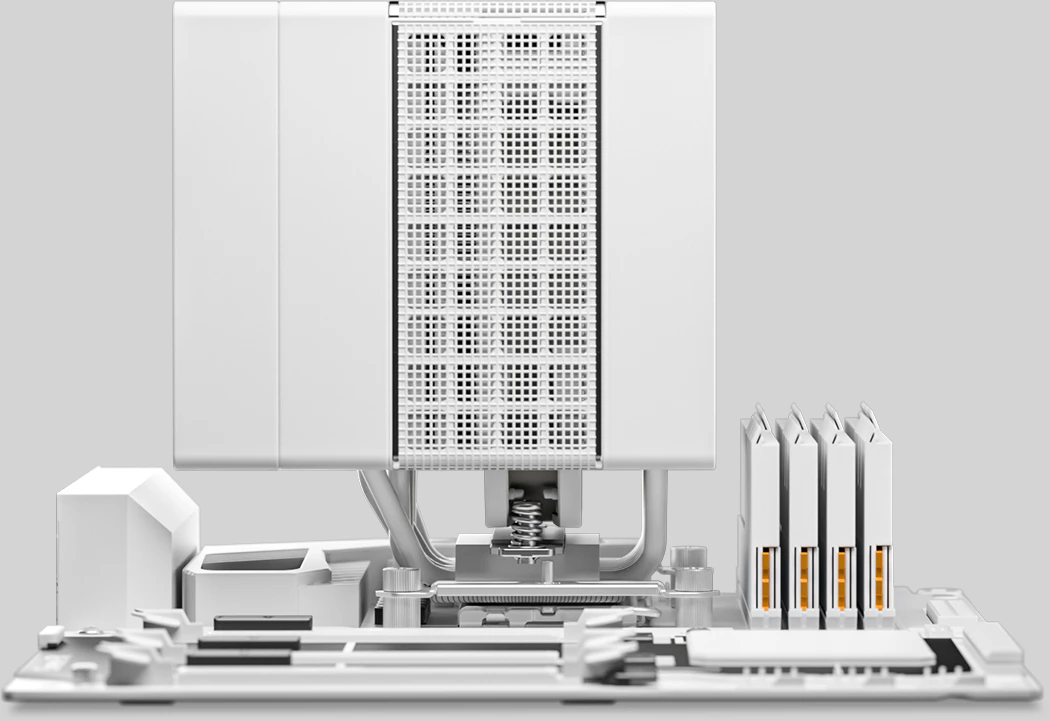

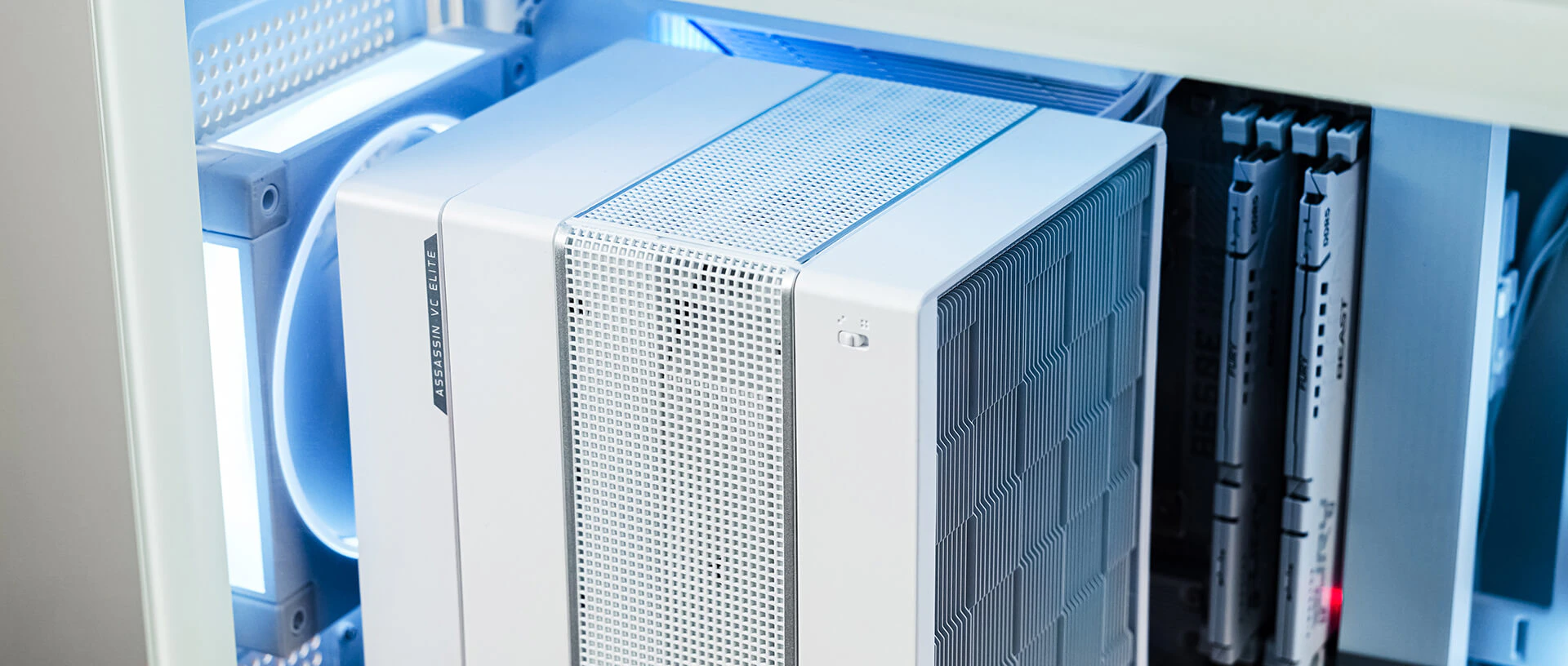

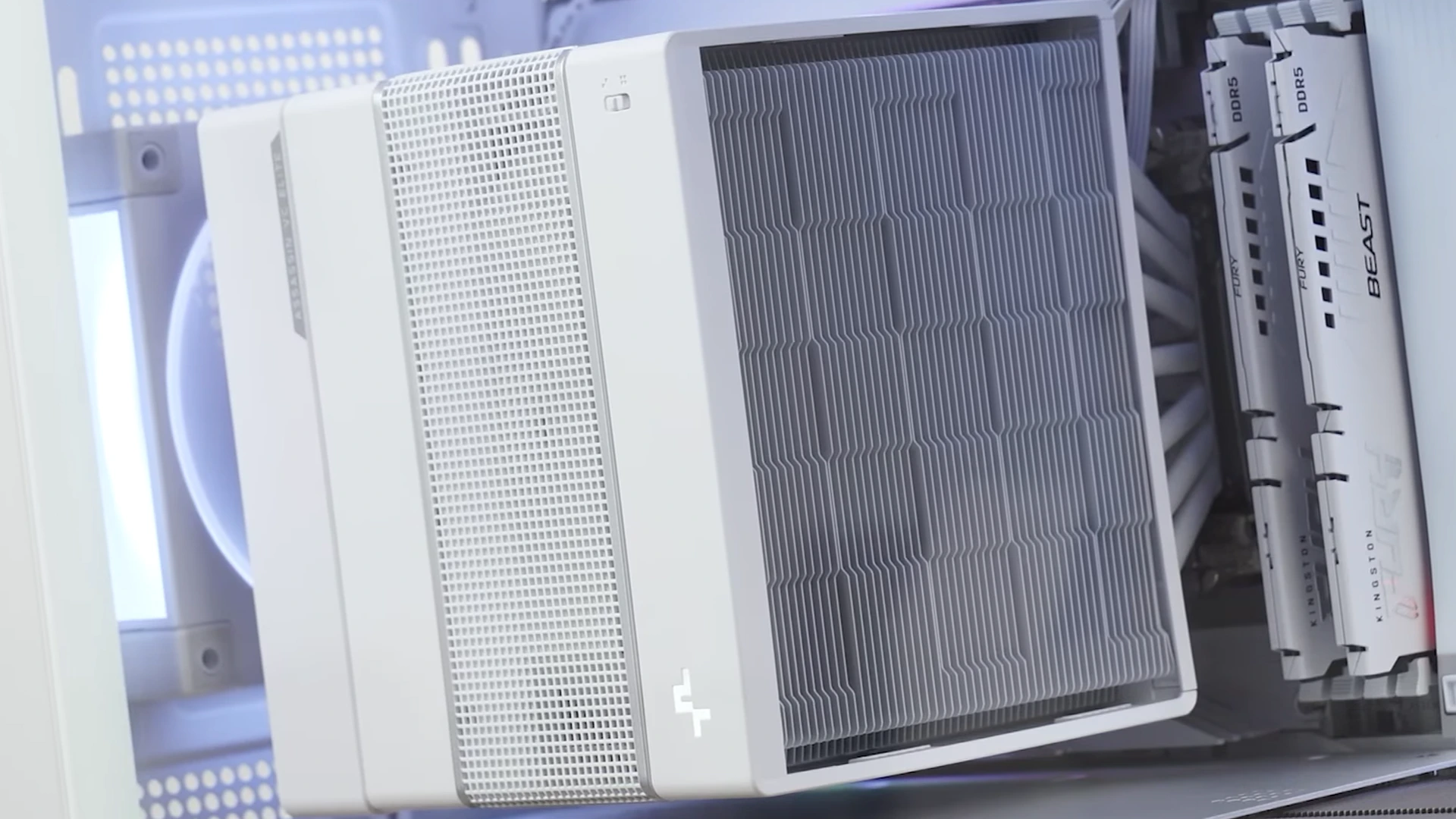

ALL CLEAR!

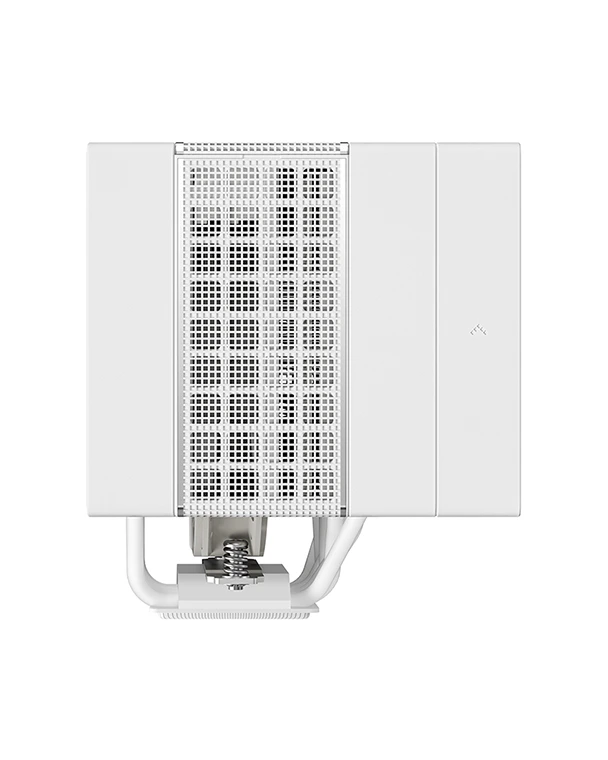

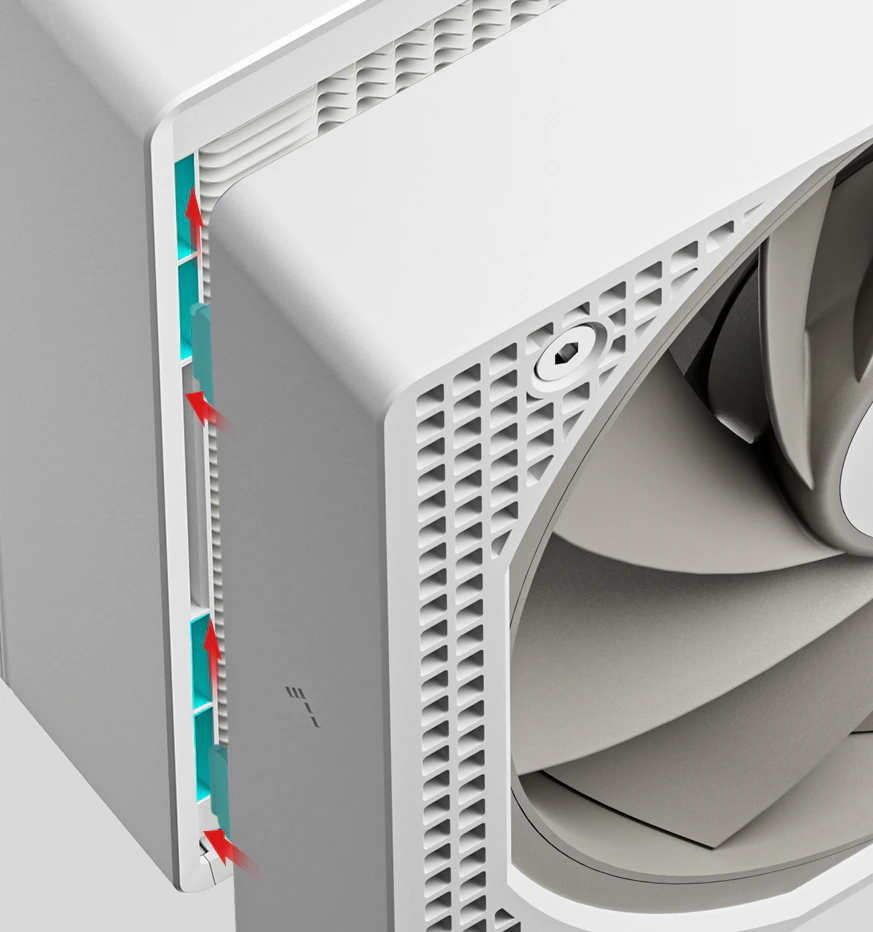

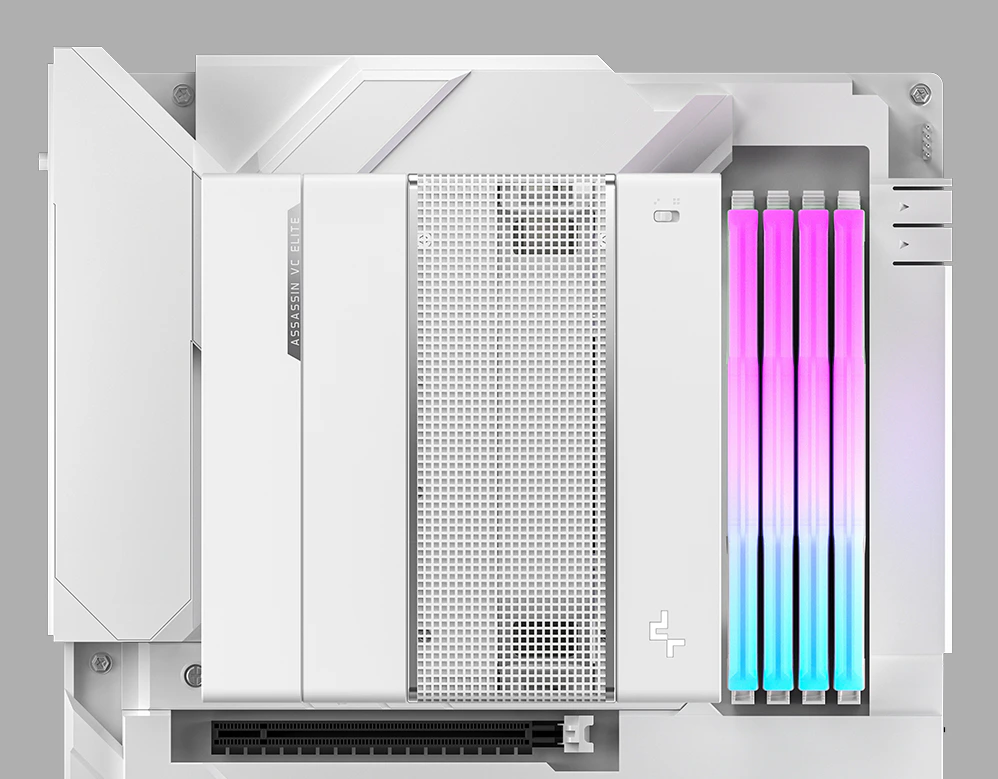

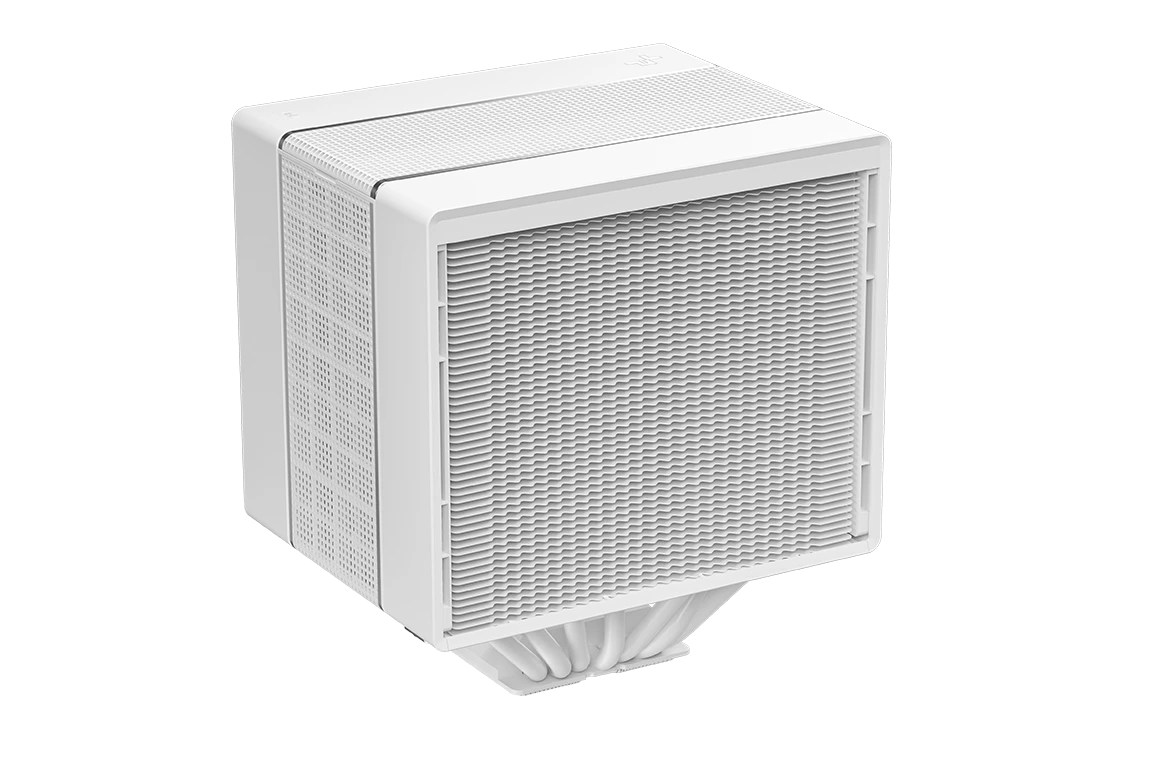

The ASSASSIN VC ELITE WH's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
RAM Clearance
Intel LGA1851/1700/1200/115X: Unobstructed
Intel LGA20XX: 63mm
AMD: AM5/AM4: Unobstructed
BE COOL, BE CALM

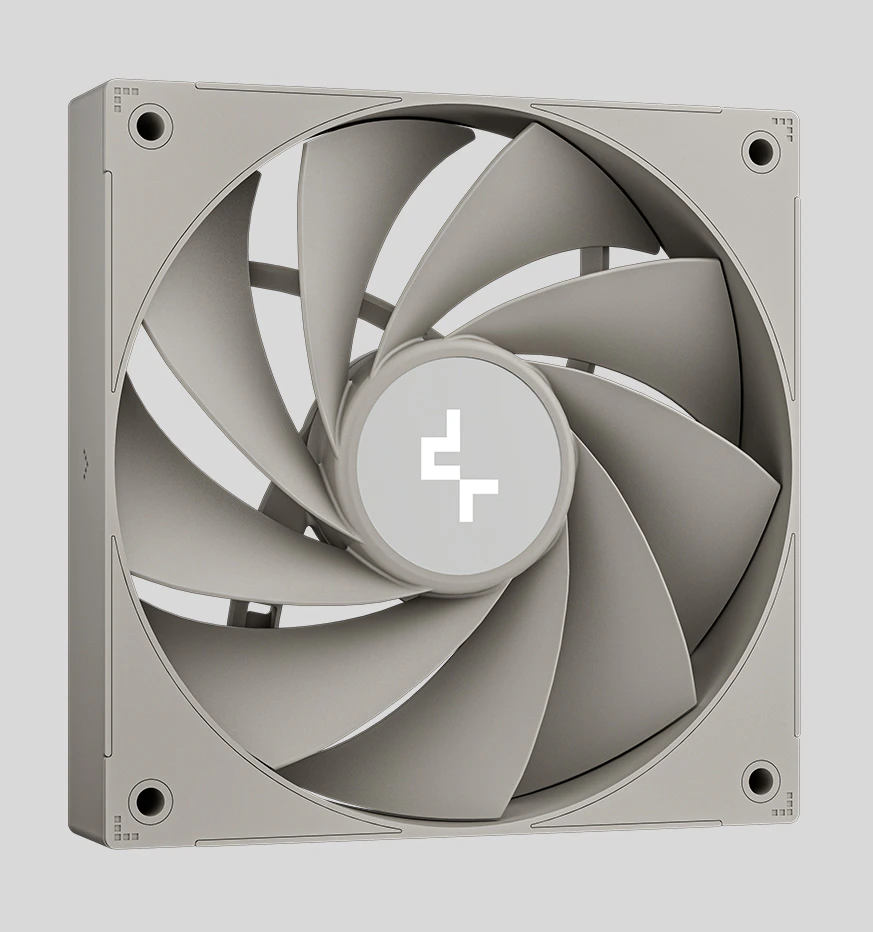

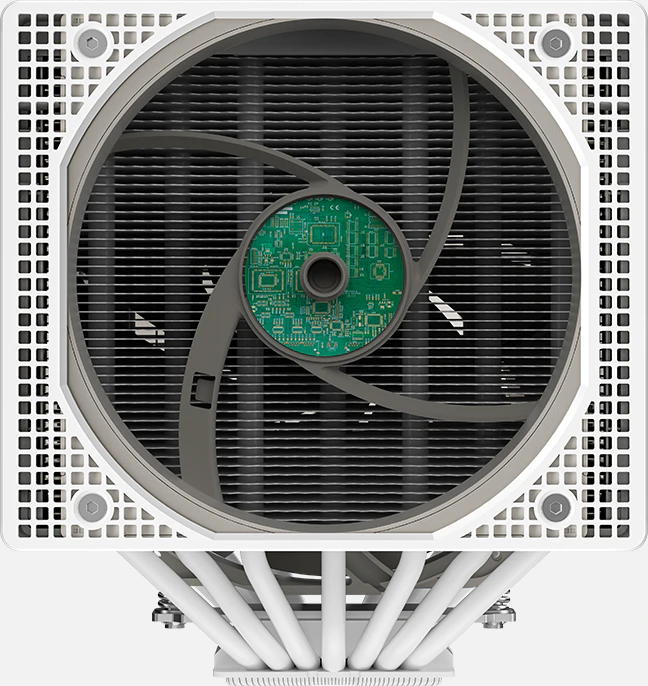

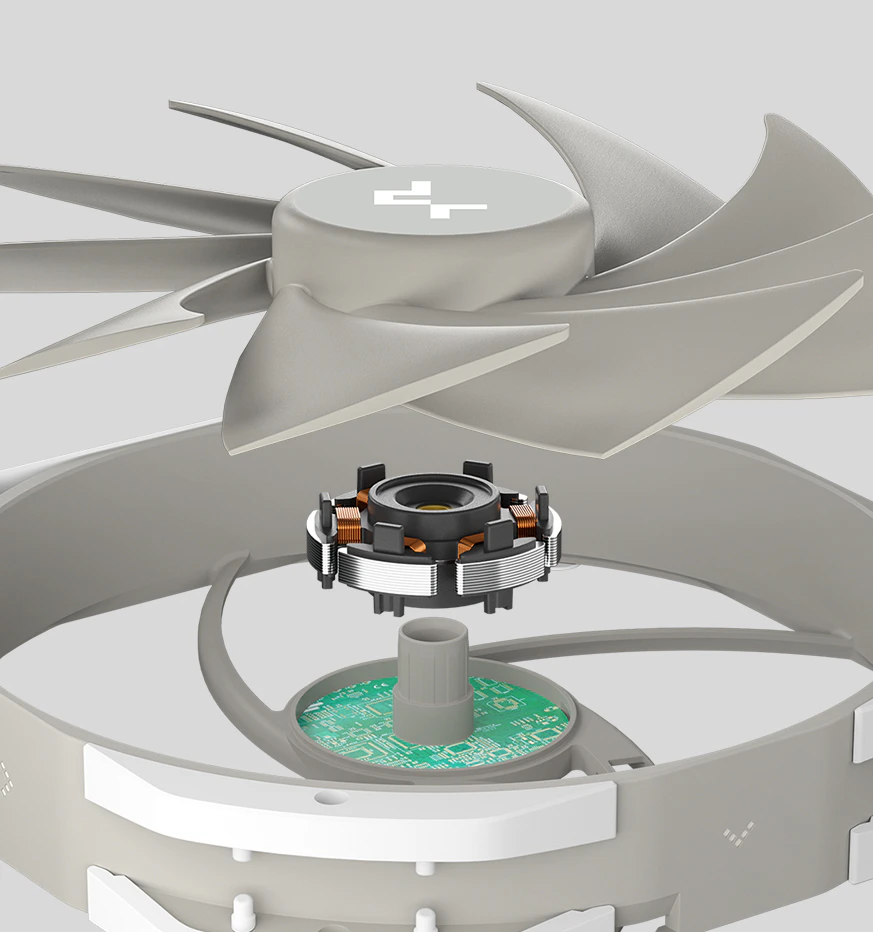

A key factor in the ASSASSIN VC ELITE WH's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN VC ELITE WH comes with 6 years of limited warranty coverage!

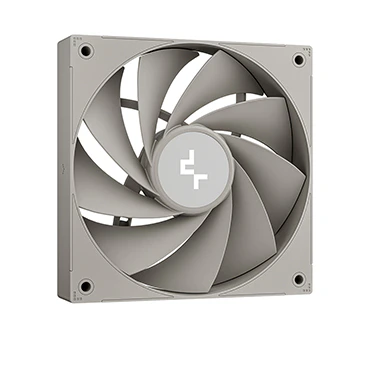

120mm (Performance / Quiet):
500~1700 RPM±10% / 500-1350 RPM+10%
Fan Speed
58.06 CFM / 46.75 CFM
Fan Airflow
≤22.5 dB(A) / ≤19.9 dB(A)
Fan Noise
140mm (Performance / Quiet):
500~1800 RPM±10% / 500~1450 RPM+10%
Fan Speed
61.25 CFM / 48.55 CFM
Fan Airflow
≤23.7 dB(A) / ≤20.5 dB(A)
Fan Noise
120
140
EXCEPTIONAL BY DESIGN

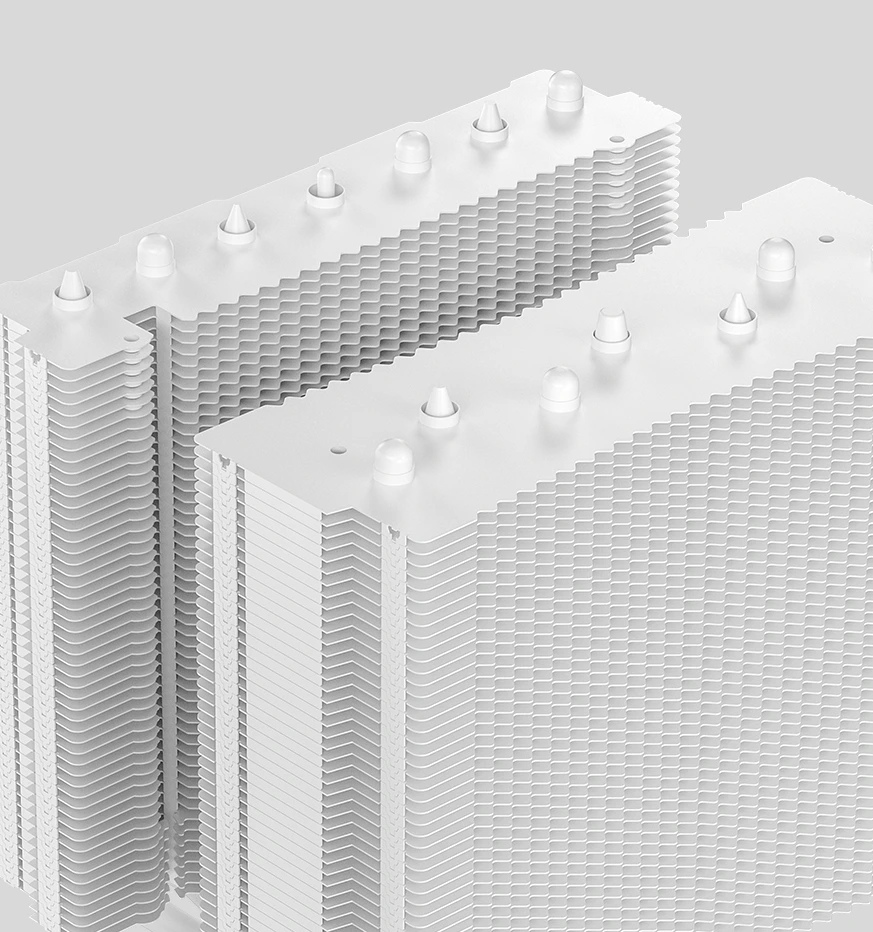

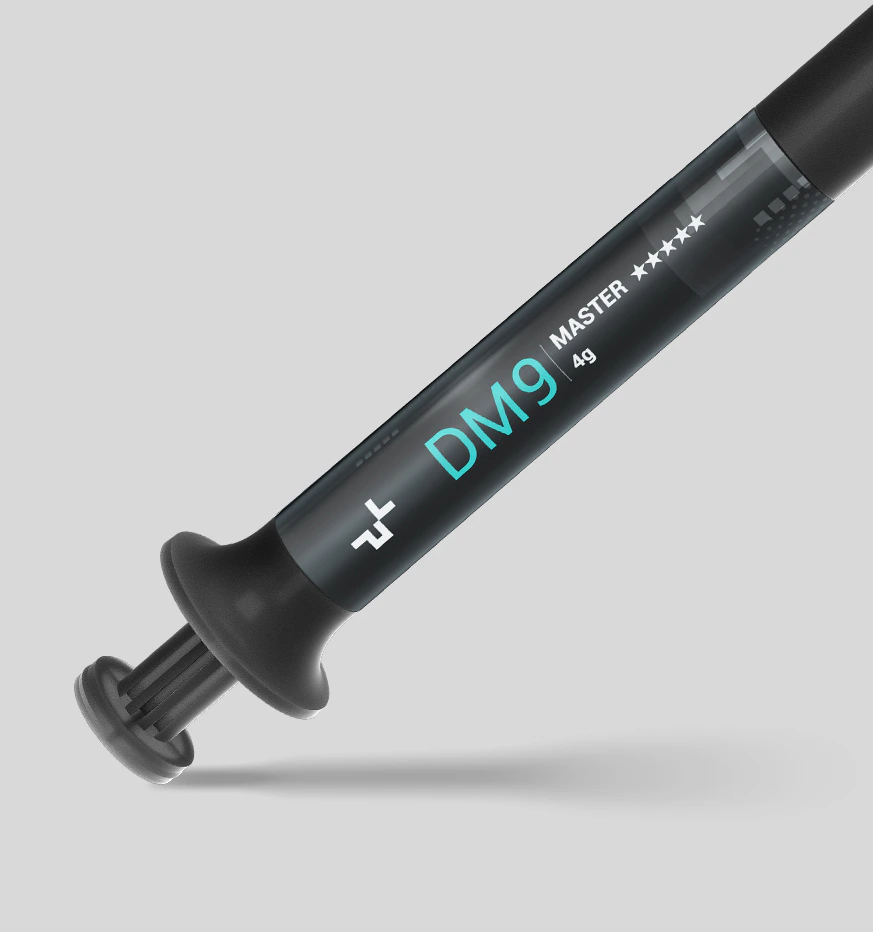

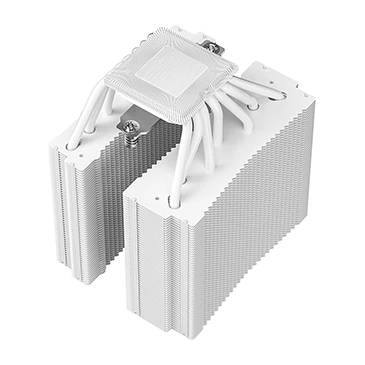

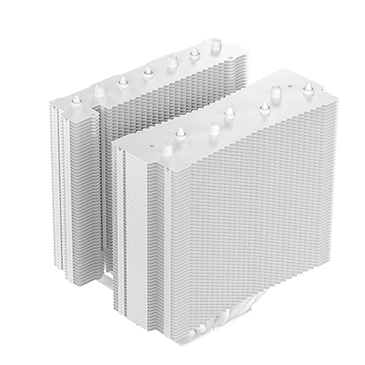

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissipation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

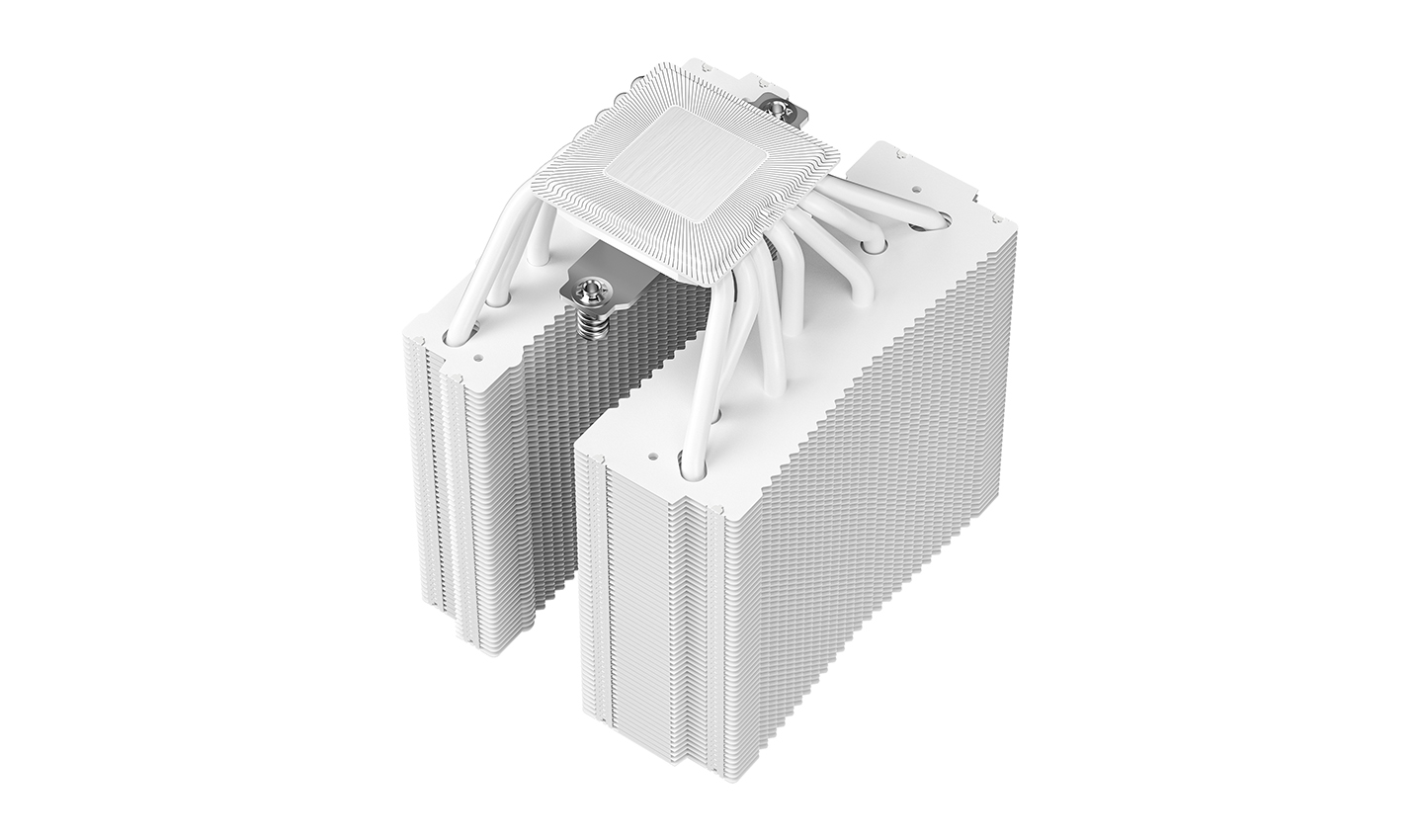

Vapor Chamber Enhanced Base

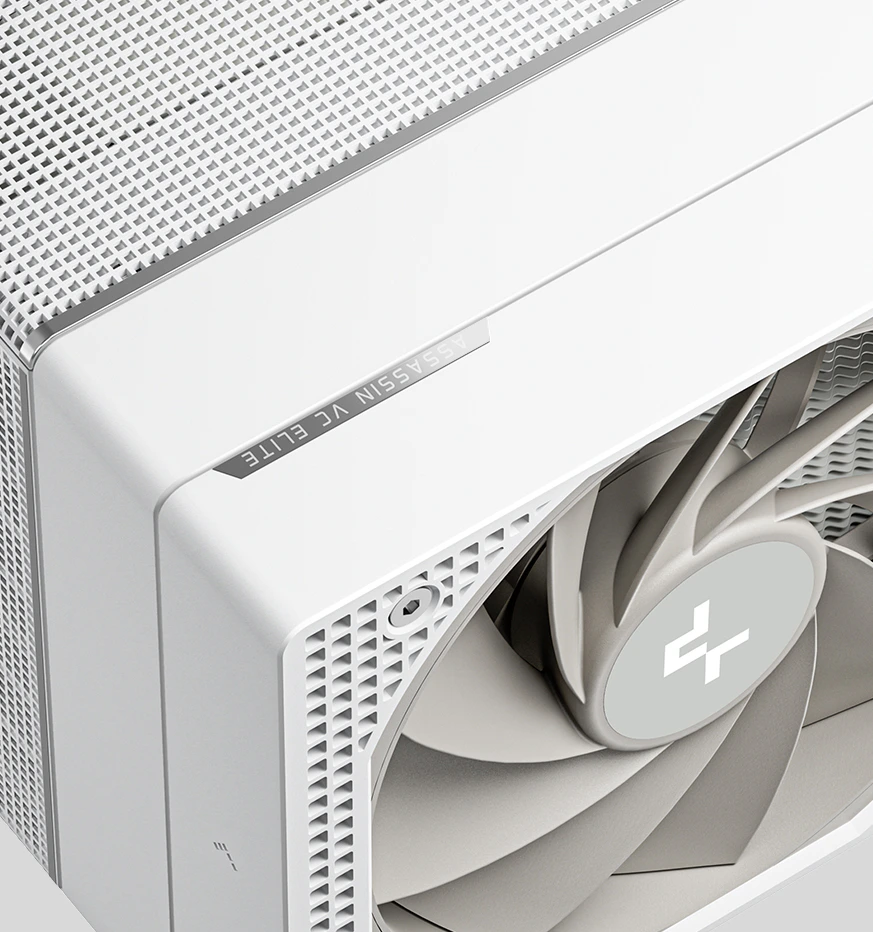

Elite-crafted nameplate
Elegant White Cooler Shroud

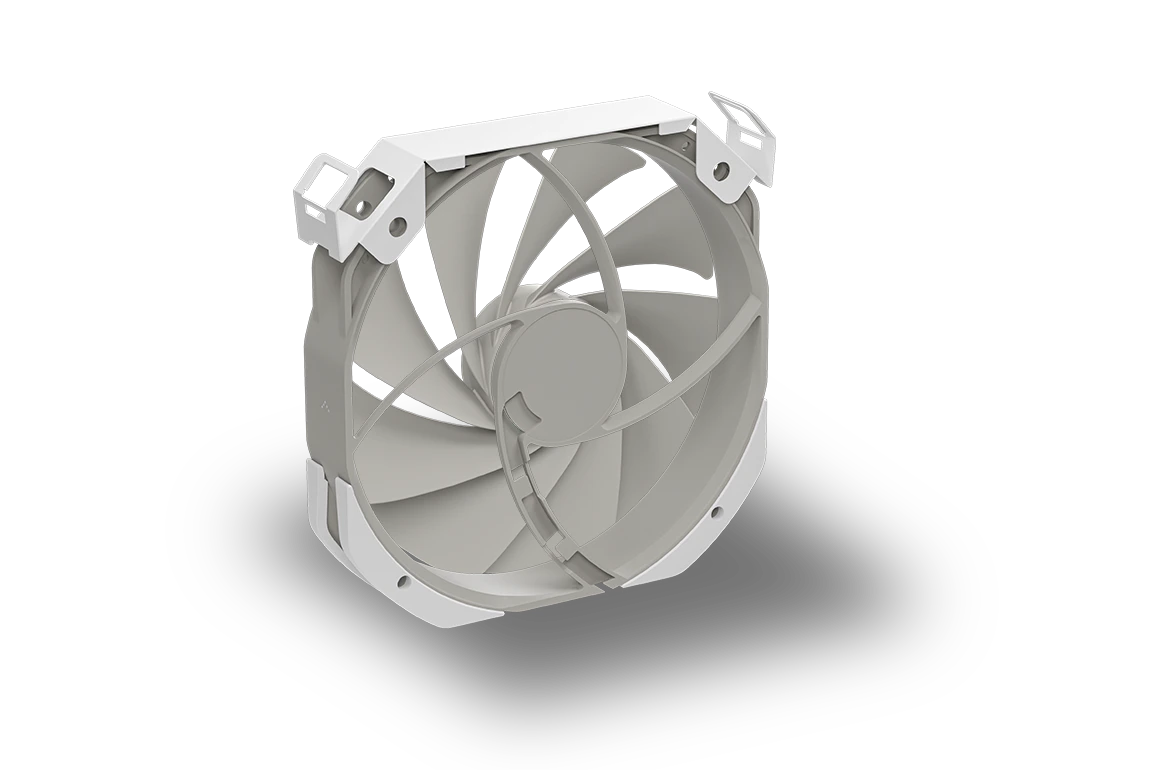

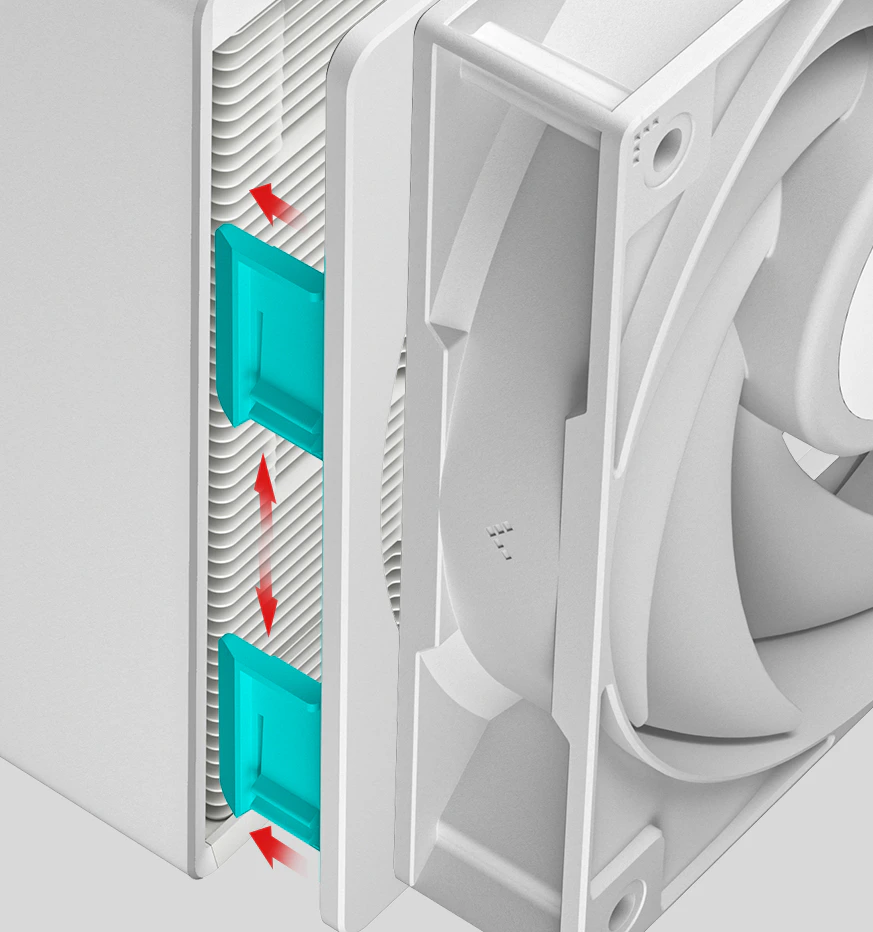

Snap in relocatable 120mm fan frame (two height levels)

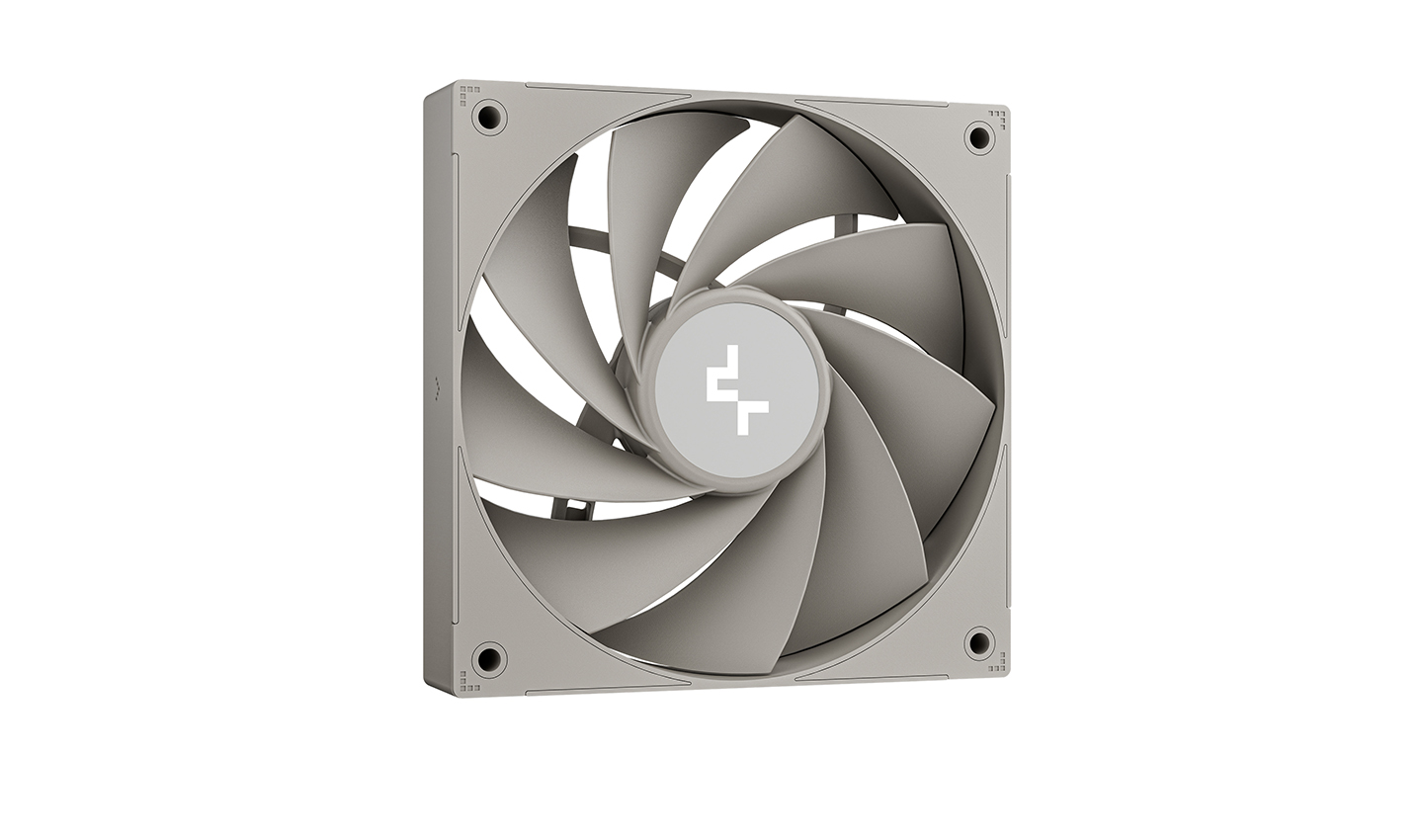

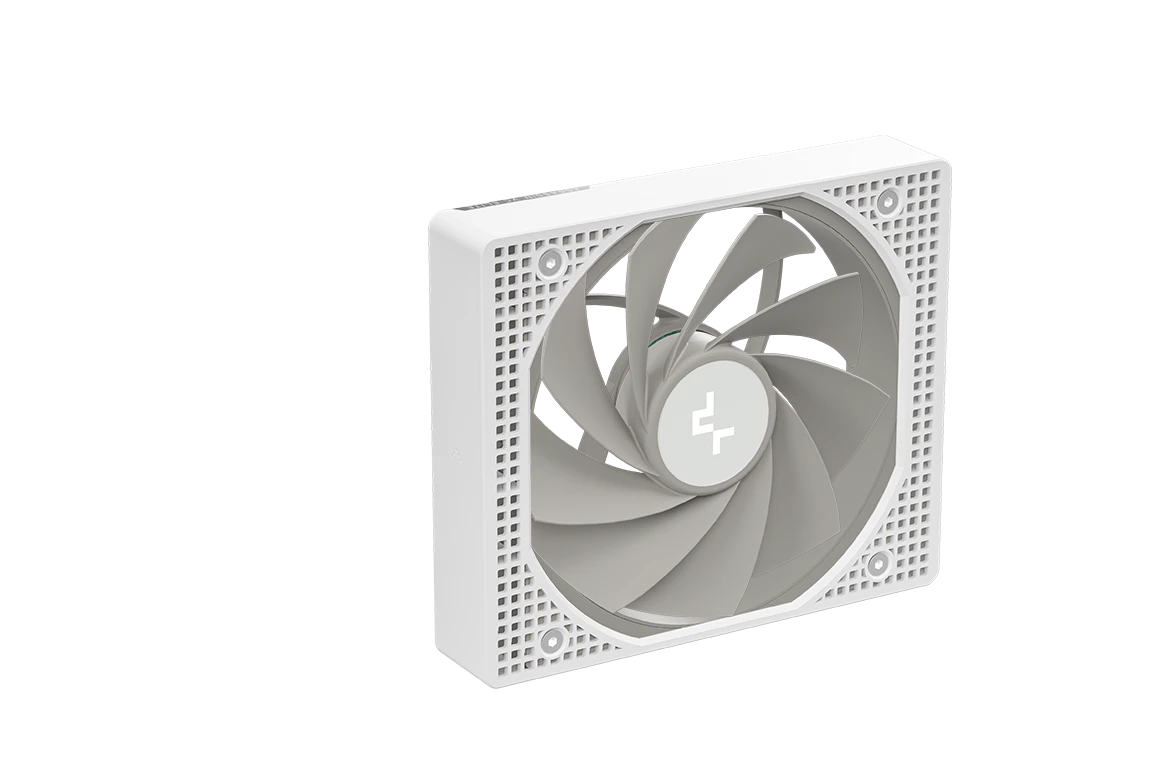

140mm True FDB Main Fan
120mm True FDB Rear Fan
Mode Selector

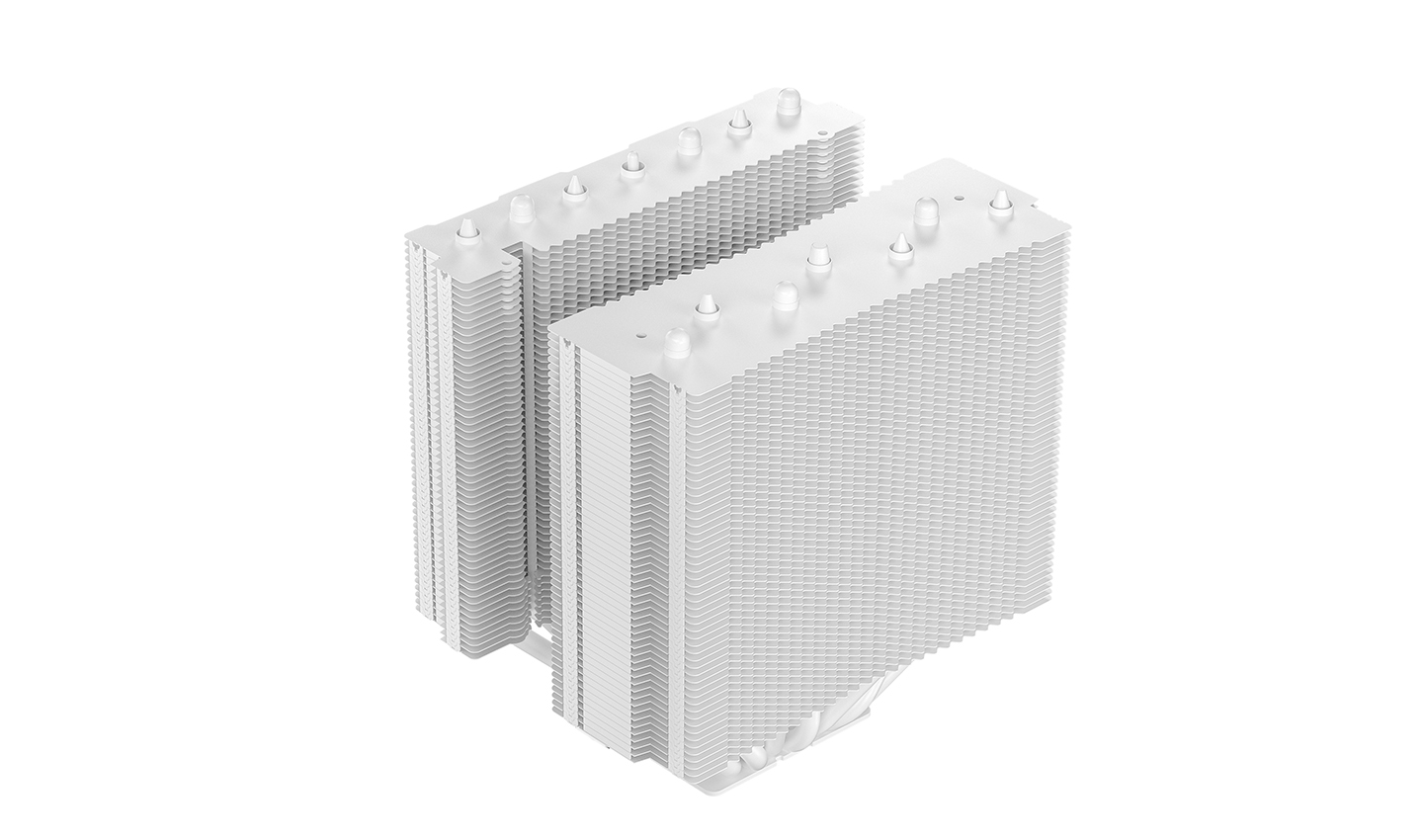

Dual White Coated Fin Towers
Optional 3rd fan bracket included (multiple height adjustability)
Industrial grade thermal paste
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN VC ELITE WH, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.

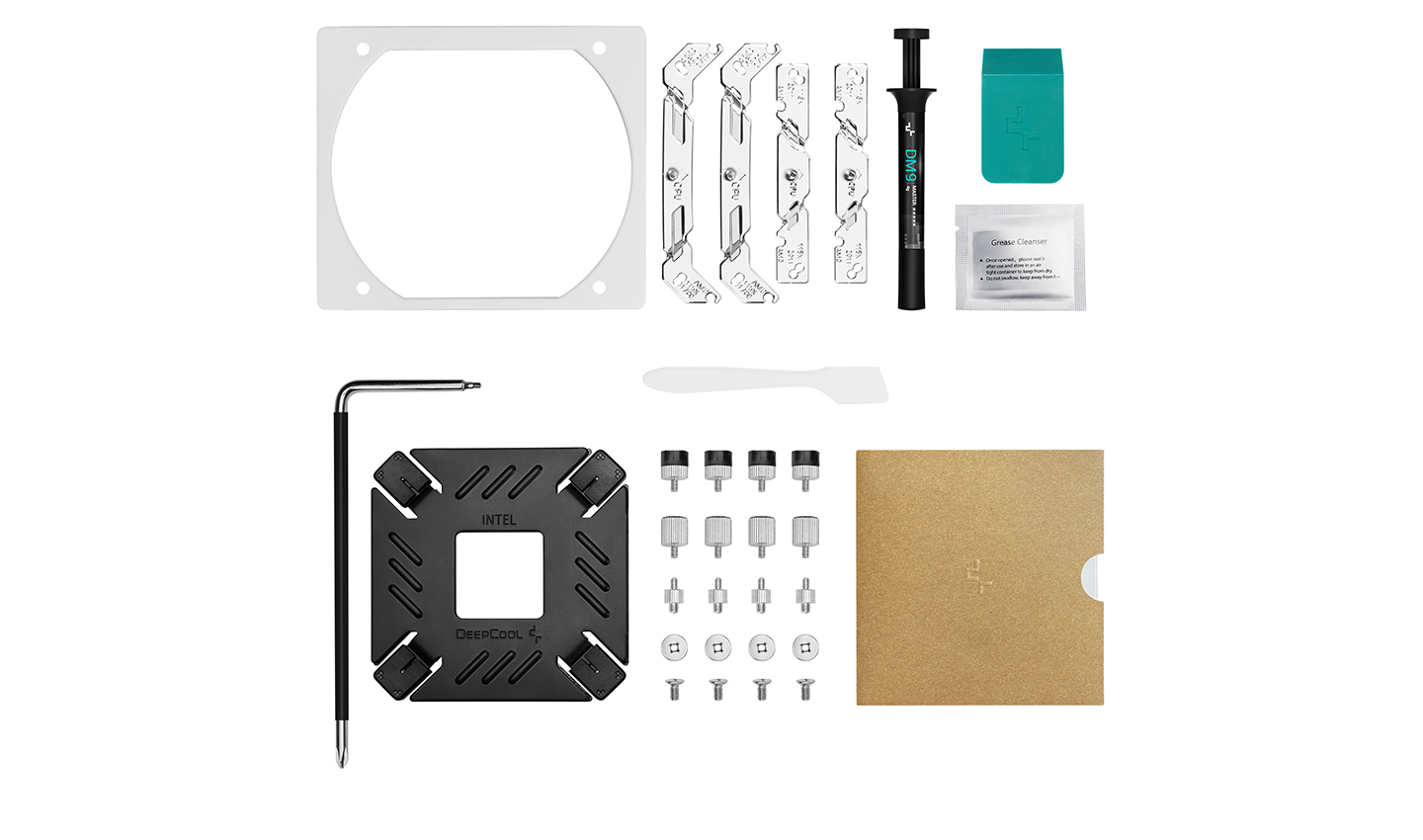

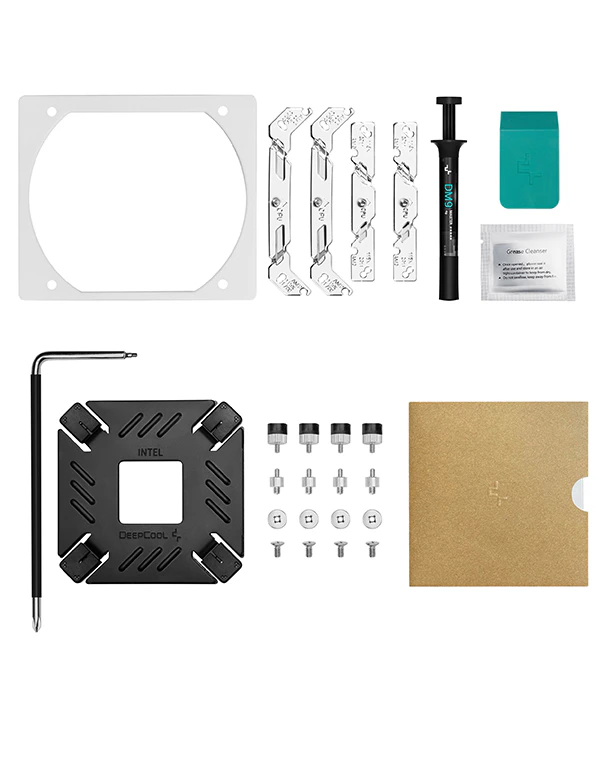

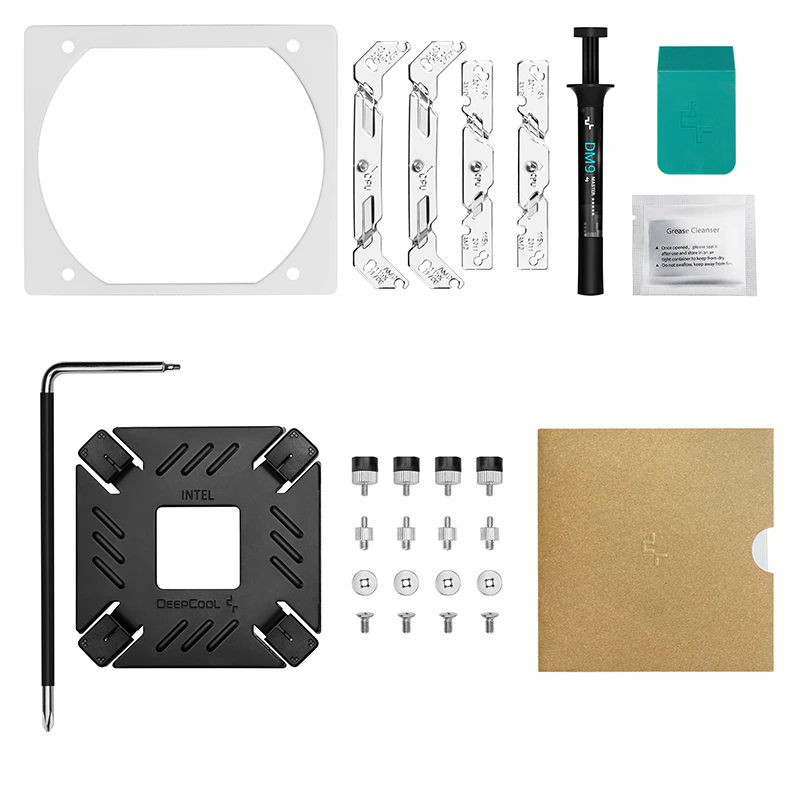

STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
WIDE RANGE OF MODERN CPU SOCKET COMPATIBILITY
The ASSASSIN VC ELITE WH supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1851 and AM5.
Intel: LGA20XX/1851/1700/1200/115X
AMD: AM5/AM4
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions144×147×164 mm(L×W×H)
Heatsink Dimensions140×110×160 mm(L×W×H)
Net Weight1772 g
HeatpipeØ6 mm×7 pcs
Fan Dimensions140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode)500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)≤29.3 dB(A)
Fan Speed (Quiet Mode)500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode)48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)≤22.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Motor Type6-Pole Fan Motor
Fan Rated Voltage12 VDC
Fan Rated Current0.2 A / 0.2 A
Fan Power Consumption2.4W / 2.4 W
Rated Voltage12 VDC
Power Consumption(Performance Mode)4.8 W
Power Consumption(Quiet Mode)3.6 W
EAN6933412729433
P/NR-ASN4-WHNVNN-GJD
Download
ASSASSIN VC ELITE WH Manual.pdf
