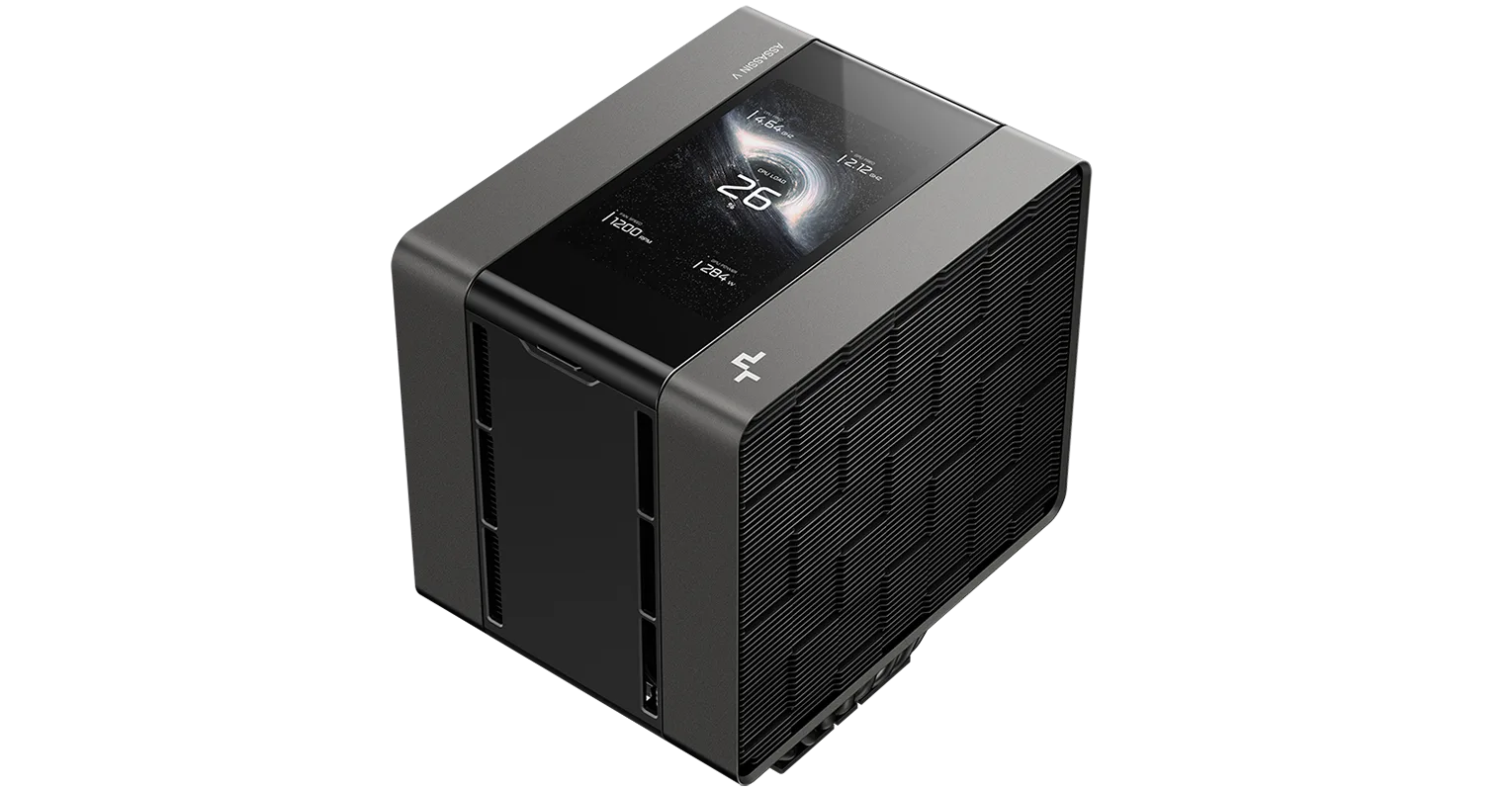

ASSASSIN V VISION

NEXT-GEN COOLING DOMINANCE

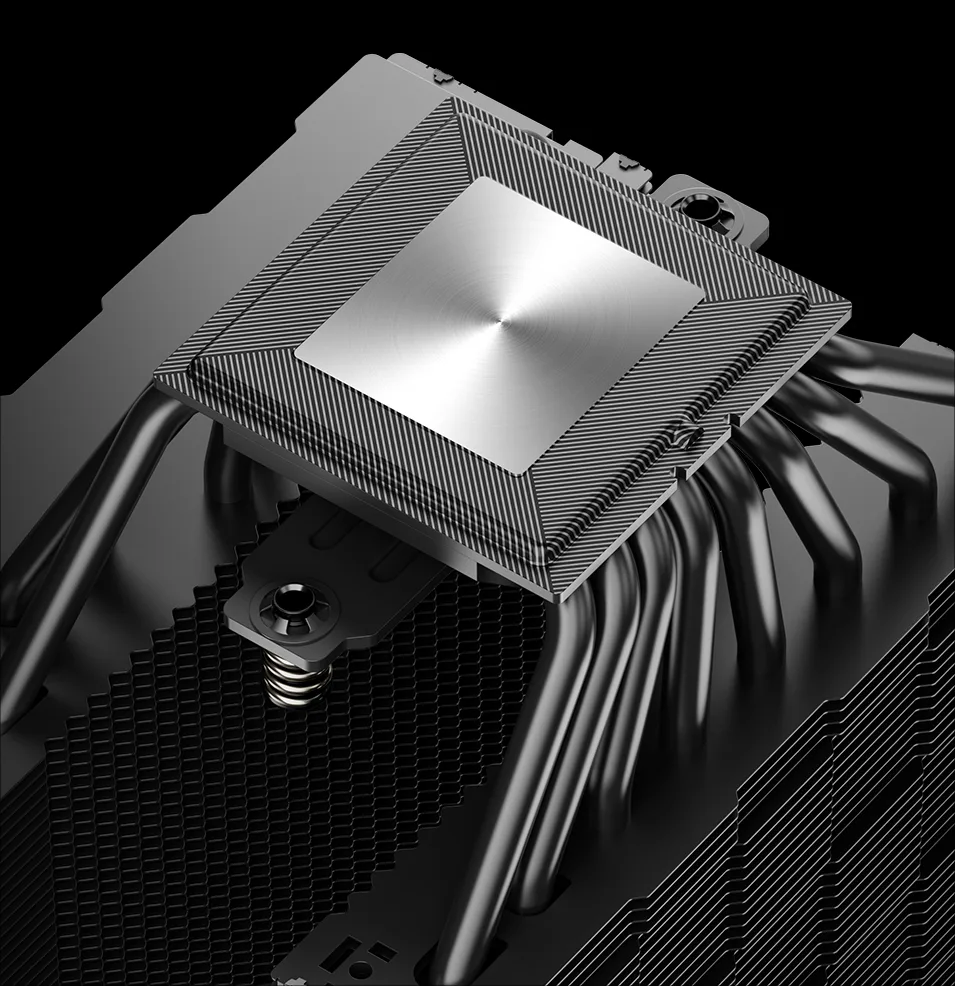

NEXT-GEN VAPOR CHAMBER POWER

The ASSASSIN V VISION features a next-generation vapor chamber base engineered to elevate thermal performance. With an expanded CPU contact surface, heat is absorbed more efficiently and spread evenly across the chamber, accelerating thermal transfer into the heat pipes and fin stack. This upgraded design brings stronger, more consistent cooling performance, enabling the ASSASSIN V VISION to handle demanding workloads with greater stability and sustained efficiency.

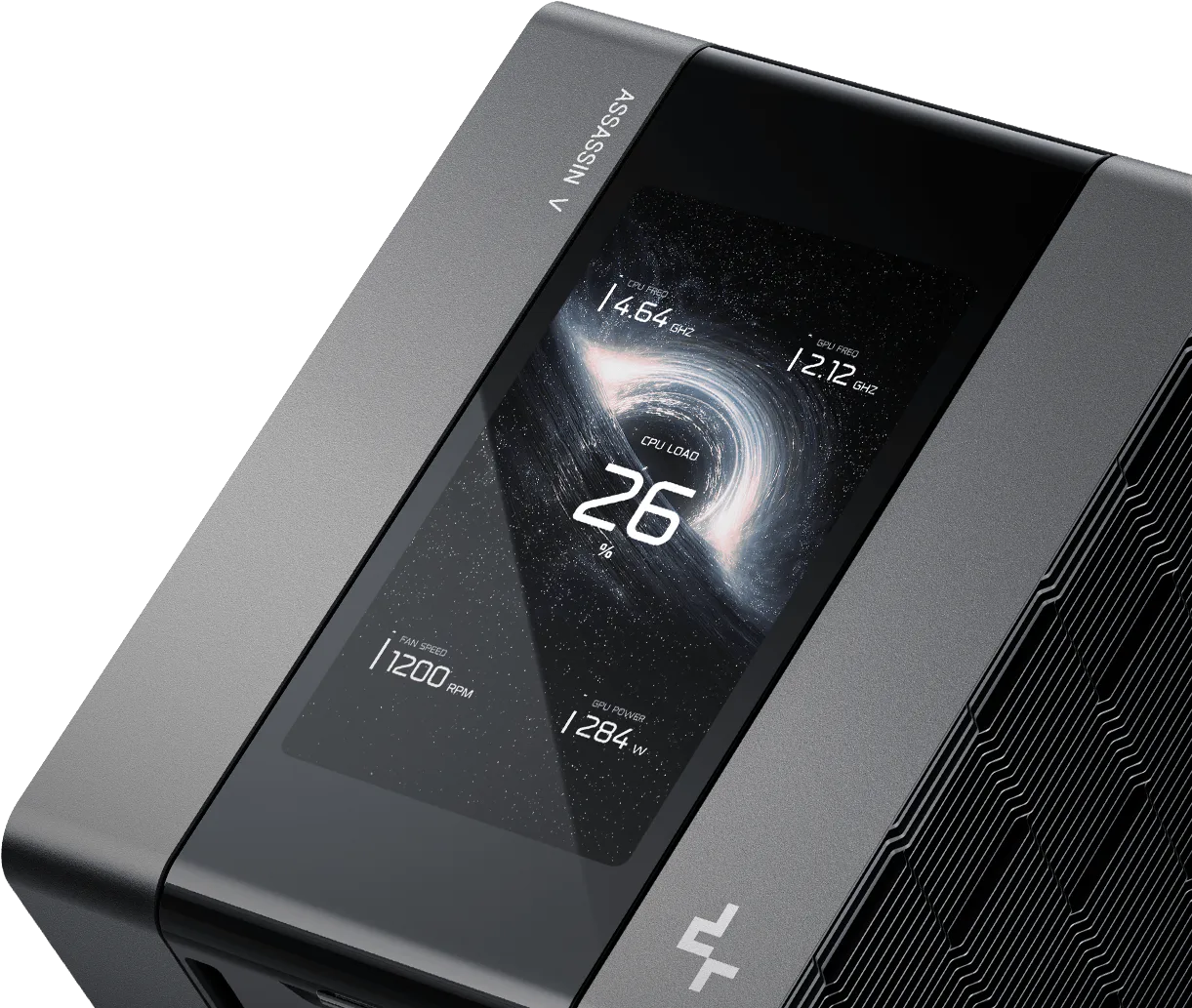

DESIGNED TO BE VIEWED

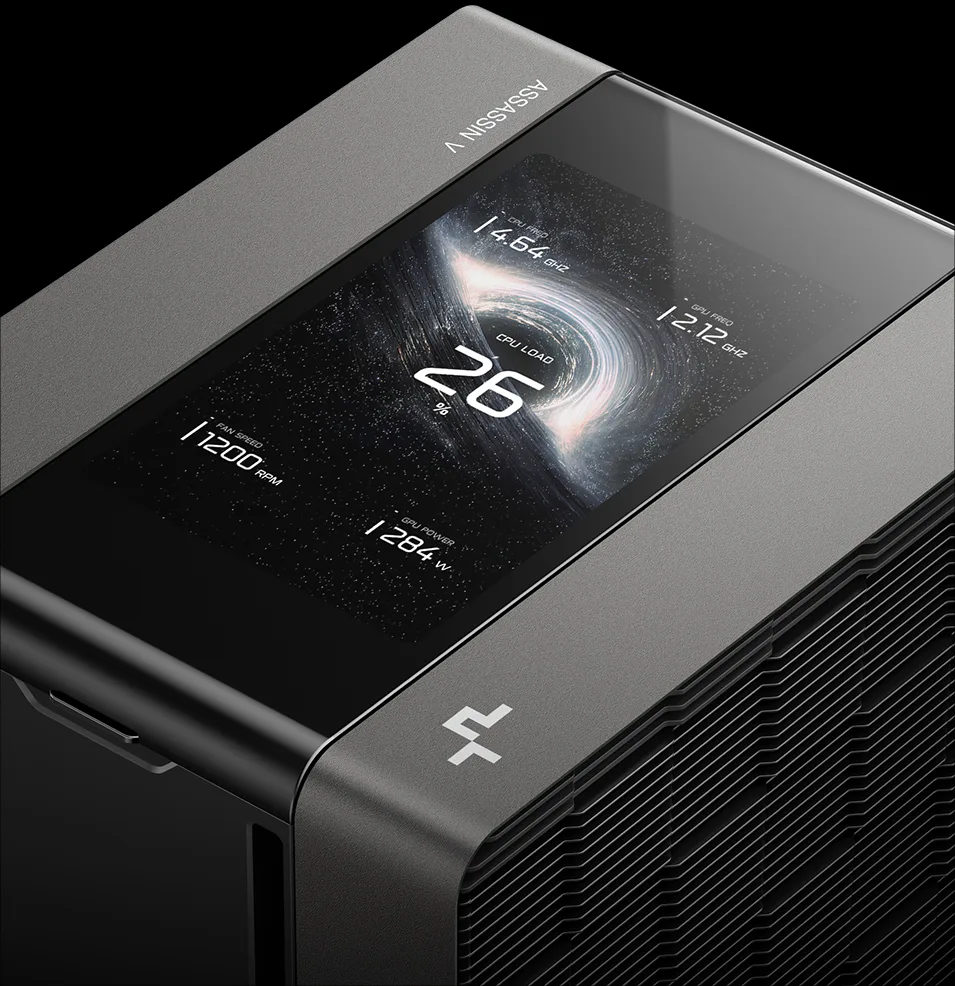

Experience immersive visuals on a 4.5”IPS LCD with a sharp 854×480 resolution, delivering clear and vibrant content from multiple viewing angles. Engineered with a rotational structure, the display allows smooth angle adjustment while simplifying installation, combining usability with refined design.

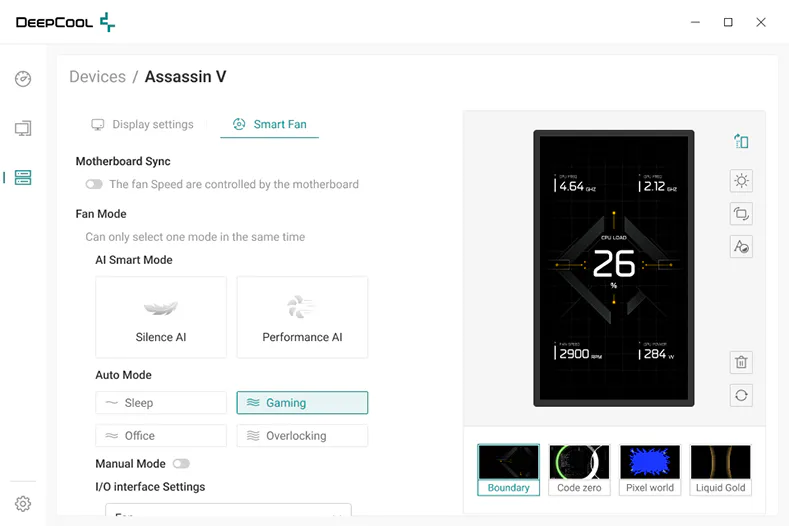

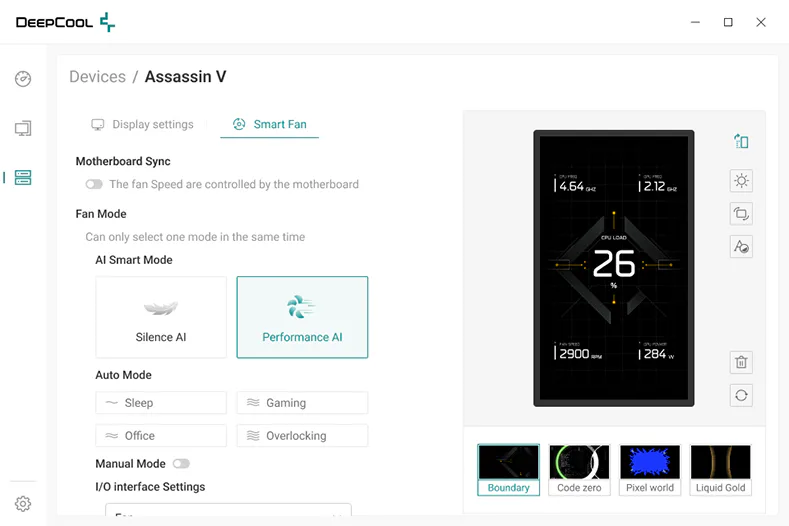

AI-TUNED CHILL. POWERED BY DeepCreative

With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative's proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.

*Fans instantly shift to full speed when the CPU hits above 80 °C, crushing heat without delay.
Fans automatically revert to preset mode once the CPU temp drops below 80 °C.

Silence AI Mode:
Maintains quiet cooling for steady, low-noise performance

Performance AI Mode:
Delivers maximum cooling for peak system performance

Sleep Mode:
Ultra-quiet (0–20 dBA) for noise-sensitive environments

Office Mode:
Silent-focused (20–25 dBA) for productivity

Gaming Mode:
Balanced performance and sound (25–33 dBA)

Overclocking Mode:
Unlocks the full potential of your system (25–40 dBA)

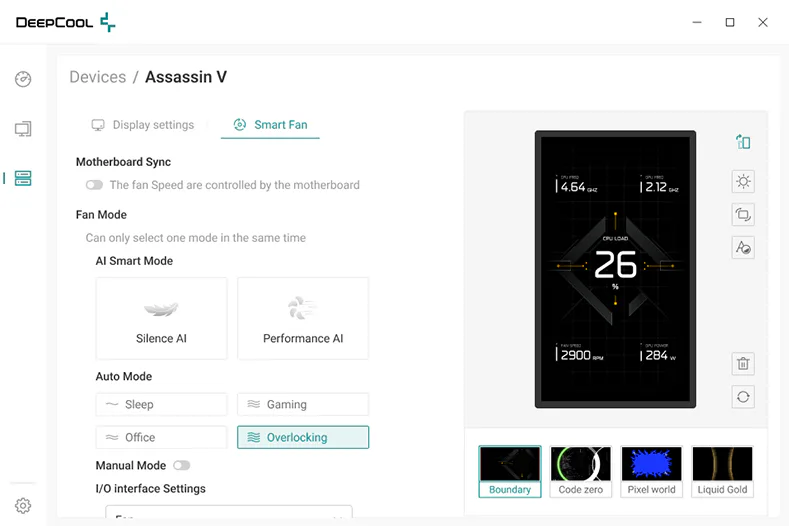

FULL CONTROL WITH DeepCreative

Powered by DeepCreative software, the display capabilities of the ASSASSIN V VISION are fully unlocked. Choose from multiple preset themes to monitor key system data in real time or showcase personalized visual content with ease. The software also provides unified control over compatible devices, with ongoing updates to expand functionality over time.

MONITORING

MEDIA

D-CAST

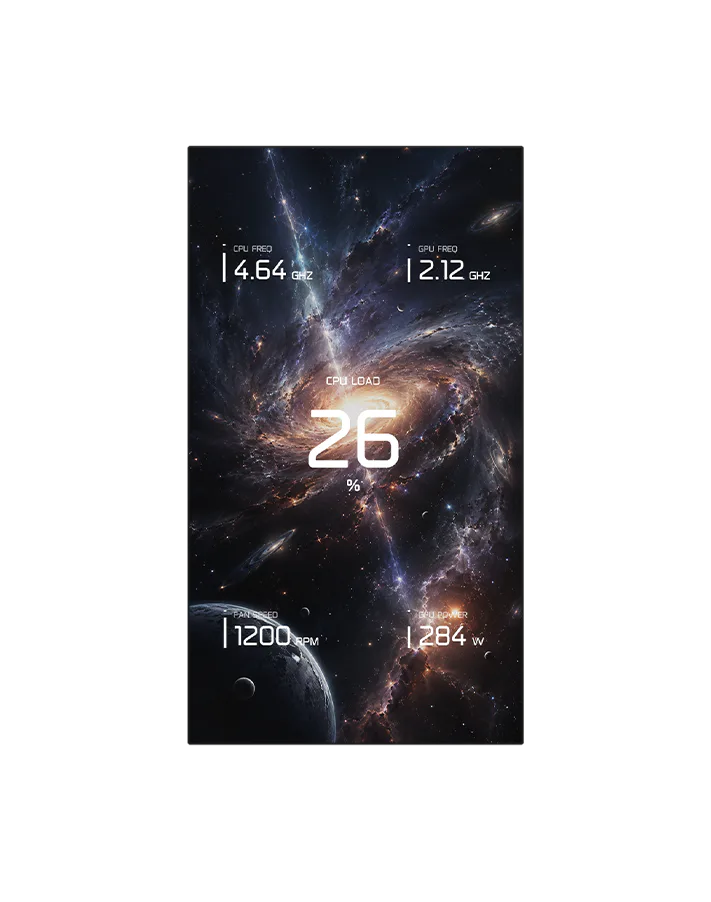

Monitoring Mode makes essential system information easy to read at a glance. A primary data area can be selected to display key system information, such as CPU metrics or time, while secondary fields continuously show additional system data including CPU, GPU, and fan-related details.

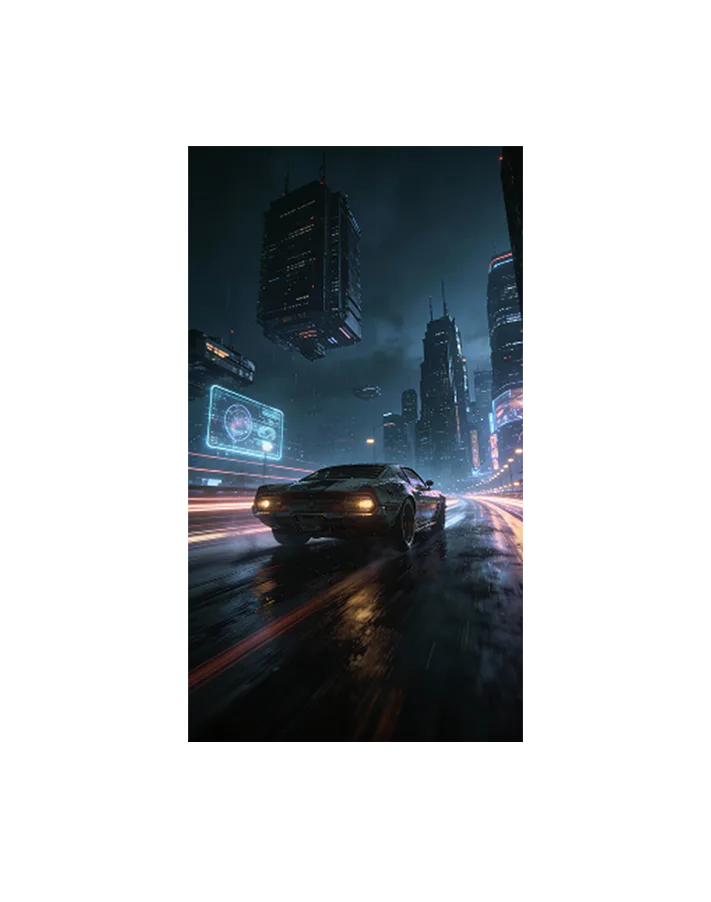

Upload JPG or PNG images, play animated GIFs, or showcase video content to bring motion and personality to your build.

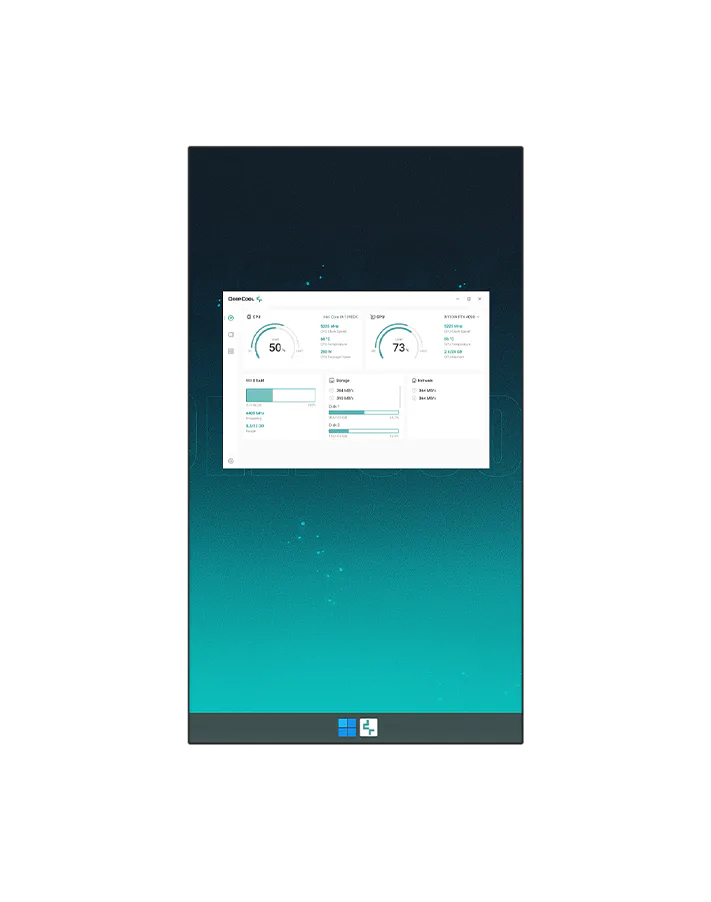

D-Cast allows the screen to function as an extended system display, offering a flexible way to place secondary visuals, status panels, or creative elements.

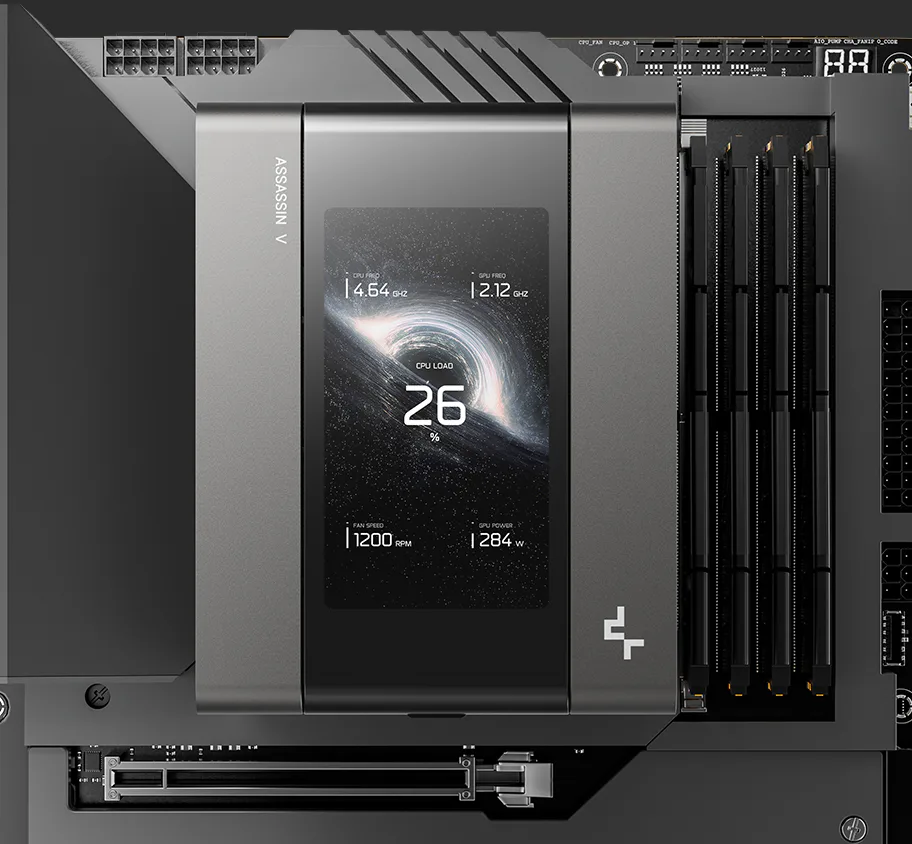

ALL CLEAR!

Now refined with a lighter, next-generation design, ASSASSIN V VISION achieves full RAM clearance with zero interference—delivering improved compatibility without the bulk.

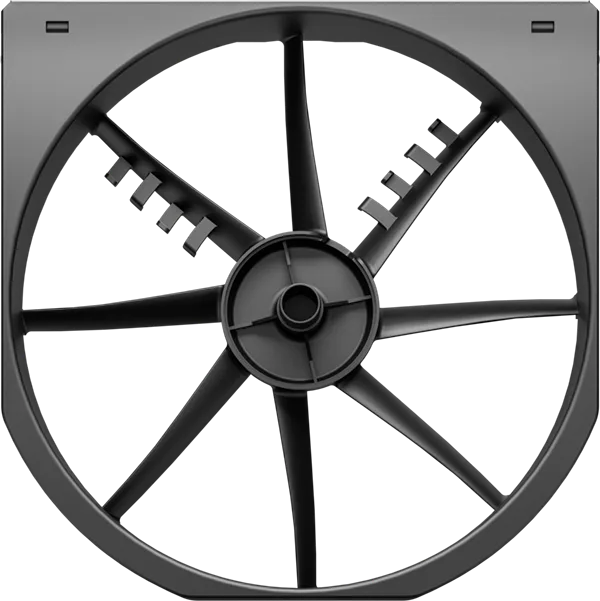

PRECISION ENGINEERED SILENCE

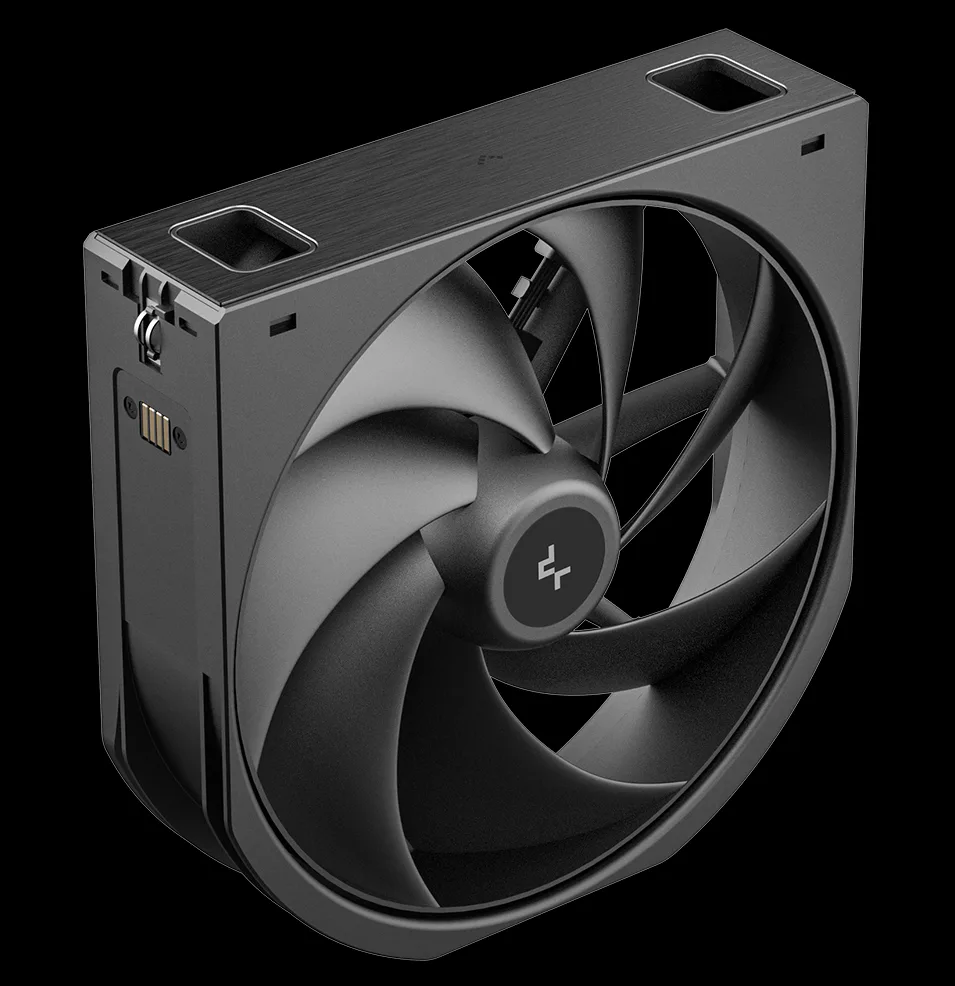

A key factor behind the ASSASSIN V VISION's refined acoustic performance is its 140mm thick fan, powered by an advanced 3-phase, 9-slot, 8-pole motor with CoreAlign Winding technology for smoother torque, higher efficiency, and reduced resonance. Crafted from durable LCP material and featuring a closed-wheel blade design, the fan minimizes turbulence to enhance airflow and static pressure, while precision dynamic balancing ensures stable, low-noise operation and long-term durability.

2700±10% RPM

Fan Speed

77.23 CFM

Fan Airflow

5.13 mmAq

Fan Air Pressure

≤23.08 dB(A)

Fan Noise

EXCEPTIONAL BY DESIGN

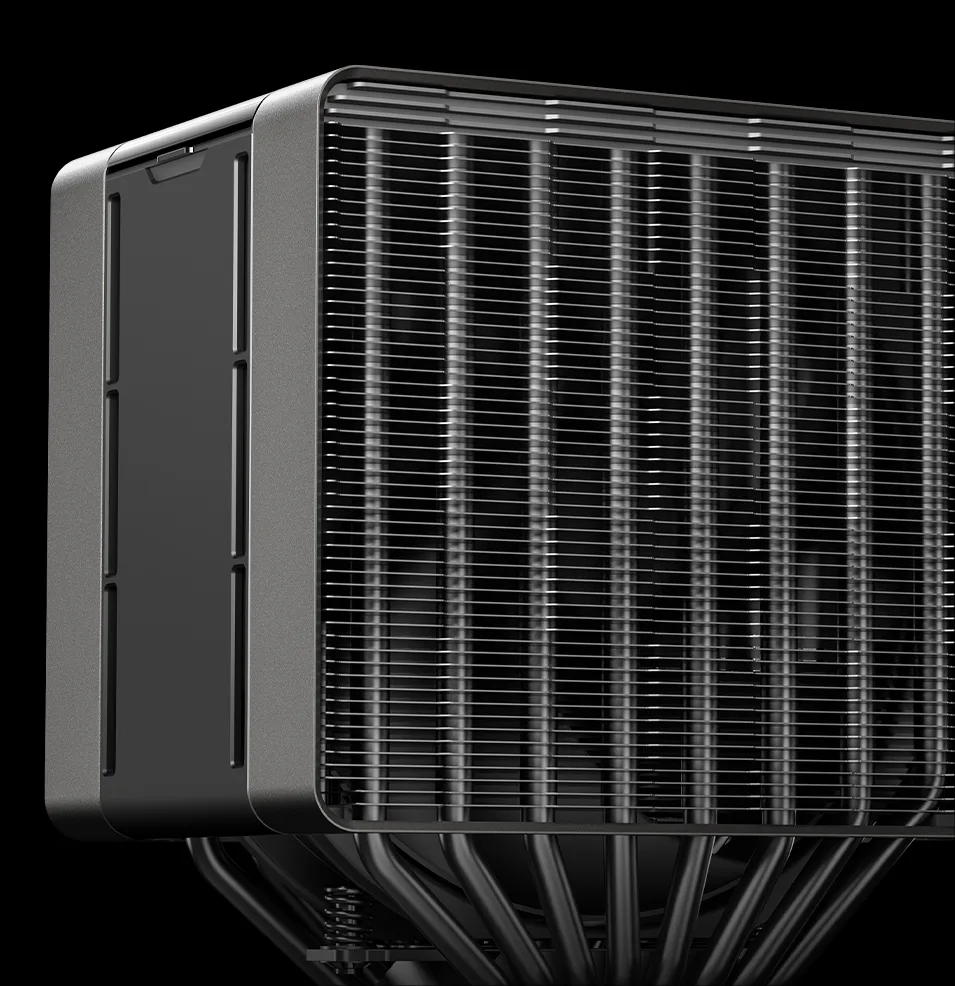

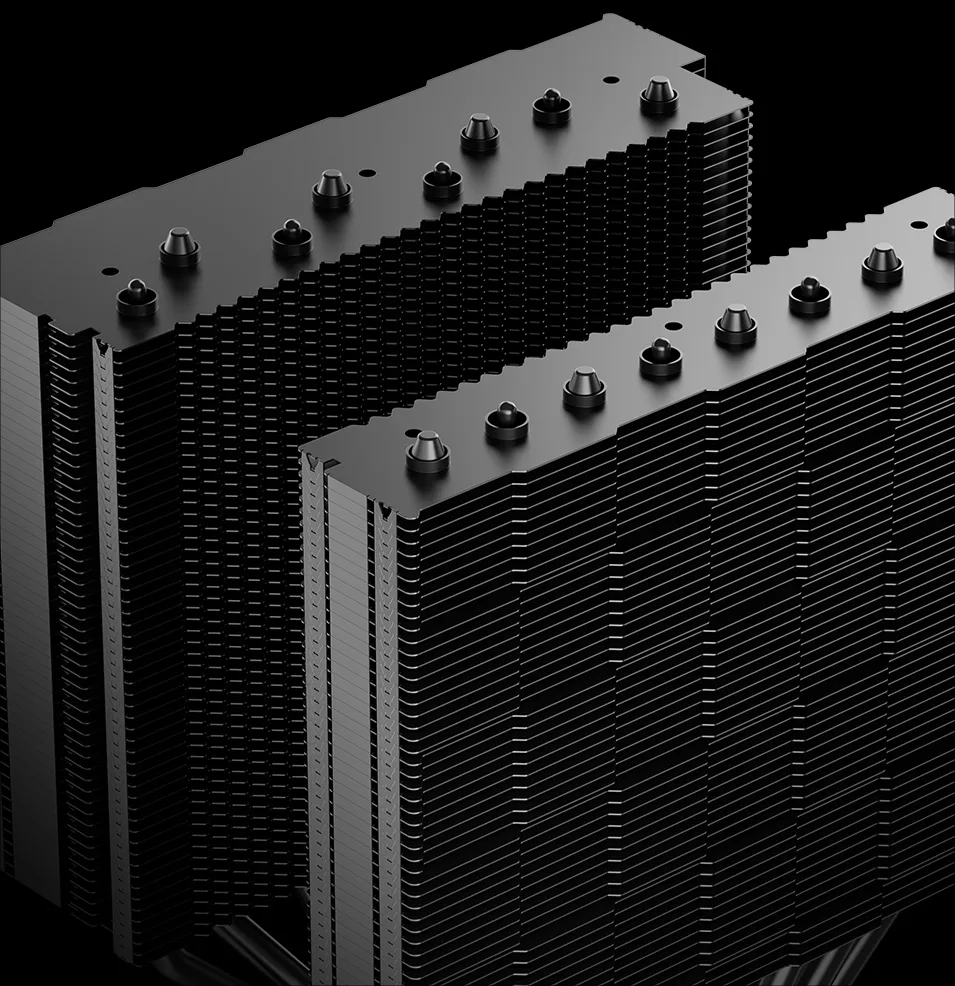

Featuring a second-generation vapor chamber-enhanced base and eight heat pipes, the ASSASSIN V VISION delivers highly efficient heat transfer through dual fin-stack towers for next-level heat dissipation.

Next Gen Vapor Chamber Enhanced Base

4.5”IPS LCD Screen

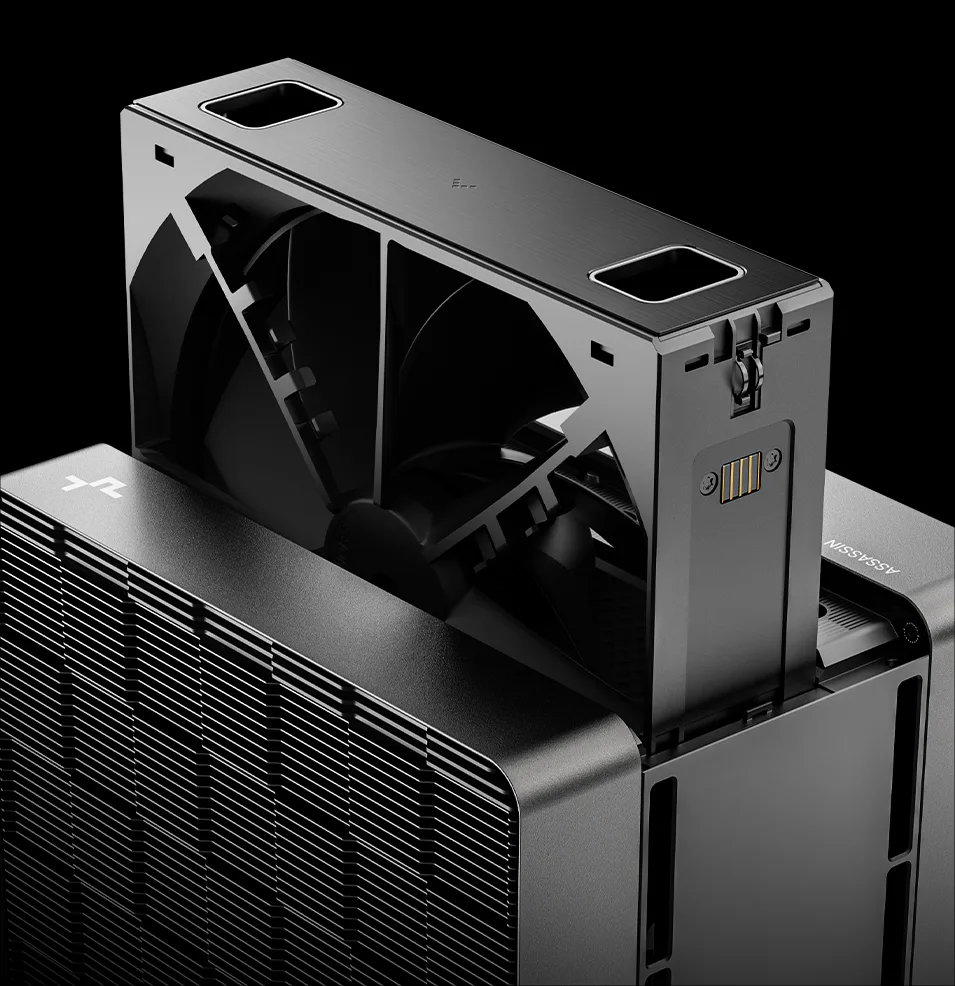

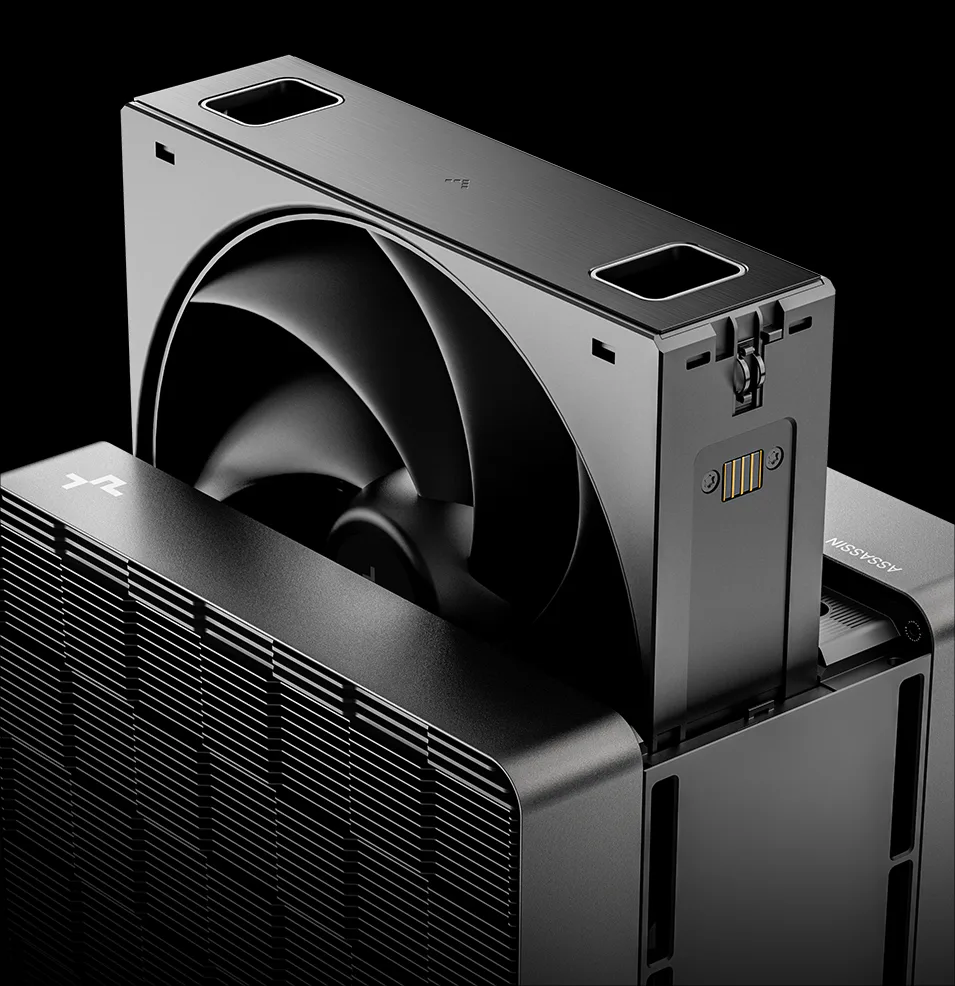

Wireless Quick-Release Fan Design

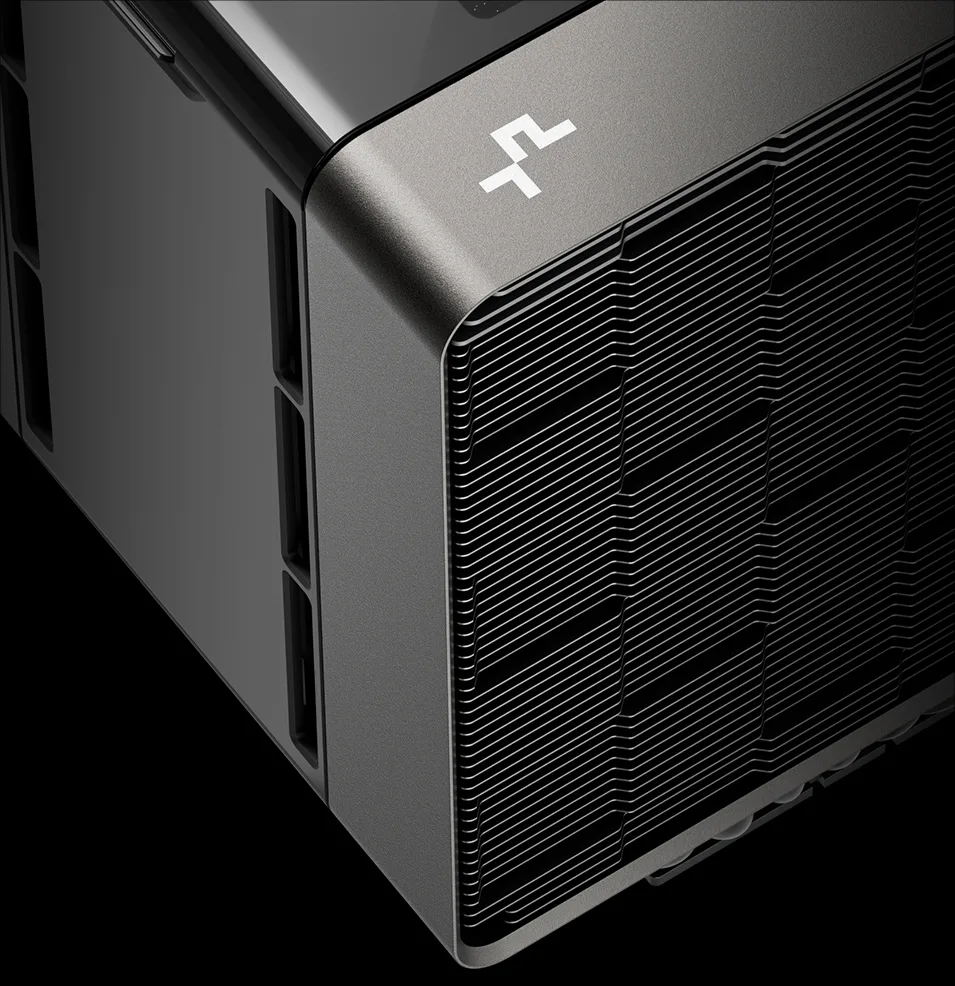

Elegant Black Cooler Shroud

140mm Hybrid Hydraulic Bearing Thick Fan

Reversible Fan For Flexible Airflow

Dual Black Coated Fin Towers

Unified Design With Smooth Rounded Edges

STREAMLINED INSTALLATION

Installing larger air coolers can be difficult, which is a prime reason the hardware and installation were designed to be extremely user-friendly with the 172mm tall ASSASSIN IV VC VISION. Even the magnetic display panel and main fan sliding design were crafted with ease of installation in mind.

MULTI-PLATFORM PERFORMANCE

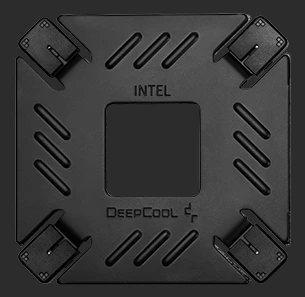

The ASSASSIN V VISION supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1851 and AM5.

Intel: LGA1851/1700/1200/115X/2011
AMD: AM5/AM4

Application For

Intel

LGA1851/1700/1200/115X/20XX

AMD

AM5/AM4

Technical Spec

Product Dimensions	144×147×164 mm(L×W×H)
Heatsink Dimensions	140×110×160 mm(L×W×H)
Net Weight	1772 g
Heatpipe	Ø6 mm×7 pcs
Fan Dimensions	140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode)	500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)	61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)	3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)	≤29.3 dB(A)
Fan Speed (Quiet Mode)	500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode)	48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)	2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)	≤22.6 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Motor Type	6-Pole Fan Motor
Fan Rated Voltage	12 VDC
Fan Rated Current	0.2 A / 0.2 A
Fan Power Consumption	2.4W / 2.4 W
Rated Voltage	12 VDC
Power Consumption(Performance Mode)	4.8 W
Power Consumption(Quiet Mode)	3.6 W
EAN	6933412729761
P/N	R-ASN4-BKNVNN-GJD

Download

ASSASSIN V VISION Manual.pdf
