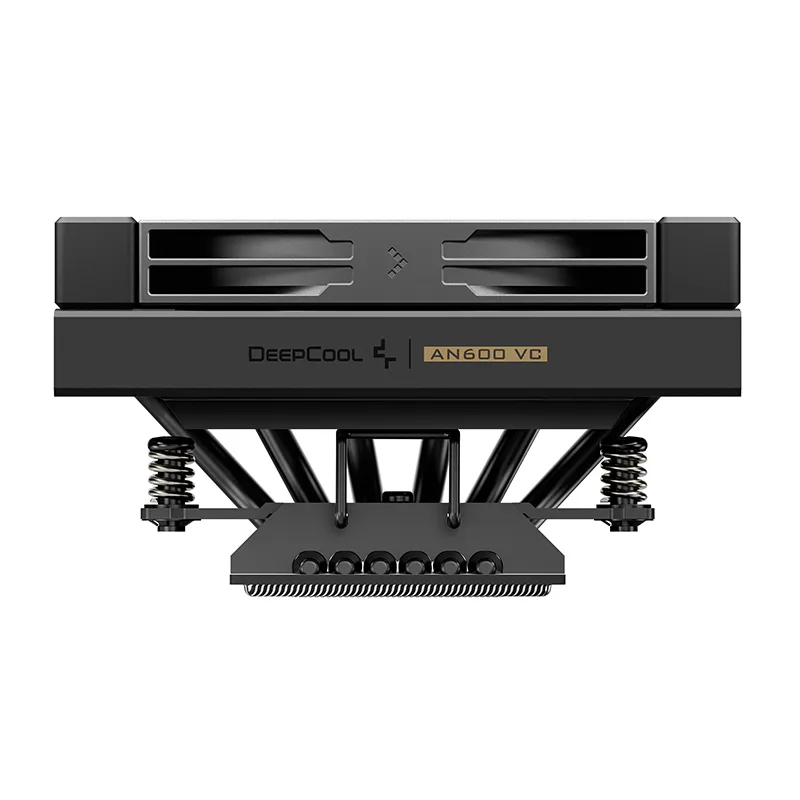

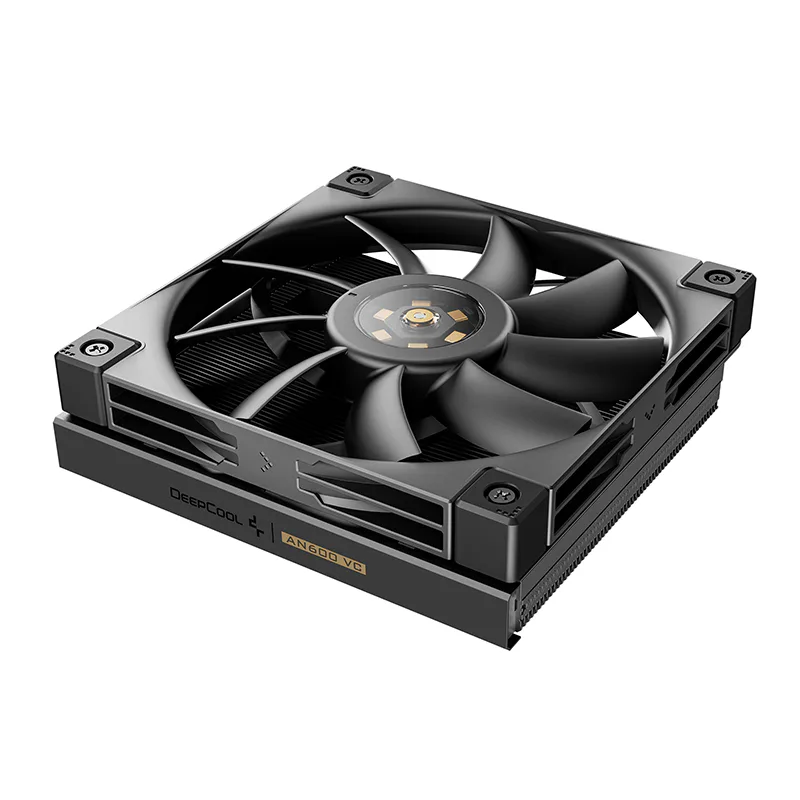

AN600 VC

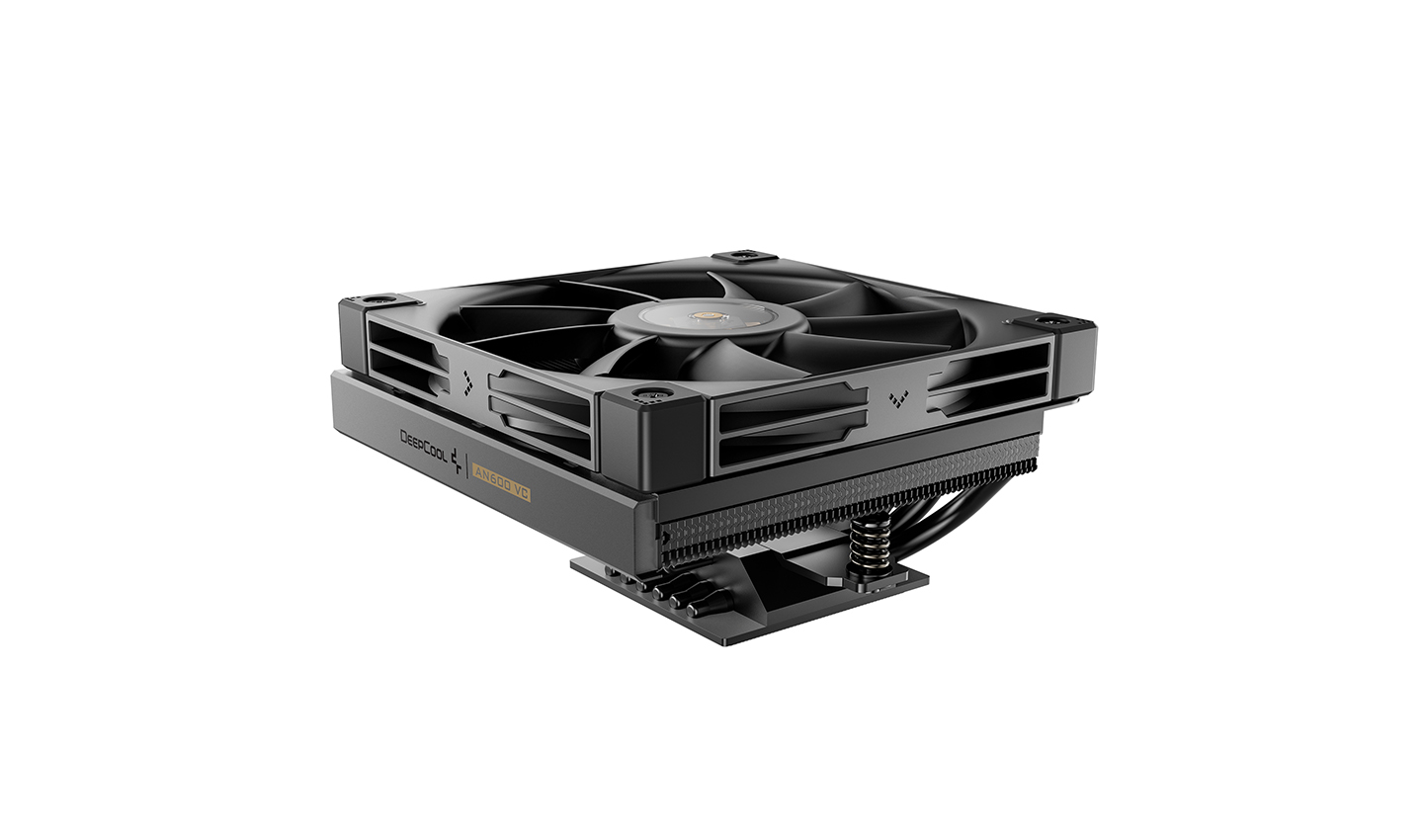

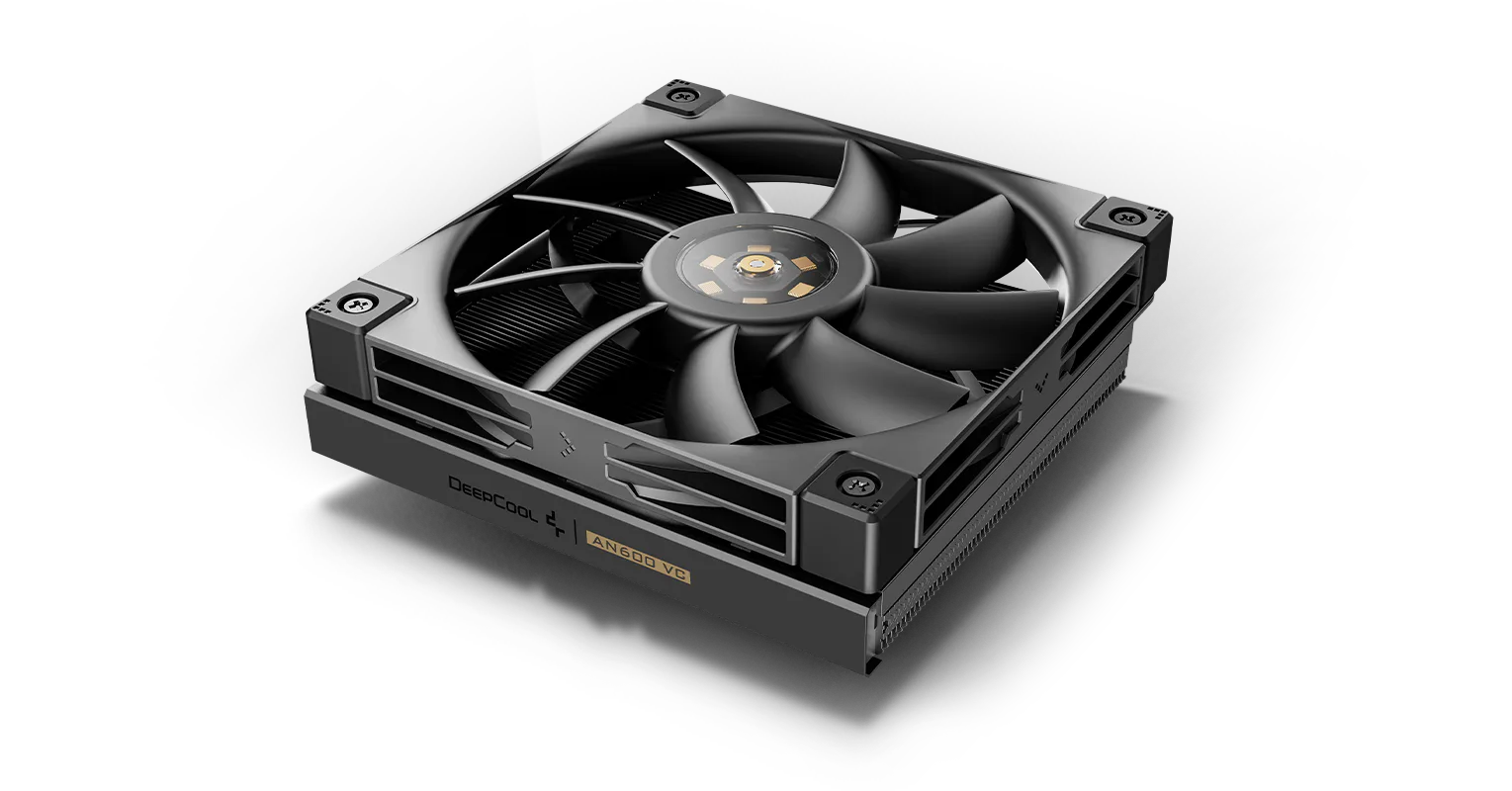

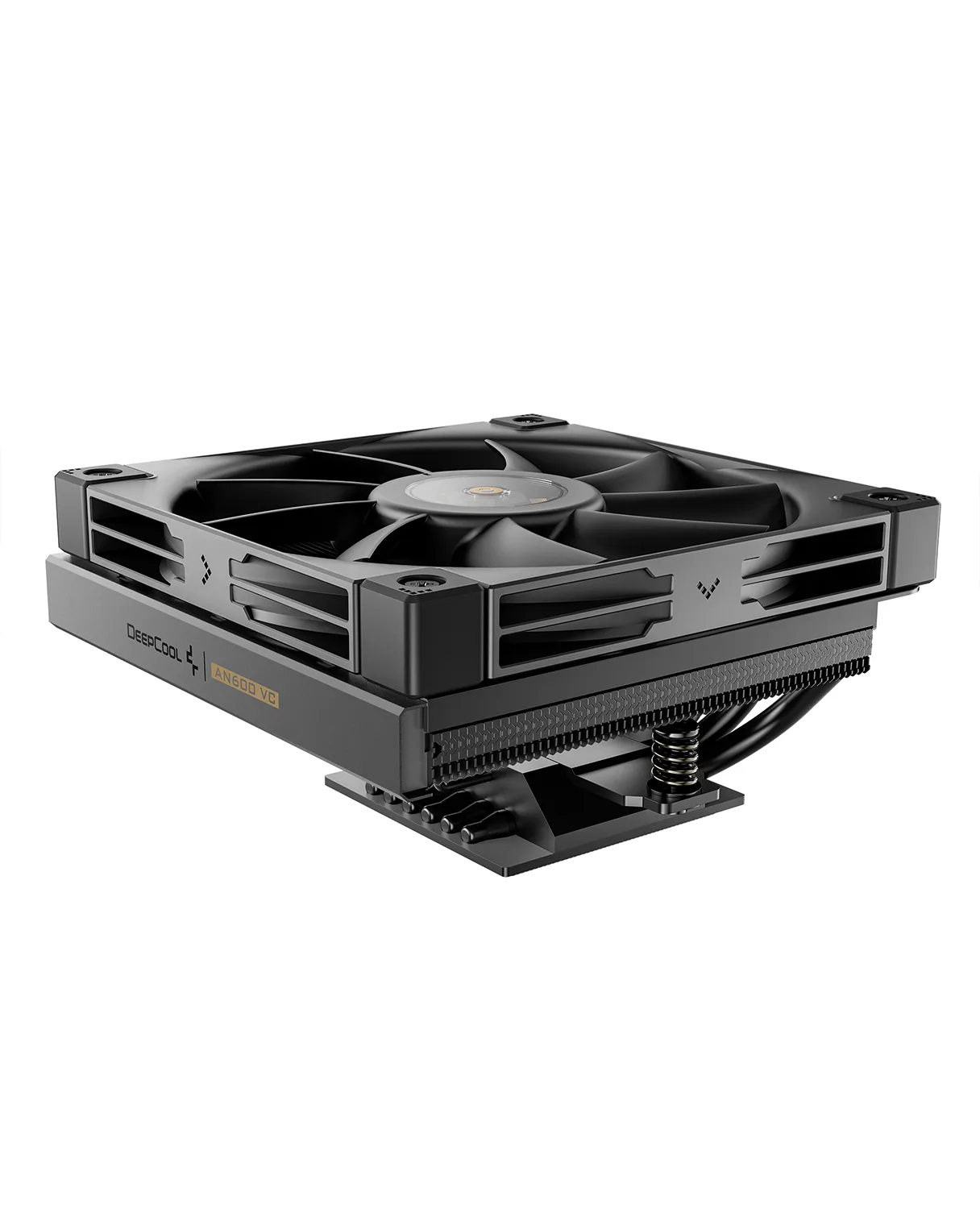

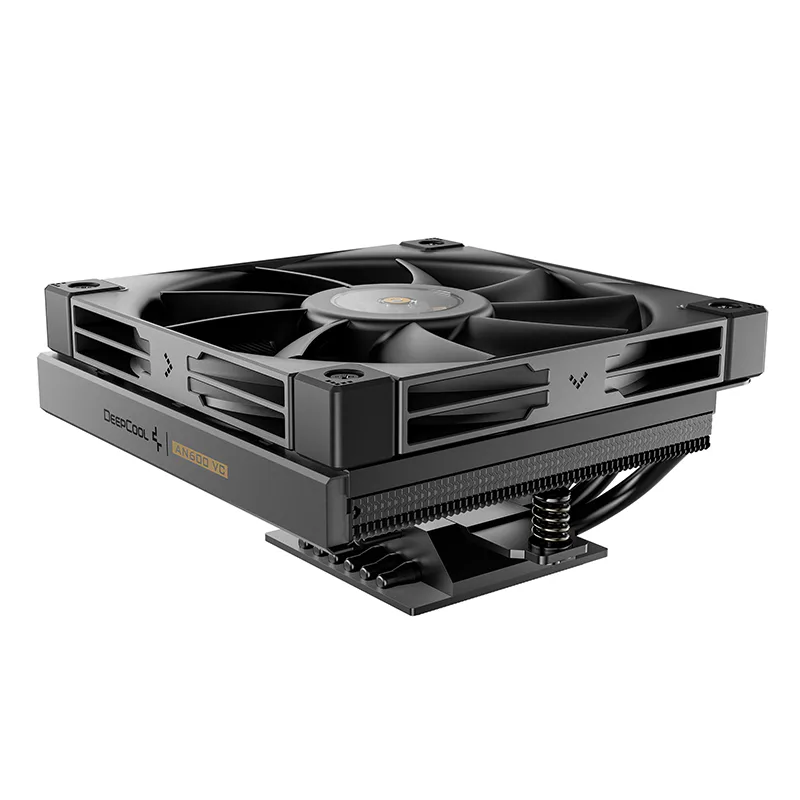

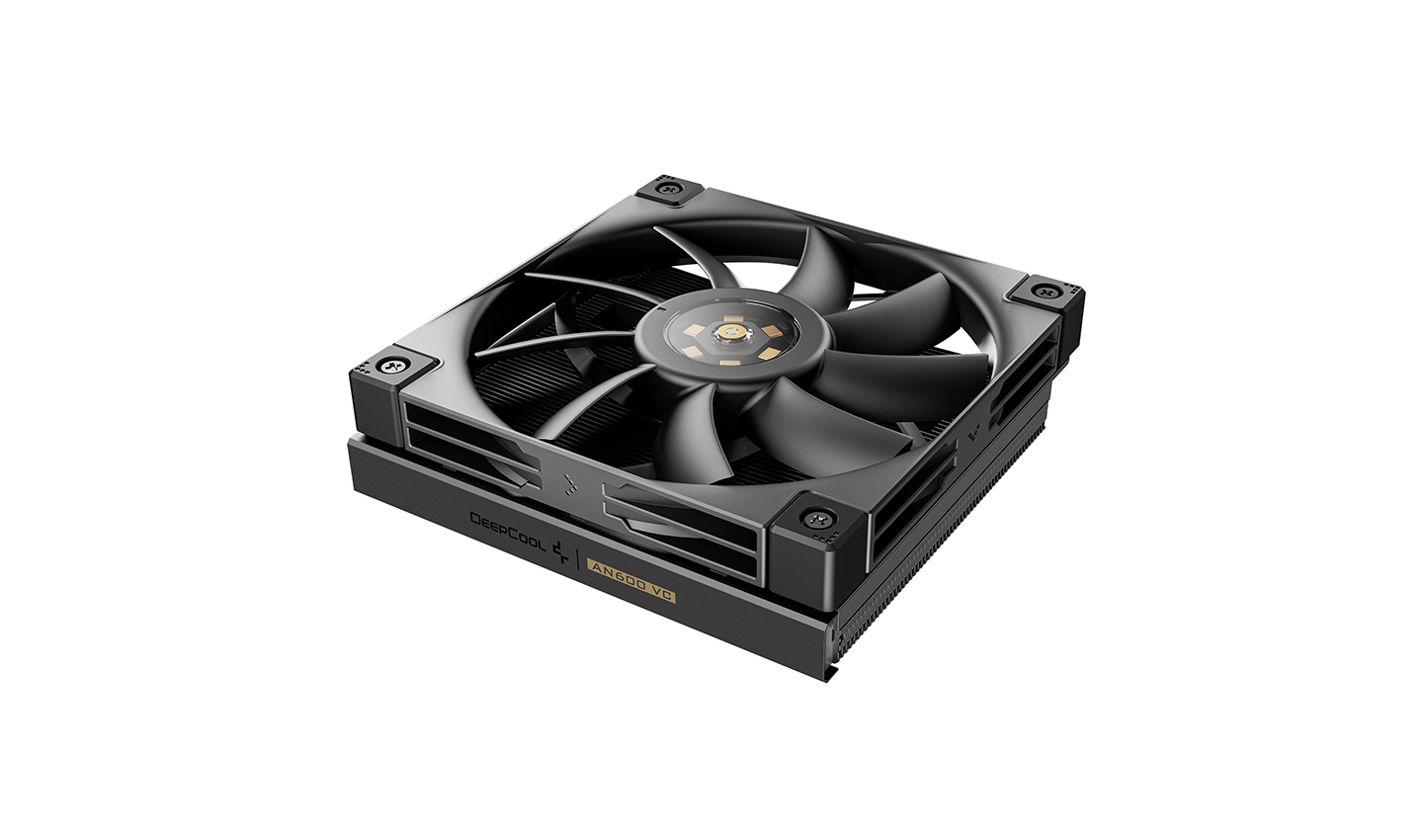

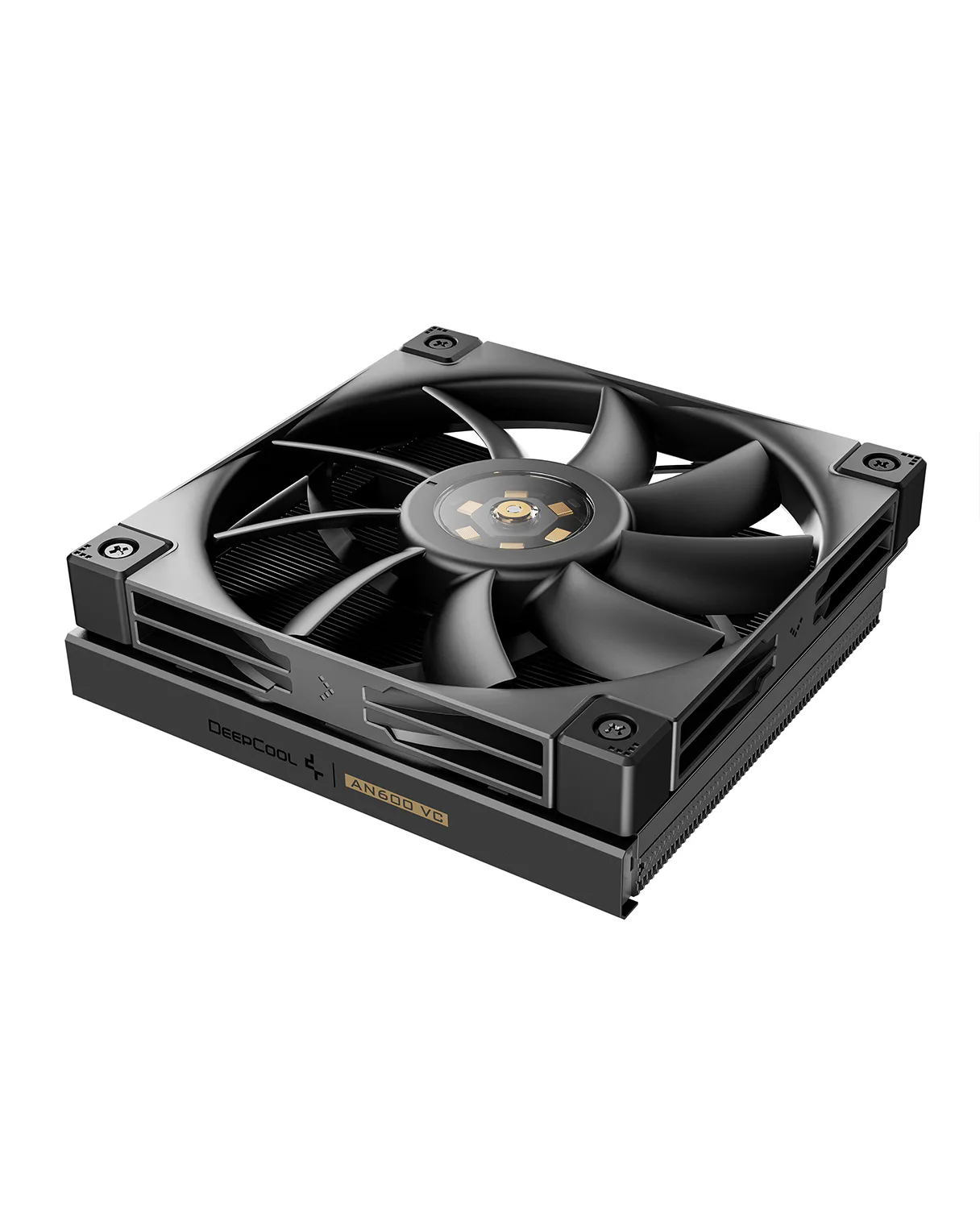

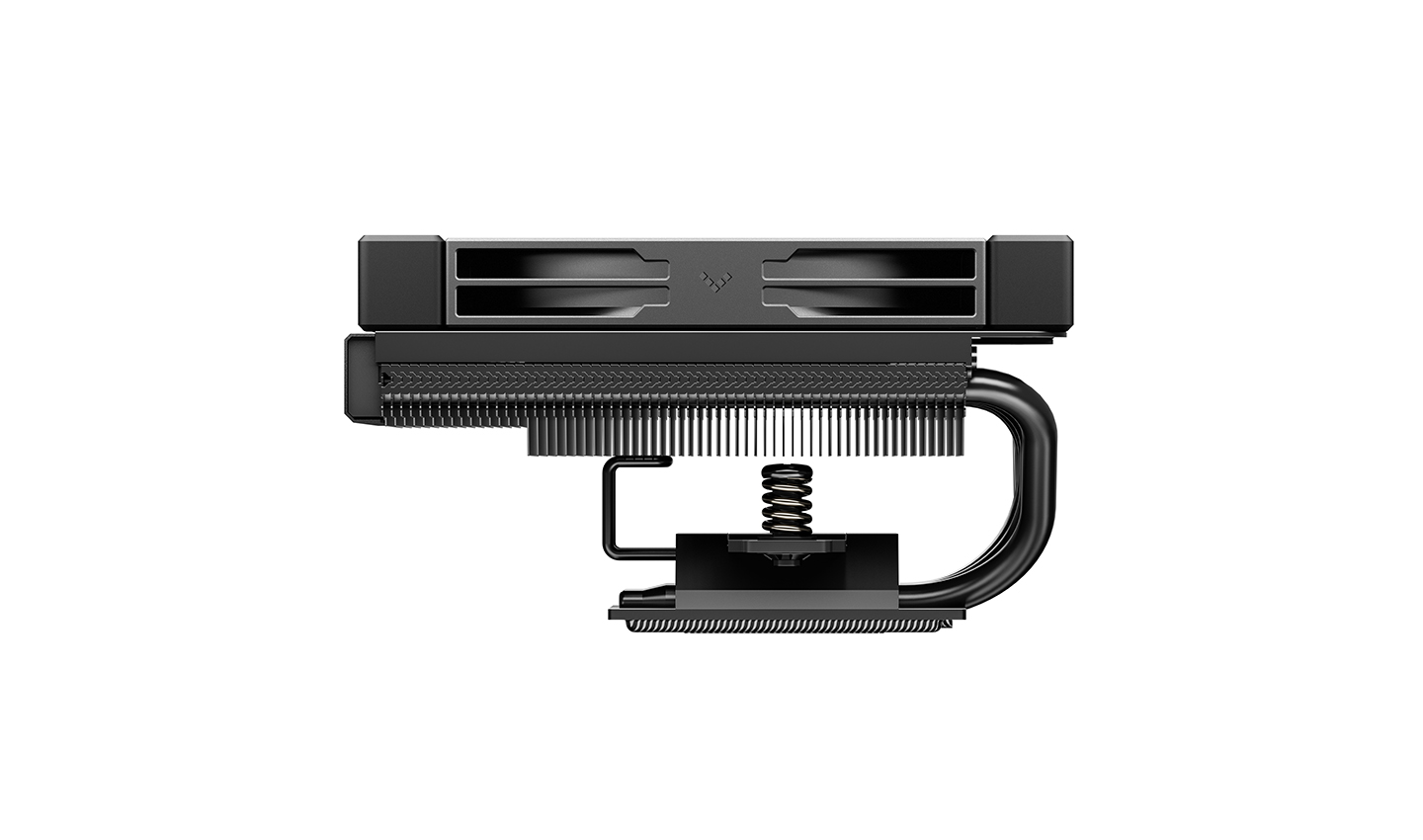

The AN600 VC is a premium low-profile CPU cooler built for high-performance ITX systems. Equipped with the second generation of vapor chamber base, it delivers up to 220W of cooling capacity from just a 67mm-tall profile. The optimized overhanging design also provides active cooling for memory modules up to 40mm tall while ensuring excellent compatibility with ITX motherboards.
MODEL
AN600 VC
COMPACT, POWERFUL, AND QUIET
67mm Low-Profile Cooler with Vapor Chamber 2.0

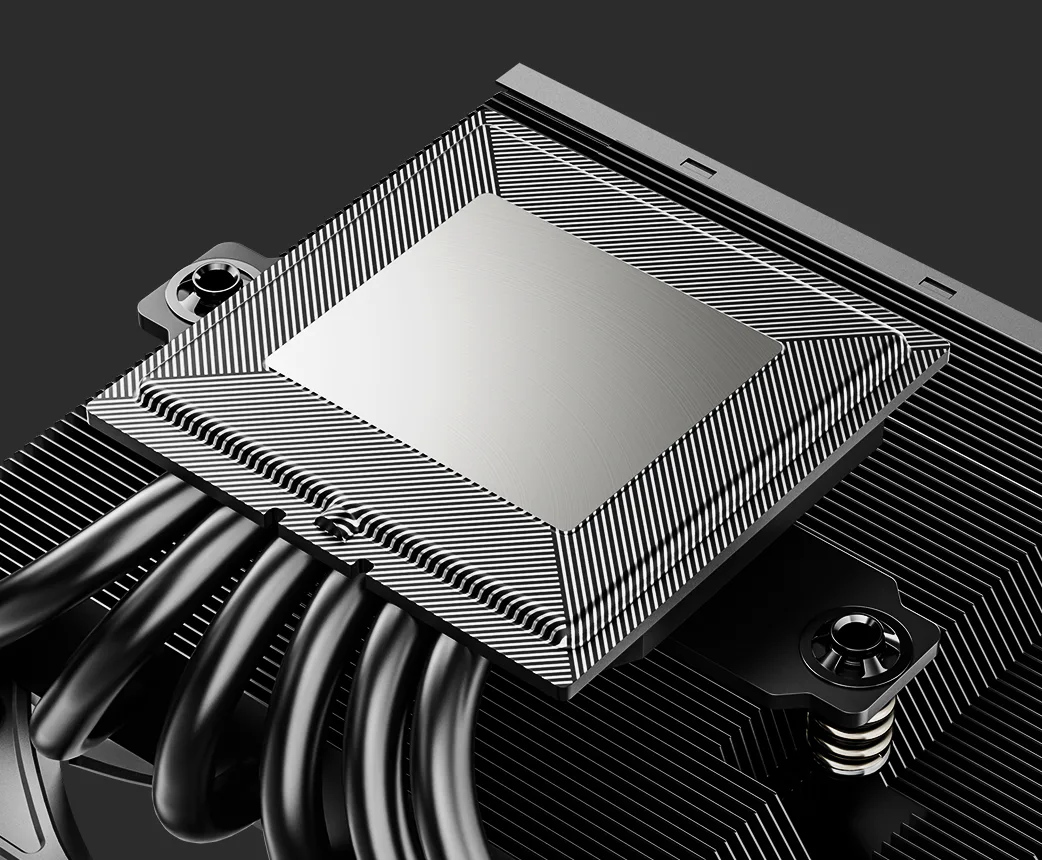

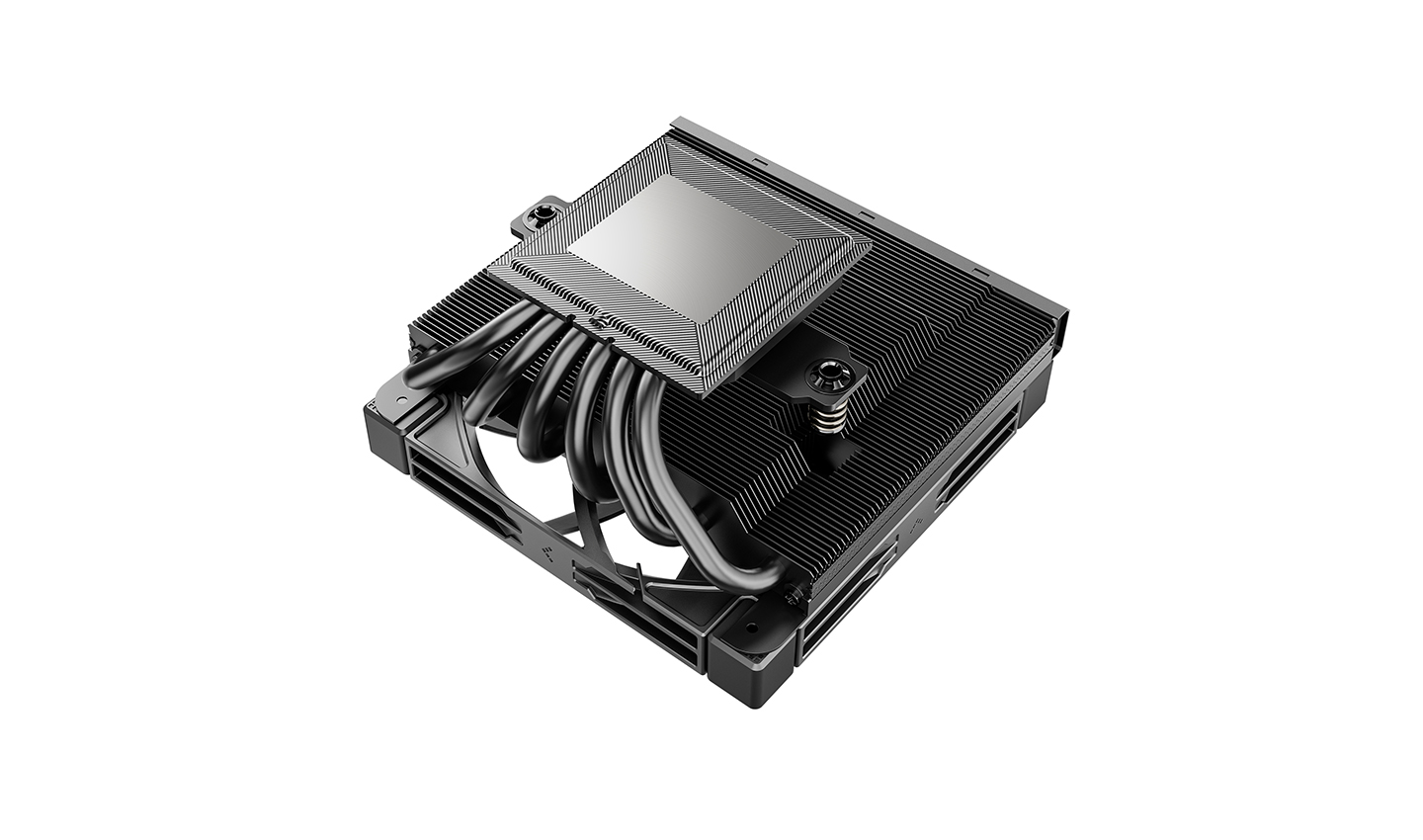

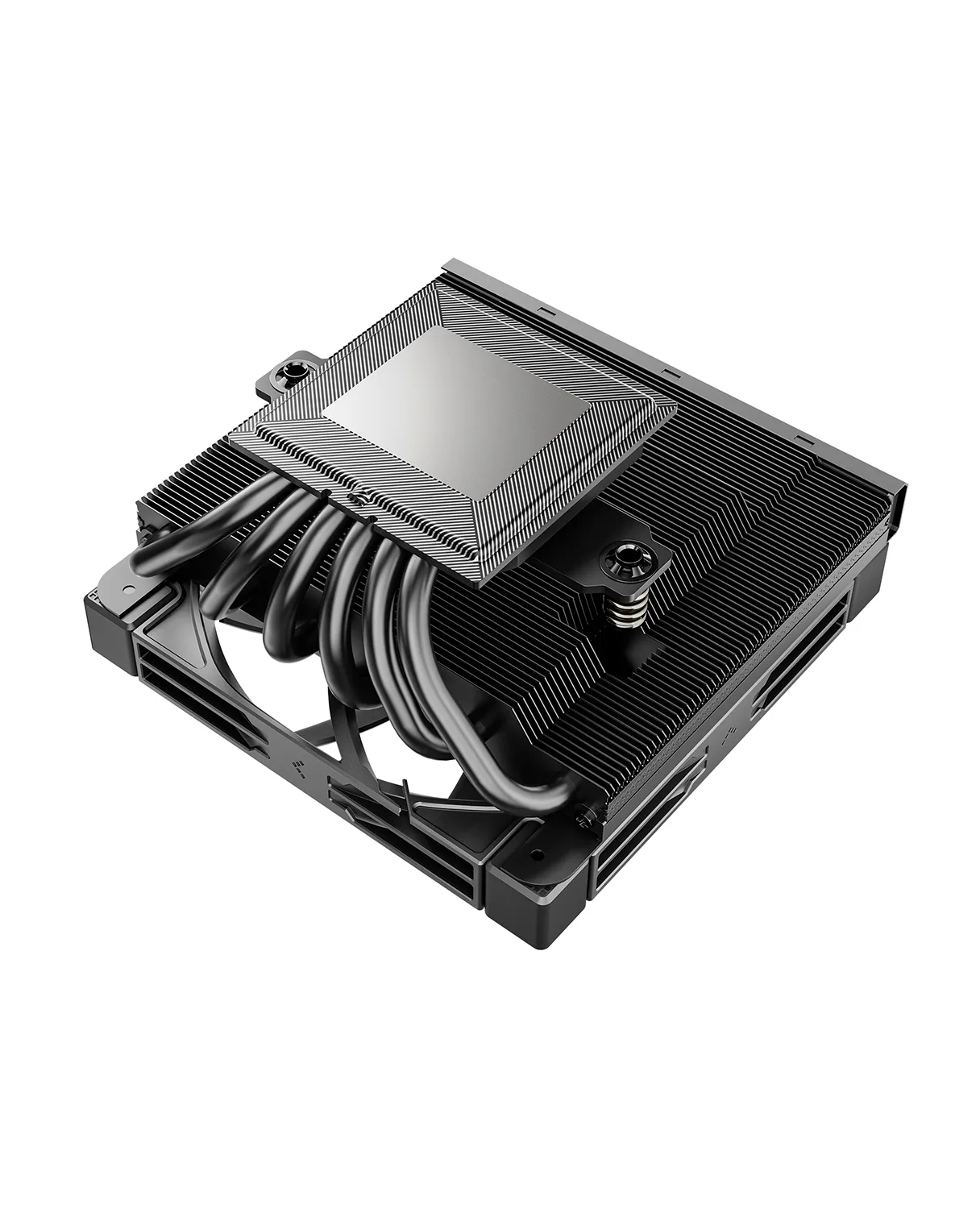

NEXT-GEN VAPOR CHAMBER POWER

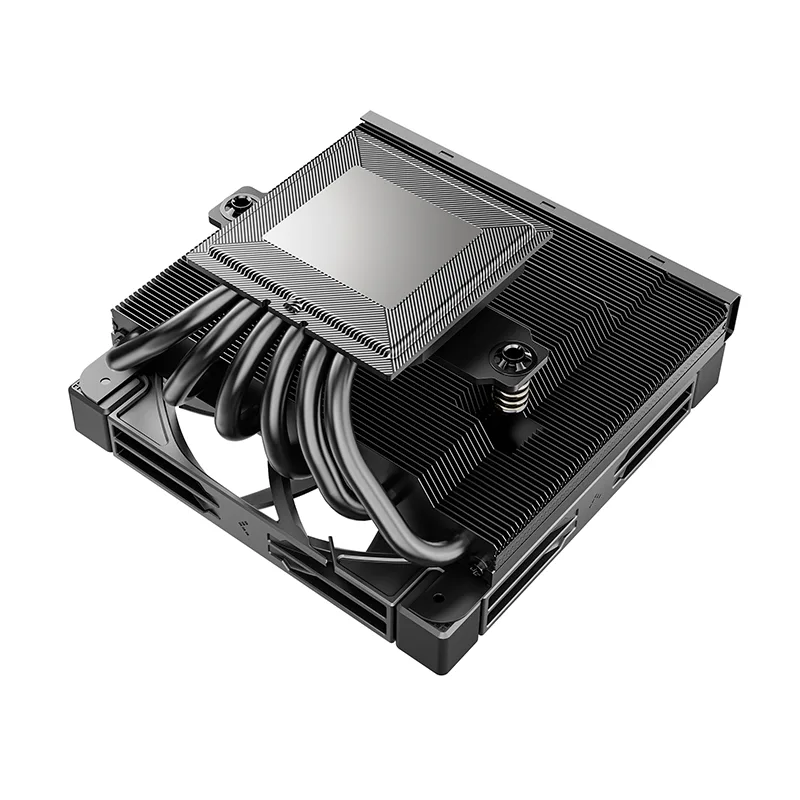

The AN600 VC features a next-generation vapor chamber base engineered to elevate thermal performance. With an expanded CPU contact surface, heat is absorbed more efficiently and spread evenly across the chamber, accelerating thermal transfer into the heat pipes and fin stack. This upgraded design brings stronger, more consistent cooling performance, enabling the AN600 VC to handle demanding workloads with greater stability and sustained efficiency.
MORE THAN A CPU COOLER

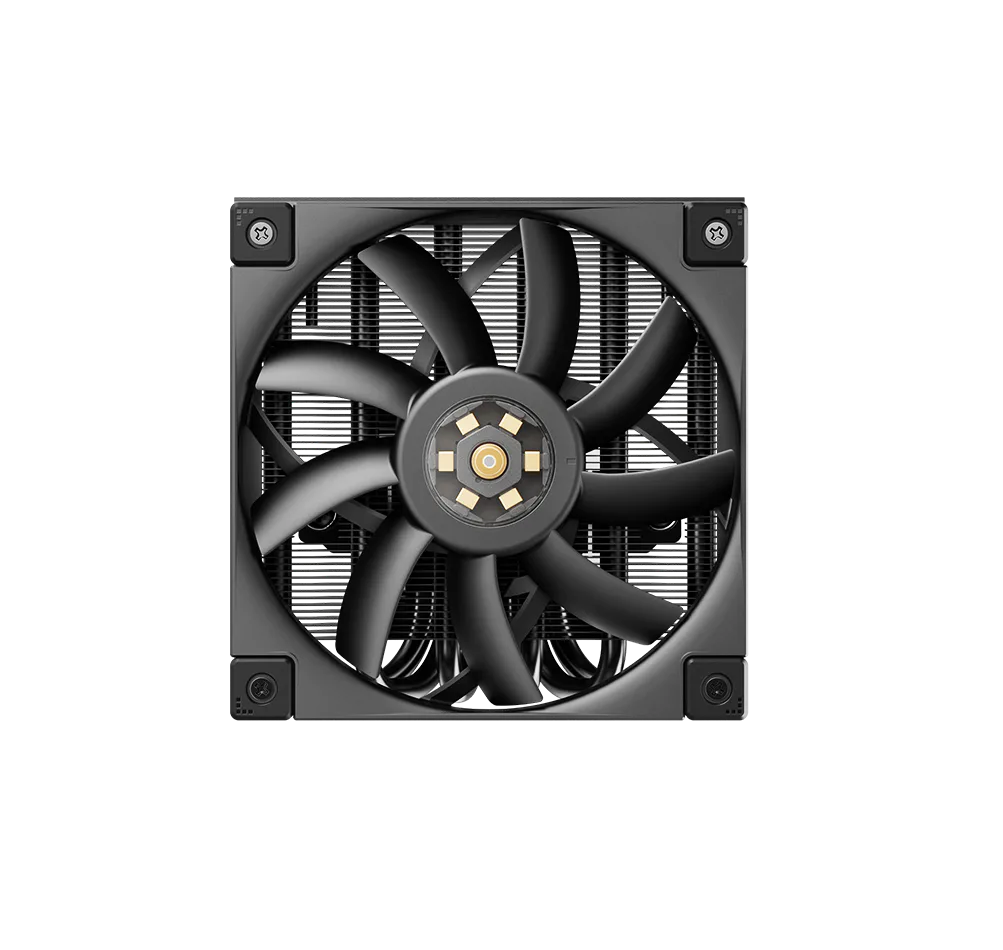

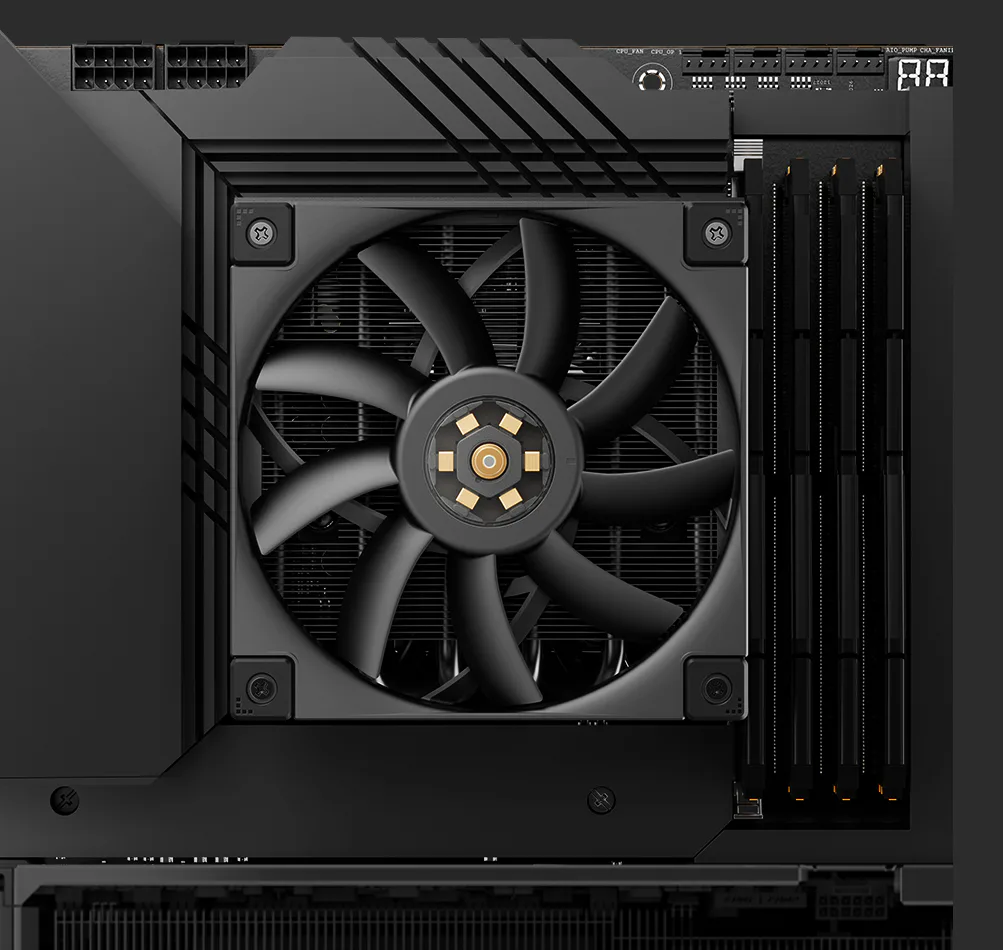

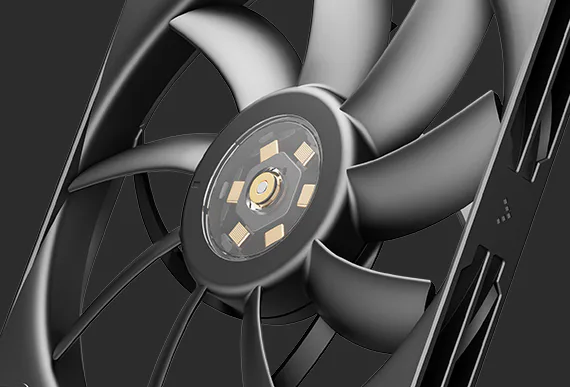

A slim 120mm PWM FDB fan delivers strong top-down airflow to efficiently cool the heatsink, RAM, and VRMs. Featuring a visible 3-phase, 6-slot, 4-pole fan motor with CoreAlign Winding, each fan is precision dynamically balanced and meets ISO 1940 G6.3 balance standards for smoother rotation, lower vibration, enhanced durability, and whisper-quiet operation.
500~1850 RPM+10%
Fan Speed
61.56 CFM
Fan Airflow
1.97 mmAq
Fan Air Pressure
≤24.4 dB(A)
Fan Noise
EXCEPTIONAL BY DESIGN

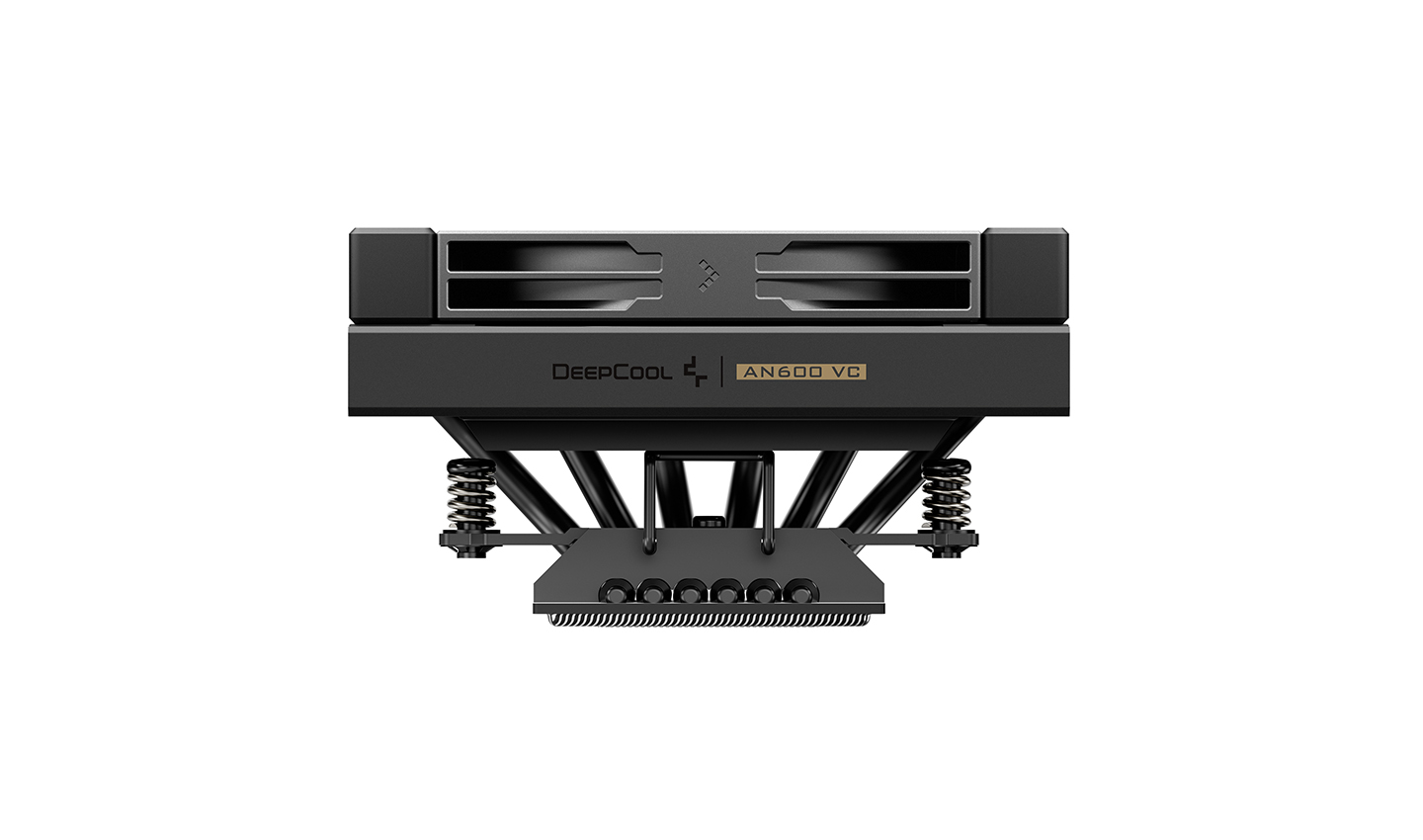

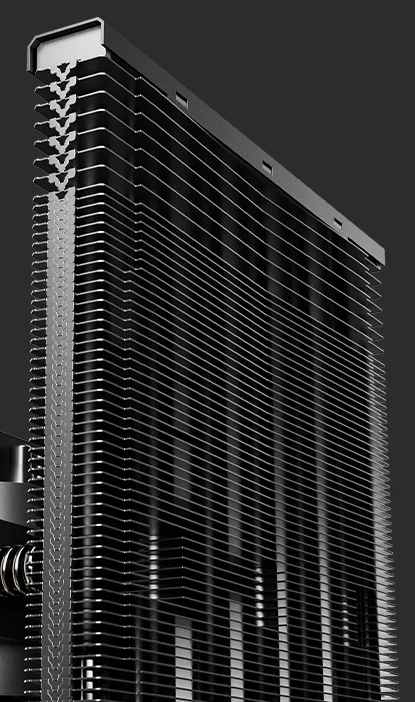

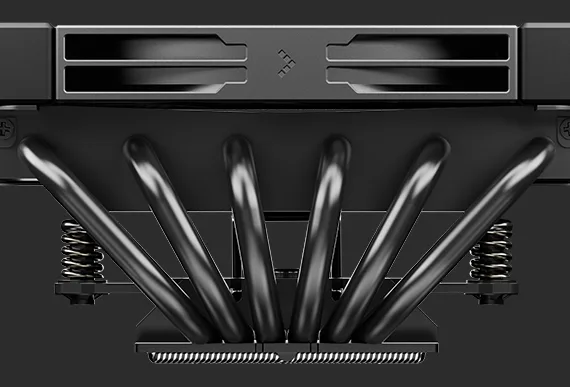

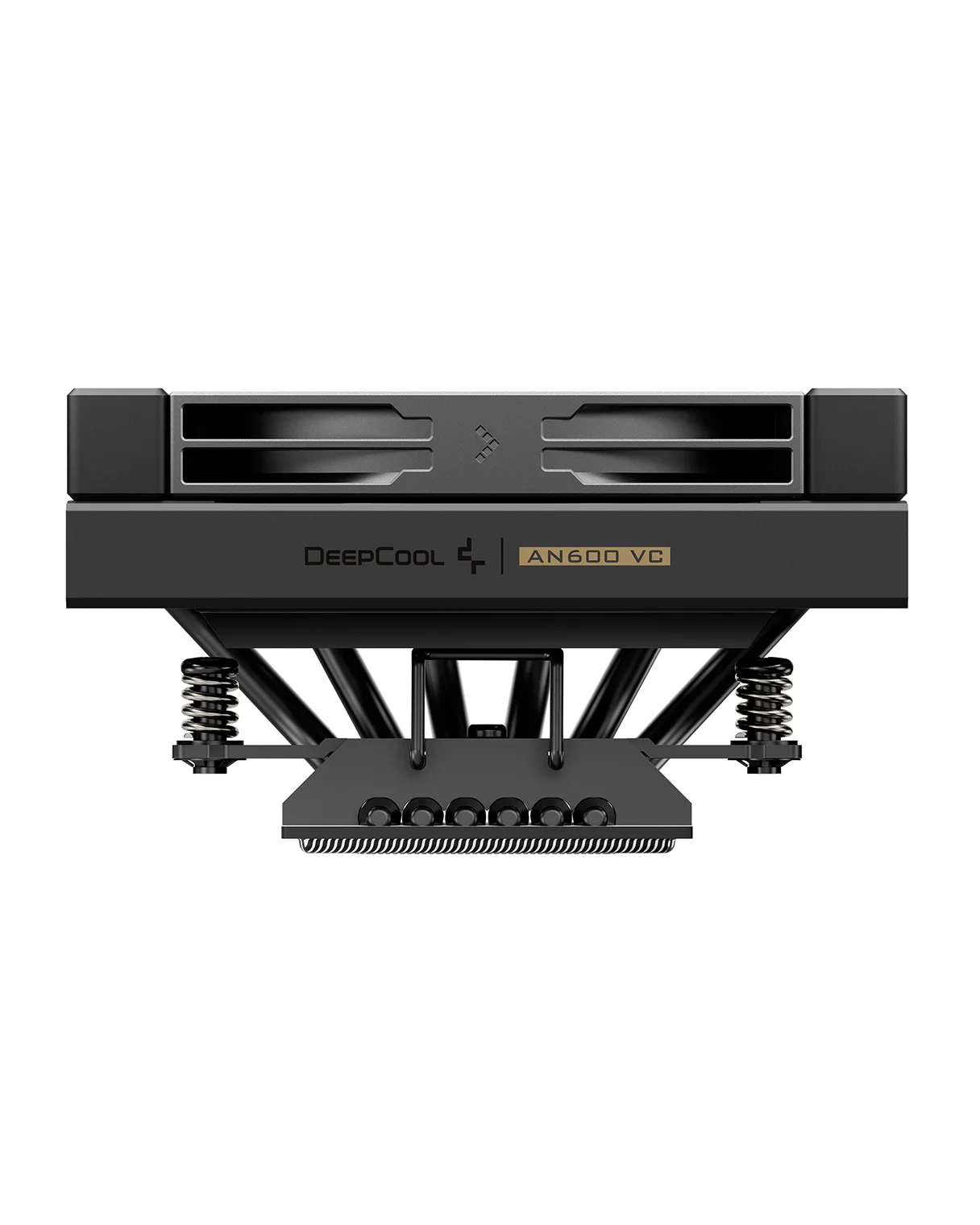

The AN600 VC combines six high-performance heat pipes with a fully blacked-out design, featuring a uniform matte-black finish across the fan and heatsink for a clean, premium look. A gold side logo completes the refined aesthetic, making it easy to complement virtually any PC build.
AI-TUNED CHILL. POWERED BY DeepCreative
Using the included hub, adjust fan speeds through DeepCreative AI—no BIOS required. Intelligent fan tuning automatically balances cooling and noise, while a built-in 90°C safety threshold instantly boosts the fan to maximum speed when needed and restores the preset profile as temperatures drop.
AI Modes:
Automatically balances Quiet and Performance based on load
Environmental Modes:
1. Sleep Mode: Ultra-quiet for noise-sensitive environments
2. Office Mode: Silent-focused for productivity
3. Gaming Mode: Balanced performance and sound
4. Overclocking Mode: Unlocks the full potential of your system
MULTI-PLATFORM PERFORMANCE

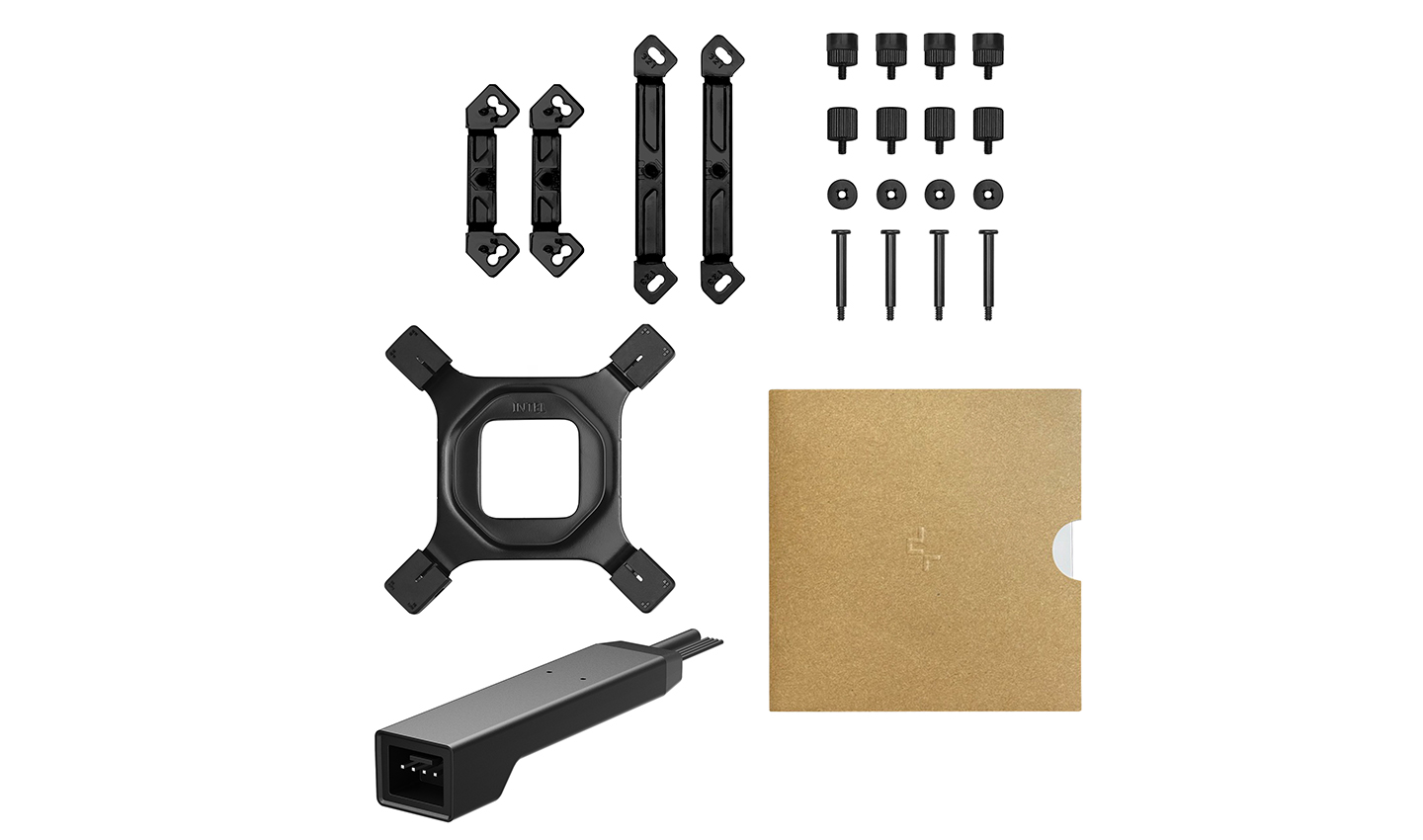

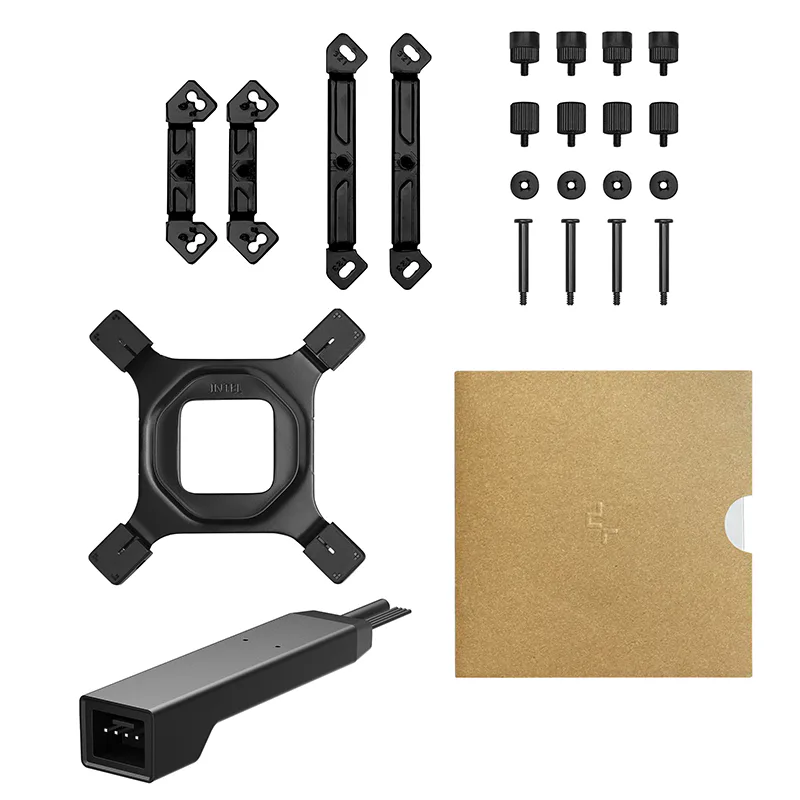

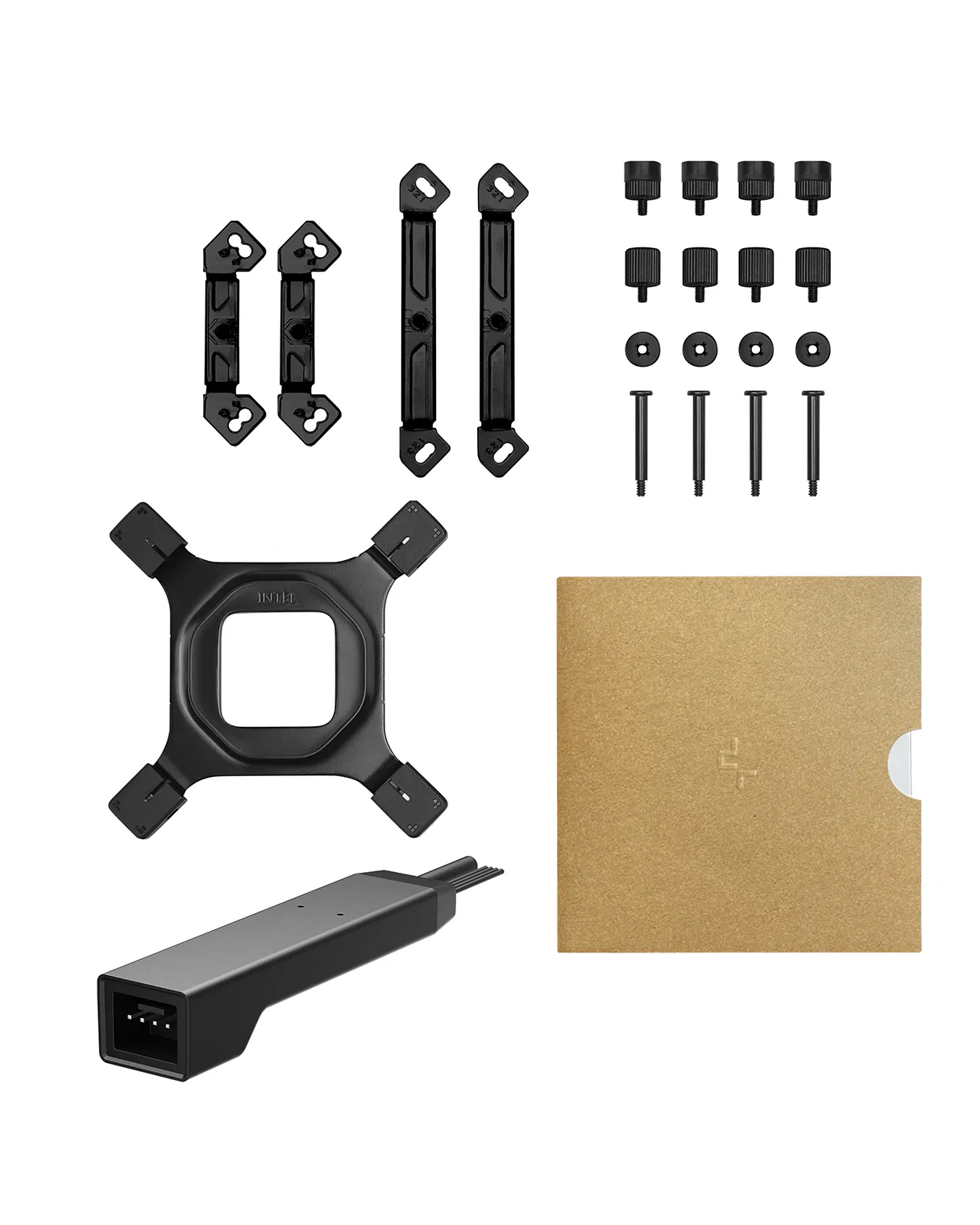

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Intel: LGA1851/1700/1200/115X
AMD: AM5/AM4
Application For
Intel
LGA1851/1700/115X
AMD
AM5/AM4
Technical Spec
Product Dimensions122×120×67 mm(L×W×H)
Heatsink Dimensions121×120×52 mm(L×W×H)
Net Weight696 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×15 mm(L×W×H)
Fan Speed500~1850 RPM±10%
Fan Airflow61.56 CFM
Fan Air Pressure1.97 mmAq
Fan Noise≤24.4 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.7 A(MAX)
Fan Power Consumption8.4W
LED TypeWhite LED
EAN6933412730439
P/NR-AN600VC-BKWPMN-G
Download
AN600 VC Manual.pdf
