AK700

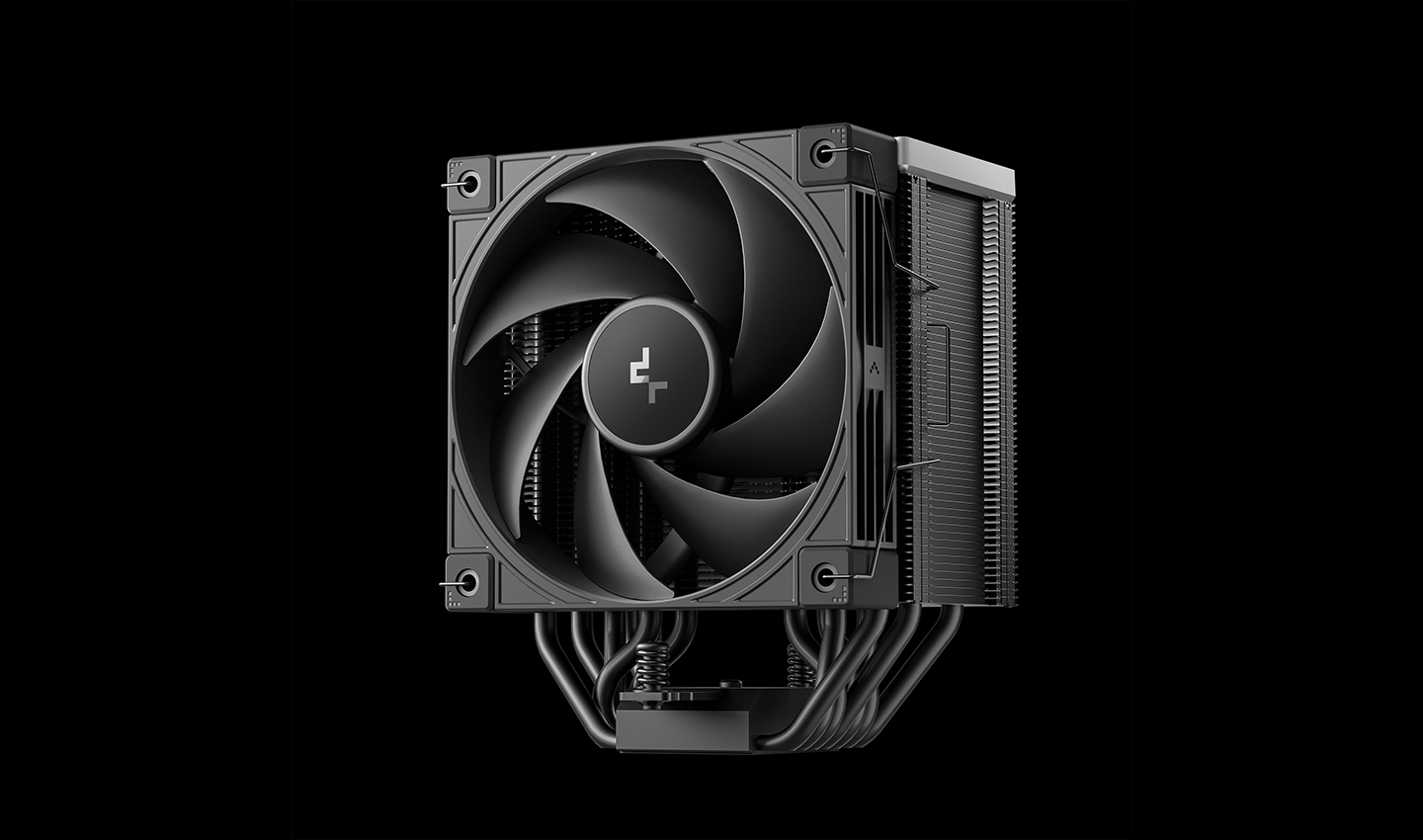

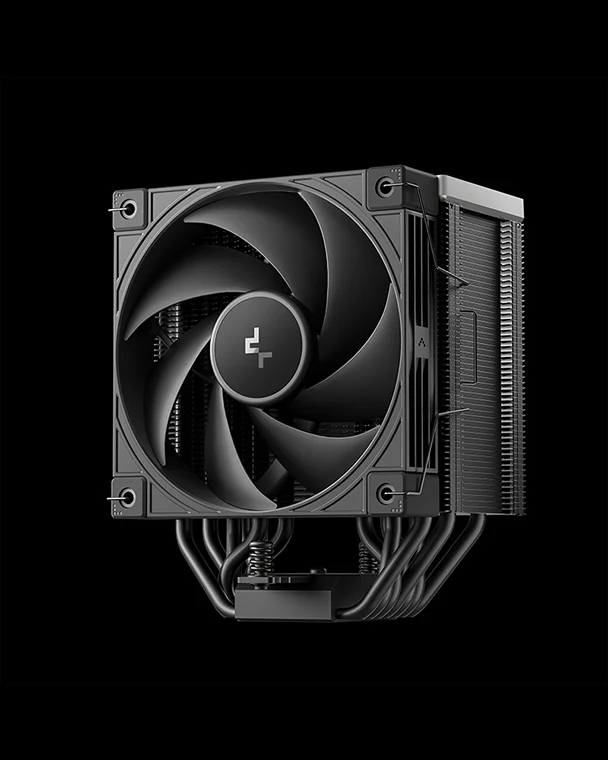

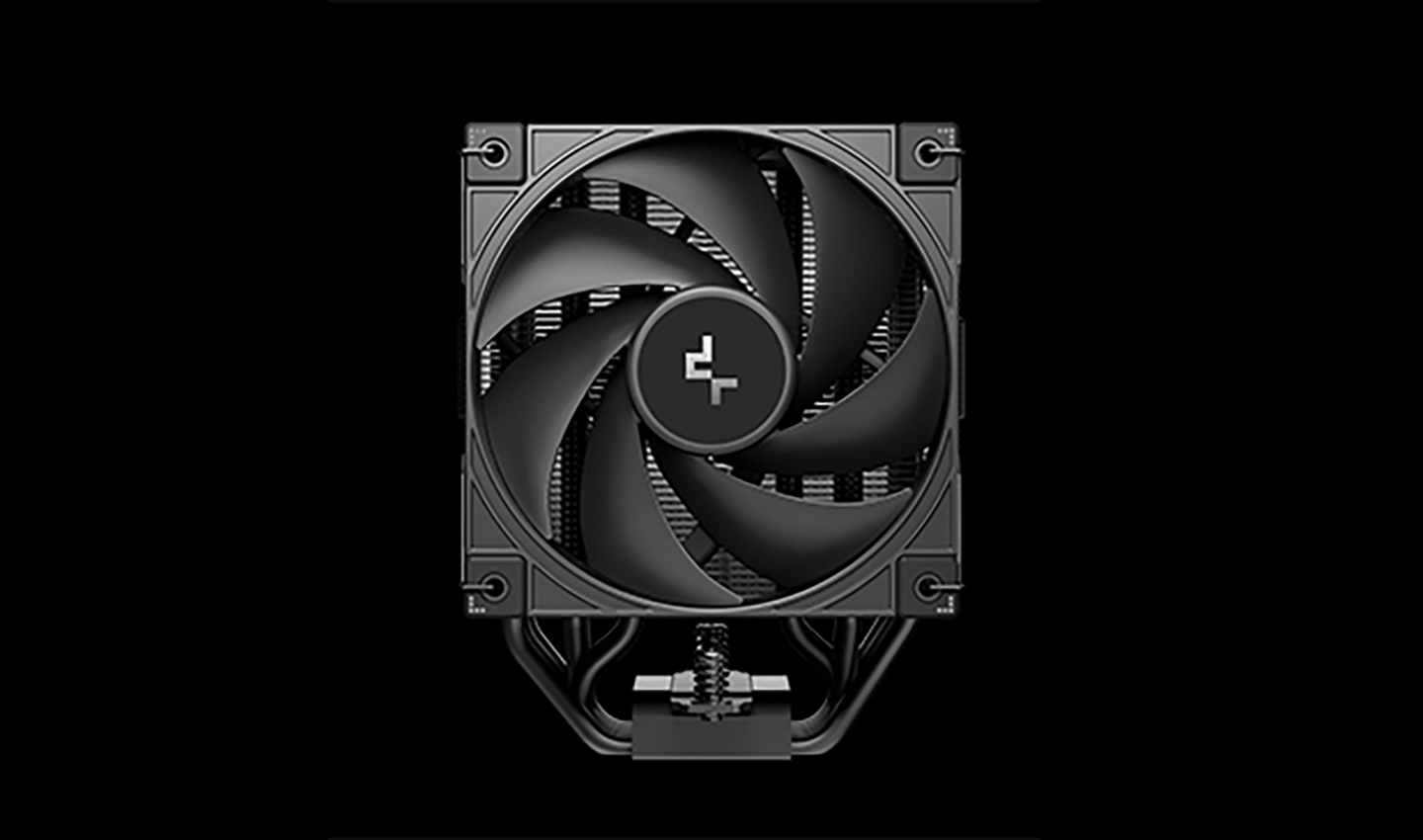

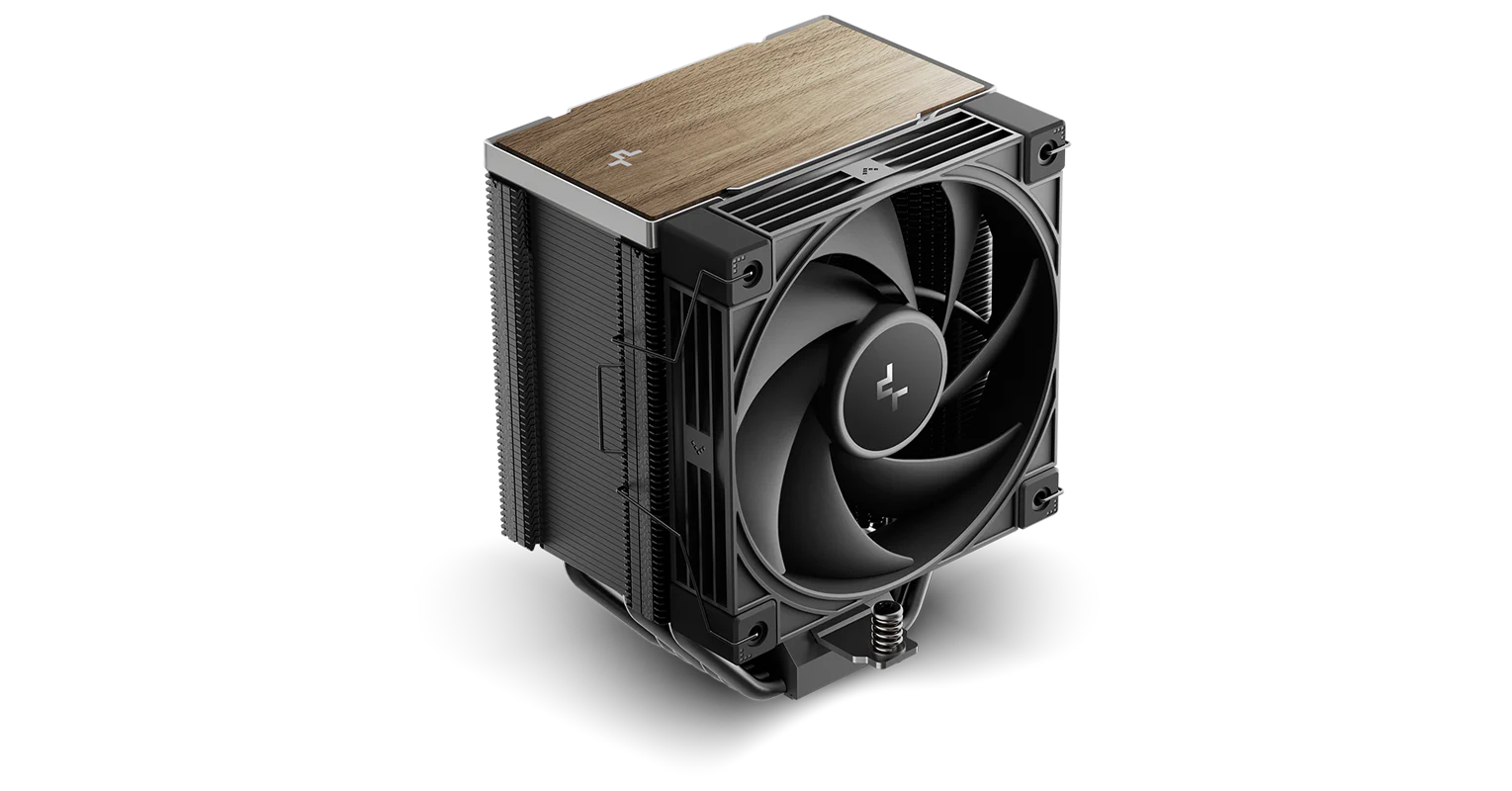

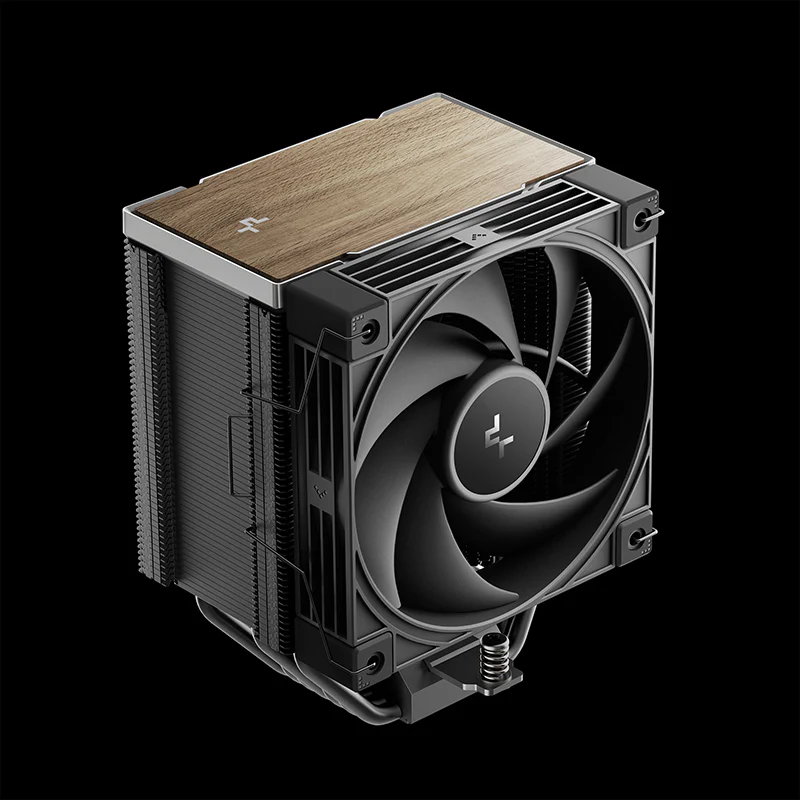

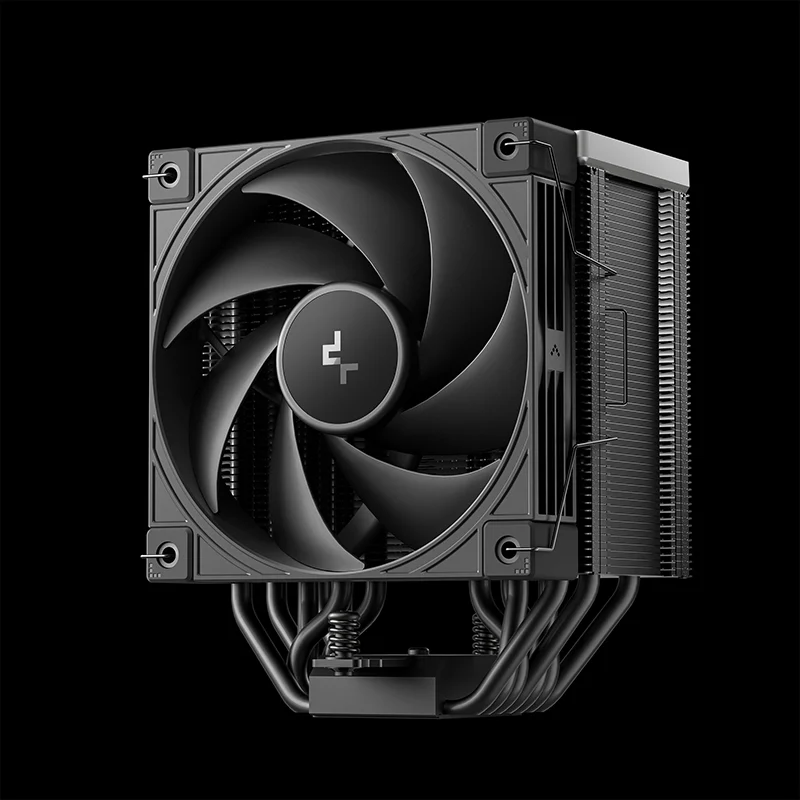

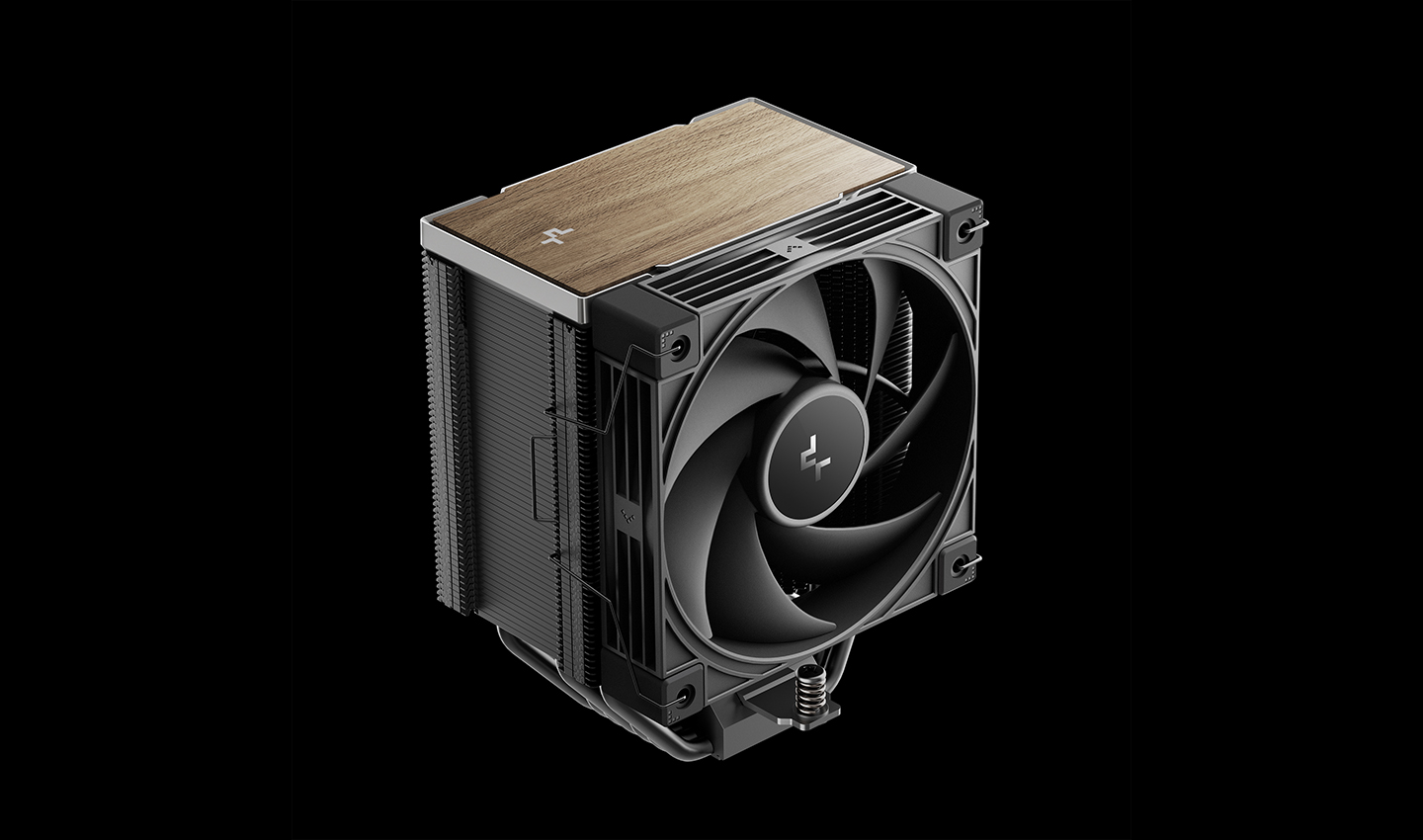

Building on the legendary AK lineup, the AK700 delivers enhanced cooling and a bold new look. Equipped with seven advanced copper heat pipes, a dense single-tower heatsink, and newly designed silent fan, it offers top-tier performance in a wood grain design.
MODEL
AK700
MASTER THE CHILL
NEXT GENERATION PERFORMANCE
Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK700 reaches a bump in cooling performance.
PROVEN AK DESIGN

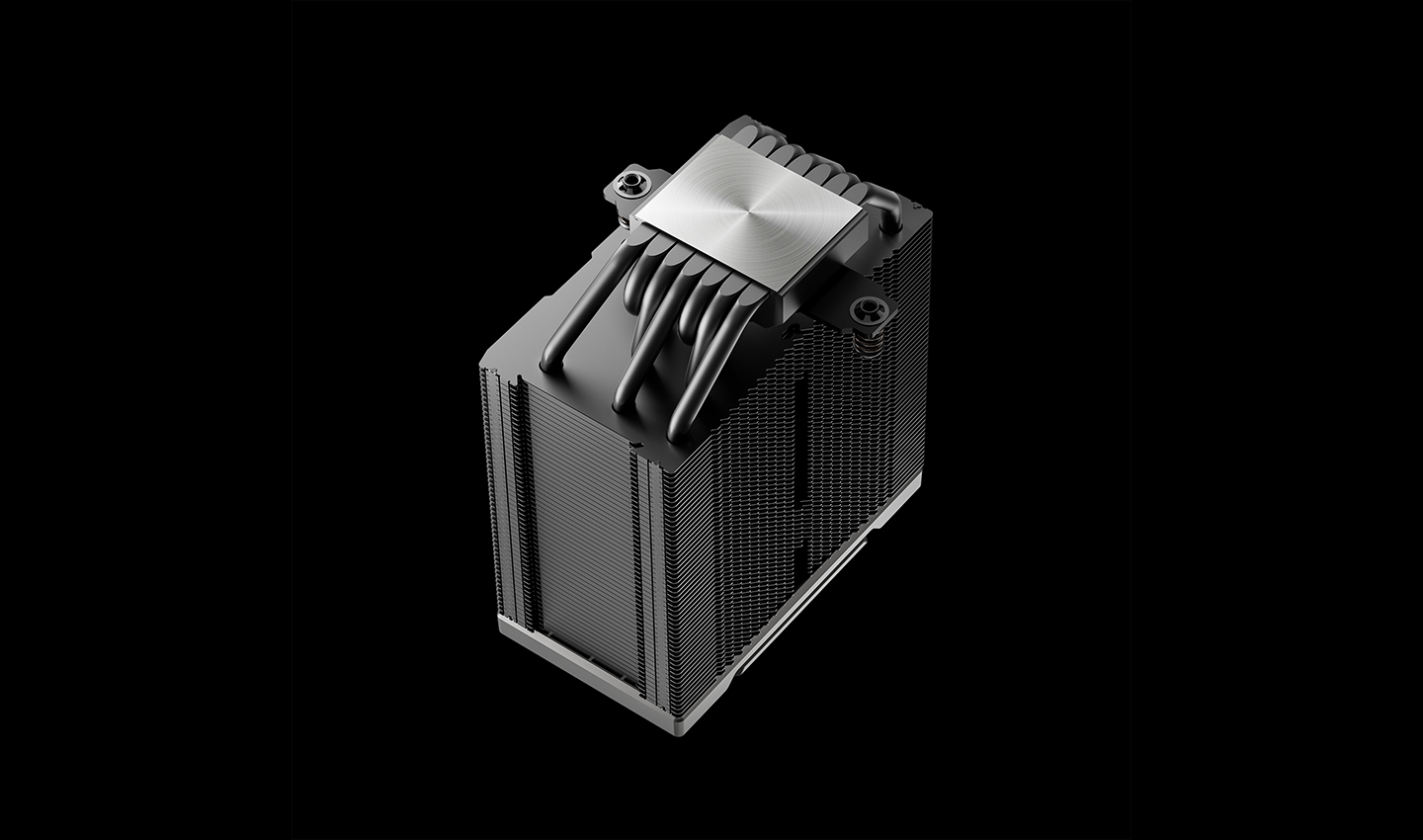

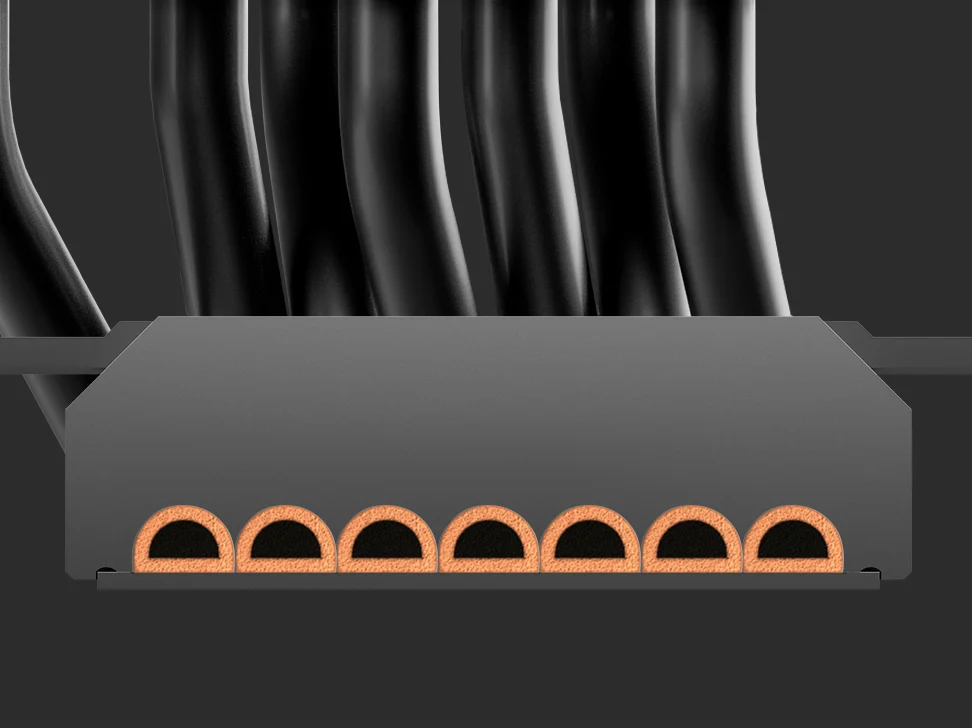

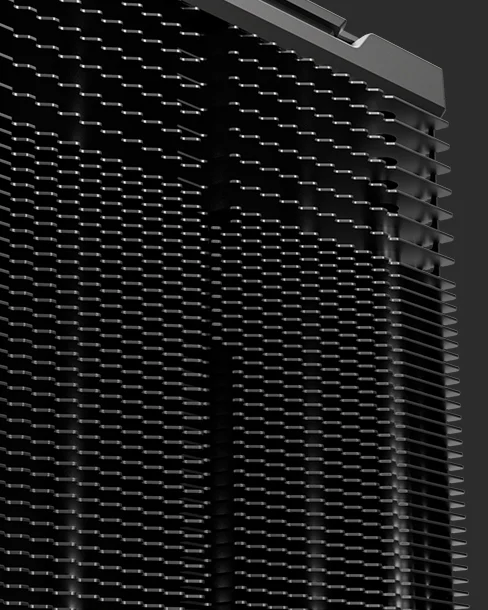

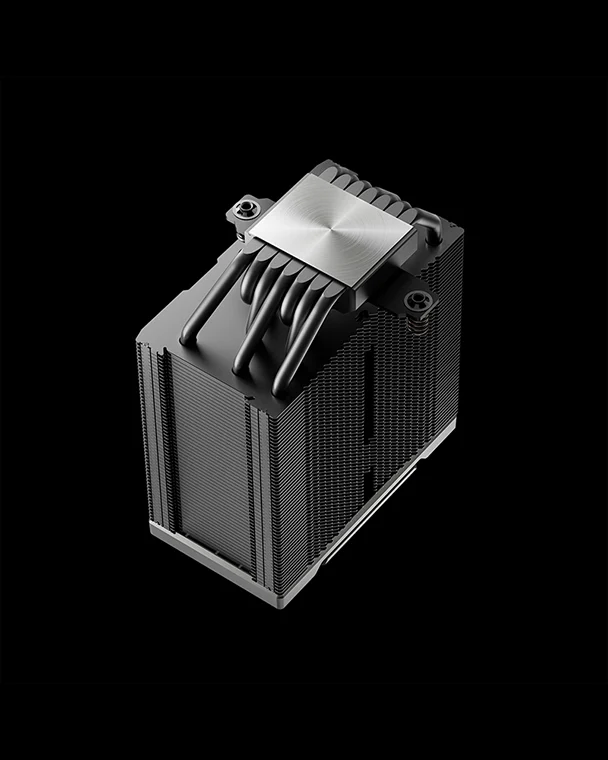

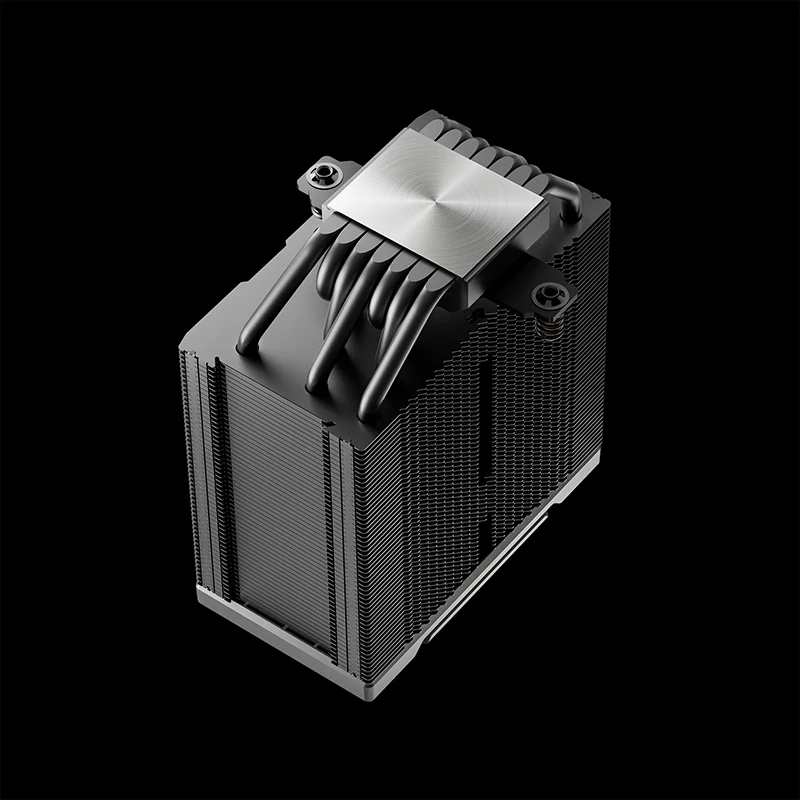

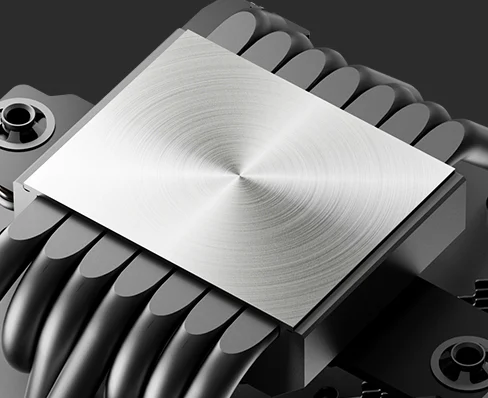

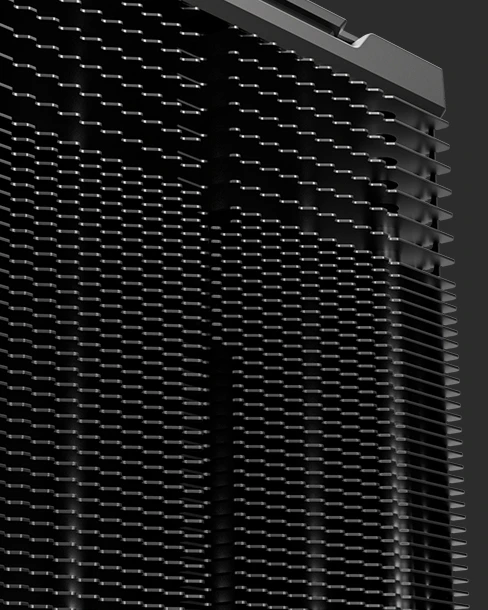

The AK700 continues its legacy by featuring a precision-machined copper base and seven copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
PREMIUM COMPATIBILITY

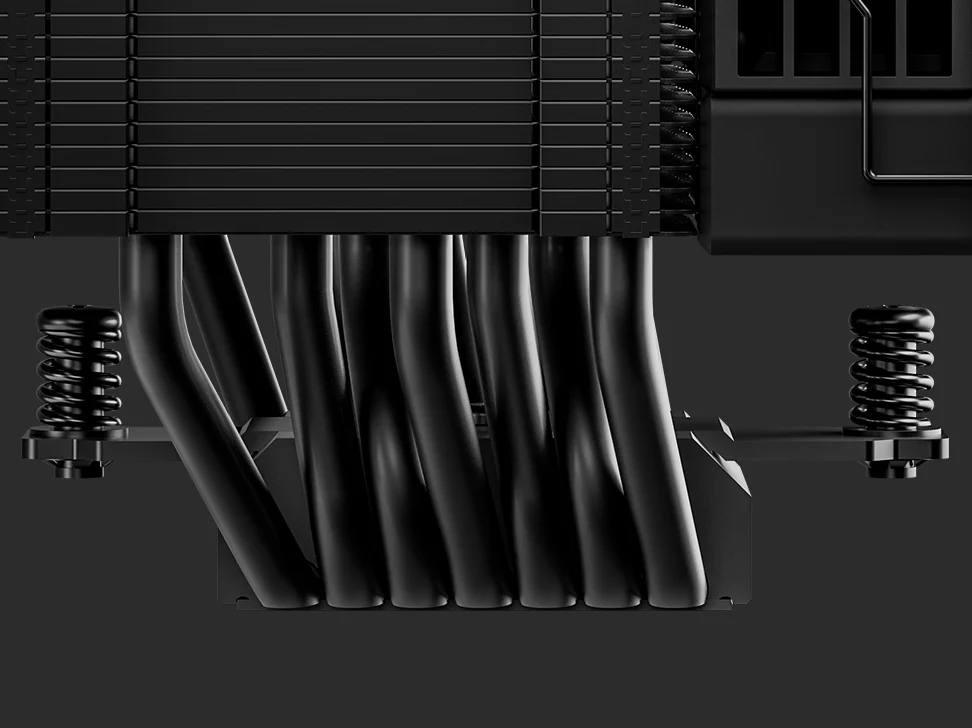

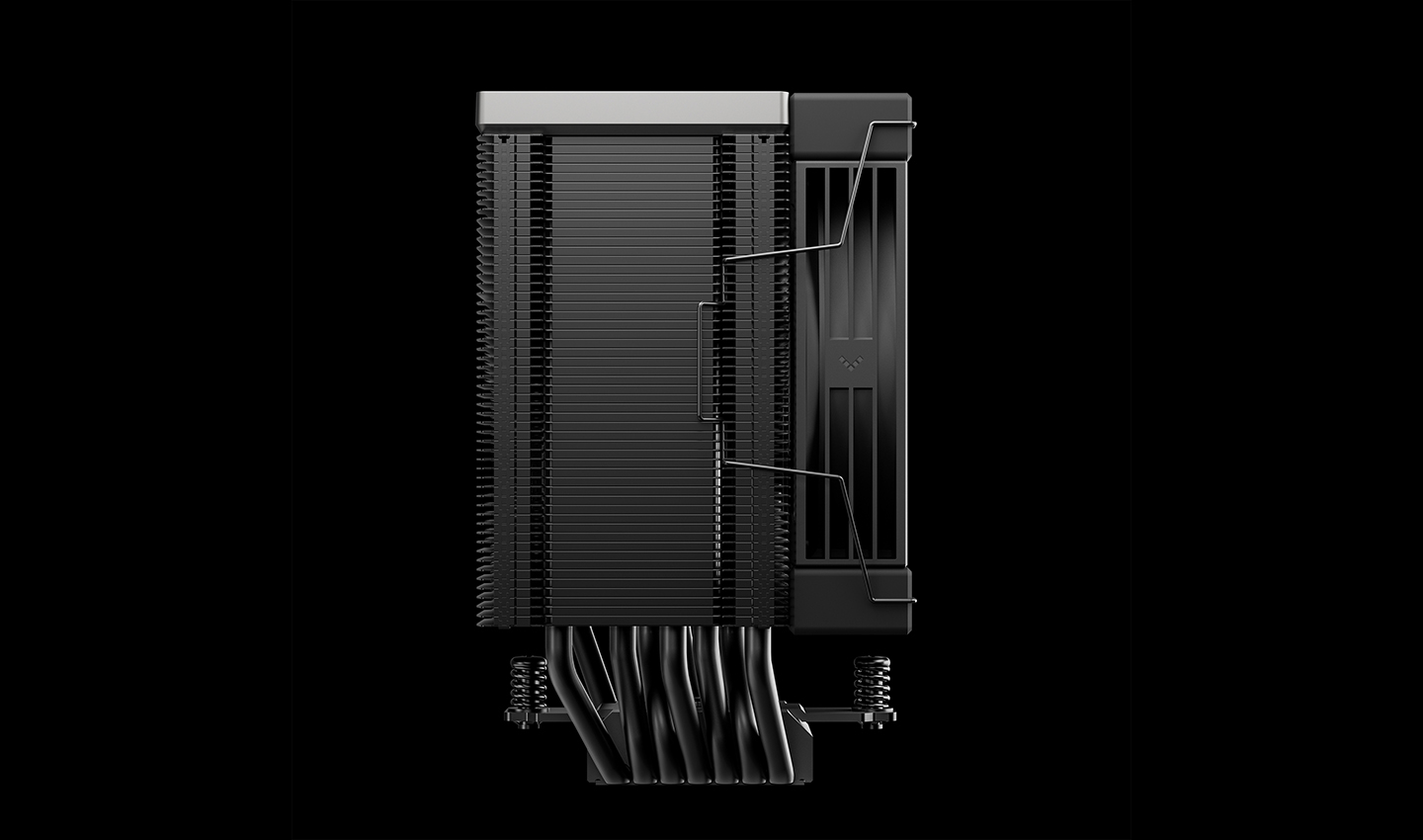

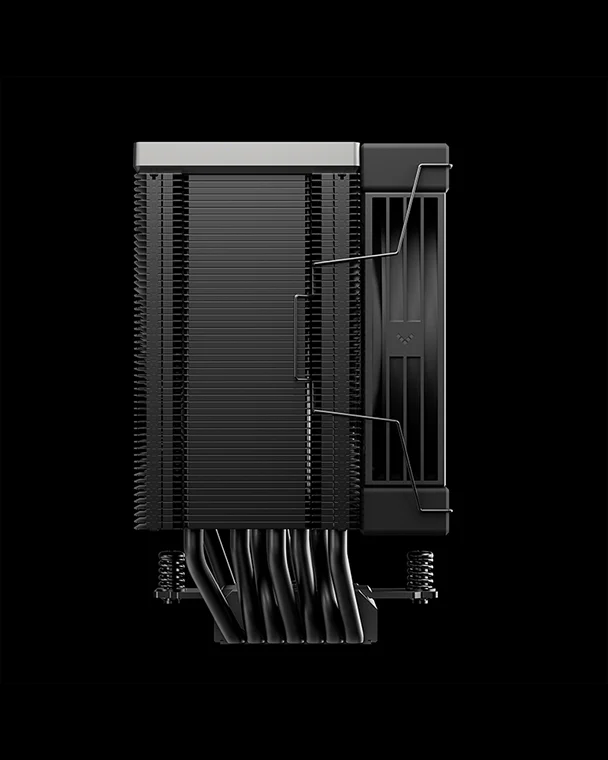

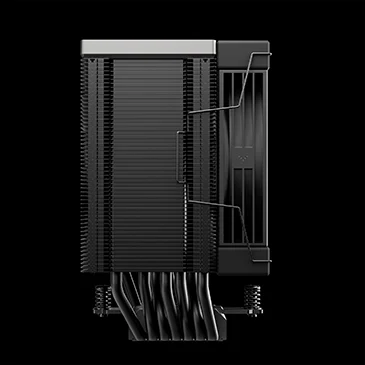

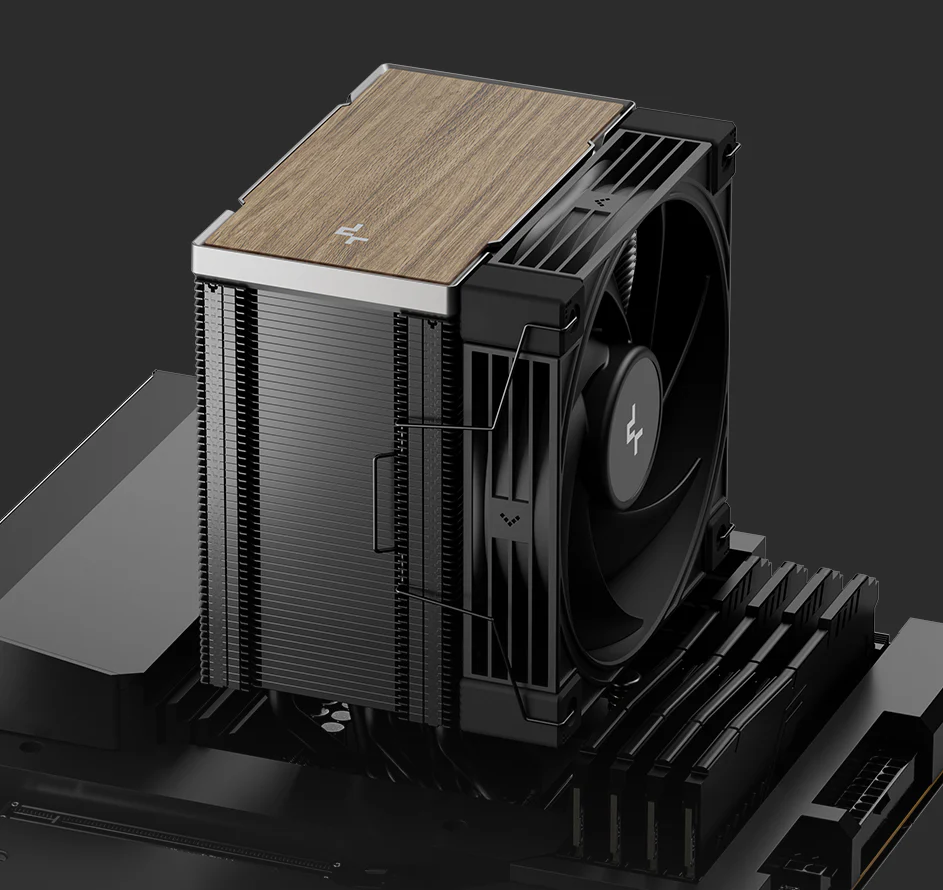

Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

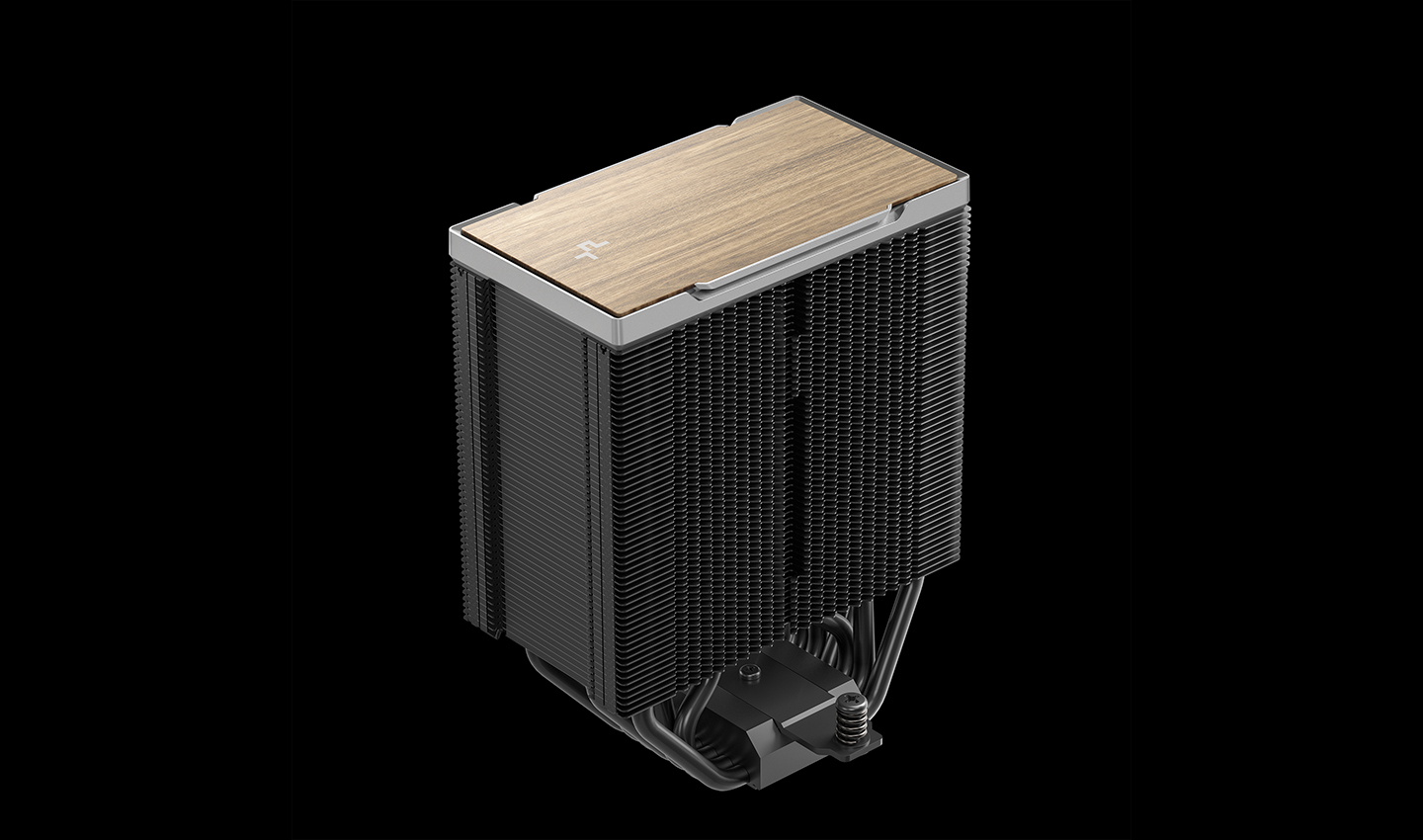

TRANSFORM YOUR COOLING AESTHETIC

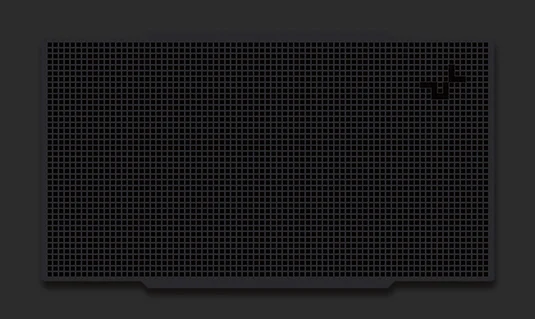

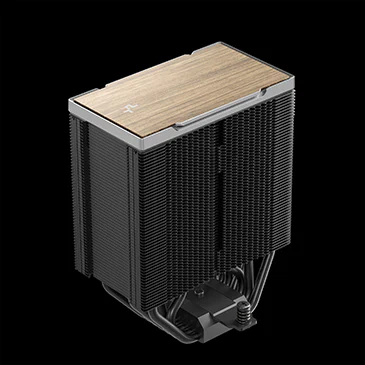

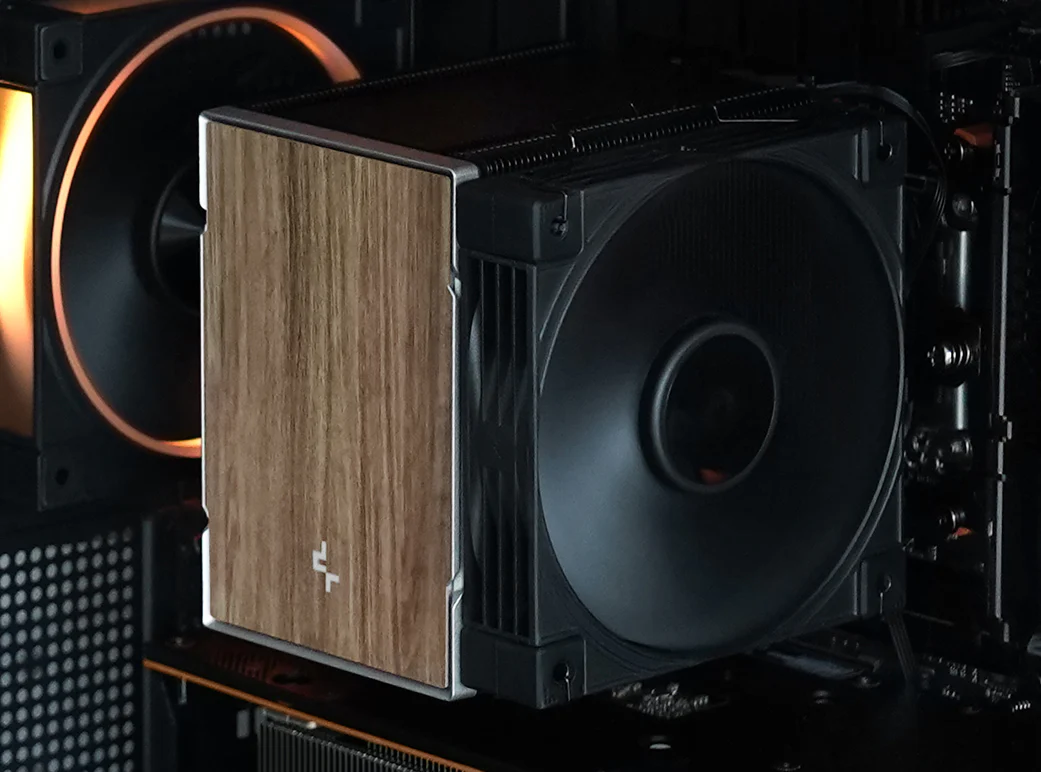

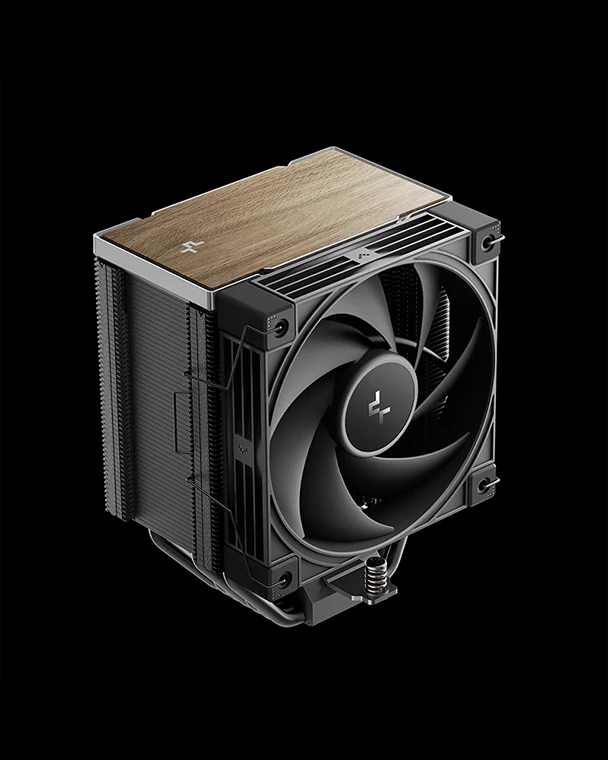

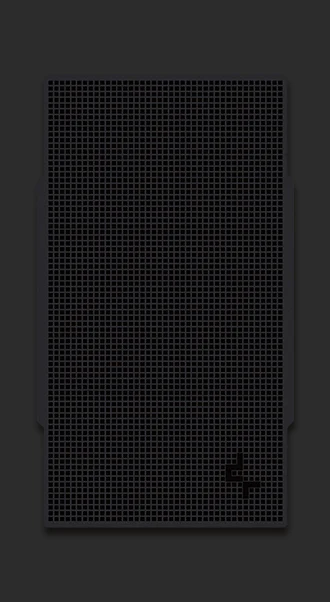

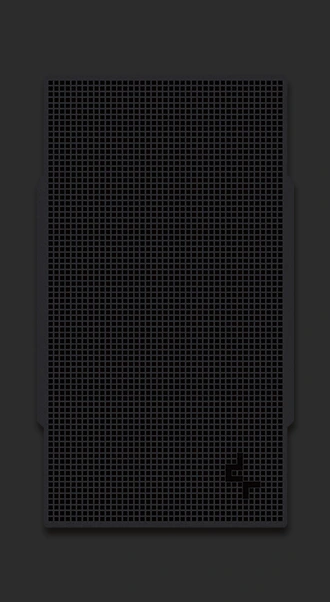

A refined magnetic wood-grain top cover that beautifully merges natural elegance with modern performance, while an optional black matrix-style decal offers a customizable aesthetic.

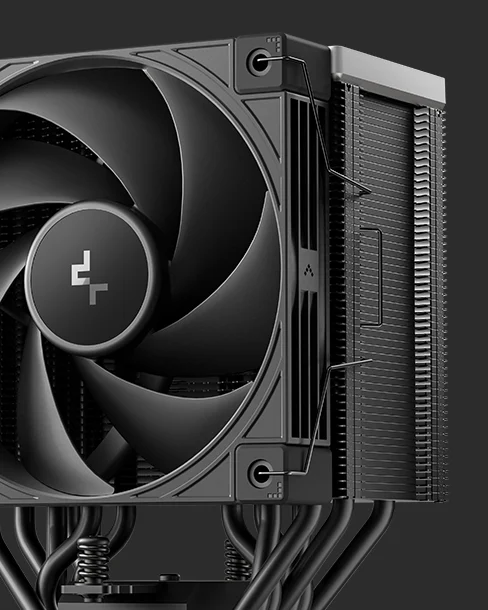

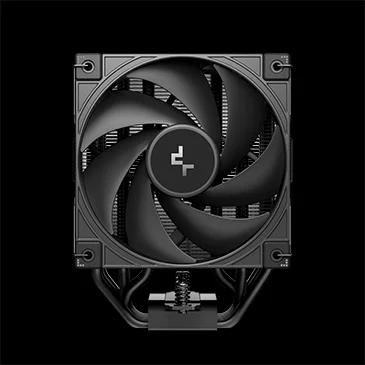

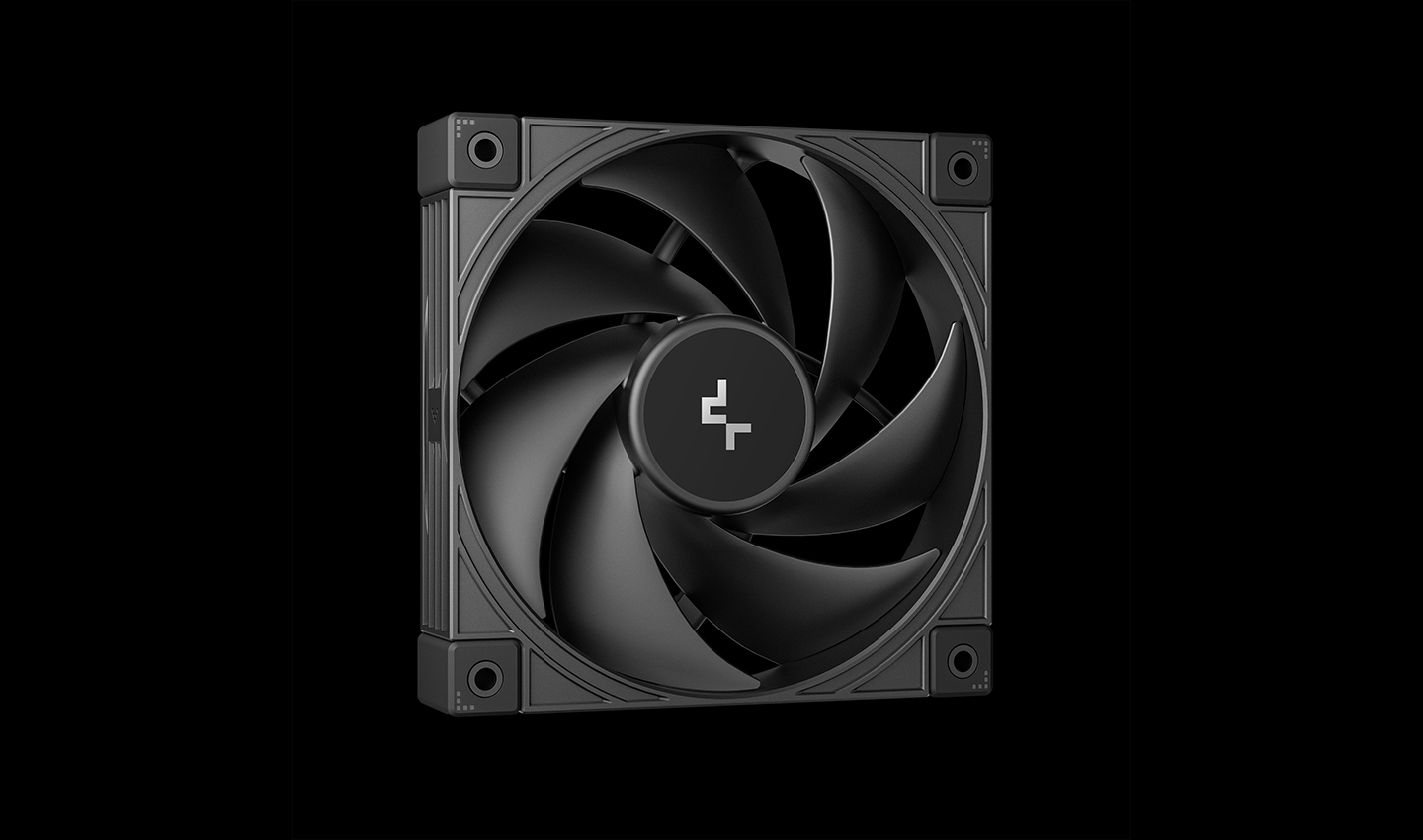

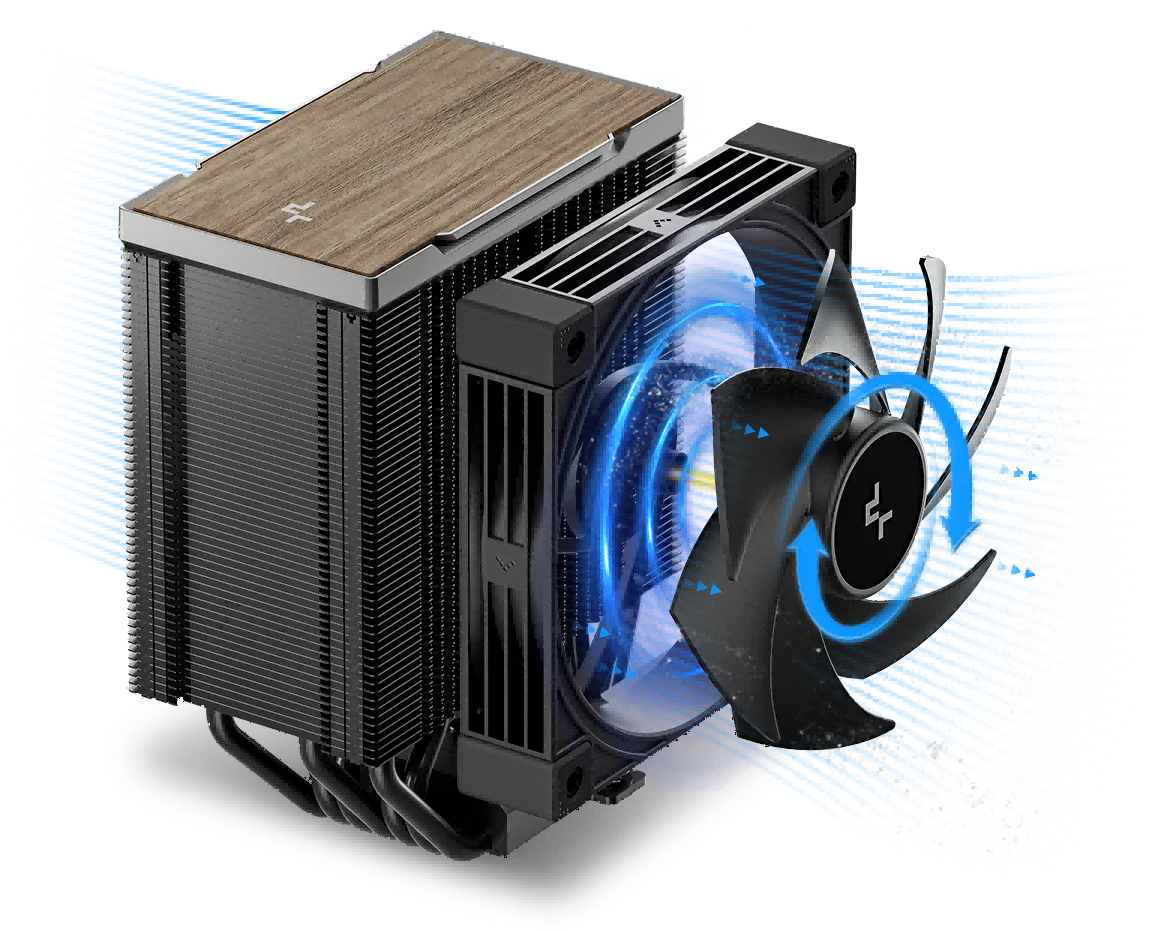

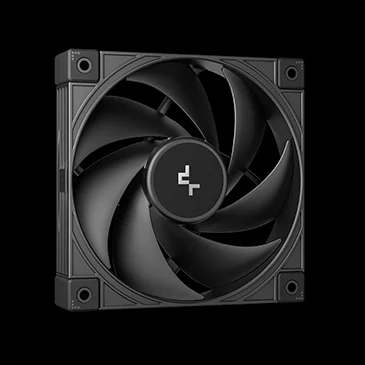

COOL, QUIET, AND POWERFUL

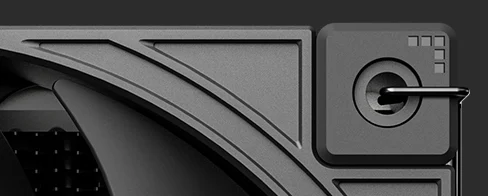

Equipped with high-quality hydraulic bearing and a three-phase, six-slot, four-pole motor, the AK700's fan operates smoothly and quietly.
1. 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.

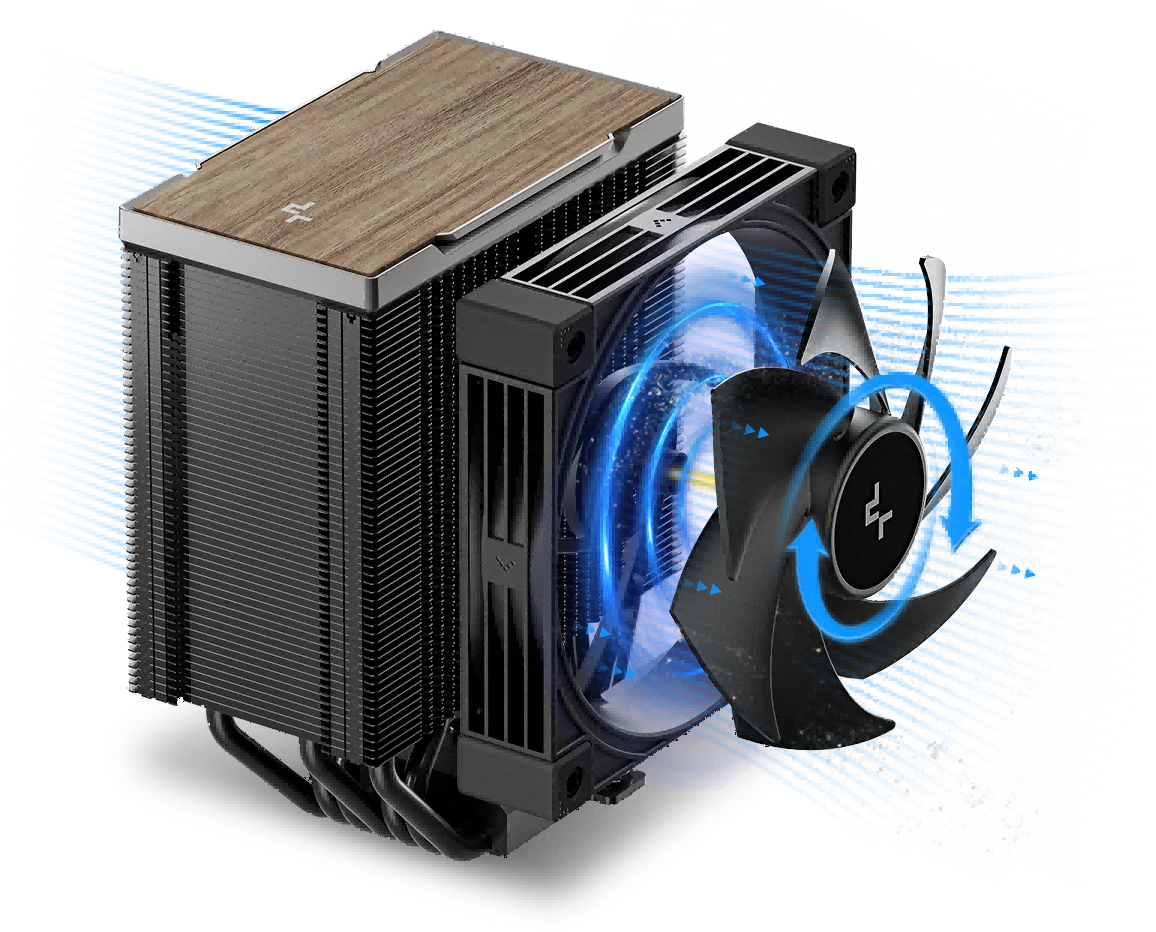

2. Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
36 dBA
Full load noise
2700±10%PRM
Fan Speed
0 RPM＜5% PWM
Dynamic PWM Range
3 Years
Limited Warranty Coverage
MULTI-PLATFORM PERFORMANCE

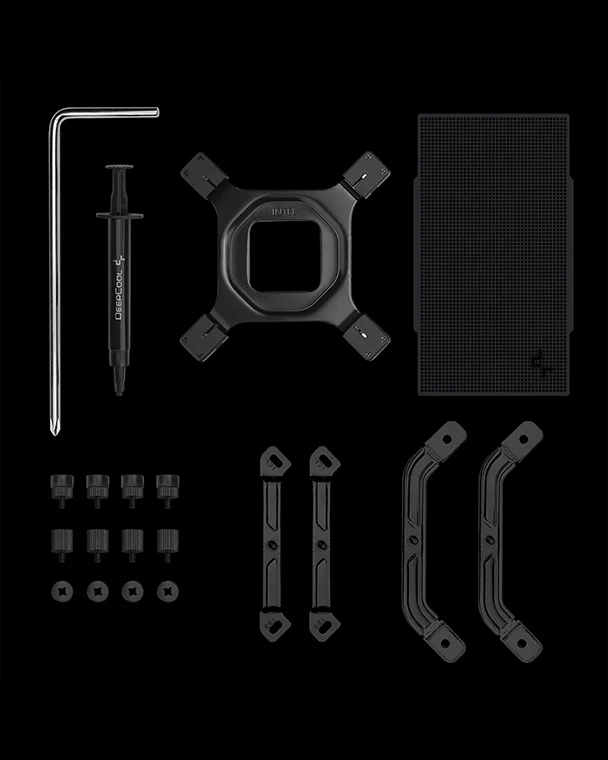

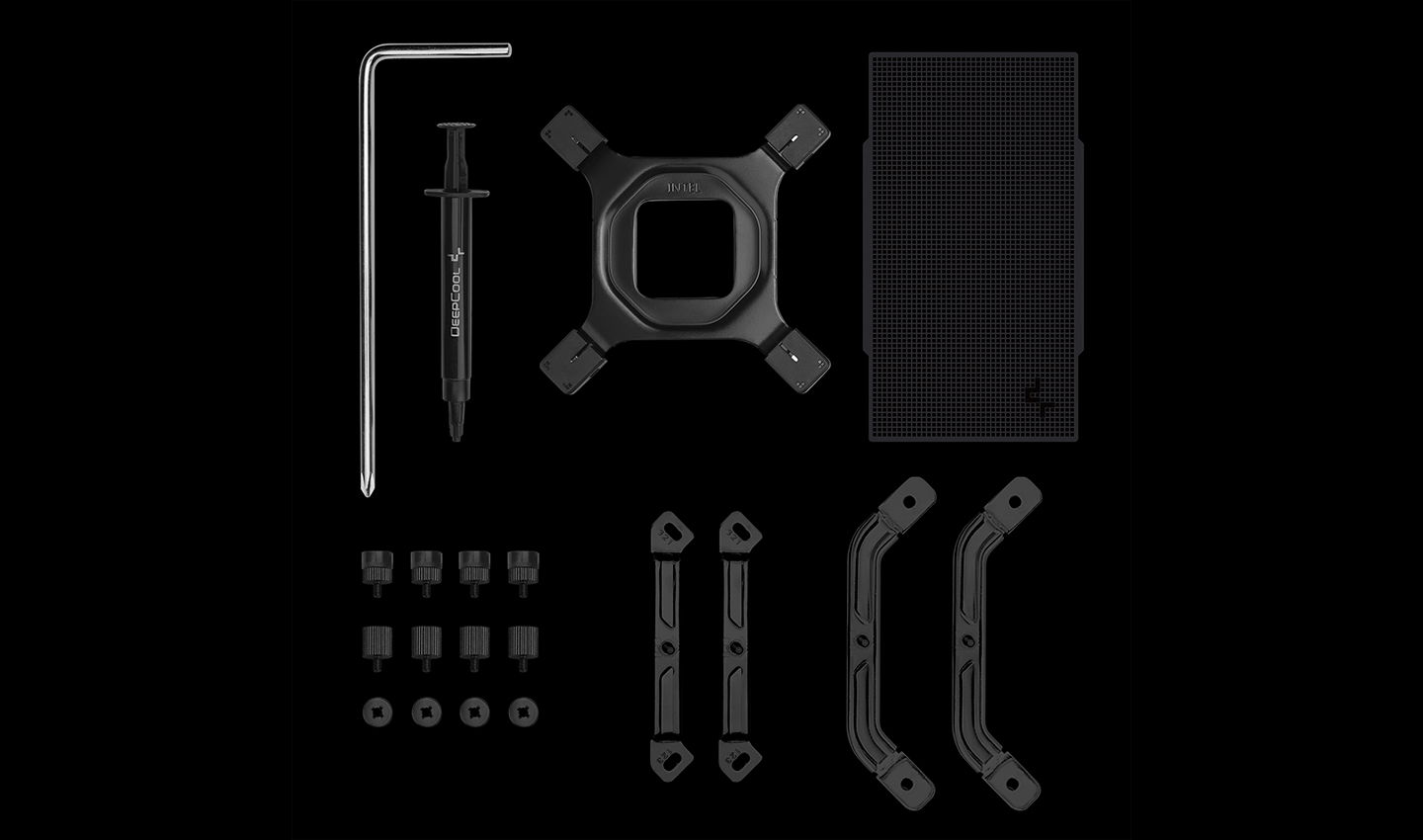

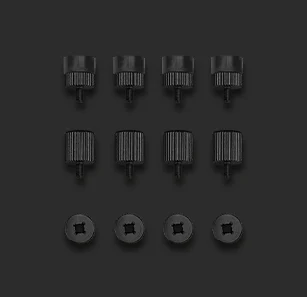

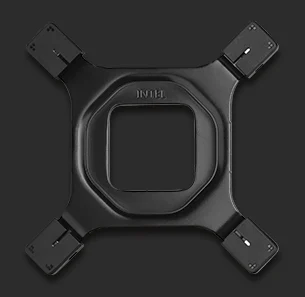

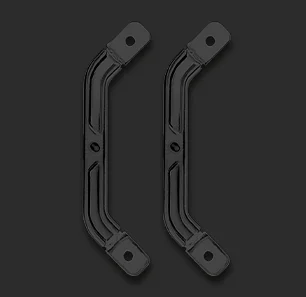

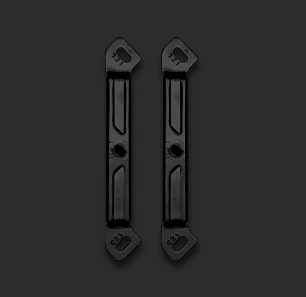

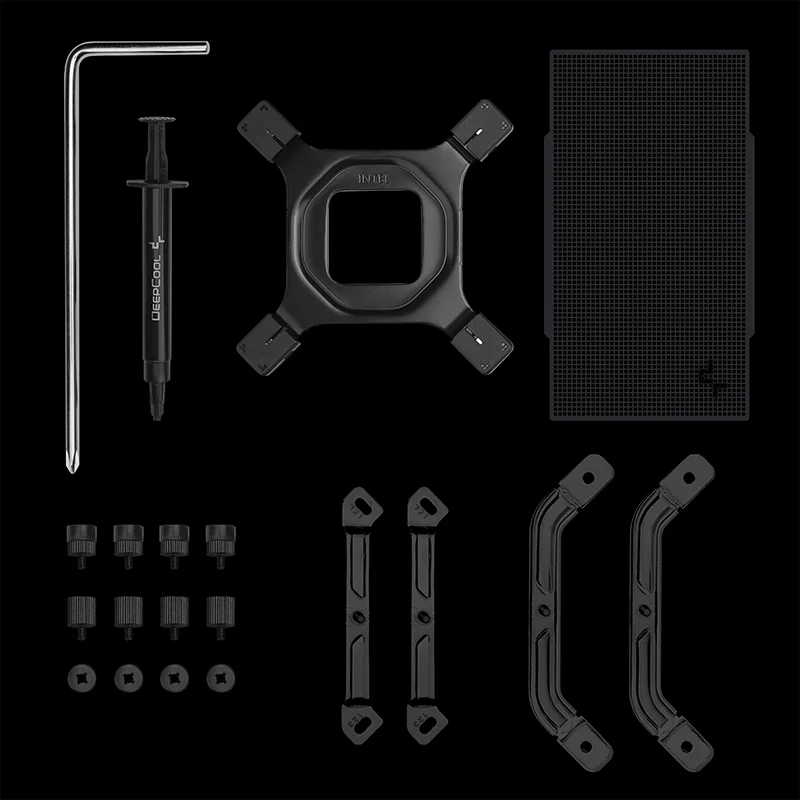

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Application For
Intel
LGA1851/1700/1200/115X
AMD
AM5/AM4
Technical Spec
Product Dimensions126×98×157 mm(L×W×H)
Heatsink Dimensions124×76×151 mm(L×W×H)
Net Weight1252 g
HeatpipeØ6 mm×7 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed2200±10% RPM(max)
Fan Airflow63.4 CFM
Fan Air Pressure3.33 mmAq
Fan Noise≤31.45 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.25 A
Fan Power Consumption3 W
EAN6933412729600
P/NR-AK700-BKNNMN-GJD
Download
AK700 Manual.pdf
