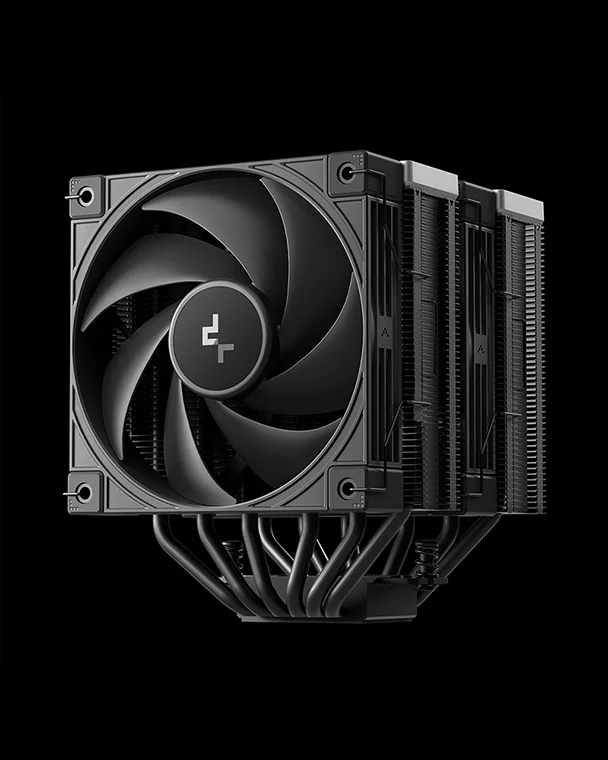

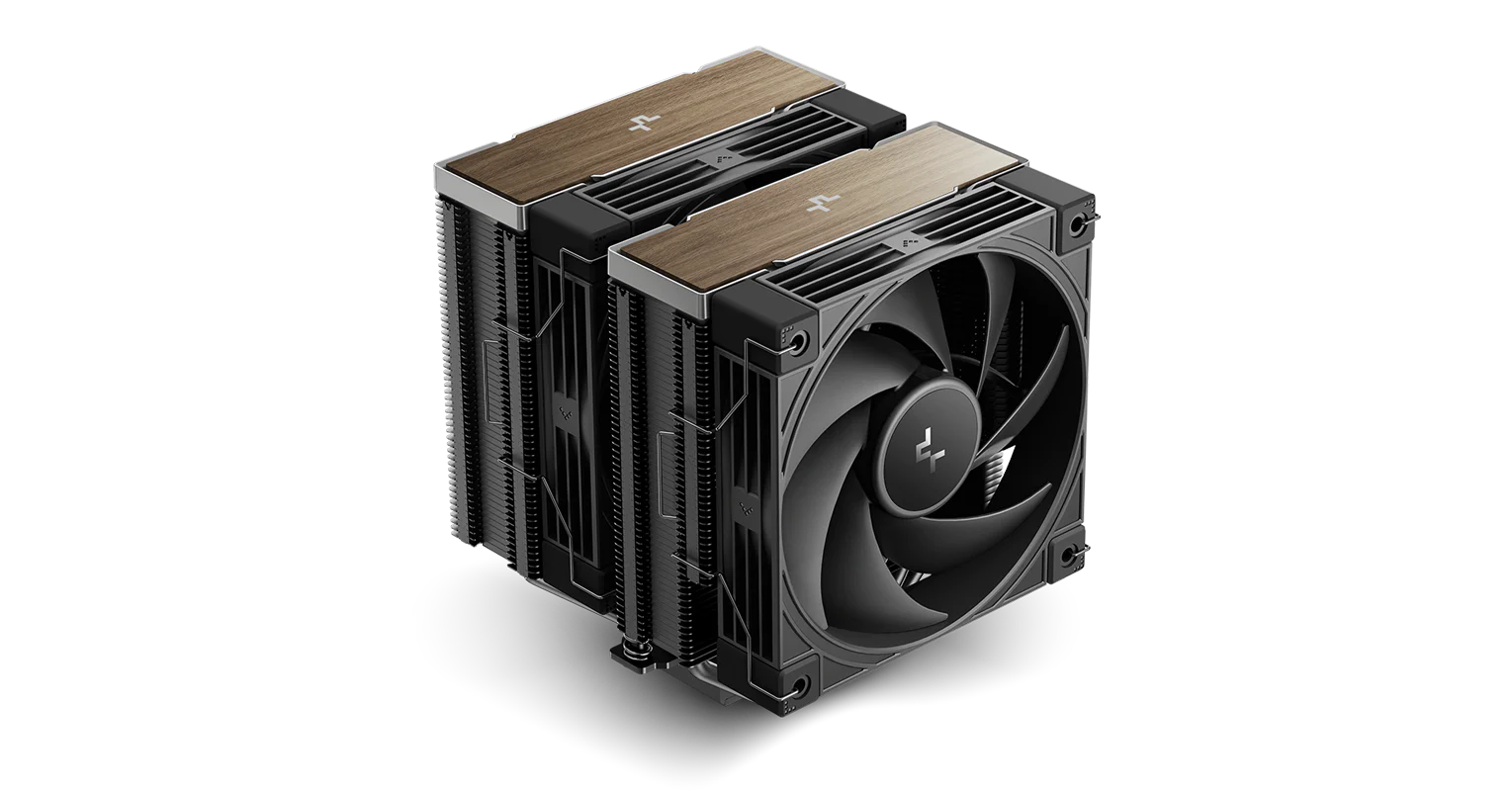

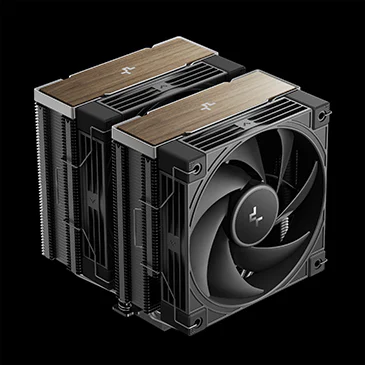

AK620 G2

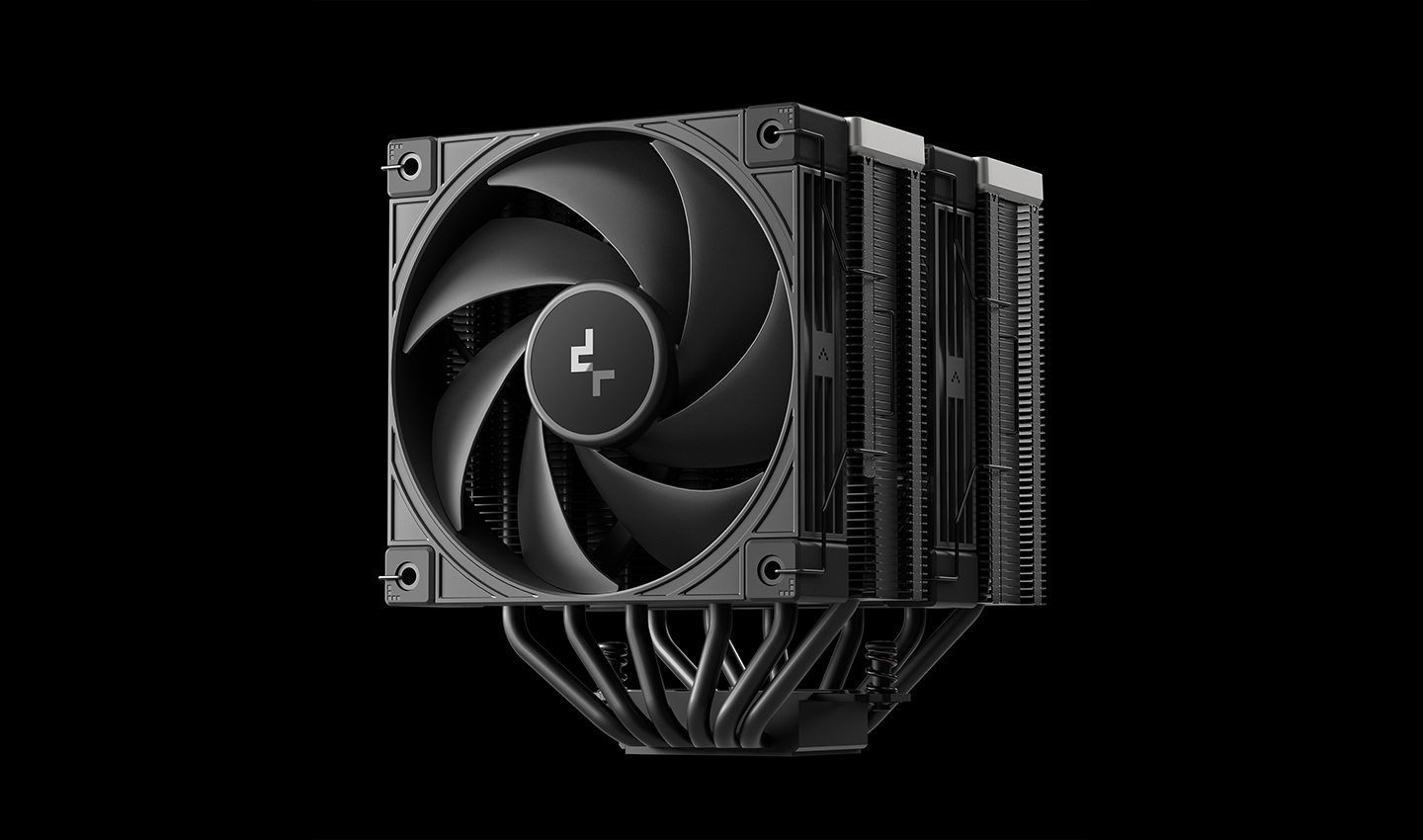

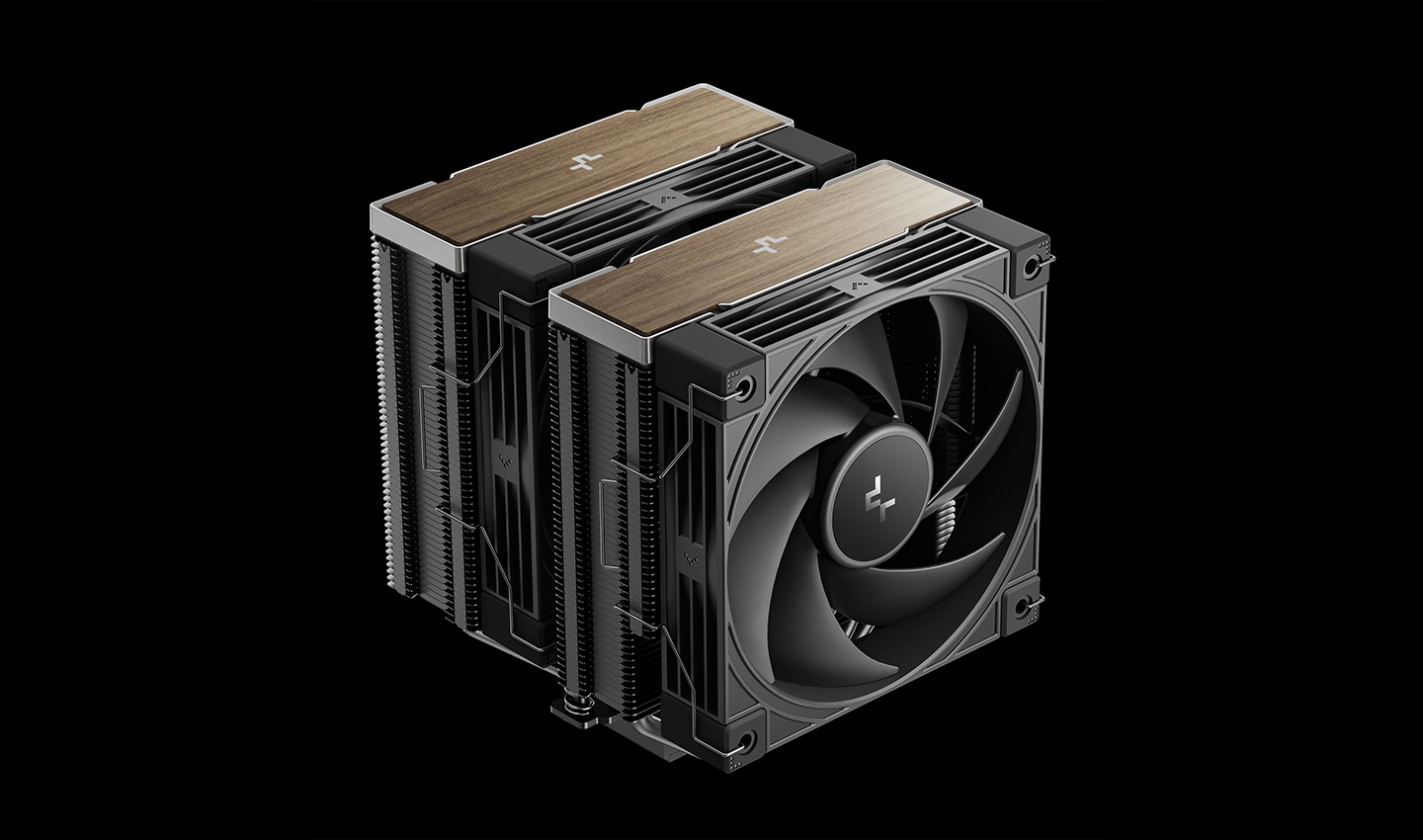

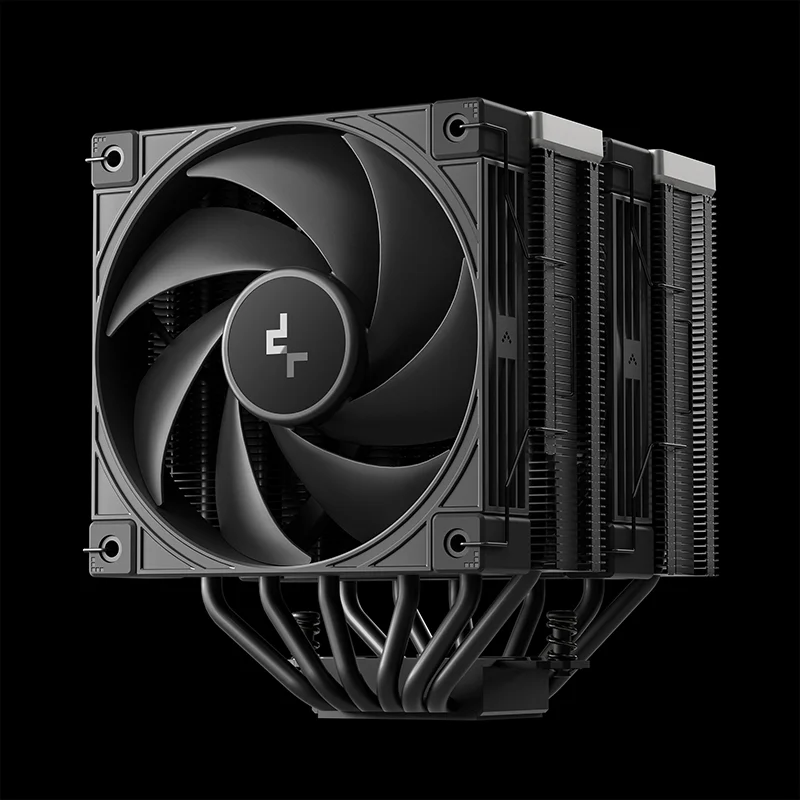

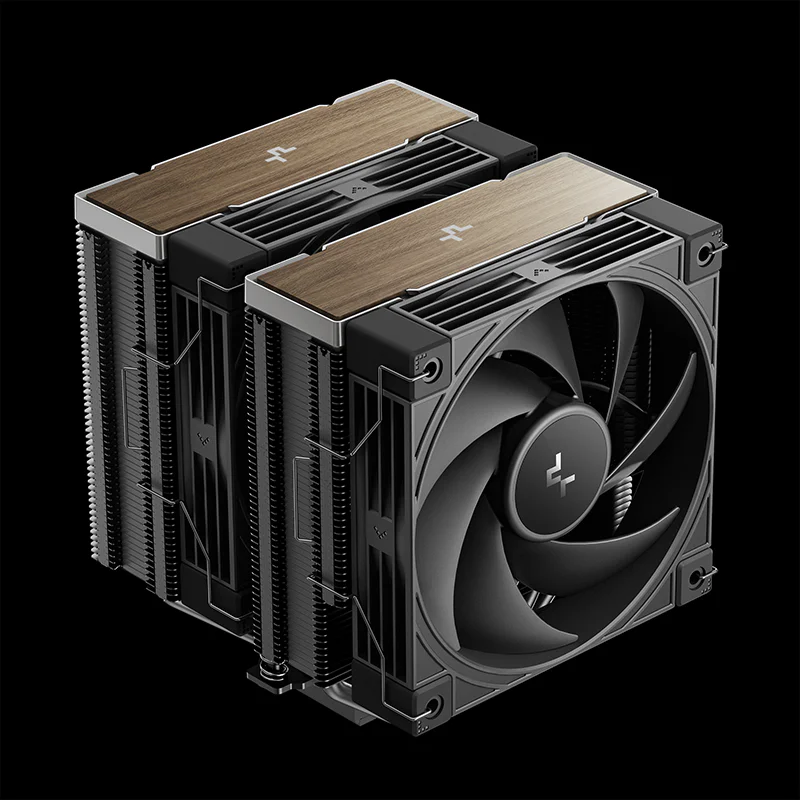

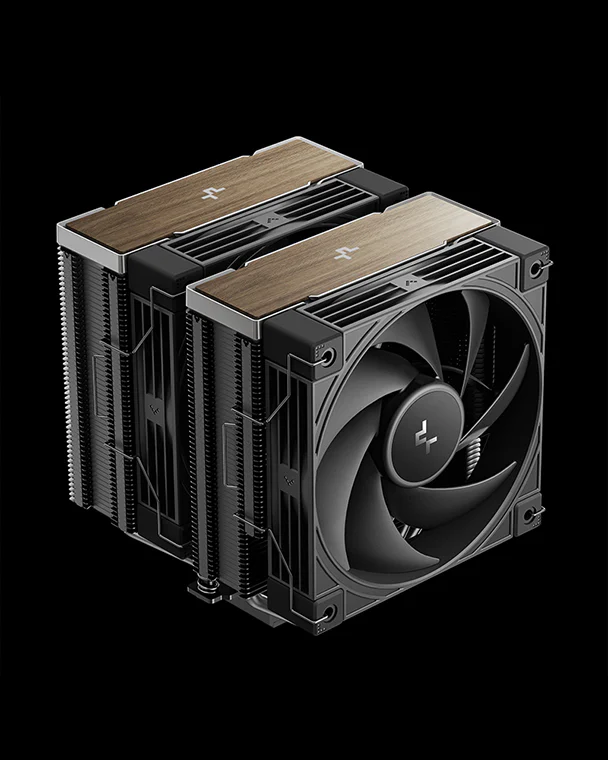

Further improved second generation of the iconic AK lineup with upgraded performance and a bold new aesthetic. The same premium quality materials featuring six advanced copper heat pipes, a dense dual-tower heat sink, and newly designed silent fans produces a powerful winning formula for high performance cooling in a wood grain design.
MODEL
AK620 G2
CRAFTED TO ELEVATE
NEXT GENERATION PERFORMANCE

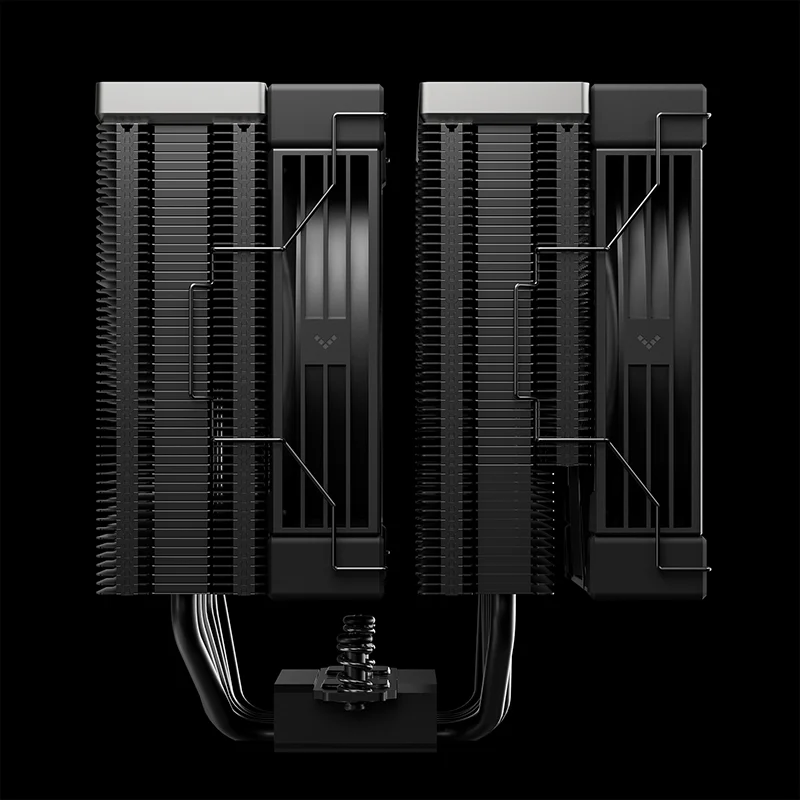

Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK620 G2 combines improved performance with a slightly smaller size compared to its predecessor.

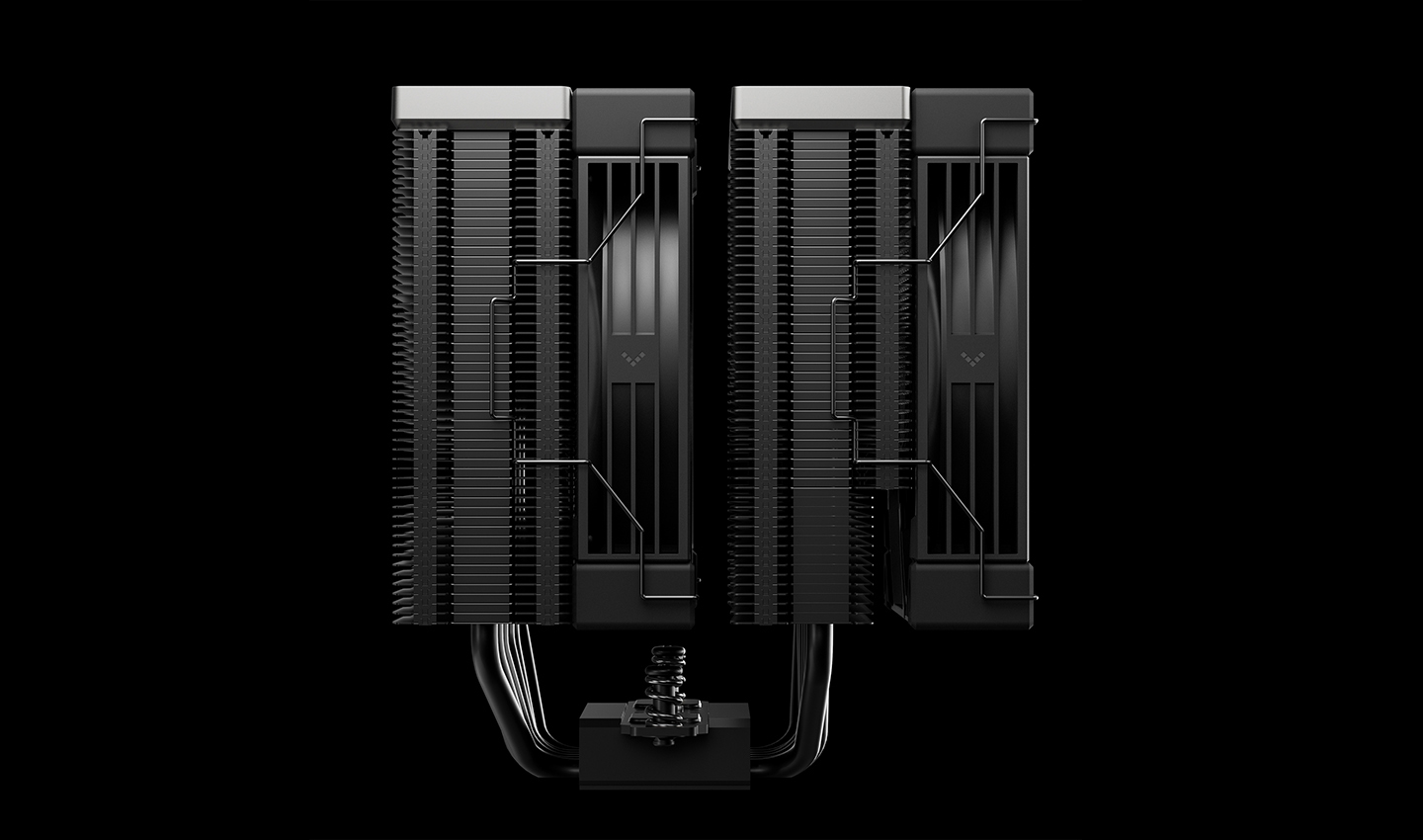

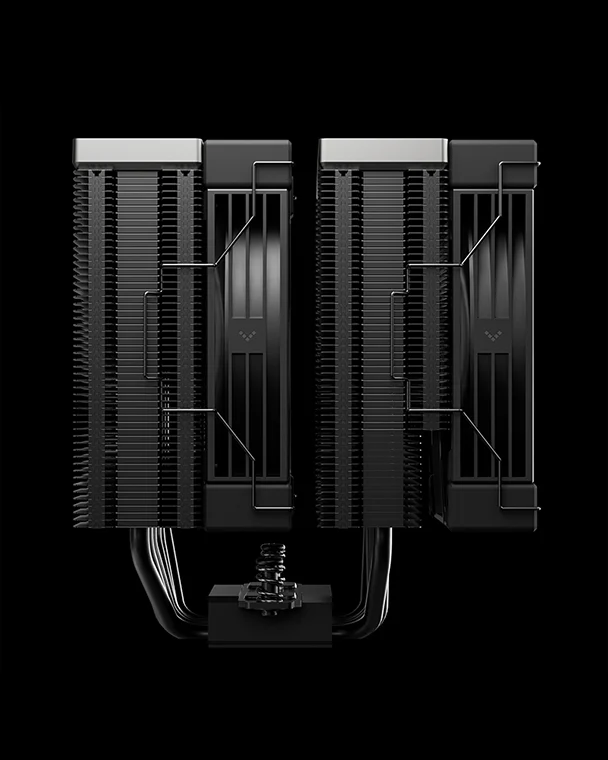

PROVEN AK DESIGN

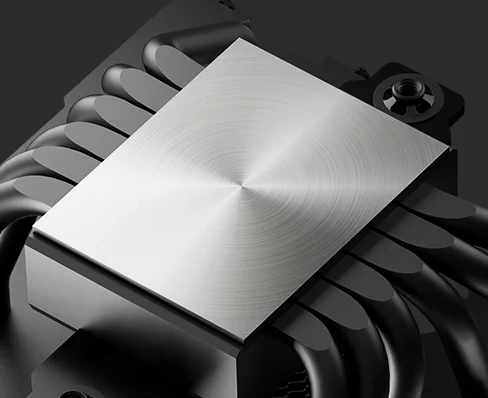

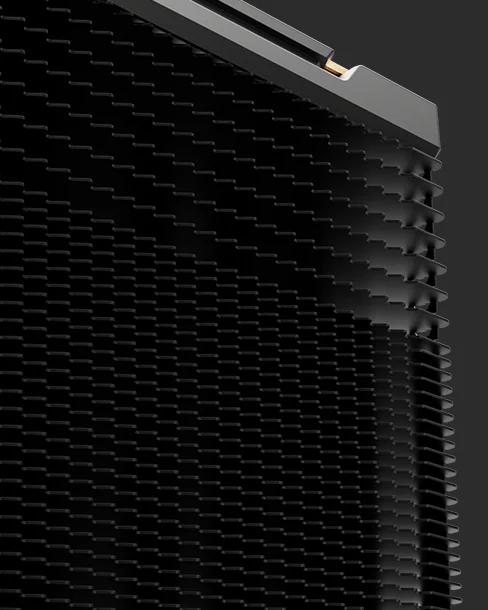

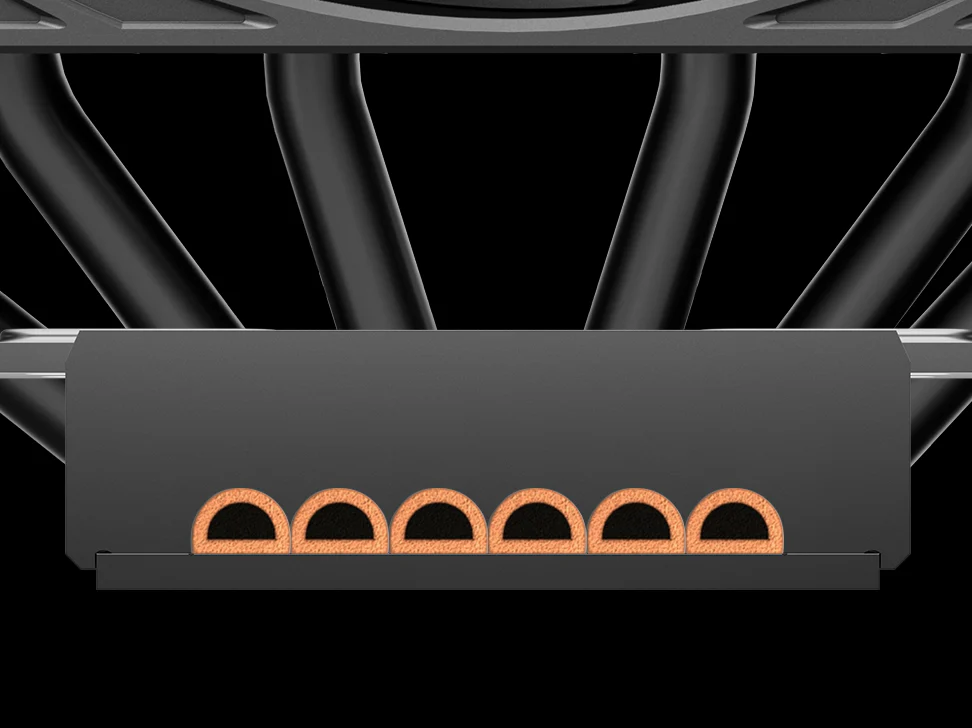

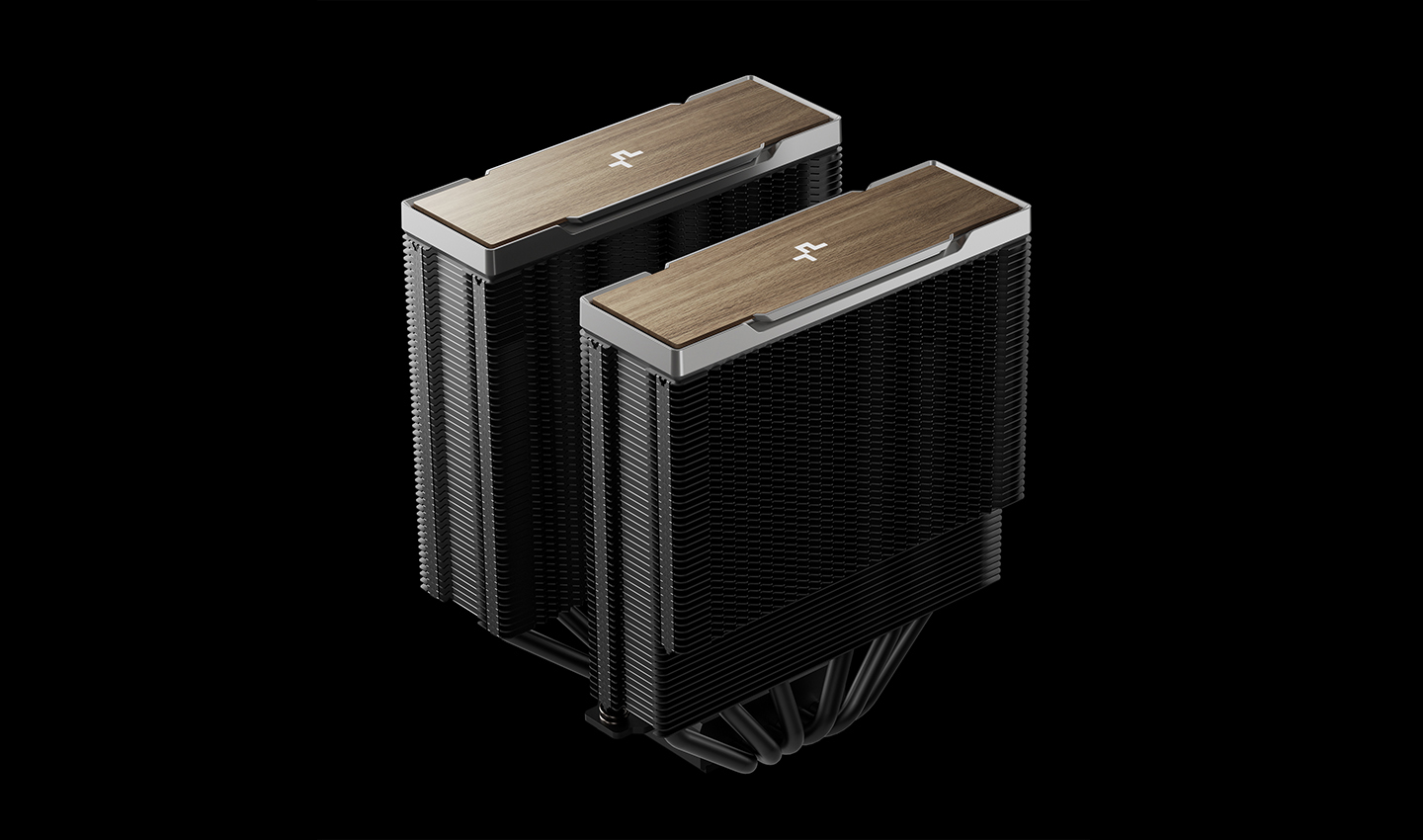

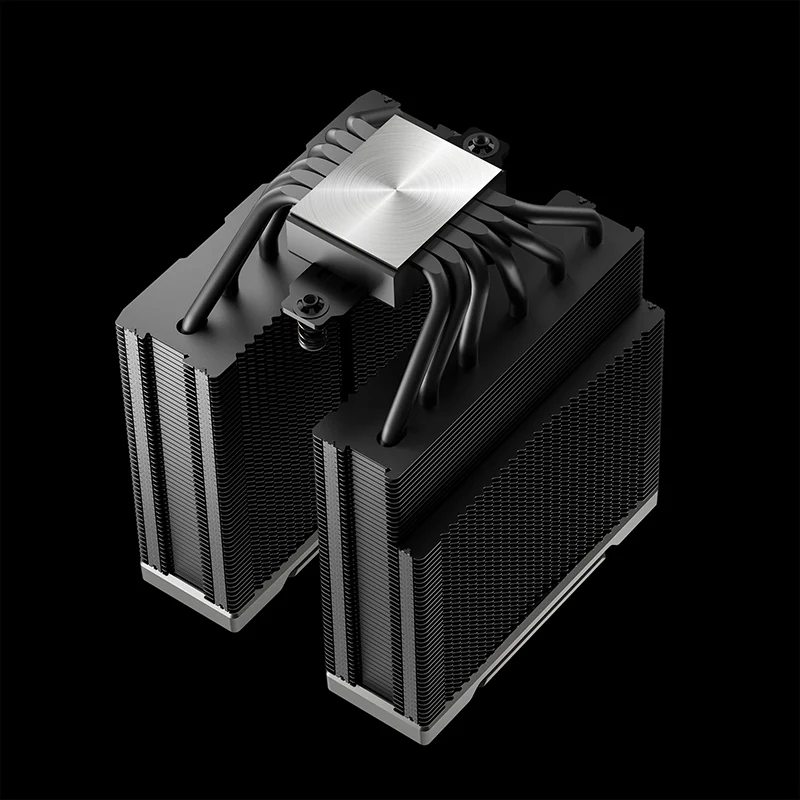

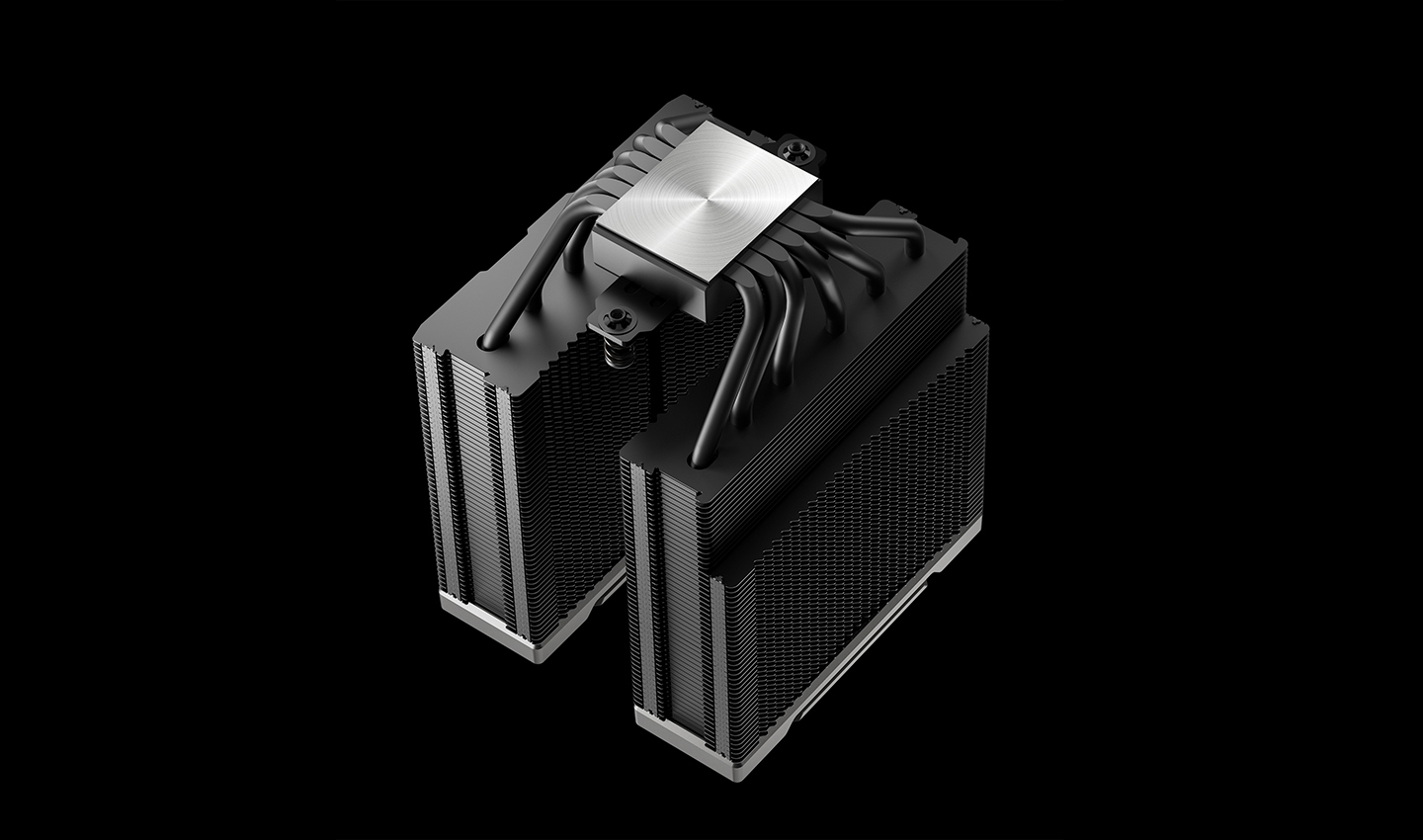

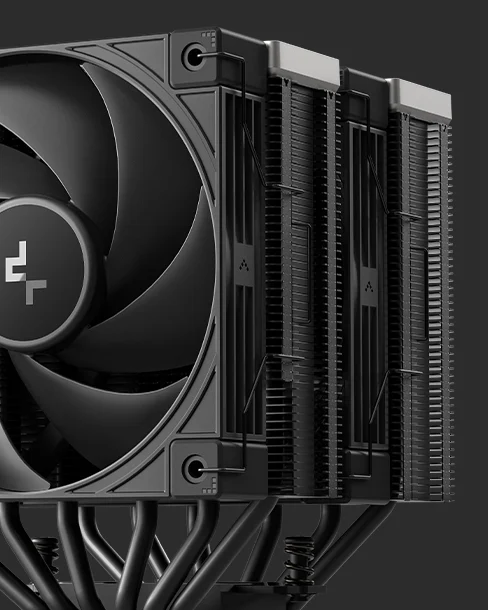

The AK620 G2 continues its legacy by featuring a precision-machined copper base and six copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.

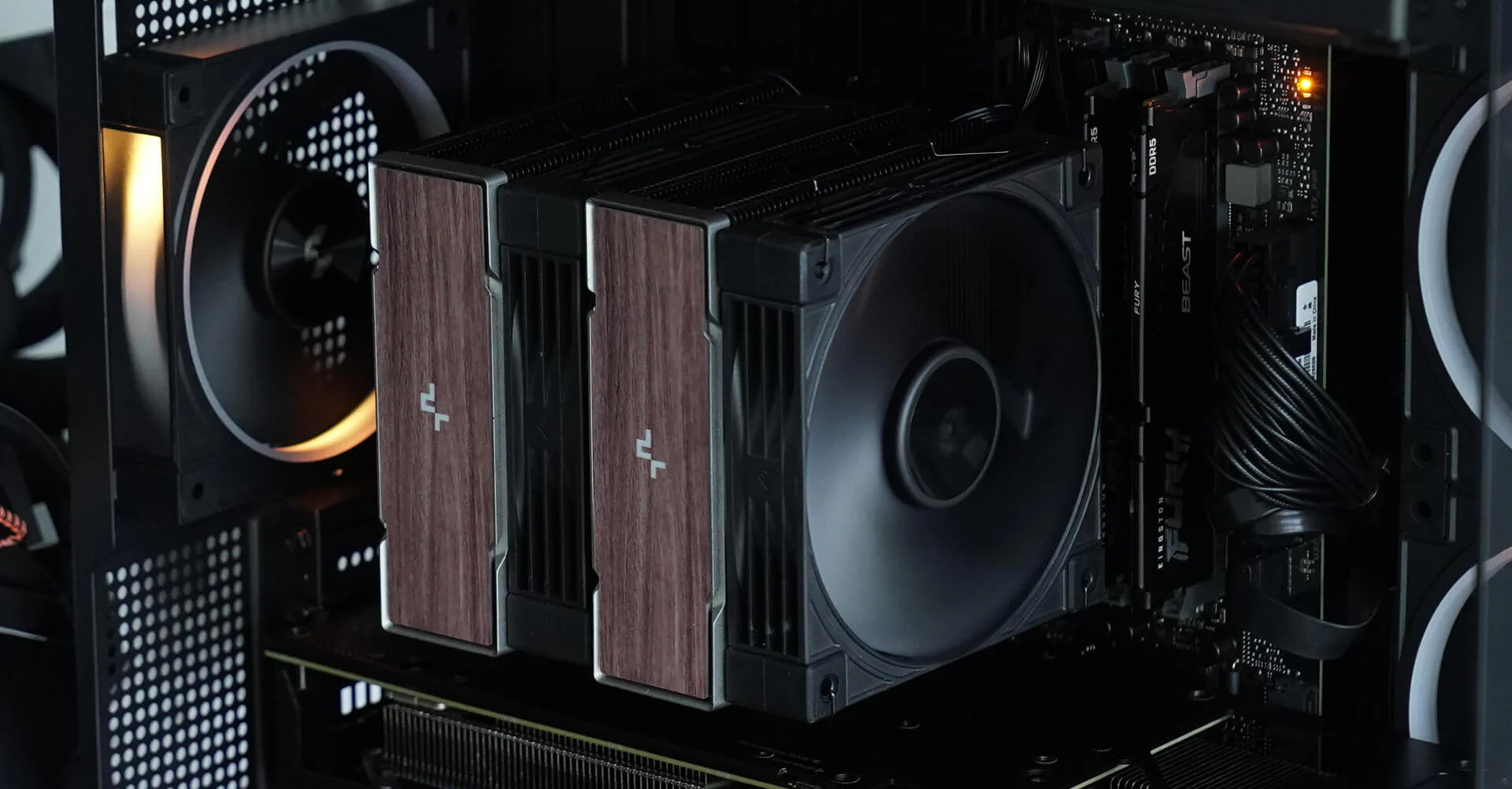

TRANSFORM YOUR COOLING AESTHETIC

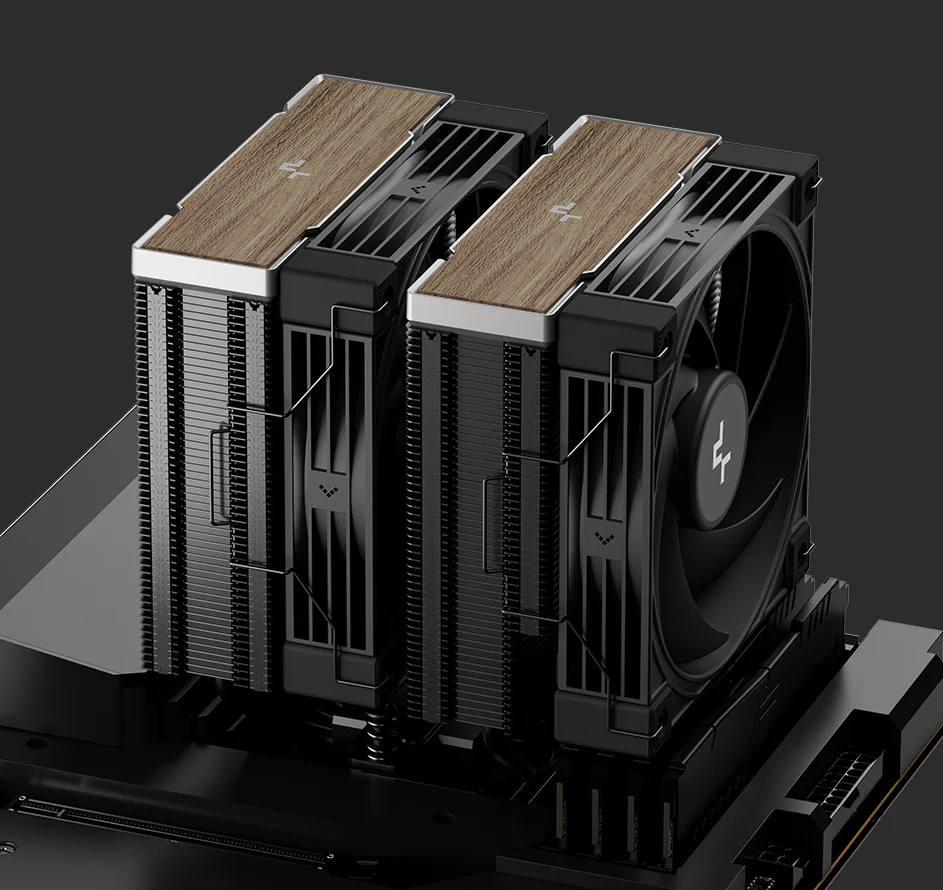

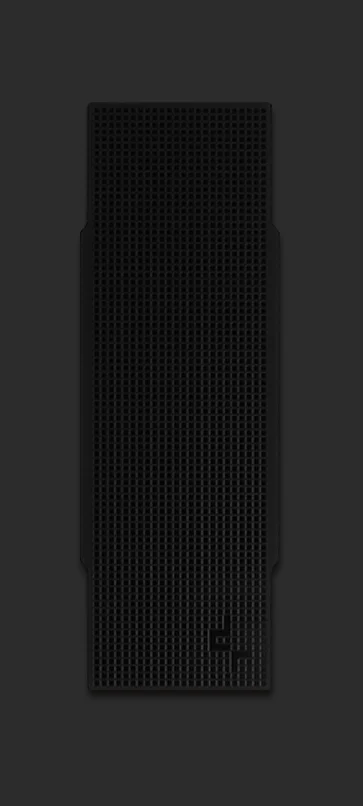

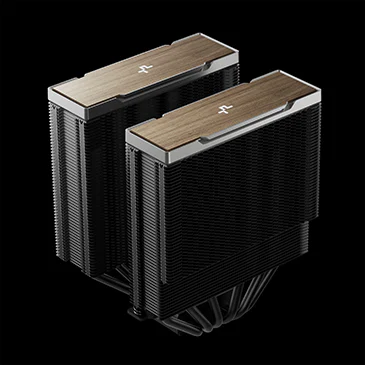

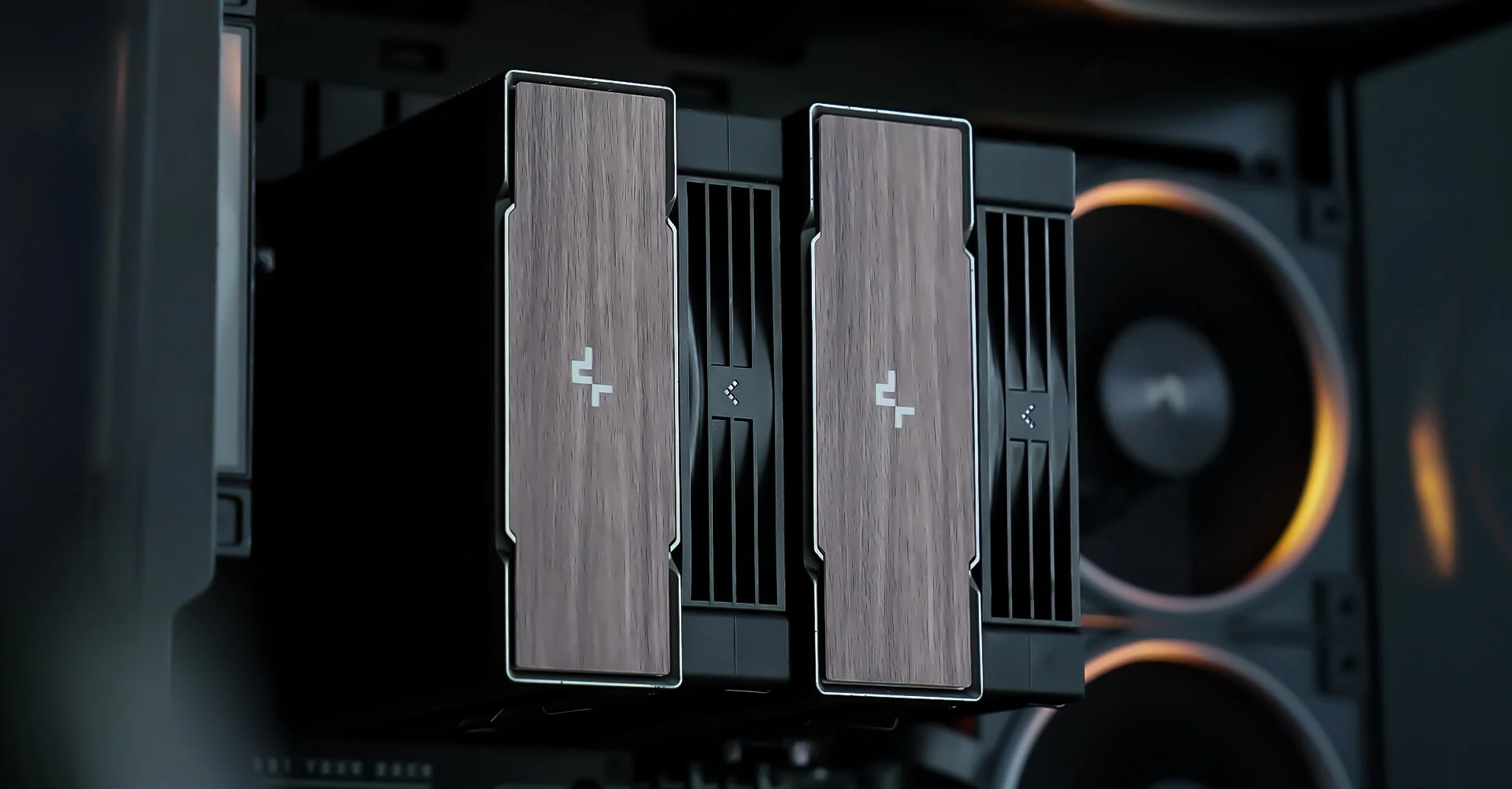

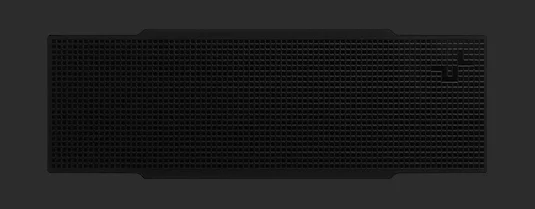

A refined wood-grain top cover that beautifully merges natural elegance with modern performance, while an optional black matrix-style decal offers a customizable aesthetic.

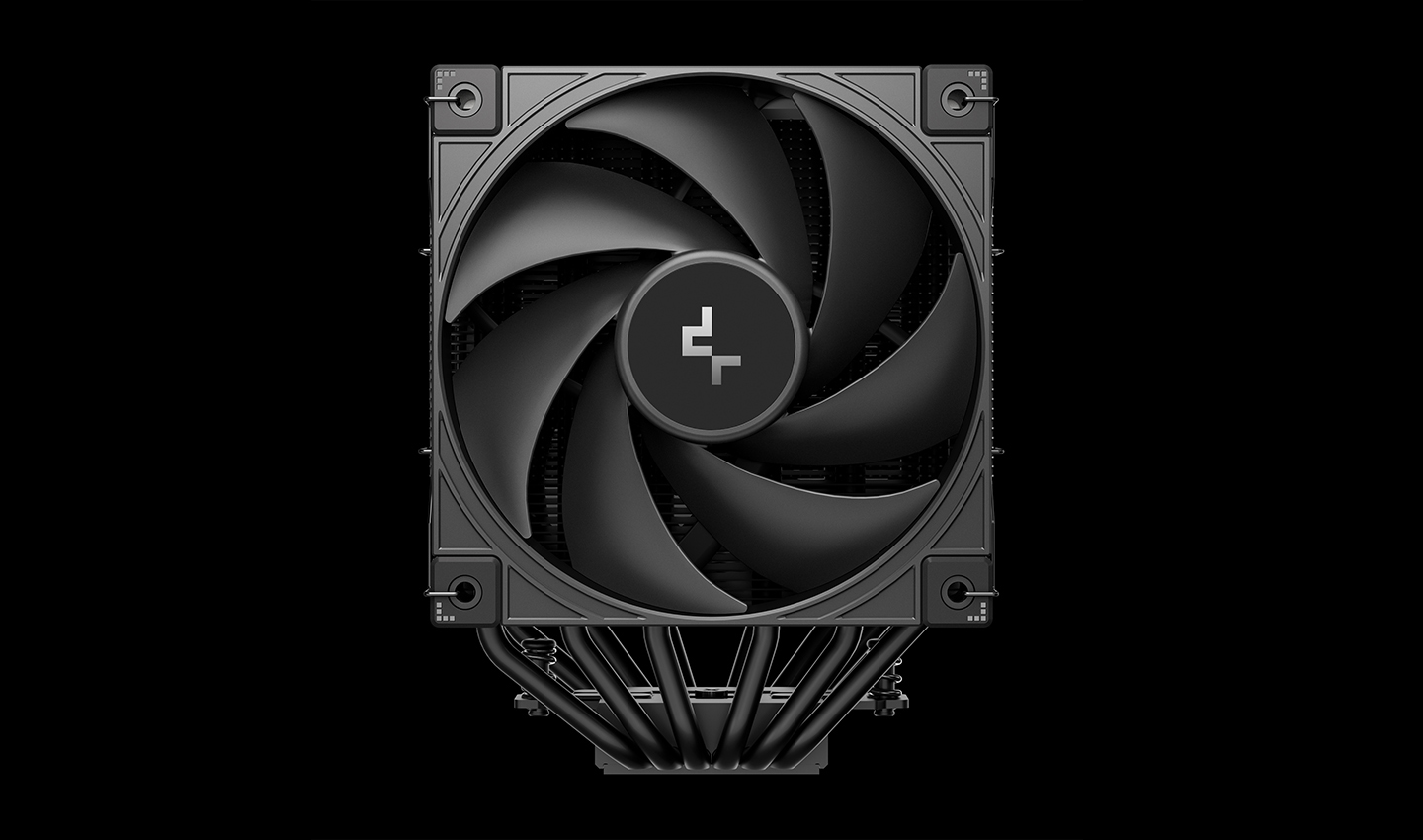

COOL, QUIET, AND POWERFUL

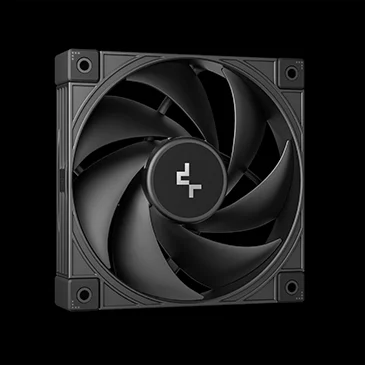

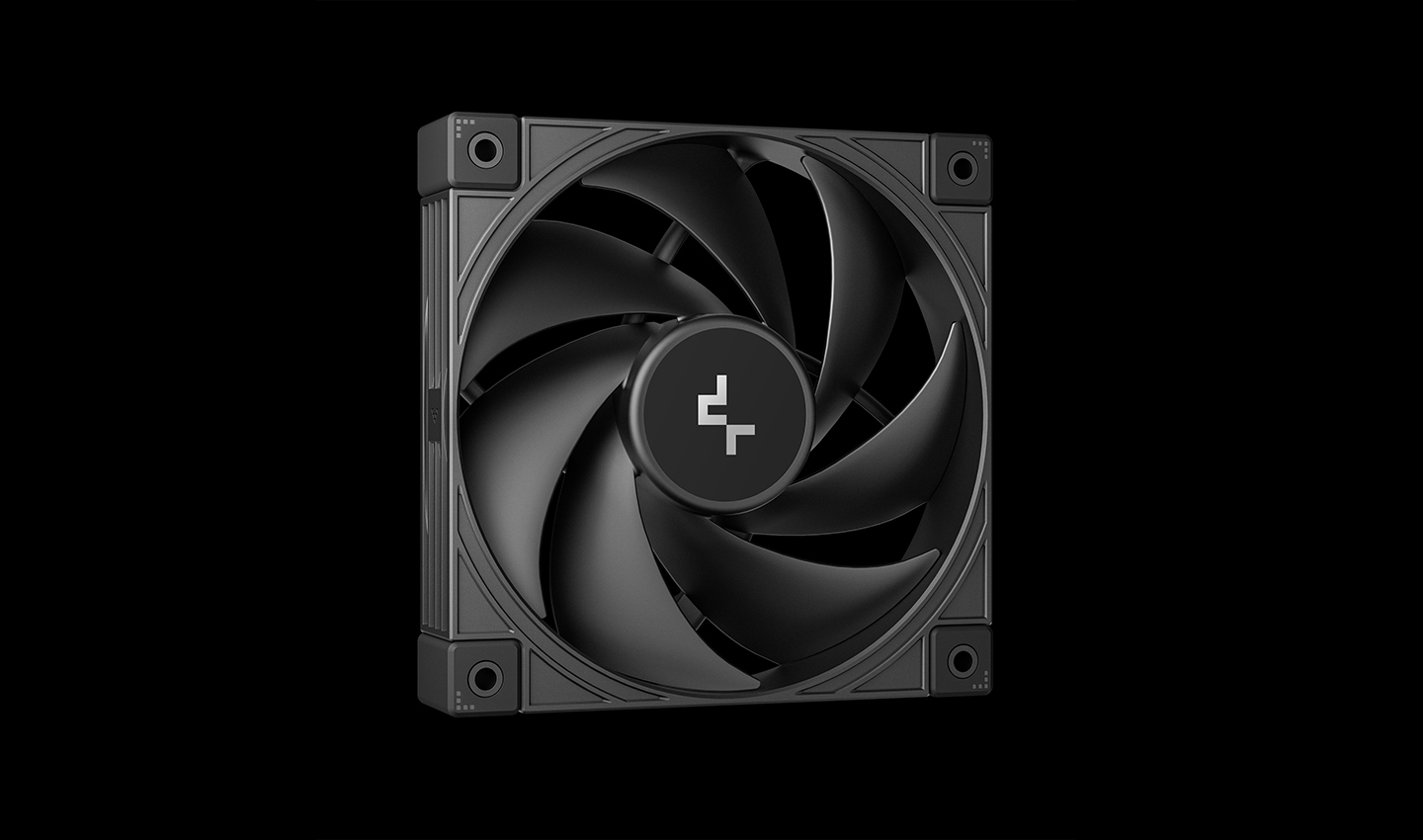

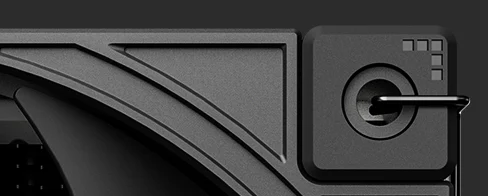

Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK620 G2's fans operate smoothly and quietly.
1. 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.

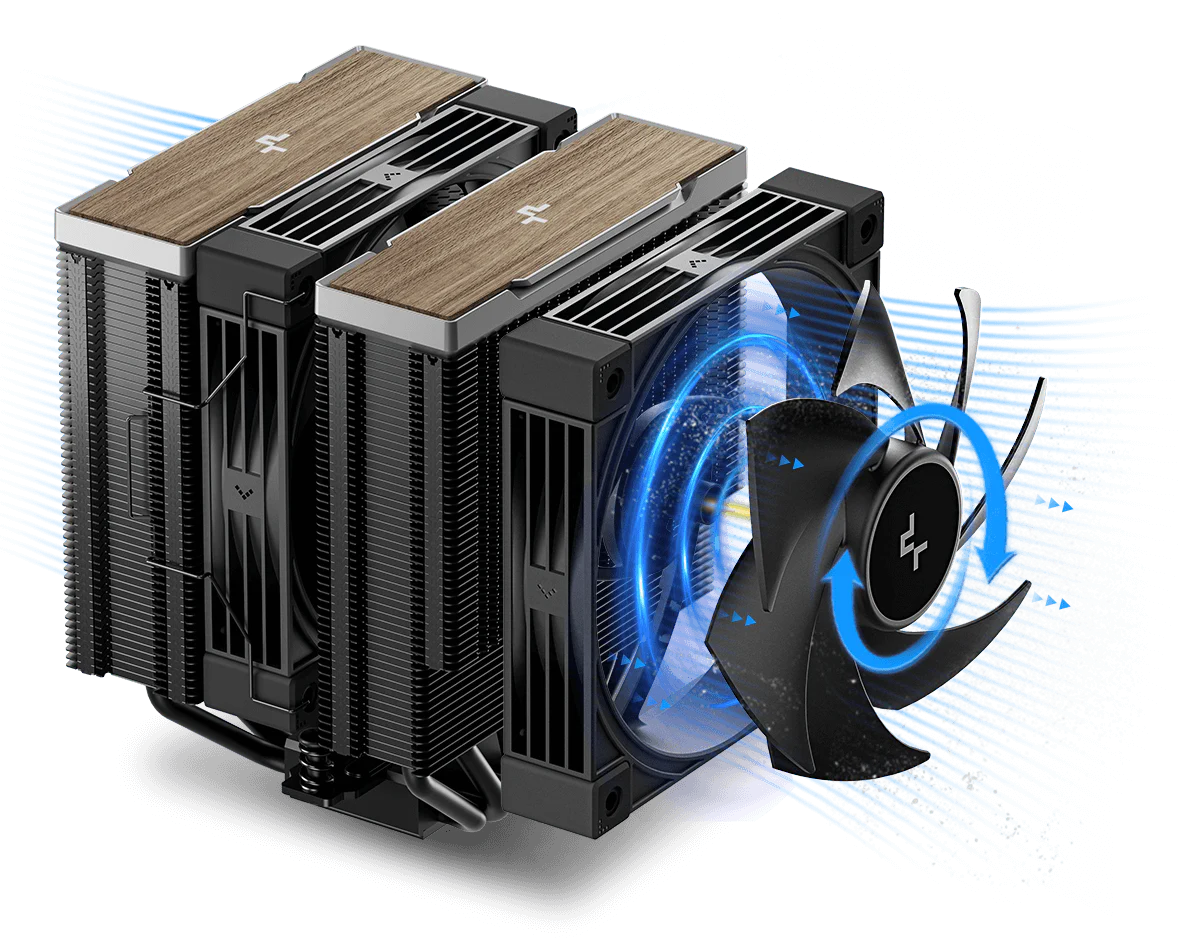

2. Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
28.87 dBA
Full load noise
2000±10%PRM
Fan Speed
0 RPM＜5% PWM
Dynamic PWM Range
3 Years
Limited Warranty Coverage
MULTI-PLATFORM PERFORMANCE

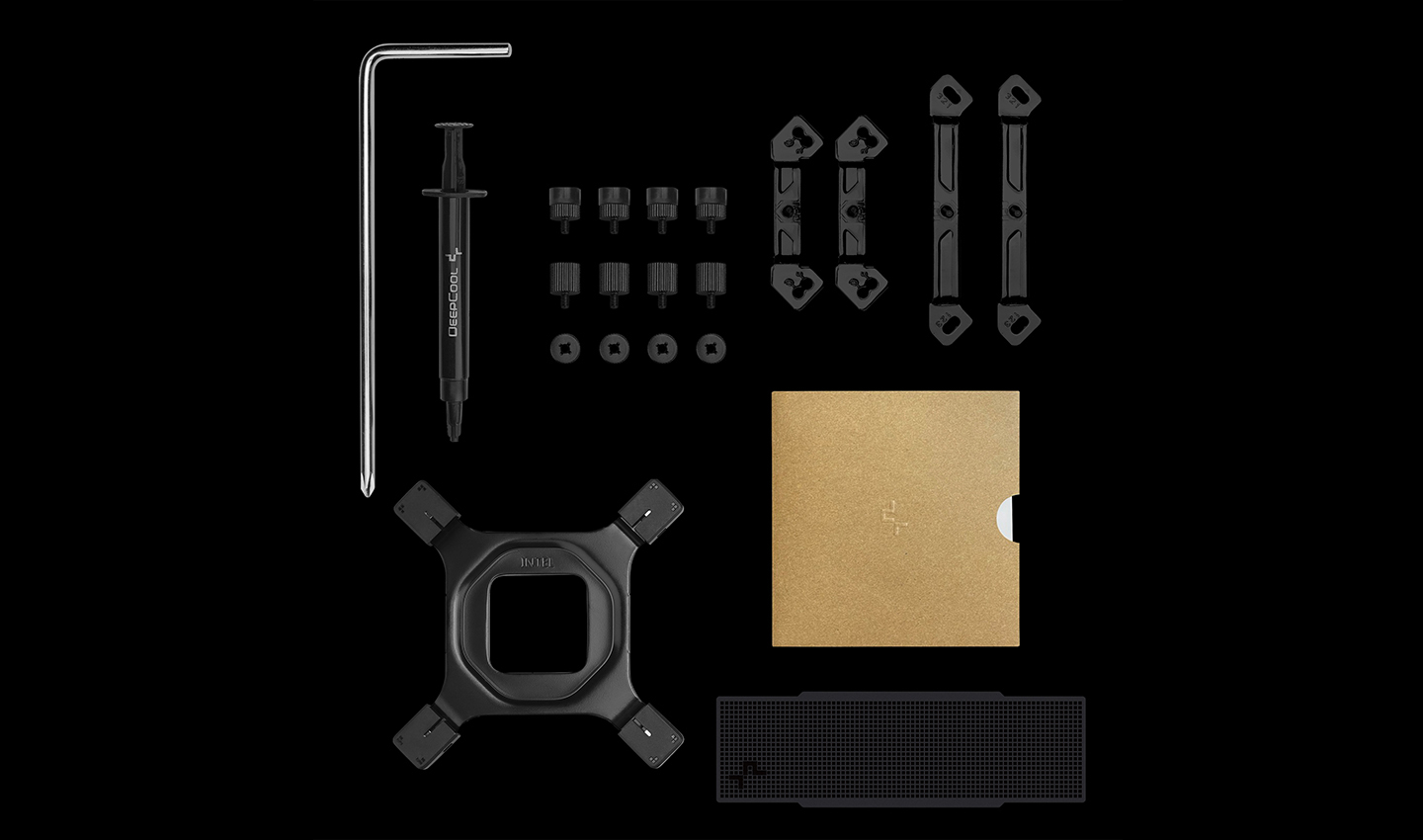

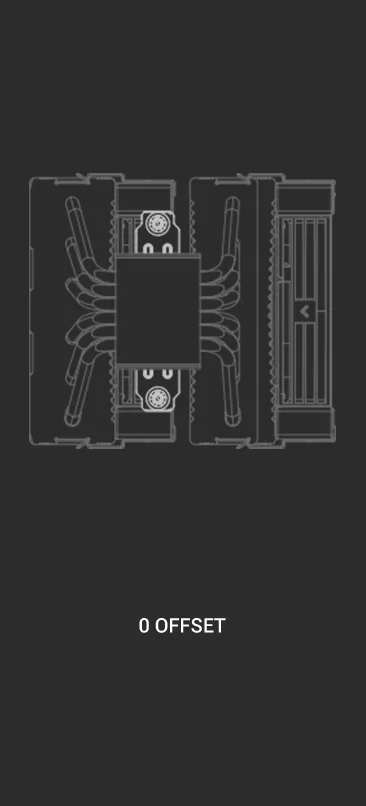

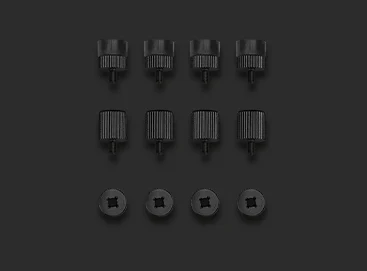

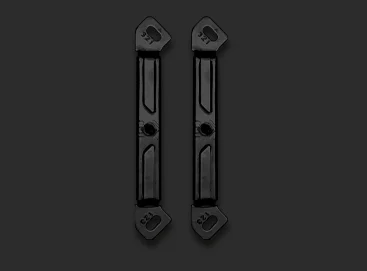

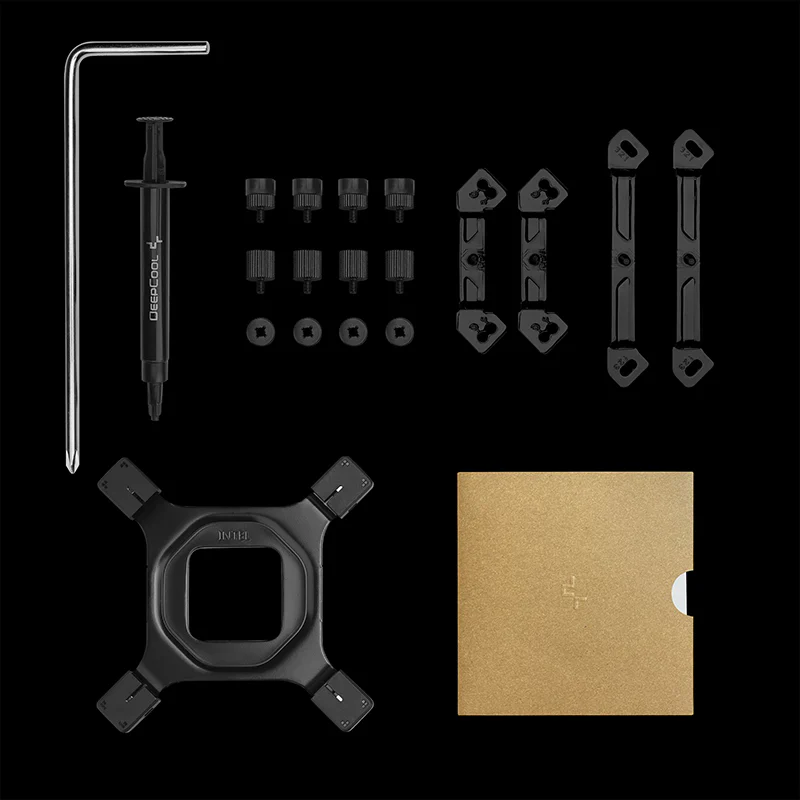

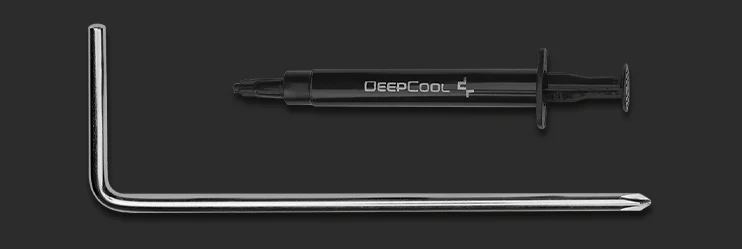

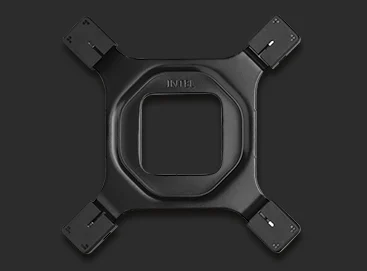

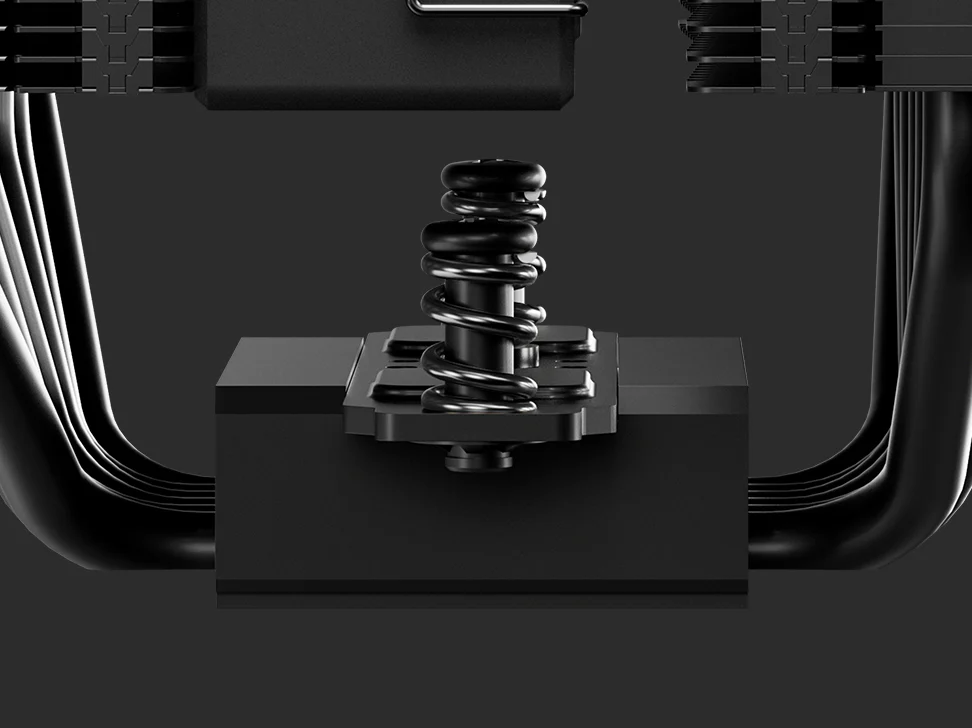

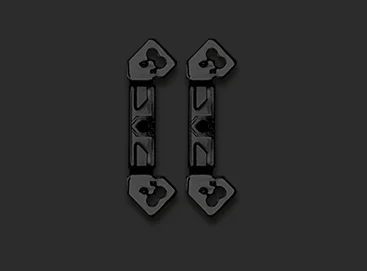

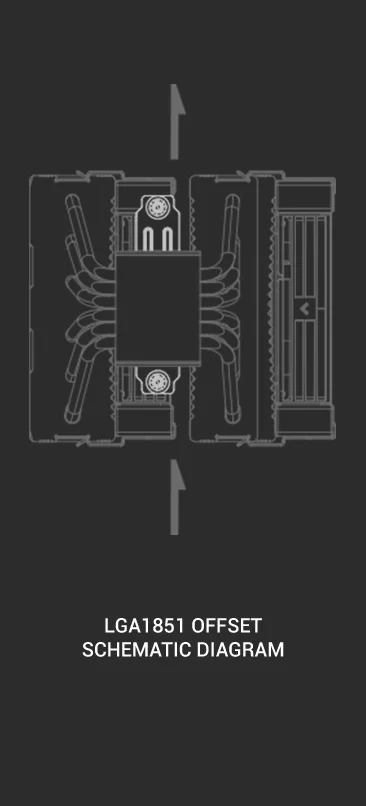

The all-metal mounting bracket kit ensures sturdy, easy installation on both Intel and AMD platforms, offers an offset mounting solution for multi-platform systems, and comes complete with additional tools.
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions125×144×159 mm(L×W×H)
Heatsink Dimensions125×115×153 mm(L×W×H)
Net Weight1386 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed2000±10% RPM(max)
Fan Airflow57.76 CFM
Fan Air Pressure2.78 mmAq
Fan Noise≤28.87 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.19 A
Fan Power Consumption2.28 W
EAN6933412729693
P/NR-AK620G2-BKNNMN-GJD
Download
AK620 G2 Manual.pdf
