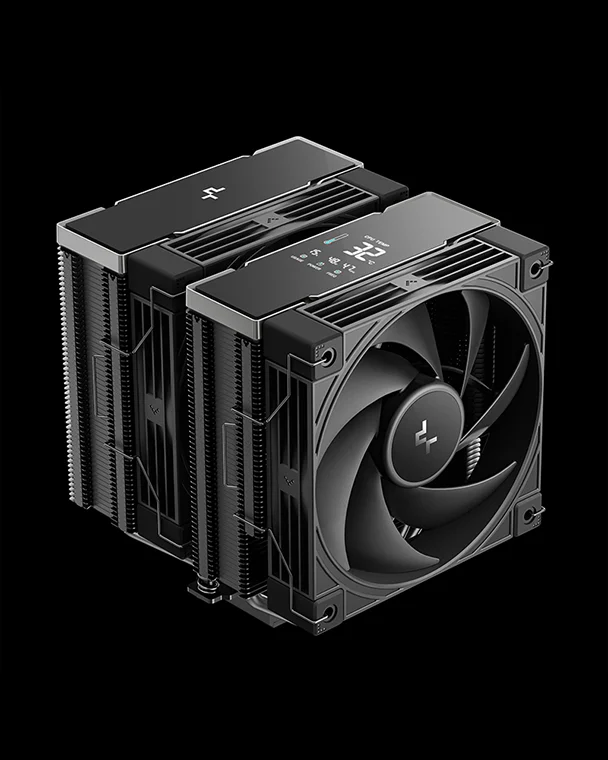

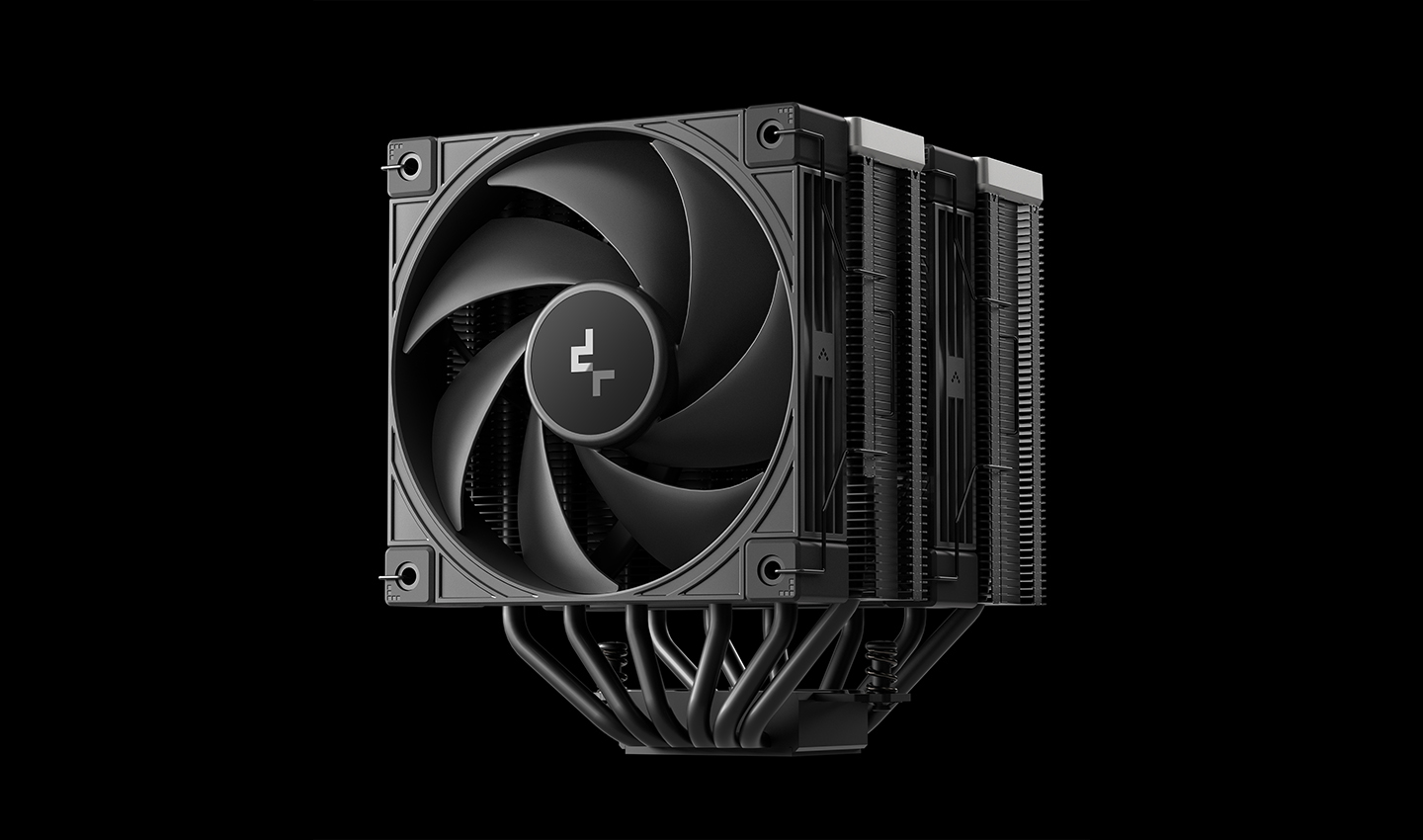

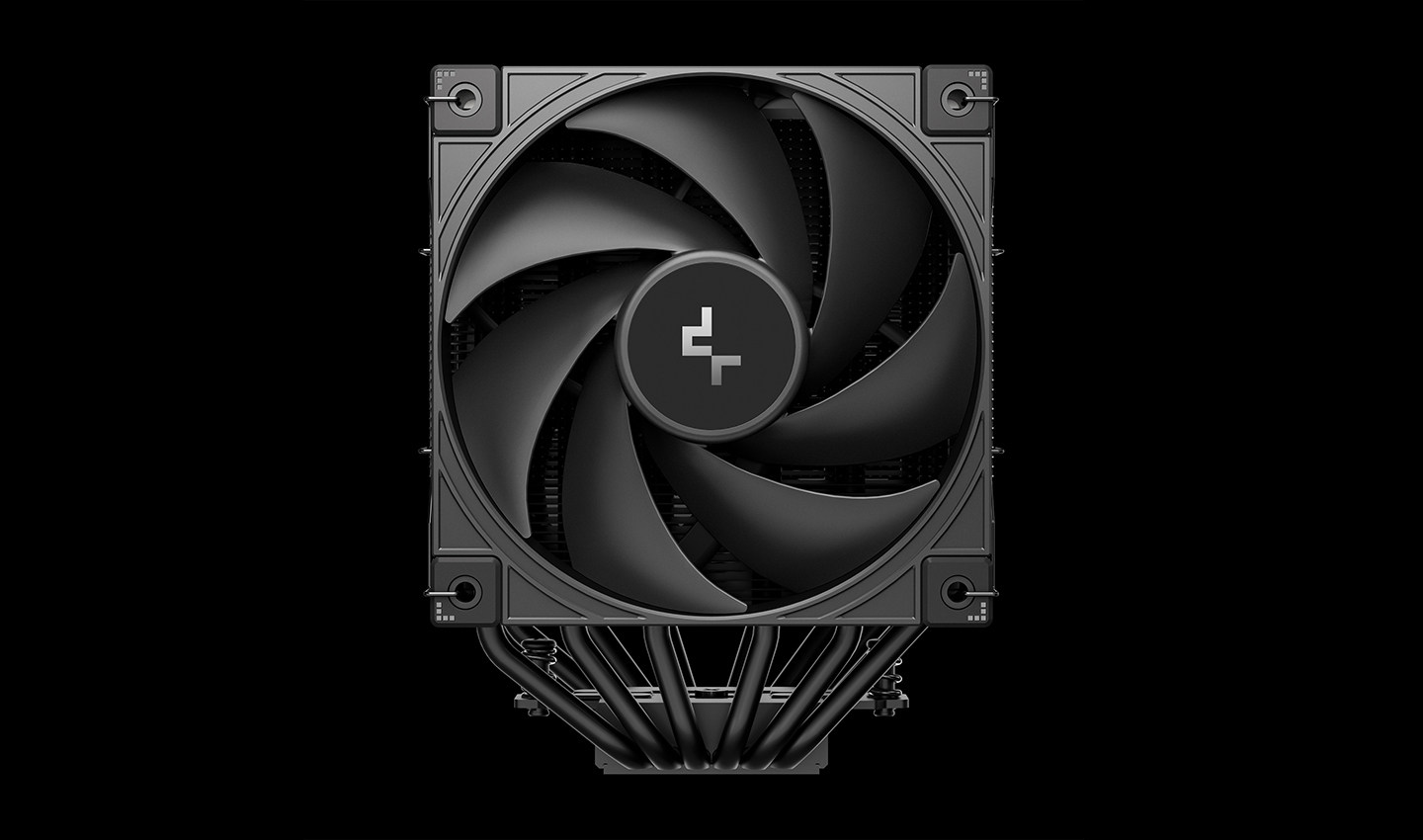

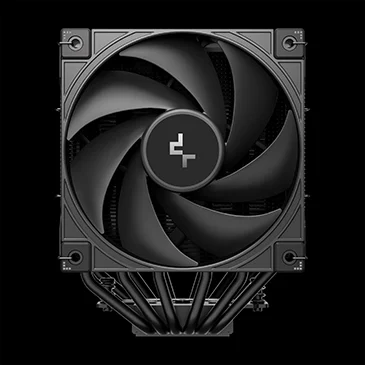

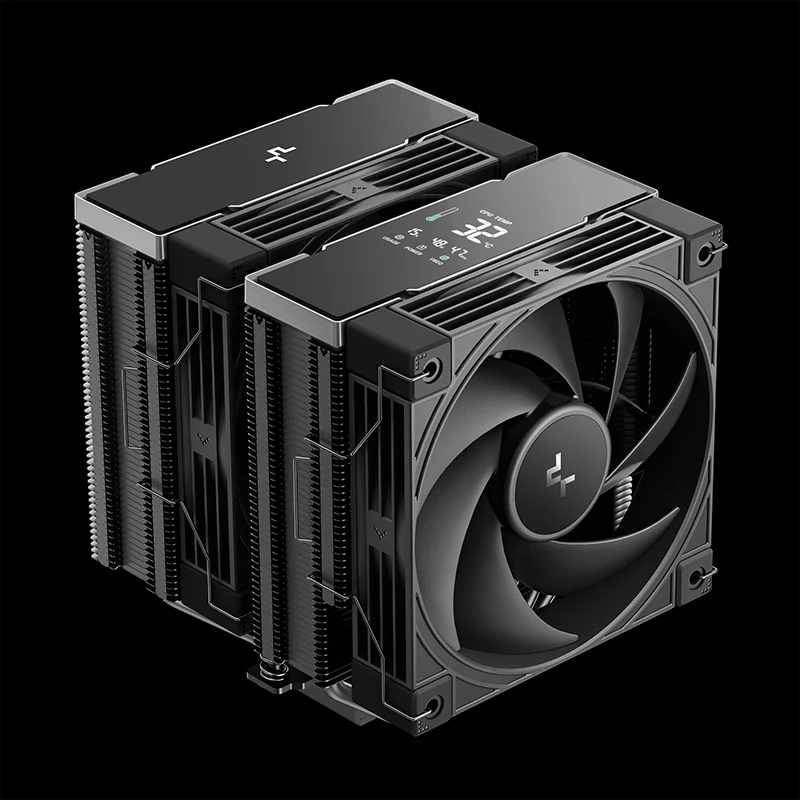

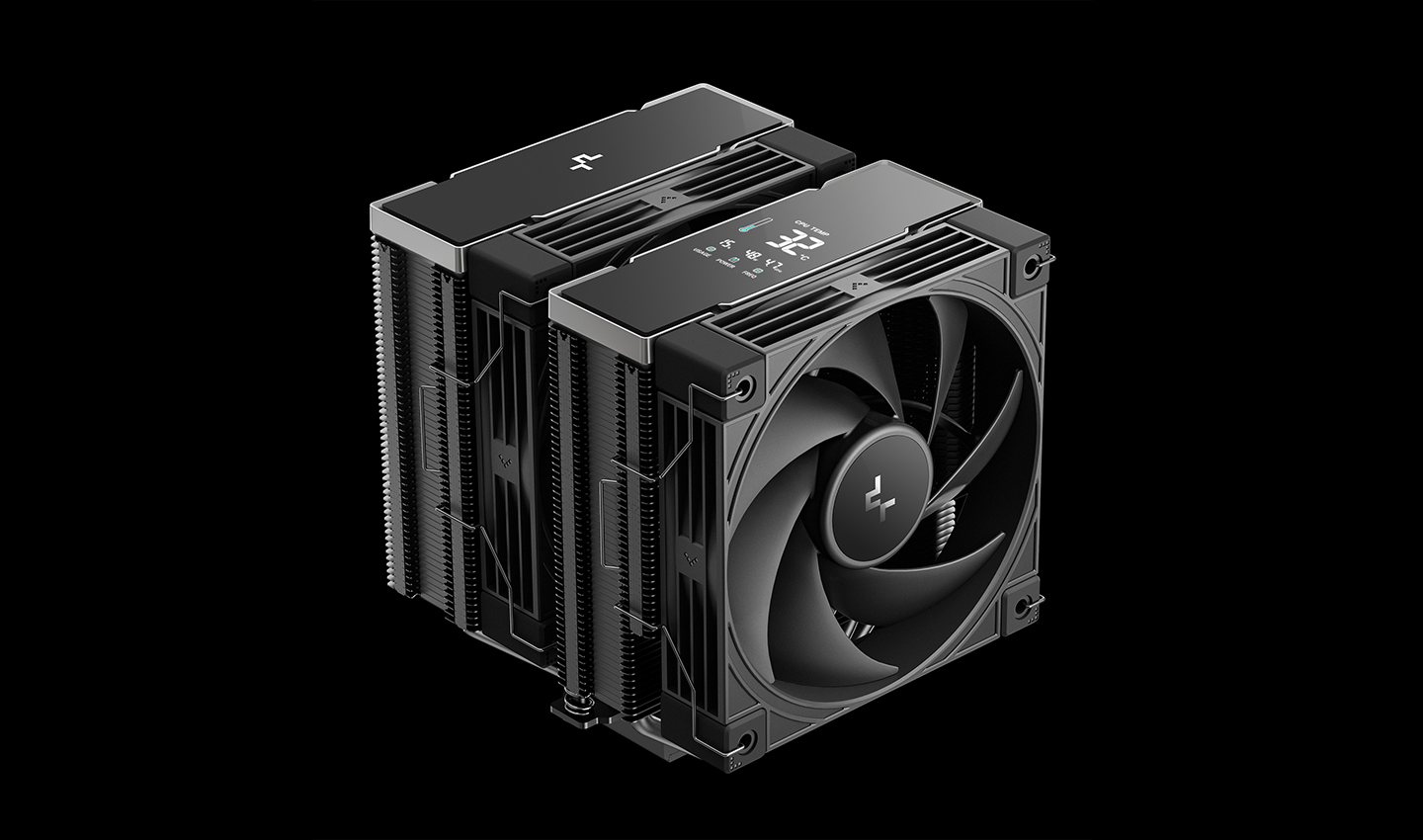

AK620 G2 DIGITAL NYX
Further improved second generation of the iconic AK DIGITAL lineup with upgraded performance and a bold new aesthetic. It features six advanced copper heat pipes, a dense dual-tower heatsink, newly designed silent fans, and now sports a high-end quad-segmented digital display that delivers elite cooling backed by upgraded tech and real-time insight.
MODEL
AK620 G2 DIGITAL NYX
CRAFTED TO ELEVATE
AI-TUNED CHILL. POWERED BY DeepCreative

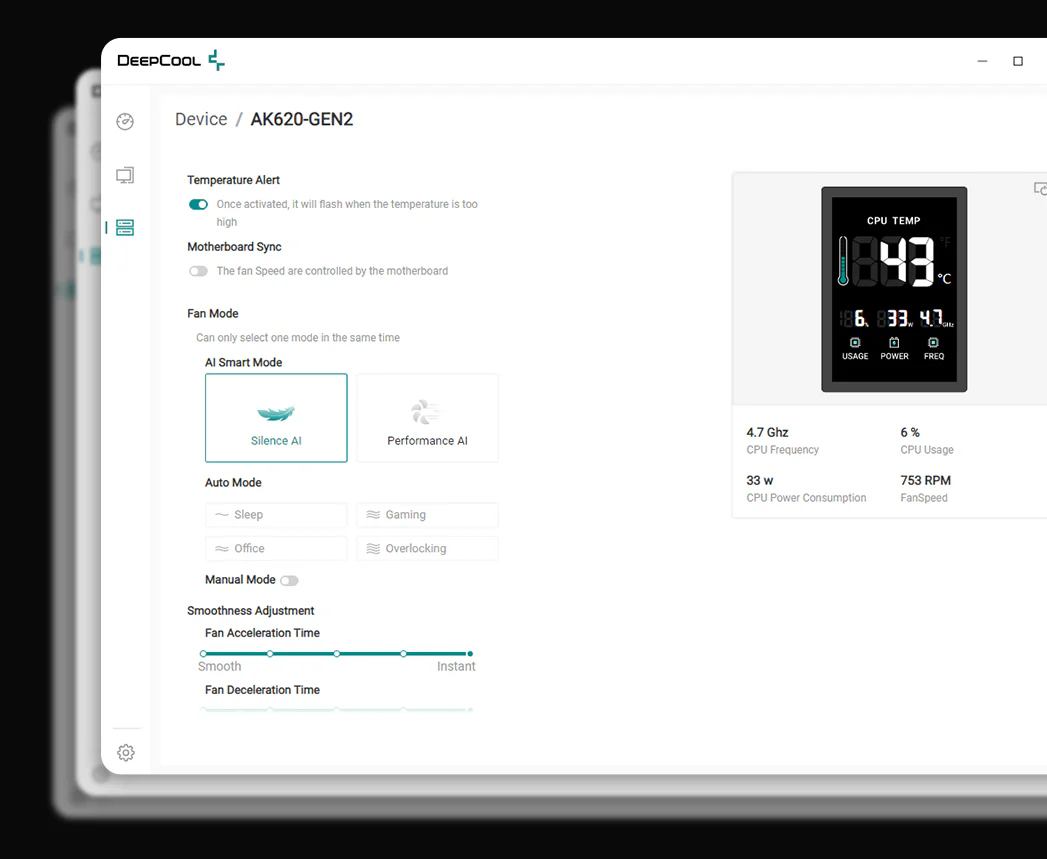

With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
*Fans instantly shift to full speed when CPU hits above 80 °C, crushing heat without delay Fans automatic revert to preset mode once the CPU temp drops below 80 °C
Silence AI Mode:
Automatically balances Quiet and Performance based on load
Performance AI Mode:
Automatically balances Quiet and Performance based on load
Sleep Mode:
Ultra-quiet (0–20 dBA) for noise-sensitive environments
Office Mode:
Silent-focused (20–25 dBA) for productivity
Gaming Mode:
Balanced performance and sound (25–33 dBA)
Overclocking Mode:
Unlocks the full potential of your system (25–40 dBA)

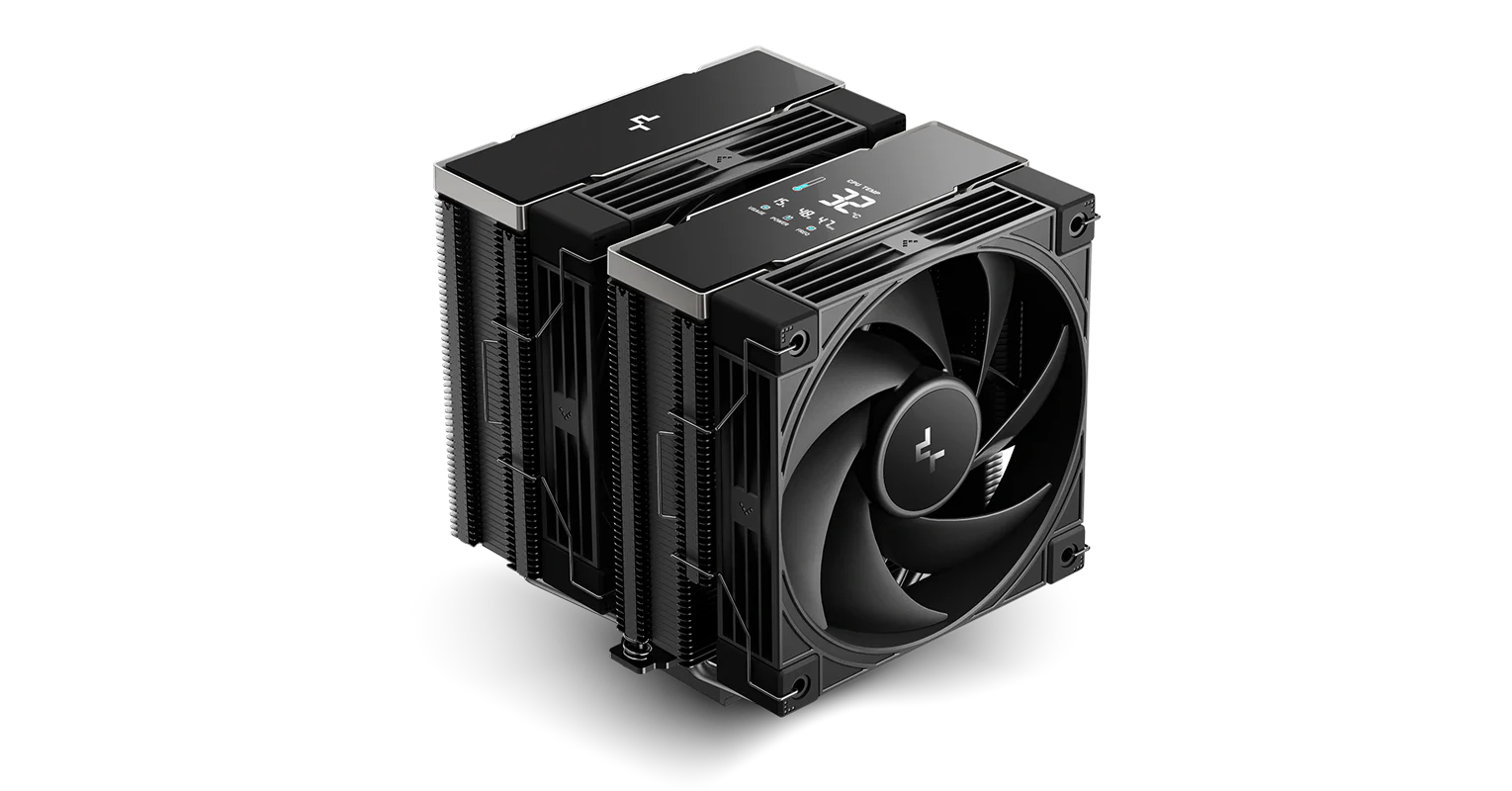

NEXT GENERATION PERFORMANCE

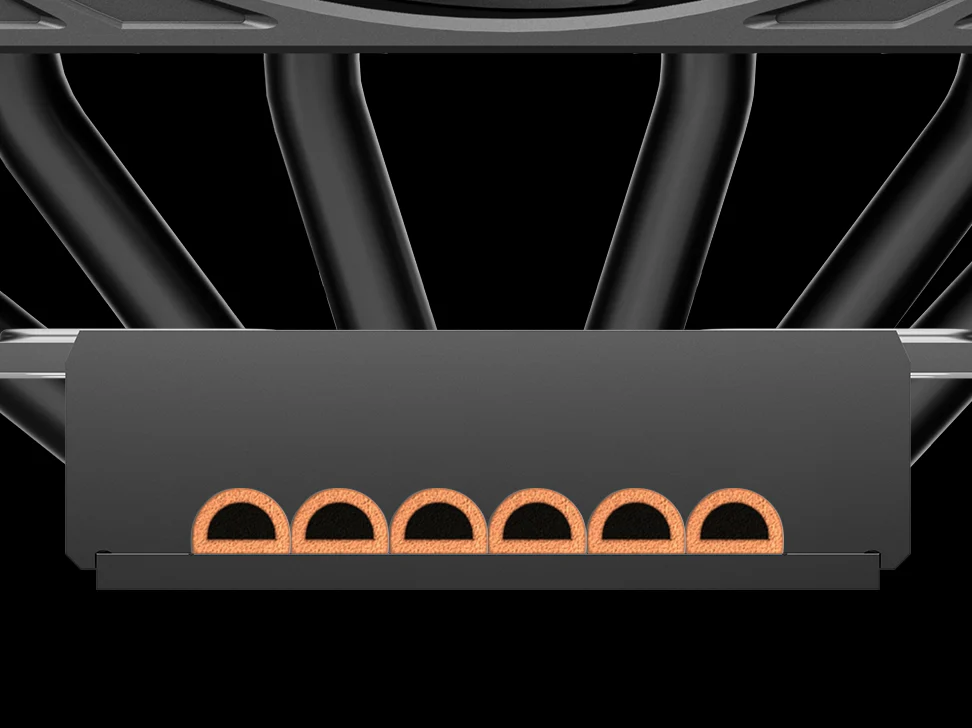

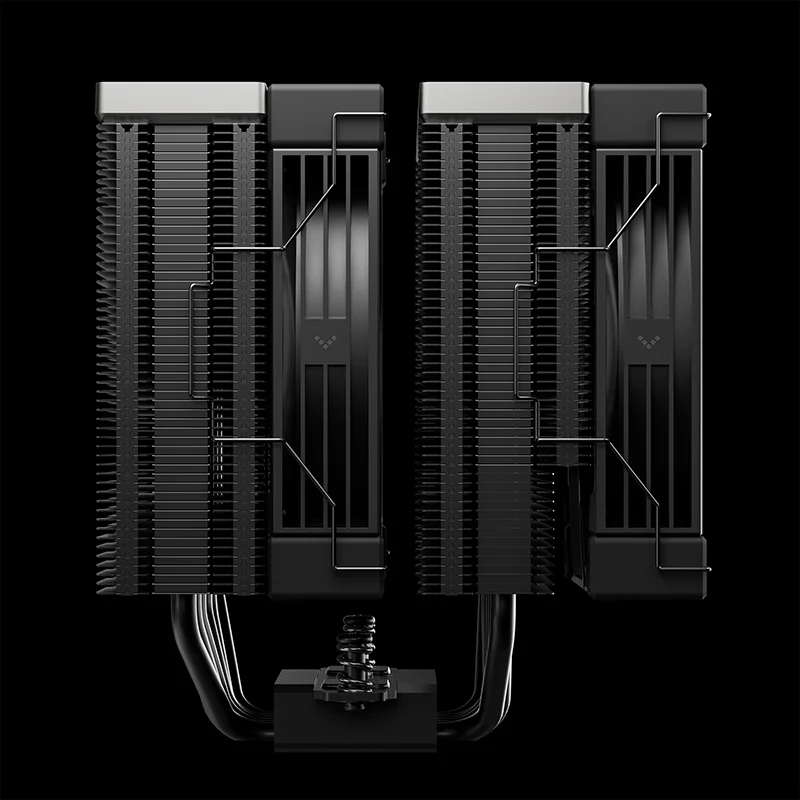

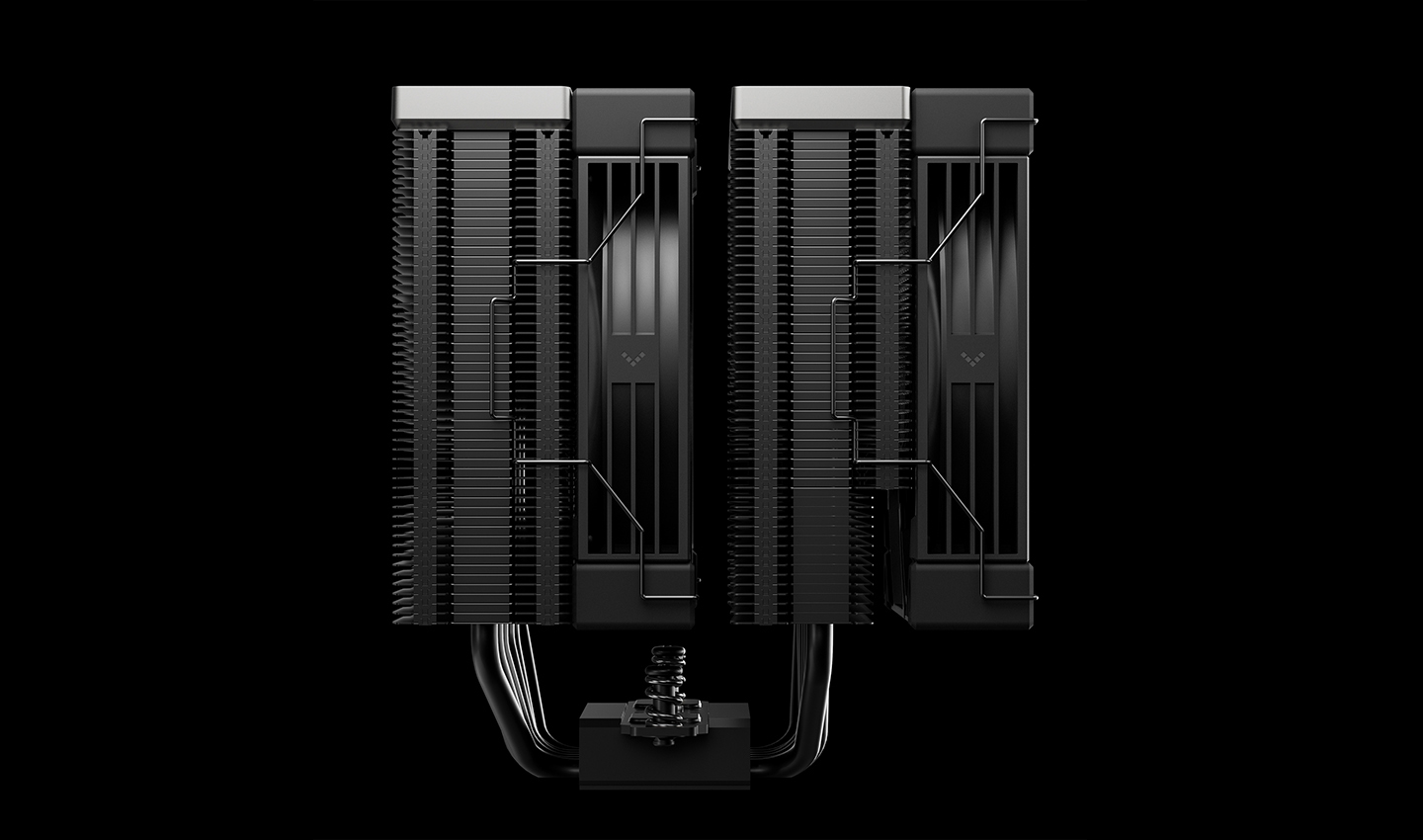

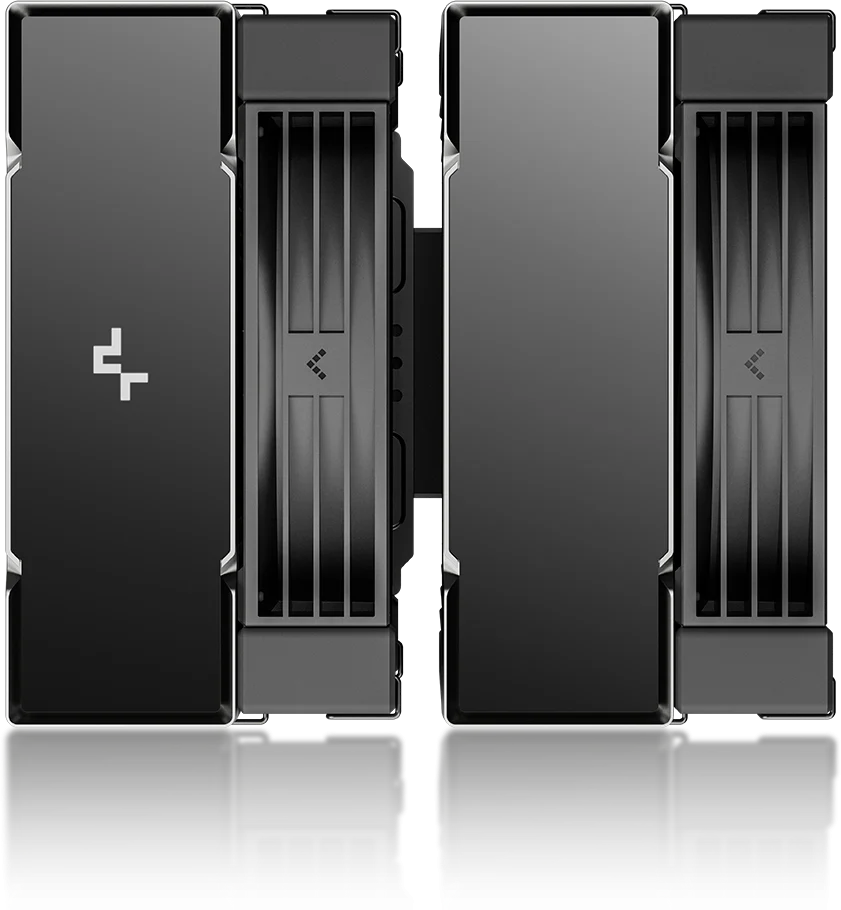

Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK620 G2 DIGITAL NYX combines improved performance with a slightly smaller size compared to its predecessor.
THE DIGITAL TOUCH

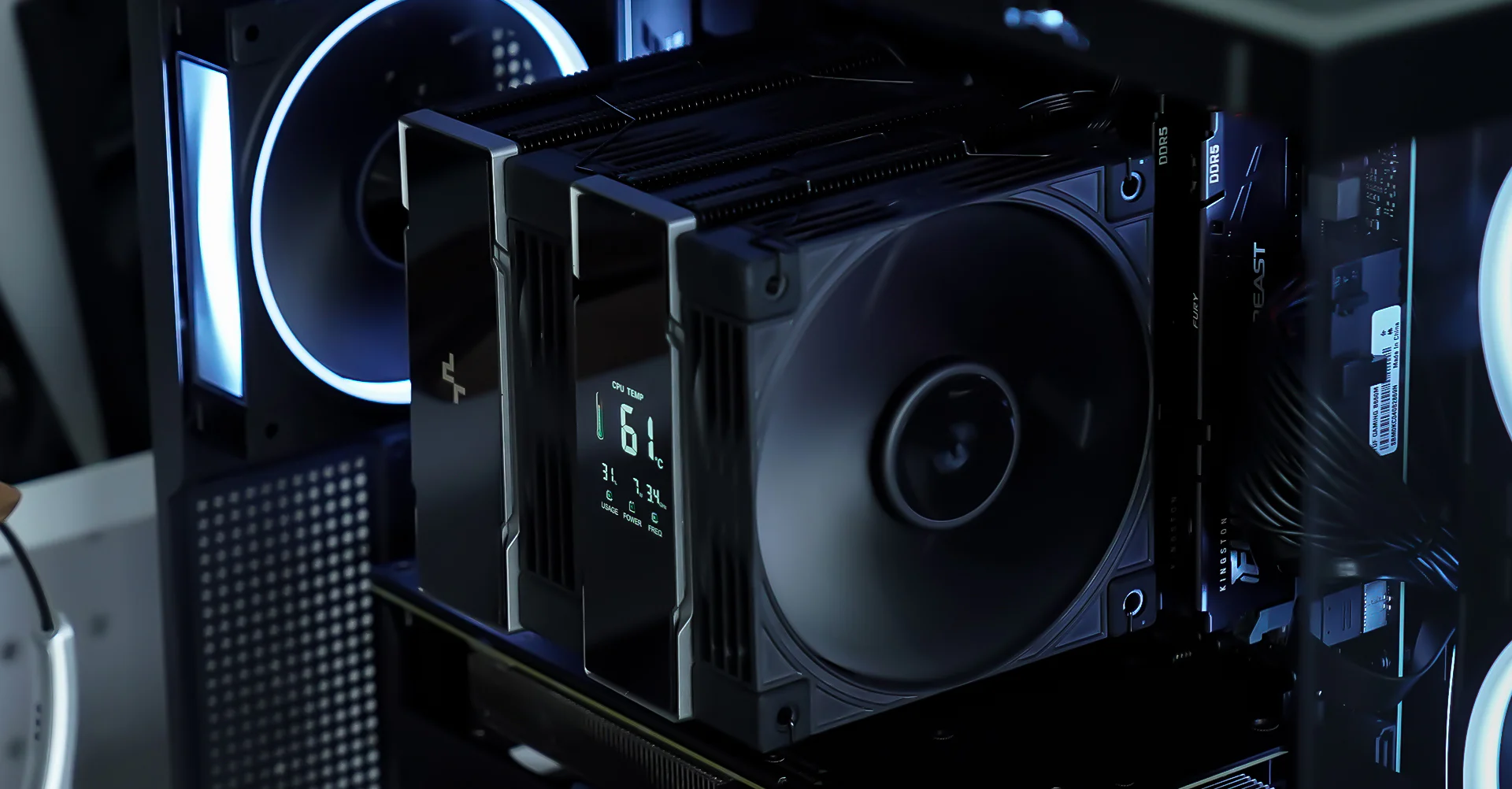

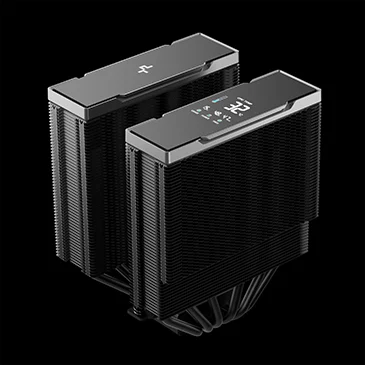

The standout addition of the AK620 G2 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
℃
℉
*Visual Temperature Alert System Included

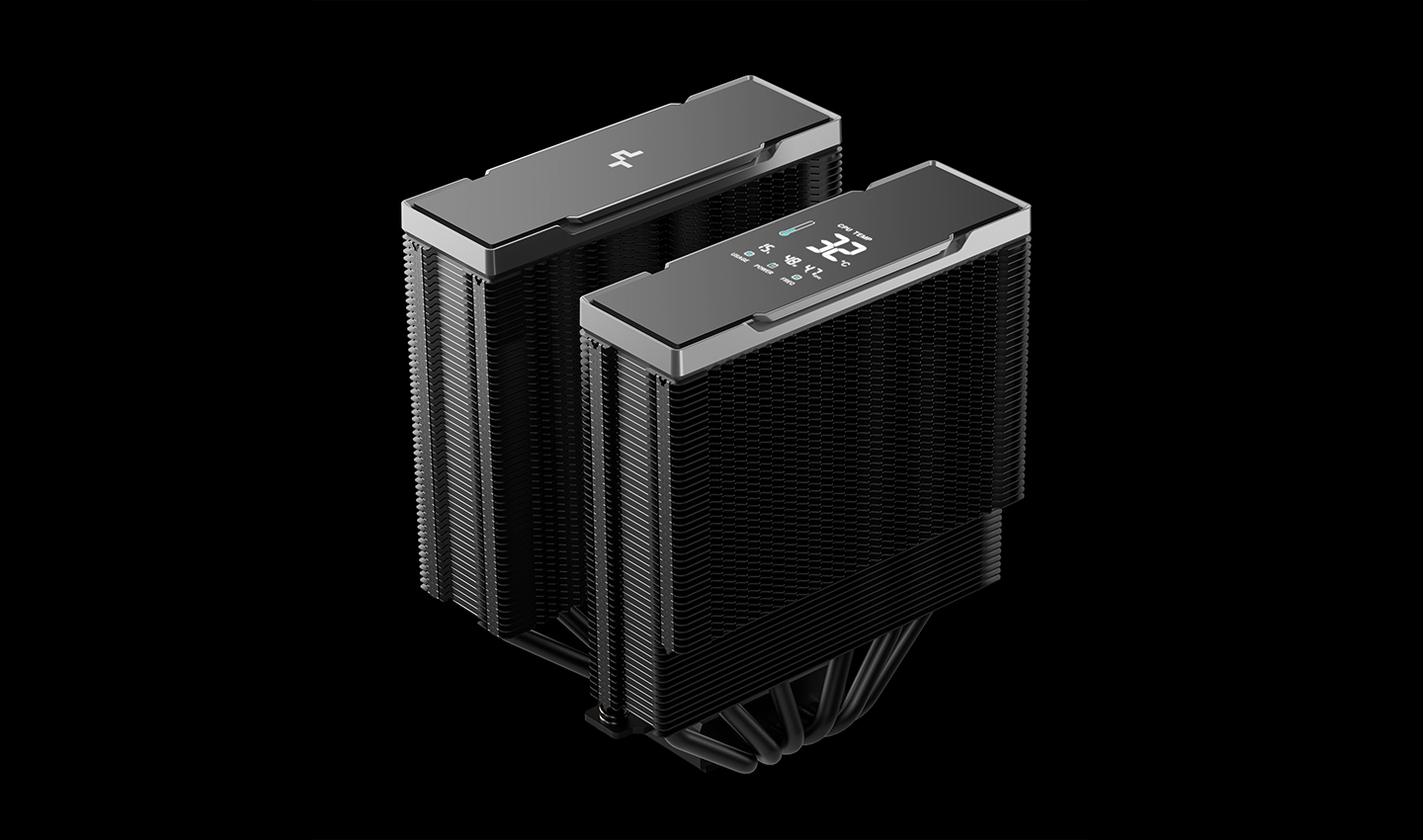

PROVEN AK DESIGN

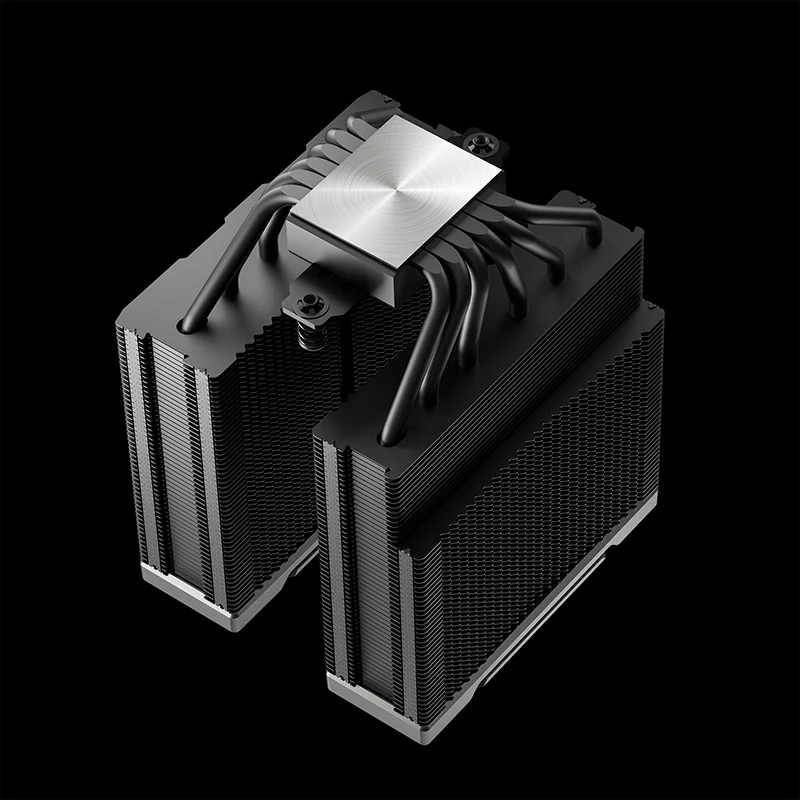

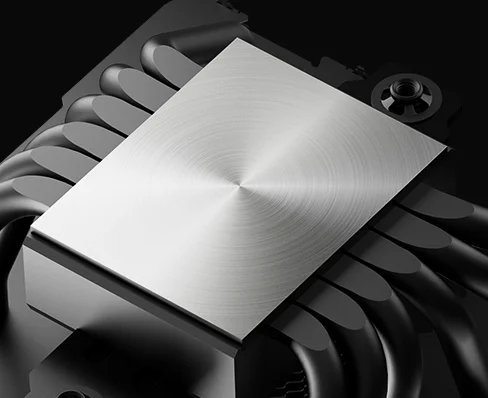

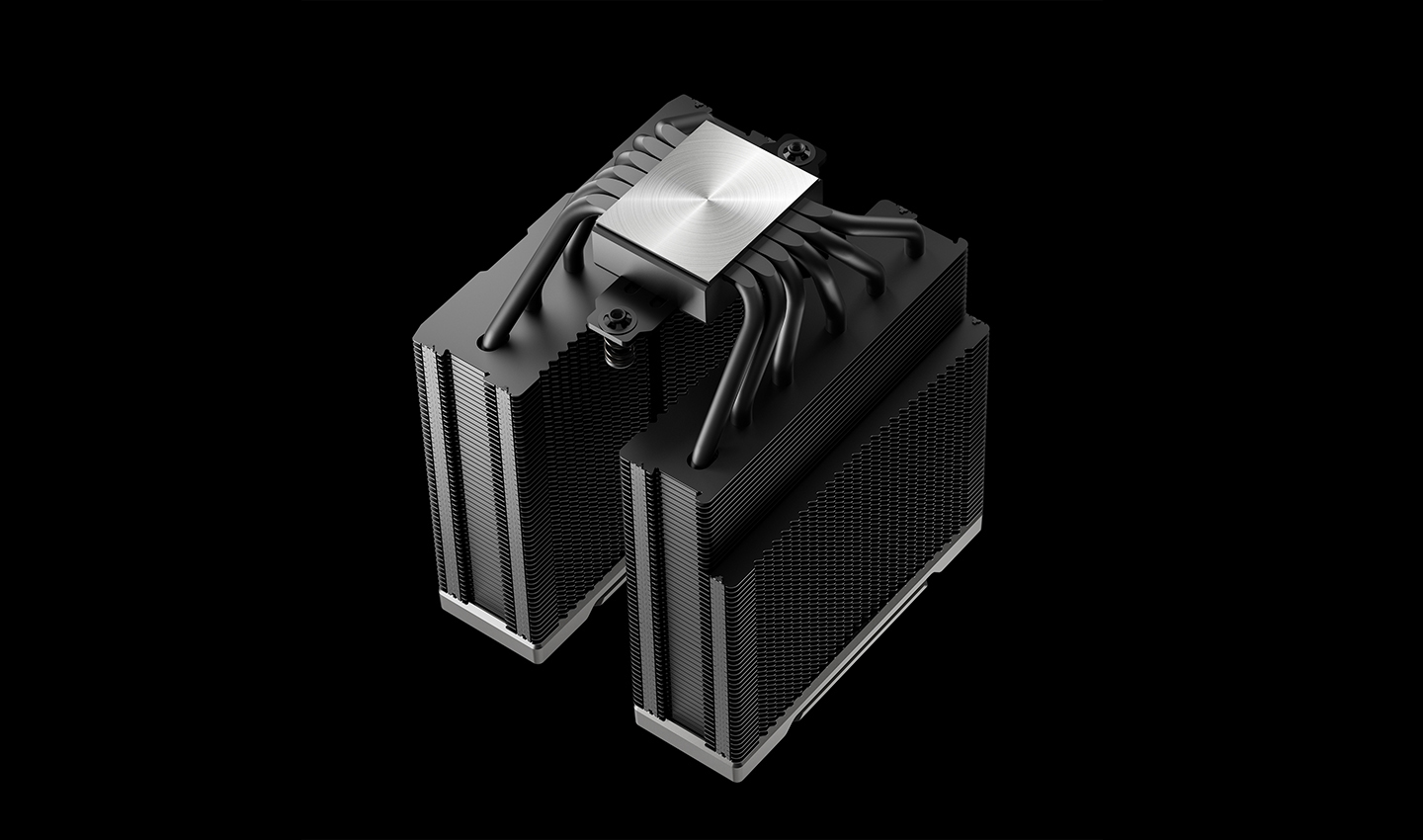

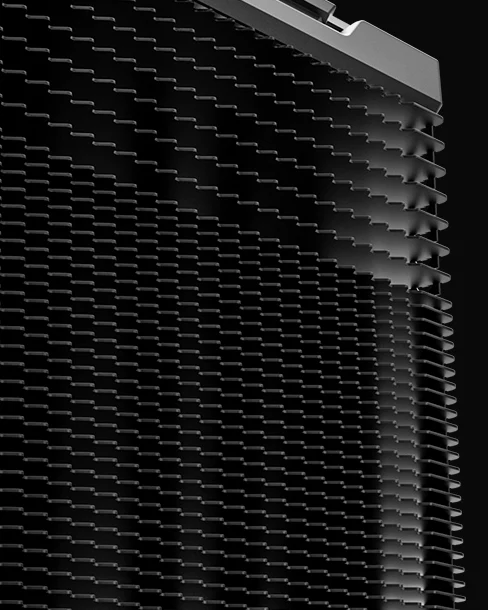

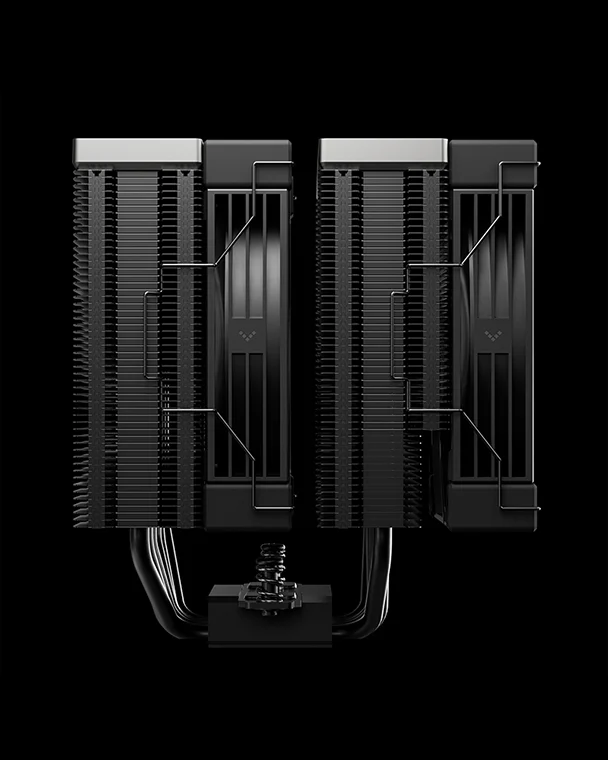

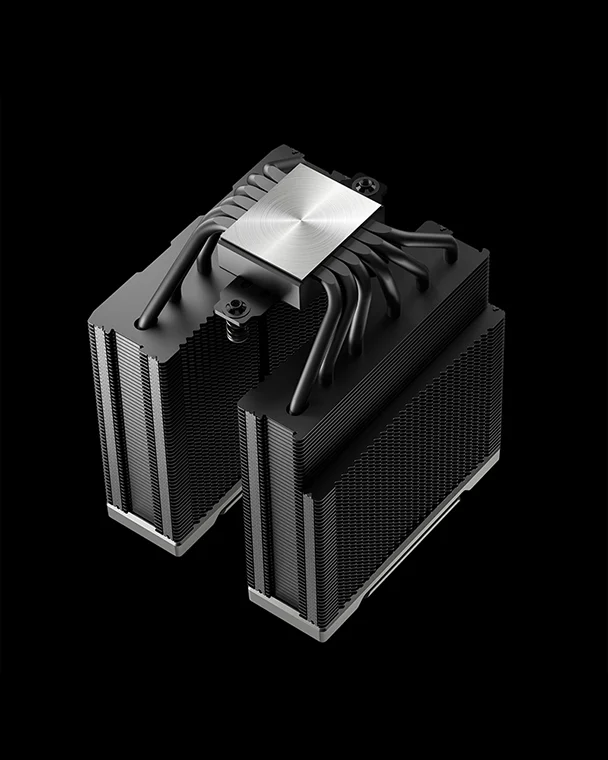

The AK620 G2 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and six copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.

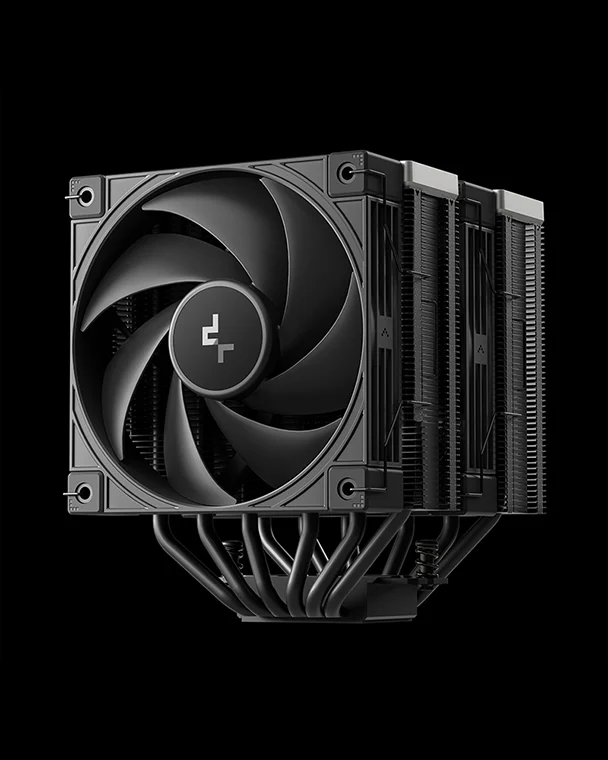

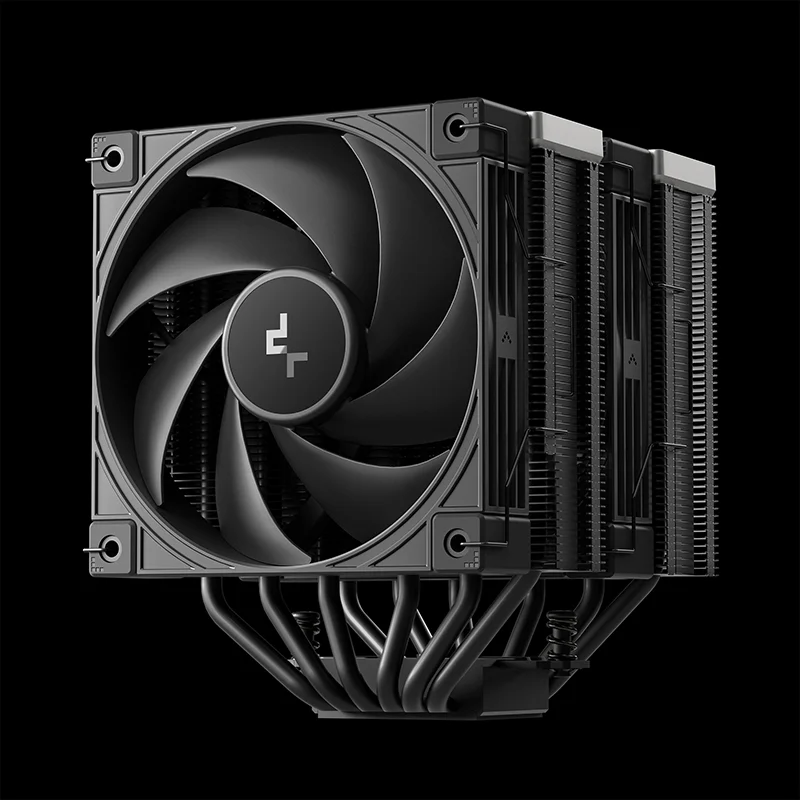

COOL, QUIET, AND POWERFUL

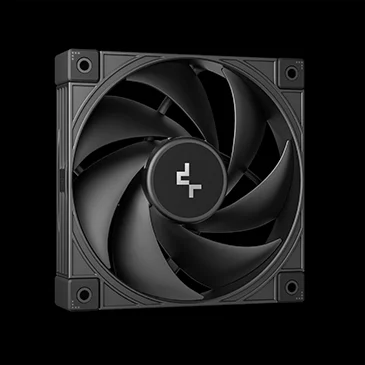

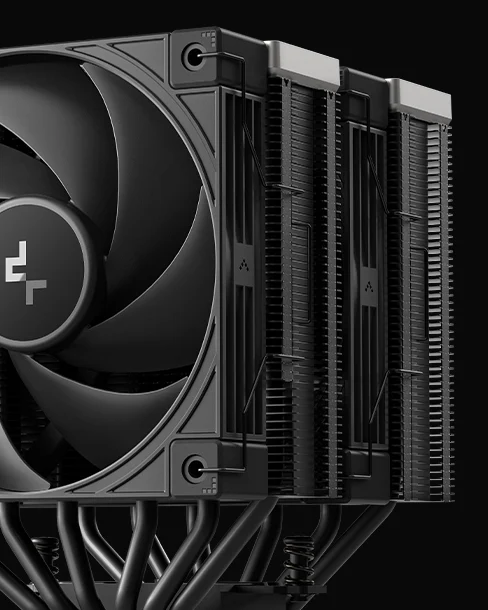

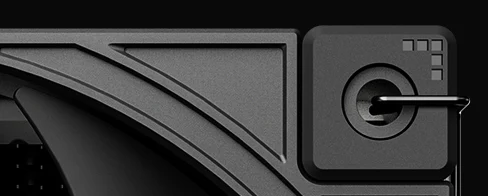

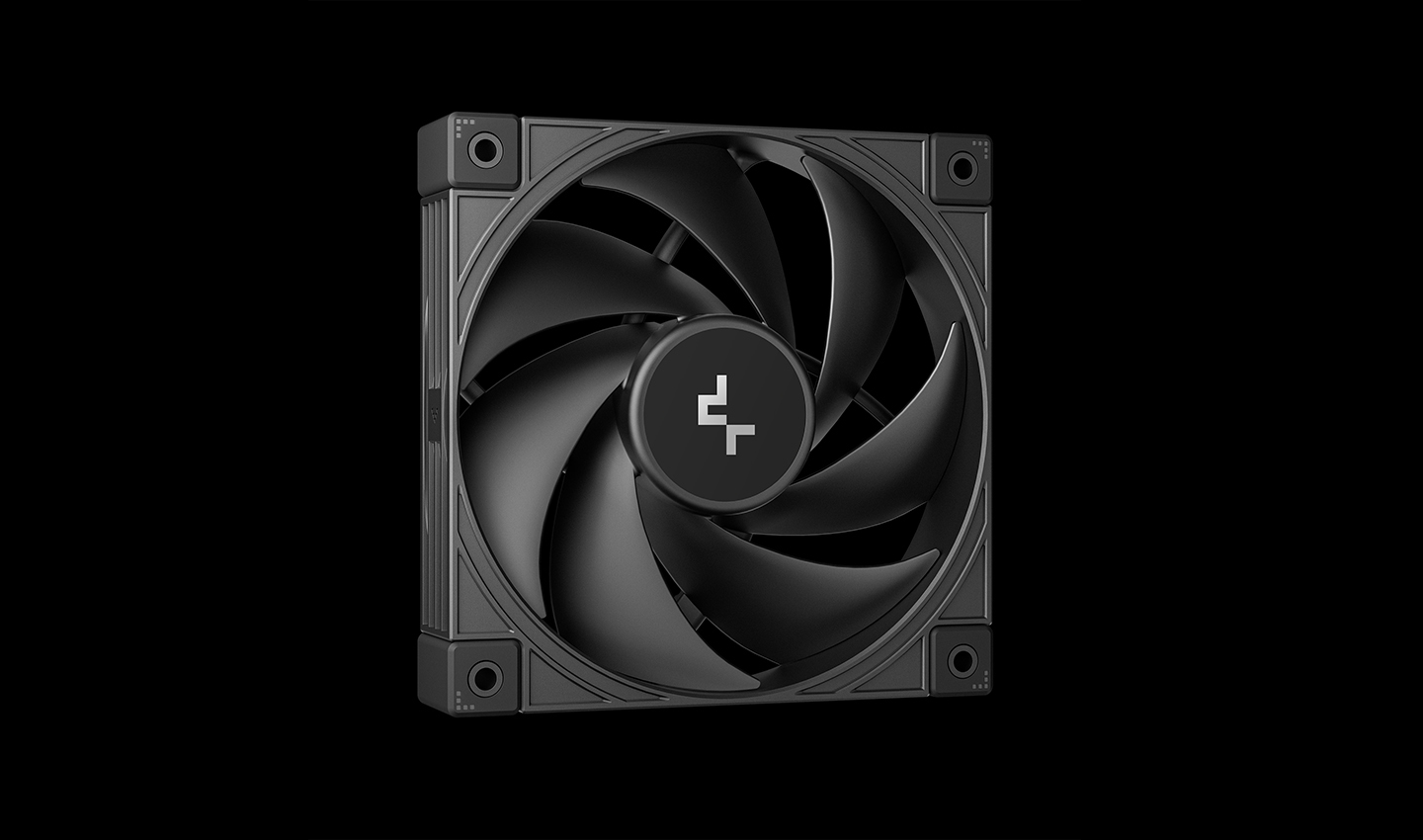

Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK620 G2 DIGITAL NYX's fans operate smoothly and quietly.
1. 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.

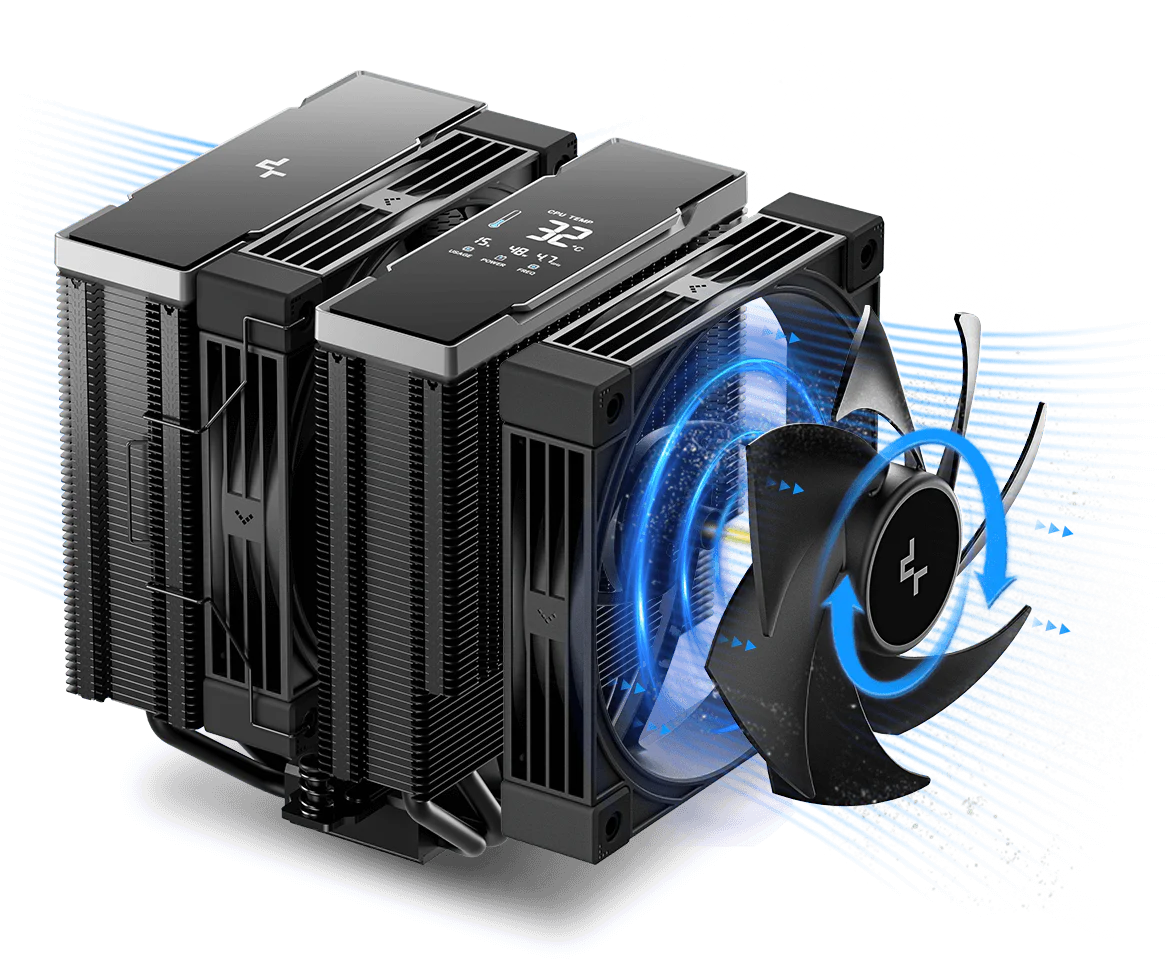

2. Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
28.87 dBA
Full load noise
2000±10%PRM
Fan Speed
0 RPM＜5% PWM
Dynamic PWM Range
3 Years
Limited Warranty Coverage
MULTI-PLATFORM PERFORMANCE

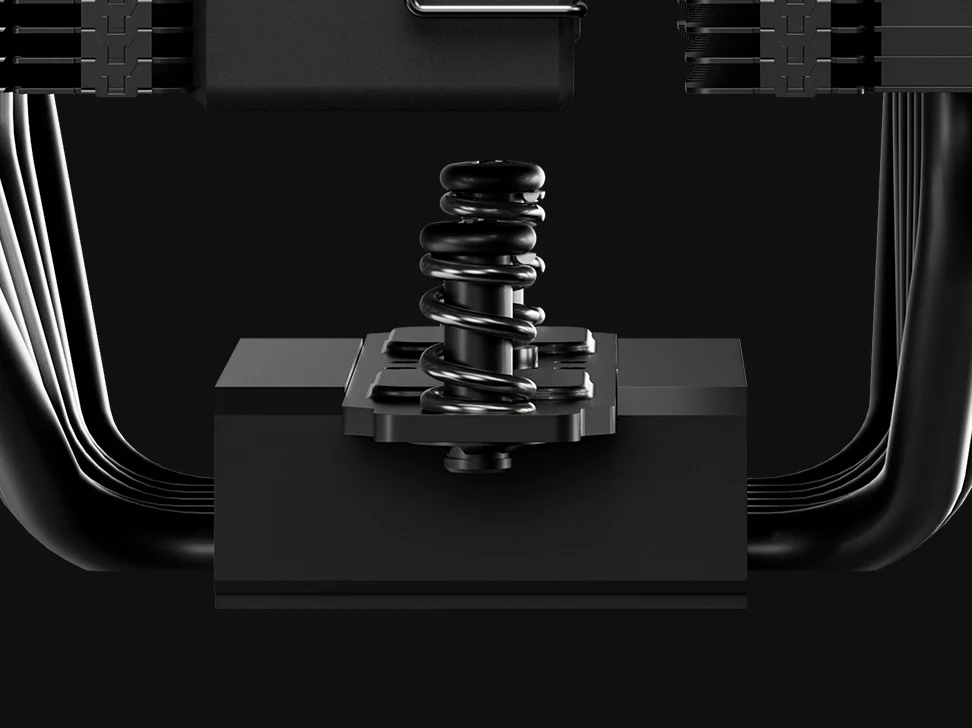

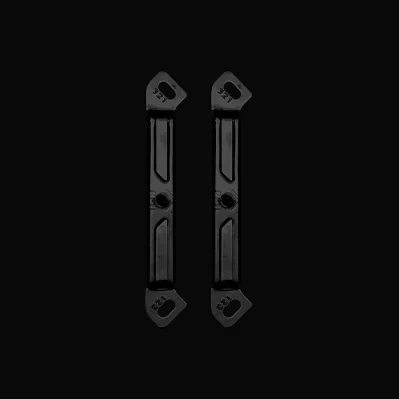

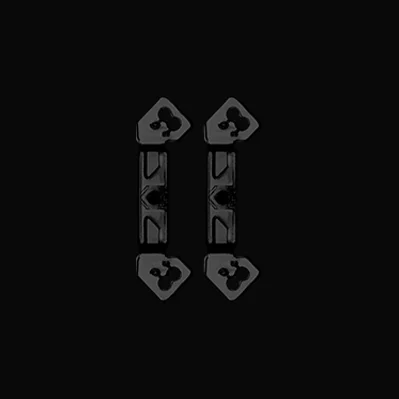

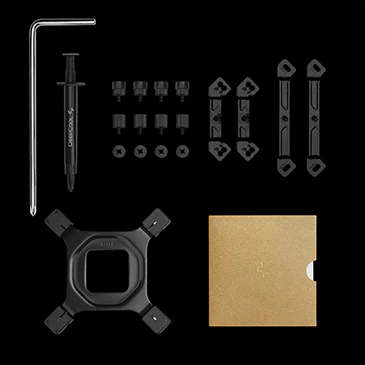

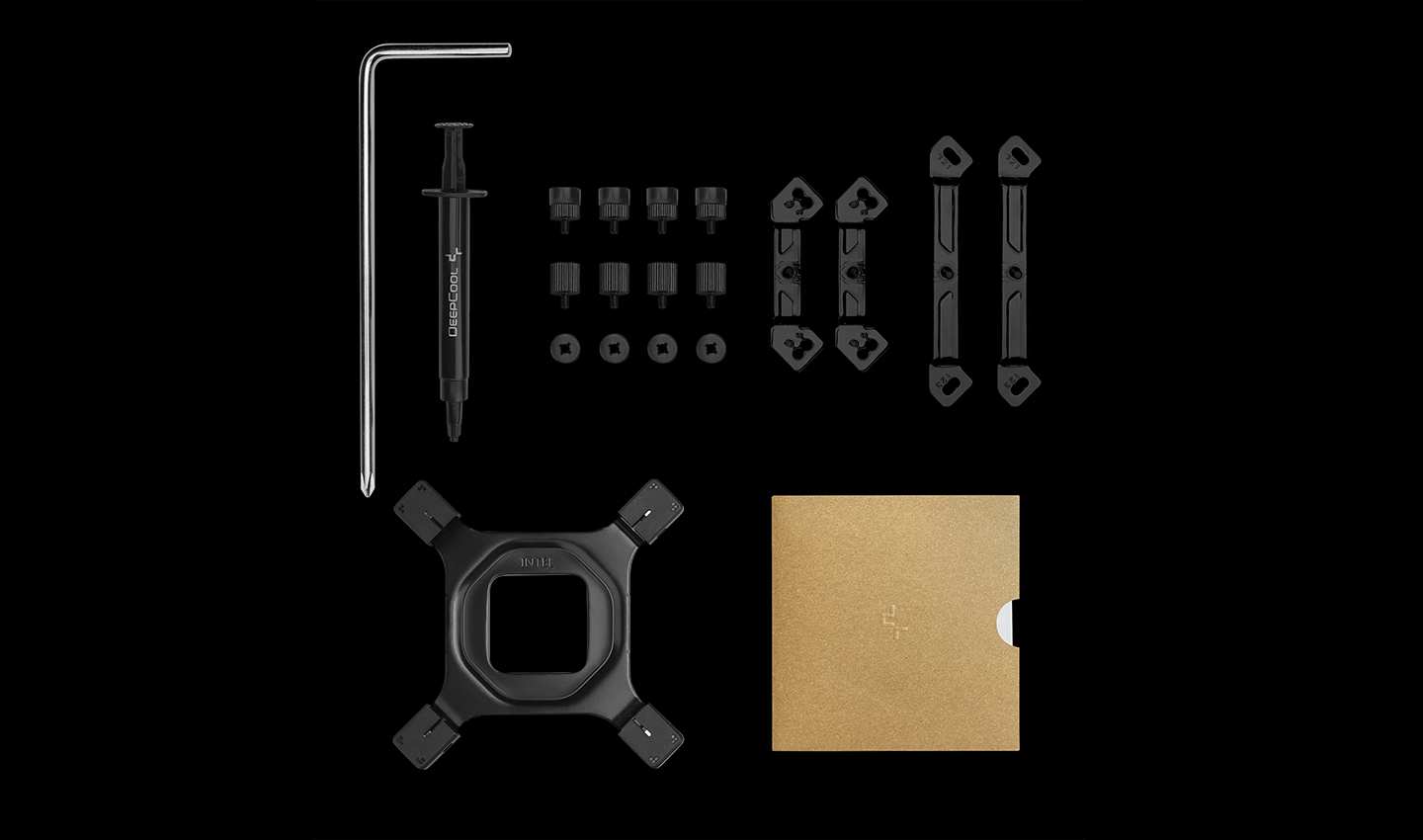

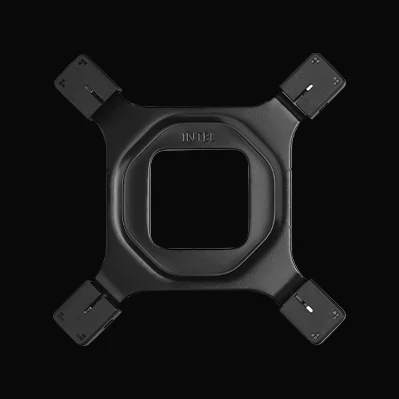

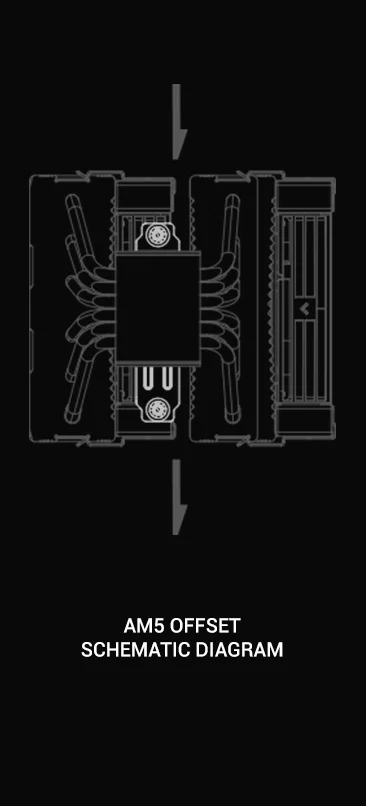

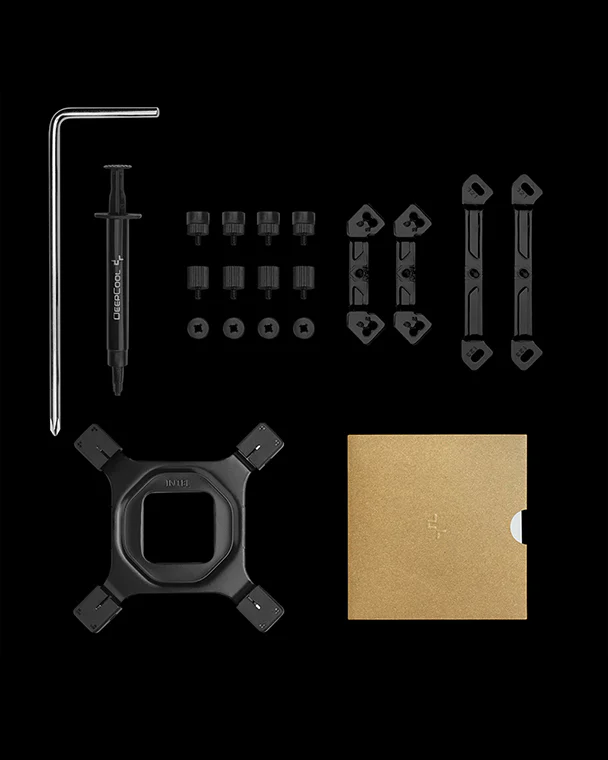

The all-metal mounting bracket kit ensures sturdy, easy installation on both Intel and AMD platforms, offers an offset mounting solution for multi-platform systems, and comes complete with additional tools.
Application For
Intel
LGA1851/1700/1200/115X
AMD
AM5/AM4
Technical Spec
Product Dimensions125×144×159 mm(L×W×H)
Heatsink Dimensions125×115×153 mm(L×W×H)
Net Weight1386 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed2000±10% RPM(max)
Fan Airflow57.76 CFM
Fan Air Pressure2.78 mmAq
Fan Noise≤28.87 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.19 A
Fan Power Consumption2.28 W
Display Module Rated Current0.13 A±10%
Display Module Rated Voltage5 VDC
Display Module Power Consumption0.65 W
Display Area29x39 mm
EAN6933412729716
P/NR-AK620G2-BKNNMN-GJD-1
