AK400 WH

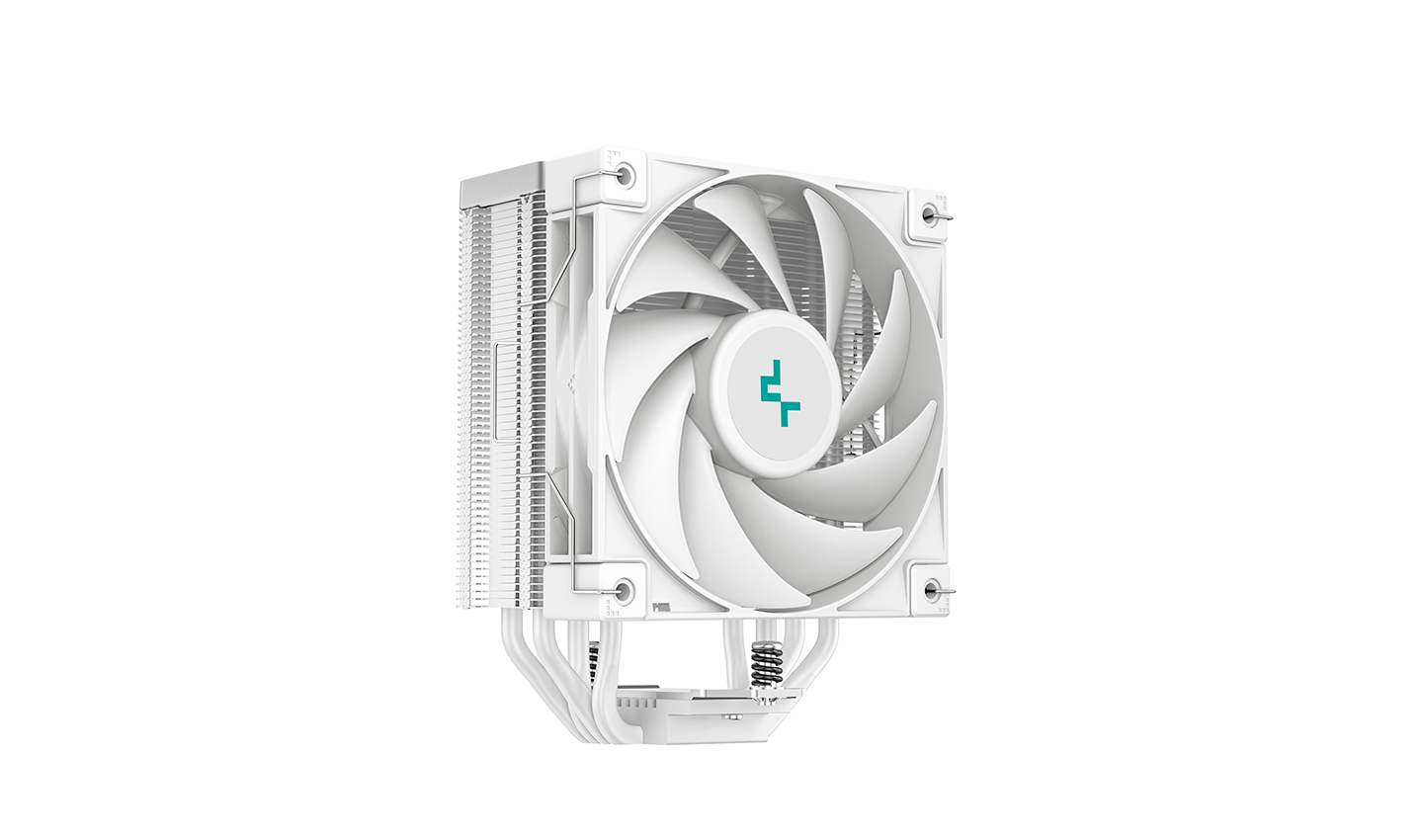

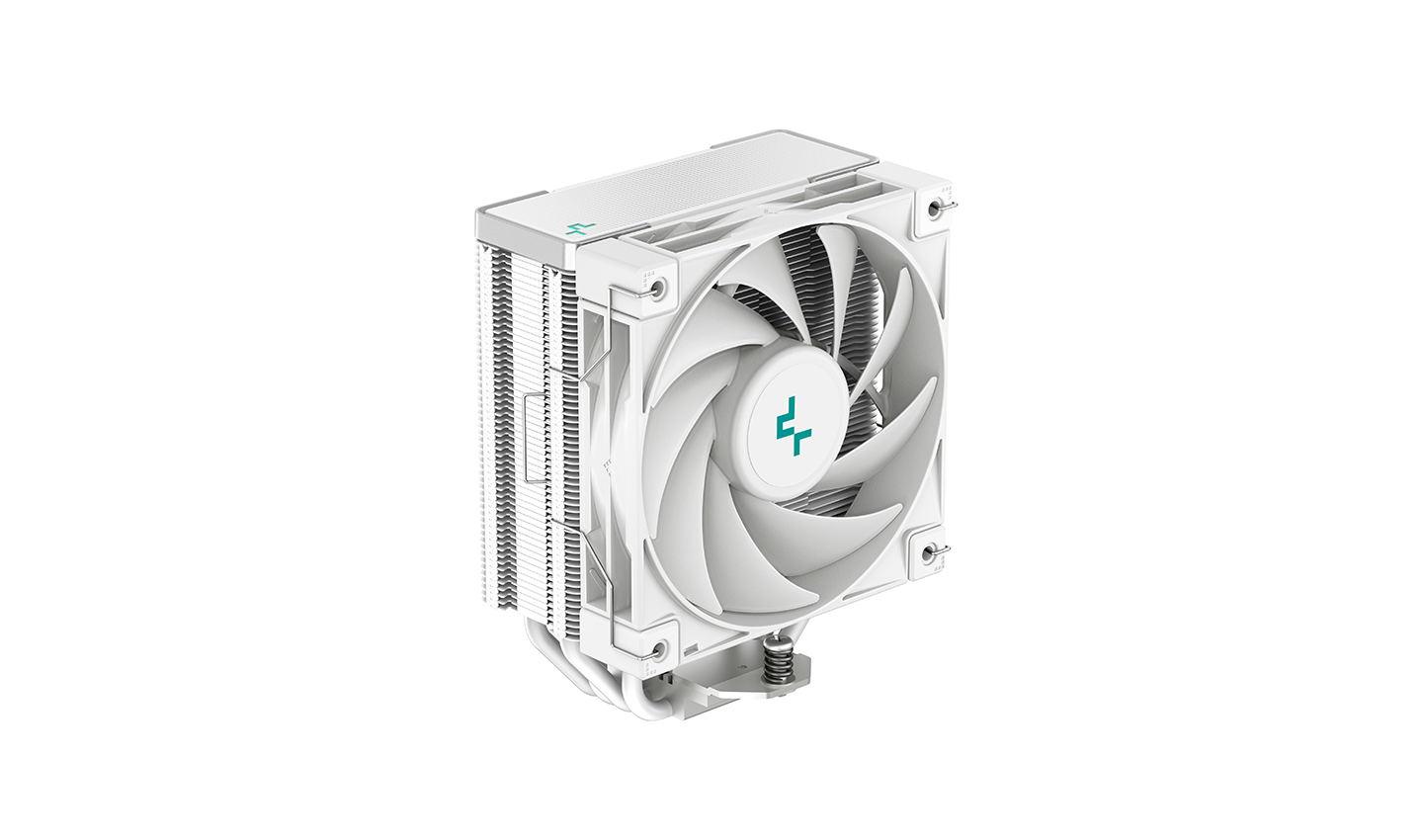

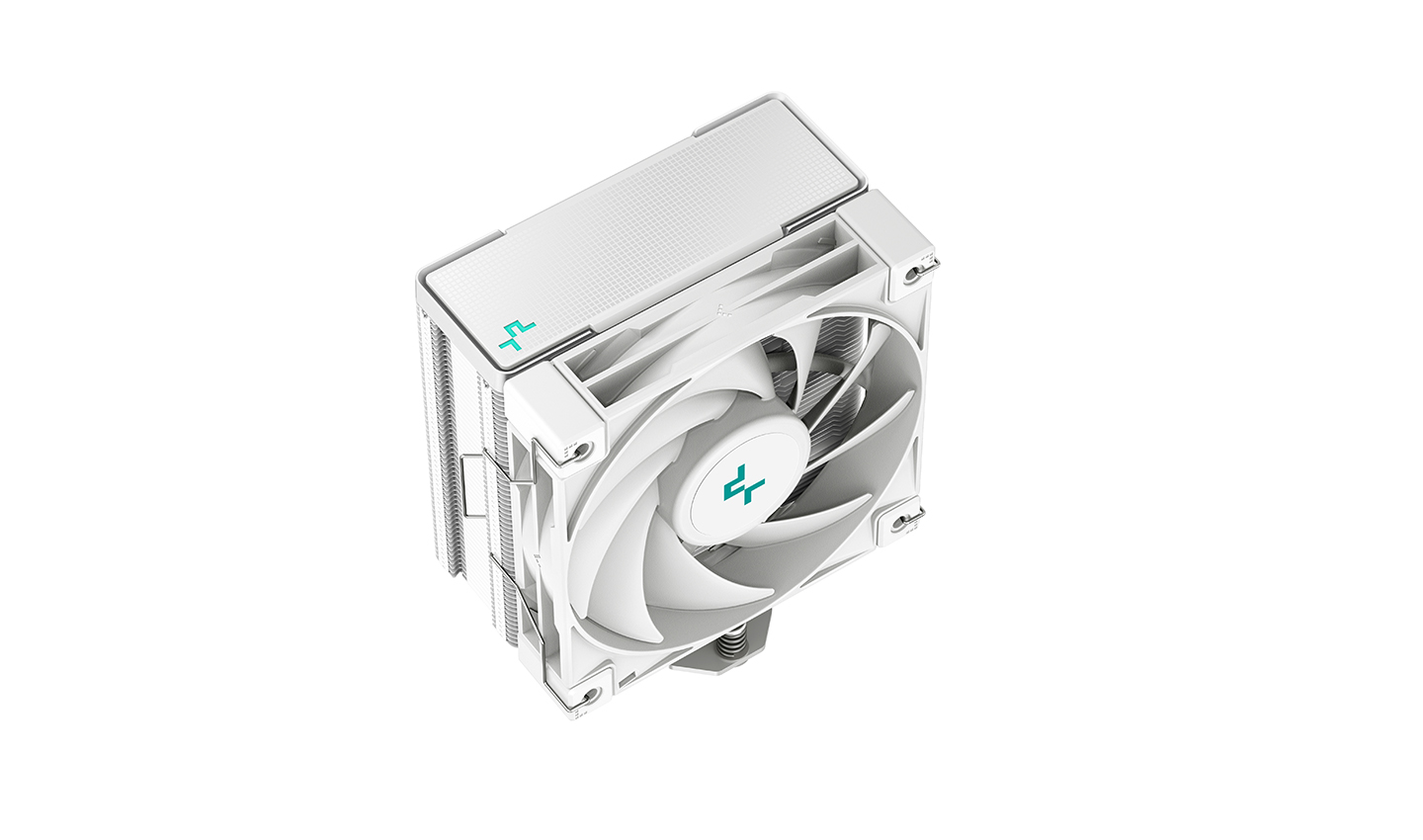

The DeepCool AK400 WH is a highly compatible CPU cooler featuring a classic four heat pipe tower layout with a unique matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
MODEL
AK400 WH
Performance CPU Cooler
The DeepCool AK400 WH is a highly compatible CPU cooler featuring a classic four heat pipe tower layout with a unique matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
Premium Compatibility
Featuring up to 220W of heat dissipation efficiency, the exceptional cooling performance of the AK400 WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio.
Advanced Heat Dissipation

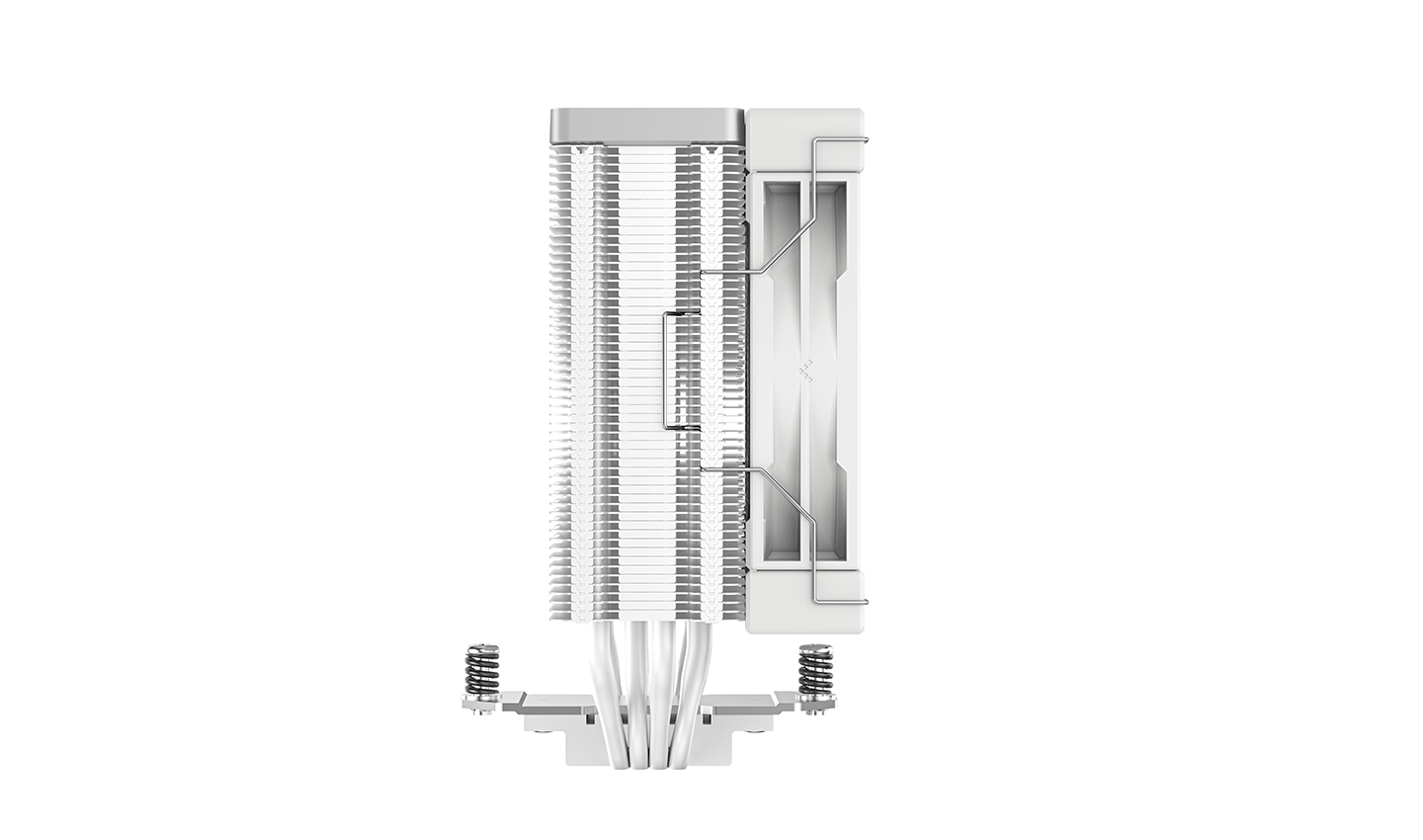

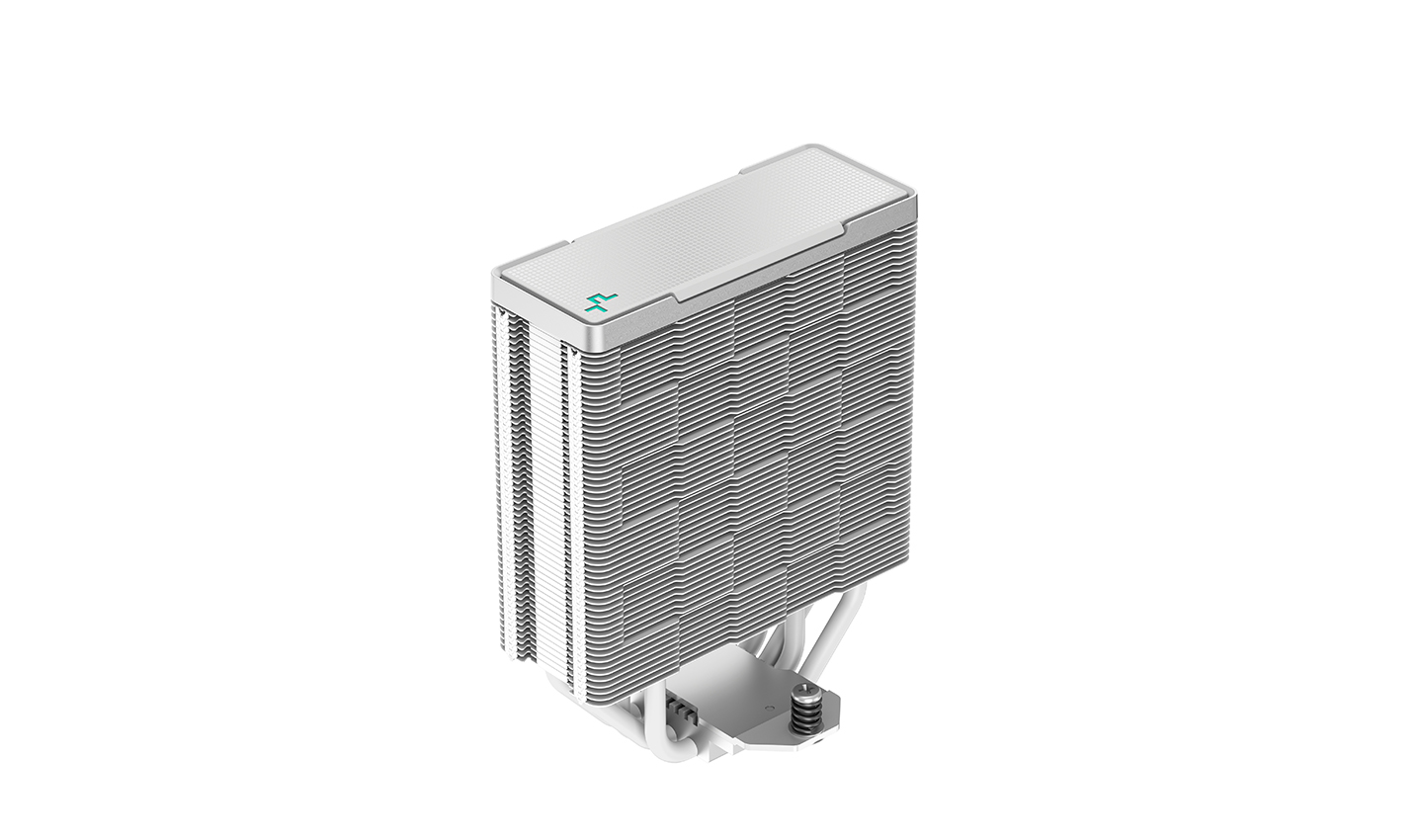

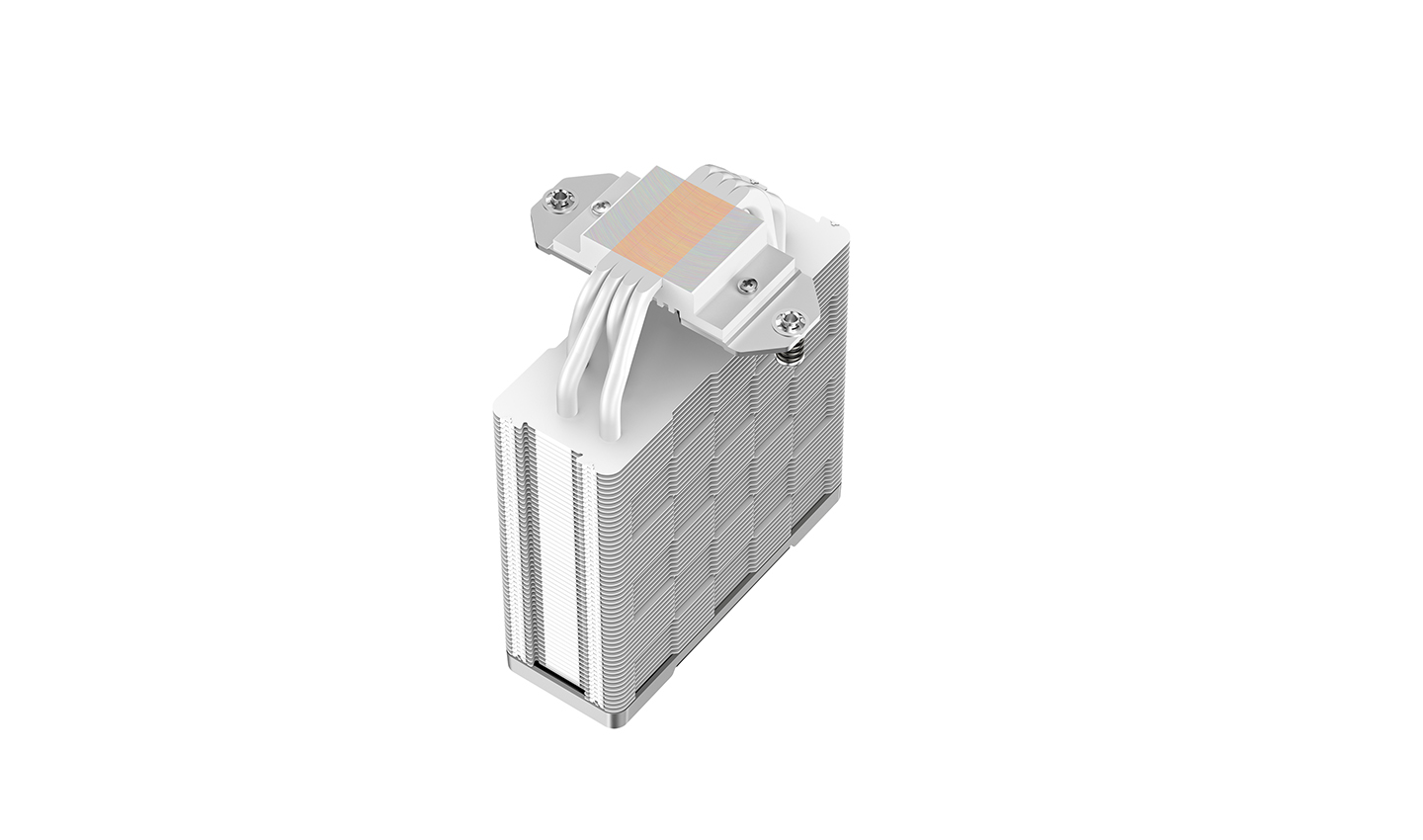

Four direct touch copper heat pipes rapidly transfer heat away from the processor effectively and dissipate through a single fin stack tower with a unique matrix array design.

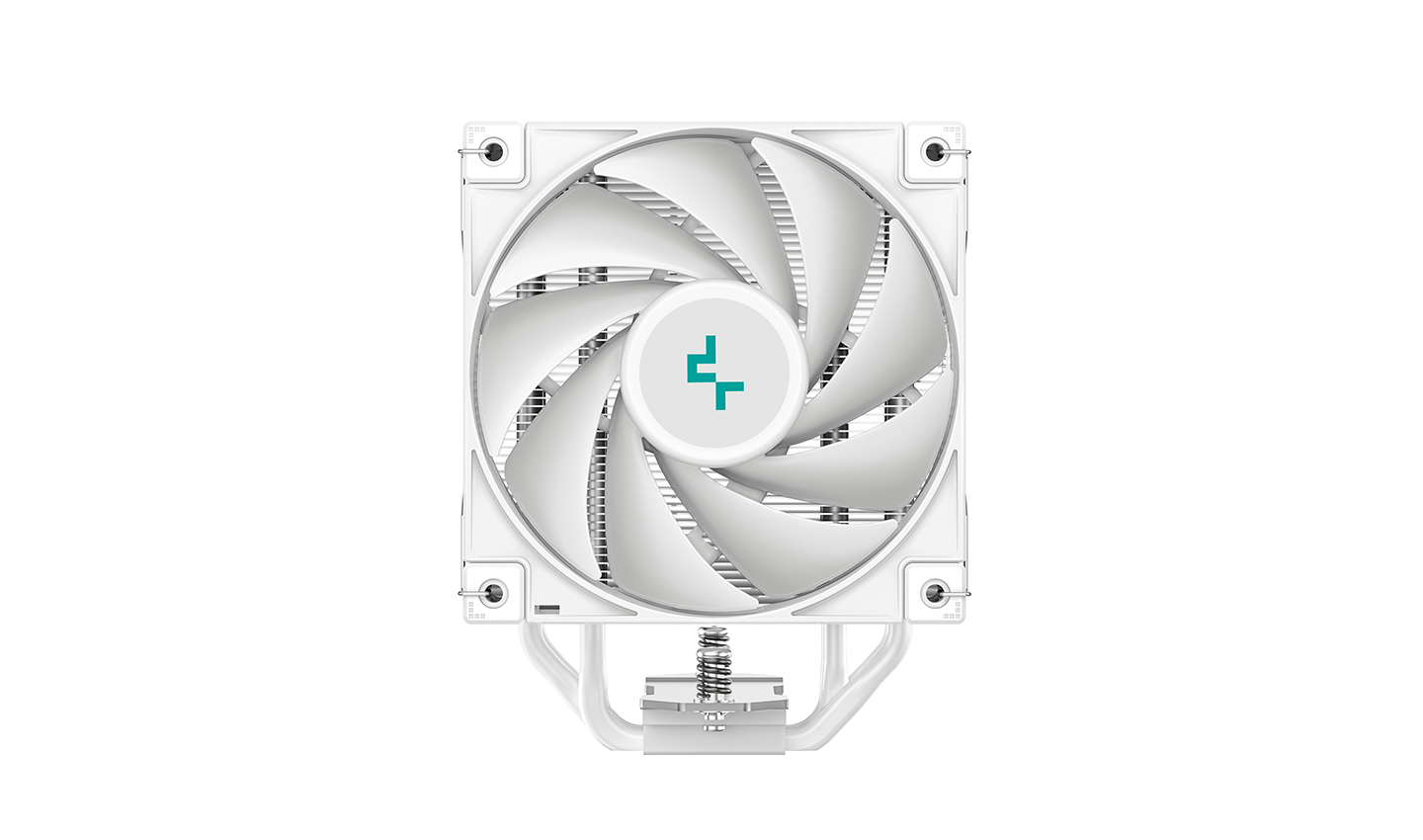

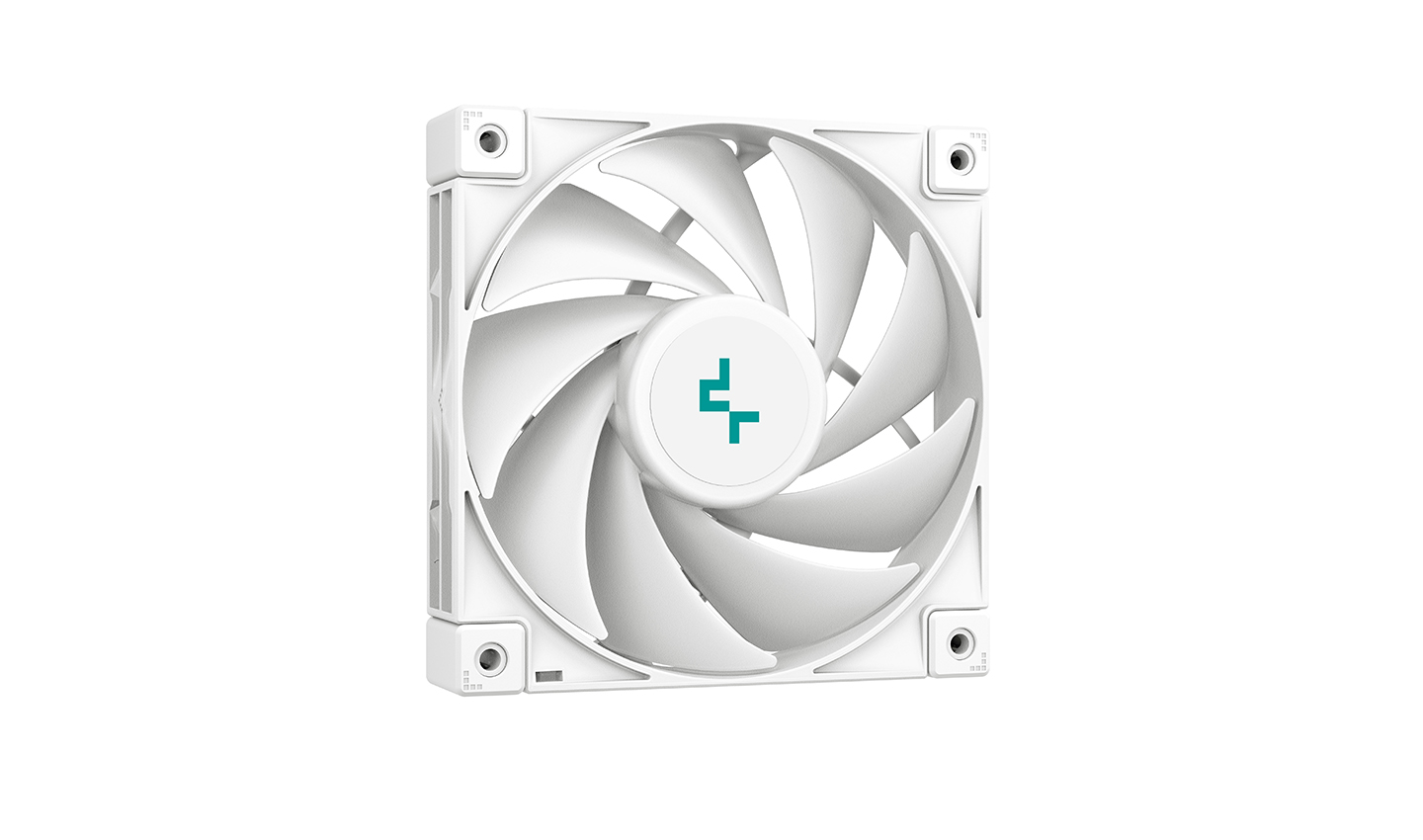

Fluid Dynamic Bearing Fan
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
Fan Specs
29 dBA
Full Load Noise Output
500-1850 RPM
Dynamic PWM Range
50,000 hours
Long Operational Lifespan
Simple and Secure Installation

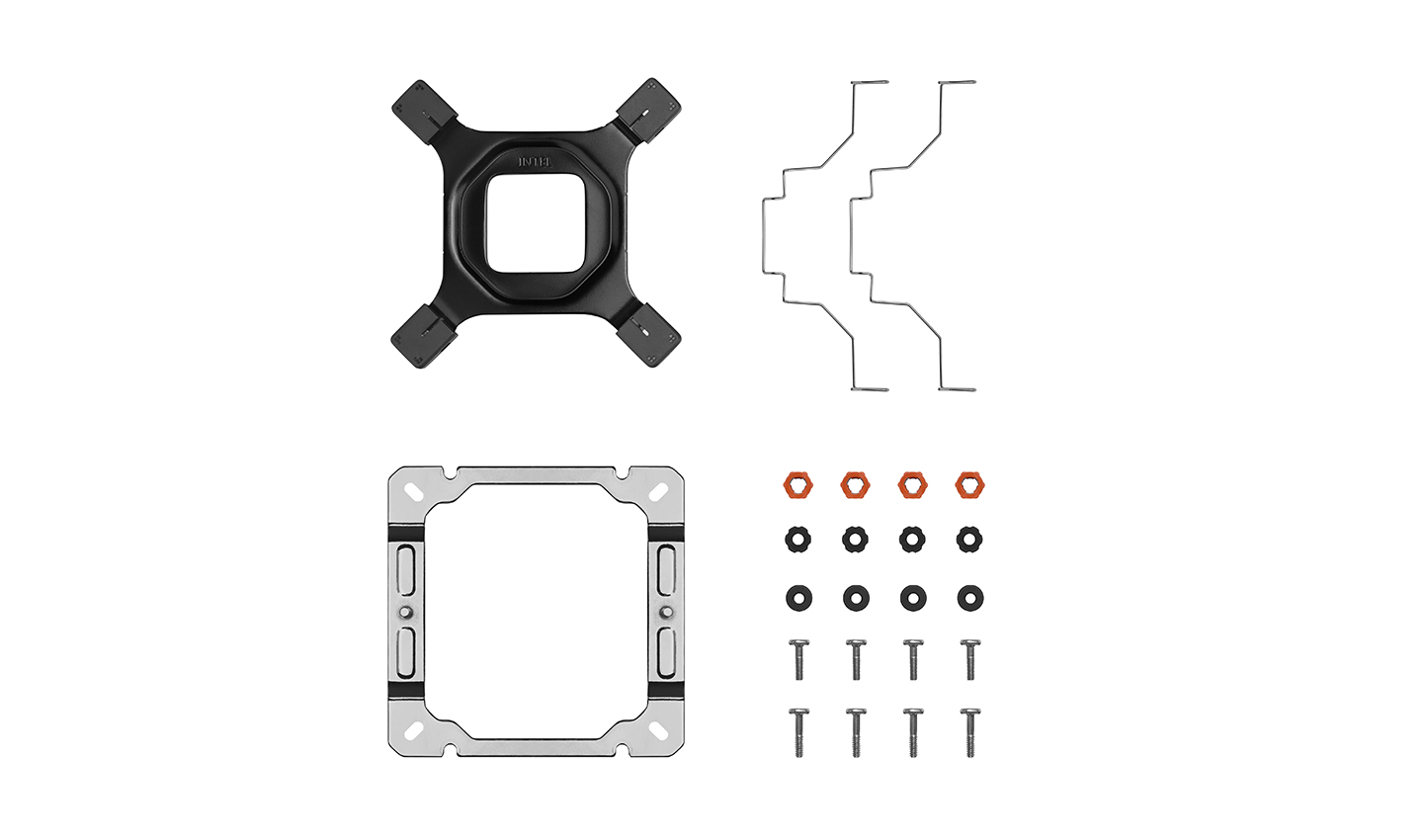

The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
Simple and Secure Installation
The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM4
Technical Spec
Product Dimensions127×97×155 mm
Heatsink Dimensions120×45×152 mm
Net Weight661 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm
Fan Speed500~1850 RPM±10%
Fan Airflow66.47 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤29 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.13 A
Fan Power Consumption1.56 W
EAN6933412727422
P/NR-AK400-WHNNMN-G-1
Product Dimension
Download
AK400 WH Manual.pdf
