AG620 G2 WH ARGB

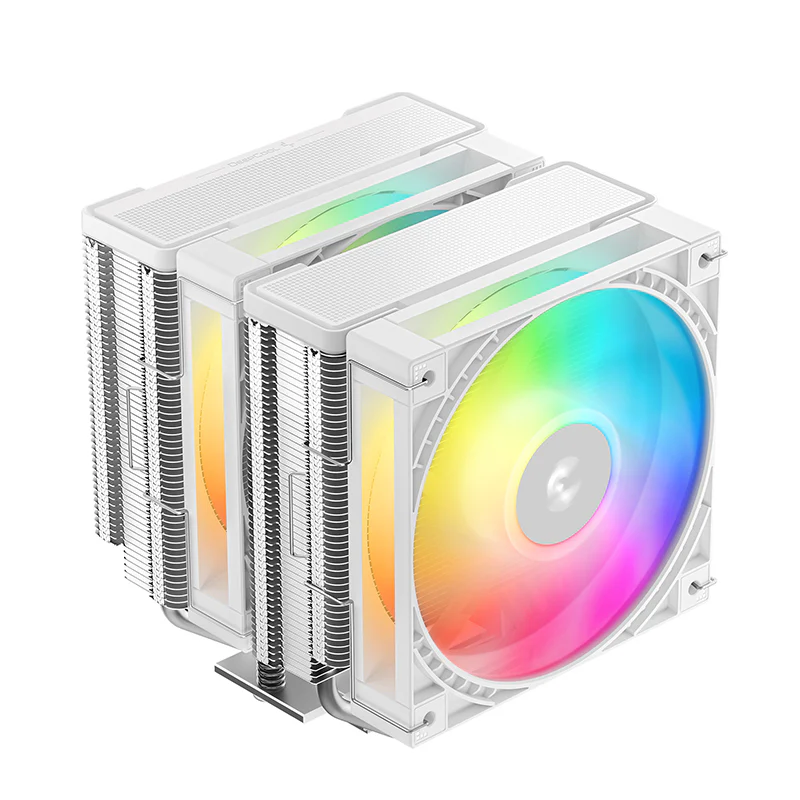

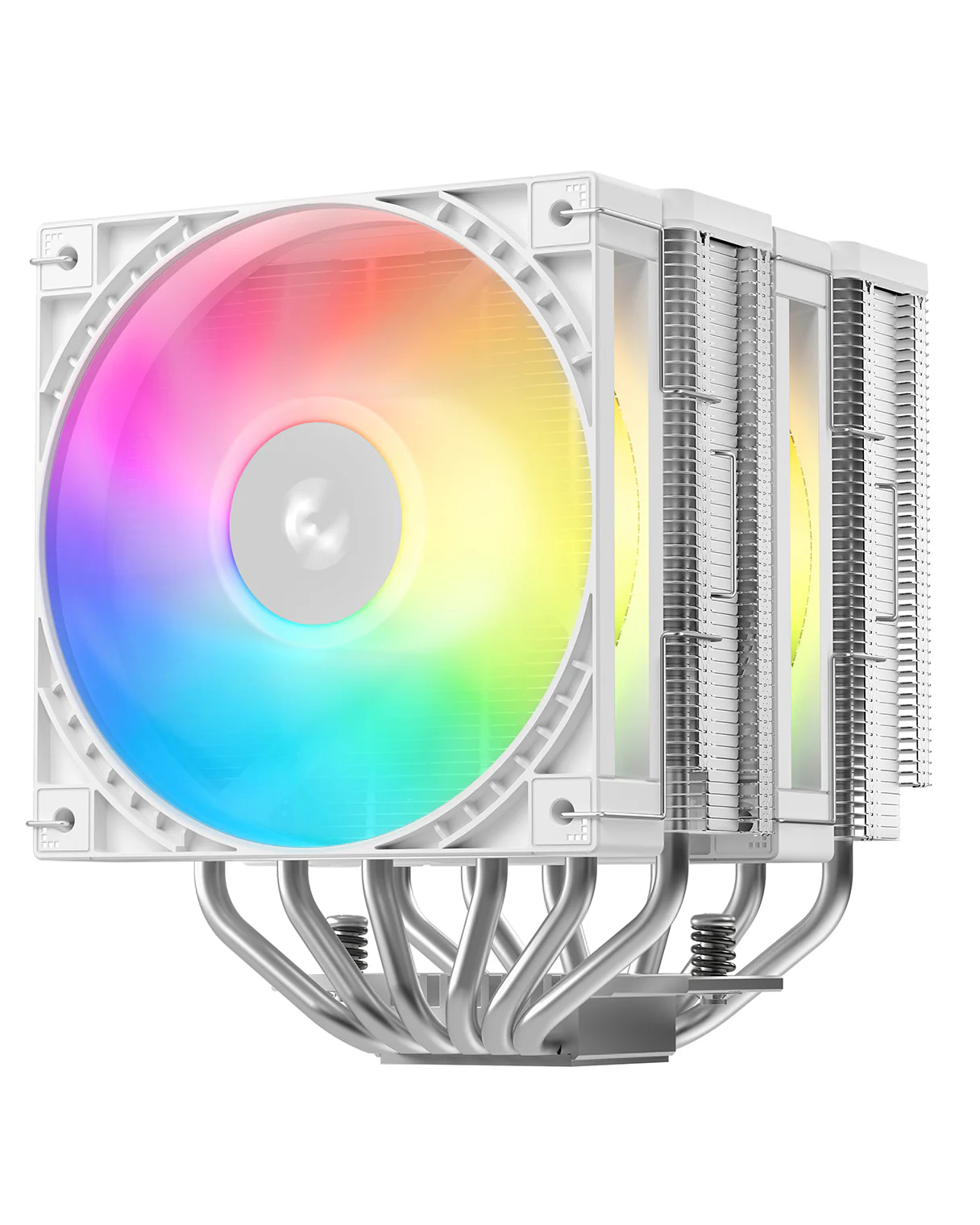

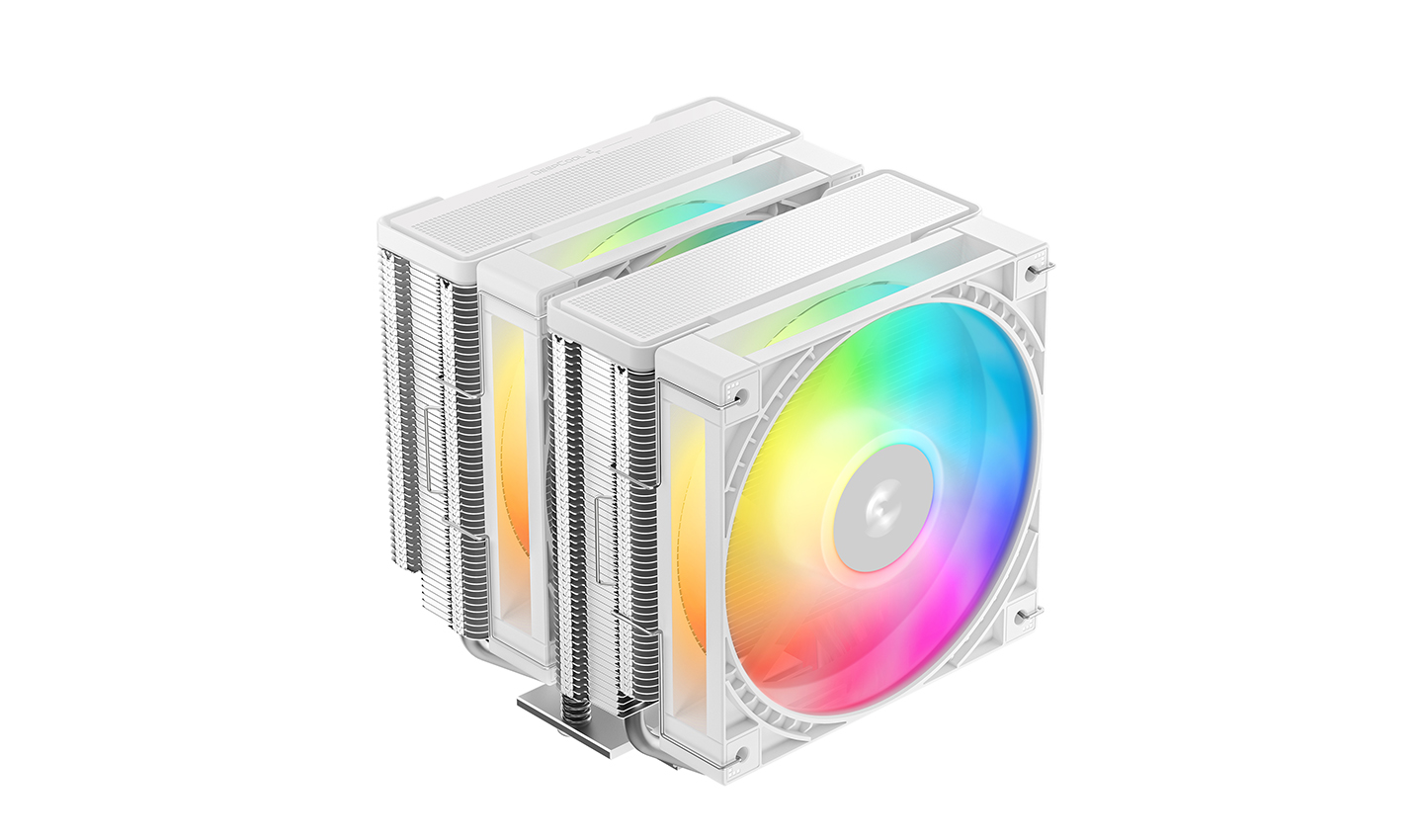

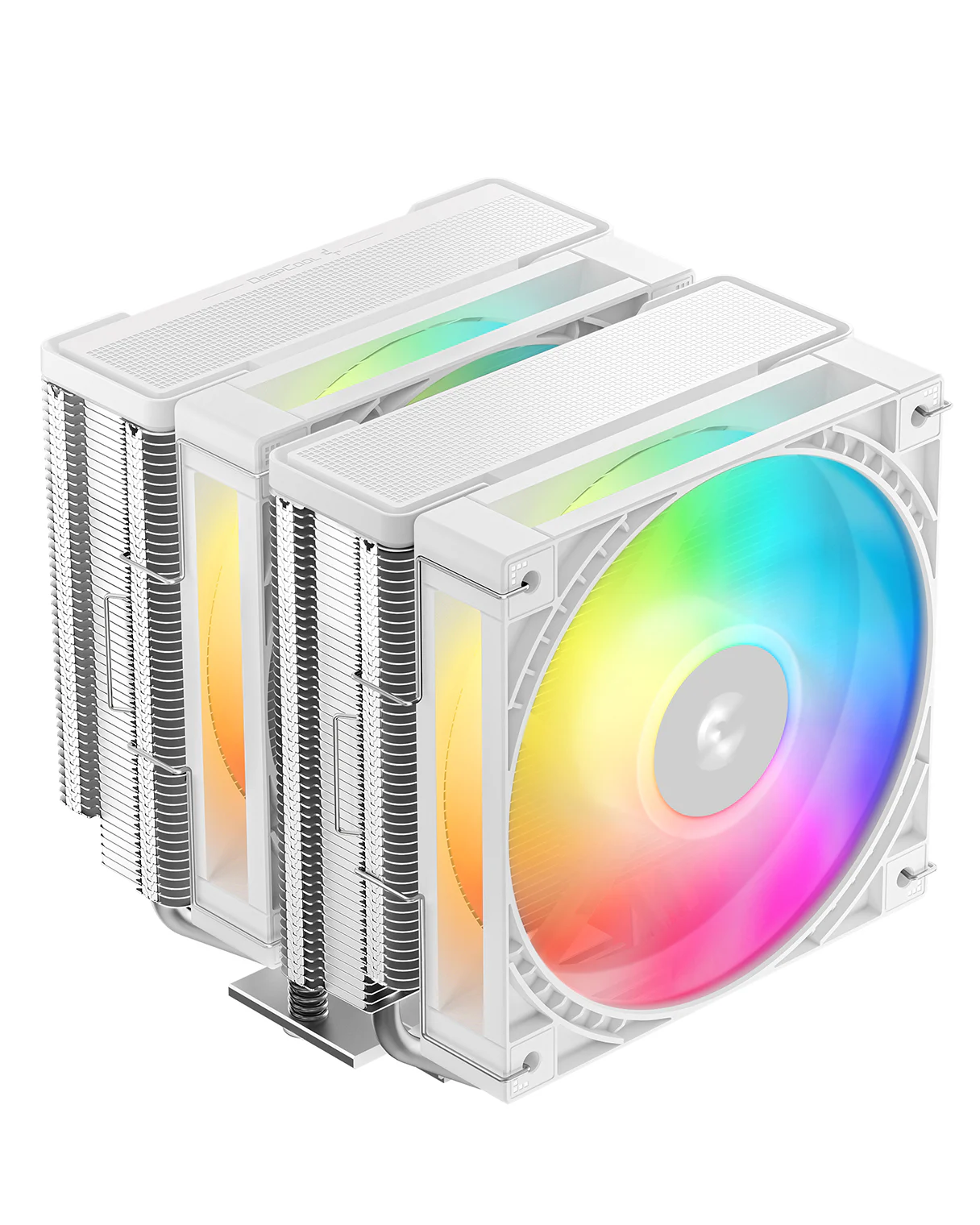

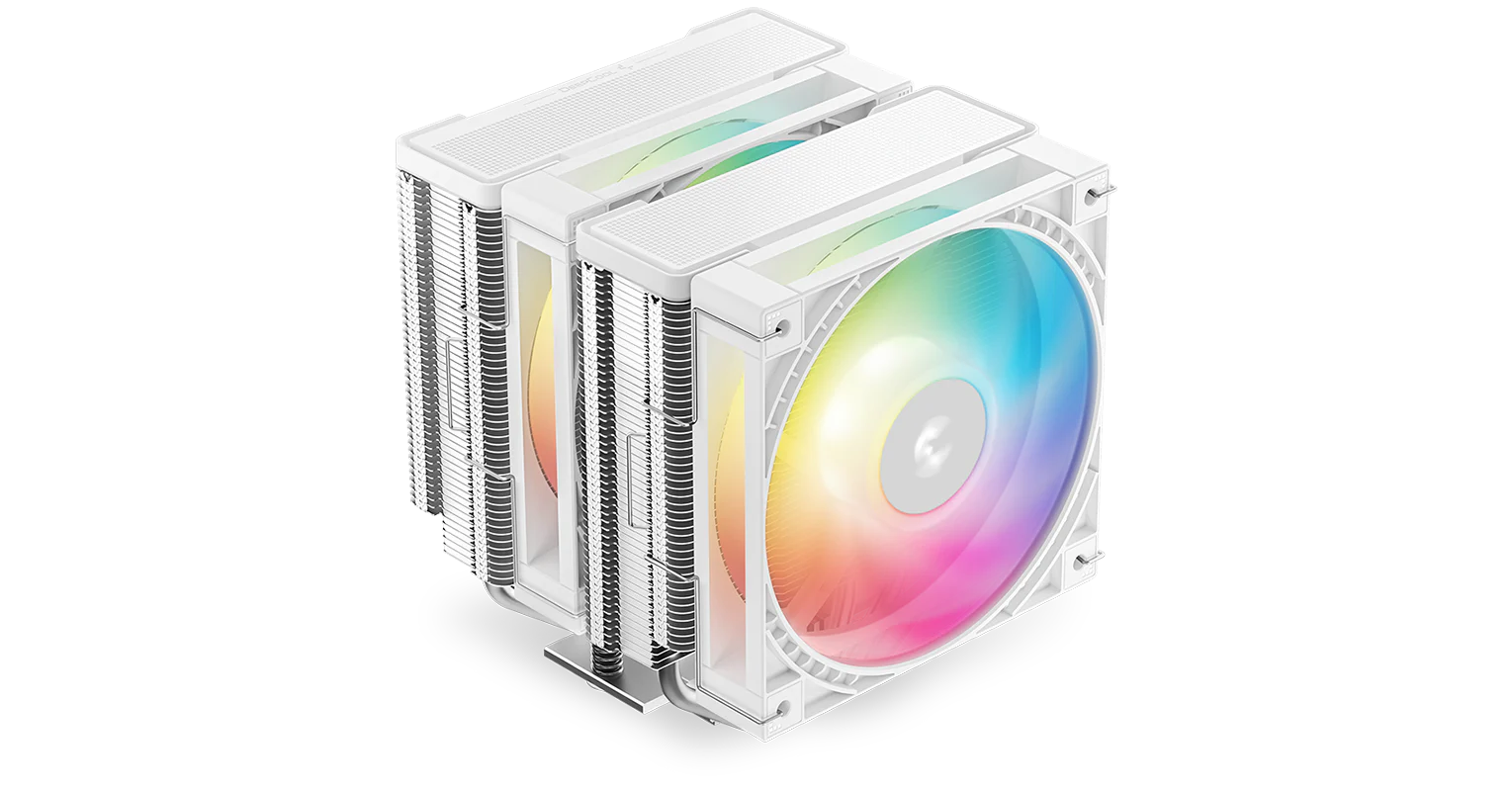

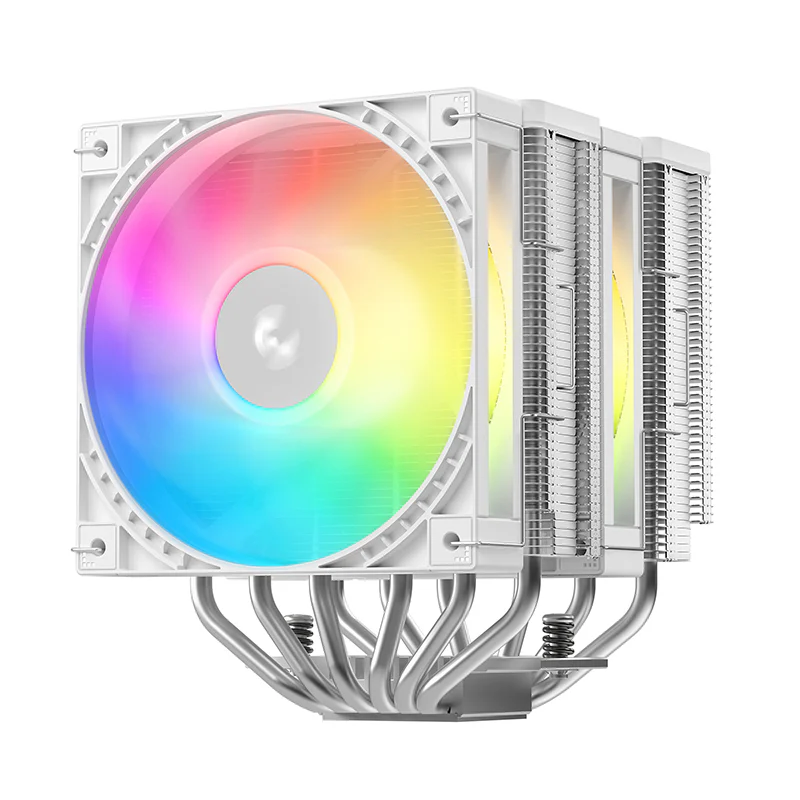

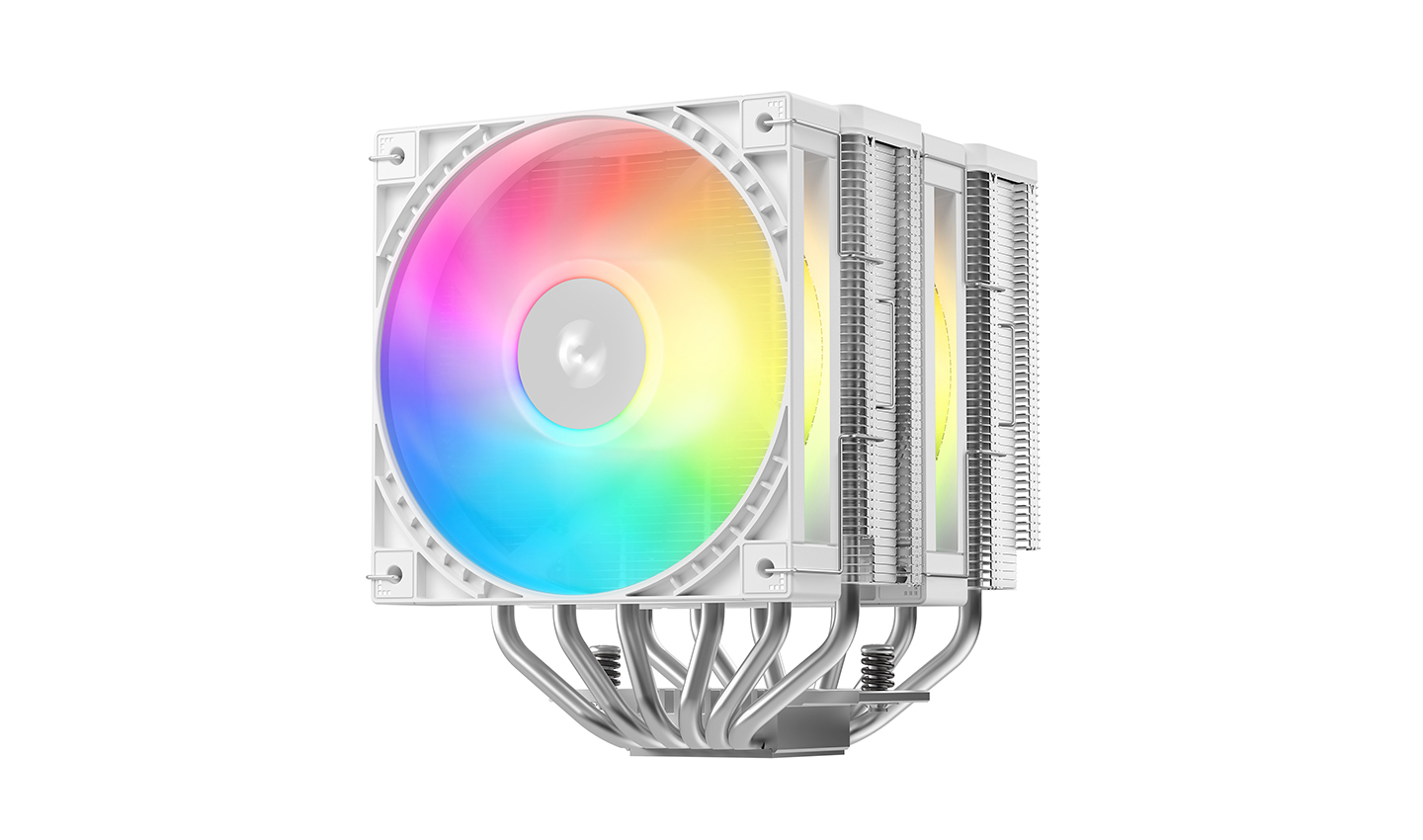

The AG620 G2 WH ARGB raises the bar for dual-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring six heat pipes embedded in a dense dual-tower heatsink and paired with two finely tuned 120mm ARGB PWM fans for seriously powerful airflow and thermal transfer.
MODEL
AG620 G2 WH ARGB
WHERE POWER GLOWS
NEXT GENERATION PERFORMANCE

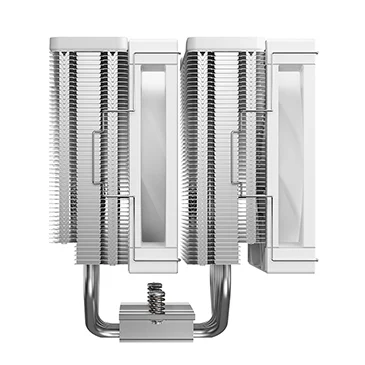

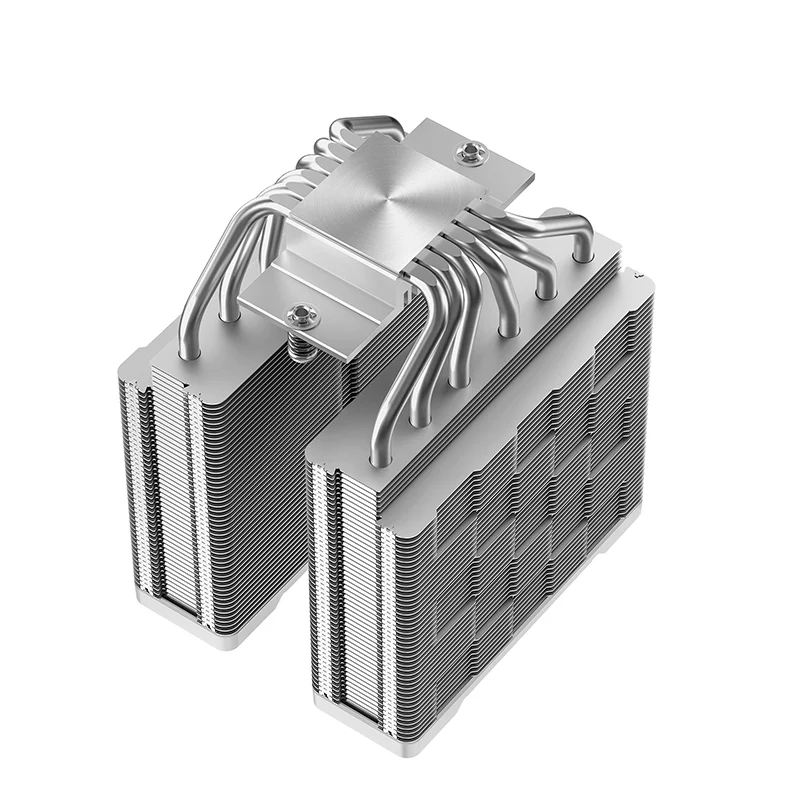

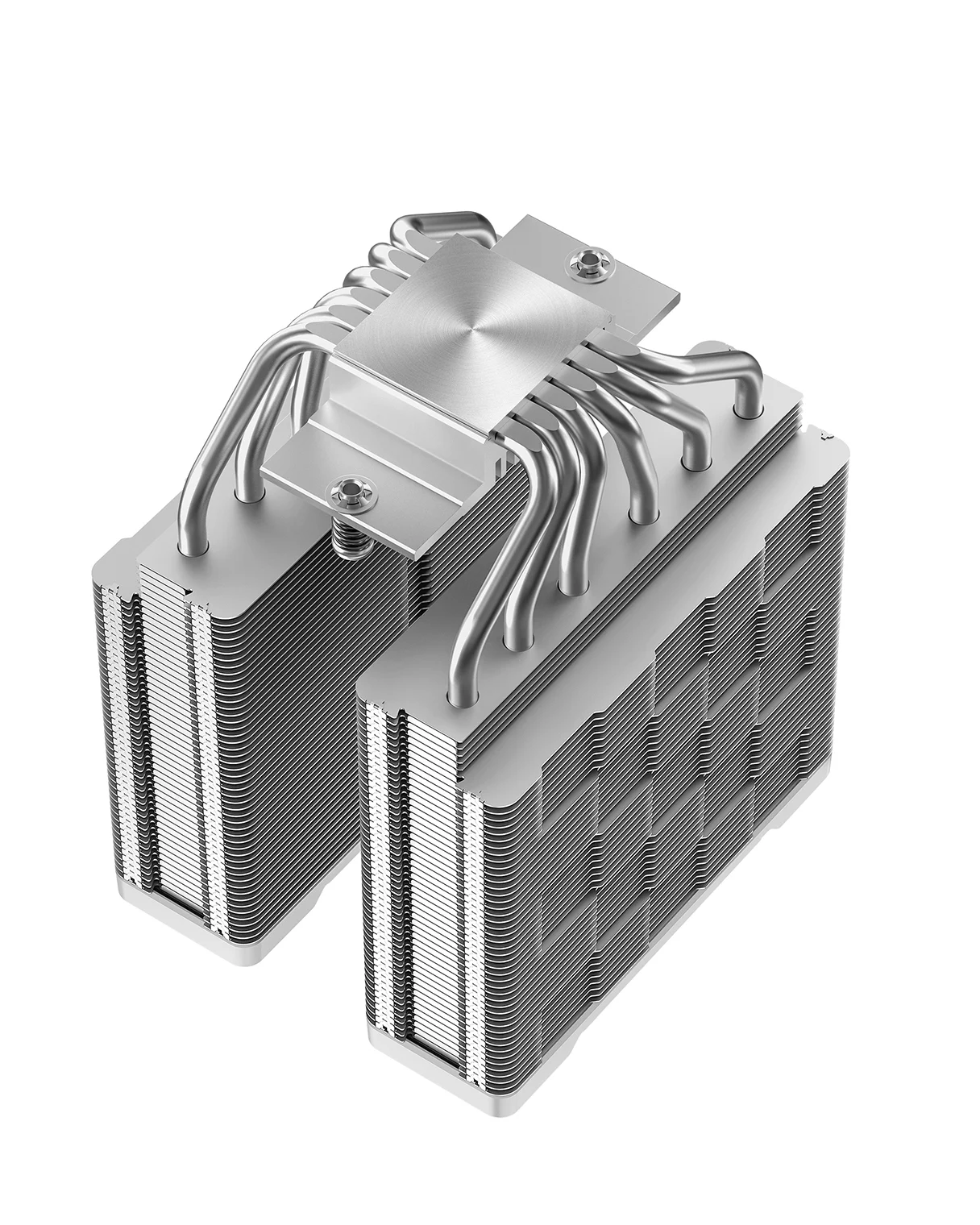

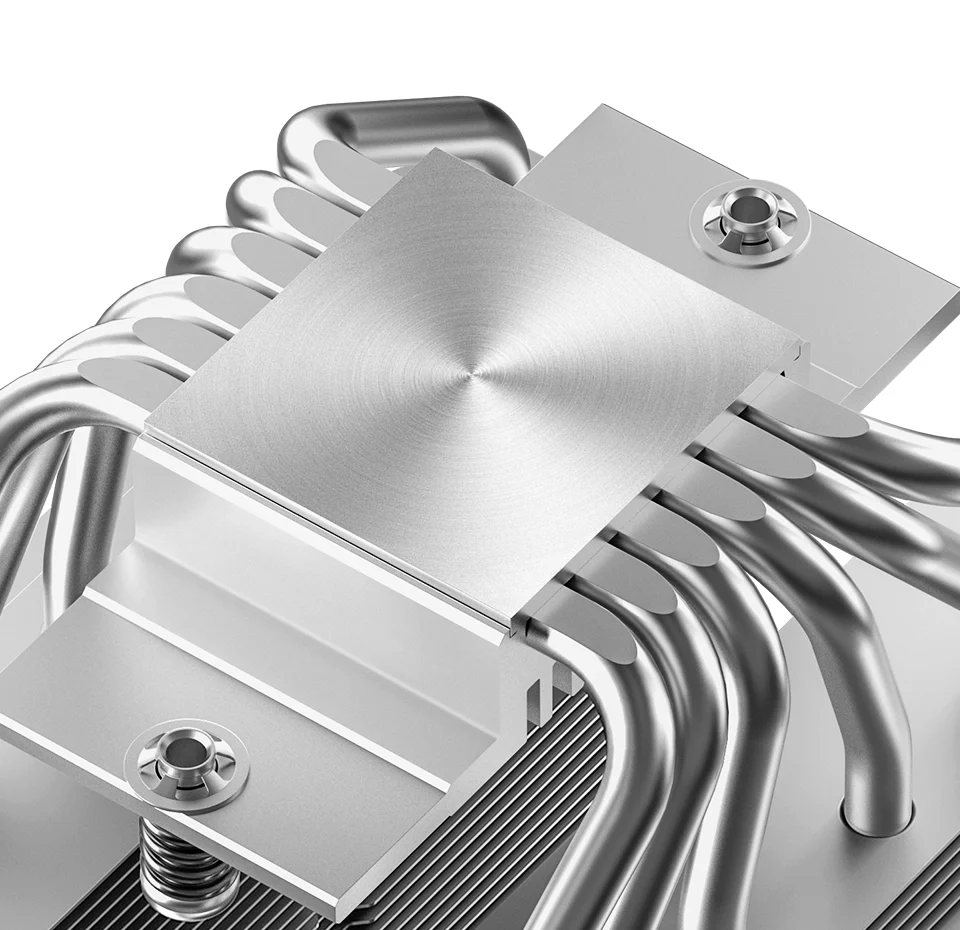

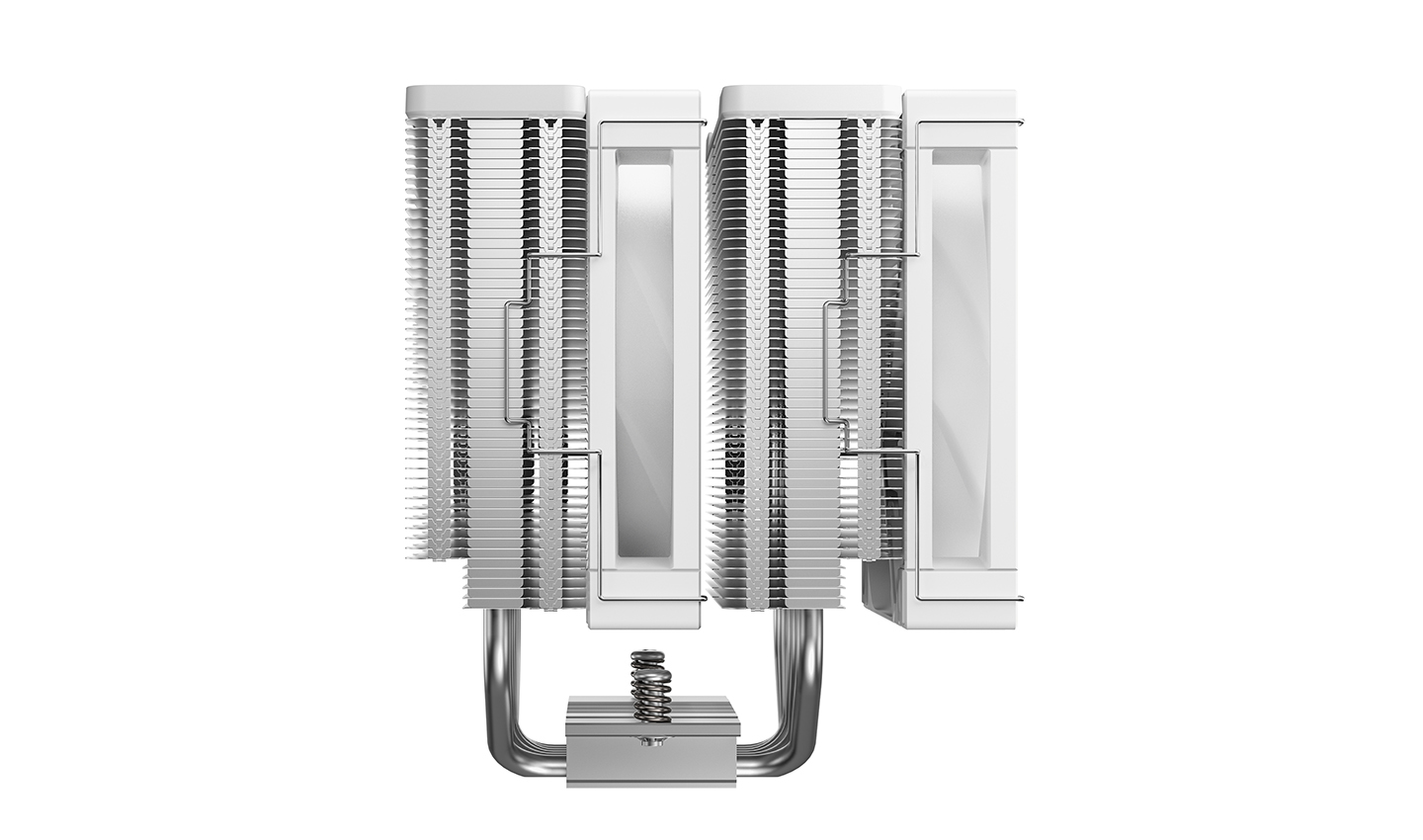

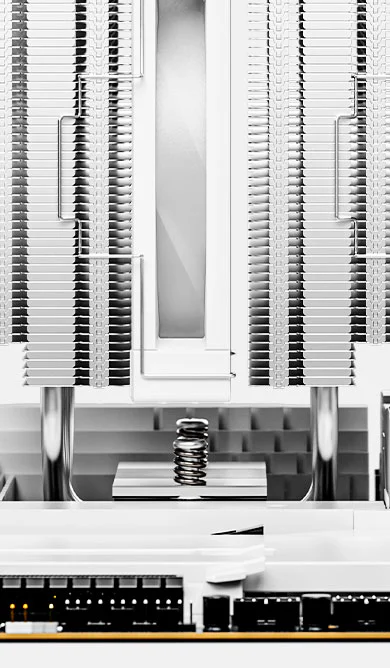

Thanks to DeepCool's latest Core Touch Technology (CTT 2.0) and an optimized tower design, the heatpipes have been laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, AG620 G2 WH ARGB provides a bump in cooling performance compared to its predecessor.
STYLED TO IMPRESS

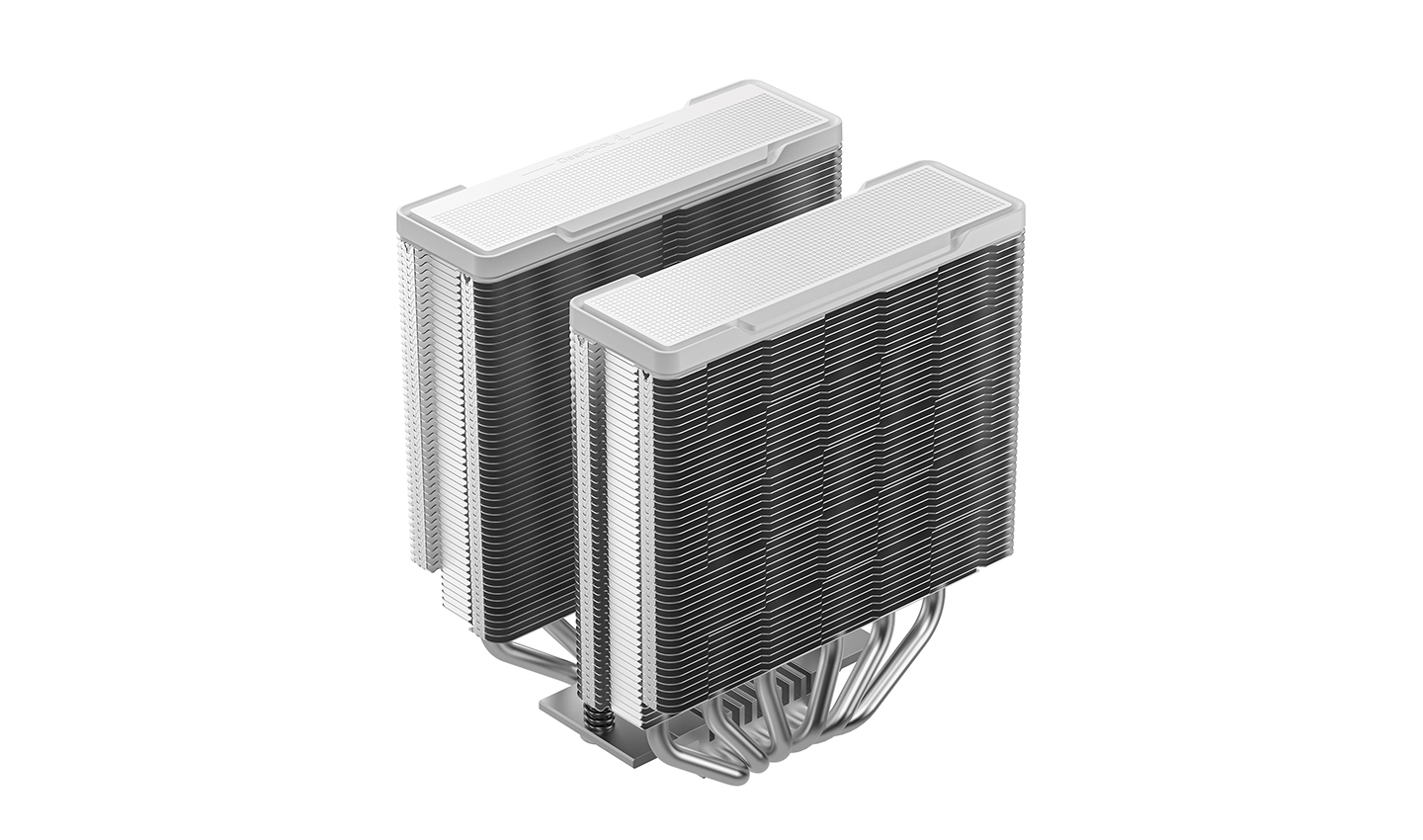

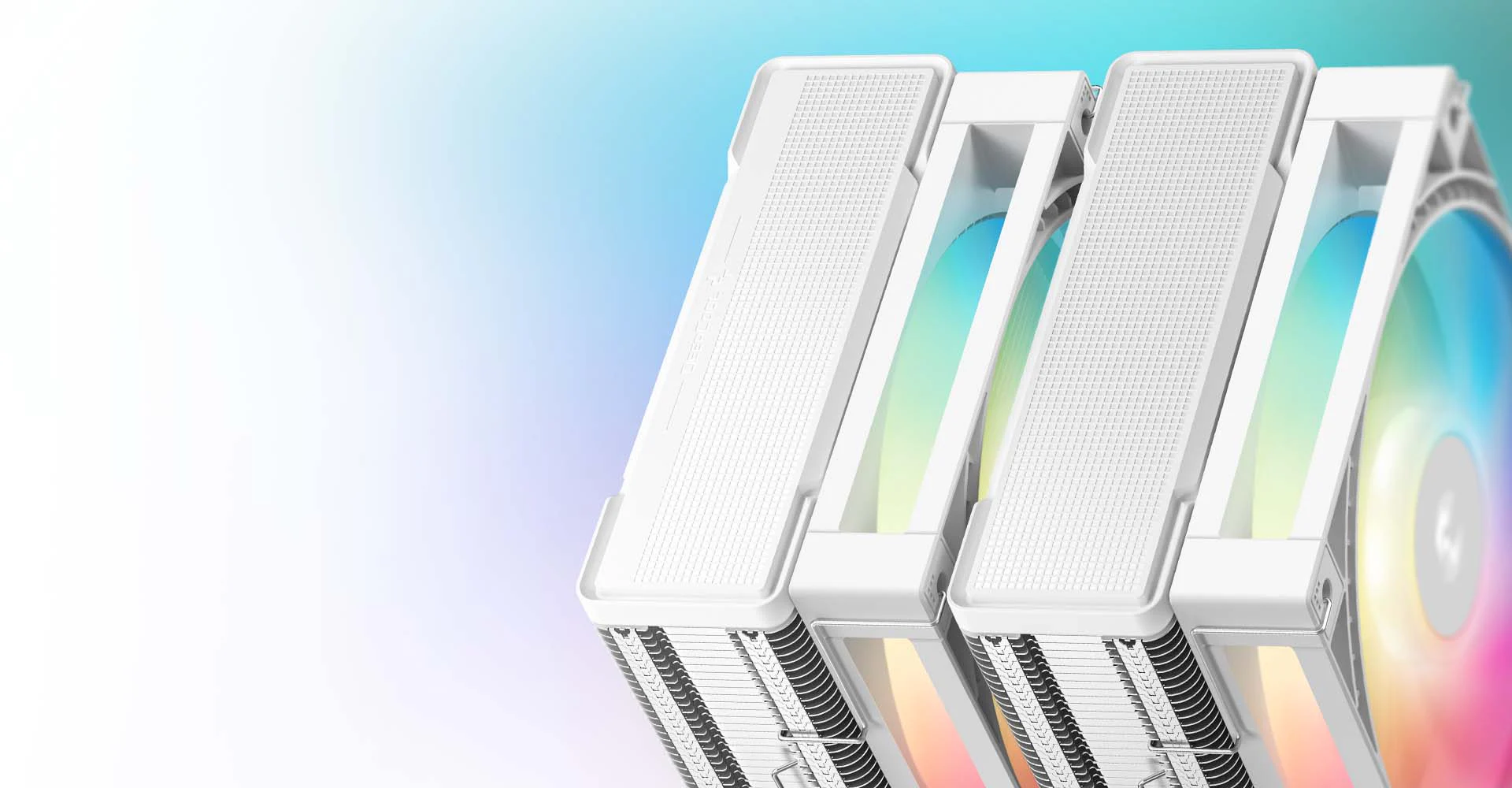

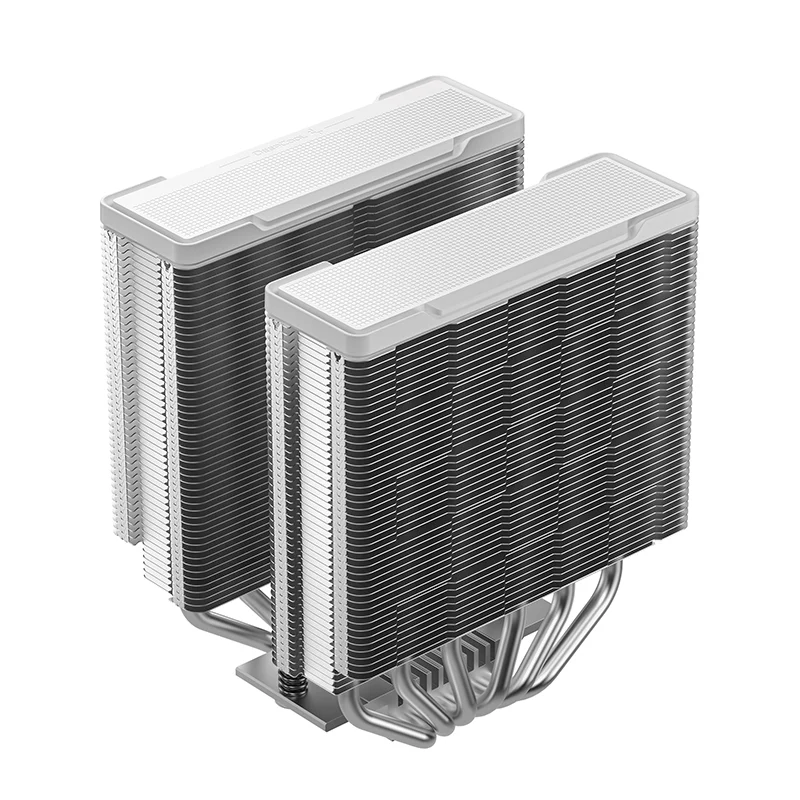

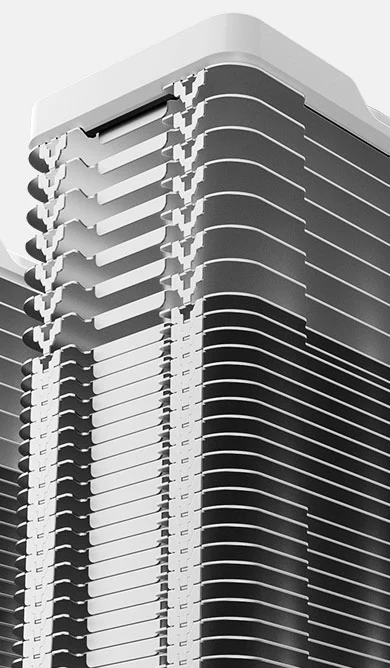

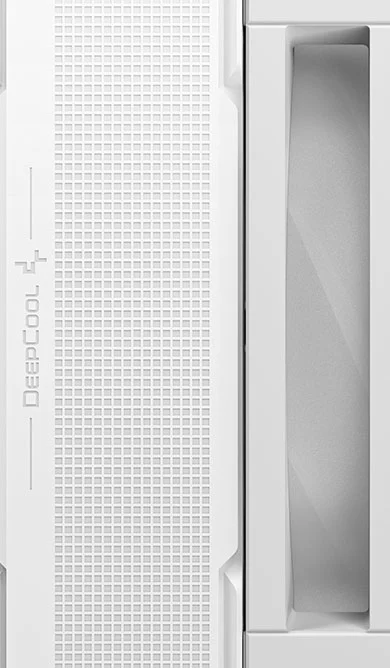

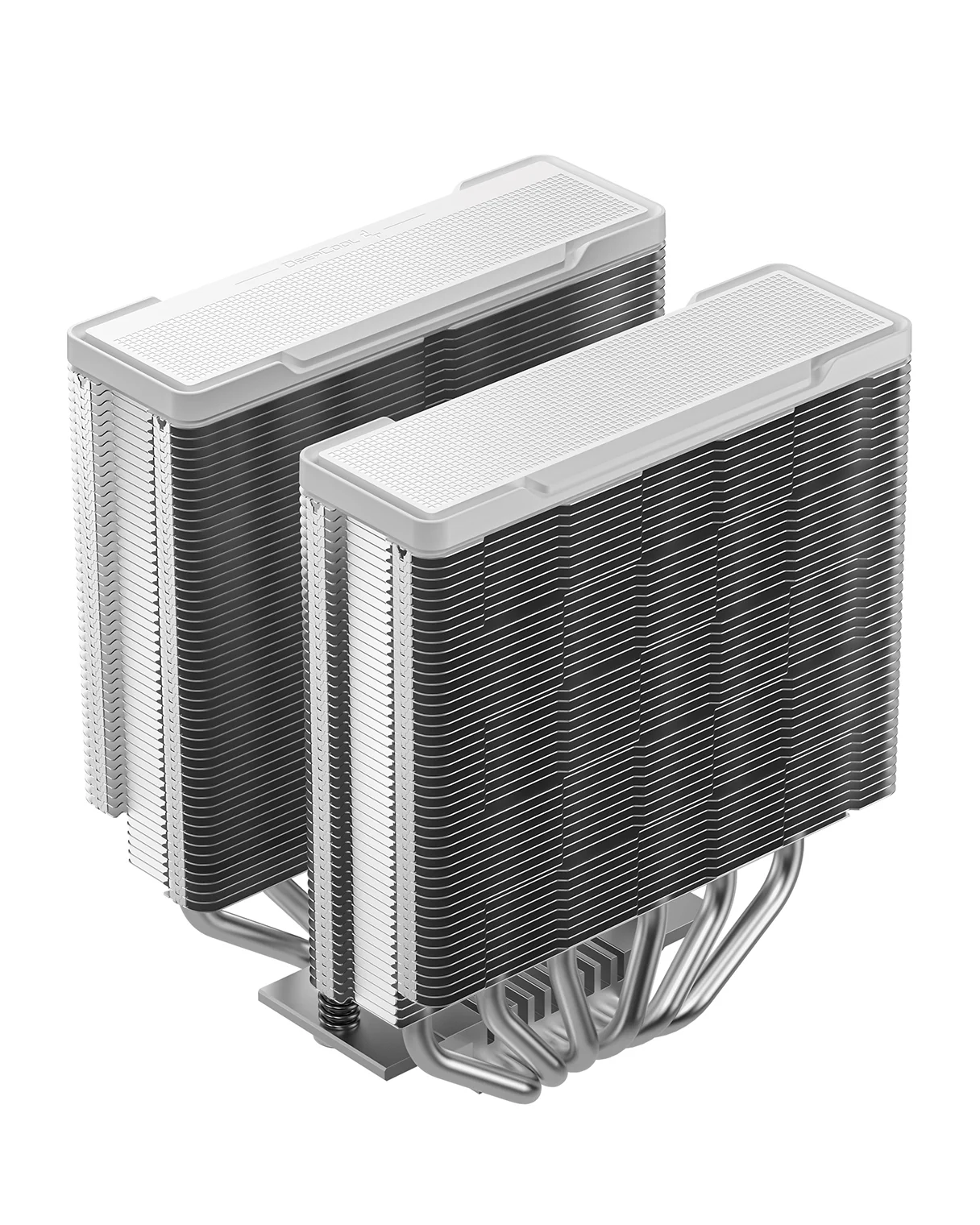

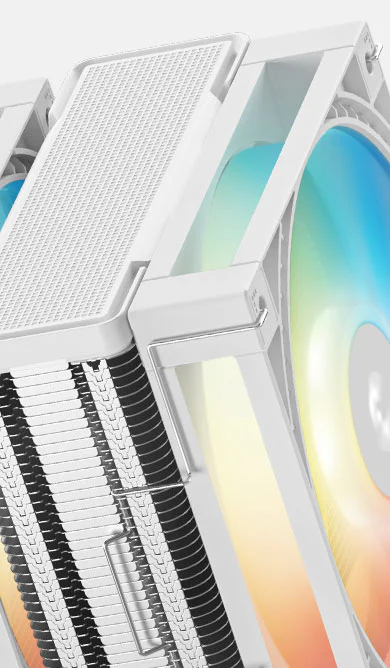

The AG620 G2 WH ARGB retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted six heat-pipe dual-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.
BRIGHT, QUIET, AND CAPABLE

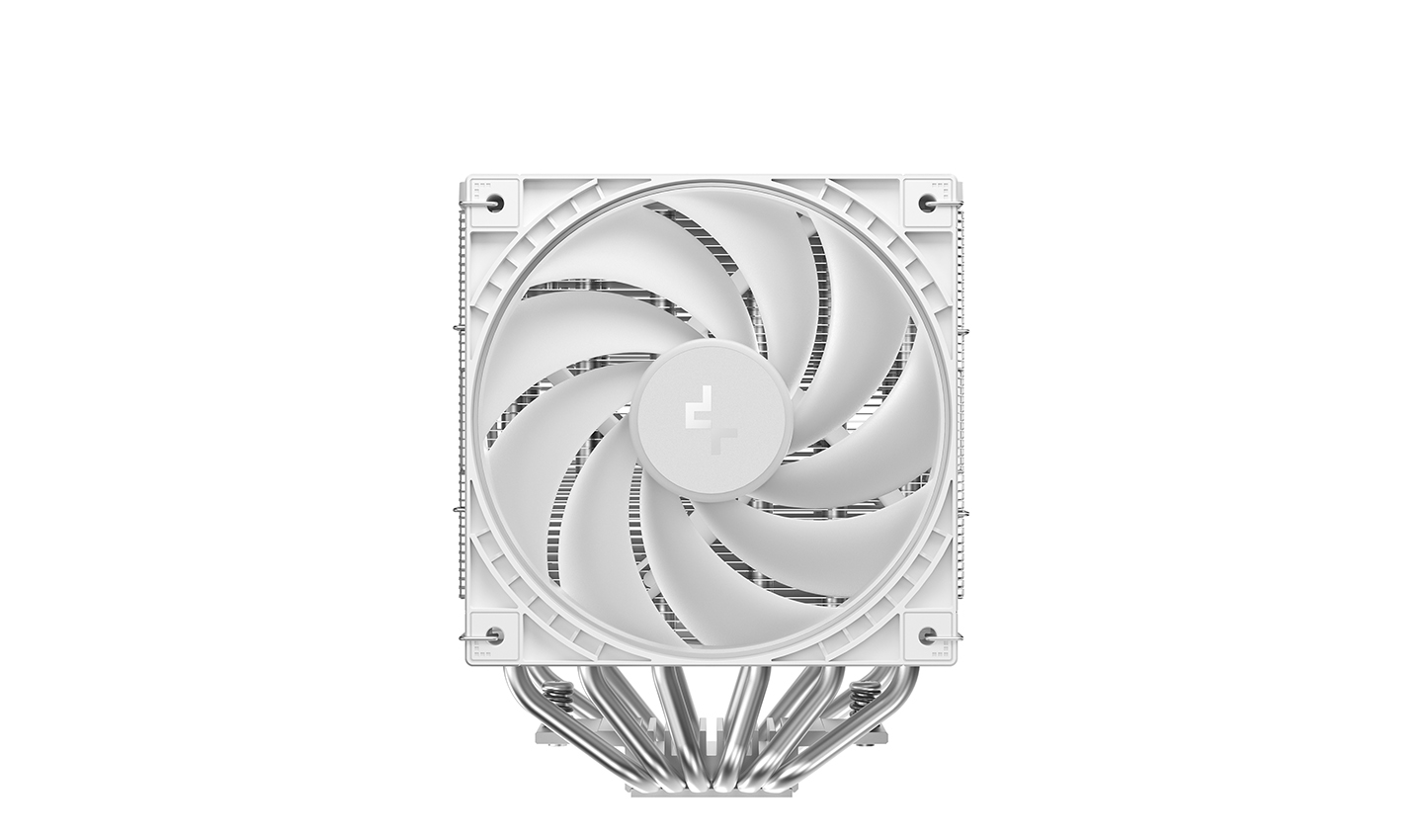

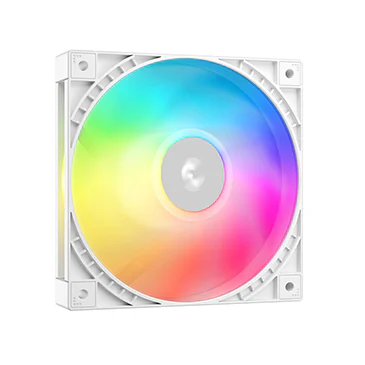

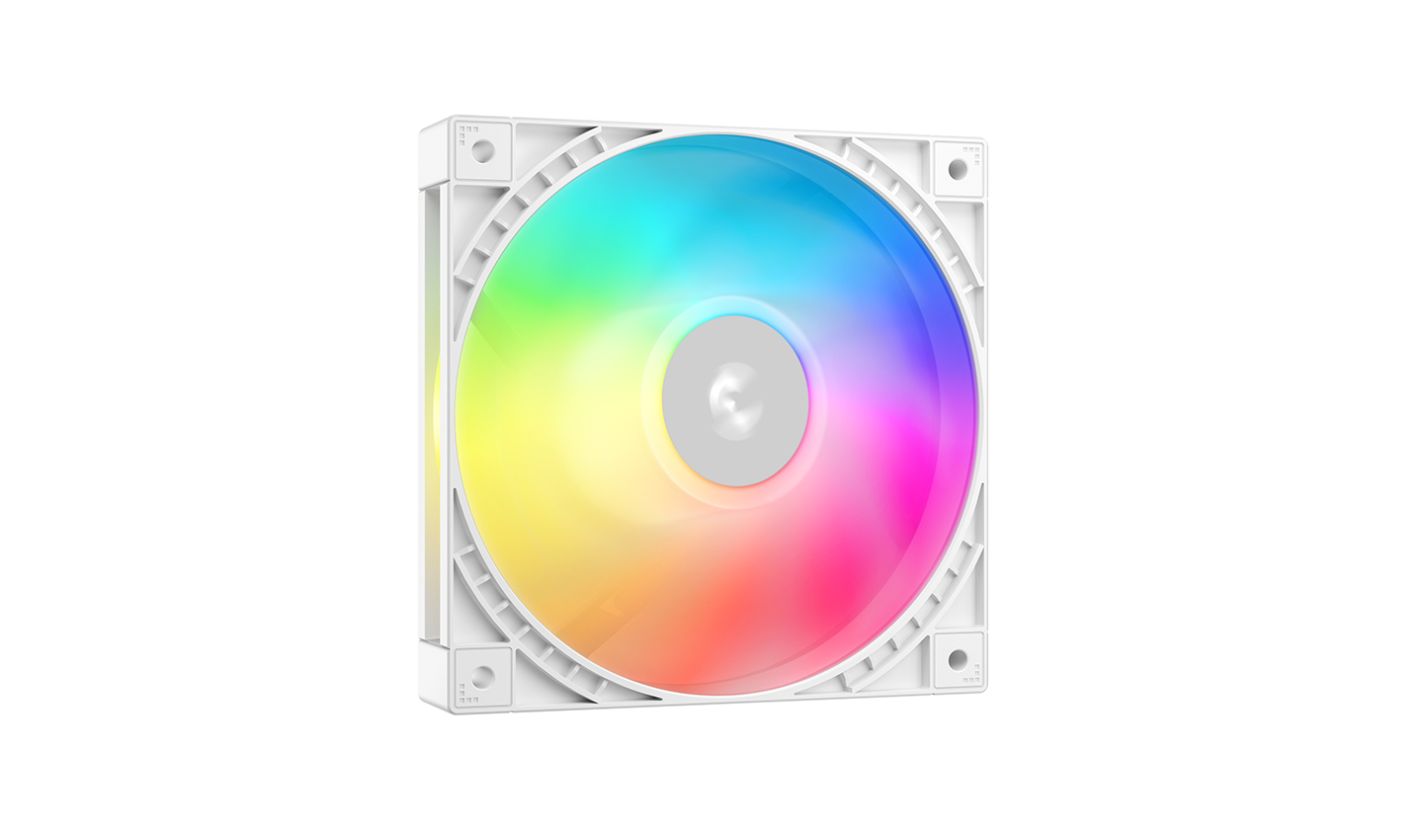

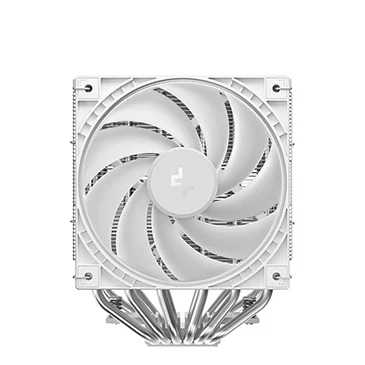

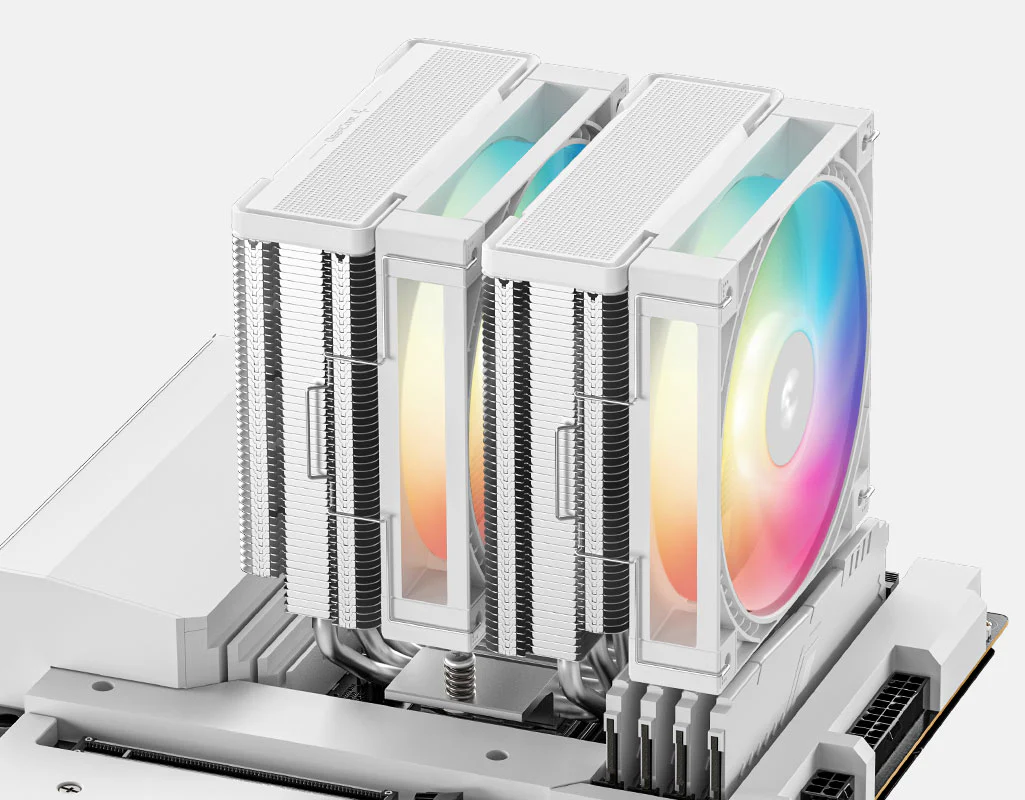

Outfitted with all-new closed-wheel ARGB fans, the AG620 G2 WH ARGB optimizes airflow and static pressure for powerful yet quiet cooling. The reinforced blade structure boosts stability and durability, while preventing unwanted lateral airflow to deliver focused airflow and eliminate dead zones for maximum cooling efficiency.
500-2000±10% RPM / 500-2200±10% RPM
Fan Speed
62.16 CFM / 68.85 CFM
Fan Airflow
1.75 mmAq / 2.10 mmAq
Fan Air Pressure
≤28.10 dB(A) / ≤30.93 dB(A)
Fan Noise
SIMPLE AND SECURE INSTALLATION

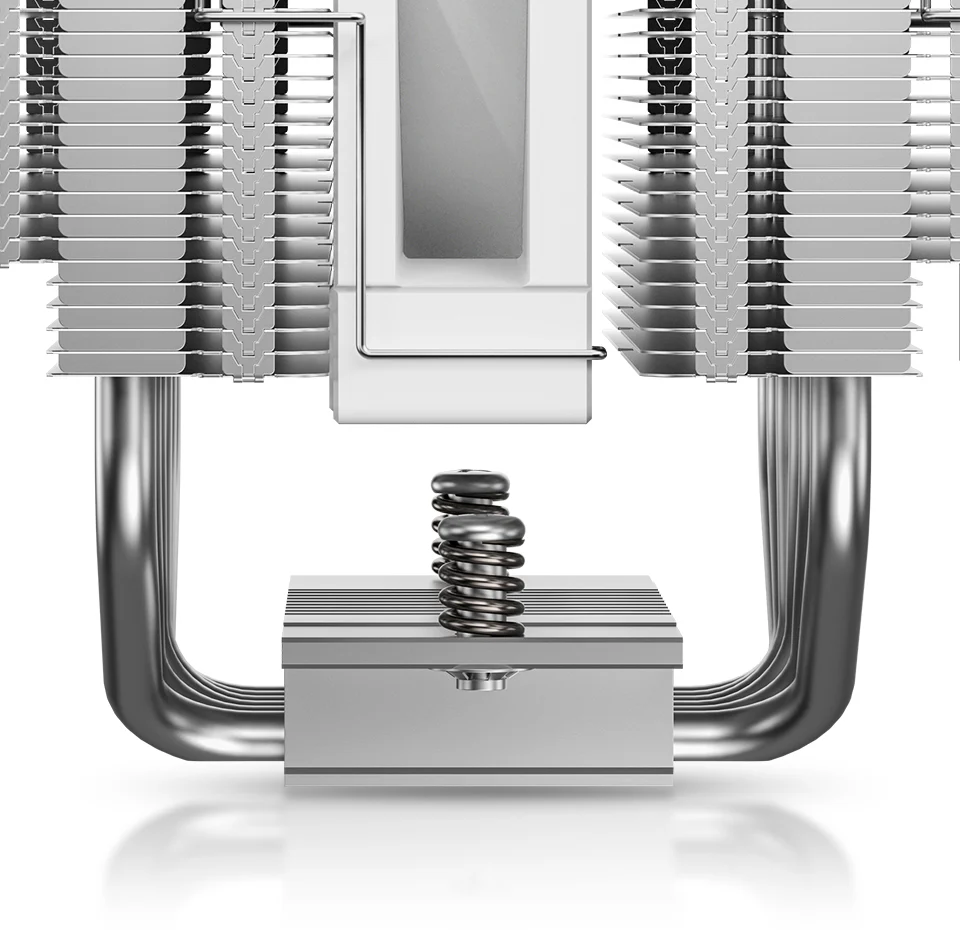

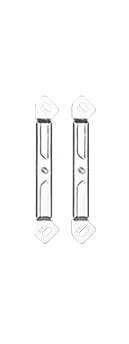

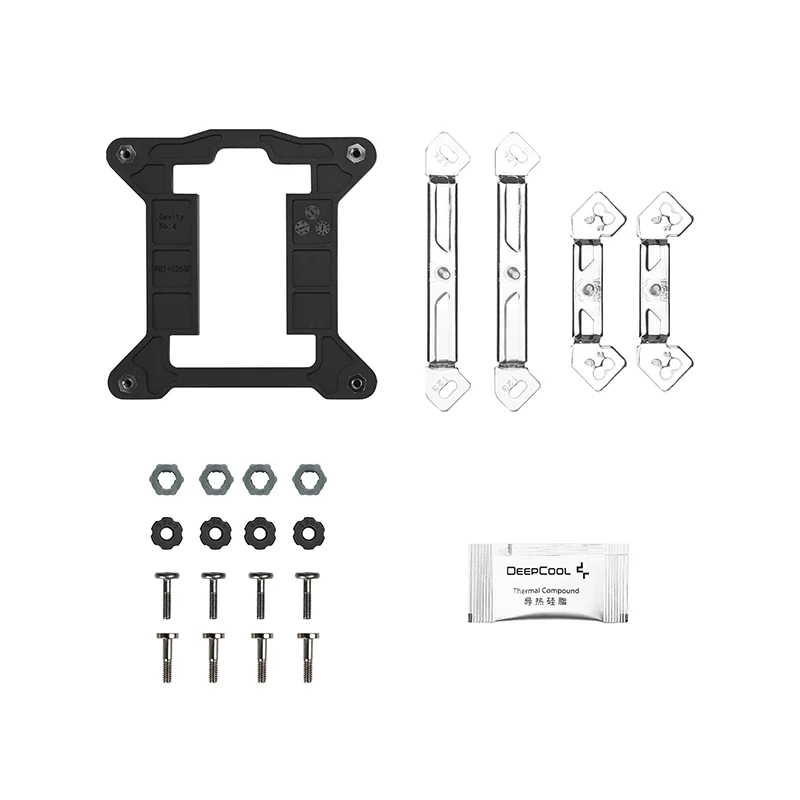

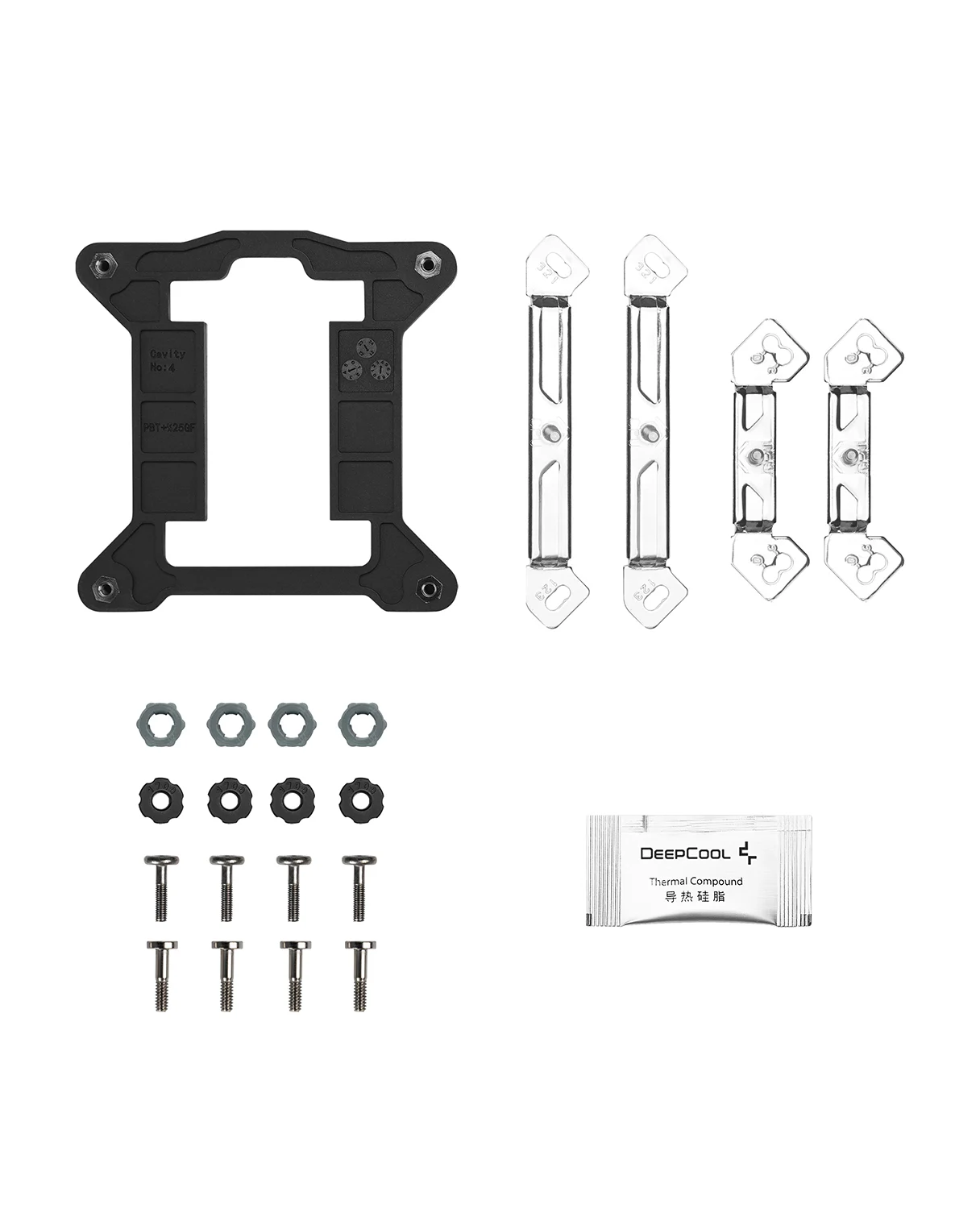

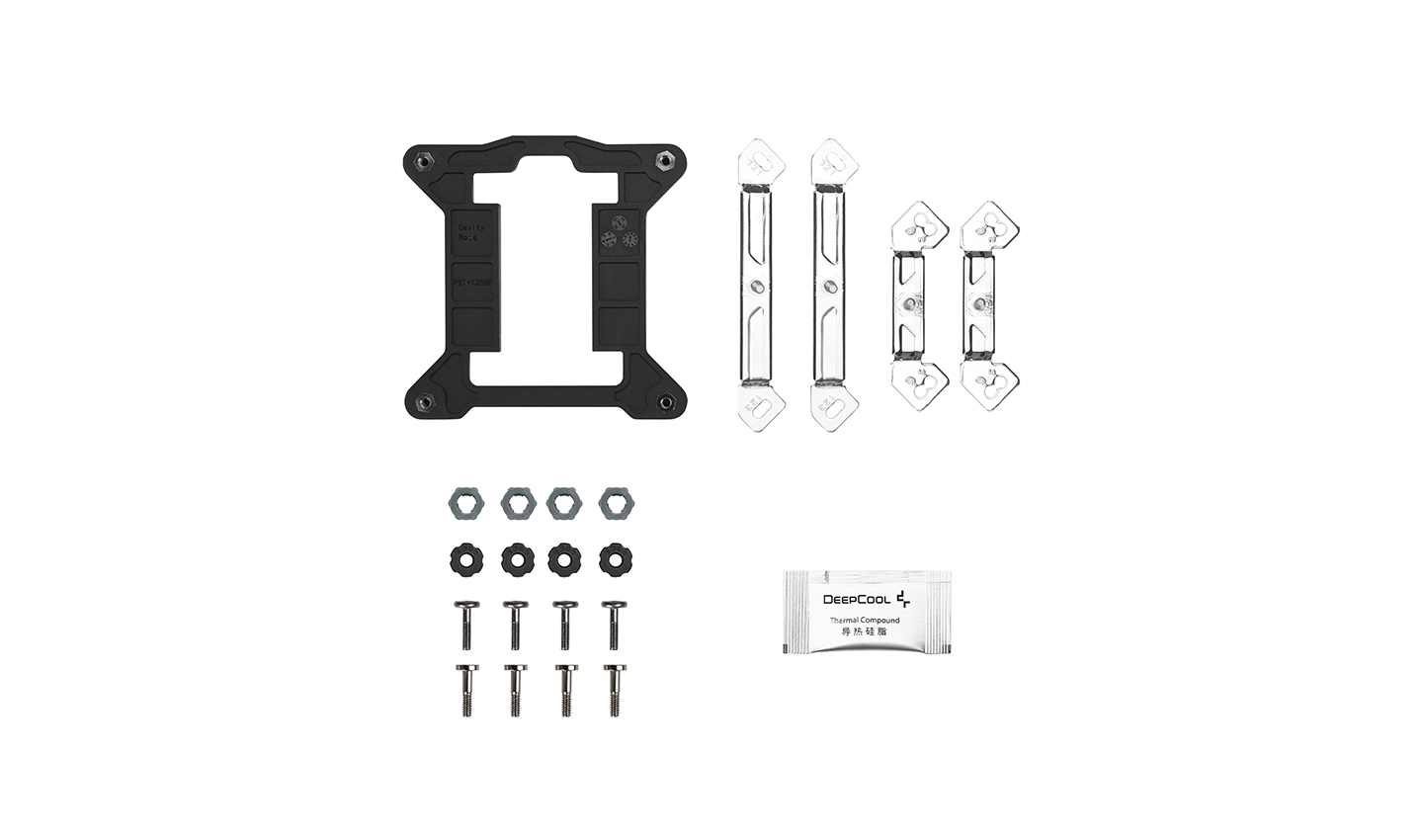

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
INTEL LGA1851/1700
AMD AM5/AM4
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions129×136×159 mm(L×W×H)
Heatsink Dimensions127×110×156 mm(L×W×H)
Net Weight1046 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2000±10% RPM / 500~2200±10% RPM
Fan Motor1-phase, 4-slot, 4-pole
Fan Airflow62.16 CFM / 68.85 CFM
Fan Air Pressure1.75 mmAq / 2.10 mmAq
Fan Noise≤28.10 dB(A) / ≤30.93 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.15 A / 0.18 A
Fan Power Consumption1.8 W / 2.16 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.70 W
EAN 6933412729921
P/NR-AG620-WHAMMG2-G
Download
AG620 G2 WH ARGB Manual.pdf
