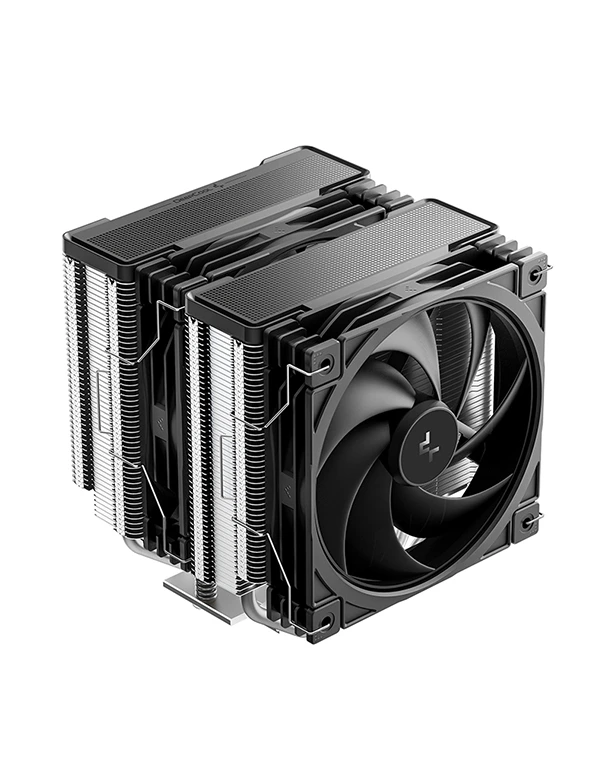

AG620 G2

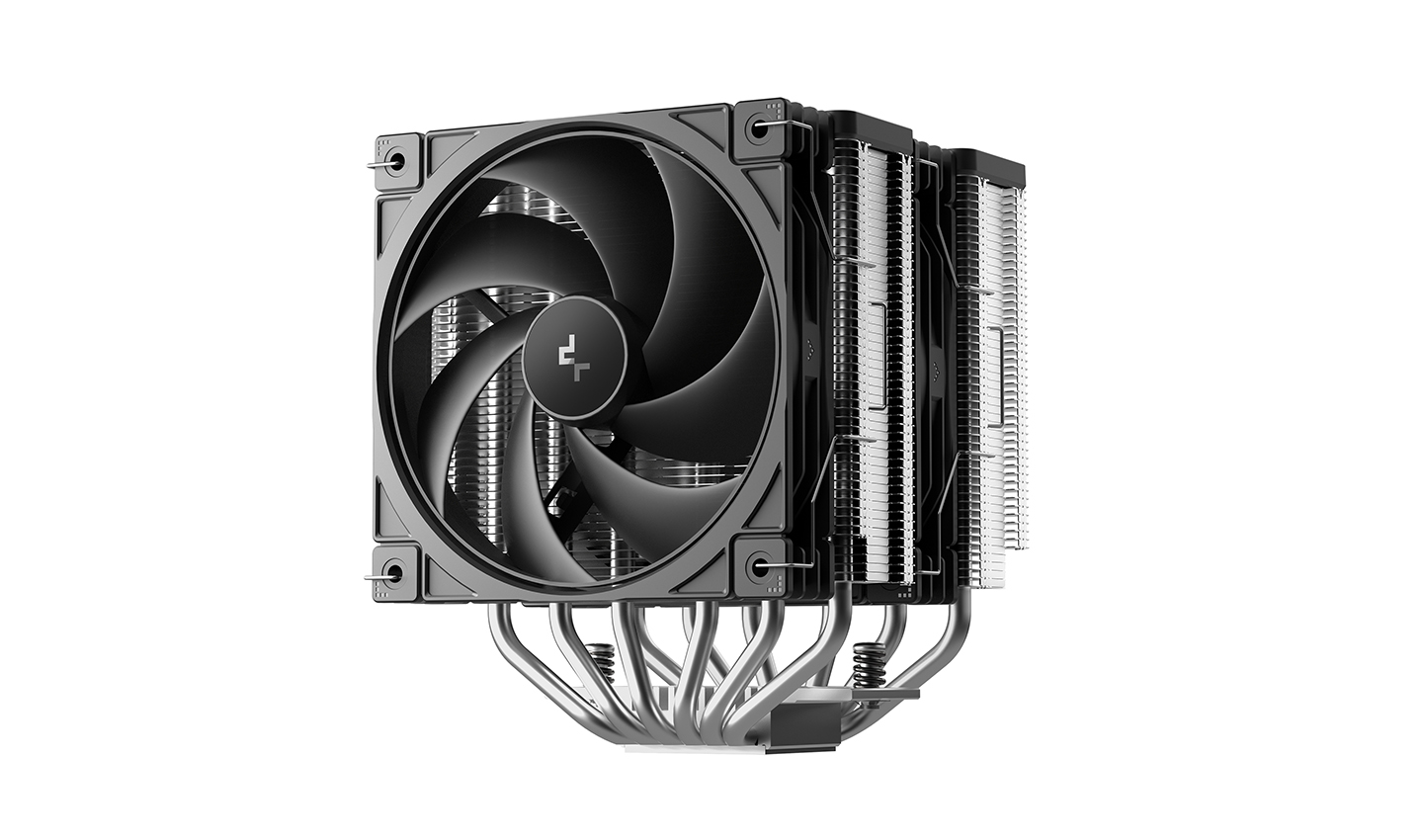

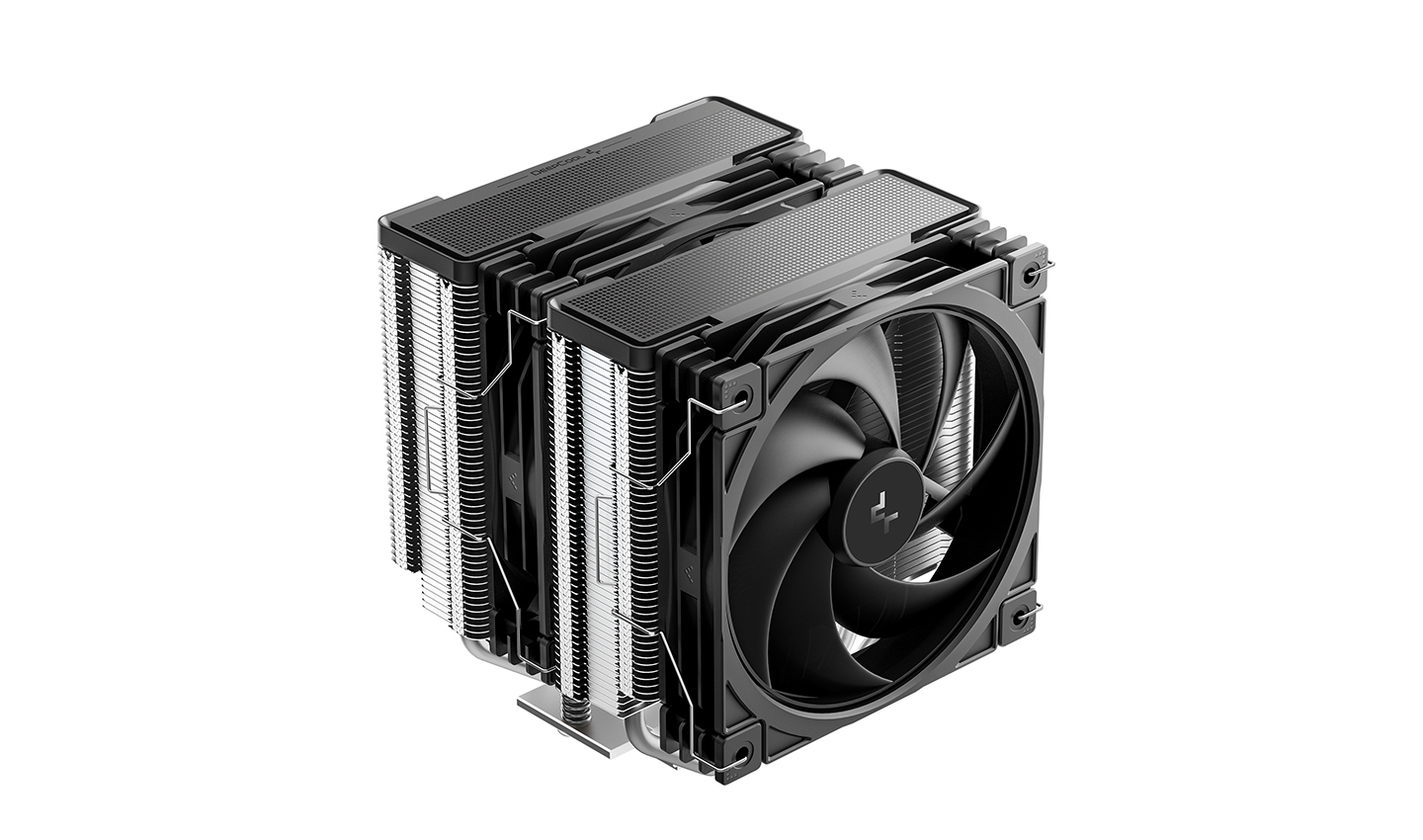

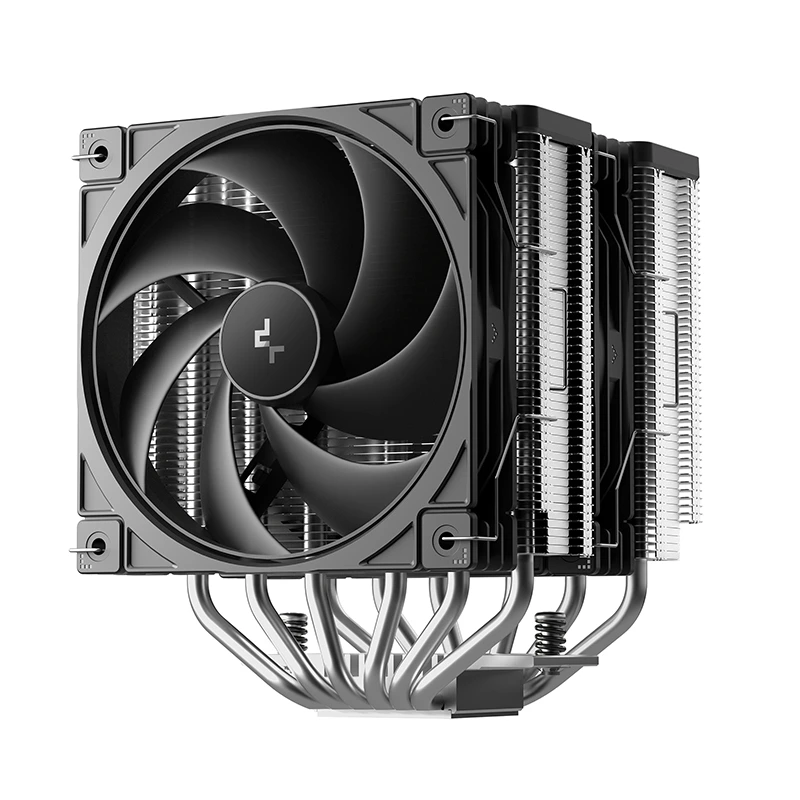

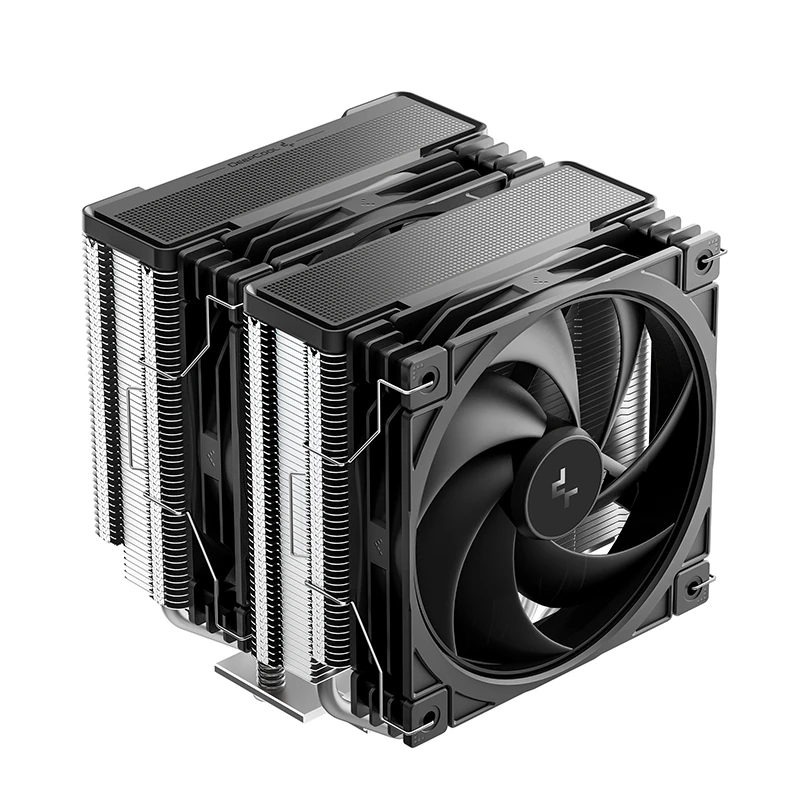

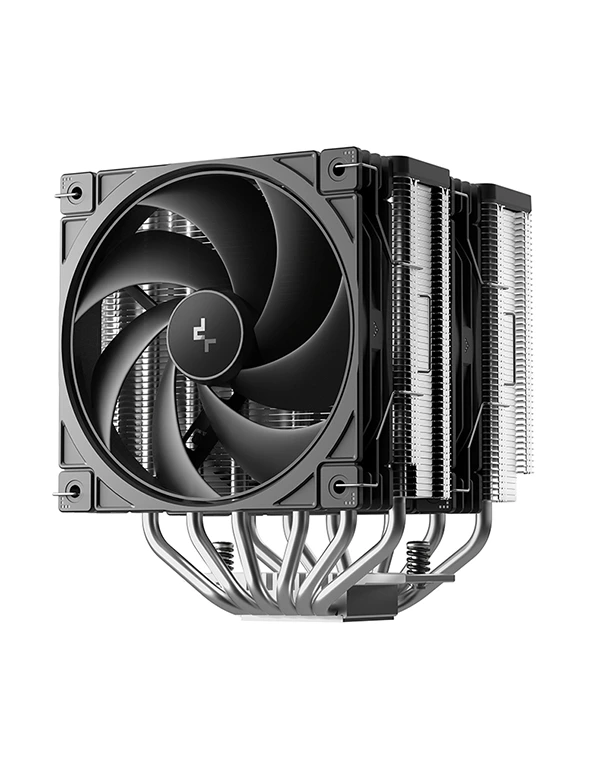

The AG620 G2 raises the bar for dual-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring six heat pipes embedded in a dense dual-tower heatsink and paired with two finely tuned 120mm PWM fans for seriously powerful airflow and thermal transfer.
MODEL
AG620 G2
COOLING REDEFINED

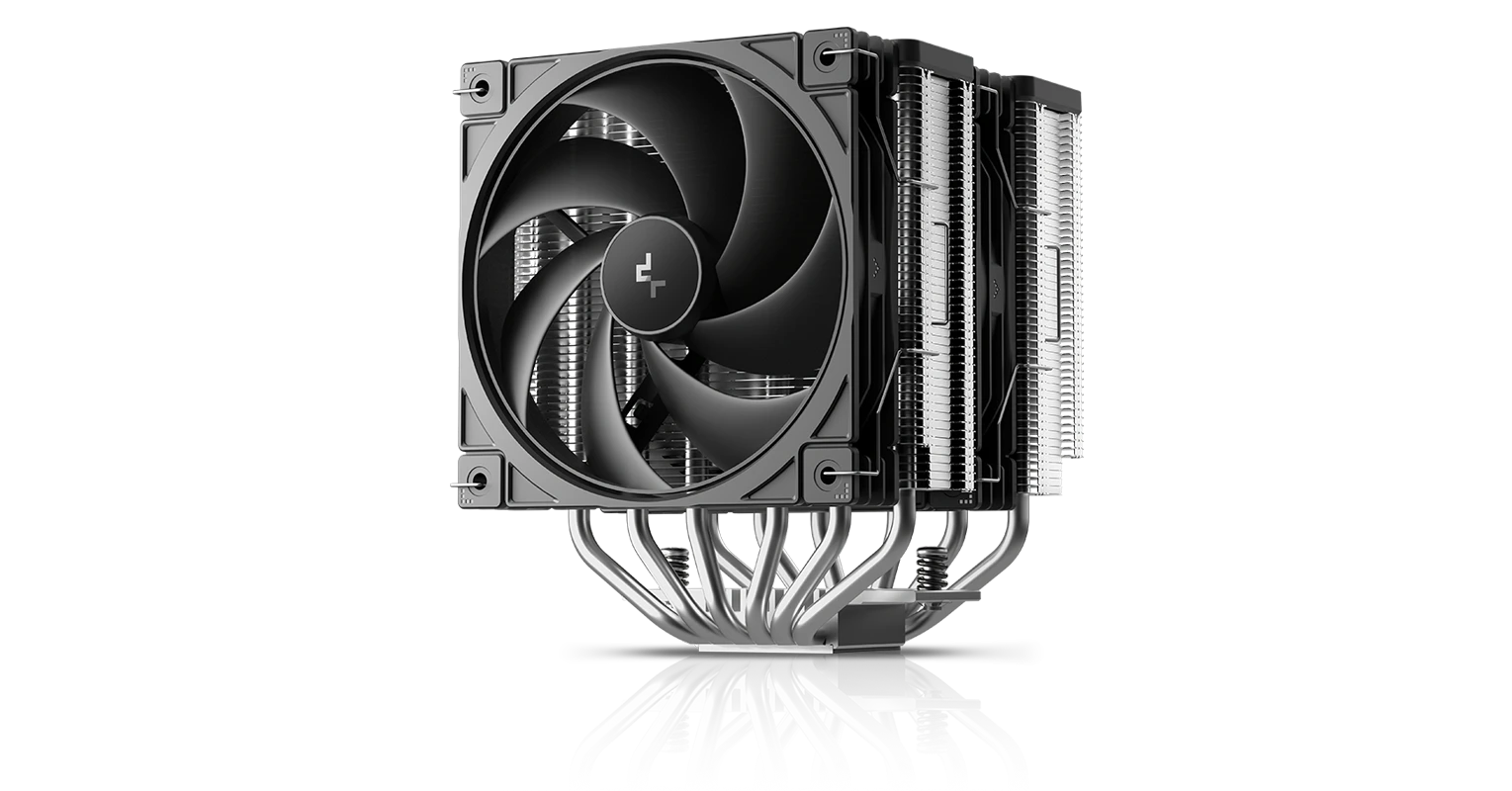

NEXT GENERATION PERFORMANCE

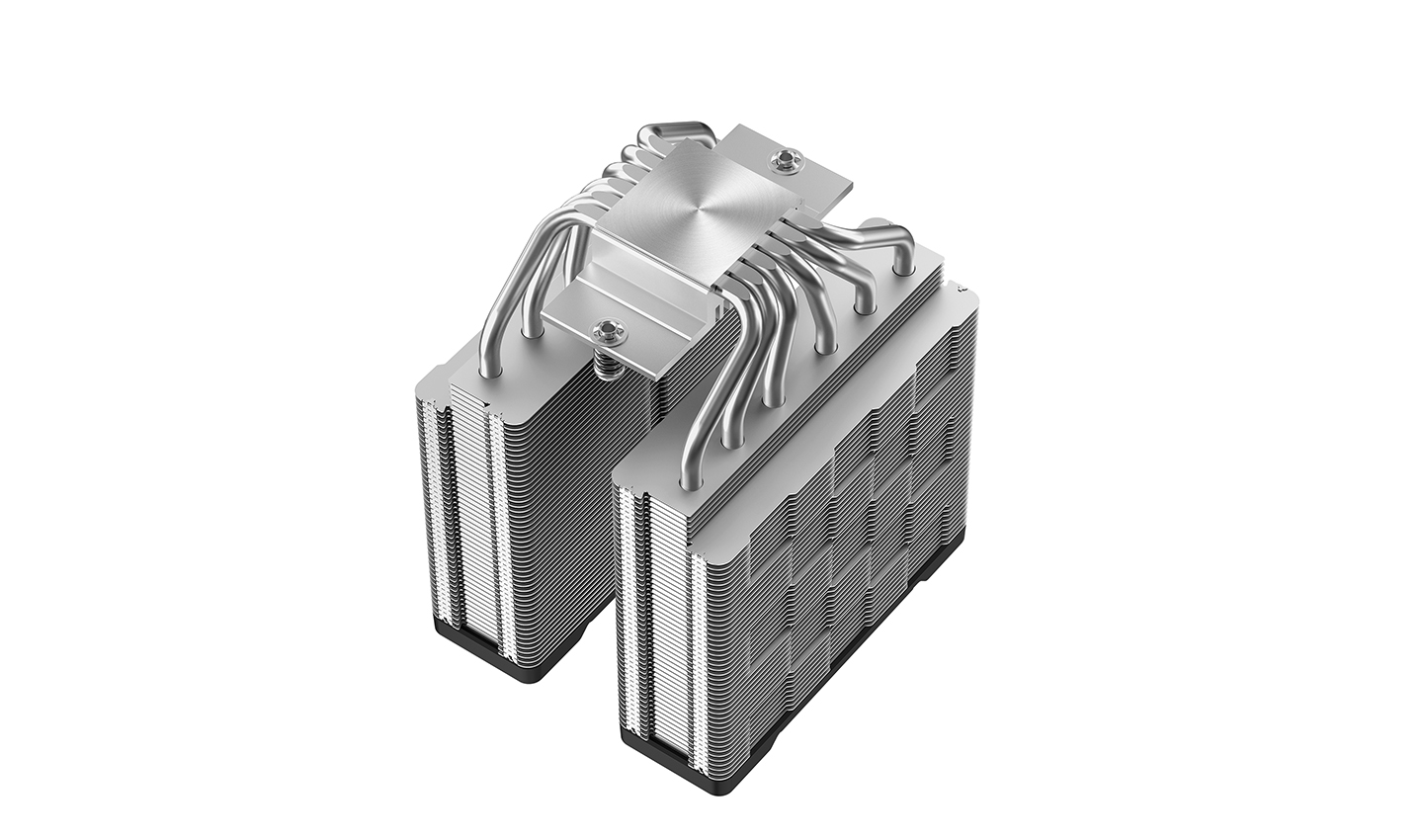

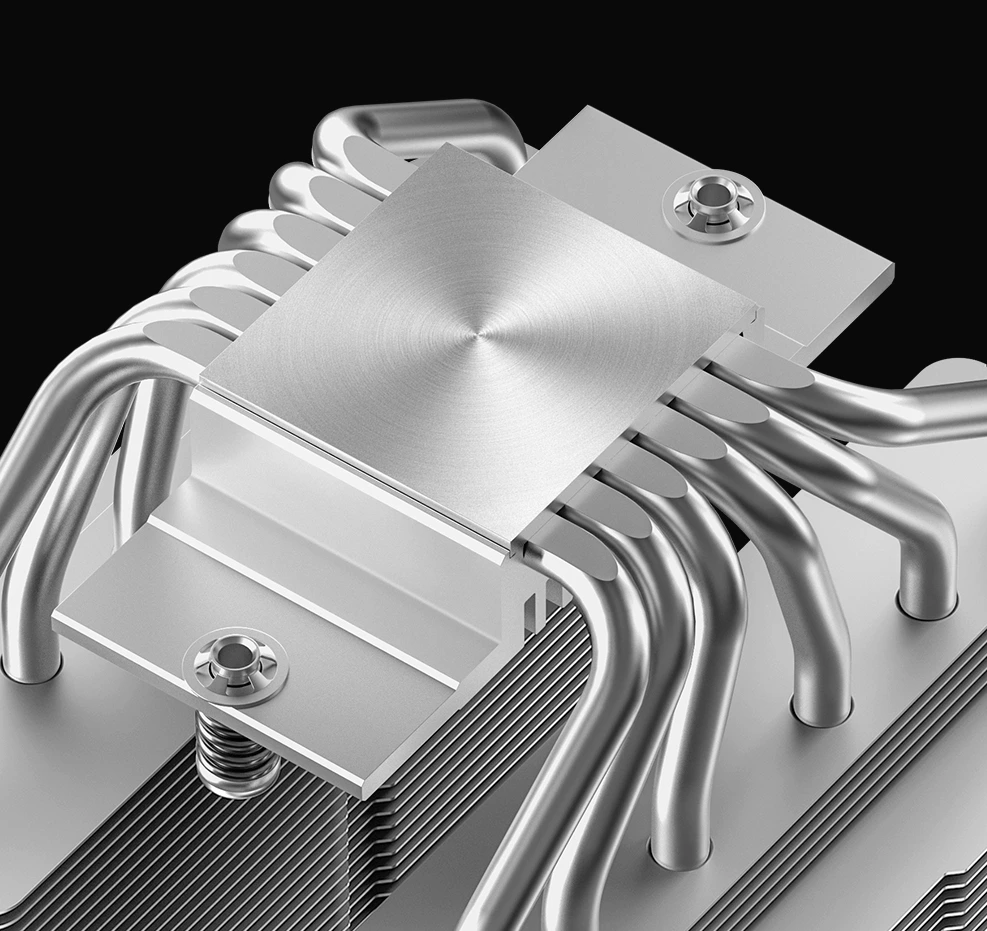

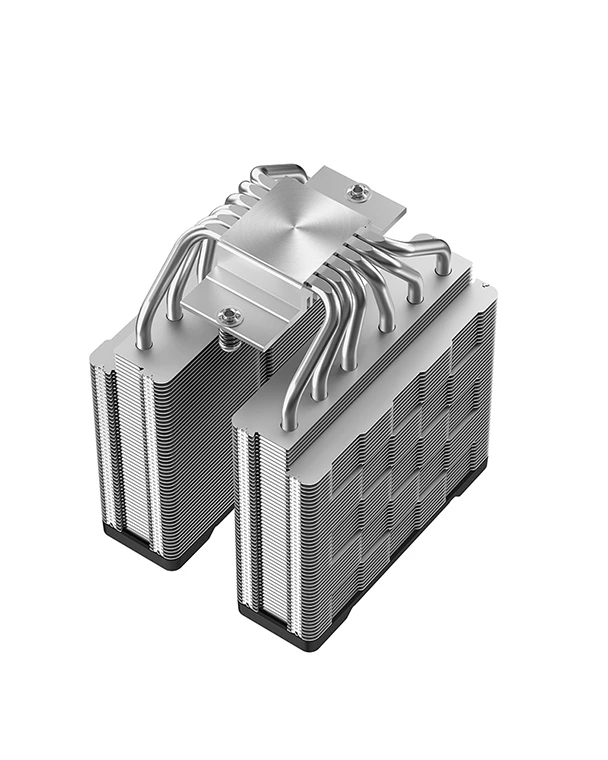

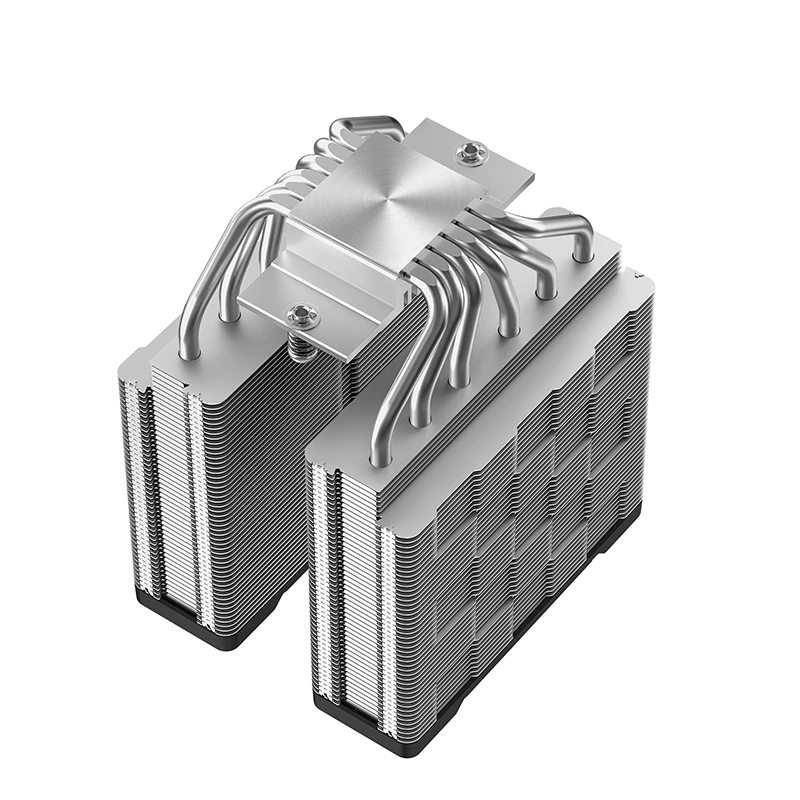

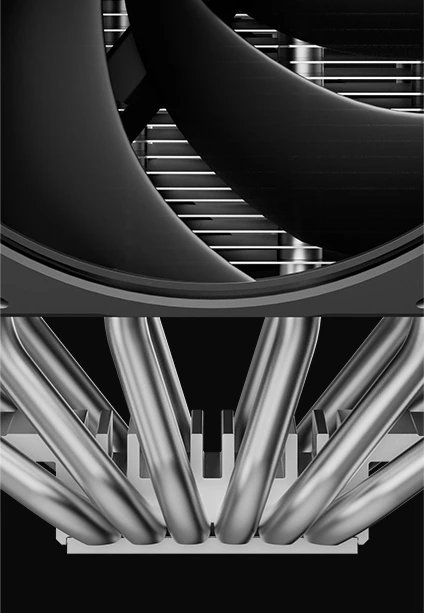

Thanks to DeepCool's latest Core Touch Technology (CTT 2.0) and an optimized tower design, the heatpipes have been laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, AG620 G2 provides a bump in cooling performance compared to its predecessor.
STYLED TO IMPRESS

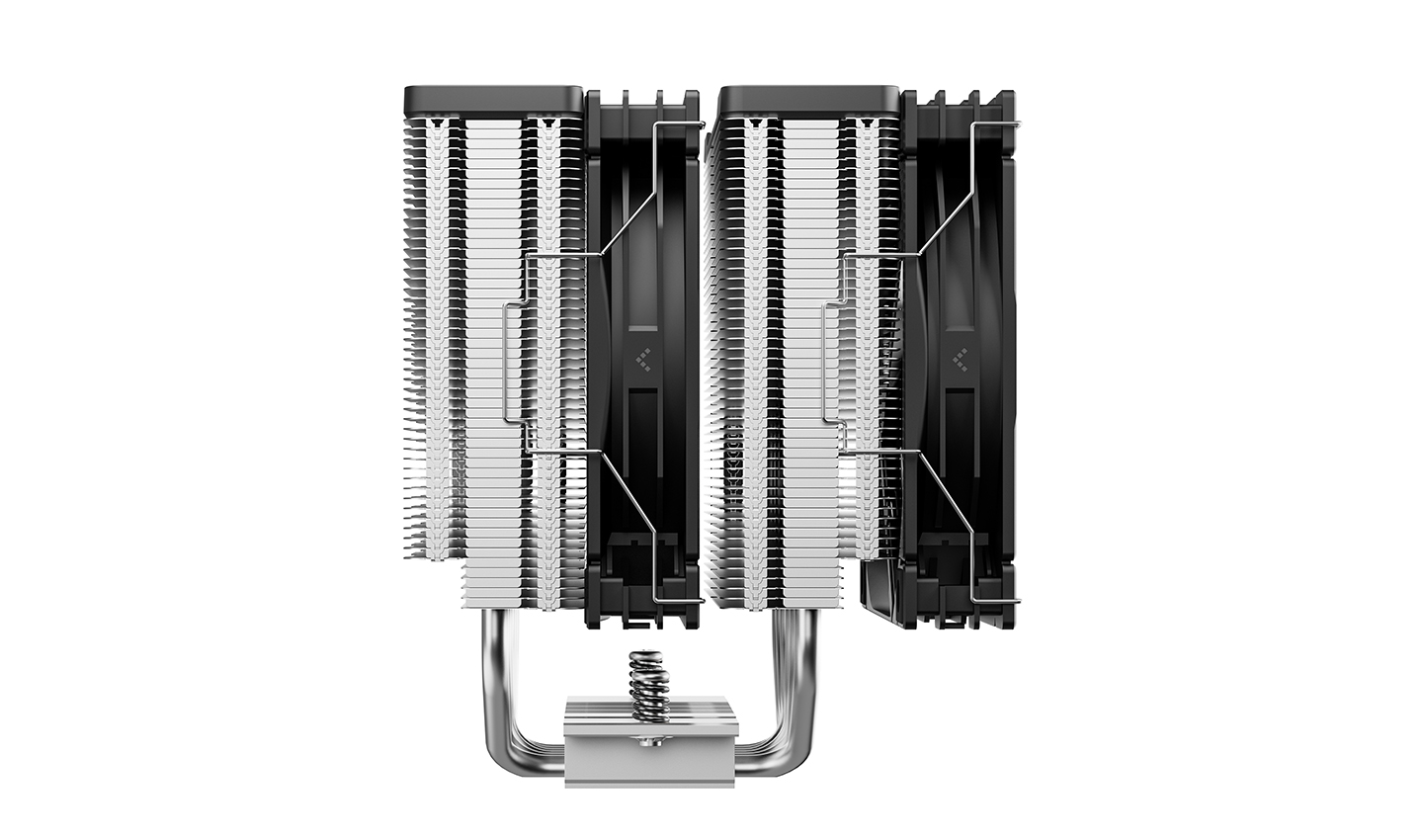

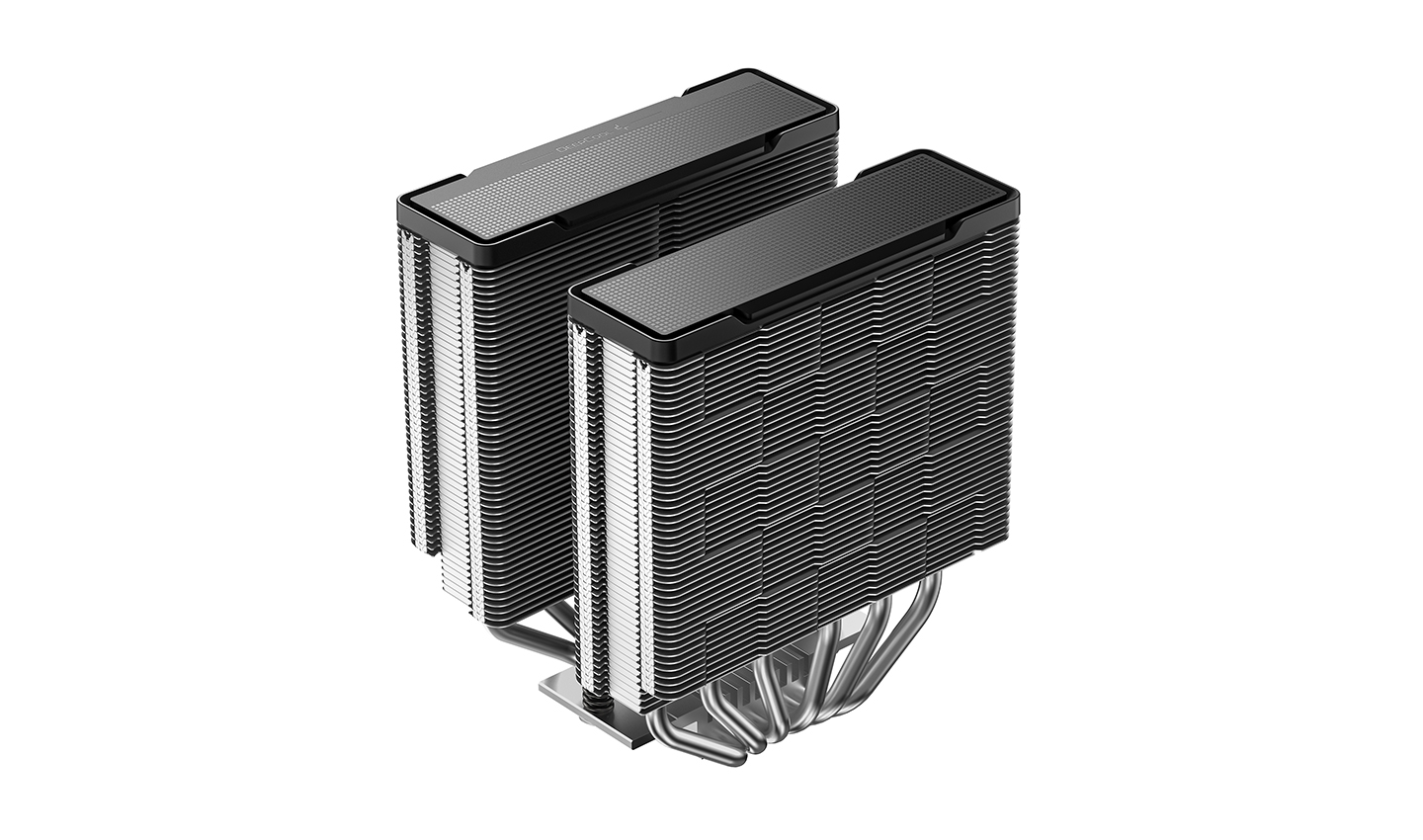

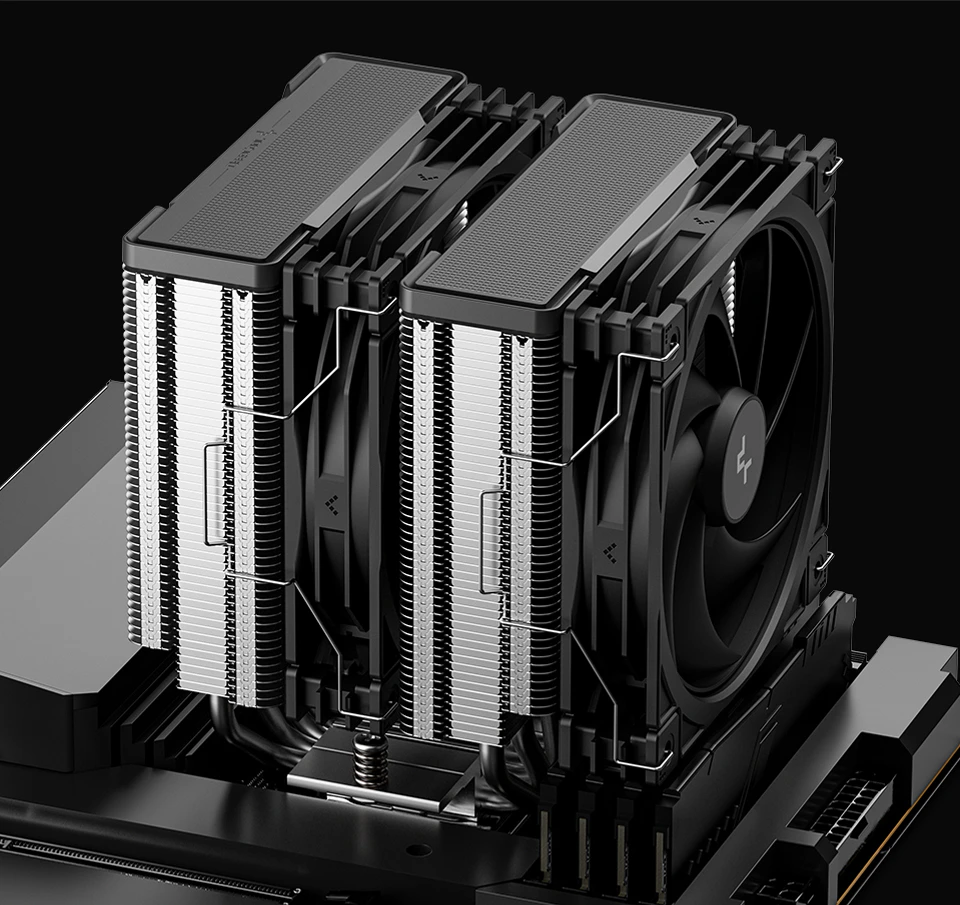

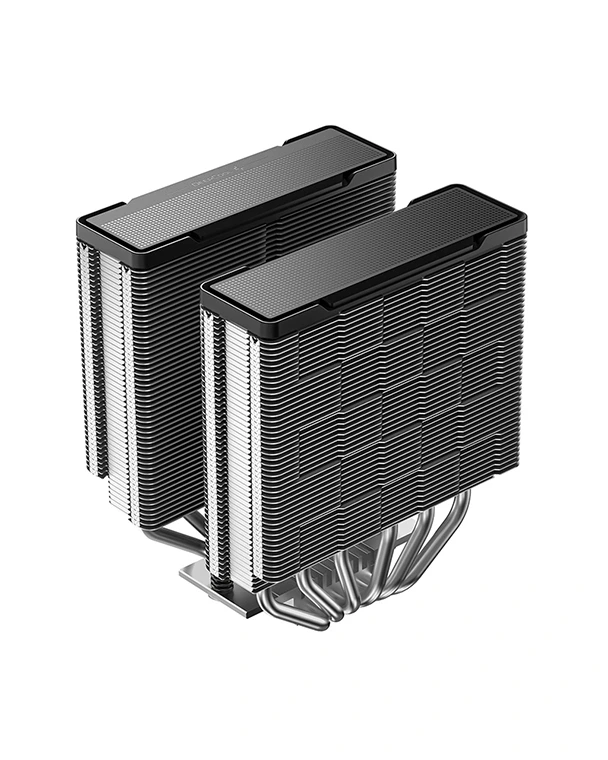

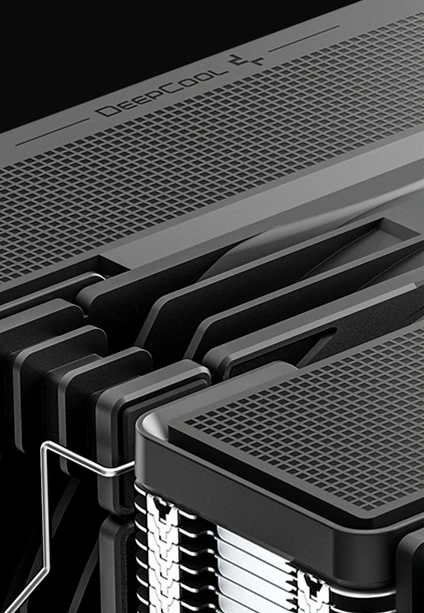

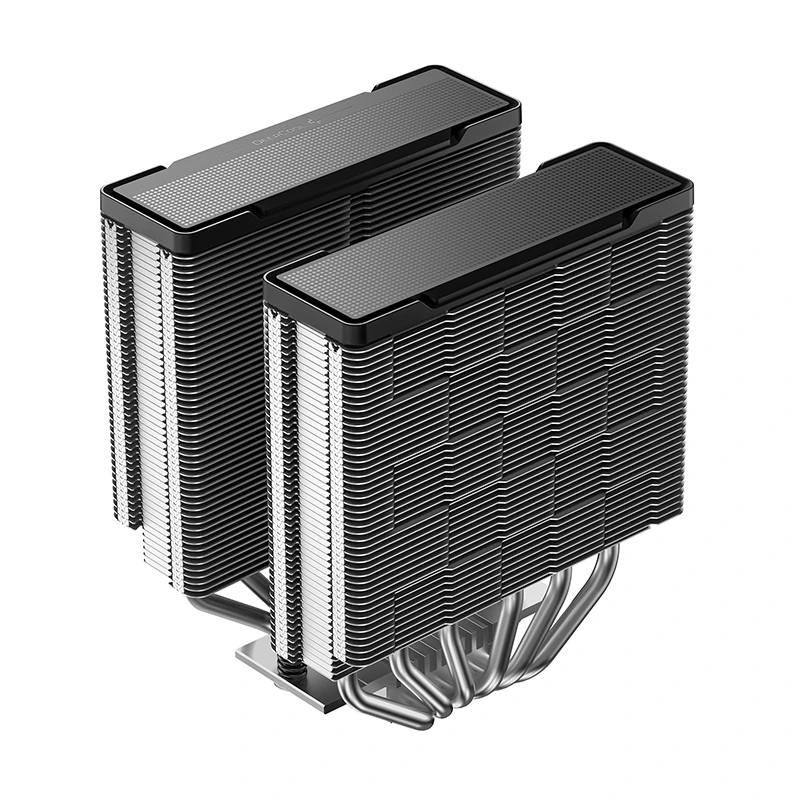

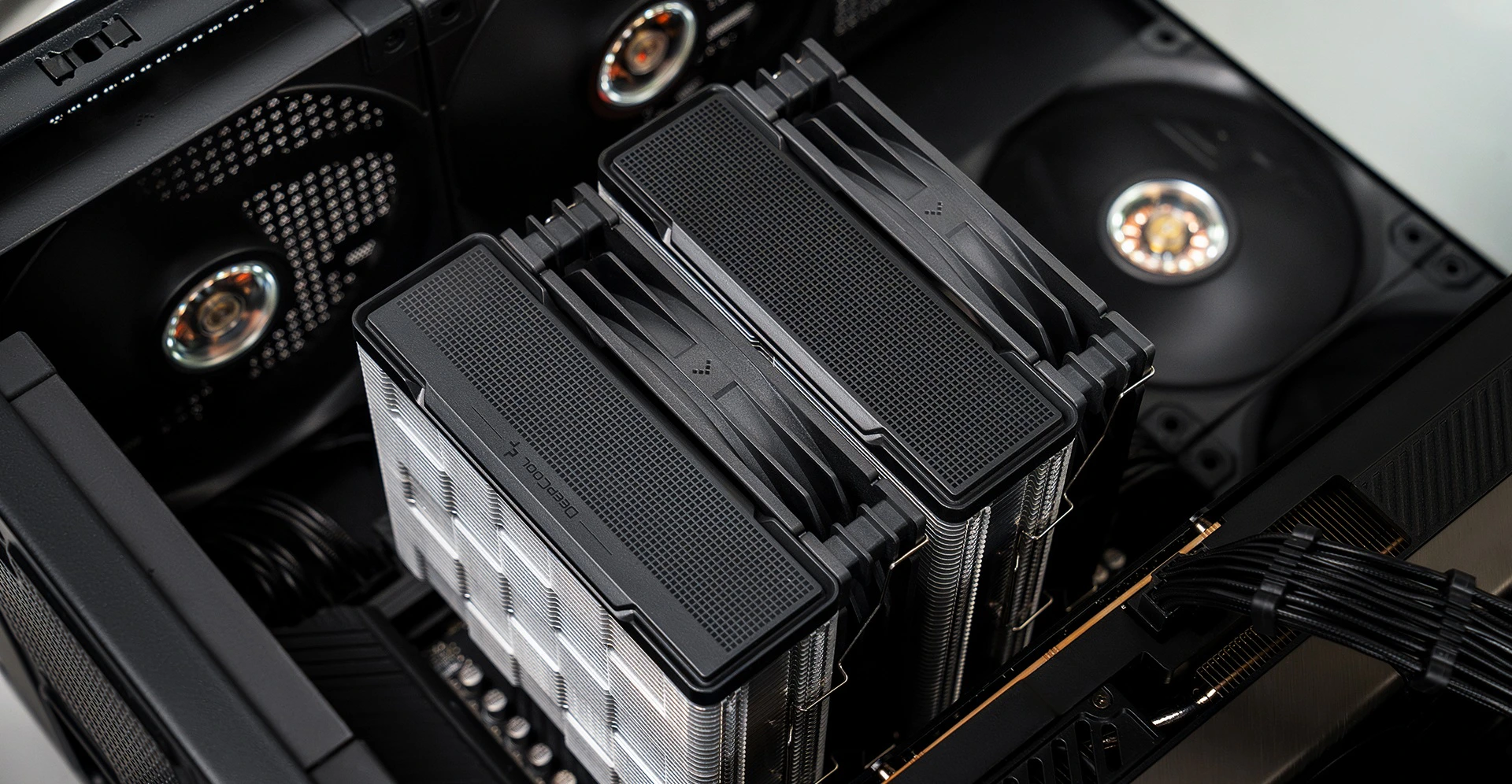

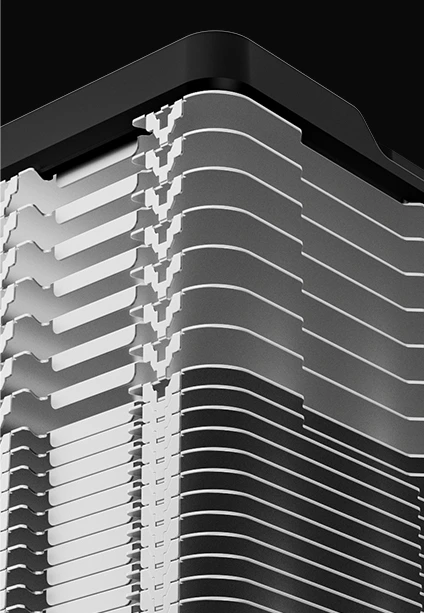

The AG620 G2 retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted six heat-pipe dual-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.
COOL, QUIET,
AND POWERFUL

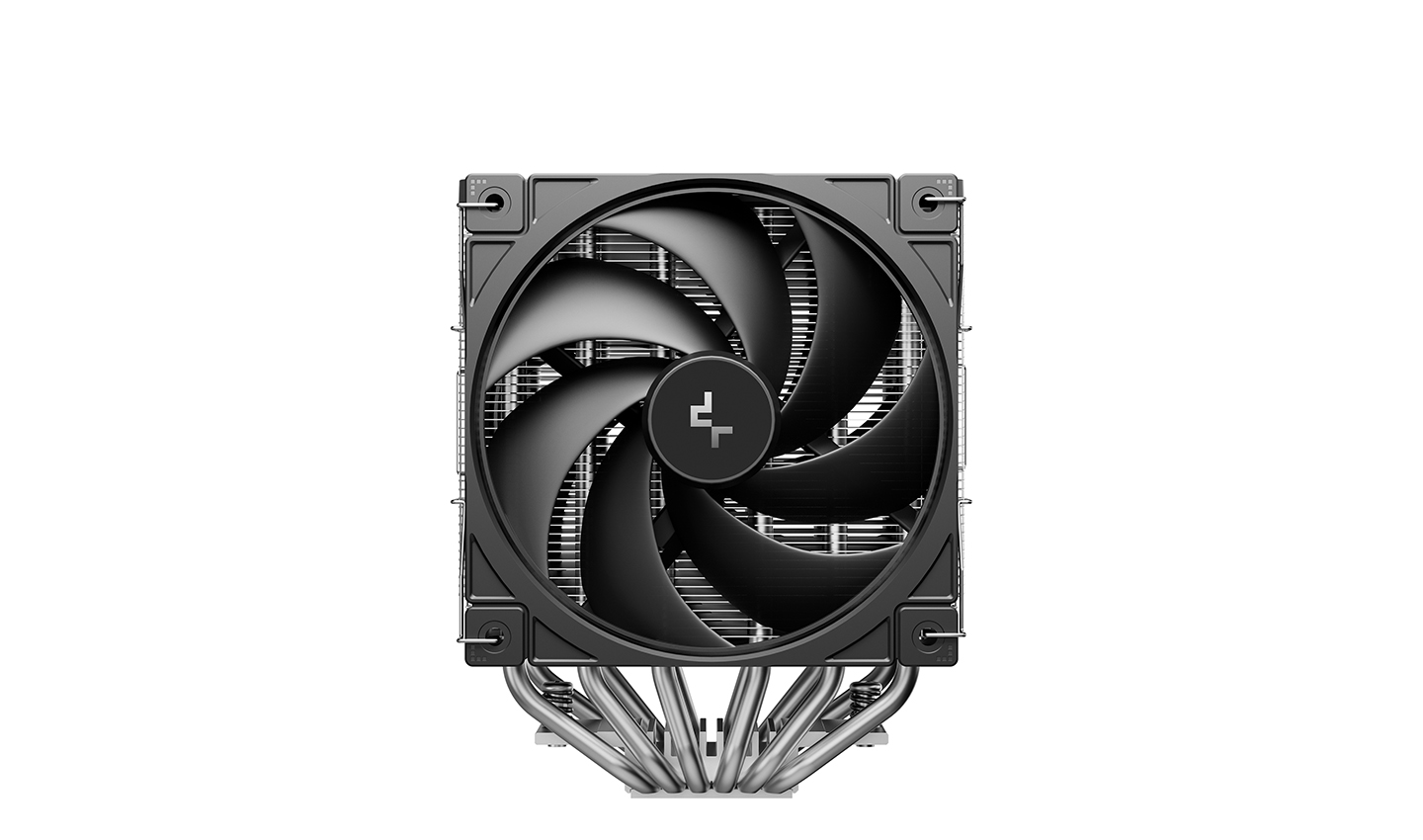

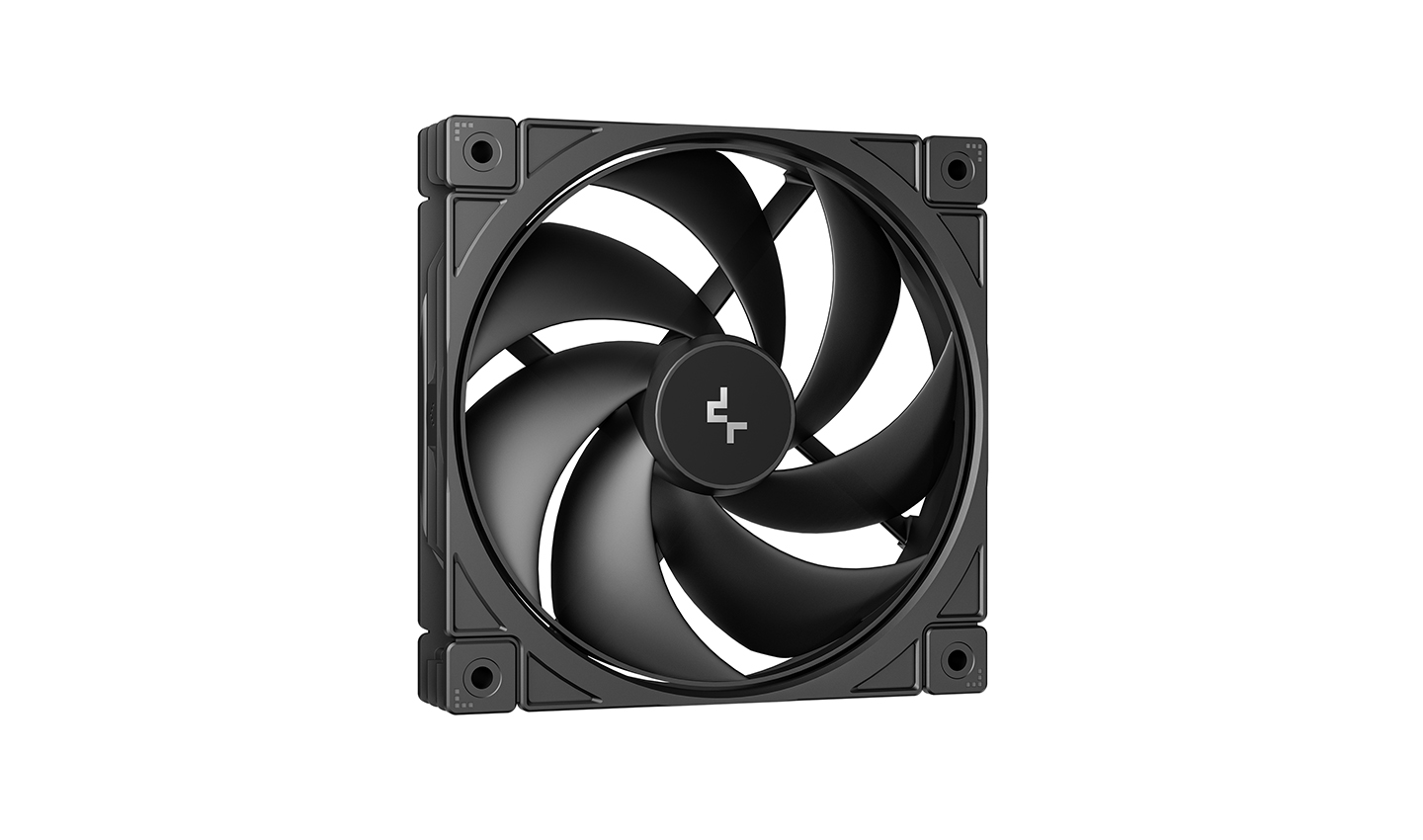

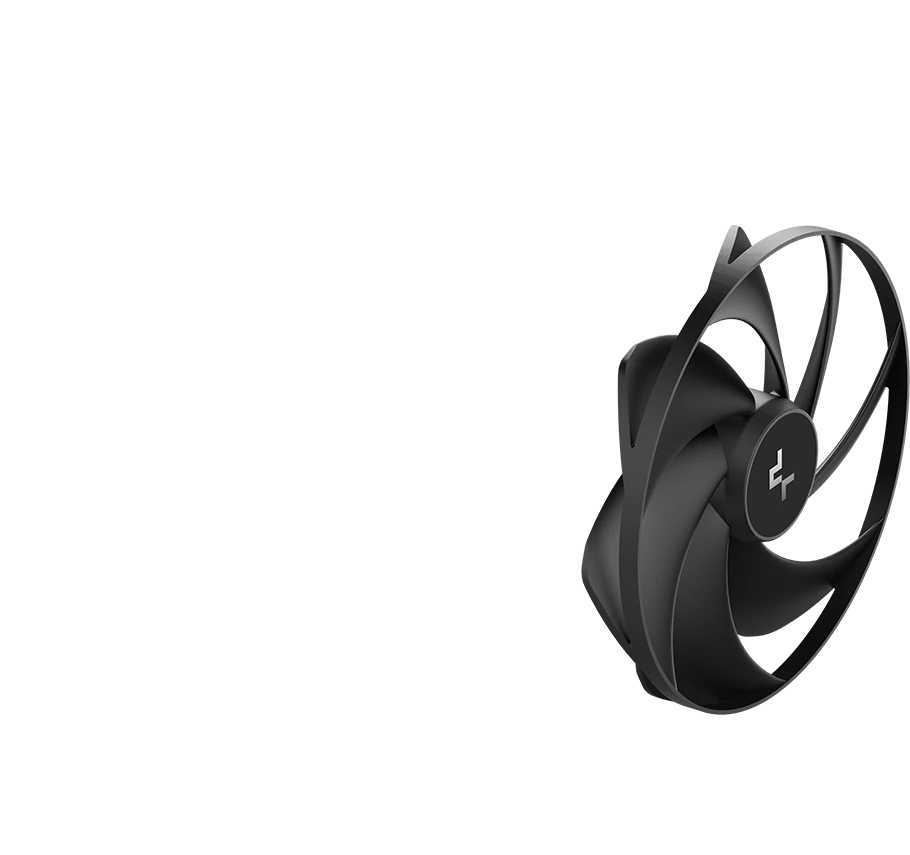

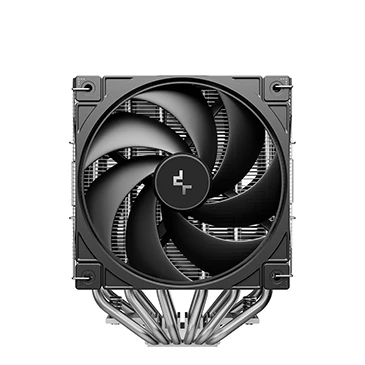

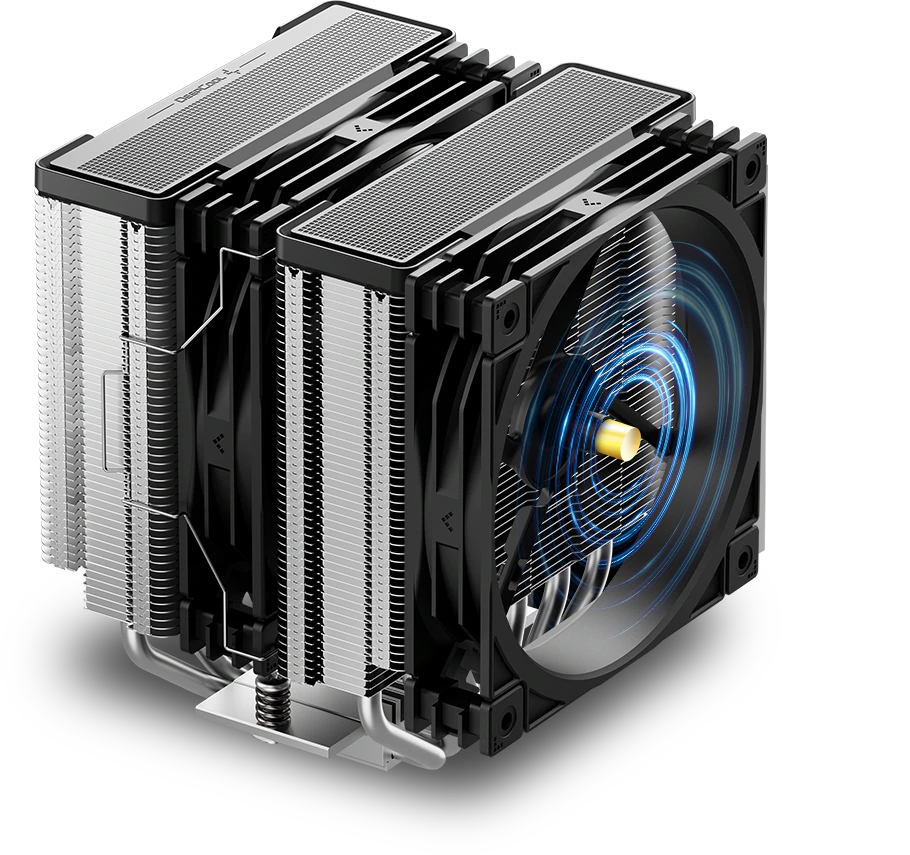

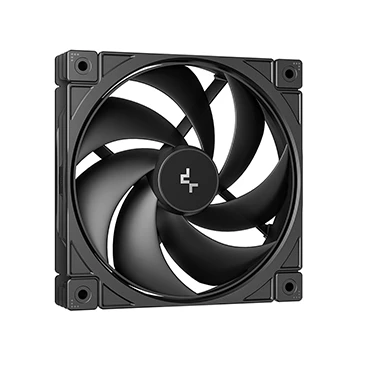

Outfitted with all-new semi-integral blade fans designed for optimal balance in top performance under load to silent efficiency when idle. This innovative setup optimizes airflow and static pressure while dramatically reducing noise.
500~2000±10% RPM / 500~2200±10% RPM
Fan Speed
63.56 CFM / 70.09 CFM
Fan Airflow
1.98 mmAq / 2.49 mmAq
Fan Air Pressure
≤23.08 dB(A) / ≤29.22 dB(A)
Fan Noise

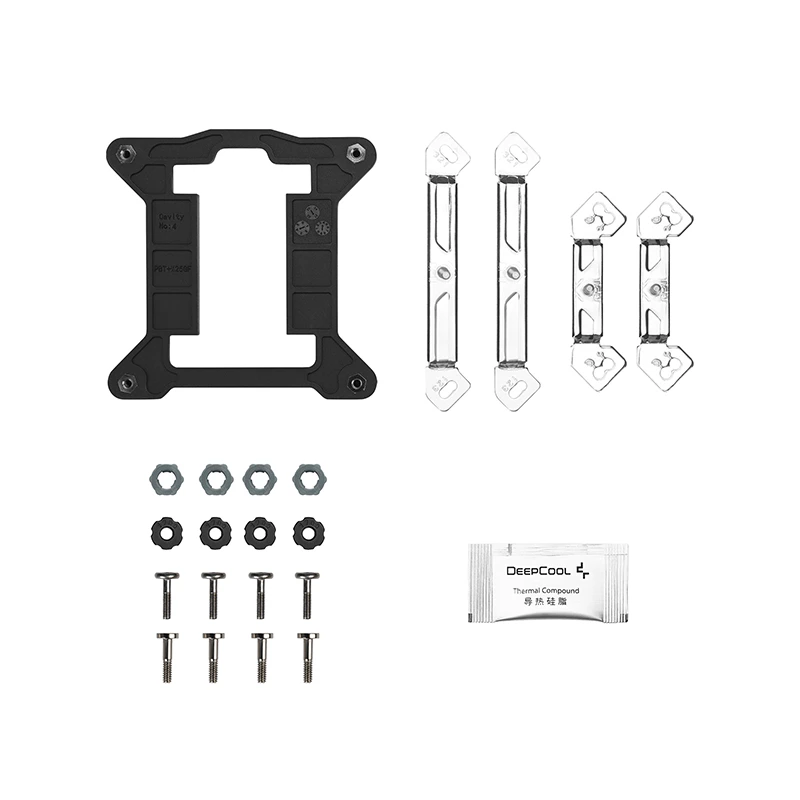

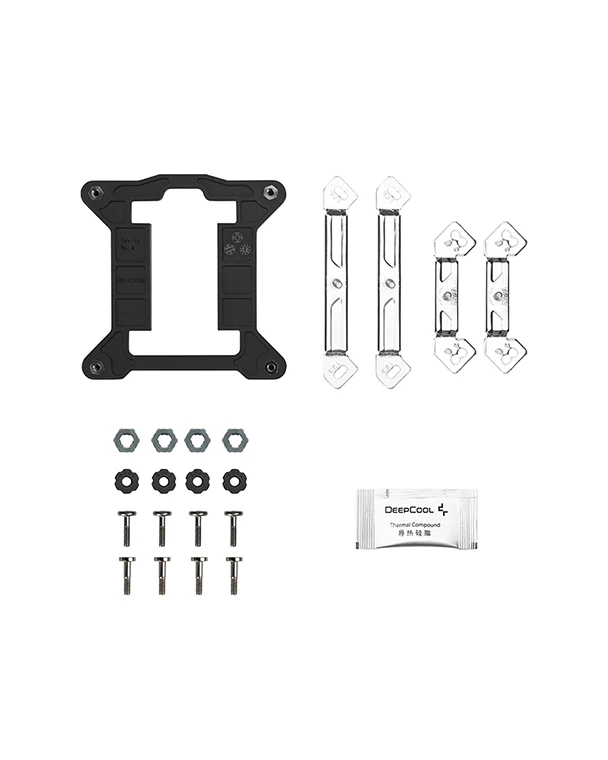

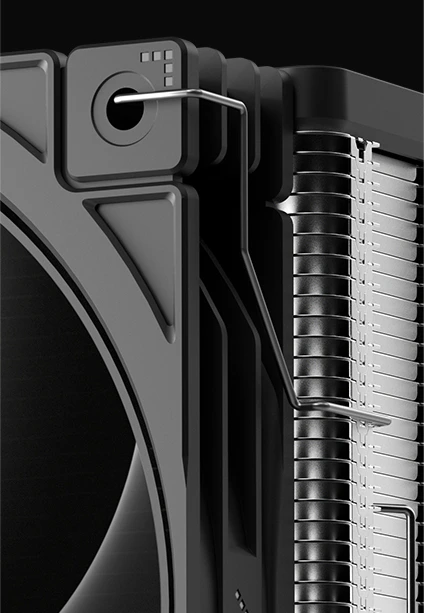

SIMPLE AND SECURE INSTALLATION

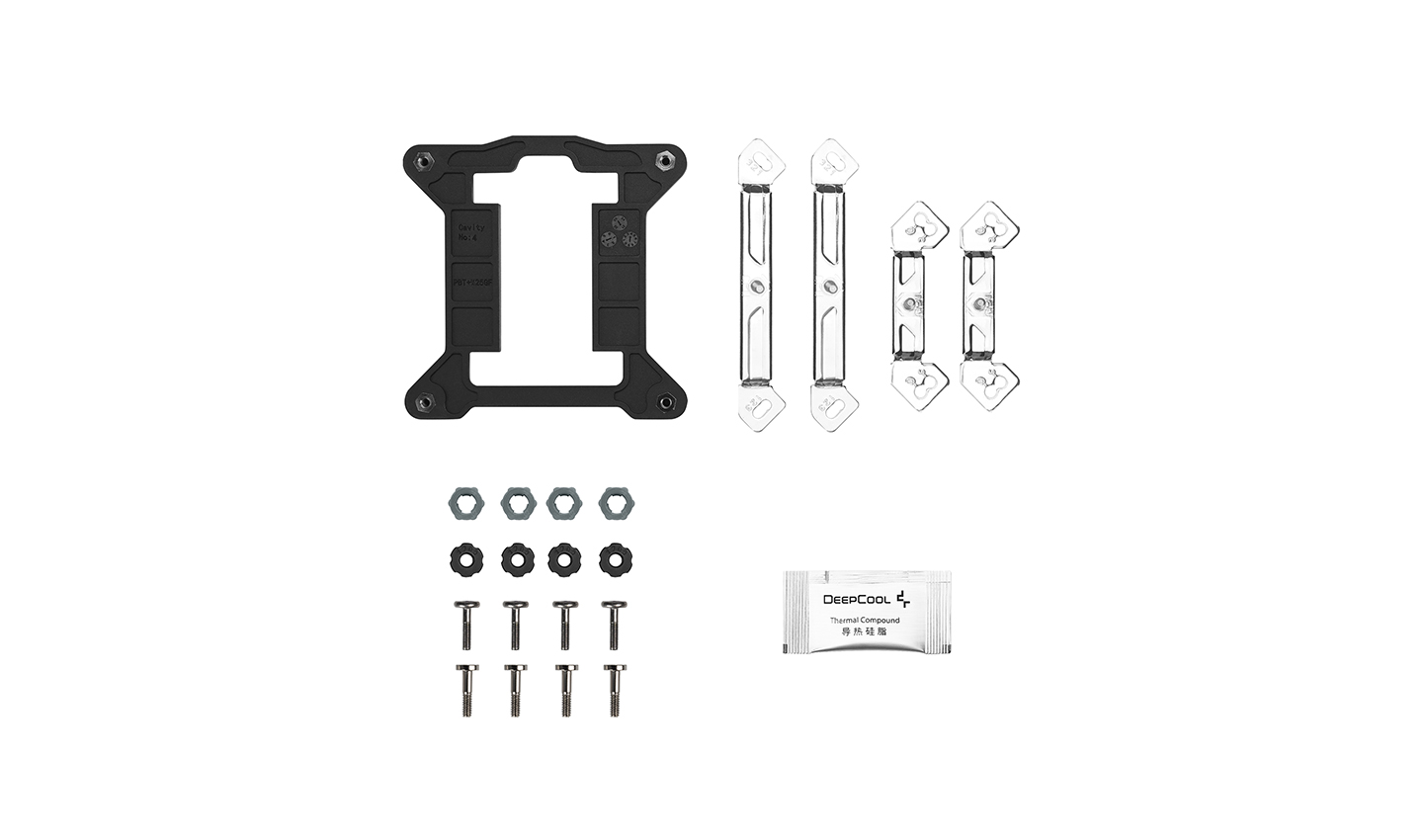

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions129×136×159 mm(L×W×H)
Heatsink Dimensions127×110×156 mm(L×W×H)
Net Weight1036 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2000±10% RPM / 500~2200±10% RPM
Fan Motor1-phase, 4-slot, 4-pole
Fan Airflow63.56 CFM / 70.09 CFM
Fan Air Pressure1.98 mmAq / 2.49 mmAq
Fan Noise≤23.08 dB(A) / ≤29.22 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.15 A / 0.18 A
Fan Power Consumption1.8 W / 2.16 W
EAN6933412729891
P/NR-AG620-BKNPMG2-G
Download
AG620 G2 Manual.pdf
