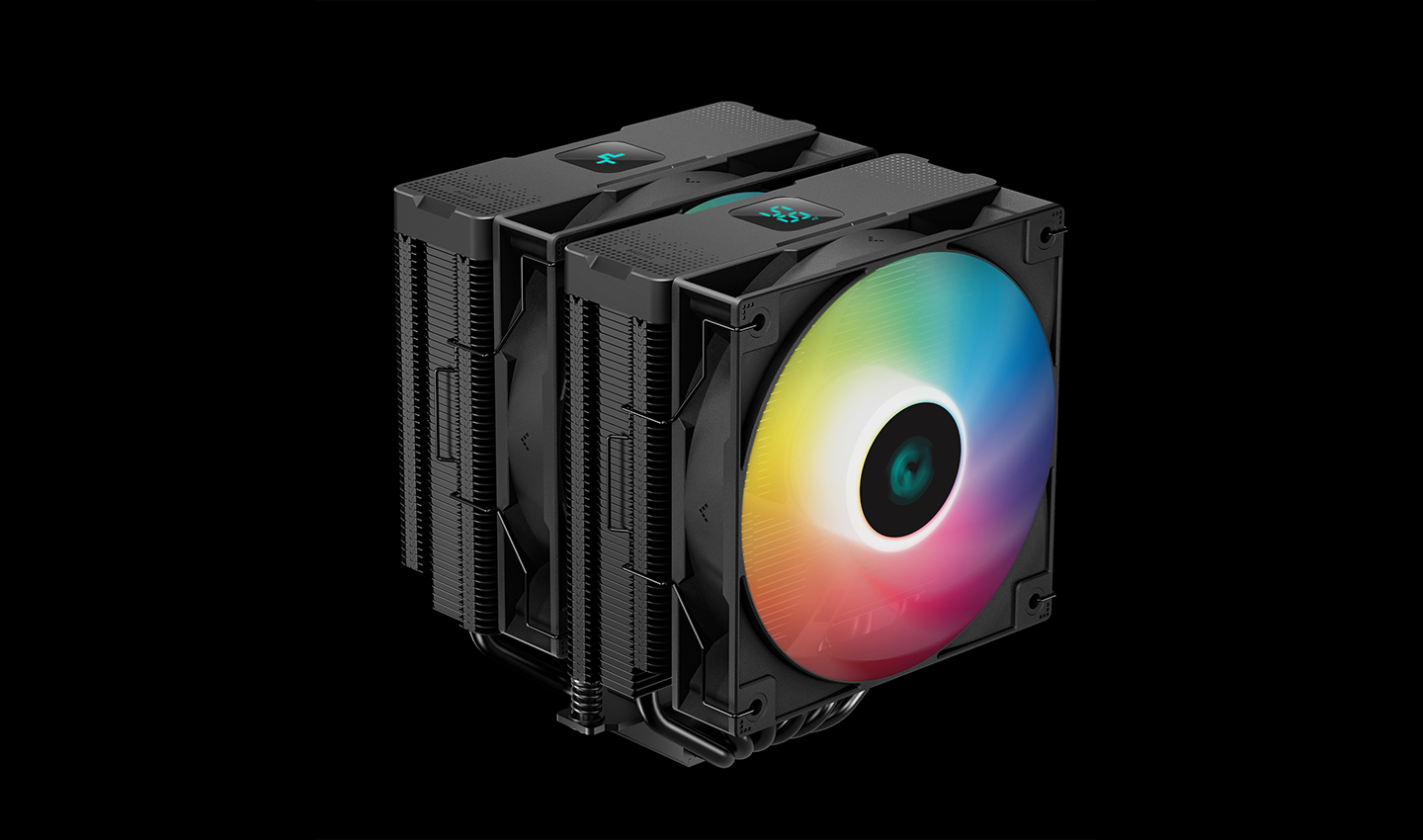

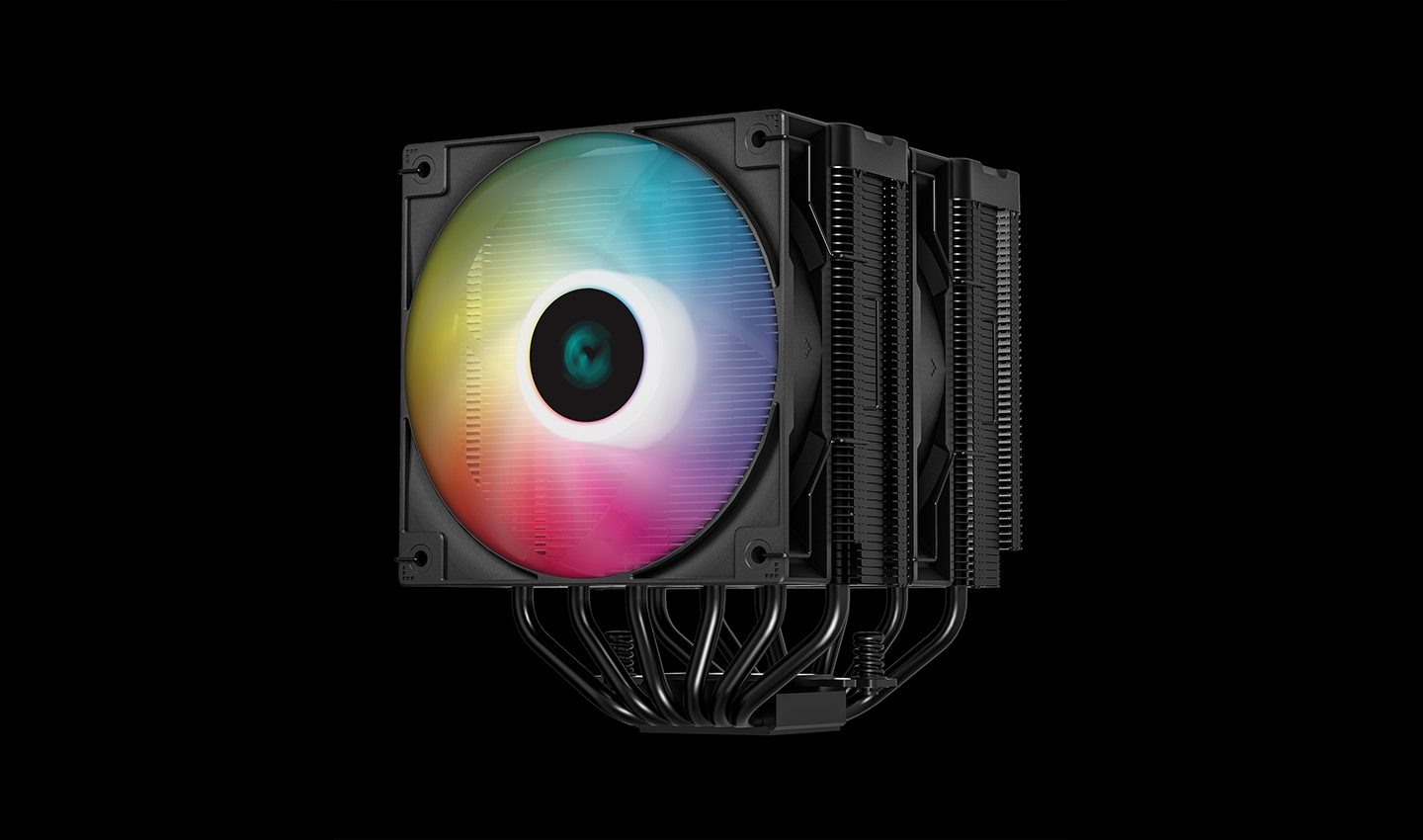

AG620 DIGITAL BK ARGB
The era of digital air coolers has arrived, and DeepCool wants to popularize it. Everything you loved about the AG620 BK ARGB, but with a sleek low-profile status display.
MODEL
AG620 DIGITAL BK ARGB
WELCOME TO THE DIGITAL ERA

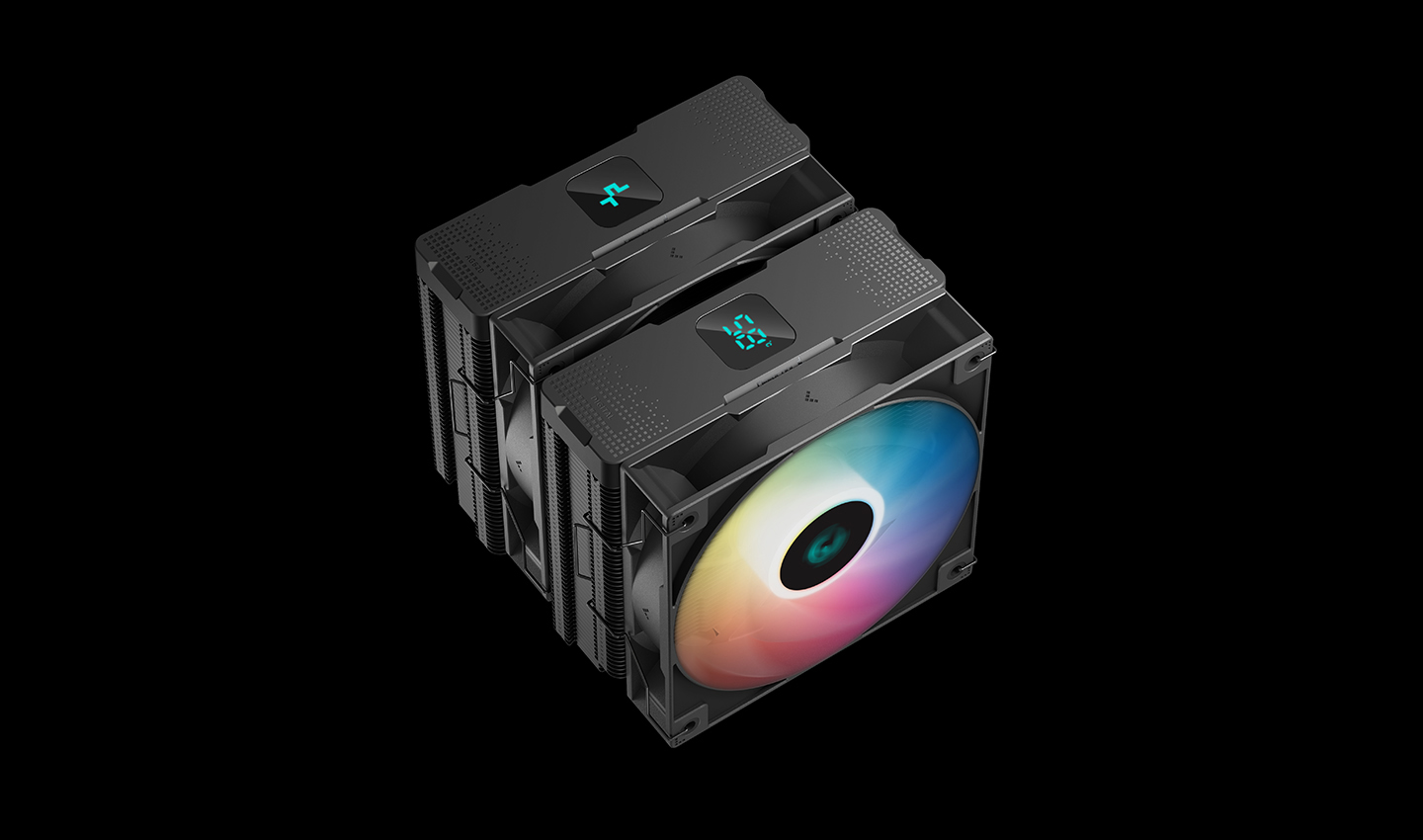

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the Celsius and usage of your system's CPU in real time, and with a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
INSISTENCE OF COST PERFORMANCE

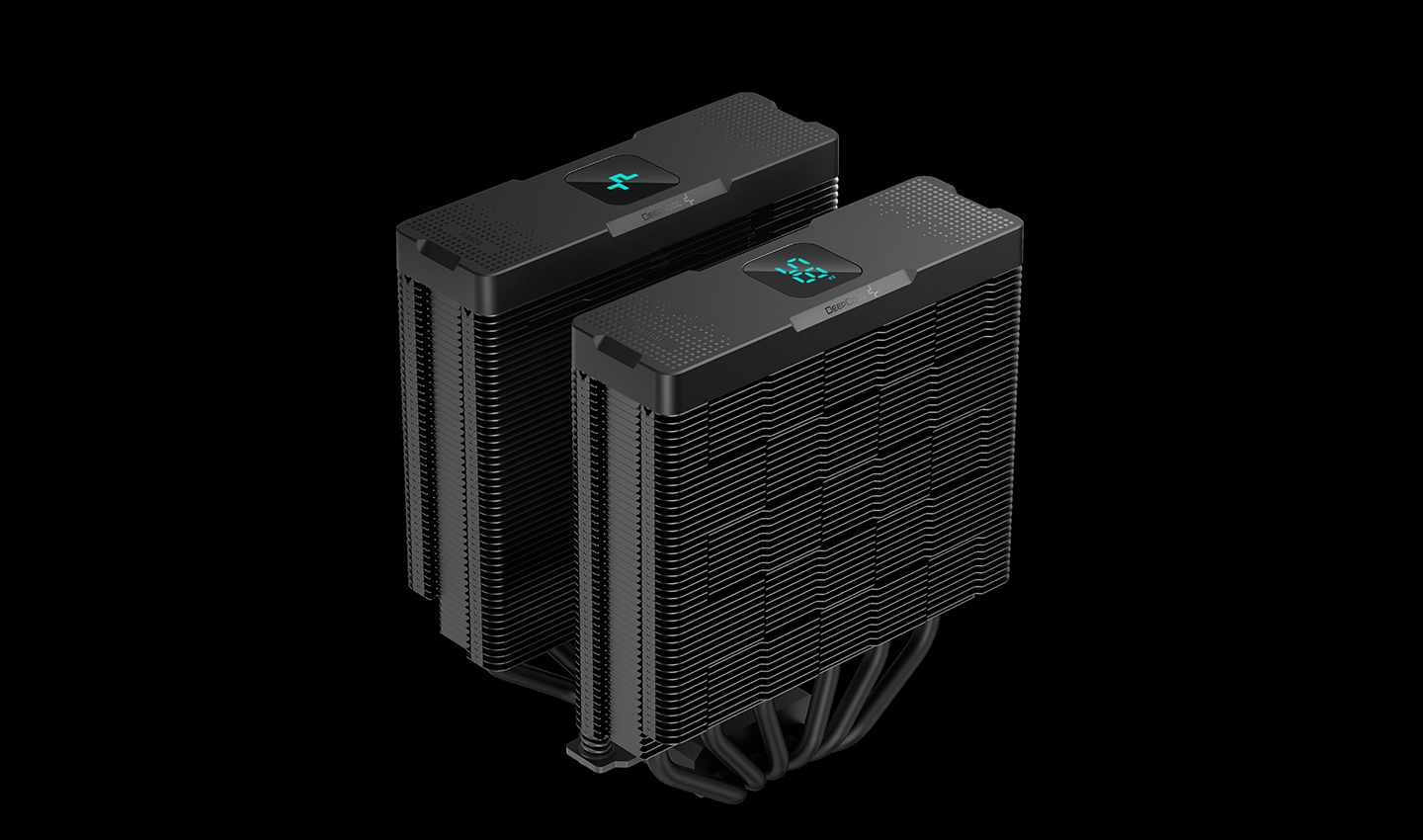

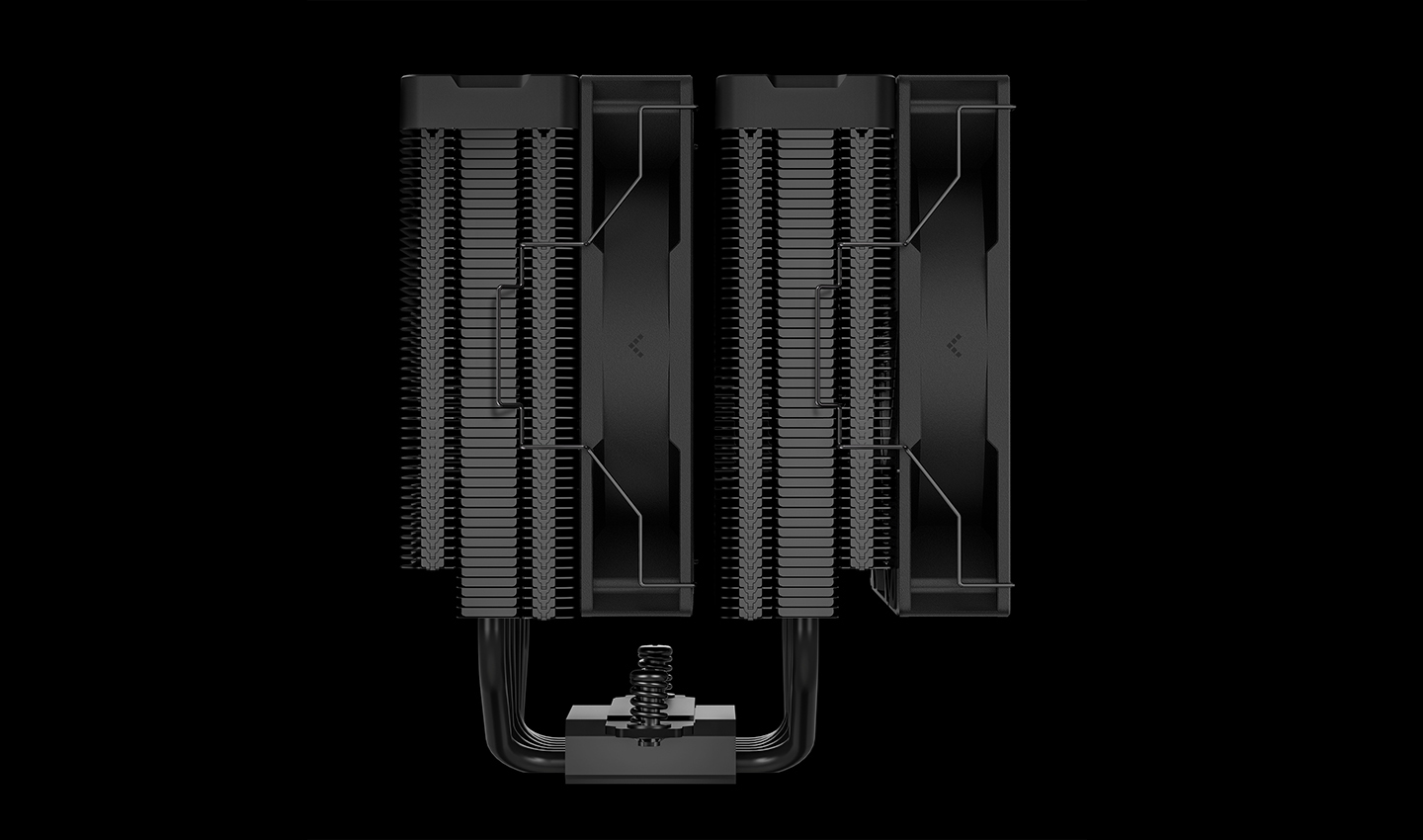

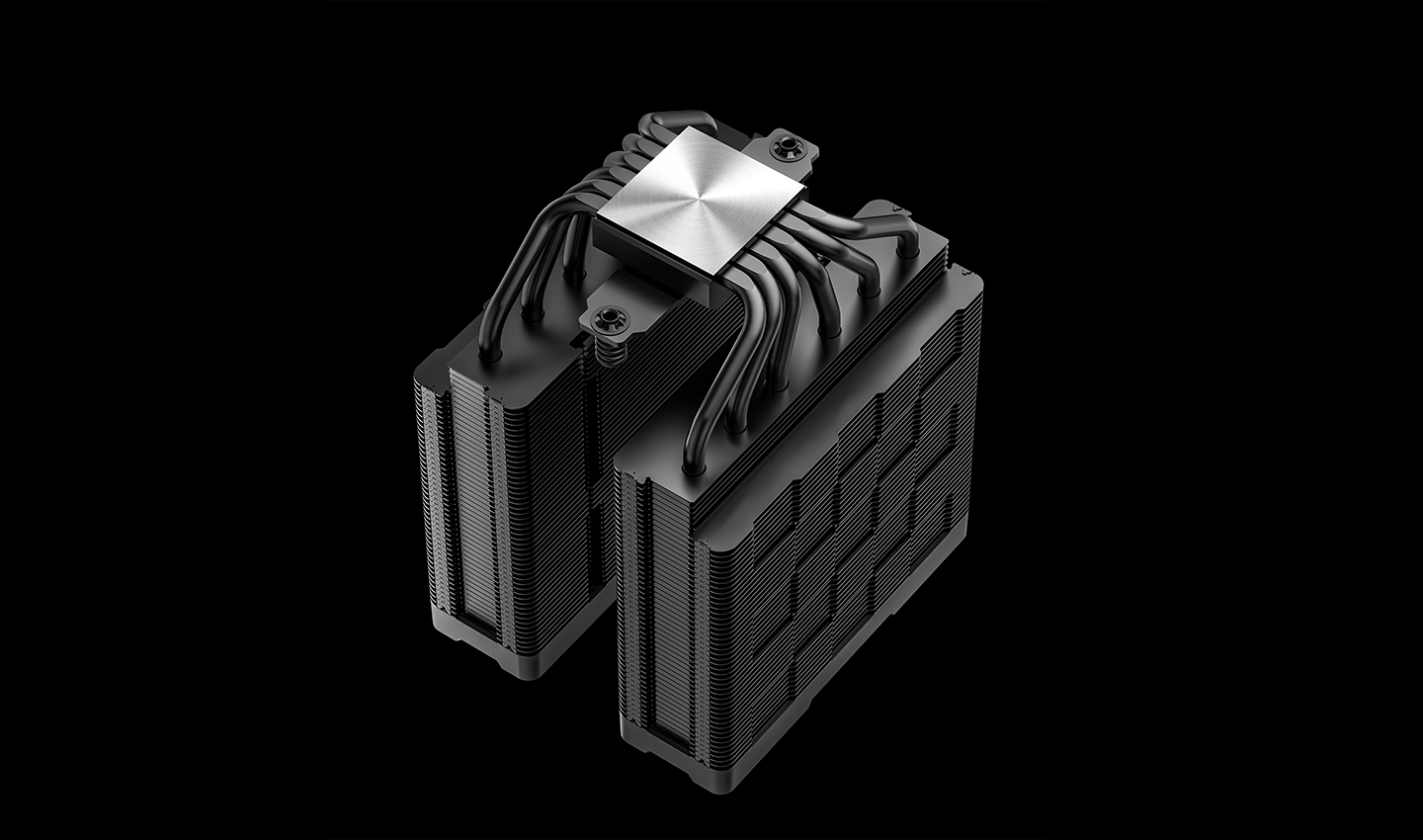

Built with the same premium quality materials, featuring six advanced copper heat pipes, a pure copper coldplate, a dense black coated dual-tower heat sink, and two silent Hydro bearing fans, it produces a powerful winning formula for high-performance cooling and provides a digital feature for gamers.
COOL, QUIET,
AND POWERFUL

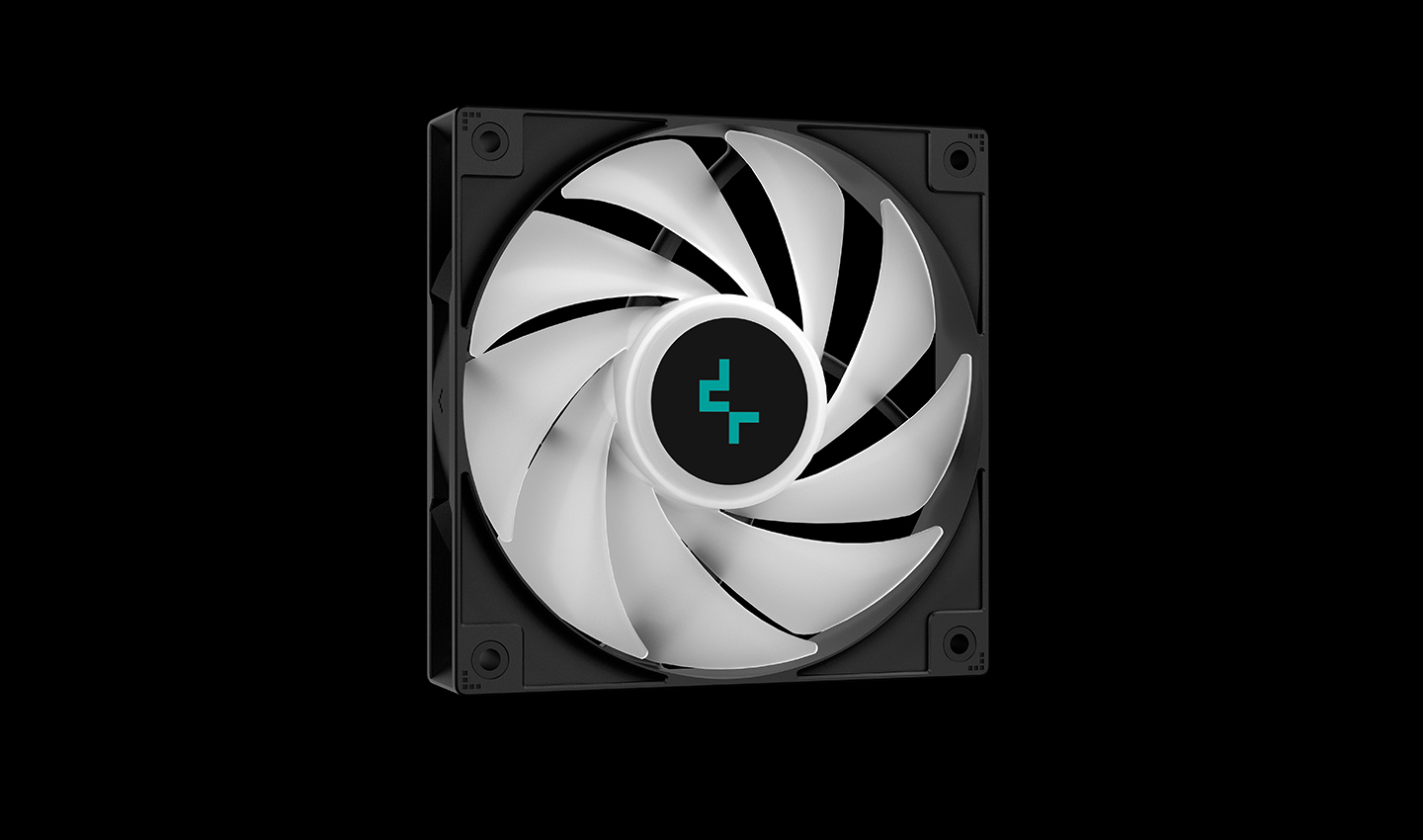

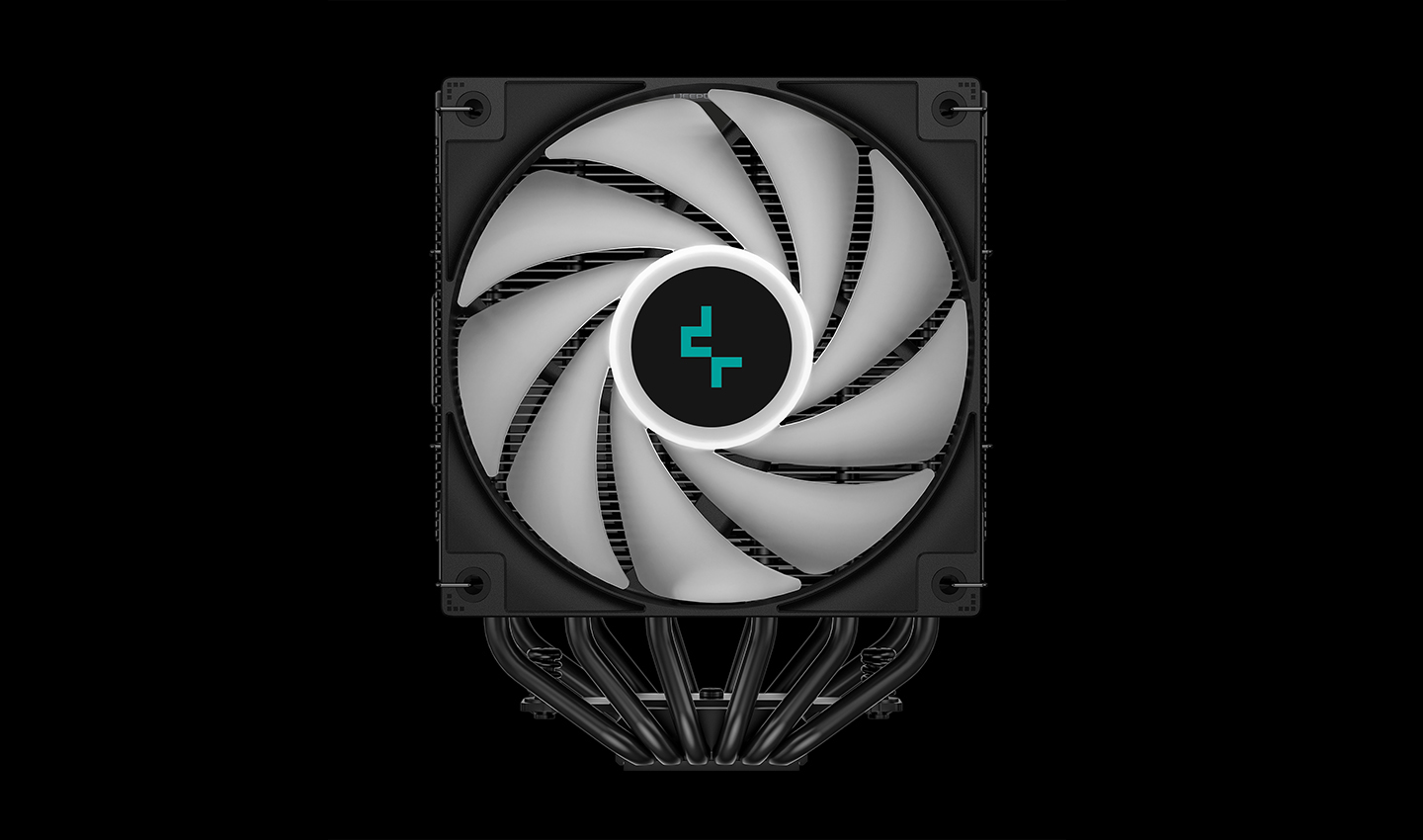

Two powerful ARGB PWM fans with superior Hydro bearings offer low noise operation without losing cooling output for a perfect balance.
≤29.4 dBA
300-1950 RPM
67.88CFM
SIMPLE AND SECURE INSTALLATION

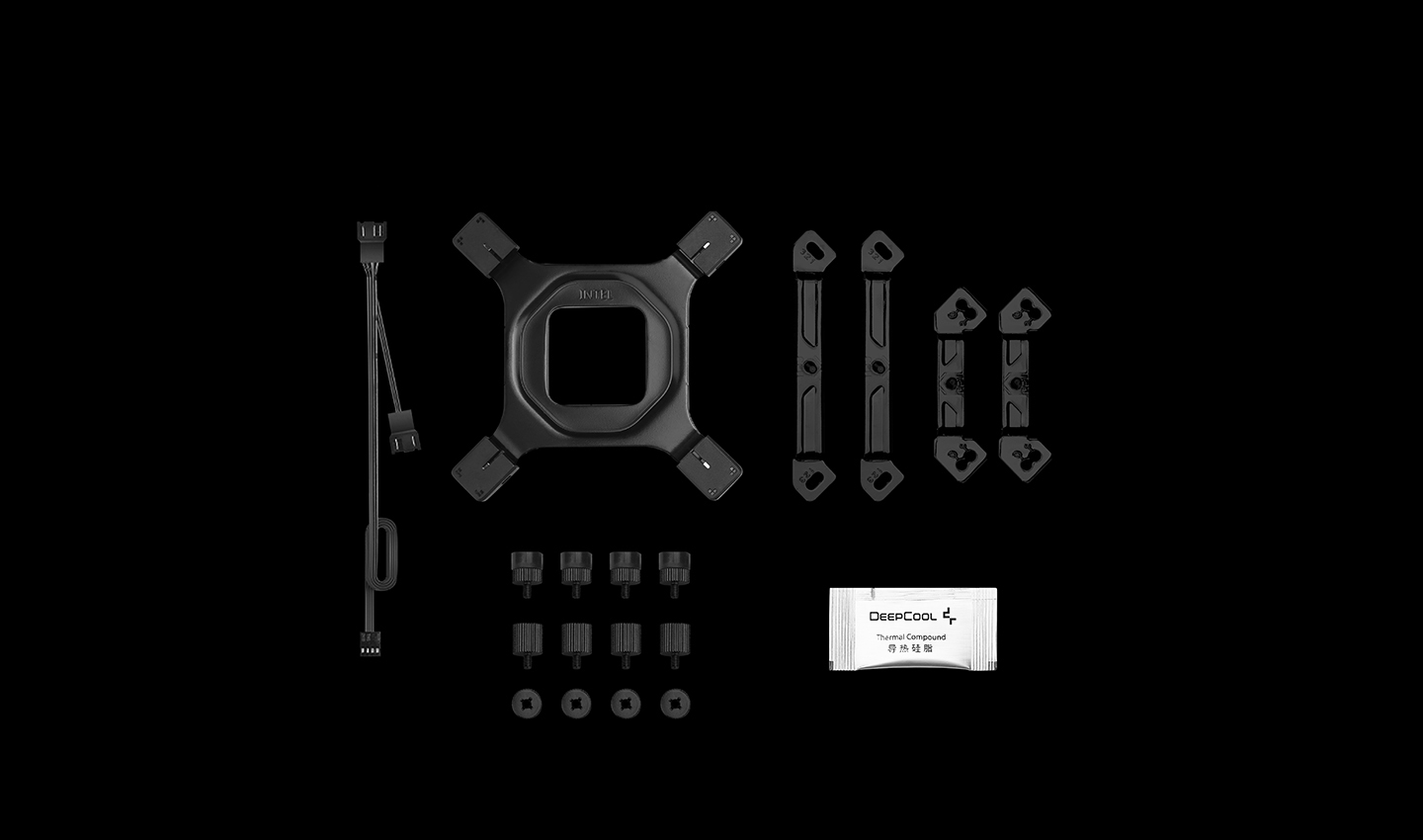

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×136×161 mm(L×W×H)
Heatsink Dimensions127×110×157 mm(L×W×H)
Net Weight1370 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed300~1950 RPM±10%
Fan Airflow67.88 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤29.4 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.14 A
Fan Power Consumption1.68 W
LED TypeAddressable RGB LED and LED
LED Connector3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage5 VDC
LED Power Consumption2.0 W
EAN6933412728467
P/NR-AG620-BKADMN-G-2
