AG600 WH ARGB

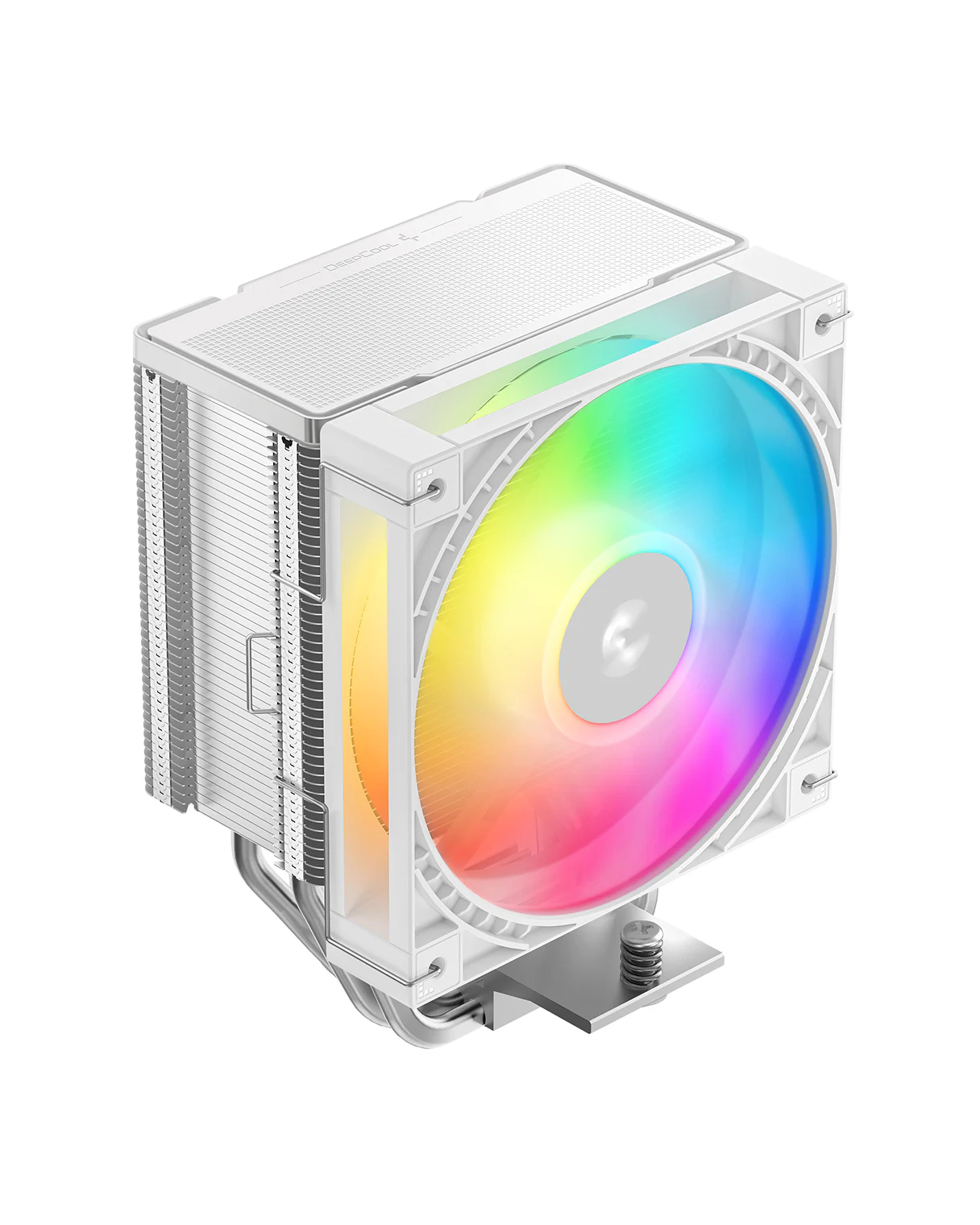

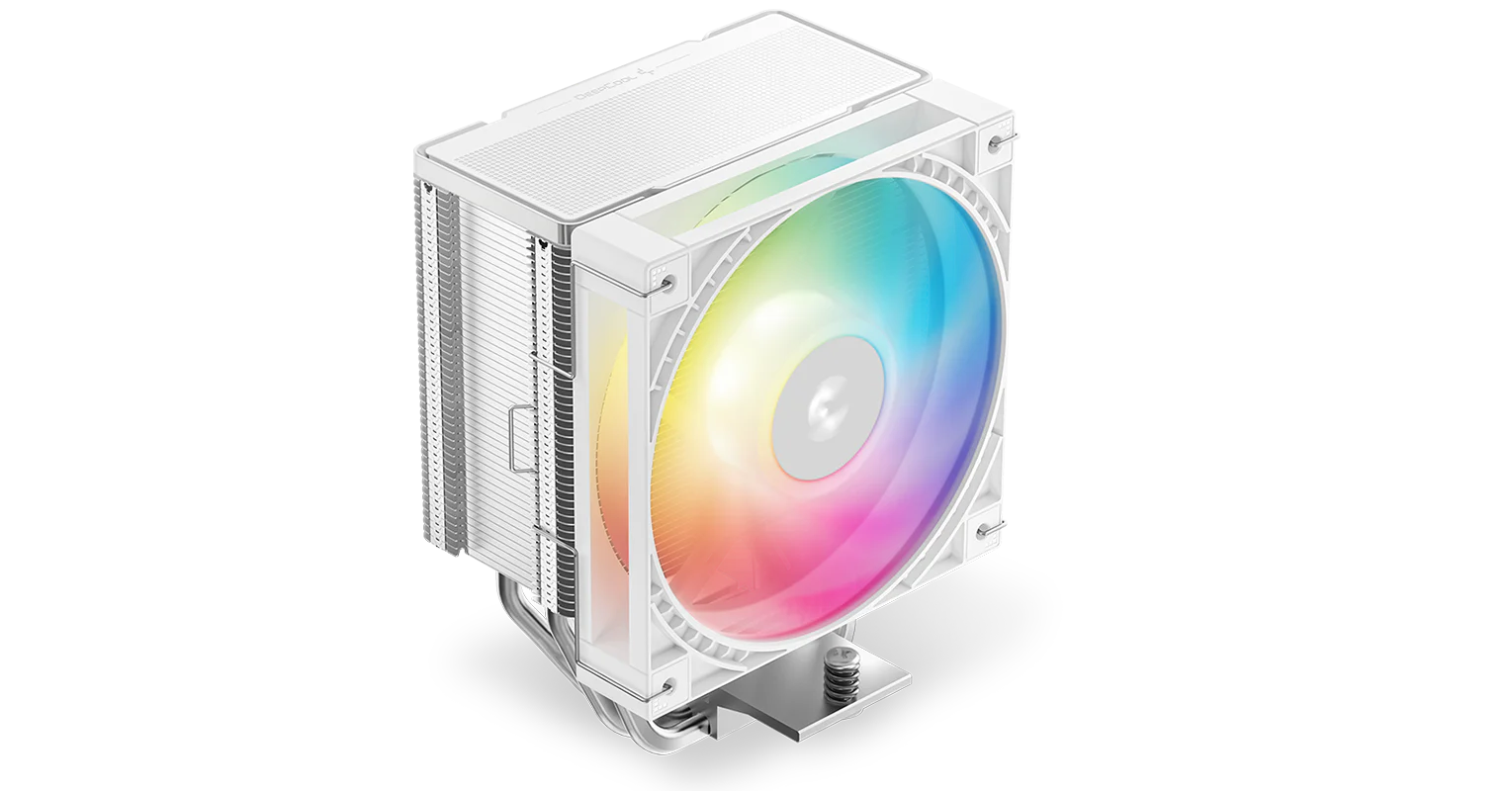

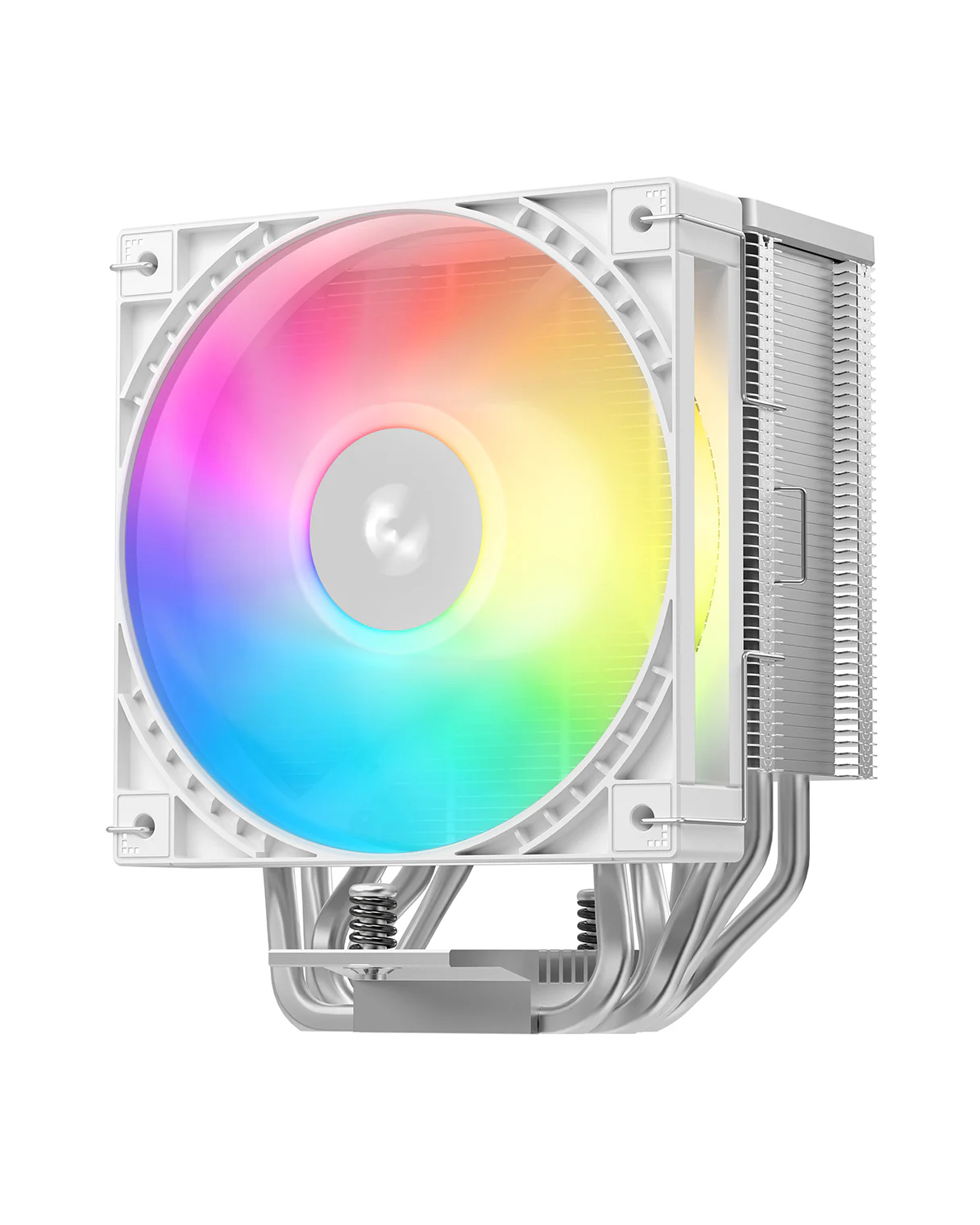

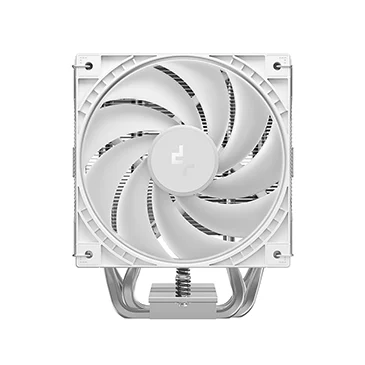

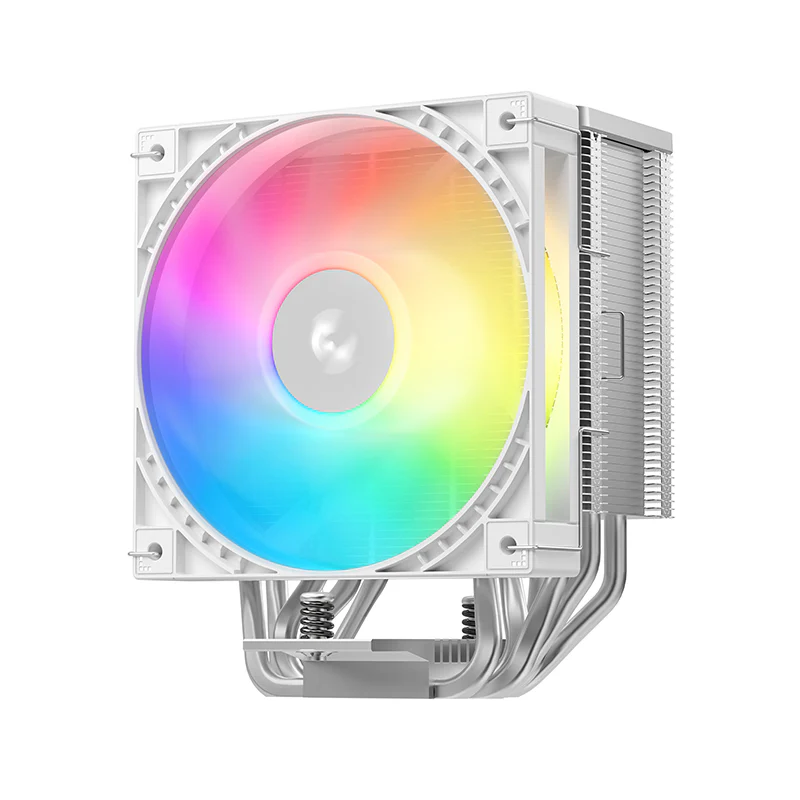

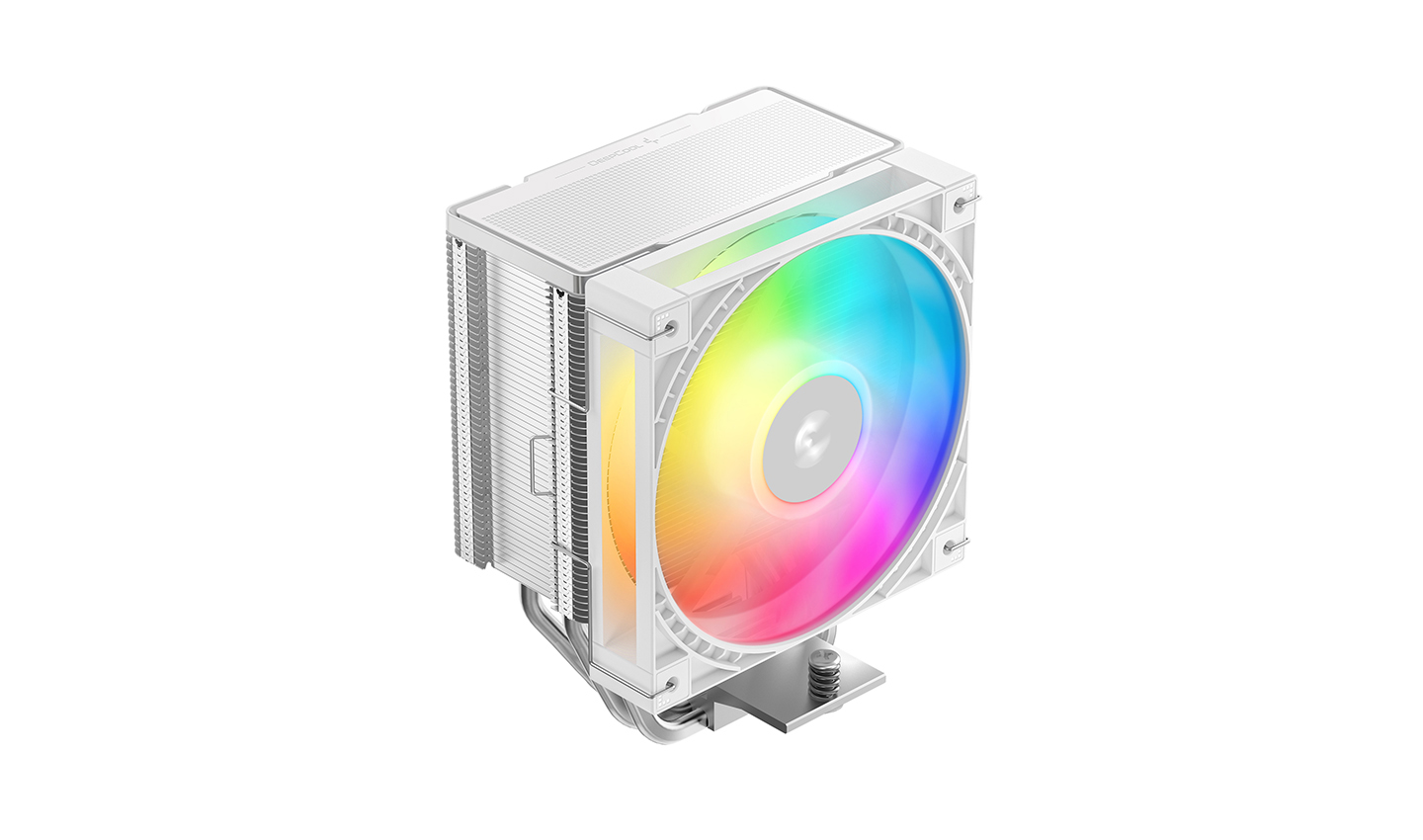

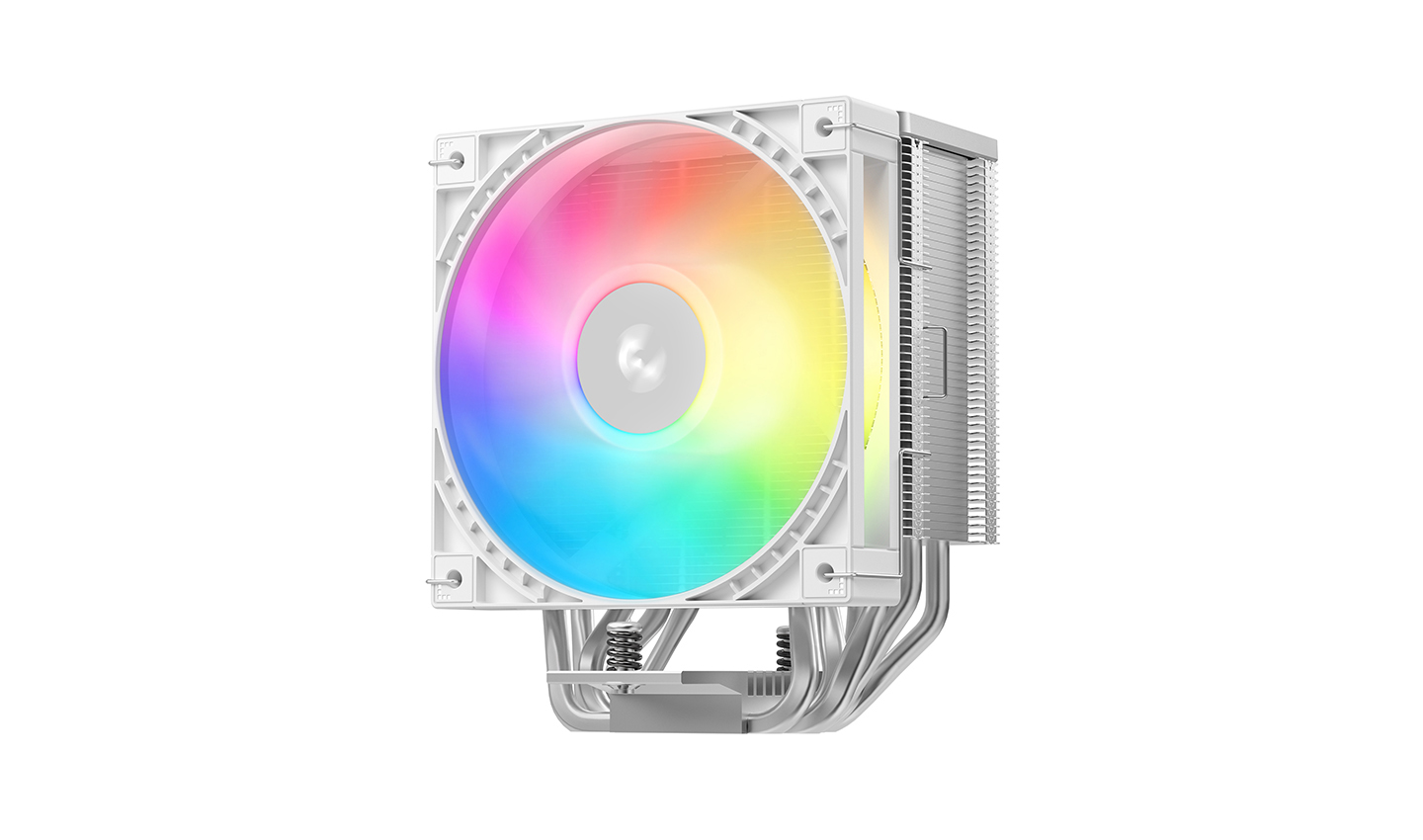

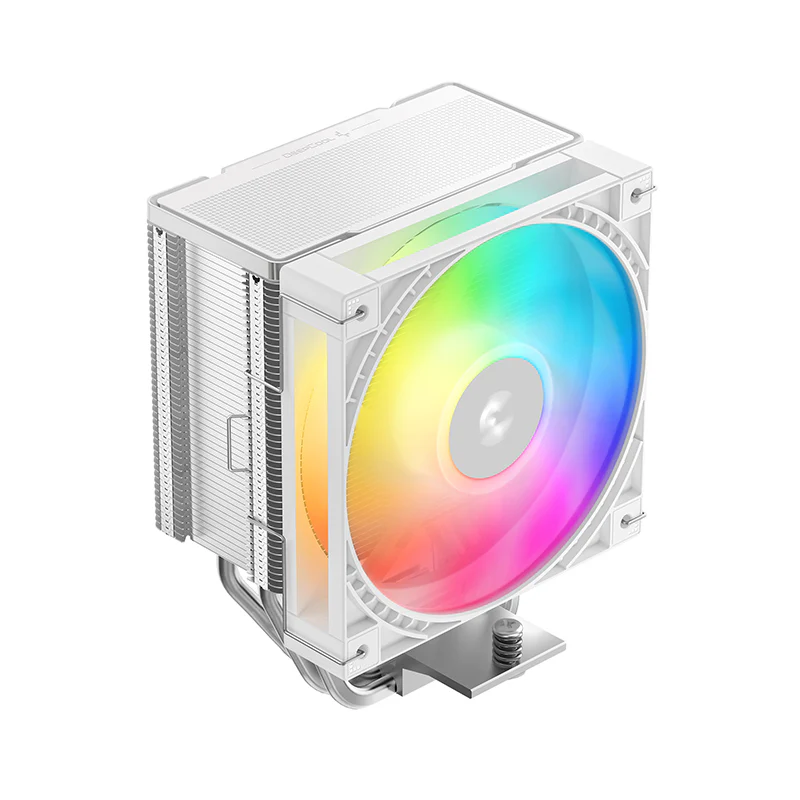

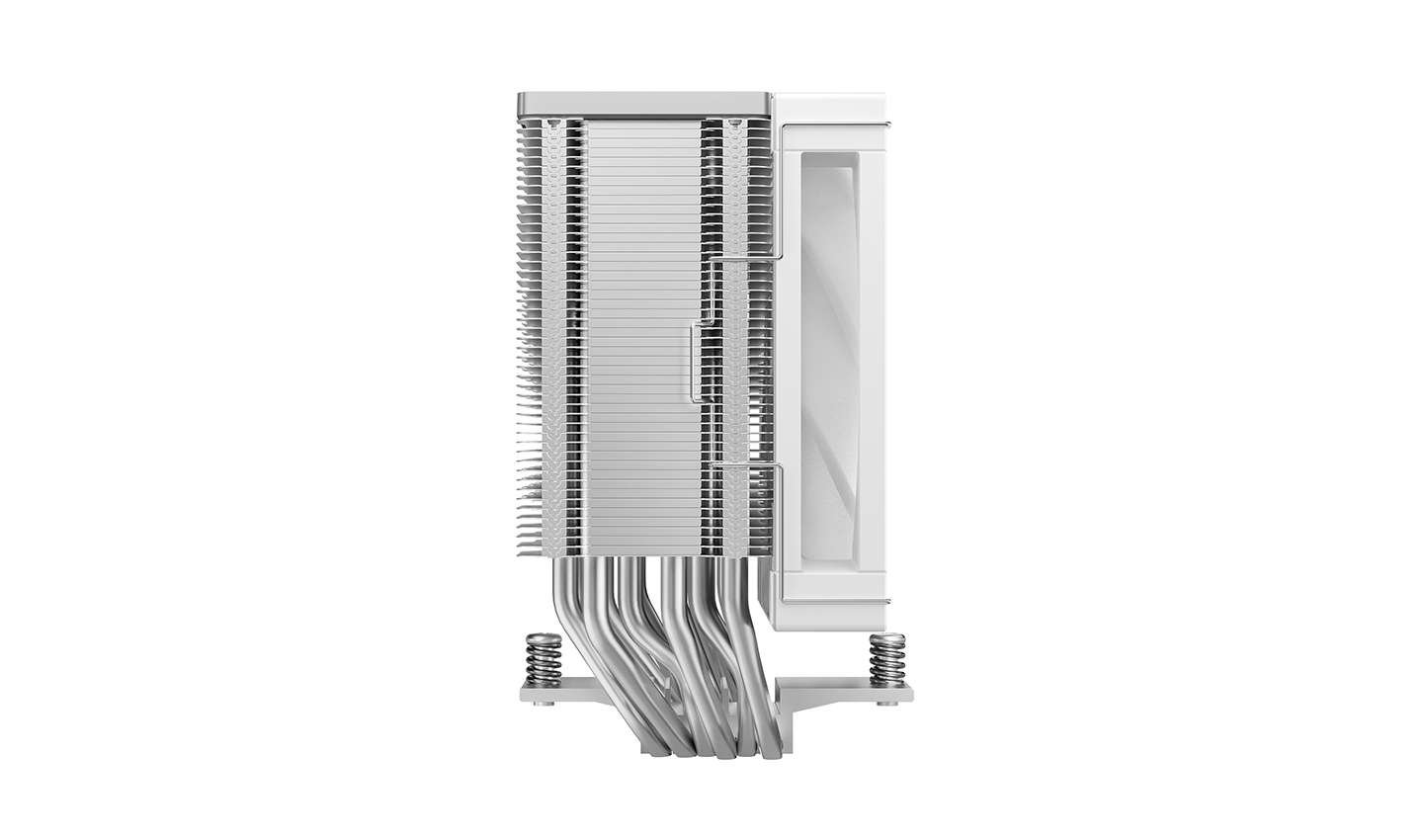

The AG600 WH ARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
MODEL
AG600 WH ARGB
WHERE POWER GLOWS
SUBSTANTIAL COOLING POWER

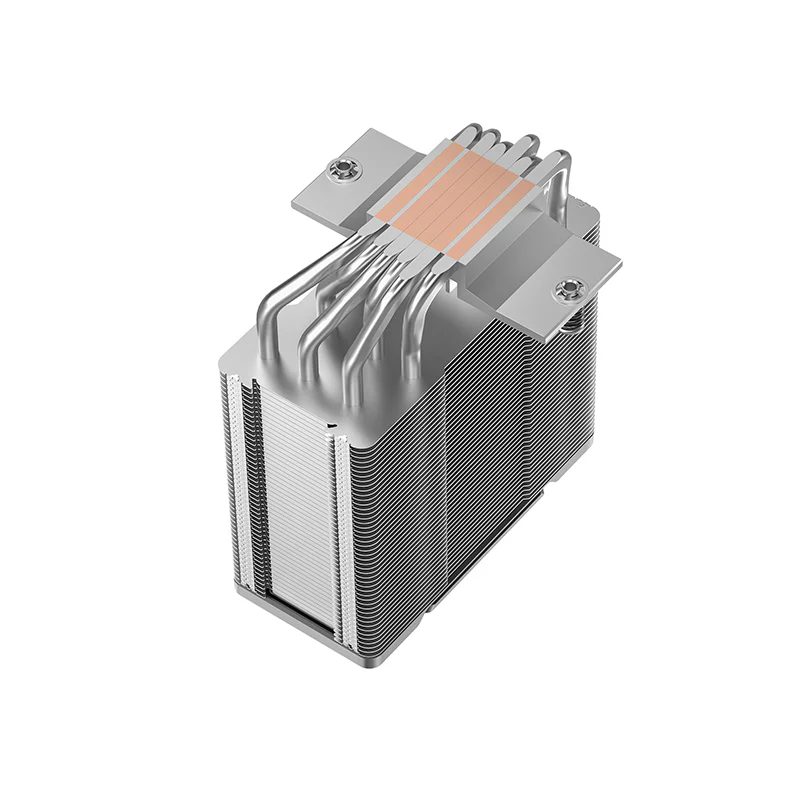

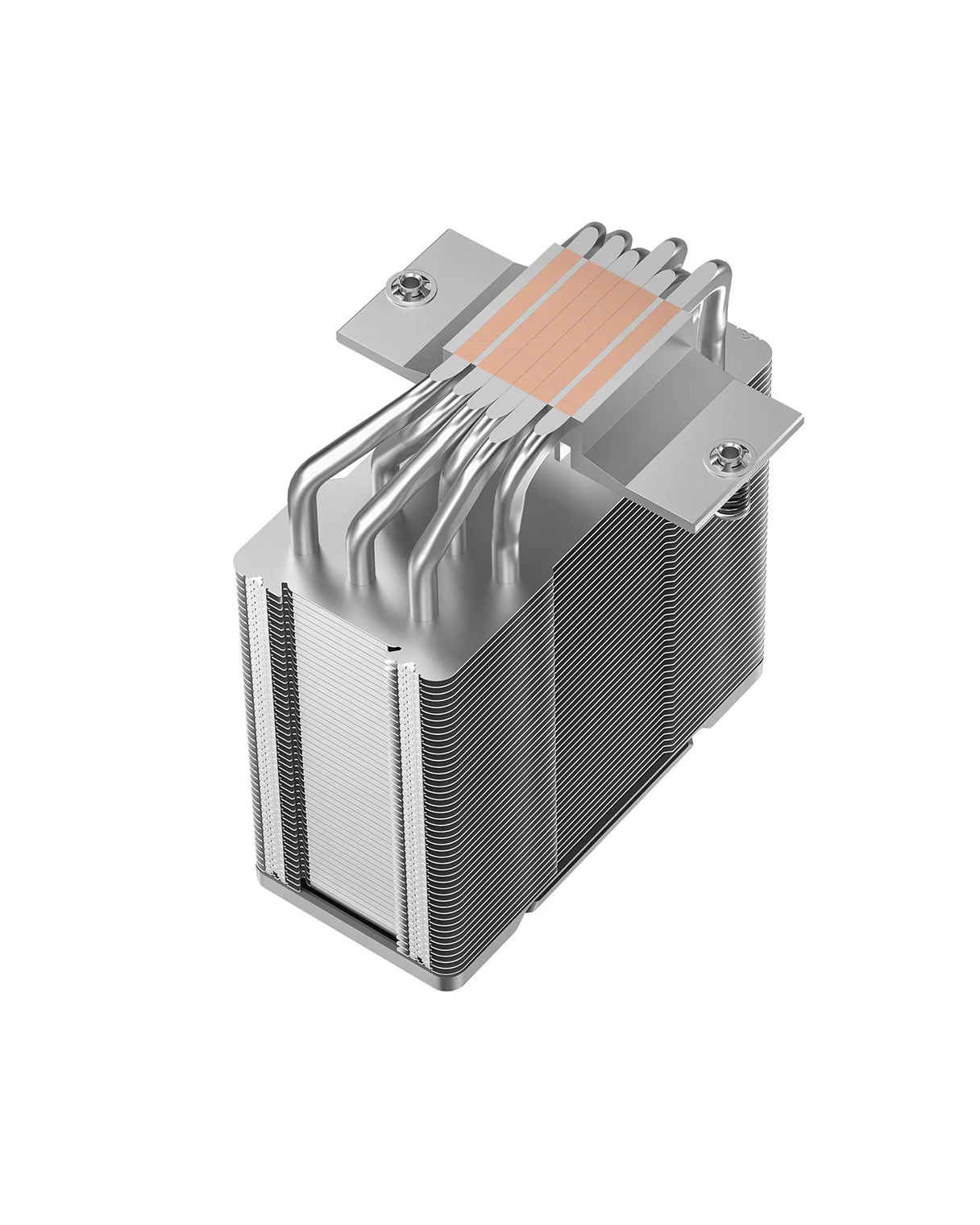

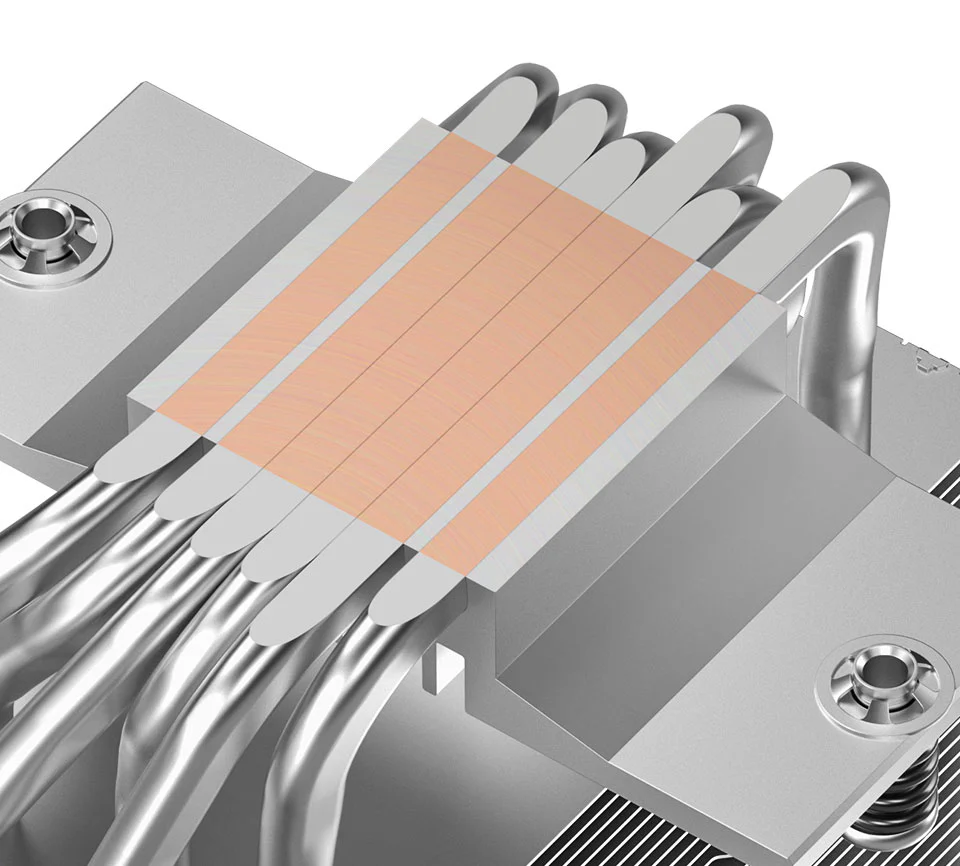

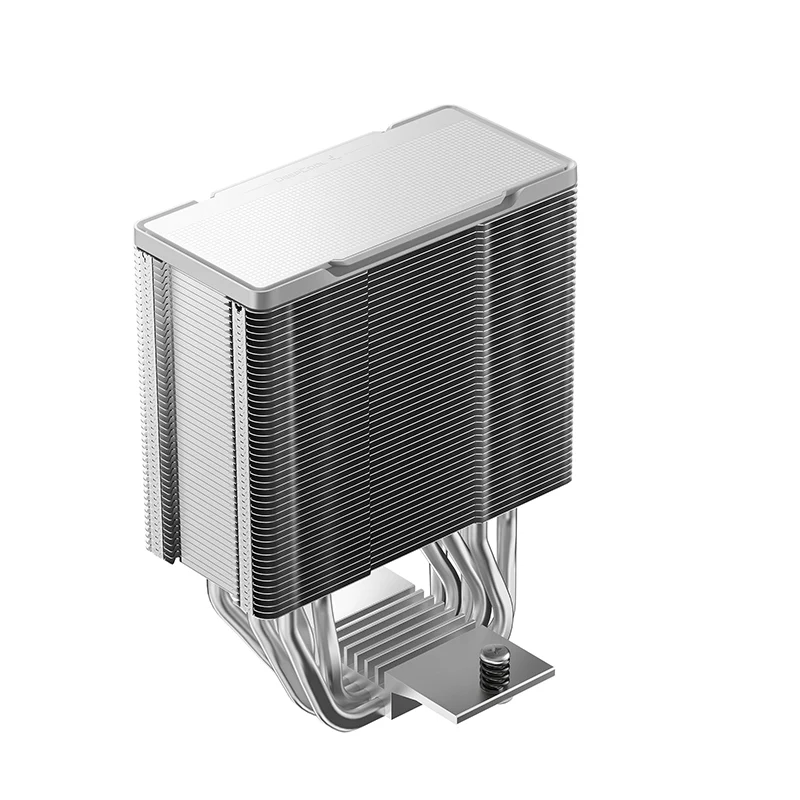

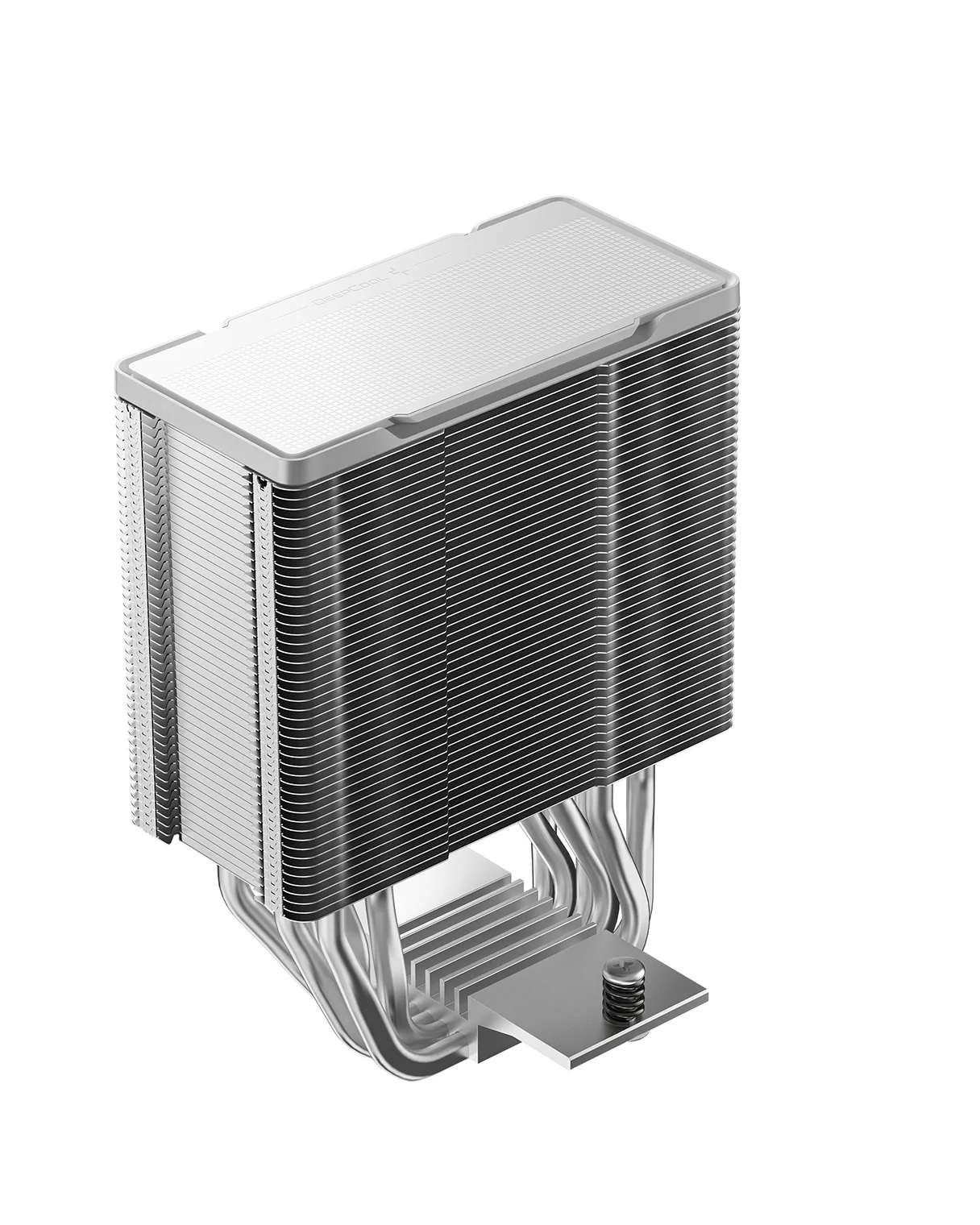

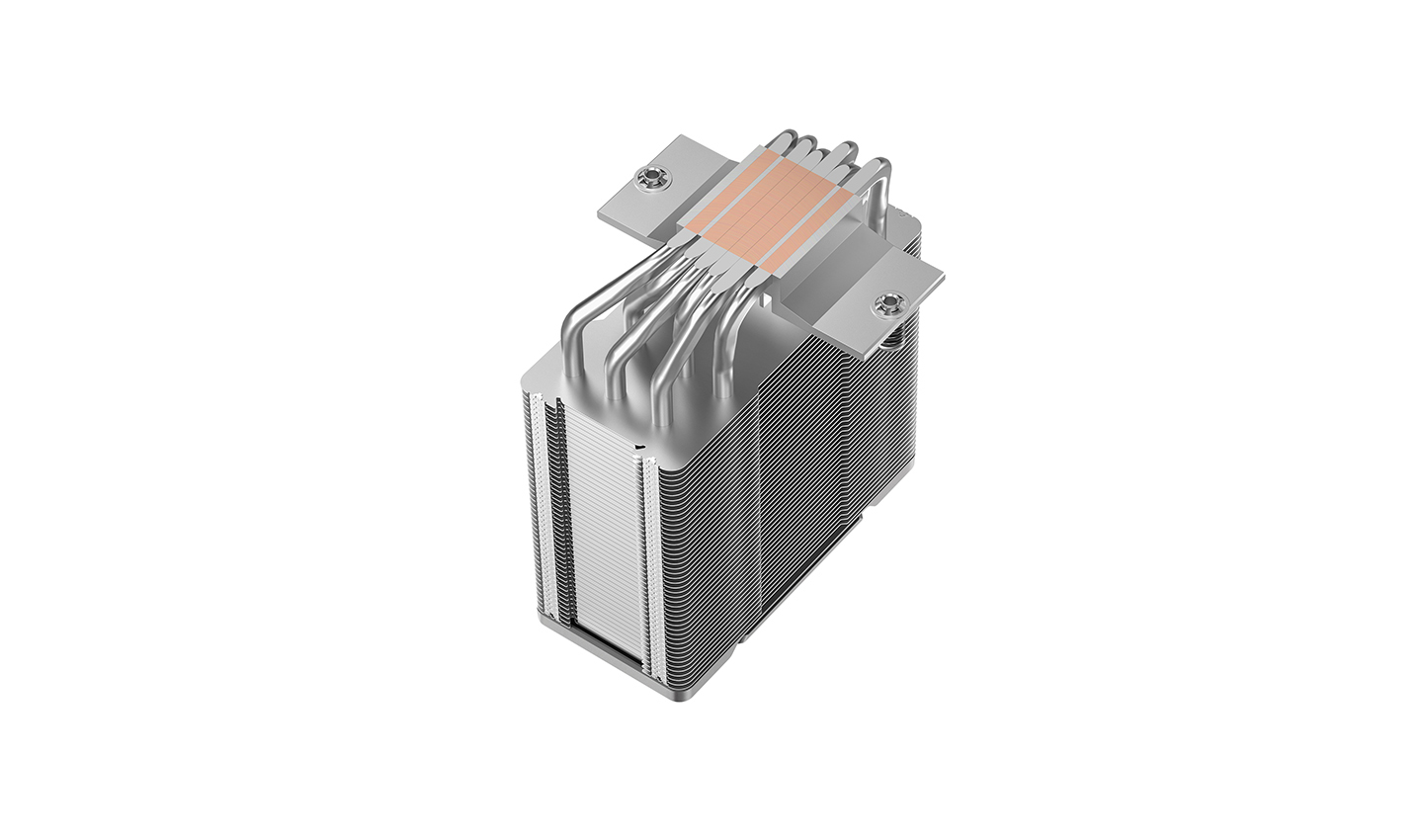

Enjoy better system performance by keeping things cool with up to 260W of heat dissipation power featuring six direct touch heat pipes that rapidly draw heat away from the CPU.
PRIME COMPATIBILITY

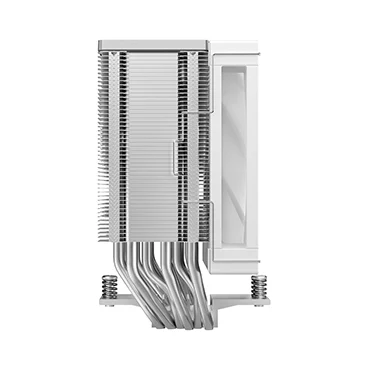

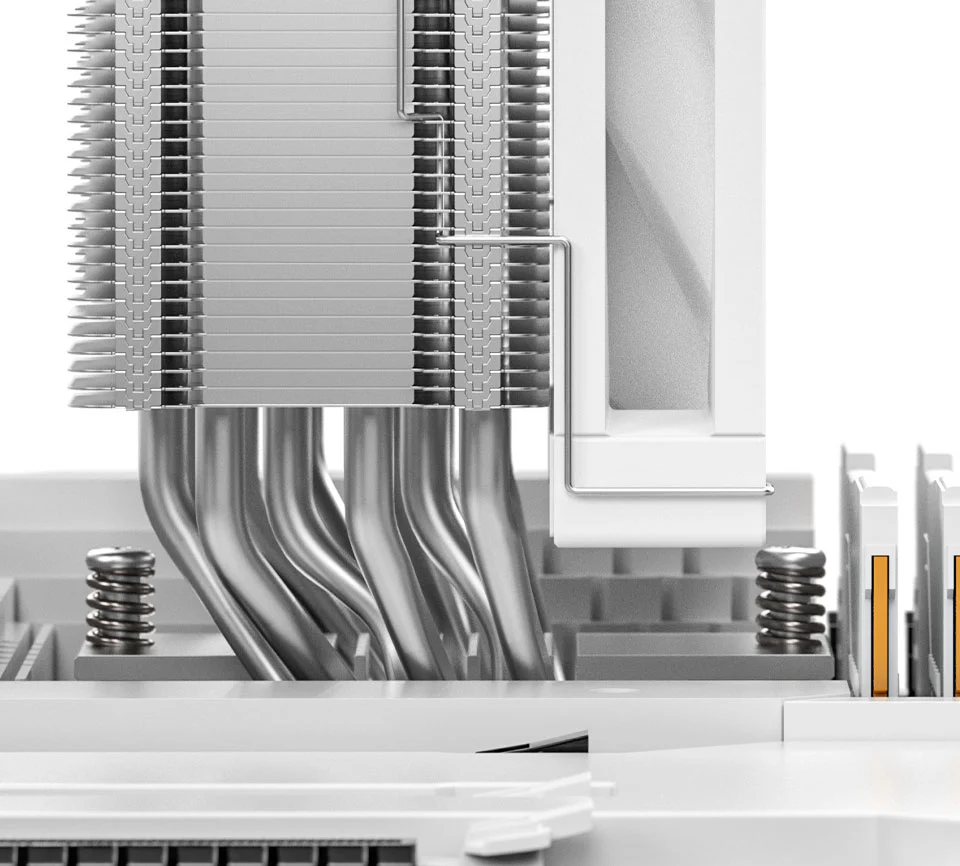

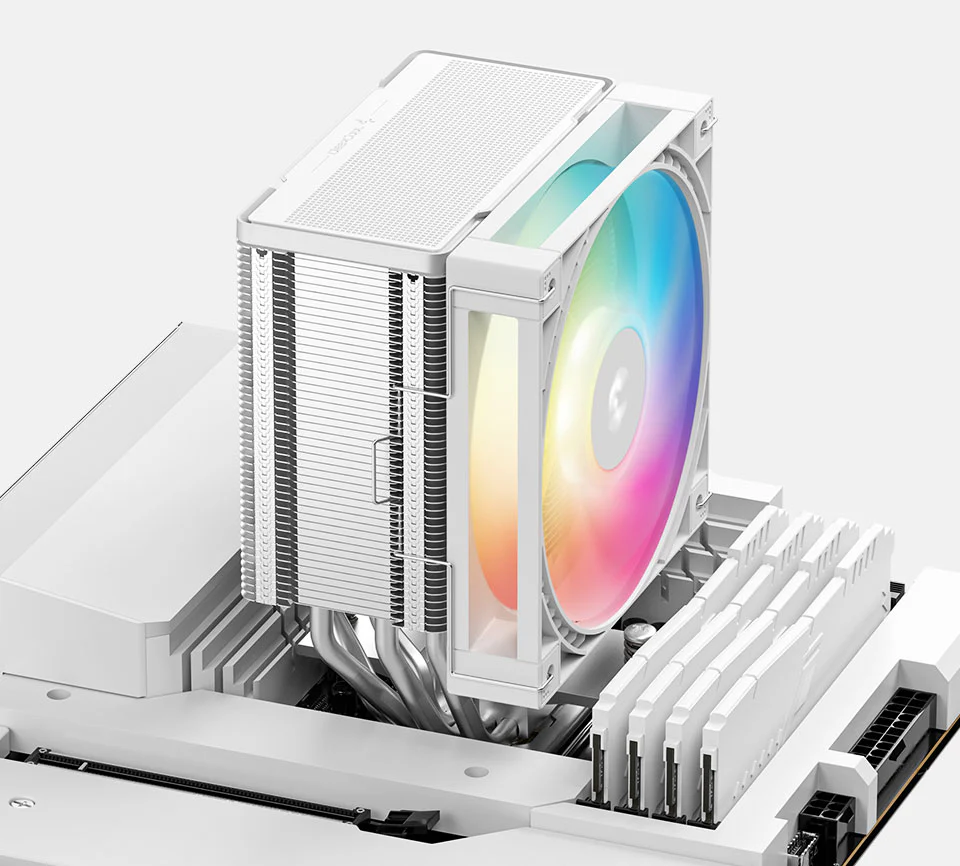

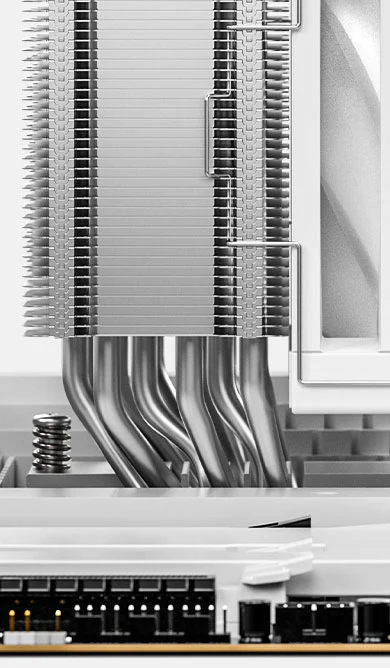

The AG600 WH ARGB maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation — the fan does not need to be removed during setup. Its superb thermal performance also allows it to be compatible with demanding processing workloads.
STYLED TO IMPRESS

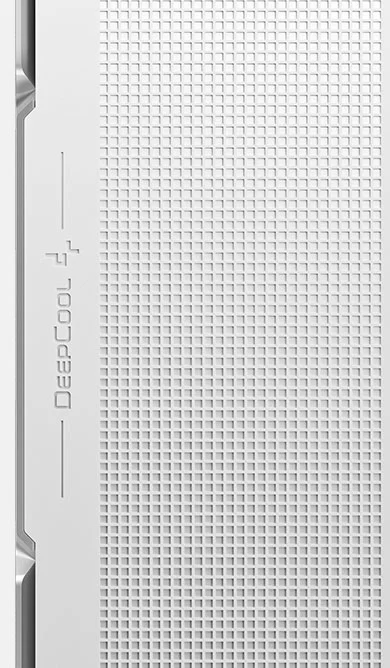

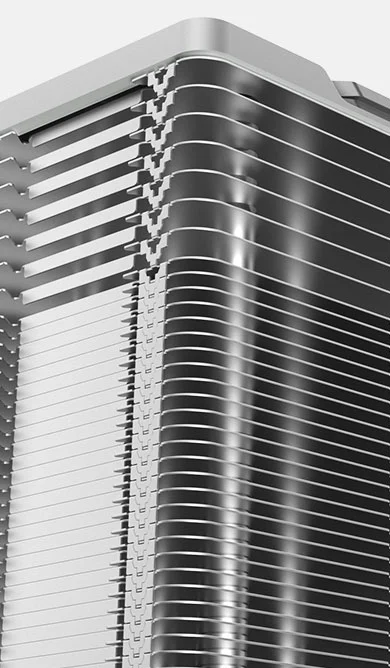

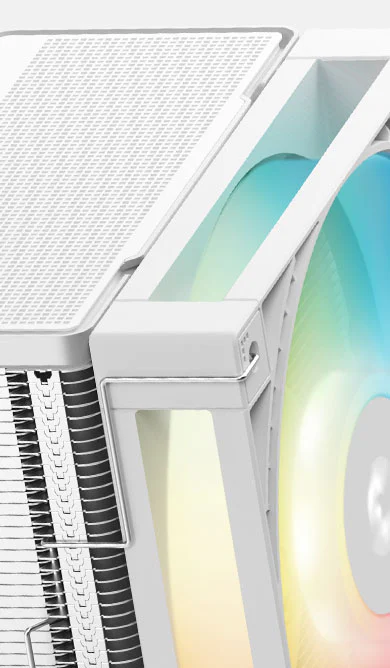

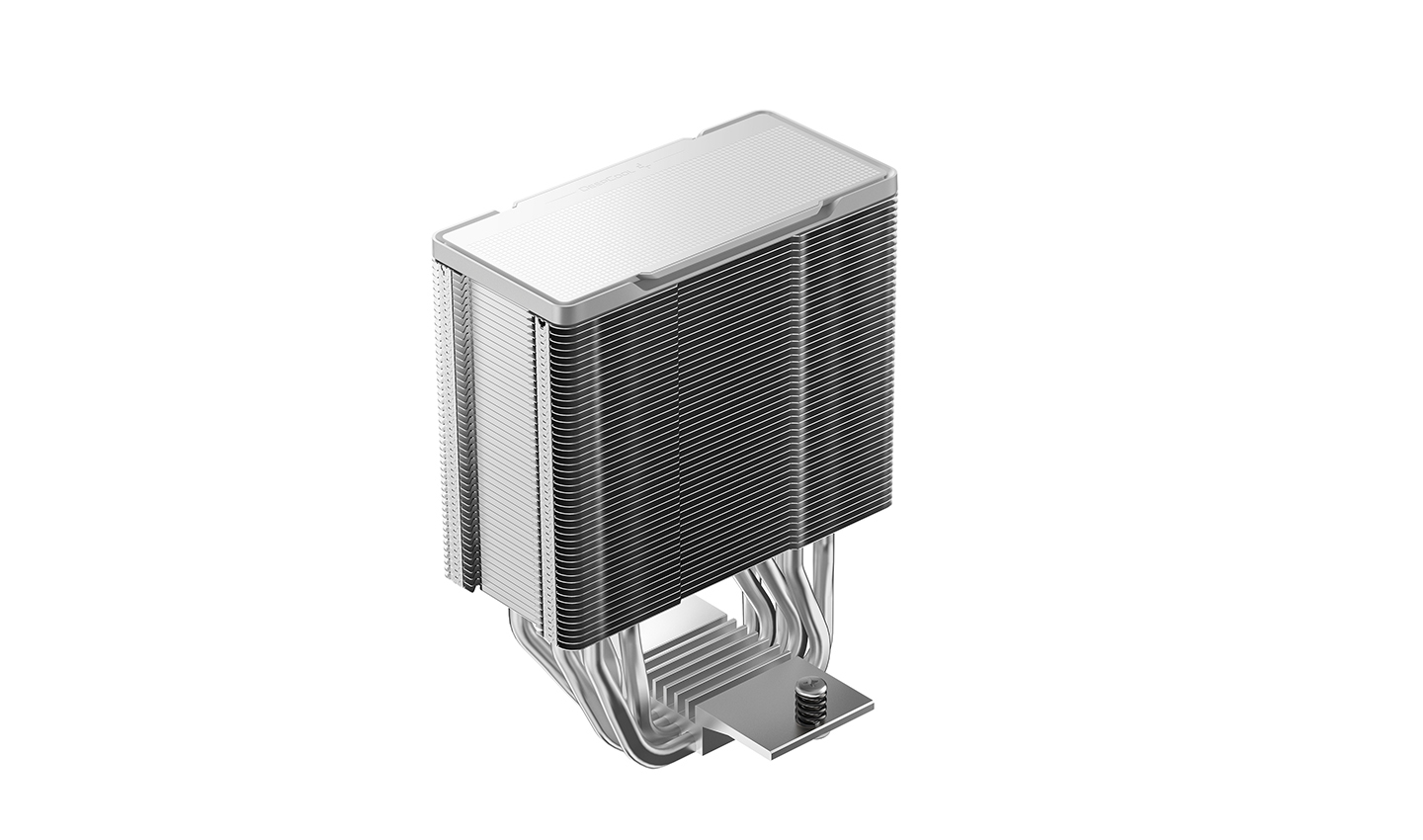

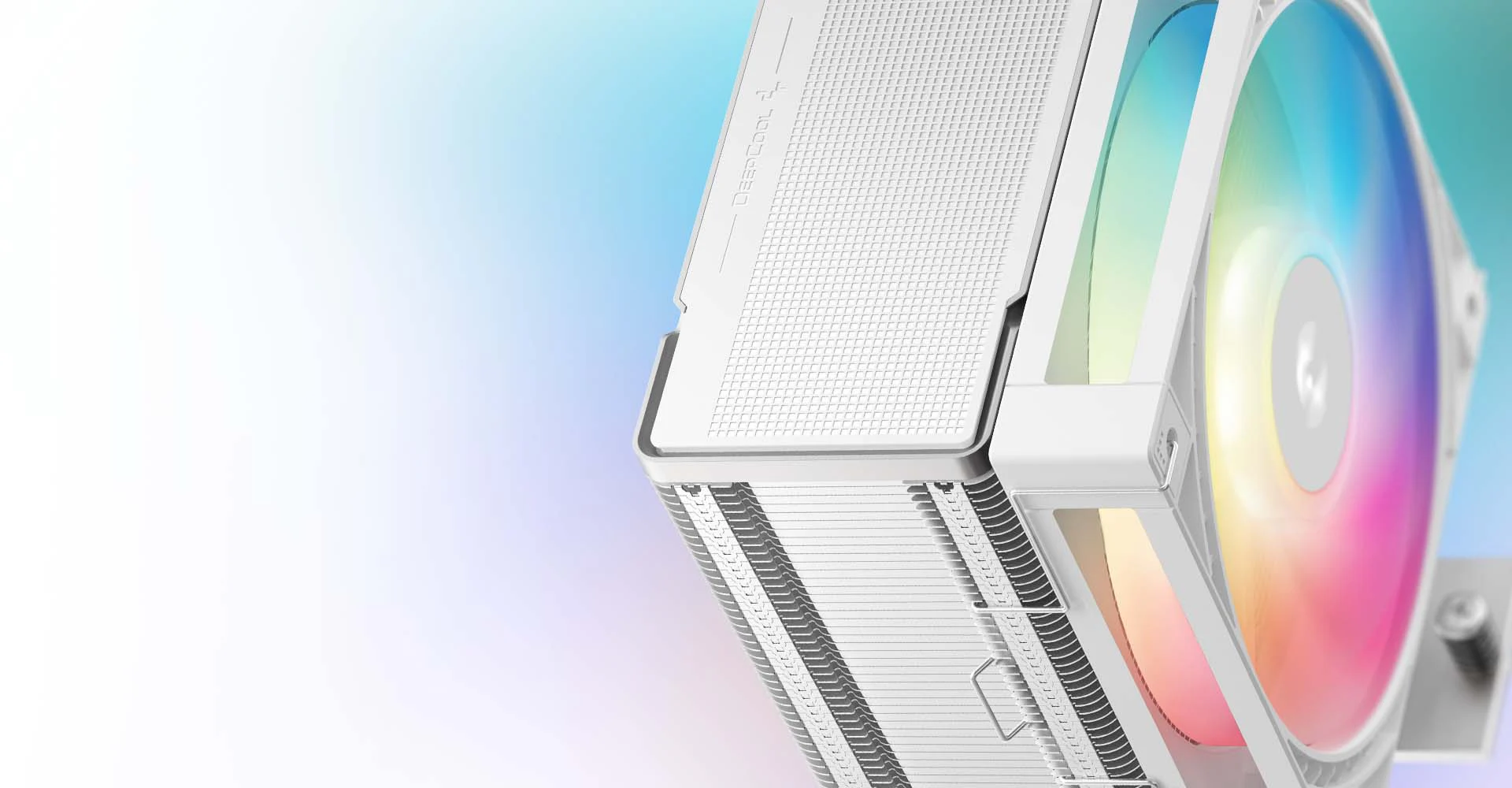

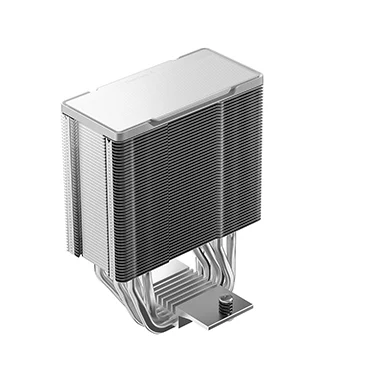

The AG600 WH ARGB retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted six heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.
BRIGHT, QUIET, AND CAPABLE

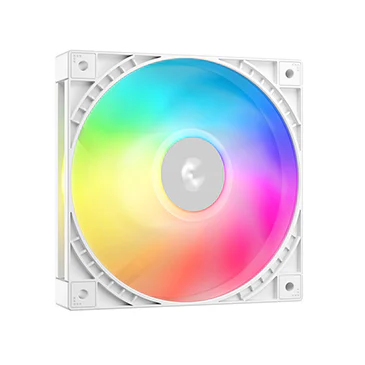

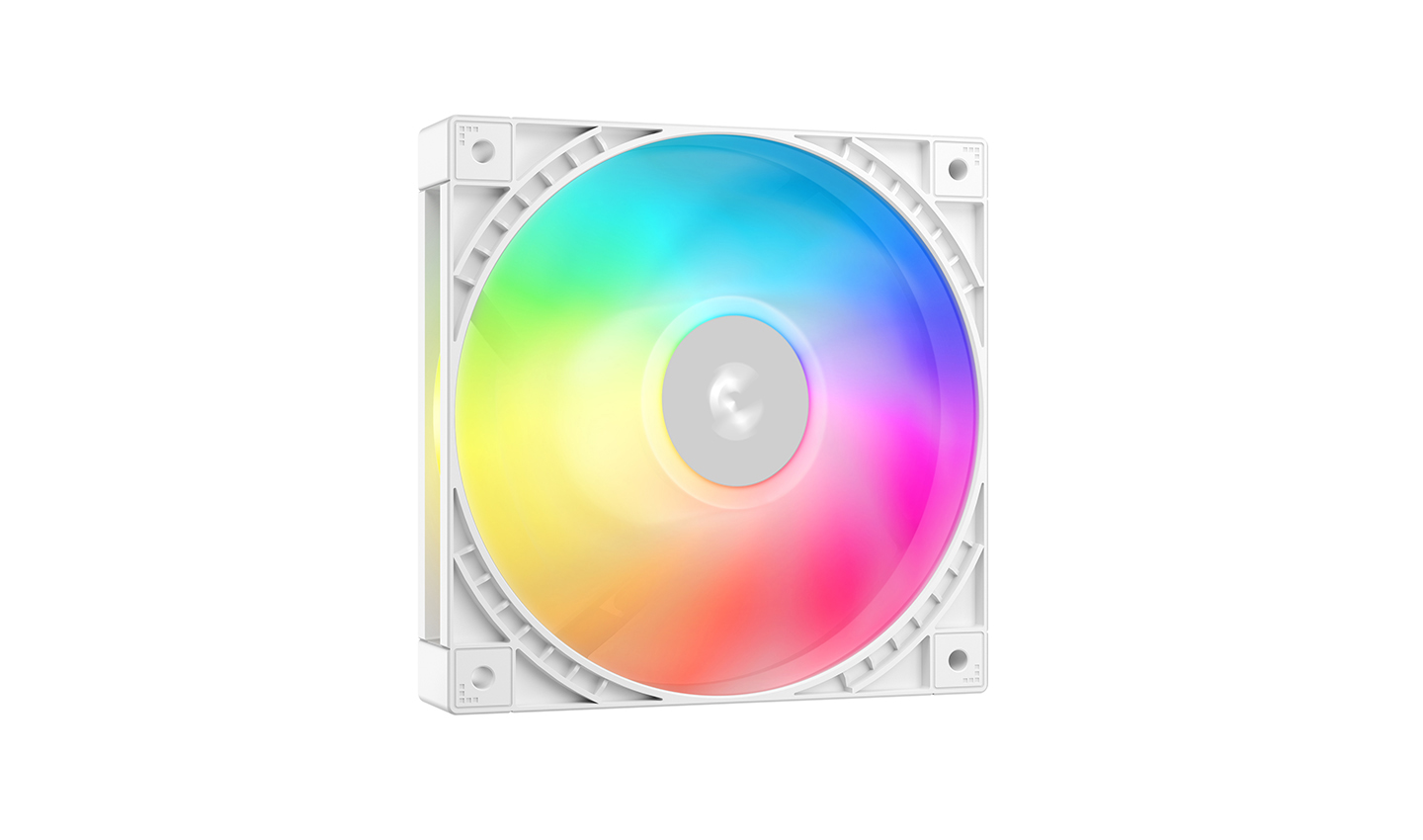

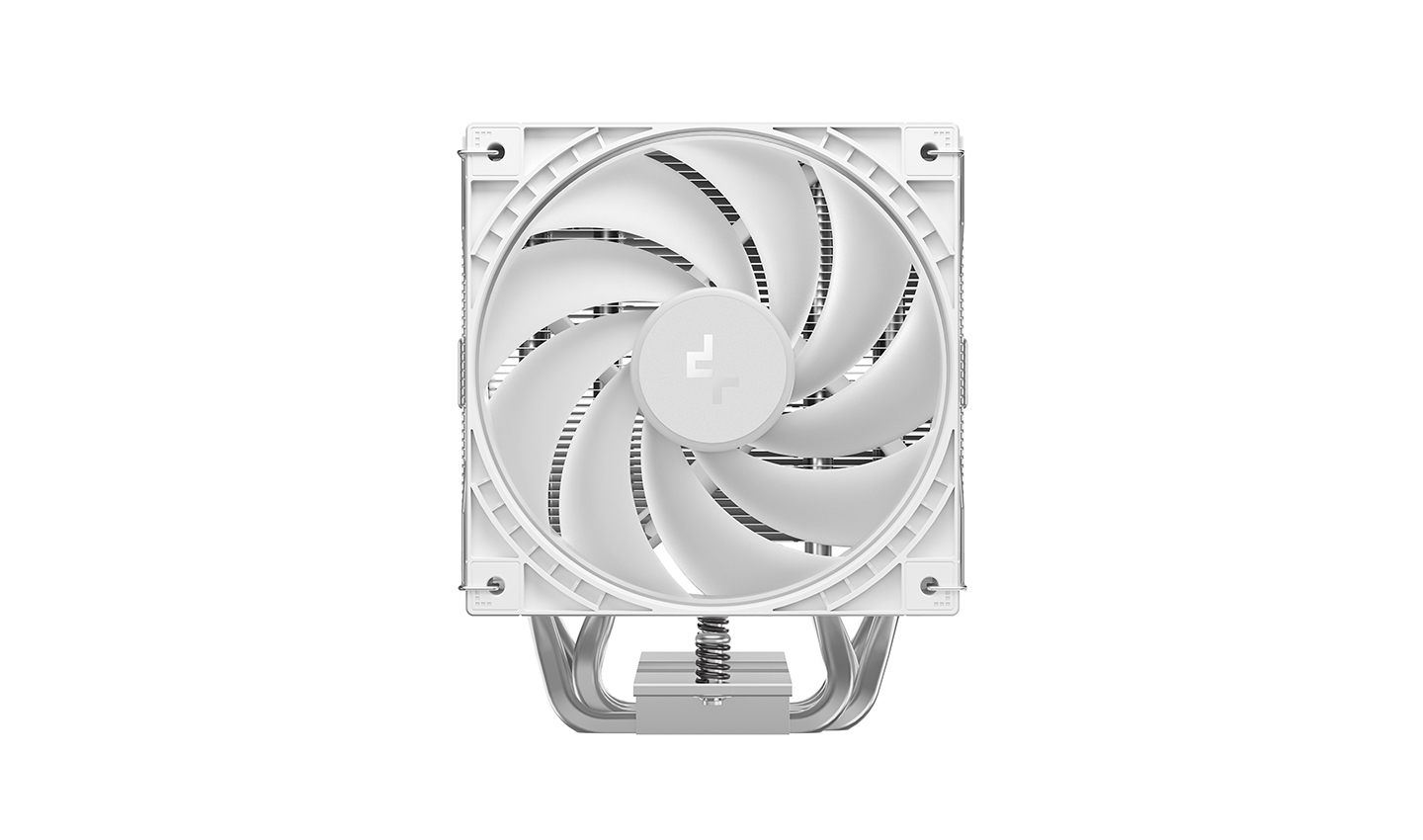

Outfitted with all-new closed-wheel ARGB fan, the AG600 WH ARGB optimizes airflow and static pressure for powerful yet quiet cooling. The reinforced blade structure boosts stability and durability, while preventing unwanted lateral airflow to deliver focused airflow and eliminate dead zones for maximum cooling efficiency.
500-2200±10% RPM
Fan Speed
68.85 CFM
Fan Airflow
2.10 mmAq
Fan Air Pressure
≤30.93 dB(A)
Fan Noise
SIMPLE AND SECURE INSTALLATION

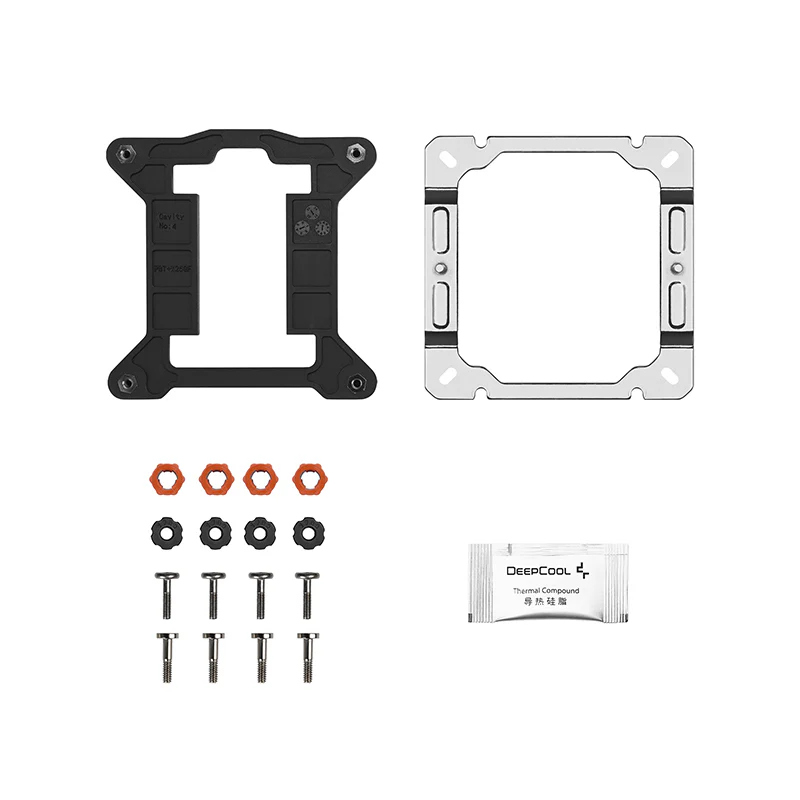

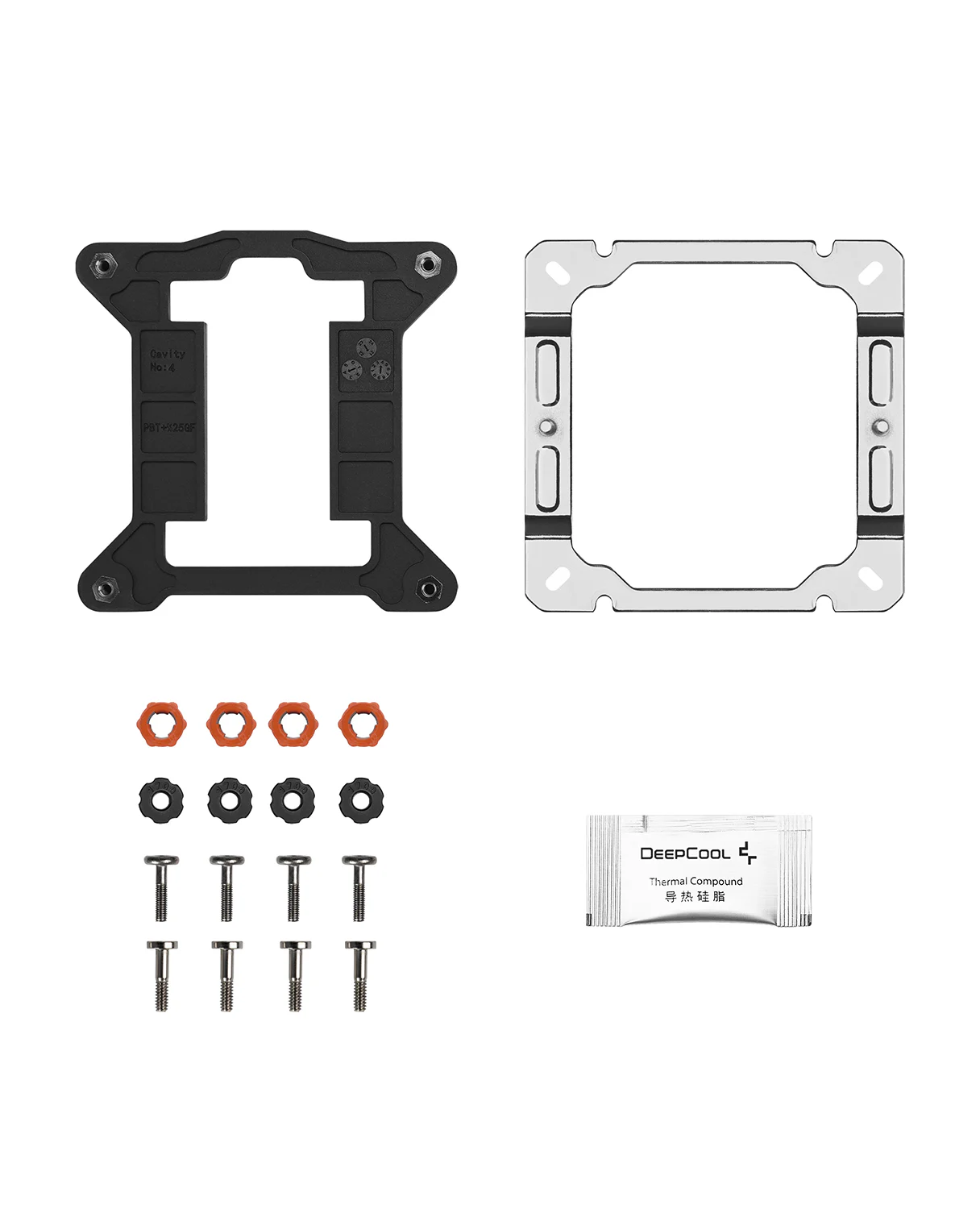

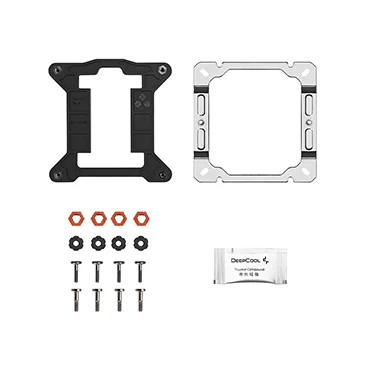

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
INTEL LGA1851/1700
AMD AM5/AM4
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions125×92×150 mm(L×W×H)
Heatsink Dimensions120×92×149 mm(L×W×H)
Net Weight696 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2200±10% RPM
Fan Motor1-phase，4-slot，4-pole
Fan Airflow68.85 CFM
Fan Air Pressure2.10 mmAq
Fan Noise≤30.93 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.18 A
Fan Power Consumption2.16 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.70 W
EAN6933412730293
P/NR-AG600-WHAMMG2-G
Download
AG600 WH ARGB Manual.pdf
