AG600

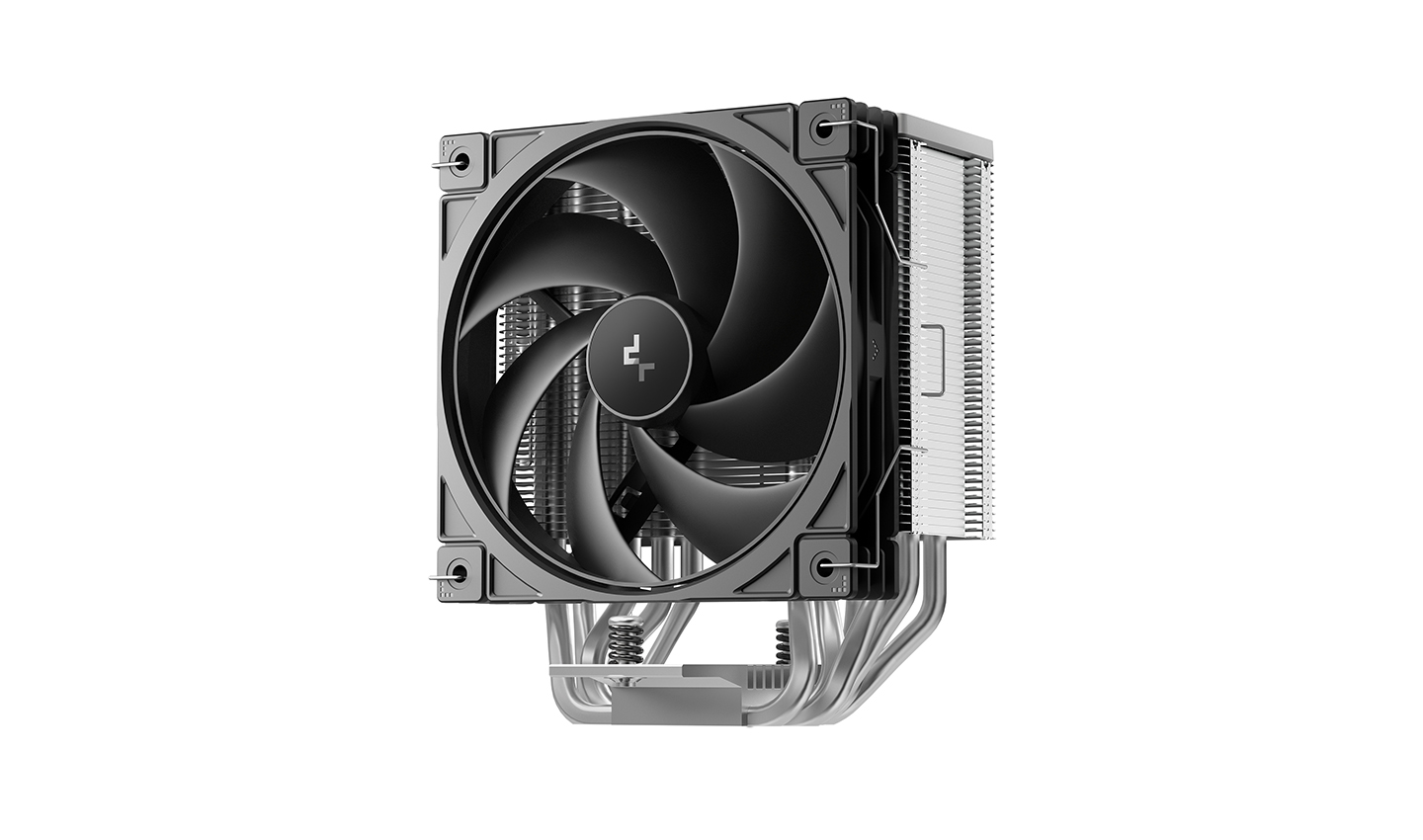

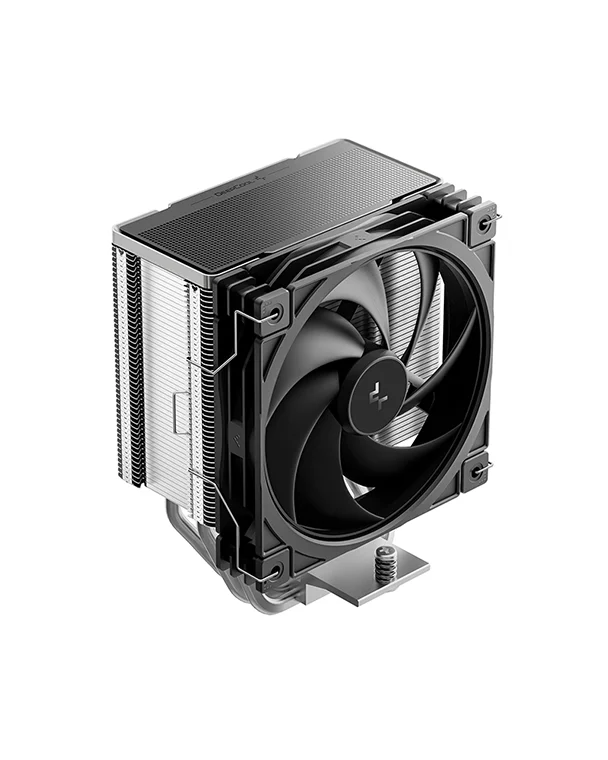

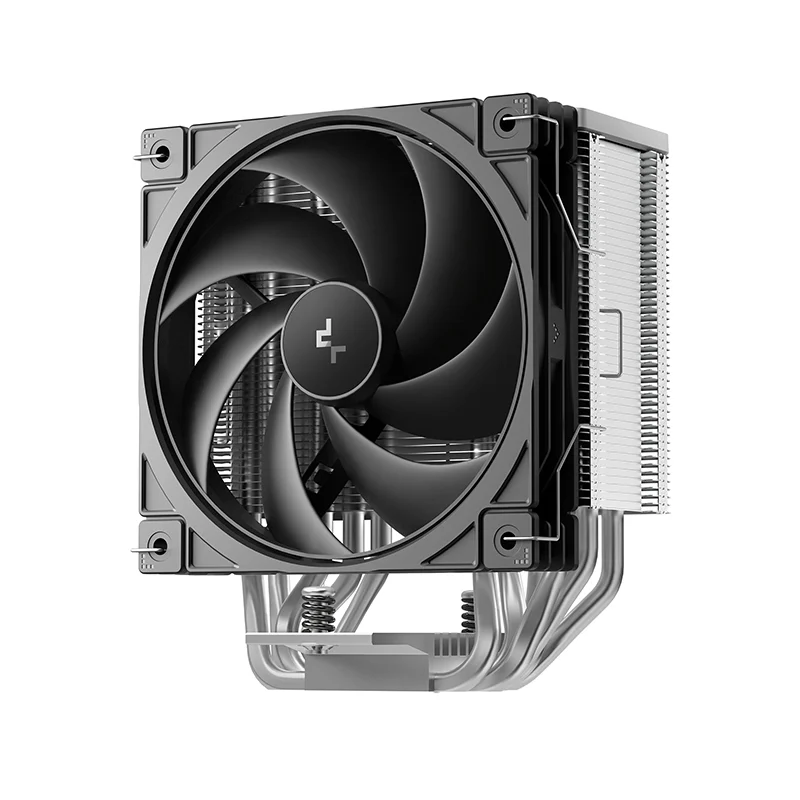

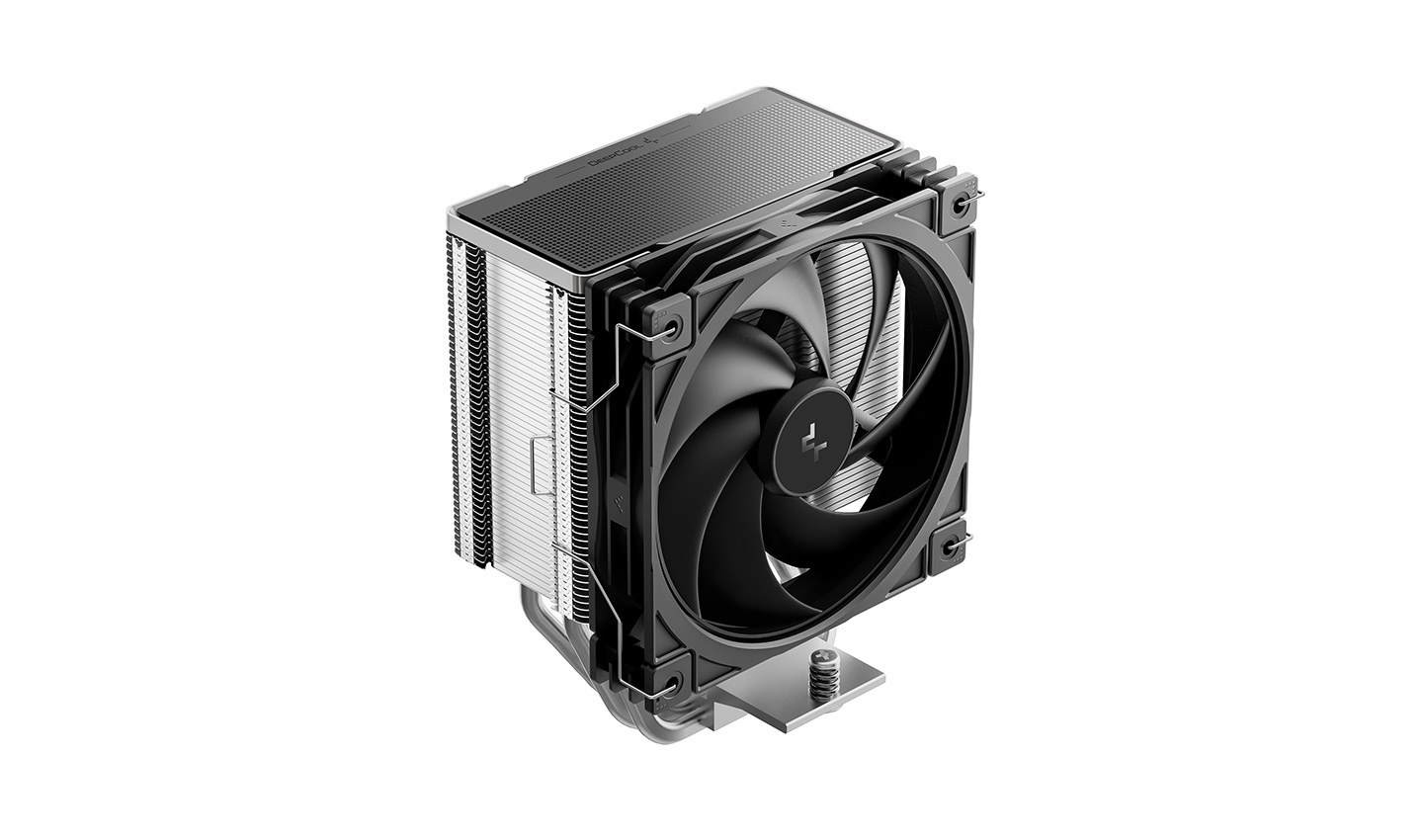

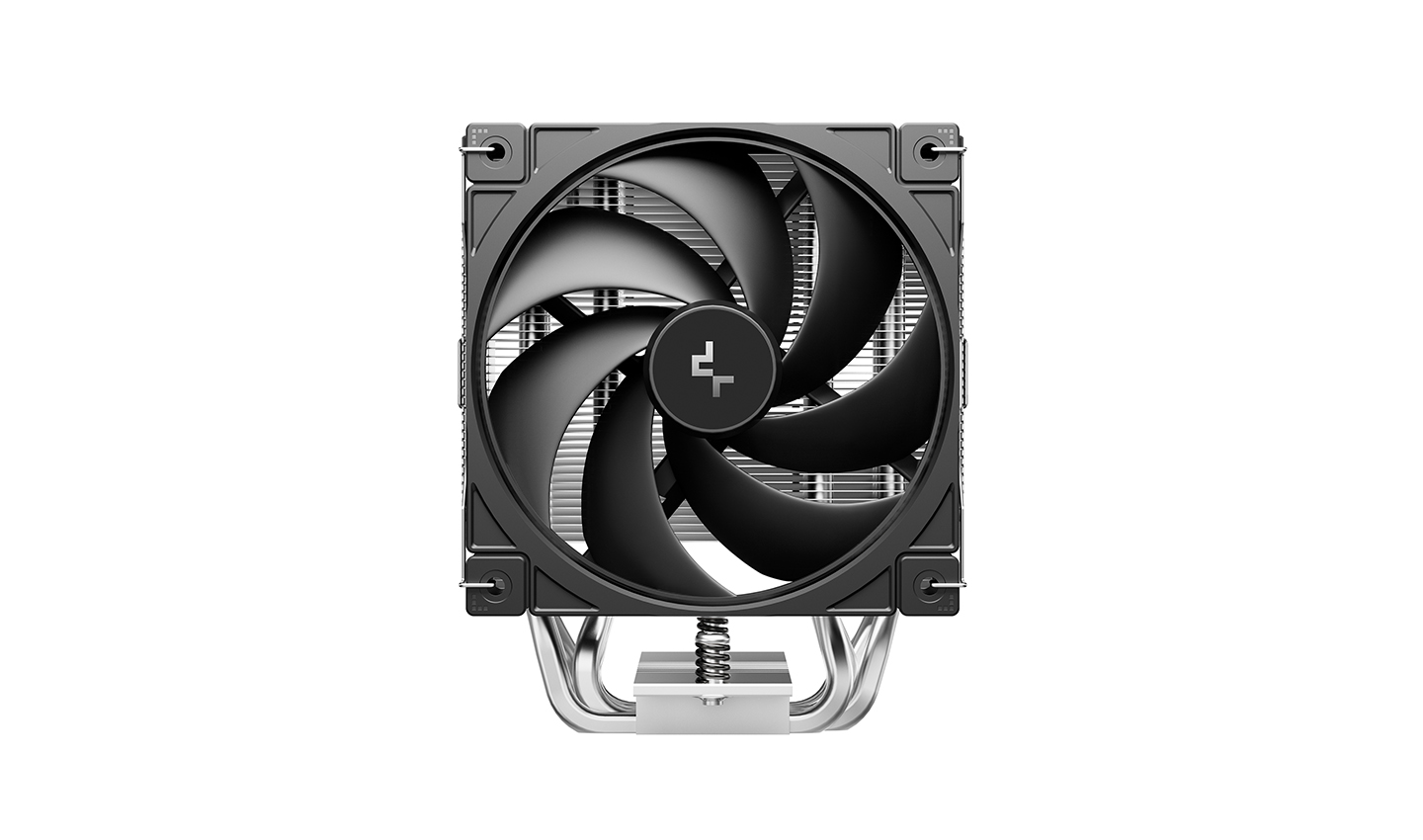

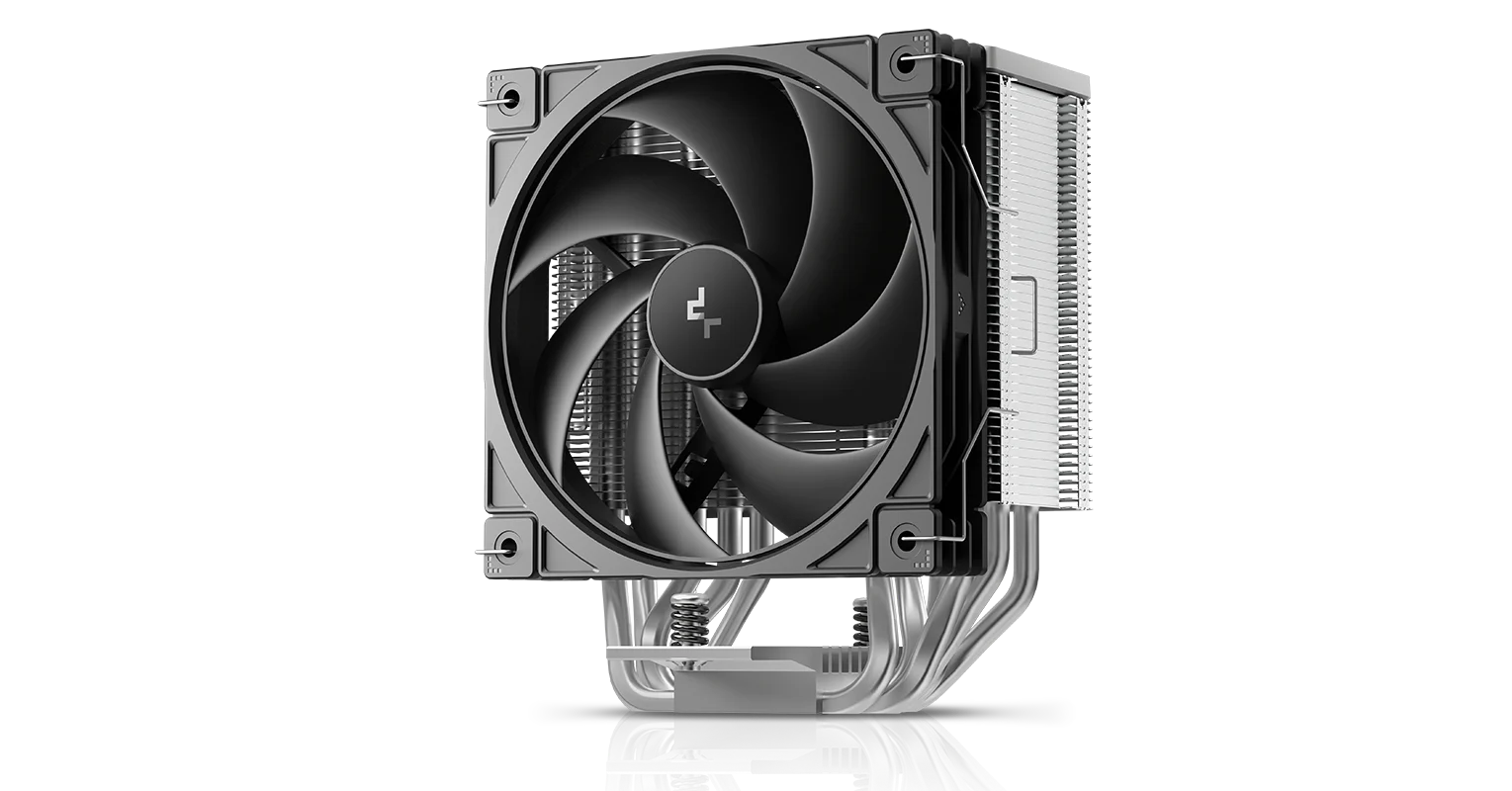

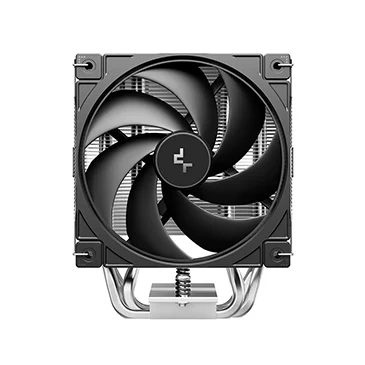

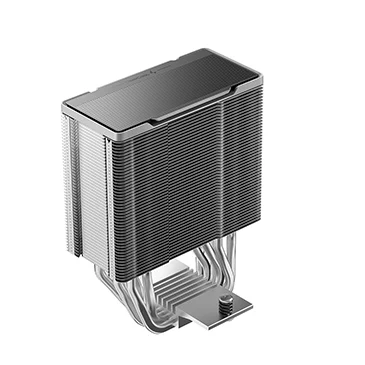

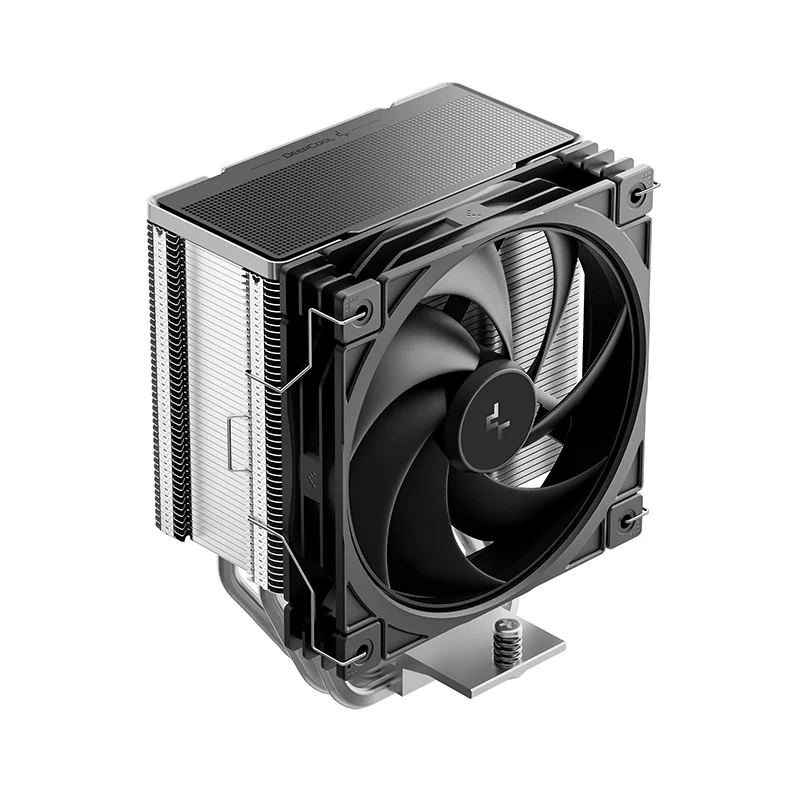

The AG600 is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
MODEL
AG600
COOLING REDEFINED
SUBSTANTIAL COOLING POWER

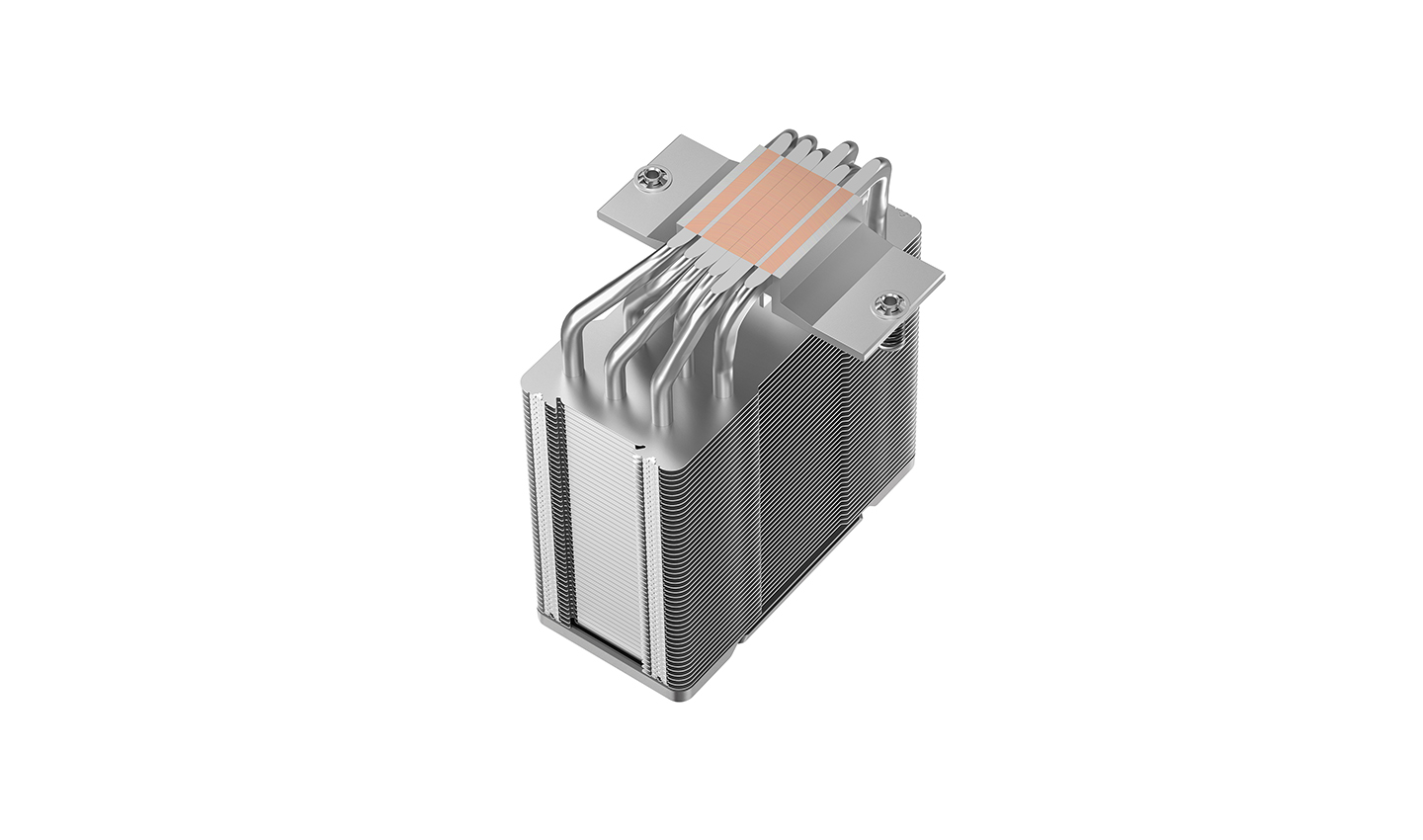

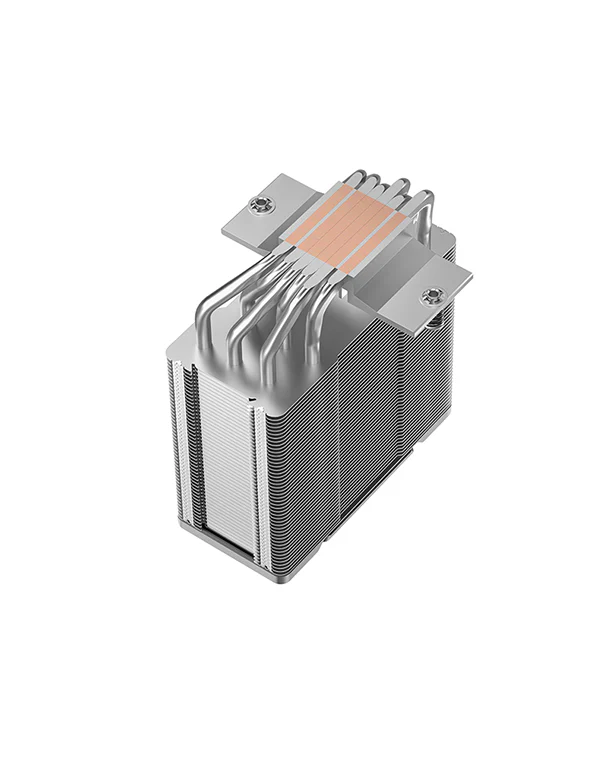

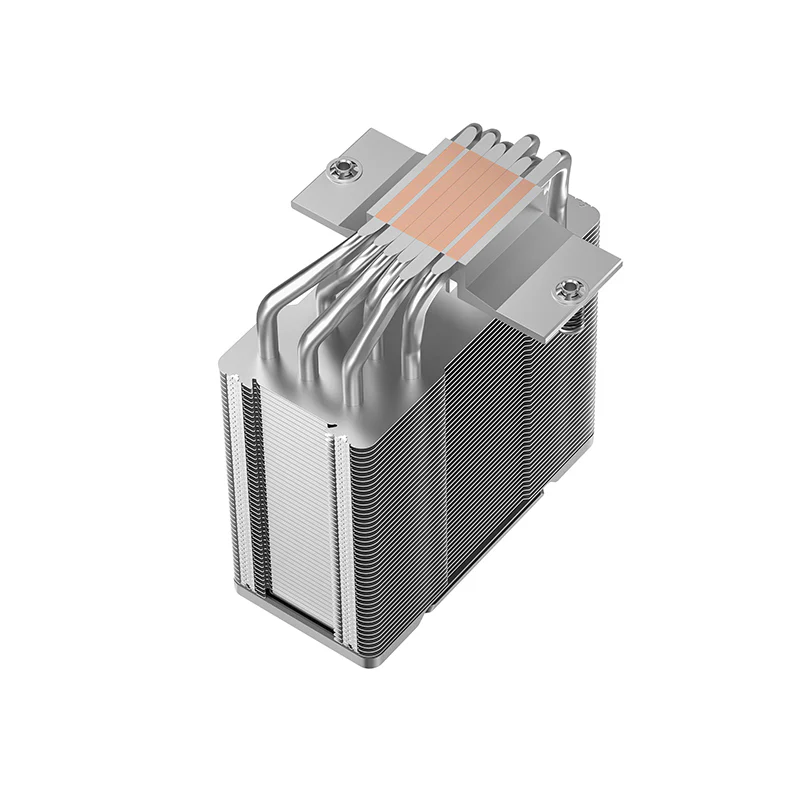

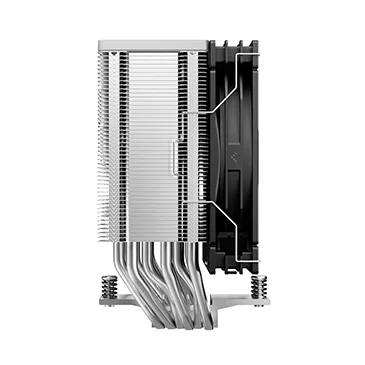

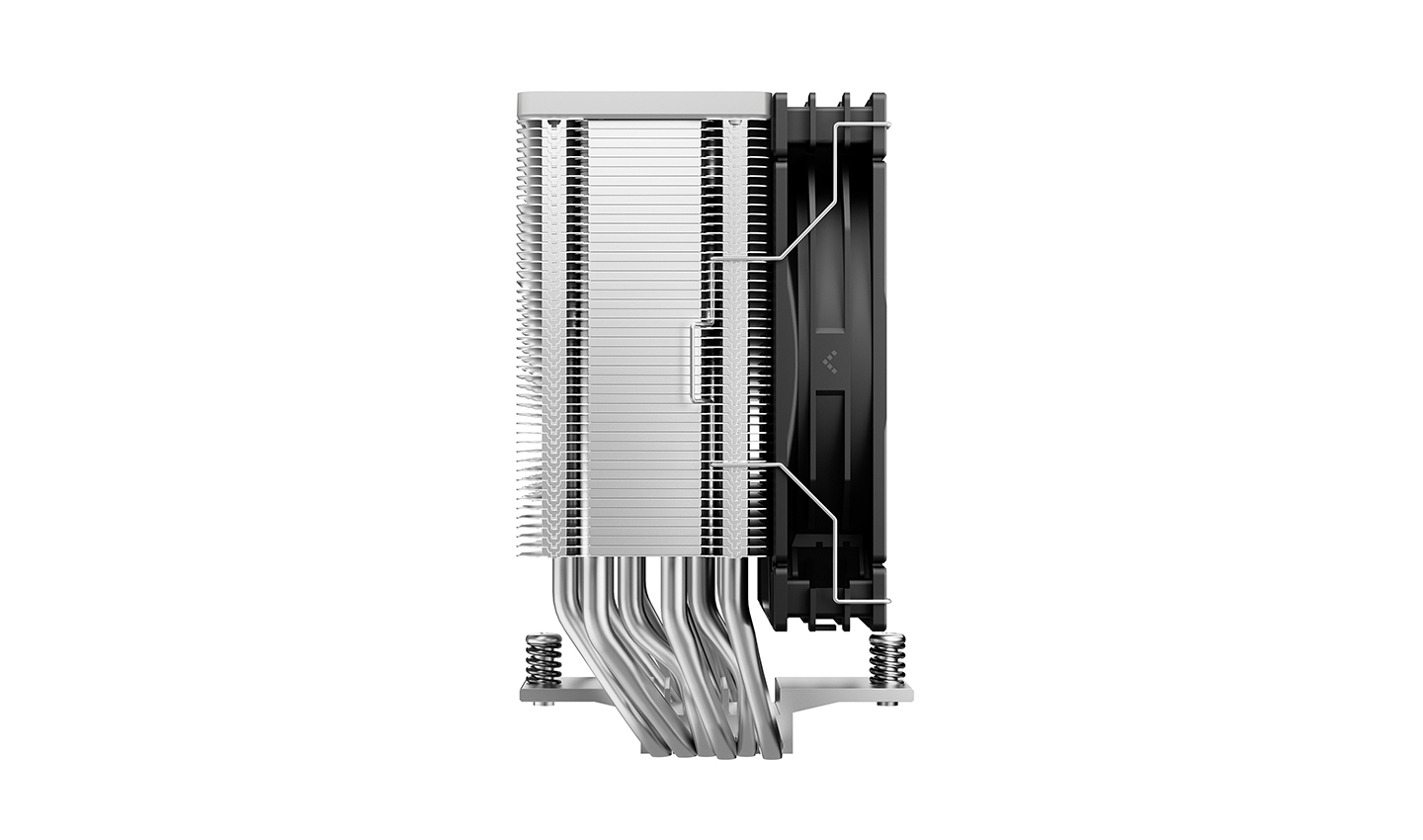

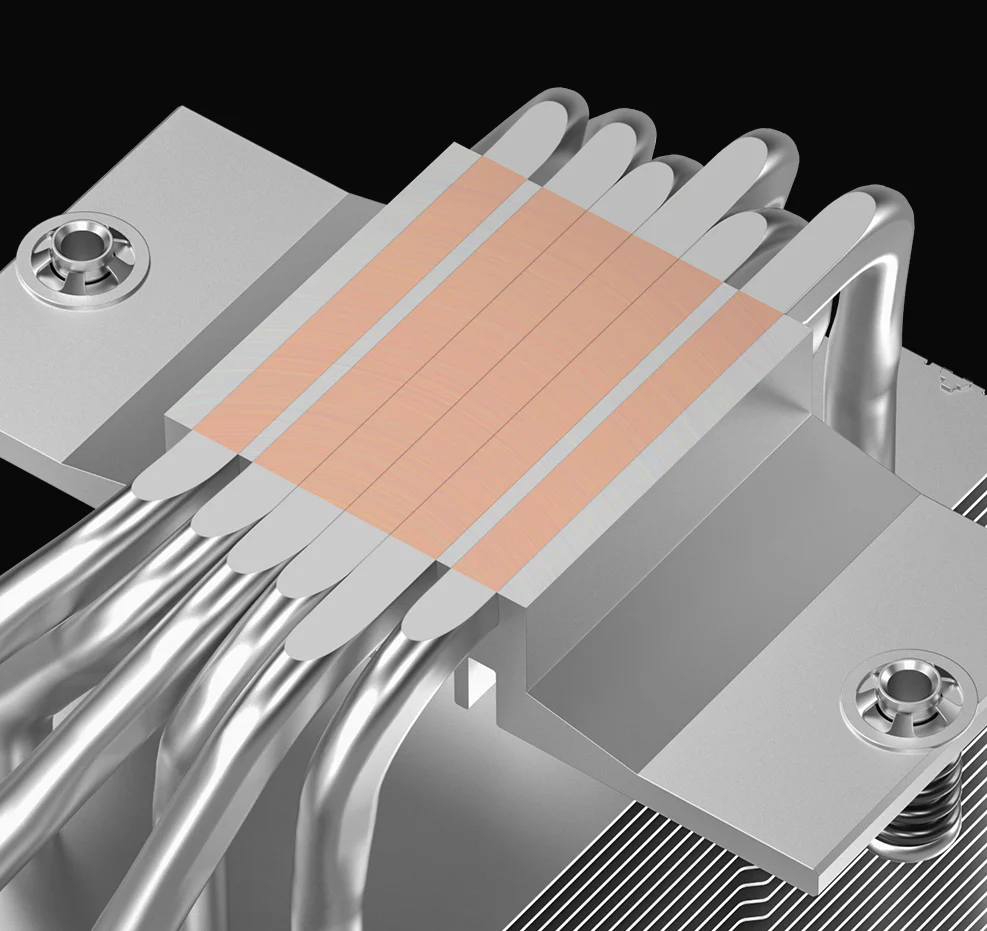

Enjoy better system performance by keeping things cool with up to 260W of heat dissipation power featuring six direct touch heat pipes that rapidly draw heat away from the CPU.
PRIME COMPATIBILITY

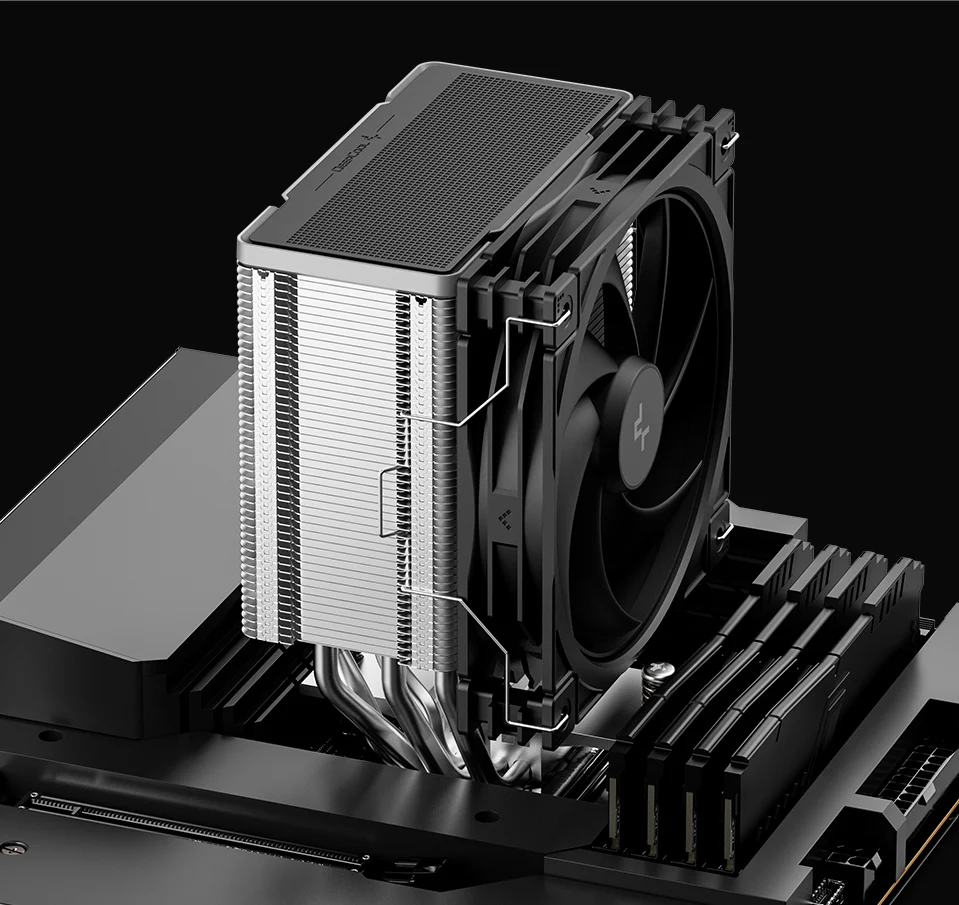

The AG600 maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation — the fan does not need to be removed during setup. Its superb thermal performance also allows it to be compatible with demanding processing workloads.
STYLED TO IMPRESS

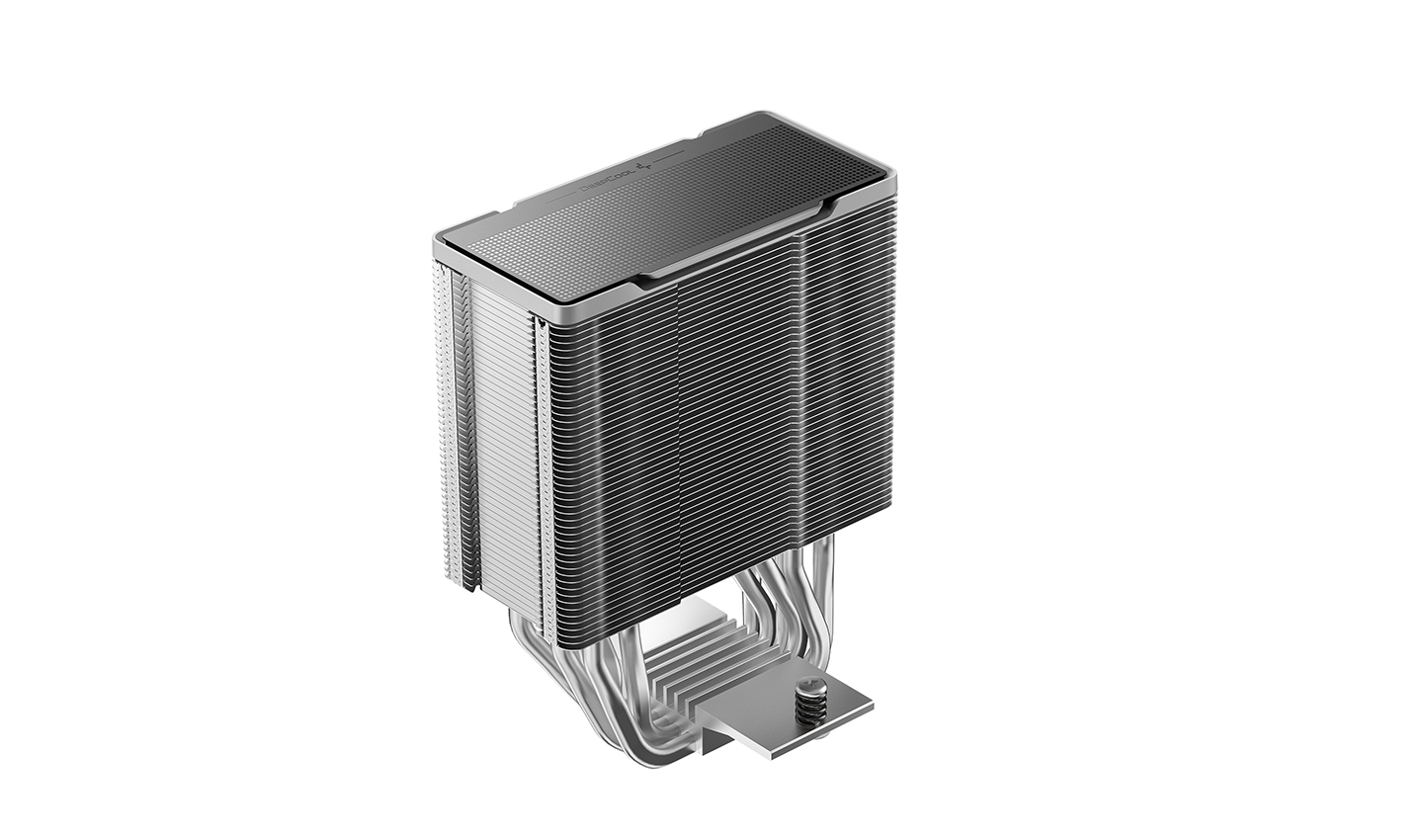

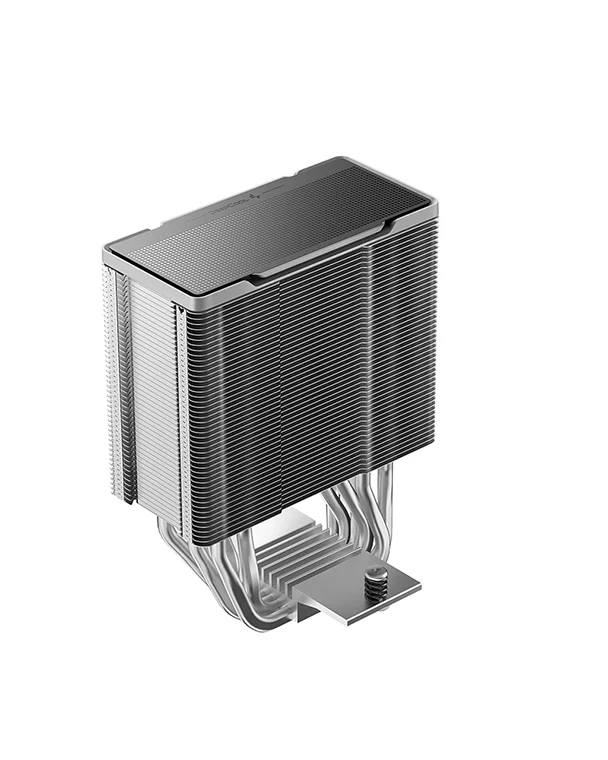

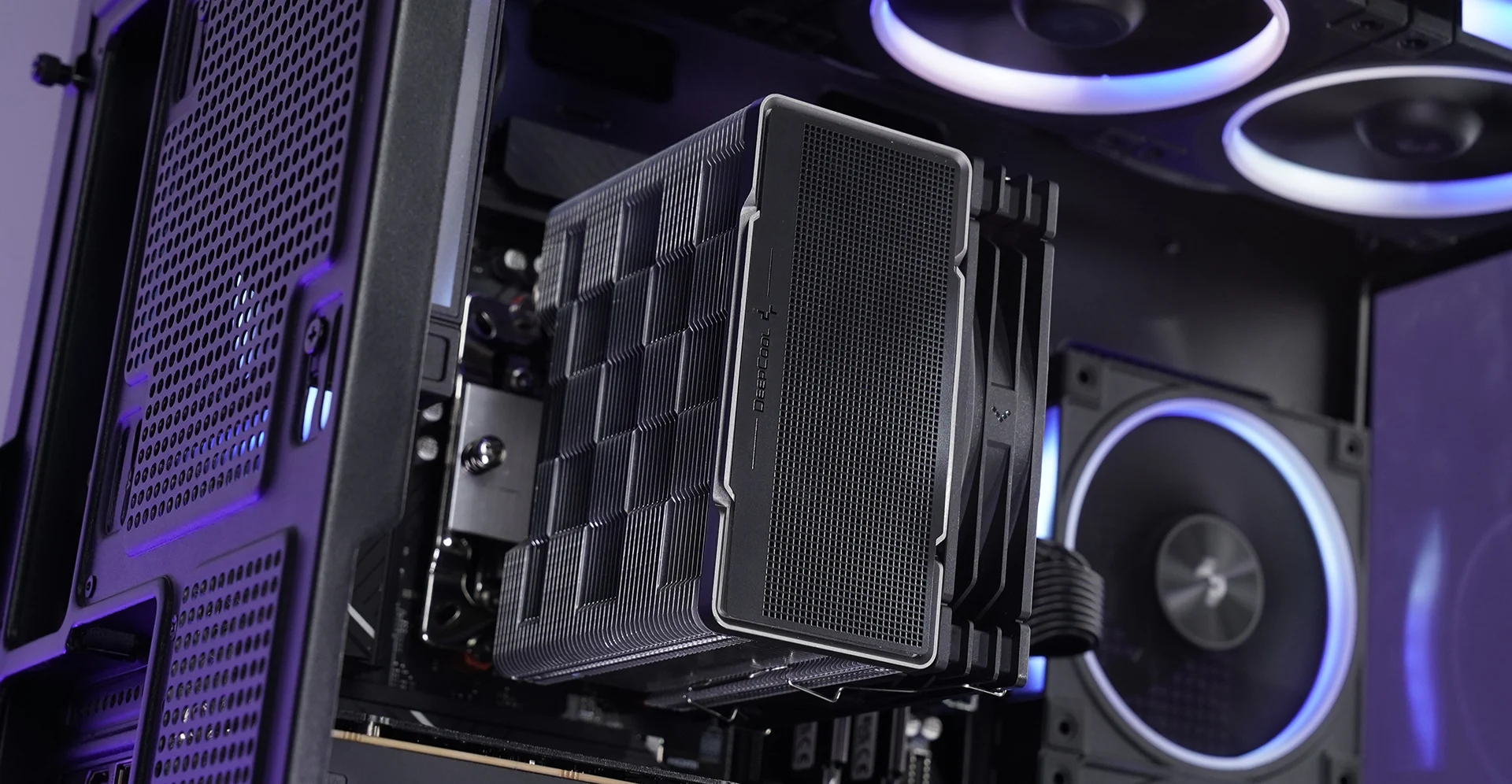

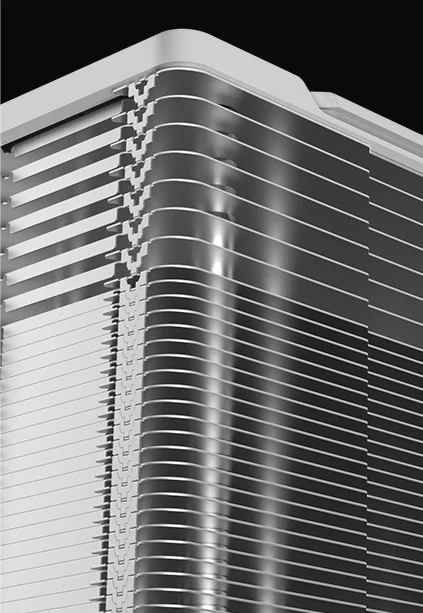

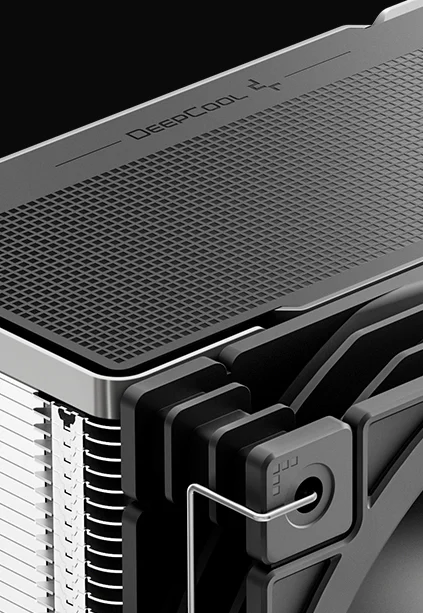

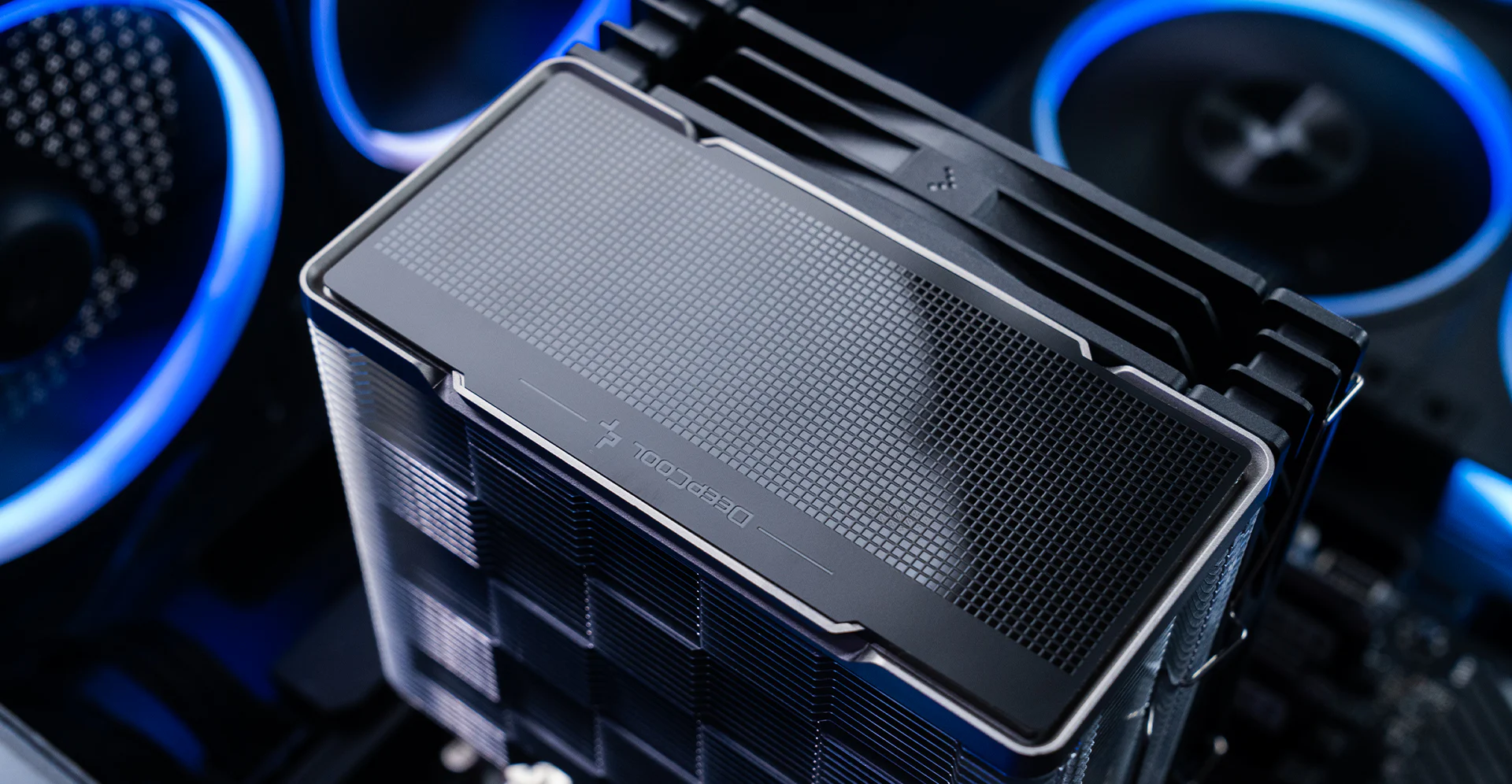

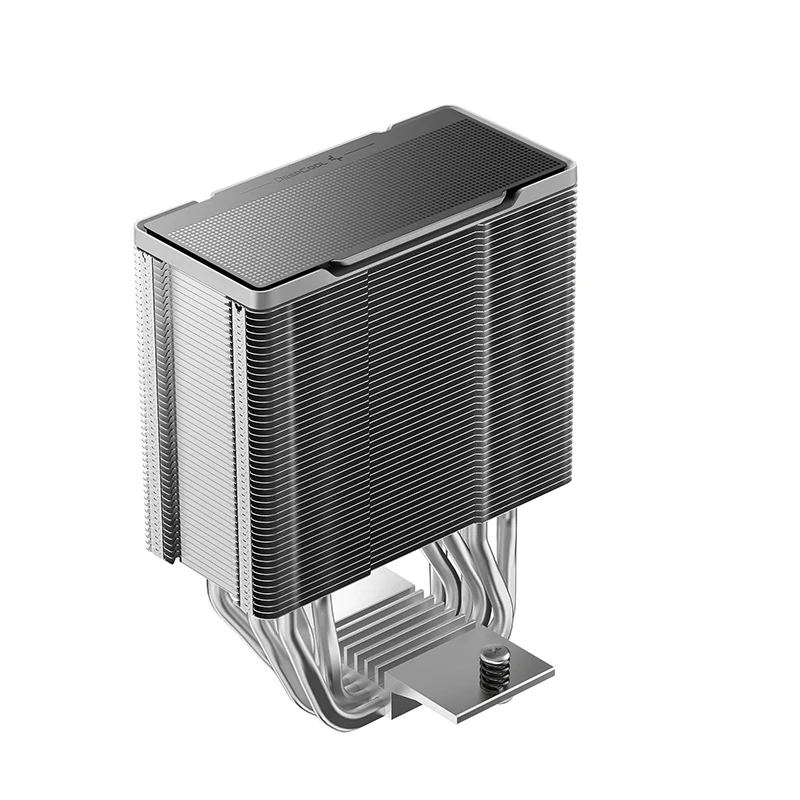

The AG600 retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted six heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.
COOL, QUIET,
AND POWERFUL

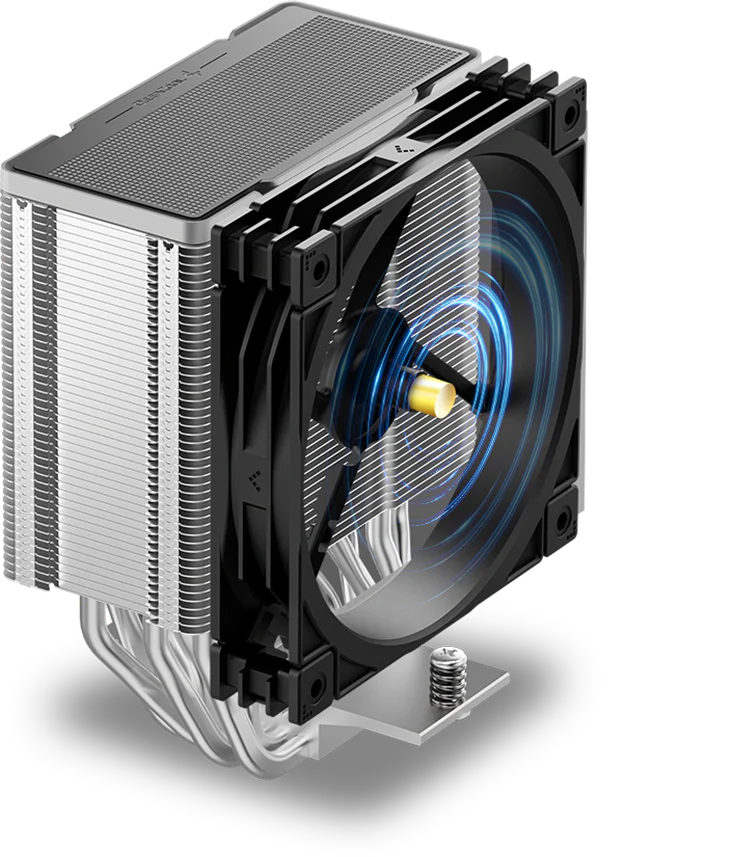

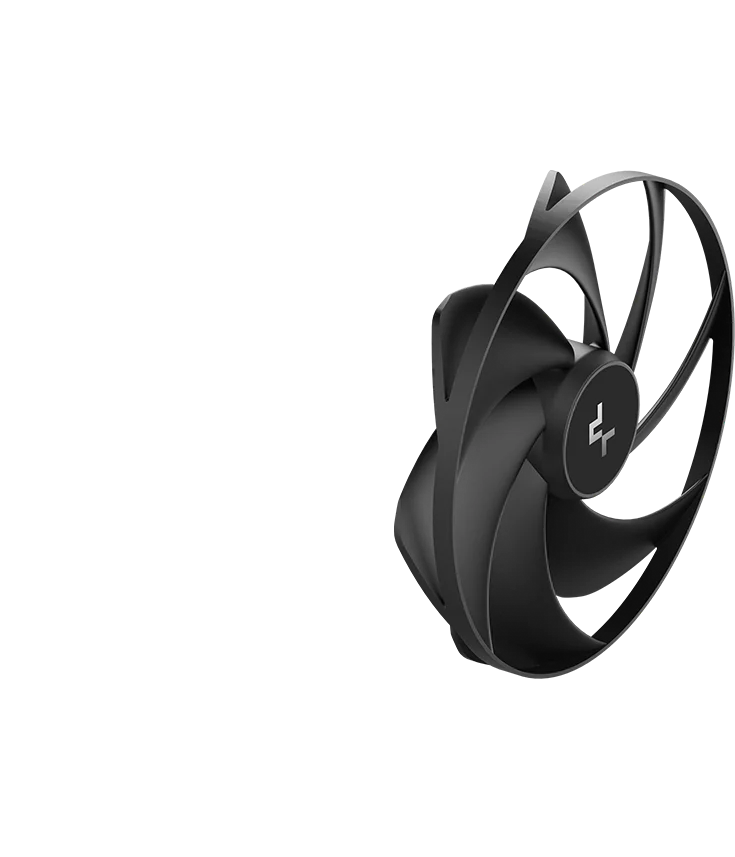

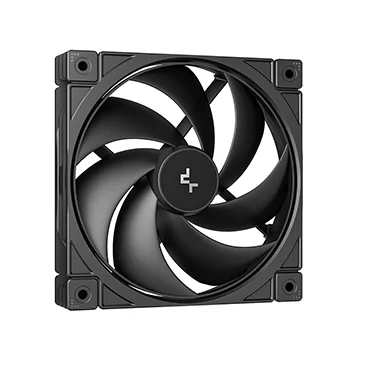

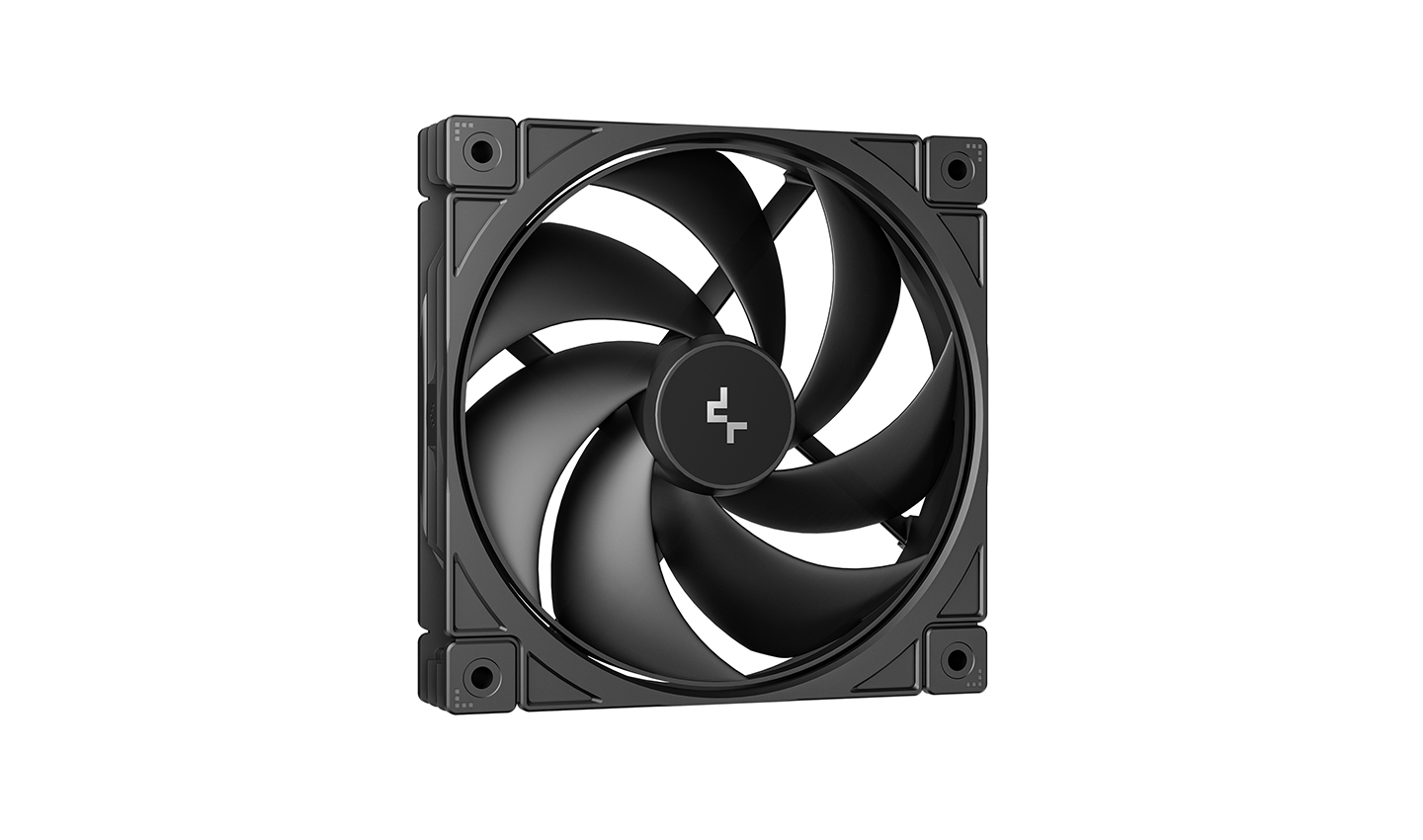

Outfitted with all-new semi-integral blade fan designed for optimal balance in top performance under load to silent efficiency when idle. This innovative setup optimizes airflow and static pressure while dramatically reducing noise.
500-2200±10% RPM
Fan Speed
70.09 CFM
Fan Airflow
2.49 mmAq
Fan Air Pressure
≤29.22 dB(A)
Fan Noise
SIMPLE AND SECURE INSTALLATION

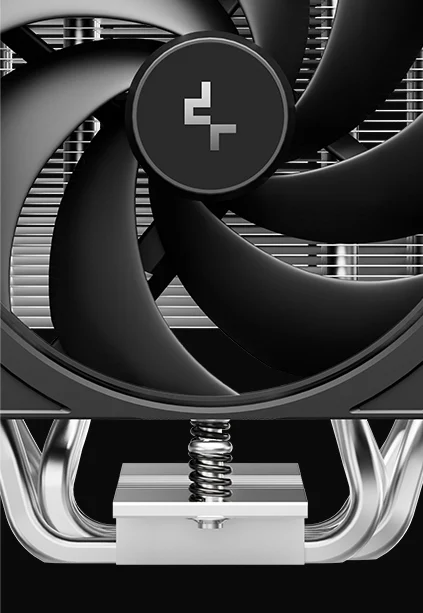

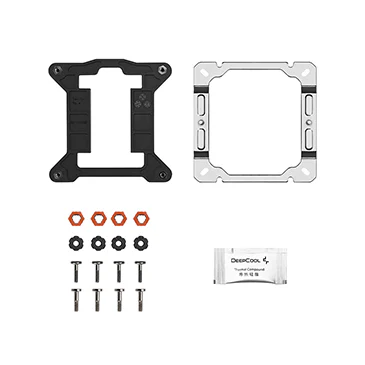

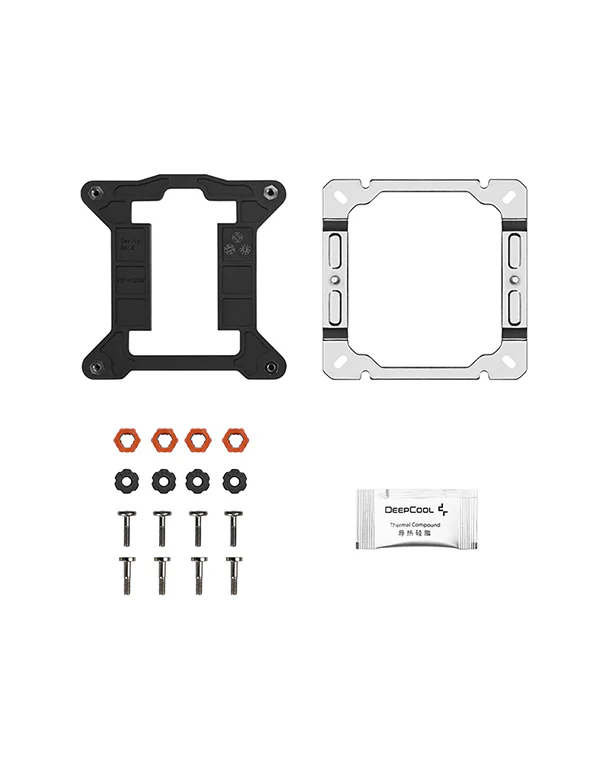

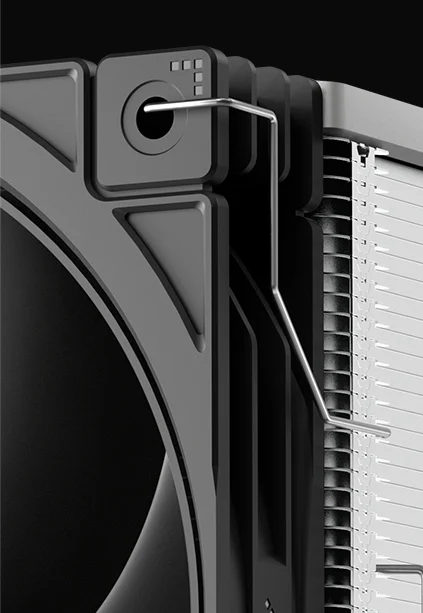

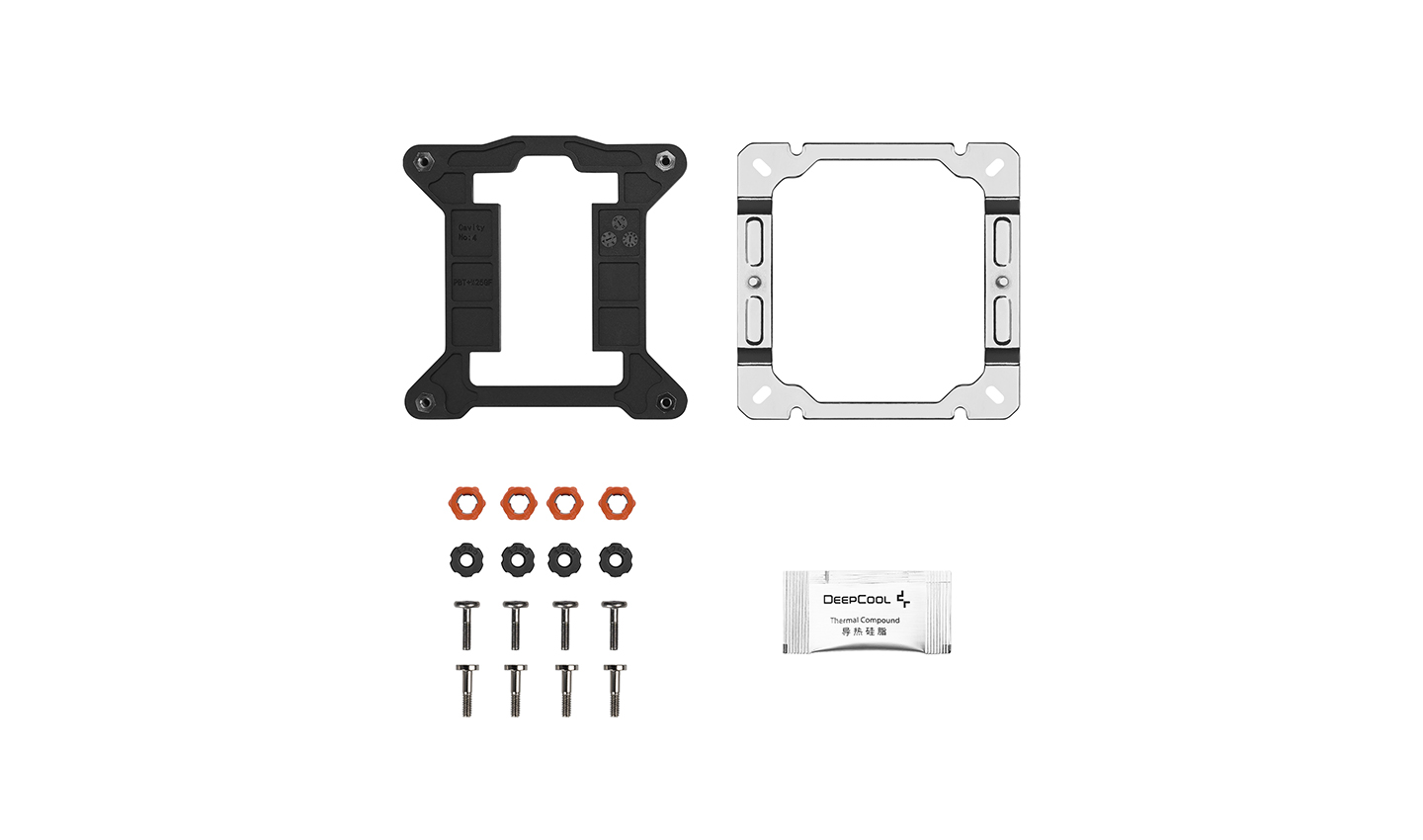

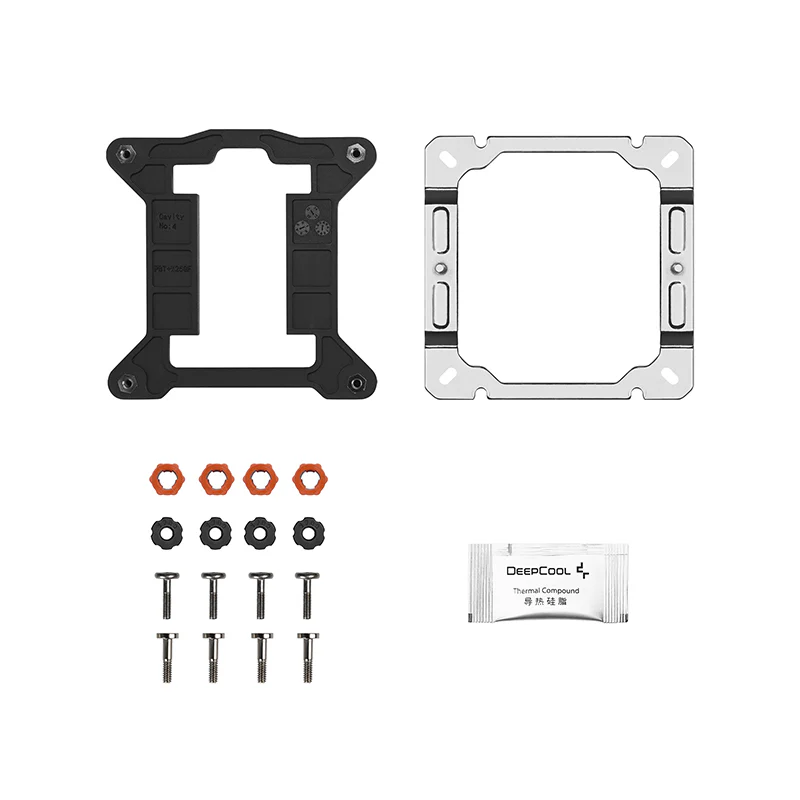

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions125×92×150 mm(L×W×H)
Heatsink Dimensions120×92×149 mm(L×W×H)
Net Weight686 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2200±10% RPM
Fan Motor1-phase，4-slot，4-pole
Fan Airflow70.09 CFM
Fan Air Pressure2.49 mmAq
Fan Noise≤29.22 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.18 A
Fan Power Consumption2.16 W
EAN6933412730118
P/NR-AG600-BKNPMG2-G
Download
AG600 Manual.pdf
