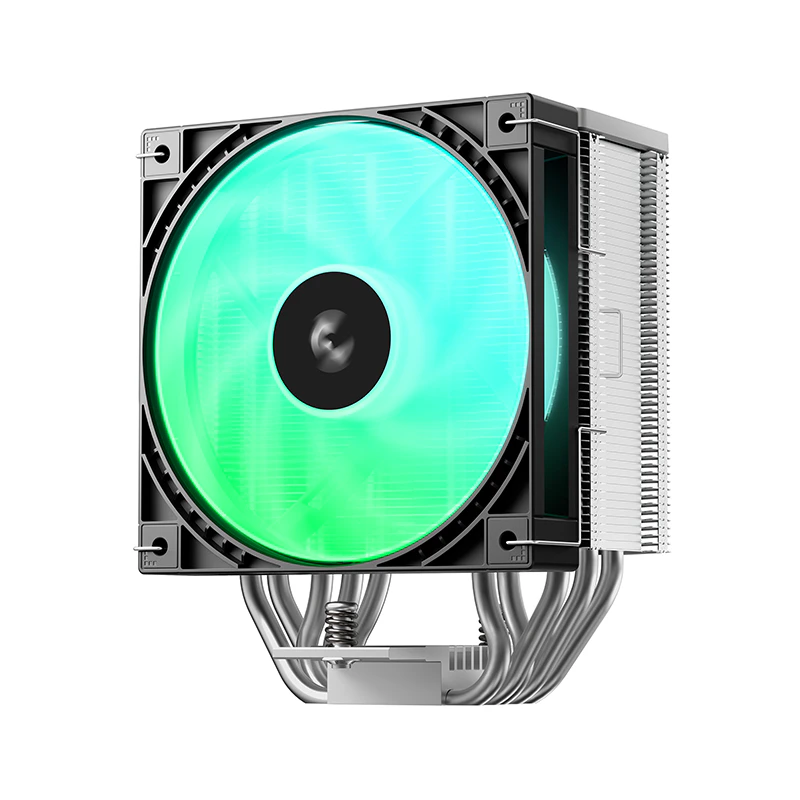

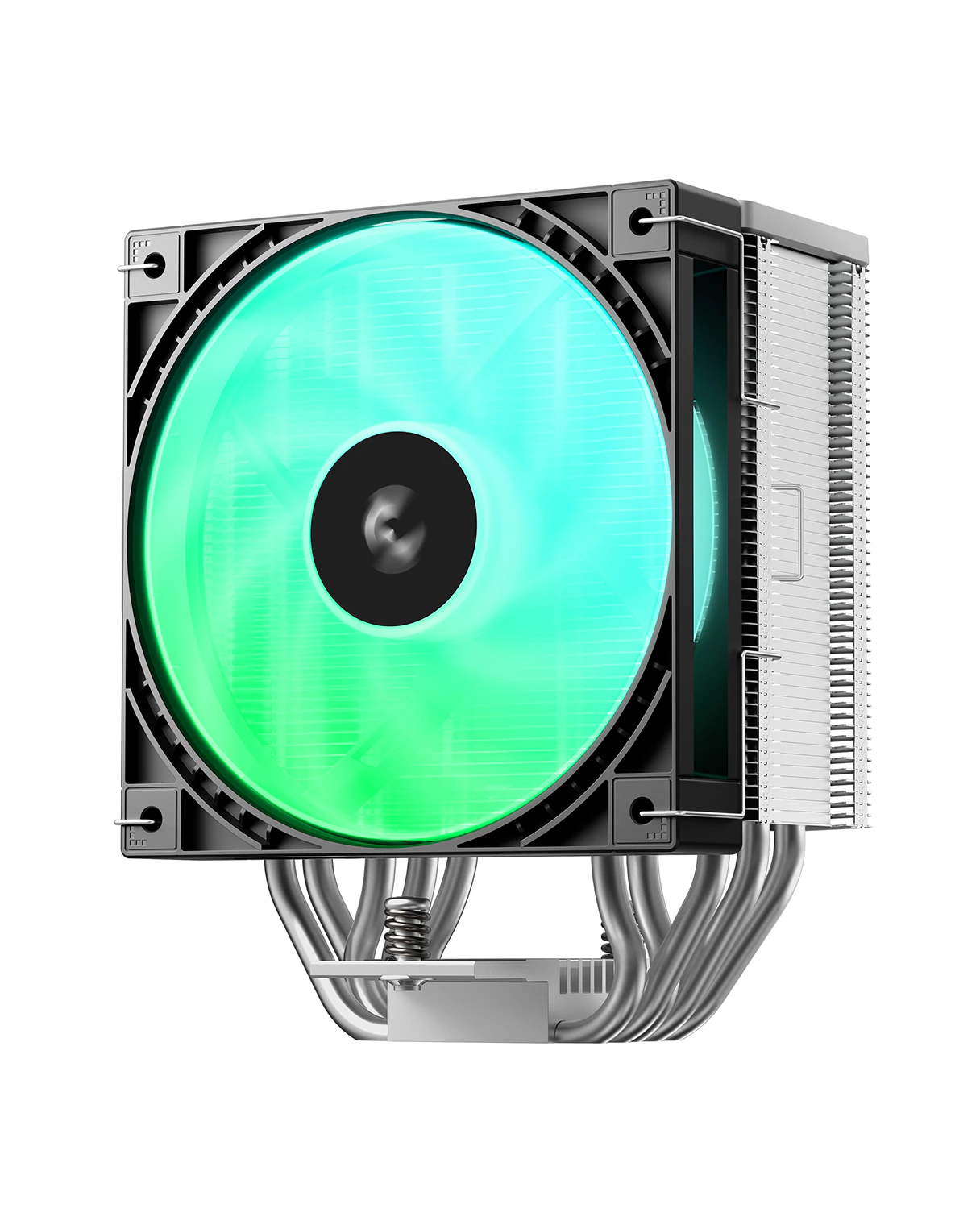

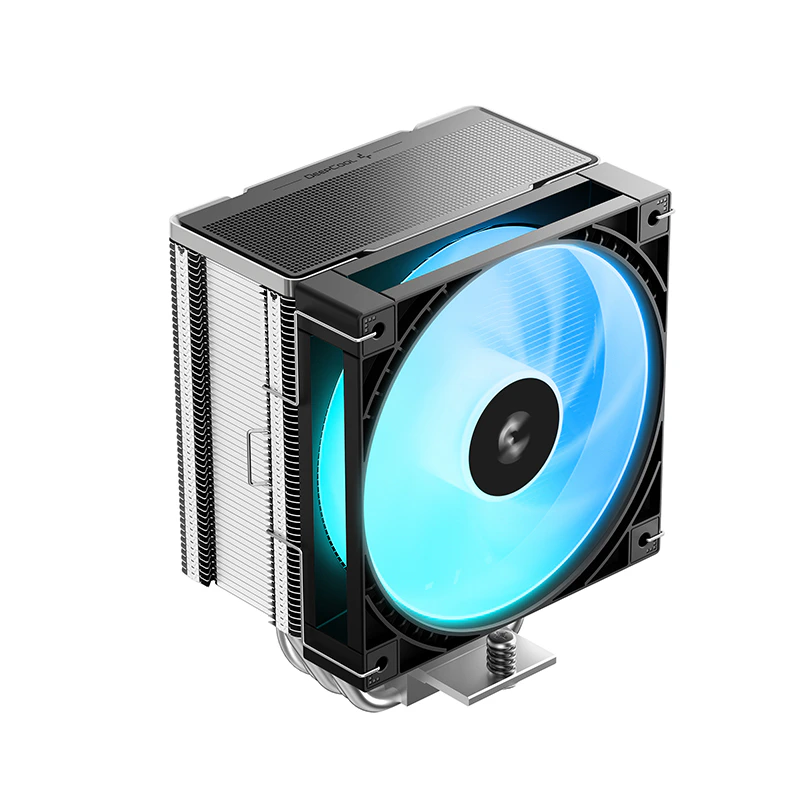

AG500 G2 ARGB

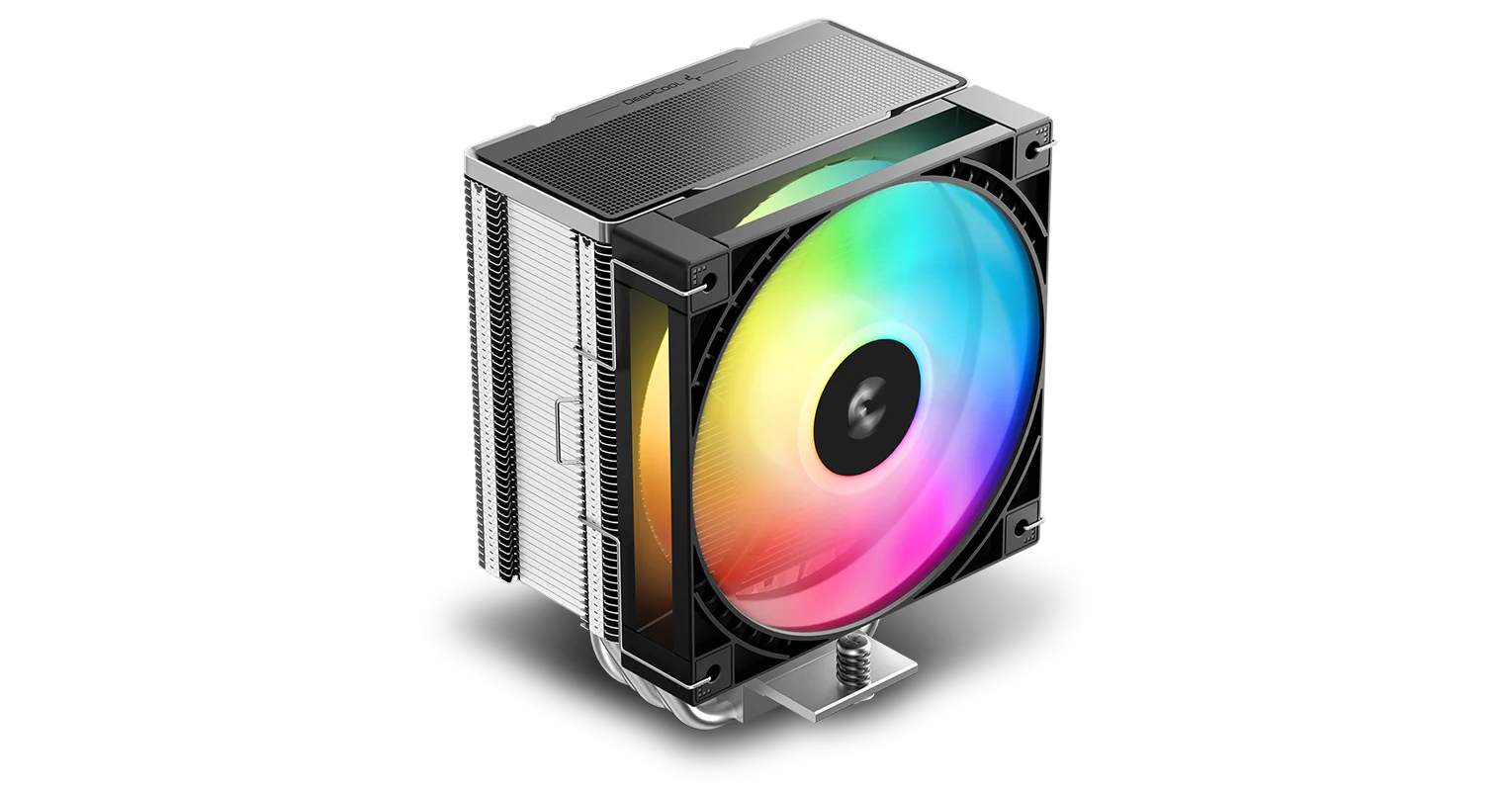

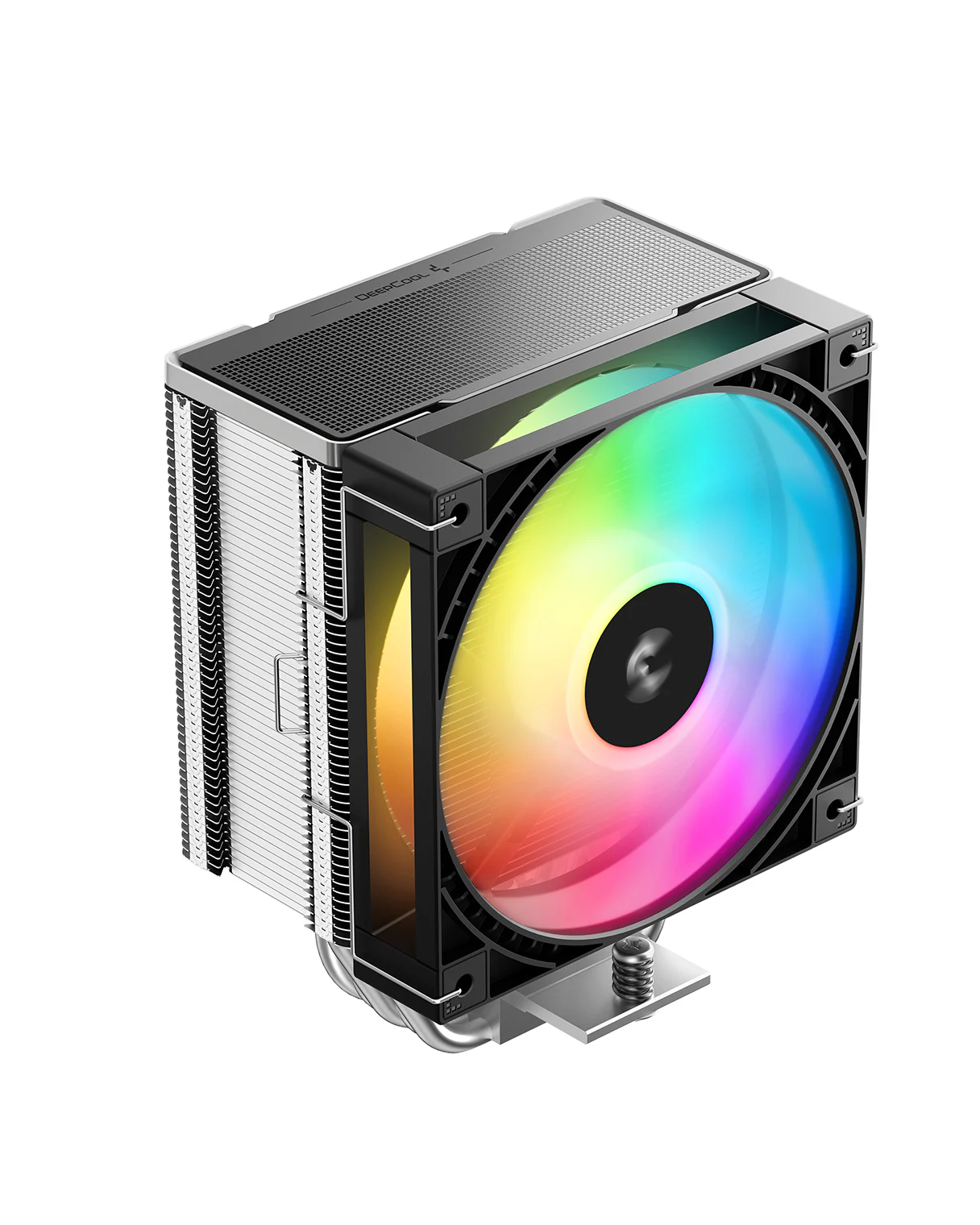

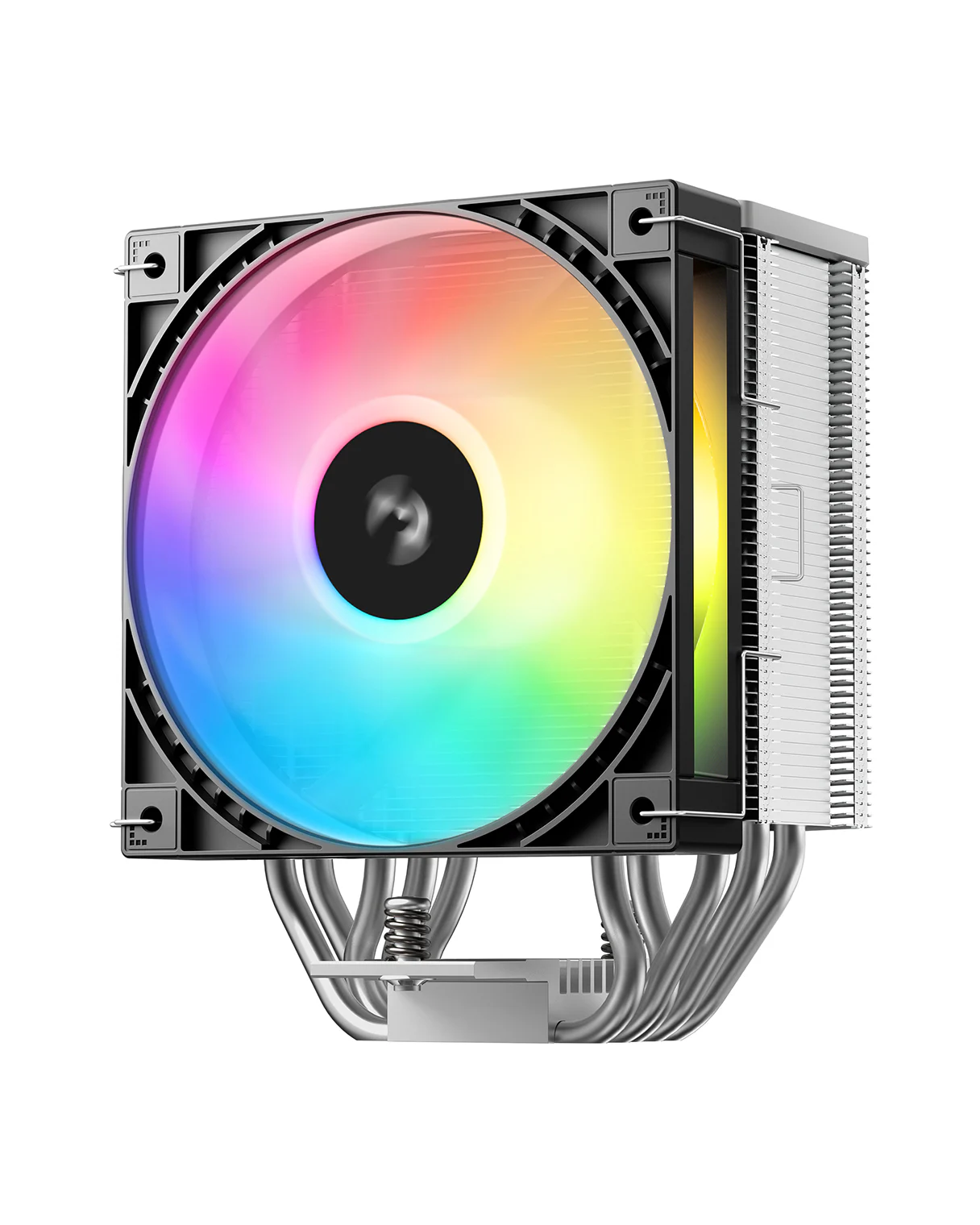

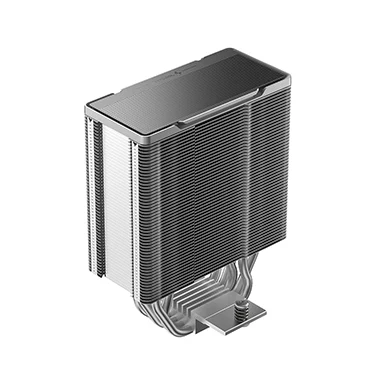

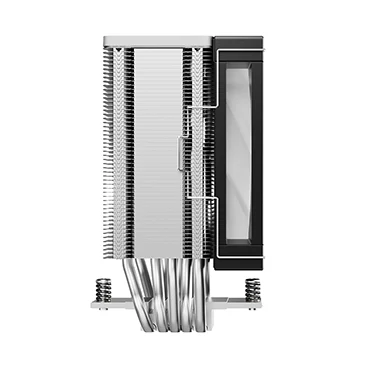

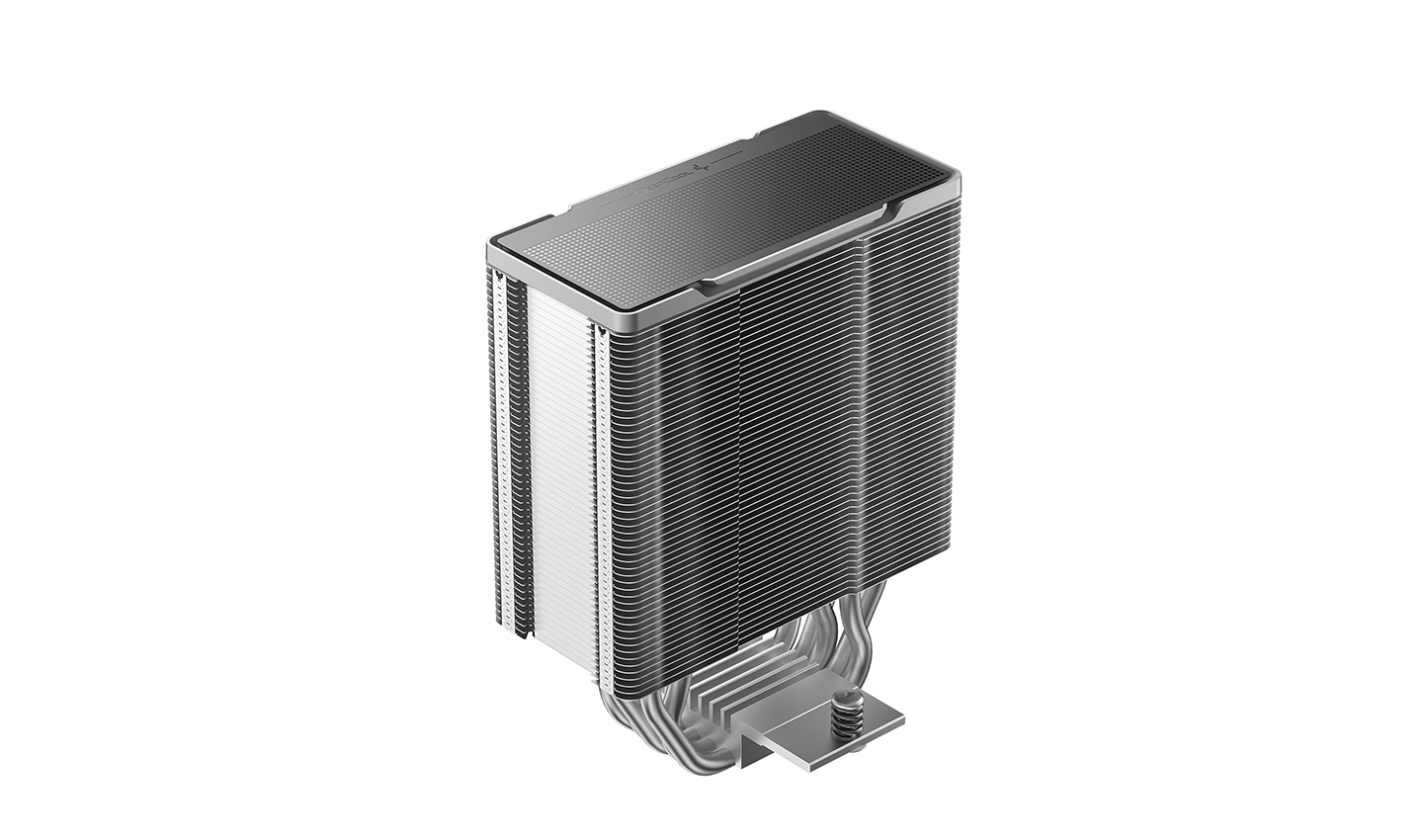

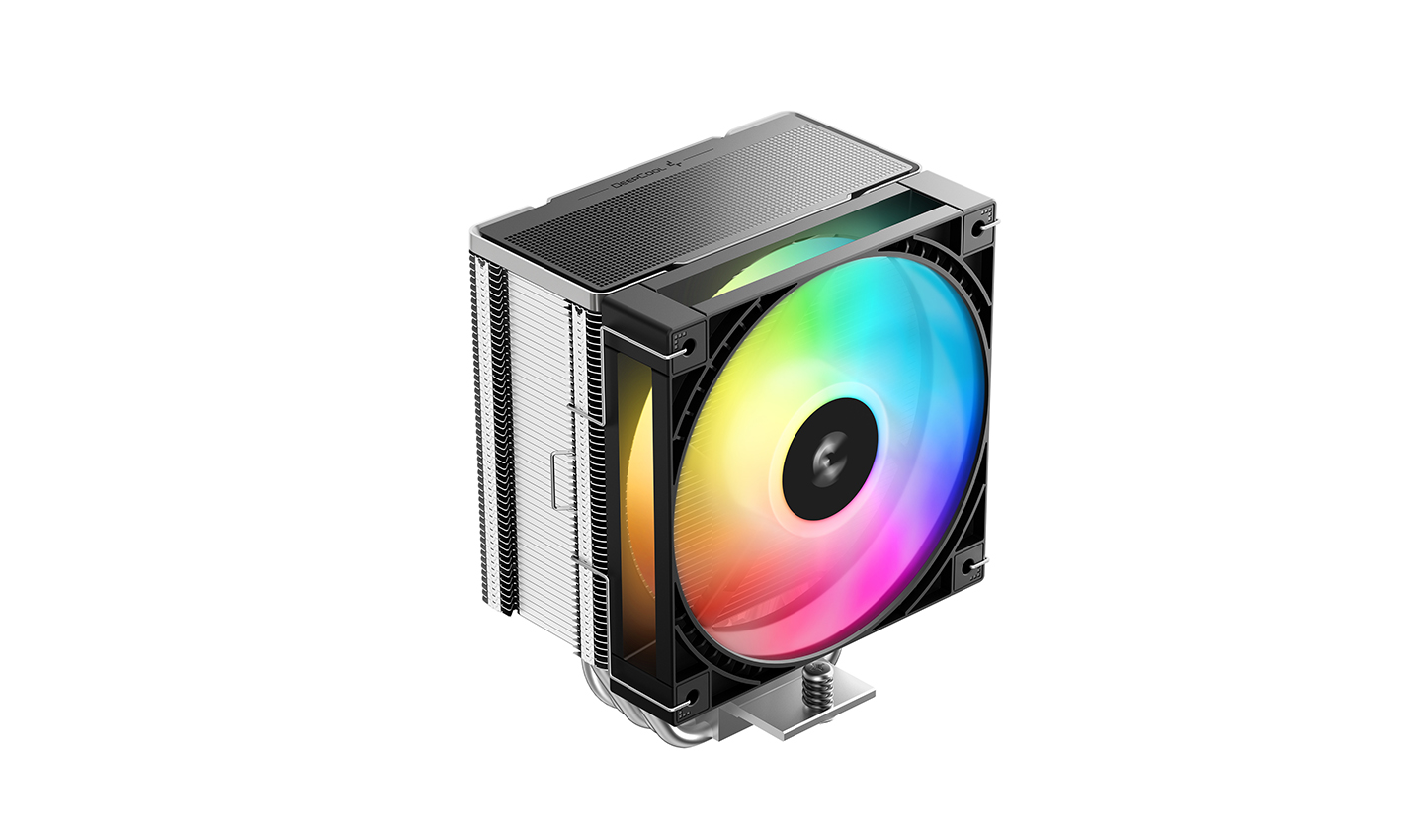

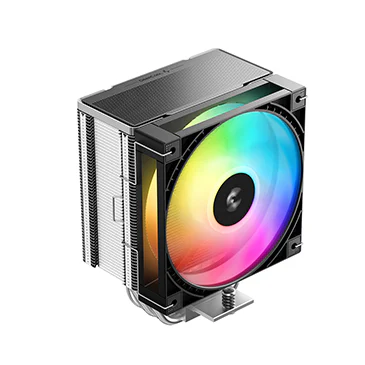

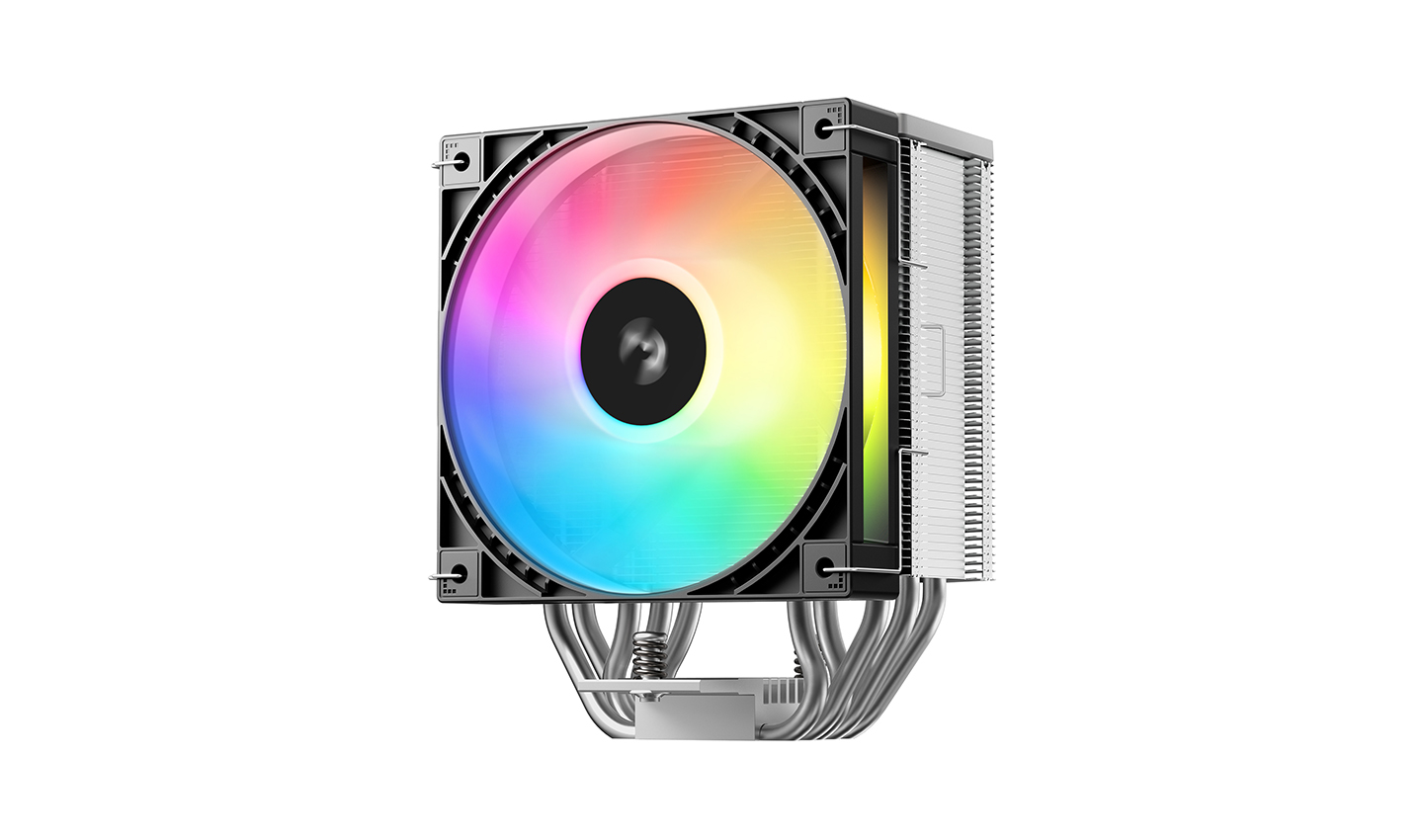

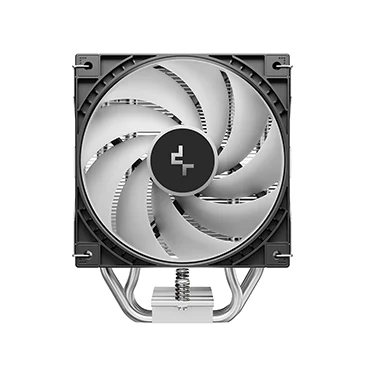

The AG500 G2 ARGB raises the bar for single-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring five heat pipes embedded in a dense single-tower heatsink and paired with a finely tuned 120mm ARGB PWM fan for seriously powerful airflow and thermal transfer.
MODEL
AG500 G2 ARGB

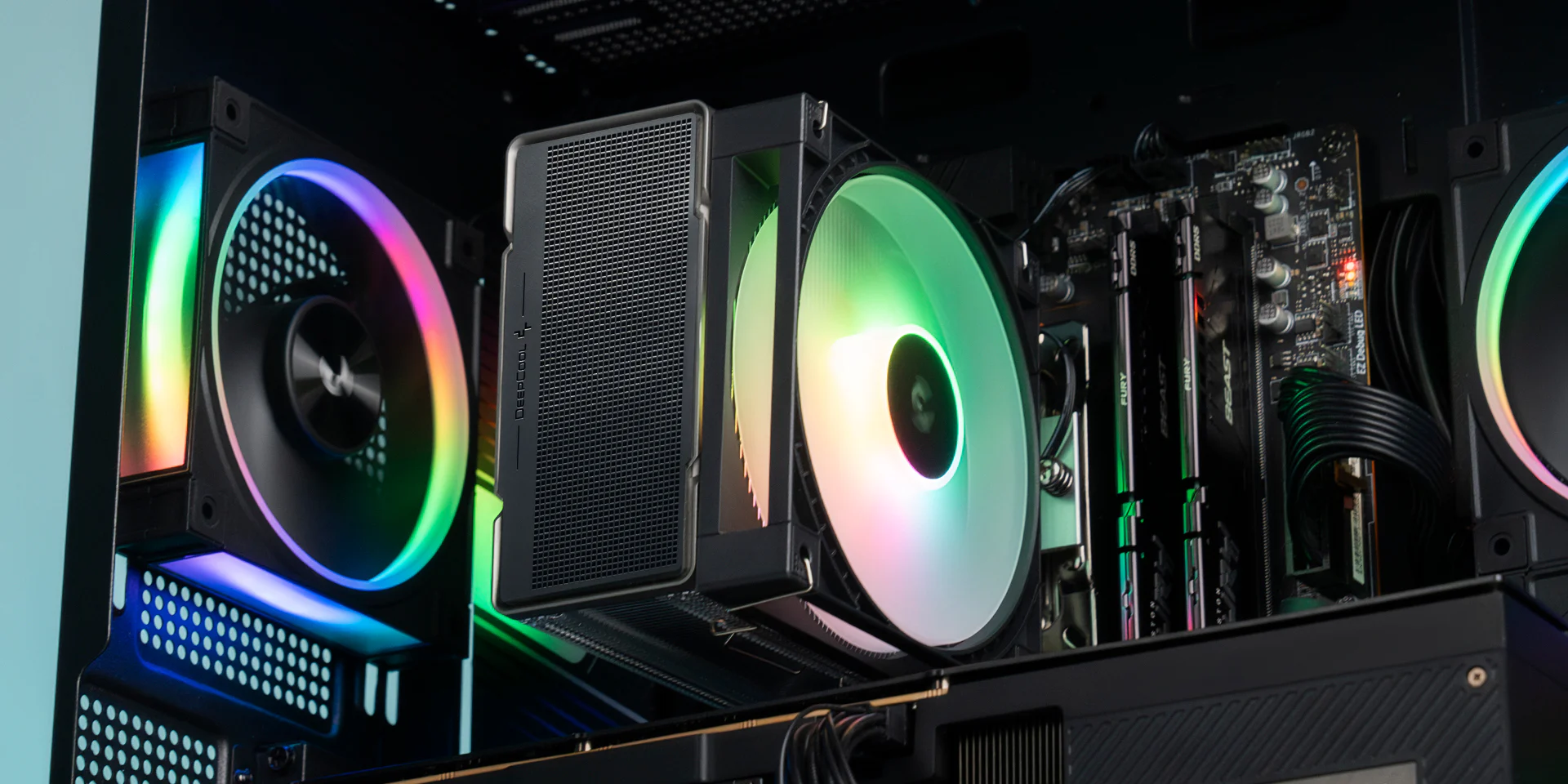

WHERE POWER GLOWS
NEXT GENERATION PERFORMANCE

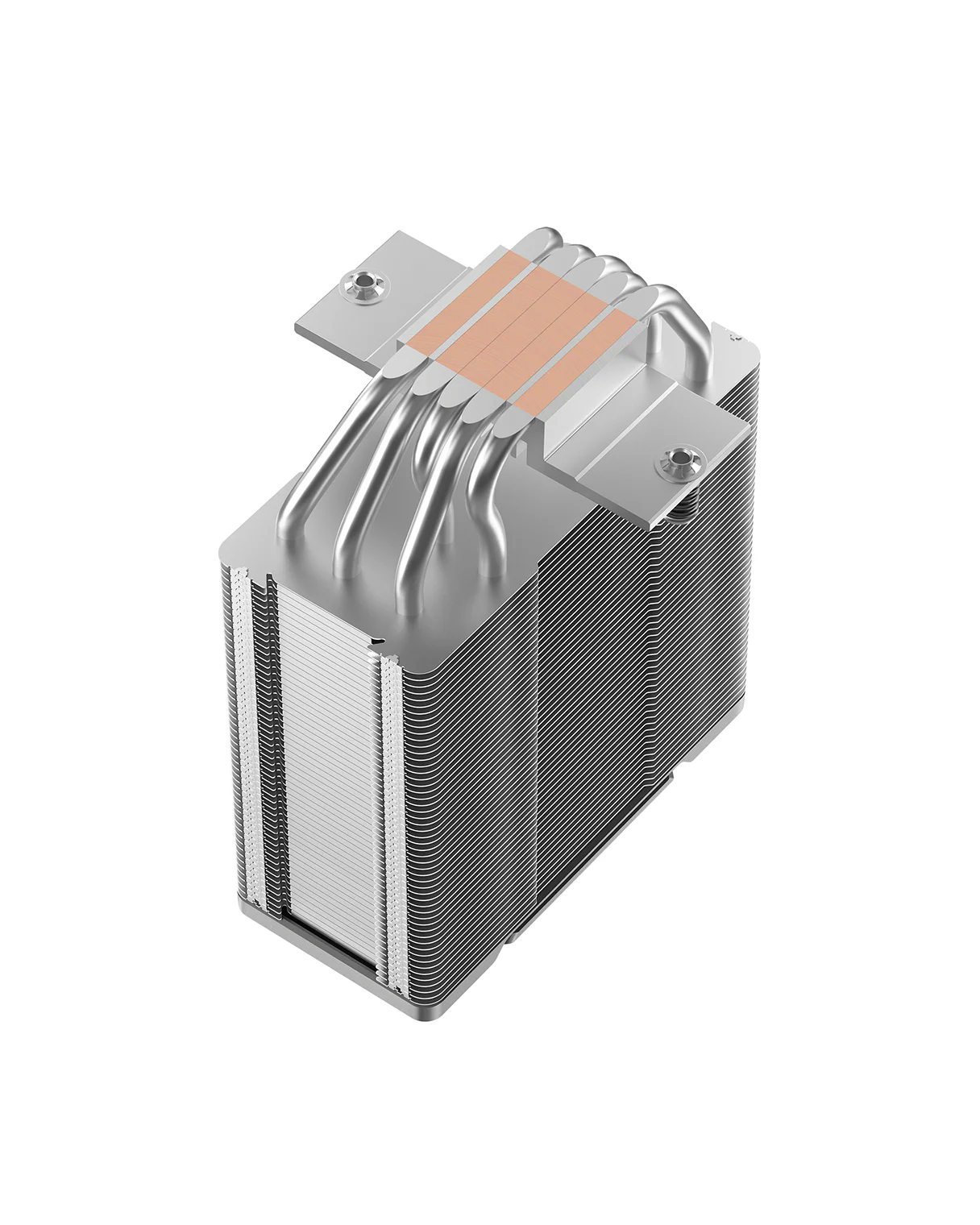

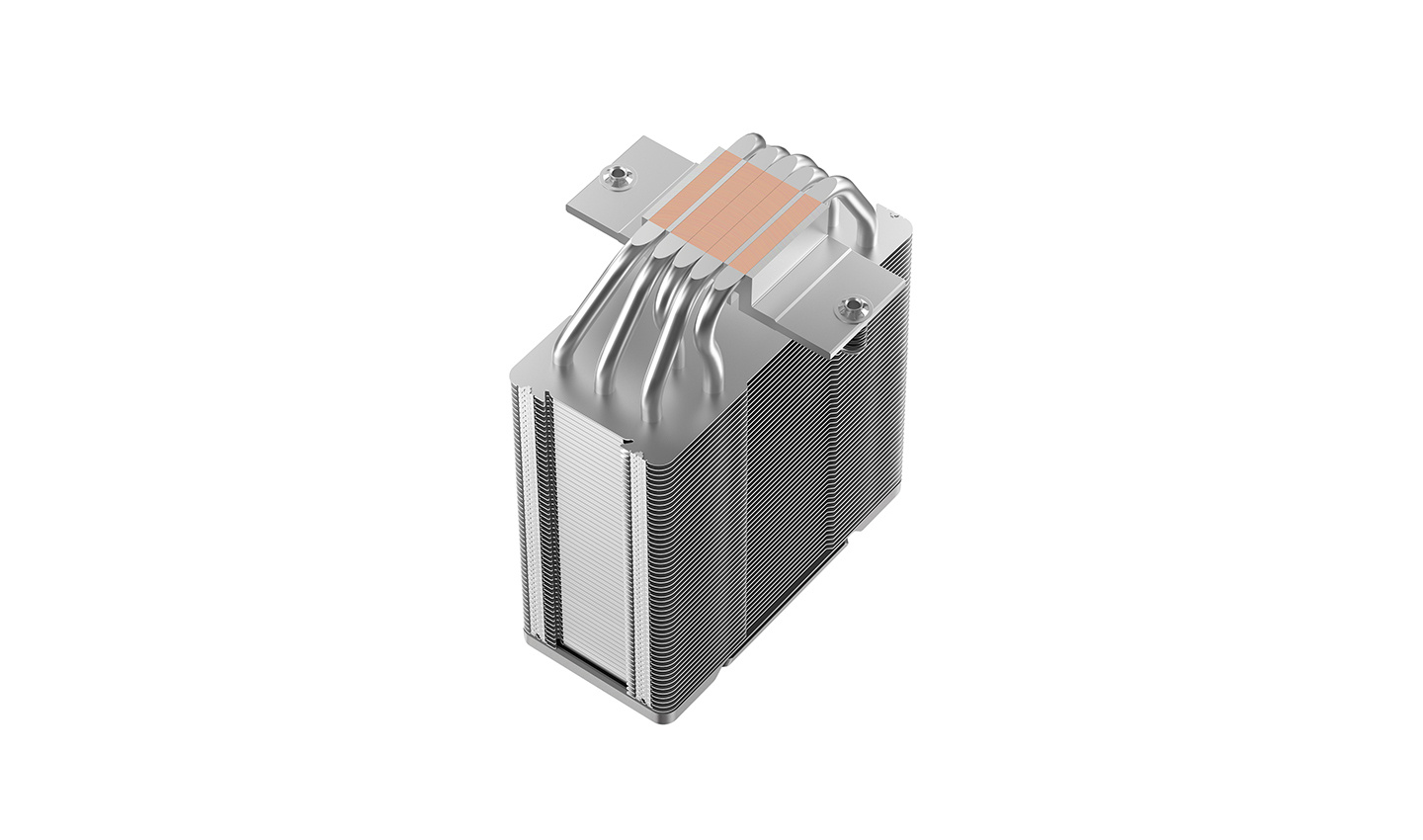

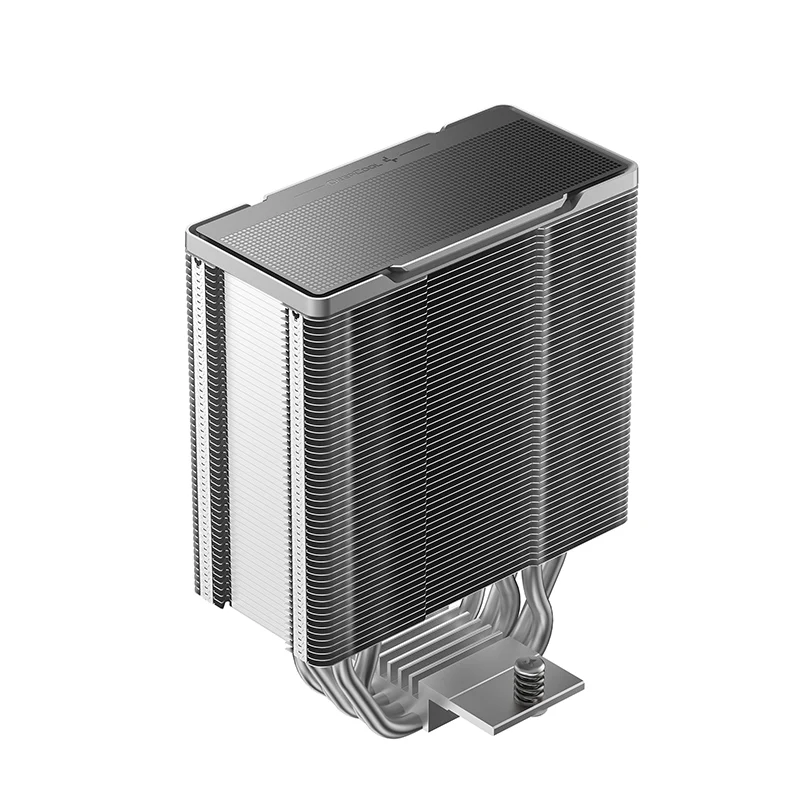

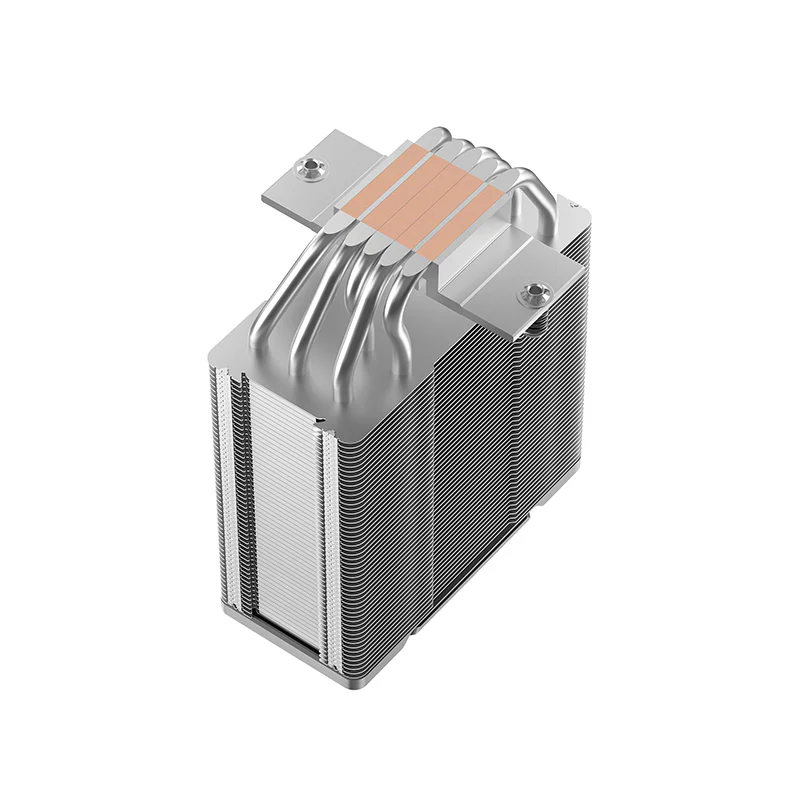

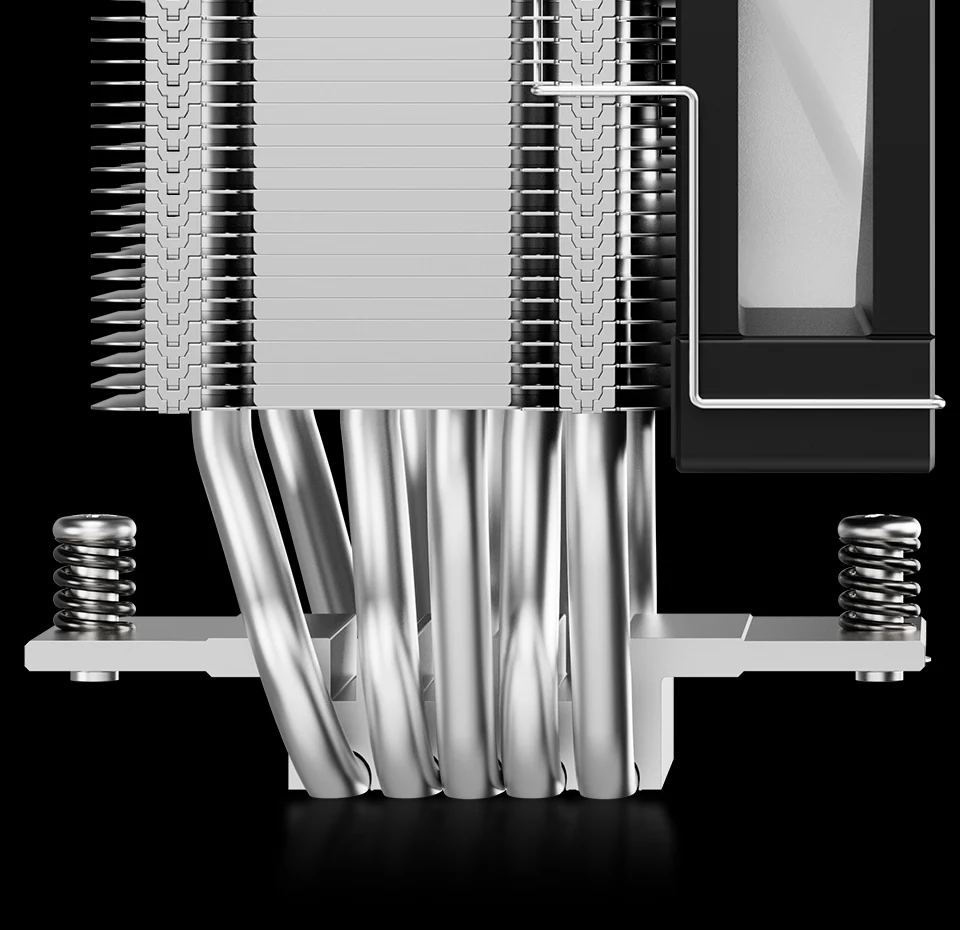

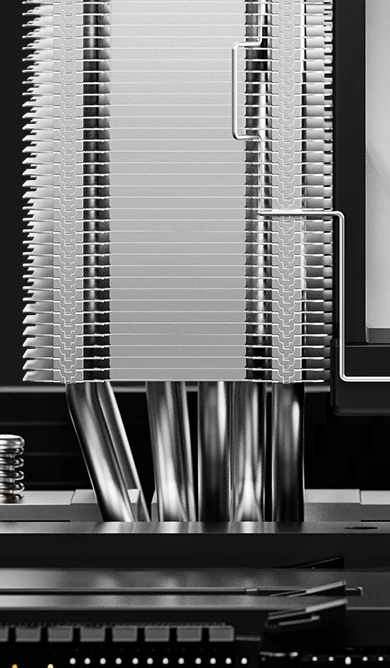

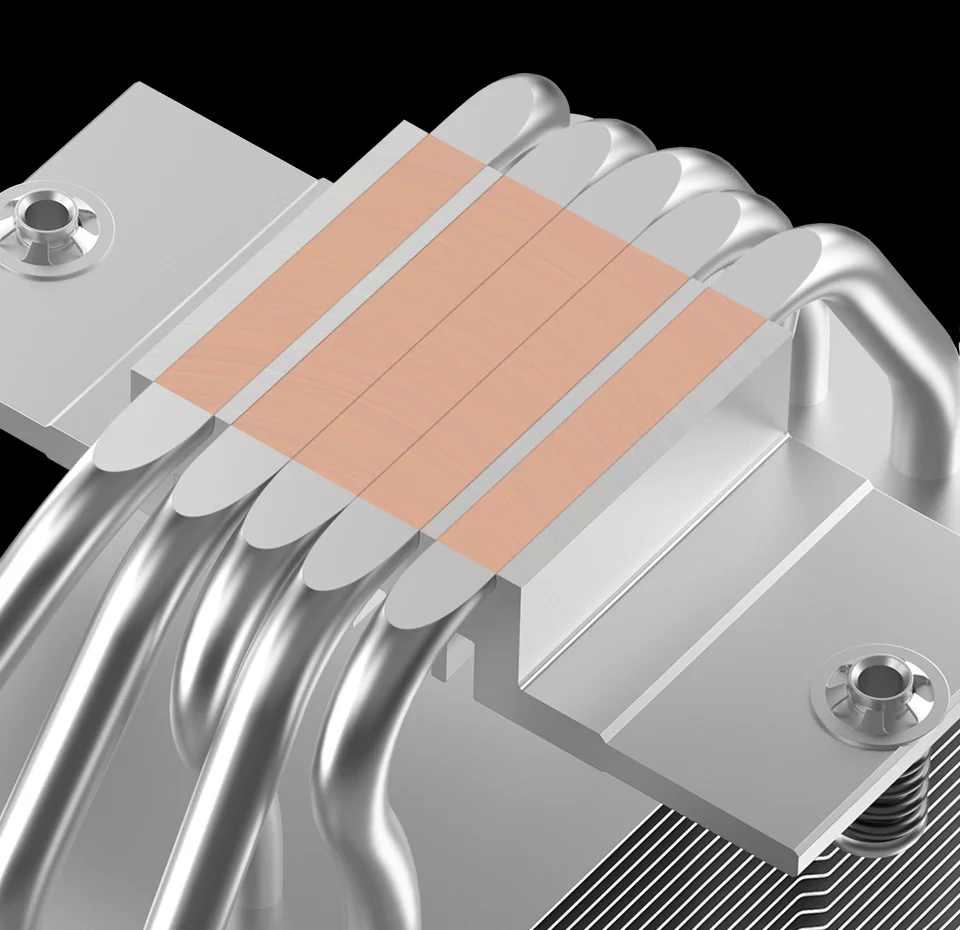

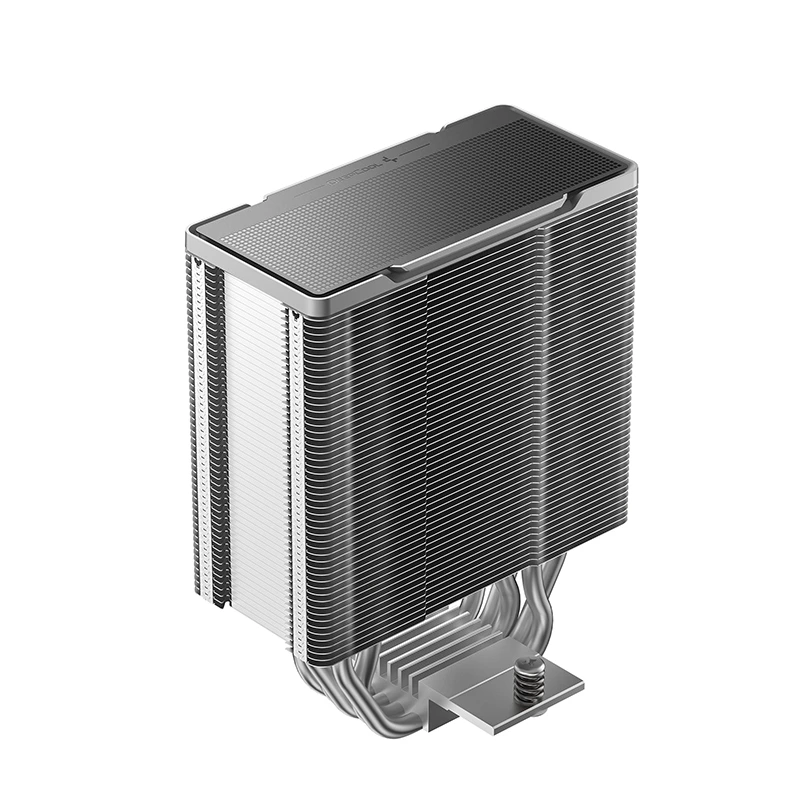

With an optimized tower layout and five direct-contact heat pipes for rapid heat transfer, the AG500 G2 ARGB delivers stronger cooling performance than its predecessor.

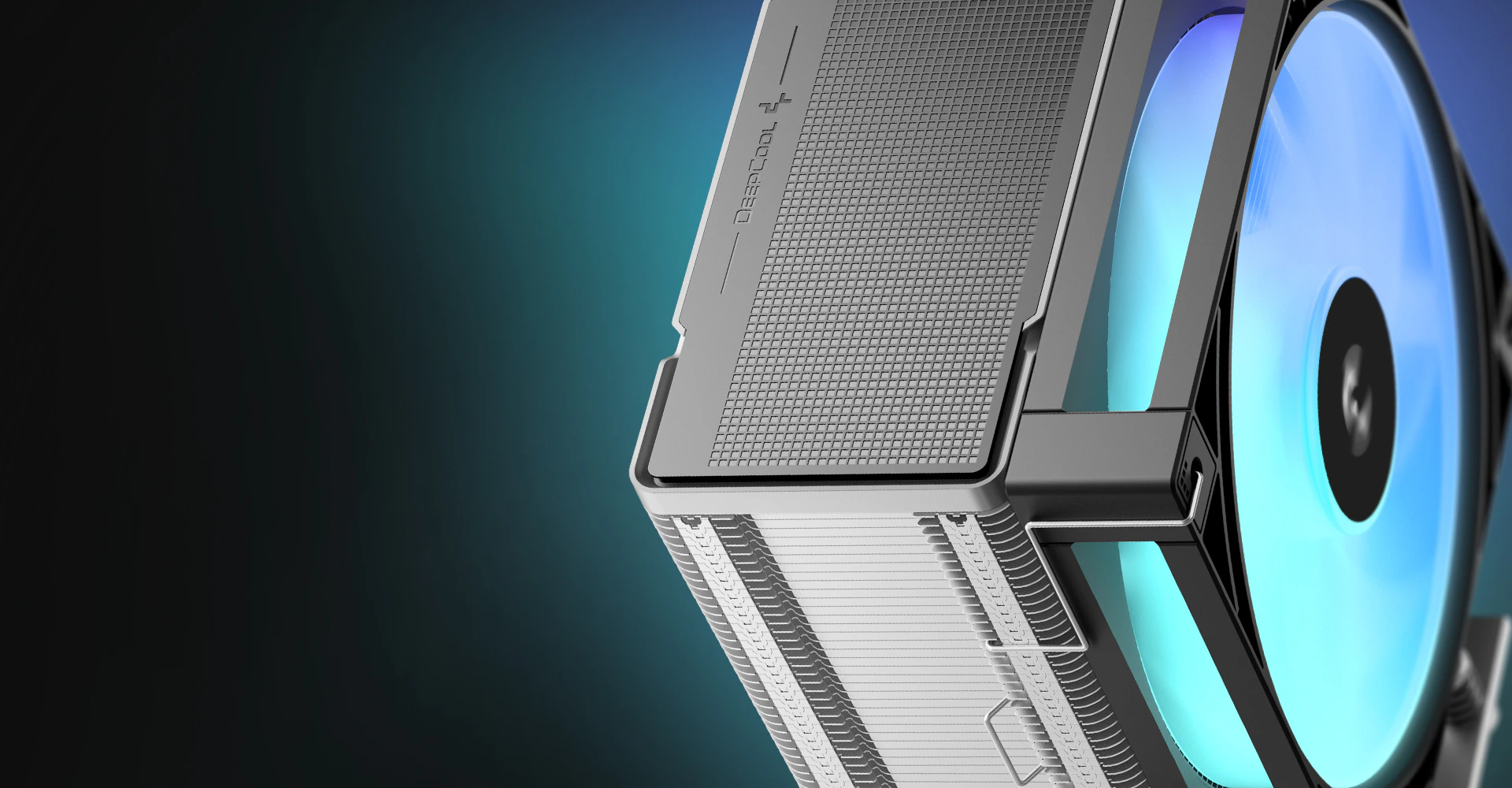

STYLED TO IMPRESS

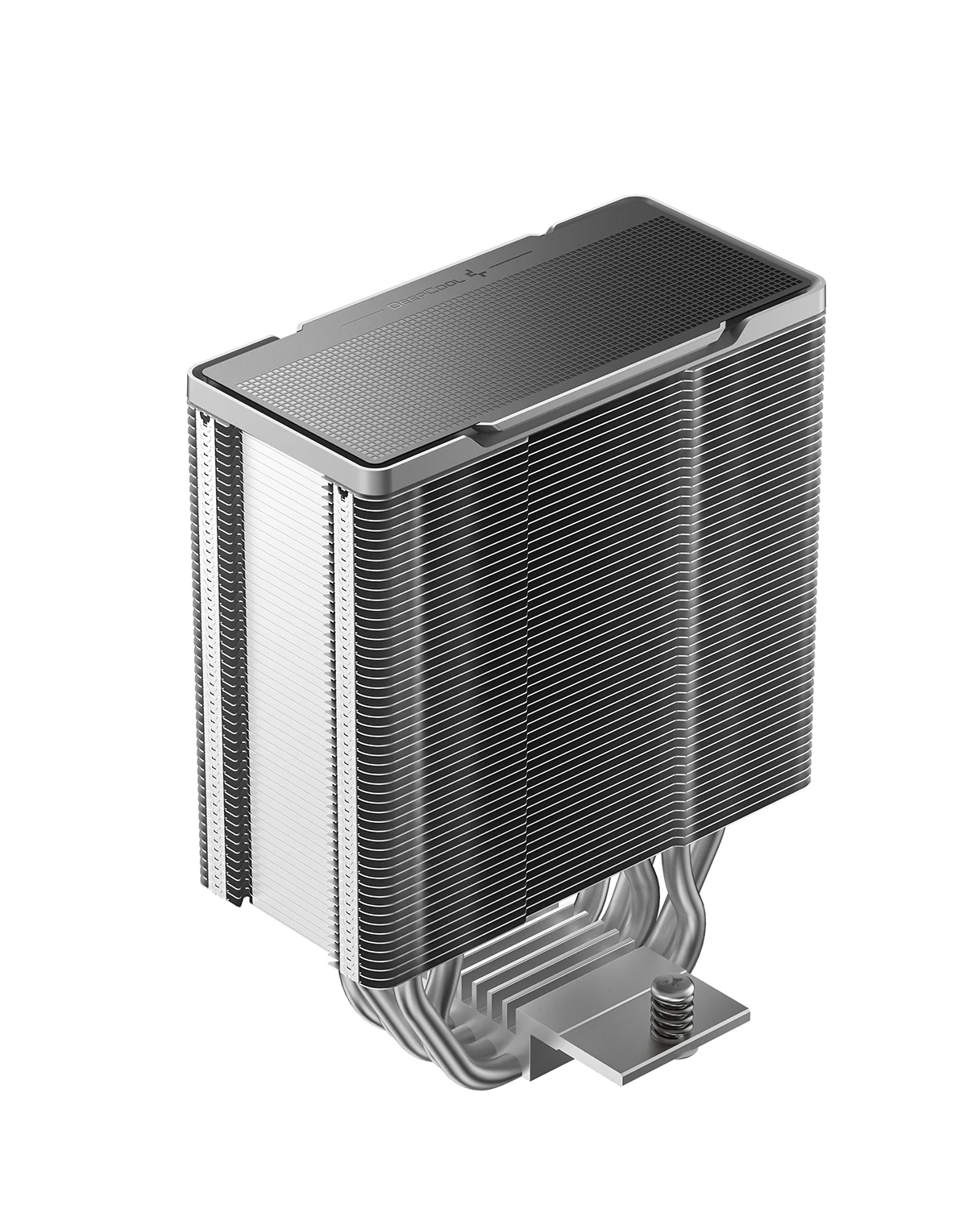

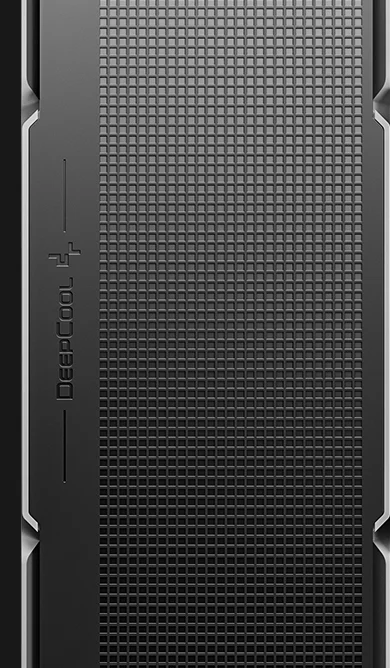

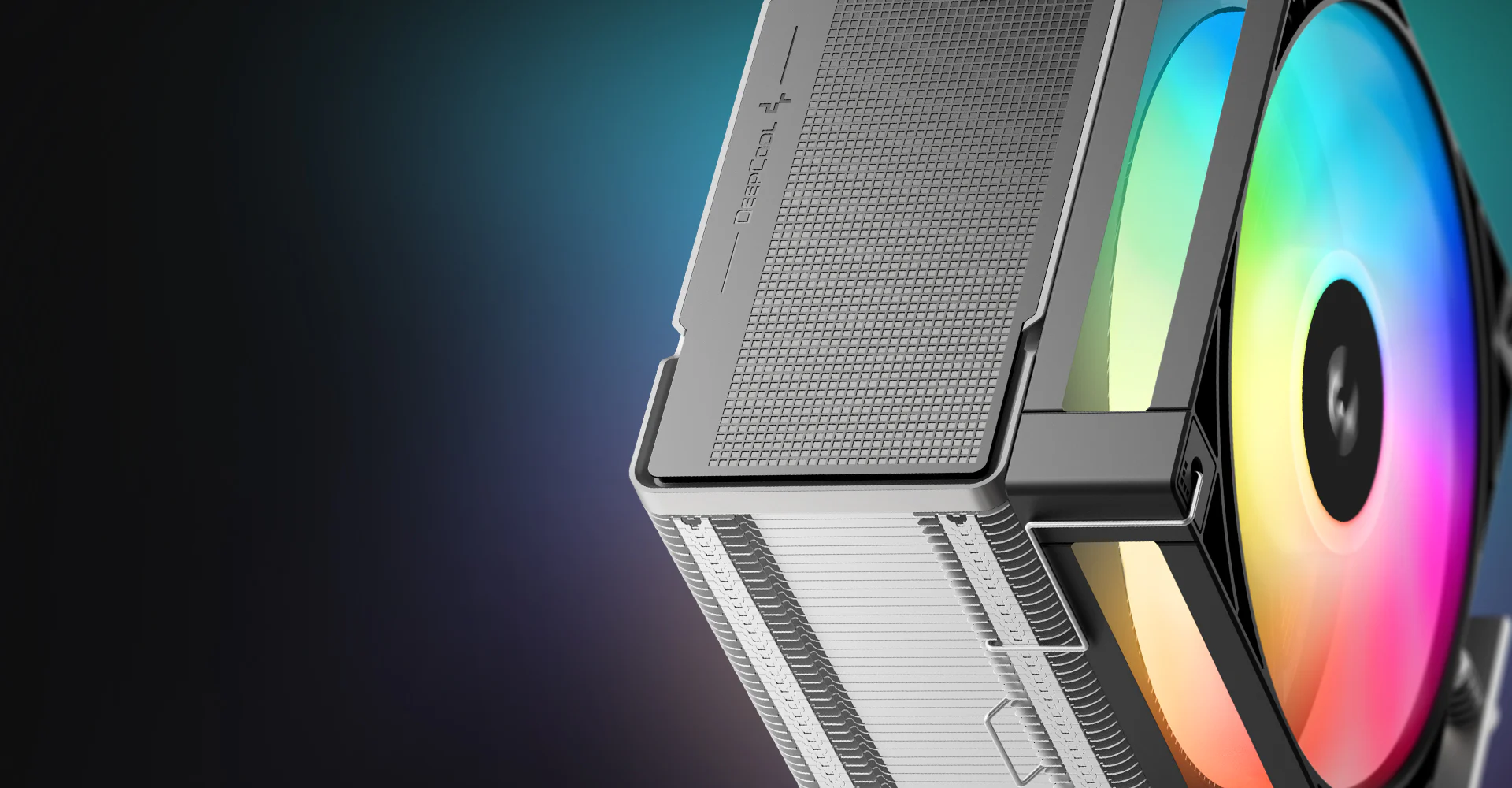

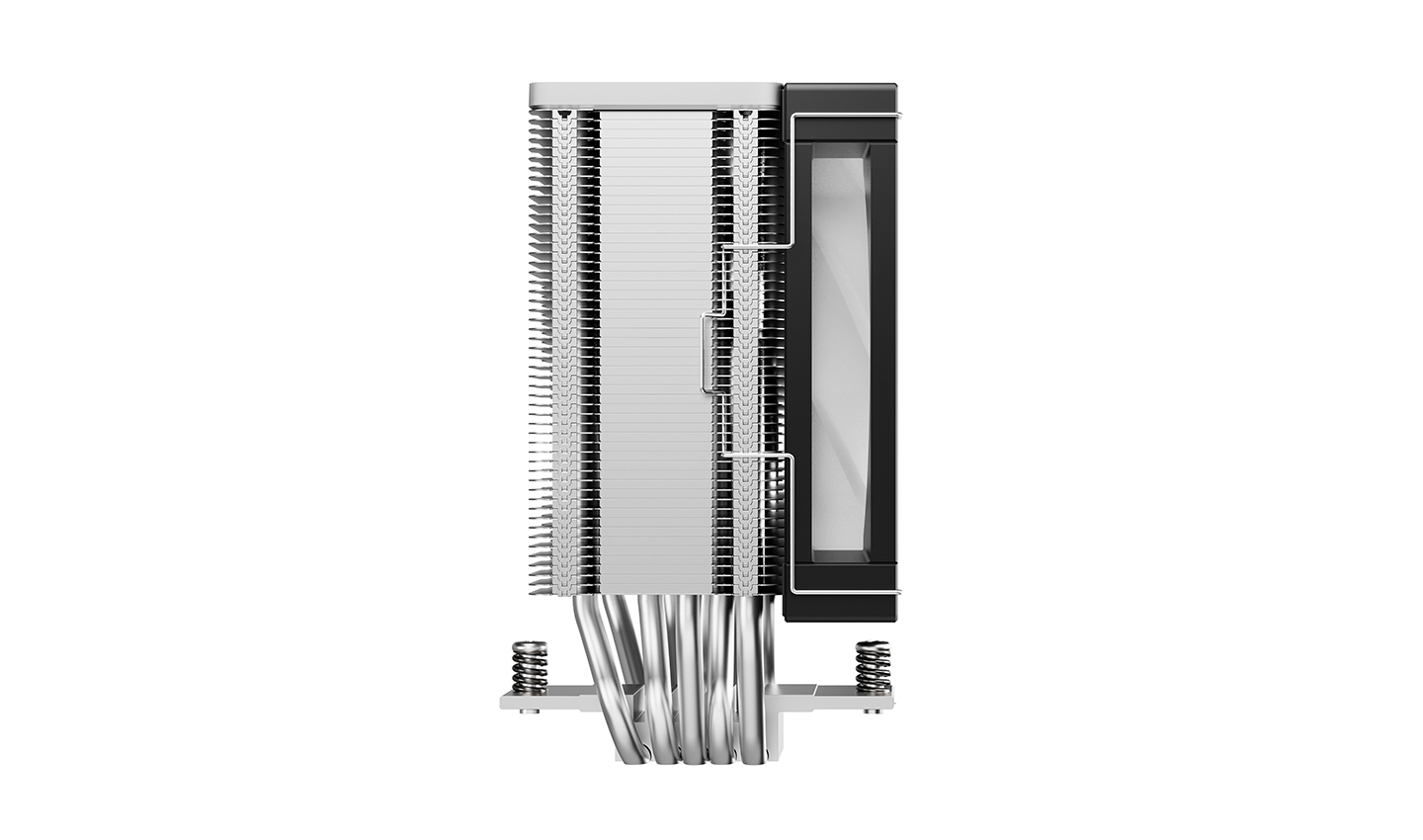

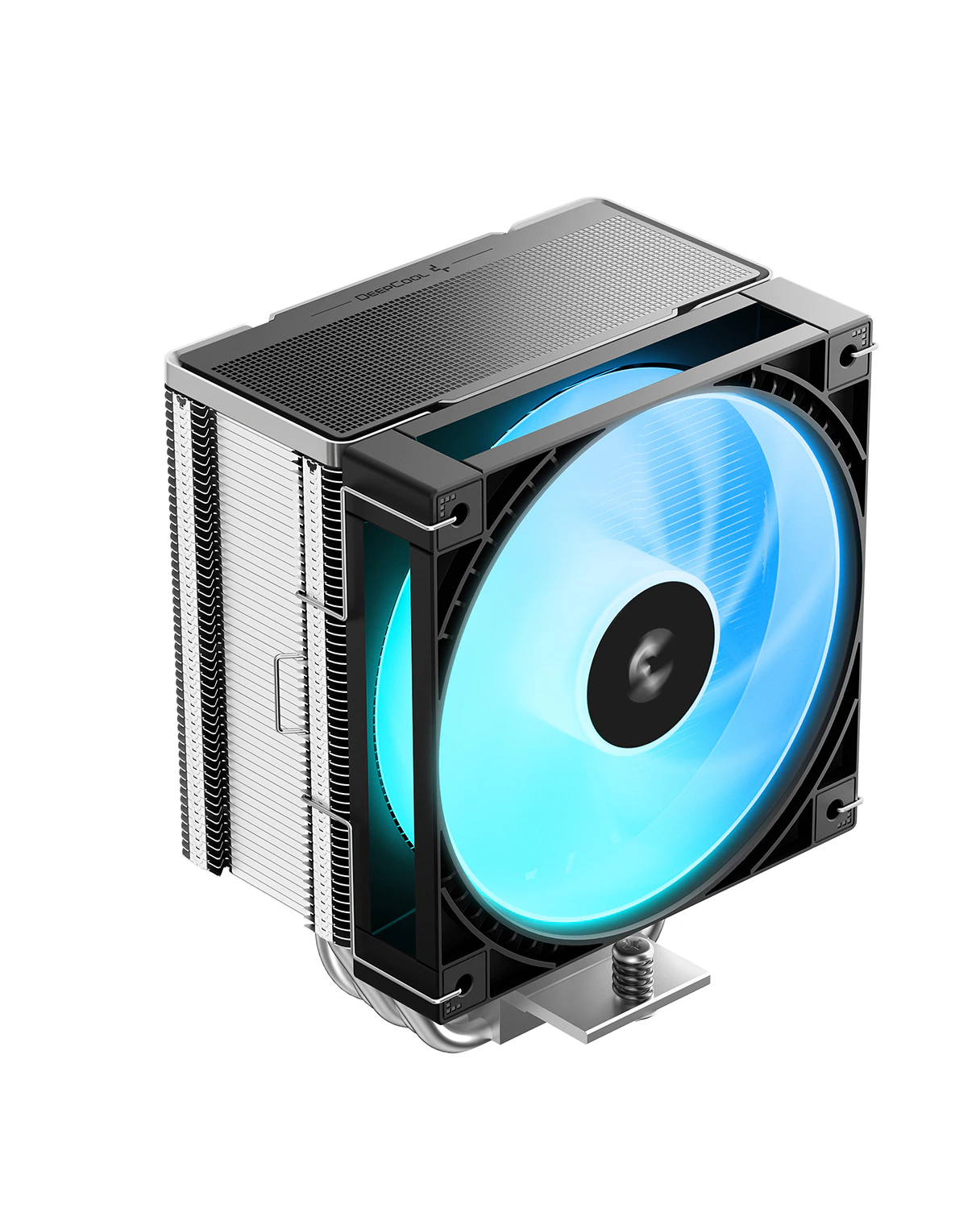

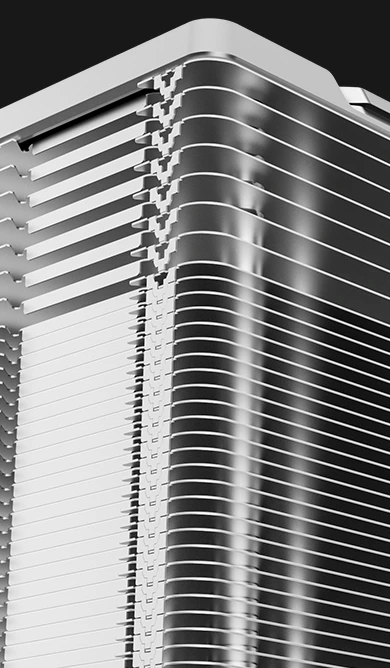

The AG500 G2 ARGB retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted five heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.

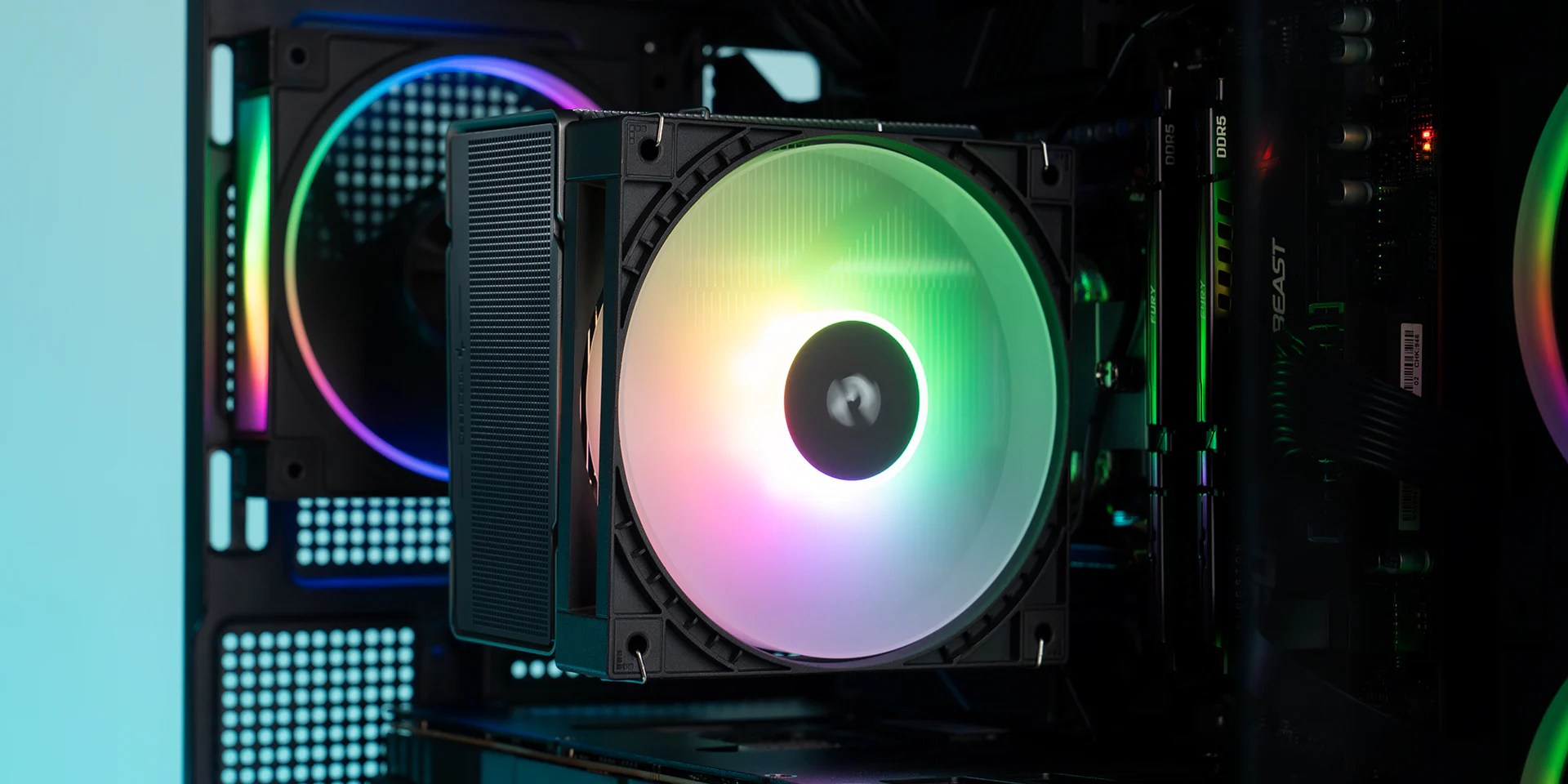

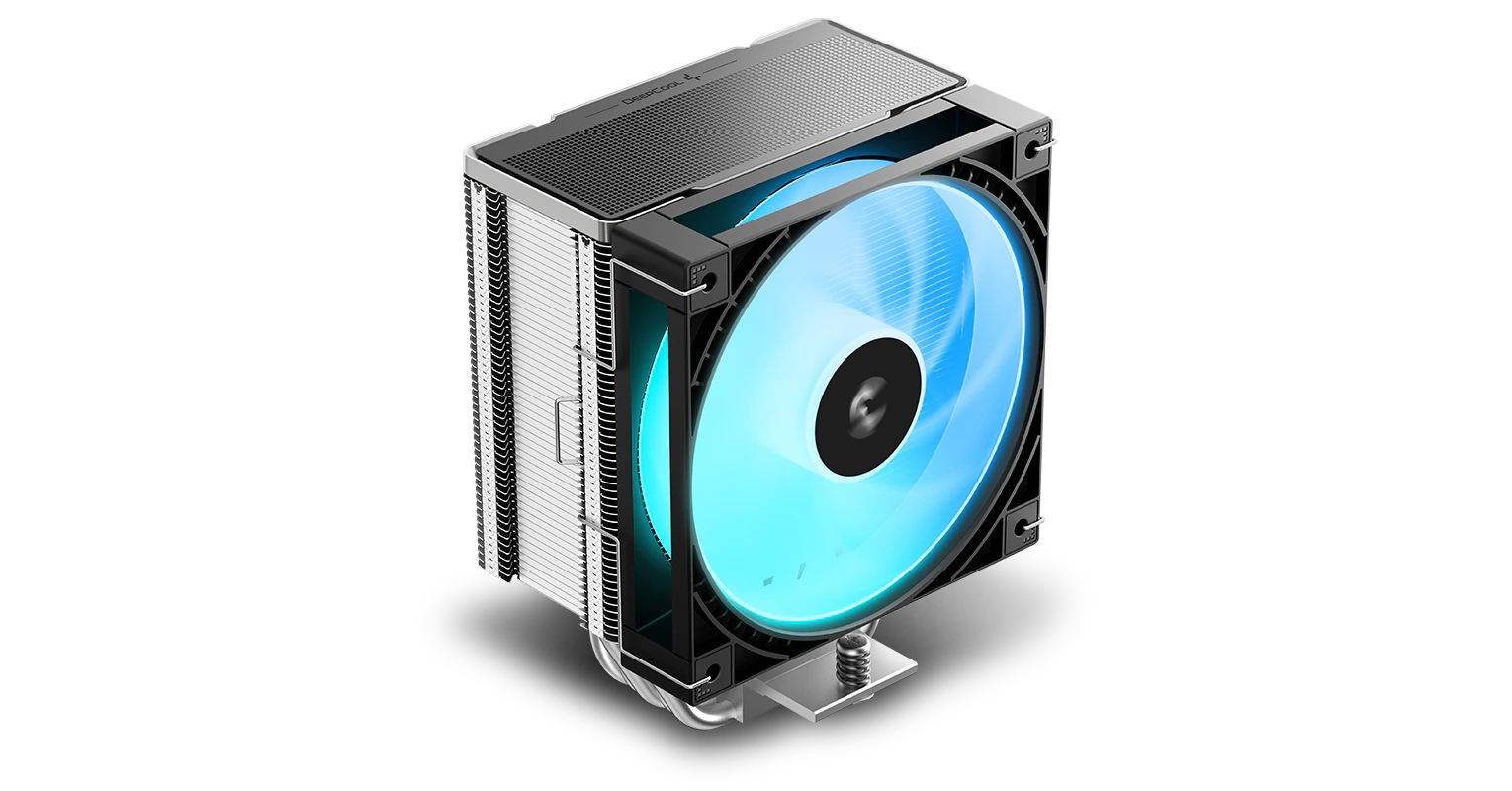

BRIGHT, QUIET, AND CAPABLE

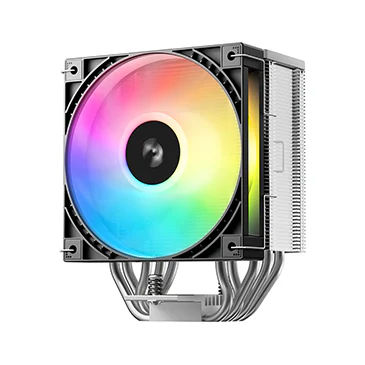

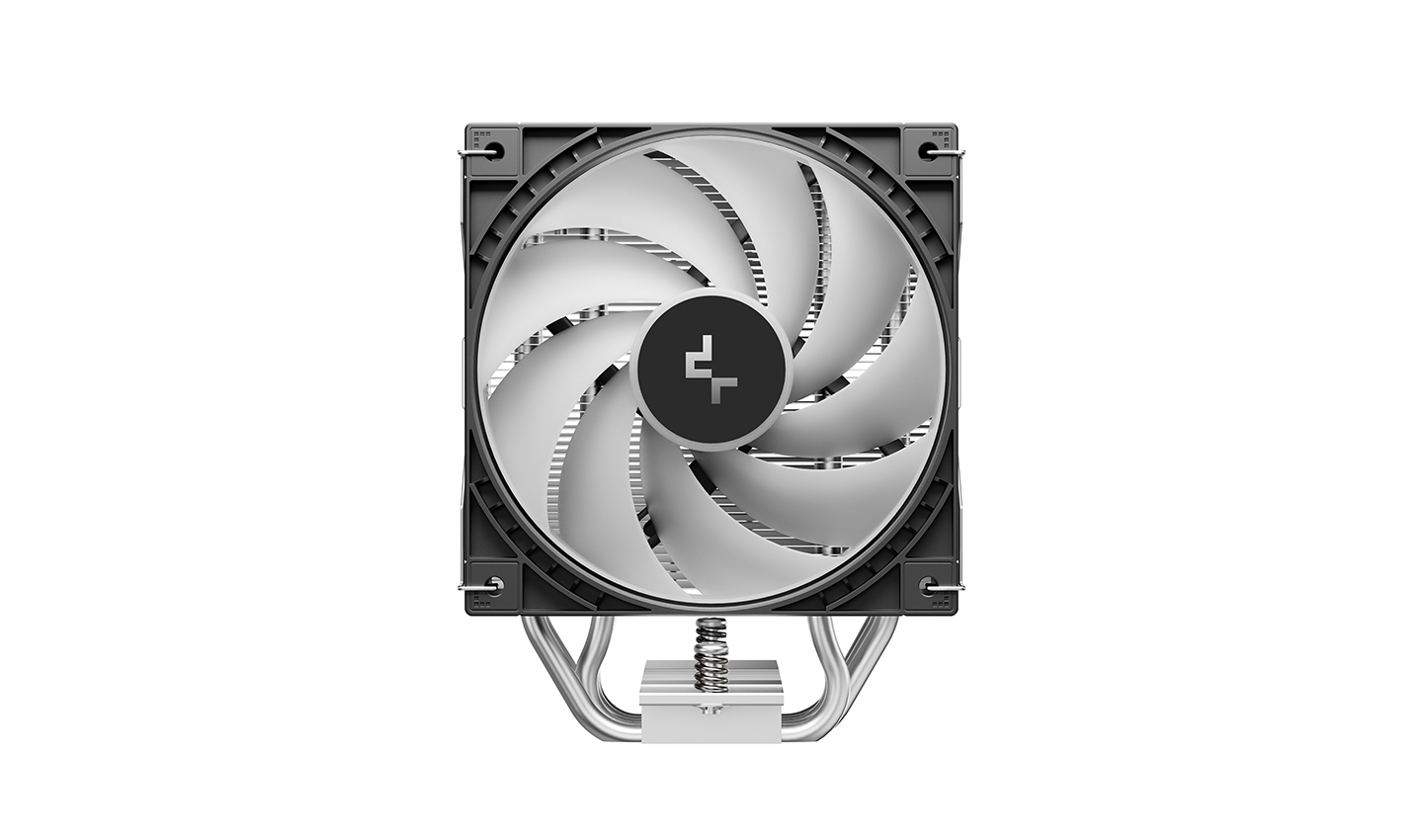

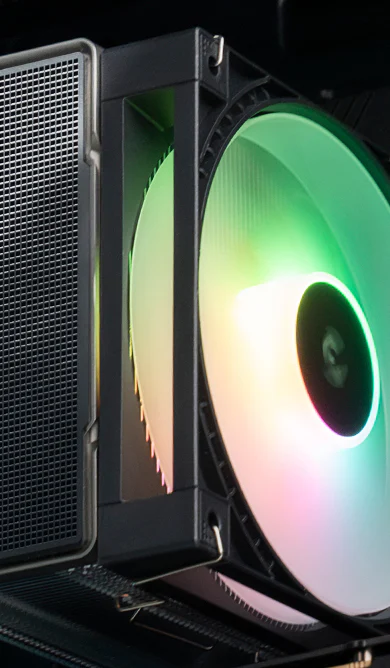

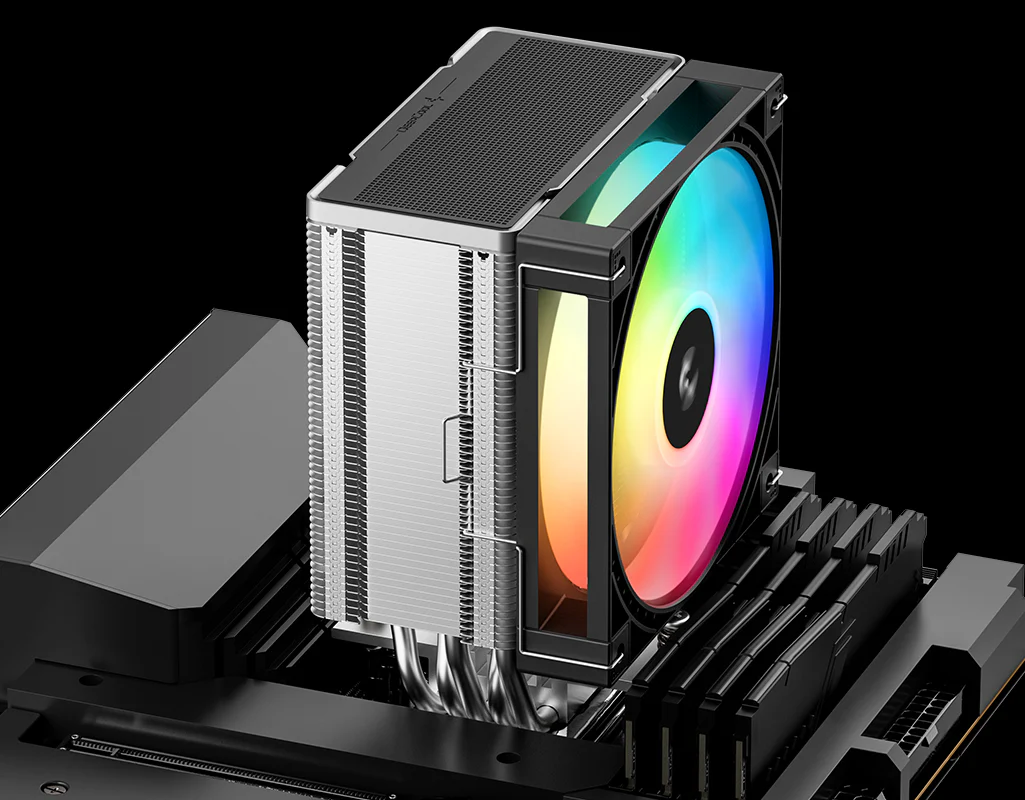

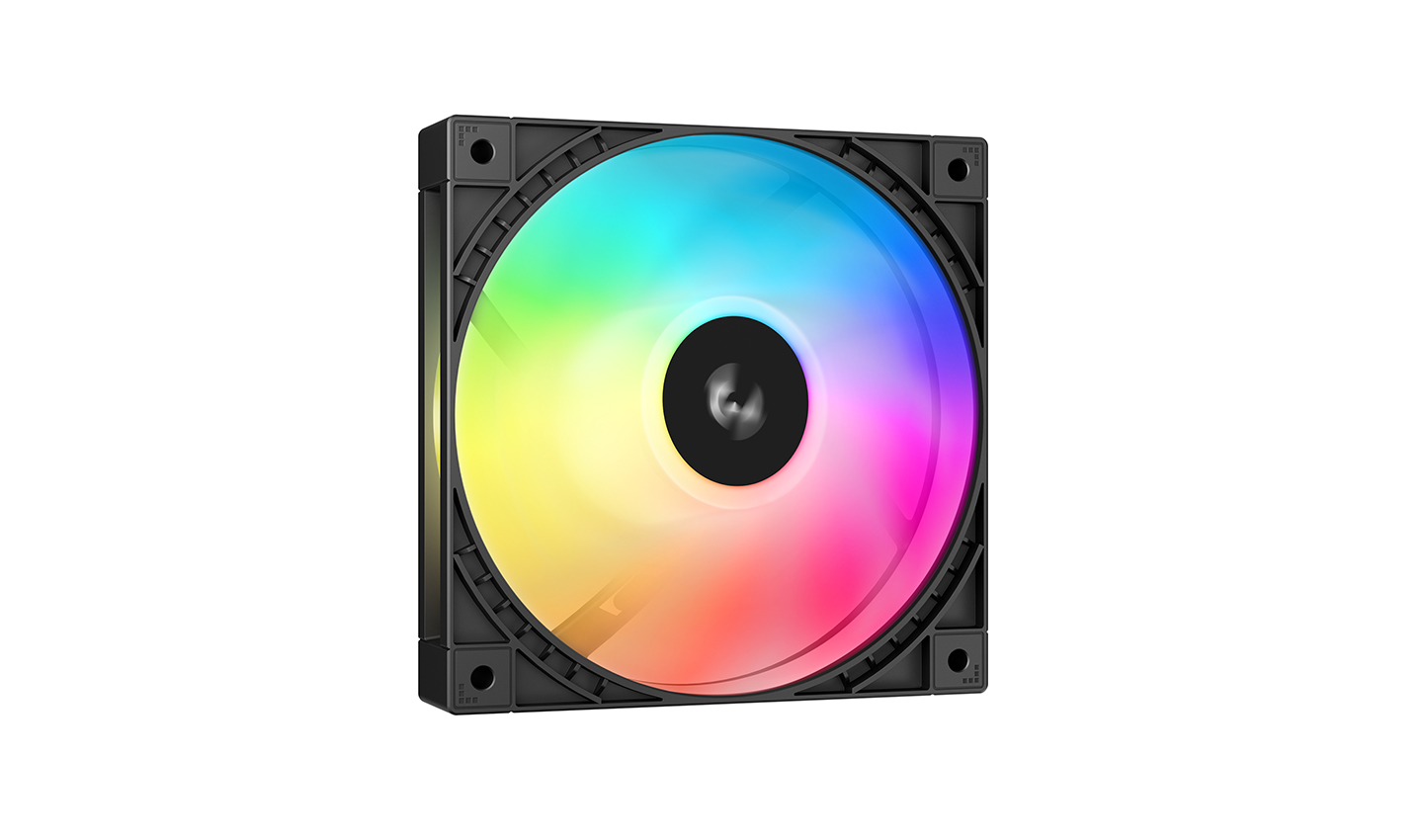

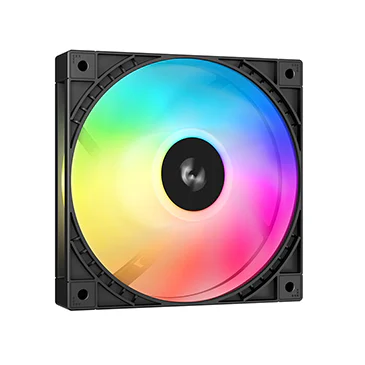

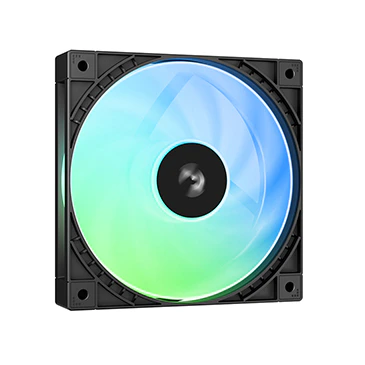

Outfitted with all-new closed-wheel ARGB fan, the AG500 G2 ARGB optimizes airflow and static pressure for powerful yet quiet cooling. The reinforced blade structure boosts stability and durability, while preventing unwanted lateral airflow to deliver focused airflow and eliminate dead zones for maximum cooling efficiency.
500~2200±10% RPM
Fan Speed
68.85 CFM
Fan Airflow
2.10 mmAq
Fan Air Pressure
≤30.93 dB(A)
Fan Noise

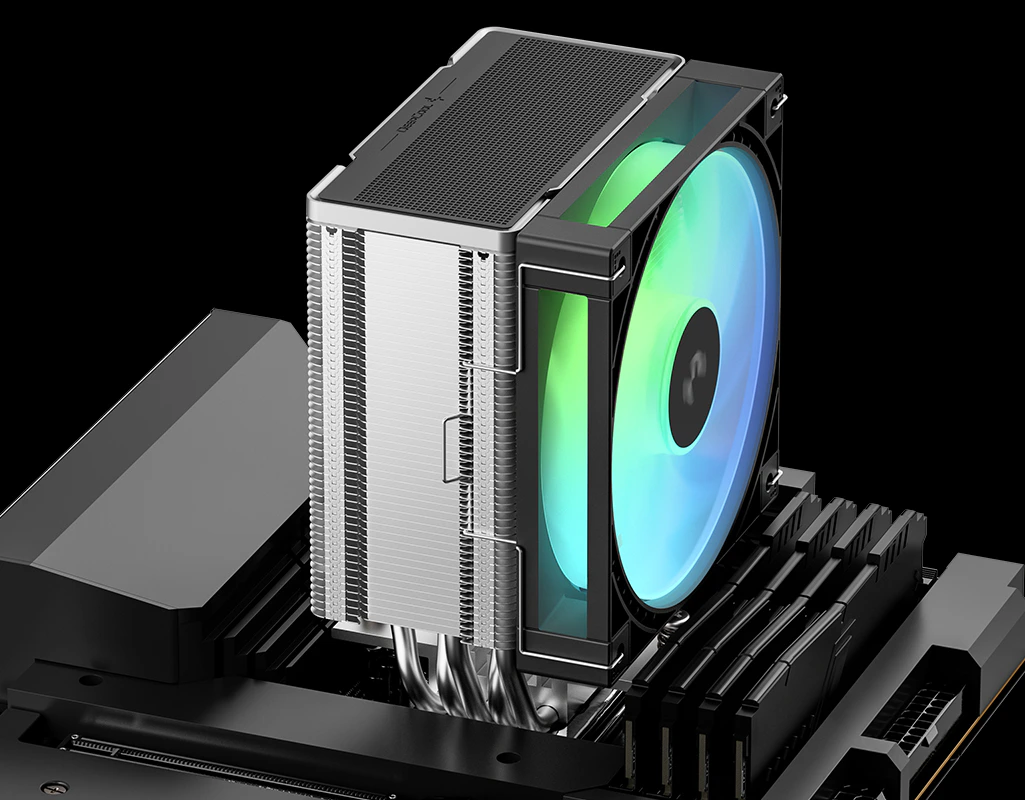

SIMPLE AND SECURE INSTALLATION

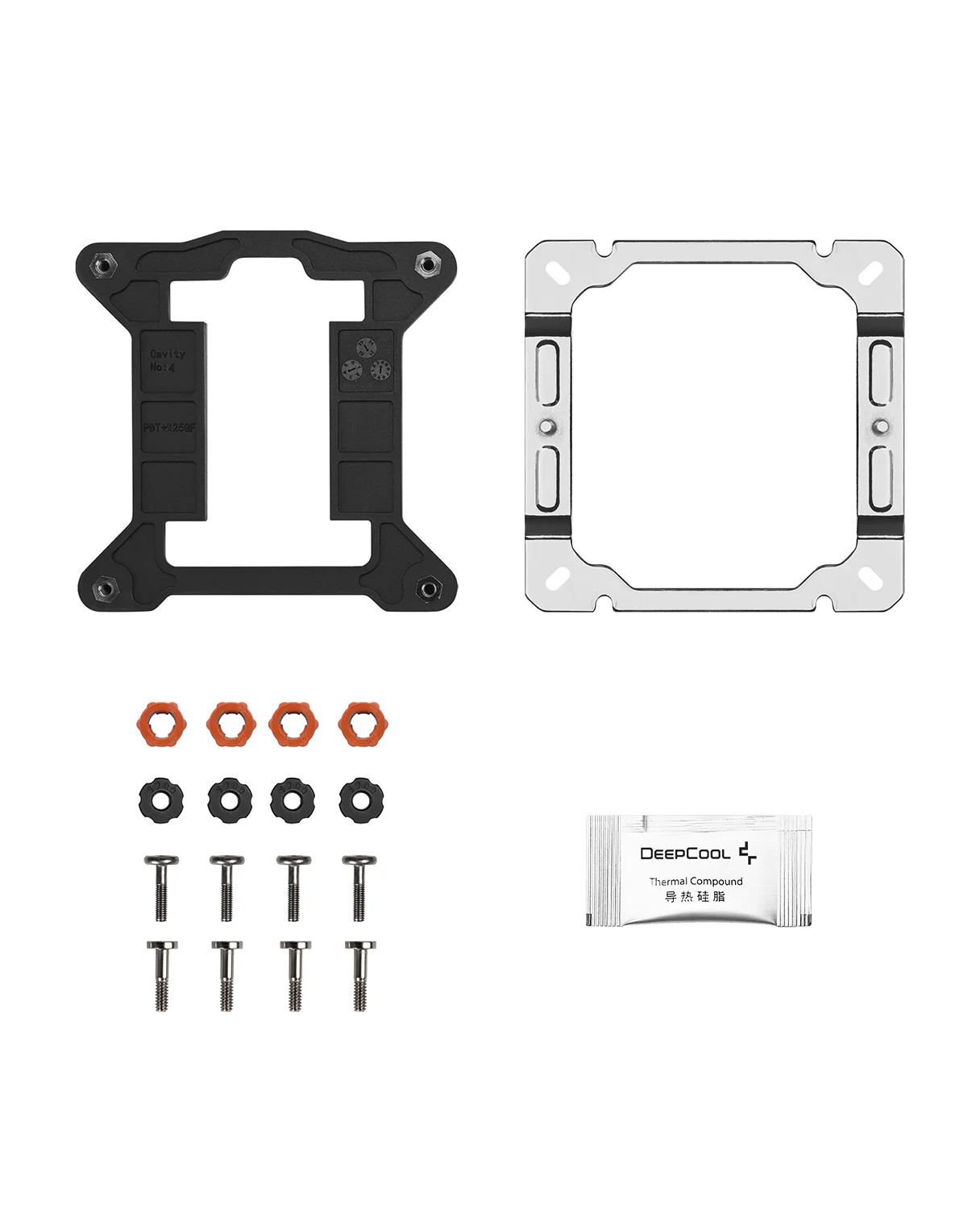

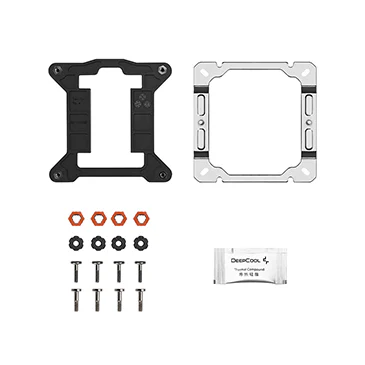

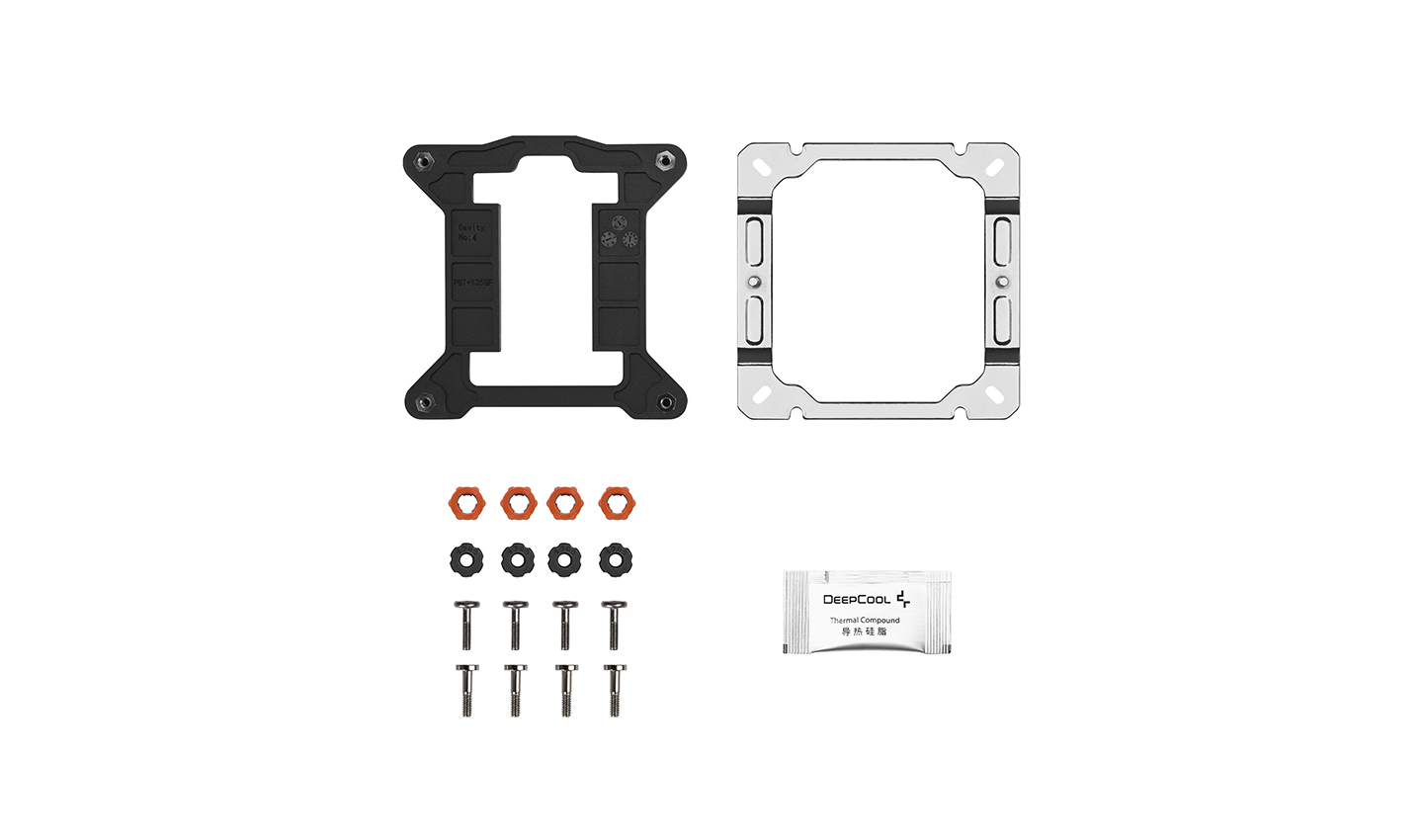

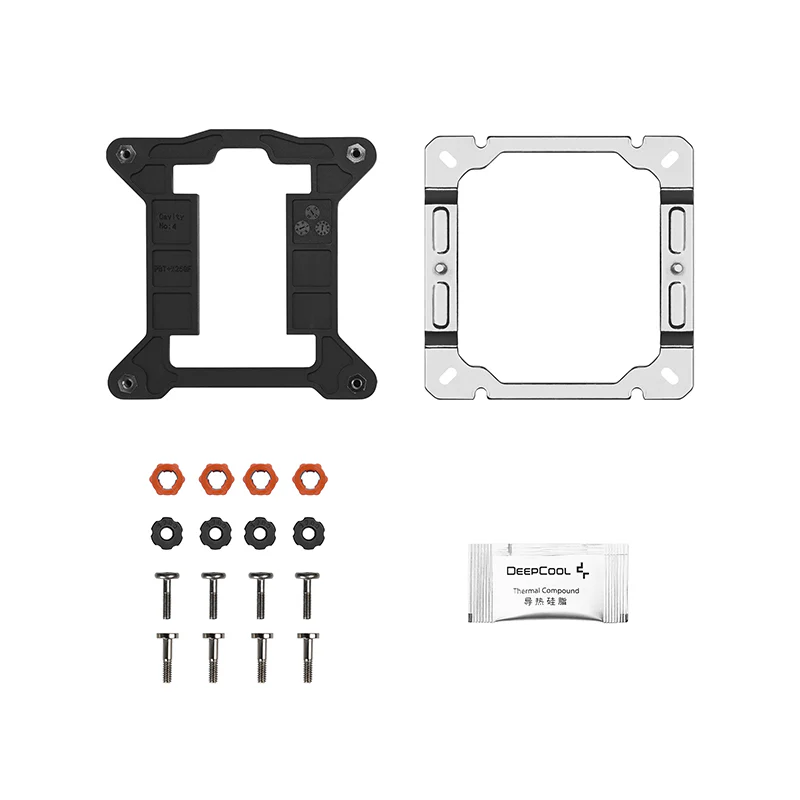

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
INTEL LGA1851/1700
AMD AM5/AM4
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions125×95×156 mm(L×W×H)
Heatsink Dimensions120×92×155 mm(L×W×H)
Net Weight705 g
HeatpipeØ6 mm×5 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2200±10% RPM
Fan Motor1-phase，4-slot，4-pole
Fan Airflow68.85 CFM
Fan Air Pressure2.10 mmAq
Fan Noise≤30.93 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.18 A
Fan Power Consumption2.16 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.70 W
EAN6933412730224
P/NR-AG500-BKAMMG2-G
Download
AG500 G2 ARGB Manual.pdf
