AG500 DIGITAL BK

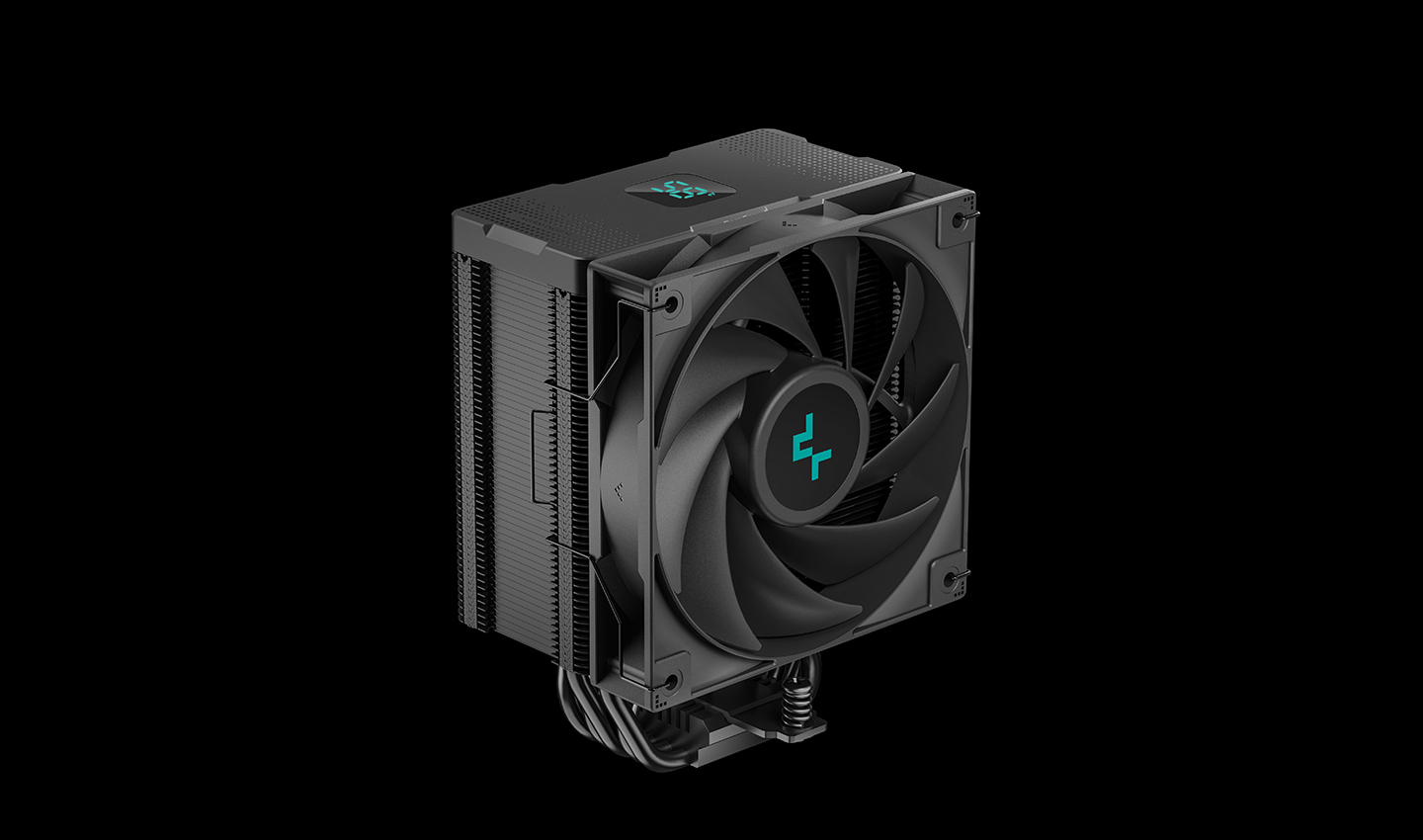

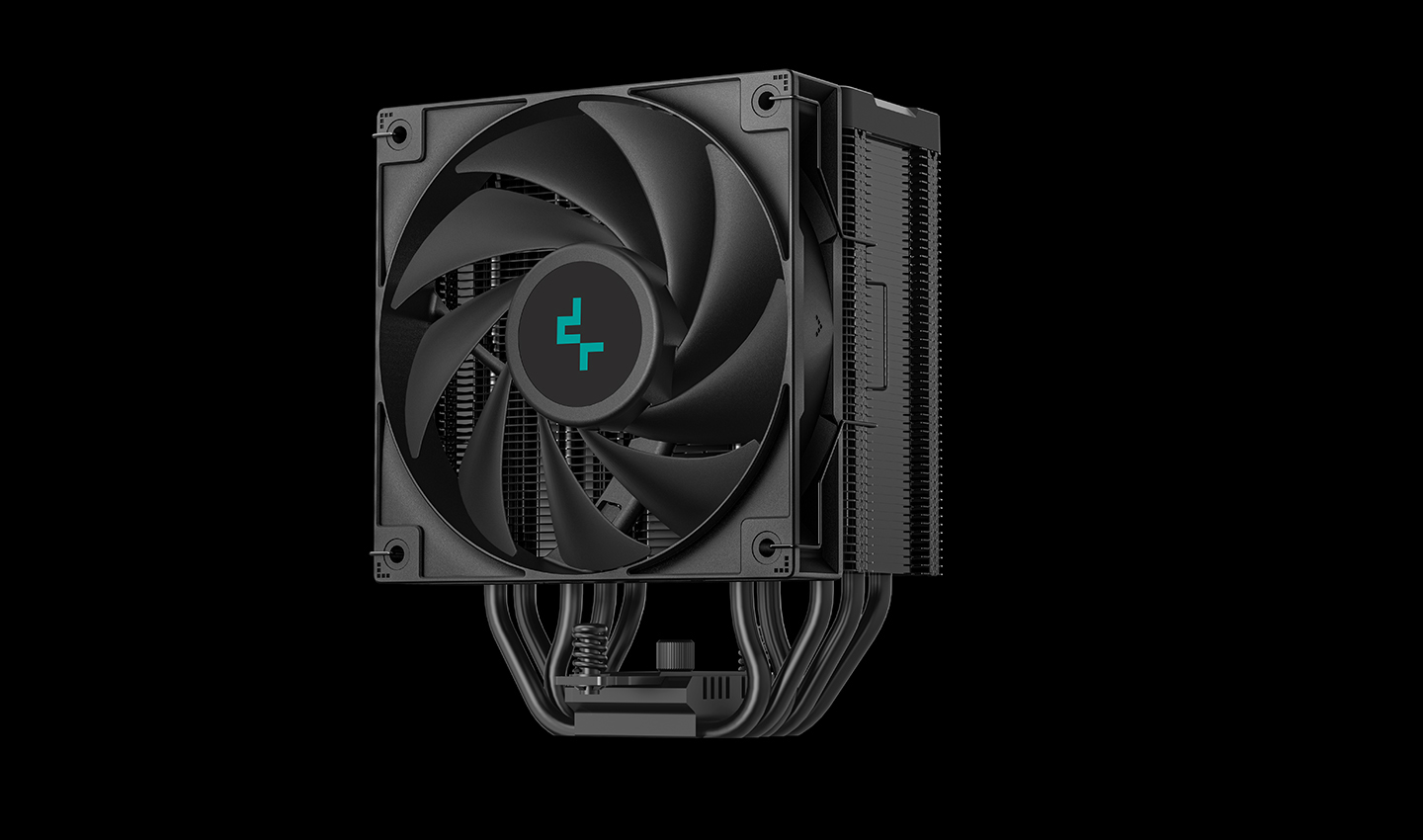

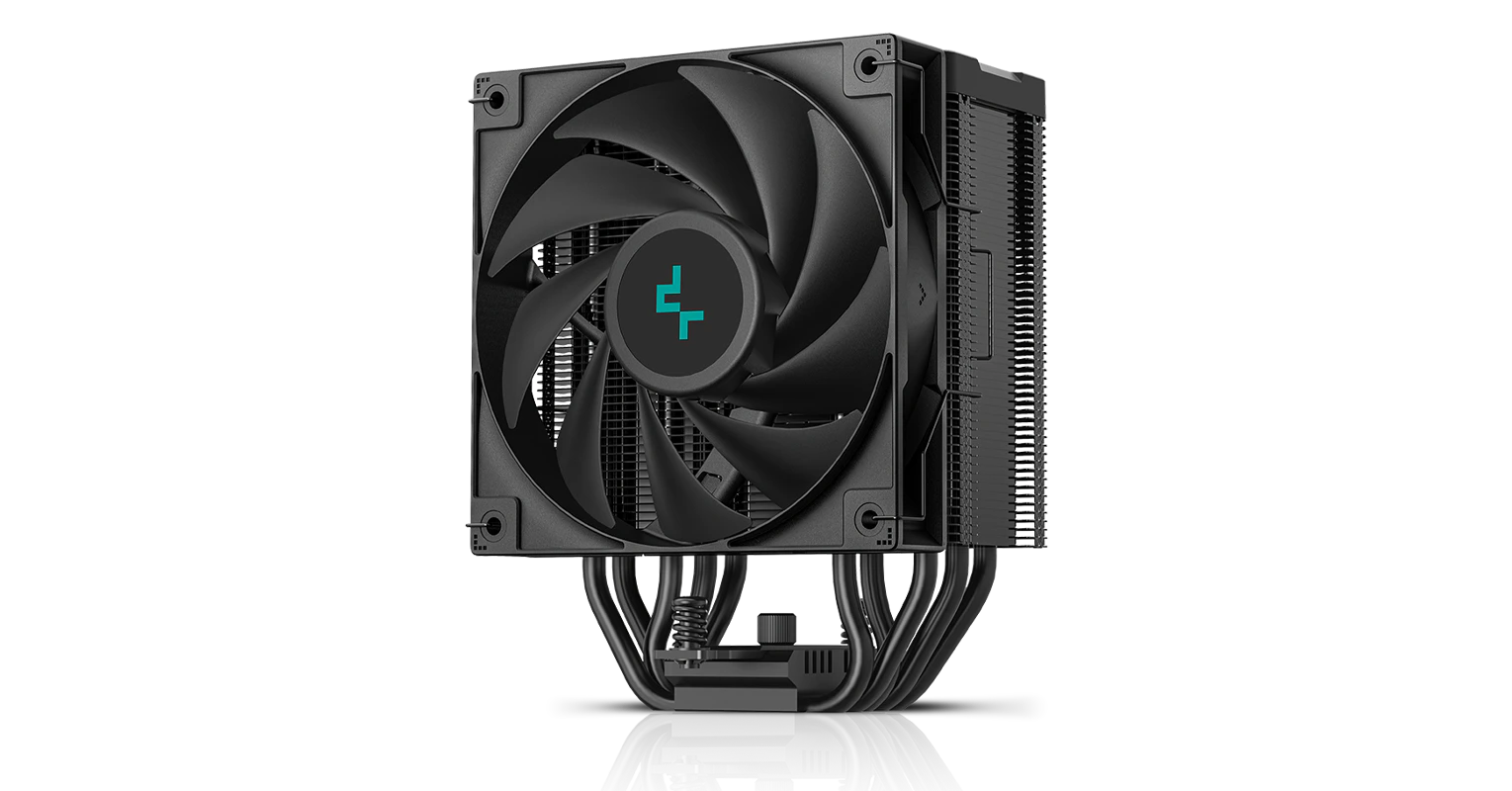

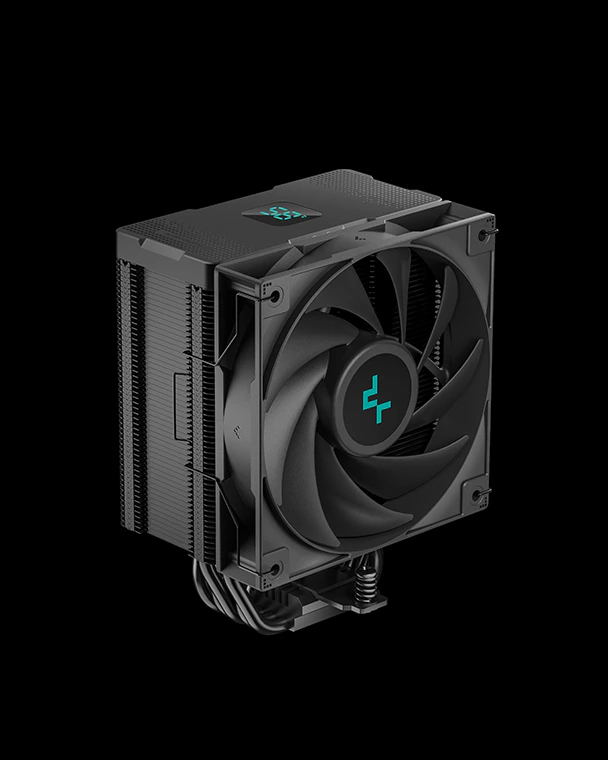

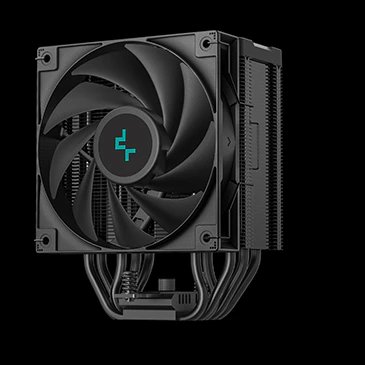

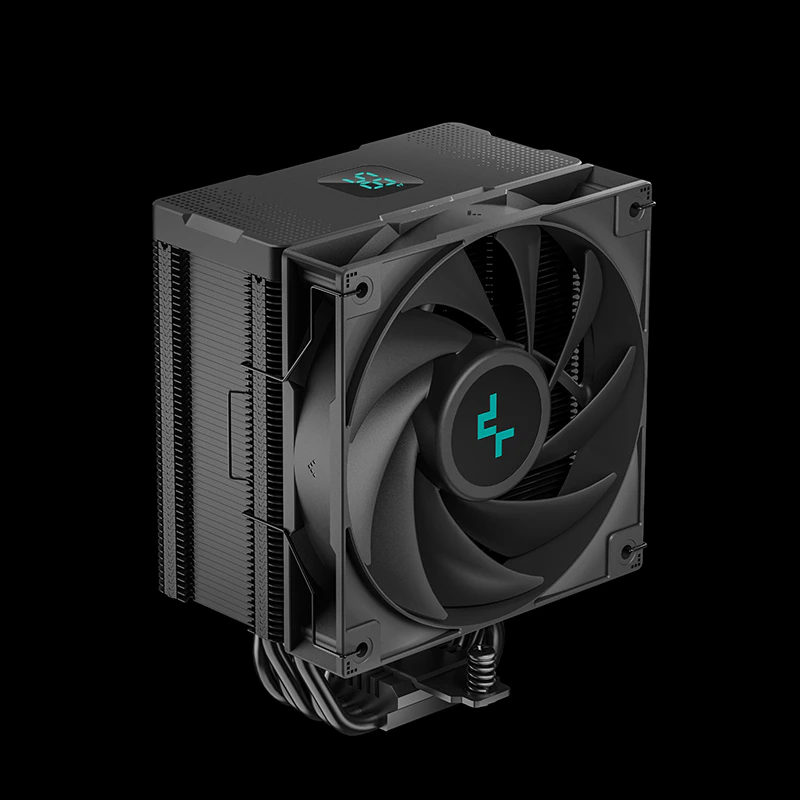

DeepCool is proud to present the AG500 DIGITAL BK, a direct-touch five-heatpipe single-tower air cooler with a CPU status display. The integration of a CPU status screen into an affordable, high-performance air cooler provides an obscene amount of value for users of all budgets.

MODEL

AG500 DIGITAL BK

MORE THAN AN AIR COOLER

CPU STATUS AT A GLANCE

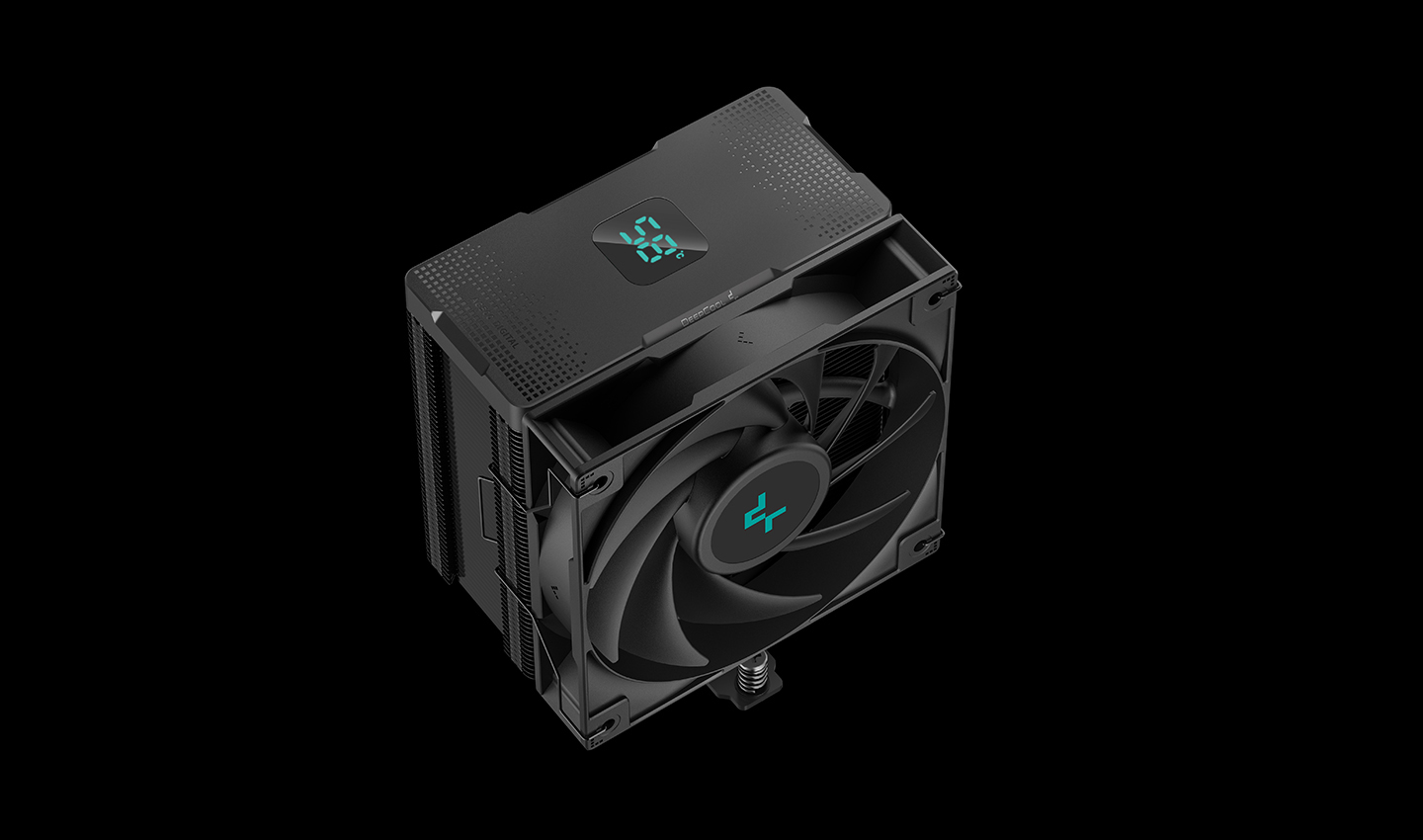

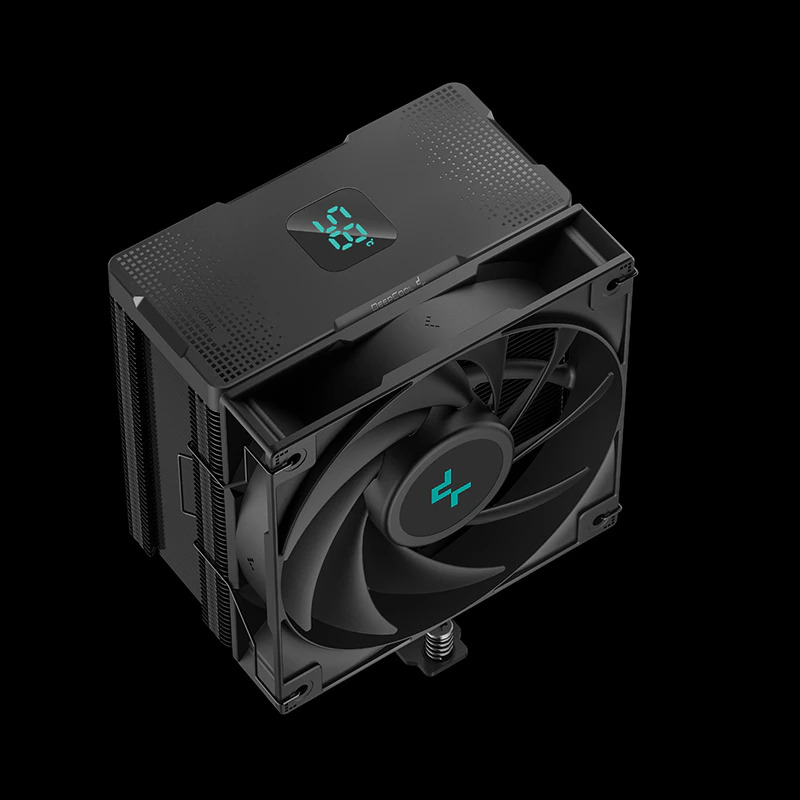

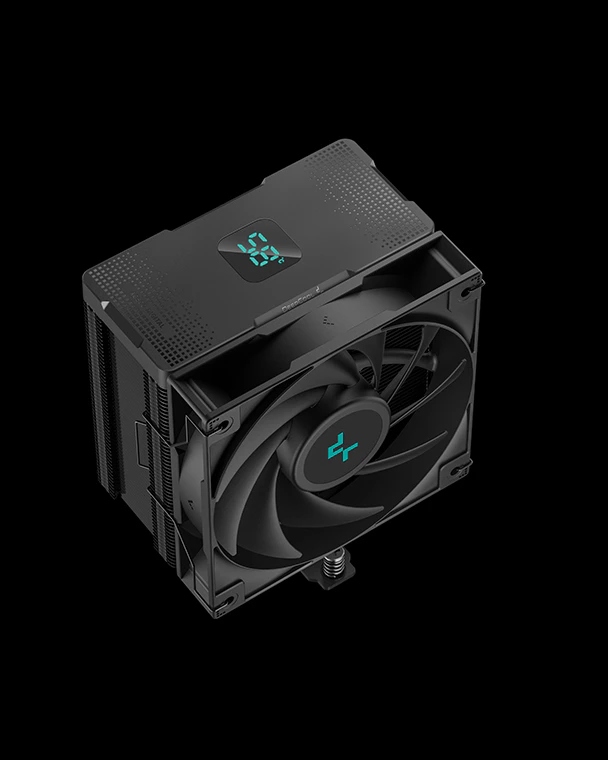

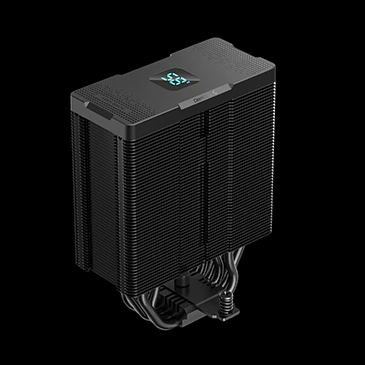

The easy-to-read display provides real-time CPU temperatures and utilization while keeping the clean lines of the cooler. The display will begin to flash once the CPU temperature exceeds 90 °C. The display is controlled via a simple application that only requires an open USB 2.0 header.

℃

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

BRILLIANCE IN DESIGN

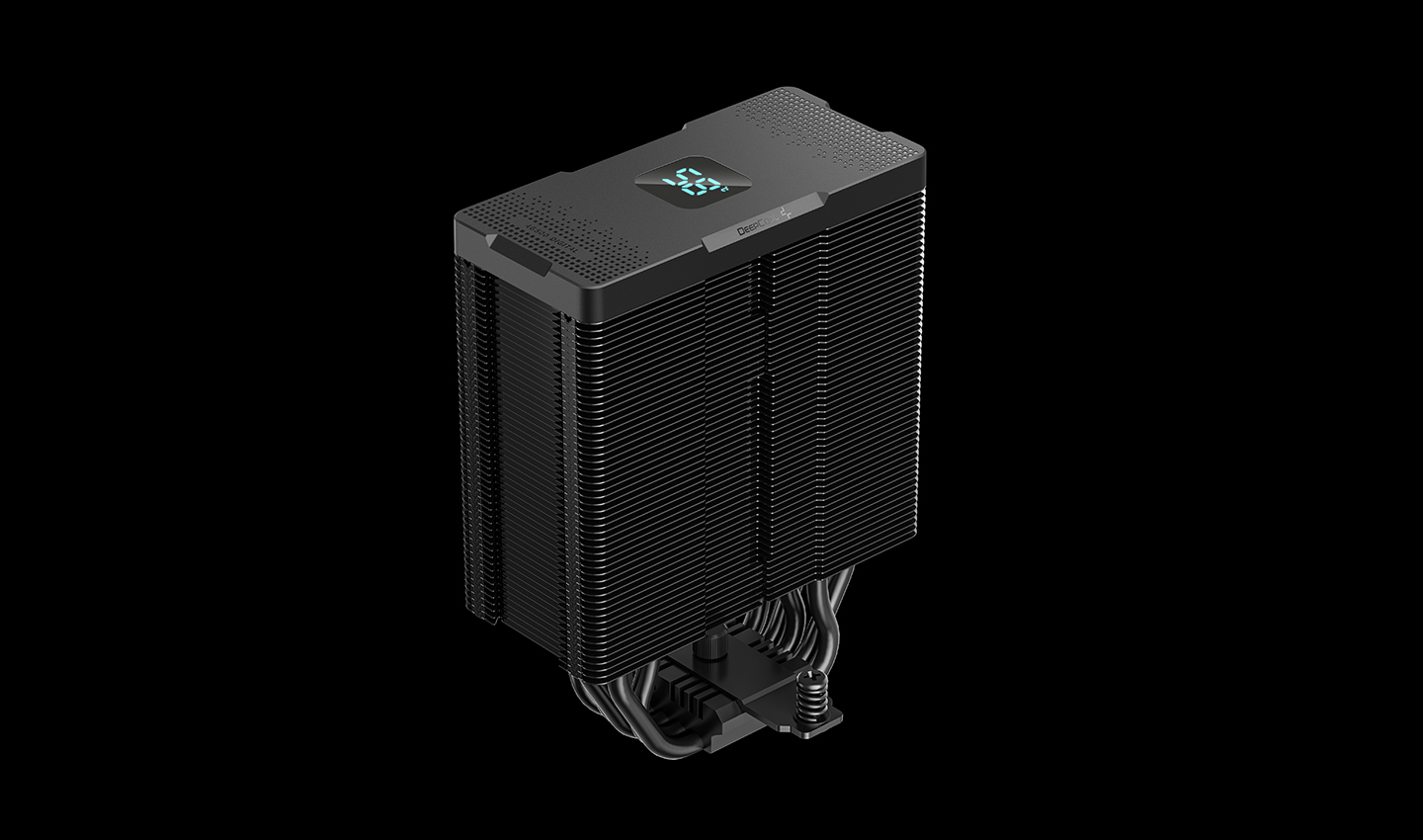

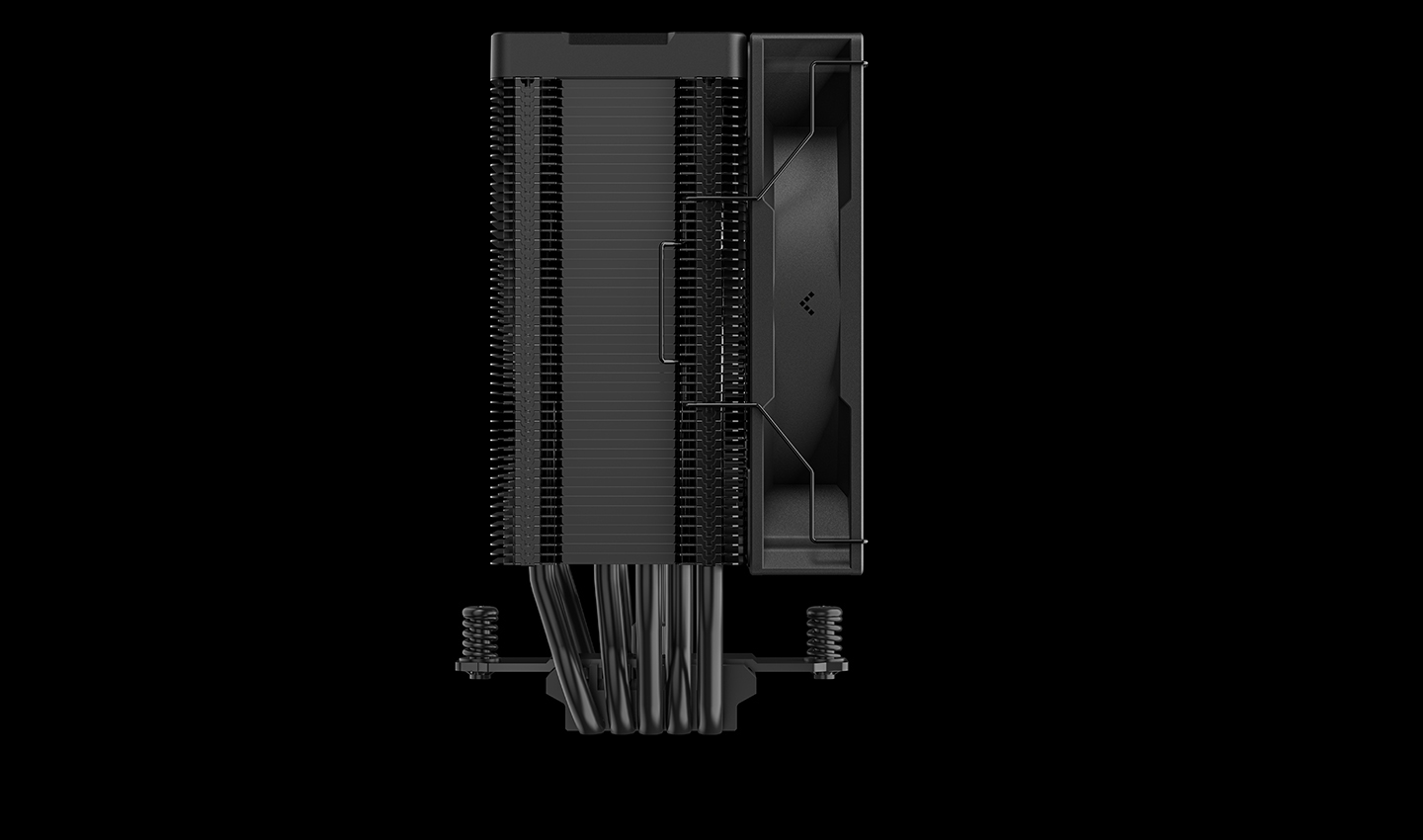

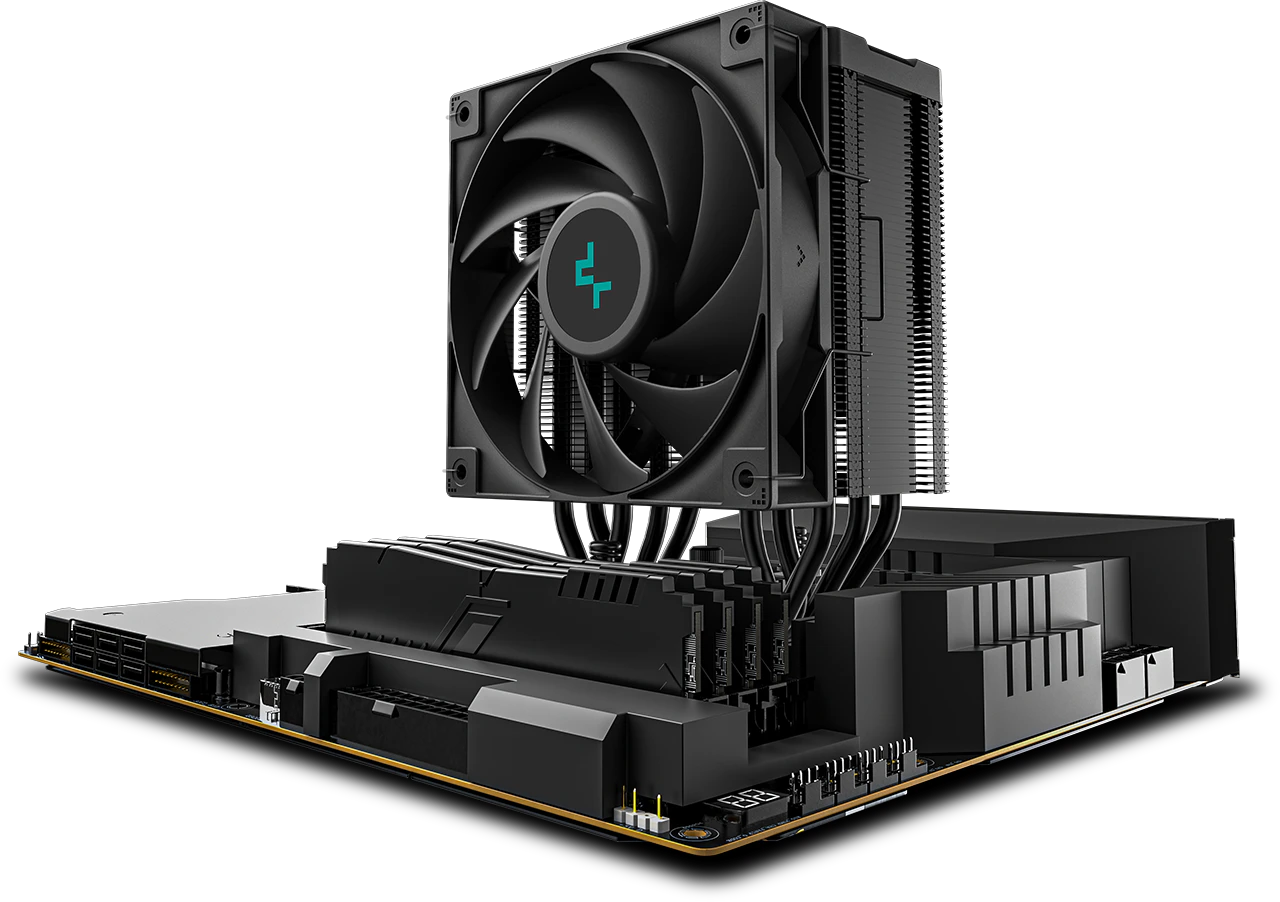

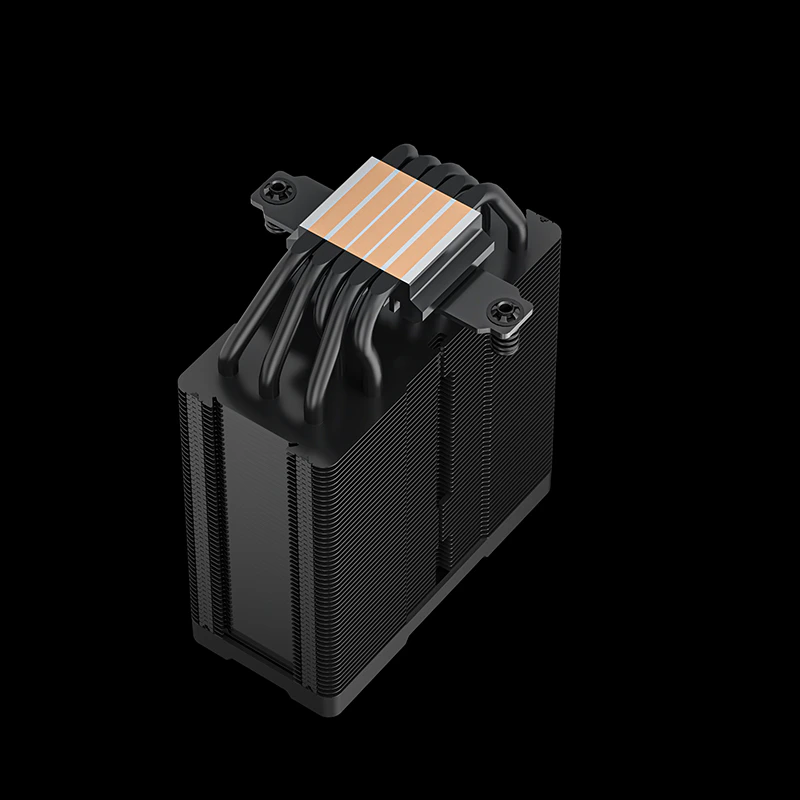

DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. The offset design provides complete, unobstructed clearance for high-profile RGB RAM modules.

MINIMIZED NOISE WITH
ASTOUNDING PERFORMANCE

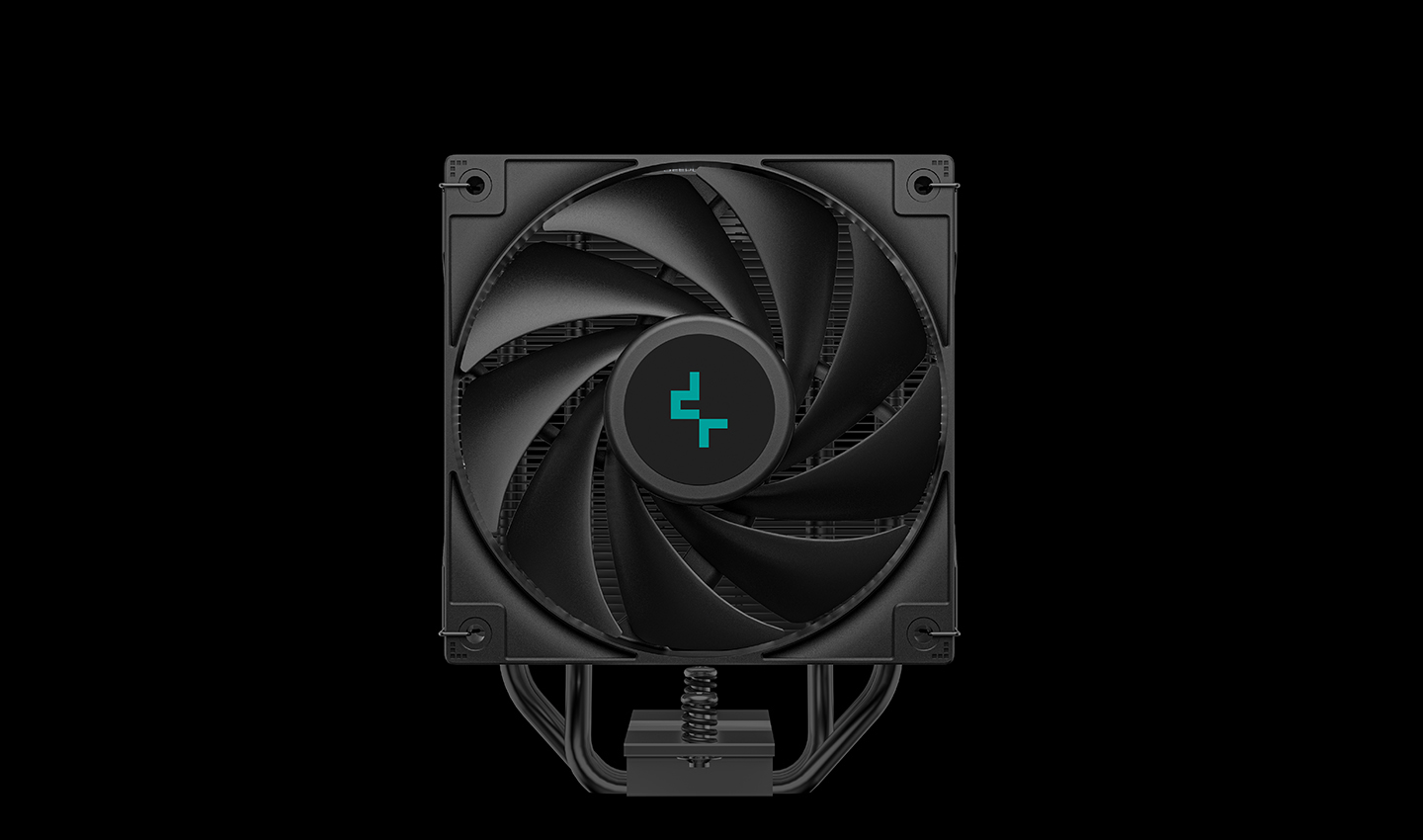

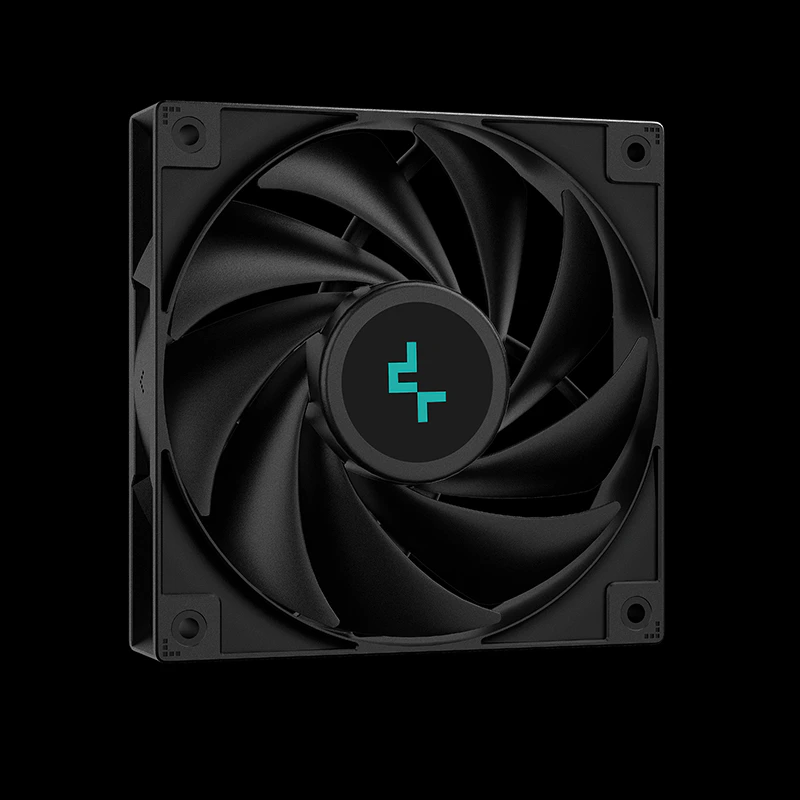

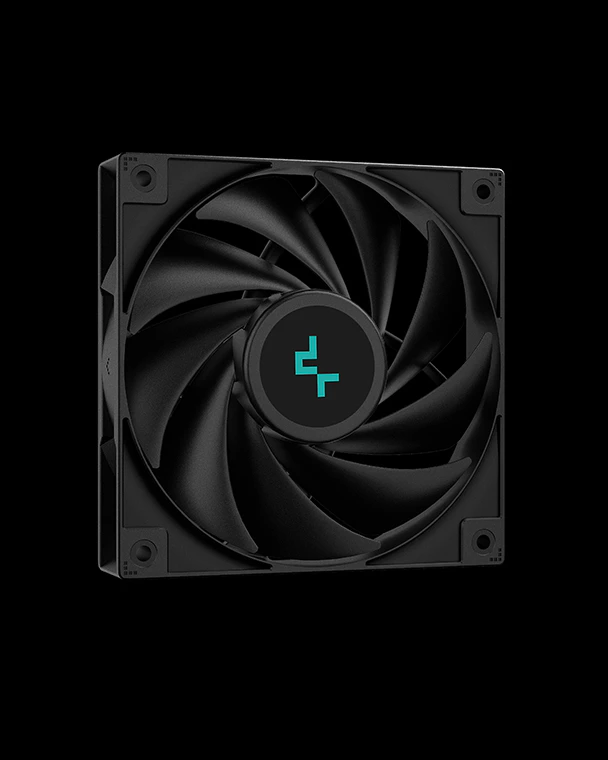

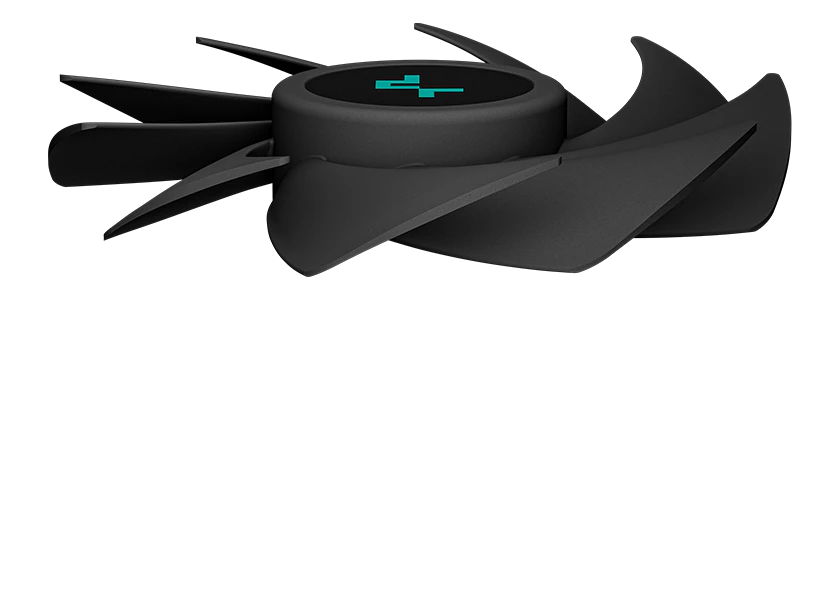

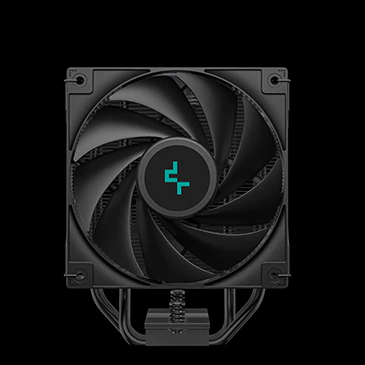

An efficient 120mm hydro-bearing PWM fan ensures great air flow, a low noise level, stable operation, and a longer fan life.

300~1950 RPM±10%

Fan Speed

67.88 CFM

Airflow

≤29.4 dB(A)

Noise Level

SIMPLE AND SECURE INSTALLATION

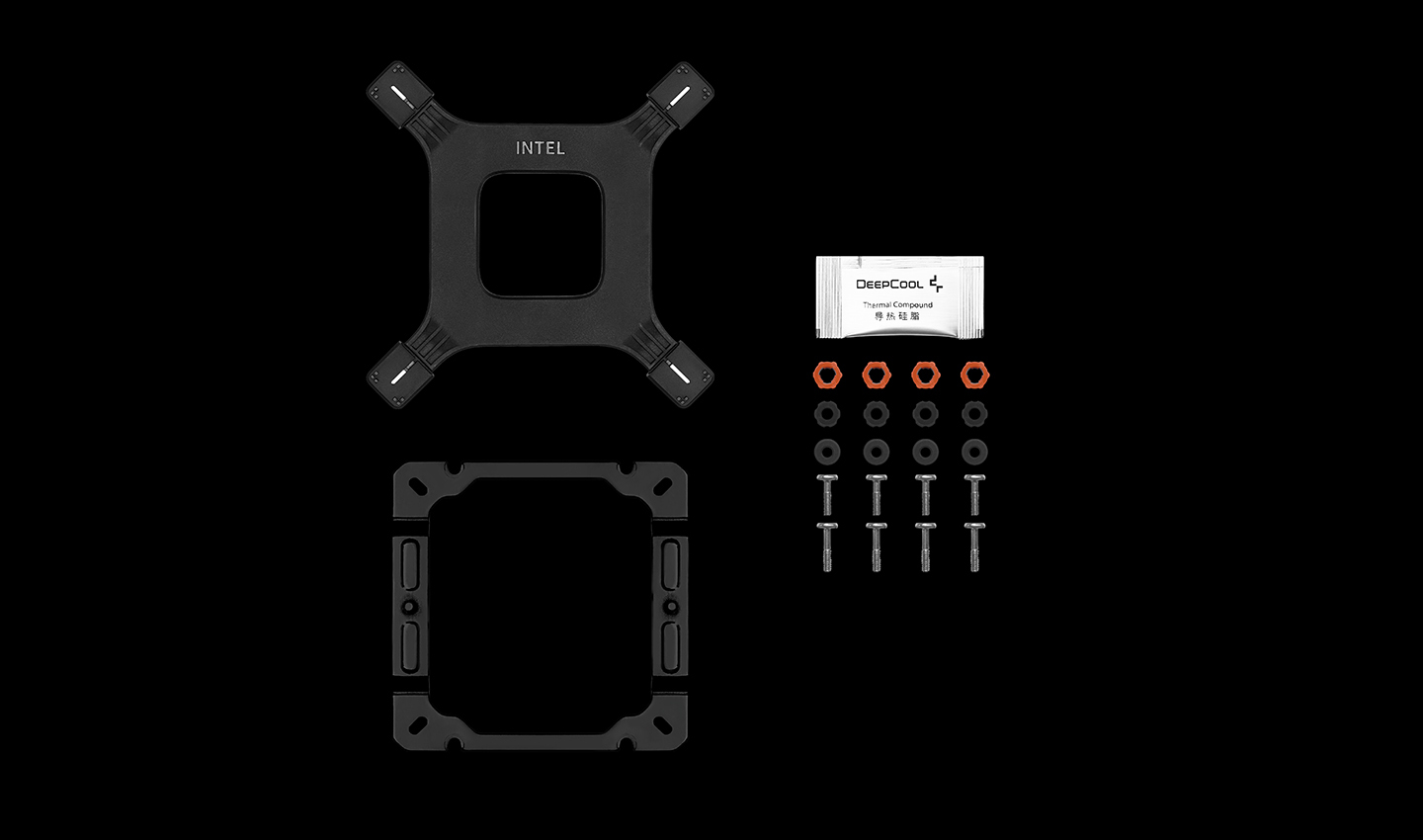

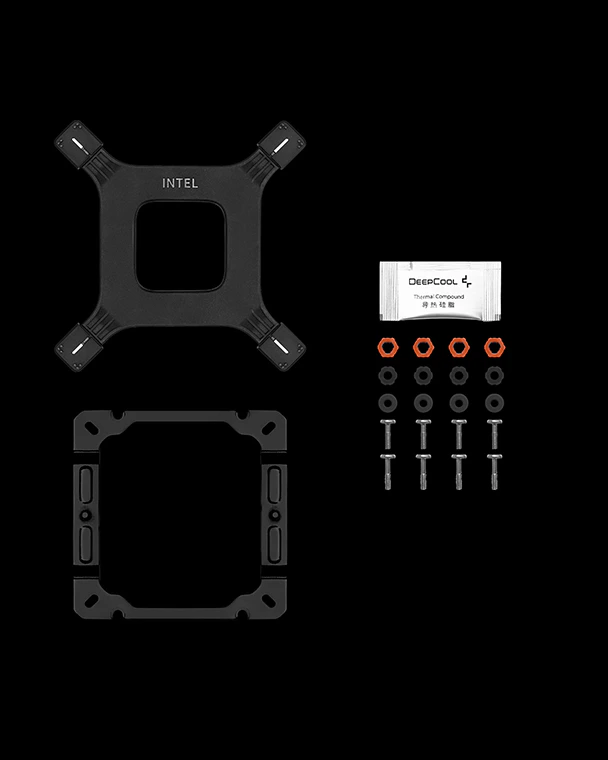

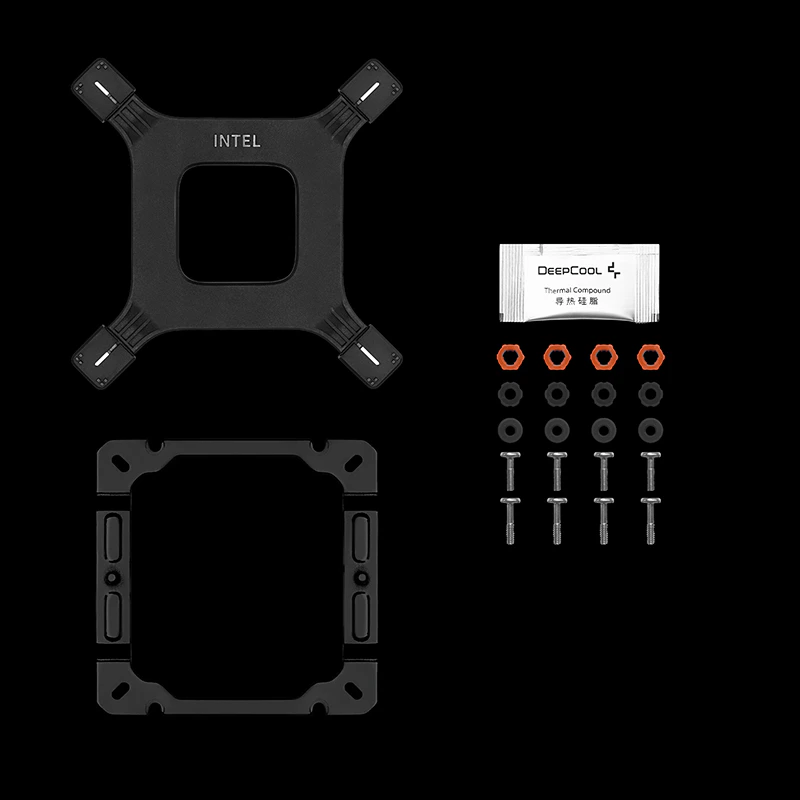

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

INTEL

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	125×95×158 mm(L×W×H)
Heatsink Dimensions	120×60×150 mm(L×W×H)
Net Weight	845 g

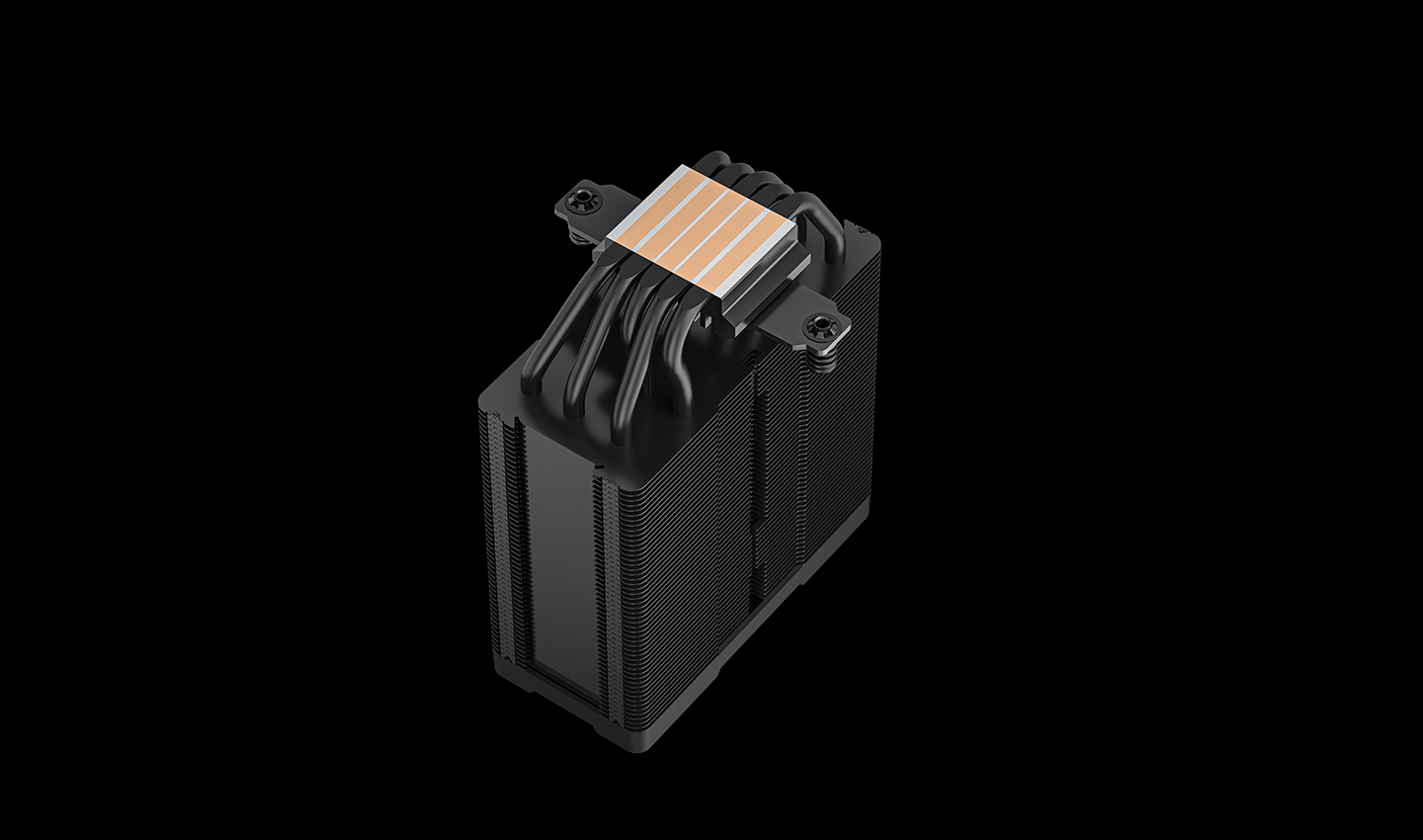

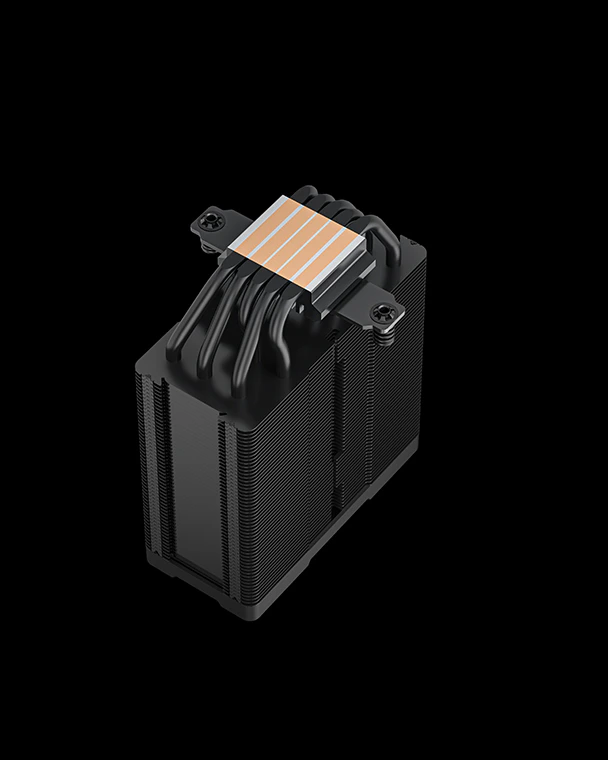

Heatpipe	Ø6 mm×5 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	300~1950 RPM±10%
Fan Airflow	67.88 CFM
Fan Air Pressure	2.04 mmAq
Fan Noise	≤29.4 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing

Fan Rated Voltage	12 VDC
Fan Rated Current	0.14 A
Fan Power Consumption	1.68 W
LED Type	LED
LED Connector	9-pin USB 2.0
LED Rated Voltage	5 VDC
LED Power Consumption	0.55 W
EAN	6933412728535
P/N	R-AG500-BKNDMN-G-2
