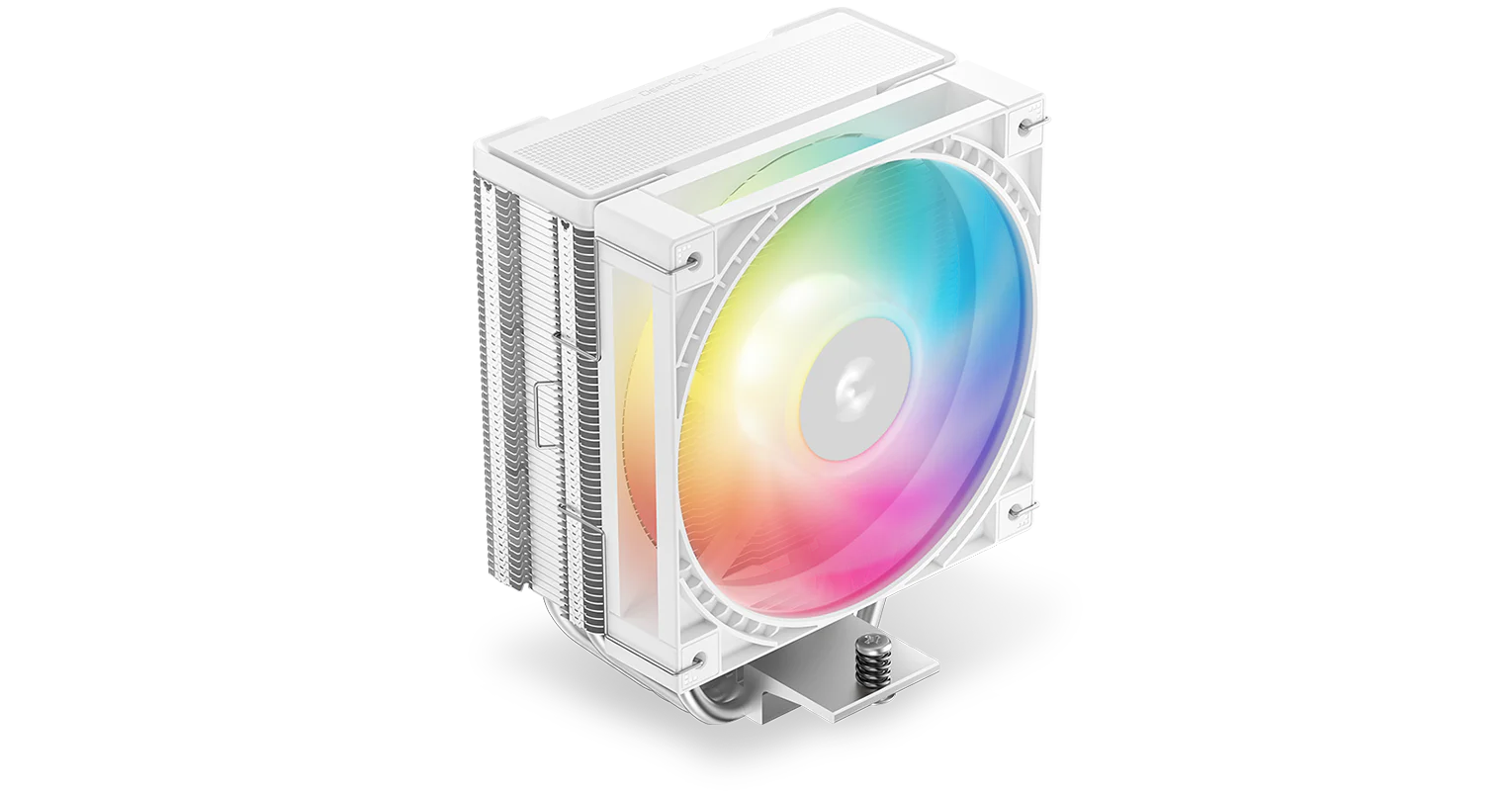

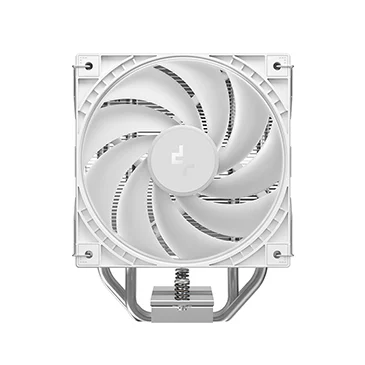

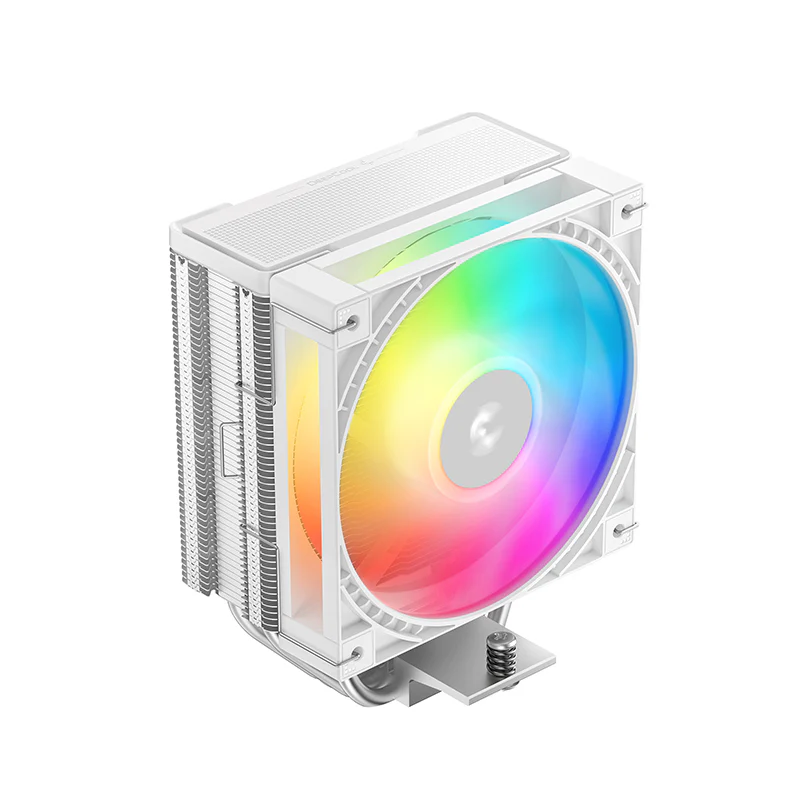

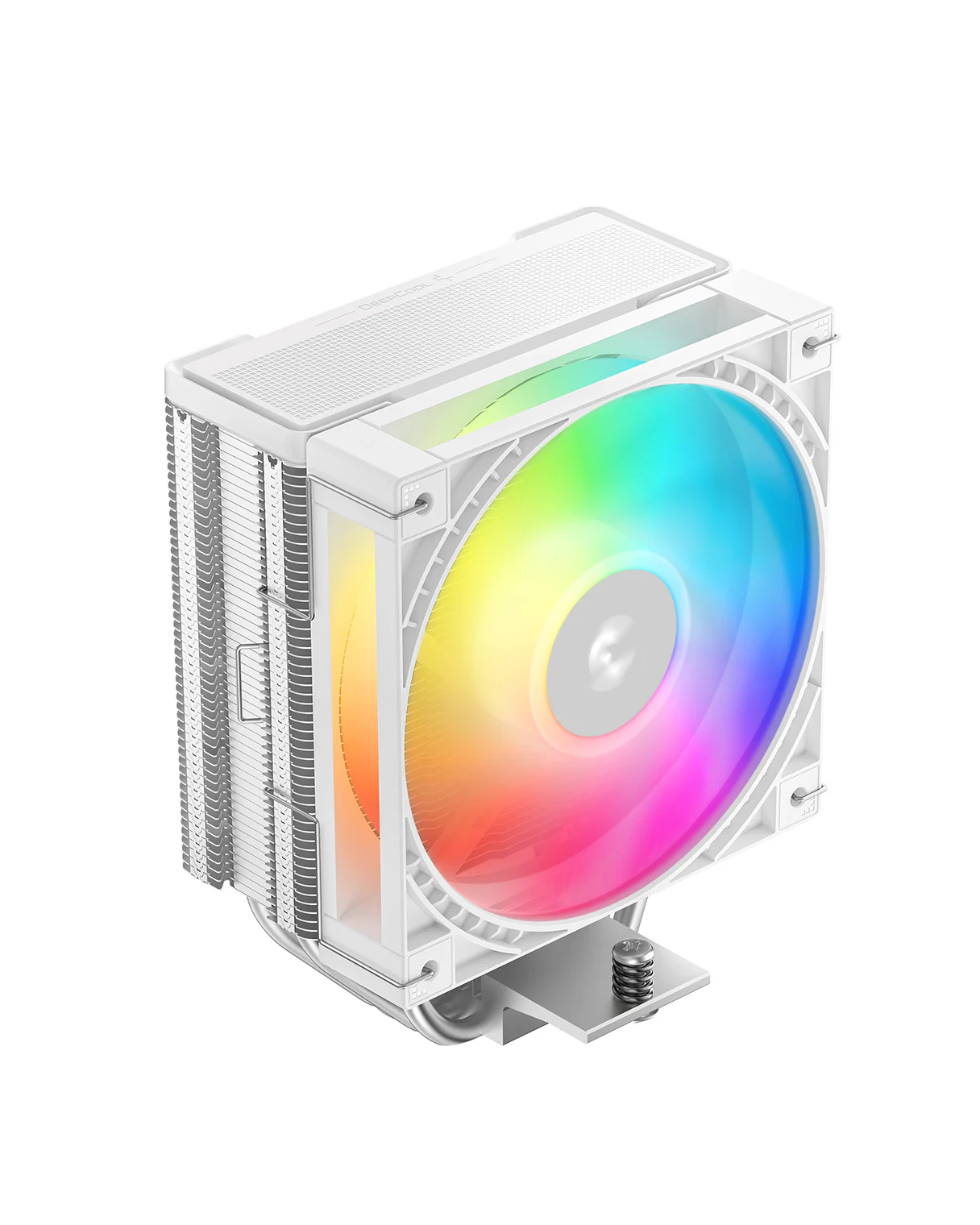

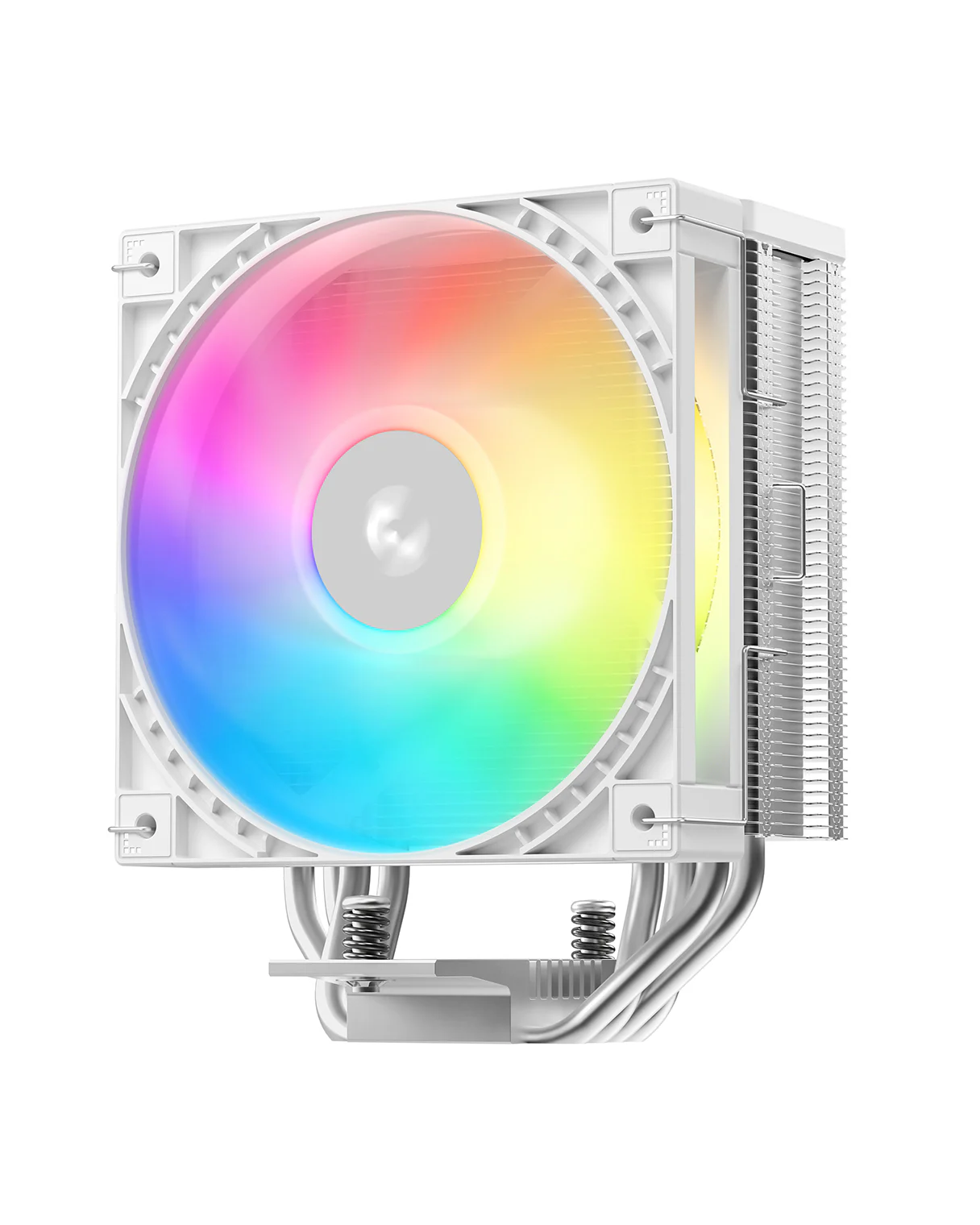

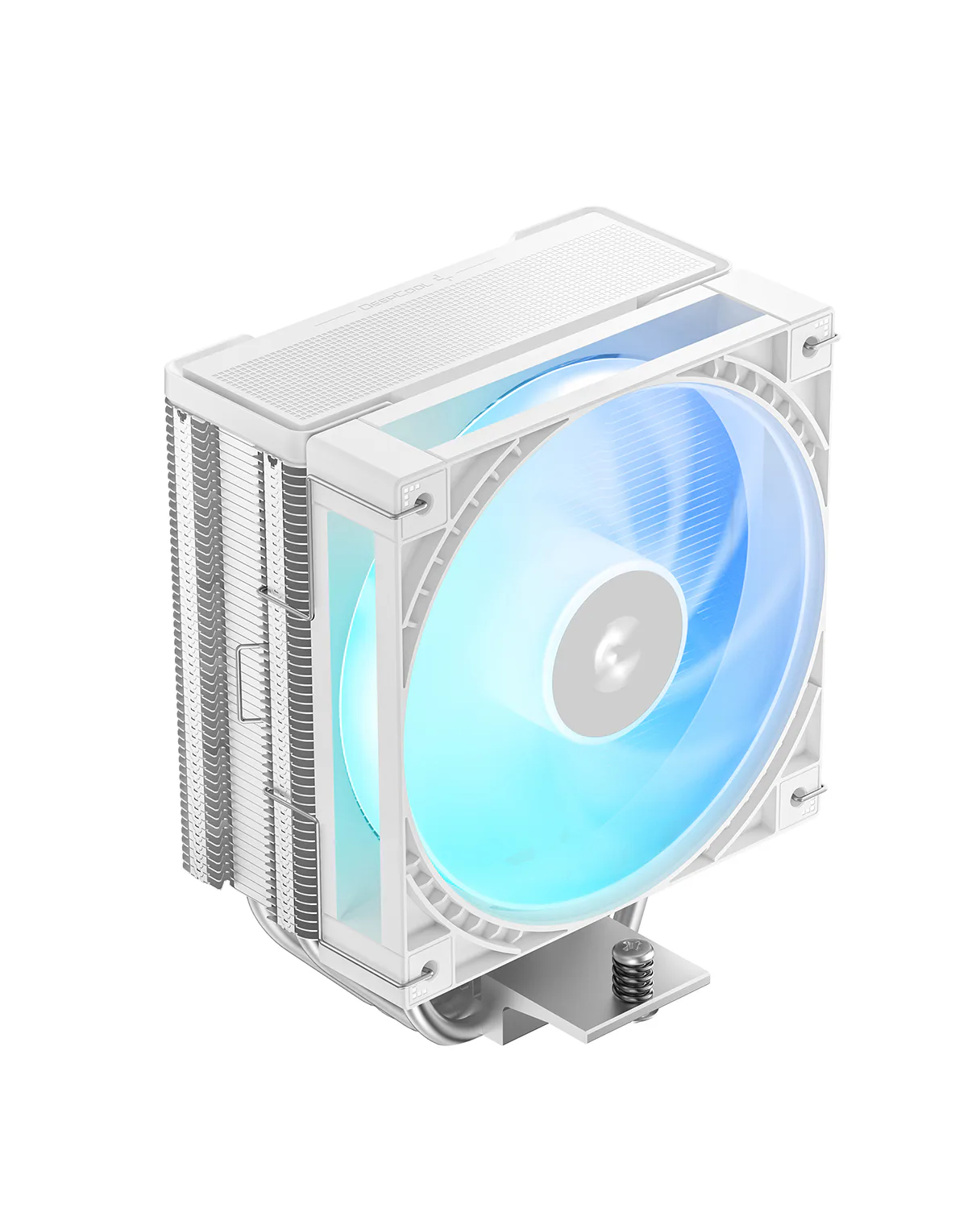

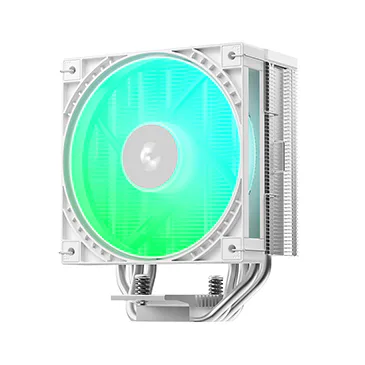

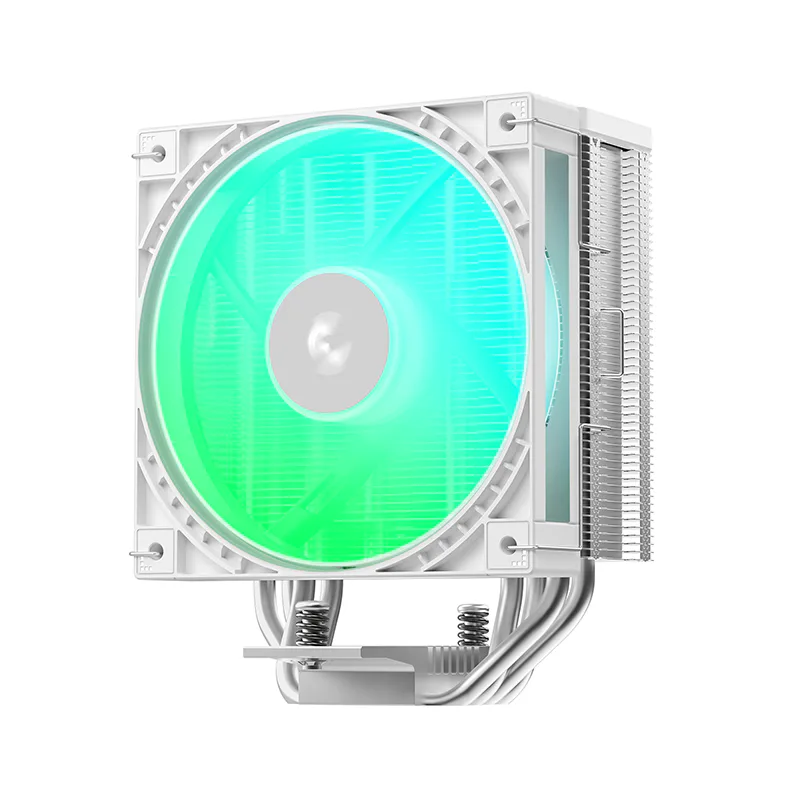

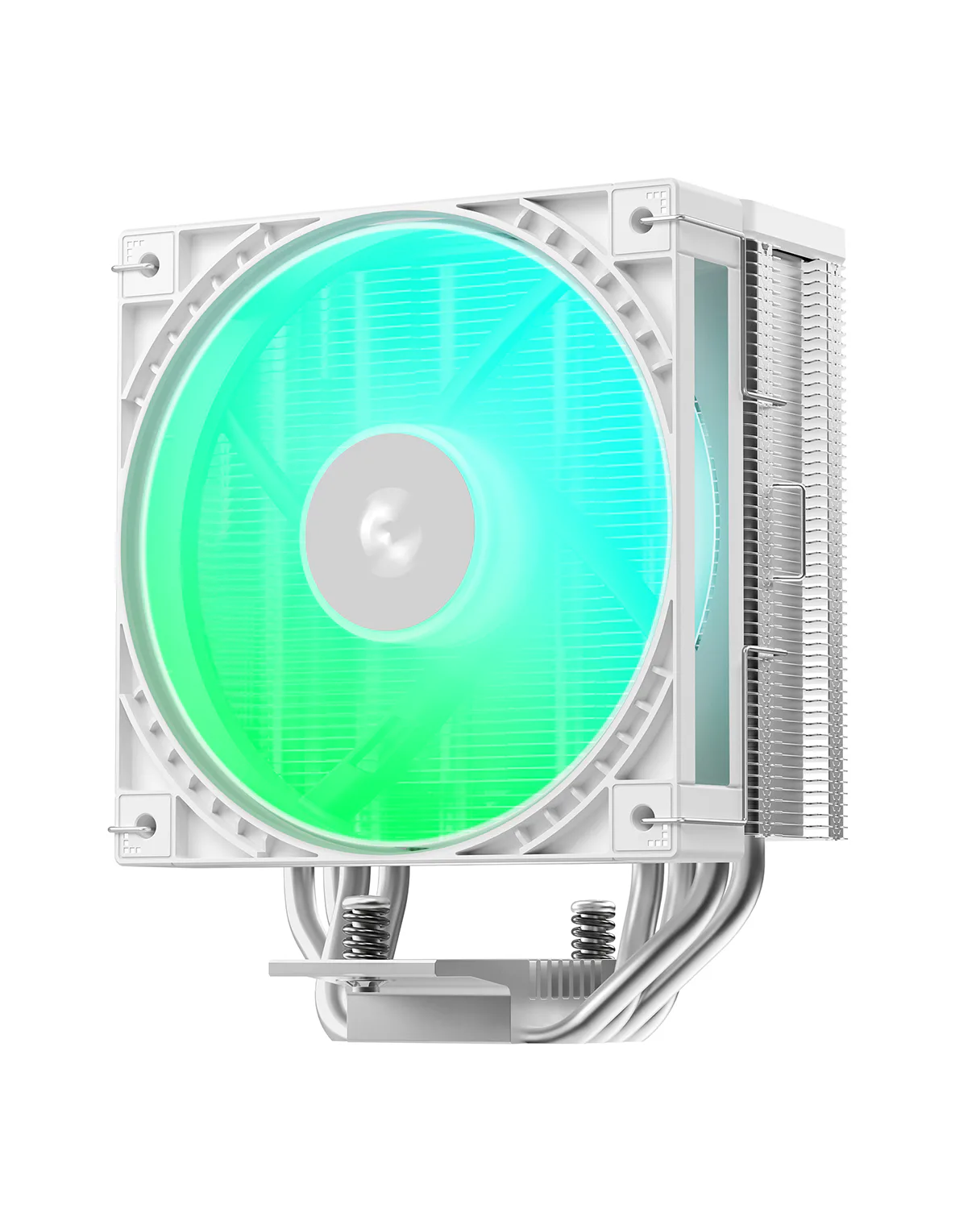

AG400 G2 WH ARGB

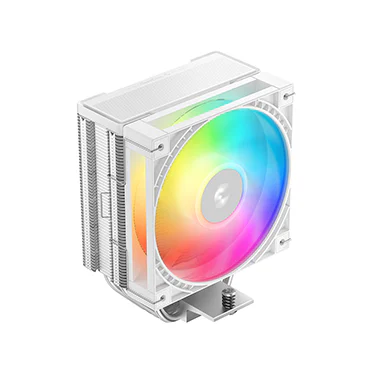

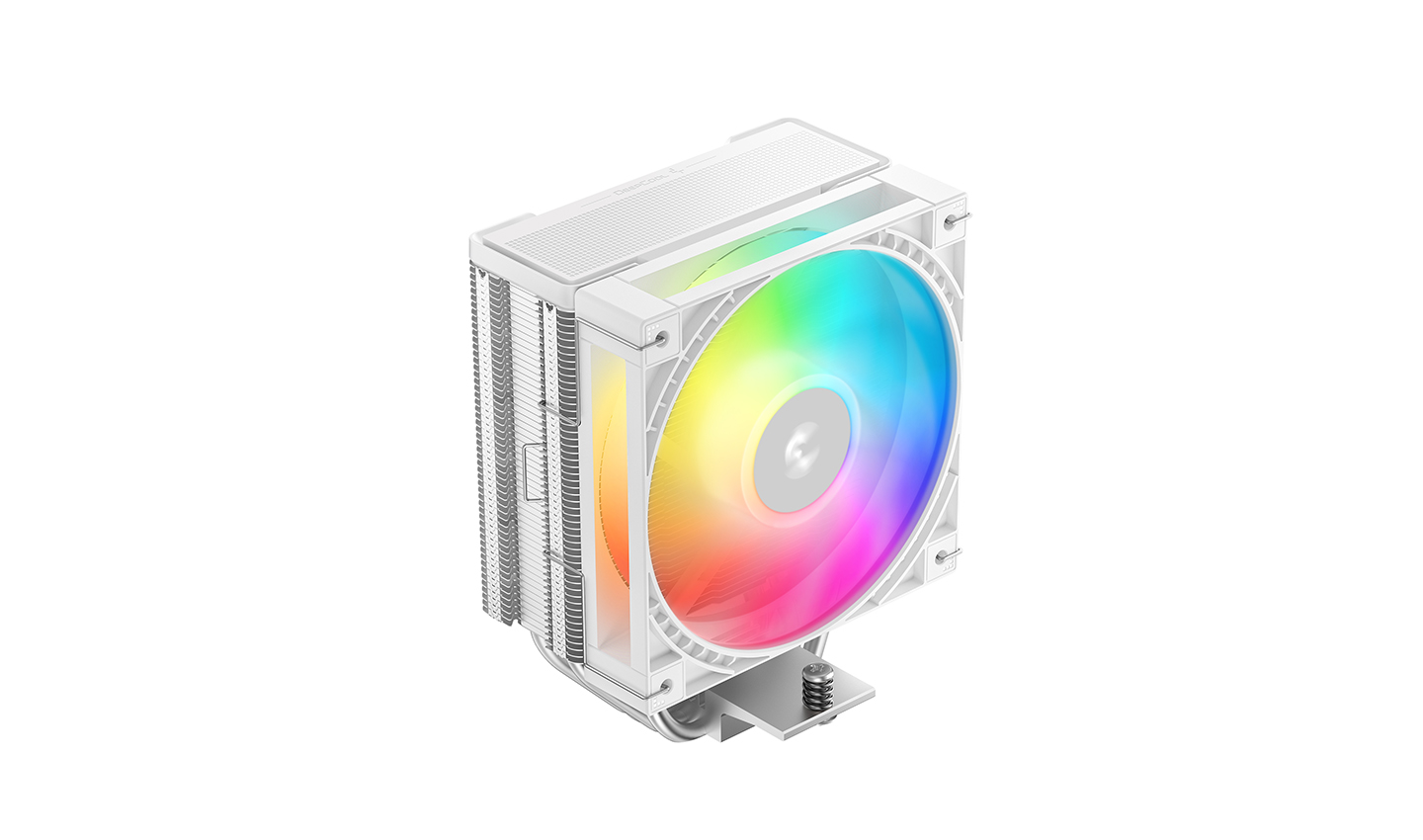

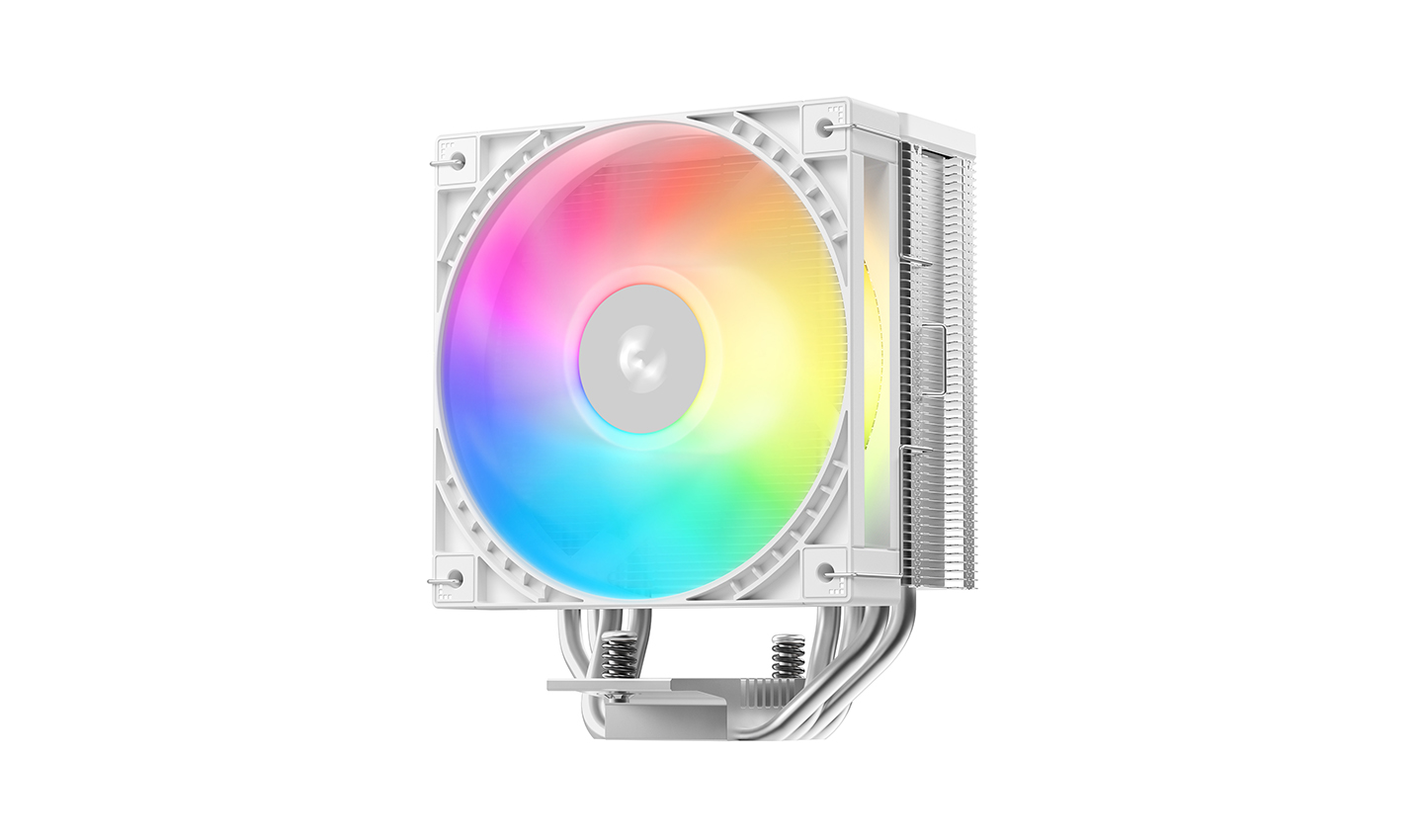

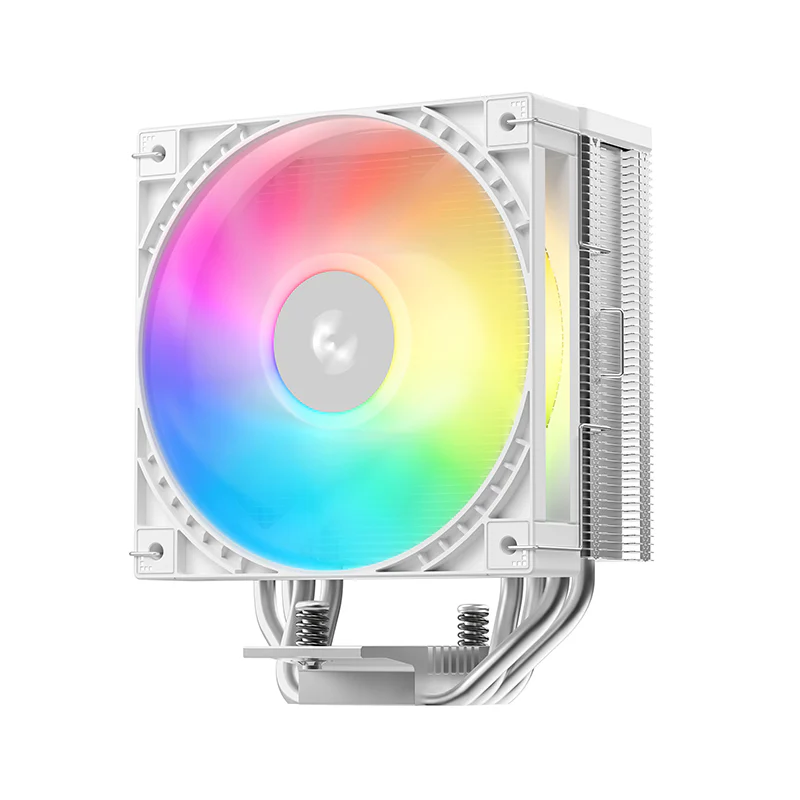

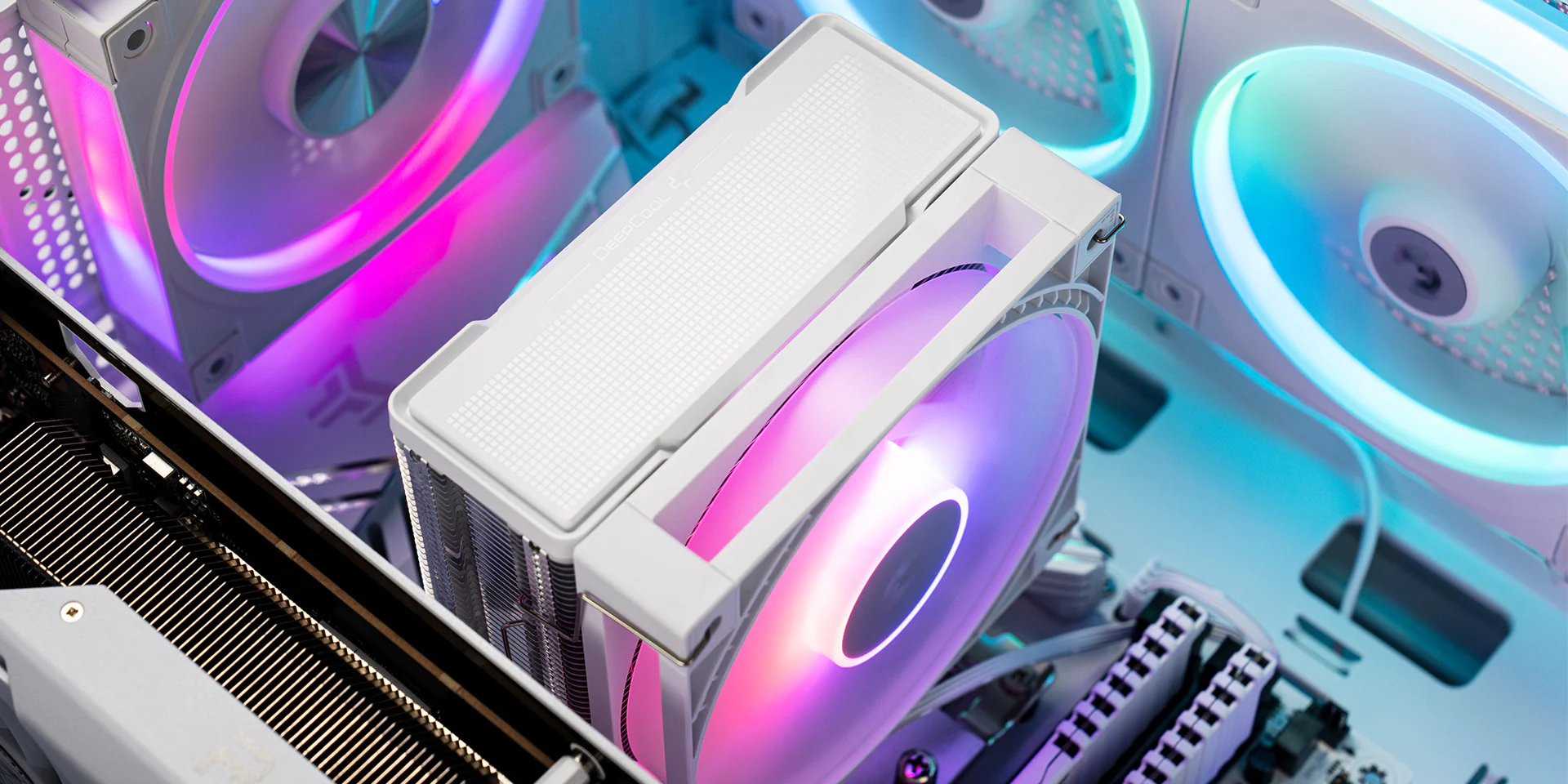

The AG400 G2 WH ARGB raises the bar for single-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring four heat pipes embedded in a dense single-tower heatsink and paired with a finely tuned 120mm ARGB PWM fan for seriously powerful airflow and thermal transfer.
MODEL
AG400 G2 WH ARGB
WHERE POWER GLOWS
NEXT GENERATION PERFORMANCE

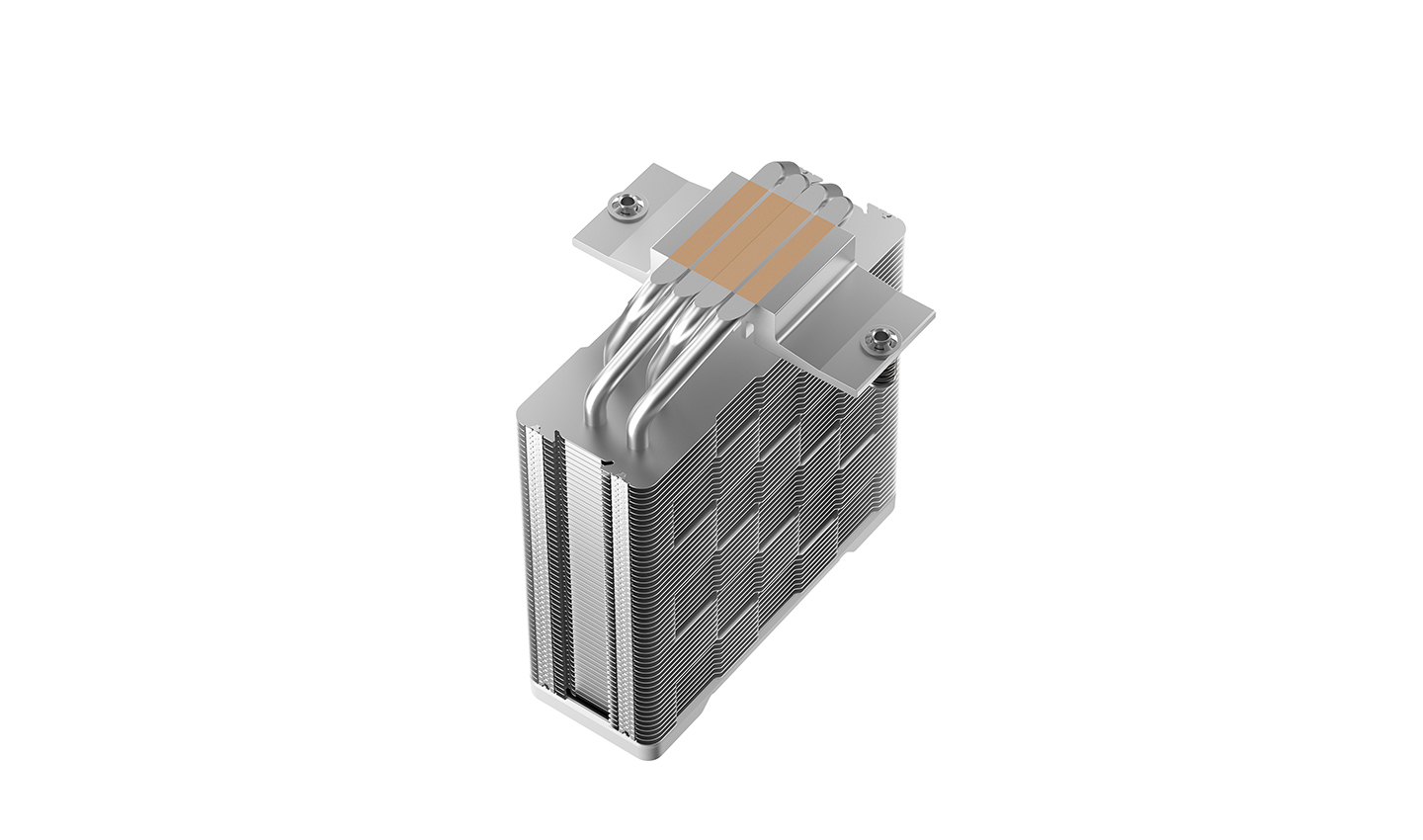

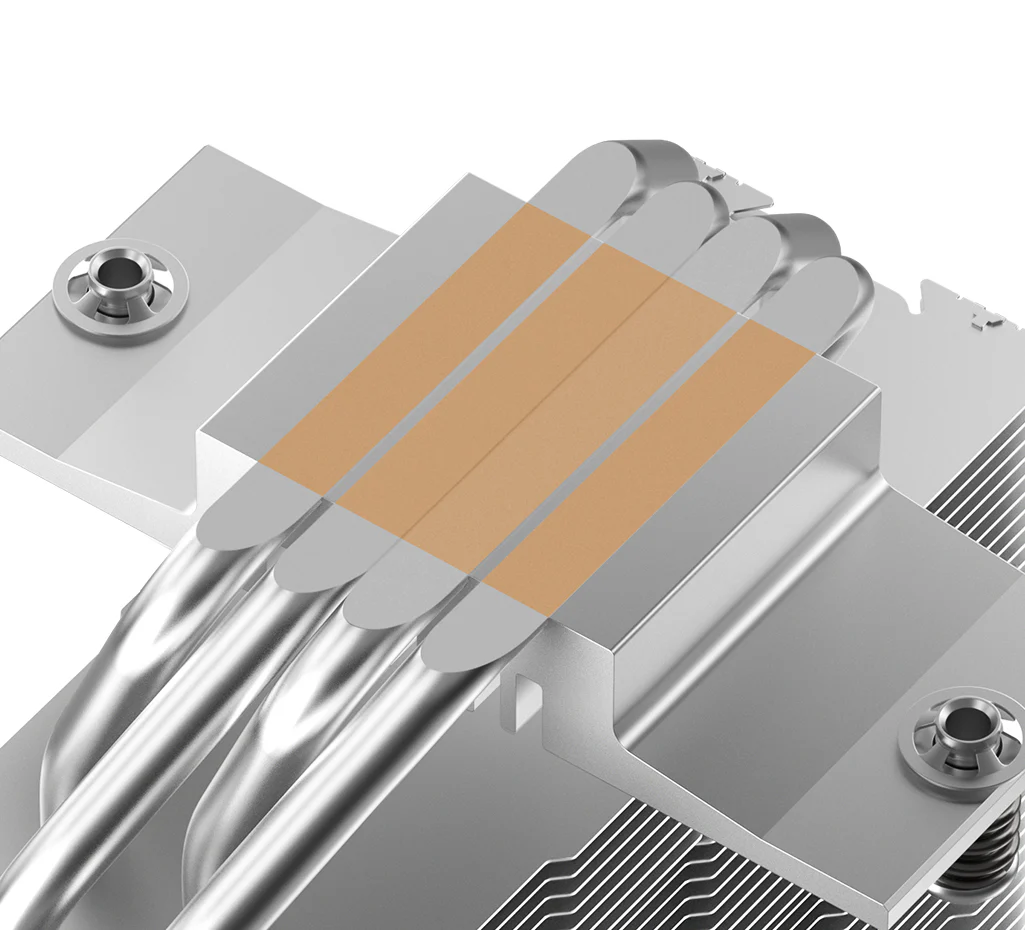

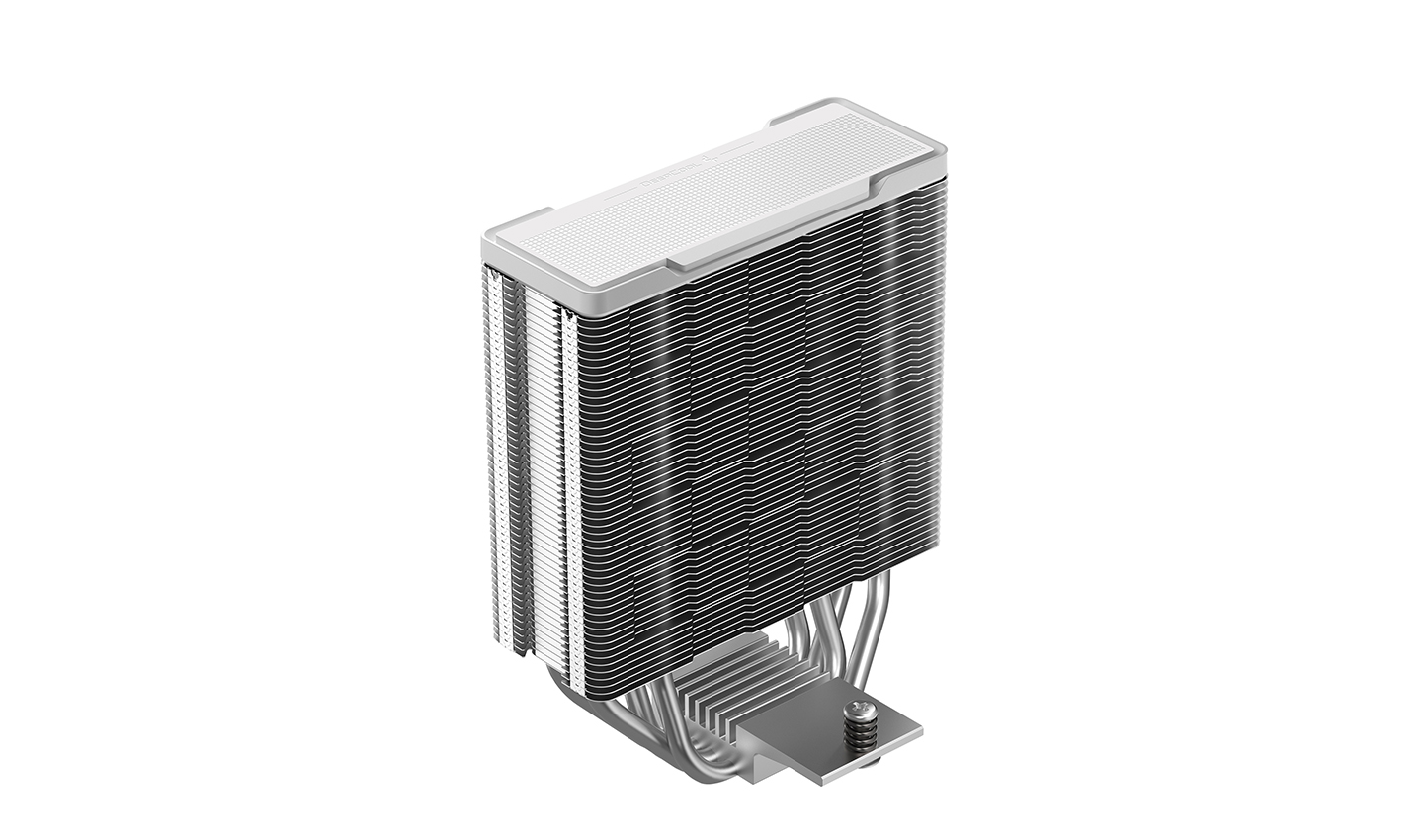

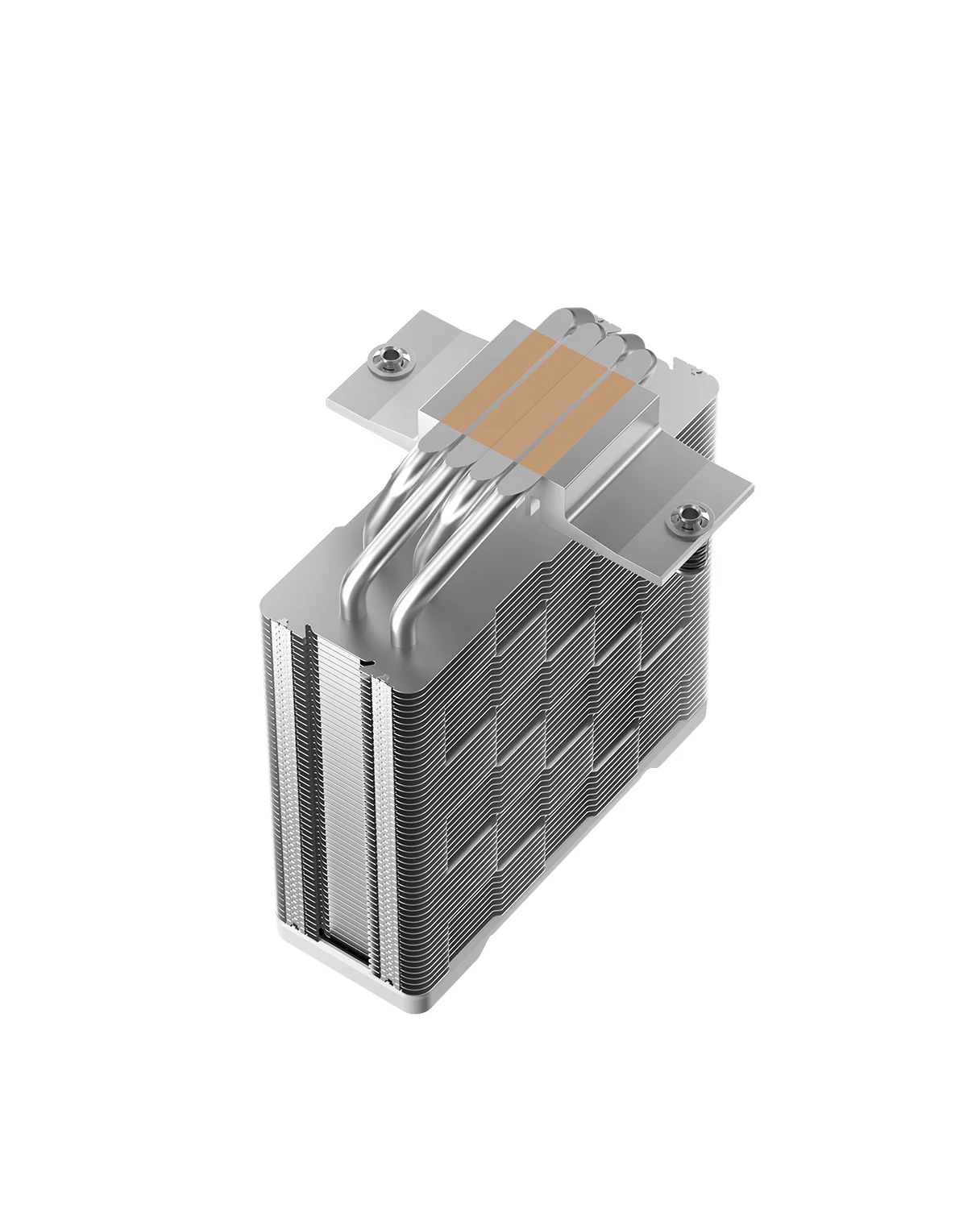

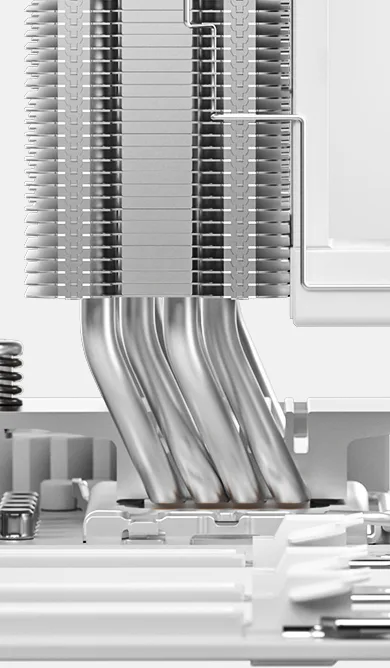

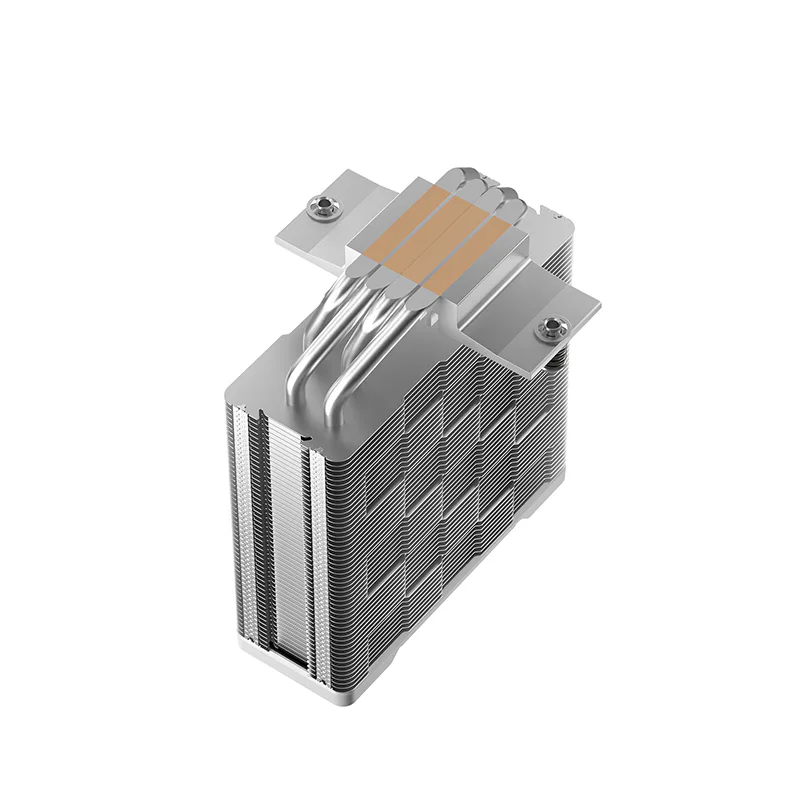

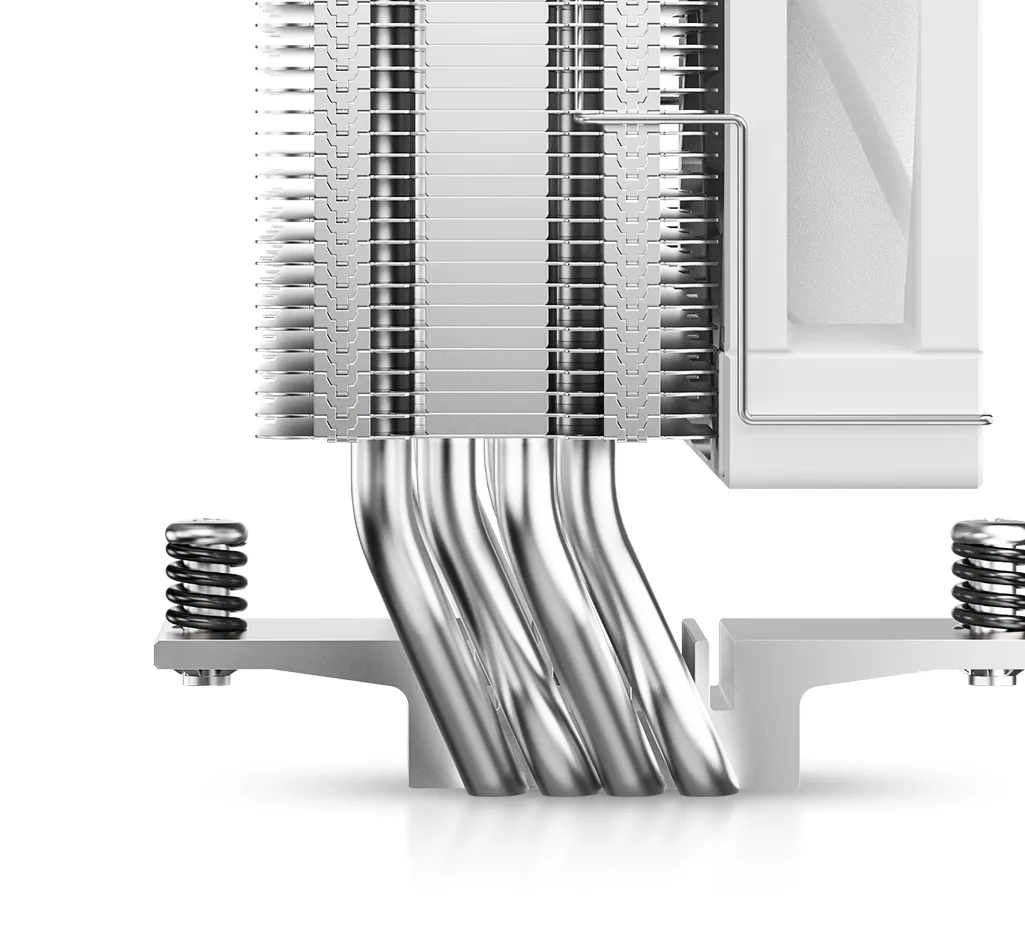

With an optimized tower layout and four direct-contact heat pipes for rapid heat transfer, the AG400 G2 WH ARGB delivers stronger cooling performance than its predecessor.

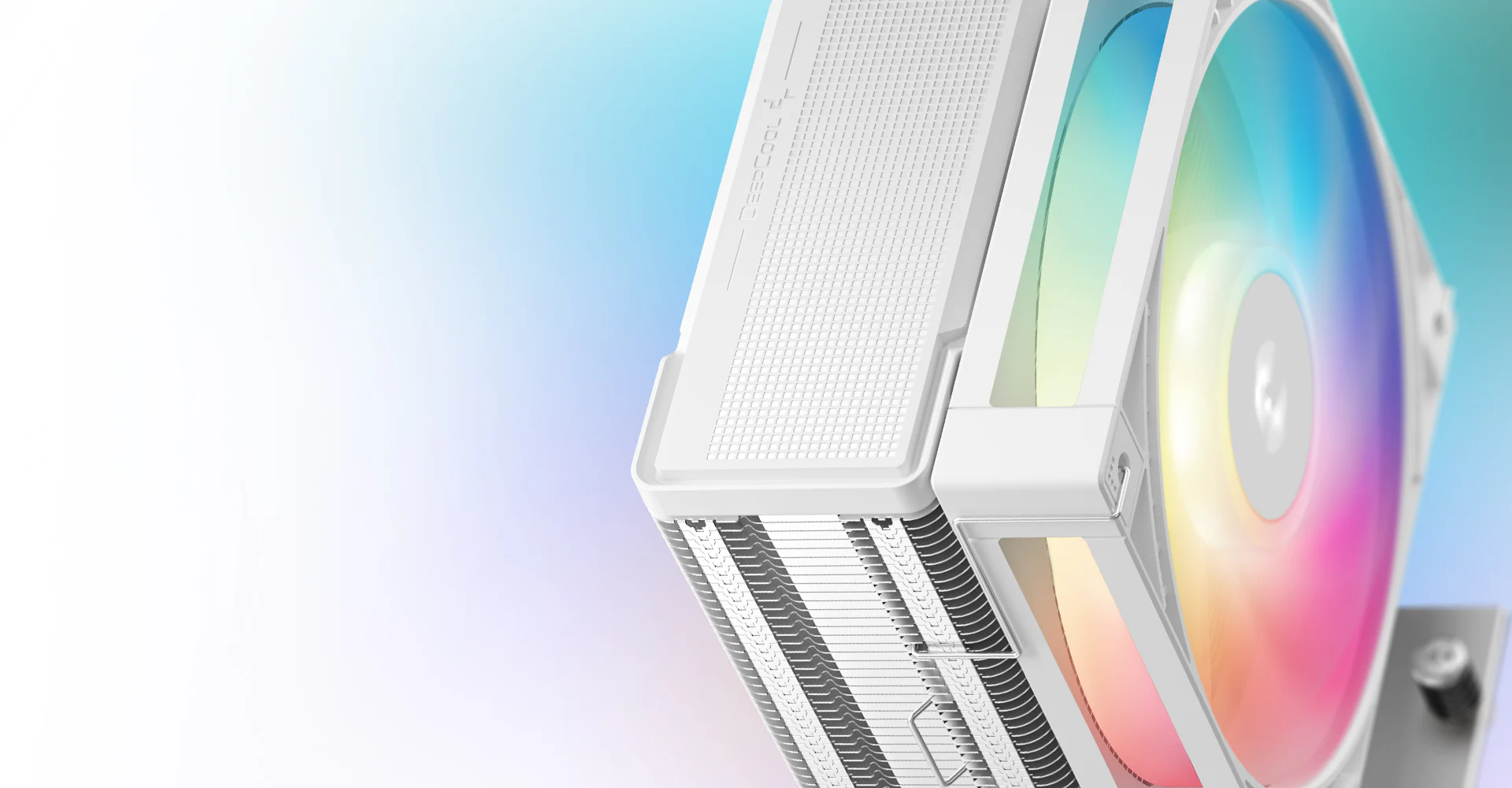

STYLED TO IMPRESS

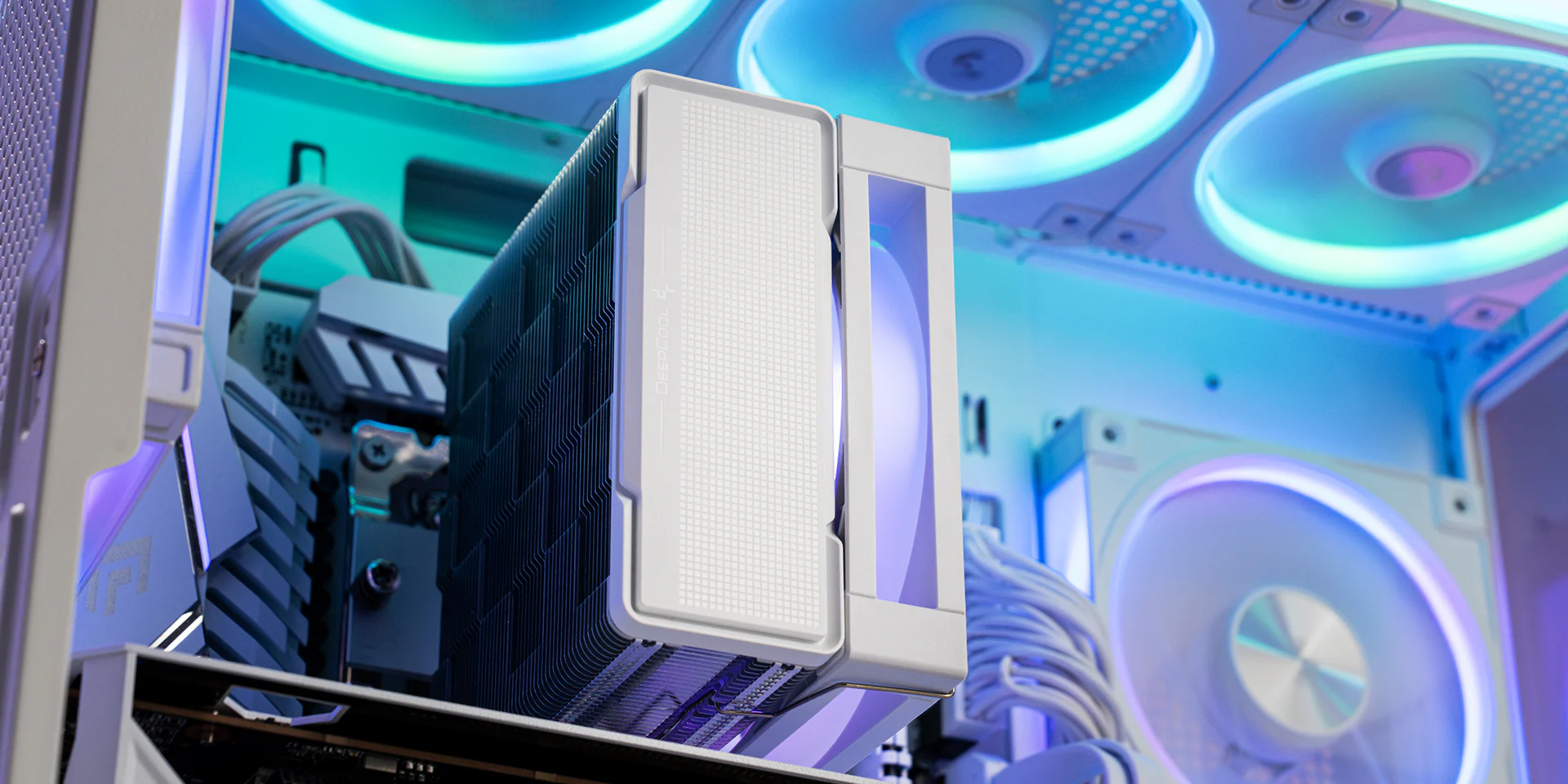

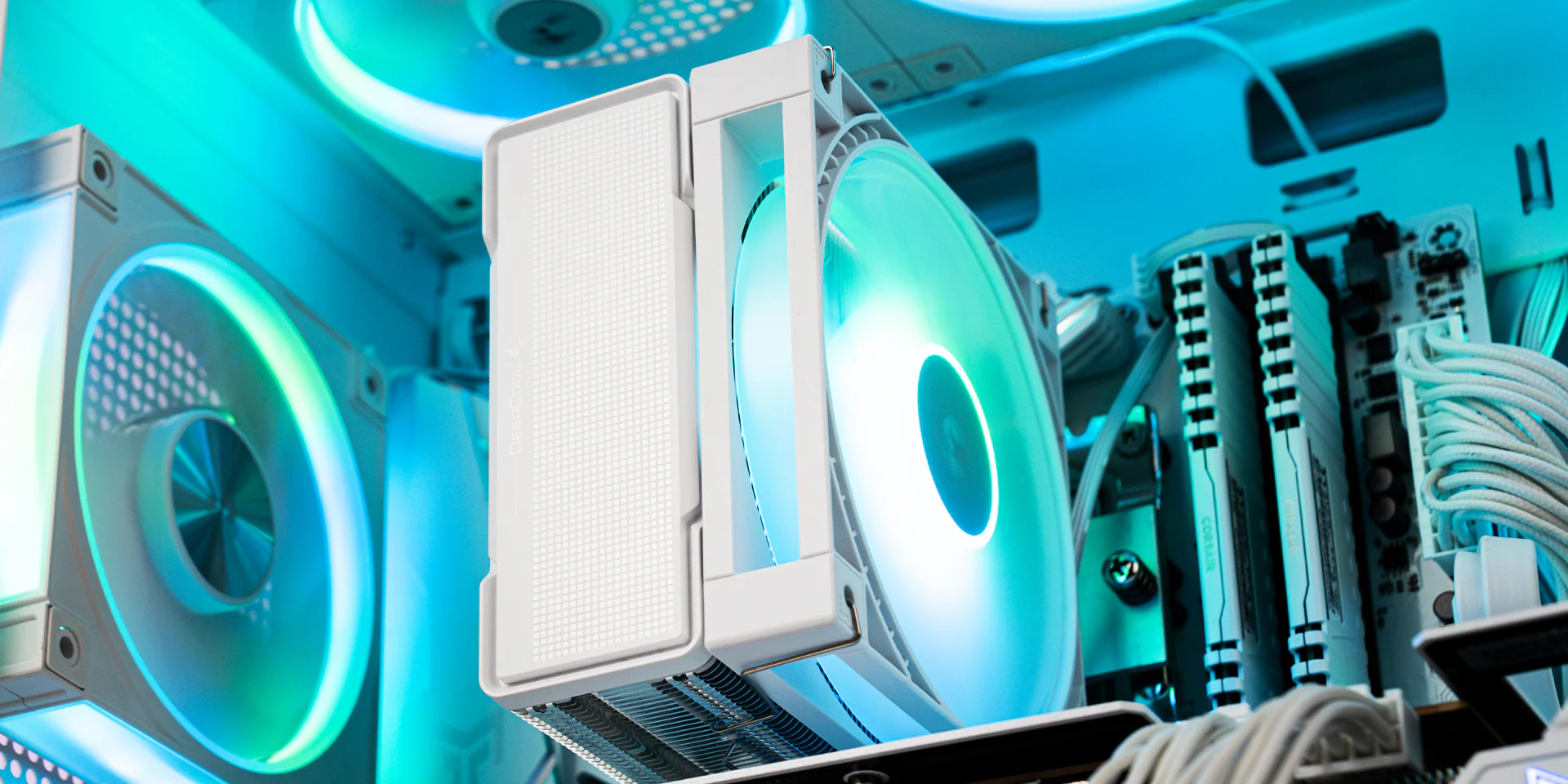

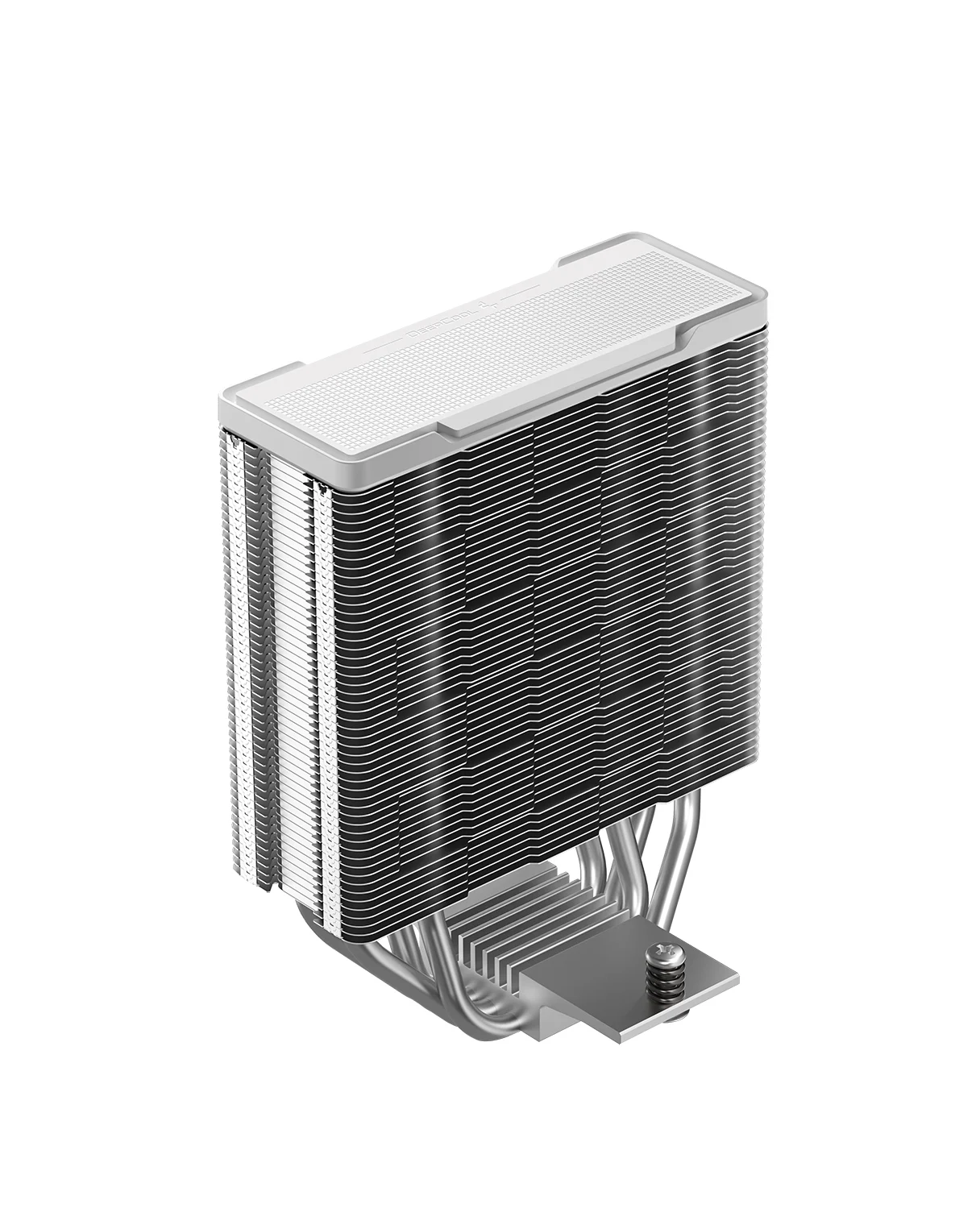

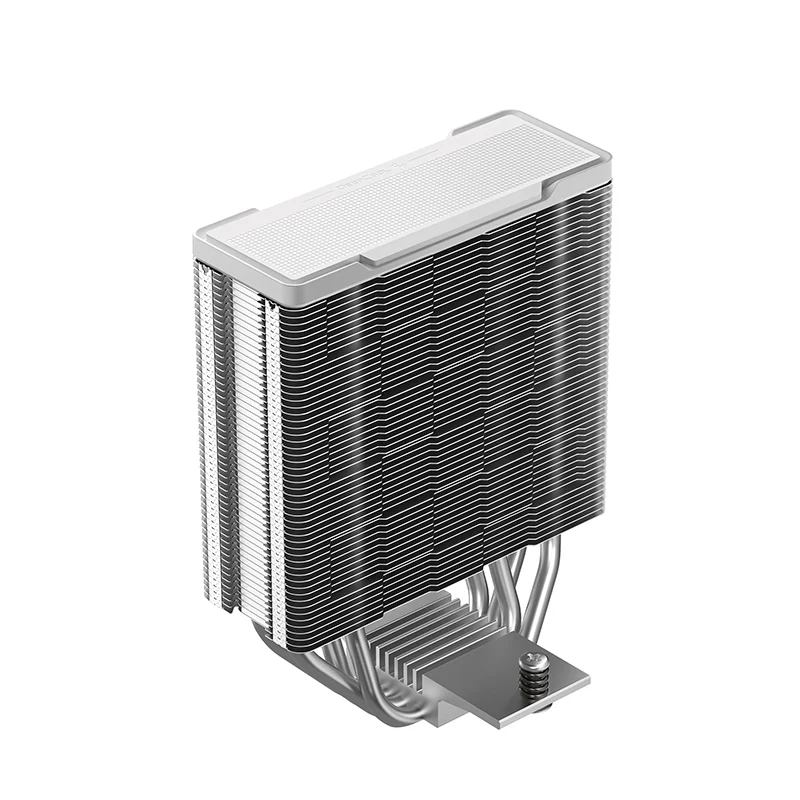

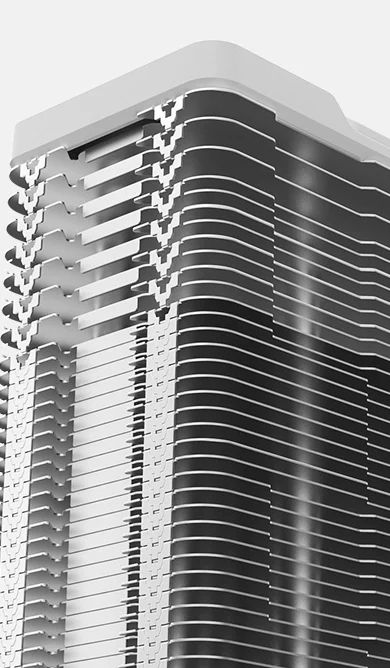

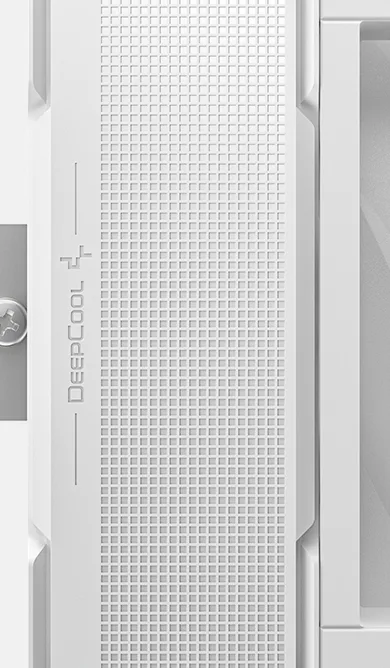

The AG400 G2 WH ARGB retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted four heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.

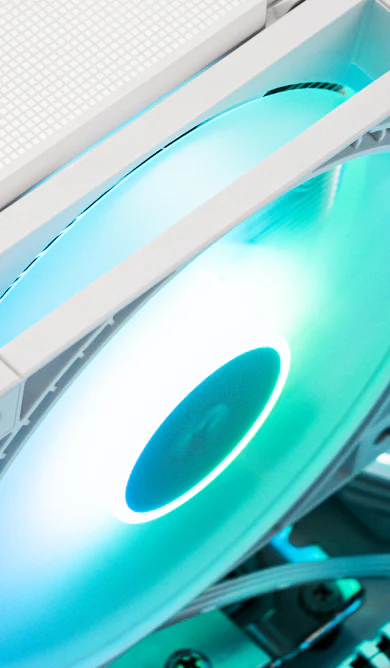

BRIGHT, QUIET, AND CAPABLE

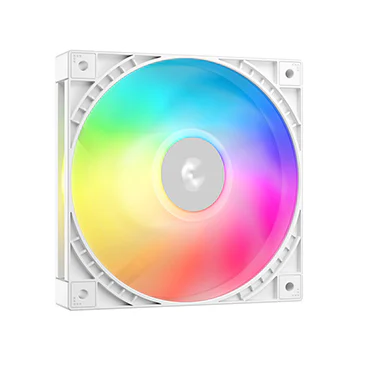

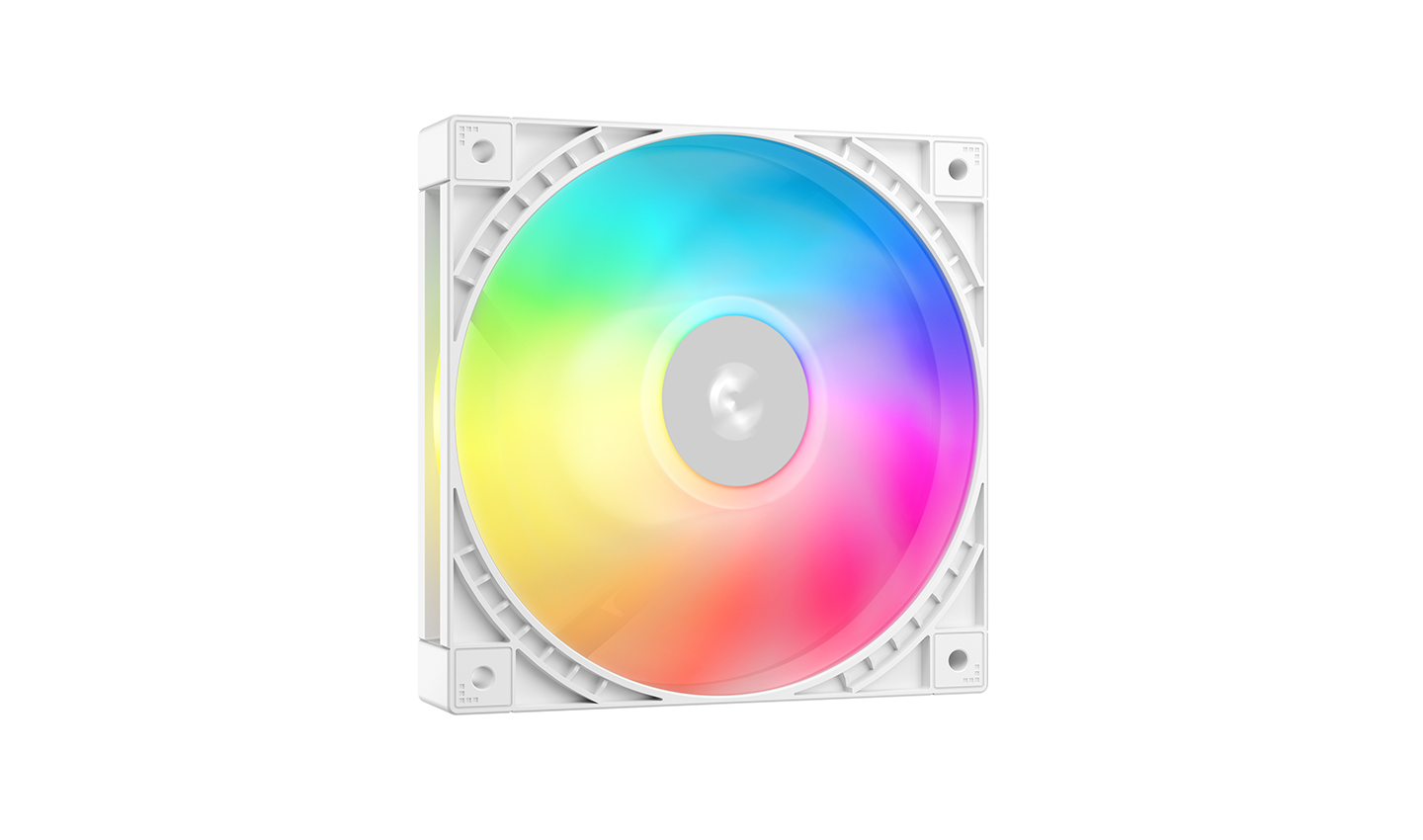

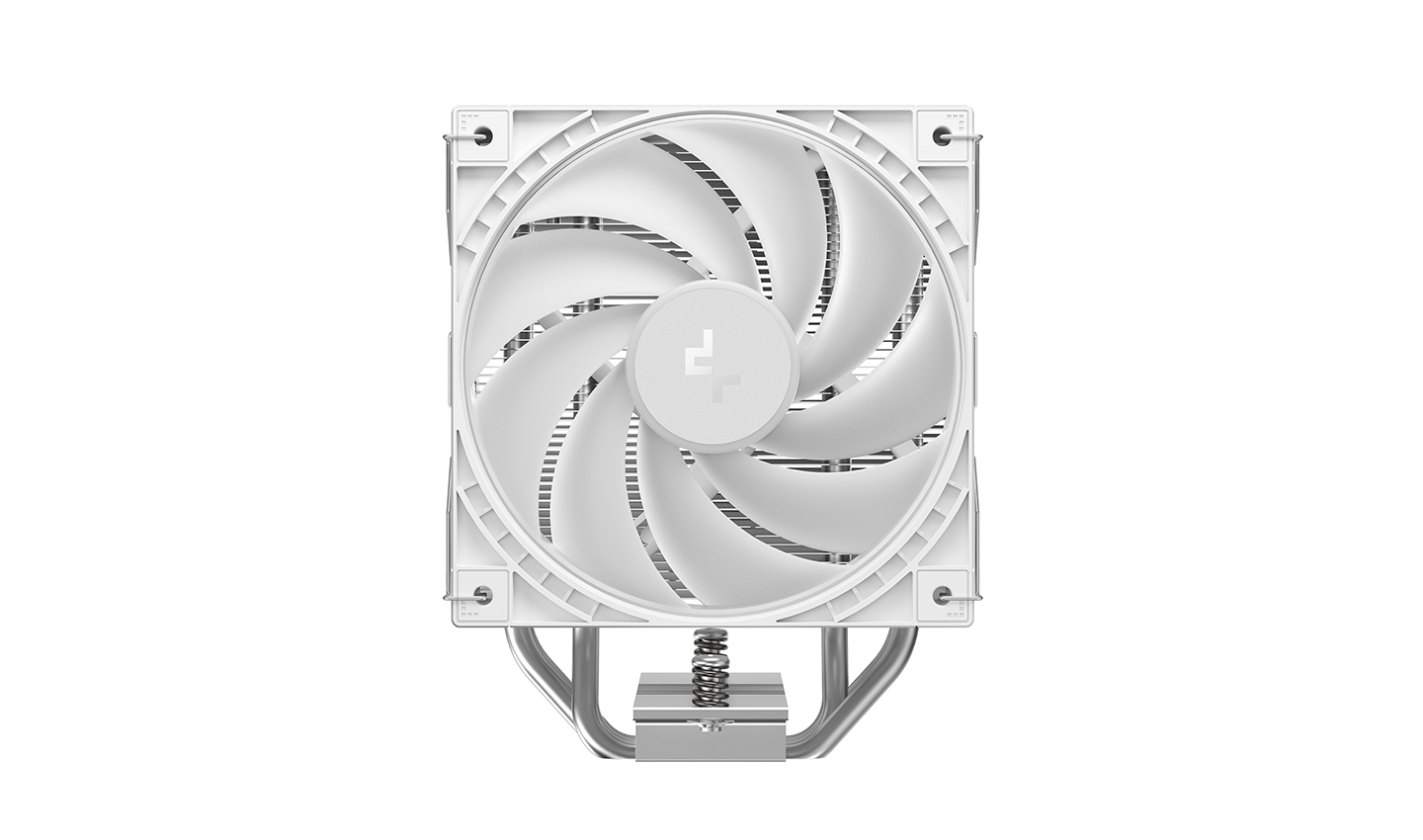

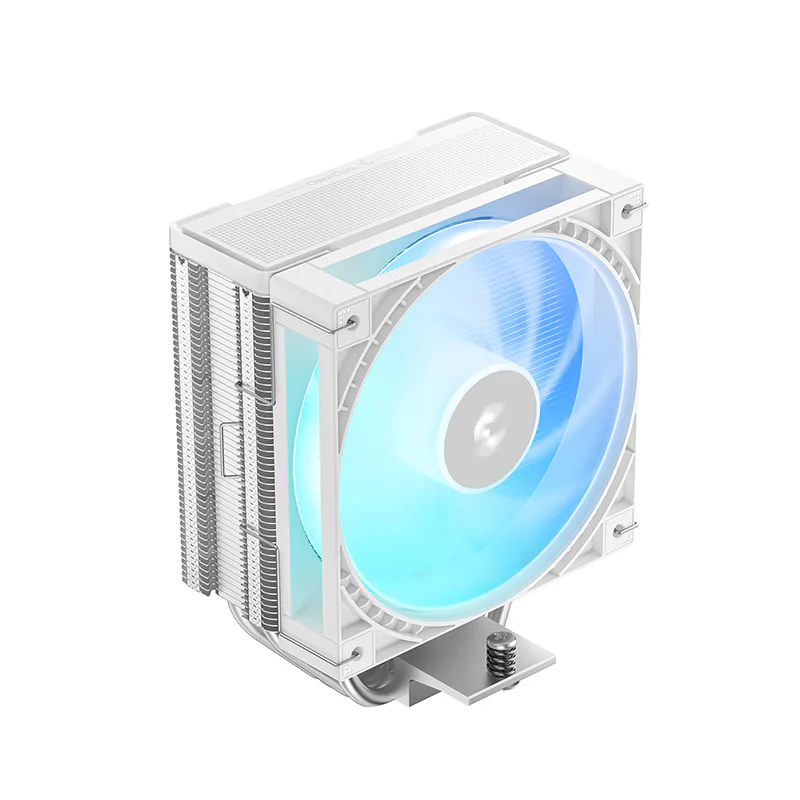

Outfitted with all-new closed-wheel ARGB fan, the AG400 G2 WH ARGB optimizes airflow and static pressure for powerful yet quiet cooling. The reinforced blade structure boosts stability and durability, while preventing unwanted lateral airflow to deliver focused airflow and eliminate dead zones for maximum cooling efficiency.
500-2200±10% RPM
Fan Speed
70.09 CFM
Fan Airflow
2.49 mmAq
Fan Air Pressure
≤29.22 dB(A)
Fan Noise

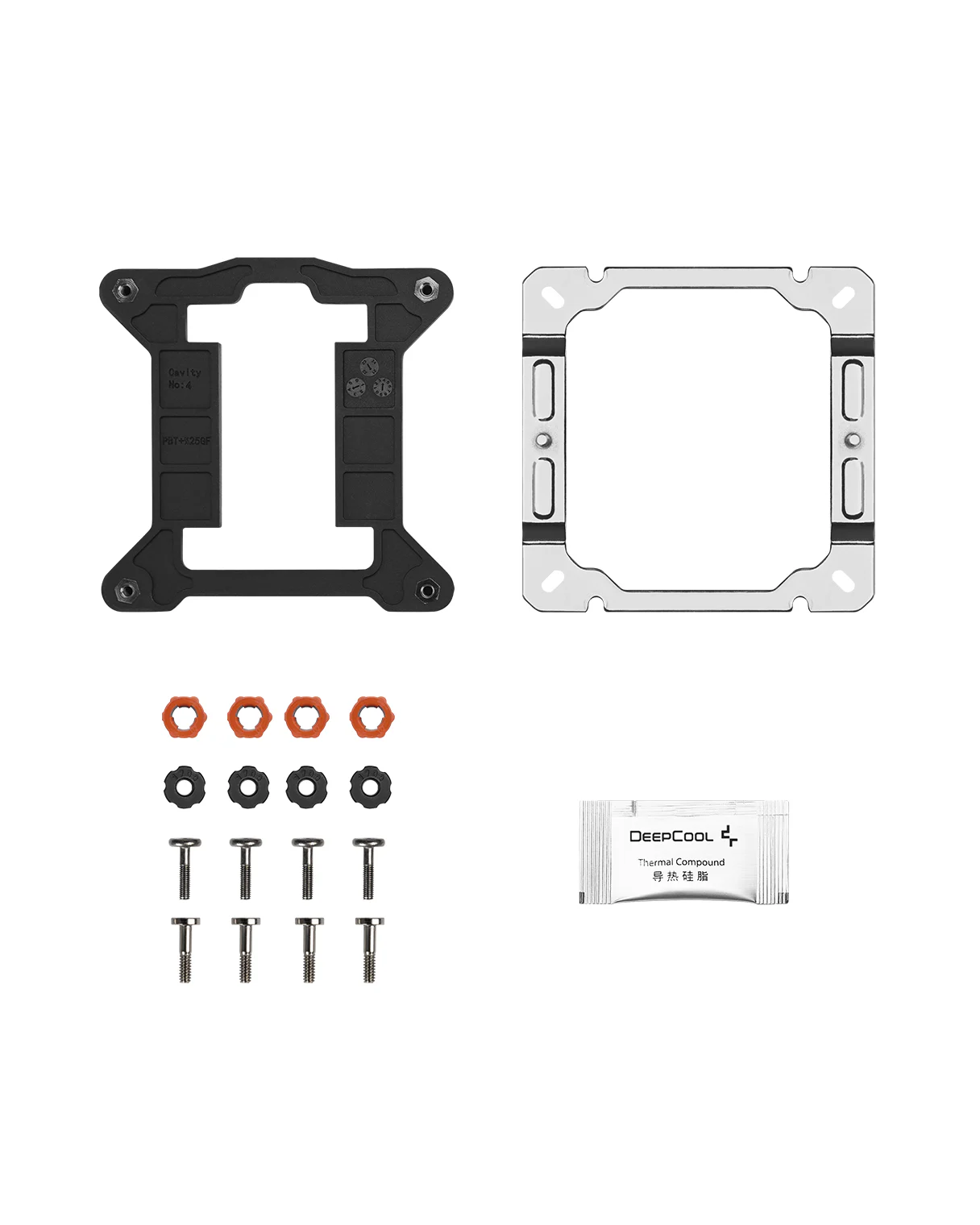

SIMPLE AND SECURE INSTALLATION

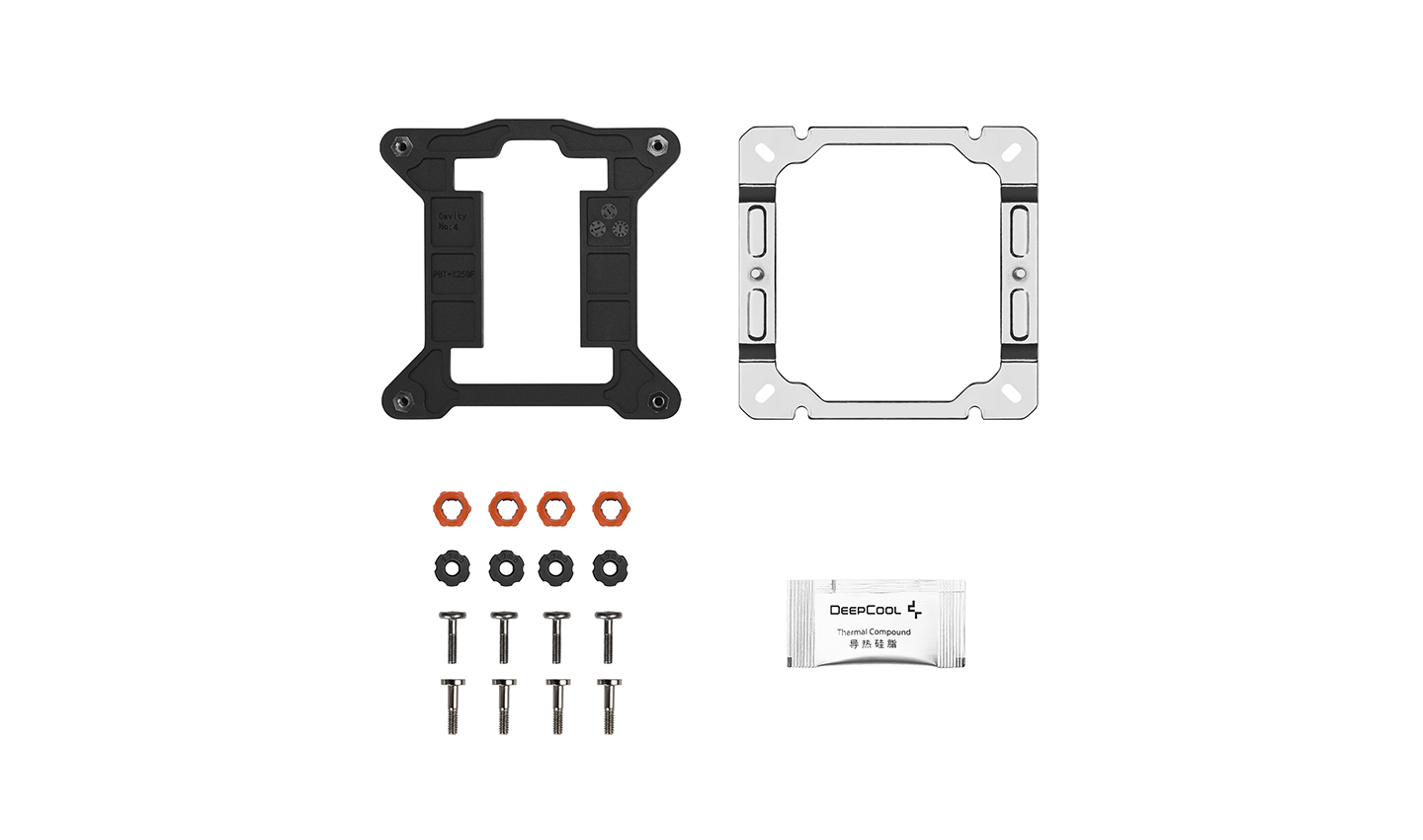

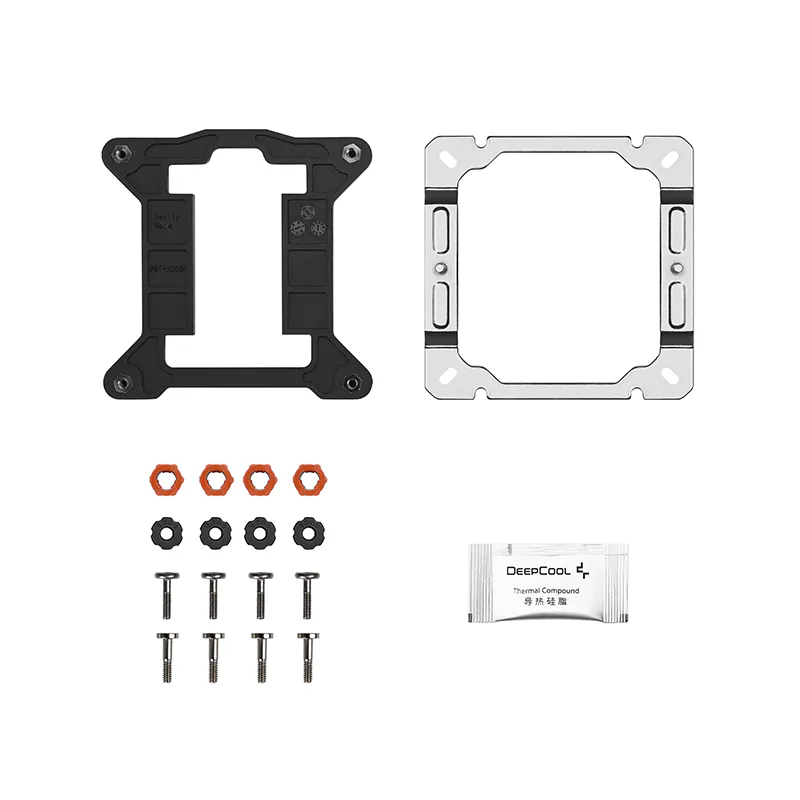

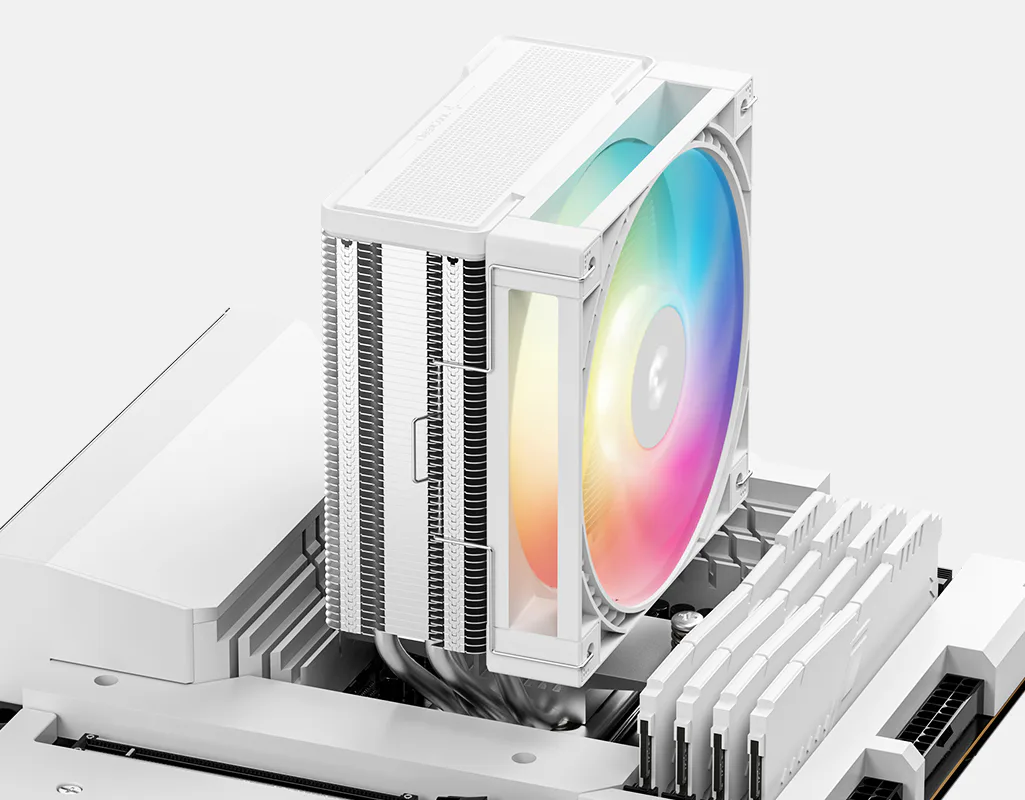

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
INTEL LGA1851/1700
AMD AM5/AM4
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions125×92×152 mm(L×W×H)
Heatsink Dimensions120×92×150 mm(L×W×H)
Net Weight641 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2200 RPM±10%
Fan Motor1-phase，4-slot，4-pole
Fan Airflow68.85 CFM
Fan Air Pressure2.10 mmAq
Fan Noise≤30.93 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.18 A
Fan Power Consumption2.16 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.70 W
EAN6933412730057
P/NR-AG400-WHAMMG2-G
Download
AG400 G2 WH ARGB Manual.pdf
