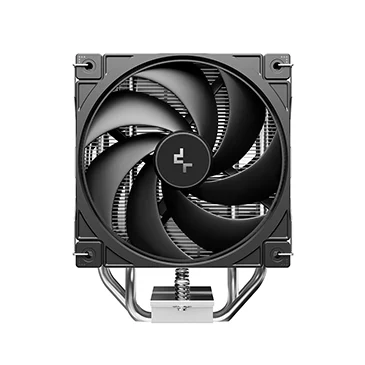

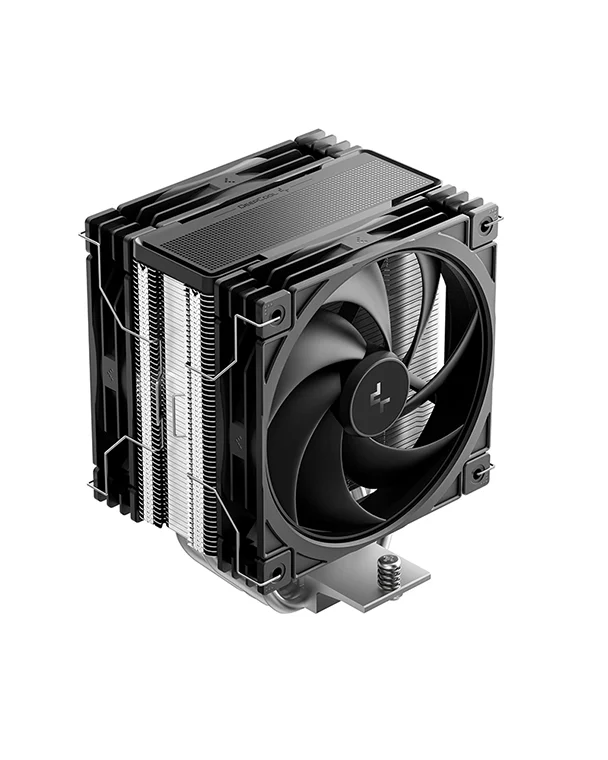

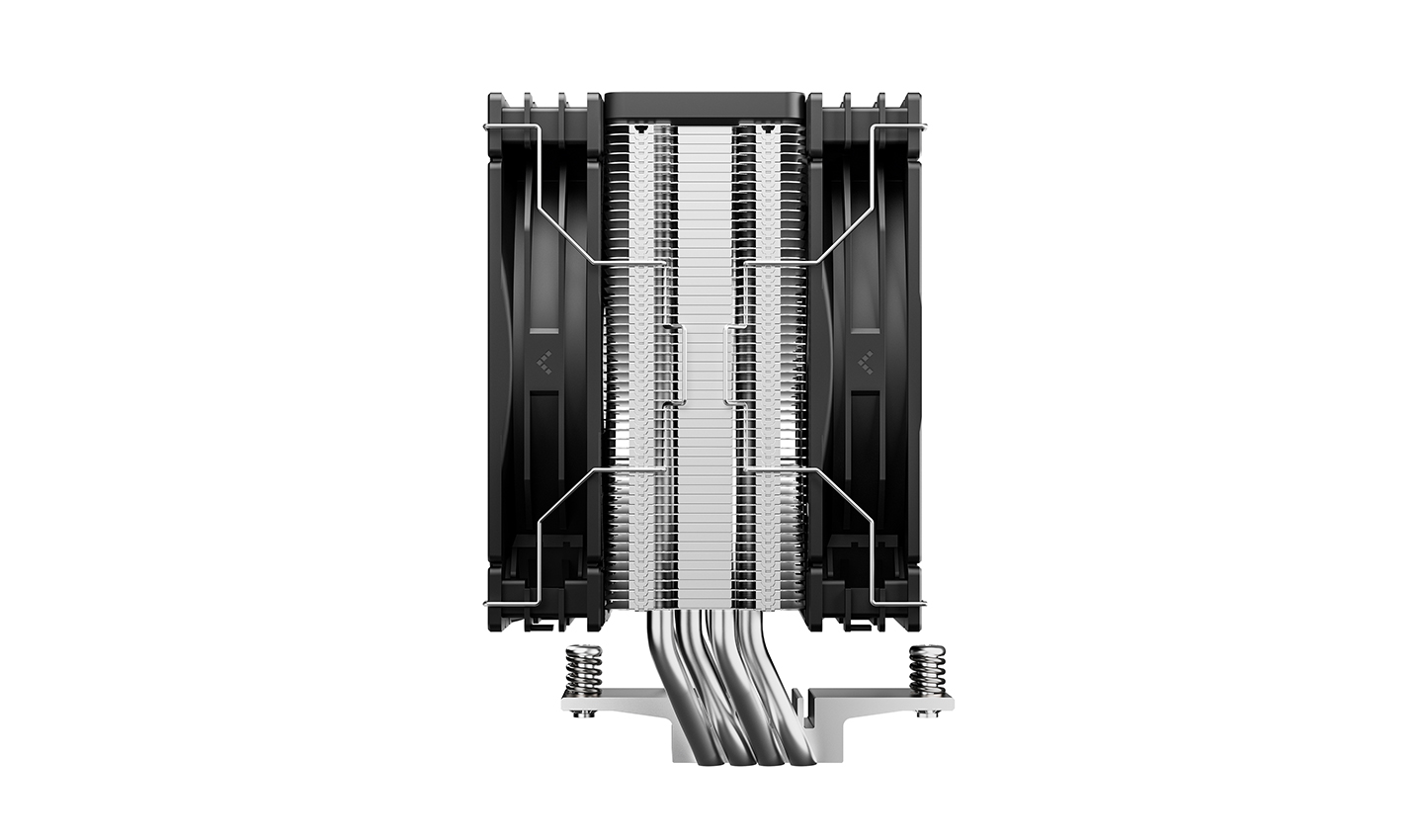

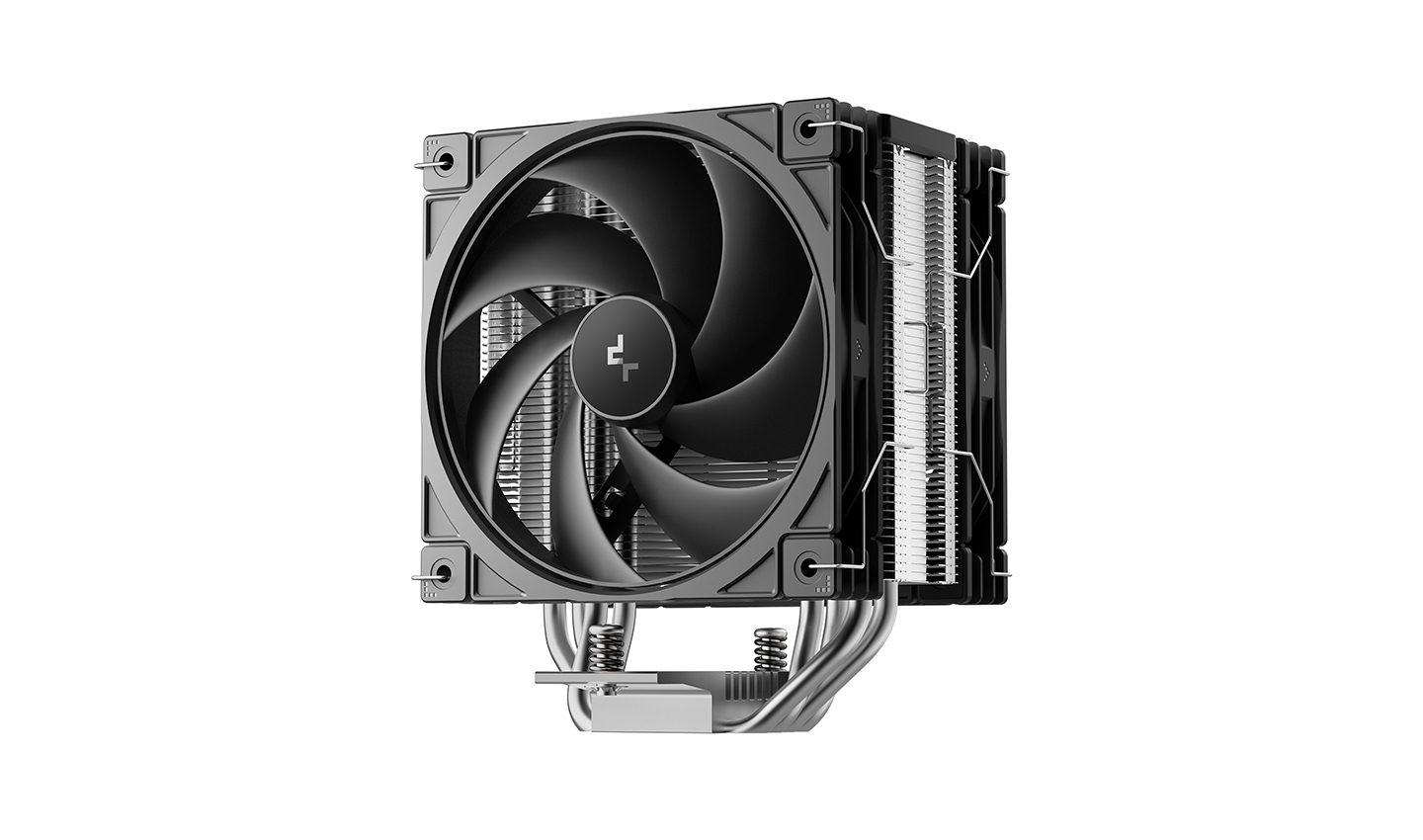

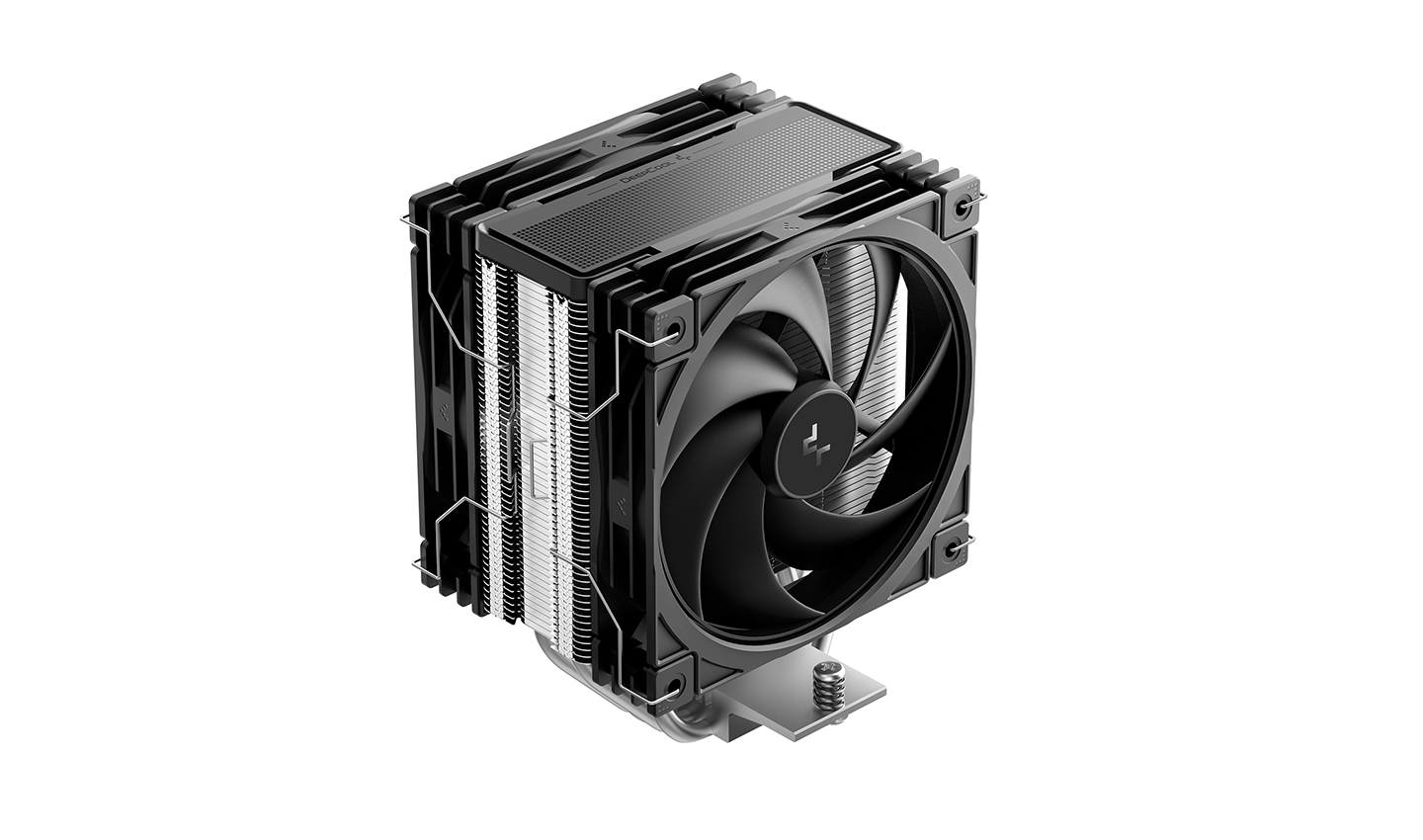

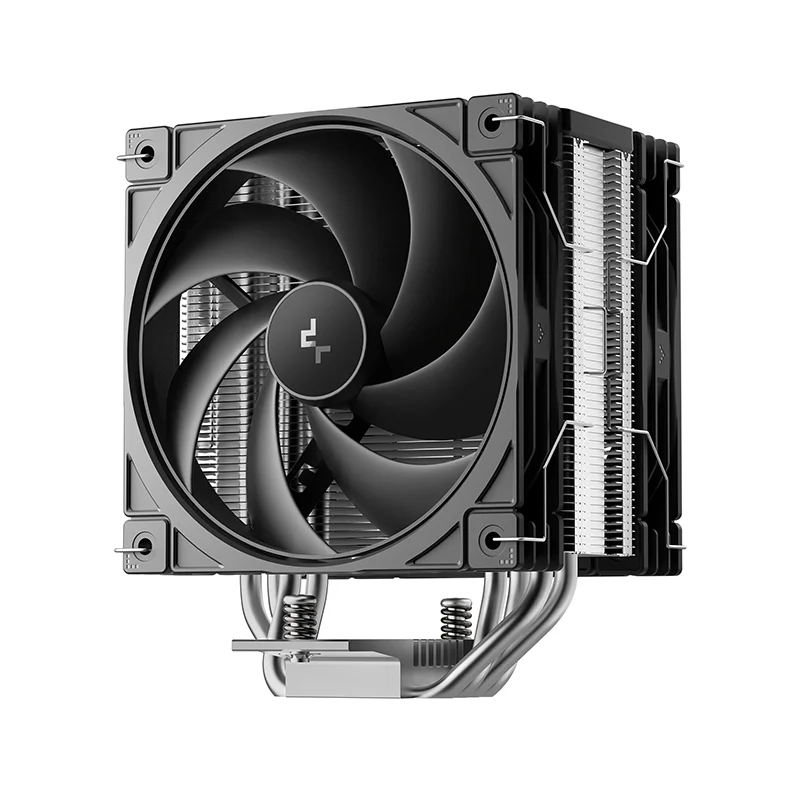

AG400 G2 PLUS

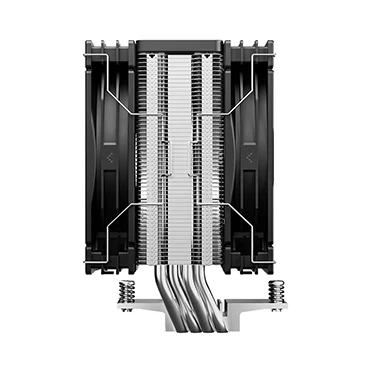

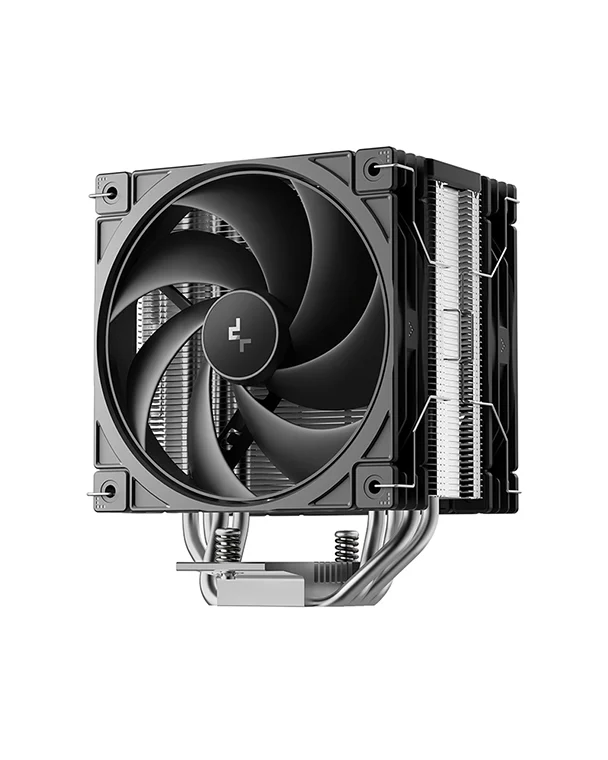

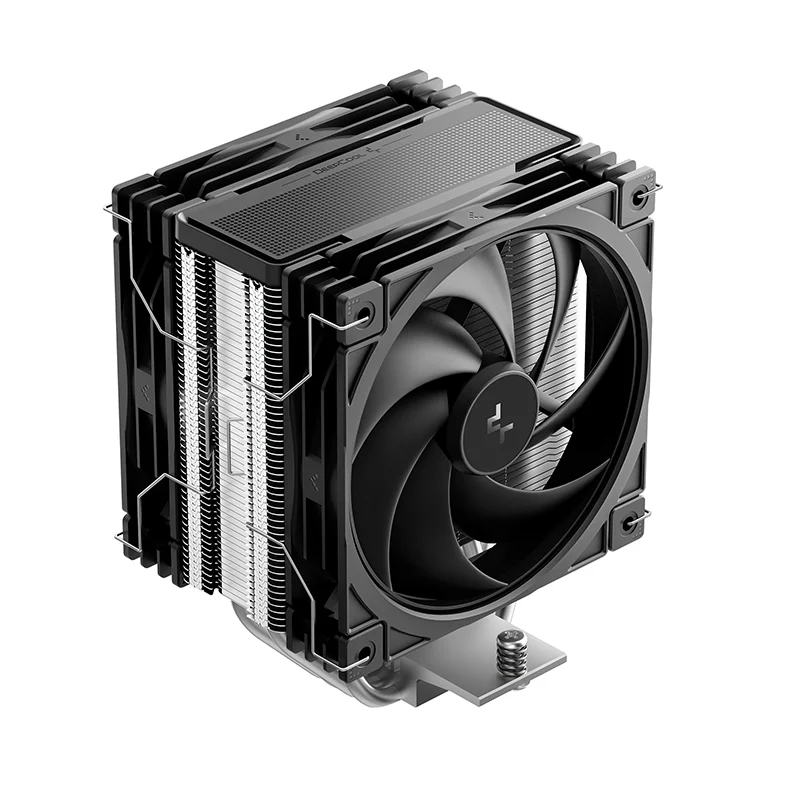

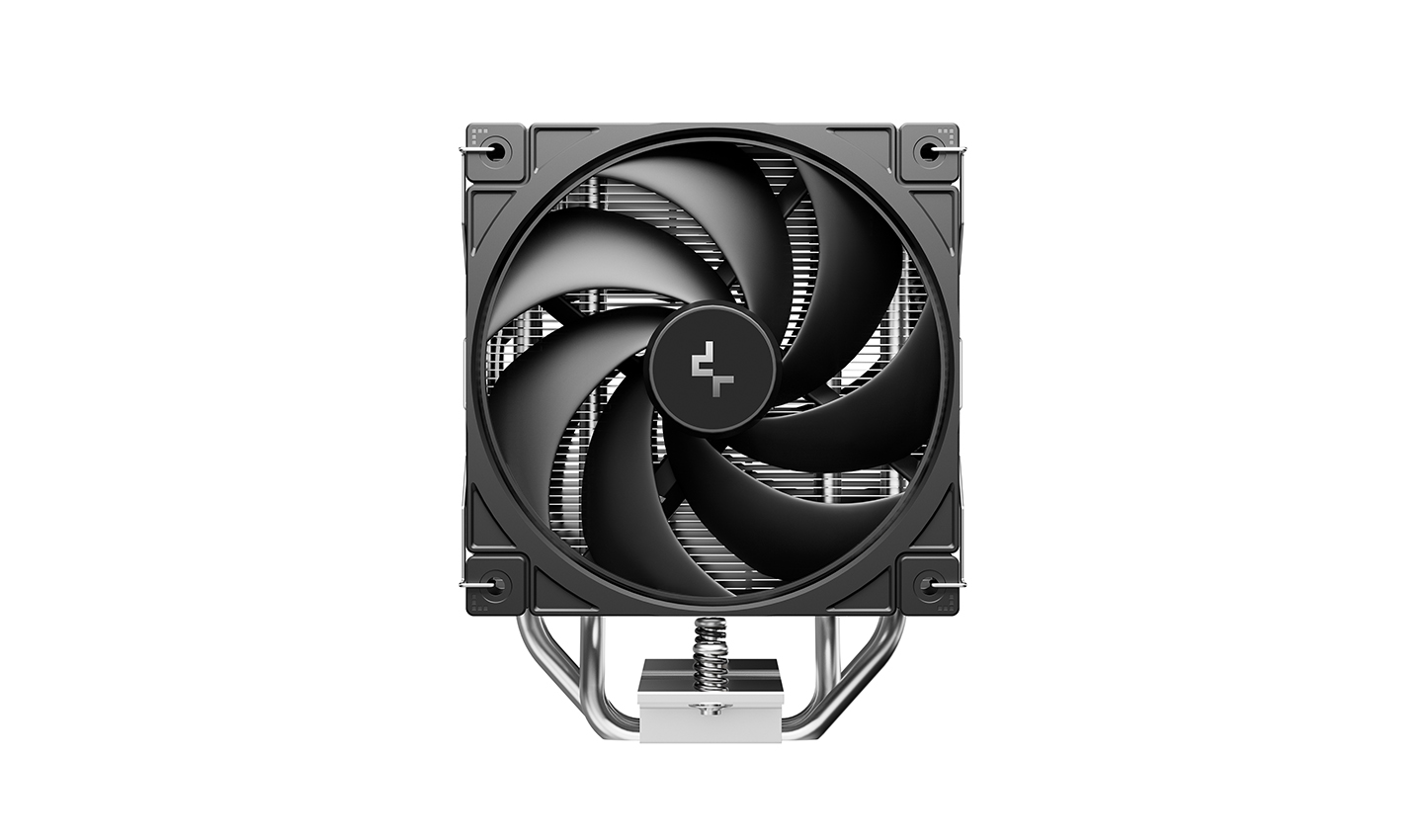

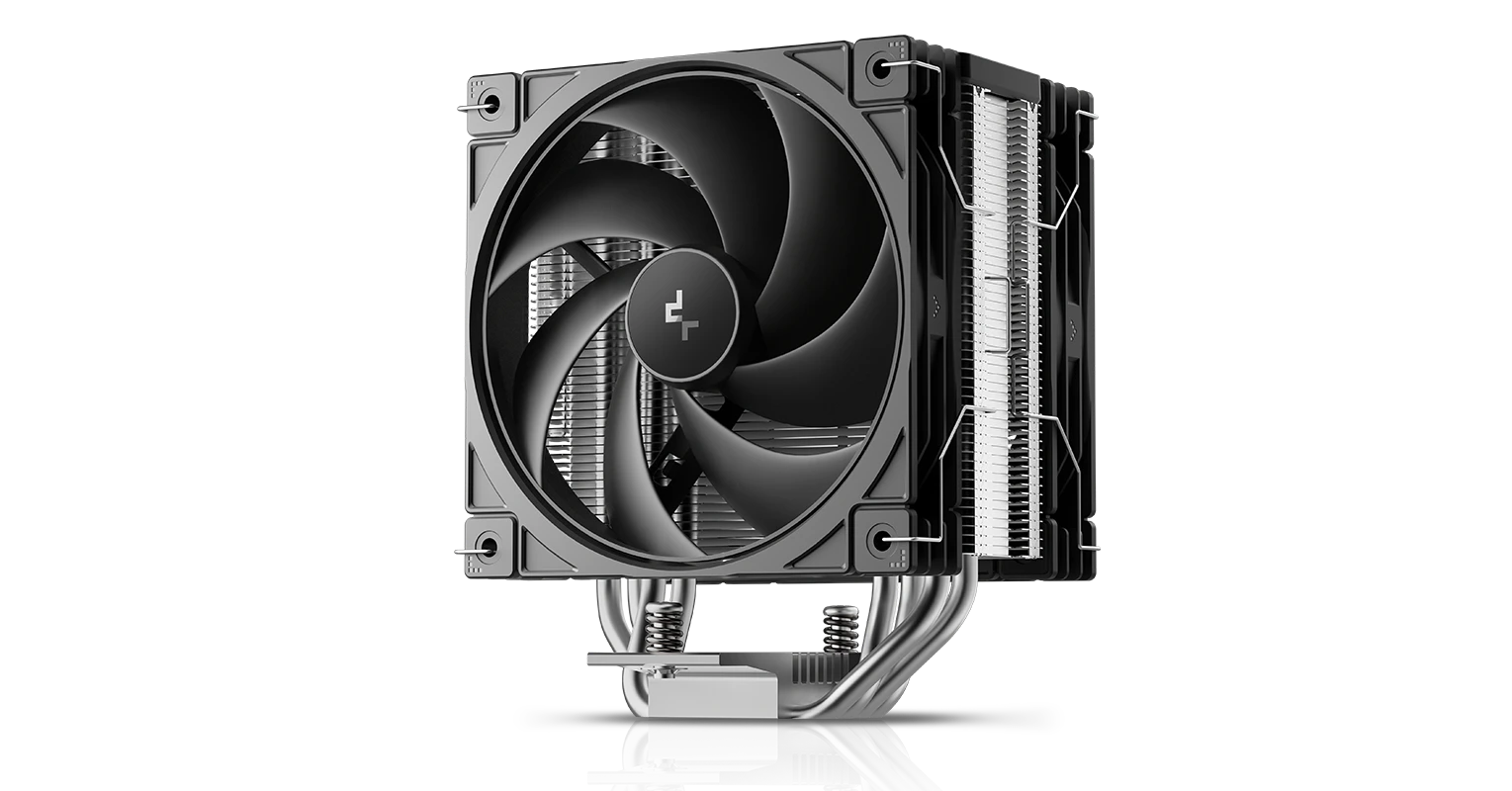

The AG400 G2 PLUS raises the bar for single-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring four heat pipes embedded in a dense single-tower heatsink and paired with two finely tuned 120mm PWM fans for seriously powerful airflow and thermal transfer.
MODEL
AG400 G2 PLUS
COOLING REDEFINED
NEXT GENERATION PERFORMANCE

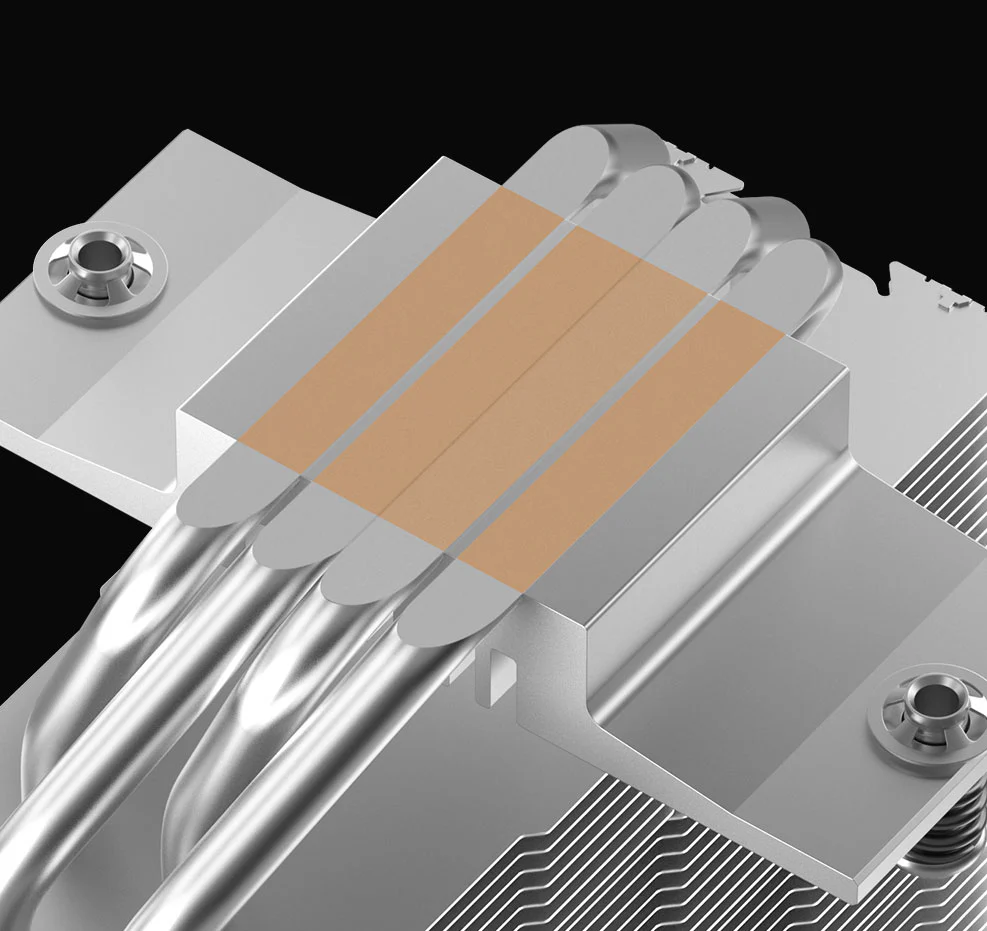

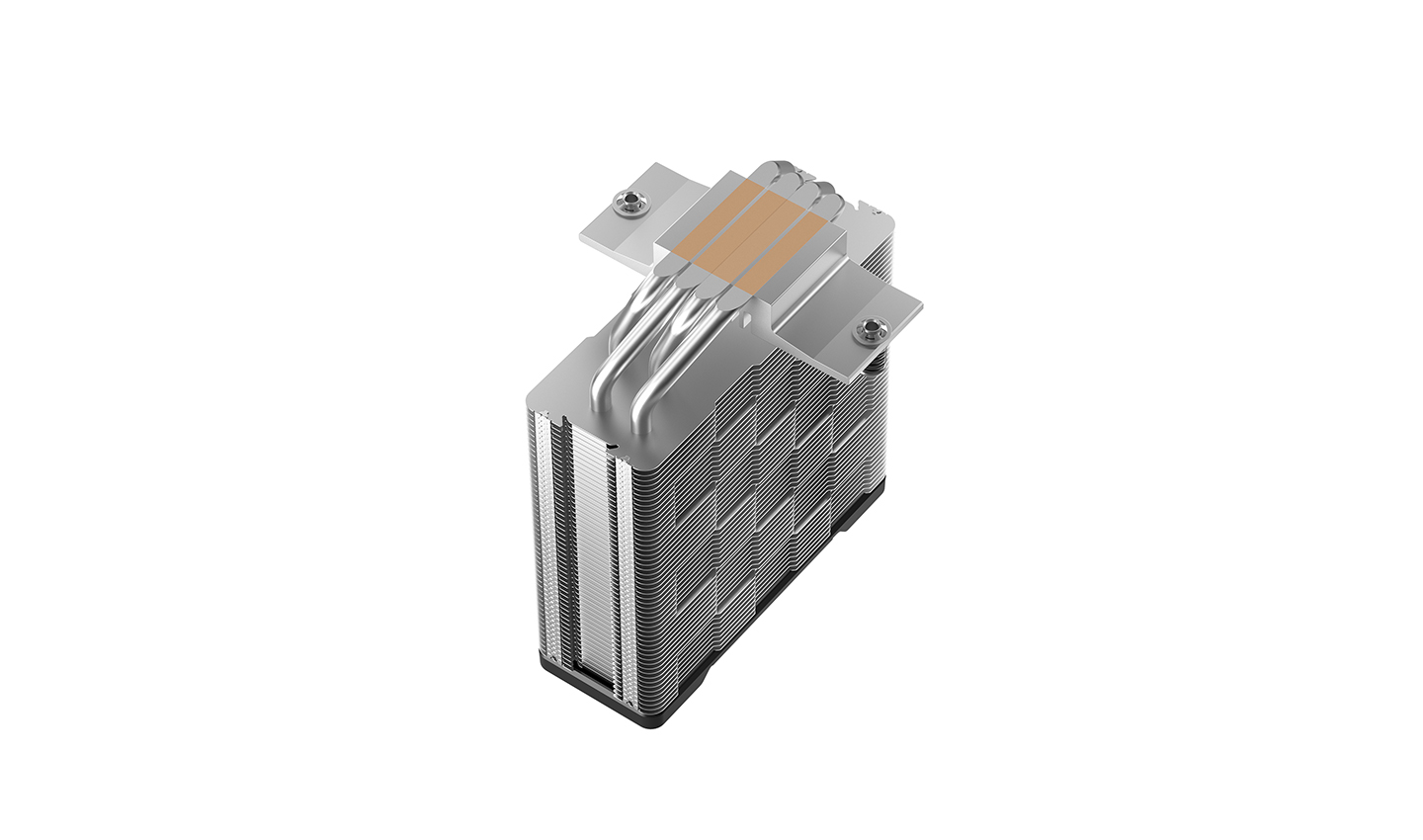

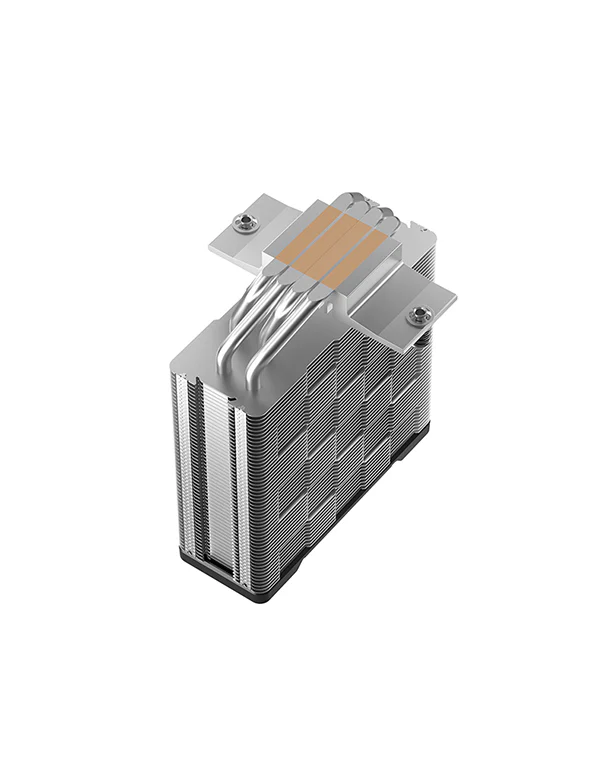

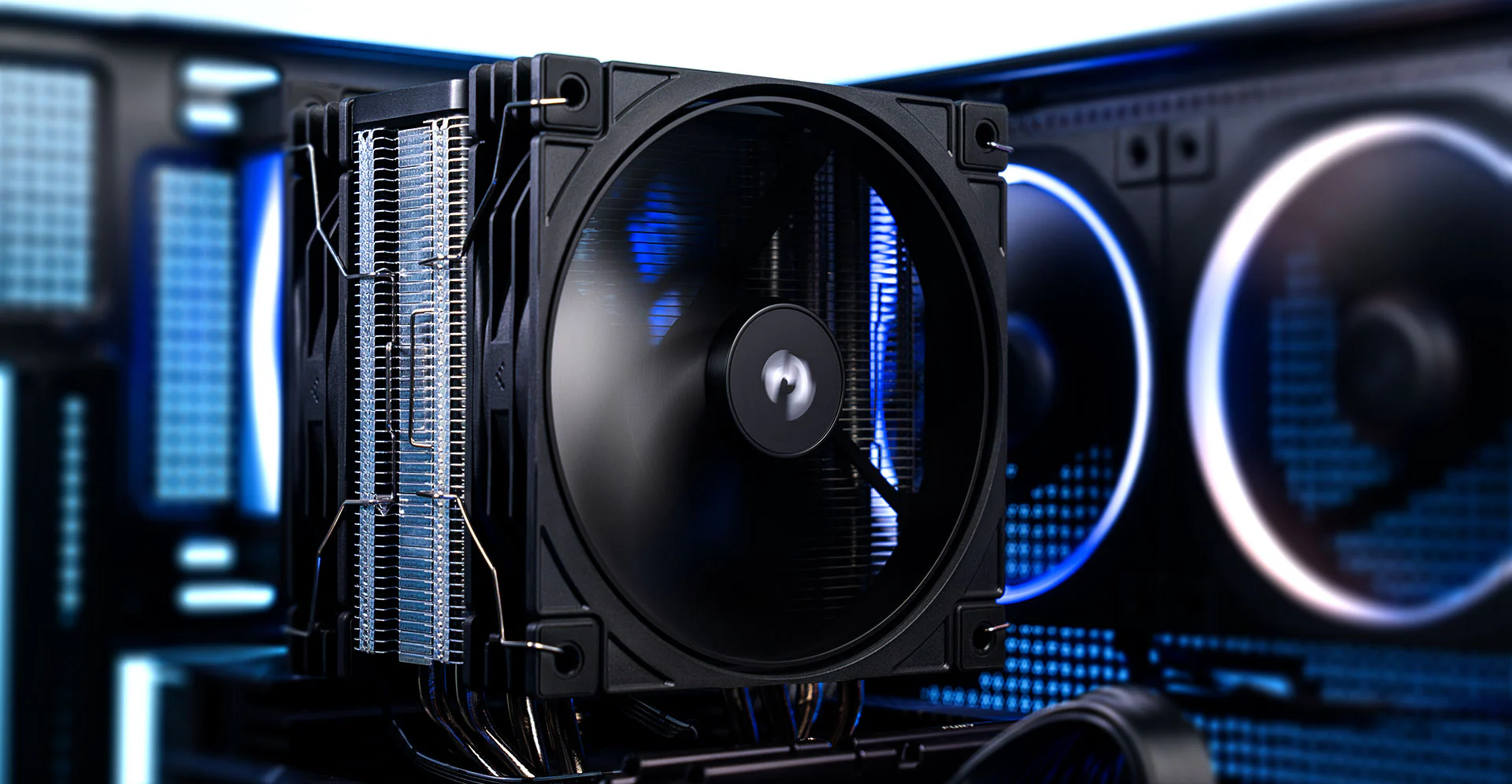

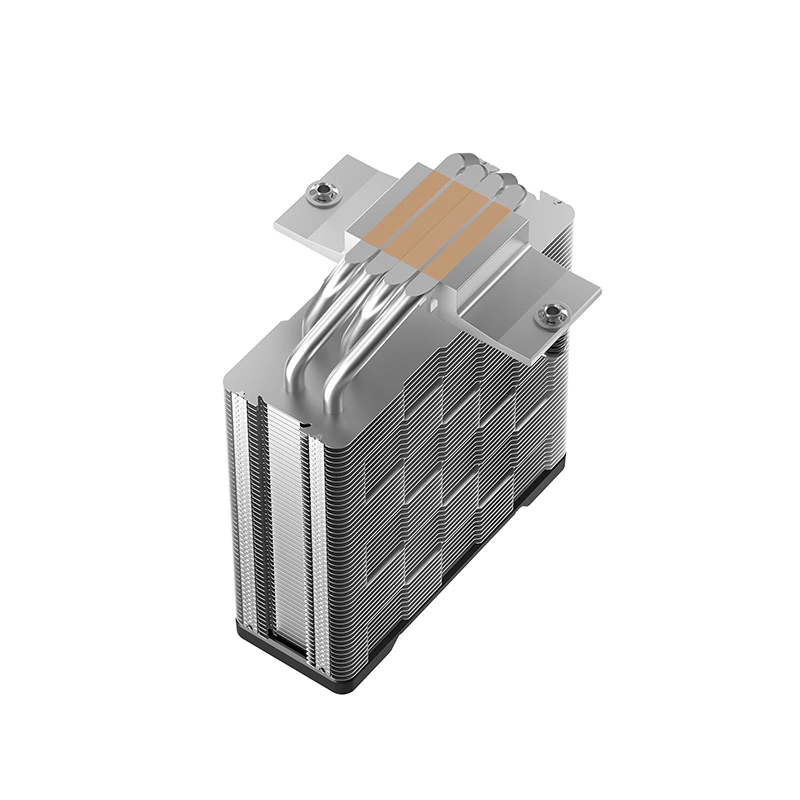

With an optimized tower layout and four direct-contact heat pipes for rapid heat transfer, the AG400 G2 PLUS delivers stronger cooling performance than its predecessor.
STYLED TO IMPRESS

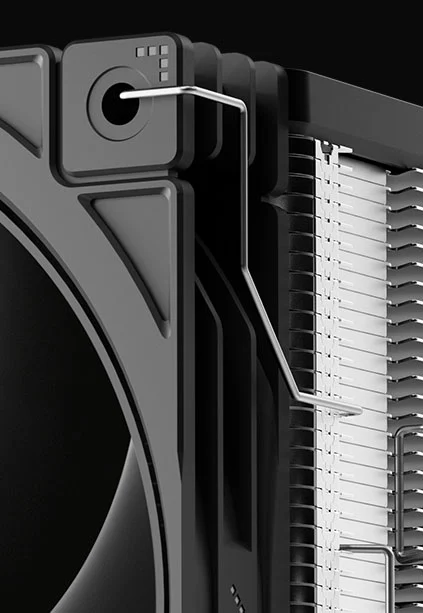

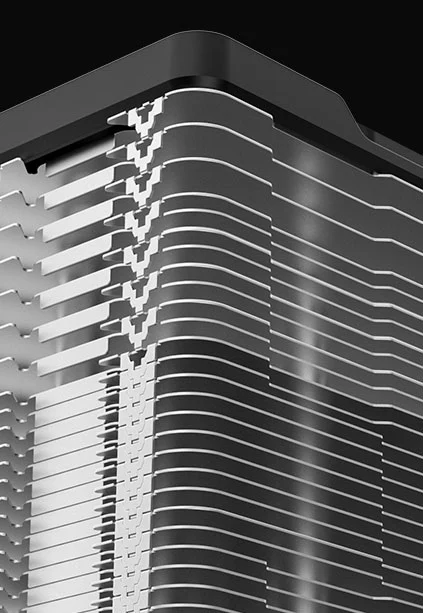

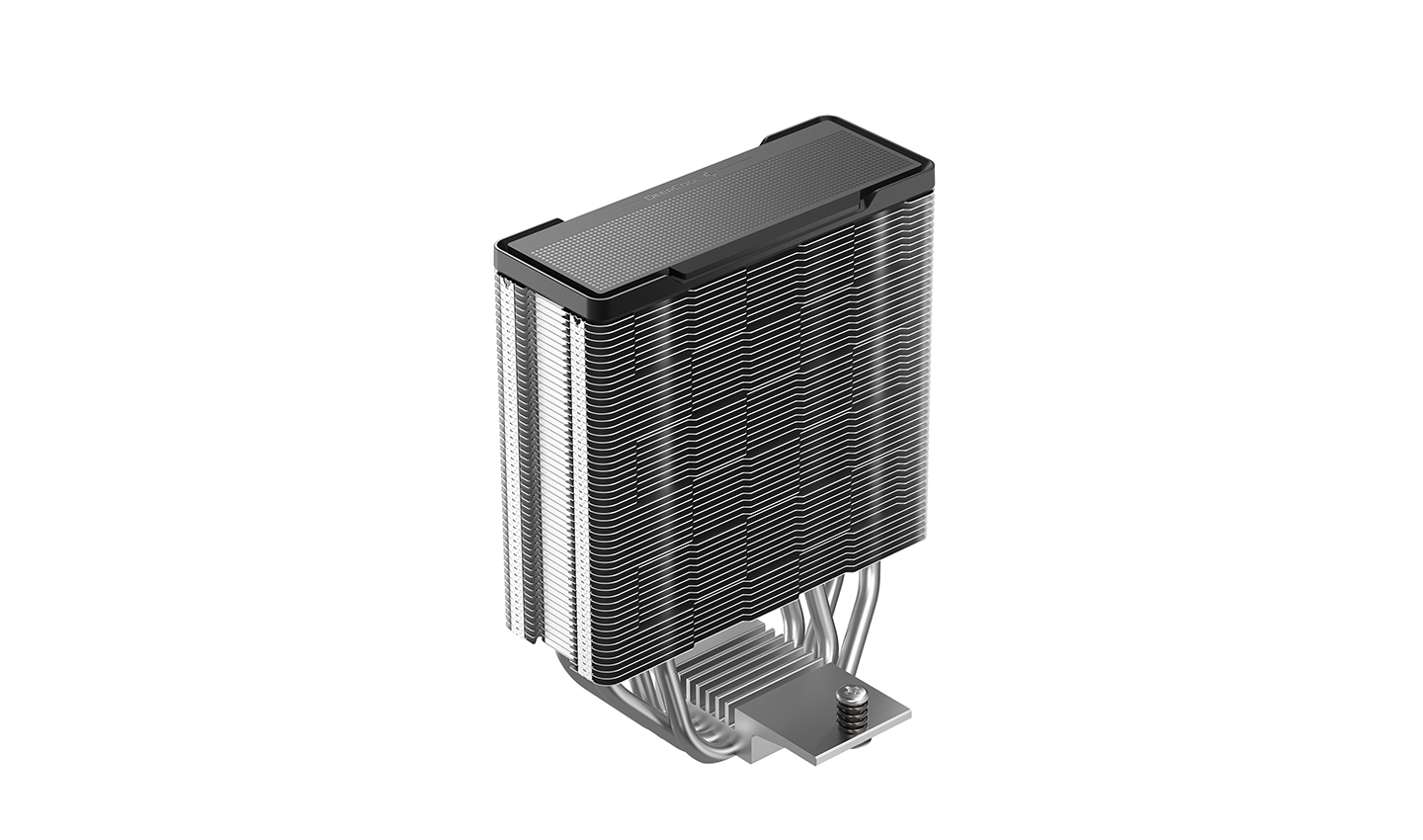

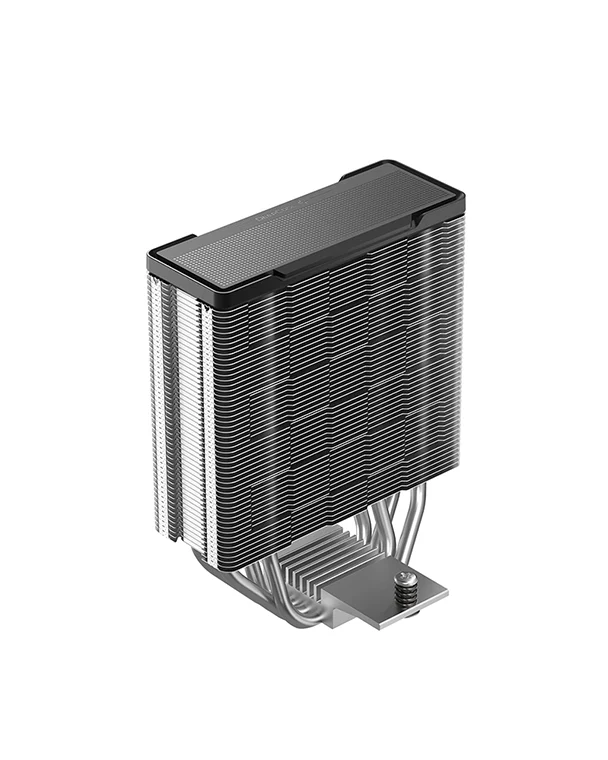

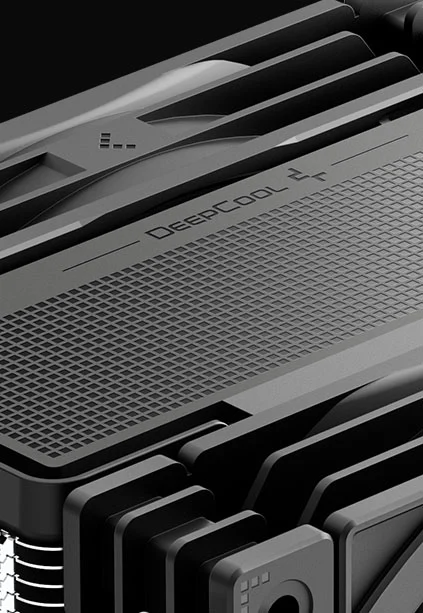

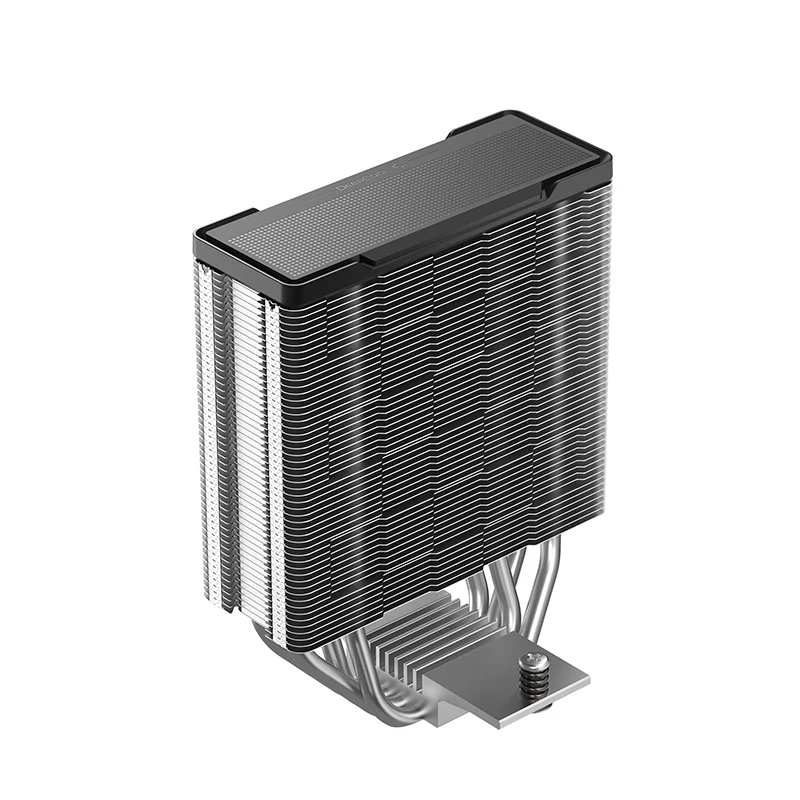

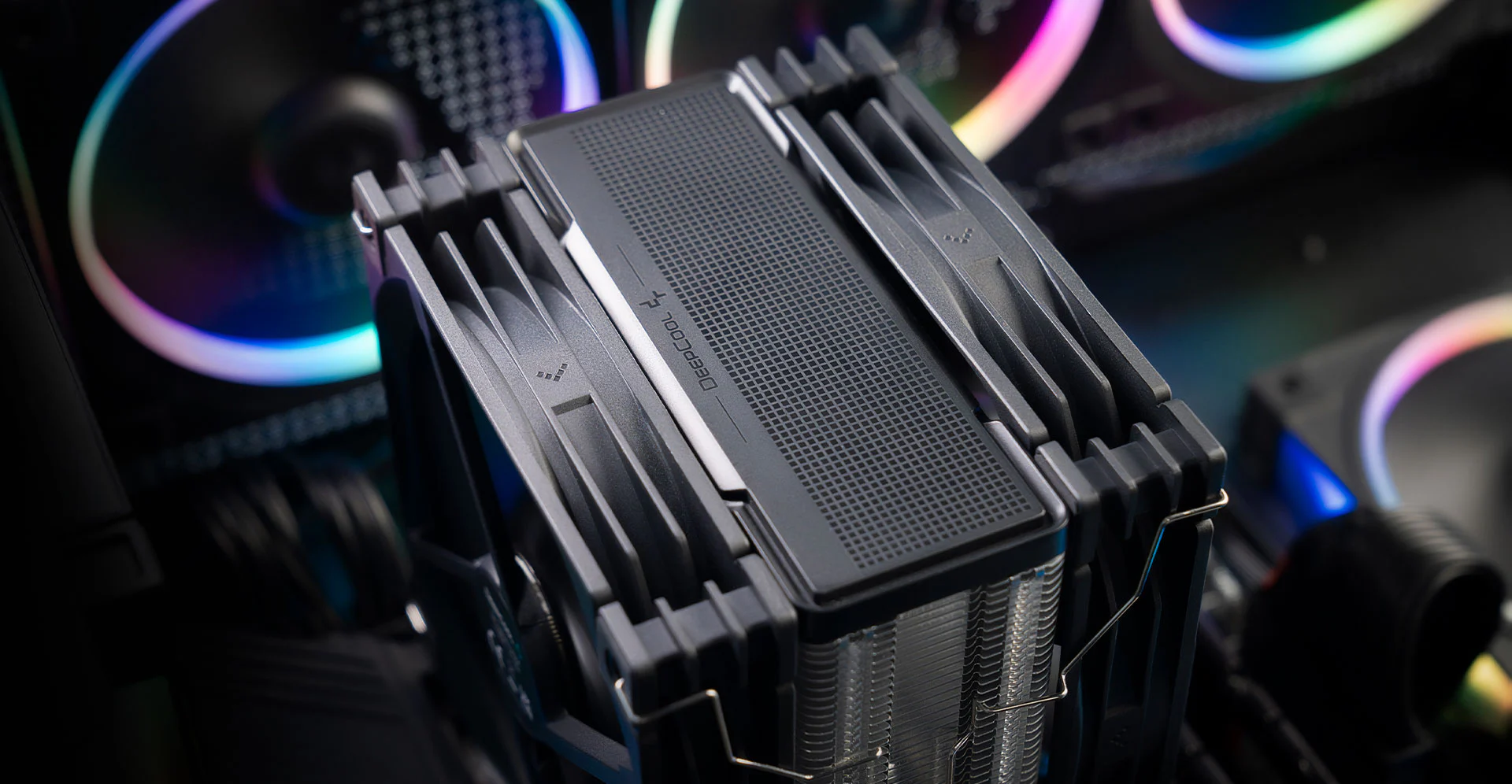

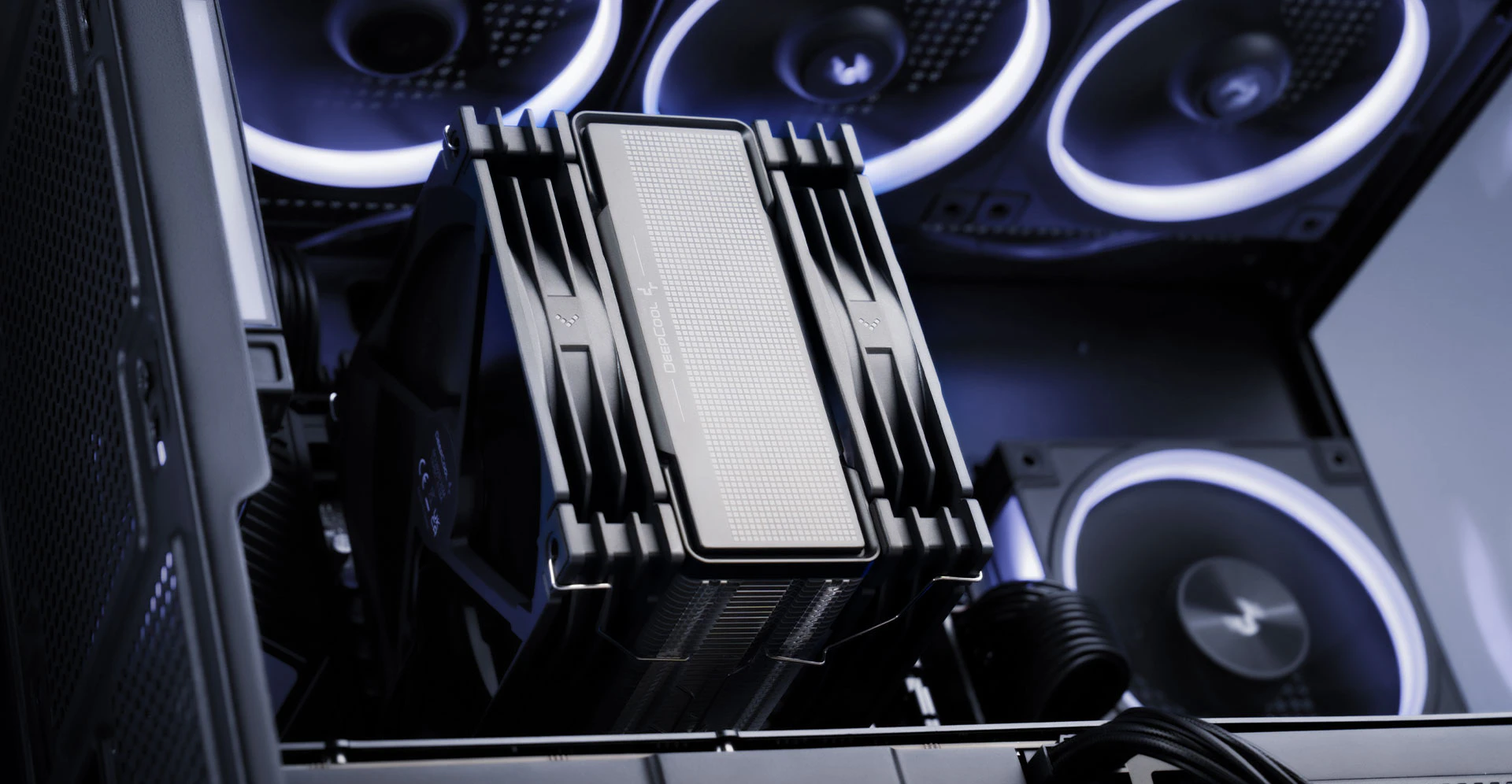

The AG400 G2 PLUS retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted four heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.
COOL, QUIET,
AND POWERFUL

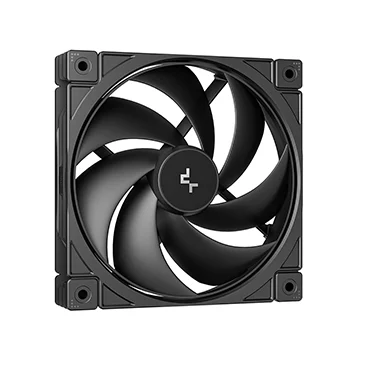

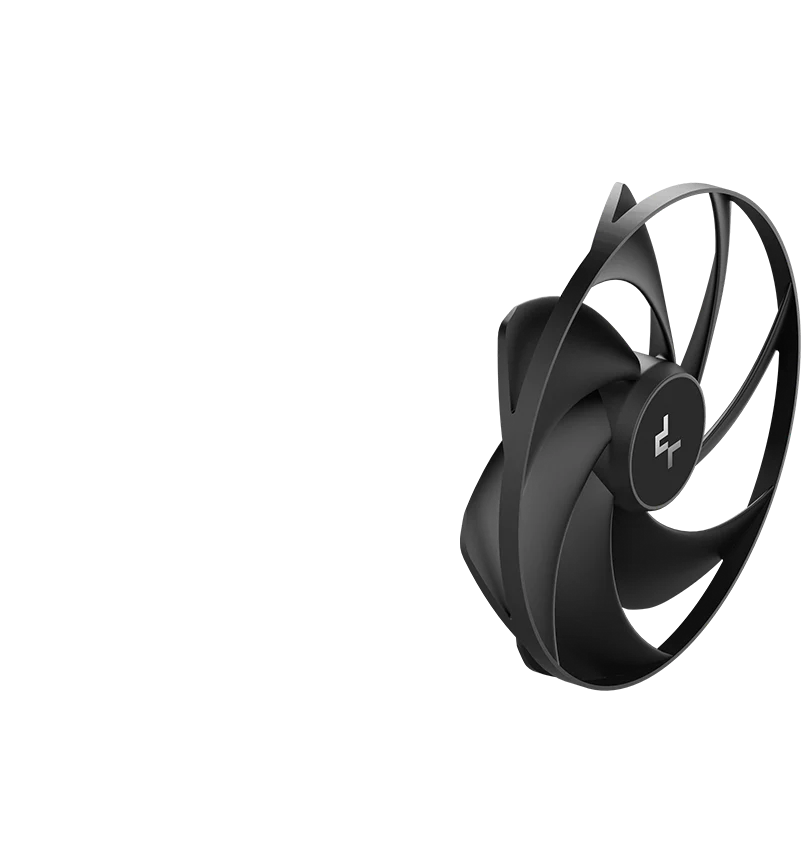

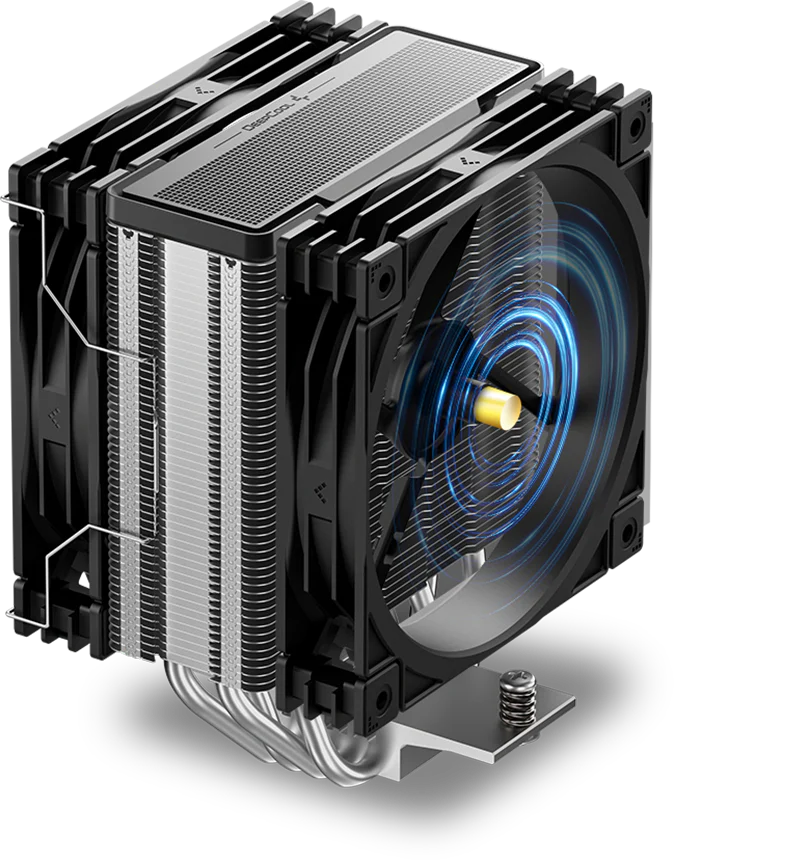

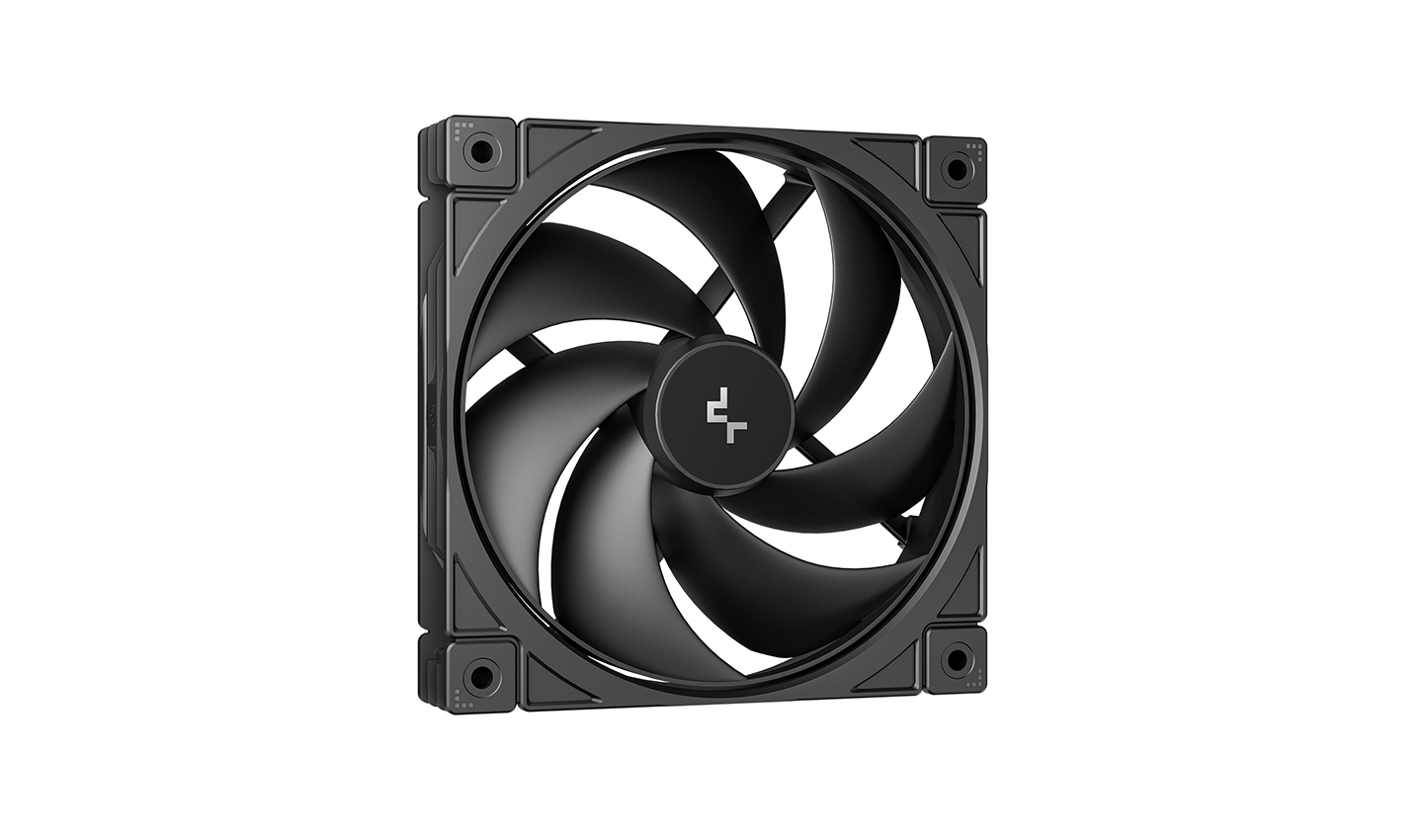

Outfitted with all-new semi-integral blade fans designed for optimal balance in top performance under load to silent efficiency when idle. This innovative setup optimizes airflow and static pressure while dramatically reducing noise.
500-2000±10% RPM / 500-2200±10% RPM
Fan Speed
63.56 CFM / 70.09 CFM
Fan Airflow
1.98 mmAq / 2.49 mmAq
Fan Air Pressure
≤23.08 dB(A) / ≤29.22 dB(A)
Fan Noise

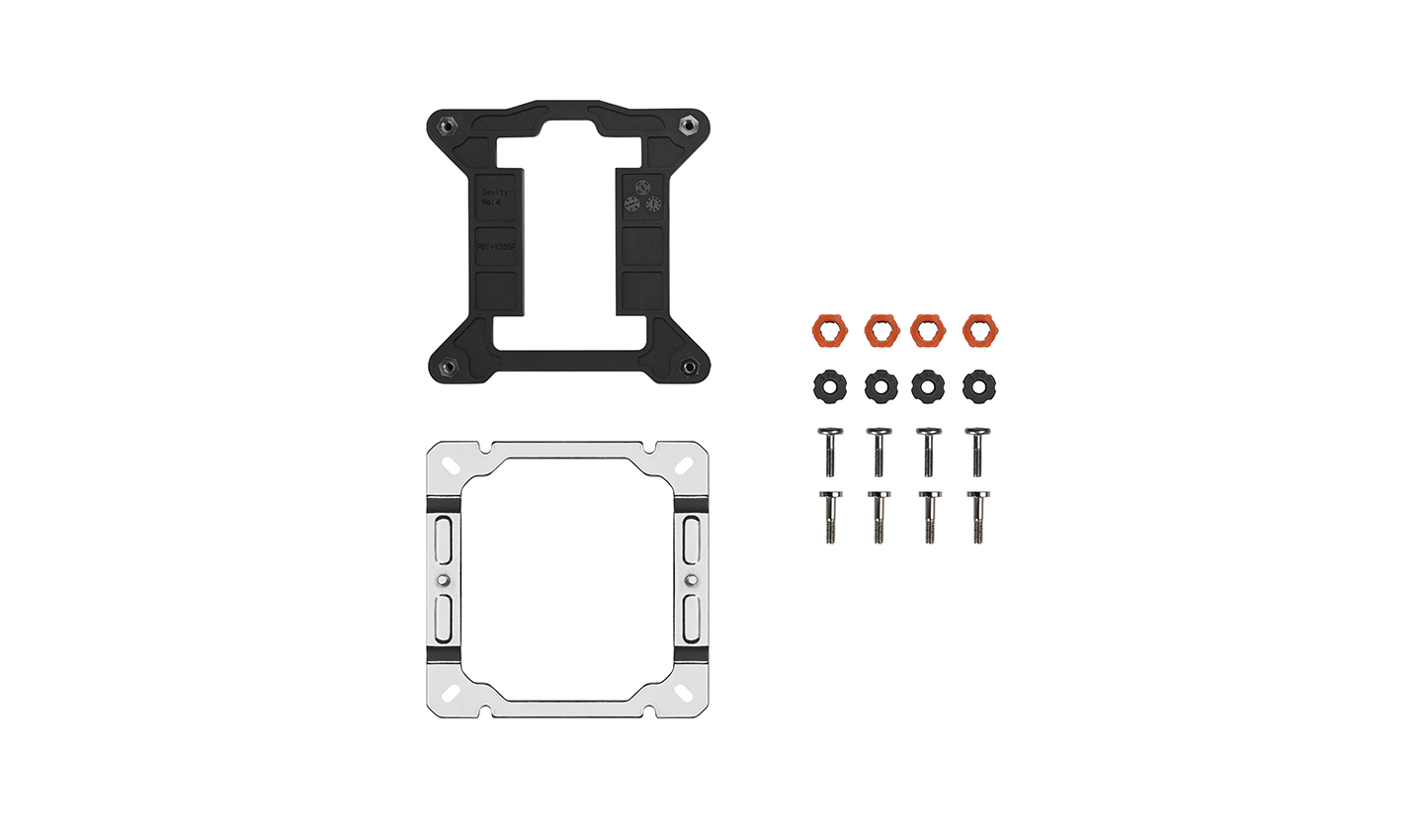

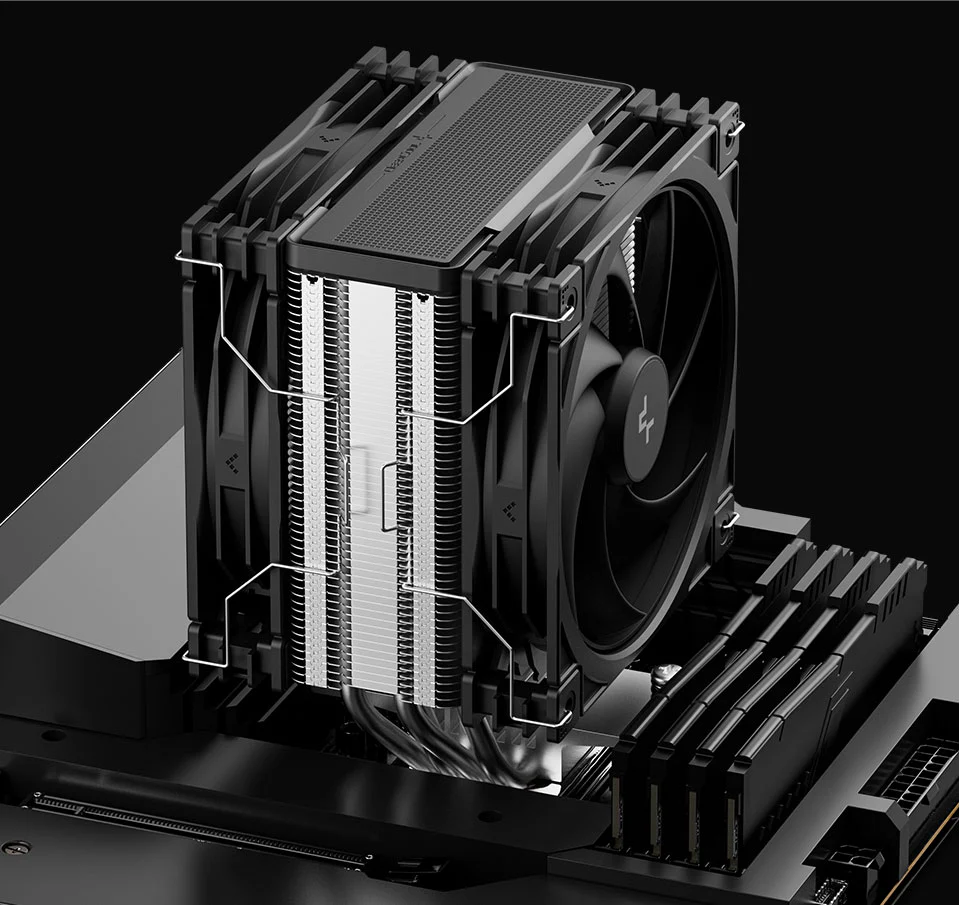

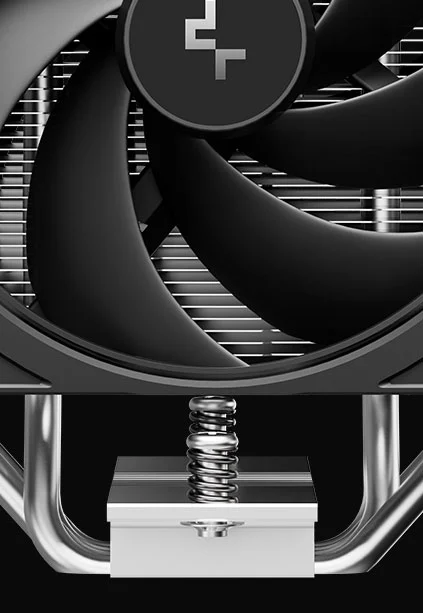

SIMPLE AND SECURE INSTALLATION

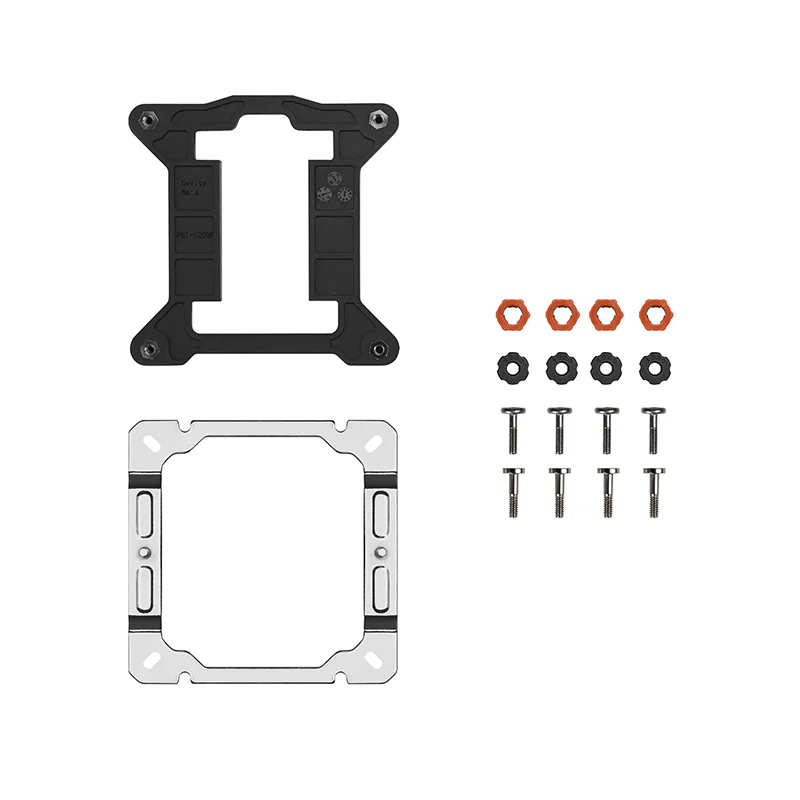

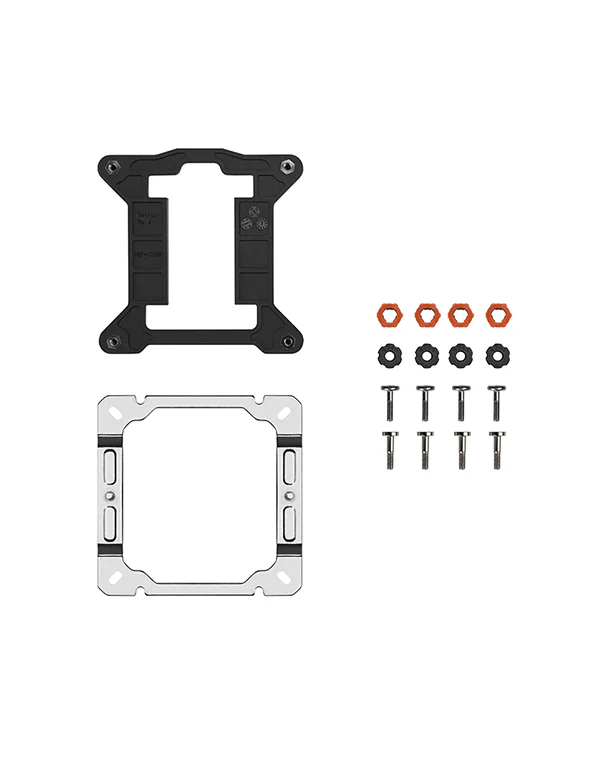

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
INTEL LGA1851/1700
AMD AM5/AM4
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions125×107×152 mm(L×W×H)
Heatsink Dimensions120×92×150 mm(L×W×H)
Net Weight764 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2000±10% RPM / 500~2200±10% RPM
Fan Motor1-phase，4-slot，4-pole
Fan Airflow63.56 CFM / 70.09 CFM
Fan Air Pressure1.98 mmAq / 2.49 mmAq
Fan Noise≤23.08 dB(A) / ≤29.22 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.15 A / 0.18 A
Fan Power Consumption1.8 W / 2.16 W
EAN6933412730170
P/NR-AG400-BKNPMG2-G-1
Download
AG400 G2 PLUS Manual.pdf
