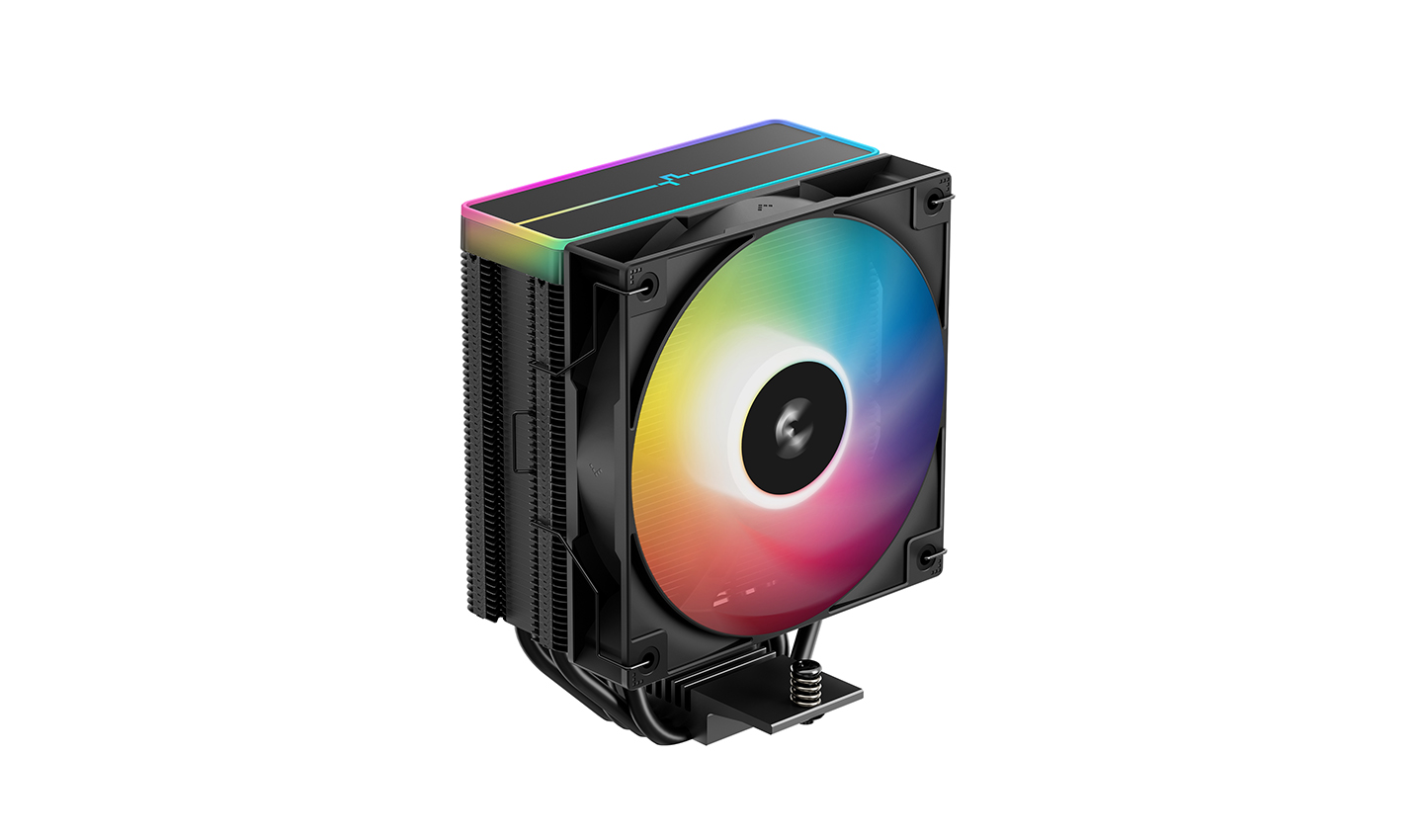

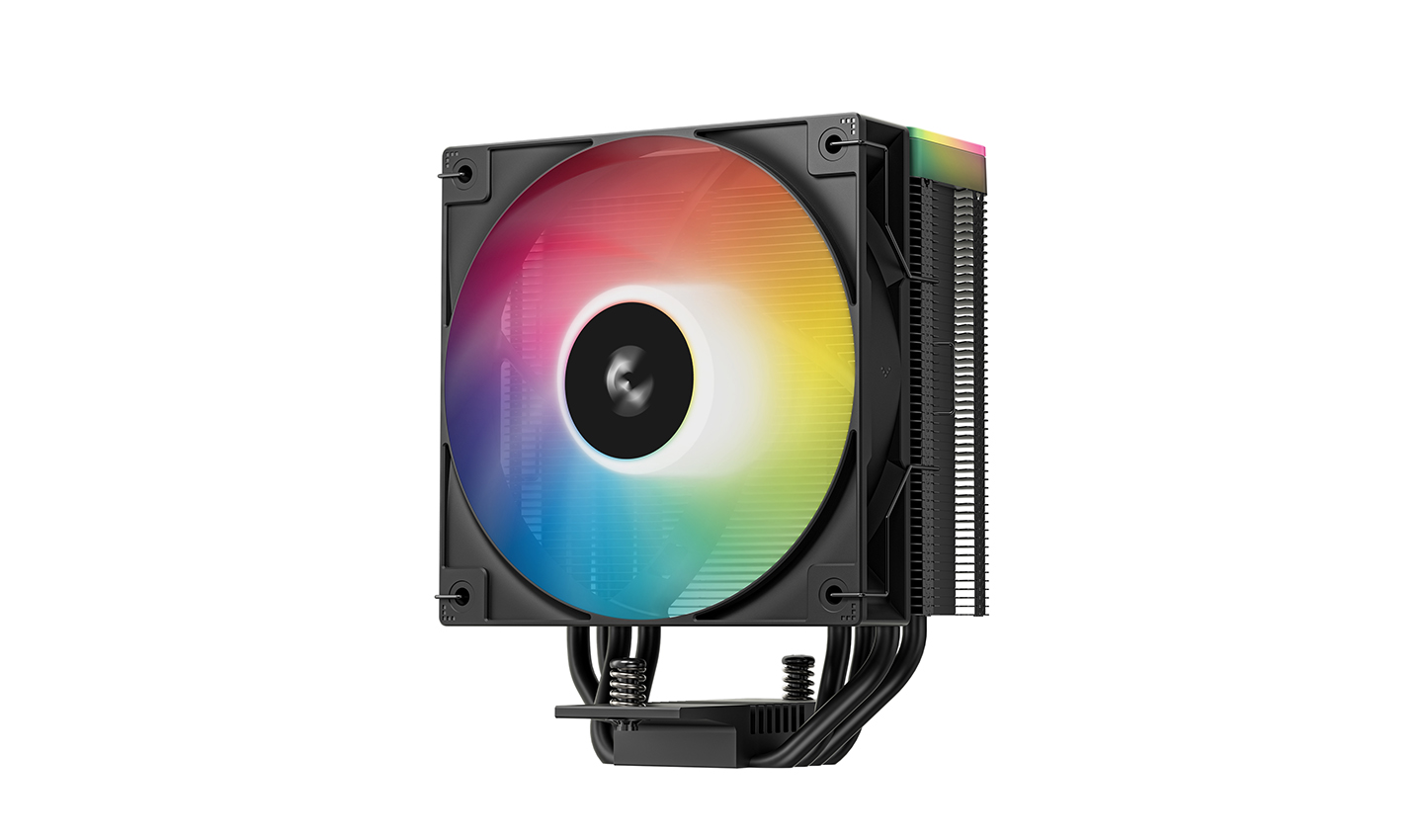

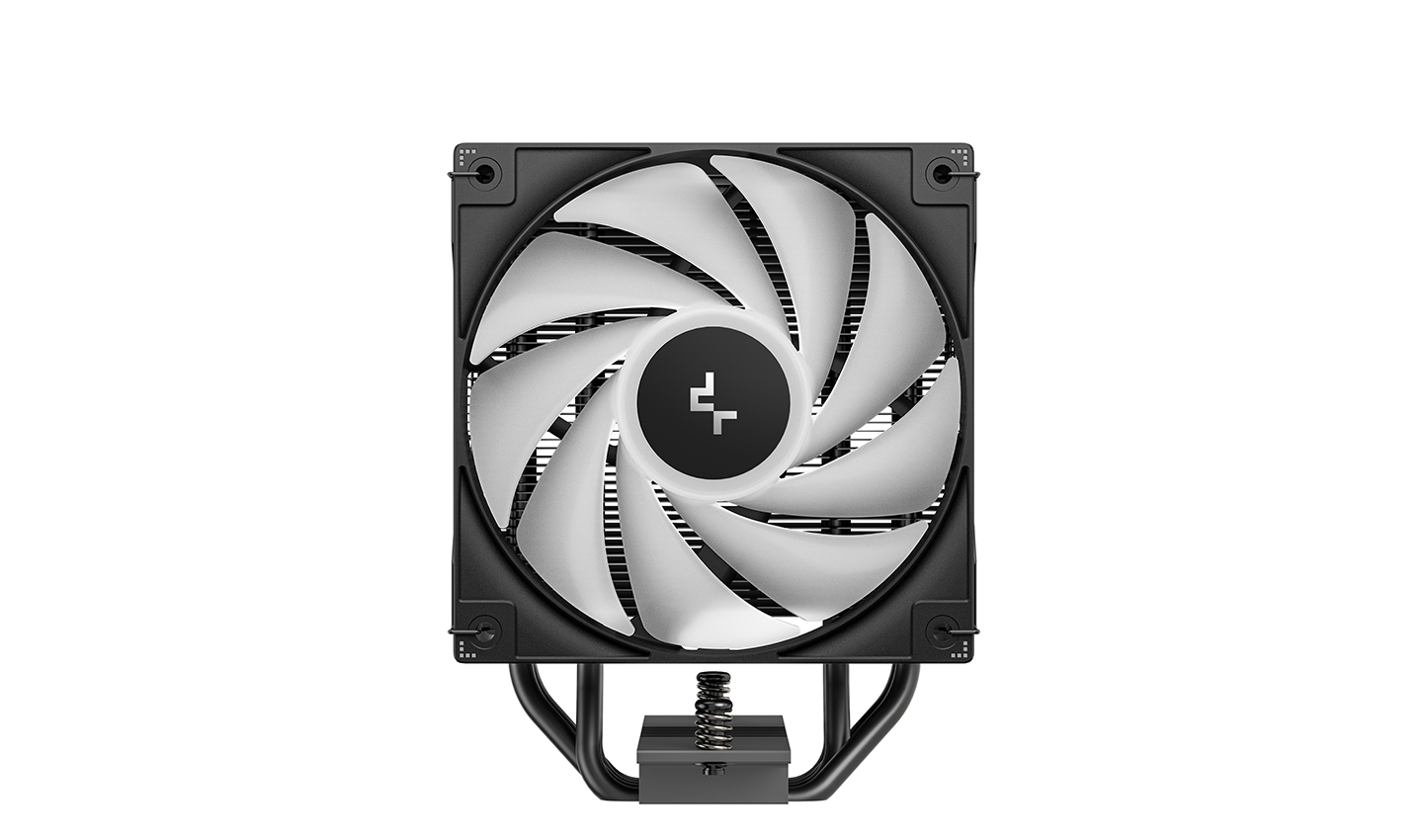

AG400 BK ARGB V2

POWER MEETS GLOW

BRILLIANCE IN DESIGN

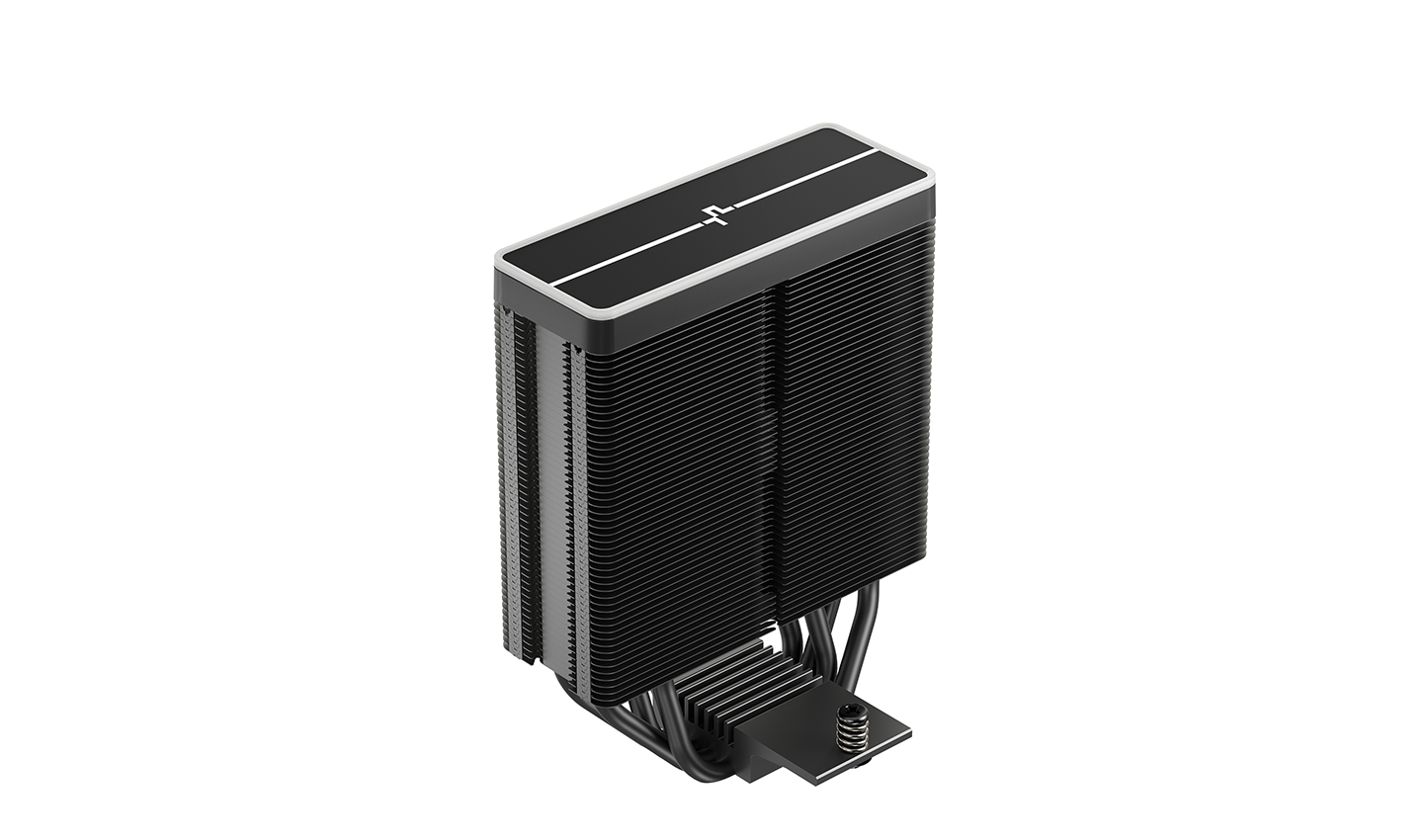

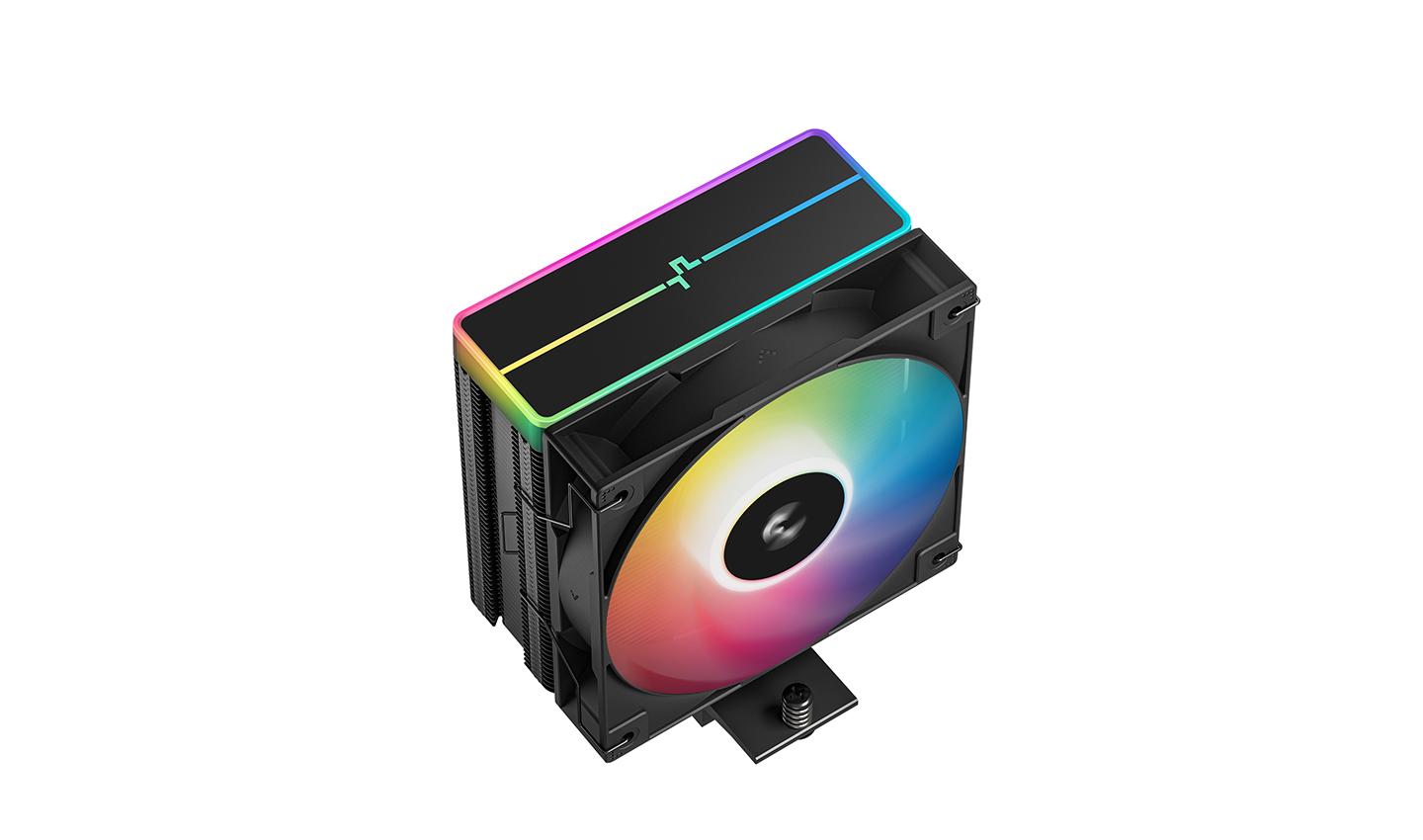

DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. Paired with a unique ARGB top cover and a minimalist translucent logo design, AG400 BK ARGB V2 provides an unprecedented and unique lighting effect.

BRILLIANCE IN DESIGN

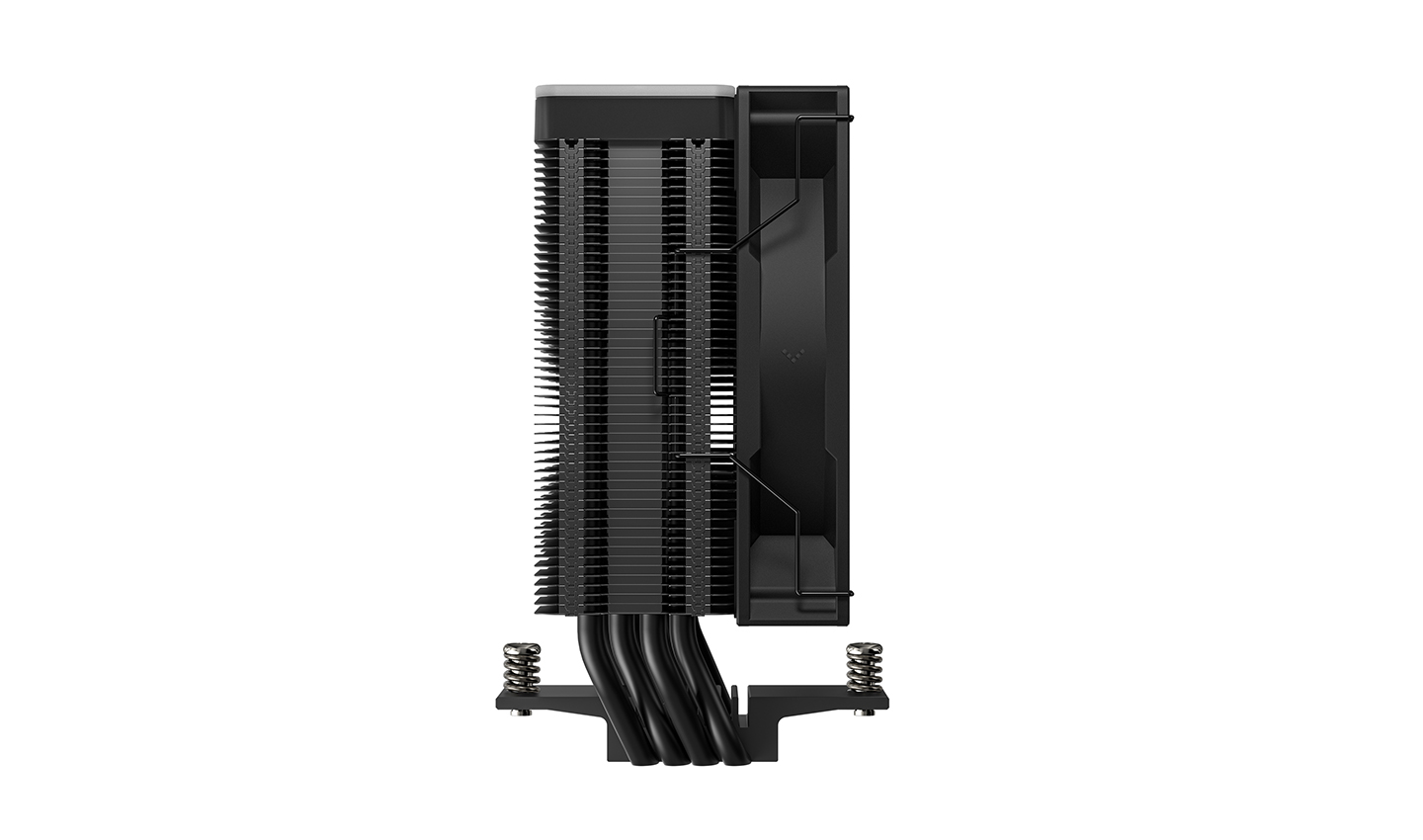

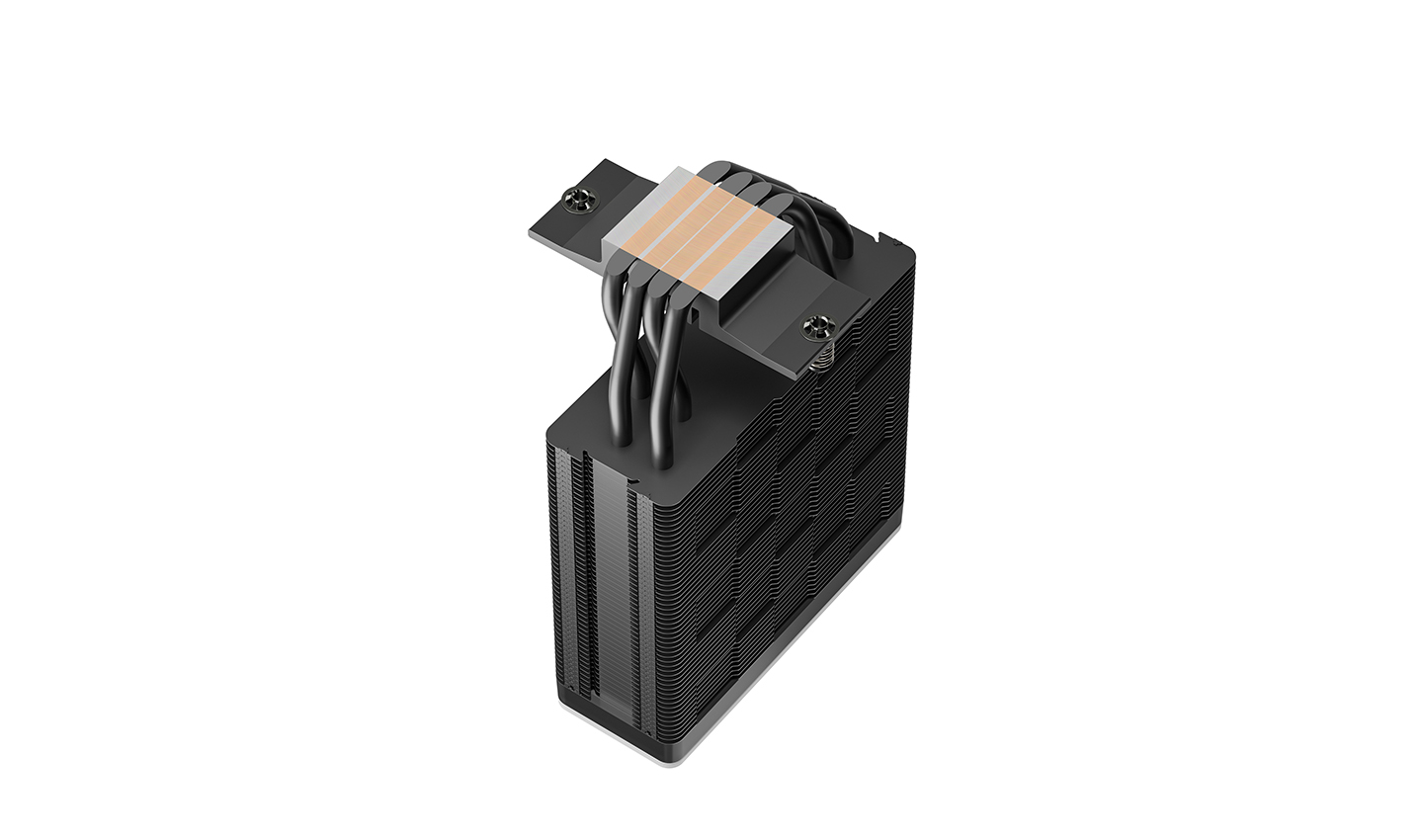

BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY

By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.

This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

BRIGHT, QUIET, AND CAPABLE

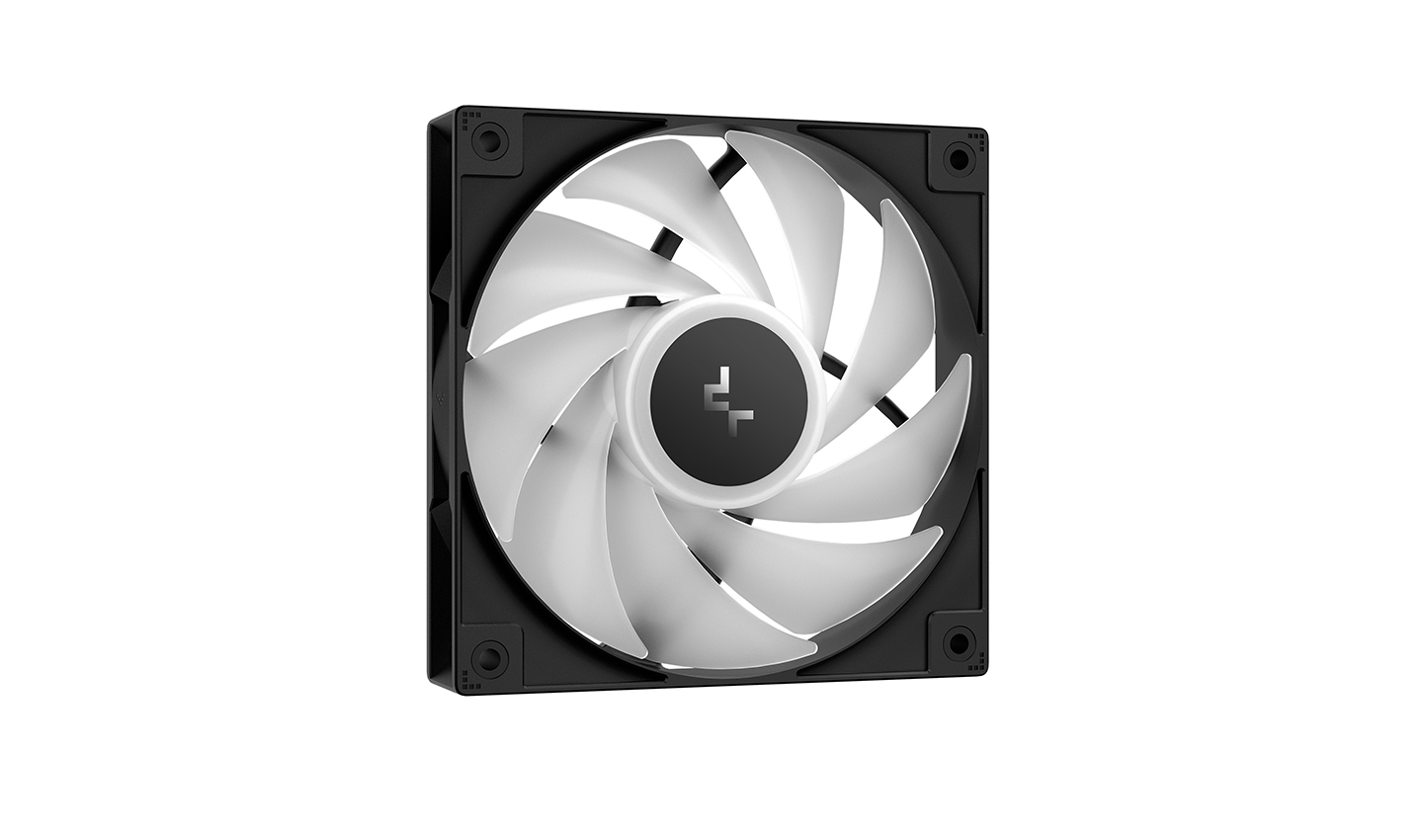

Get the best of both worlds with a fine-tuned 120mm ARGB PWM fan designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.

500~2100 RPM±10%

Fan Speed

75.89 CFM

Airflow

≤31.6 dB(A)

Noise Level

SIMPLE AND SECURE INSTALLATION

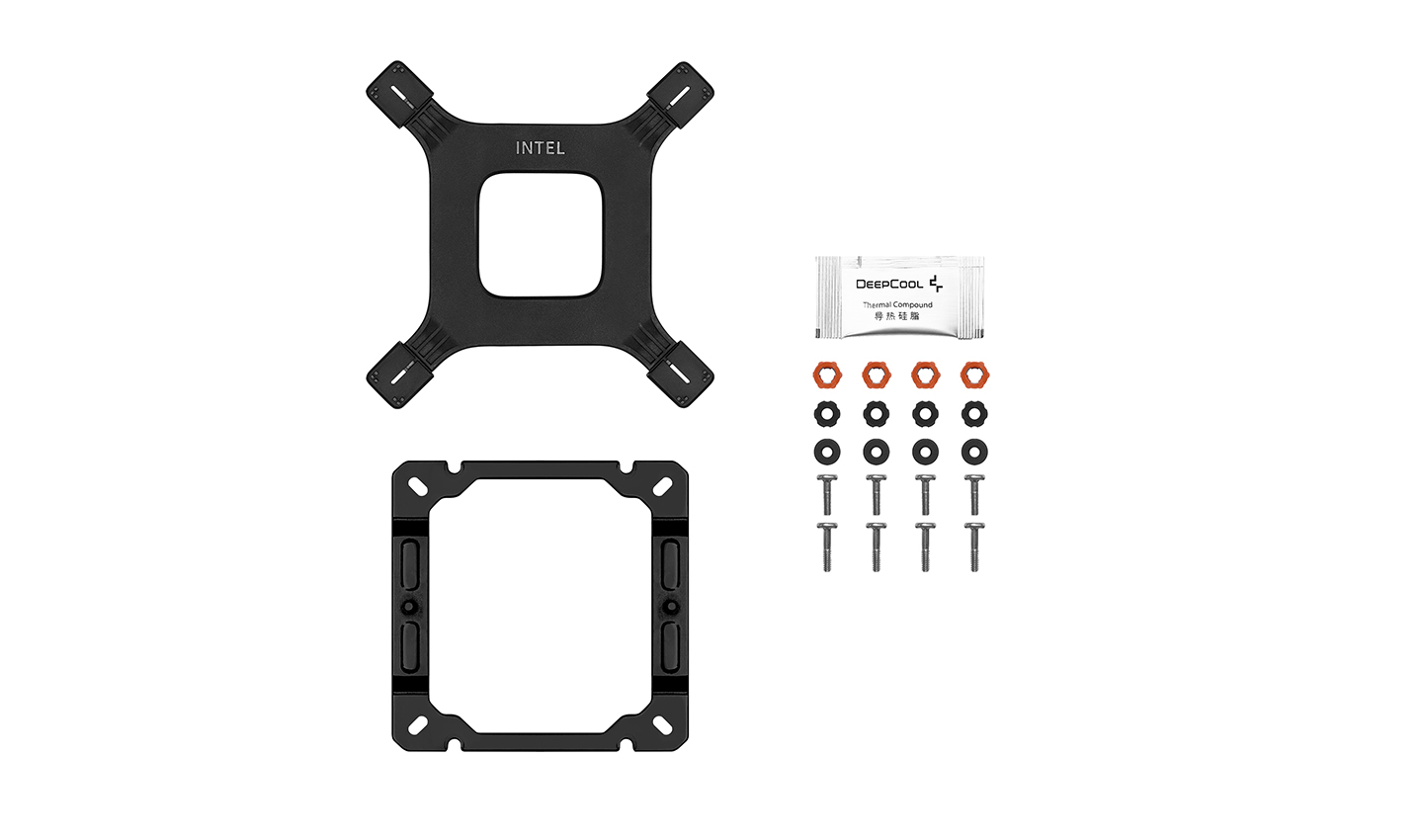

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

LGA1851/1700/1200/115X

INTEL

AM5/AM4

AMD

Application For

Intel

LGA1851/1700/1200/115X

AMD

AM5/AM4

Technical Spec

Product Dimensions	125×92×154 mm(L×W×H)
Heatsink Dimensions	120×92×150 mm(L×W×H)
Net Weight	643 g
Heatpipe	Ø6 mm×4 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2100 RPM±10%
Fan Airflow	75.89 CFM
Fan Air Pressure	2.53 mmAq
Fan Noise	≤31.6 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing

Fan Rated Voltage	12 VDC
Fan Rated Current	0.17 A
Fan Power Consumption	2.04 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	3.2 W
EAN	6933412729310
P/N	R-AG400-BKAMMN-GJD
