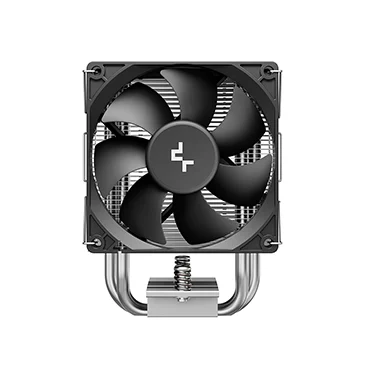

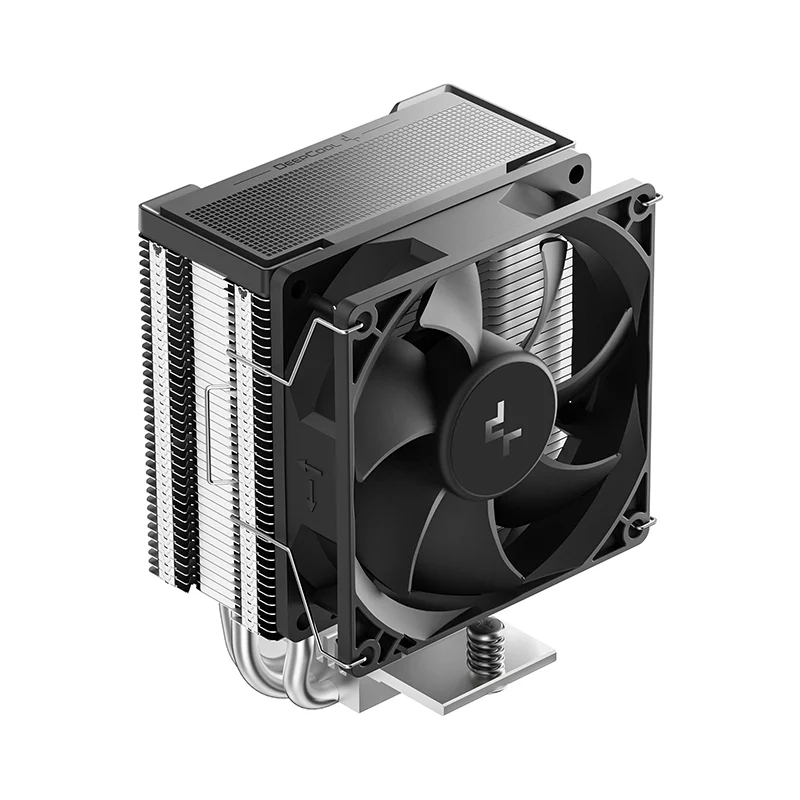

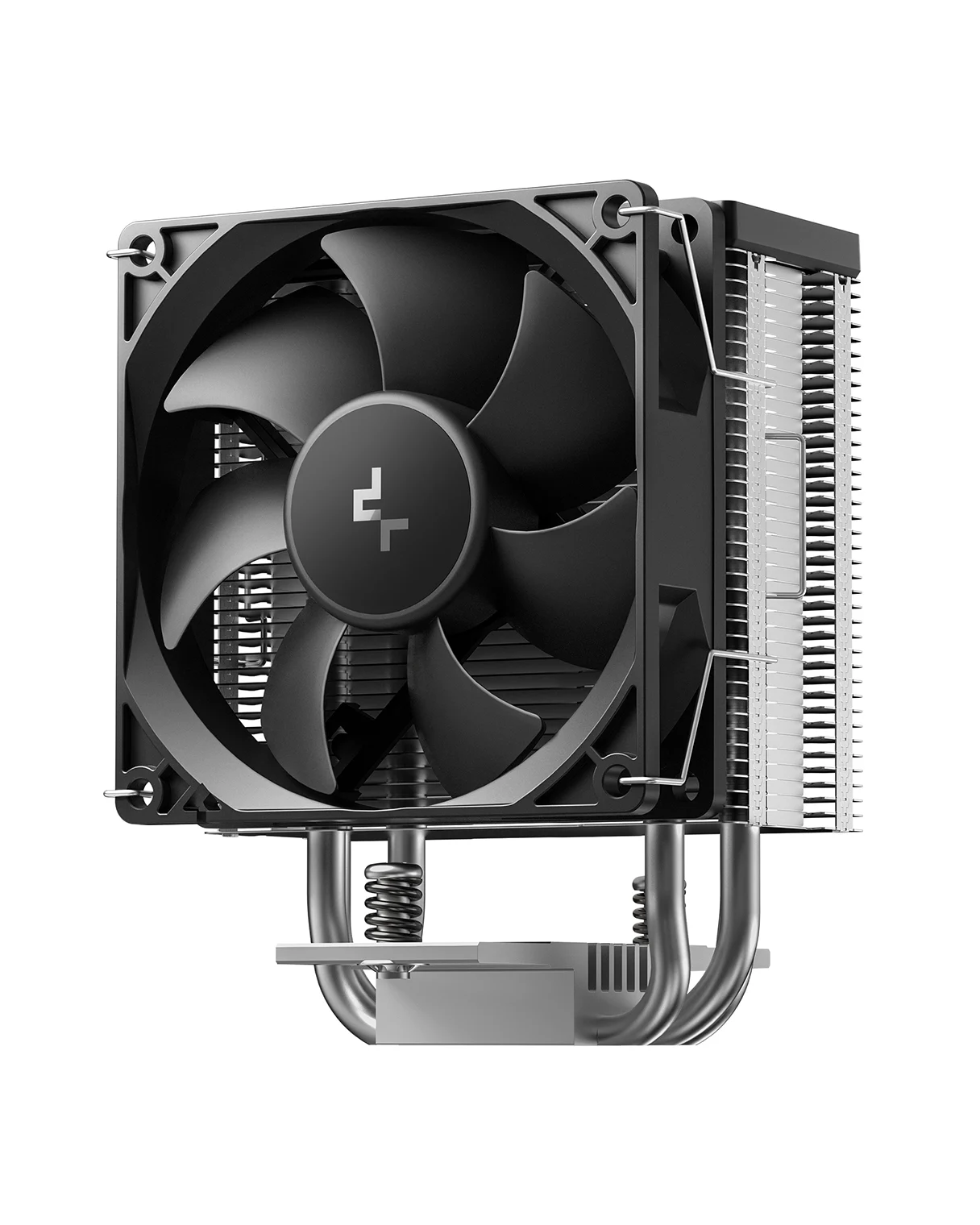

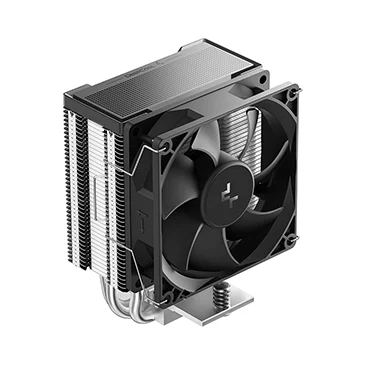

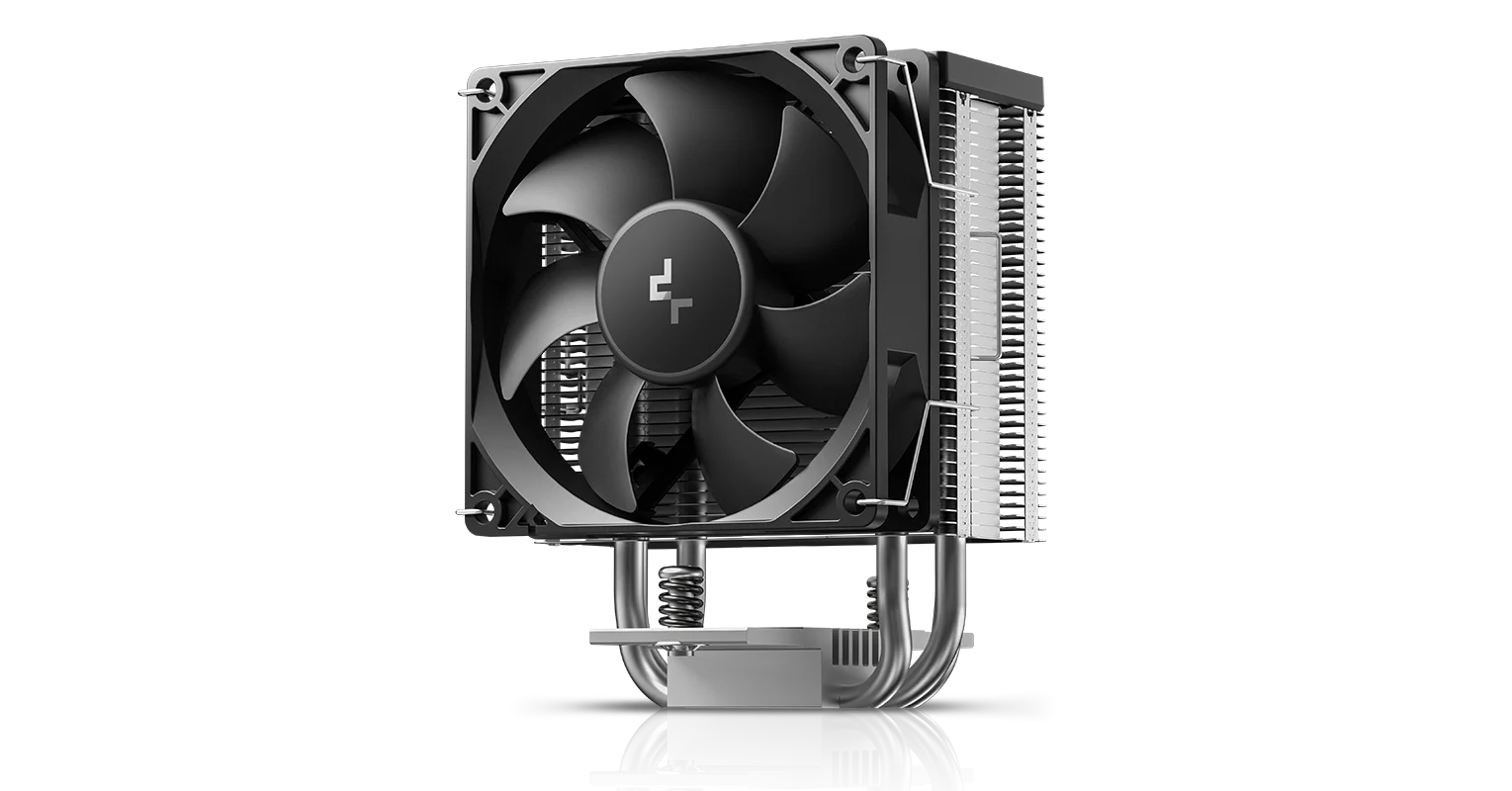

AG300 G2

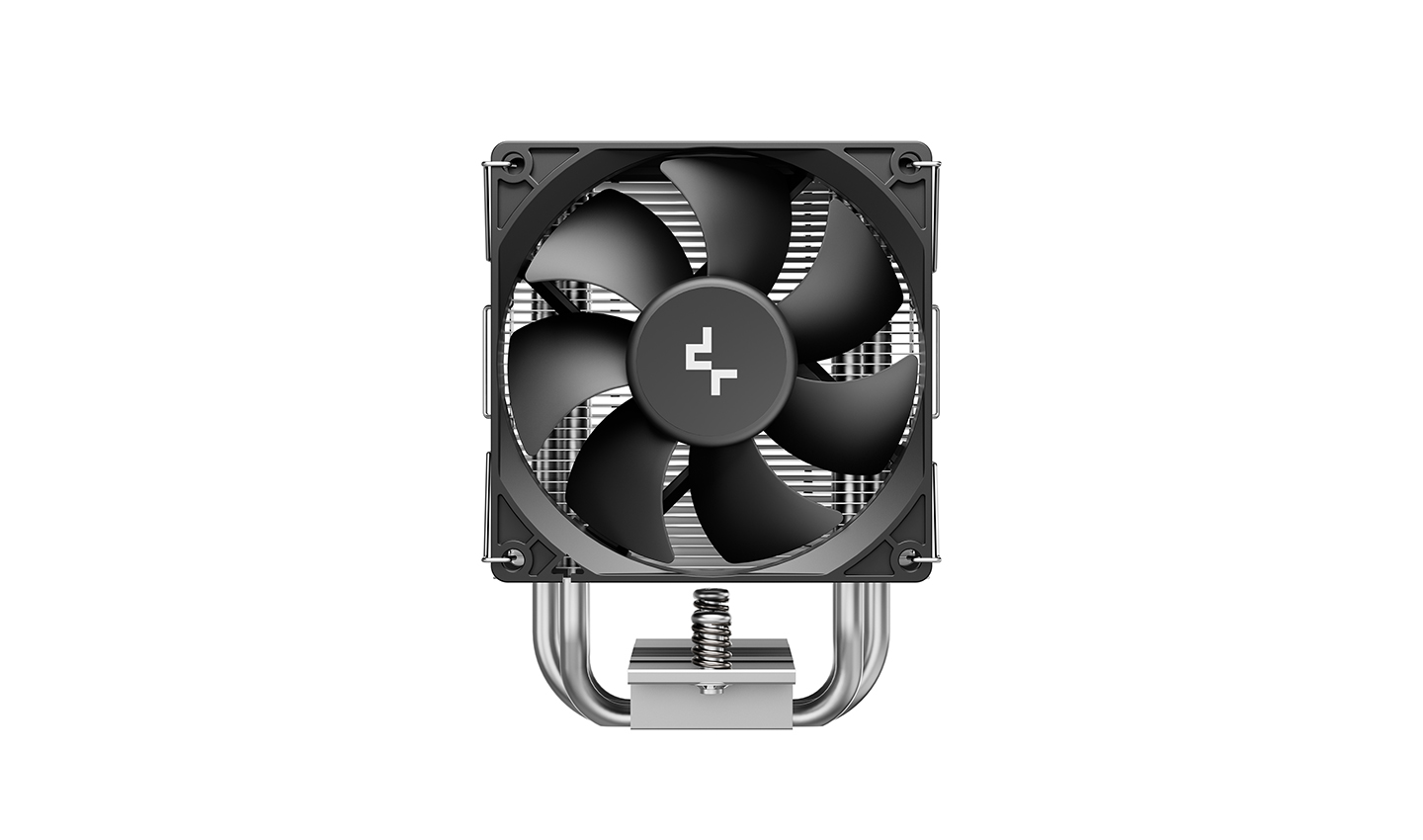

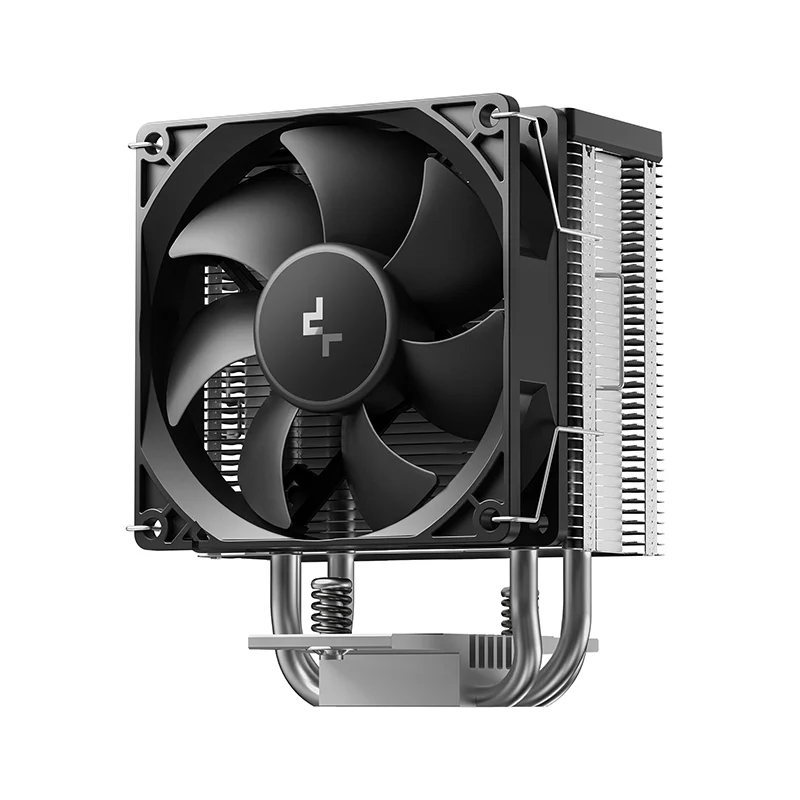

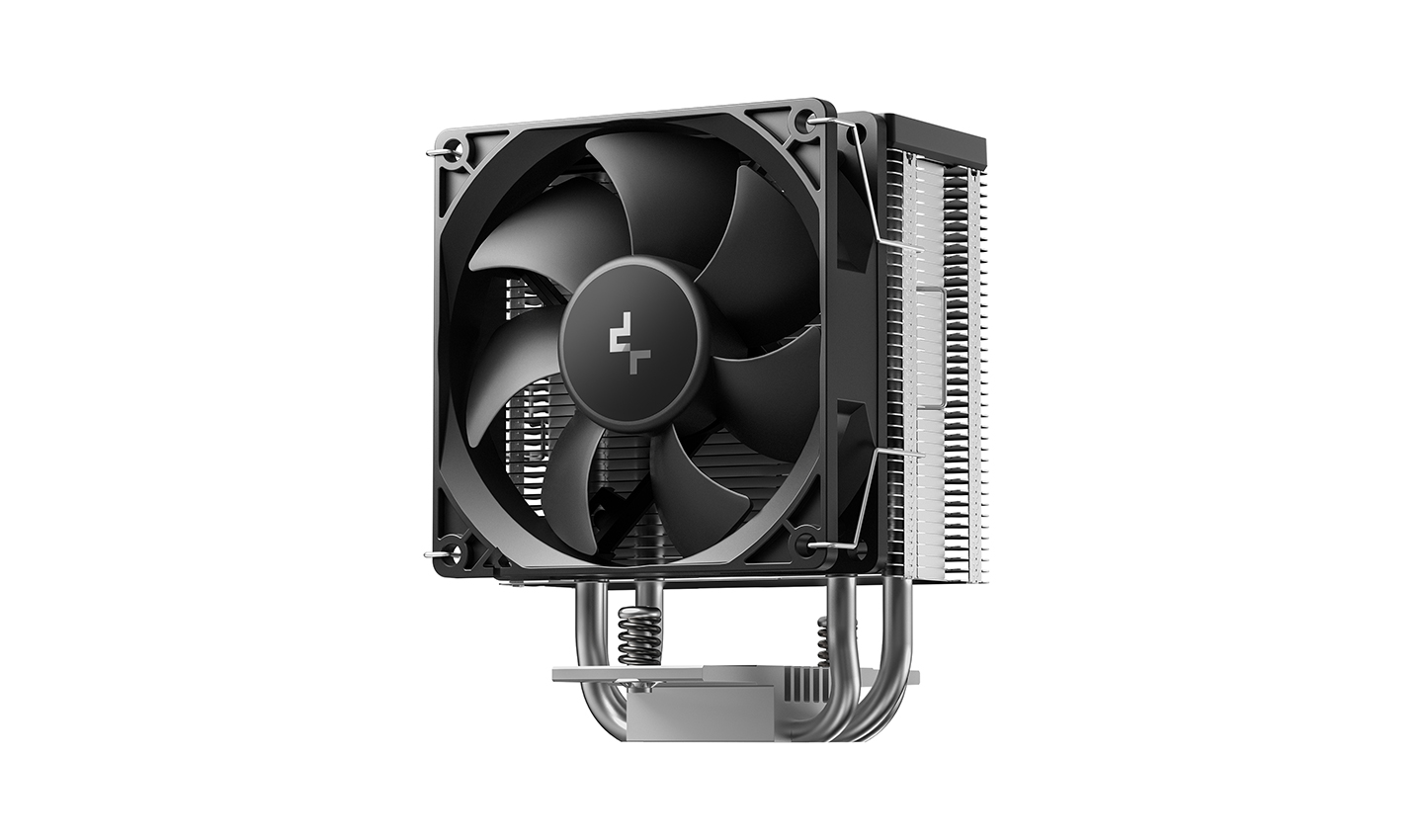

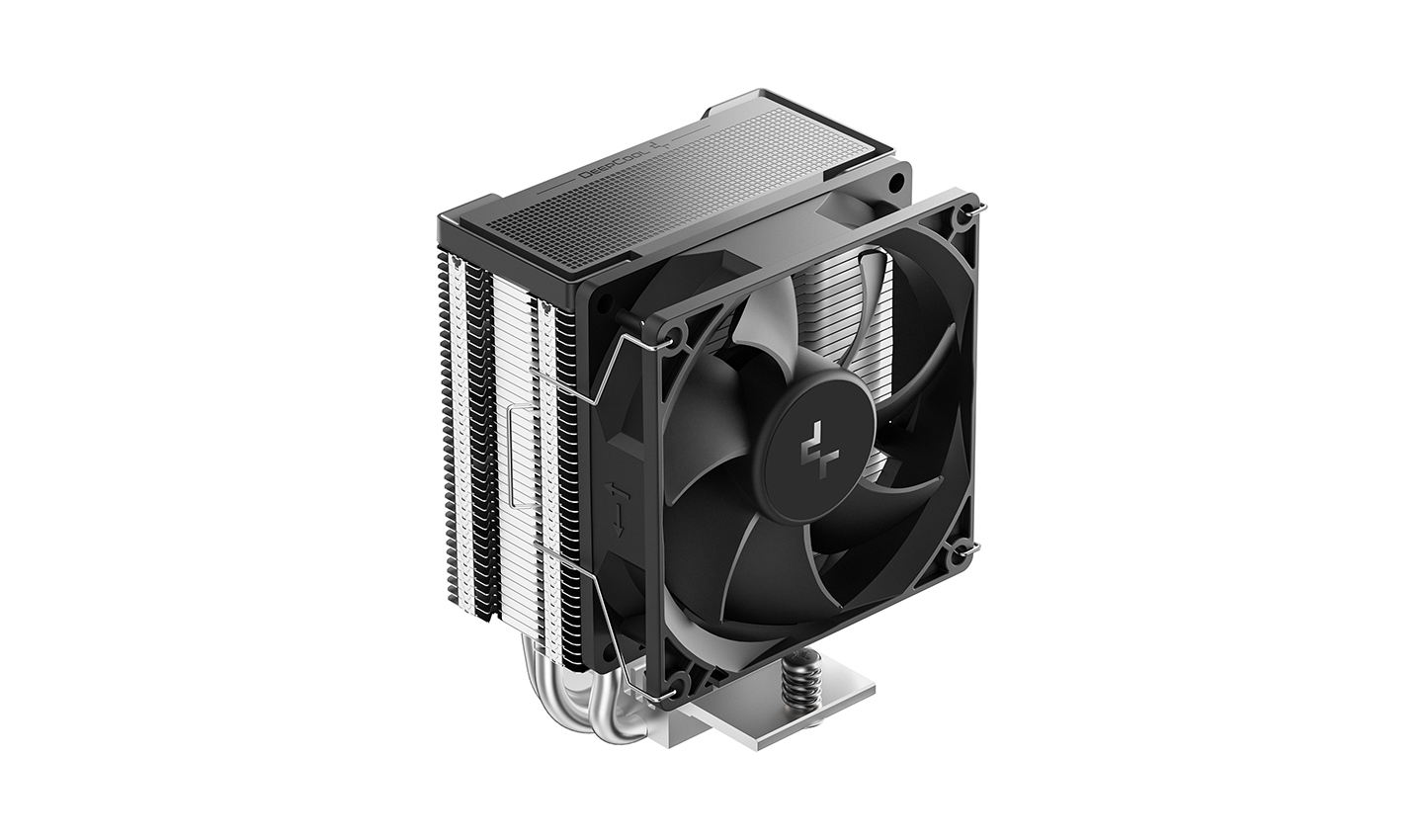

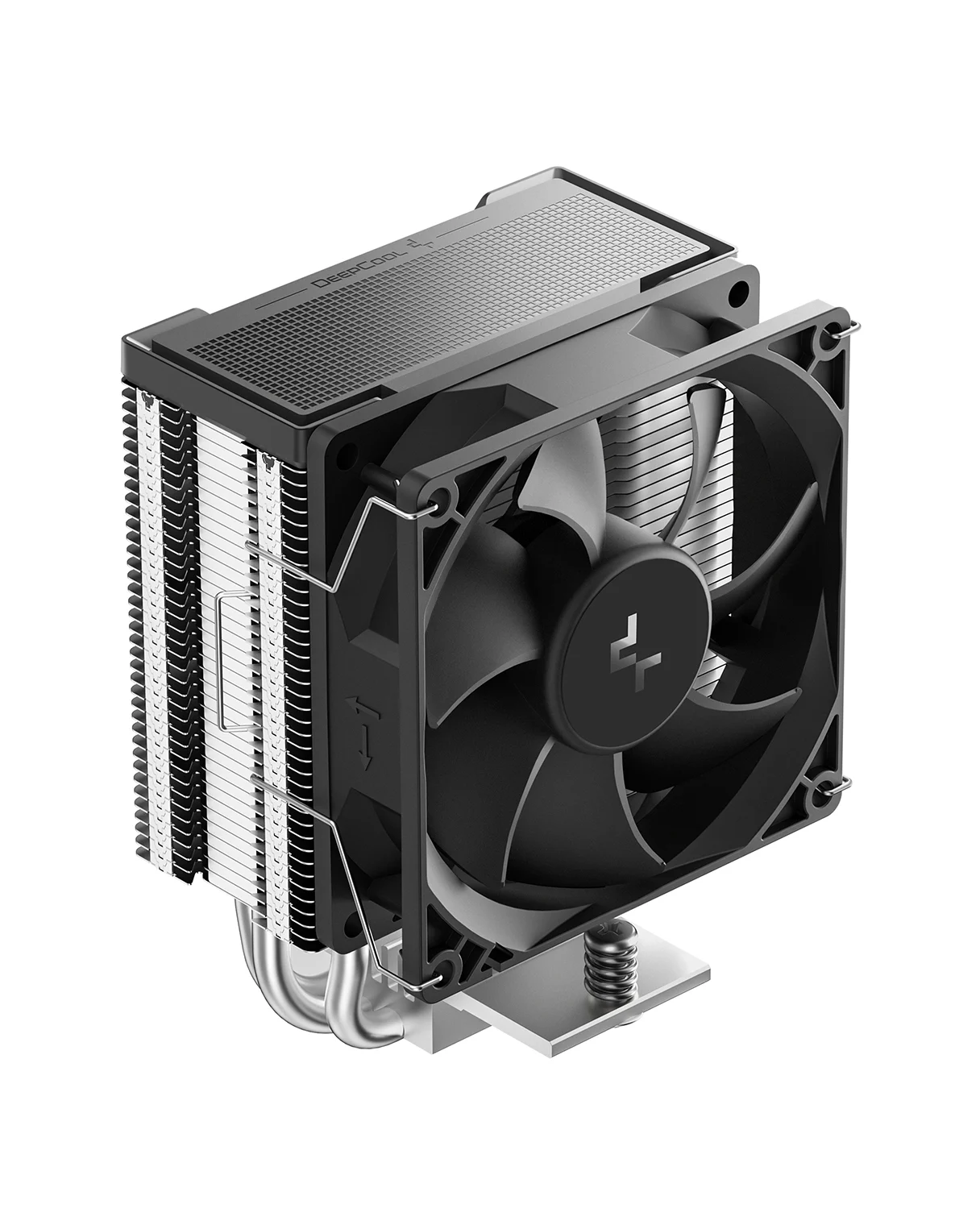

The AG300 G2 raises the bar for single-tower air cooling with a second-generation upgrade that delivers enhanced performance and a bold new look. Featuring three heat pipes embedded in a dense single-tower heatsink and paired with a finely tuned 92mm PWM fan for seriously powerful airflow and thermal transfer.
MODEL
AG300 G2
COOLING REDEFINED
NEXT GENERATION PERFORMANCE

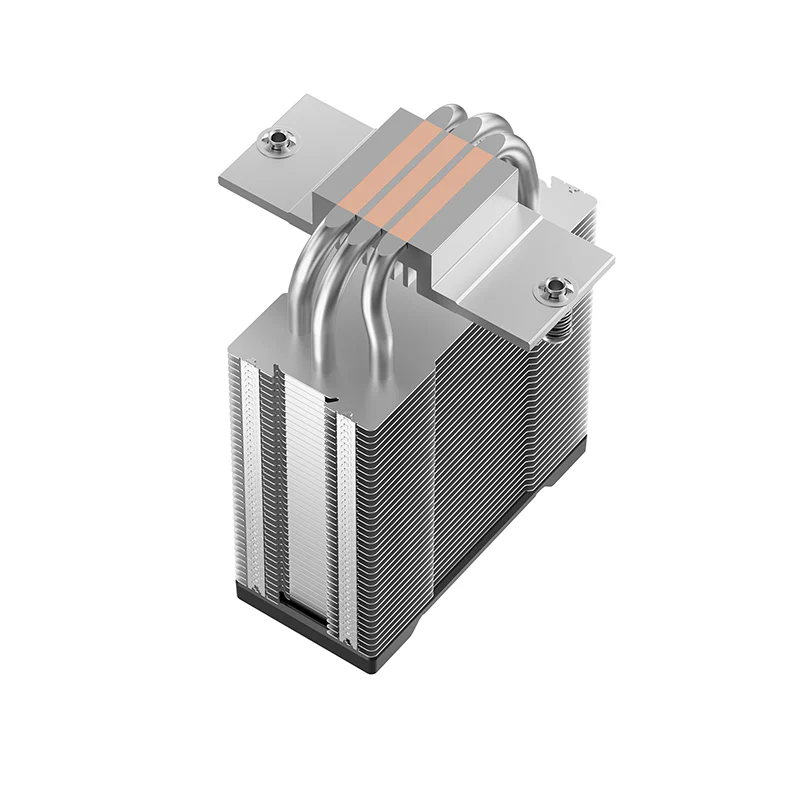

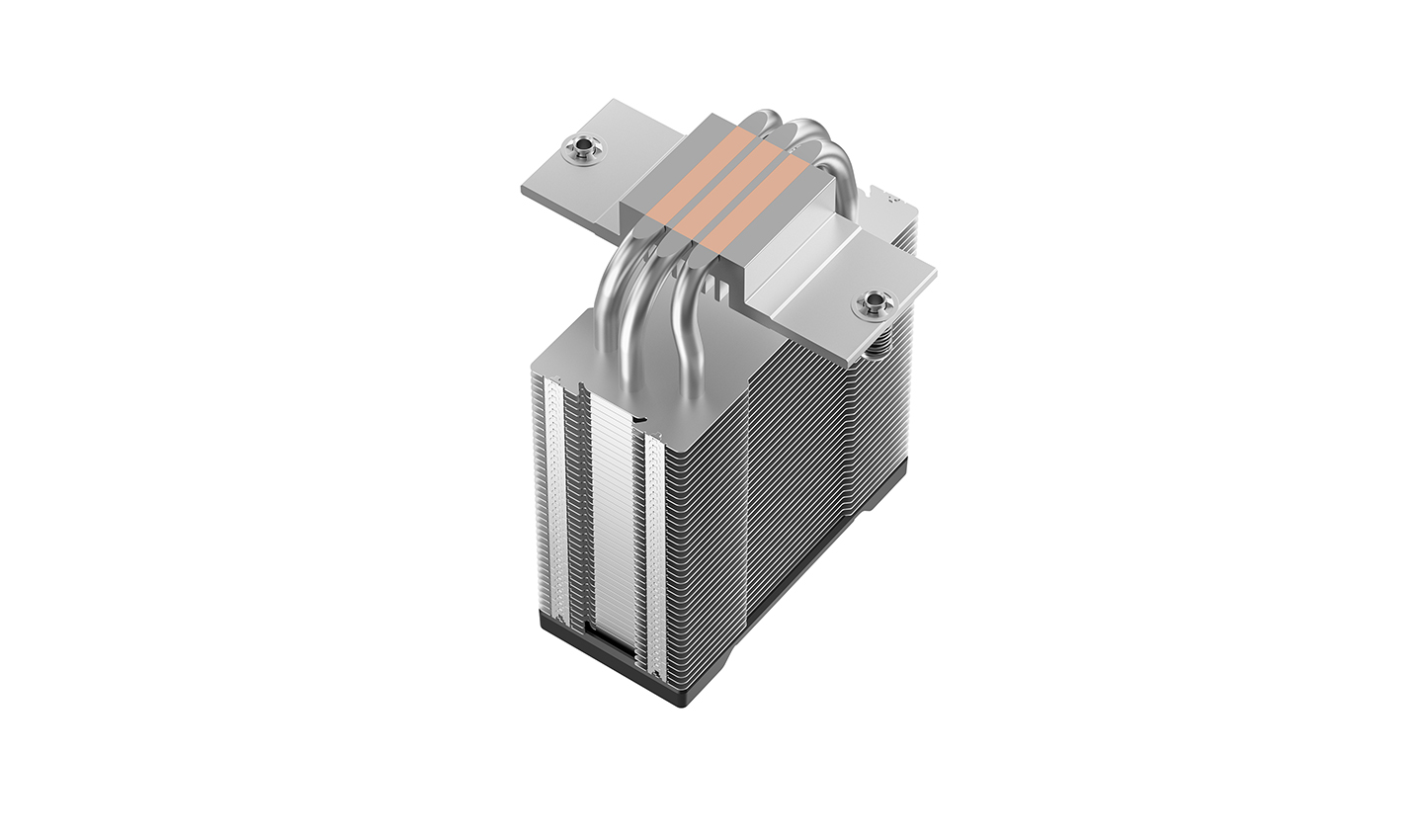

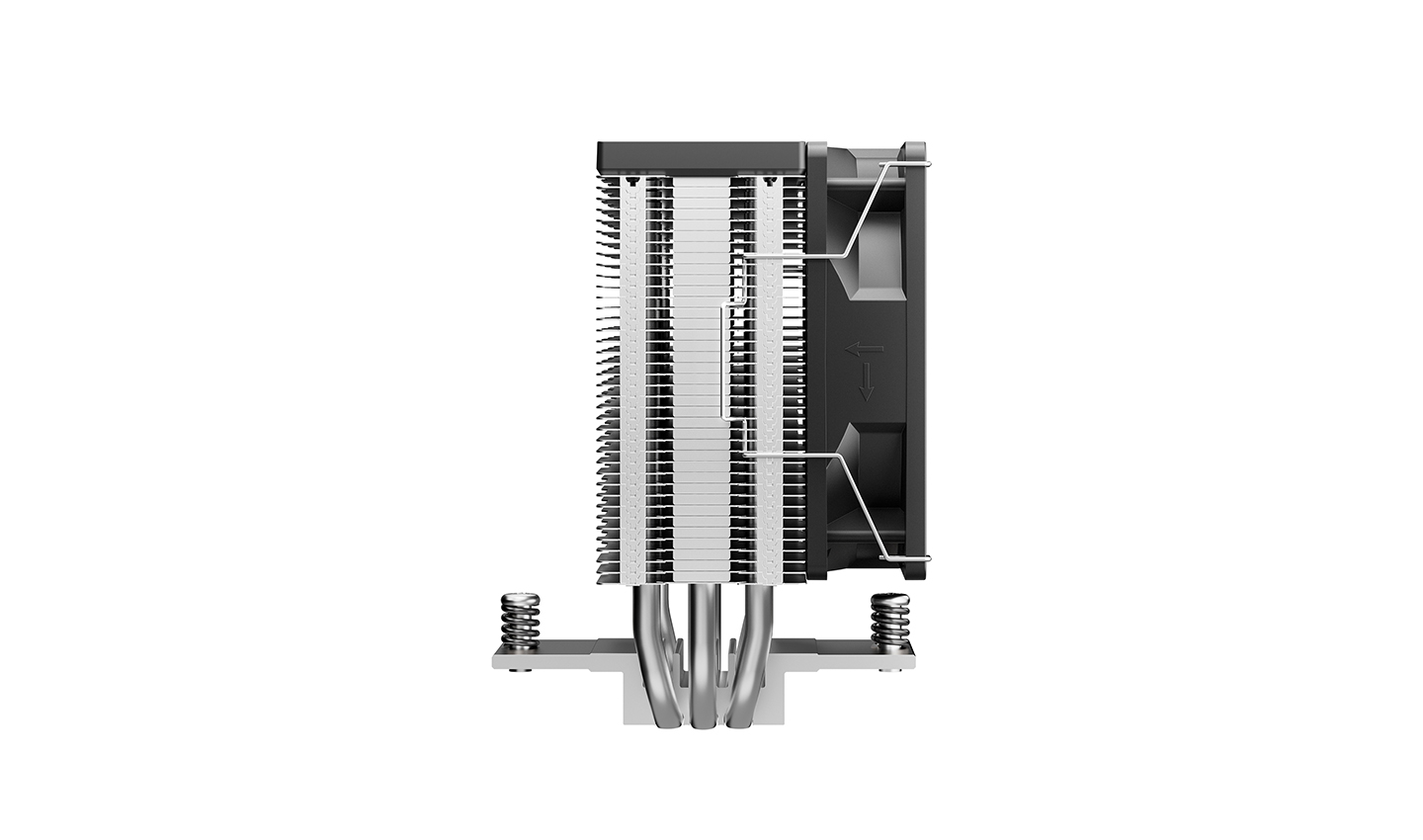

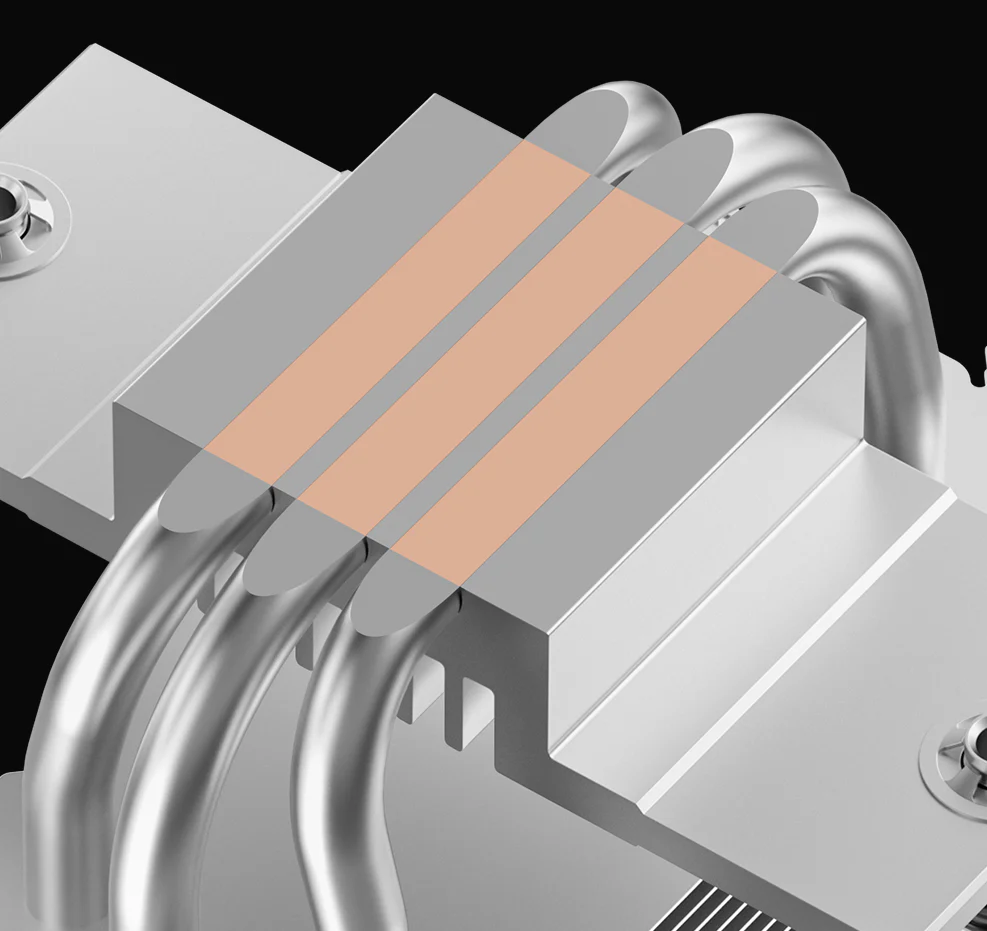

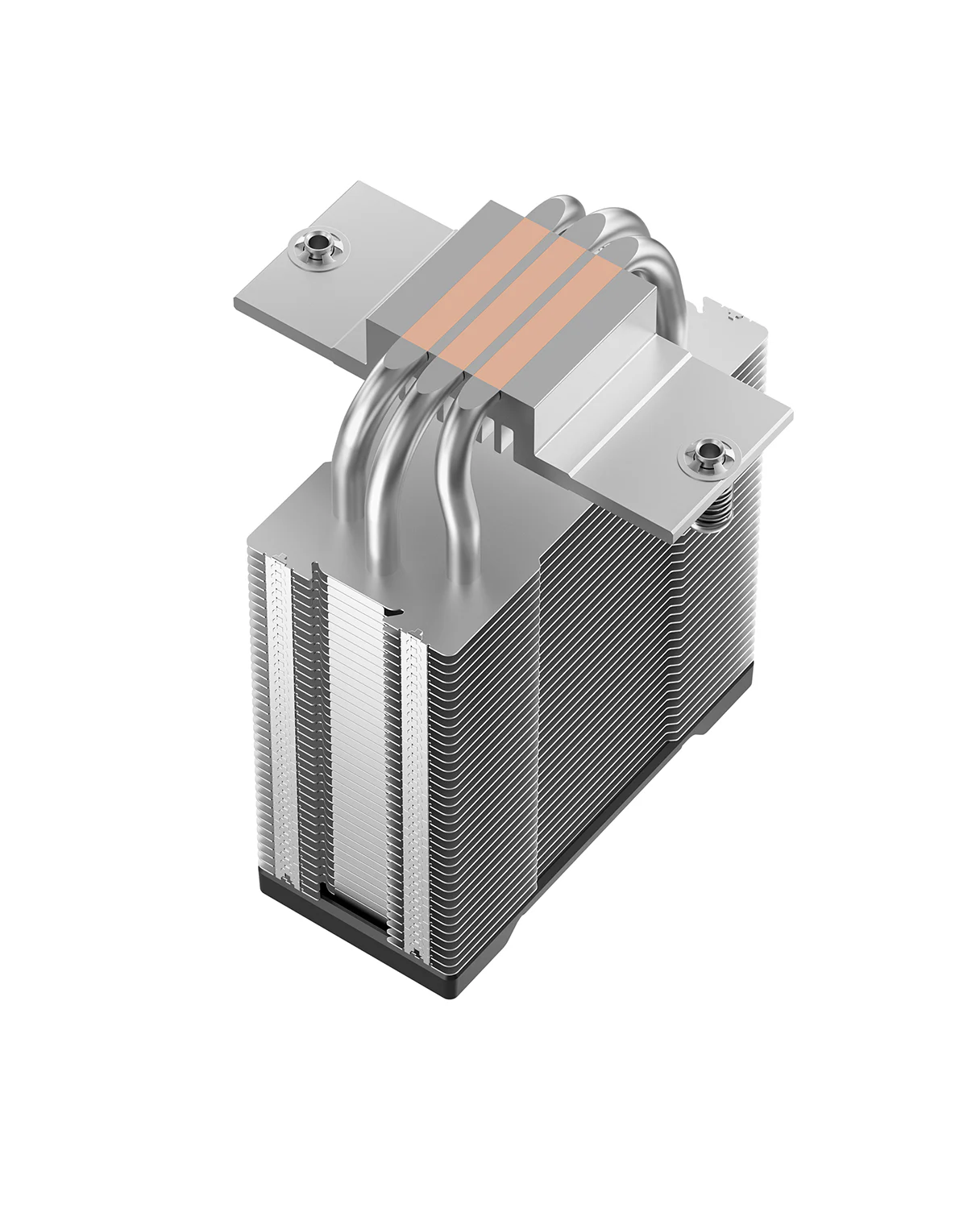

With an optimized tower layout and three direct-contact heat pipes for rapid heat transfer, the AG300 G2 delivers stronger cooling performance than its predecessor.

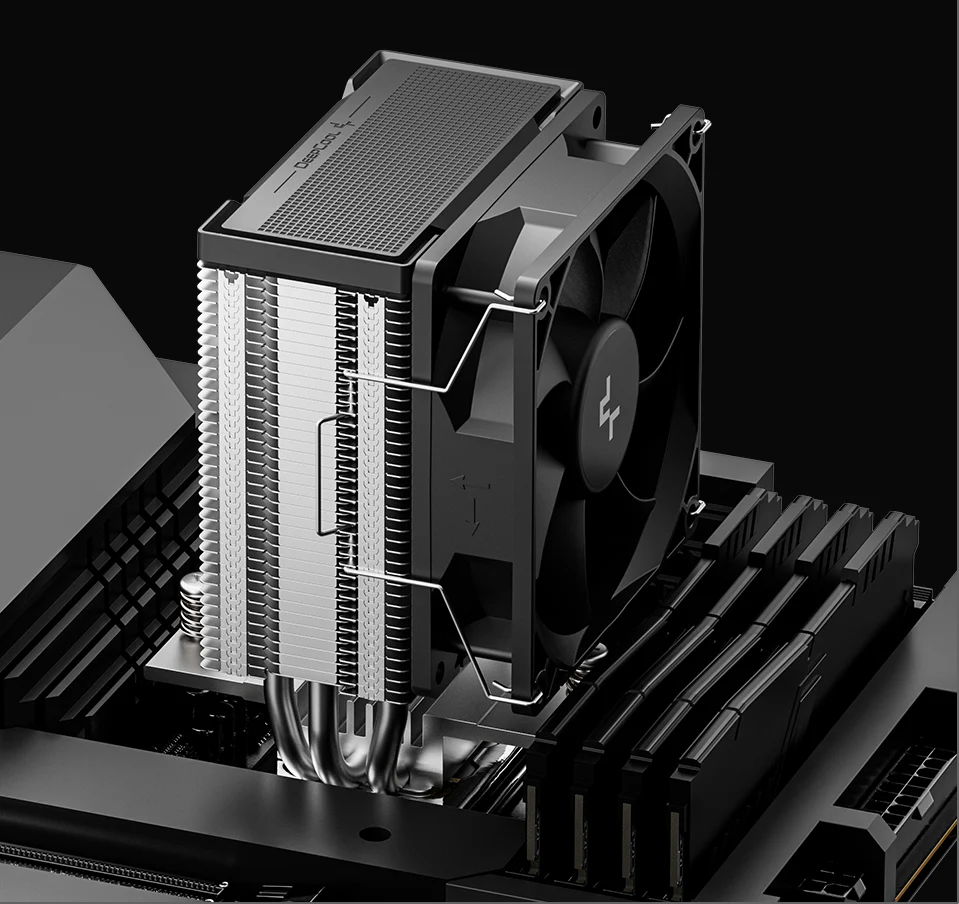

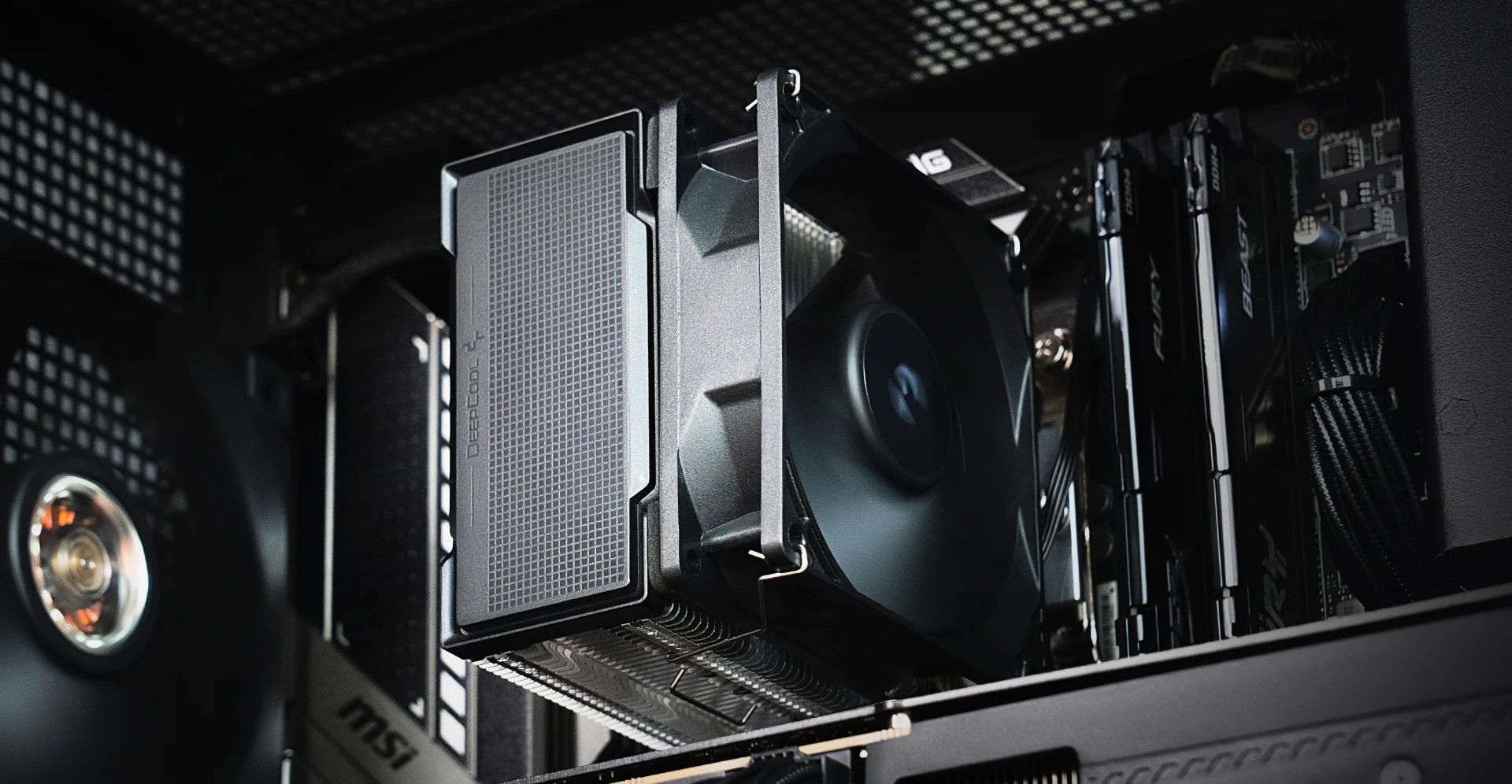

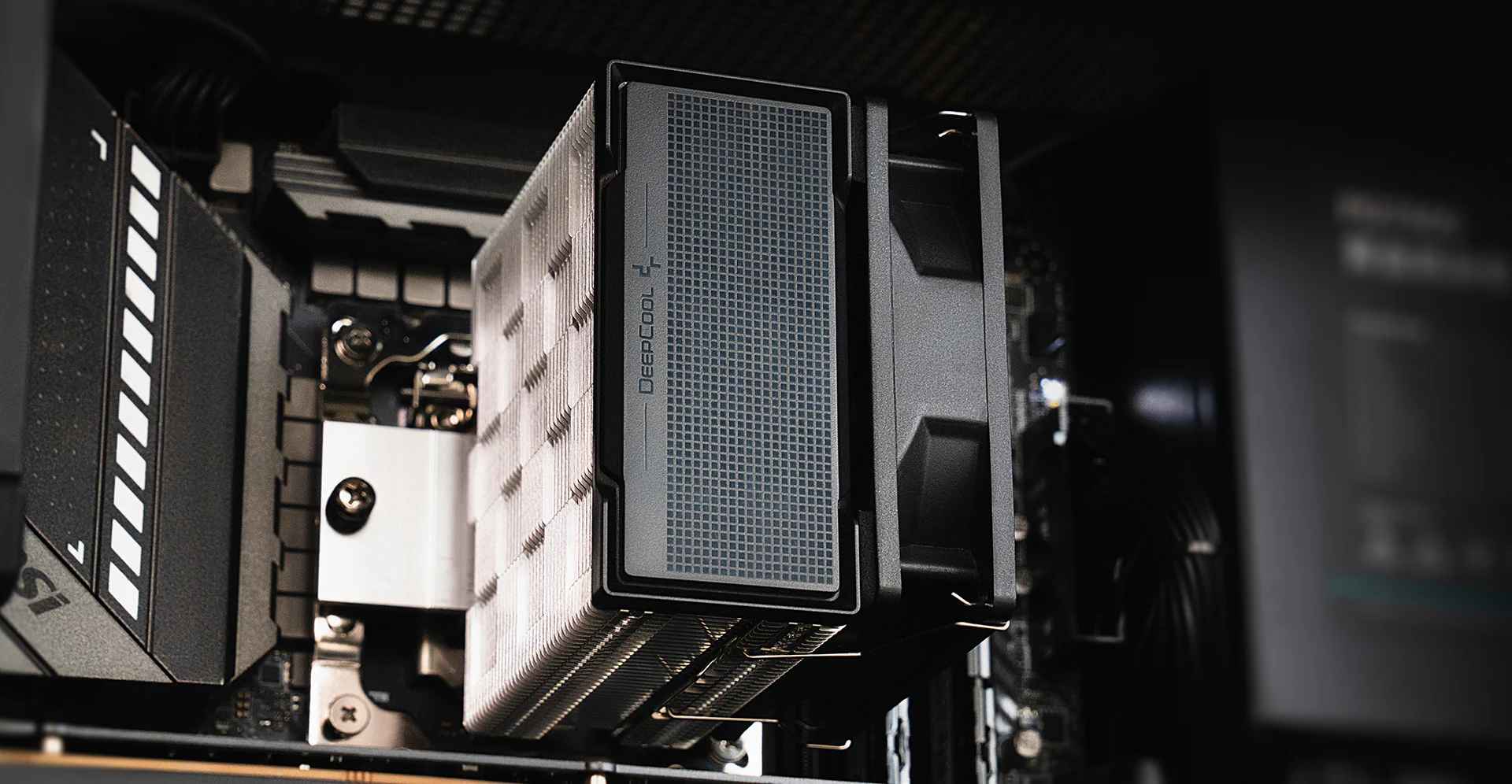

STYLED TO IMPRESS

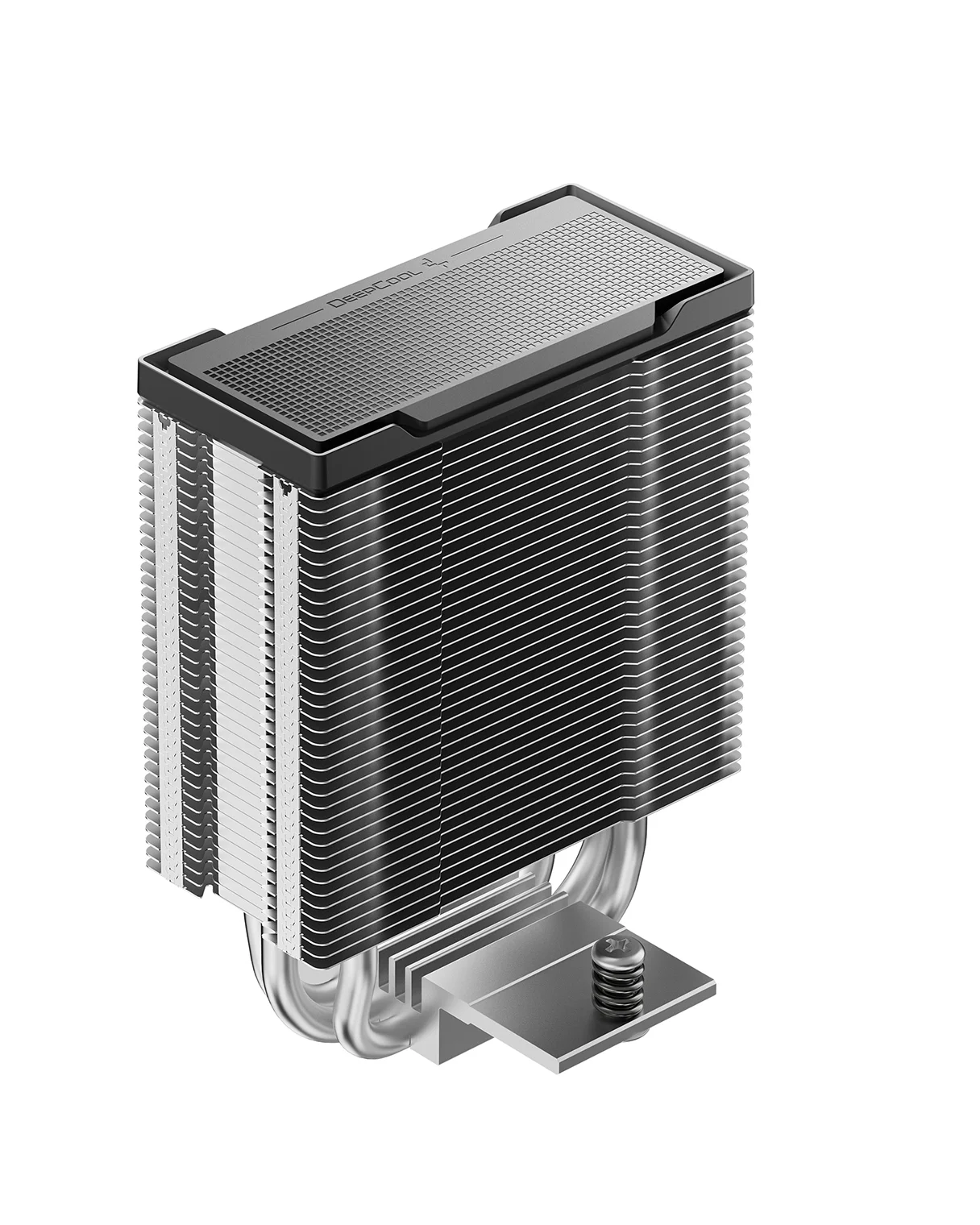

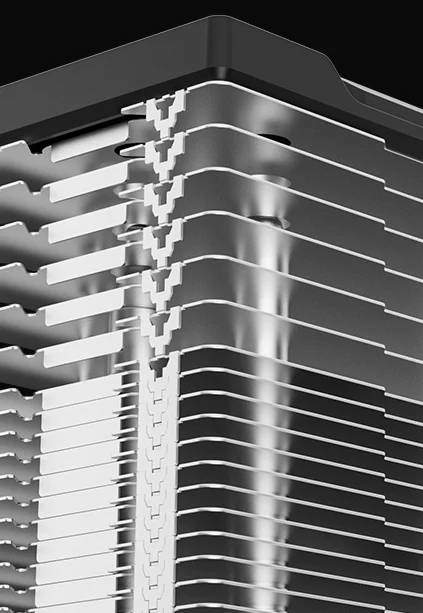

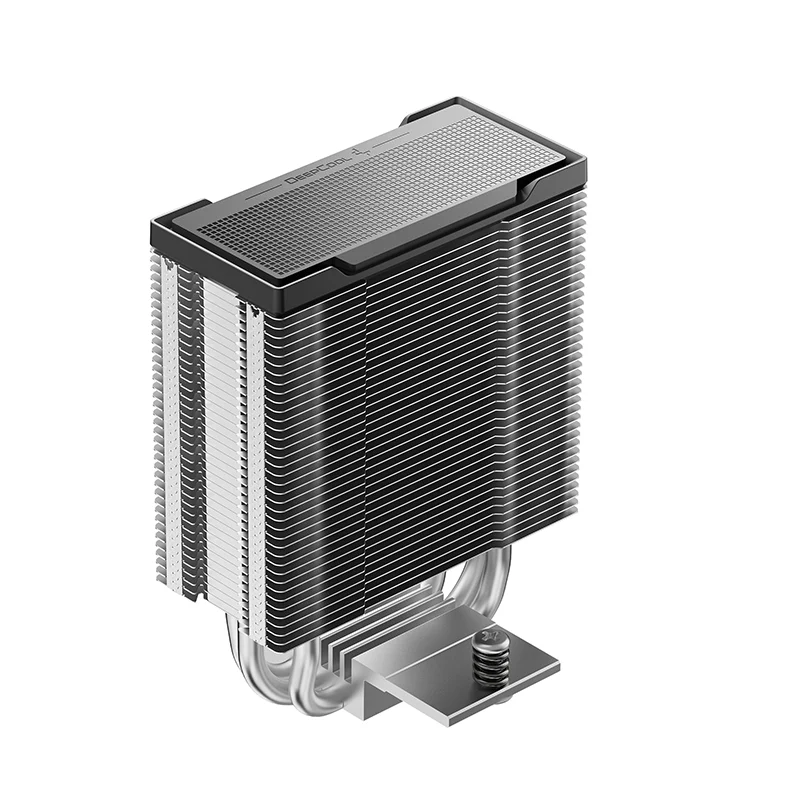

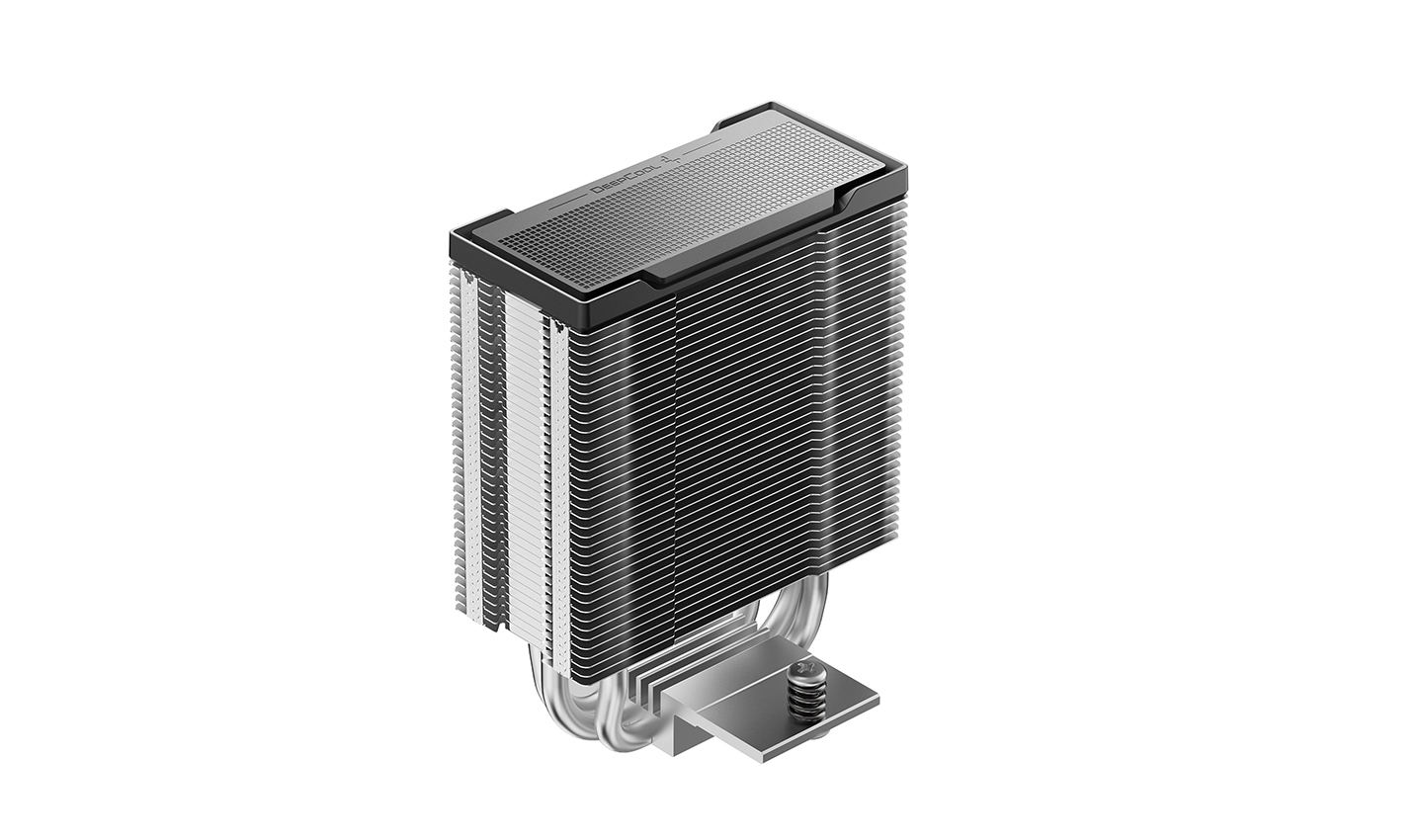

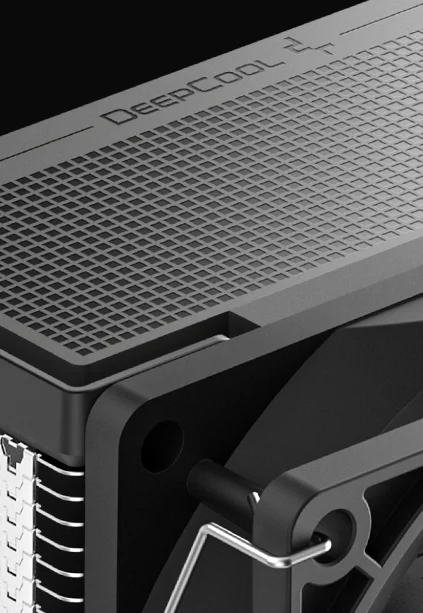

The AG300 G2 retains the signature matrix fin stack style while introducing a refined top-cover decoration for premium presence. It carries over the trusted three heat-pipe single-tower architecture and replaces RGB lighting with minimalist design for a sleek and serious look.

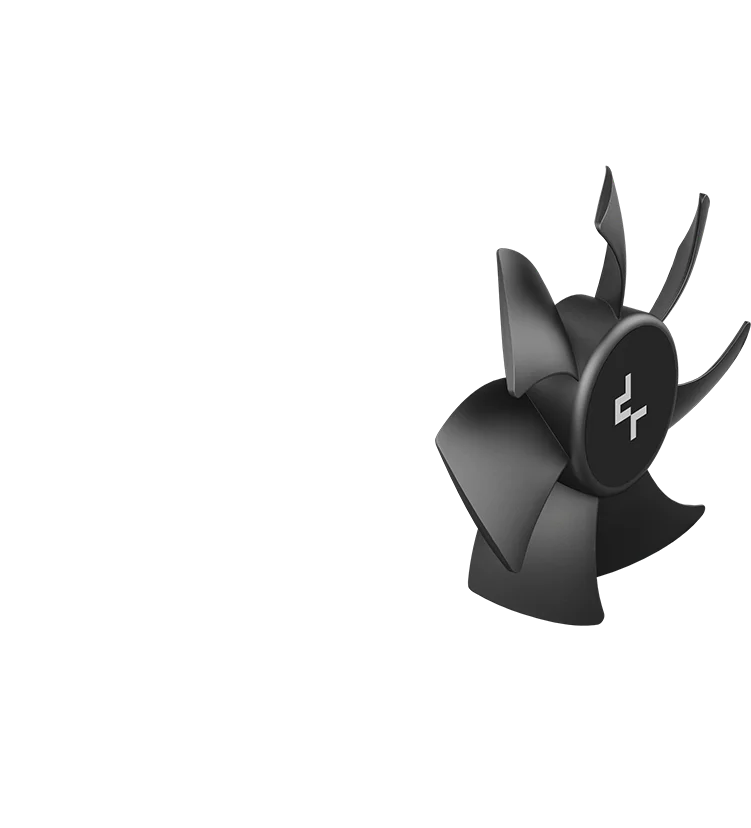

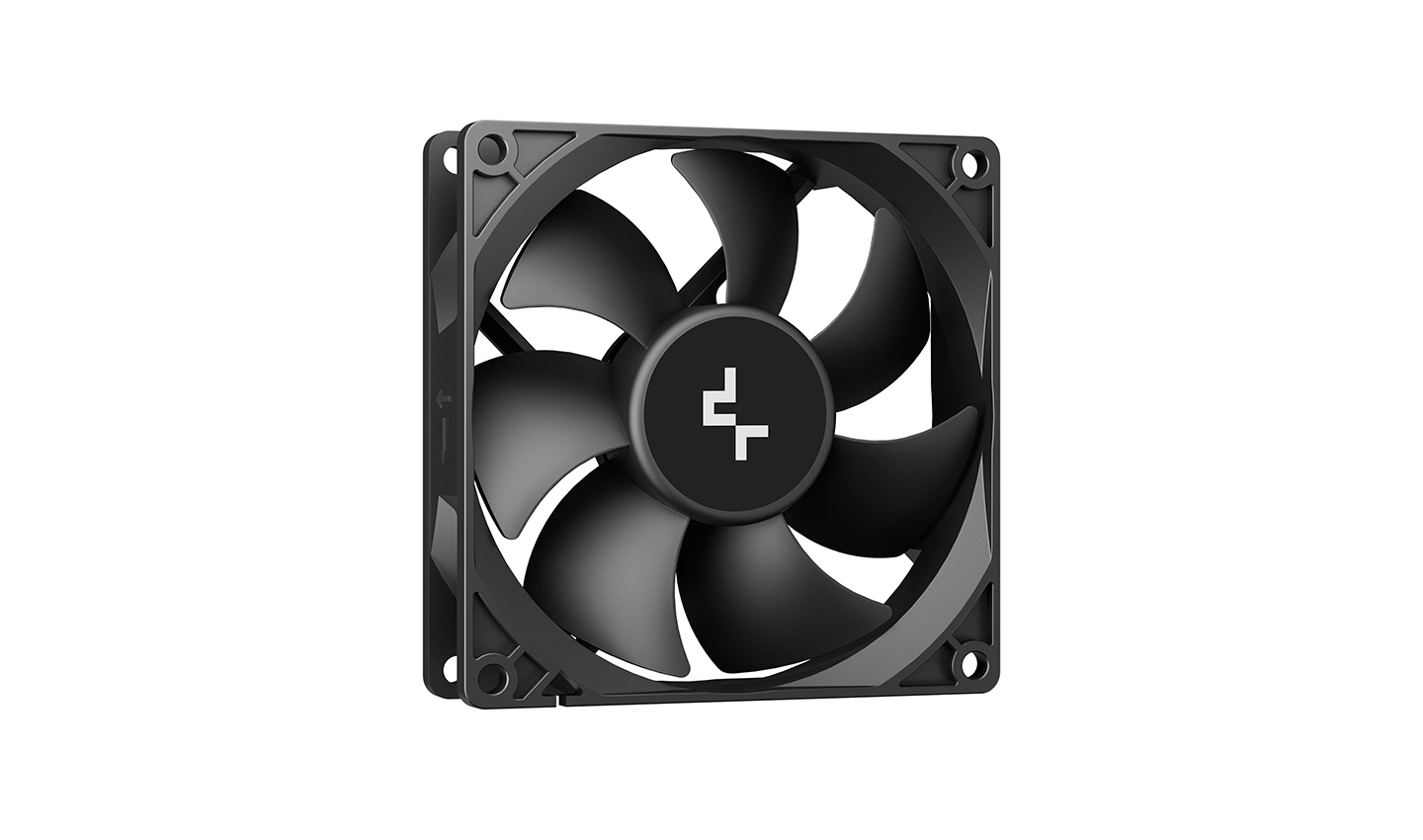

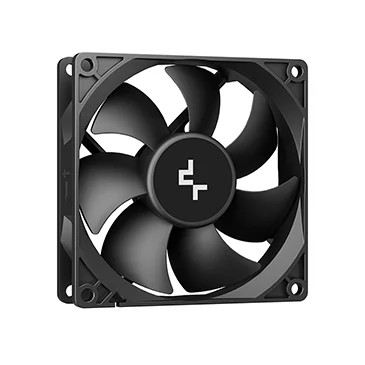

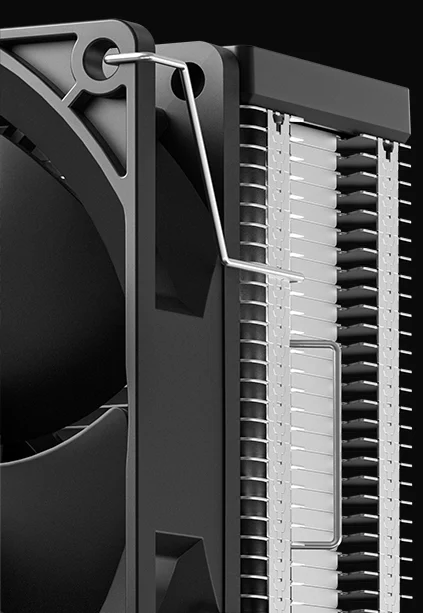

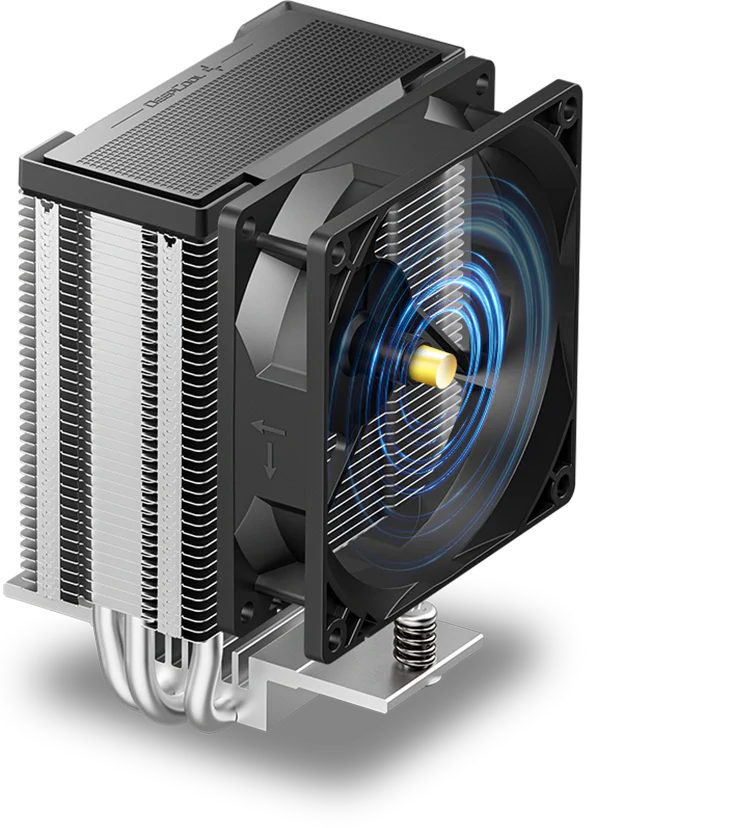

HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
500-2300±10% RPM
Fan Speed
36.94 CFM
Fan Airflow
2.16 mmAq
Fan Air Pressure
≤24.59 dB(A)
Fan Noise

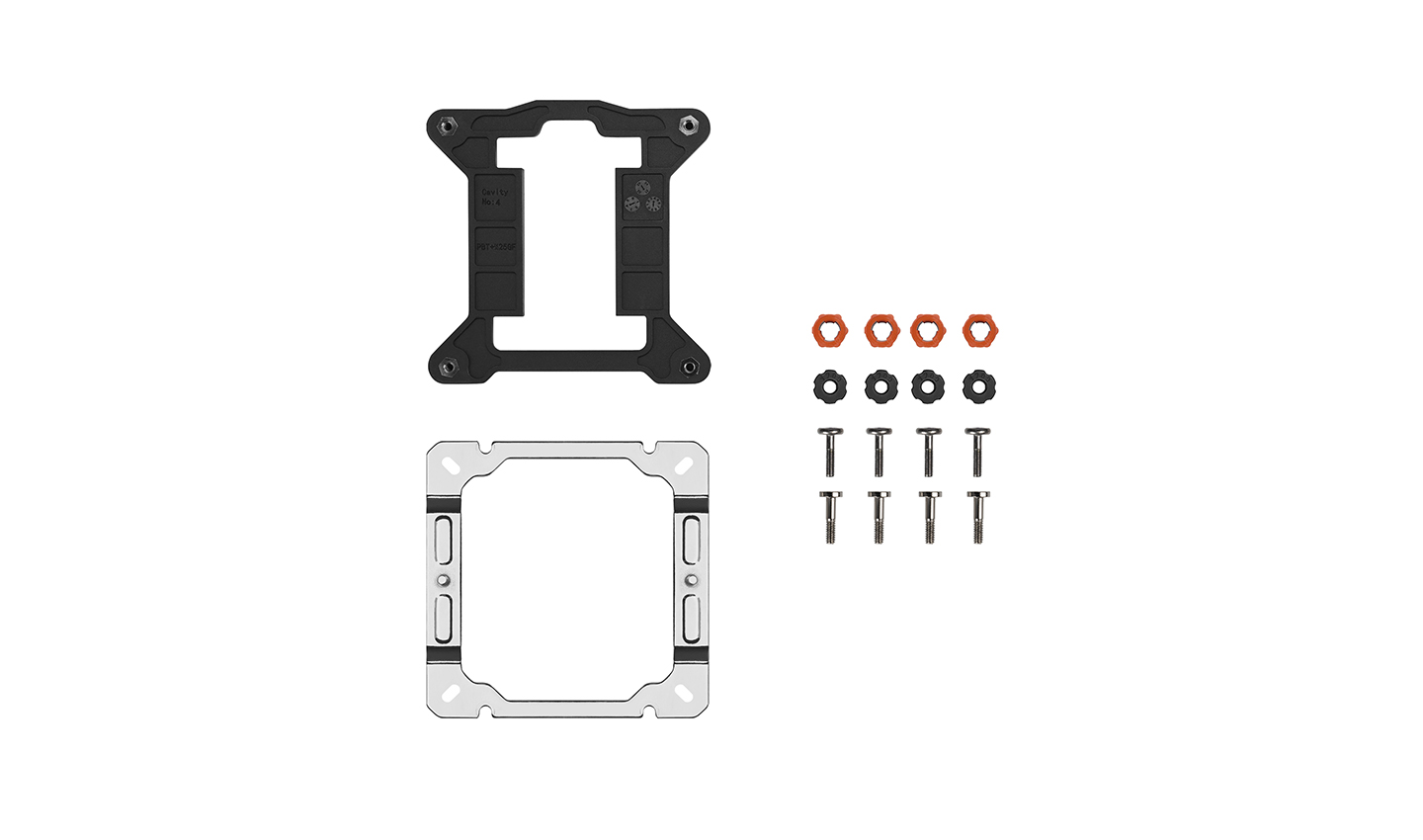

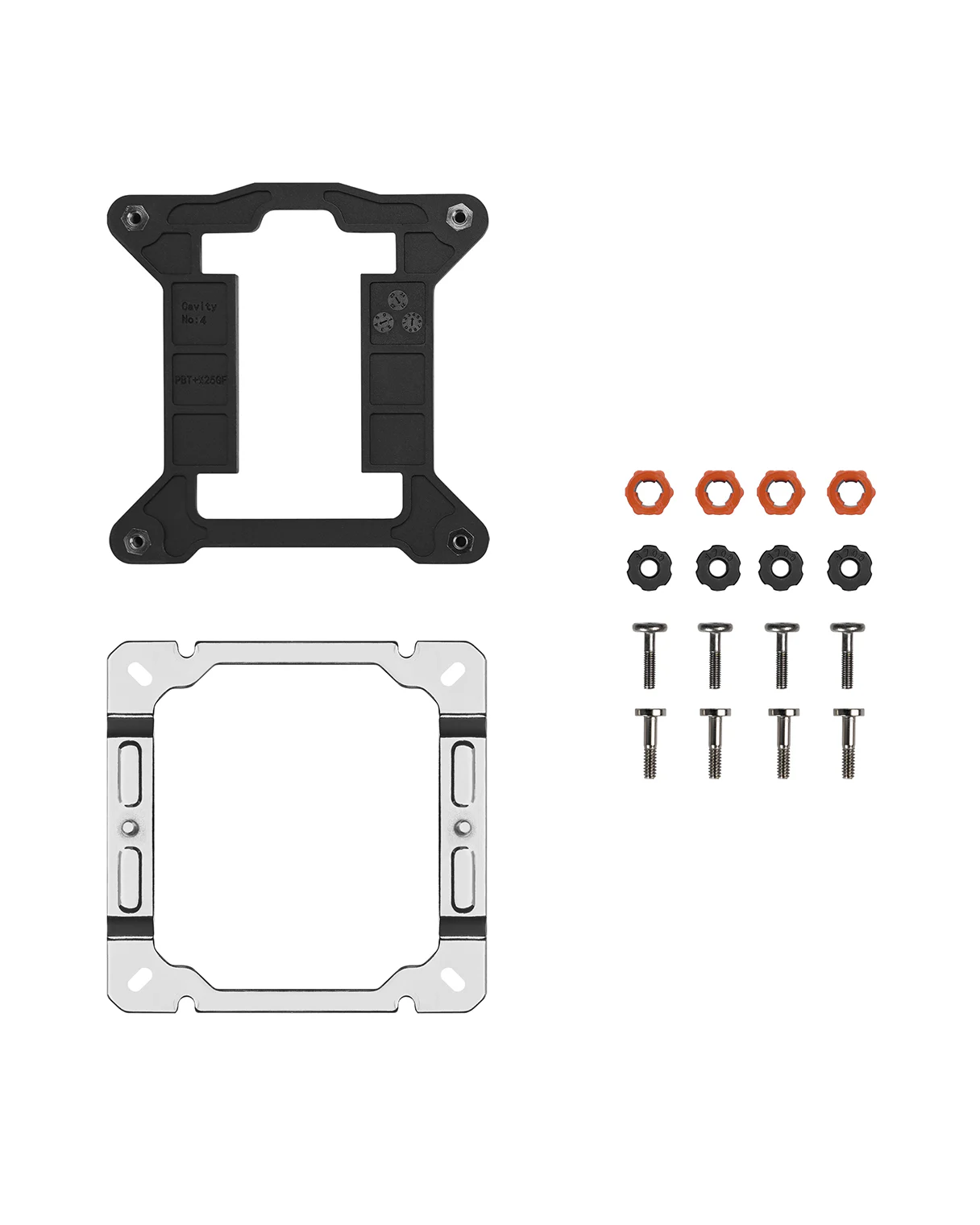

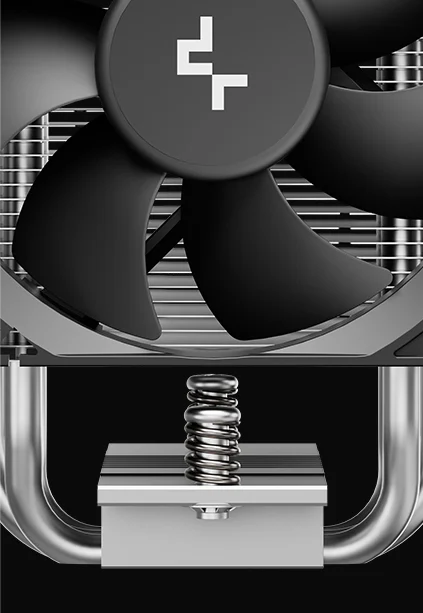

SIMPLE AND SECURE INSTALLATION

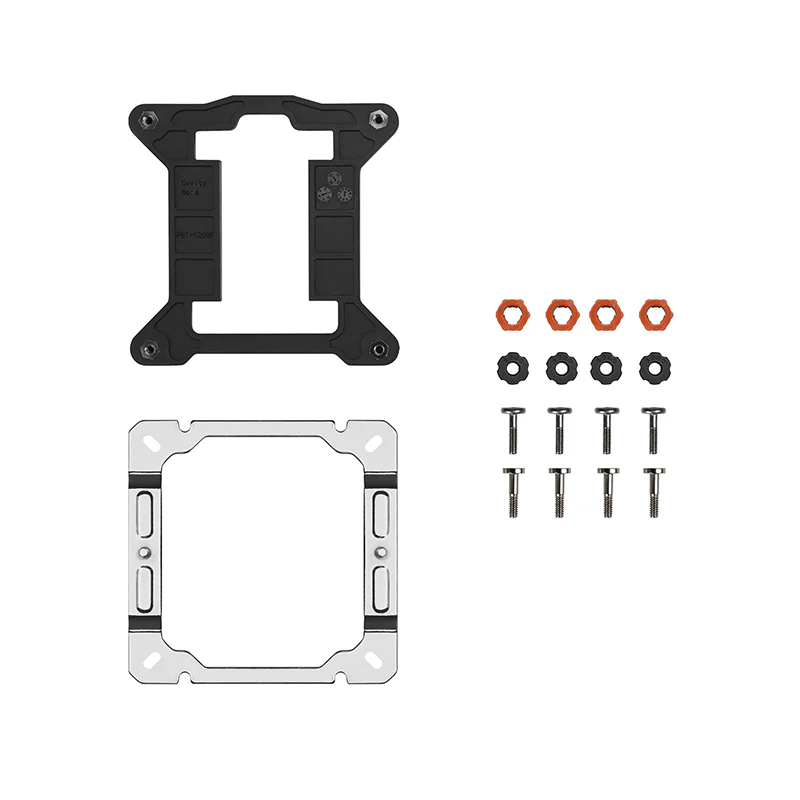

Designed for effortless setup, the durable mounting hardware works seamlessly across mainstream Intel and AMD platforms, delivering reliable contact and even pressure for optimal performance. Upgraded bracket architecture makes installation faster and more user-friendly than before.
INTEL LGA1851/1700
AMD AM5/AM4
Application For
Intel
LGA1851/1700
AMD
AM5/AM4
Technical Spec
Product Dimensions100×94×125 mm(L×W×H)
Heatsink Dimensions94×92×123 mm(L×W×H)
Net Weight416 g
HeatpipeØ6 mm×3 pcs
Fan Dimensions92×92×25 mm(L×W×H)
Fan Speed500~2300±10% RPM
Fan Motor1-phase，4-slot，4-pole
Fan Airflow36.94 CFM
Fan Air Pressure2.16 mmAq
Fan Noise≤24.59 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.11 A
Fan Power Consumption1.32 W
EAN6933412730194
P/NR-AG300-BKAMMG2
Download
AG300 G2 Manual.pdf
