MODEL
Application For
Intel
LGA1200/1151/1150/1155/LGA775
Technical Spec
Overall Dimension117X117X73 mm(L×W×H)
Fan DimensionФ92X32 mm
Net Weight 344g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.14±10%A
Power Input 1.68W
Fan Speed 2200±10%RPM
Max. Air Flow 40.9CFM
Noise 25dB(A)

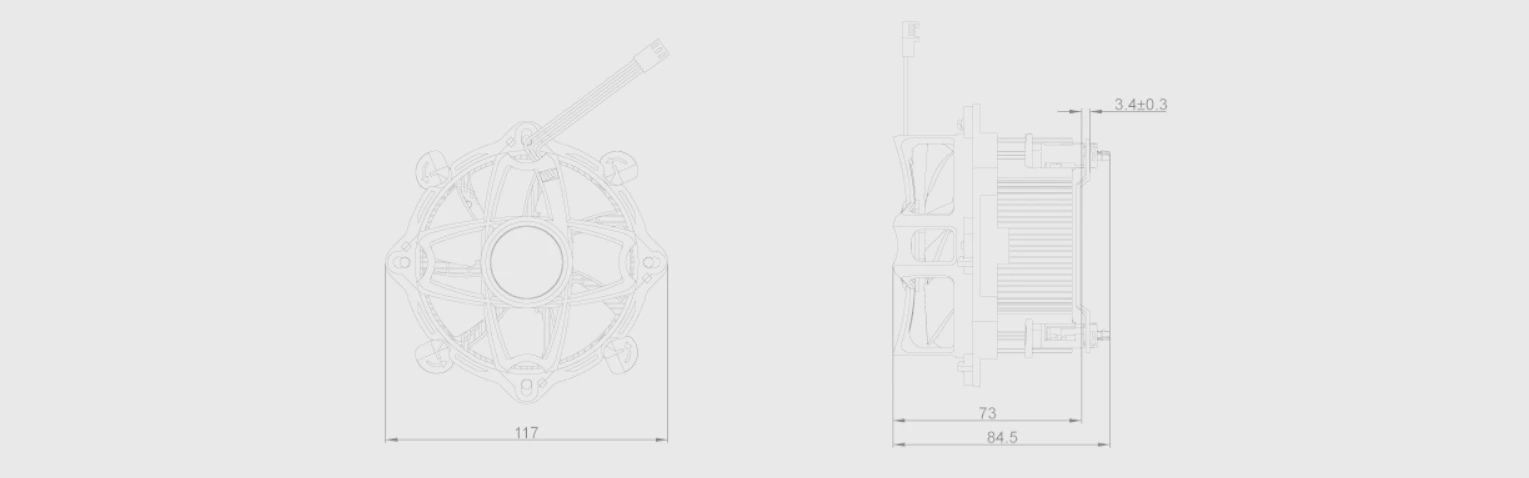

Product Dimension
