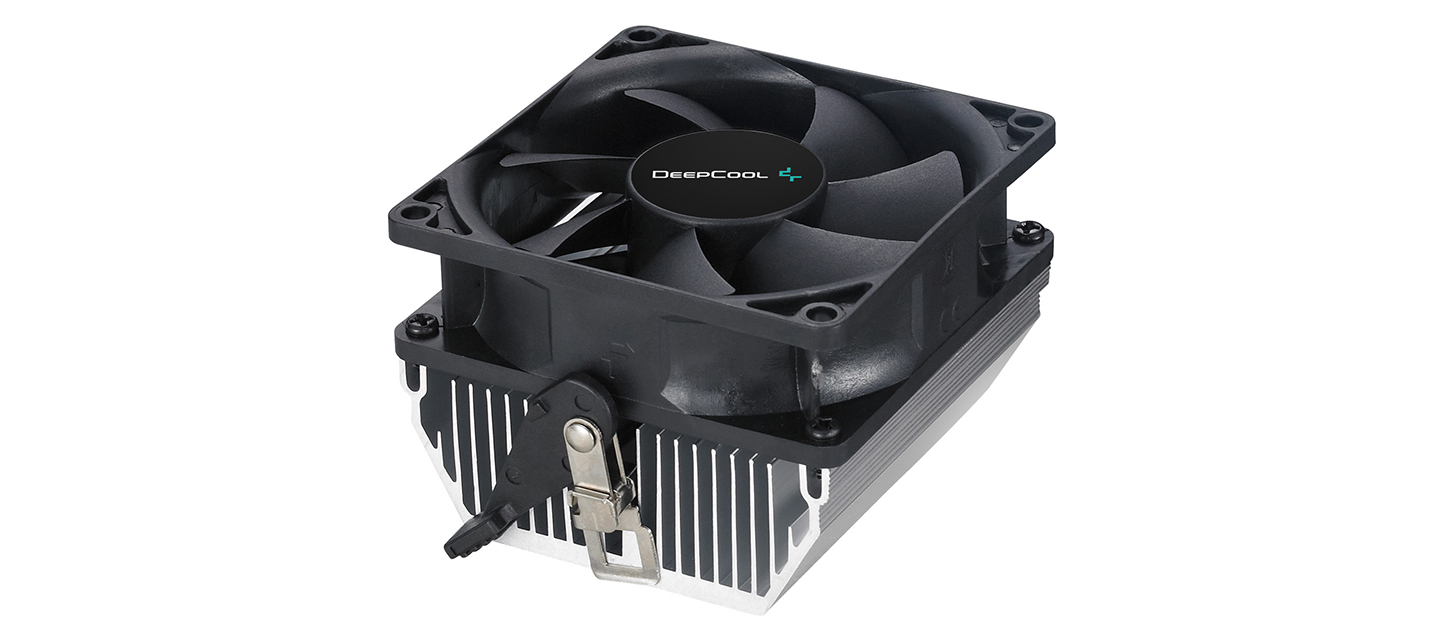

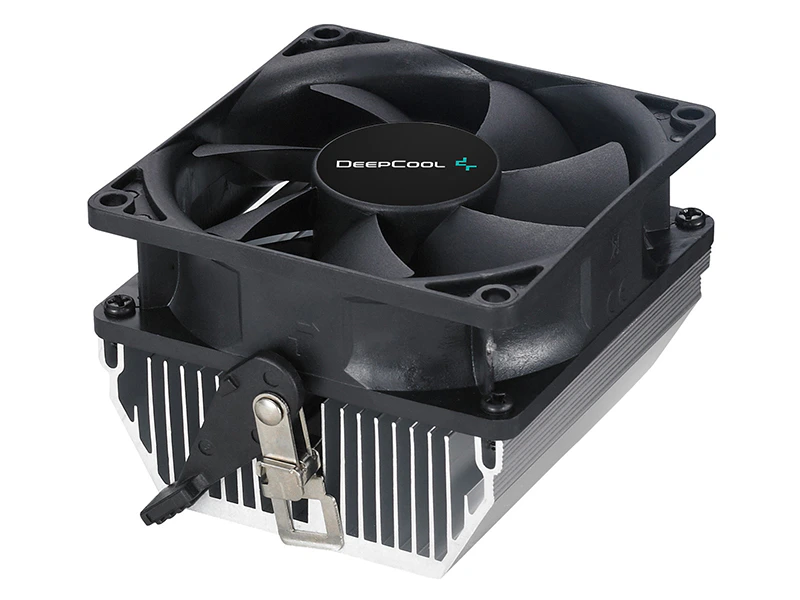

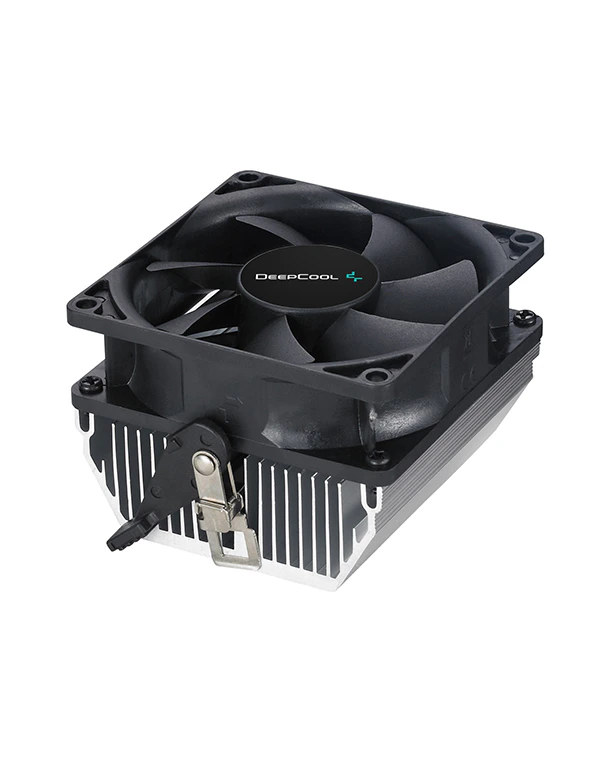

CK-AM209 V2
MODEL
AMD AM5/AM4 Ready.
Ideal AMD solution for medium/small system integrators.
High performance 80 x 25 mm fan that delivers a high air pressure.
Easy-to-install spring clips.
Application For
AMD
AM5/AM4
Technical Spec
Product Dimensions 103×80×56 mm
Heatsink Dimensions 77×77×30 mm
Net Weight 224g
Fan Dimension 80X80X25mm
Fan Speed 1600 RPM±10%
Fan Airflow 18.17 CFM
Fan Air Pressure 1.28 mmAq
Fan Noise 21.7 dB(A)
Fan Connector 3-pin
Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.05 A
Fan Power Consumption 0.6 W
EAN 6933412726883
P/N DP-ACAL-A09-V2
