GAMMAXX 200 V2
Two sintered powder heat pipes contact directly the surface of the processor to quickly dissipate heat and prevent overheating.
MODEL
GAMMAXX 200 V2
PWM Fan · Silent Beauty

Effective cooling
Two sintered powder heat pipes contact directly the surface of the processor to quickly dissipate heat and prevent overheating.
PWM Fan 92 x 92 x 25mm
Silent fan is made of translucent material, great for case modding.
Compatibility with multiple platforms

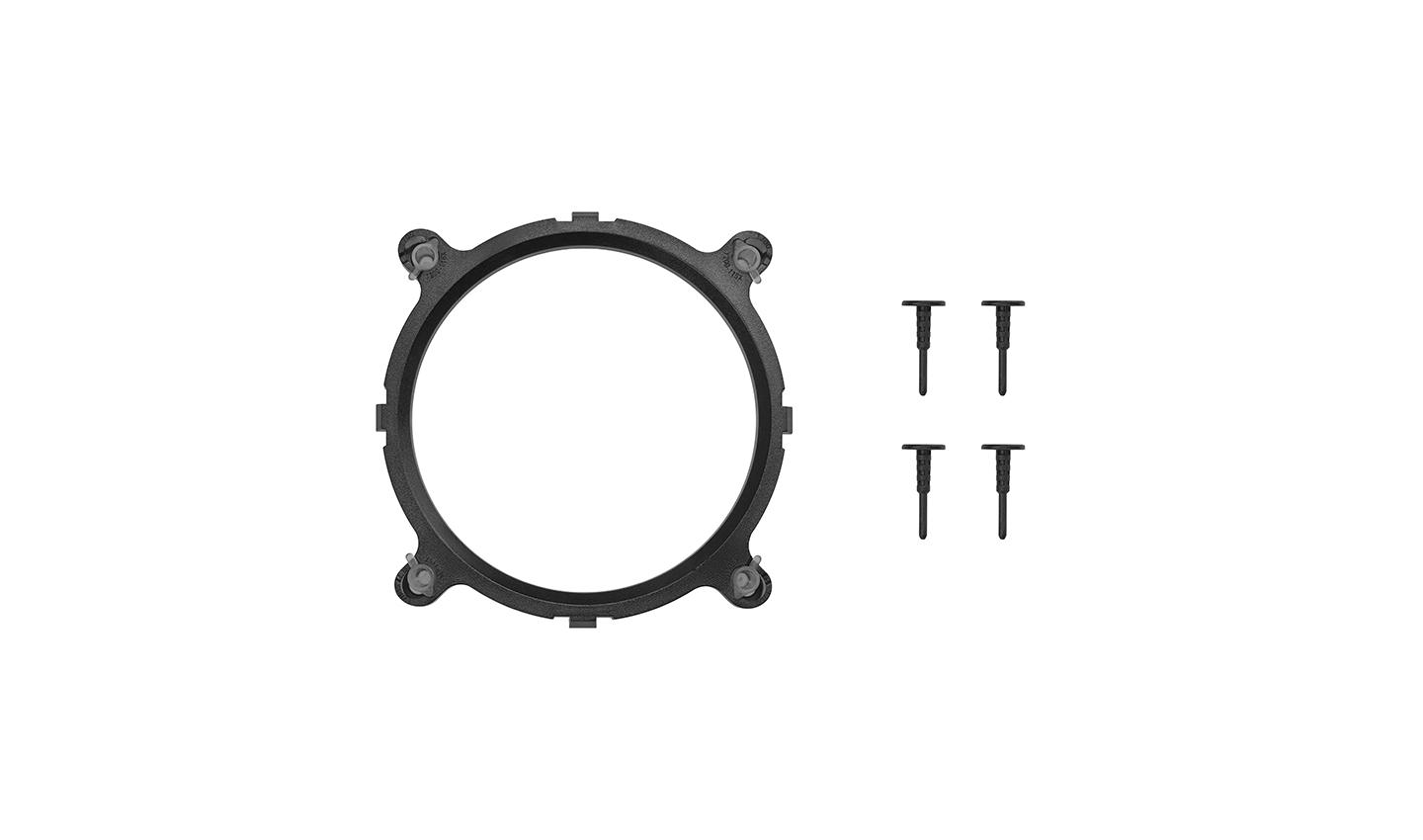

Compatibility with multiple platforms. The system comes with multiple mounting brackets to support platforms Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4.
Easy Installation
No need to reinstall the motherboard to get the cooling system installed.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Overall Dimension107×71×131 mm(L×W×H)
Fan Dimension92×92×25 mm(L×W×H)
Net Weight 326g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Heatpipe Ø6 mm×2 pcs
Fan Connector 4-pin PWM
Fan Rated Current 0.06 A±10%
Fan Power Consumption 0.72W
Fan Speed 500~2000 RPM±10%RPM
Max. Air Flow 33 CFM
Noise ≤23.9 dB(A)
EAN 6933412726937
P/N DP-MCH2-GMX200-V2
Product Dimension
Download
GAMMAXX 200 V2 Manual.pdf
