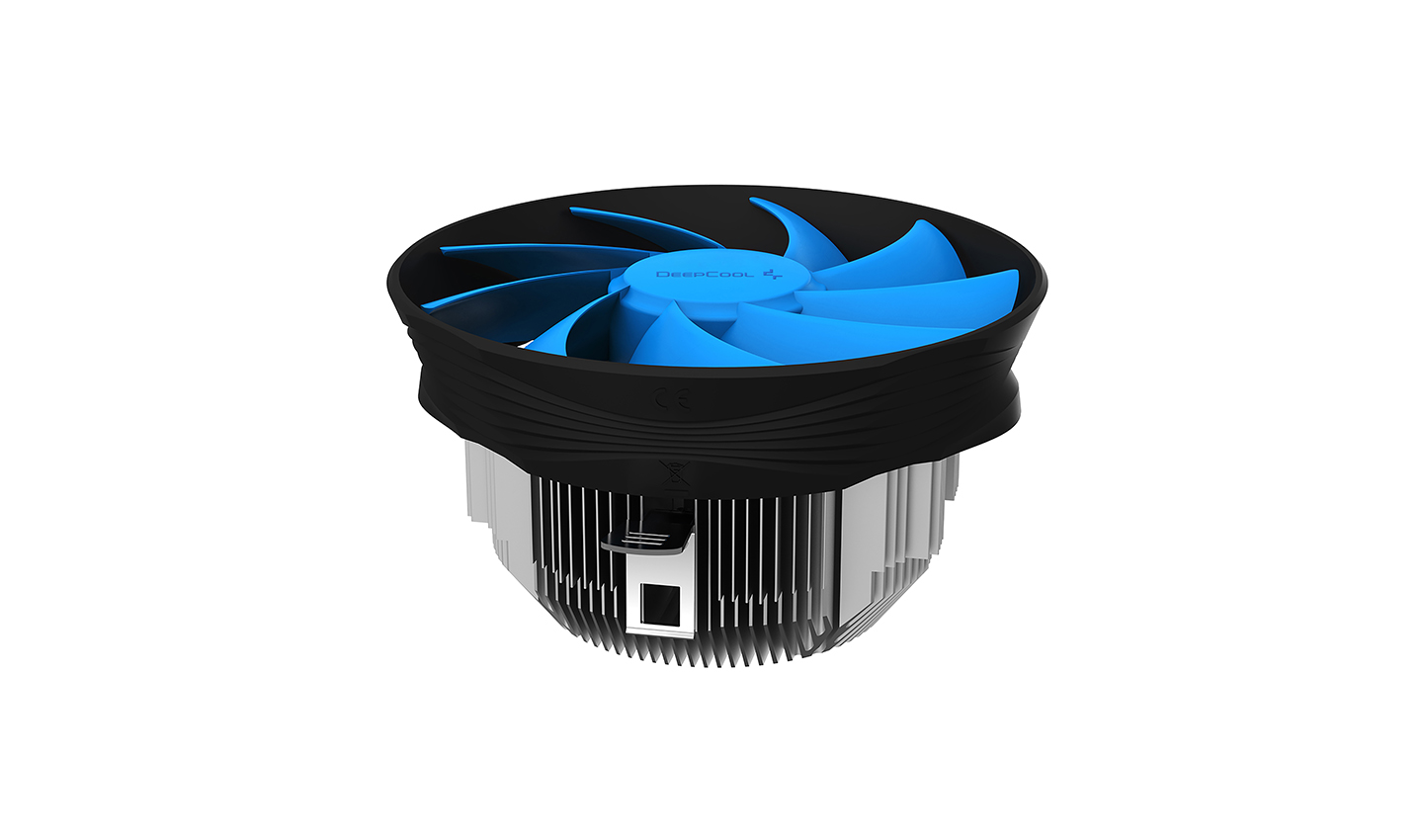

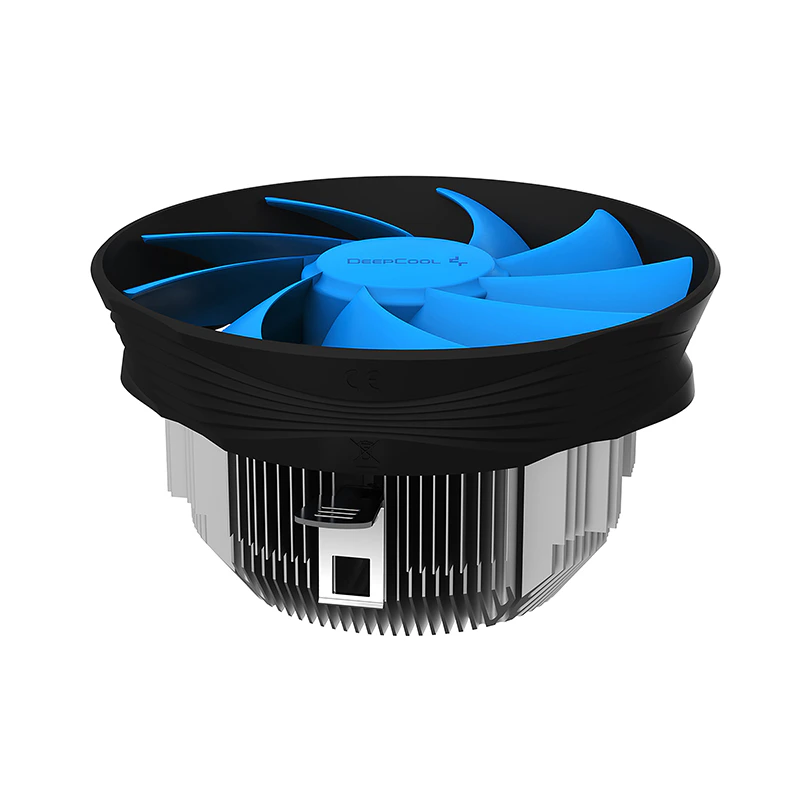

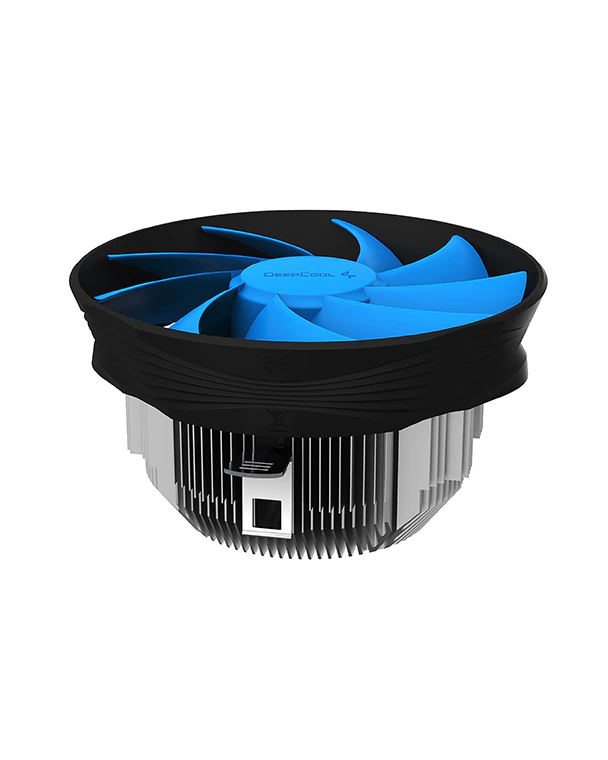

ARCHER BIGPRO
The cooler is compatible with Intel LGA115X / LGA775 and AMD FM2 + / FM2 / FM1 / AM3 + / AM3 / AM2 + / AM2 / AM4 platforms and is capable of cooling processors with a TDP of up to 125 W.
MODEL
Compatible with AMD am4.
The cooler is compatible with Intel LGA115X/LGA775 and AMD FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2/AM4 platforms and can cool processors with TDP up to 125W.

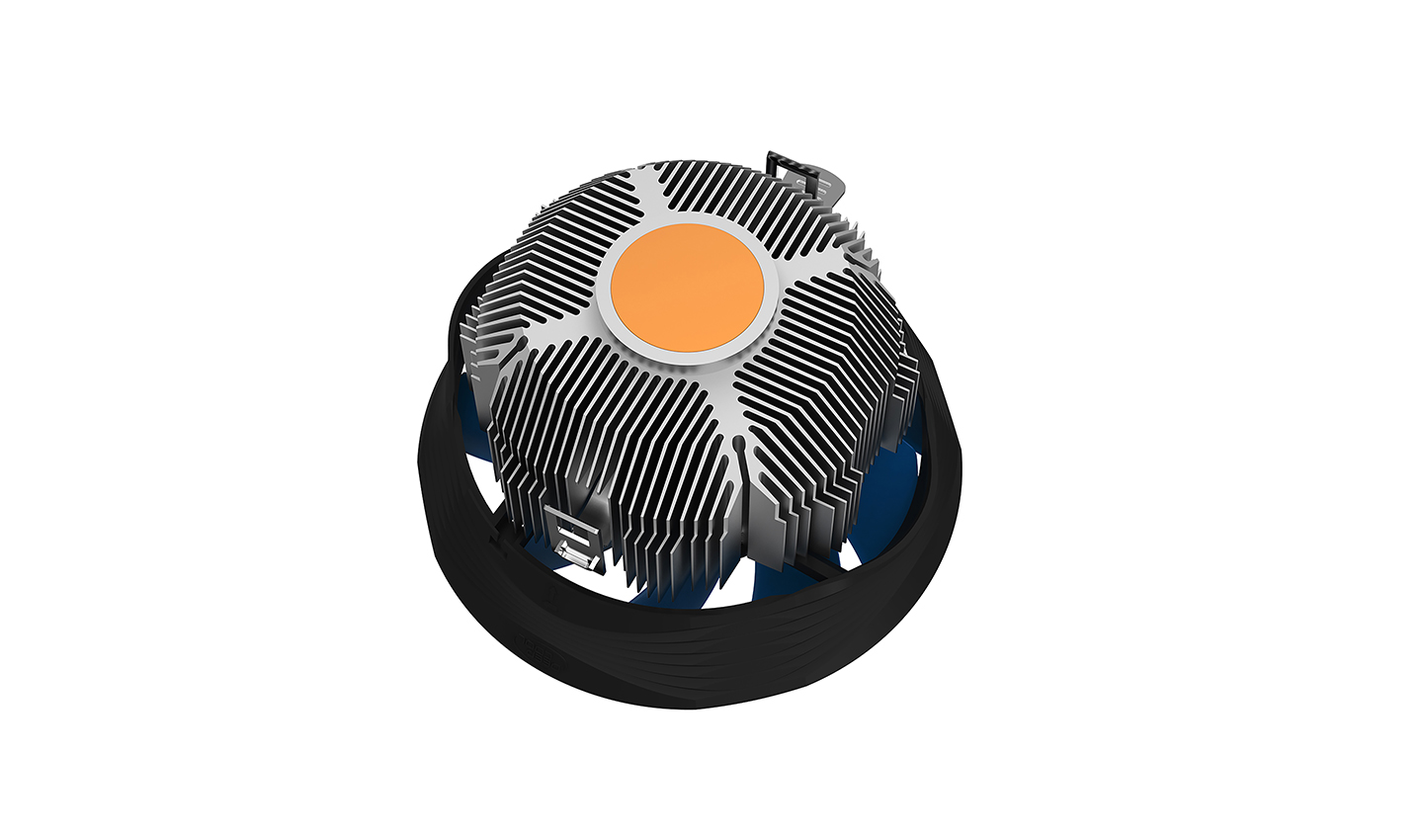

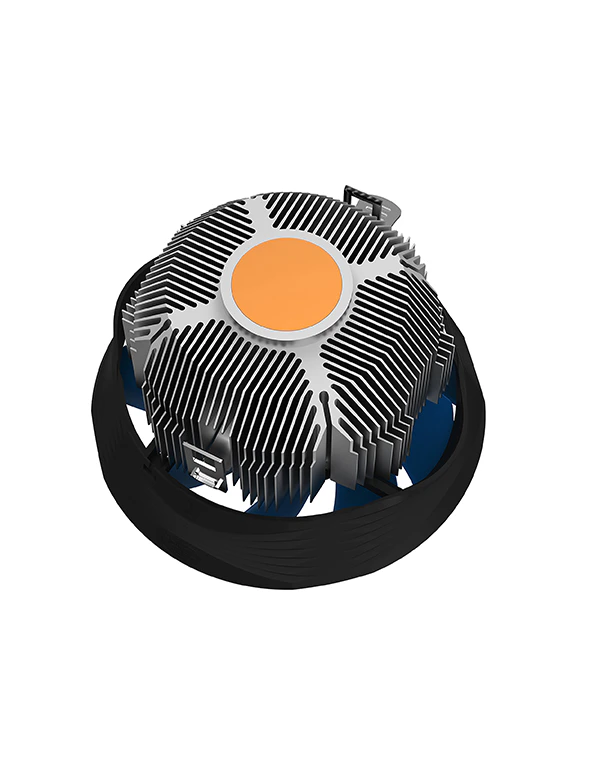

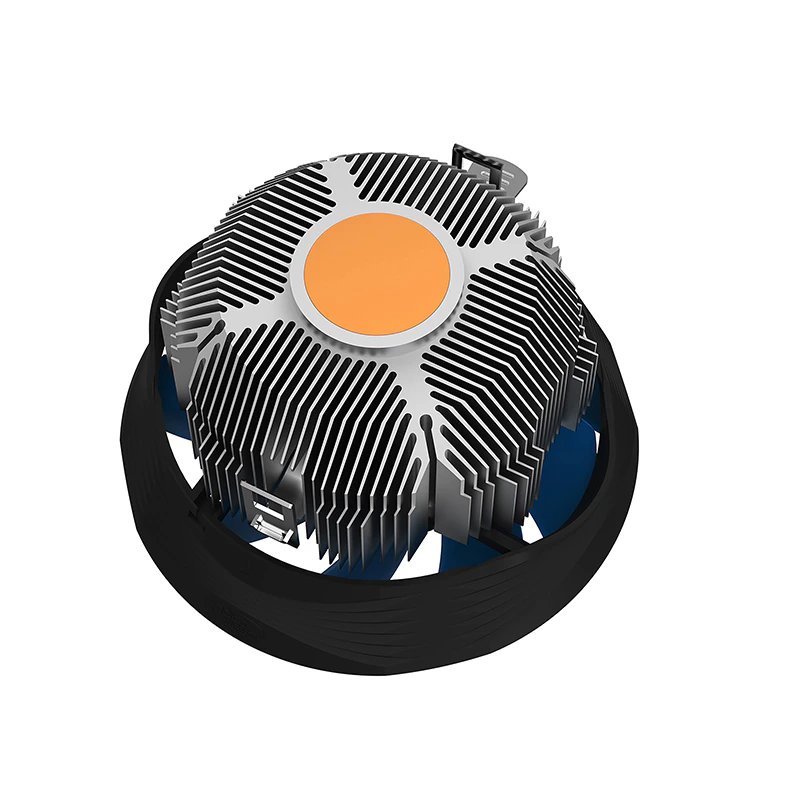

High quality aluminum heatsink provide high cooling performance and long service life.

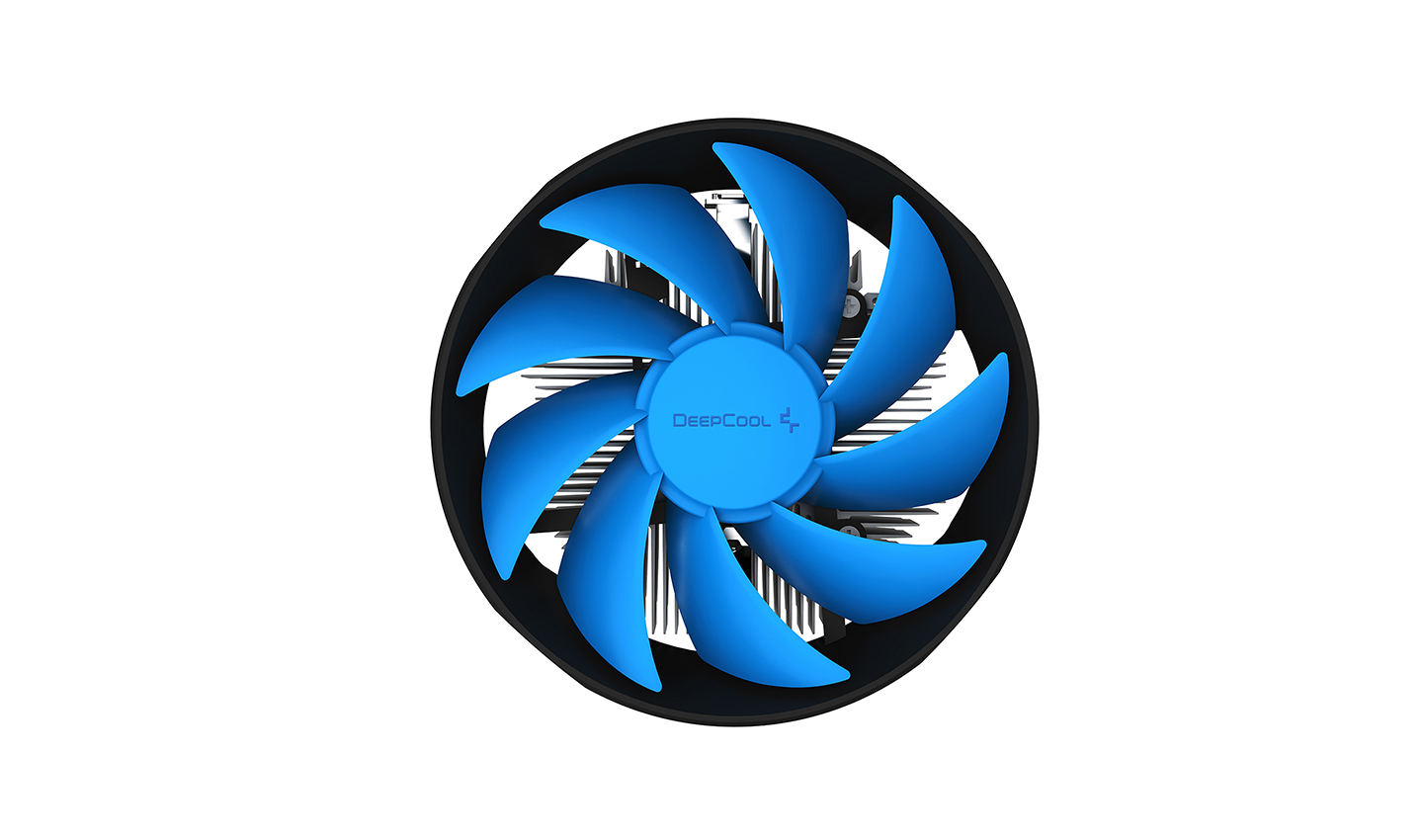

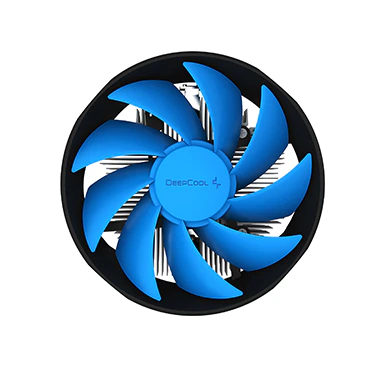

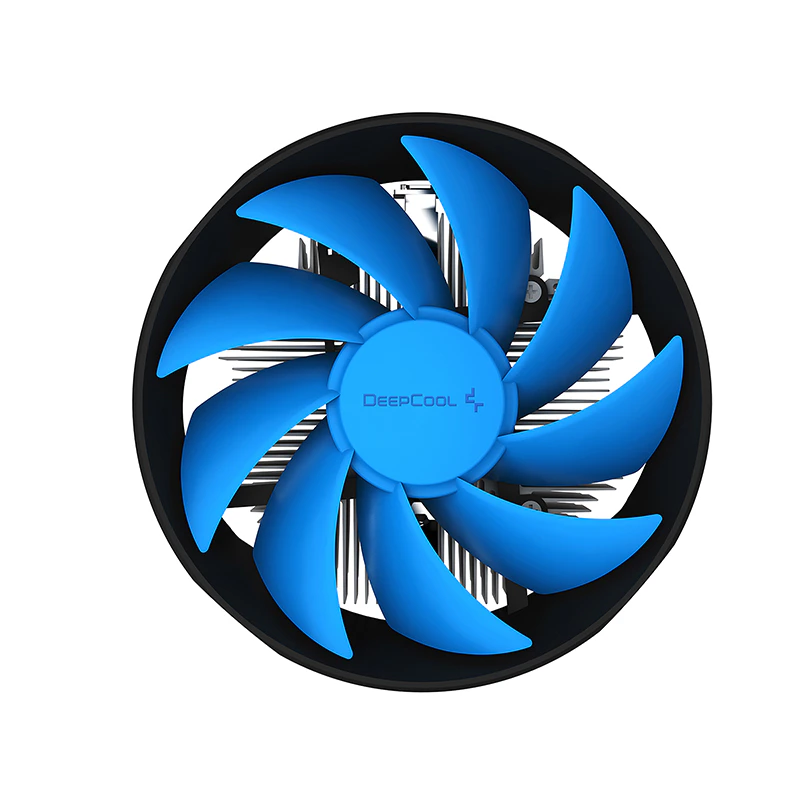

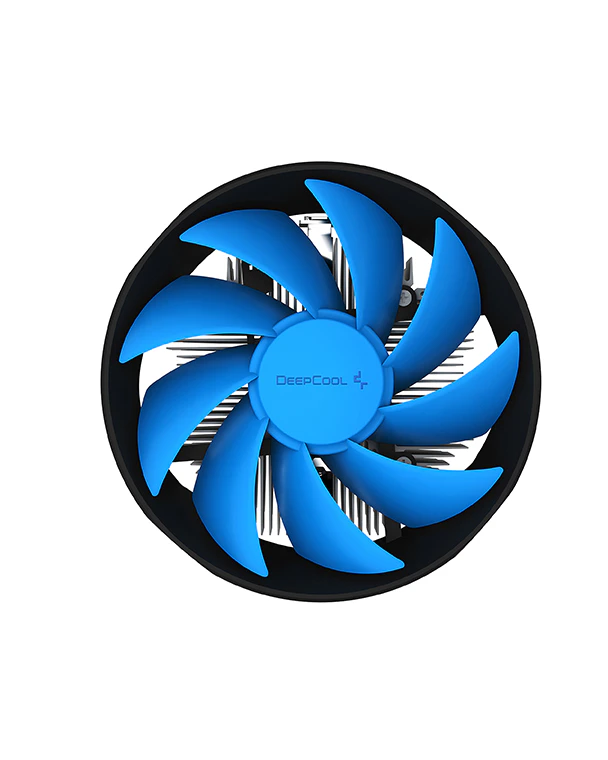

The 120mm fan creates a powerful airflow that effectively removes heat.
Thanks to the unique design of the fan frame, heat is removed, including from the memory sticks and the motherboard.
10% more efficient than ARCHER PRO Comes with an additional 4-pin PWM resistor to reduce noise.
Application For
Intel
LGA1200/1151/1150/1155/LGA775
AMD
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Overall Dimension 124X121X70mm
Fan Dimension Φ120X25mm
Net Weight 380g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.17 ±10%A(MAX)
Power Input 2.04W
Fan Speed (12V)900±150-2000±10%RPM (7V) 750±150-1400±10%RPM
Max. Air Flow (12V)60.19CFM (7V)52.39CFM
Noise (12V)29.7dB(A) (7V)24.5dB(A)

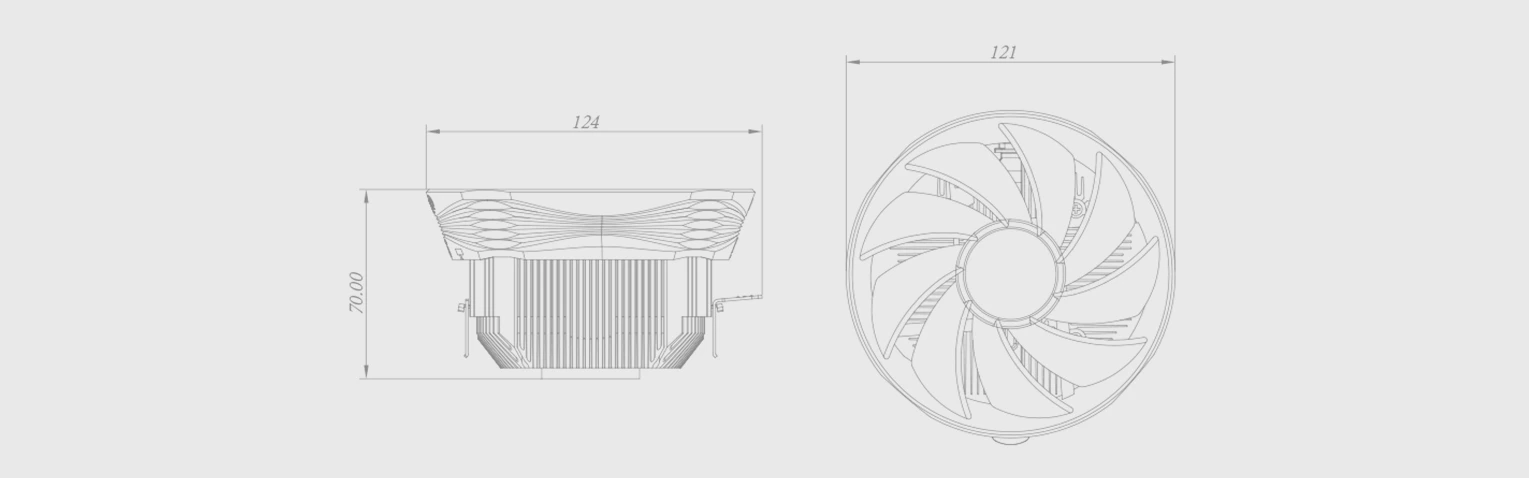

Product Dimension
Download
ARCHER BIGPRO Manual.pdf
