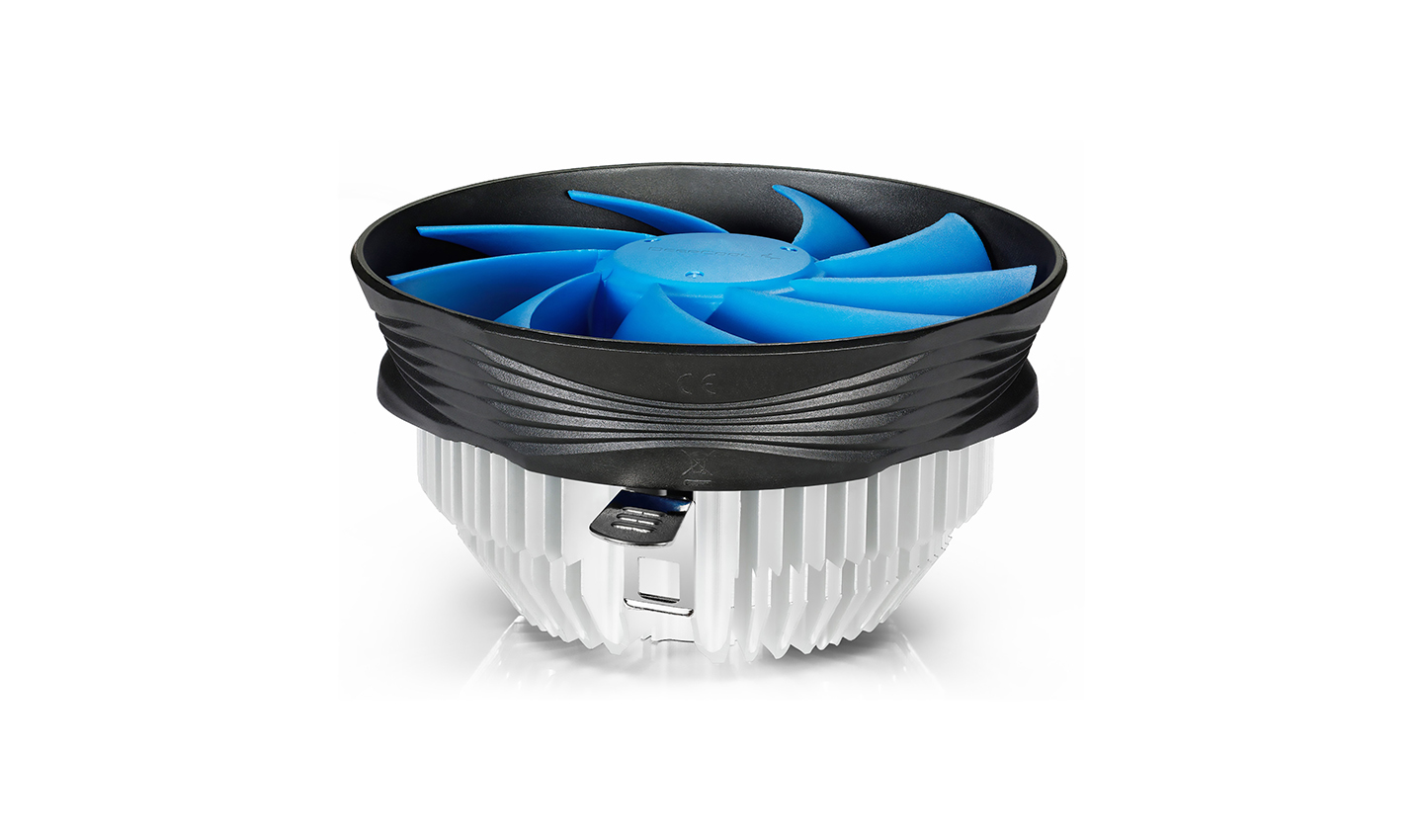

GAMMA ARCHER
MODEL
AMD AM4 Ready. (NOTE: Refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 for the manuals)

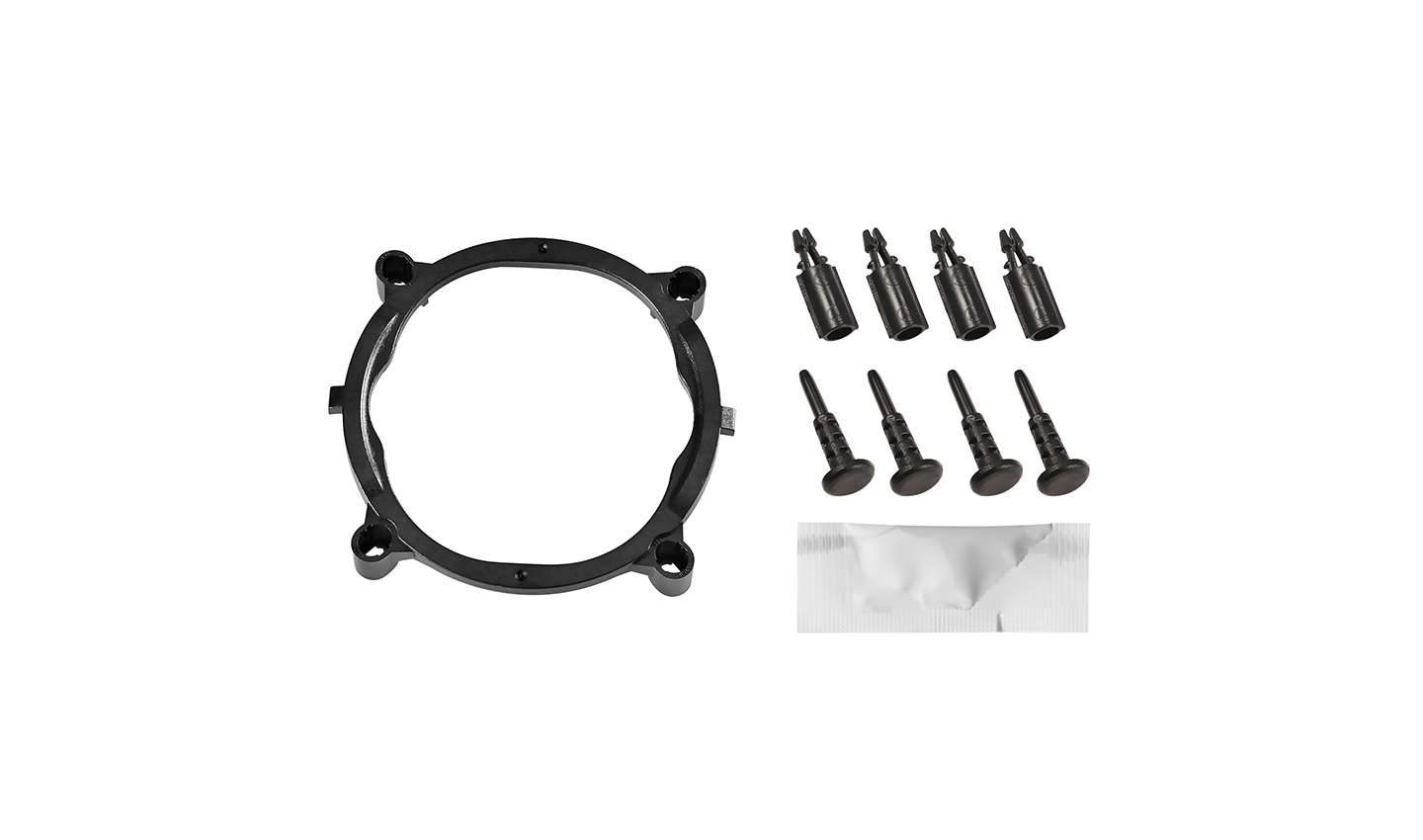

Compatible with Intel LGA775/1151/1150/1155/1156 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754 all sockets, up to 95W.

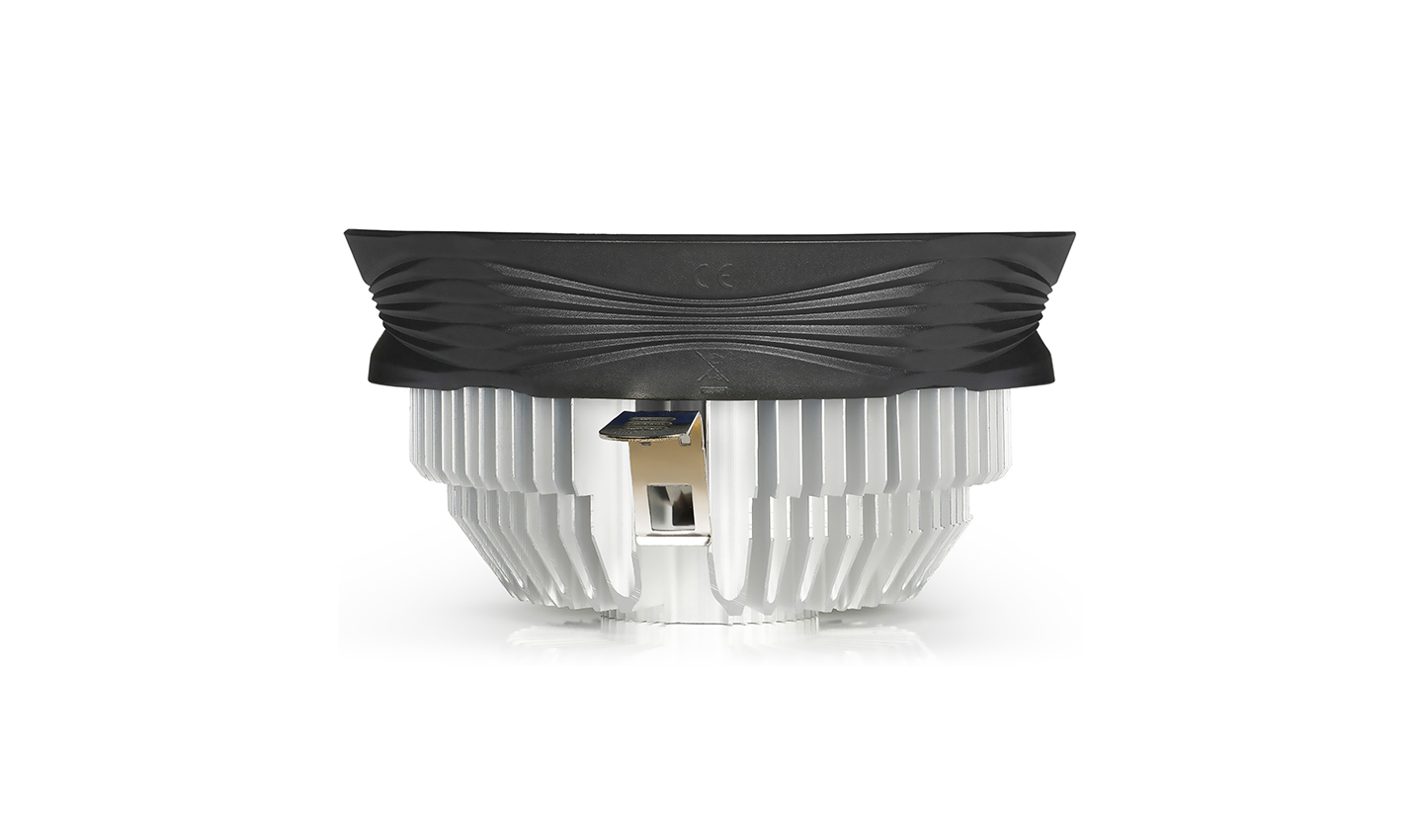

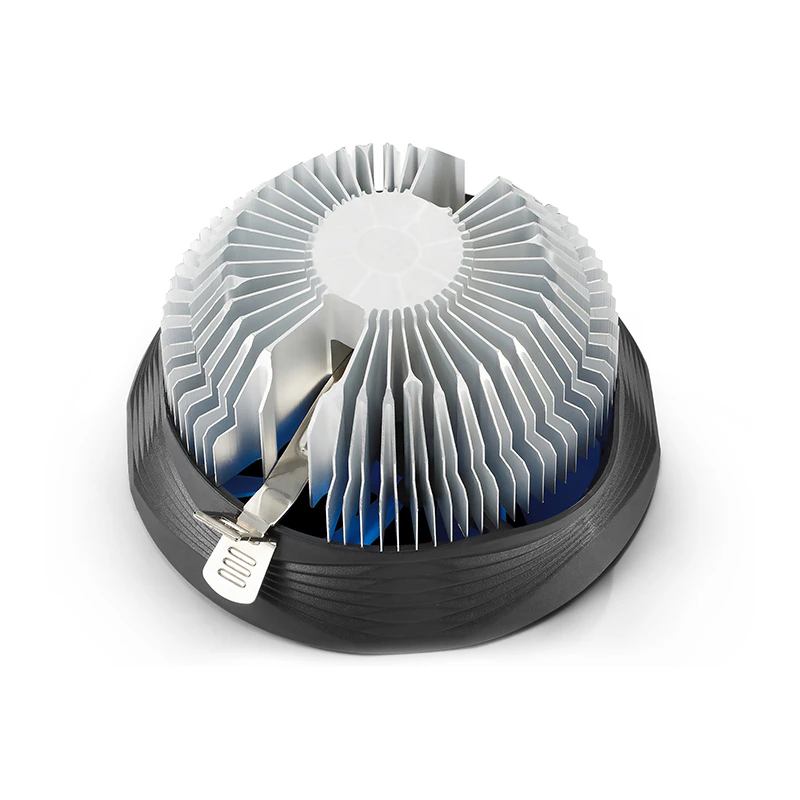

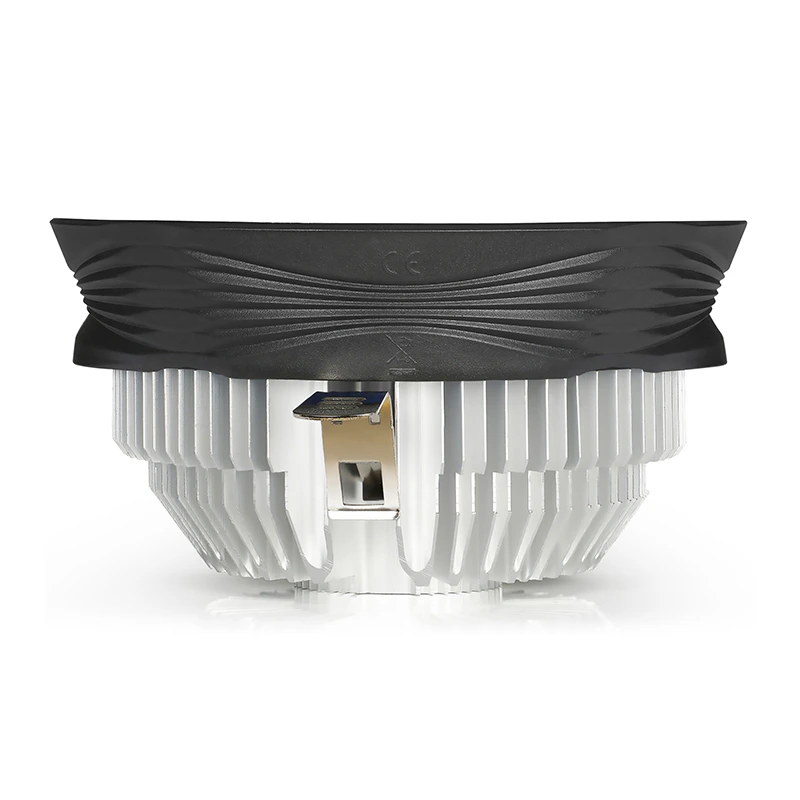

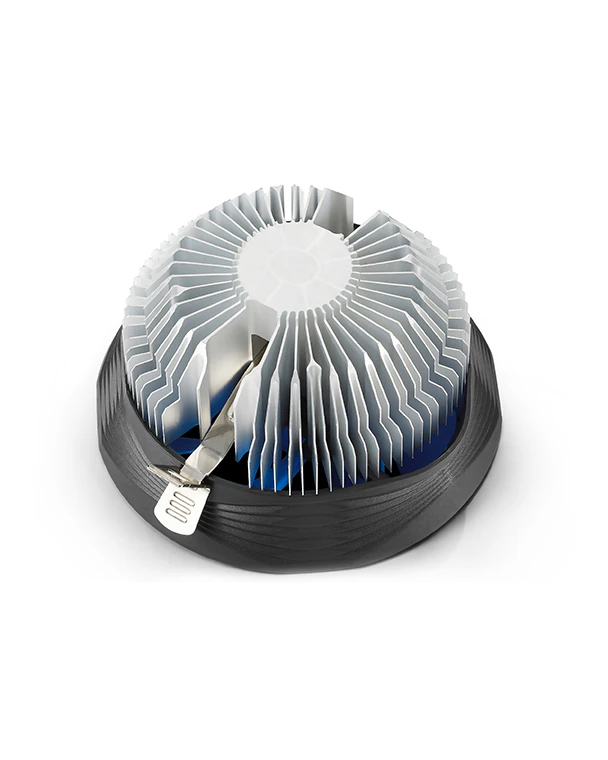

High quality aluminum extrusions, long lifespan and excellent cooling performance.

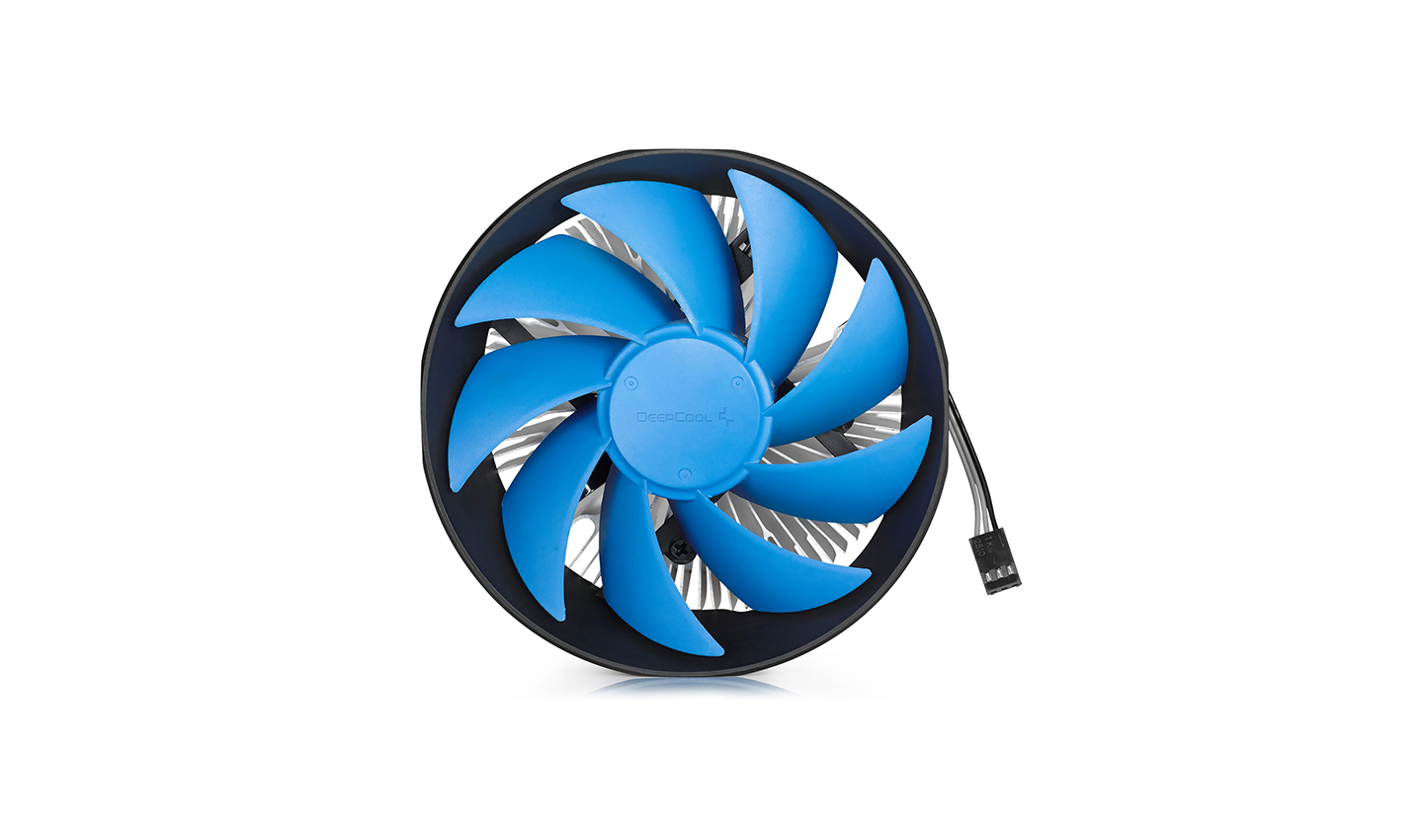

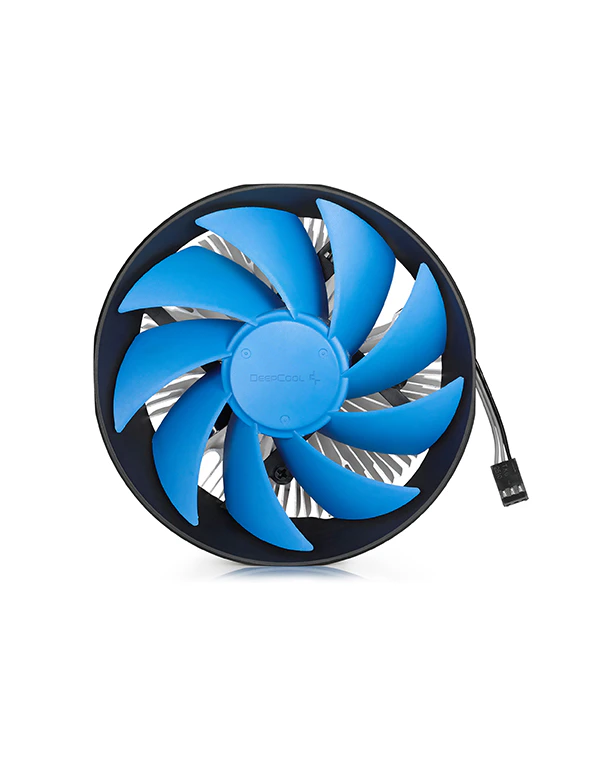

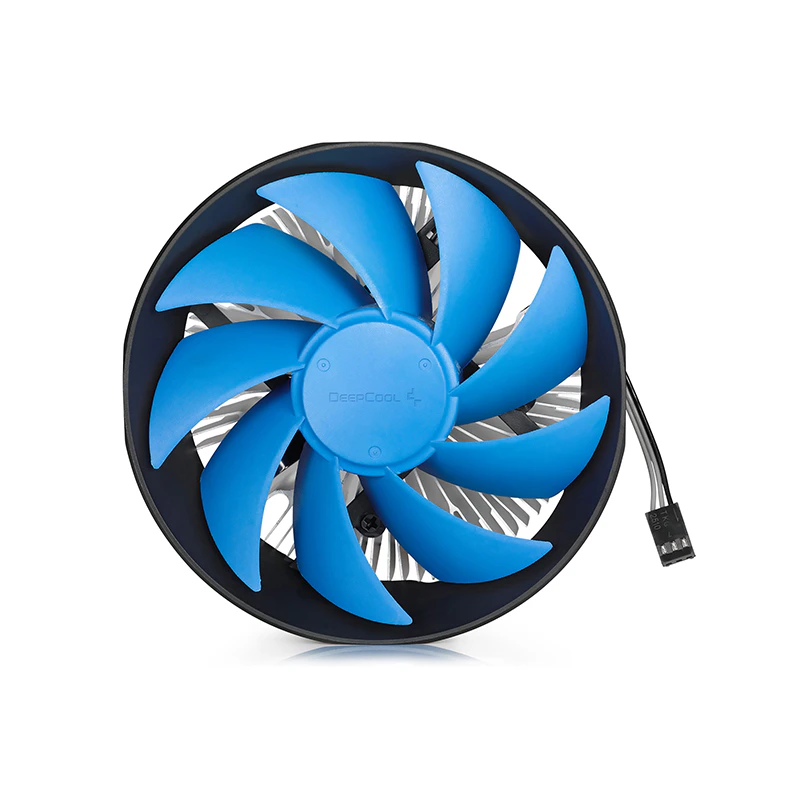

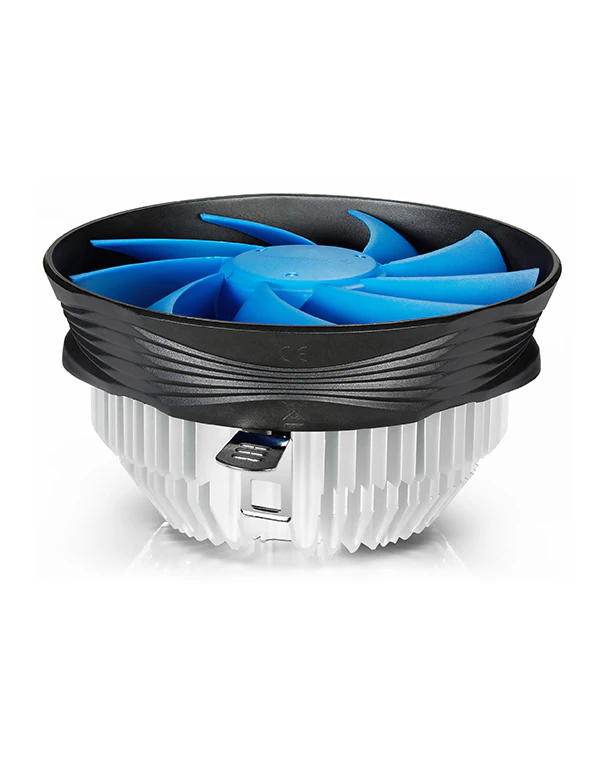

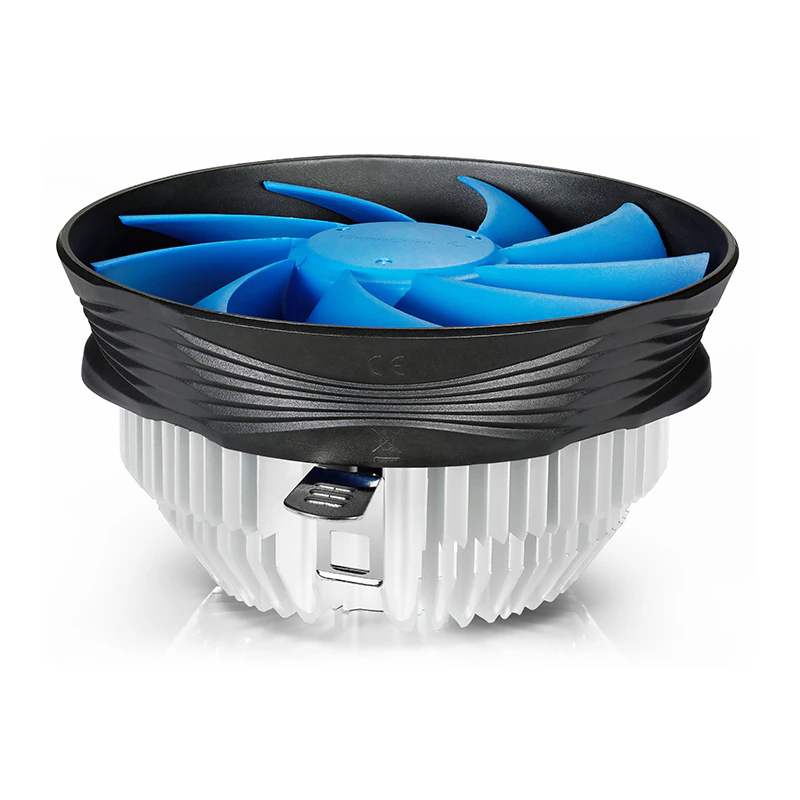

120 mm fan delivering powerful airflow for efficient heat dissipation.

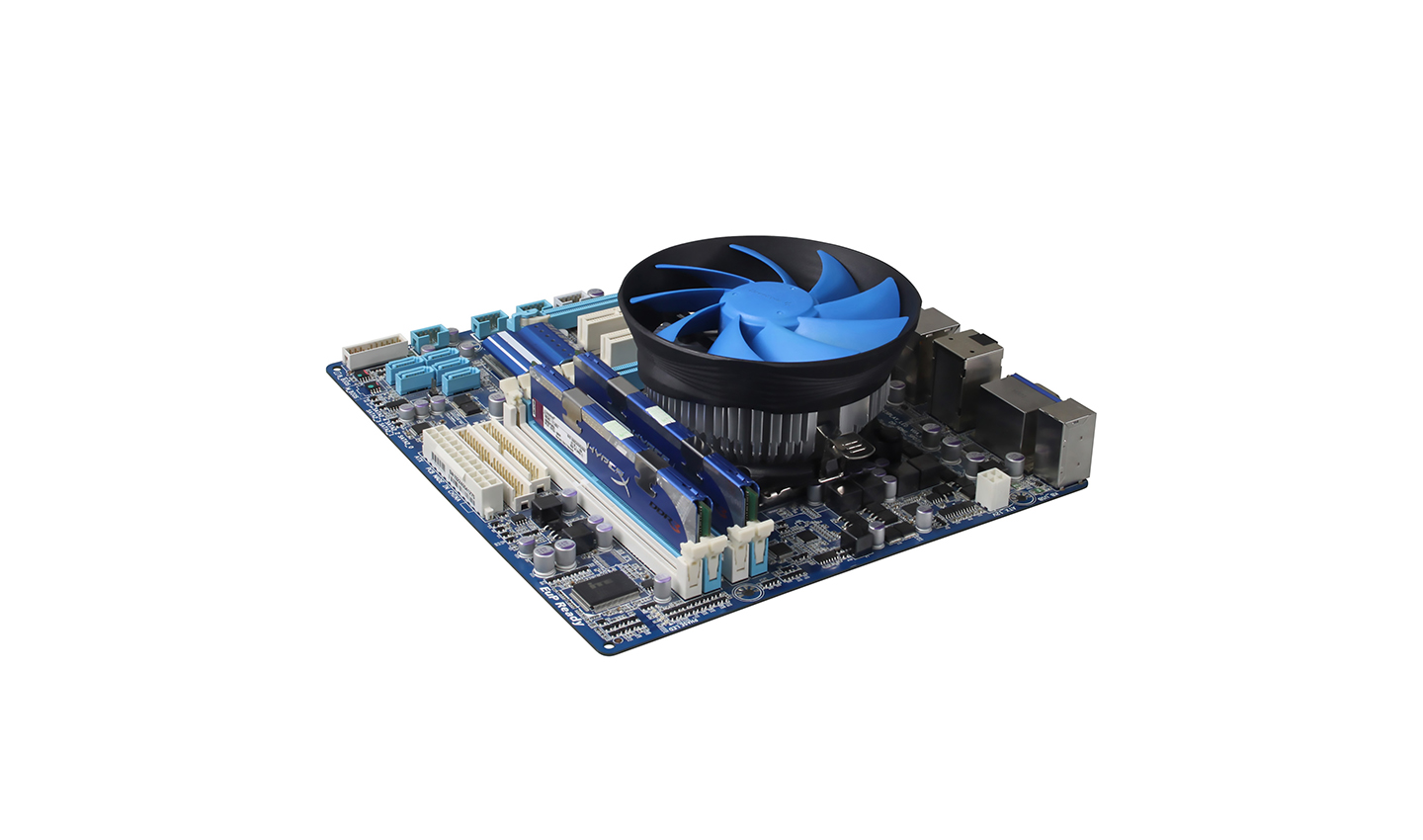

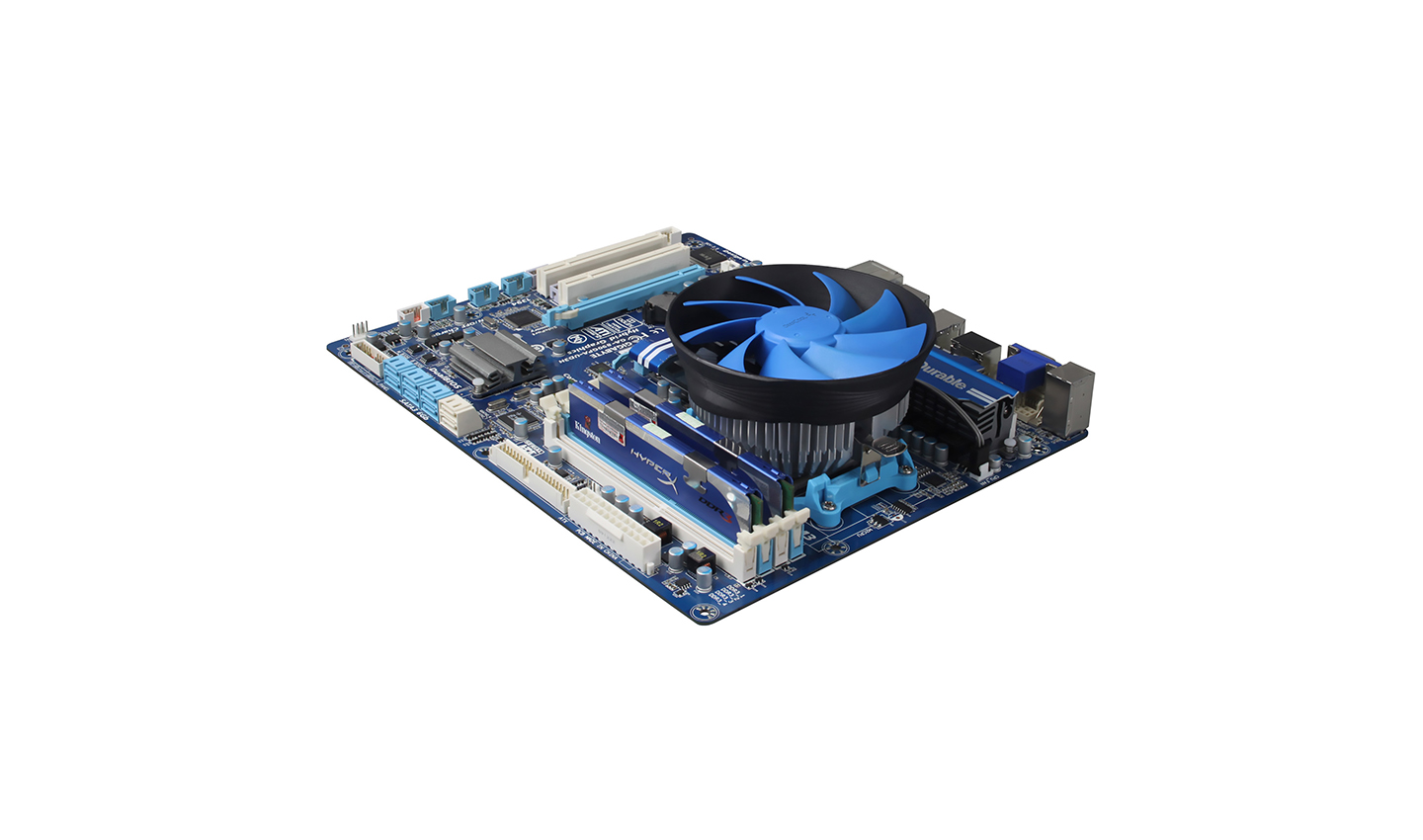

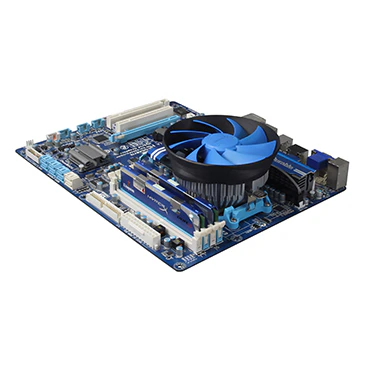

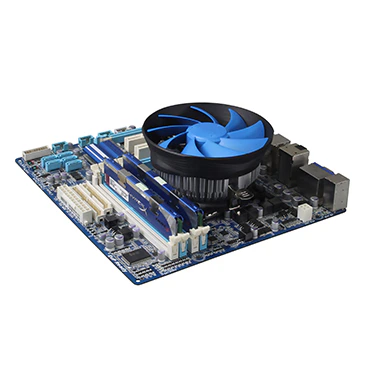

Unique fan frame and airflow designs to rapidly remove heat from the memory and motherboard.
Application For
Intel
LGA1200/1151/1150/1155/775
AMD
AM5/AM4
Technical Spec
Overall Dimension 124X121X65.5 mm(L×W×H)
Fan Dimension Φ120X25 mm
Net Weight 301g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.12 ±10%A
Power Input 1.44W
Fan Speed 1600±10%RPM
Max. Air Flow 54.25CFM
Noise 26.1dB(A)
EAN 6933412708483
P/N DP-MCAL-GA

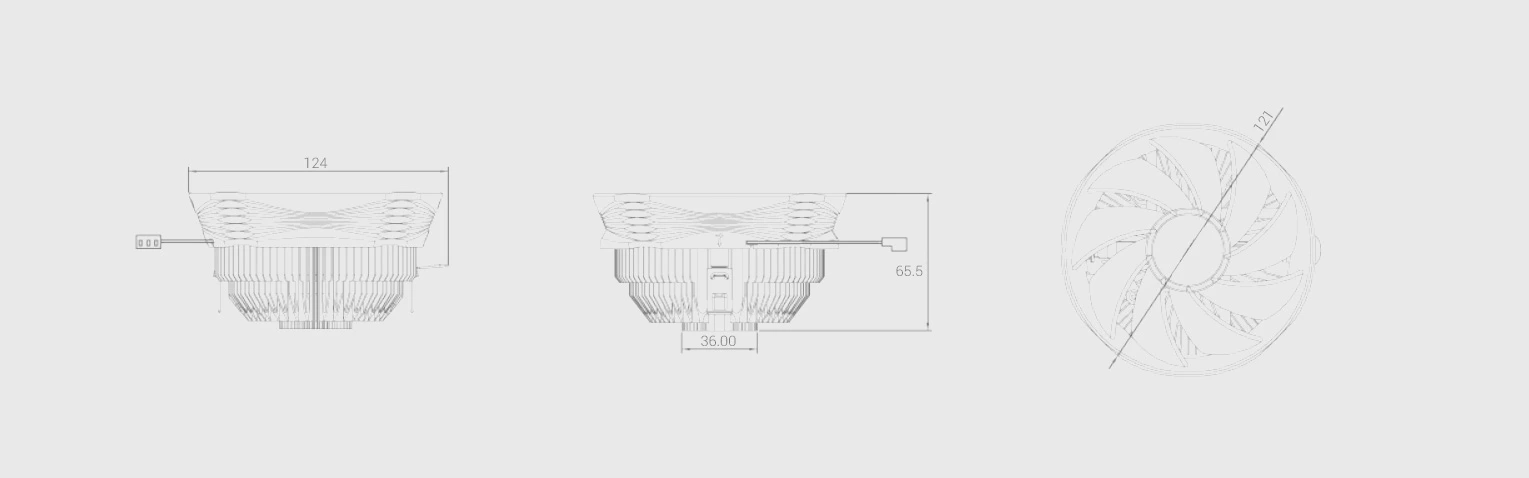

Product Dimension
Download
GAMMA ARCHER Manual.pdf
