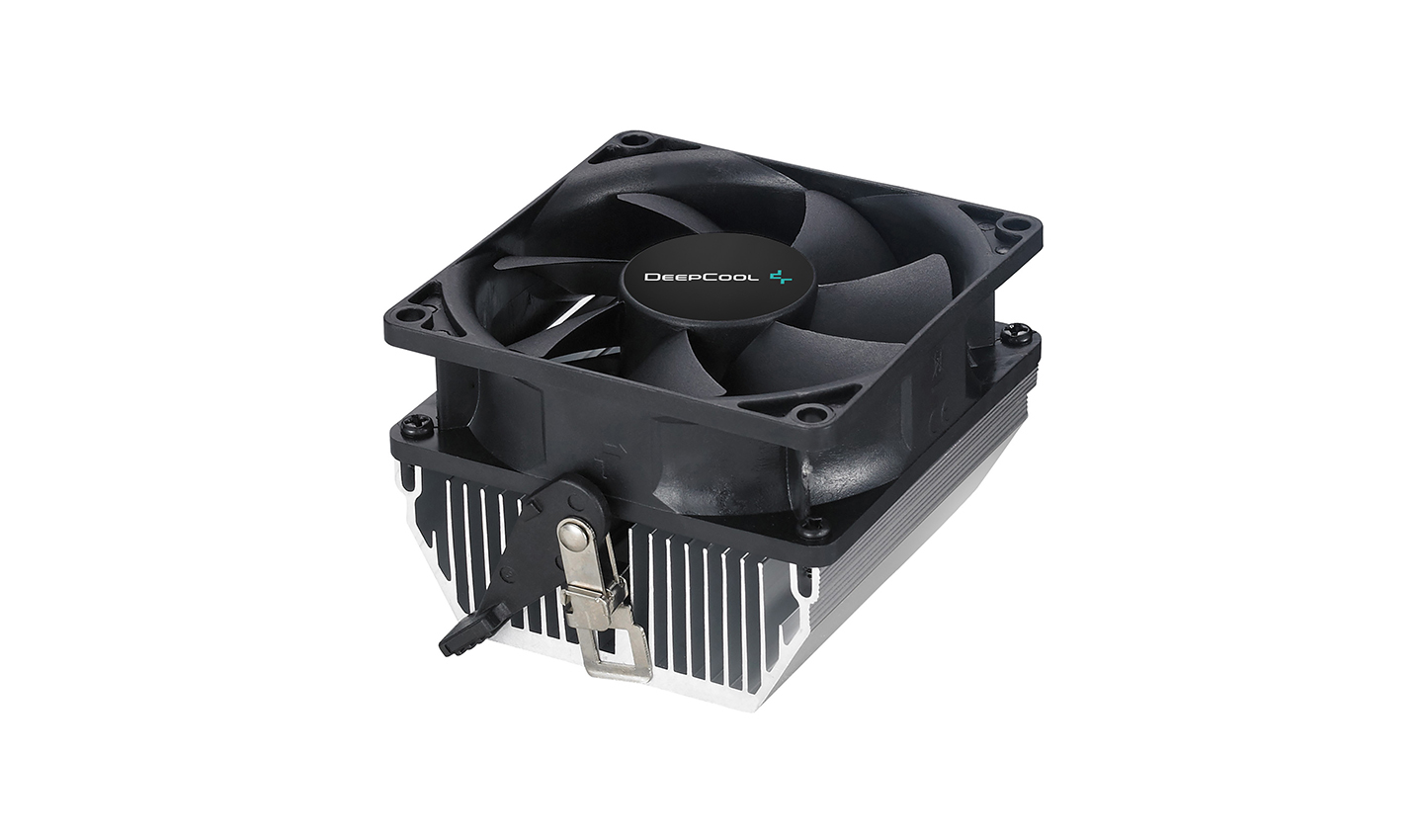

CK-AM209
MODEL
AMD AM5/AM4 Ready.
Ideal AMD solution for medium/small system integrators.
High performance 80 x 80 x 25 mm fan that delivers a high air pressure.
Easy-to-install spring clips.
Application For
AMD
AM5/AM4
Technical Spec
Product Dimensions103×80×56 mm(L×W×H)
Heatsink Dimensions77×77×30 mm(L×W×H)
Net Weight 224g
Fan Dimension80X80X25 mm(L×W×H)
Fan Speed 2500±10%RPM
Fan Airflow 32.4CFM
Fan Air Pressure 2.1 mmAq
Fan Noise 28dB(A)
Fan Connector 3-pin
Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.1 A
Fan Power Consumption 1.2 W
EAN 6933412703433
P/N DP-ACAL-A09
