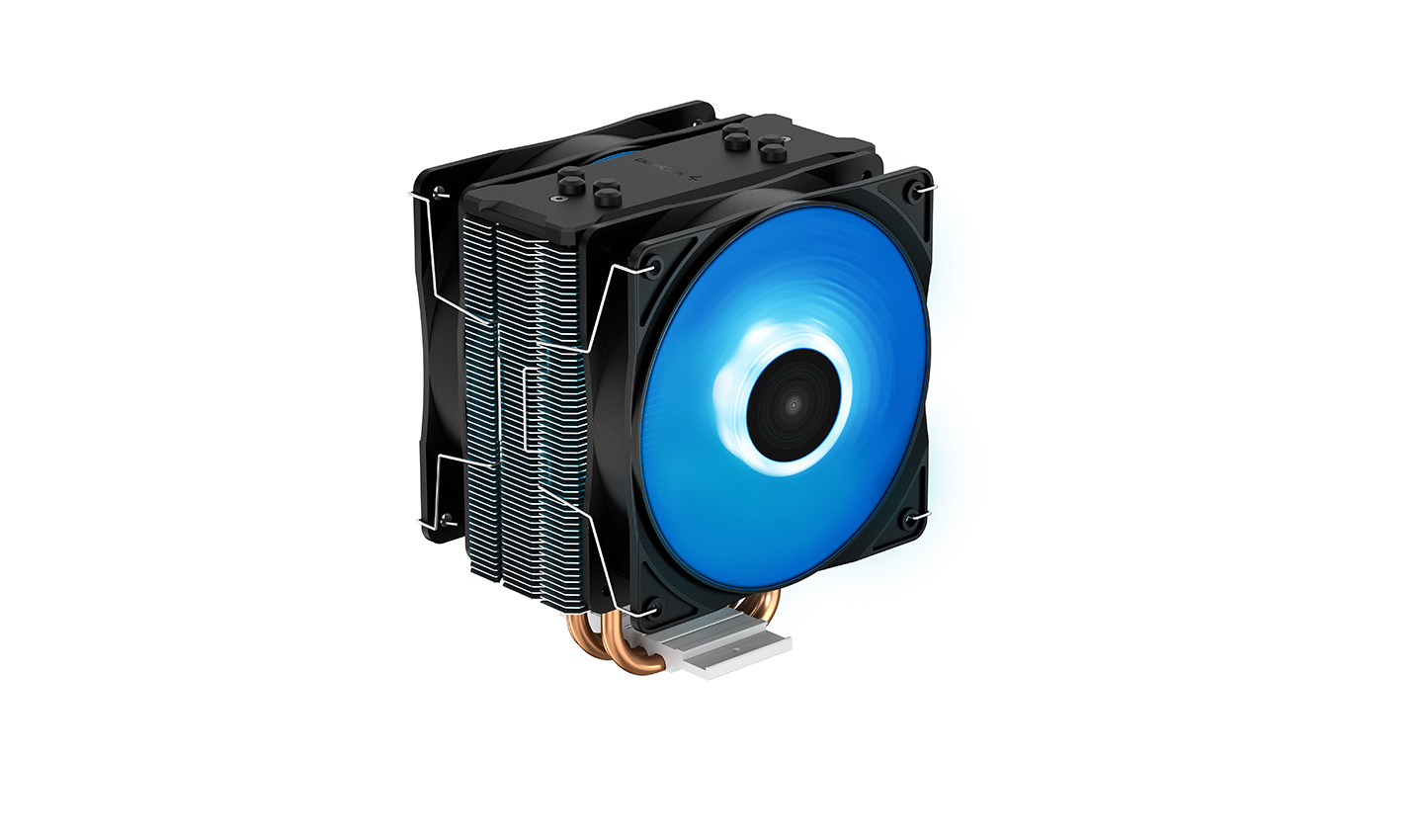

GAMMAXX 400 PRO
MODEL
GAMMAXX 400 PRO
Complete Upgrade Defining Professionalism

GAMMAXX 400 PRO is upgraded from GAMMAXX 400’s classic design.
With more densed cooling fins and 2 LED fans added, the GAMMAXX 400 PRO significantly enhances cooling performance without affecting case and RAM compatibility.

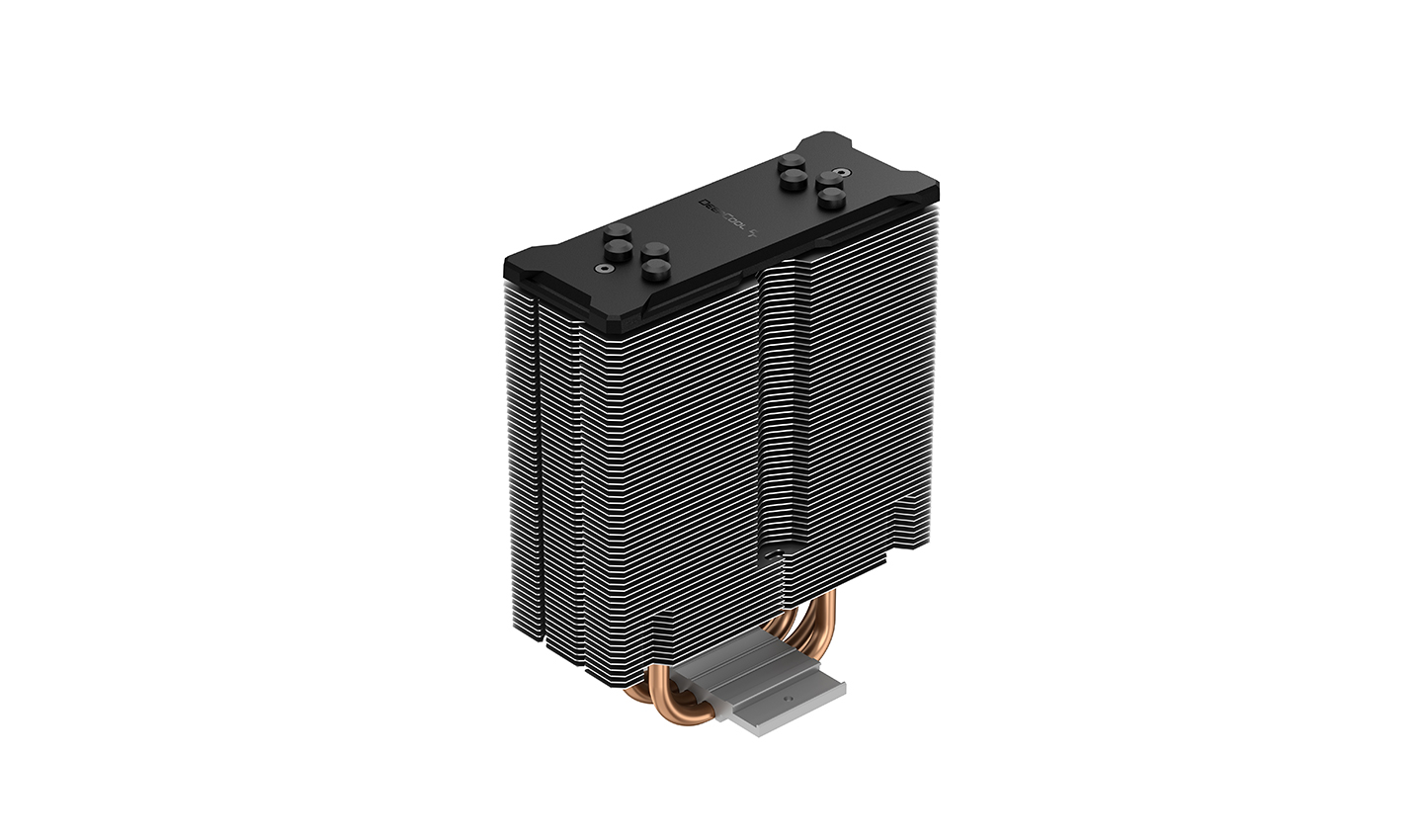

Additional Dissipation Fins
As a 120mm cooler, GAMMAXX 400 PRO incorporates a total of 56 cooling fins. Compared to single fan models, its total surface area is increased by 20%, making full use of the airflow generated by its twin fan design.

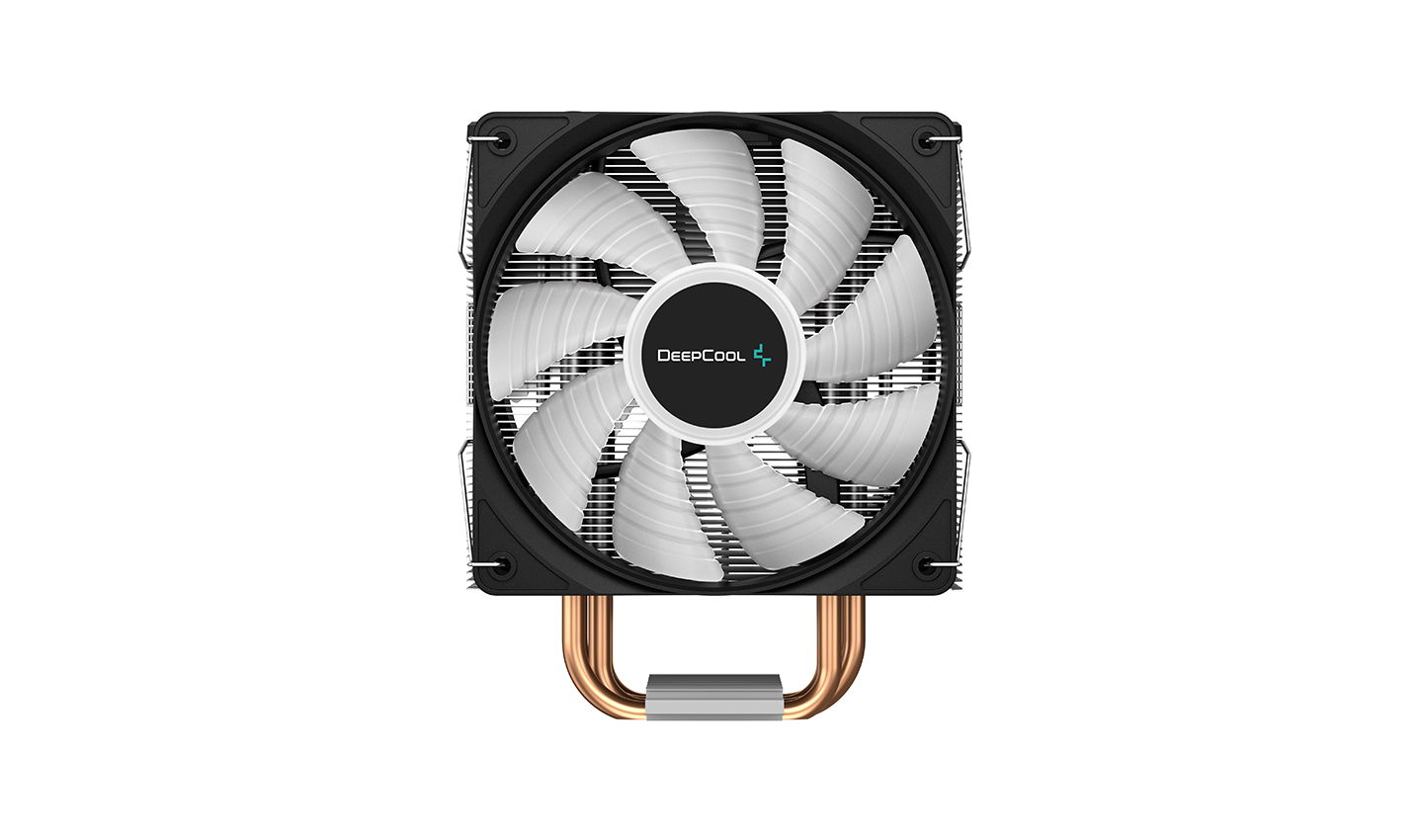

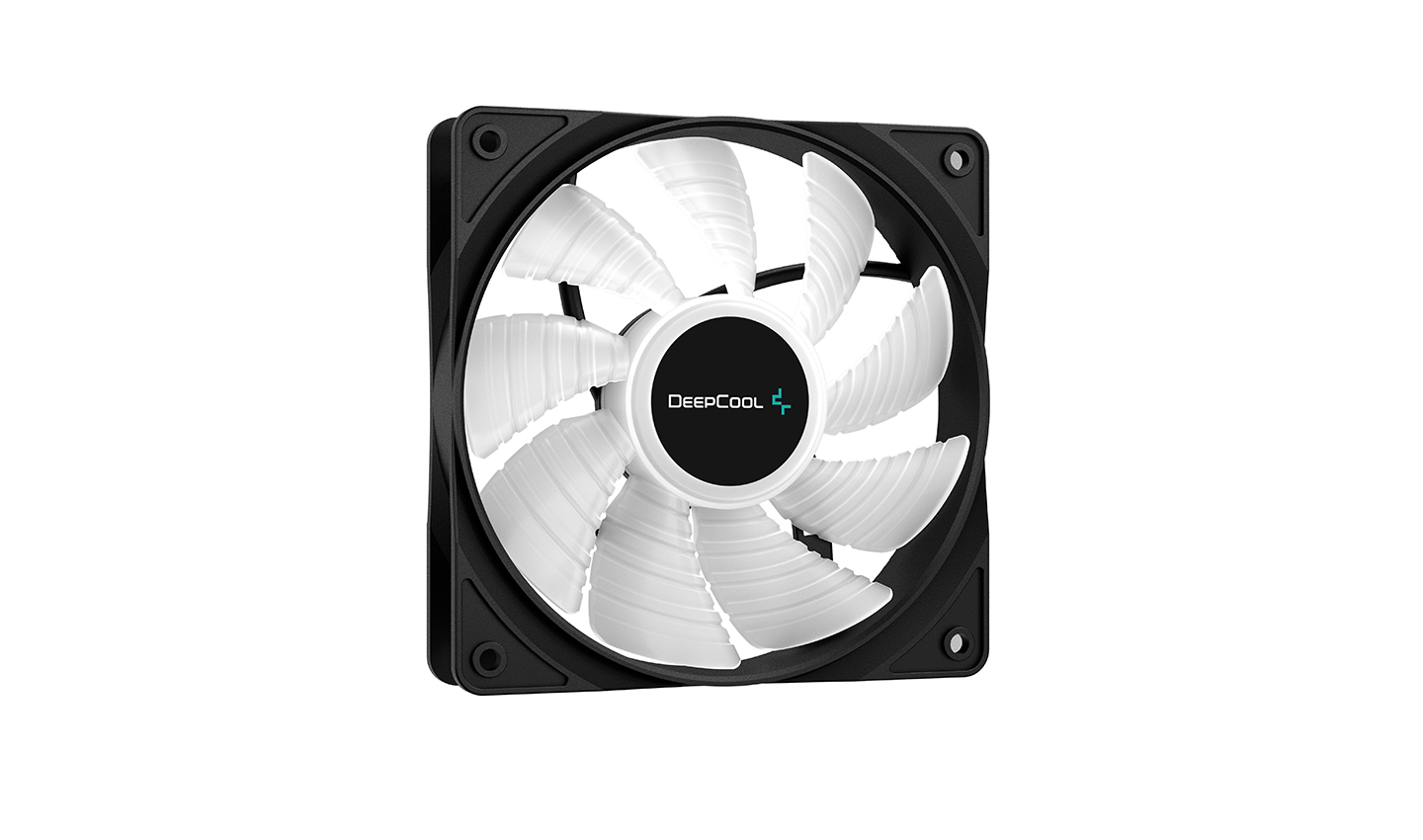

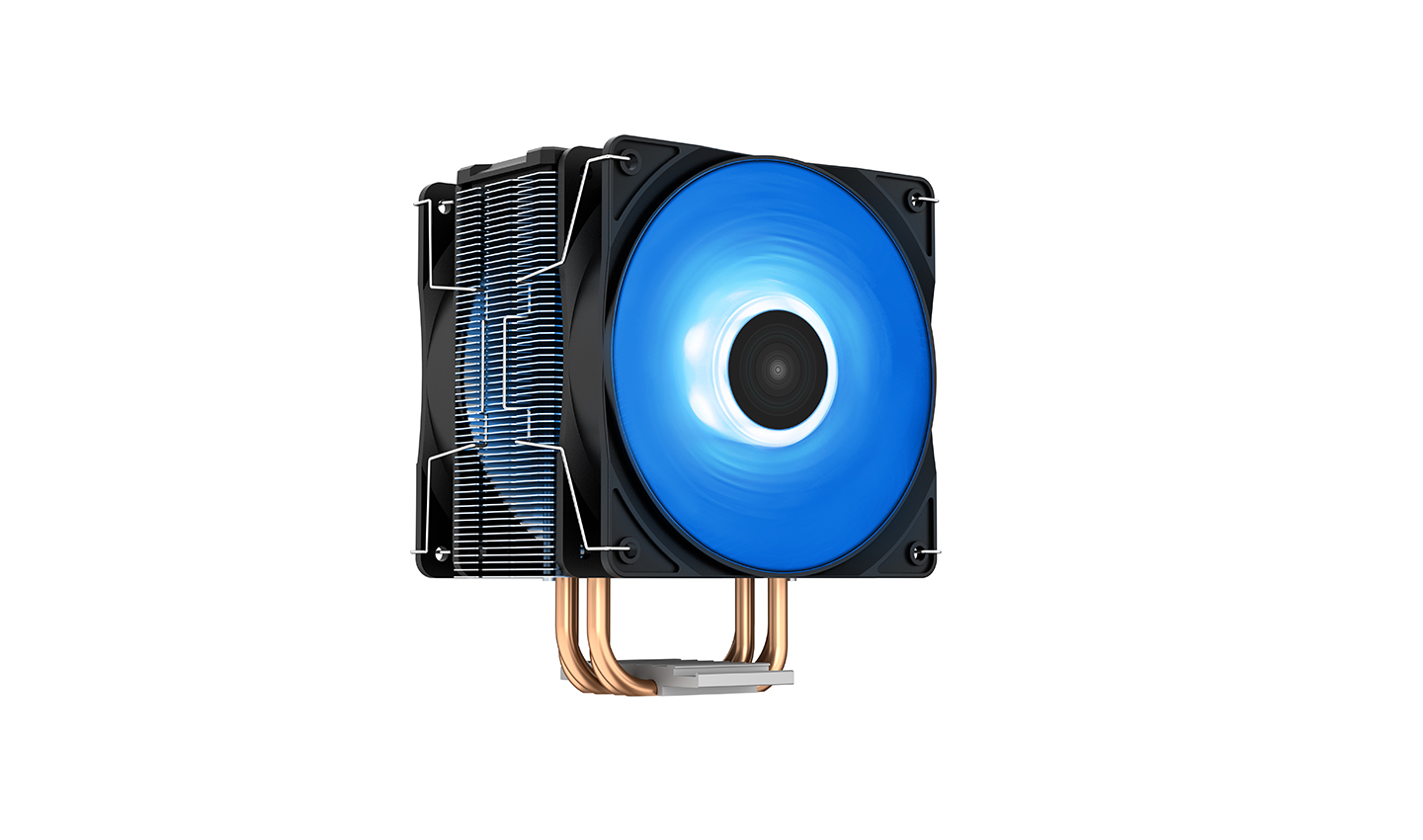

Blue LED Fans
The GAMMAXX 400 PRO comes with 2 120mm PWM fans as standard, a mighty boost to both aesthetics and performance.
Blue LED Fans
The GAMMAXX 400 PRO comes with 2 120mm PWM fans as standard, a mighty boost to both aesthetics and performance.

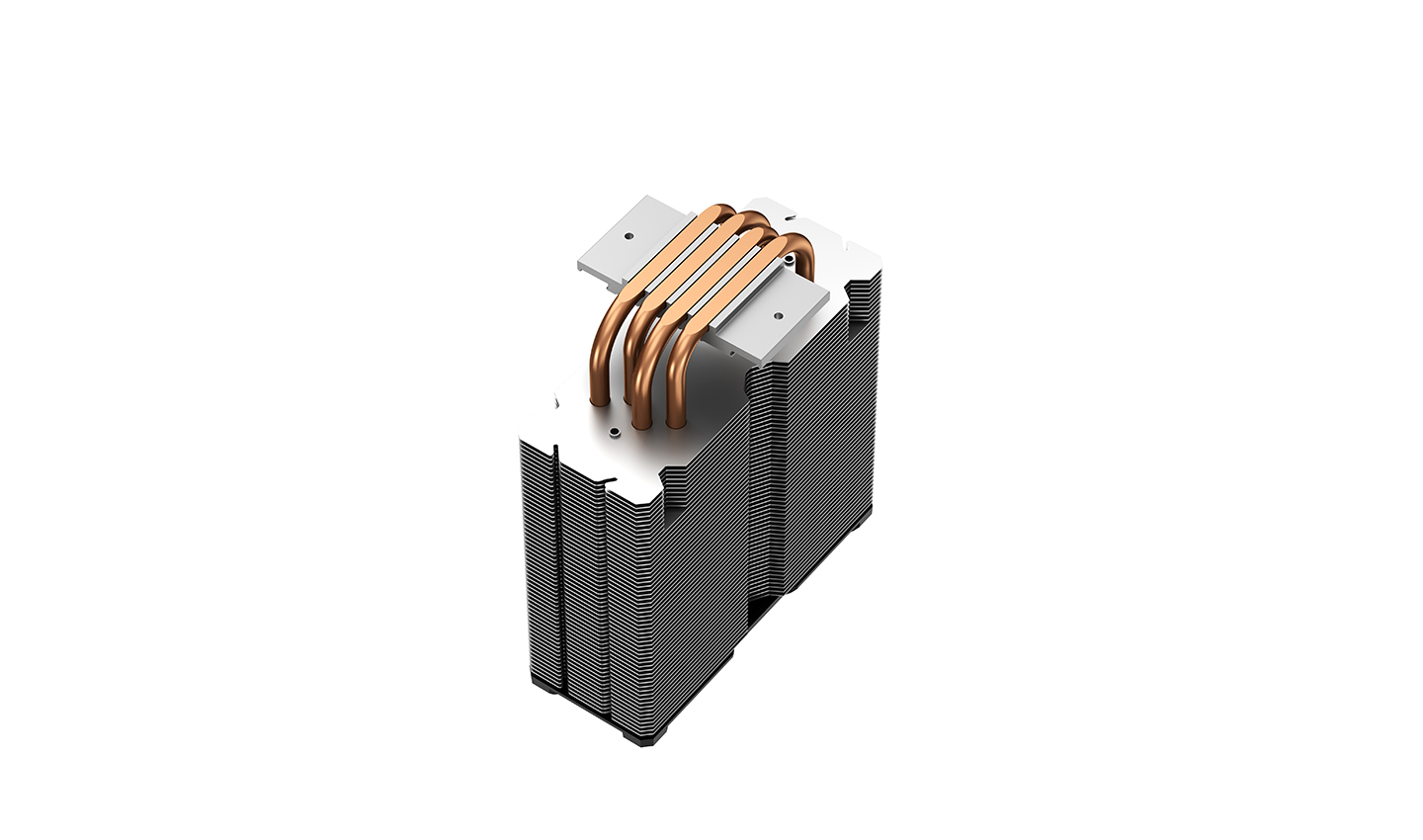

High-performance Heat Pipes
GAMMAXX 400 PRO comes with 4 high-performance sintered copper heat pipes, each specifically positioned to instantly dissipate CPU heat.
Core Touch Base
Its base adopts Core Touch Technology to dissipate heat more efficiently.
Core Touch Base
Its base adopts Core Touch Technology to dissipate heat more efficiently.

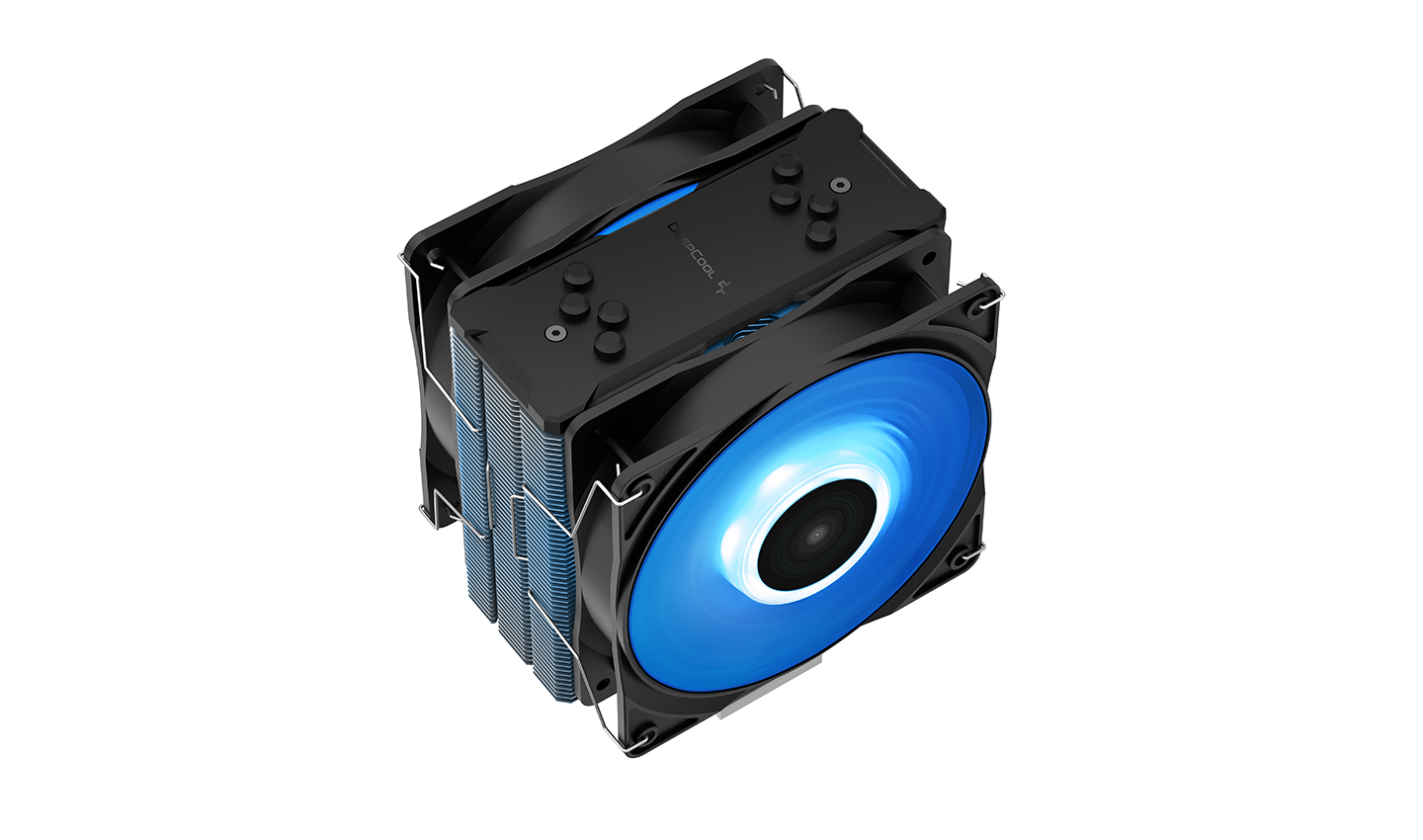

Black Top Cover
The iconic black top cover gives your computer set up a unique appeal.

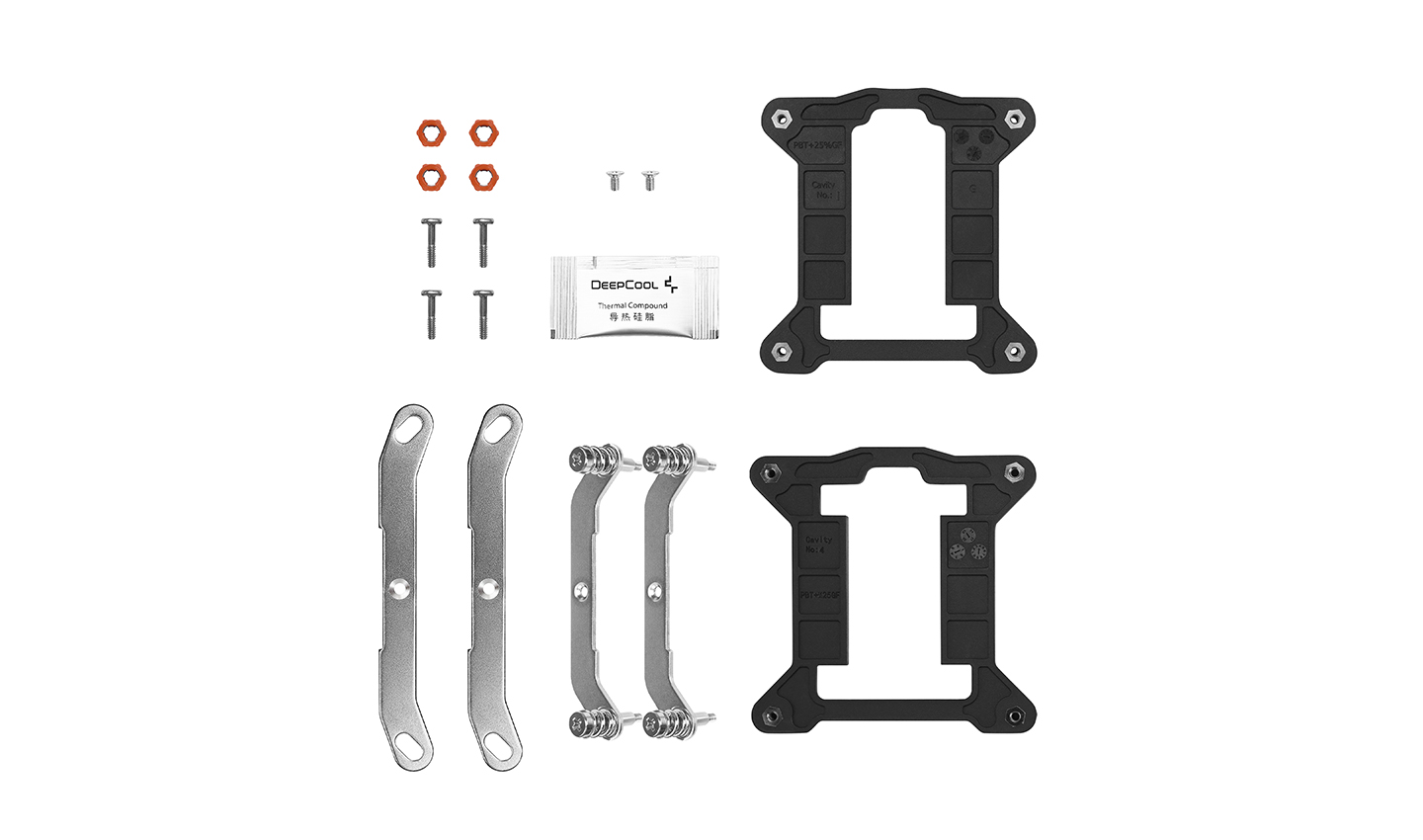

All New Mounting Tools
GAMMAXX 400 PRO’s all all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
All New Mounting Tools
GAMMAXX 400 PRO’s all all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
All New Mounting Tools
GAMMAXX 400 PRO’s all all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
All New Mounting Tools
GAMMAXX 400 PRO’s all all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×103×157.5 mm(L×W×H)
Heatsink Dimensions127×50×155 mm(L×W×H)
Net Weight 780 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1650 RPM±10%
Fan Airflow 64.5 CFM
Fan Air Pressure 2.1 mmAq
Fan Noise ≤27.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.18 A
Fan Power Consumption 1.68 W
EAN 6933412727040
P/N DP-MCH4-GMX400PRO-BL
Product Dimension
Download
GAMMAXX 400 PRO Manual.pdf
