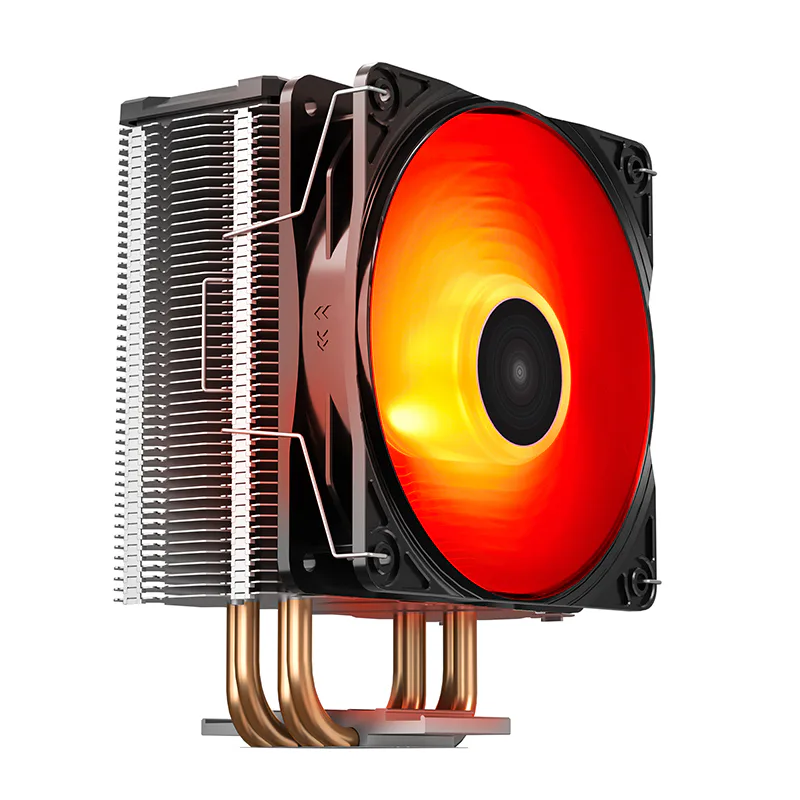

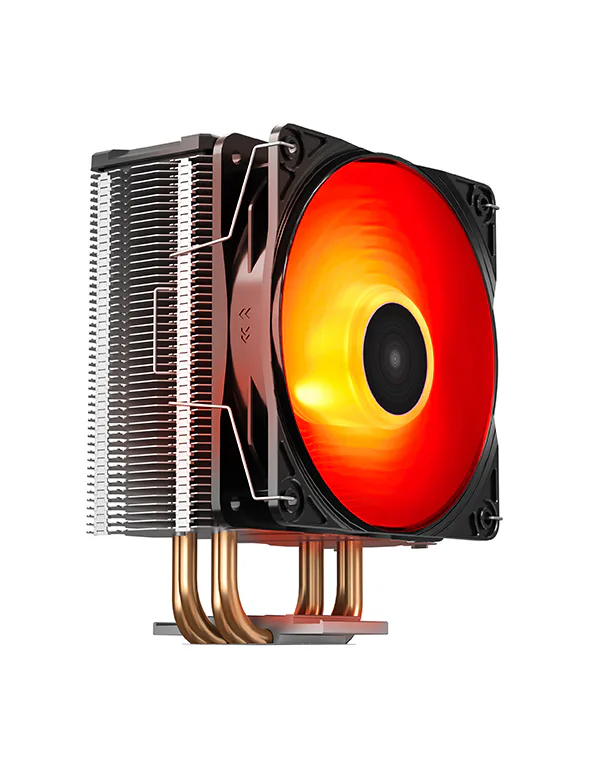

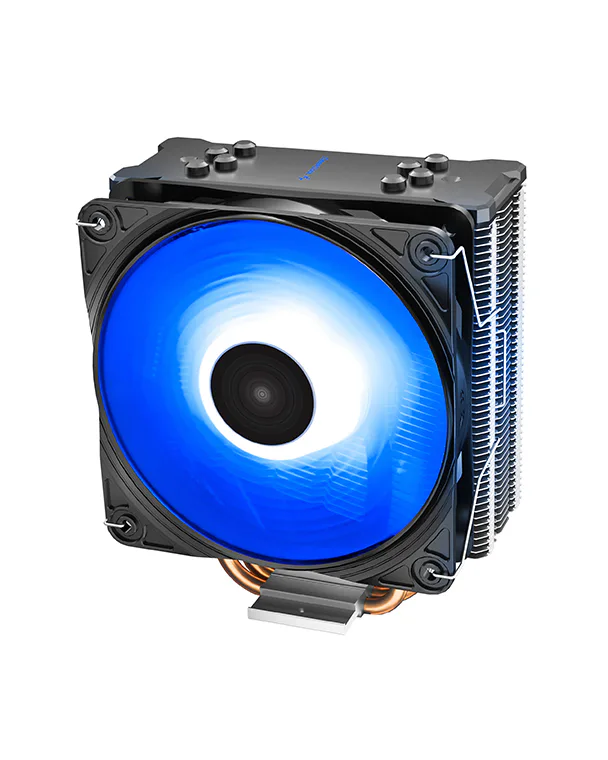

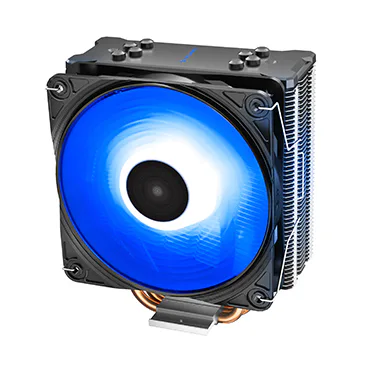

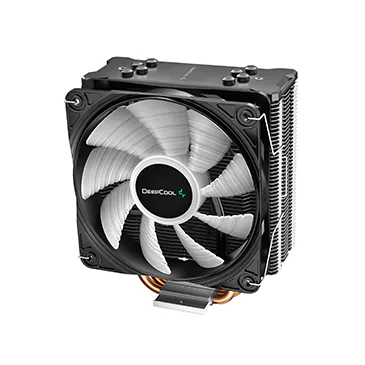

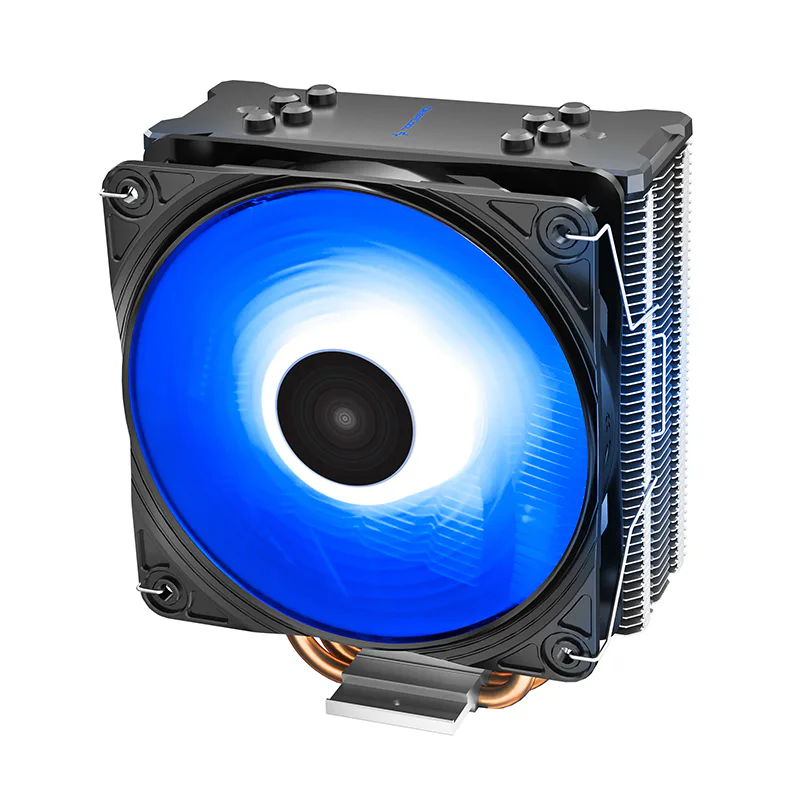

GAMMAXX GT V2
GAMMAXX GT V2 is a new model of the renowned GAMMAXX GT series. With an upgraded PWM & RGB fan, and the new mounting tools, GAMMAXX GT V2 is apt to provide better and safer cooling performance.
MODEL
GAMMAXX GT V2
Legendary Cooling

GAMMAXX GT V2 is a new model of the renowned GAMMAXX GT series.
With an upgraded PWM & RGB fan, and the new mounting tools, GAMMAXX GT V2 is apt to provide better and safer cooling performance.

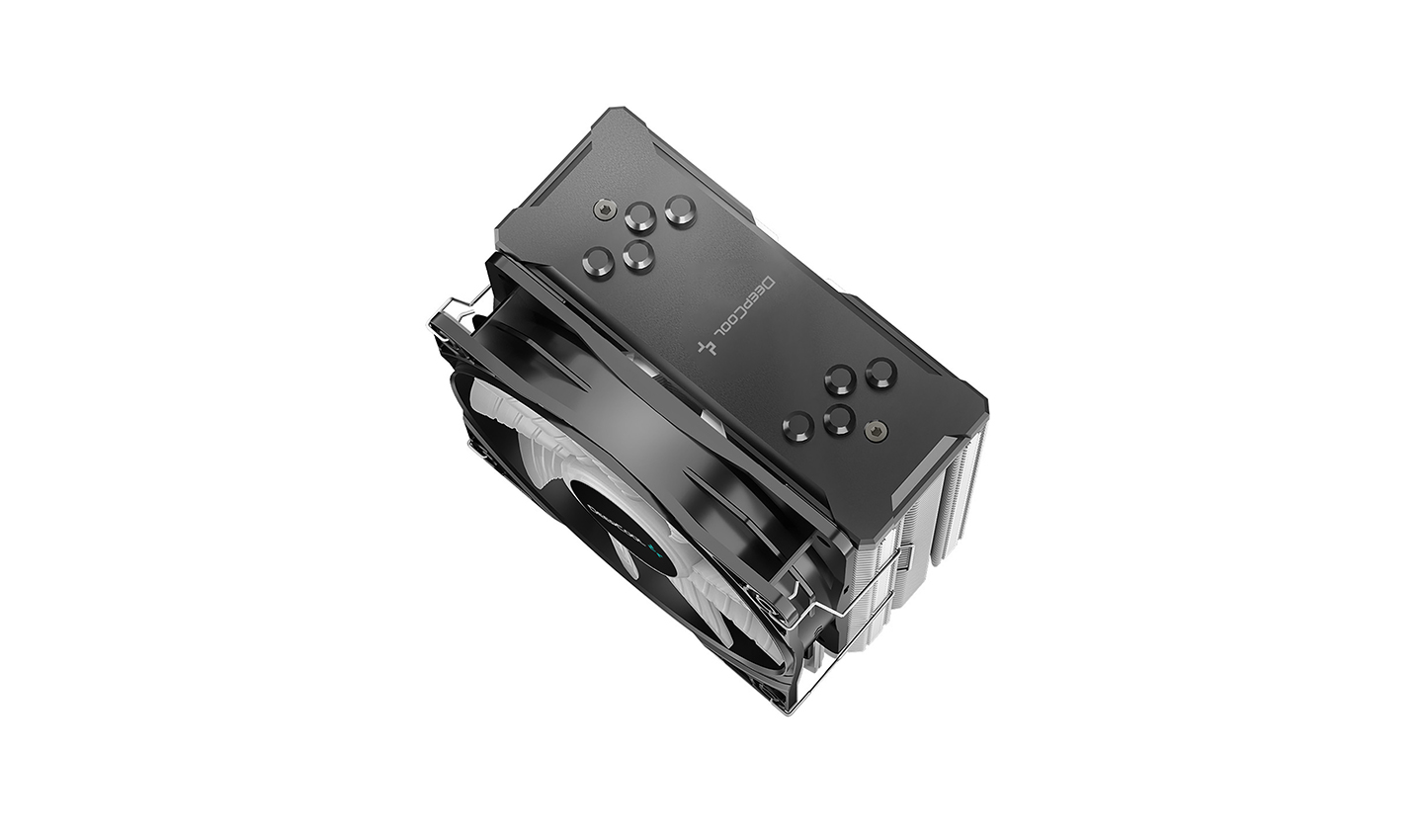

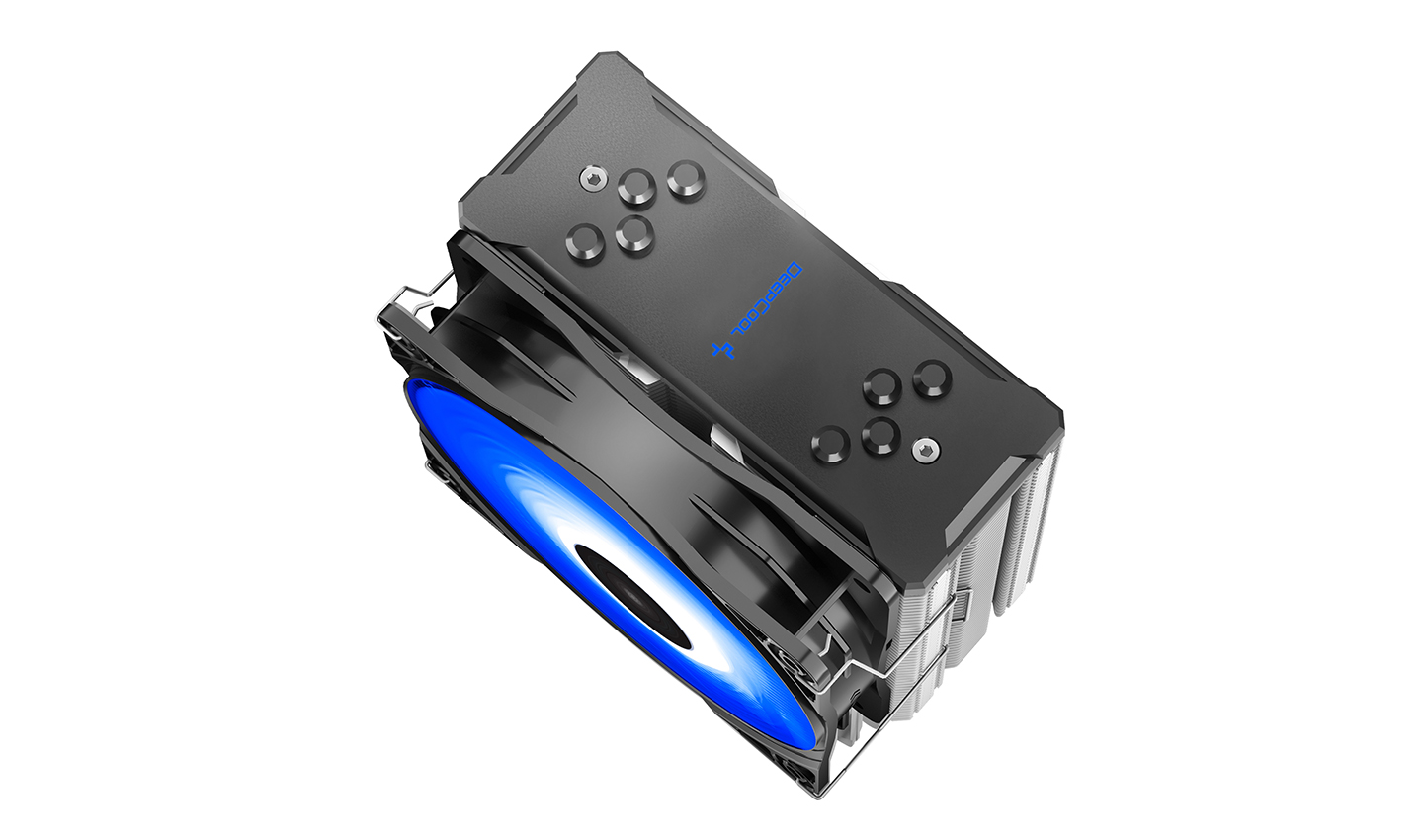

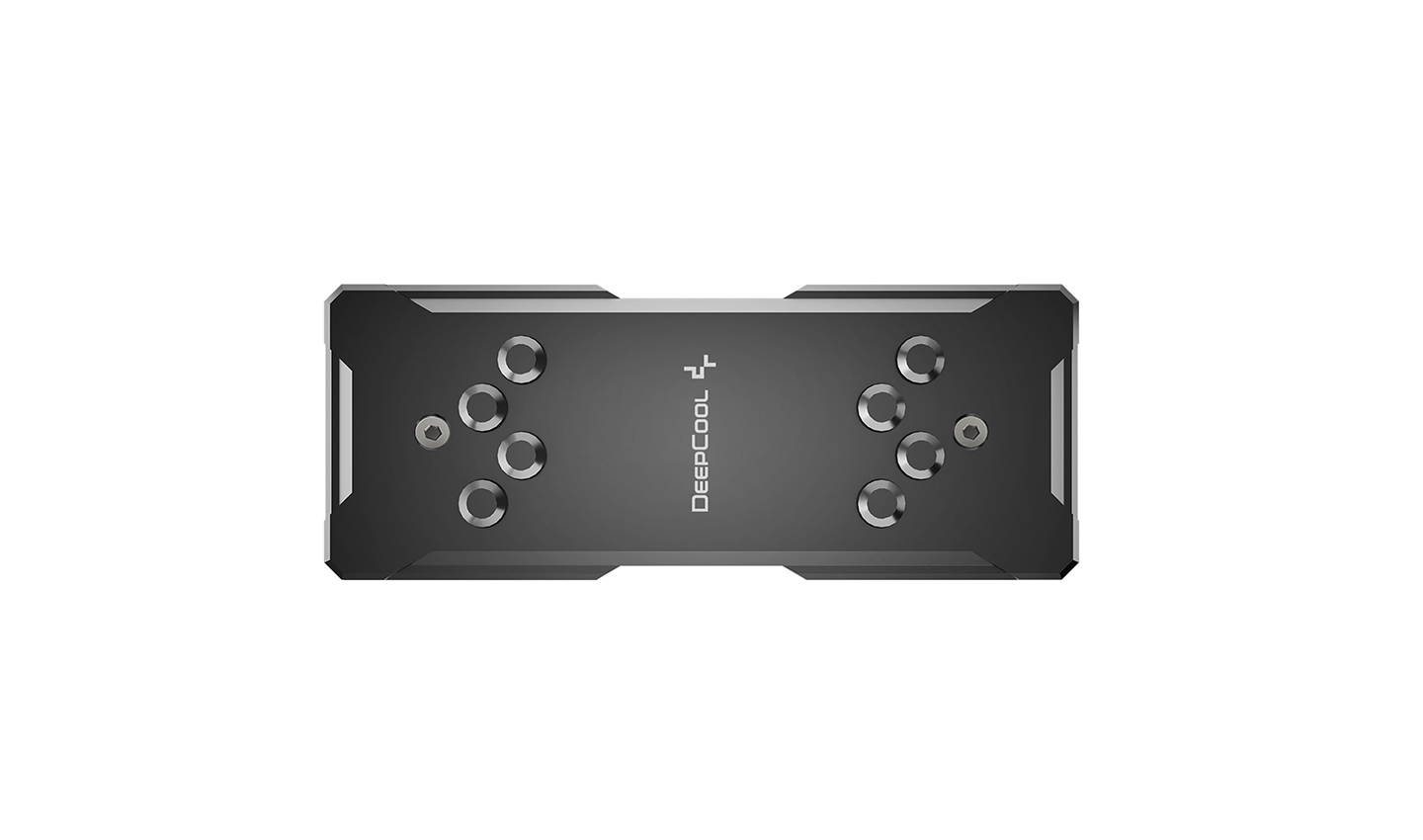

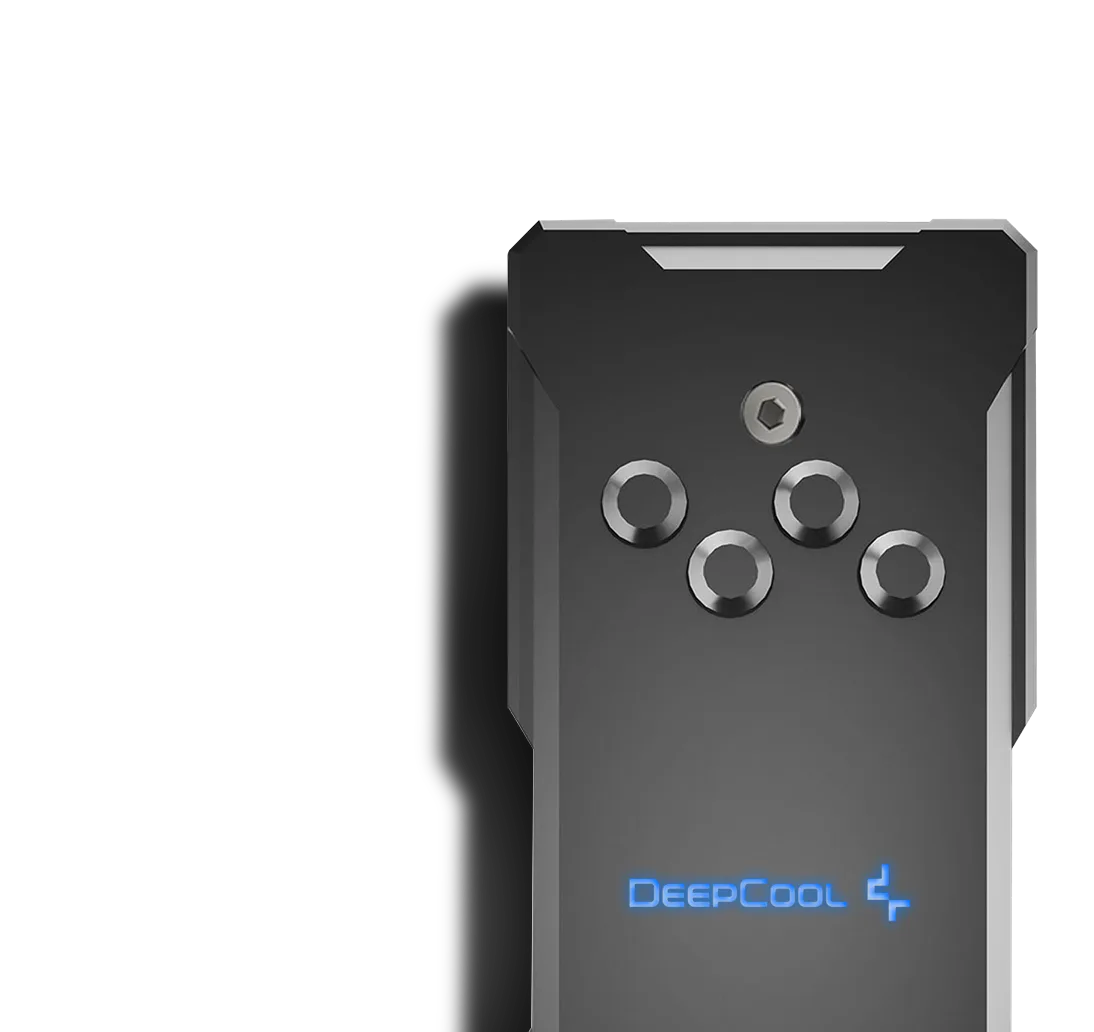

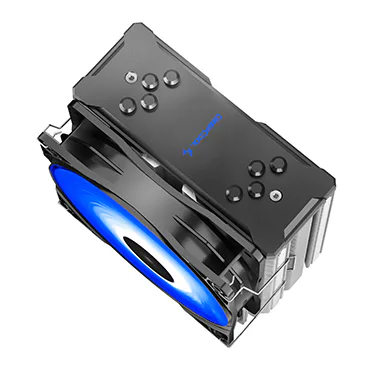

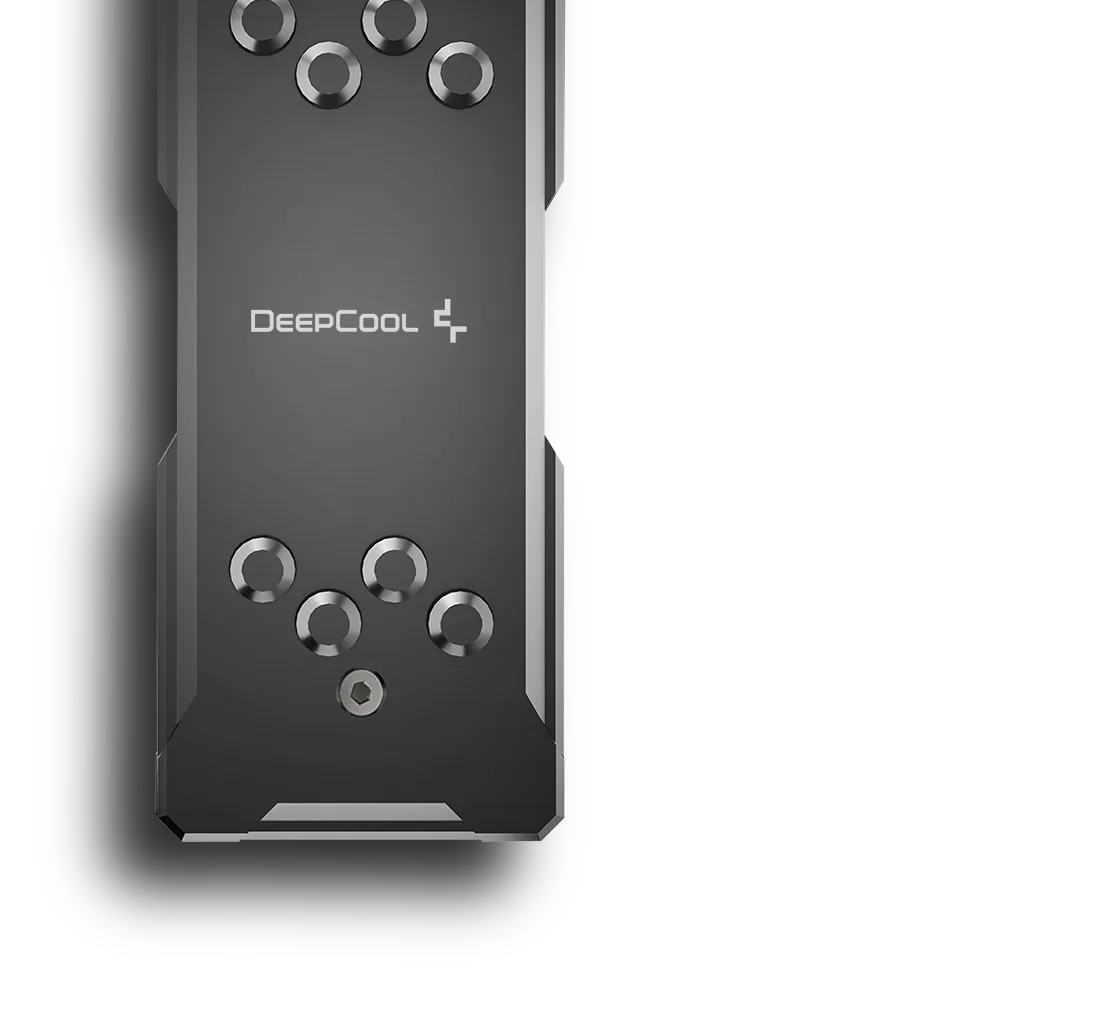

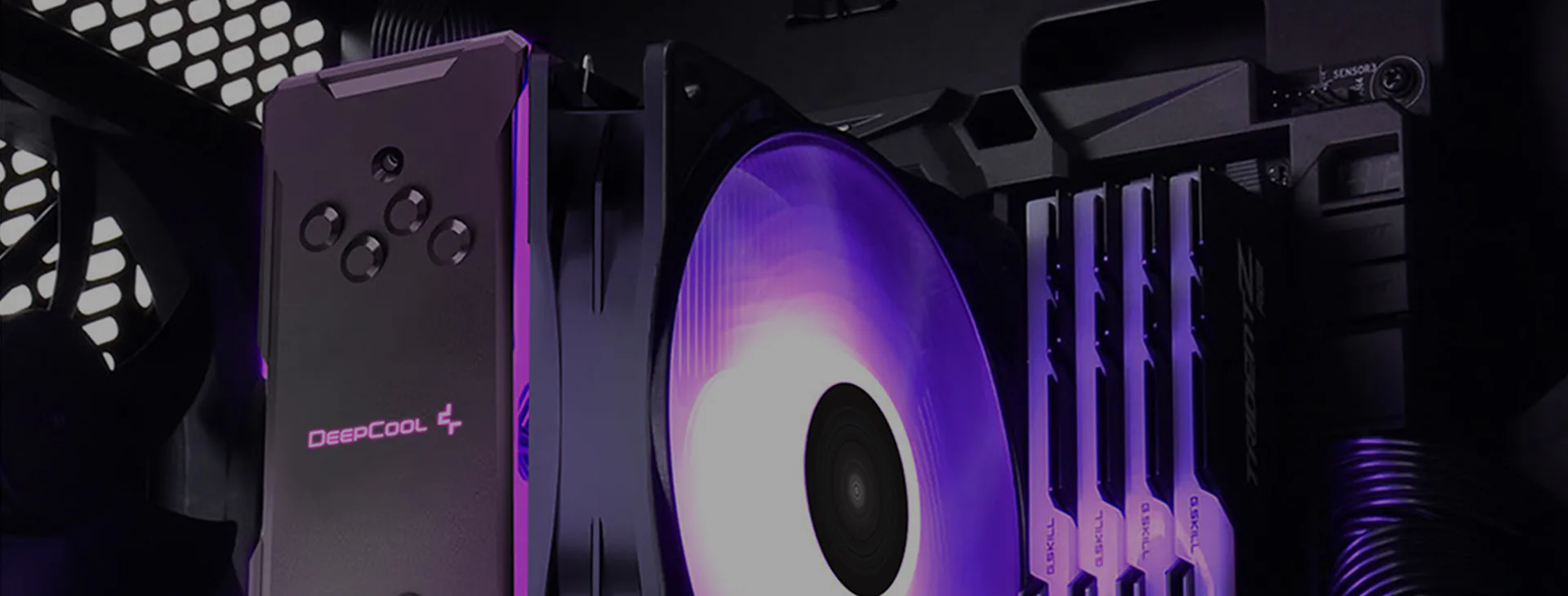

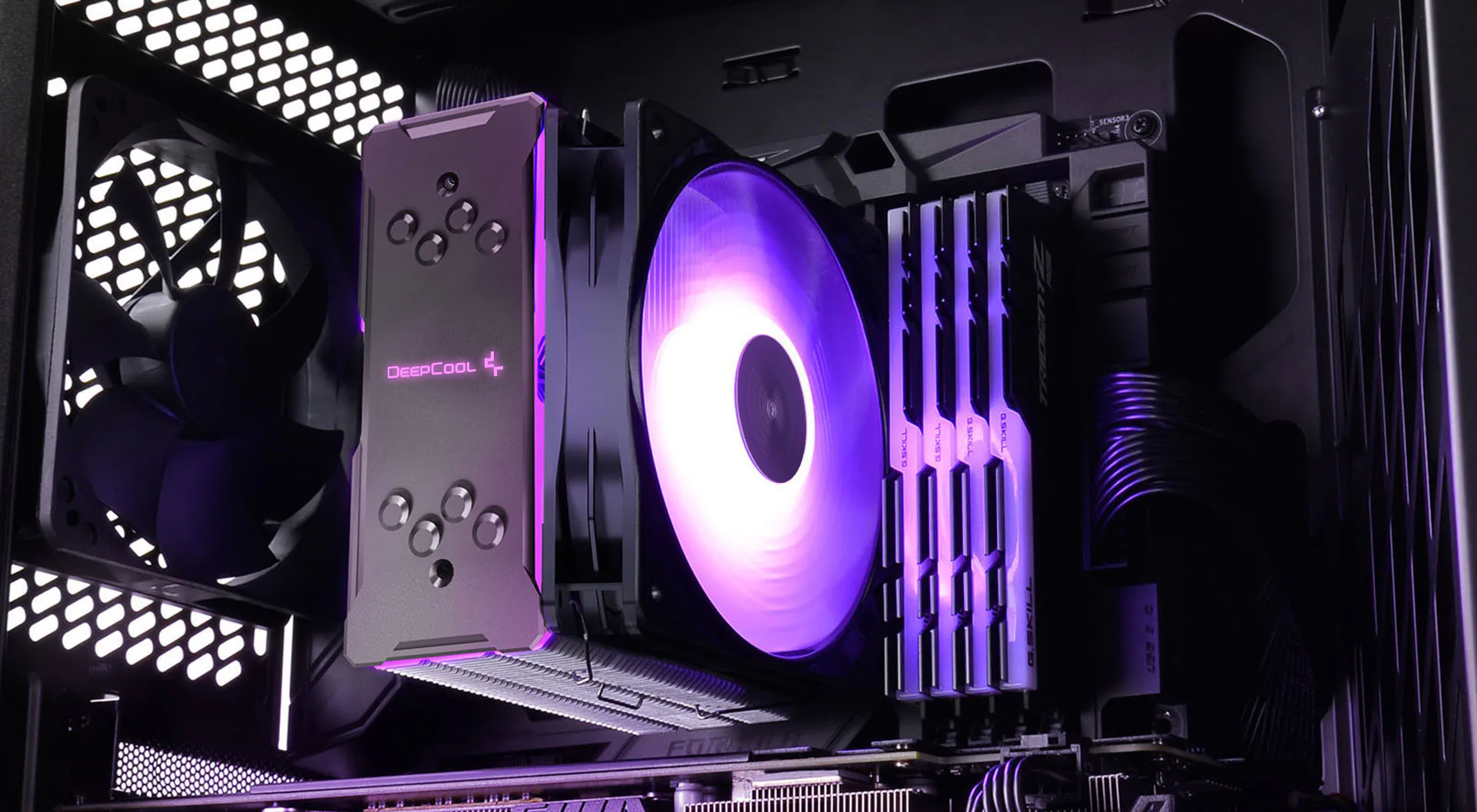

DARK LIGHTED TOP COVER
The dark paint on top cover provides the premium touch, while the RGB logo satisfy the need for bling. GAMMAXX GT V2 is the cooler of both quality and vitality.
CONVENIENT RGB CONTROL
A wire controller is included to control the lighting system of GAMMAXX GT V2.Extension cables are also in the package for motherboard control.
NEW PROCESS, BETTER DISSIPATION
The new fin-mounting process ensures smoother ventilation and more efficient heat dissipation.

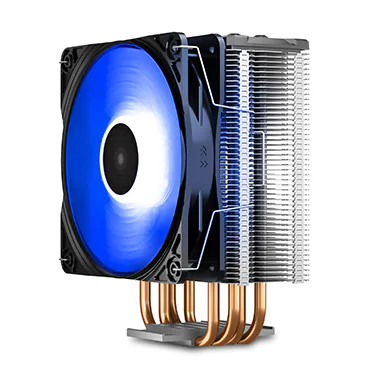

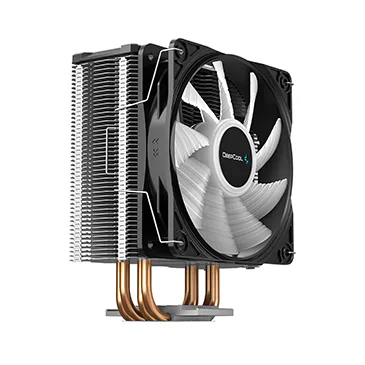

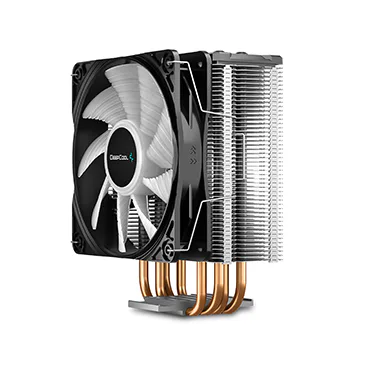

UPGRADED HEAT PIPES
With scientific layout and direct-touch technology, the 4 copper heatpipes will dissipate CPU heat with maximum efficiency.
UPGRADED HEAT PIPES
With scientific layout and direct-touch technology, the 4 copper heatpipes will dissipate CPU heat with maximum efficiency.

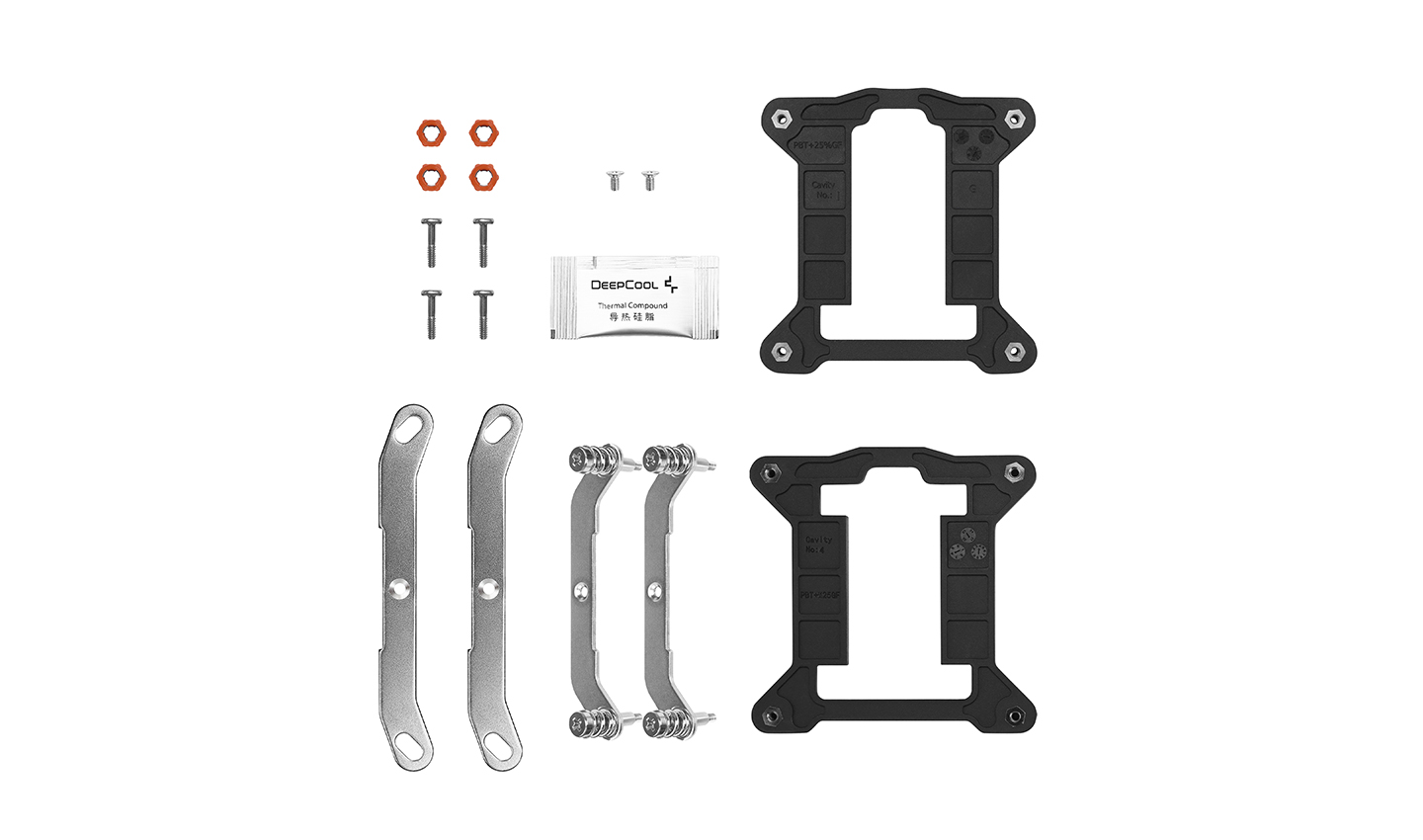

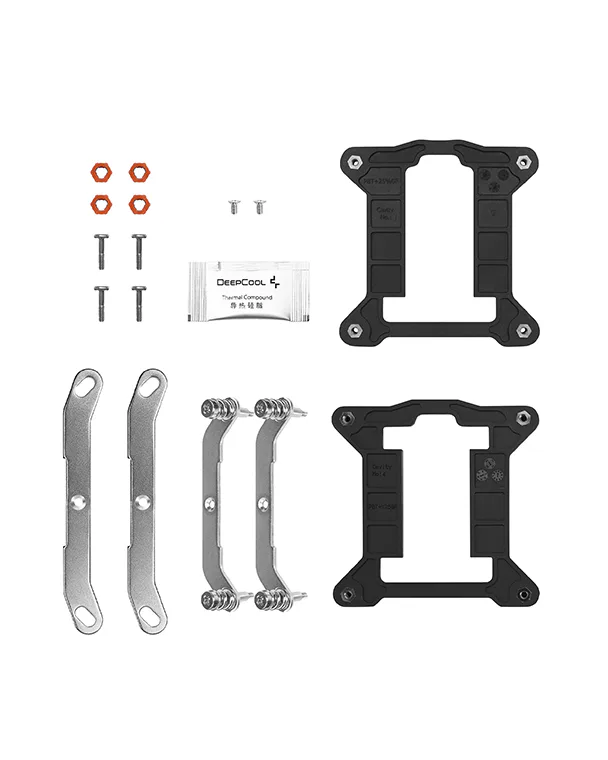

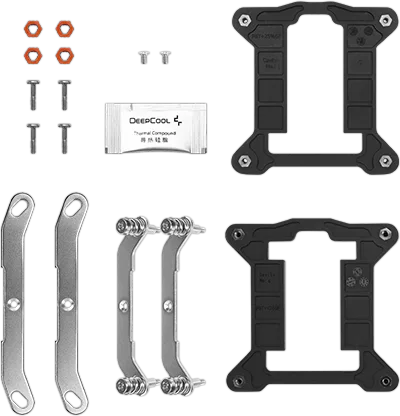

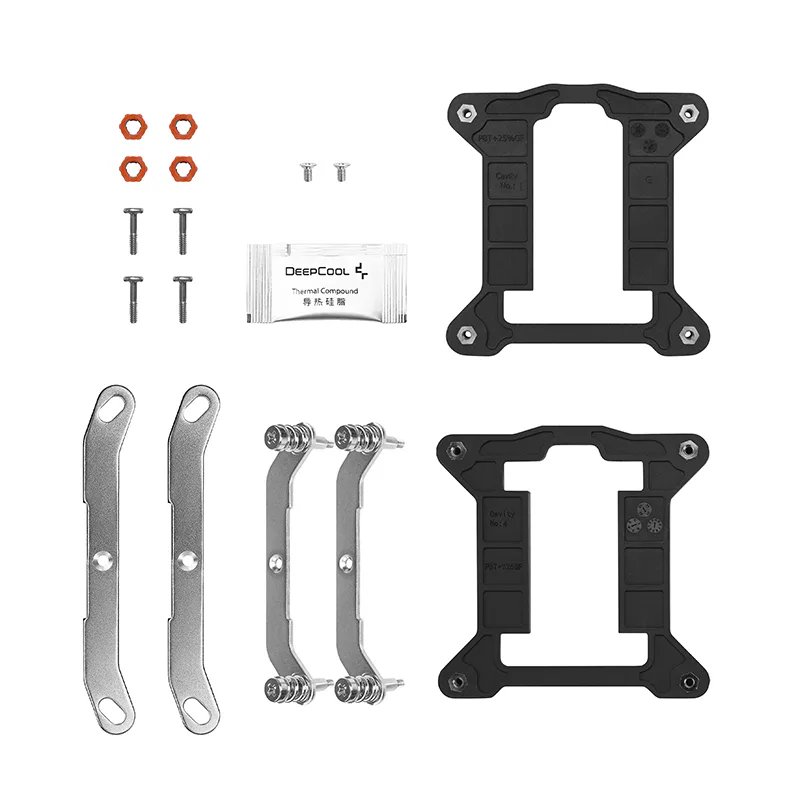

EASY TO INSTALL
The brand-new foolproof mounting kit supports multiple mainstream chipsets, making GAMMAXX GT V2 easier and safer to use.
EASY TO INSTALL
The brand-new foolproof mounting kit supports multiple mainstream chipsets, making GAMMAXX GT V2 easier and safer to use.

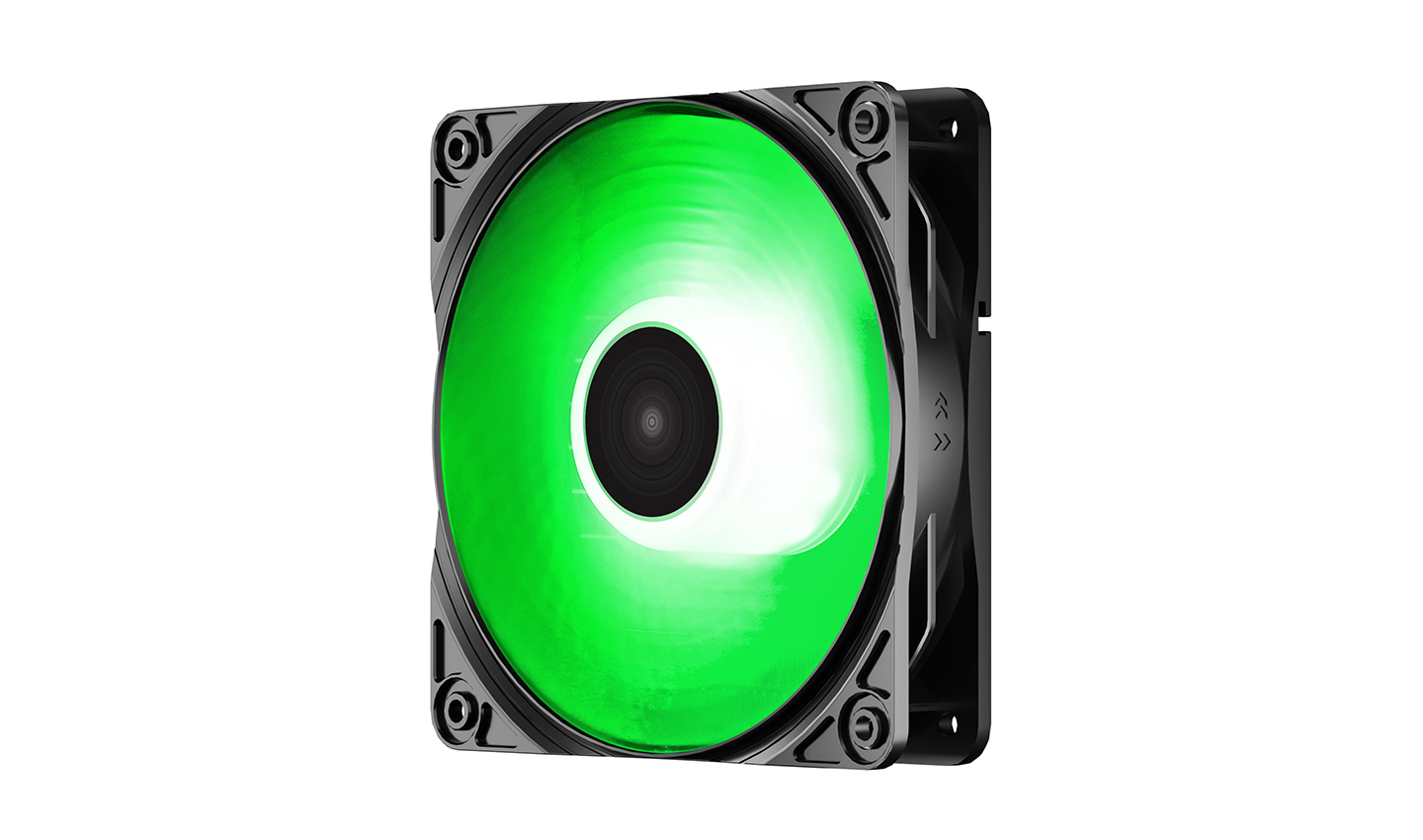

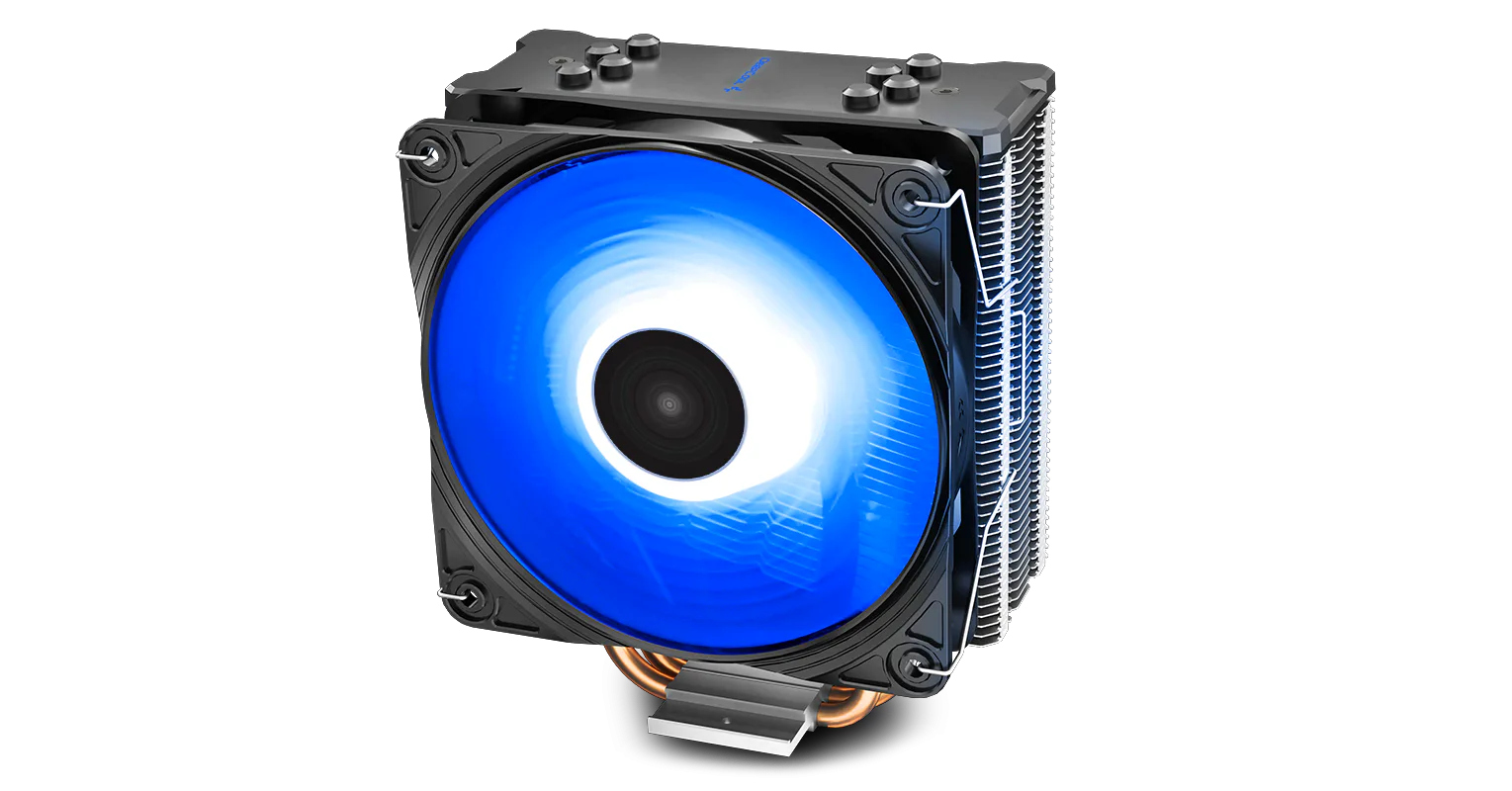

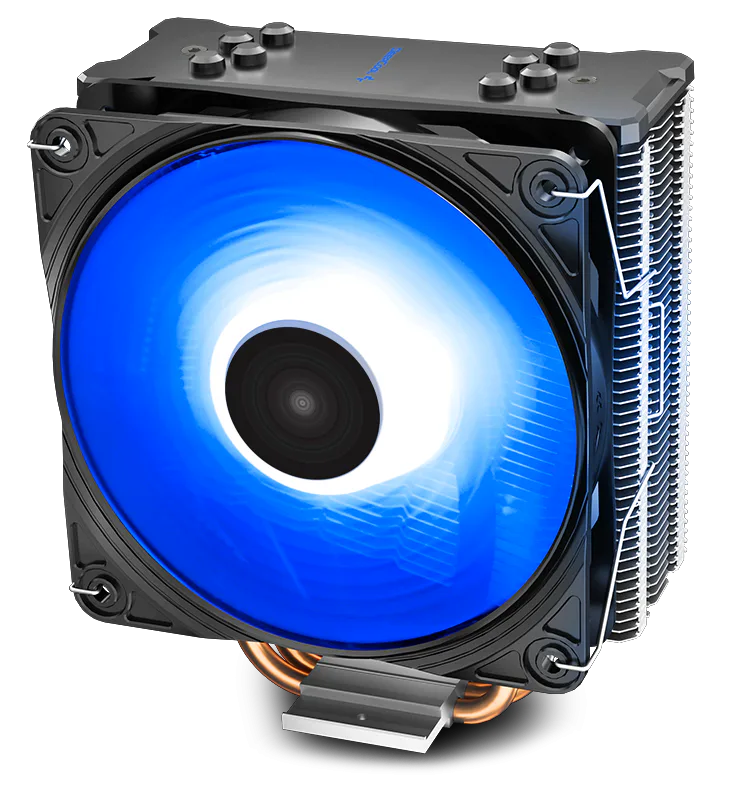

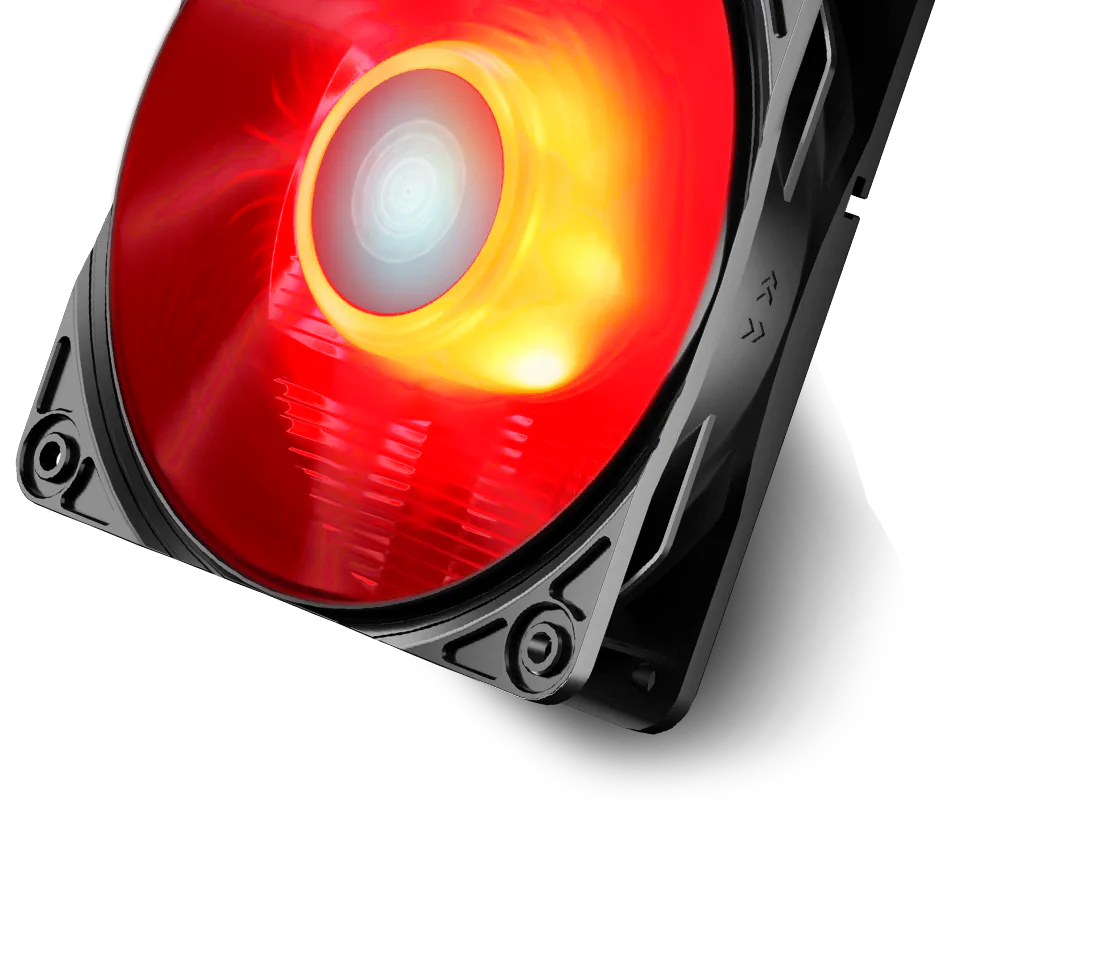

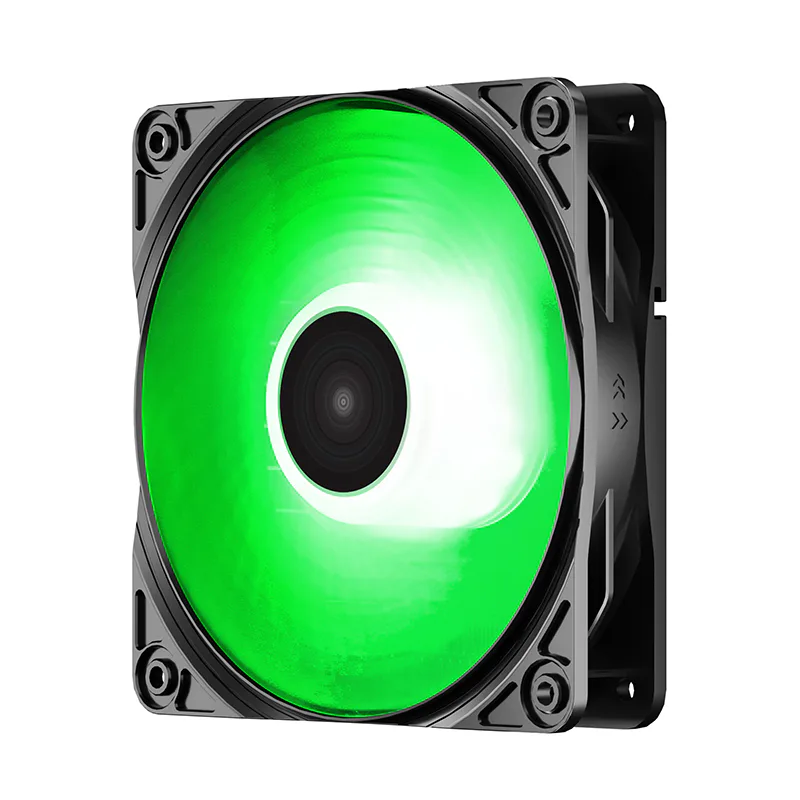

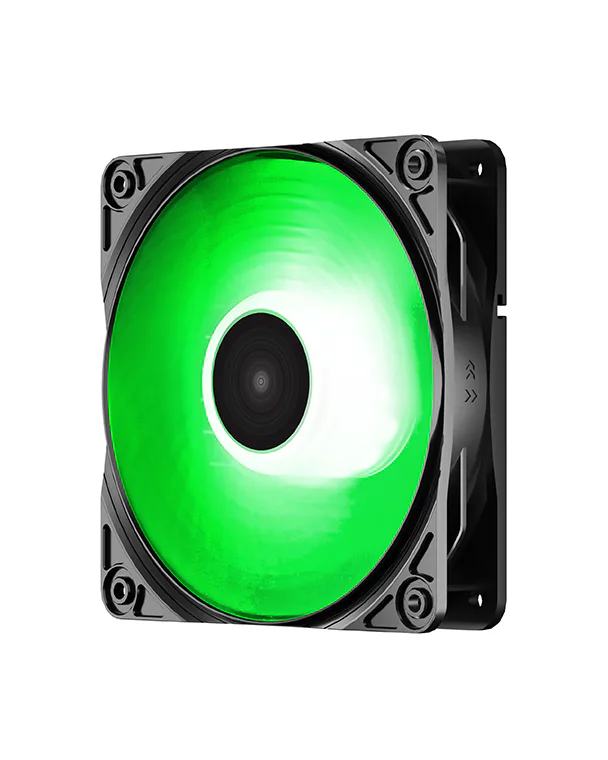

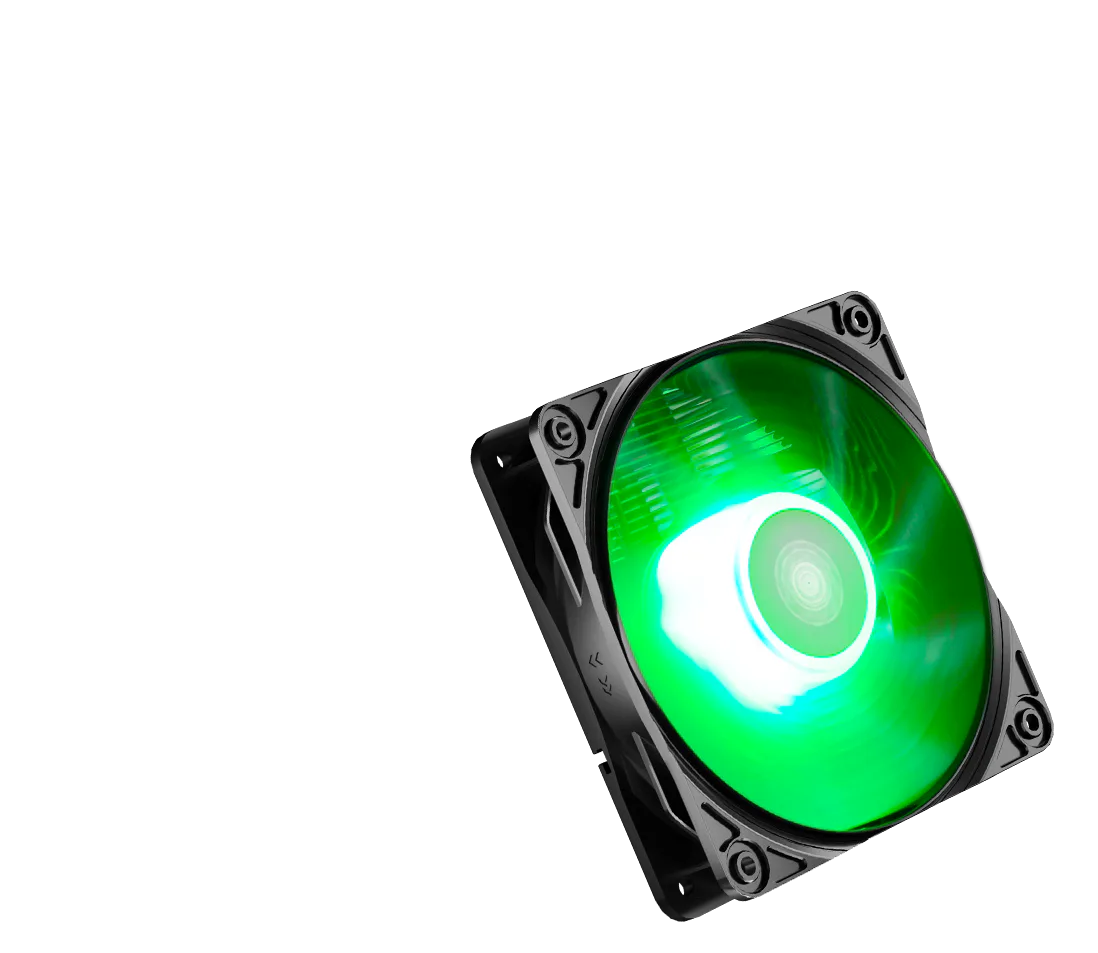

PWM & RGB FAN
The 120mm PWM fan is finely tuned to maintain perfect noise-performance balance. Its 12V RGB LEDs are ready to be synced with top cover and motherboards.
Application For
Intel
LGA1700/LGA1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×77×157.5 mm(L×W×H)
Heatsink Dimensions127×50×155 mm(L×W×H)
Net Weight 676 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1650 RPM±10%
Fan Airflow 64.5 CFM
Fan Air Pressure 2.1 mmAq
Fan Noise ≤27.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.14 A
Fan Power Consumption 1.68 W
LED Type RGB LED
LED Connector 4-pin(+12V-G-R-B)
LED Rated Voltage 12 VDC
LED Power Consumption 1.56W
EAN 6933412726913
P/N DP-MCH4-GMX-GTV2
Product Dimension
Download
GAMMAXX GT V2 Manual.pdf
