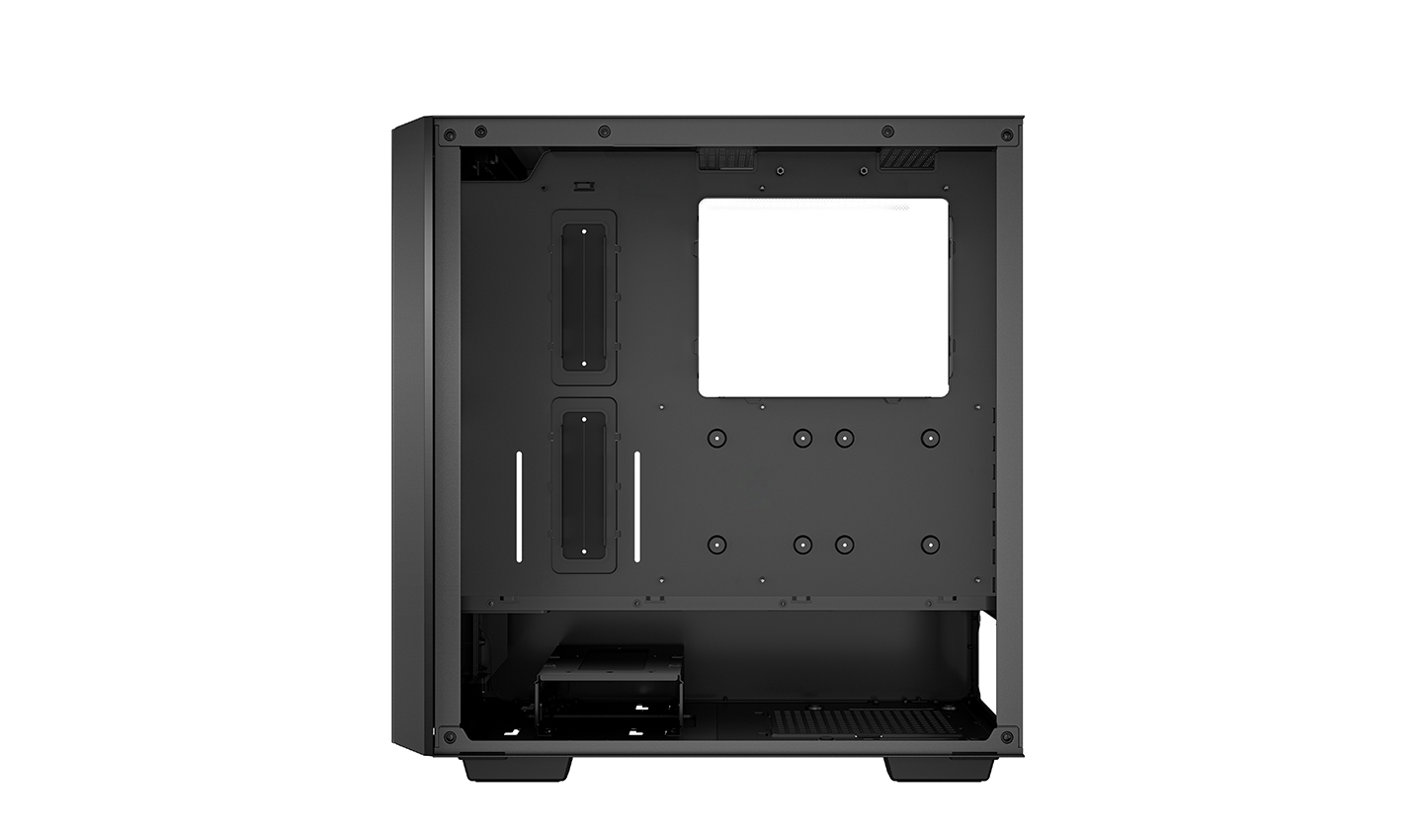

CG560 Limited
The DeepCool CG560 Limited Mid-Tower Case combines abundant airflow and generous cooling capacity in an updated modern design that makes system building a breeze.
CG560 Limited
Airflow Focused
Accelerated Airflow
Keep your components cool with increased air intake through an optimized front panel for maximum ventilation.
Expansive Cooling Capacity
Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
6 120mm
5 140mm
1 360mm
2 280mm
2 240mm
3 140mm
3 120mm
- Max CPU Cooler Height: 175mm
- Max GPU Length: 380mm
- Max PSU Length: 170mm
Complete Storage
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.
Easy Access Side Panels
Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
Clean and Tidy
Easy-to-clean magnetic dust filters.
Independent PCIe Slot Baffles
Remove and reuse for simpler setup.
Front I/O Panel
Includes two USB 3.0 ports, a combination audio/mic jack, reset and power buttons.
Front I/O Panel
Includes two USB 3.0 ports, a combination audio/mic jack, reset and power buttons.
Technical Spec
Product Dimensions 452×230×470mm(L×W×H)
Net Weight 6.5Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports USB3.0×2、Audio×1
3.5' Drive Bays 2
2.5' Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans None
Fan Support Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2 (maximum length: 170mm)
EAN Code 6933412714781
PN Code R-CG560-BKNAE0-C-1
Product Dimension
CG560 Limited Manual.pdf
